The Cable Ferret Company Ferret WIFI camera
User manual
WiFi Inspection Camera
Instruction Manual
FERRET WiFi CFWF50A
Version 1.0 © 2018
Patent Pending
The Cable Ferret Company Limited
The Cable Ferret Company Pty Ltd
Cable Ferret, Inc.
www.cableferret.com
Designed in New Zealand
Made in China
Caution:
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-Consult the dealer or an experienced radio/TV technician for help.
This device complies with part 15 of the FCC rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
Any Changes or modifications not expressly approved by the party responsible for compliance could
void the user's authority to operate the equipment.
General Information
Your FERRET WiFi CFWF50A is an IP67 rated compact
wireless rechargeable inspection camera designed to help you
see and work in dark confined spaces.
The Cable Ferret Company’s commitment to ongoing product
and quality improvement means that the specifications are
subject to change without notice.
Smart Tool
Smart Choice

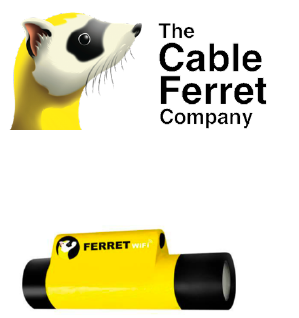

Camera Unit
CFWF50A
The on/off switch and the USB
Type-C charging socket are located at the back of the camera
behind the screw-on aluminium cap.
To maintain the camera’s IP67 rating, the camera must not be
disassembled. There are no user serviceable items inside the
camera and disassembly will void the warranty.
There is a rubber O-ring on the body of the camera that provides a
seal for the back cap that in turn protects the on/off switch and USB
charge socket. It is important that this O-ring remains clean and in
good condition.
The IP67 rating is only when the back cap is securely screwed
on and the rubber O-ring is in good condition.
Turn On/Off – Slide the switch at the rear of the camera to turn the
camera on or off. When turned on the front LEDs will illuminate and
a rear power indication LED will also illuminate.
Charge – Connect the supplied power supply. While the camera is
charging the red LED at the rear will illuminate. Once fully charged
the red LED at the rear will turn off.

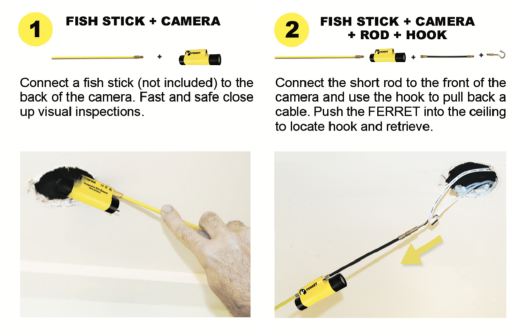

Note: When the camera is screwed on to fish sticks (push-pull rods)
and in use, take care not to twist the sticks (rod) too far anti-
clockwise as this may result in the camera unscrewing and
becoming disconnected from the stick (rod).
Gooseneck
Point the FERRET camera in any direction with the addition of the
flexible gooseneck. It’s approximately 150mm long (6”) and can
attach to fish sticks (push pull rods).

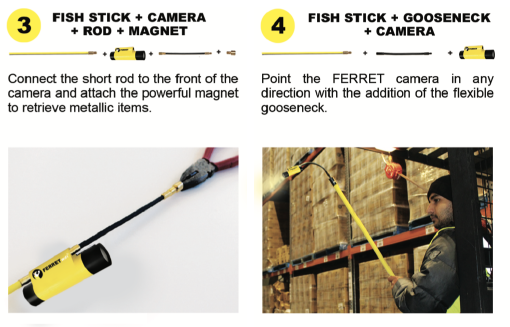

Rod/Hook/Magnet
Connect the 150mm (6”) rod to the front of the
camera and use the hook or magnet to pull
back a cable or retrieve a metallic object.
Thread Adaptors
The Ferret camera thread is ¼”-20UNC. For
compatibility with the majority of fish sticks (push pull
rods), thread adaptors are included to suit 8-32 threaded fish sticks
(most common thread type in USA) as well as 5mm and 6mm
metric threaded fish sticks.
Ferret WiFi Configuration Guide
www.cableferret.com

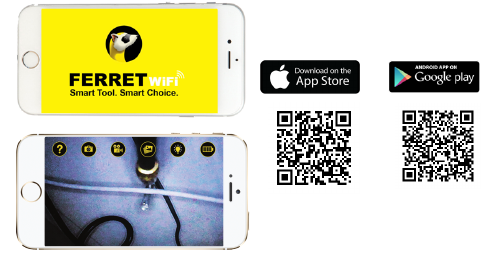

Ferret WiFi Free App
Scan the QR Code below or
search for “Ferret WiFi”
iOS V8 Android V6
or later or later
recommended recommended
Record photo image to device gallery
Press to record image
Record video to device gallery
Press to start recording
Press to end recording
View image and video library
Images/video can be viewed or deleted
Adjust LED brightness
Press to adjust – off – half – full
Camera battery level indication
Important Information – Li-Ion Batteries
The FERRET camera contains a Li-Ion battery.
For optimal battery life;
• Do not store the camera while the battery is flat.
• Do not store the camera in temperatures of over 35°C
(95°F).
• If the camera is not being used, top up the charge every 6
months.
Warranty
Your FERRET comes with a 12 month replacement warranty. In
the unlikely event that your FERRET develops a fault within 12
months of purchase, simply return in to your local store with
proof of purchase for a replacement.
Failure due to physical damage, misuse, neglect, improper use
or moisture is not covered.
For full terms of the warranty see www.cableferret.com
The camera has no user serviceable parts inside.
Disassembly will void the warranty.
