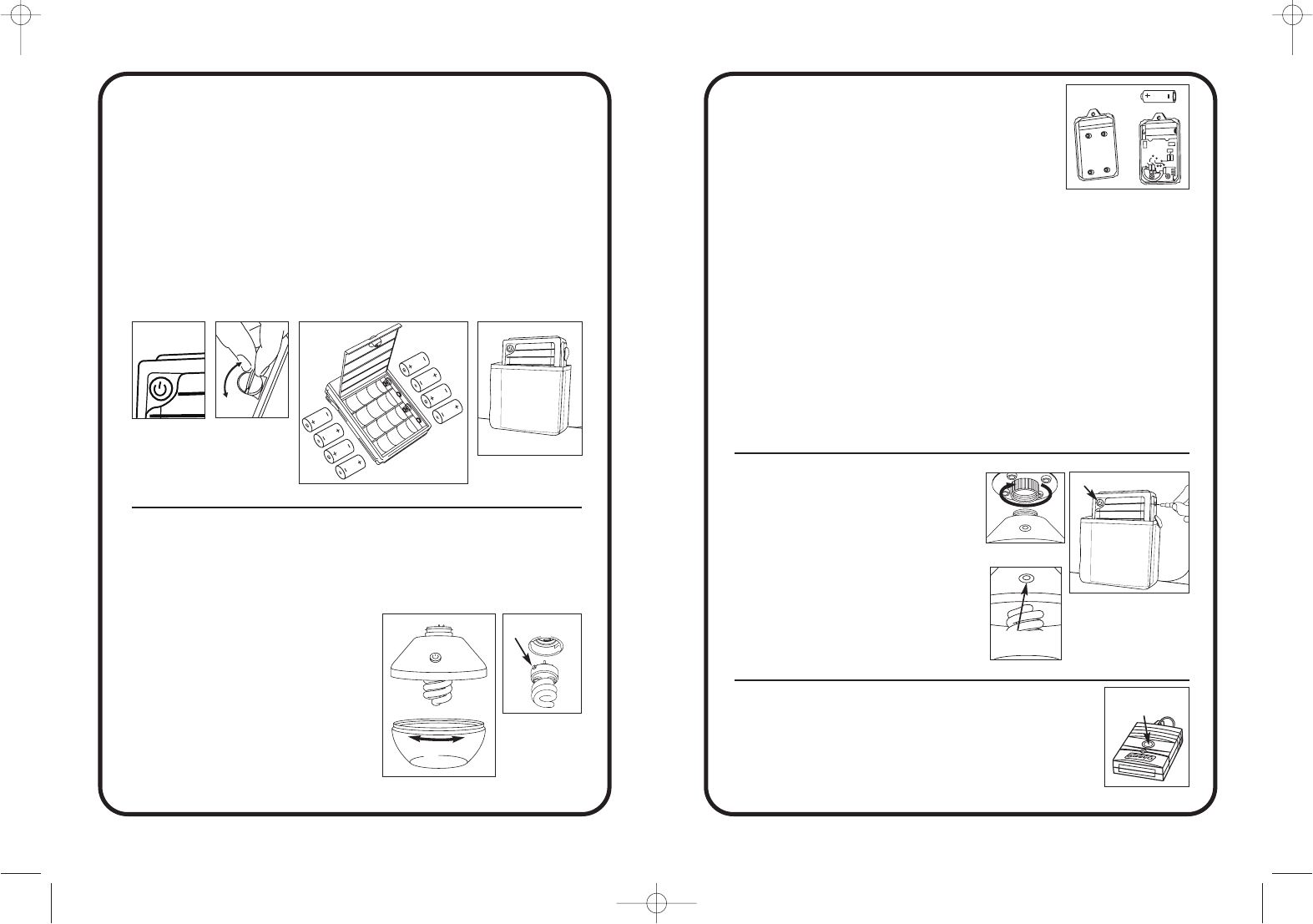

TO INSTALL OR REPLACE POWER PACK BATTERIES
Your new Coleman®Tent Lighting System operates on 8 “D” cell batteries.
For longest life use alkaline batteries.
1. If Red Button on front of battery pack is glowing, push button to turn power “OFF”.
(Fig. 1)
2. Turn battery pack over and place coin into slot and rotate to unlock. (Fig. 2)
3. Lift up lid and install 8 batteries in the correct orientation as shown on the battery
compartment. Always be careful that batteries are installed correctly. (Fig. 3)
4. Close lid, insert coin into slot and rotate to locked position.
5. Place battery pack in pocket sewn into side of tent. (Fig. 4)
NOTE: Never operate tent light if battery pack is not stored in upright position, with
red button facing outward, in pocket.
TO REPLACE REMOTE CONTROL BATTERY
NOTE: Remote control feature is not available on all versions of this
Coleman®Tent Lighting System.
1. Remove 4 screws from back of transmitter and install one
12v, 23AE alkaline battery. (Fig. 7)
2. Reassemble transmitter.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
This device must accept any interference received, including interference that may cause undesired operation.
Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could
void the user’s authority to operate this equipment.
This device complies with Part 18 of the FCC Rules.
Note: This product may cause interference to radio equipment and should not be installed near maritime safety
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
communications equipment or other critical navigation or communication equipment operating between 0.45-30 MHz.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between equipment and receiver.
The Responsible Party information as below:
• Applicant name in full: The Coleman Company, Inc.
• Address: 3600 N. Hydraulic, Wichita, KS 67219
• Contact in USA: Rex Weigand / Director of Product Safety & Compliance
• Phone: (316) 832-3056
• Fax: (316) 832-6193
• Email address: RWeigand@coleman.com
• Connect the equipment into an outlet on a circuit different from that which the receiver is needed.
• Consult the dealer or an experienced radio/TV technician for help.
N
AME
L
OC ®N
AME
L
OC
ET
NE
T E
D
E
G
AR
I
A
L
CÉ / ME
TS
YS
GN
I
TH
G
I
L T
NE
T®
Model 830-500 Series
Modèle de la série 830-500
11/2006
For products purchased in Canada:
Sunbeam Corporation (Canada) Limited
DBA Jarden Consumer Solutions
5975 Falbourne Street
Mississauga, Ontario, Canada L5R 3V8
5-Year Limited Warranty
The Coleman Company, Inc. (“Coleman”) warrants that for a period of five years from the date of original retail purchase,
this product will be free from defects in material and workmanship. Coleman, at its option, will repair or replace this product or
any component of the product found to be defective during the warranty period. Replacement will be made with a new or
remanufactured product or component. If the product is no longer available, replacement may be made with a similar product
of equal or greater value. No warranty is provided for batteries and light bulbs. This is your exclusive warranty.
This warranty is valid for the original retail purchaser from the date of initial retail purchase and is not transferable. Keep the
original sales receipt. Proof of purchase is required to obtain warranty performance. Coleman dealers, service centers or retail
stores selling Coleman®products do not have the right to alter, modify or in any way change the terms and conditions of this
warranty.
What This Warranty Does Not Cover
This warranty does not cover normal wear of parts, parts that are not genuine Coleman®parts, or damage resulting from any
of the following: negligent use or misuse of the product; use on improper voltage or current; commercial use of the product;
use contrary to the operating instructions or disassembly, repair or alteration by anyone other than Coleman or an authorized
service center. Further, the warranty does not cover Acts of God, such as fire, flood, hurricanes and tornadoes. Warranty void if
damage to product results from the use of a part other than a genuine Coleman®part.
COLEMAN SHALL NOT BE LIABLE FOR DEFECTS THAT ARE CAUSED BY THE USE OF UNAUTHORIZED PARTS OR
SERVICE. COLEMAN SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES CAUSED BY THE
BREACH OF ANY EXPRESS OR IMPLIED WARRANTY OR CONDITIONS. EXCEPT TO THE EXTENT PROHIBITED BY
APPLICABLE LAW, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE IS
LIMITED IN DURATION TO THE DURATION OF THE ABOVE WARRANTY OR CONDITIONS. SOME STATES, PROVINCES,
OR JURISDICTIONS DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES
OR LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATIONS OR EXCLUSION MAY
NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER
RIGHTS THAT VARY FROM STATE TO STATE OR PROVINCE TO PROVINCE.
How to Obtain Warranty Service
Take the product to an authorized Coleman service center.
You can find the nearest authorized Coleman service center by visiting www.coleman.com or calling 1-800-835-3278 or
TDD 316-832-8707 in the United States or 1 800 387-6161 in Canada. If a service center is not conveniently located, attach to
the product a tag that includes your name, address, daytime telephone number and description of the problem. Include a copy
of the original sales receipt. Carefully package the product and send either by courier or insured mail with shipping and
insurance prepaid to:
For products purchased in the United States:
The Coleman Company, Inc.
3600 North Hydraulic
Wichita, KS 67219
The costs of transporting the product to Coleman or an authorized service center for warranty service is the responsibility of
the purchaser.
DO NOT RETURN THIS PRODUCT TO THE PLACE OF PURCHASE.
If you have any questions regarding this warranty please call 1-800-835-3278 or
TDD 316-832-8707 in the United States or 1 800 387-6161 in Canada.
©2006 The Coleman Company, Inc. All rights reserved.
Coleman®, , and are registered trademarks of The Coleman Company, Inc.
NAM
E
LO
C®NAM
E
LO
C E
TN
E
T
ED
EG
A
R
IA
L
CÉ / M
ET
SY
S GNIT
HG
I
L T
NE
T®
Fig. 4
TENT LIGHTING
SYSTEM
How to Use and Enjoy Your Coleman
®
Fig. 2
Fig. 1
Fig. 3
TO CHANGE FLUORESCENT TUBE
NOTE: This tent light uses one 15-watt fluorescent spiral tube (See Parts List for
replacement part #). Fluorescent spiral tubes are very fragile. Handle with care.
1. Make sure power pack light is turned “OFF” and red button is not glowing.
2. Grasp globe on tent light and turn clockwise to remove. (Fig. 5)
3. Gently press down on fluorescent spiral
tube and turn counterclockwise until both
alignment tabs are visible in locating slots
of housings. Remove tube. (Fig. 6)
4. Install new fluorescent spiral tube by
placing alignment tabs in locating slots of
reflector. Gently push down and rotate
clockwise until secure.
5. Reattach globe to light housing by turning
counterclockwise until tightened. Do not
overtighten.
POCKET
TENT FLOOR
SIDE OF TENT
Fig. 6
Fig. 5
Fig. 7
TO OPERATE TENT LIGHT
1. Screw tent light into socket at top of tent
by turning clockwise. (Fig. 8)
2. Unsnap rubber plug from side of power pack
and plug the power cord that was installed
in your tent into the power pack. (Fig. 9)
3. Push the red button on the power pack to
turn on main power. The button on the
power pack and the tent light will glow when
main power is “ON”. (Fig. 9)
4. Push red button on tent light: a) once for
“HIGH” light setting, twice for “LOW” light
setting, a third time will turn light “OFF”.
(Fig. 10)
TO OPERATE TENT LIGHT WITH REMOTE CONTROL
1. Push the red button on the power pack to turn on main power. The
button on the power pack and the tent light will glow when main
power is “ON”. (Fig. 10)
2. Push the button on the remote control transmitter: a) once for
“HIGH” light setting, twice for “LOW” light setting, a third time will
turn light “OFF”. (Fig. 11)
Fig. 9
RED BUTTON
Fig. 10
LIGHT
RED BUTTON
Fig. 11
TRANSMITTER
BUTTON
SYSTÈME D’ÉCLAIRAGE
DE TENTE
Profitez au maximum de ce système Coleman
®
ALIGNMENT
TABS
CLOSE OPEN
