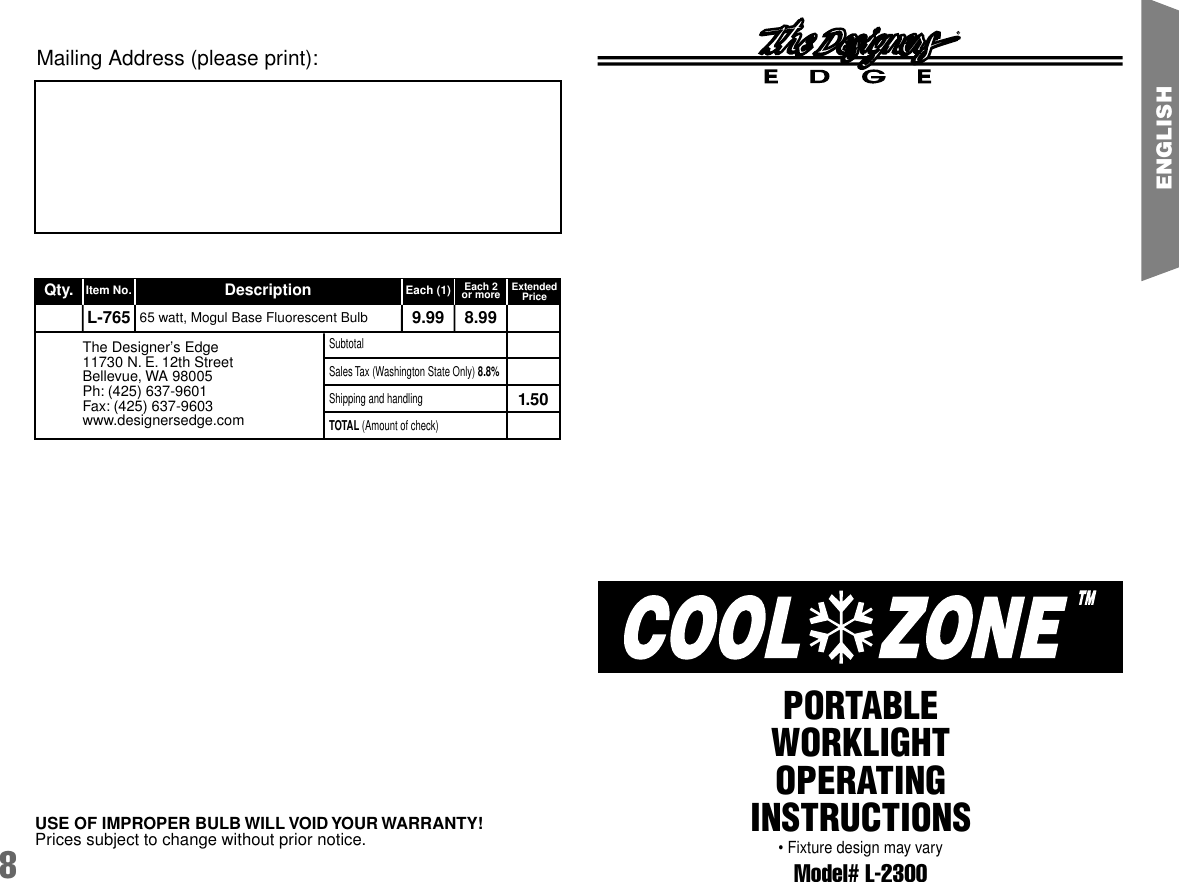

8ENGLISHModel# L-2300PORTABLEWORKLIGHTOPERATINGINSTRUCTIONS• Fixture design may varyMailing Address (please print):USE OF IMPROPER BULB WILL VOID YOUR WARRANTY!Prices subject to change without prior notice.Qty. Item No. Description Each (1) Each 2or more ExtendedPriceL-765 9.99 8.991.5065 watt, Mogul Base Fluorescent BulbSubtotalShipping and handlingSales Tax (Washington State Only) 8.8%TOTAL (Amount of check)The Designer’s Edge11730 N. E. 12th StreetBellevue, WA 98005Ph: (425) 637-9601Fax: (425) 637-9603www.designersedge.com

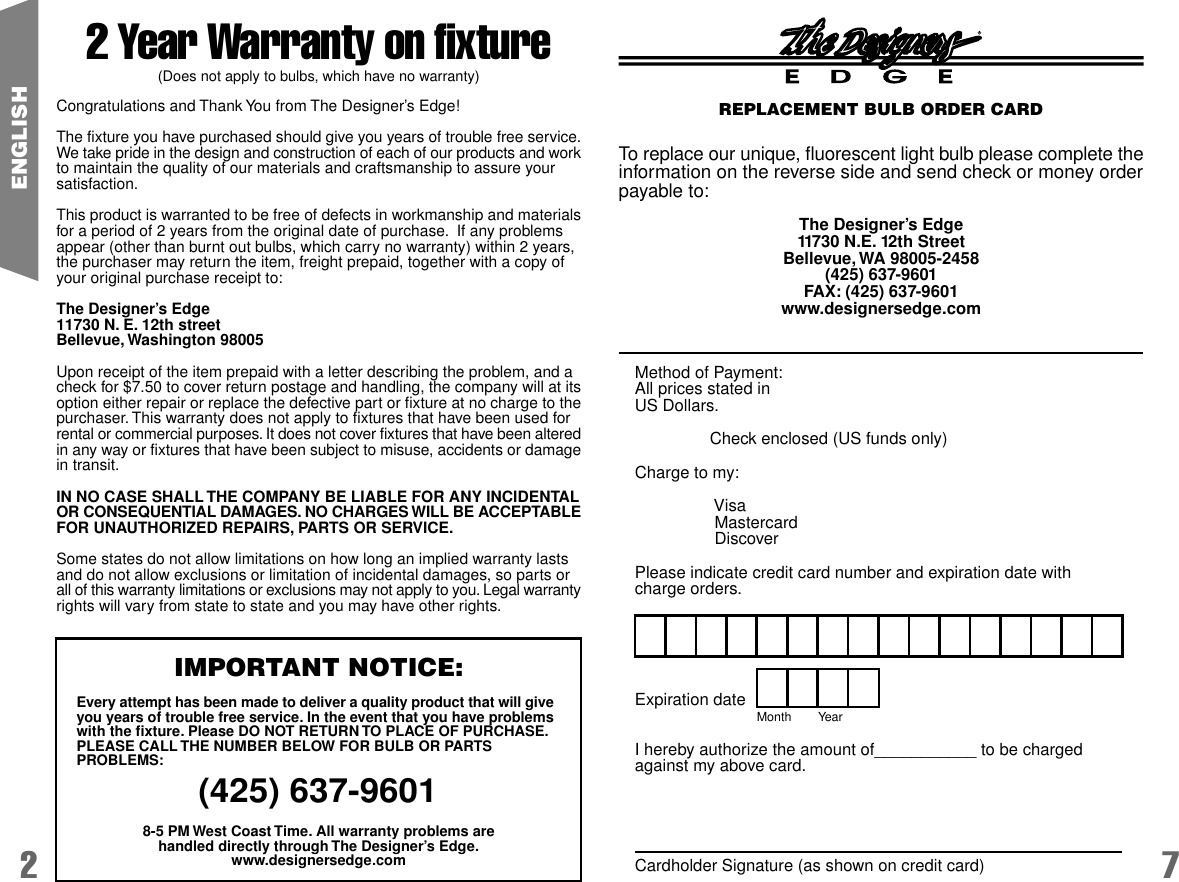

2 7ENGLISH2 Year Warranty on fixture(Does not apply to bulbs, which have no warranty)Congratulations and Thank You from The Designer’s Edge!The fixture you have purchased should give you years of trouble free service.We take pride in the design and construction of each of our products and workto maintain the quality of our materials and craftsmanship to assure yoursatisfaction.This product is warranted to be free of defects in workmanship and materialsfor a period of 2 years from the original date of purchase. If any problemsappear (other than burnt out bulbs, which carry no warranty) within 2 years,the purchaser may return the item, freight prepaid, together with a copy ofyour original purchase receipt to:The Designer’s Edge11730 N. E. 12th streetBellevue, Washington 98005Upon receipt of the item prepaid with a letter describing the problem, and acheck for $7.50 to cover return postage and handling, the company will at itsoption either repair or replace the defective part or fixture at no charge to thepurchaser. This warranty does not apply to fixtures that have been used forrental or commercial purposes. It does not cover fixtures that have been alteredin any way or fixtures that have been subject to misuse, accidents or damagein transit.IN NO CASE SHALL THE COMPANY BE LIABLE FOR ANY INCIDENTALOR CONSEQUENTIAL DAMAGES. NO CHARGES WILL BE ACCEPTABLEFOR UNAUTHORIZED REPAIRS, PARTS OR SERVICE.Some states do not allow limitations on how long an implied warranty lastsand do not allow exclusions or limitation of incidental damages, so parts orall of this warranty limitations or exclusions may not apply to you. Legal warrantyrights will vary from state to state and you may have other rights.IMPORTANT NOTICE:Every attempt has been made to deliver a quality product that will giveyou years of trouble free service. In the event that you have problemswith the fixture. Please DO NOT RETURN TO PLACE OF PURCHASE.PLEASE CALL THE NUMBER BELOW FOR BULB OR PARTSPROBLEMS:(425) 637-96018-5 PM West Coast Time. All warranty problems arehandled directly through The Designer’s Edge.www.designersedge.comExpiration dateI hereby authorize the amount of___________ to be chargedagainst my above card.Cardholder Signature (as shown on credit card)Month YearMethod of Payment:All prices stated inUS Dollars.Check enclosed (US funds only)Charge to my: Visa Mastercard DiscoverPlease indicate credit card number and expiration date withcharge orders.To replace our unique, fluorescent light bulb please complete theinformation on the reverse side and send check or money orderpayable to:The Designer’s Edge11730 N.E. 12th StreetBellevue, WA 98005-2458(425) 637-9601FAX: (425) 637-9601www.designersedge.comREPLACEMENT BULB ORDER CARD

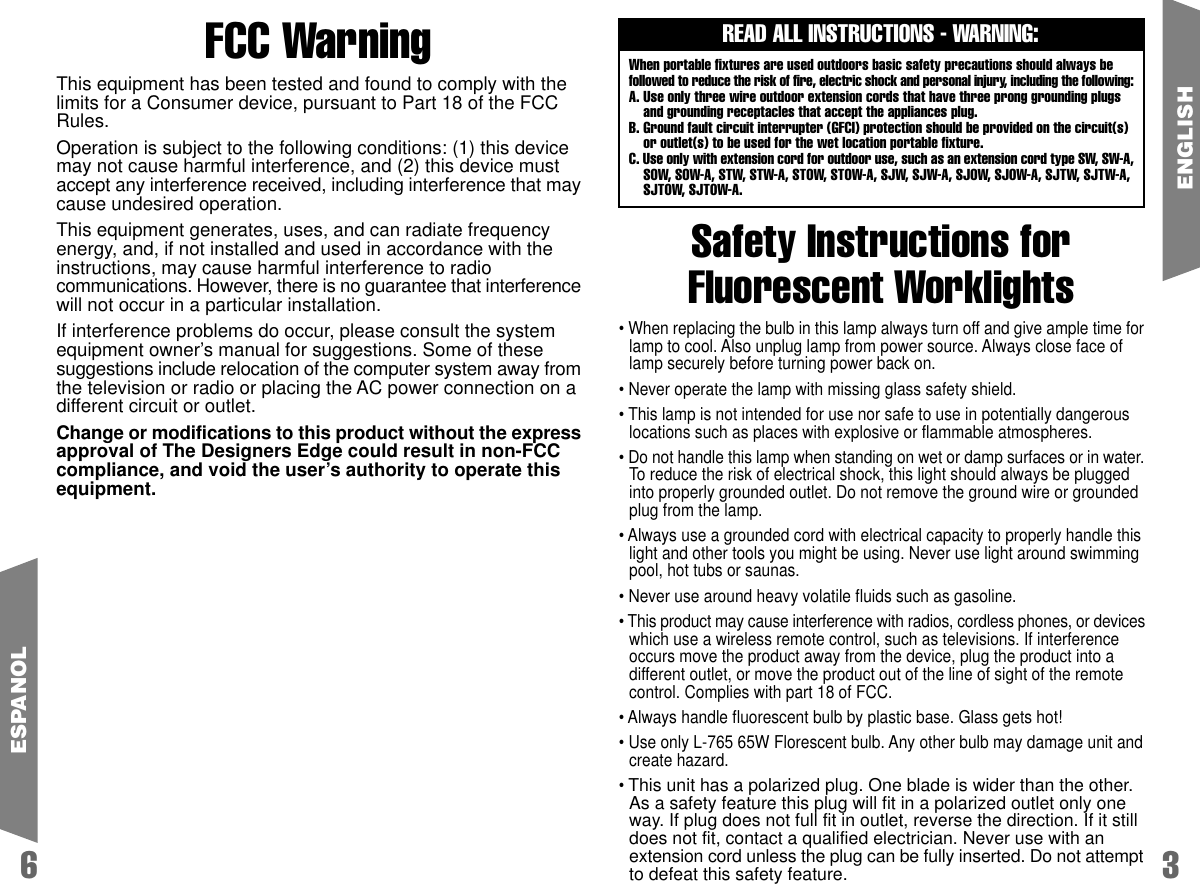

Safety Instructions forFluorescent WorklightsREAD ALL INSTRUCTIONS - WARNING:When portable fixtures are used outdoors basic safety precautions should always befollowed to reduce the risk of fire, electric shock and personal injury, including the following:A. Use only three wire outdoor extension cords that have three prong grounding plugsand grounding receptacles that accept the appliances plug.B. Ground fault circuit interrupter (GFCI) protection should be provided on the circuit(s)or outlet(s) to be used for the wet location portable fixture.C. Use only with extension cord for outdoor use, such as an extension cord type SW, SW-A,SOW, SOW-A, STW, STW-A, STOW, STOW-A, SJW, SJW-A, SJOW, SJOW-A, SJTW, SJTW-A,SJTOW, SJTOW-A.36ENGLISH• When replacing the bulb in this lamp always turn off and give ample time forlamp to cool. Also unplug lamp from power source. Always close face oflamp securely before turning power back on.• Never operate the lamp with missing glass safety shield.• This lamp is not intended for use nor safe to use in potentially dangerouslocations such as places with explosive or flammable atmospheres.• Do not handle this lamp when standing on wet or damp surfaces or in water.To reduce the risk of electrical shock, this light should always be pluggedinto properly grounded outlet. Do not remove the ground wire or groundedplug from the lamp.• Always use a grounded cord with electrical capacity to properly handle thislight and other tools you might be using. Never use light around swimmingpool, hot tubs or saunas.• Never use around heavy volatile fluids such as gasoline.• This product may cause interference with radios, cordless phones, or deviceswhich use a wireless remote control, such as televisions. If interferenceoccurs move the product away from the device, plug the product into adifferent outlet, or move the product out of the line of sight of the remotecontrol. Complies with part 18 of FCC.• Always handle fluorescent bulb by plastic base. Glass gets hot!• Use only L-765 65W Florescent bulb. Any other bulb may damage unit andcreate hazard.• This unit has a polarized plug. One blade is wider than the other.As a safety feature this plug will fit in a polarized outlet only oneway. If plug does not full fit in outlet, reverse the direction. If it stilldoes not fit, contact a qualified electrician. Never use with anextension cord unless the plug can be fully inserted. Do not attemptto defeat this safety feature.ESPANOLFCC WarningThis equipment has been tested and found to comply with thelimits for a Consumer device, pursuant to Part 18 of the FCCRules.Operation is subject to the following conditions: (1) this devicemay not cause harmful interference, and (2) this device mustaccept any interference received, including interference that maycause undesired operation.This equipment generates, uses, and can radiate frequencyenergy, and, if not installed and used in accordance with theinstructions, may cause harmful interference to radiocommunications. However, there is no guarantee that interferencewill not occur in a particular installation.If interference problems do occur, please consult the systemequipment owner’s manual for suggestions. Some of thesesuggestions include relocation of the computer system away fromthe television or radio or placing the AC power connection on adifferent circuit or outlet.Change or modifications to this product without the expressapproval of The Designers Edge could result in non-FCCcompliance, and void the user’s authority to operate thisequipment.

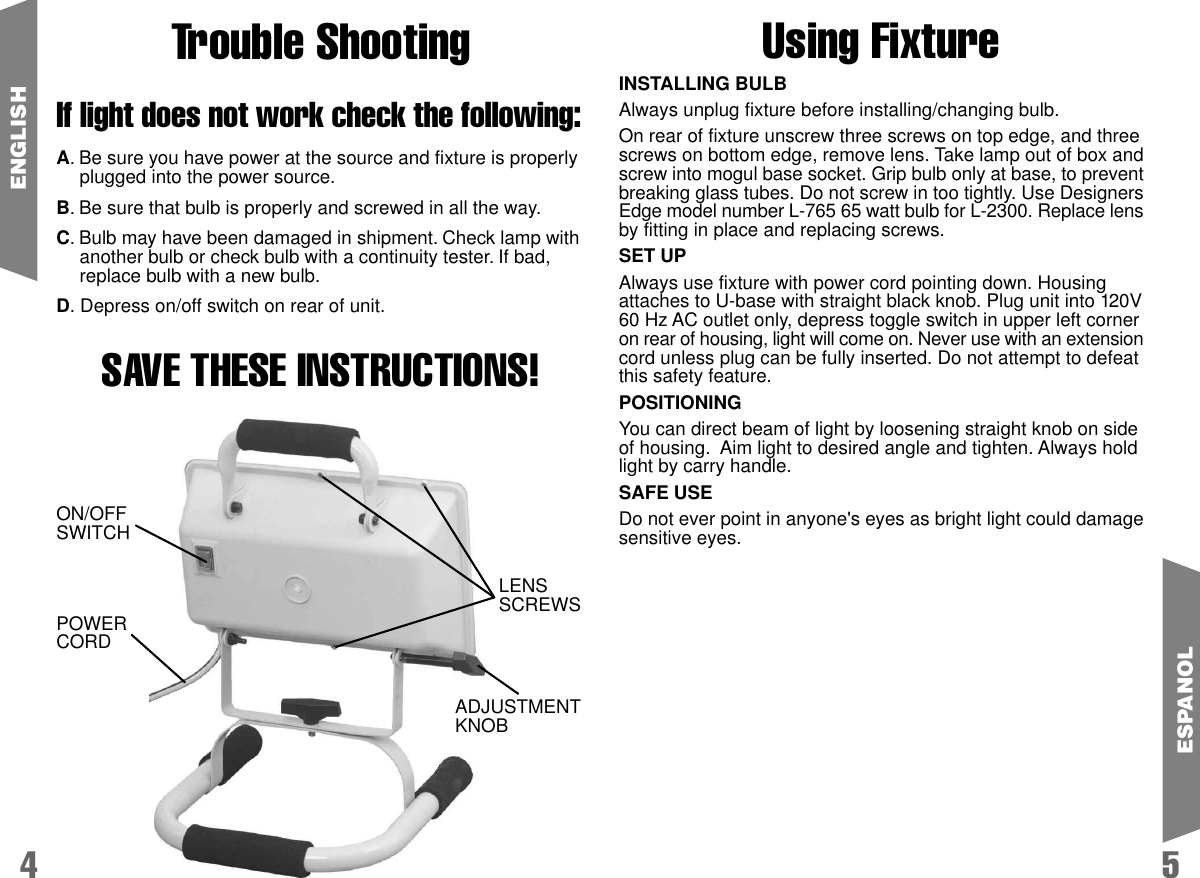

Trouble ShootingIf light does not work check the following:A. Be sure you have power at the source and fixture is properlyplugged into the power source.B. Be sure that bulb is properly and screwed in all the way.C. Bulb may have been damaged in shipment. Check lamp withanother bulb or check bulb with a continuity tester. If bad,replace bulb with a new bulb.D. Depress on/off switch on rear of unit.SAVE THESE INSTRUCTIONS!54ENGLISHINSTALLING BULBAlways unplug fixture before installing/changing bulb.On rear of fixture unscrew three screws on top edge, and threescrews on bottom edge, remove lens. Take lamp out of box andscrew into mogul base socket. Grip bulb only at base, to preventbreaking glass tubes. Do not screw in too tightly. Use DesignersEdge model number L-765 65 watt bulb for L-2300. Replace lensby fitting in place and replacing screws.SET UPAlways use fixture with power cord pointing down. Housingattaches to U-base with straight black knob. Plug unit into 120V60 Hz AC outlet only, depress toggle switch in upper left corneron rear of housing, light will come on. Never use with an extensioncord unless plug can be fully inserted. Do not attempt to defeatthis safety feature.POSITIONINGYou can direct beam of light by loosening straight knob on sideof housing. Aim light to desired angle and tighten. Always holdlight by carry handle.SAFE USEDo not ever point in anyone's eyes as bright light could damagesensitive eyes.ESPANOLON/OFFSWITCHLENSSCREWSADJUSTMENTKNOBPOWERCORDUsing Fixture
