ENGLISH
Model# L-2300
PORTABLE
WORKLIGHT
OPERATING
INSTRUCTIONS
• Fixture design may vary
Mailing Address (please print):
USE OF IMPROPER BULB WILL VOID YOUR WARRANTY!
Prices subject to change without prior notice.
Qty. Item No. Description Each (1) Each 2
or more Extended
Price
L-765 9.99 8.99
1.50
65 watt, Mogul Base Fluorescent Bulb
Subtotal
Shipping and handling
Sales Tax (Washington State Only) 8.8%
TOTAL (Amount of check)
The Designer’s Edge
11730 N. E. 12th Street
Bellevue, WA 98005
Ph: (425) 637-9601
Fax: (425) 637-9603
www.designersedge.com
2 7
ENGLISH
2 Year Warranty on fixture
(Does not apply to bulbs, which have no warranty)
Congratulations and Thank You from The Designer’s Edge!
The fixture you have purchased should give you years of trouble free service.
We take pride in the design and construction of each of our products and work
to maintain the quality of our materials and craftsmanship to assure your
satisfaction.
This product is warranted to be free of defects in workmanship and materials
for a period of 2 years from the original date of purchase. If any problems
appear (other than burnt out bulbs, which carry no warranty) within 2 years,
the purchaser may return the item, freight prepaid, together with a copy of
your original purchase receipt to:
The Designer’s Edge
11730 N. E. 12th street
Bellevue, Washington 98005
Upon receipt of the item prepaid with a letter describing the problem, and a
check for $7.50 to cover return postage and handling, the company will at its
option either repair or replace the defective part or fixture at no charge to the
purchaser. This warranty does not apply to fixtures that have been used for
rental or commercial purposes. It does not cover fixtures that have been altered
in any way or fixtures that have been subject to misuse, accidents or damage
in transit.
IN NO CASE SHALL THE COMPANY BE LIABLE FOR ANY INCIDENTAL
OR CONSEQUENTIAL DAMAGES. NO CHARGES WILL BE ACCEPTABLE
FOR UNAUTHORIZED REPAIRS, PARTS OR SERVICE.
Some states do not allow limitations on how long an implied warranty lasts
and do not allow exclusions or limitation of incidental damages, so parts or
all of this warranty limitations or exclusions may not apply to you. Legal warranty
rights will vary from state to state and you may have other rights.
IMPORTANT NOTICE:
Every attempt has been made to deliver a quality product that will give
you years of trouble free service. In the event that you have problems
with the fixture. Please DO NOT RETURN TO PLACE OF PURCHASE.
PLEASE CALL THE NUMBER BELOW FOR BULB OR PARTS
PROBLEMS:
(425) 637-9601
8-5 PM West Coast Time. All warranty problems are
handled directly through The Designer’s Edge.
www.designersedge.com
Expiration date
I hereby authorize the amount of___________ to be charged
against my above card.
Cardholder Signature (as shown on credit card)
Month Year
Method of Payment:
All prices stated in
US Dollars.
Check enclosed (US funds only)
Charge to my:
Visa
Mastercard
Discover
Please indicate credit card number and expiration date with
charge orders.
To replace our unique, fluorescent light bulb please complete the
information on the reverse side and send check or money order
payable to:
The Designer’s Edge
11730 N.E. 12th Street
Bellevue, WA 98005-2458
(425) 637-9601
FAX: (425) 637-9601
www.designersedge.com
REPLACEMENT BULB ORDER CARD
Safety Instructions for
Fluorescent Worklights
READ ALL INSTRUCTIONS - WARNING:
When portable fixtures are used outdoors basic safety precautions should always be
followed to reduce the risk of fire, electric shock and personal injury, including the following:
A. Use only three wire outdoor extension cords that have three prong grounding plugs
and grounding receptacles that accept the appliances plug.
B. Ground fault circuit interrupter (GFCI) protection should be provided on the circuit(s)
or outlet(s) to be used for the wet location portable fixture.
C. Use only with extension cord for outdoor use, such as an extension cord type SW, SW-A,
SOW, SOW-A, STW, STW-A, STOW, STOW-A, SJW, SJW-A, SJOW, SJOW-A, SJTW, SJTW-A,
SJTOW, SJTOW-A.
36
ENGLISH
• When replacing the bulb in this lamp always turn off and give ample time for
lamp to cool. Also unplug lamp from power source. Always close face of
lamp securely before turning power back on.
• Never operate the lamp with missing glass safety shield.
• This lamp is not intended for use nor safe to use in potentially dangerous
locations such as places with explosive or flammable atmospheres.
• Do not handle this lamp when standing on wet or damp surfaces or in water.
To reduce the risk of electrical shock, this light should always be plugged
into properly grounded outlet. Do not remove the ground wire or grounded
plug from the lamp.
• Always use a grounded cord with electrical capacity to properly handle this
light and other tools you might be using. Never use light around swimming
pool, hot tubs or saunas.
• Never use around heavy volatile fluids such as gasoline.
• This product may cause interference with radios, cordless phones, or devices
which use a wireless remote control, such as televisions. If interference
occurs move the product away from the device, plug the product into a
different outlet, or move the product out of the line of sight of the remote
control. Complies with part 18 of FCC.
• Always handle fluorescent bulb by plastic base. Glass gets hot!
• Use only L-765 65W Florescent bulb. Any other bulb may damage unit and
create hazard.
•
This unit has a polarized plug. One blade is wider than the other.
As a safety feature this plug will fit in a polarized outlet only one
way. If plug does not full fit in outlet, reverse the direction. If it still
does not fit, contact a qualified electrician. Never use with an
extension cord unless the plug can be fully inserted. Do not attempt
to defeat this safety feature.
ESPANOL
FCC Warning
This equipment has been tested and found to comply with the
limits for a Consumer device, pursuant to Part 18 of the FCC
Rules.
Operation is subject to the following conditions: (1) this device
may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may
cause undesired operation.
This equipment generates, uses, and can radiate frequency
energy, and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference
will not occur in a particular installation.
If interference problems do occur, please consult the system
equipment owner’s manual for suggestions. Some of these
suggestions include relocation of the computer system away from
the television or radio or placing the AC power connection on a
different circuit or outlet.
Change or modifications to this product without the express
approval of The Designers Edge could result in non-FCC
compliance, and void the user’s authority to operate this
equipment.
Trouble Shooting
If light does not work check the following:
A. Be sure you have power at the source and fixture is properly
plugged into the power source.
B. Be sure that bulb is properly and screwed in all the way.
C. Bulb may have been damaged in shipment. Check lamp with
another bulb or check bulb with a continuity tester. If bad,
replace bulb with a new bulb.
D. Depress on/off switch on rear of unit.
SAVE THESE INSTRUCTIONS!
54
ENGLISH
INSTALLING BULB
Always unplug fixture before installing/changing bulb.
On rear of fixture unscrew three screws on top edge, and three
screws on bottom edge, remove lens. Take lamp out of box and
screw into mogul base socket. Grip bulb only at base, to prevent
breaking glass tubes. Do not screw in too tightly. Use Designers
Edge model number L-765 65 watt bulb for L-2300. Replace lens
by fitting in place and replacing screws.
SET UP
Always use fixture with power cord pointing down. Housing
attaches to U-base with straight black knob. Plug unit into 120V
60 Hz AC outlet only, depress toggle switch in upper left corner
on rear of housing, light will come on. Never use with an extension
cord unless plug can be fully inserted. Do not attempt to defeat
this safety feature.
POSITIONING
You can direct beam of light by loosening straight knob on side
of housing. Aim light to desired angle and tighten. Always hold
light by carry handle.
SAFE USE
Do not ever point in anyone's eyes as bright light could damage
sensitive eyes.
ESPANOL

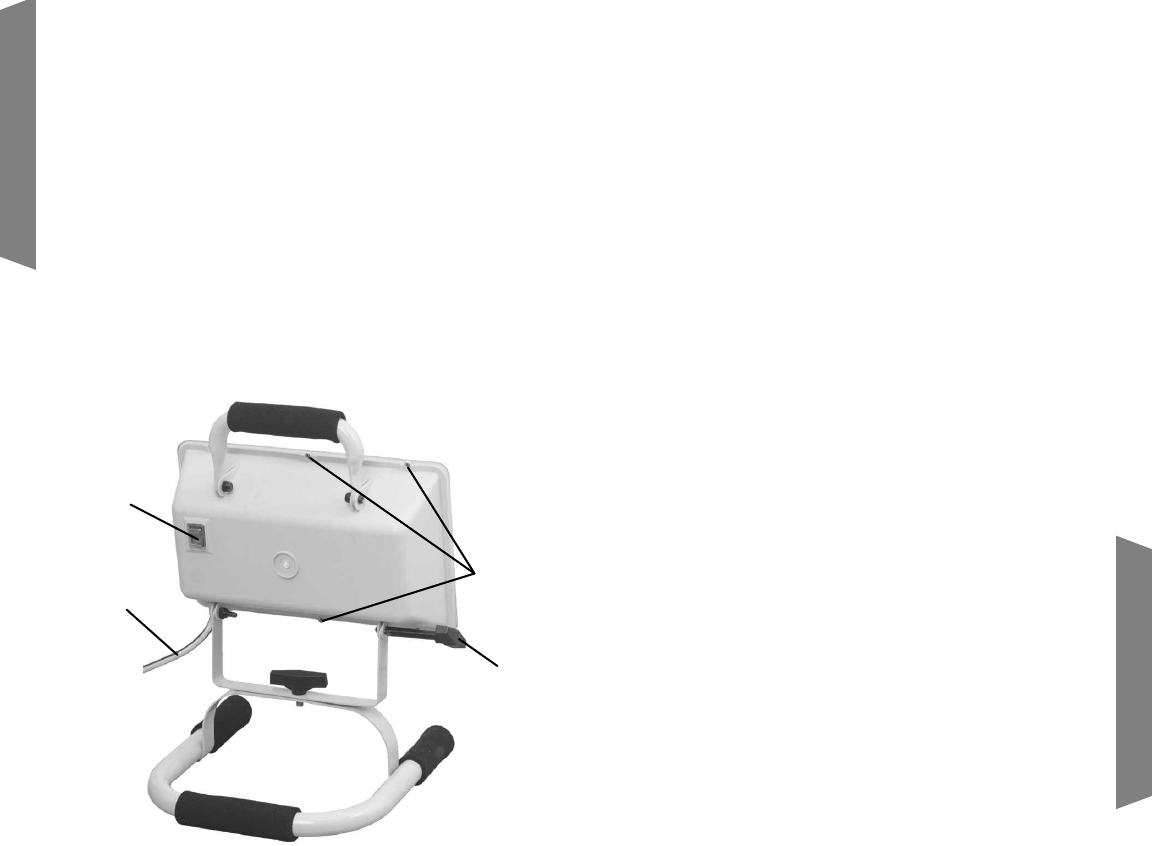

ON/OFF
SWITCH
LENS
SCREWS
ADJUSTMENT
KNOB
POWER
CORD
Using Fixture
