The Kroger SZG4HDMI1 G4 Zooter ZigBee HDMI Display Unit User Manual G2Z CAP User Guide

The Kroger Co. G4 Zooter ZigBee HDMI Display Unit G2Z CAP User Guide

User Manual

G4HDMI1 User Guide

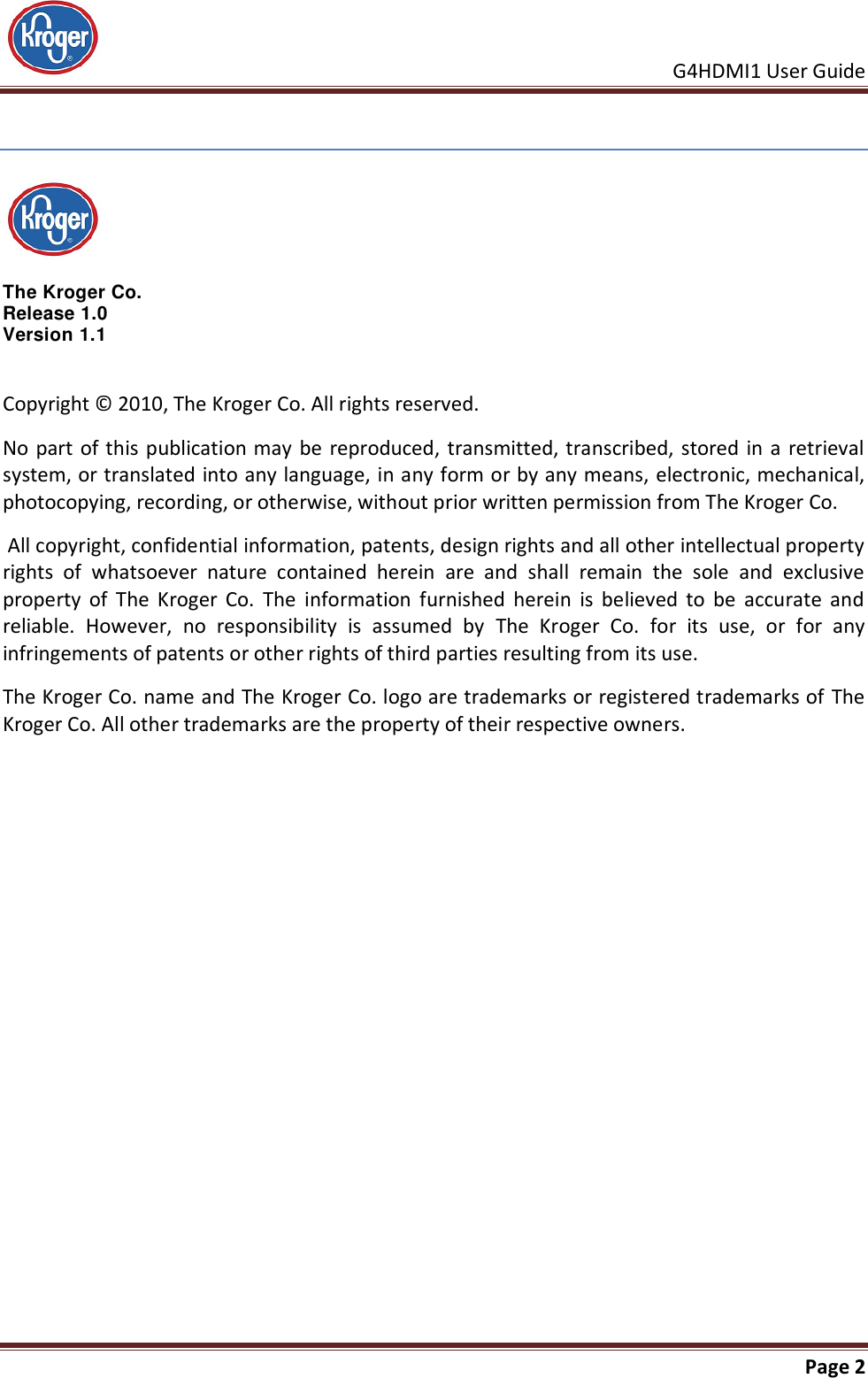

    G4HDMI1 User Guide                                                               Page 2    The Kroger Co.  Release 1.0 Version 1.1 Copyright © 2010, The Kroger Co. All rights reserved.  No part of this publication may be  reproduced,  transmitted, transcribed, stored in a retrieval system, or translated into any language, in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without prior written permission from The Kroger Co.  All copyright, confidential information, patents, design rights and all other intellectual property rights  of  whatsoever  nature  contained  herein  are  and  shall  remain  the  sole  and  exclusive property  of  The  Kroger  Co.  The  information  furnished  herein  is  believed  to  be  accurate  and reliable.  However,  no  responsibility  is  assumed  by  The  Kroger  Co.  for  its  use,  or  for  any infringements of patents or other rights of third parties resulting from its use. The Kroger Co. name and The Kroger Co. logo are trademarks or registered trademarks of The Kroger Co. All other trademarks are the property of their respective owners.

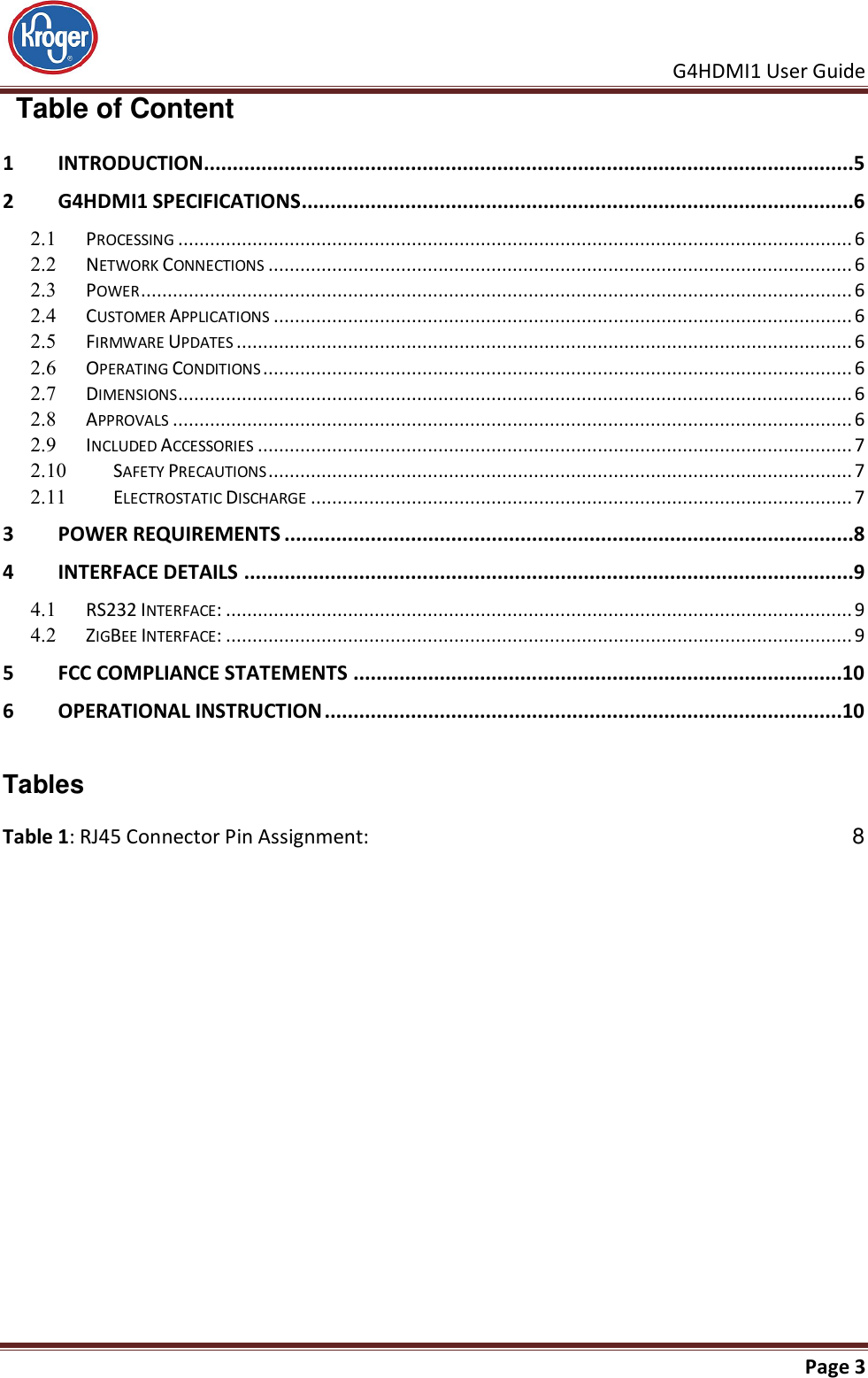

    G4HDMI1 User Guide                                                               Page 3    Table of Content 1 INTRODUCTION .................................................................................................................5 2 G4HDMI1 SPECIFICATIONS................................................................................................6   PROCESSING ............................................................................................................................... 6   NETWORK CONNECTIONS .............................................................................................................. 6   POWER ...................................................................................................................................... 6   CUSTOMER APPLICATIONS ............................................................................................................. 6   FIRMWARE UPDATES .................................................................................................................... 6   OPERATING CONDITIONS ............................................................................................................... 6   DIMENSIONS ............................................................................................................................... 6   APPROVALS ................................................................................................................................ 6   INCLUDED ACCESSORIES ................................................................................................................ 7   SAFETY PRECAUTIONS .............................................................................................................. 7   ELECTROSTATIC DISCHARGE ...................................................................................................... 7 3 POWER REQUIREMENTS ...................................................................................................8 4 INTERFACE DETAILS ..........................................................................................................9   RS232 INTERFACE: ...................................................................................................................... 9   ZIGBEE INTERFACE: ...................................................................................................................... 9 5 FCC COMPLIANCE STATEMENTS .....................................................................................10 6 OPERATIONAL INSTRUCTION ..........................................................................................10   Tables Table 1: RJ45 Connector Pin Assignment:  8
    G4HDMI1 User Guide                                                               Page 4  Revision History  Date Change Description Revision 26-DEC-17 Initial Revision 0.1 28-DEC-17 Sent for Kroger Review 0.2 25-JAN-18 Sent to TUV 0.3

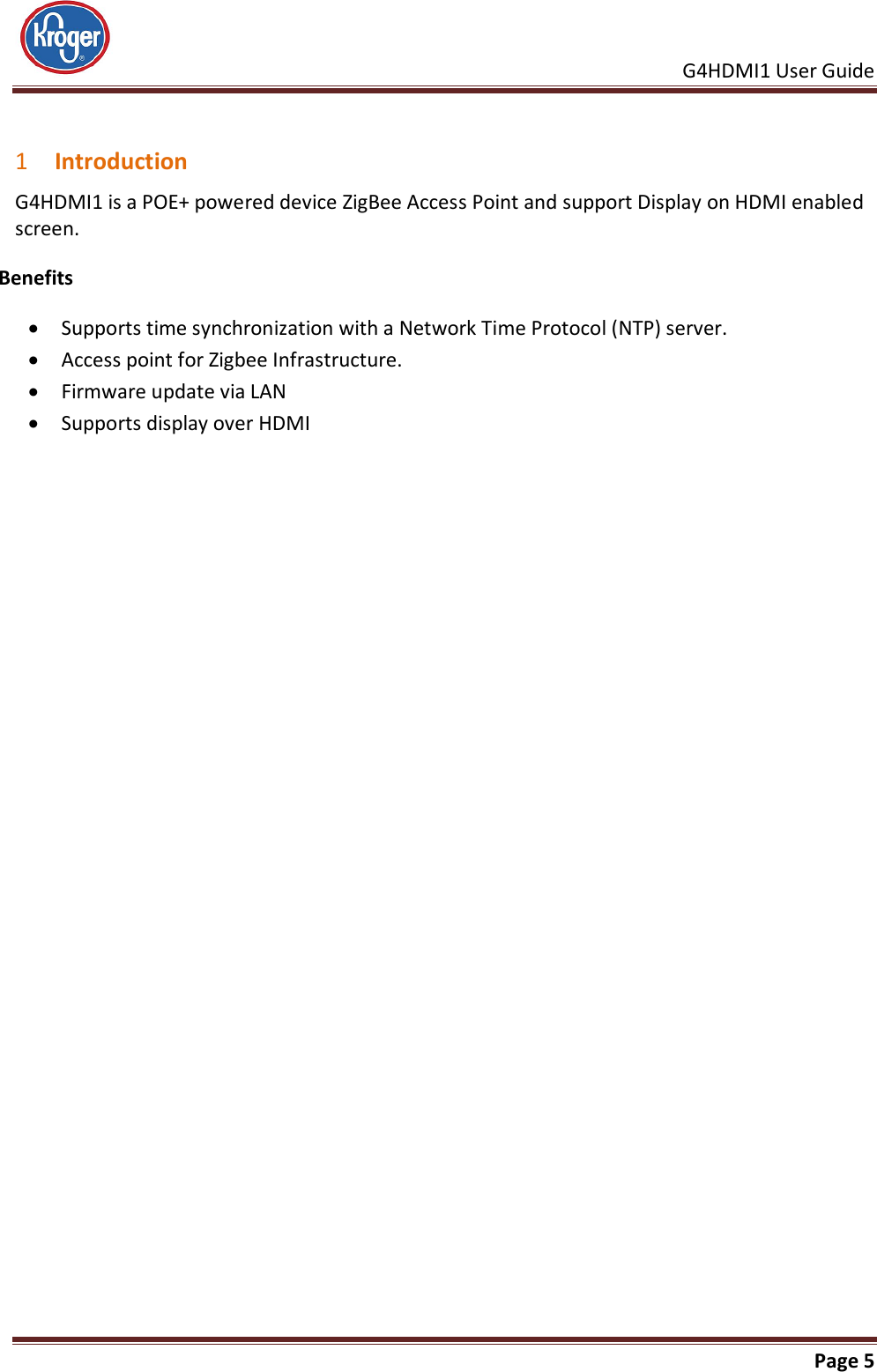

    G4HDMI1 User Guide                                                               Page 5   1 Introduction G4HDMI1 is a POE+ powered device ZigBee Access Point and support Display on HDMI enabled screen. Benefits  Supports time synchronization with a Network Time Protocol (NTP) server.  Access point for Zigbee Infrastructure.  Firmware update via LAN  Supports display over HDMI

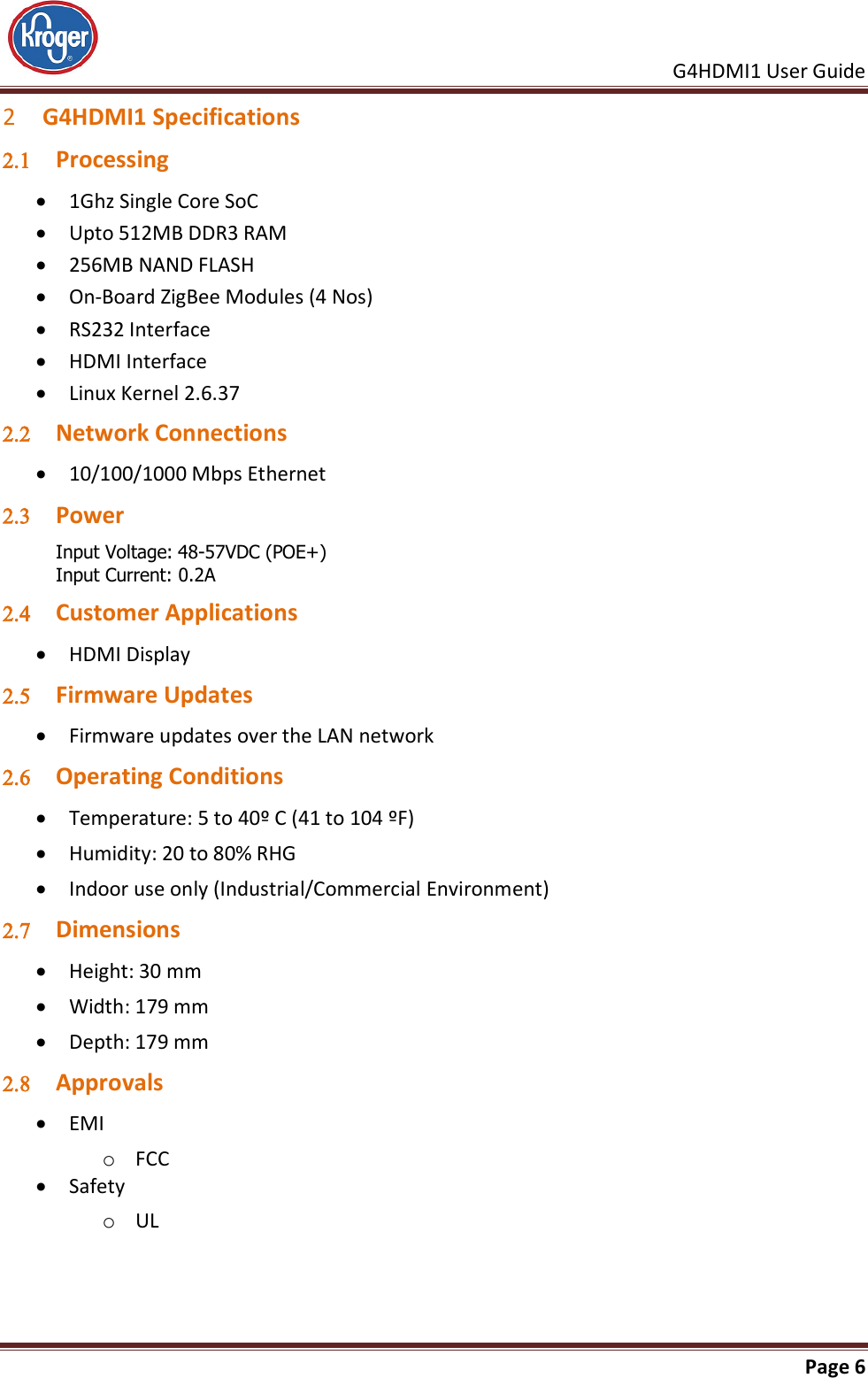

    G4HDMI1 User Guide                                                               Page 6  2 G4HDMI1 Specifications  Processing  1Ghz Single Core SoC  Upto 512MB DDR3 RAM  256MB NAND FLASH  On-Board ZigBee Modules (4 Nos)  RS232 Interface  HDMI Interface  Linux Kernel 2.6.37  Network Connections  10/100/1000 Mbps Ethernet  Power  Input Voltage: 48-57VDC (POE+) Input Current: 0.2A  Customer Applications  HDMI Display  Firmware Updates  Firmware updates over the LAN network  Operating Conditions  Temperature: 5 to 40º C (41 to 104 ºF)  Humidity: 20 to 80% RHG  Indoor use only (Industrial/Commercial Environment)  Dimensions  Height: 30 mm  Width: 179 mm  Depth: 179 mm  Approvals  EMI o FCC   Safety o UL

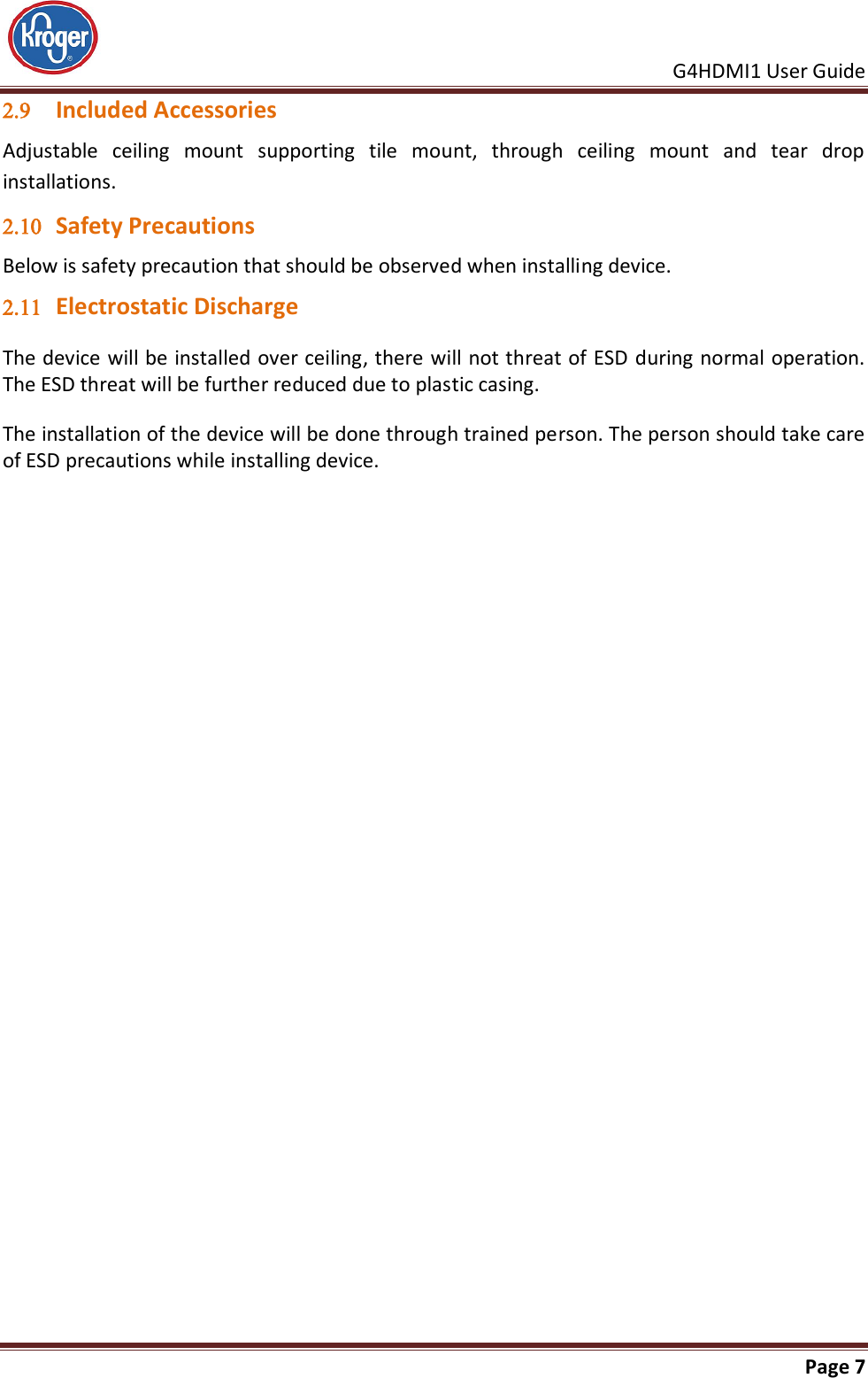

    G4HDMI1 User Guide                                                               Page 7   Included Accessories Adjustable  ceiling  mount  supporting  tile  mount,  through  ceiling  mount  and  tear  drop installations.  Safety Precautions Below is safety precaution that should be observed when installing device.  Electrostatic Discharge The device will be installed over ceiling, there will not threat of ESD during normal operation. The ESD threat will be further reduced due to plastic casing. The installation of the device will be done through trained person. The person should take care of ESD precautions while installing device.

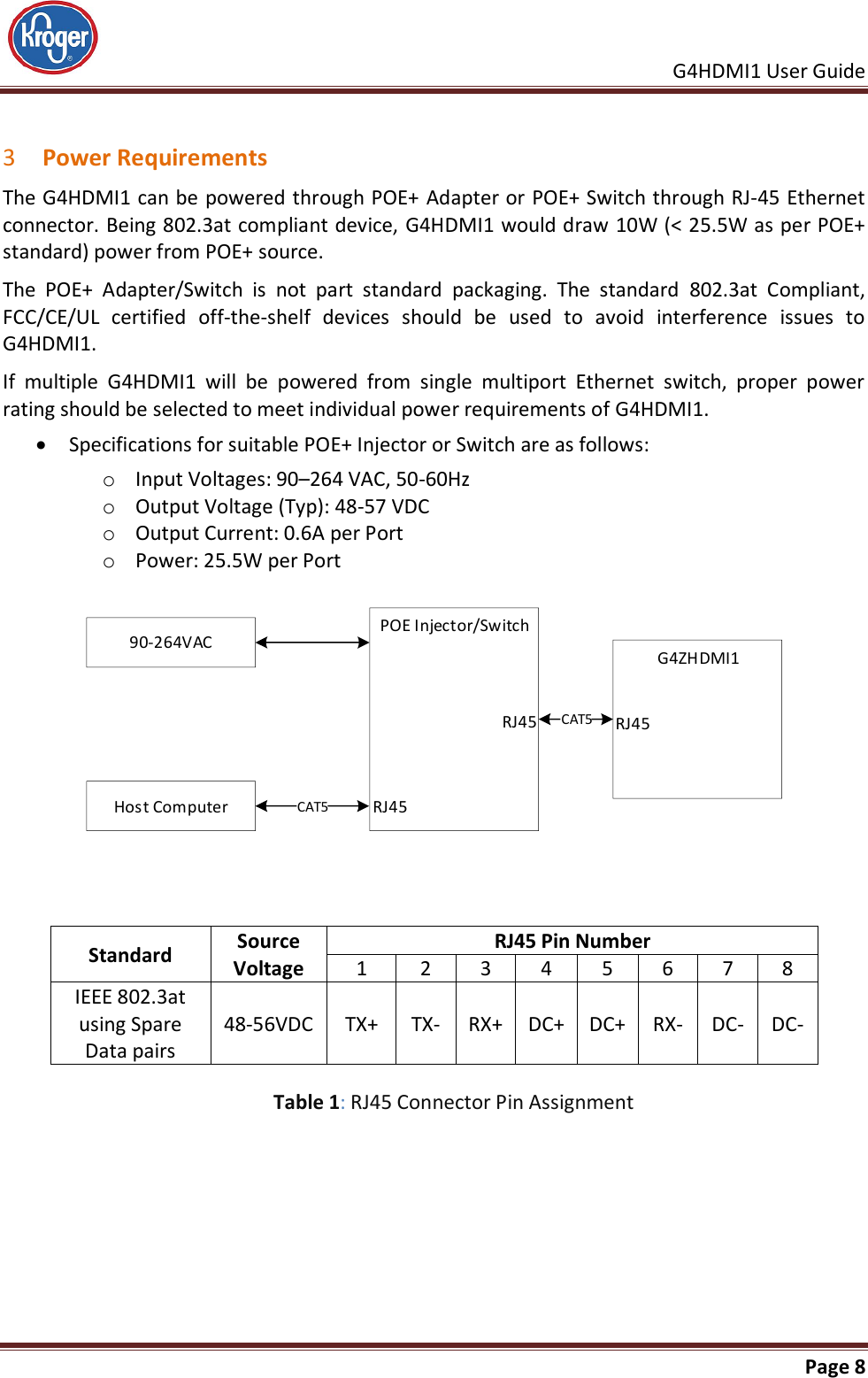

    G4HDMI1 User Guide                                                               Page 8   3 Power Requirements The G4HDMI1 can be powered through POE+ Adapter or POE+ Switch through RJ-45 Ethernet connector. Being 802.3at compliant device, G4HDMI1 would draw 10W (< 25.5W as per POE+ standard) power from POE+ source. The  POE+  Adapter/Switch  is  not  part  standard  packaging.  The  standard  802.3at  Compliant, FCC/CE/UL  certified  off-the-shelf  devices  should  be  used  to  avoid  interference  issues  to         G4HDMI1. If  multiple  G4HDMI1  will  be  powered  from  single  multiport  Ethernet  switch,  proper  power rating should be selected to meet individual power requirements of G4HDMI1.  Specifications for suitable POE+ Injector or Switch are as follows: o Input Voltages: 90–264 VAC, 50-60Hz o Output Voltage (Typ): 48-57 VDC o Output Current: 0.6A per Port o Power: 25.5W per Port  POE Injector/SwitchRJ45RJ45Host Computer90-264VAC G4ZHDMI1RJ45CAT5CAT5     Standard Source Voltage RJ45 Pin Number 1 2 3 4 5 6 7 8 IEEE 802.3at using Spare Data pairs 48-56VDC TX+ TX- RX+ DC+ DC+ RX- DC- DC-  Table 1: RJ45 Connector Pin Assignment

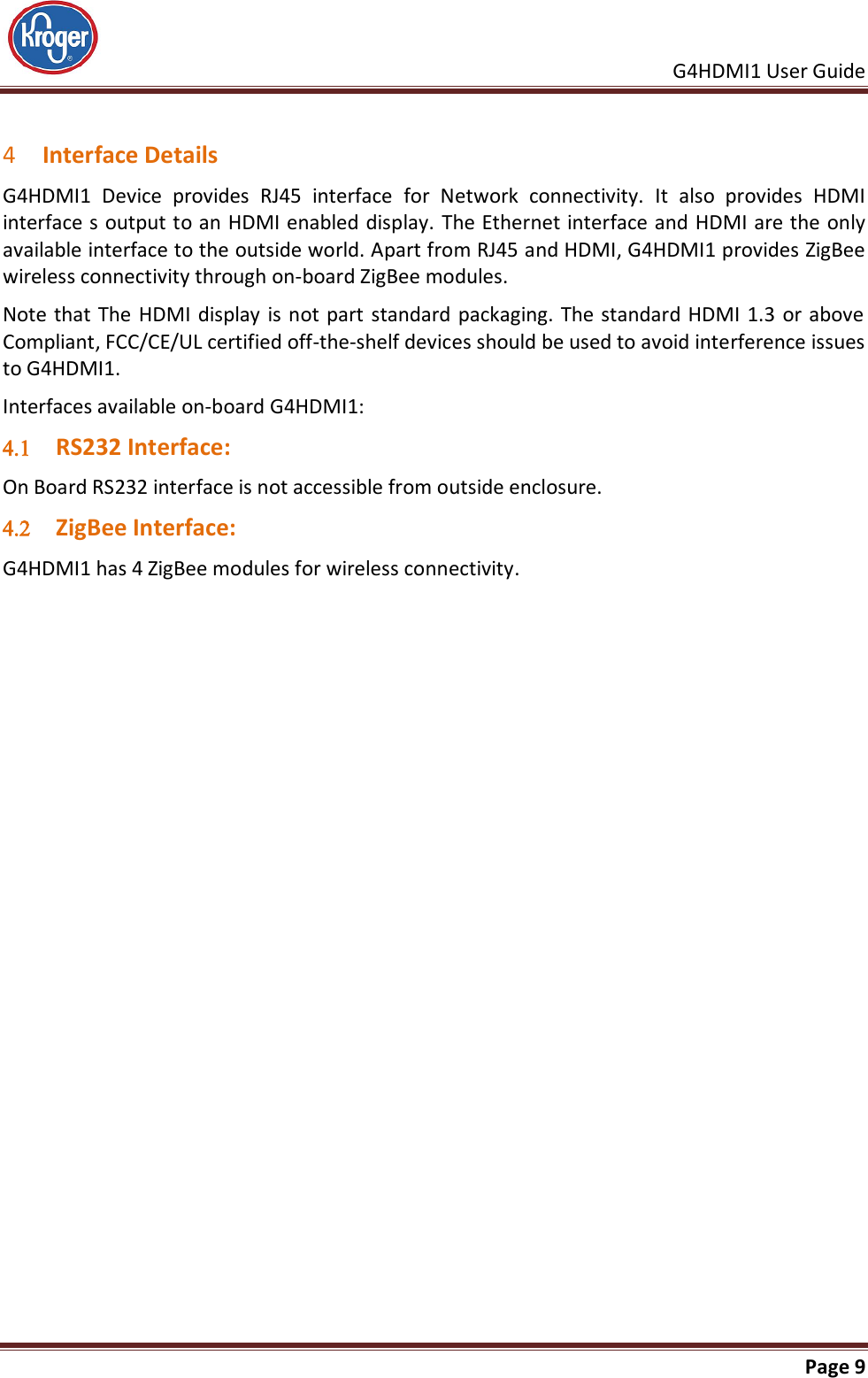

    G4HDMI1 User Guide                                                               Page 9   4 Interface Details G4HDMI1  Device  provides  RJ45  interface  for  Network  connectivity.  It  also  provides  HDMI interface s output to an HDMI enabled display. The Ethernet interface and HDMI are the only available interface to the outside world. Apart from RJ45 and HDMI, G4HDMI1 provides ZigBee wireless connectivity through on-board ZigBee modules. Note that The HDMI display  is not part standard packaging. The standard HDMI  1.3  or above Compliant, FCC/CE/UL certified off-the-shelf devices should be used to avoid interference issues to G4HDMI1. Interfaces available on-board G4HDMI1:  RS232 Interface: On Board RS232 interface is not accessible from outside enclosure.  ZigBee Interface: G4HDMI1 has 4 ZigBee modules for wireless connectivity.

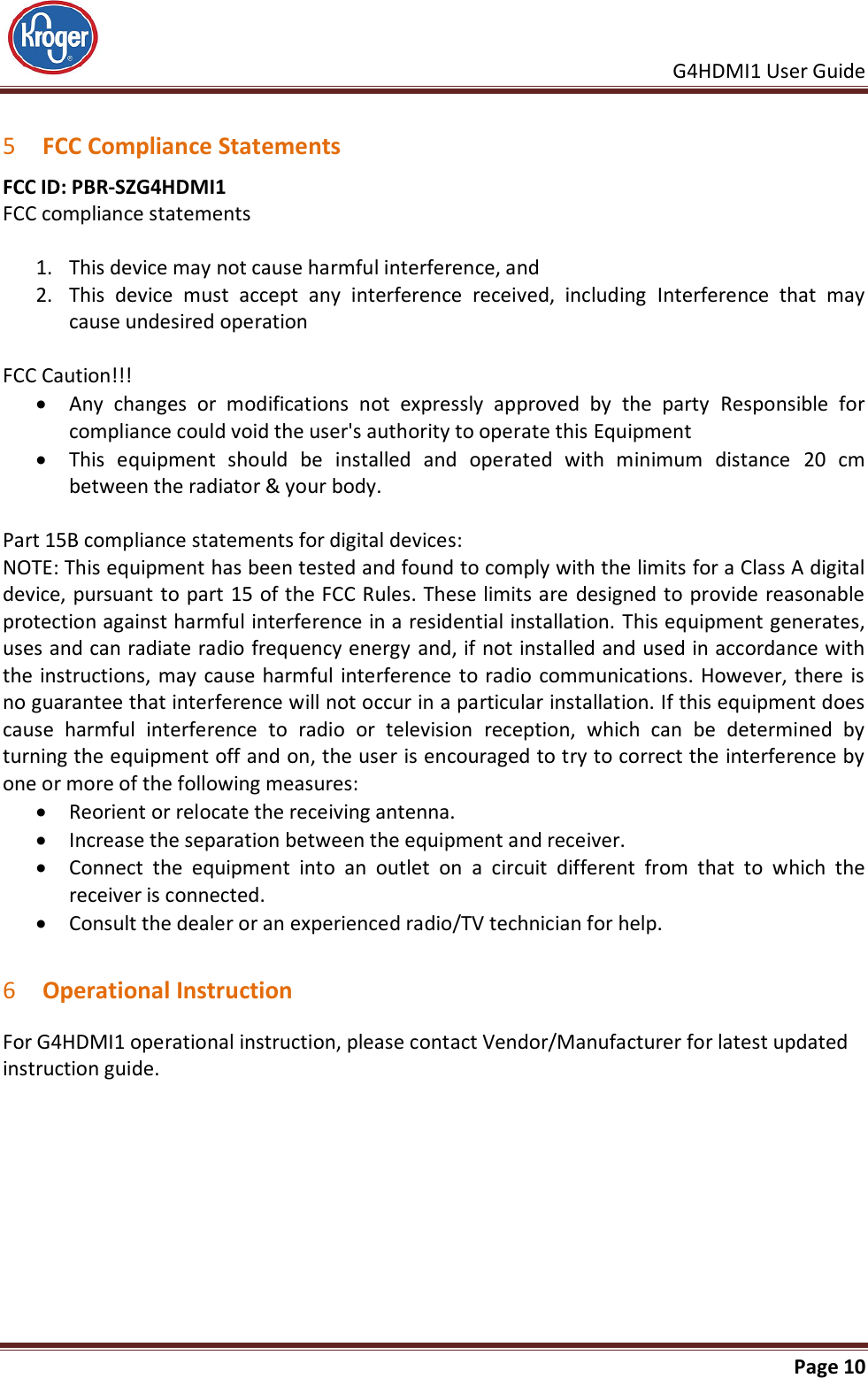

    G4HDMI1 User Guide                                                               Page 10   5 FCC Compliance Statements FCC ID: PBR-SZG4HDMI1  FCC compliance statements  1. This device may not cause harmful interference, and 2. This  device  must  accept  any  interference  received,  including  Interference  that  may cause undesired operation  FCC Caution!!!  Any  changes  or  modifications  not  expressly  approved  by  the  party  Responsible  for compliance could void the user's authority to operate this Equipment  This  equipment  should  be  installed  and  operated  with  minimum  distance  20  cm between the radiator & your body.  Part 15B compliance statements for digital devices: NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause  harmful  interference  to  radio  or  television  reception,  which  can  be  determined  by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect  the  equipment  into  an  outlet  on  a  circuit  different  from  that  to  which  the receiver is connected.  Consult the dealer or an experienced radio/TV technician for help.  6 Operational Instruction For G4HDMI1 operational instruction, please contact Vendor/Manufacturer for latest updated instruction guide.
