                      SRNMRG User Guide Rev 1.2  Page 1      SRNMRG (CC2530 ZigBee MODULE) USER GUIDE

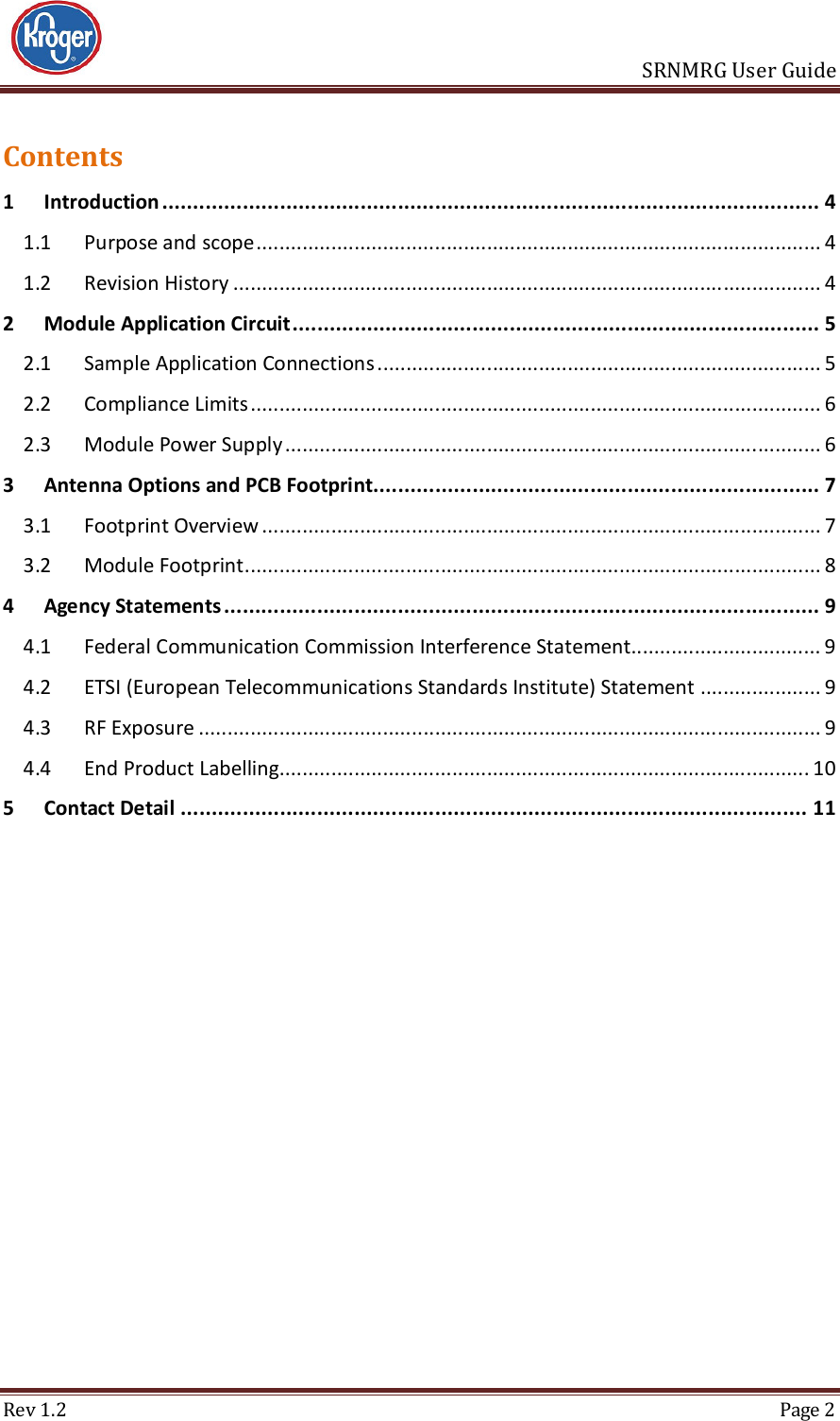

                      SRNMRG User Guide Rev 1.2  Page 2 Contents 1 Introduction .......................................................................................................... 4 1.1 Purpose and scope .................................................................................................. 4 1.2 Revision History ...................................................................................................... 4 2 Module Application Circuit ..................................................................................... 5 2.1 Sample Application Connections ............................................................................. 5 2.2 Compliance Limits ................................................................................................... 6 2.3 Module Power Supply ............................................................................................. 6 3 Antenna Options and PCB Footprint........................................................................ 7 3.1 Footprint Overview ................................................................................................. 7 3.2 Module Footprint .................................................................................................... 8 4 Agency Statements ................................................................................................ 9 4.1 Federal Communication Commission Interference Statement................................. 9 4.2 ETSI (European Telecommunications Standards Institute) Statement ..................... 9 4.3 RF Exposure ............................................................................................................ 9 4.4 End Product Labelling............................................................................................ 10 5 Contact Detail ..................................................................................................... 11

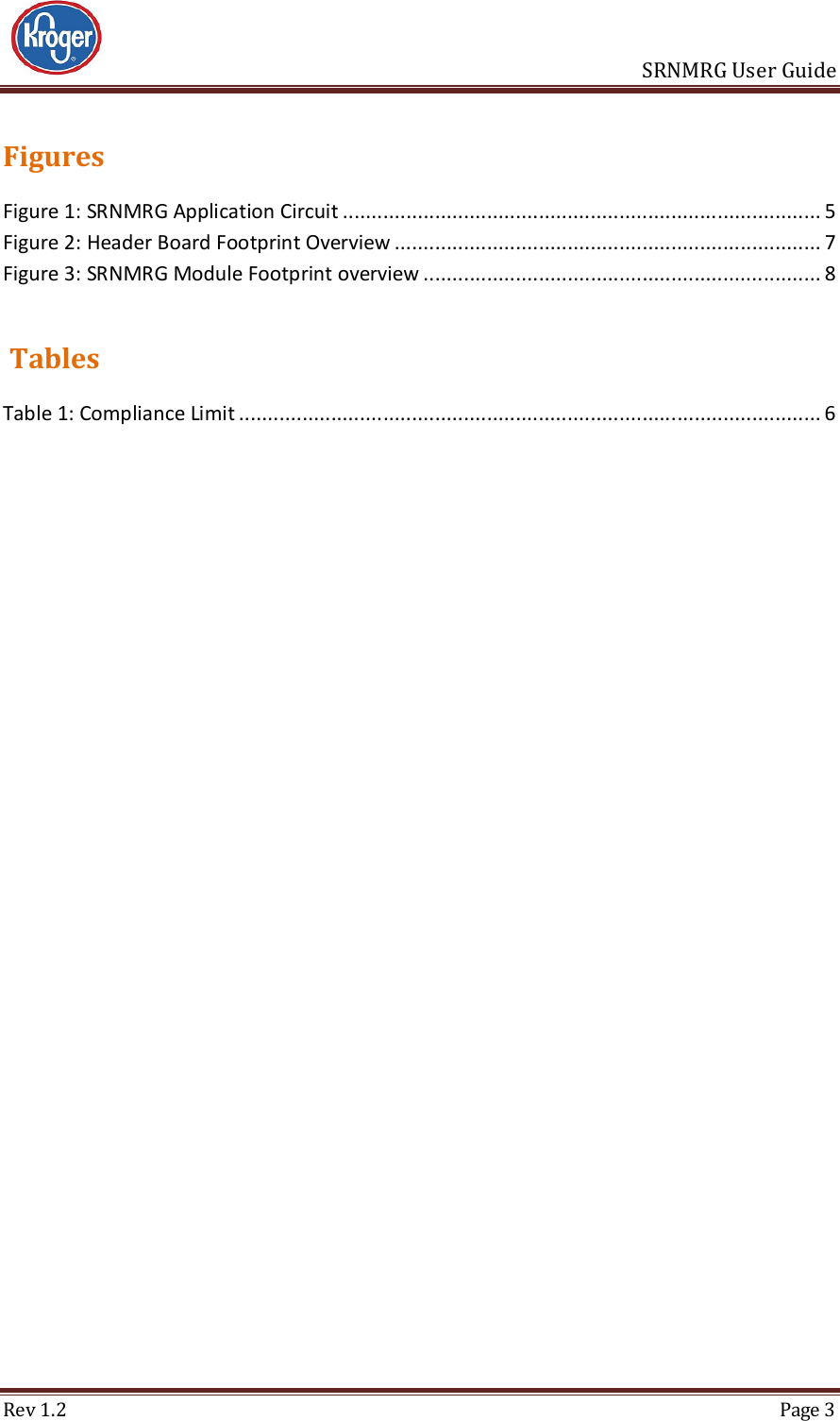

                      SRNMRG User Guide Rev 1.2  Page 3 Figures Figure 1: SRNMRG Application Circuit ................................................................................... 5 Figure 2: Header Board Footprint Overview .......................................................................... 7 Figure 3: SRNMRG Module Footprint overview ..................................................................... 8   Tables Table 1: Compliance Limit ..................................................................................................... 6

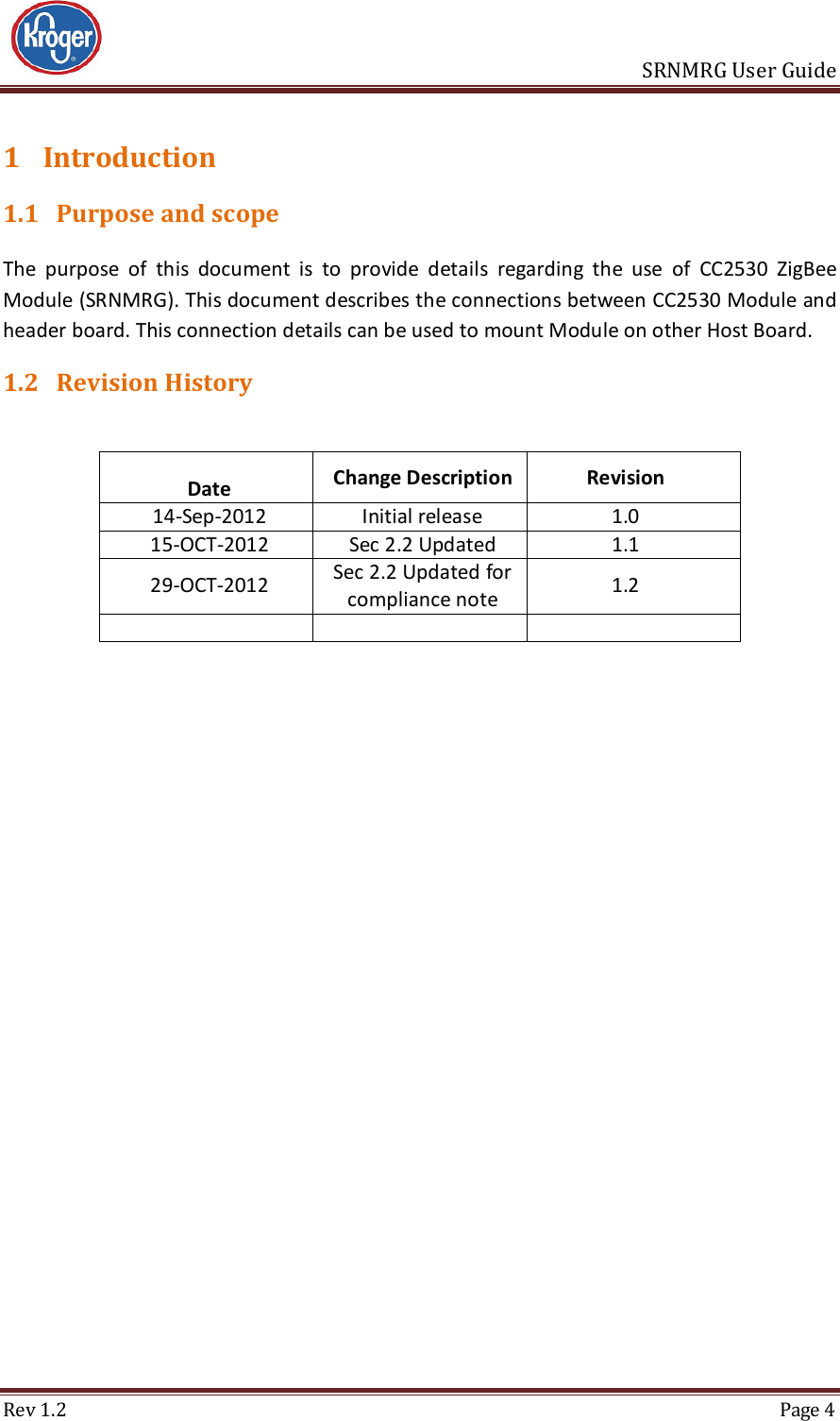

                      SRNMRG User Guide Rev 1.2  Page 4 1 Introduction 1.1 Purpose and scope The  purpose  of  this  document  is  to  provide  details  regarding  the  use  of  CC2530  ZigBee Module (SRNMRG). This document describes the connections between CC2530 Module and header board. This connection details can be used to mount Module on other Host Board. 1.2 Revision History  Date  Change Description  Revision 14-Sep-2012 Initial release 1.0 15-OCT-2012 Sec 2.2 Updated 1.1 29-OCT-2012 Sec 2.2 Updated for compliance note  1.2

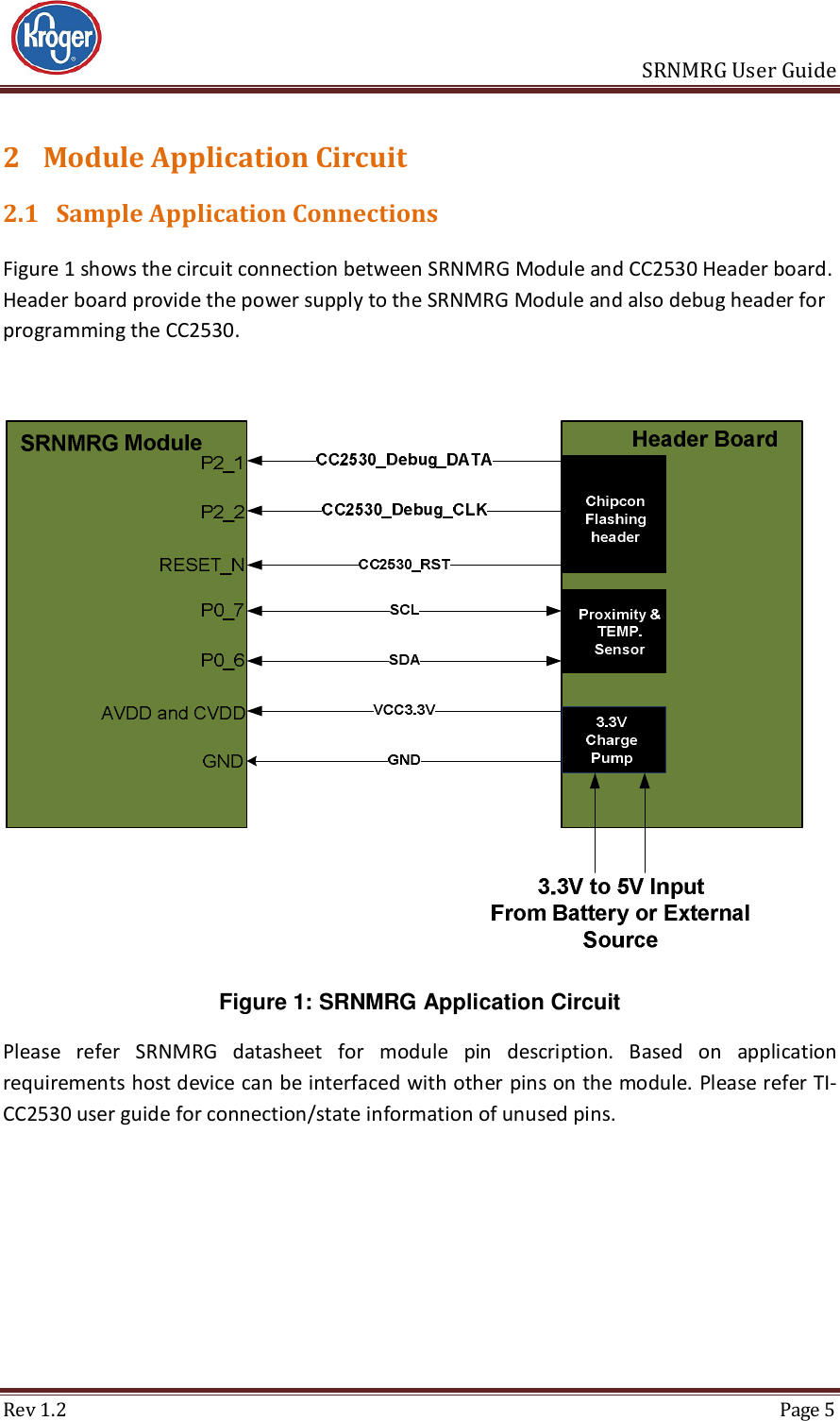

                      SRNMRG User Guide Rev 1.2  Page 5 2 Module Application Circuit 2.1 Sample Application Connections Figure 1 shows the circuit connection between SRNMRG Module and CC2530 Header board. Header board provide the power supply to the SRNMRG Module and also debug header for programming the CC2530.   Figure 1: SRNMRG Application Circuit  Please  refer  SRNMRG  datasheet  for  module  pin  description.  Based  on  application requirements host device can be interfaced with other pins on the module. Please refer TI- CC2530 user guide for connection/state information of unused pins.

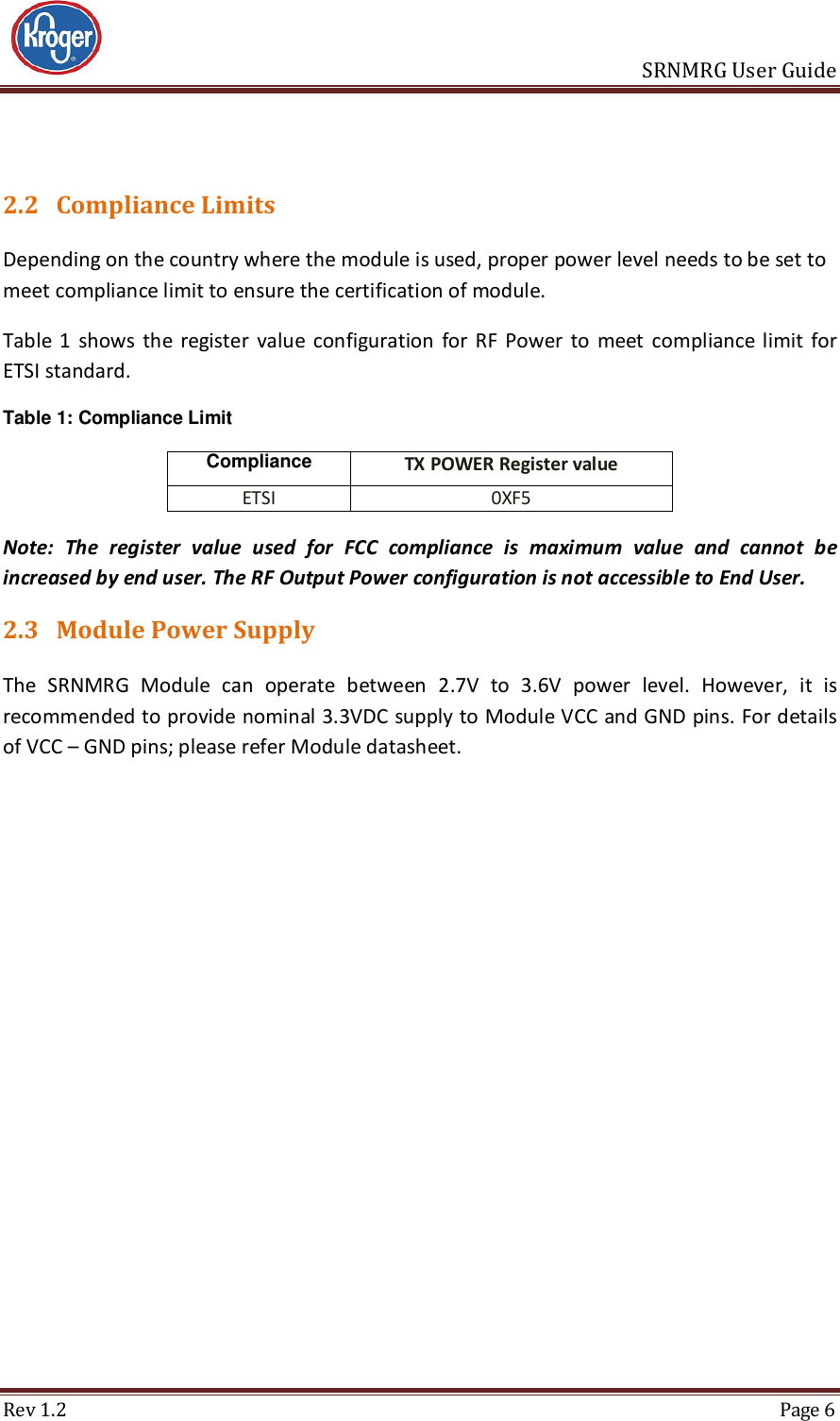

                      SRNMRG User Guide Rev 1.2  Page 6  2.2 Compliance Limits Depending on the country where the module is used, proper power level needs to be set to meet compliance limit to ensure the certification of module.  Table  1  shows  the  register  value  configuration  for  RF  Power  to  meet  compliance  limit  for ETSI standard. Table 1: Compliance Limit Compliance TX POWER Register value ETSI 0XF5 Note:  The  register  value  used  for  FCC  compliance  is  maximum  value  and  cannot  be increased by end user. The RF Output Power configuration is not accessible to End User. 2.3 Module Power Supply The  SRNMRG  Module  can  operate  between  2.7V  to  3.6V  power  level.  However,  it  is recommended to provide nominal 3.3VDC supply to Module VCC and GND pins. For details of VCC – GND pins; please refer Module datasheet.

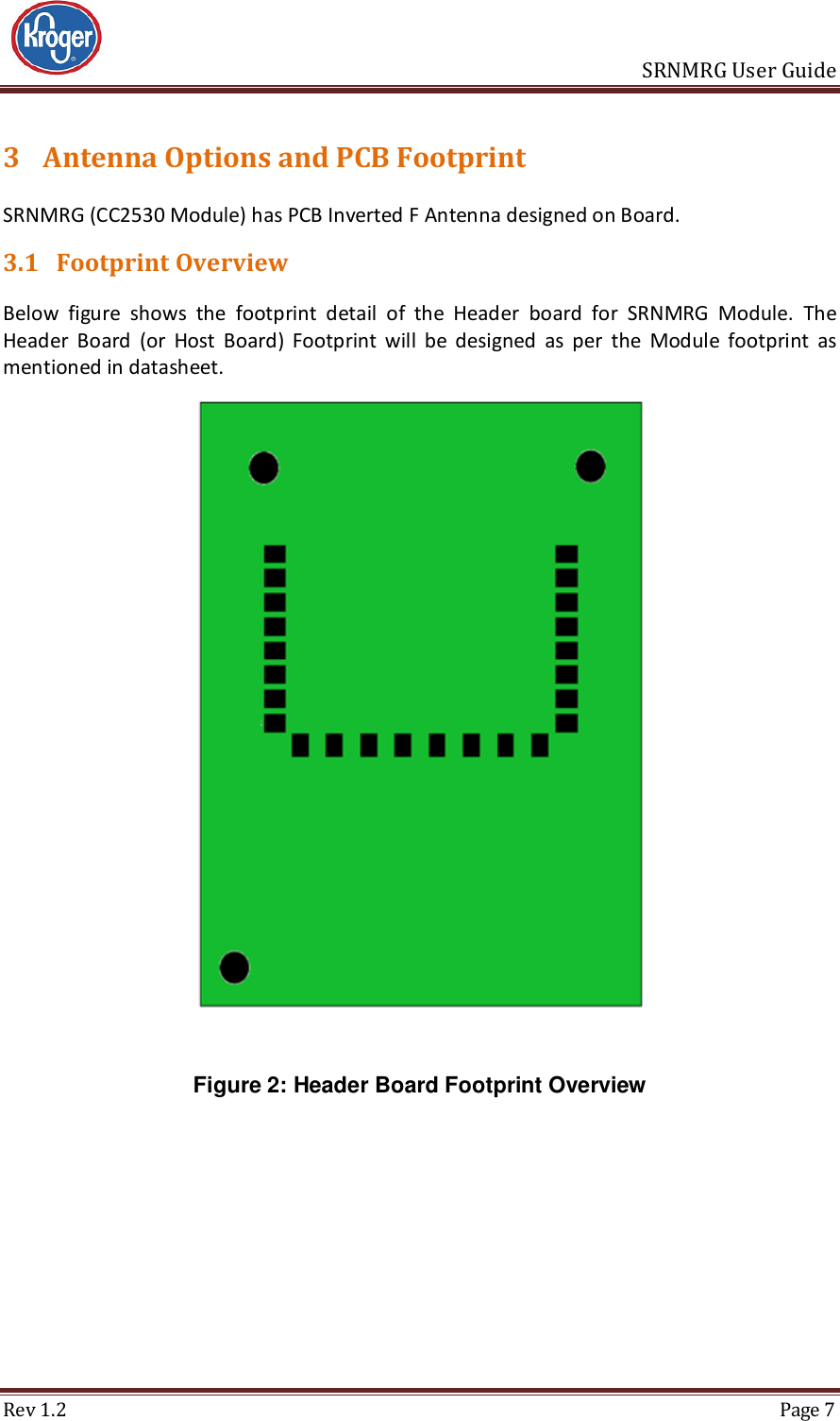

                      SRNMRG User Guide Rev 1.2  Page 7 3 Antenna Options and PCB Footprint SRNMRG (CC2530 Module) has PCB Inverted F Antenna designed on Board.  3.1 Footprint Overview Below  figure  shows  the  footprint  detail  of  the  Header  board  for  SRNMRG  Module.  The Header  Board  (or  Host  Board)  Footprint  will  be  designed  as  per  the  Module  footprint  as mentioned in datasheet.   Figure 2: Header Board Footprint Overview

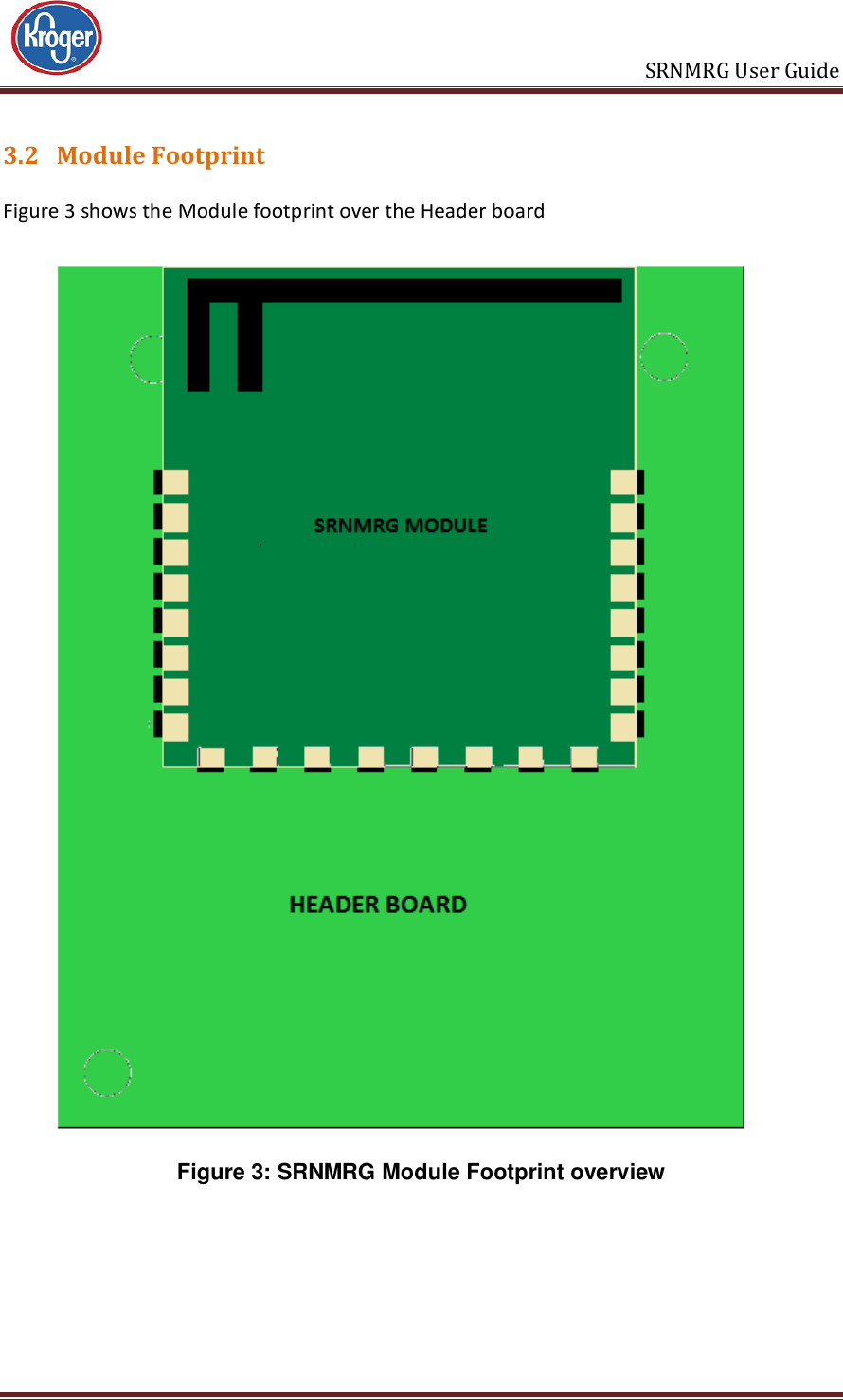

                      SRNMRG User Guide 3.2 Module Footprint Figure 3 shows the Module footprint over the Header board  Figure 3: SRNMRG Module Footprint overview

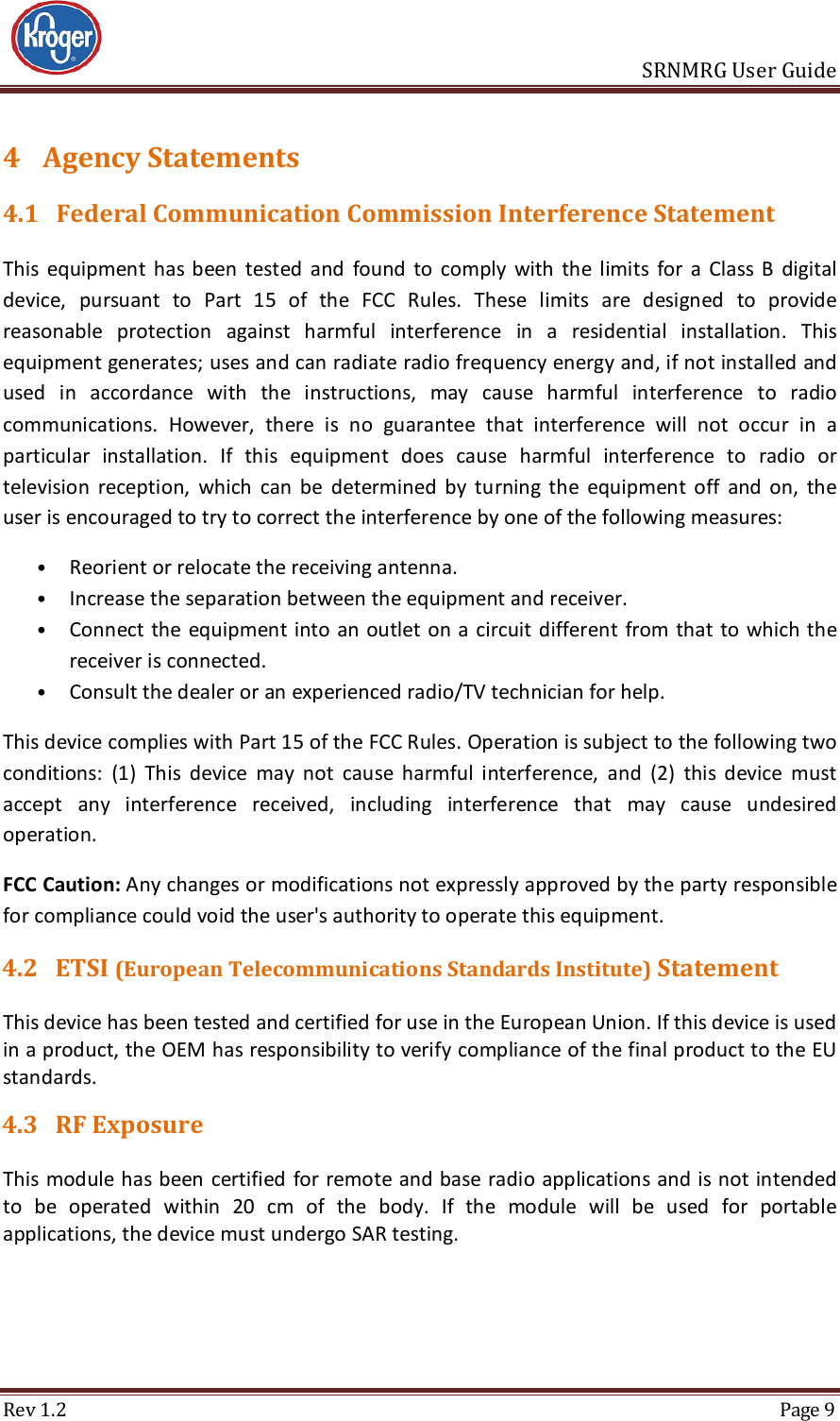

                      SRNMRG User Guide Rev 1.2  Page 9 4 Agency Statements 4.1 Federal Communication Commission Interference Statement This  equipment  has  been  tested  and  found  to  comply  with  the  limits  for  a  Class  B  digital device,  pursuant  to  Part  15  of  the  FCC  Rules.  These  limits  are  designed  to  provide reasonable  protection  against  harmful  interference  in  a  residential  installation.  This equipment generates; uses and can radiate radio frequency energy and, if not installed and used  in  accordance  with  the  instructions,  may  cause  harmful  interference  to  radio communications.  However,  there  is  no  guarantee  that  interference  will  not  occur  in  a particular  installation.  If  this  equipment  does  cause  harmful  interference  to  radio  or television  reception,  which  can  be  determined  by  turning  the  equipment  off  and  on,  the user is encouraged to try to correct the interference by one of the following measures:  • Reorient or relocate the receiving antenna.  • Increase the separation between the equipment and receiver.  • Connect  the equipment into an outlet on a circuit different from that to  which the receiver is connected.  • Consult the dealer or an experienced radio/TV technician for help.  This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:  (1)  This  device  may  not  cause  harmful  interference,  and  (2)  this  device  must accept  any  interference  received,  including  interference  that  may  cause  undesired operation. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. 4.2 ETSI (European Telecommunications Standards Institute) Statement This device has been tested and certified for use in the European Union. If this device is used in a product, the OEM has responsibility to verify compliance of the final product to the EU standards.  4.3 RF Exposure This module has been certified for remote and base  radio applications and is not intended to  be  operated  within  20  cm  of  the  body.  If  the  module  will  be  used  for  portable applications, the device must undergo SAR testing.

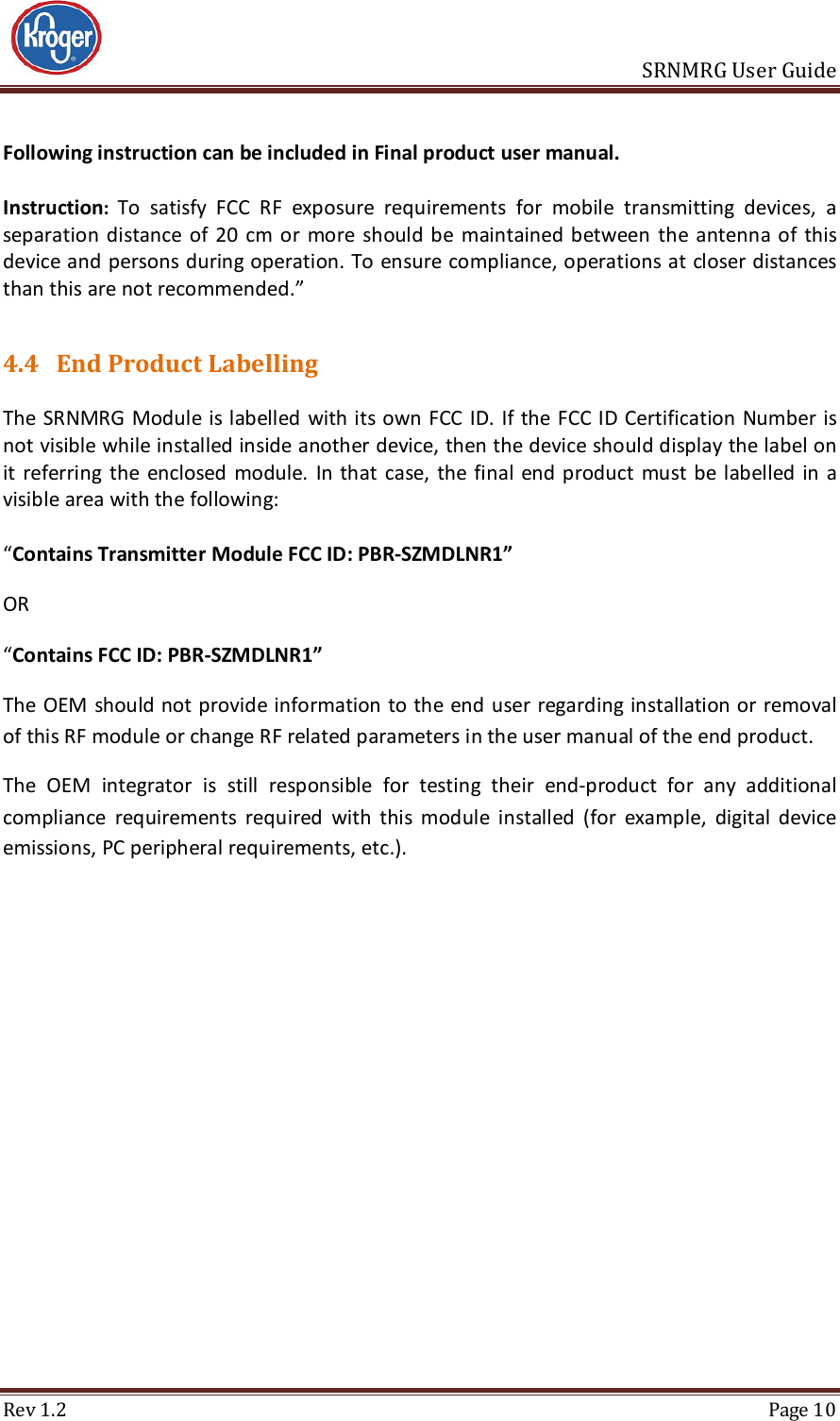

                      SRNMRG User Guide Rev 1.2  Page 10 Following instruction can be included in Final product user manual.  Instruction: To  satisfy  FCC  RF  exposure  requirements  for  mobile  transmitting  devices,  a separation distance of 20  cm  or  more  should be  maintained between  the  antenna of  this device and persons during operation. To ensure compliance, operations at closer distances than this are not recommended.”  4.4 End Product Labelling  The SRNMRG Module  is labelled with its own FCC ID. If the FCC ID Certification Number is not visible while installed inside another device, then the device should display the label on it  referring  the  enclosed  module.  In that  case, the  final  end product  must be  labelled in a visible area with the following:   “Contains Transmitter Module FCC ID: PBR-SZMDLNR1”   OR   “Contains FCC ID: PBR-SZMDLNR1”   The OEM should not provide  information  to the end user  regarding installation or removal of this RF module or change RF related parameters in the user manual of the end product. The  OEM  integrator  is  still  responsible  for  testing  their  end-product  for  any  additional compliance  requirements  required  with  this  module  installed  (for  example,  digital  device emissions, PC peripheral requirements, etc.).

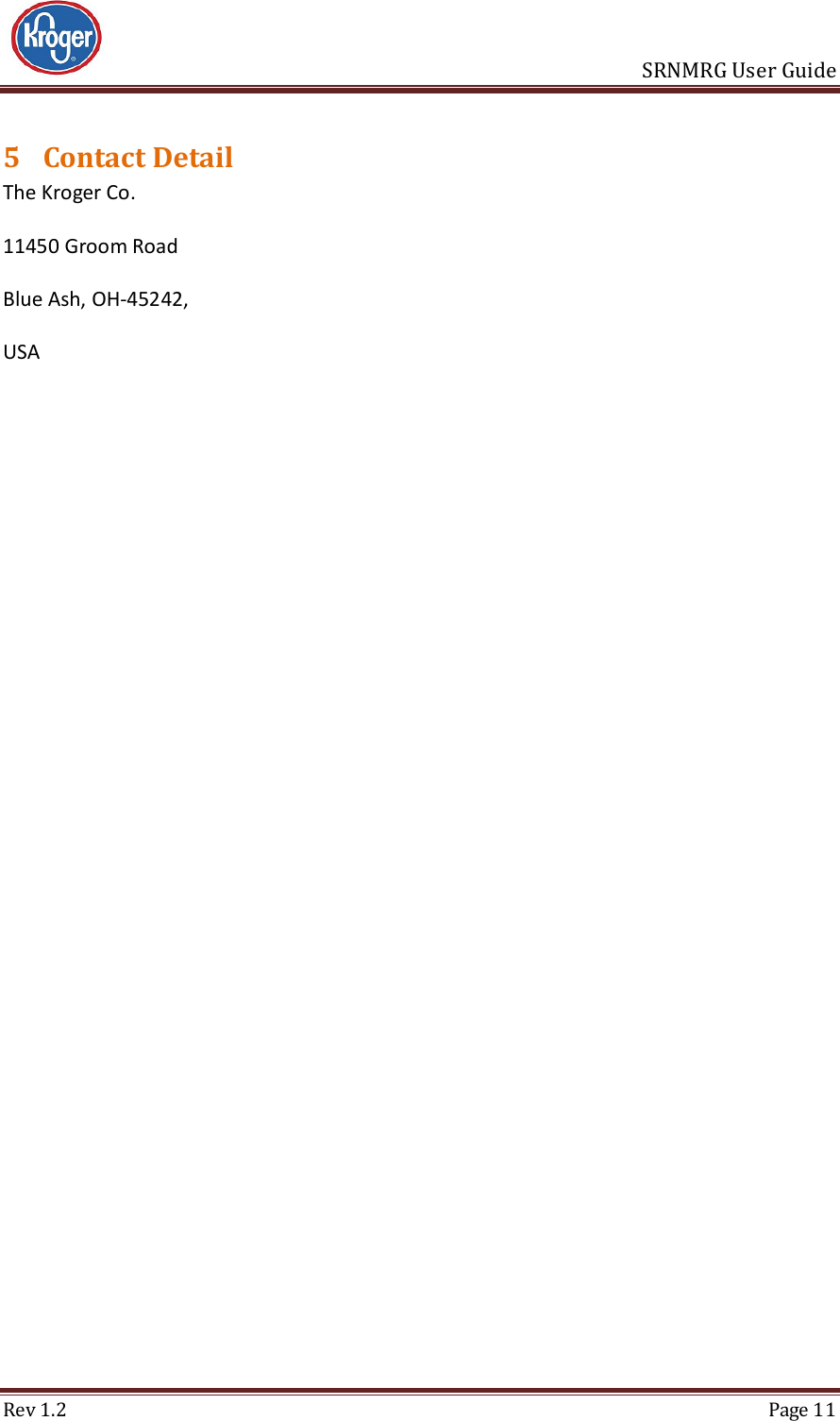

                      SRNMRG User Guide Rev 1.2  Page 11 5 Contact Detail The Kroger Co. 11450 Groom Road Blue Ash, OH-45242, USA
