The Singing Machine SMCHOME1 Singing Machine Home User Manual
The Singing Machine Company, Inc. Singing Machine Home Users Manual
Users Manual
1
Congratulations on the purchase of your new
Singing Machine Home!
Table of Contents
Warnings ......................................................................................................2
Important Safety Information ................................................................4
In The Box ....................................................................................................5
Bluetooth® Speaker Operation ..............................................................6
Plug In AC Power Adapter ...................................................................6
Activate Pairing ..........................................................................................7
Mic-Remote Operation ...........................................................................8
Install Batteries ......................................................................................8
Connecting The Mic-Remote ............................................................9
Connecting to Television ......................................................................10
Using Singing Machine Play .................................................................11
Setting Up Your Account ..................................................................12
Navigating The User Interface ........................................................13
Specifications...........................................................................................15
2
Warnings
DANGEROUS VOLTAGE: The lightning flash with arrowhead symbol within an equi-
lateral triangle is intended to alert the user to the presence of uninsulated dangerous
voltage within the product’s enclosure that may be of sufficient magnitude to consti-
tute a risk of electric shock to persons.
ATTENTION: The exclamation point within an equilateral triangle is intended to alert
the user to the presence of important operating and maintenance (servicing) instruc-
tions in the literature accompanying this product.
DIPPING WARNING: This product shall not be exposed to dripping or splashing, and no objects filled with
liquids, such as vases, shall be placed on the product.
VENTILATION WARNING: The normal ventilation of the product shall not be impeded for intended use.
SAFETY VERIFICATION: This device is made and tested to meet safety standards of the FCC, requirements and
compliance with safety performance of the U.S. Department of Health and Human Services and also with FDA
Radiation Performance Standards 21 CFR Subchapter.
This Class B digital apparatus complies with Canadian ICES-003.
Class II equipment symbol.
This symbol indicates that the unit
has a double insulation system.
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK). NO USER-SER-
VICEABLE PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL. The Caution marking
is located on the bottom panel.
3
Warnings
FCC WARNING: This equipment may generate or use radio frequency energy. Changes or modifications to this
equipment may cause harmful interference unless the modifications are expressly approved in the instruction
manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is
made.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interfer-
ence in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if
not installed and used in accordance with the instructions, may cause harmful interference to radio communica-
tions. However, there is no guarantee that interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
The rating information is located at the bottom of the unit.
CAUTION: USE OF CONTROLS, ADJUSTMENTS OR PERFORMANCE PROCEDURE HEREIN MAY RESULT IN
HAZARDOUS RADIATION EXPOSURE.
CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH
WIDE BLADE OF PLUG TO WIDE SLOT AND FULLY
INSERT.
WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO
NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE.
The antenna must be installed such that a minimum separation distance of at least 20 cm
is maintained between the radiator(antenna) and all persons at all time.
4
Important Safety Information
1. Read these Instructions.
2. Keep these Instructions.
3. Heed all Warnings.
4. Follow all Instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any of the ventilation openings. Install in accordance with the Manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades
with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide
blade or the third prong are provided for your safety. When the provided plug does not fit into your outlet,
consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and
the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold
with the apparatus. When a cart is used, use caution when moving the cart/apparatus
combination to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus
has been damaged in any way, such as power-supply cord or plug is damaged, liquid has
been spilled or objects have fallen into the apparatus, the apparatus has been exposed to
rain or moisture, does not operate normally, or has been dropped.
15. WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain
or moisture. Do not place objects filled with water, such as a vase, on the apparatus.
16. The AC mains plug is used as the power disconnect device and it should remain readily accessible and
operable during intended use. In order to completely disconnect the apparatus from power, the mains plug
should be completely removed from the AC outlet socket.
17. CAUTION: To reduce the risk of fire or explosion, do not expose batteries to excessive heat such as sunshine,
fire or other heat sources.
5
In the Box
SINGING MACHINE HOME UNIT
HOME ADAPTER HOME ADAPTER CABLE
HOME MIC-REMOTE
CONNECTION
Turn unit over to connect AC Adapter
and HDMI cable to connect to
television (sold separately)
6

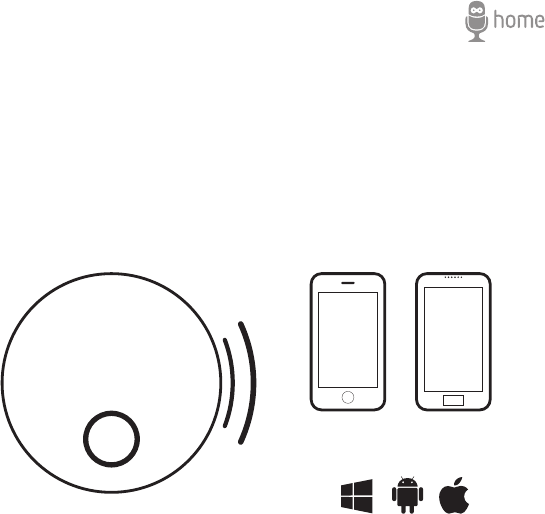

Bluetooth® Speaker Operation
1. Plug in AC Power Adapter
Singing Machine Home automatically turns on with sound when powered
- there is no power button. Wirelessly connect any Bluetooth® device to
Singing Machine Home to stream audio through the 2.1 channel speakers.
compatible with
7

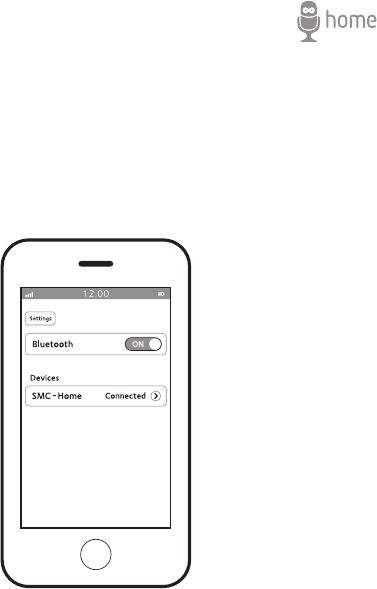

2. Activate Pairing
Preparing Bluetooth® device
Turn on Bluetooth® and enable your device to be discoverable. Please refer to
the device’s user guide for specific instructions.
Select “SMC-Home” from the list of Bluetooth® compatible devices to pair.
The Bluetooth® speaker is now ready to stream your music.
8
Mic-Remote Operation

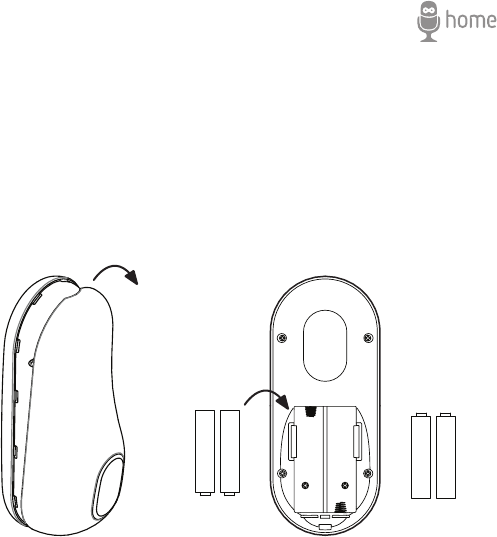

3. Install batteries
Open the Mic-Remote by gently pulling the top of the battery cover with a
fingernail or small tool. Insert batteries (4 x AA not included) as shown in the
illustration below and replace the battery cover.
Singing Machine Home automatically detects the Mic-Remote. Press down on
the optical trackpad to pair. The LED will first turn red and then steady green
to indicate successful pairing. An unpaired Mic-Remote will display a flashing
green light.
9
Mic-Remote Operation
4. Mic-Remote
The Mic-Remote is used to navigate Singing Machine Play and to control
volume. Turn off by pressing and holding down the optical trackpad for 4
seconds. The LED will turn steady red and will then go dark when the Mic-
Remote is off.
Two Mic-Remotes can be connected simultaneously. Additional Mic-Remotes
can be purchased directly through Play on your TV or visit
www.singingmachine.com/home
Volume Up
Volume Down
LED
Trackpad
10

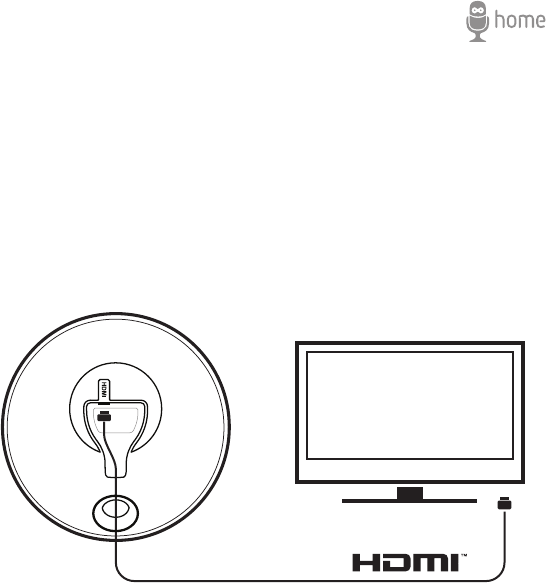

5. Connecting to Television
Singing Machine Home is an elegantly crafted wireless speaker that delivers
soulful, room-filling sound. When the mood is right, Home turns into an
on-demand, WiFi-enabled karaoke machine.
Connected via HDMI, Home provides instant access to Singing Machine Play, a
platform that streams more than 8,000 HD karaoke music videos.
Make sure the TV is turned off before connecting the HDMI cable (not
included) and the AC adapter (included) as illustrated before.
11
Using Singing Machine Play
Singing Machine Home defaults to Bluetooth® speaker mode; a message on
your television screen will prompt you to switch over to Singing Machine Play
mode, providing you with instant access to thousands of karaoke tunes.
1. Click the optical trackpad to exit Bluetooth Speaker and switch to Singing Machine Play
2. A list of available wireless networks will be displayed, select from list or enter manually
3. A Login/Create Account screen will appear. Follow the instructions to get started
Light will be green
to show active
subscription
12
6. Setting Up Your Account
To get started, set up your account either in Singing Machine Play or on the
Singing Machine website (http://www.singingmachine.com).
Note:
1. A valid credit card is required to register an account.
2. An active internet connection through a Wifi network is required to use
Singing Machine Play.
3. Choose from several subscription options.
CREATE NEW ACCOUNT
Login Information
Username
Email
Password
Profile InformationA ddress Information
First Name
Last Name
Gender
Date of Birth
Phone Number
Country
State / Province
City
Address
Zip Code
Next Step
JohnDoe12
JohnDoe_12@gmail.com
•••••••
John
Male
01
•••••••
United States
Florida
Miami Beach
1111 Lincoln Rd.
33139
1981January
Doe
13
7. Navigating the User Interface
Use the Mic-Remote to scroll through Singing Machine Play by flicking your
thumb over the optical trackpad in the direction you want to move.
Press down once on the optical trackpad to make a selection. Press and hold
down the optical trackpad for 2 seconds to bring up the Quick Menu at any
time, which can be customized in the Settings. Holding down the trackpad for
4 seconds will turn off the Mic.-Remote.
To switch back to Bluetooth® Speaker, you can either scroll to your username
at the top of the menu and select Bluetooth® speaker, or bring up the Quick
Menu and select the option. After 10 minutes of inactivity, Singing Machine
Home will automatically switch to the Bluetooth® Speaker mode.
For more information on using Singing Machine Play or other features, please
visit us at www.singingmachine.com
BROWSE BY
FEATURED
SEARCH
MACHINES
SETTINGS
14
8. Specifications
Audio
Outpower: 10W
Impedance: 4Ω ± 15%
Frequency response: 150Hz -20Khz
4.5” Woofer x 1
Output Power: 20W
Impedance: 4Ω ± 15%
Frequency response : 50Hz ~2KHz
Power
Input voltage: AC 100V-240V
Input Current: 1.5A
Input Frequency: 50/60Hz
Output Voltage: 15VMax
Load: 3.0A
Dimensions and weight
HOME: 293.6 x 293.6 x 140.4mm
HOME weight: 1.9kg
Mic-Remote: 129.8 x 55 x 47.3mm
Mic-Remote weight: 95g
15
9. WARRANTY
THE SINGING MACHINE COMPANY, INC. warrants this product to be free from defects in material and
workmanship for a period of one year from date of sale to the original consumer purchaser. Product will be
repaired or replaced with a new or reconditioned product at no additional charge if it is proven to be defective
within the one year period when said product is returned at customer expense within the warranty period. THIS
WARRANTY DOES NOT COVER ANY EXPENSES INCURRED IN THE REMOVAL AND REINSTALLATION OF THIS
PRODUCT.
This warranty does not apply to any product damaged by accident, misuse, abuse, improper line voltage, fire,
water, lightning or other acts of God, or any parts or services furnished by anyone else. The warranty does not
cover cartons, carrying cases, batteries, broken or damaged cabinets, or any items used in connection with the
product or consequential damage due to defect in the product. This warranty does not cover products sold AS
IS or Re-manufactured units or units sold outside the SMC distribution channel.
ALL IMPLIED WARRANTIES ARE LIMITED TO THE DURATION OF THIS WARRANTY. THIS IS THE COMPLETE
WARRANTY AND NO OTHER EXPRESSED WARRANTY IS VALID. SOME STATES DO NOT ALLOW LIMITATIONS
ON HOW LONG AN IMPLIED WARRANTY LASTS OR AN EXCLUSION OR LIMITATIONS OF INCIDENTAL OR
CONSEQUENTITAL DAMAGES, SO THE ABOVE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU.
This warranty gives you specific legal rights and you may also have other rights, which may vary from state to
state.
IF THE UNIT IS OUTSIDE THE WARRANTY PERIOD, please call us first at (866) 670-6888 or email us at
customerservice@singingmachine.com.
SERVICE CENTER: THE SINGING MACHINE COMPANY
4060 E. Jurupa Street, Unit B
Ontario, CA 91761
USA
Visit our website www.singingmachine.com
THE SINGING MACHINE is a registered trademark of The Singing Machine Company, Inc.
THE SINGING MACHINE est une marque déposée de The Singing Machine Company, Inc.
THE SINGING MACHINE es una marca registrada de The Singing Machine Company, Inc.
4060 E JURUPA STREET, UNIT B, ONTARIO, CA 91761-1413, USA
COPYRIGHT © 2013
www.singingmachine.com
