How to install and use the
radioMiroTM room remote
control
English
Read and retain these instructions
Français
Español
Ready? Application
For more information on designing,
installing and using radioMiroTM
systems, and for expert technical
help, visit our web site at
www.passandseymour.com/miro
Use the radioMiroTM room remote control in
a room with any number of radioMiroTM
dimming or non-dim devices, normally
including one or more wall-mounting
radioMiroTM room preset controllers.
The radioMiroTM room remote control gives
you fingertip control of individual circuits,
presets and overall room light level, in a
convenient unit that looks and feels good on
the coffee table or by the bed!
Note: for whole-house control, use a
radioMiroTM whole-house preset controller or
handheld remote.
Batteries
Figure 1
1. Remove the battery cover in the base of
the unit, and install the three AAA cells
provided in accordance with the diagram
in the battery compartment.
2. Replace the battery cover and press any
button – the status LED will be green if
the batteries are good
3. When the batteries start to lose their
charge, the status LED will blink red,
indicating that new batteries are
required.
4. Note that to conserve battery life, the
remote ‘goes to sleep’ when it has not
been used for one minute, and the status
LED goes out. Pressing any button while
the remote is asleep causes the remote
to ‘wake up’, ready for use.
Get Set… Configuration

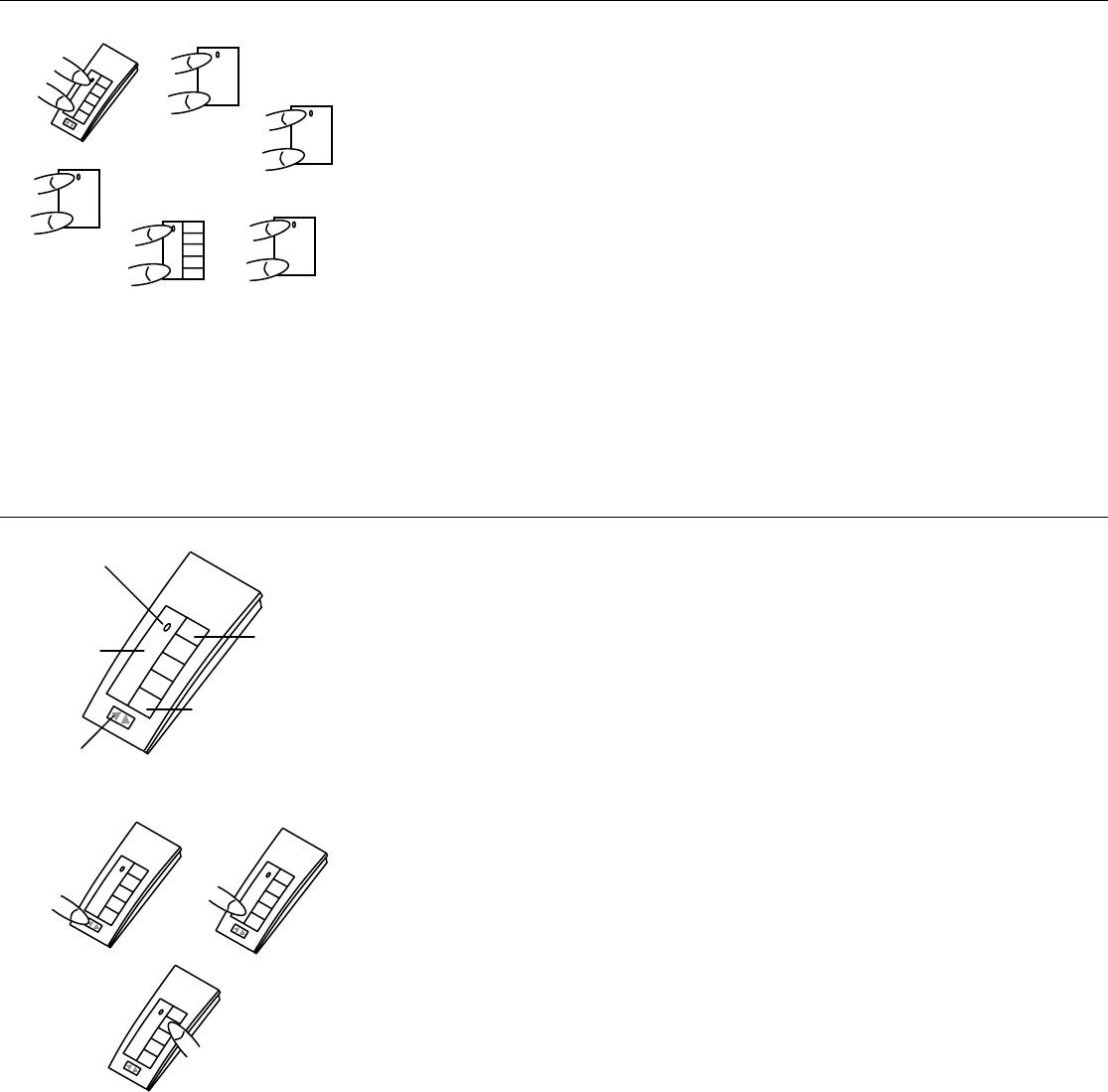

Figure 2
To prevent interference between neighboring
systems, radioMiroTM devices must acquire
a unique house ID before use. It’s simple!
1. With all devices installed and energized,
check that every radioMiroTM device is
showing a yellow LED. If not, check that
the circuit breaker is on and that the
device is correctly installed.
2. All devices in a home must be ‘bound’ to
the same home ID. For a new
radioMiroTM installation, simultaneously
press and hold the top and bottom (Ú) of
any device paddle for 2 seconds. Its LED
flashes yellow, indicating that it has
acquired a unique House ID.
3. Check that all other radioMiroTM device
LEDs are flashing green, indicating that
they have acquired the same House ID.
4. Return to the first device, and press Ú
again for 2 seconds. All device LEDs
revert to green, indicating that house
binding is complete.
Note: if you’re adding the device to an
existing radioMiroTM installation, simply
press and hold Ú on any previously bound
device for 2 seconds to start the procedure,
verify that the newly added device LED is
flashing green, indicating that it has acquired
the House ID. Press and hold Ú for 2
seconds again on the same previously
installed device to terminate.
Handheld devices will not respond to a
binding signal when they are not in use.
Need Graphic
-
Battery
installation
p
laceholde
r
Status
LED
2
1
3, 5, 6
Either wake them up by pressing any button
prior to binding, or add them to the House
later.
Room Setup

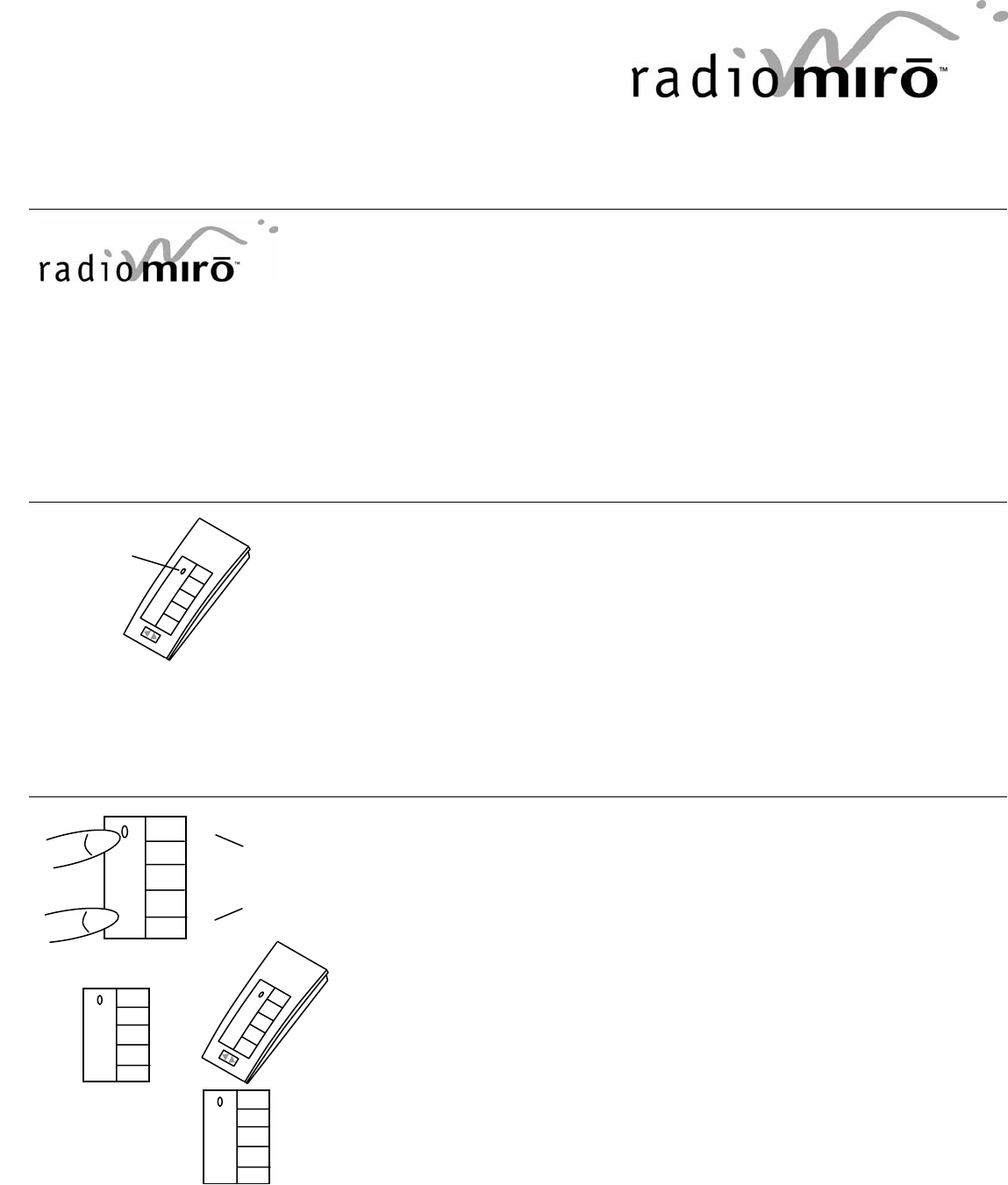

Figure 3, Room Binding
When all the radioMiroTM devices in the
room are successfully bound to the House
ID, it’s time to bind them together as a
Room. The procedure is the same, but it
must start from a radioMiroTM room preset
controller.
1. Go to the radioMiroTM room remote, and
press Ú For 2 seconds. Its LED starts
flashing yellow, and all the others start
flashing green.
2. Go to each other radioMiroTM device in
the room and press Ú for 2 seconds.
The LED of each device starts flashing
yellow as you add it to the Room. Be
sure to bind every radioMiroTM device in
the room. You only need to bind one
member of a Group into the room.
3. Return to the room remote and press Ú
for 2 seconds to terminate Room
binding. All Room devices revert to
green status LEDs.
4. You can repeat the procedure any time
you need to change Room configuration.
Use Ú (2 sec) to toggle devices in and
out of the Room. Flashing yellow LED =
in, flashing green LED = out.)
Important – when you’ve bound the remote
to a Room, it belongs to that Room only. You
cannot share a remote between two Rooms.
Go! Use

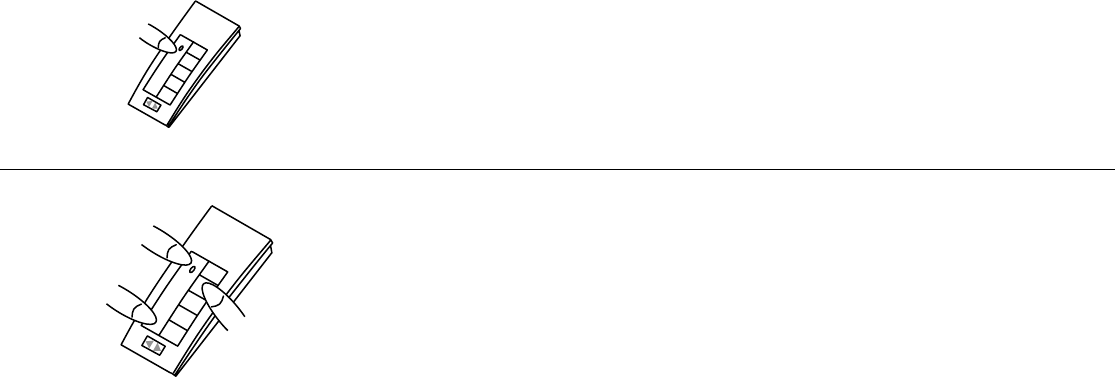

Figure 4
Figure 5
First, make yourself comfortable! You may as
well get used to controlling your environment
with your feet up!
Controlling Individual Devices
You can select and control any radioMiroTM
device already bound in to the room (see
previous section).
1. Press the seek button – each time you
press it, the radioMiroTM remote selects
the next radioMiroTM device bound in to
the room. If it’s a lighting circuit, the light
will momentarily blink, telling you which
circuit you are controlling. If it’s a non-
dim device or a fan control, the device
status LED will flash. Either way, you
know which device you’ve selected.
2. Having selected a device to control, use
the raise/lower rocker, as follows:
Touch × momentarily to fade the
circuit to its last-used level (or full
bright if the circuit is already on)
Press and hold × to increase the
present level
Touch Ø momentarily to fade the
circuit to OFF
Press and hold Ø to decrease the
present level
3. When you select a radioMiroTM fan
control from the room remote, the five
preset buttons act as fan speed
controllers – from fastest at the top to
stop at the bottom.
Recording and Recalling Scenes
4. Use the radioMiroTM remote to record
and play back scenes. Note that the five
scenes available from the remote are the
same five scenes that you access from
the room preset controller.
5. To record a scene, adjust the lighting in
the room as described above, then press
and hold one of the top four (recordable)
preset buttons for two seconds. The
status LED will blink, confirming that the
scene has been recorded.
6. To recall a scene, simply press any of
the recordable preset buttons, and the
scene will smoothly fade from the prior
lighting state. Pressing the bottom OFF
button causes the Room to fade to black.
1, 3 2
2
2
2
Status LED
Raise/Lower
Rocker
Preset Buttons
1-4
(recordable)
OFF button
(not
recordable)
2
Seek
Button
Overriding the lighting level
7. Want the lights a little brighter – or
dimmer? Just press and hold the
raise/lower rocker to get it just right. All
the dimmers in the Room will increase or
decrease their levels accordingly.
Advanced Users More Scenes
Figure 6
You can increase the number of presets in a
room up to a total of 16. You will need one
radioMiroTM room preset controller and/or
remote for each four presets.
If you want more than four presets, you will
have to choose which set of four presets you
wish to control from the room remote.
Set up as described above, then set any
controller to be used for presets above 4 as
follows:
Simultaneously press Ú and one of the
following preset buttons, to set the presets to
be controlled by each controller:
A (top) = presets 1-4 (factory setting)
B = scenes 5-8
C = scenes 9-12
D = scenes 13-16
7
Cleaning
Clean only using a cloth dampened with
water and a little mild detergent.
Use of solvents or hydrocarbon-based
cleaners may cause permanent damage.
Troubleshooting
Problem: At house binding, not all the
radioMiroTM devices in the house are flashing
green.
In larger homes, some of the devices may be
out of range of the initiating device. In this
case, it will be necessary to add a
radioMiroTM Radio Repeater to boost radio
signal range.
Problem: I messed up the configuration, and
I need to clear down and start again.
You can reset any radioMiroTM device to
factory default settings by pressing and
holding for 10 seconds. The LED reverts to
yellow, indicating that factory settings have
been restored.
Problem: The Room Remote does not seem
to pick up all the devices in the Room
When a room remote is ‘asleep’ it will not
respond to changes in Room binding setup.
Maybe a change to Room binding took place
(you added a device?) and the remote
doesn’t know about it. Simply press
Ú
for
two seconds TWO TIMES, and the remote
will re-tabulate its list of Room members.
FCC Notice
This equipment has been tested and found
to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide
reasonable protection against harmful
interference in a residential installation. This
equipment generates, uses and can radiate
radio frequency energy and, if not installed
and used in accordance with the instructions,
may cause harmful interference to radio
communications. However, there is no
guarantee that interference will not occur in a
particular installation. If this equipment does
cause harmful interference to radio or
television reception, which can be
determined by turning the equipment off and
on, the user is encouraged to try to correct
the interference by one or more of the
following measures:
• Reorient or relocate the receiving
antenna.
• Increase the separation between the
equipment and receiver.
• Connect the equipment into an outlet on a
circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced
radio/TV technician for help.
Caution: Any changes or modifications to
this device not explicitly approved by Pass &
Seymour/Legrand could void your authority
to operate this equipment.
Lifetime Warranty
MiroTM is much more than lighting
control! For information on MiroTM
wiring devices, decorative wall
The device you have purchased is warranted under
normal use against defects in workmanship and
materials for as long as you own the device. If the
device fails due to manufacturing defect during
normal use, return the device for replacement to the
store where purchased or send to: Pass &
Seymour/Legrand, Inc., 50 Boyd Avenue, Solvay,
NY 13209. All requests for replacement must include
a dated sales receipt (legible copies acceptable).
ALL OTHER WARRANTIES, INCLUDING BUT NOT
LIMITED TO ANY WARRANTIES OF
MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE, ARE LIMITED TO A
PERIOD OF TWO YEARS FROM THE DATE OF
PURCHASE. YOUR SOLE AND EXCLUSIVE
plates, home networks and
home automation solutions, visit
our web site at
www.passandseymour.com/miro
REMEDY AGAINST PASS & SEYMOUR/LEGRAND
UNDER ANY WARRANTY SHALL BE THE
EQUIVALENT REPLACEMENT OF THE DEVICE.
IN NO EVENT SHALL ANY WARRANTY APPLY TO
ANY DEFECT ARISING OUT OF ANY
ALTERATION OF THE DEVICE, IMPROPER
INSTALLATION, MISUSE, ABNORMAL USE OR
NEGLIGENCE. IN NO EVENT SHALL PASS &
SEYMOUR/LEGRAND BE LIABLE FOR LOST
PROFITS, INDIRECT, SPECIAL, EXEMPLARY,
INCIDENTAL OR CONSEQUENTIAL DAMAGES.
Some states do not allow limitations of incidental or
consequential damages. Some of the above
limitations or exclusions may not apply to every
purchaser.
© 2002 Pass & Seymour/Legrand, Inc., PO Box 4822, Syracuse, NY 13221-4822. P/N MRH6 rev 3. Go to www.passandseymour.com/miro for MiroTM system guide and technical support.
