User Manual MRD8

How to install and use the
wireless MiroTM remote switch
(MRD8)
English
Read and retain these instructions
Français
Español
Ready? Application
For more information on designing,
installing and using wireless MiroTM
systems, and for expert technical
help, visit our web site at
www.passandseymour.com/miro
Use one or more wireless MiroTM remote
switches in a group with a wireless MiroTM
dimming or switching device, for seamless 3-
way, 4-way (or more-way!) control of a load
circuit from multiple locations.
The wireless MiroTM remote switch may be
combined with the following wireless MiroTM
control devices:
Incandescent Dimmer
Universal Dimmer
Non-dim Switch
Plug-in Lamp Module
Plug-in Appliance Module
Installation
Disconnect power to circuit by turning circuit
breaker OFF before installation.
Remove existing wall plate and switch.
Strip existing wires ½”
Wire the LIVE (black), NEUT (white), and
GND supply wires to the correspondingly
marked screw terminals, following the
wiring diagram in figure 1
Mount using a MiroTM wall plate, following
instructions provided
Switch the circuit breaker back ON.
INSTALL IN COMPLIANCE WITH ALL
APPLICABLE CODES & STANDARDS.
Failure to follow these instructions may
cause personal injury or equipment damage.
Get Set… Configuration

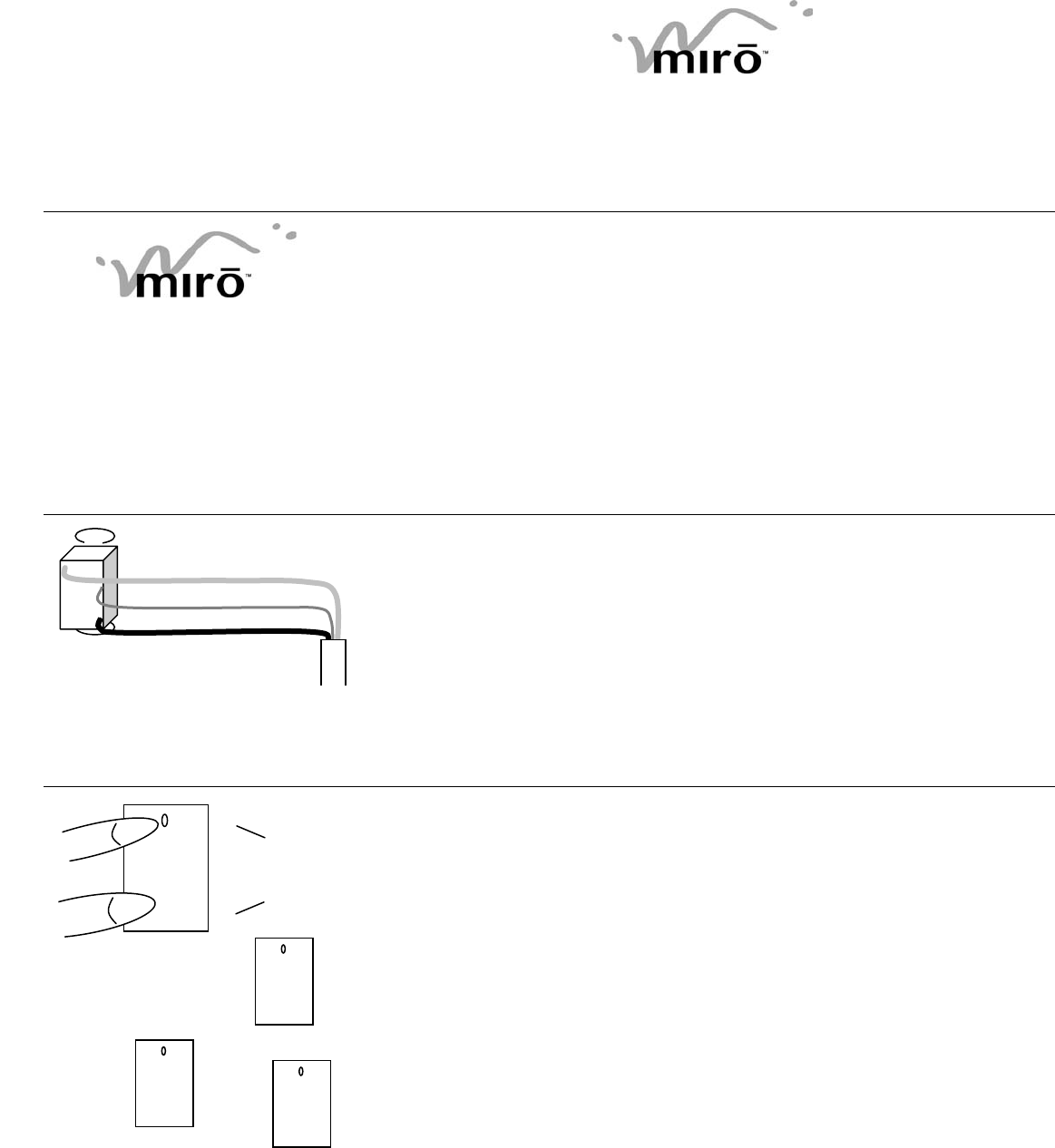

Figure 2
To prevent interference between neighboring
systems, wireless MiroTM devices must
acquire a unique house ID before use. It’s
simple!
1. With all devices installed and energized,
check that every wireless MiroTM device
is showing a yellow LED. If not, check
that the circuit breaker is on and that the
device is correctly installed.
2. All devices in a home must be ‘bound’ to
the same home ID. For a new wireless
MiroTM installation, simultaneously press
and hold the top and bottom (Ú) of any
device paddle for 2 seconds. Its LED
flashes yellow, indicating that it has
acquired a unique House ID.
3. Check that all other wireless MiroTM
device LEDs are flashing green,
indicating that they have acquired the
same House ID.
4. Return to the first device, and press Ú
again for 2 seconds. All device LEDs
revert to green, indicating that house
binding is complete.
Note: if you’re adding the device to an
existing wireless MiroTM installation, simply
press and hold Ú on any previously bound
device for 2 seconds to start the procedure,
verify that the newly added device LED is
flashing green, indicating that it has acquired
the House ID. Press and hold Ú for 2
seconds again on the same previously
installed device to terminate.
GND
NEUT
LIVE
Figure 1 Supply
Wire
2, 4
3
3
3
Ø
× When you see Ú in
the instructions,
press and hold the
top and the bottom
of the device face
for 2 seconds
Groups
Use one or more wireless MiroTM
remote switchs in conjunction with a
wireless MiroTM dimmer or non-dim
(see list in the Applications section
above) to control one lighting circuit
from multiple locations. When you do
this, the dimmer works in exactly the
same way, from any of the control
locations.
After acquiring a house ID (see above)
Group Devices must be bound together:
1. Go to the nearest device in the group and
press Ú for 2 seconds. The device LED
starts flashing yellow, and all other
devices in the house start flashing green.
2. Go to the other devices to be bound into
the group and press Ú on each one.
Their LEDs will start flashing yellow,
indicating that they have joined the group
(made a mistake? Press Ú a second time
to deselect from the Group).
3. Return to the first device and press Ú for
2 seconds to terminate Group binding. All
LEDs revert to green. Now, all the
devices in the Group control the load
circuit, in exactly the same manner.
Go! Use

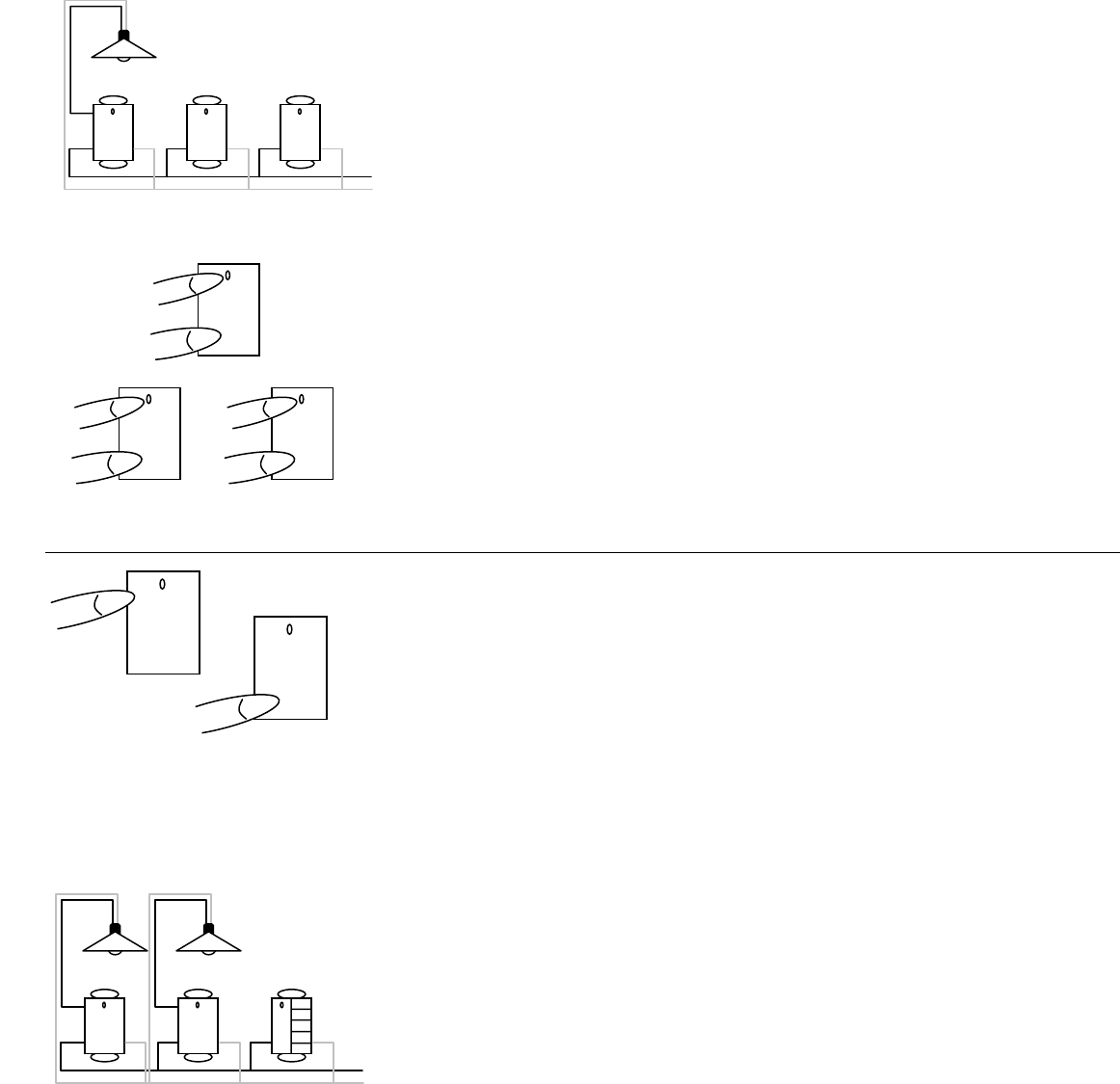

Figure 3
On any device in the group:
1. Touch × momentarily to fade the load
circuit to its last-used level – tap twice for
full bright
2. Press and hold × to increase the present
level (dimmers only)
3. Touch Ø momentarily to turn the circuit
OFF
4. Press and hold Ø to decrease the
present level (dimmers only)
IMPORTANT – Air Gap Isolation: to isolate
the load for relamping, press Ø FIRMLY, so
that the paddle latches in, and the status
LED is extinguished, indicating that it’s safe
to relamp. To release and return to normal
operation, press ×. This can only be done
at the dimmer or non-dim device to which
the load is connected.
Scene Control
Figure 5
The wireless MiroTM control Group may be
easily incorporated into room preset and
whole house lighting control schemes.
Instructions for installation and use are
included with the relevant wireless MiroTM
room and whole house control devices.
For more information on
designing, installing and using
wireless MiroTM lighting control
systems, visit our website at
www.passandseymour.com/miro
Neutra
l
Dimmer Remote
switch
Remote
switch
Ho
t
Dimmer Dimmer Scene
Controlle
r
Ho
t
Neutra
l
1, 2
3, 4
1, 3
2
2
Example
–
2 remote switches
and a dimmer make up a true 4-
way control circuit.
Cleaning
Clean only using a cloth dampened with
water and a little mild detergent.
Use of solvents or hydrocarbon-based
cleaners may cause permanent damage.
Troubleshooting
Problem: At house binding, not all the
wireless MiroTM devices in the house are
flashing green.
In larger homes, some of the devices may be
out of range of the initiating device. In this
case, it will be necessary to add a wireless
MiroTM Radio Repeater to boost radio signal
range.
Problem: I messed up the configuration, and
I need to clear down and start again.
You can reset any wireless MiroTM device to
factory default settings by pressing and
holding for 10 seconds. The LED reverts to
yellow, indicating that factory settings have
been restored.
FCC Notice
This device complies with part 15 of the FCC
Rules. Operation is subject to the following
two conditions: (1) This device may not
cause harmful interference, and (2) this
device must accept any interference
received, including interference that may
cause undesired operation.
This equipment has been tested and found
to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide
reasonable protection against harmful
interference in a residential installation. This
equipment generates, uses and can radiate
radio frequency energy and, if not installed
and used in accordance with the instructions,
may cause harmful interference to radio
communications. However, there is no
guarantee that interference will not occur in a
particular installation. If this equipment does
cause harmful interference to radio or
television reception, which can be
determined by turning the equipment off and
on, the user is encouraged to try to correct
the interference by one or more of the
following measures:
• Reorient or relocate the receiving
antenna.
• Increase the separation between the
equipment and receiver.
• Connect the equipment into an outlet on a
circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced
radio/TV technician for help.
Caution: Any changes or modifications to
this device not explicitly approved by Pass &
Seymour/Legrand could void your authority
to operate this equipment.
Lifetime Warranty
MiroTM is much more than lighting
control! For information on MiroTM
wiring devices, decorative wall
plates, home networks and
home automation solutions, visit
our web site at
www.passandseymour.com/miro
The device you have purchased is warranted under
normal use against defects in workmanship and
materials for as long as you own the device. If the
device fails due to manufacturing defect during
normal use, return the device for replacement to the
store where purchased or send to: Pass &
Seymour/Legrand, Inc., 50 Boyd Avenue, Solvay,
NY 13209. All requests for replacement must include
a dated sales receipt (legible copies acceptable).
ALL OTHER WARRANTIES, INCLUDING BUT NOT
LIMITED TO ANY WARRANTIES OF
MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE, ARE LIMITED TO A
PERIOD OF TWO YEARS FROM THE DATE OF
PURCHASE. YOUR SOLE AND EXCLUSIVE
REMEDY AGAINST PASS & SEYMOUR/LEGRAND
UNDER ANY WARRANTY SHALL BE THE
EQUIVALENT REPLACEMENT OF THE DEVICE.
IN NO EVENT SHALL ANY WARRANTY APPLY TO
ANY DEFECT ARISING OUT OF ANY
ALTERATION OF THE DEVICE, IMPROPER
INSTALLATION, MISUSE, ABNORMAL USE OR
NEGLIGENCE. IN NO EVENT SHALL PASS &
SEYMOUR/LEGRAND BE LIABLE FOR LOST
PROFITS, INDIRECT, SPECIAL, EXEMPLARY,
INCIDENTAL OR CONSEQUENTIAL DAMAGES.
Some states do not allow limitations of incidental or
consequential damages. Some of the above
limitations or exclusions may not apply to every
purchaser.
© 2003 Pass & Seymour/Legrand, Inc., PO Box 4822, Syracuse, NY 13221-4822. P/N MRD8 rev 3. Go to www.passandseymour.com/miro for MiroTM system guide and technical support.
