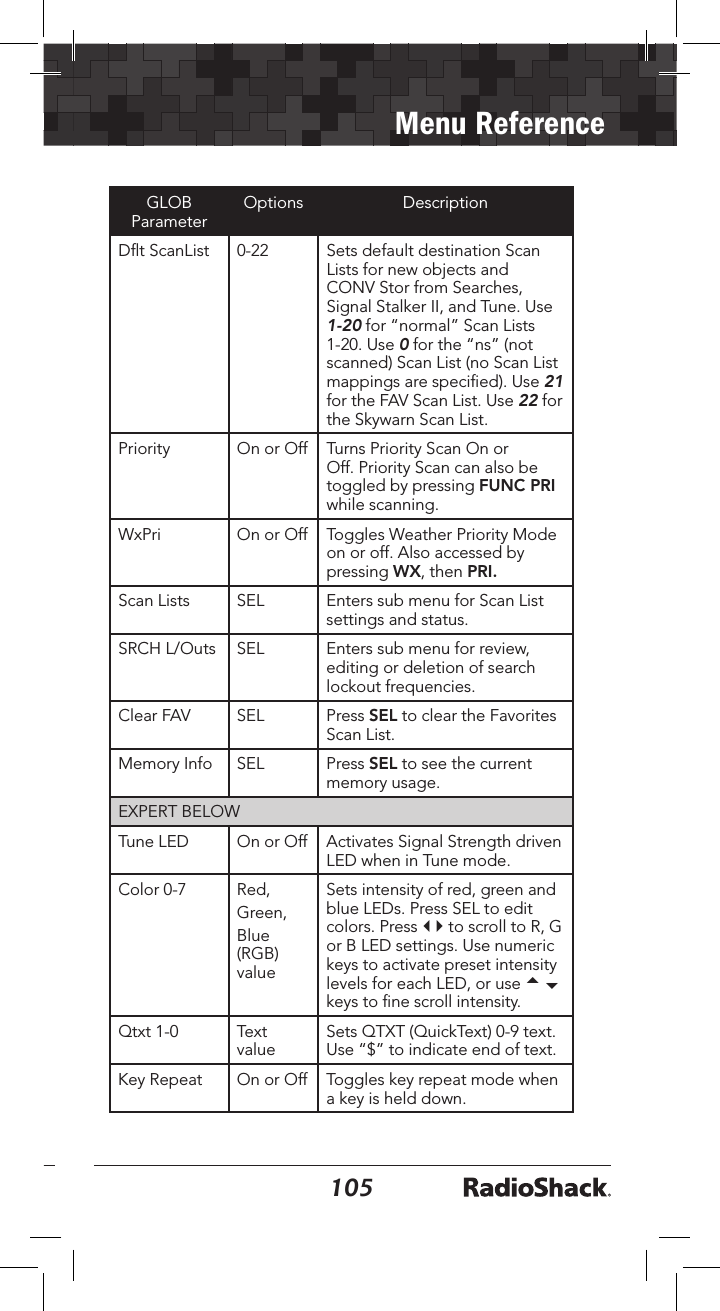

104105Menu ReferenceGLOB ParameterOptions DescriptionDflt ScanList 0-22 Sets default destination Scan Lists for new objects and CONV Stor from Searches, Signal Stalker II, and Tune. Use 1-20 for “normal” Scan Lists 1-20. Use 0 for the “ns” (not scanned) Scan List (no Scan List mappings are specified). Use 21 for the FAV Scan List. Use 22 for the Skywarn Scan List.Priority On or Off Turns Priority Scan On or Off. Priority Scan can also be toggled by pressing FUNC PRI while scanning.WxPri On or Off Toggles Weather Priority Mode on or off. Also accessed by pressing WX, then PRI.Scan Lists SEL Enters sub menu for Scan List settings and status.SRCH L/Outs SEL Enters sub menu for review, editing or deletion of search lockout frequencies.Clear FAV SEL Press SEL to clear the Favorites Scan List.Memory Info SEL Press SEL to see the current memory usage.EXPERT BELOWTune LED On or Off Activates Signal Strength driven LED when in Tune mode.Color 0-7 Red, Green, Blue (RGB) valueSets intensity of red, green and blue LEDs. Press SEL to edit colors. Press   to scroll to R, G or B LED settings. Use numeric keys to activate preset intensity levels for each LED, or use   keys to fine scroll intensity.Qtxt 1-0 Text valueSets QTXT (QuickText) 0-9 text. Use “$” to indicate end of text.Key Repeat On or Off Toggles key repeat mode when a key is held down.

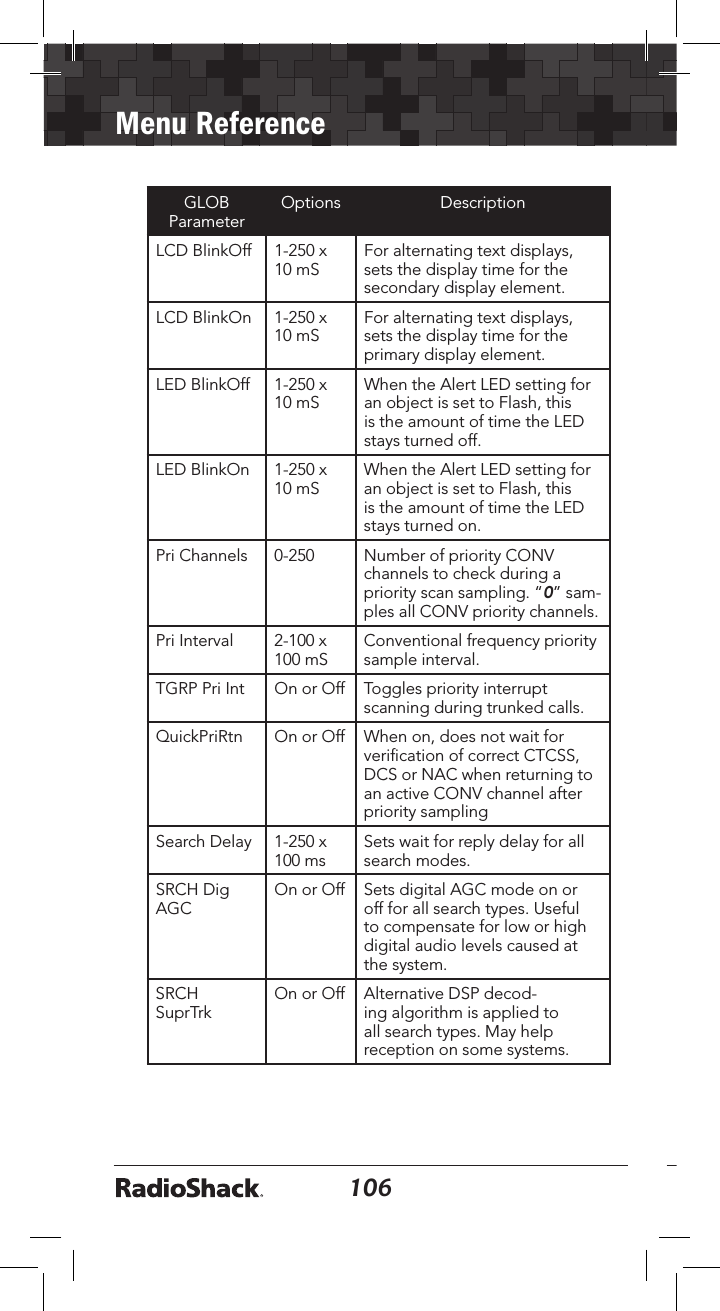

106Menu Reference107GLOB ParameterOptions DescriptionLCD BlinkOff 1-250 x 10 mSFor alternating text displays, sets the display time for the secondary display element.LCD BlinkOn 1-250 x 10 mSFor alternating text displays, sets the display time for the primary display element.LED BlinkOff 1-250 x 10 mSWhen the Alert LED setting for an object is set to Flash, this is the amount of time the LED stays turned off.LED BlinkOn 1-250 x 10 mSWhen the Alert LED setting for an object is set to Flash, this is the amount of time the LED stays turned on.Pri Channels 0-250 Number of priority CONV channels to check during a priority scan sampling. “0” sam-ples all CONV priority channels.Pri Interval 2-100 x 100 mSConventional frequency priority sample interval.TGRP Pri Int On or Off Toggles priority interrupt scanning during trunked calls.QuickPriRtn On or Off When on, does not wait for verification of correct CTCSS, DCS or NAC when returning to an active CONV channel after priority samplingSearch Delay 1-250 x 100 msSets wait for reply delay for all search modes.SRCH Dig AGCOn or Off Sets digital AGC mode on or off for all search types. Useful to compensate for low or high digital audio levels caused at the system.SRCH SuprTrkOn or Off Alternative DSP decod-ing algorithm is applied to all search types. May help reception on some systems.

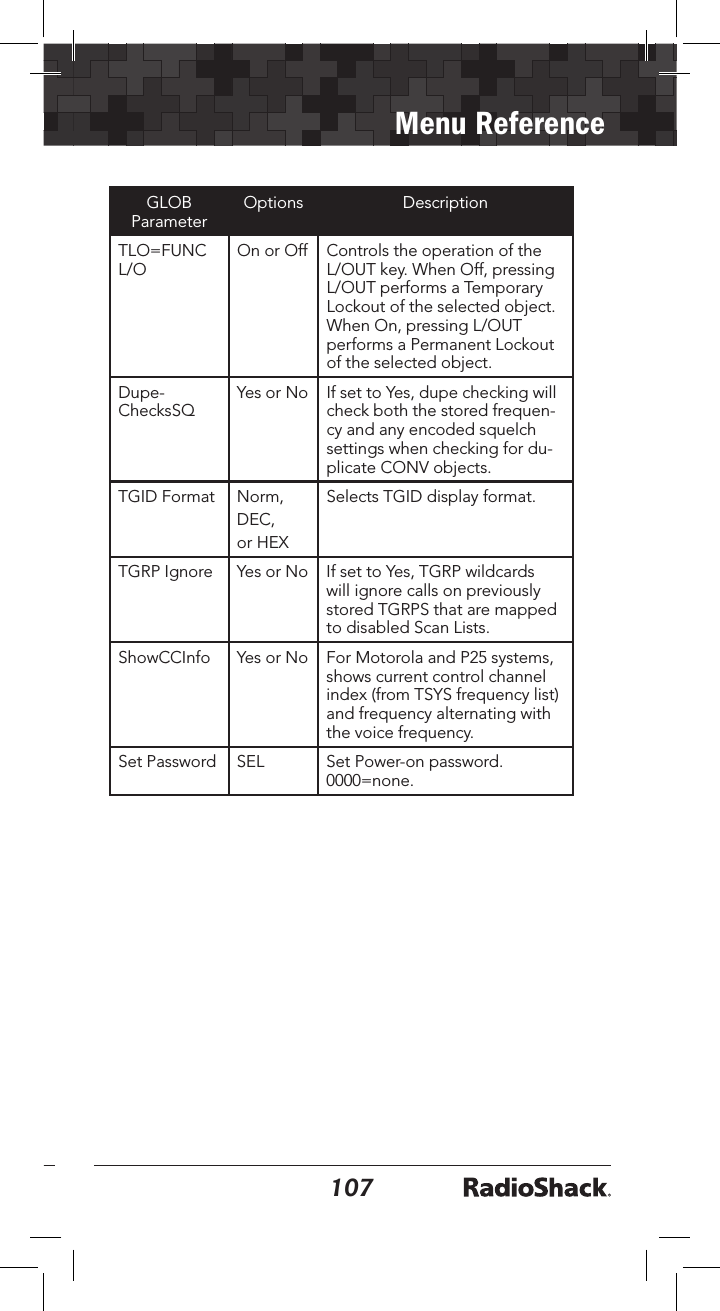

106107Menu ReferenceGLOB ParameterOptions DescriptionTLO=FUNC L/OOn or Off Controls the operation of the L/OUT key. When Off, pressing L/OUT performs a Temporary Lockout of the selected object. When On, pressing L/OUT performs a Permanent Lockout of the selected object.Dupe-ChecksSQYes or No If set to Yes, dupe checking will check both the stored frequen-cy and any encoded squelch settings when checking for du-plicate CONV objects.TGID Format Norm, DEC, or HEXSelects TGID display format.TGRP Ignore Yes or No If set to Yes, TGRP wildcards will ignore calls on previously stored TGRPS that are mapped to disabled Scan Lists.ShowCCInfo Yes or No For Motorola and P25 systems, shows current control channel index (from TSYS frequency list) and frequency alternating with the voice frequency.Set Password SEL Set Power-on password. 0000=none.

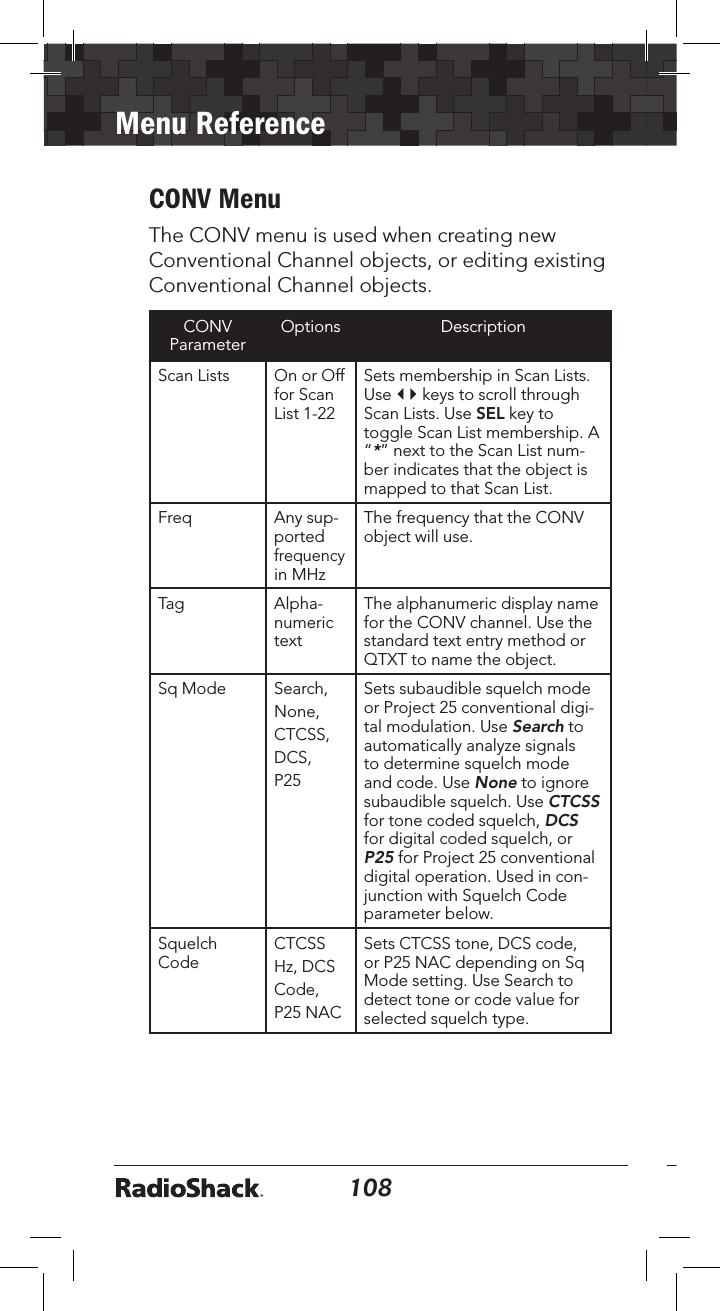

108Menu Reference109CONV MenuThe CONV menu is used when creating new Conventional Channel objects, or editing existing Conventional Channel objects. CONV ParameterOptions DescriptionScan Lists On or Off for Scan List 1-22Sets membership in Scan Lists. Use   keys to scroll through Scan Lists. Use SEL key to toggle Scan List membership. A “*” next to the Scan List num-ber indicates that the object is mapped to that Scan List.Freq Any sup-ported frequency in MHzThe frequency that the CONV object will use.Tag Alpha-numeric textThe alphanumeric display name for the CONV channel. Use the standard text entry method or QTXT to name the object.Sq Mode Search, None, CTCSS, DCS, P25Sets subaudible squelch mode or Project 25 conventional digi-tal modulation. Use Search to automatically analyze signals to determine squelch mode and code. Use None to ignore subaudible squelch. Use CTCSS for tone coded squelch, DCS for digital coded squelch, or P25 for Project 25 conventional digital operation. Used in con-junction with Squelch Code parameter below.Squelch CodeCTCSS Hz, DCS Code, P25 NACSets CTCSS tone, DCS code, or P25 NAC depending on Sq Mode setting. Use Search to detect tone or code value for selected squelch type.

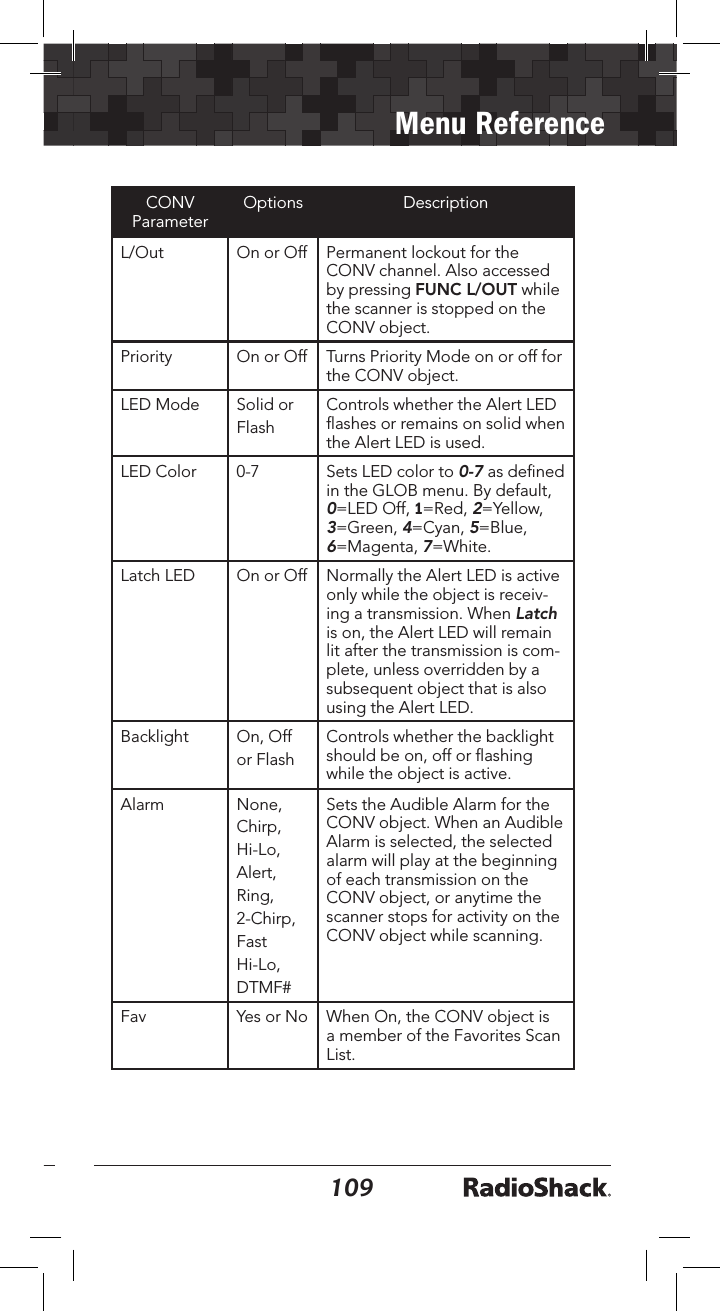

108109Menu ReferenceCONV ParameterOptions DescriptionL/Out On or Off Permanent lockout for the CONV channel. Also accessed by pressing FUNC L/OUT while the scanner is stopped on the CONV object.Priority On or Off Turns Priority Mode on or off for the CONV object.LED Mode Solid or FlashControls whether the Alert LED flashes or remains on solid when the Alert LED is used.LED Color 0-7 Sets LED color to 0-7 as defined in the GLOB menu. By default, 0=LED Off, 1=Red, 2=Yellow, 3=Green, 4=Cyan, 5=Blue, 6=Magenta, 7=White.Latch LED On or Off Normally the Alert LED is active only while the object is receiv-ing a transmission. When Latch is on, the Alert LED will remain lit after the transmission is com-plete, unless overridden by a subsequent object that is also using the Alert LED.Backlight On, Off or FlashControls whether the backlight should be on, off or flashing while the object is active.Alarm None, Chirp, Hi-Lo, Alert, Ring, 2-Chirp, Fast Hi-Lo, DTMF#Sets the Audible Alarm for the CONV object. When an Audible Alarm is selected, the selected alarm will play at the beginning of each transmission on the CONV object, or anytime the scanner stops for activity on the CONV object while scanning.Fav Yes or No When On, the CONV object is a member of the Favorites Scan List.

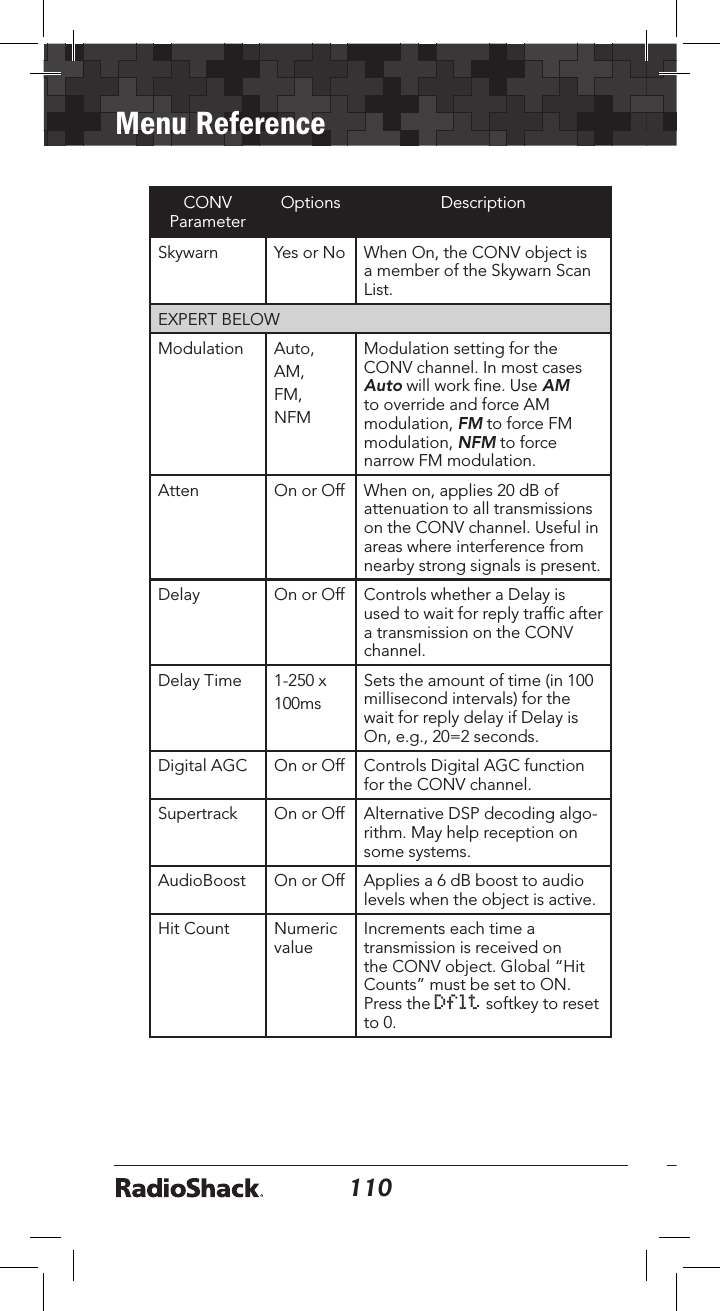

110Menu Reference111CONV ParameterOptions DescriptionSkywarn Yes or No When On, the CONV object is a member of the Skywarn Scan List.EXPERT BELOWModulation Auto, AM, FM, NFMModulation setting for the CONV channel. In most cases Auto will work fine. Use AM to override and force AM modulation, FM to force FM modulation, NFM to force narrow FM modulation.Atten On or Off When on, applies 20 dB of attenuation to all transmissions on the CONV channel. Useful in areas where interference from nearby strong signals is present.Delay On or Off Controls whether a Delay is used to wait for reply traffic after a transmission on the CONV channel.Delay Time 1-250 x 100msSets the amount of time (in 100 millisecond intervals) for the wait for reply delay if Delay is On, e.g., 20=2 seconds.Digital AGC On or Off Controls Digital AGC function for the CONV channel.Supertrack On or Off Alternative DSP decoding algo-rithm. May help reception on some systems.AudioBoost On or Off Applies a 6 dB boost to audio levels when the object is active.Hit Count Numeric valueIncrements each time a transmission is received on the CONV object. Global “Hit Counts” must be set to ON. Press the Dflt softkey to reset to 0.

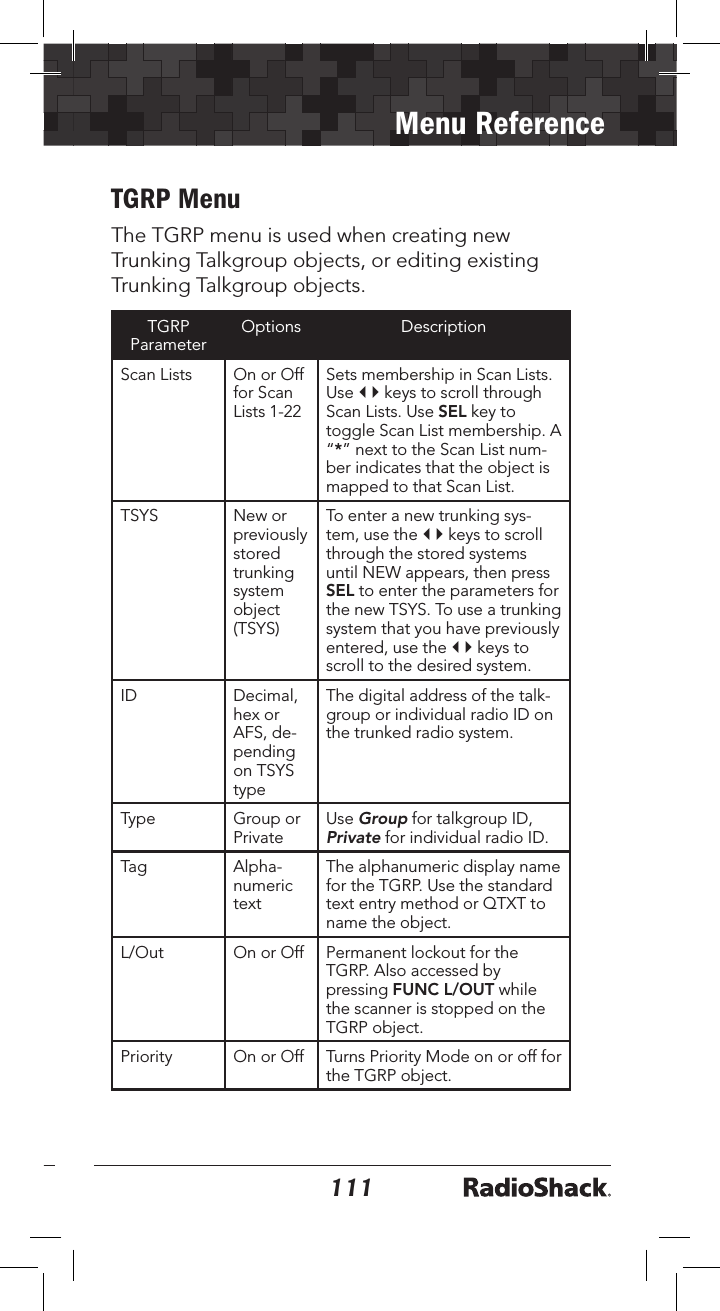

110111Menu ReferenceTGRP MenuThe TGRP menu is used when creating new Trunking Talkgroup objects, or editing existing Trunking Talkgroup objects. TGRP ParameterOptions DescriptionScan Lists On or Off for Scan Lists 1-22Sets membership in Scan Lists. Use   keys to scroll through Scan Lists. Use SEL key to toggle Scan List membership. A “*” next to the Scan List num-ber indicates that the object is mapped to that Scan List.TSYS New or previously stored trunking system object (TSYS)To enter a new trunking sys-tem, use the   keys to scroll through the stored systems until NEW appears, then press SEL to enter the parameters for the new TSYS. To use a trunking system that you have previously entered, use the   keys to scroll to the desired system.ID Decimal, hex or AFS, de-pending on TSYS typeThe digital address of the talk-group or individual radio ID on the trunked radio system.Type Group or PrivateUse Group for talkgroup ID, Private for individual radio ID.Tag Alpha-numeric textThe alphanumeric display name for the TGRP. Use the standard text entry method or QTXT to name the object.L/Out On or Off Permanent lockout for the TGRP. Also accessed by pressing FUNC L/OUT while the scanner is stopped on the TGRP object.Priority On or Off Turns Priority Mode on or off for the TGRP object.

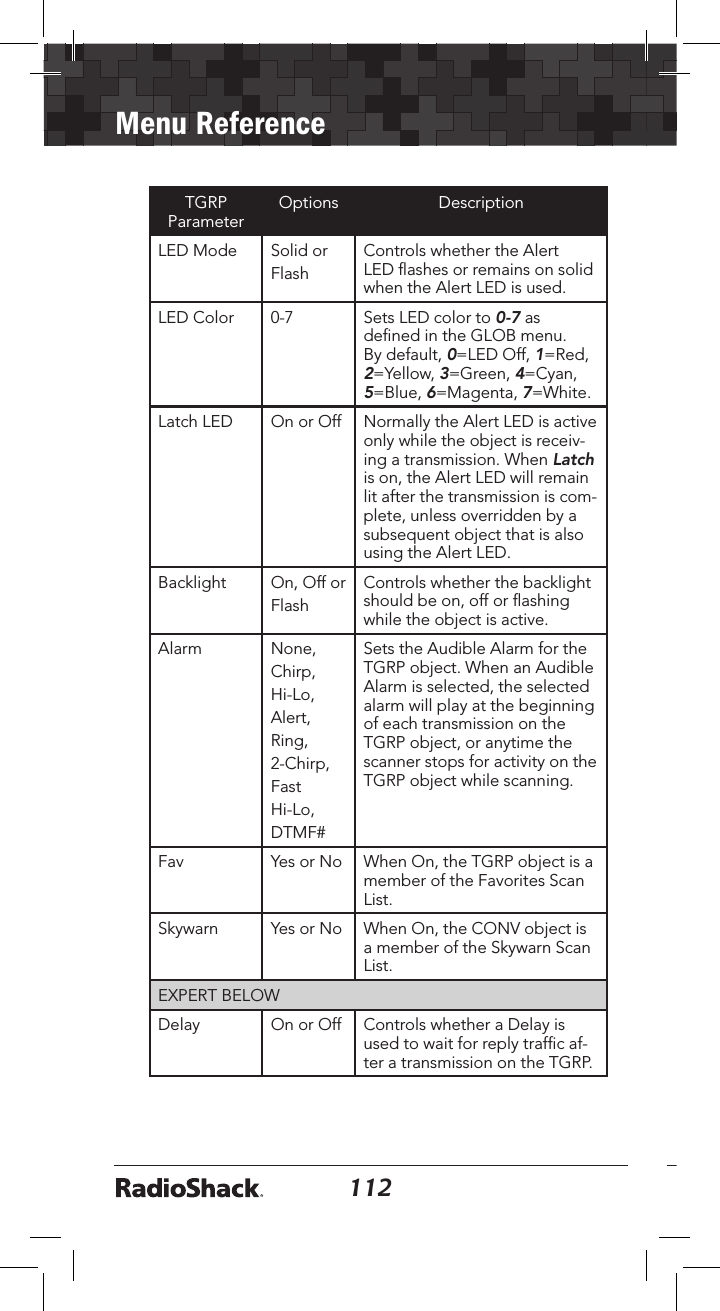

112Menu Reference113TGRP ParameterOptions DescriptionLED Mode Solid or FlashControls whether the Alert LED flashes or remains on solid when the Alert LED is used.LED Color 0-7 Sets LED color to 0-7 as defined in the GLOB menu. By default, 0=LED Off, 1=Red, 2=Yellow, 3=Green, 4=Cyan, 5=Blue, 6=Magenta, 7=White.Latch LED On or Off Normally the Alert LED is active only while the object is receiv-ing a transmission. When Latch is on, the Alert LED will remain lit after the transmission is com-plete, unless overridden by a subsequent object that is also using the Alert LED.Backlight On, Off or FlashControls whether the backlight should be on, off or flashing while the object is active.Alarm None, Chirp, Hi-Lo, Alert, Ring, 2-Chirp, Fast Hi-Lo, DTMF#Sets the Audible Alarm for the TGRP object. When an Audible Alarm is selected, the selected alarm will play at the beginning of each transmission on the TGRP object, or anytime the scanner stops for activity on the TGRP object while scanning.Fav Yes or No When On, the TGRP object is a member of the Favorites Scan List.Skywarn Yes or No When On, the CONV object is a member of the Skywarn Scan List.EXPERT BELOWDelay On or Off Controls whether a Delay is used to wait for reply traffic af-ter a transmission on the TGRP.
112113Menu ReferenceTGRP ParameterOptions DescriptionDelay Time 1-250 x 100 msSets the amount of time (in 100 millisecond intervals) for the wait for reply delay if Delay is On, e.g., 20=2 seconds.AudioBoost On or Off Applies a 6 dB boost to audio levels when the object is active.Hit Count Numeric valueIncrements each time a trans-mission is received on the TGRP object. Global “Hit Counts” must be set to ON. Press the Dflt softkey to reset to 0.TSYS MenuThe TSYS menu is used when creating new Trunking System objects, or editing existing Trunking System objects. TSYS ParameterOptions DescriptionType MOT 800/900, MOT VHF/UHF, P25 MANUAL,P25 AUTO, EDACS STD, EDACS NAROW, LTRSets the trunking system type. Choose MOT 800/900 if the system is a Motorola 800 or 900 MHz analog or digital trunked radio system that uses the 3600 baud control channel. Use P25 AUTO for most Project 25 systems that send channel table information over the sys-tem control channel. Use P25 MANUAL if it is necessary to manually set the channel table information or if you wish to use the default 800 MHz table data. Use EDACS STD for most 800 MHz EDACS systems using the 9600 BPS EDACS control chan-nel. Use EDACS NAROW for most 900 MHz and some VHF/UHF EDACS systems using the 4800 BPS EDACS control chan-nel. Use LTR for Logic Trunked Radio (LTR) systems.

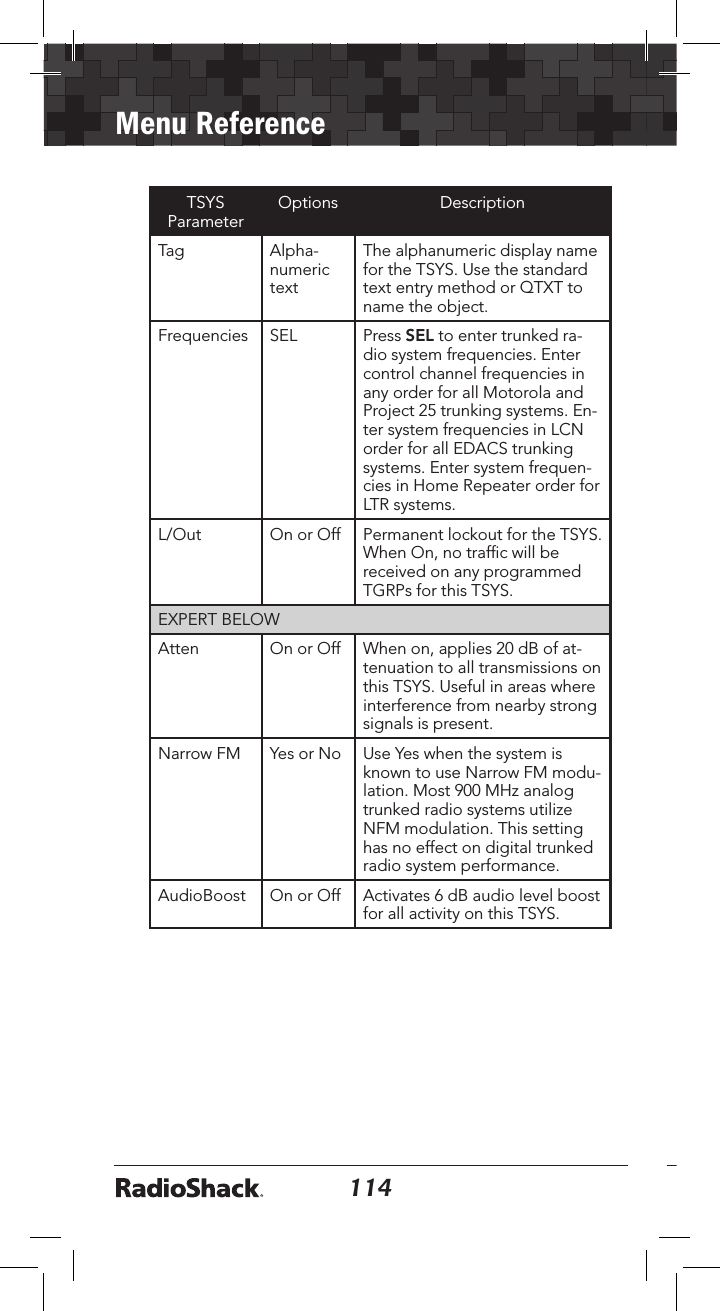

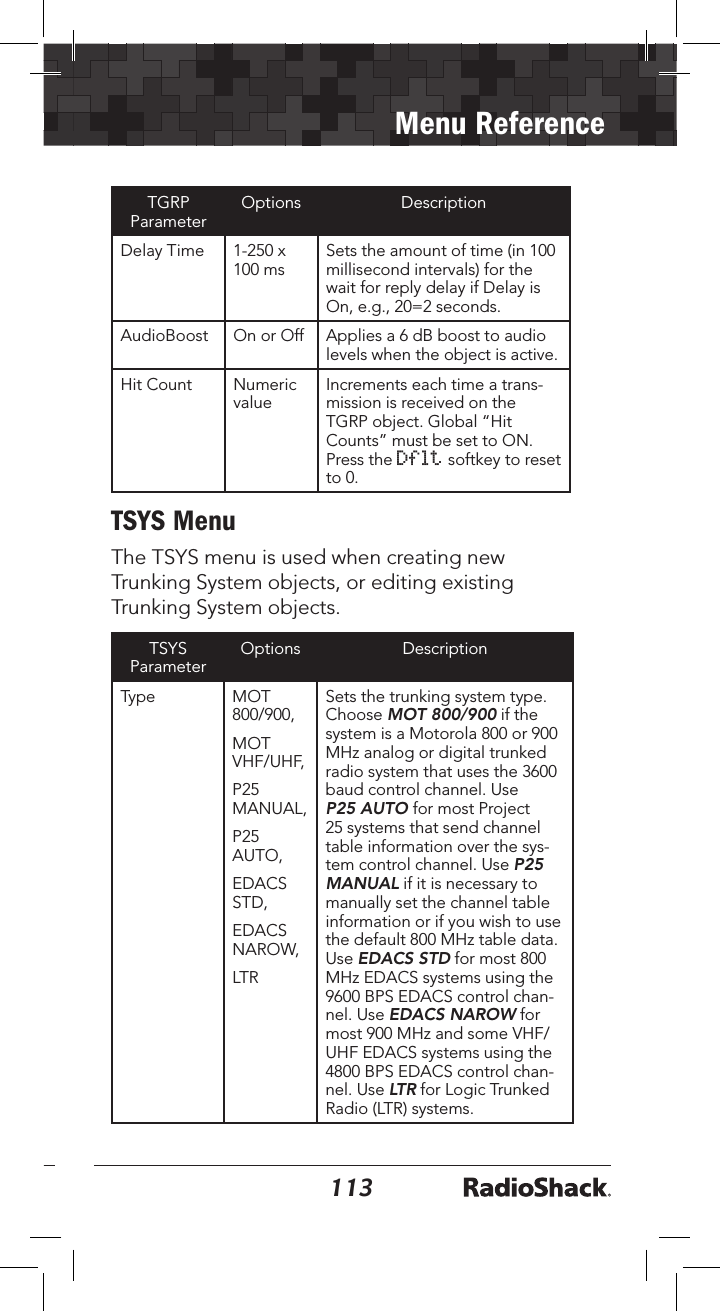

114Menu Reference115TSYS ParameterOptions DescriptionTag Alpha-numeric textThe alphanumeric display name for the TSYS. Use the standard text entry method or QTXT to name the object.Frequencies SEL Press SEL to enter trunked ra-dio system frequencies. Enter control channel frequencies in any order for all Motorola and Project 25 trunking systems. En-ter system frequencies in LCN order for all EDACS trunking systems. Enter system frequen-cies in Home Repeater order for LTR systems.L/Out On or Off Permanent lockout for the TSYS. When On, no traffic will be received on any programmed TGRPs for this TSYS.EXPERT BELOWAtten On or Off When on, applies 20 dB of at-tenuation to all transmissions on this TSYS. Useful in areas where interference from nearby strong signals is present.Narrow FM Yes or No Use Yes when the system is known to use Narrow FM modu-lation. Most 900 MHz analog trunked radio systems utilize NFM modulation. This setting has no effect on digital trunked radio system performance.AudioBoost On or Off Activates 6 dB audio level boost for all activity on this TSYS.

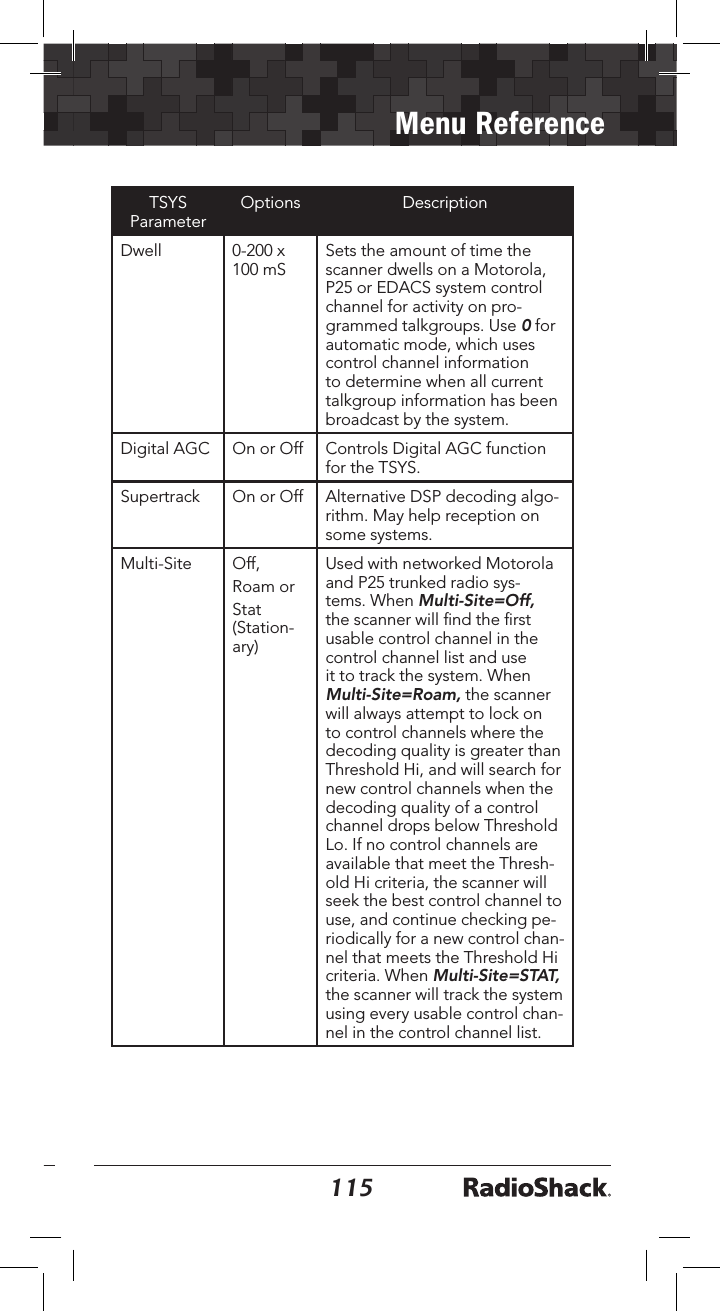

114115Menu ReferenceTSYS ParameterOptions DescriptionDwell 0-200 x 100 mSSets the amount of time the scanner dwells on a Motorola, P25 or EDACS system control channel for activity on pro-grammed talkgroups. Use 0 for automatic mode, which uses control channel information to determine when all current talkgroup information has been broadcast by the system.Digital AGC On or Off Controls Digital AGC function for the TSYS.Supertrack On or Off Alternative DSP decoding algo-rithm. May help reception on some systems.Multi-Site Off, Roam or Stat (Station-ary)Used with networked Motorola and P25 trunked radio sys-tems. When Multi-Site=Off, the scanner will find the first usable control channel in the control channel list and use it to track the system. When Multi-Site=Roam, the scanner will always attempt to lock on to control channels where the decoding quality is greater than Threshold Hi, and will search for new control channels when the decoding quality of a control channel drops below Threshold Lo. If no control channels are available that meet the Thresh-old Hi criteria, the scanner will seek the best control channel to use, and continue checking pe-riodically for a new control chan-nel that meets the Threshold Hi criteria. When Multi-Site=STAT, the scanner will track the system using every usable control chan-nel in the control channel list.
116Menu Reference117TSYS ParameterOptions DescriptionThreshold Hi 1-99 Available When Multi-Site is set to ROAM. Sets the control channel decode % threshold for a site to be considered good when looking for a new site.Threshold Lo1-99 Available When Multi-Site is set to ROAM. Sets the control channel decode % threshold for a site to be considered out of range, which will begin the pro-cess of looking for a new site.T Tables Default, Splinter, CustomFor Motorola and P25 systems only - sets custom channel tables. Use  , to select option, press SEL on Custom to enter custom table information.Fleet Map Type I For Motorola Type I systems only - sets fleet map.LMIT MenuThe LMIT menu is used when creating new Limit Search objects, or editing existing Limit Search objects. LMIT ParameterOptions DescriptionScan Lists On or Off for Scan Lists 1-22Sets membership in Scan Lists. Use   keys to scroll through Scan Lists. Use SEL key to tog-gle Scan List membership. A “*” next to the Scan List num-ber indicates that the object is mapped to that Scan List.FrLo Any sup-ported frequency in MHzA frequency that will be used as the lower limit for the limit search range.FrHi Any sup-ported frequency in MHzA frequency that will be used as the upper limit for the limit search range.

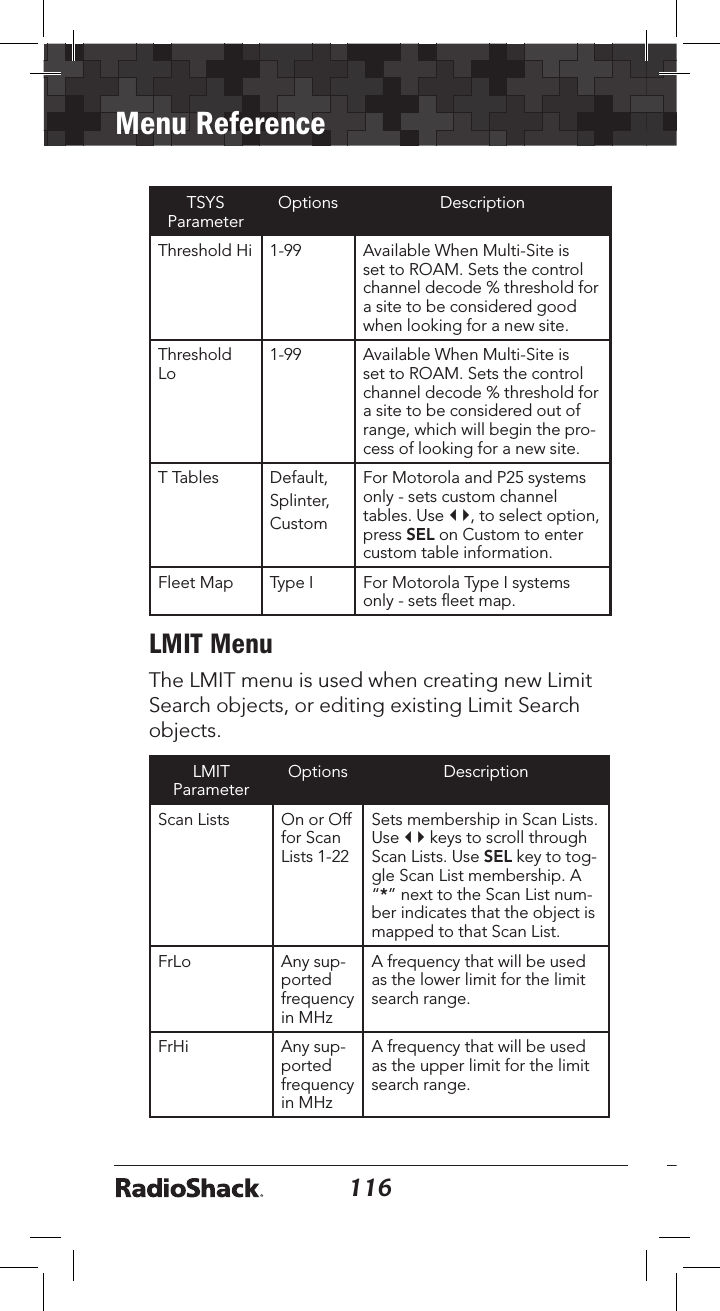

116117Menu ReferenceLMIT ParameterOptions DescriptionTag Alpha- numeric textThe alphanumeric display name for the LMIT search. Use the standard text entry method or QTXT to name the object.L/Out On or Off Permanent lockout for the LMIT channel. Also accessed by pressing FUNC L/OUT while the scanner is stopped on the LMIT object.LED Mode Solid or FlashControls whether the Alert LED flashes or remains on sol-id when the Alert LED is used.LED Color 0-7 Sets LED color to 0-7 as de-fined in the GLOB menu. By default, 0=LED Off, 1=Red, 2=Yellow, 3=Green, 4=Cyan, 5=Blue, 6=Magenta, 7=White.Latch LED On or Off Normally the Alert LED is ac-tive only while the object is receiving a transmission. When Latch is on, the Alert LED will remain lit after the transmis-sion is complete, unless over-ridden by a subsequent object that is also using the Alert LED.Backlight On, Off or FlashControls whether the backlight should be on, off or flashing while the object is active.Alarm None, Chirp, Hi-Lo, Alert, Ring, 2-Chirp, Fast Hi-Lo, DTMF#Sets the Audible Alarm for the LMIT object. When an Audible Alarm is selected, the selected alarm will play any-time the scanner stops for ac-tivity on the LMIT object while scanning.

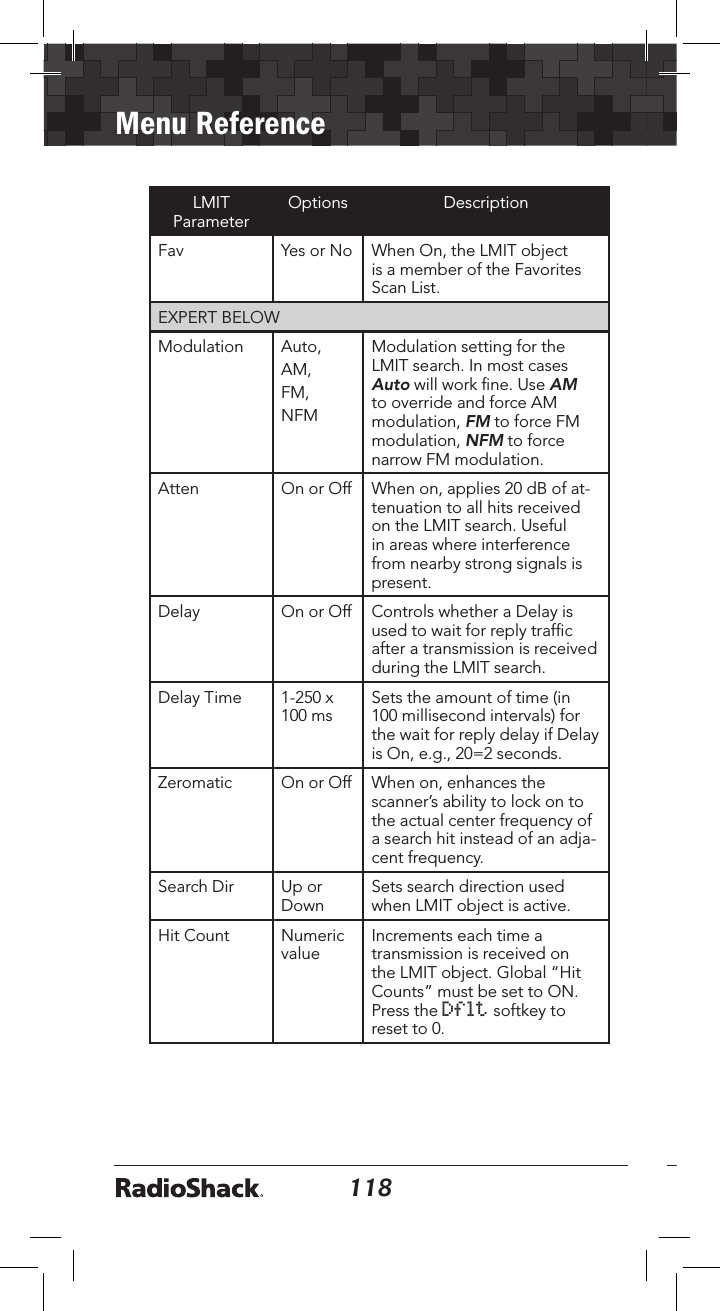

118Menu Reference119LMIT ParameterOptions DescriptionFav Yes or No When On, the LMIT object is a member of the Favorites Scan List.EXPERT BELOWModulation Auto, AM, FM, NFMModulation setting for the LMIT search. In most cases Auto will work fine. Use AM to override and force AM modulation, FM to force FM modulation, NFM to force narrow FM modulation.Atten On or Off When on, applies 20 dB of at-tenuation to all hits received on the LMIT search. Useful in areas where interference from nearby strong signals is present.Delay On or Off Controls whether a Delay is used to wait for reply traffic after a transmission is received during the LMIT search.Delay Time 1-250 x 100 msSets the amount of time (in 100 millisecond intervals) for the wait for reply delay if Delay is On, e.g., 20=2 seconds.Zeromatic On or Off When on, enhances the scanner’s ability to lock on to the actual center frequency of a search hit instead of an adja-cent frequency.Search Dir Up or DownSets search direction used when LMIT object is active.Hit Count Numeric valueIncrements each time a transmission is received on the LMIT object. Global “Hit Counts” must be set to ON. Press the Dflt softkey to reset to 0.

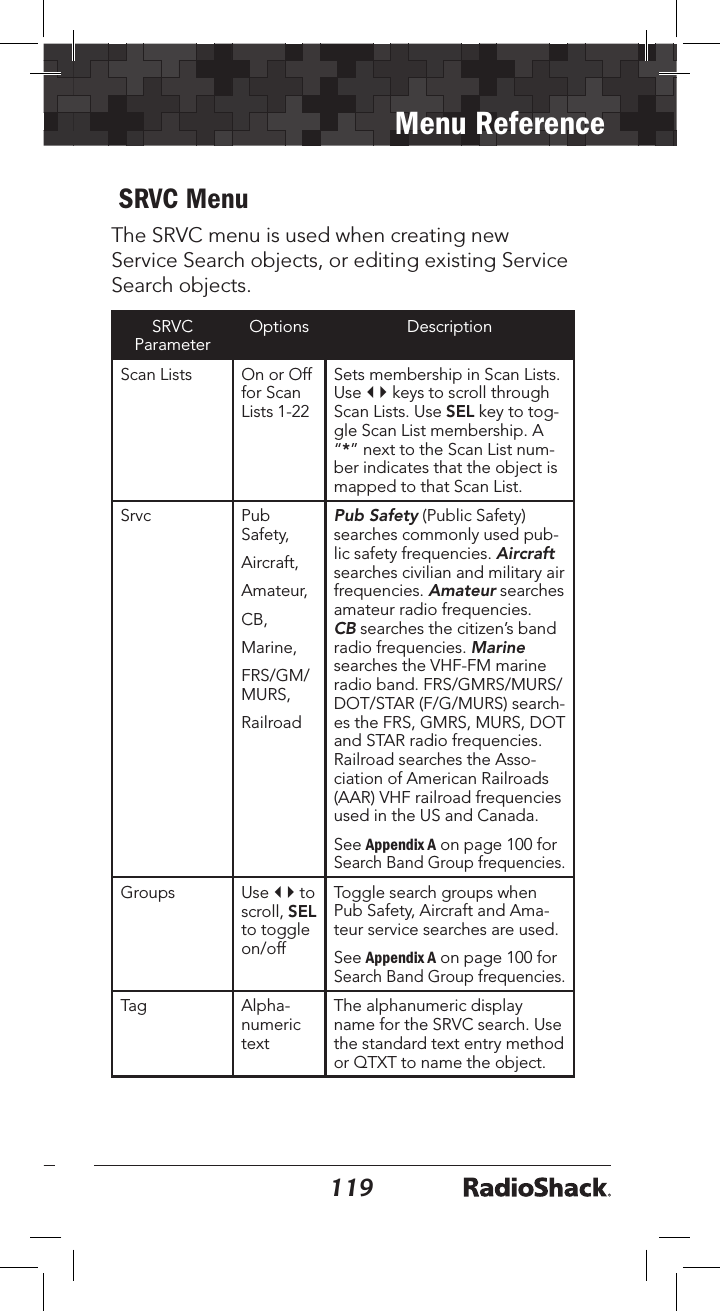

118119Menu Reference SRVC MenuThe SRVC menu is used when creating new Service Search objects, or editing existing Service Search objects. SRVC ParameterOptions DescriptionScan Lists On or Off for Scan Lists 1-22Sets membership in Scan Lists. Use   keys to scroll through Scan Lists. Use SEL key to tog-gle Scan List membership. A “*” next to the Scan List num-ber indicates that the object is mapped to that Scan List.Srvc Pub Safety,Aircraft, Amateur, CB, Marine, FRS/GM/MURS, RailroadPub Safety (Public Safety) searches commonly used pub-lic safety frequencies. Aircraft searches civilian and military air frequencies. Amateur searches amateur radio frequencies. CB searches the citizen’s band radio frequencies. Marine searches the VHF-FM marine radio band. FRS/GMRS/MURS/DOT/STAR (F/G/MURS) search-es the FRS, GMRS, MURS, DOT and STAR radio frequencies. Railroad searches the Asso-ciation of American Railroads (AAR) VHF railroad frequencies used in the US and Canada.See Appendix A on page 100 for Search Band Group frequencies.Groups Use   to scroll, SEL to toggle on/offToggle search groups when Pub Safety, Aircraft and Ama-teur service searches are used.See Appendix A on page 100 for Search Band Group frequencies.Tag Alpha-numeric textThe alphanumeric display name for the SRVC search. Use the standard text entry method or QTXT to name the object.

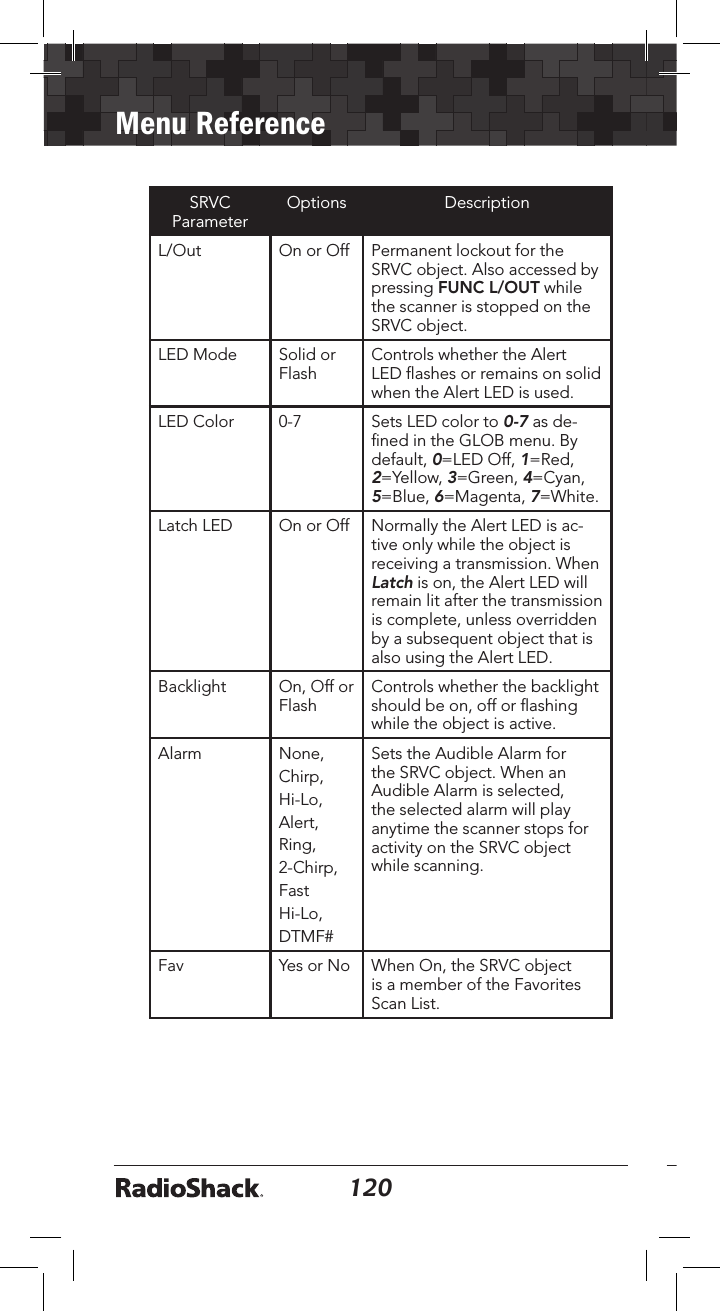

120Menu Reference121SRVC ParameterOptions DescriptionL/Out On or Off Permanent lockout for the SRVC object. Also accessed by pressing FUNC L/OUT while the scanner is stopped on the SRVC object.LED Mode Solid or FlashControls whether the Alert LED flashes or remains on solid when the Alert LED is used.LED Color 0-7 Sets LED color to 0-7 as de-fined in the GLOB menu. By default, 0=LED Off, 1=Red, 2=Yellow, 3=Green, 4=Cyan, 5=Blue, 6=Magenta, 7=White.Latch LED On or Off Normally the Alert LED is ac-tive only while the object is receiving a transmission. When Latch is on, the Alert LED will remain lit after the transmission is complete, unless overridden by a subsequent object that is also using the Alert LED.Backlight On, Off or FlashControls whether the backlight should be on, off or flashing while the object is active.Alarm None, Chirp, Hi-Lo, Alert, Ring, 2-Chirp, Fast Hi-Lo, DTMF#Sets the Audible Alarm for the SRVC object. When an Audible Alarm is selected, the selected alarm will play anytime the scanner stops for activity on the SRVC object while scanning.Fav Yes or No When On, the SRVC object is a member of the Favorites Scan List.

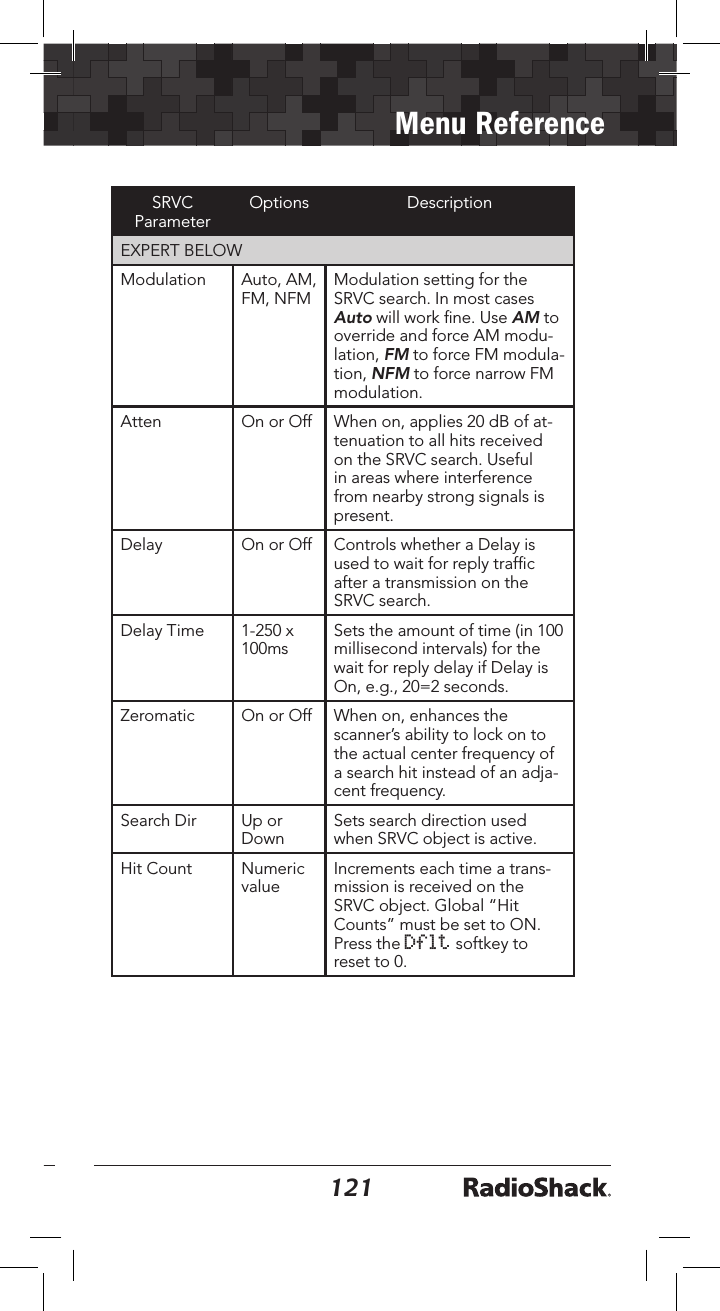

120121Menu ReferenceSRVC ParameterOptions DescriptionEXPERT BELOWModulation Auto, AM, FM, NFMModulation setting for the SRVC search. In most cases Auto will work fine. Use AM to override and force AM modu-lation, FM to force FM modula-tion, NFM to force narrow FM modulation.Atten On or Off When on, applies 20 dB of at-tenuation to all hits received on the SRVC search. Useful in areas where interference from nearby strong signals is present.Delay On or Off Controls whether a Delay is used to wait for reply traffic after a transmission on the SRVC search.Delay Time 1-250 x 100msSets the amount of time (in 100 millisecond intervals) for the wait for reply delay if Delay is On, e.g., 20=2 seconds.Zeromatic On or Off When on, enhances the scanner’s ability to lock on to the actual center frequency of a search hit instead of an adja-cent frequency.Search Dir Up or DownSets search direction used when SRVC object is active.Hit Count Numeric valueIncrements each time a trans-mission is received on the SRVC object. Global “Hit Counts” must be set to ON. Press the Dflt softkey to reset to 0.

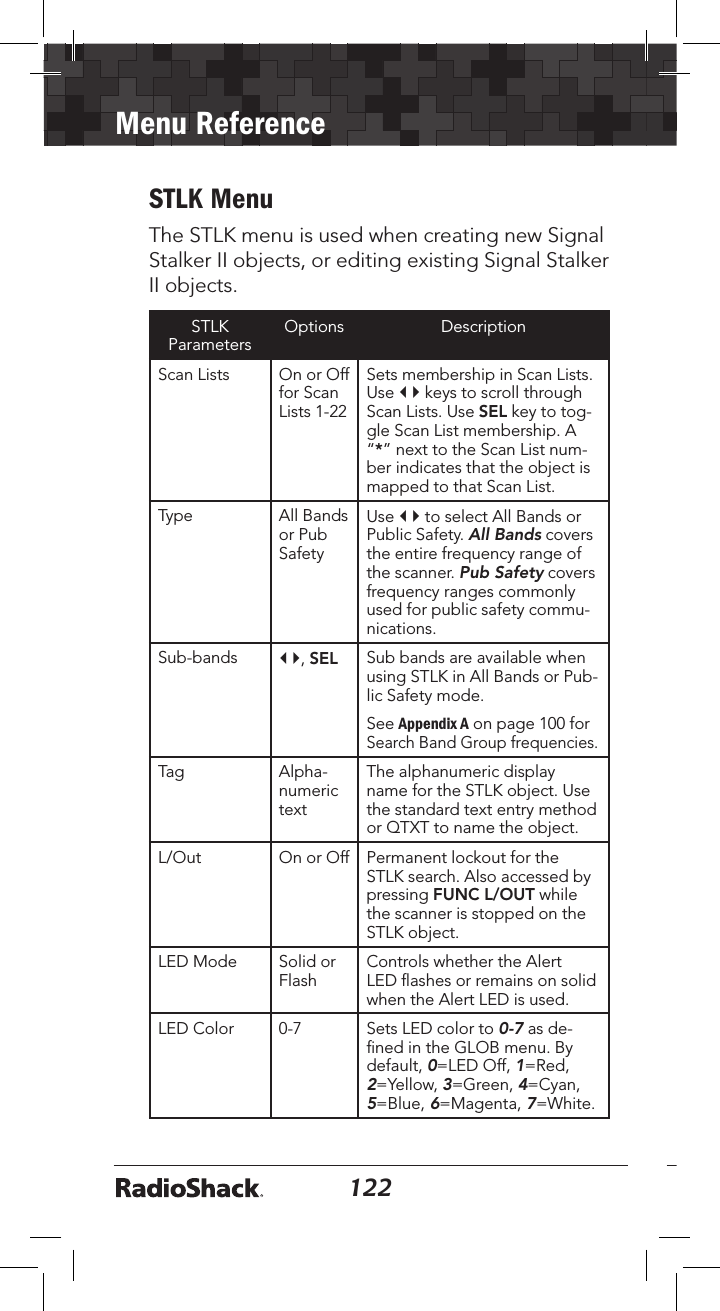

122Menu Reference123STLK MenuThe STLK menu is used when creating new Signal Stalker II objects, or editing existing Signal Stalker II objects. STLK ParametersOptions DescriptionScan Lists On or Off for Scan Lists 1-22Sets membership in Scan Lists. Use   keys to scroll through Scan Lists. Use SEL key to tog-gle Scan List membership. A “*” next to the Scan List num-ber indicates that the object is mapped to that Scan List.Type All Bands or Pub SafetyUse   to select All Bands or Public Safety. All Bands covers the entire frequency range of the scanner. Pub Safety covers frequency ranges commonly used for public safety commu-nications.Sub-bands  , SEL Sub bands are available when using STLK in All Bands or Pub-lic Safety mode.See Appendix A on page 100 for Search Band Group frequencies.Tag Alpha-numeric textThe alphanumeric display name for the STLK object. Use the standard text entry method or QTXT to name the object.L/Out On or Off Permanent lockout for the STLK search. Also accessed by pressing FUNC L/OUT while the scanner is stopped on the STLK object.LED Mode Solid or FlashControls whether the Alert LED flashes or remains on solid when the Alert LED is used.LED Color 0-7 Sets LED color to 0-7 as de-fined in the GLOB menu. By default, 0=LED Off, 1=Red, 2=Yellow, 3=Green, 4=Cyan, 5=Blue, 6=Magenta, 7=White.

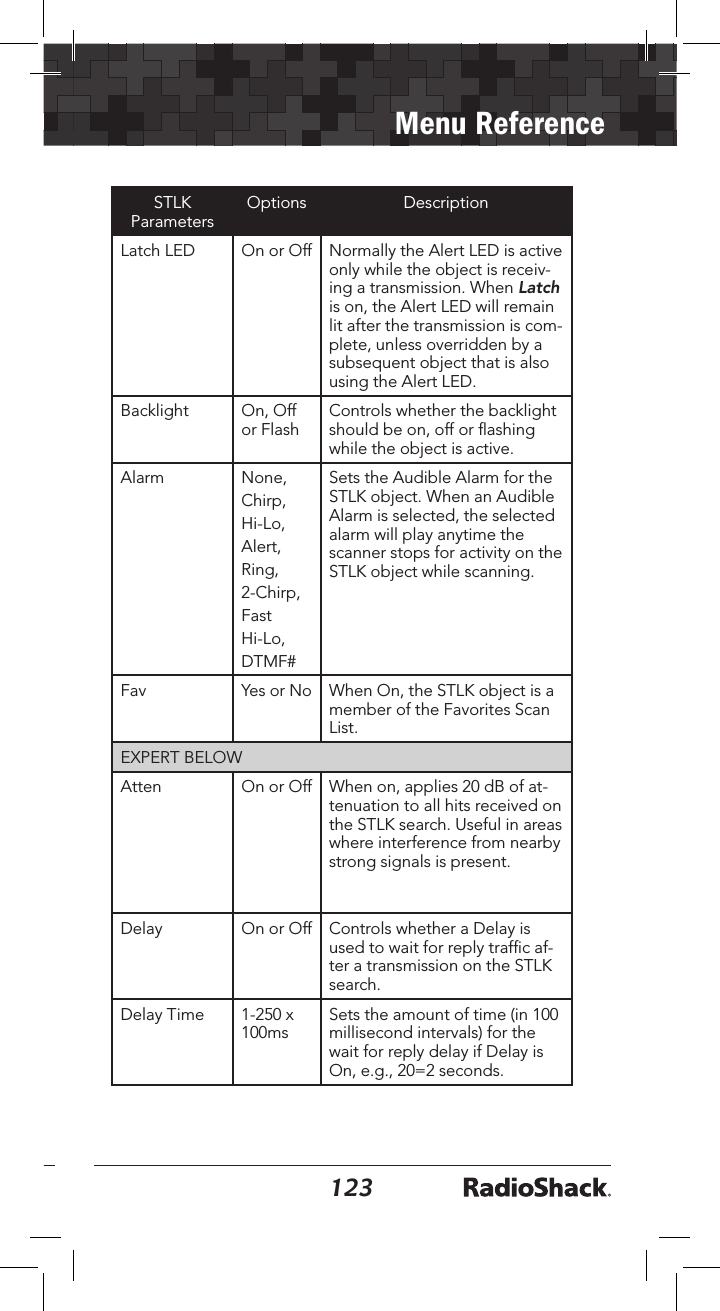

122123Menu ReferenceSTLK ParametersOptions DescriptionLatch LED On or Off Normally the Alert LED is active only while the object is receiv-ing a transmission. When Latch is on, the Alert LED will remain lit after the transmission is com-plete, unless overridden by a subsequent object that is also using the Alert LED.Backlight On, Off or FlashControls whether the backlight should be on, off or flashing while the object is active.Alarm None, Chirp, Hi-Lo, Alert, Ring, 2-Chirp, Fast Hi-Lo, DTMF#Sets the Audible Alarm for the STLK object. When an Audible Alarm is selected, the selected alarm will play anytime the scanner stops for activity on the STLK object while scanning.FavYes or NoWhen On, the STLK object is a member of the Favorites Scan List.EXPERT BELOWAtten On or Off When on, applies 20 dB of at-tenuation to all hits received on the STLK search. Useful in areas where interference from nearby strong signals is present.Delay On or Off Controls whether a Delay is used to wait for reply traffic af-ter a transmission on the STLK search.Delay Time 1-250 x 100msSets the amount of time (in 100 millisecond intervals) for the wait for reply delay if Delay is On, e.g., 20=2 seconds.

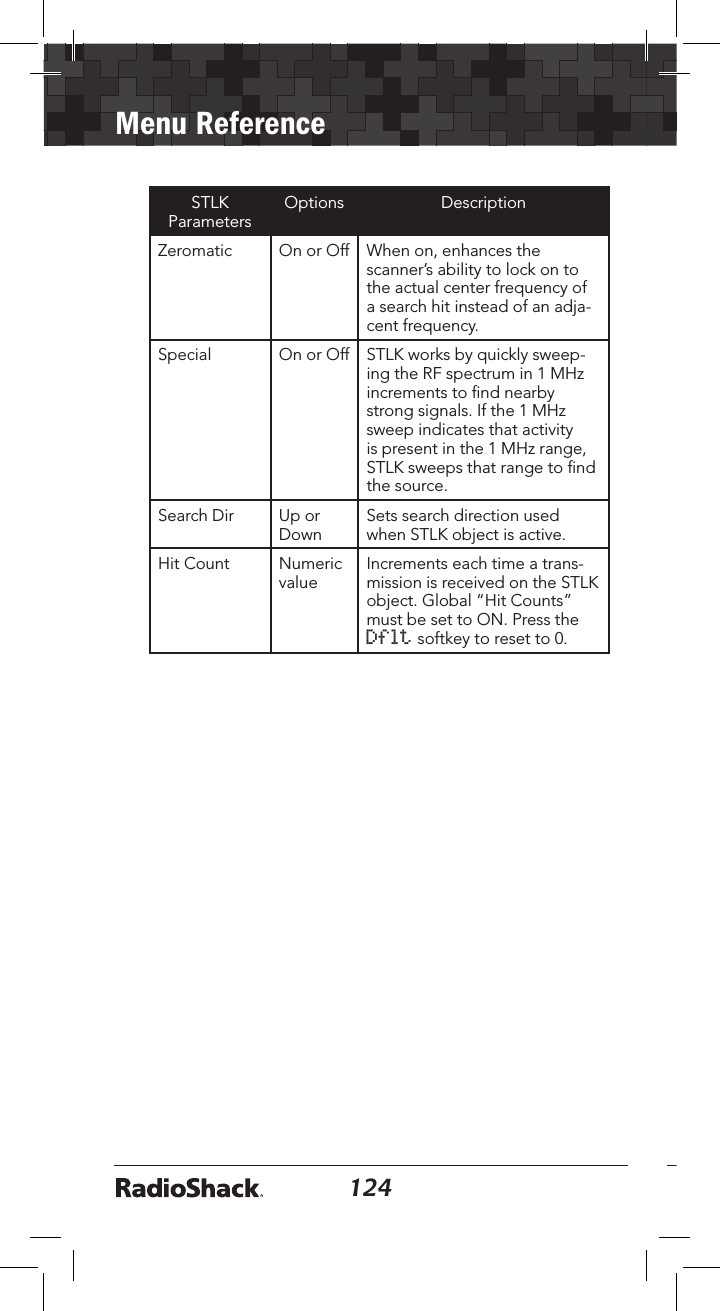

124Menu Reference125STLK ParametersOptions DescriptionZeromatic On or Off When on, enhances the scanner’s ability to lock on to the actual center frequency of a search hit instead of an adja-cent frequency.Special On or Off STLK works by quickly sweep-ing the RF spectrum in 1 MHz increments to find nearby strong signals. If the 1 MHz sweep indicates that activity is present in the 1 MHz range, STLK sweeps that range to find the source.Search Dir Up or DownSets search direction used when STLK object is active.Hit Count Numeric valueIncrements each time a trans-mission is received on the STLK object. Global “Hit Counts” must be set to ON. Press the Dflt softkey to reset to 0.

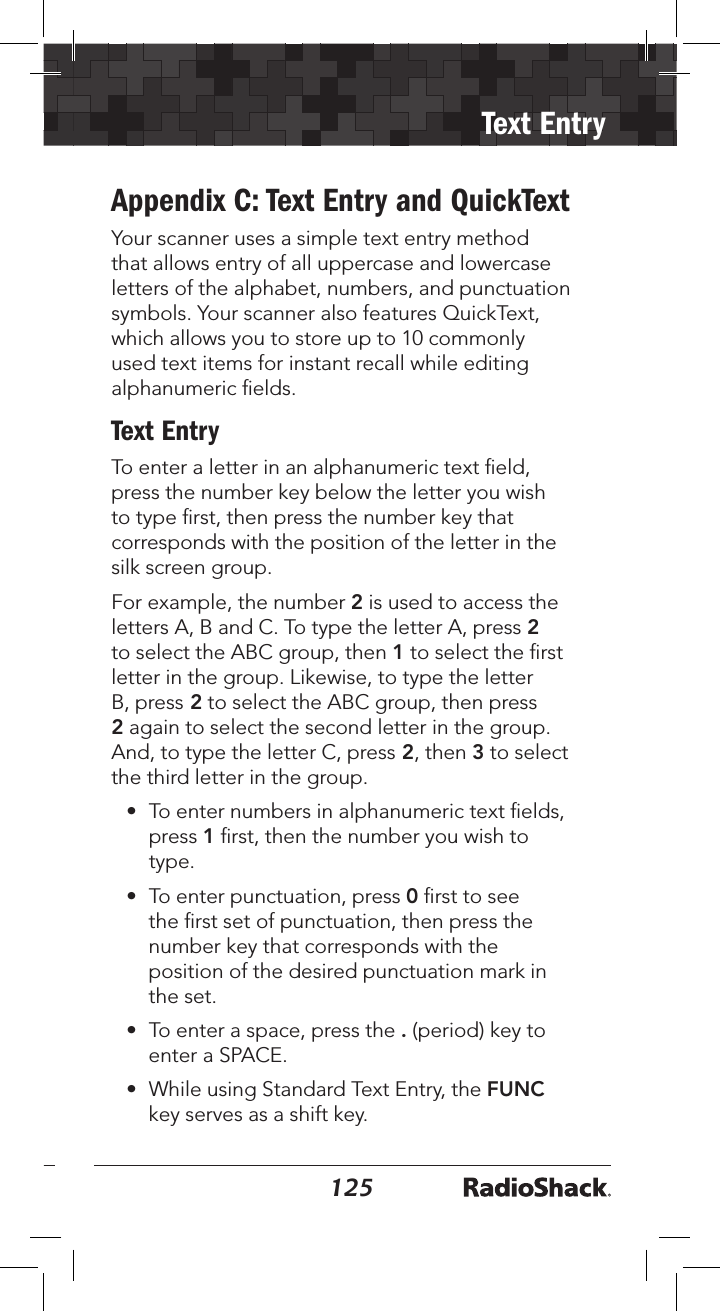

124125Text EntryAppendix C: Text Entry and QuickTextYour scanner uses a simple text entry method that allows entry of all uppercase and lowercase letters of the alphabet, numbers, and punctuation symbols. Your scanner also features QuickText, which allows you to store up to 10 commonly used text items for instant recall while editing alphanumeric fields.Text EntryTo enter a letter in an alphanumeric text field, press the number key below the letter you wish to type first, then press the number key that corresponds with the position of the letter in the silk screen group. For example, the number 2 is used to access the letters A, B and C. To type the letter A, press 2 to select the ABC group, then 1 to select the first letter in the group. Likewise, to type the letter B, press 2 to select the ABC group, then press 2 again to select the second letter in the group. And, to type the letter C, press 2, then 3 to select the third letter in the group.• To enter numbers in alphanumeric text fields, press 1 first, then the number you wish to type.• To enter punctuation, press 0 first to see the first set of punctuation, then press the number key that corresponds with the position of the desired punctuation mark in the set.• To enter a space, press the . (period) key to enter a SPACE.• While using Standard Text Entry, the FUNC key serves as a shift key.

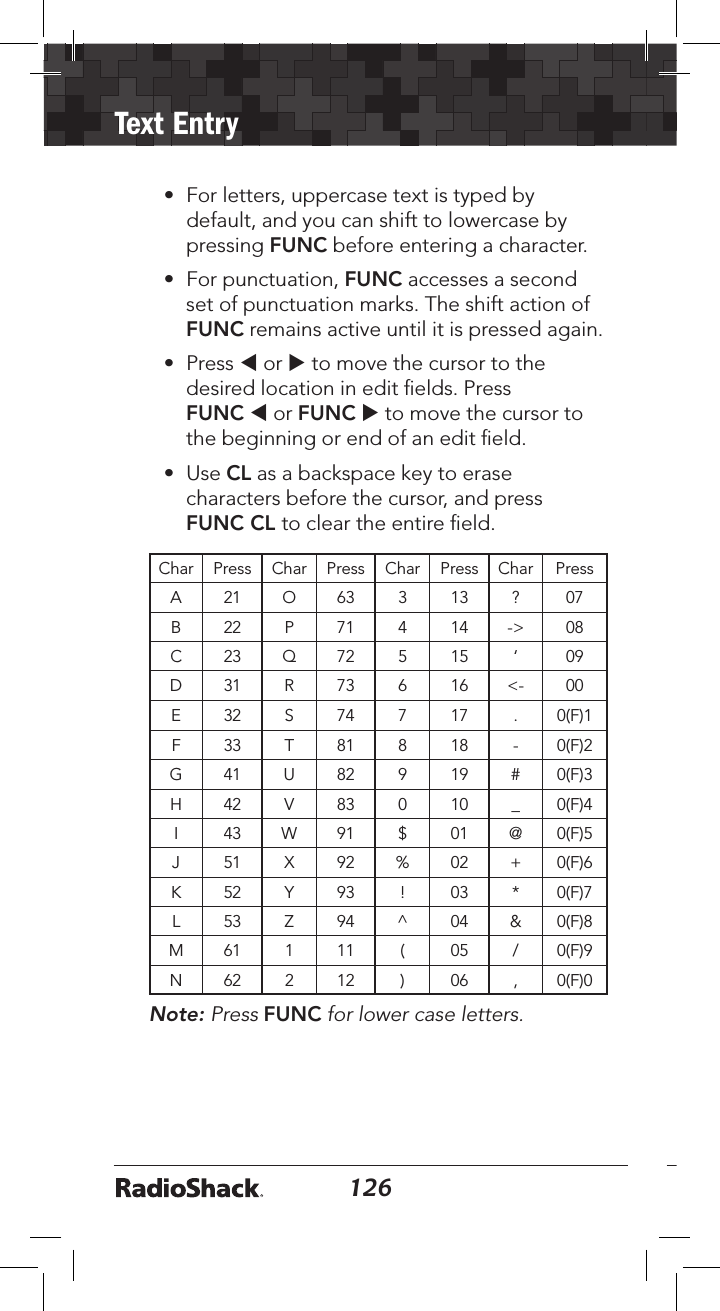

126Text Entry127• For letters, uppercase text is typed bydefault, and you can shift to lowercase bypressing FUNC before entering a character.• For punctuation, FUNC accesses a secondset of punctuation marks. The shift action ofFUNC remains active until it is pressed again.• Press t or u to move the cursor to thedesired location in edit fields. PressFUNC t or FUNC u to move the cursor tothe beginning or end of an edit field.• Use CL as a backspace key to erasecharacters before the cursor, and pressFUNC CL to clear the entire field.Char Press Char Press Char Press Char PressA 21 O 63 3 13 ? 07B 22 P 71 4 14 -> 08C 23 Q 72 5 15 ‘ 09D 31 R 73 6 16 <- 00E 32 S 74 7 17 . 0(F)1F 33 T 81 8 18 - 0(F)2G 41 U 82 9 19 # 0(F)3H 42 V 83 0 10 _ 0(F)4I 43 W 91 $ 01 @ 0(F)5J 51 X 92 % 02 + 0(F)6K 52 Y 93 ! 03 * 0(F)7L 53 Z 94 ^ 04 & 0(F)8M 61 1 11 ( 05 / 0(F)9N 62 2 12 ) 06 , 0(F)0Note: Press FUNC for lower case letters.

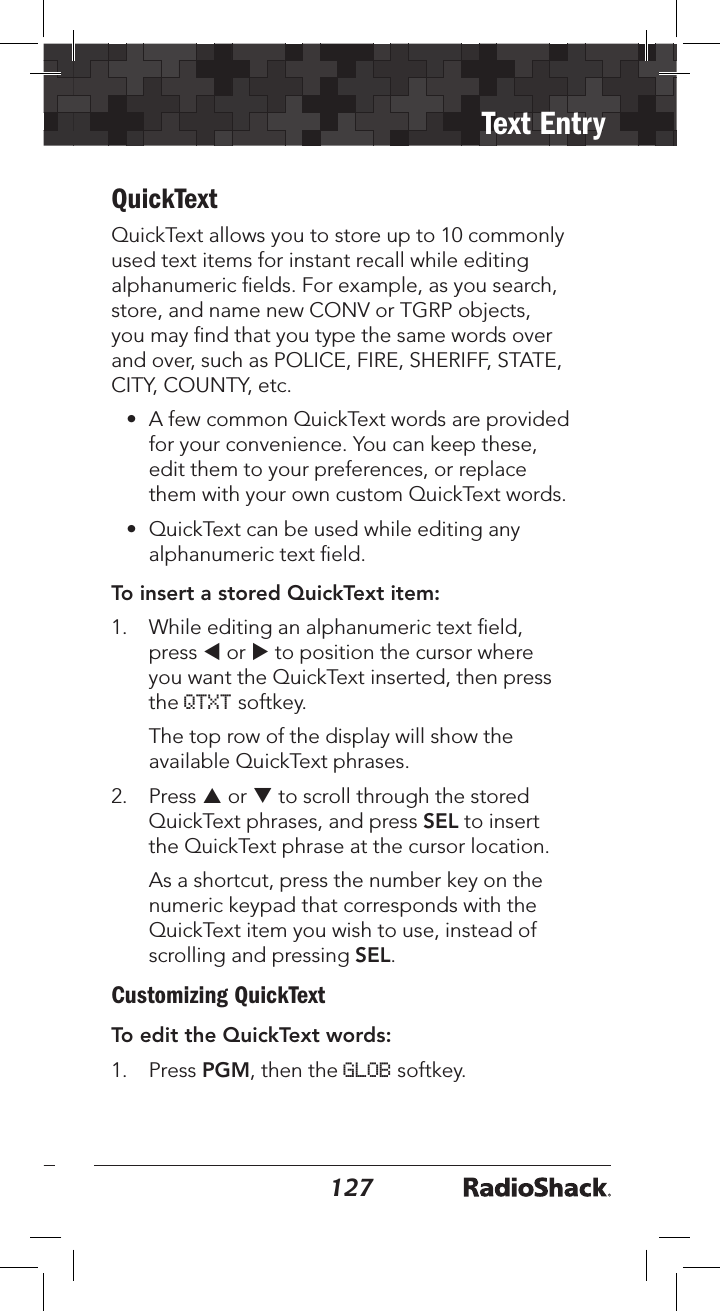

126127Text EntryQuickTextQuickText allows you to store up to 10 commonly used text items for instant recall while editing alphanumeric fields. For example, as you search, store, and name new CONV or TGRP objects, you may find that you type the same words over and over, such as POLICE, FIRE, SHERIFF, STATE, CITY, COUNTY, etc.• A few common QuickText words are provided for your convenience. You can keep these, edit them to your preferences, or replace them with your own custom QuickText words.• QuickText can be used while editing any alphanumeric text field. To insert a stored QuickText item: 1. While editing an alphanumeric text field, press t or u to position the cursor where you want the QuickText inserted, then press the QTXT softkey. The top row of the display will show the available QuickText phrases. 2. Press p or q to scroll through the stored QuickText phrases, and press SEL to insert the QuickText phrase at the cursor location. As a shortcut, press the number key on the numeric keypad that corresponds with the QuickText item you wish to use, instead of scrolling and pressing SEL.Customizing QuickTextTo edit the QuickText words: 1. Press PGM, then the GLOB softkey.

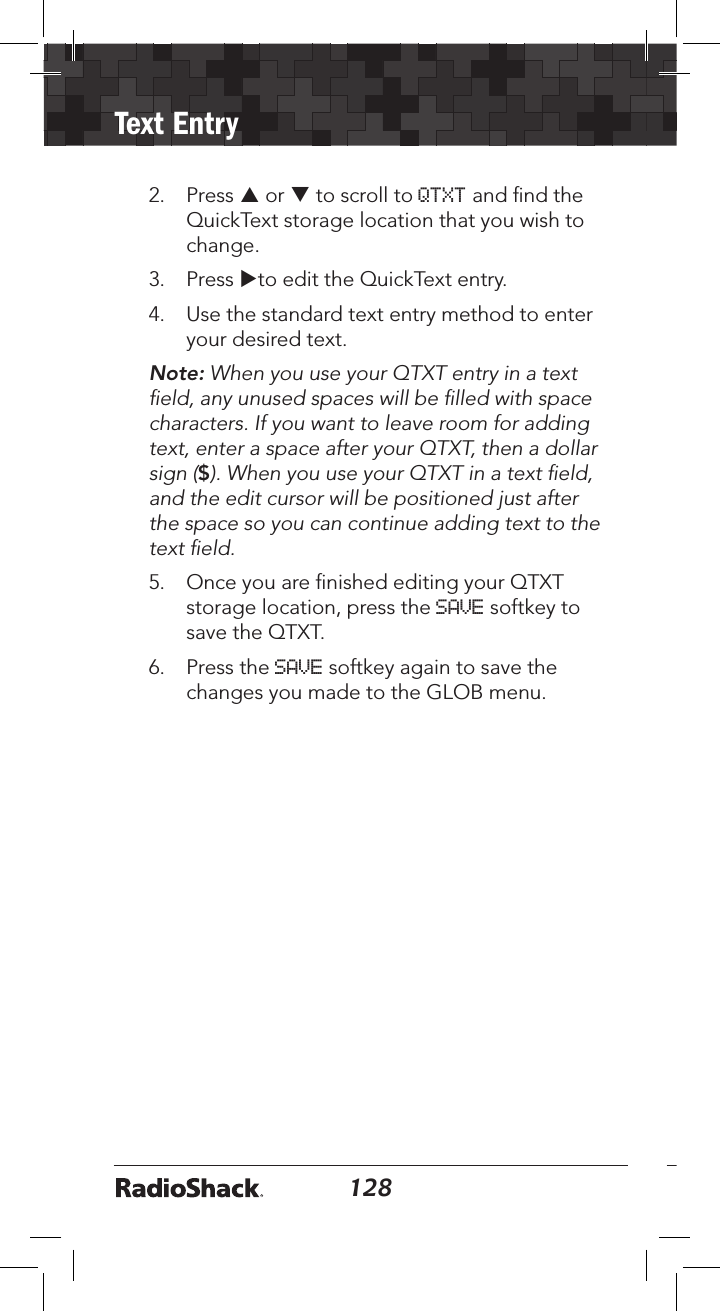

128Text Entry1292. Press p or q to scroll to QTXT and find the QuickText storage location that you wish to change. 3. Press uto edit the QuickText entry. 4. Use the standard text entry method to enter your desired text. Note: When you use your QTXT entry in a text field, any unused spaces will be filled with space characters. If you want to leave room for adding text, enter a space after your QTXT, then a dollar sign ($). When you use your QTXT in a text field, and the edit cursor will be positioned just after the space so you can continue adding text to the text field. 5. Once you are finished editing your QTXT storage location, press the SAVE softkey to save the QTXT.6. Press the SAVE softkey again to save the changes you made to the GLOB menu.

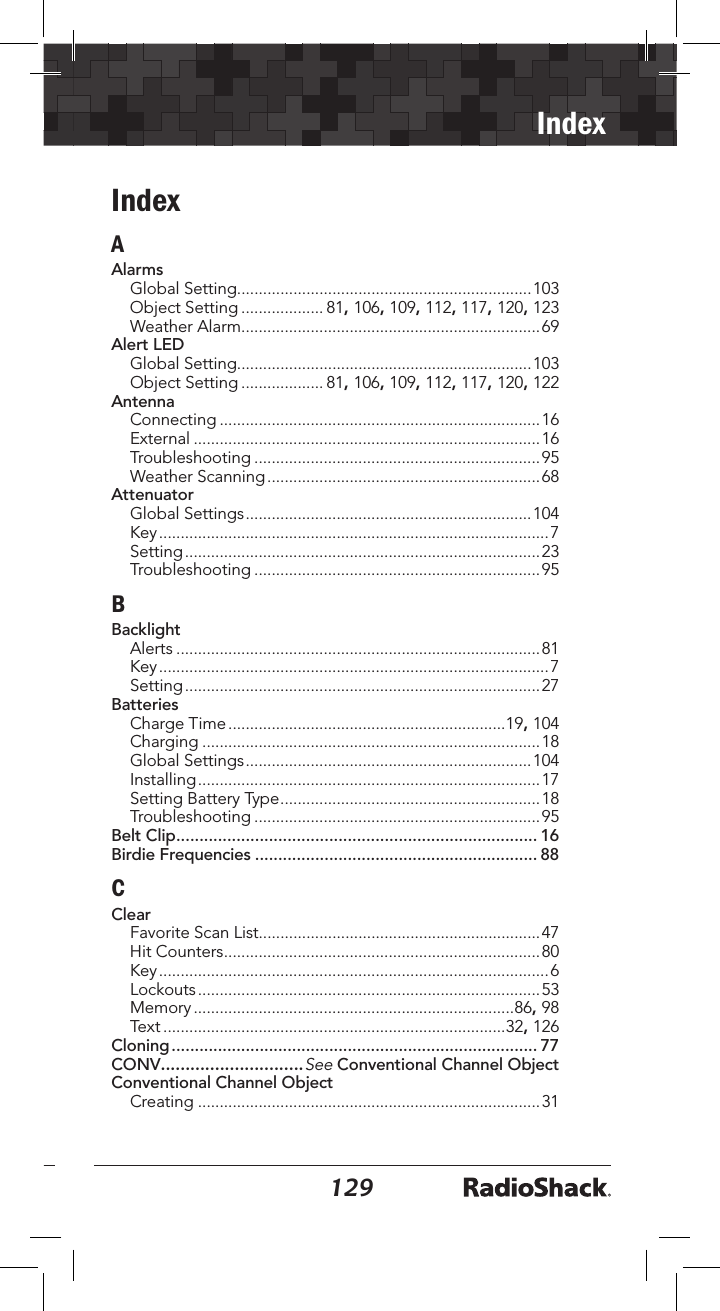

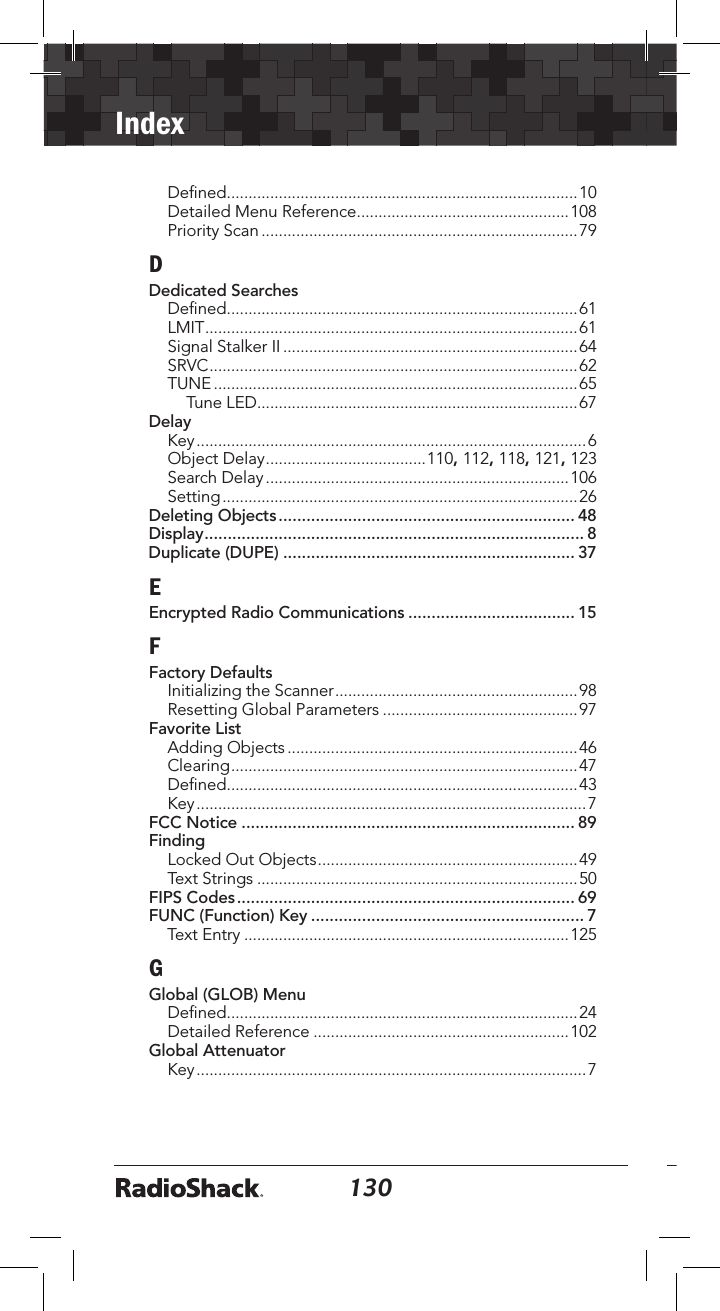

128129IndexIndexAAlarmsGlobal Setting....................................................................103Object Setting ................... 81, 106, 109, 112, 117, 120, 123Weather Alarm .....................................................................69Alert LEDGlobal Setting....................................................................103Object Setting ................... 81, 106, 109, 112, 117, 120, 122AntennaConnecting ..........................................................................16External ................................................................................16Troubleshooting ..................................................................95Weather Scanning ...............................................................68AttenuatorGlobal Settings ..................................................................104Key ..........................................................................................7Setting ..................................................................................23Troubleshooting ..................................................................95BBacklightAlerts ....................................................................................81Key ..........................................................................................7Setting ..................................................................................27BatteriesCharge Time ................................................................19, 104Charging ..............................................................................18Global Settings ..................................................................104Installing ...............................................................................17Setting Battery Type ............................................................18Troubleshooting ..................................................................95Belt Clip .............................................................................. 16Birdie Frequencies ............................................................. 88CClearFavorite Scan List.................................................................47Hit Counters .........................................................................80Key ..........................................................................................6Lockouts ...............................................................................53Memory ..........................................................................86, 98Text ...............................................................................32, 126Cloning ............................................................................... 77CONV.............................See Conventional Channel ObjectConventional Channel ObjectCreating ...............................................................................31
130Index131Defined .................................................................................10Detailed Menu Reference .................................................108Priority Scan .........................................................................79DDedicated SearchesDefined .................................................................................61LMIT ......................................................................................61Signal Stalker II ....................................................................64SRVC .....................................................................................62TUNE ....................................................................................65Tune LED ..........................................................................67DelayKey ..........................................................................................6Object Delay .....................................110, 112, 118, 121, 123Search Delay ......................................................................106Setting ..................................................................................26Deleting Objects ................................................................ 48Display .................................................................................. 8Duplicate (DUPE) ............................................................... 37EEncrypted Radio Communications .................................... 15FFactory DefaultsInitializing the Scanner ........................................................98Resetting Global Parameters .............................................97Favorite ListAdding Objects ...................................................................46Clearing ................................................................................47Defined .................................................................................43Key ..........................................................................................7FCC Notice ........................................................................ 89FindingLocked Out Objects ............................................................49Text Strings ..........................................................................50FIPS Codes ......................................................................... 69FUNC (Function) Key ........................................................... 7Text Entry ...........................................................................125GGlobal (GLOB) MenuDefined .................................................................................24Detailed Reference ...........................................................102Global AttenuatorKey ..........................................................................................7

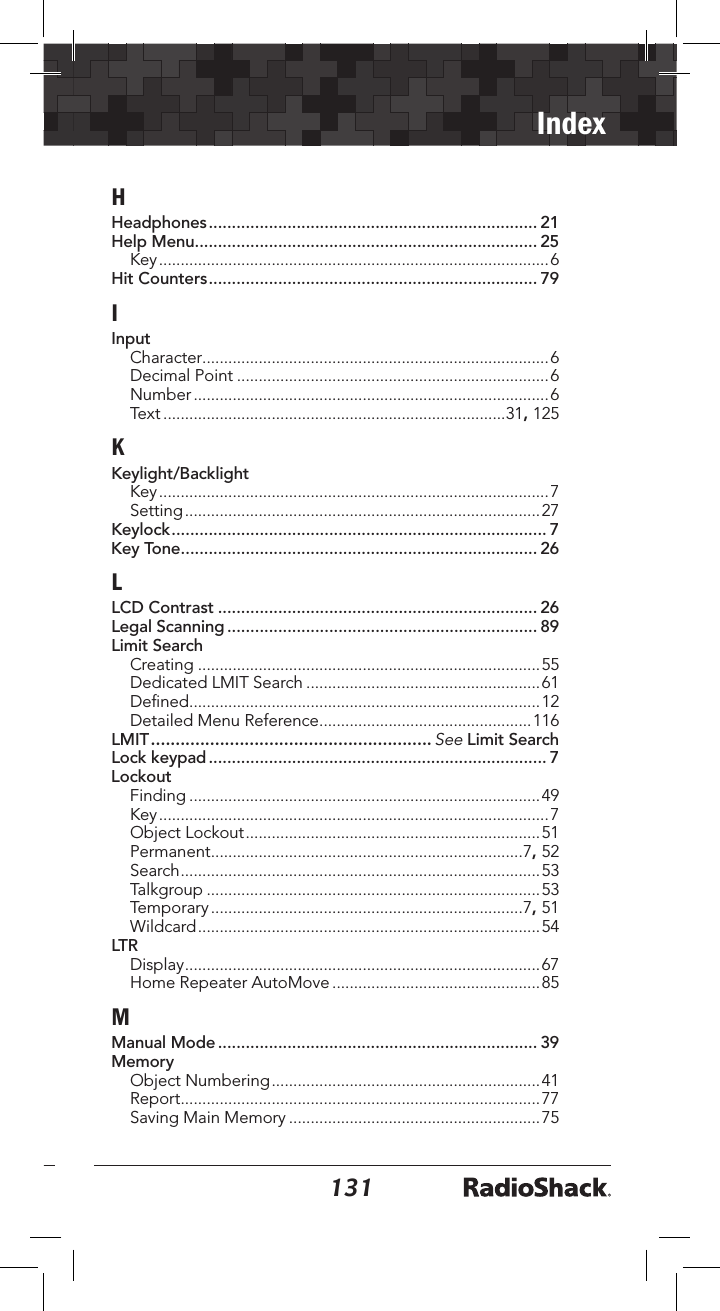

130131IndexHHeadphones ....................................................................... 21Help Menu .......................................................................... 25Key ..........................................................................................6Hit Counters ....................................................................... 79IInputCharacter ................................................................................6Decimal Point ........................................................................6Number ..................................................................................6Text ...............................................................................31, 125KKeylight/BacklightKey ..........................................................................................7Setting ..................................................................................27Keylock ................................................................................. 7Key Tone ............................................................................. 26LLCD Contrast ..................................................................... 26Legal Scanning ................................................................... 89Limit SearchCreating ...............................................................................55Dedicated LMIT Search ......................................................61Defined .................................................................................12Detailed Menu Reference .................................................116LMIT ......................................................... See Limit SearchLock keypad ......................................................................... 7LockoutFinding .................................................................................49Key ..........................................................................................7Object Lockout ....................................................................51Permanent ........................................................................7, 52Search ...................................................................................53Talkgroup .............................................................................53Temporary ........................................................................7, 51Wildcard ...............................................................................54LTRDisplay ..................................................................................67Home Repeater AutoMove ................................................85MManual Mode ..................................................................... 39MemoryObject Numbering ..............................................................41Report ...................................................................................77Saving Main Memory ..........................................................75

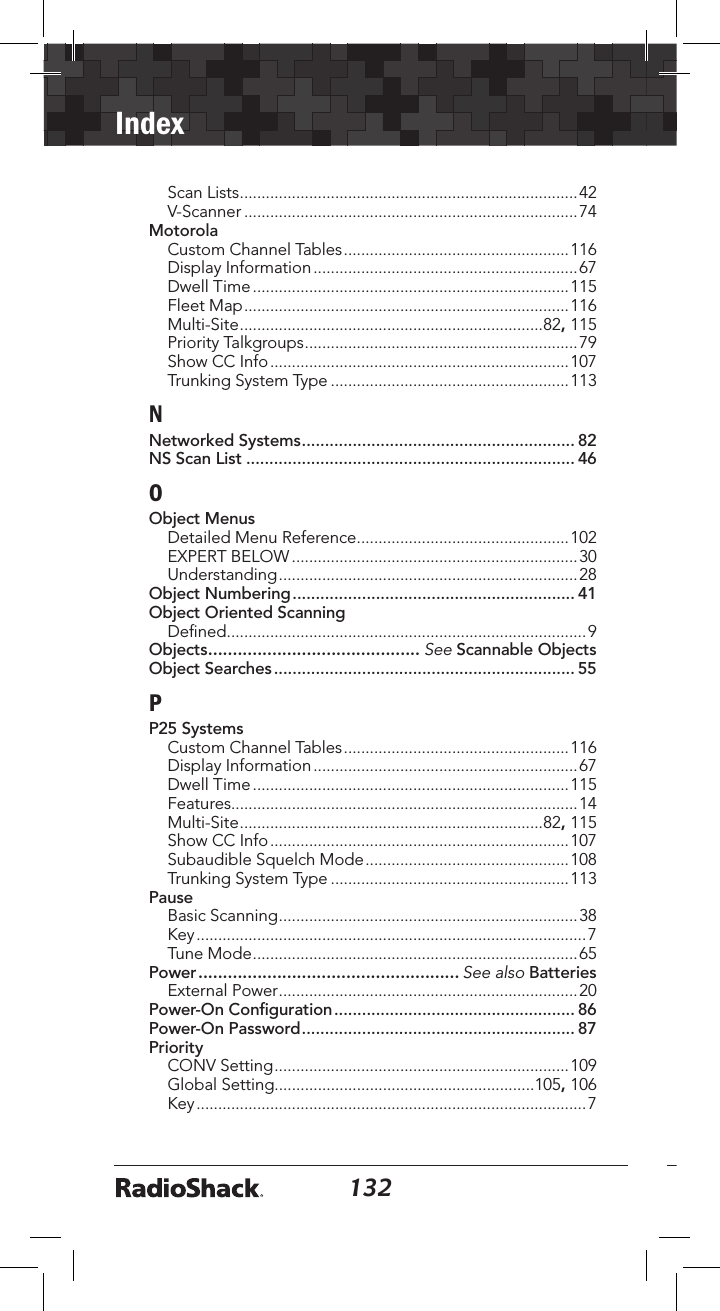

132Index133Scan Lists ..............................................................................42V-Scanner .............................................................................74MotorolaCustom Channel Tables ....................................................116Display Information .............................................................67Dwell Time .........................................................................115Fleet Map ...........................................................................116Multi-Site ......................................................................82, 115Priority Talkgroups ...............................................................79Show CC Info .....................................................................107Trunking System Type .......................................................113NNetworked Systems ........................................................... 82NS Scan List ....................................................................... 46OObject MenusDetailed Menu Reference .................................................102EXPERT BELOW ..................................................................30Understanding .....................................................................28Object Numbering ............................................................. 41Object Oriented ScanningDefined ...................................................................................9Objects ........................................... See Scannable ObjectsObject Searches ................................................................. 55PP25 SystemsCustom Channel Tables ....................................................116Display Information .............................................................67Dwell Time .........................................................................115Features................................................................................14Multi-Site ......................................................................82, 115Show CC Info .....................................................................107Subaudible Squelch Mode ...............................................108Trunking System Type .......................................................113PauseBasic Scanning .....................................................................38Key ..........................................................................................7Tune Mode ...........................................................................65Power ..................................................... See also BatteriesExternal Power .....................................................................20Power-On Configuration .................................................... 86Power-On Password ........................................................... 87PriorityCONV Setting ....................................................................109Global Setting............................................................105, 106Key ..........................................................................................7

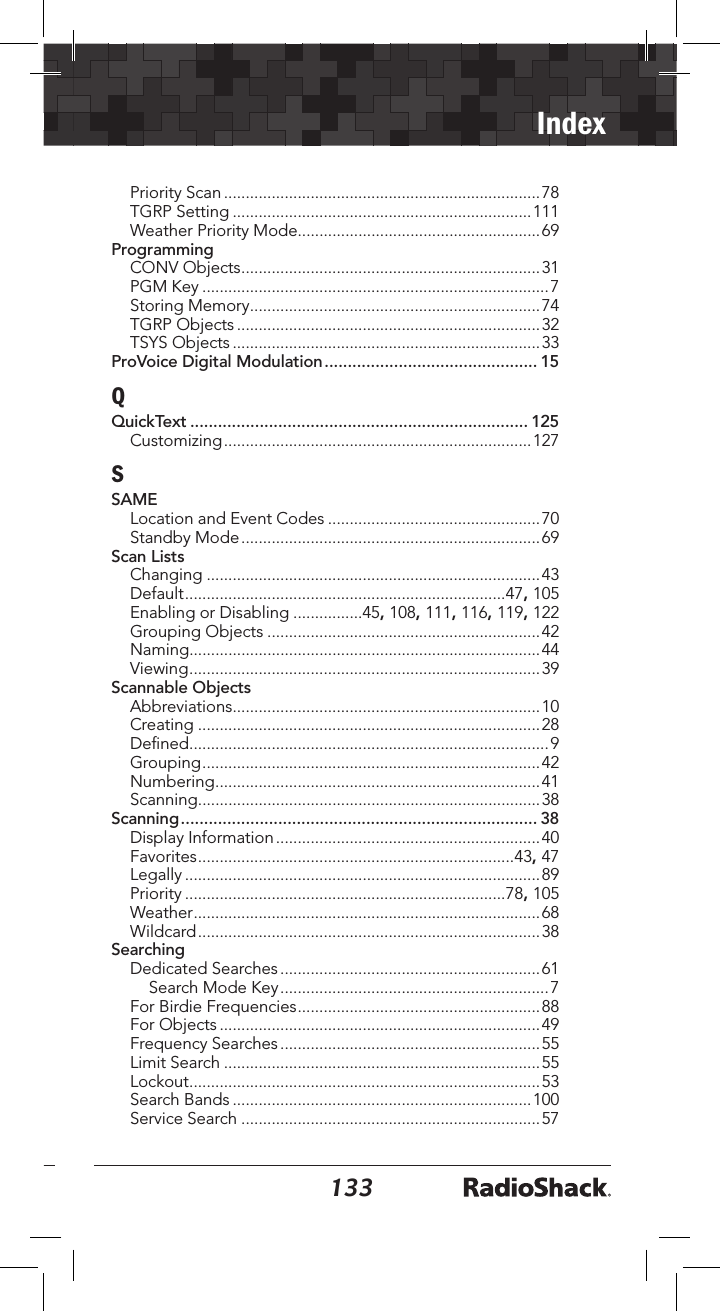

132133IndexPriority Scan .........................................................................78TGRP Setting .....................................................................111Weather Priority Mode........................................................69ProgrammingCONV Objects .....................................................................31PGM Key ................................................................................7Storing Memory ...................................................................74TGRP Objects ......................................................................32TSYS Objects .......................................................................33ProVoice Digital Modulation .............................................. 15QQuickText ......................................................................... 125Customizing .......................................................................127SSAMELocation and Event Codes .................................................70Standby Mode .....................................................................69Scan ListsChanging .............................................................................43Default ..........................................................................47, 105Enabling or Disabling ................45, 108, 111, 116, 119, 122Grouping Objects ...............................................................42Naming.................................................................................44Viewing .................................................................................39Scannable ObjectsAbbreviations .......................................................................10Creating ...............................................................................28Defined ...................................................................................9Grouping ..............................................................................42Numbering ...........................................................................41Scanning...............................................................................38Scanning ............................................................................. 38Display Information .............................................................40Favorites .........................................................................43, 47Legally ..................................................................................89Priority ..........................................................................78, 105Weather ................................................................................68Wildcard ...............................................................................38SearchingDedicated Searches ............................................................61Search Mode Key ..............................................................7For Birdie Frequencies ........................................................88For Objects ..........................................................................49Frequency Searches ............................................................55Limit Search .........................................................................55Lockout .................................................................................53Search Bands .....................................................................100Service Search .....................................................................57

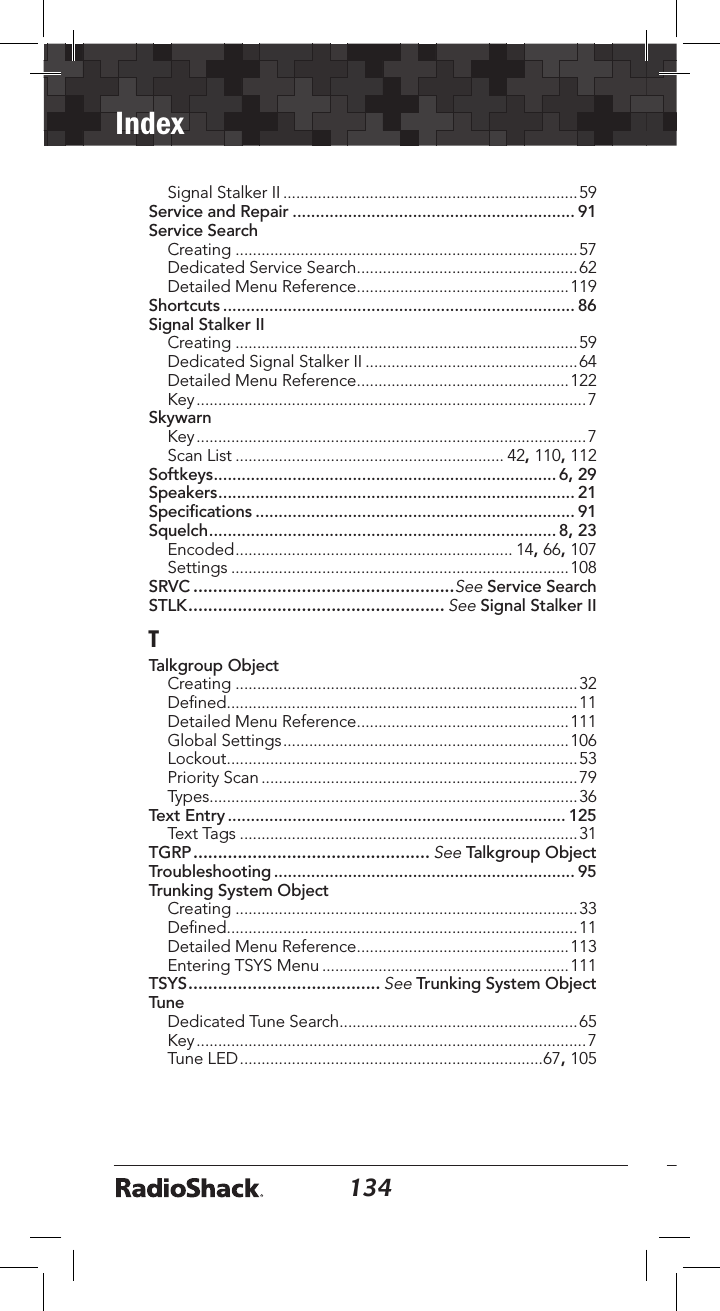

134Index135Signal Stalker II ....................................................................59Service and Repair ............................................................. 91Service SearchCreating ...............................................................................57Dedicated Service Search ...................................................62Detailed Menu Reference .................................................119Shortcuts ............................................................................ 86Signal Stalker IICreating ...............................................................................59Dedicated Signal Stalker II .................................................64Detailed Menu Reference .................................................122Key ..........................................................................................7SkywarnKey ..........................................................................................7Scan List .............................................................. 42, 110, 112Softkeys .......................................................................... 6, 29Speakers ............................................................................. 21Specifications ..................................................................... 91Squelch ........................................................................... 8, 23Encoded ................................................................ 14, 66, 107Settings ..............................................................................108SRVC .....................................................See Service SearchSTLK .................................................... See Signal Stalker IITTalkgroup ObjectCreating ...............................................................................32Defined .................................................................................11Detailed Menu Reference .................................................111Global Settings ..................................................................106Lockout .................................................................................53Priority Scan .........................................................................79Types.....................................................................................36Text Entry ......................................................................... 125Text Tags ..............................................................................31TGRP ................................................ See Talkgroup ObjectTroubleshooting ................................................................. 95Trunking System ObjectCreating ...............................................................................33Defined .................................................................................11Detailed Menu Reference .................................................113Entering TSYS Menu .........................................................111TSYS ....................................... See Trunking System ObjectTuneDedicated Tune Search .......................................................65Key ..........................................................................................7Tune LED ......................................................................67, 105

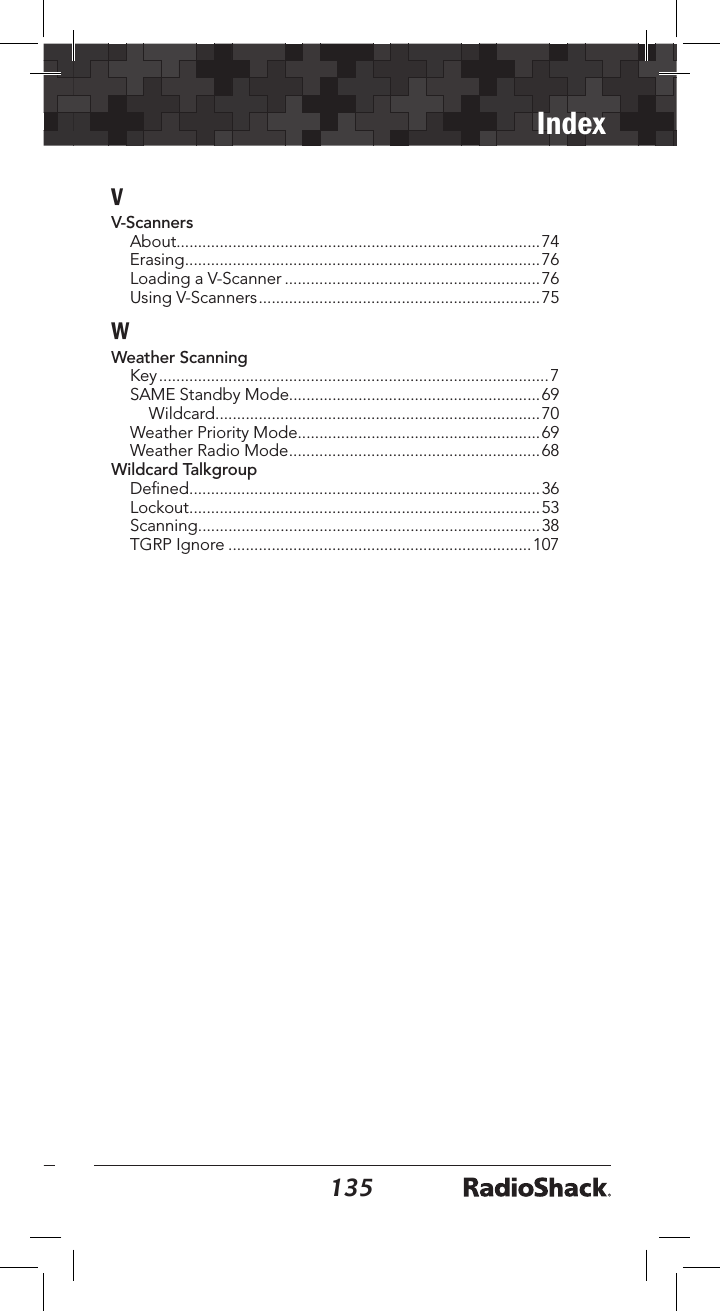

134135IndexVV-ScannersAbout....................................................................................74Erasing ..................................................................................76Loading a V-Scanner ...........................................................76Using V-Scanners .................................................................75WWeather ScanningKey ..........................................................................................7SAME Standby Mode..........................................................69Wildcard ...........................................................................70Weather Priority Mode........................................................69Weather Radio Mode ..........................................................68Wildcard TalkgroupDefined .................................................................................36Lockout .................................................................................53Scanning...............................................................................38TGRP Ignore ......................................................................107

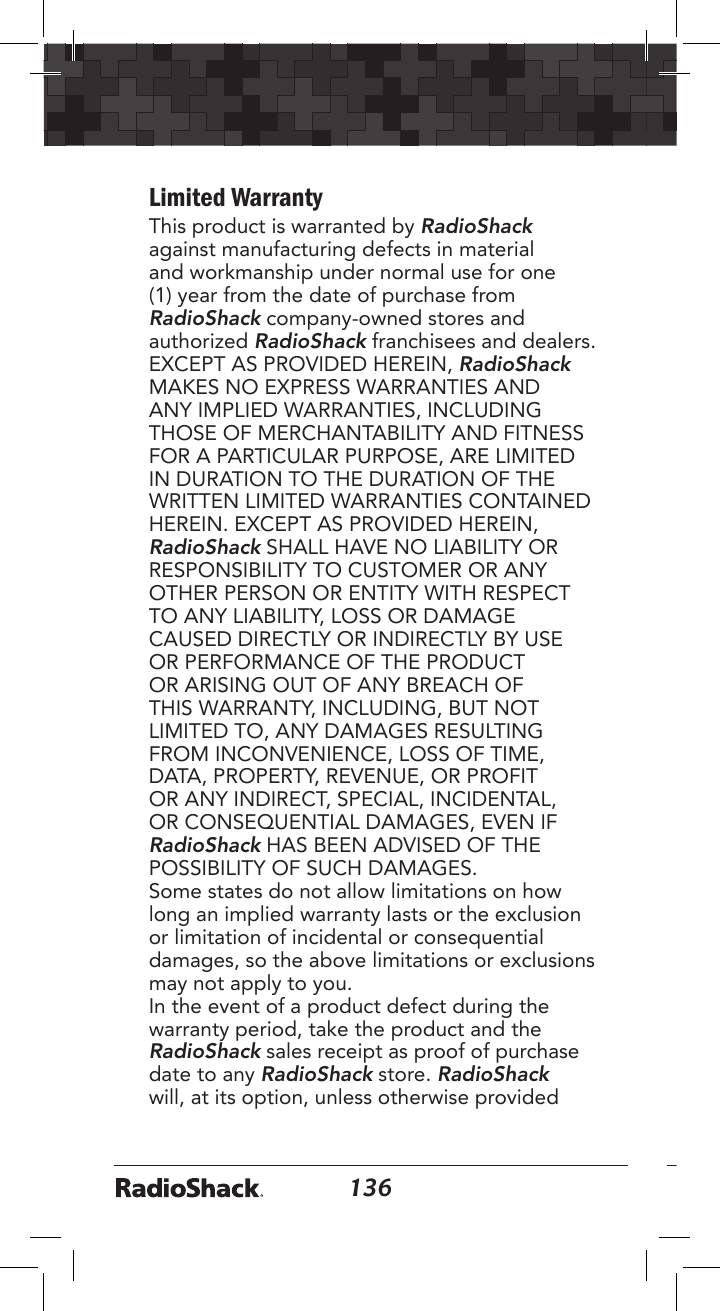

136137Limited WarrantyThis product is warranted by RadioShack against manufacturing defects in material and workmanship under normal use for one (1) year from the date of purchase from RadioShack company-owned stores and authorized RadioShack franchisees and dealers. EXCEPT AS PROVIDED HEREIN, RadioShack MAKES NO EXPRESS WARRANTIES AND ANY IMPLIED WARRANTIES, INCLUDING THOSE OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO THE DURATION OF THE WRITTEN LIMITED WARRANTIES CONTAINED HEREIN. EXCEPT AS PROVIDED HEREIN, RadioShack SHALL HAVE NO LIABILITY OR RESPONSIBILITY TO CUSTOMER OR ANY OTHER PERSON OR ENTITY WITH RESPECT TO ANY LIABILITY, LOSS OR DAMAGE CAUSED DIRECTLY OR INDIRECTLY BY USE OR PERFORMANCE OF THE PRODUCT OR ARISING OUT OF ANY BREACH OF THIS WARRANTY, INCLUDING, BUT NOT LIMITED TO, ANY DAMAGES RESULTING FROM INCONVENIENCE, LOSS OF TIME, DATA, PROPERTY, REVENUE, OR PROFIT OR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES, EVEN IF RadioShack HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. In the event of a product defect during the warranty period, take the product and the RadioShack sales receipt as proof of purchase date to any RadioShack store. RadioShack will, at its option, unless otherwise provided

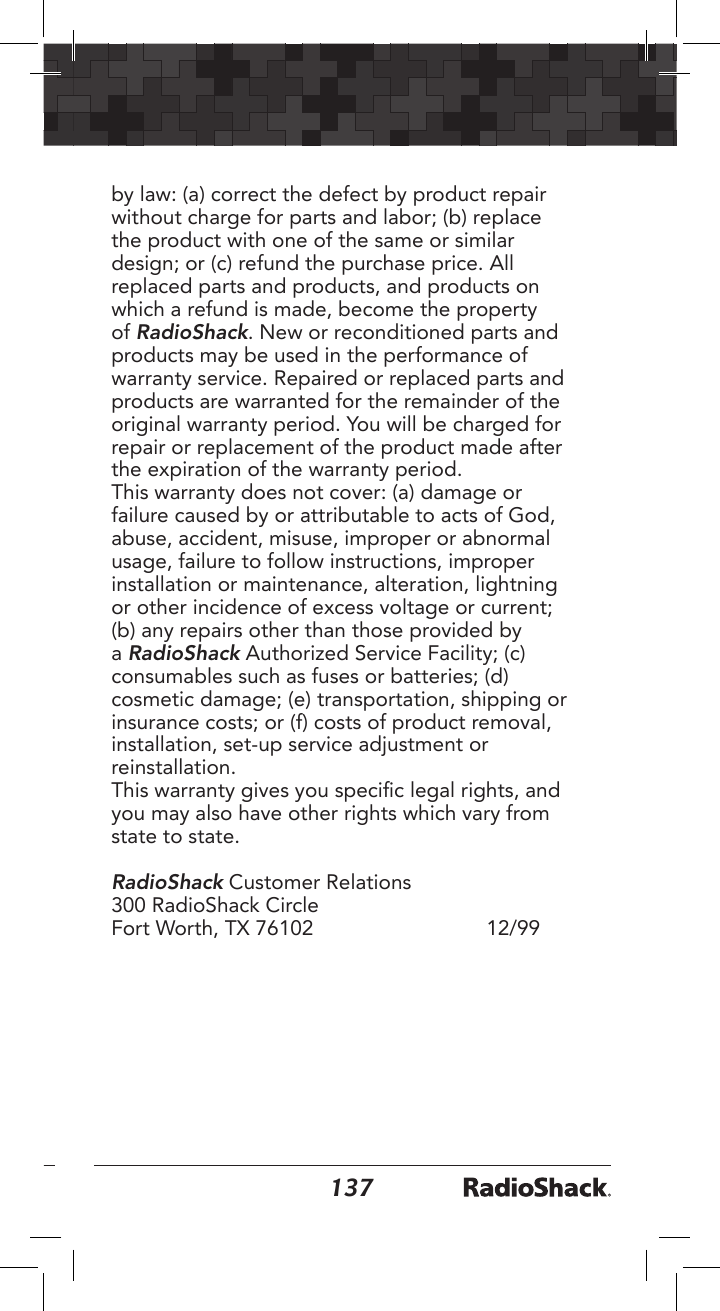

136137by law: (a) correct the defect by product repair without charge for parts and labor; (b) replace the product with one of the same or similar design; or (c) refund the purchase price. All replaced parts and products, and products on which a refund is made, become the property of RadioShack. New or reconditioned parts and products may be used in the performance of warranty service. Repaired or replaced parts and products are warranted for the remainder of the original warranty period. You will be charged for repair or replacement of the product made after the expiration of the warranty period. This warranty does not cover: (a) damage or failure caused by or attributable to acts of God, abuse, accident, misuse, improper or abnormal usage, failure to follow instructions, improper installation or maintenance, alteration, lightning or other incidence of excess voltage or current; (b) any repairs other than those provided by a RadioShack Authorized Service Facility; (c) consumables such as fuses or batteries; (d) cosmetic damage; (e) transportation, shipping or insurance costs; or (f) costs of product removal, installation, set-up service adjustment or reinstallation. This warranty gives you specic legal rights, and you may also have other rights which vary from state to state.RadioShack Customer Relations300 RadioShack Circle Fort Worth, TX 76102 12/99

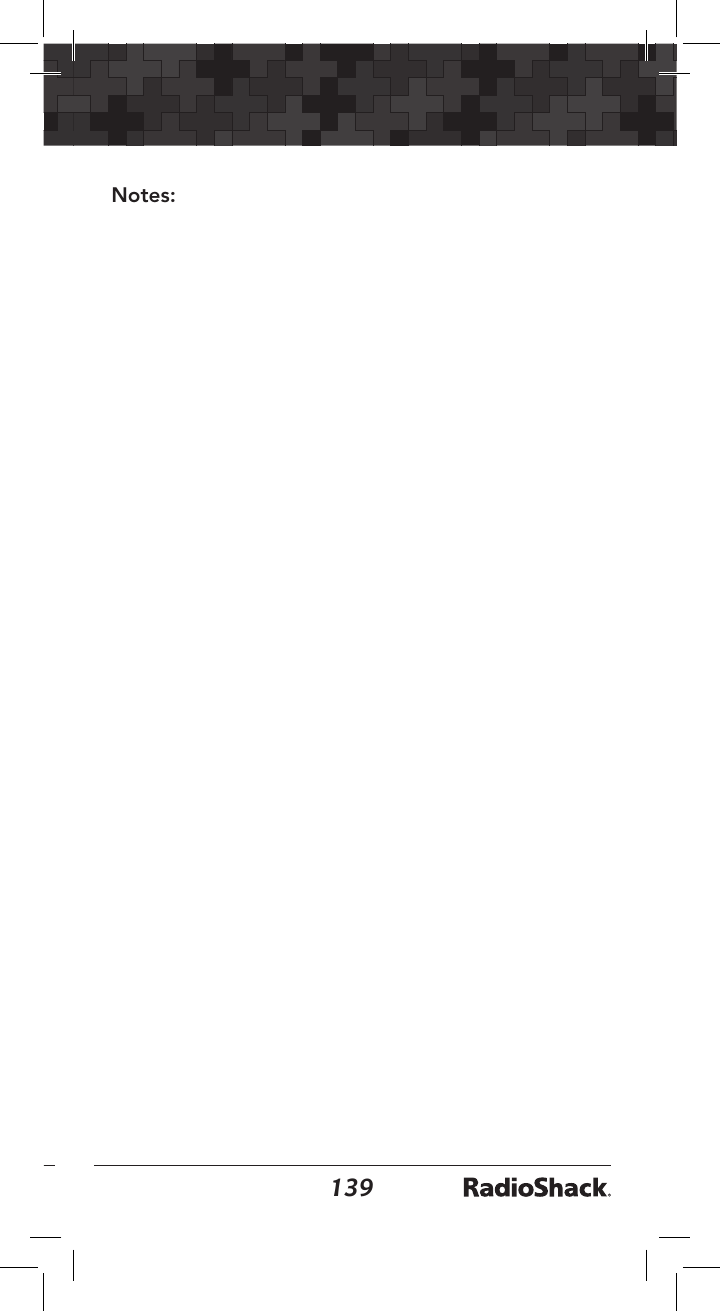

138139Notes:

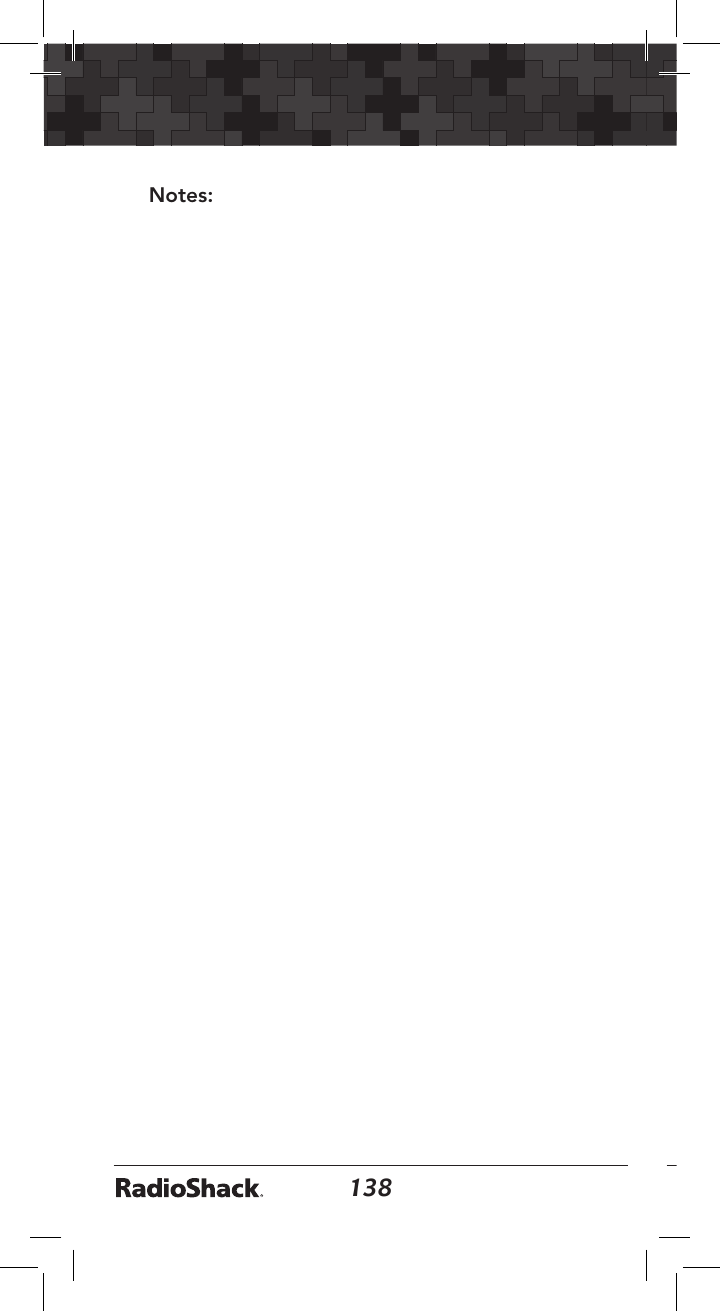

138139Notes:

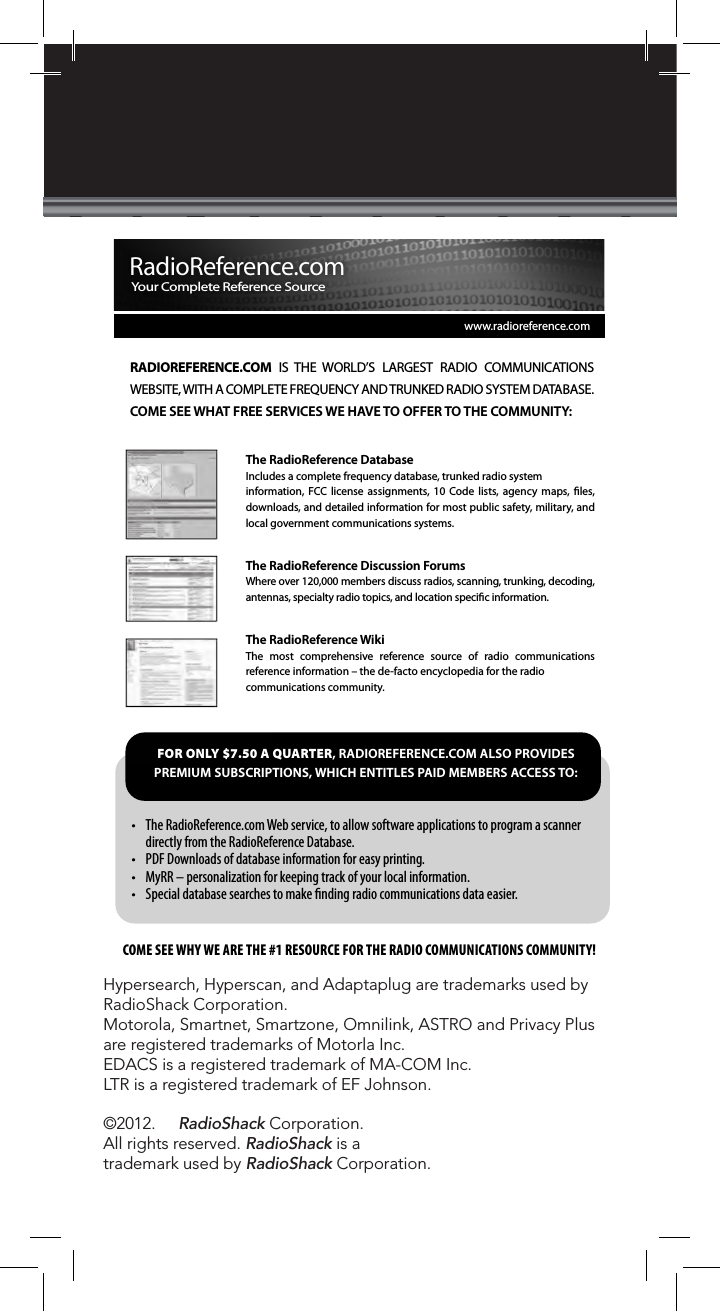

©2012. RadioShack Corporation. All rights reserved. RadioShack is a trademark used by RadioShack Corporation.Hypersearch, Hyperscan, and Adaptaplug are trademarks used by RadioShack　Corporation.Motorola, Smartnet, Smartzone, Omnilink, ASTRO and Privacy Plus are registered trademarks of Motorla Inc.EDACS is a registered trademark of MA-COM Inc.LTR is a registered trademark of EF Johnson.www.radioreference.comThe RadioReference DatabaseIncludes a complete frequency database, trunked radio system information, FCC license assignments, 10 Code lists, agency maps, les, downloads, and detailed information for most public safety, military, and local government communications systems.The RadioReference Discussion ForumsWhere over 120,000 members discuss radios, scanning, trunking, decoding, antennas, specialty radio topics, and location specic information.The RadioReference WikiThe most comprehensive reference source of radio communications reference information – the de-facto encyclopedia for the radio communications community.RADIOREFERENCE.COM IS THE WORLD’S LARGEST RADIO COMMUNICATIONS WEBSITE, WITH A COMPLETE FREQUENCY AND TRUNKED RADIO SYSTEM DATABASE. COME SEE WHAT FREE SERVICES WE HAVE TO OFFER TO THE COMMUNITY:COME SEE WHY WE ARE THE #1 RESOURCE FOR THE RADIO COMMUNICATIONS COMMUNITY!• The RadioReference.com Web service, to allow software applications to program a scanner directly from the RadioReference Database. • PDF Downloads of database information for easy printing.• MyRR – personalization for keeping track of your local information.• Special database searches to make finding radio communications data easier.FOR ONLY $7.50 A QUARTER, RADIOREFERENCE.COM ALSO PROVIDES PREMIUM SUBSCRIPTIONS, WHICH ENTITLES PAID MEMBERS ACCESS TO:RadioReference.comYour Complete Reference Source
