The Whistler Group WH17 Radar Detector User Manual Manual

The Whistler Group Radar Detector Manual

Manual

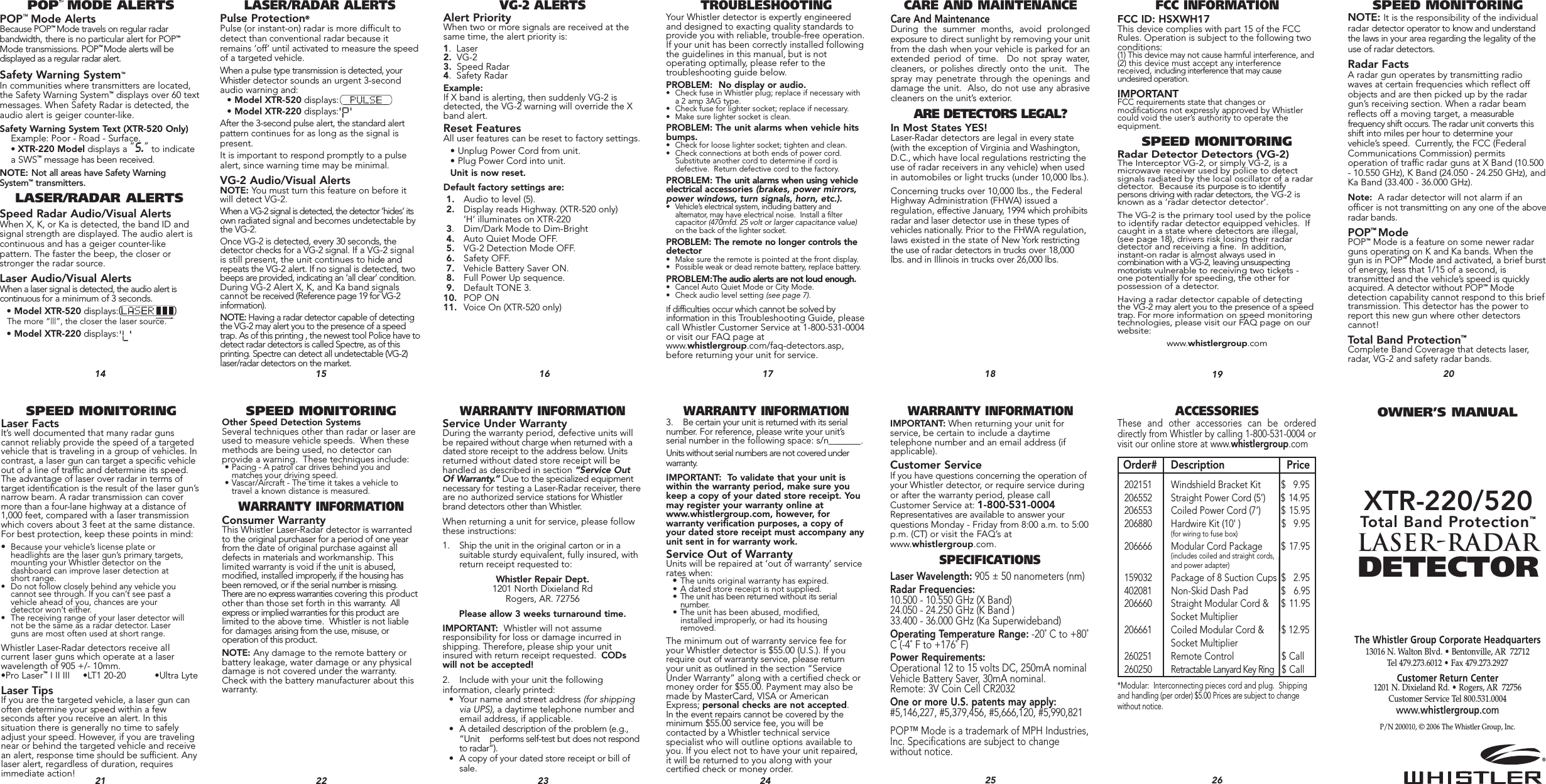

POP MODE ALERTSLASER/RADAR ALERTS VG-2 ALERTS TROUBLESHOOTING CARE AND MAINTENANCE FCC INFORMATIONSPEED MONITORINGSPEED MONITORING SPEED MONITORINGWARRANTY INFORMATION WARRANTY INFORMATION WARRANTY INFORMATIONACCESSORIESOWNER’S MANUALThe Whistler Group Corporate Headquarters13016 N. Walton Blvd. • Bentonville, AR 72712Tel 479.273.6012 • Fax 479.273.2927Customer Return Center1201 N. Dixieland Rd. • Rogers, AR 72756Customer Service Tel 800.531.0004www.whistlergroup.comP/N 200010, ©2006 The Whistler Group, Inc.14 15 16 17 18 19 2021 22 23 24 25 26POP™Mode AlertsBecause POP™ Mode travels on regular radarbandwidth, there is no particular alert for POP™Mode transmissions. POP™ Mode alerts will bedisplayed as a regular radar alert.Safety Warning System™In communities where transmitters are located,the Safety Warning System™displays over 60 textmessages. When Safety Radar is detected, theaudio alert is geiger counter-like.Safety Warning System Text (XTR-520 Only)Example: Poor - Road - Surface.•XTR-220 Model displays a “S.” to indicate a SWS™ message has been received.NOTE: Not all areas have Safety WarningSystem™transmitters.Speed Radar Audio/Visual AlertsWhen X, K, or Ka is detected, the band ID andsignal strength are displayed. The audio alert iscontinuous and has a geiger counter-likepattern. The faster the beep, the closer orstronger the radar source.Laser Audio/Visual AlertsWhen a laser signal is detected, the audio alert iscontinuous for a minimum of 3 seconds. •Model XTR-520 displays:The more “|||”, the closer the laser source.•Model XTR-220 displays: Pulse Protection®Pulse (or instant-on) radar is more difficult todetect than conventional radar because itremains ‘off’ until activated to measure the speedof a targeted vehicle.When a pulse type transmission is detected, yourWhistler detector sounds an urgent 3-secondaudio warning and: •Model XTR-520 displays:•Model XTR-220 displays: After the 3-second pulse alert, the standard alertpattern continues for as long as the signal ispresent.It is important to respond promptly to a pulsealert, since warning time may be minimal.VG-2 Audio/Visual AlertsNOTE: You must turn this feature on before itwill detect VG-2.When a VG-2 signal is detected, the detector ‘hides’ itsown radiated signal and becomes undetectable bythe VG-2.Once VG-2 is detected, every 30 seconds, thedetector checks for a VG-2 signal. If a VG-2 signalis still present, the unit continues to hide andrepeats the VG-2 alert. If no signal is detected, twobeeps are provided, indicating an ‘all clear’ condition.During VG-2 Alert X, K, and Ka band signalscannot be received (Reference page 19 for VG-2information).NOTE: Having a radar detector capable of detectingthe VG-2 may alert you to the presence of a speedtrap. As of this printing , the newest tool Police have todetect radar detectors is called Spectre, as of thisprinting. Spectre can detect all undetectable (VG-2)laser/radar detectors on the market.Alert PriorityWhen two or more signals are received at thesame time, the alert priority is:1. Laser2.VG-23. Speed Radar4. Safety RadarExample:If X band is alerting, then suddenly VG-2 isdetected, the VG-2 warning will override the Xband alert.Reset FeaturesAll user features can be reset to factory settings.• Unplug Power Cord from unit.• Plug Power Cord into unit.Unit is now reset.Default factory settings are:1.Audio to level (5).2. Display reads Highway. (XTR-520 only)’H’ illuminates on XTR-2203. Dim/Dark Mode to Dim-Bright4. Auto Quiet Mode OFF.5. VG-2 Detection Mode OFF.6. Safety OFF.7. Vehicle Battery Saver ON.8. Full Power Up sequence.9. Default TONE 3.10. POP ON 11. Voice On (XTR-520 only)Your Whistler detector is expertly engineeredand designed to exacting quality standards toprovide you with reliable, trouble-free operation.If your unit has been correctly installed followingthe guidelines in this manual, but is notoperating optimally, please refer to thetroubleshooting guide below.PROBLEM: No display or audio.• Check fuse in Whistler plug; replace if necessary with a 2 amp 3AG type.• Check fuse for lighter socket; replace if necessary.• Make sure lighter socket is clean.PROBLEM: The unit alarms when vehicle hitsbumps.• Check for loose lighter socket; tighten and clean.• Check connections at both ends of power cord. Substitute another cord to determine if cord is defective. Return defective cord to the factory.PROBLEM: The unit alarms when using vehicleelectrical accessories (brakes, power mirrors,power windows, turn signals, horn, etc.).• Vehicle’s electrical system, including battery and alternator, may have electrical noise. Install a filter capacitor (470mfd. 25 volt or larger capacitance value) on the back of the lighter socket.PROBLEM: The remote no longer controls thedetector• Make sure the remote is pointed at the front display.• Possible weak or dead remote battery, replace battery.PROBLEM:The audio alerts are not loud enough.• Cancel Auto Quiet Mode or City Mode.• Check audio level setting (see page 7).If difficulties occur which cannot be solved byinformation in this Troubleshooting Guide, pleasecall Whistler Customer Service at 1-800-531-0004or visit our FAQ page atwww.whistlergroup.com/faq-detectors.asp,before returning your unit for service.Care And MaintenanceDuring the summer months, avoid prolongedexposure to direct sunlight by removing your unitfrom the dash when your vehicle is parked for anextended period of time. Do not spray water,cleaners, or polishes directly onto the unit. Thespray may penetrate through the openings anddamage the unit. Also, do not use any abrasivecleaners on the unit’s exterior.In Most States YES!Laser-Radar detectors are legal in every state(with the exception of Virginia and Washington,D.C., which have local regulations restricting theuse of radar receivers in any vehicle) when usedin automobiles or light trucks (under 10,000 lbs.). Concerning trucks over 10,000 lbs., the FederalHighway Administration (FHWA) issued aregulation, effective January, 1994 which prohibitsradar and laser detector use in these types ofvehicles nationally. Prior to the FHWA regulation,laws existed in the state of New York restrictingthe use of radar detectors in trucks over 18,000lbs. and in Illinois in trucks over 26,000 lbs.FCC ID: HSXWH17This device complies with part 15 of the FCCRules. Operation is subject to the following twoconditions: (1) This device may not cause harmful interference, and(2) this device must accept any interferencereceived, including interference that may causeundesired operation.IMPORTANTFCC requirements state that changes ormodifications not expressly approved by Whistlercould void the user’s authority to operate theequipment.SPEED MONITORINGRadar Detector Detectors (VG-2)The Interceptor VG-2, or simply VG-2, is amicrowave receiver used by police to detectsignals radiated by the local oscillator of a radardetector. Because its purpose is to identifypersons driving with radar detectors, the VG-2 isknown as a ‘radar detector detector’.The VG-2 is the primary tool used by the policeto identify radar detector equipped vehicles. Ifcaught in a state where detectors are illegal,(see page 18), drivers risk losing their radardetector and receiving a fine. In addition,instant-on radar is almost always used incombination with a VG-2, leaving unsuspectingmotorists vulnerable to receiving two tickets -one potentially for speeding, the other forpossession of a detector.Having a radar detector capable of detectingthe VG-2 may alert you to the presence of a speedtrap. For more information on speed monitoringtechnologies, please visit our FAQ page on ourwebsite:www.whistlergroup.comNOTE: It is the responsibility of the individualradar detector operator to know and understandthe laws in your area regarding the legality of theuse of radar detectors.Radar FactsA radar gun operates by transmitting radiowaves at certain frequencies which reflect offobjects and are then picked up by the radargun’s receiving section. When a radar beamreflects off a moving target, a measurablefrequency shift occurs. The radar unit converts thisshift into miles per hour to determine yourvehicle’s speed. Currently, the FCC (FederalCommunications Commission) permitsoperation of traffic radar guns at X Band (10.500- 10.550 GHz), K Band (24.050 - 24.250 GHz), andKa Band (33.400 - 36.000 GHz).Note: A radar detector will not alarm if anofficer is not transmitting on any one of the aboveradar bands.POP™ ModePOP™Mode is a feature on some newer radarguns operating on K and Ka bands. When thegun is in POP™Mode and activated, a brief burstof energy, less that 1/15 of a second, istransmitted and the vehicle’s speed is quicklyacquired. A detector without POP™Modedetection capability cannot respond to this brieftransmission. This detector has the power toreport this new gun where other detectorscannot!Total Band Protection™Complete Band Coverage that detects laser,radar, VG-2 and safety radar bands.Laser FactsIt’s well documented that many radar gunscannot reliably provide the speed of a targetedvehicle that is traveling in a group of vehicles. Incontrast, a laser gun can target a specific vehicleout of a line of traffic and determine its speed.The advantage of laser over radar in terms oftarget identification is the result of the laser gun’snarrow beam. A radar transmission can covermore than a four-lane highway at a distance of1,000 feet, compared with a laser transmissionwhich covers about 3 feet at the same distance.For best protection, keep these points in mind: •Because your vehicle’s license plate or headlights are the laser gun’s primary targets, mounting your Whistler detector on the dashboard can improve laser detection at short range.•Do not follow closely behind any vehicle you cannot see through. If you can’t see past a vehicle ahead of you, chances are your detector won’t either.• The receiving range of your laser detector will not be the same as a radar detector. Laser guns are most often used at short range.Whistler Laser-Radar detectors receive allcurrent laser guns which operate at a laserwavelength of 905 +/- 10mm.•Pro Laser™I II III •LT1 20-20 •Ultra Lyte Laser TipsIf you are the targeted vehicle, a laser gun canoften determine your speed within a fewseconds after you receive an alert. In thissituation there is generally no time to safelyadjust your speed. However, if you are travelingnear or behind the targeted vehicle and receivean alert, response time should be sufficient. Anylaser alert, regardless of duration, requires immediate action!Other Speed Detection SystemsSeveral techniques other than radar or laser areused to measure vehicle speeds. When thesemethods are being used, no detector canprovide a warning. These techniques include:• Pacing - A patrol car drives behind you and matches your driving speed.• Vascar/Aircraft - The time it takes a vehicle to travel a known distance is measured.WARRANTY INFORMATIONConsumer WarrantyThis Whistler Laser-Radar detector is warrantedto the original purchaser for a period of one yearfrom the date of original purchase against alldefects in materials and workmanship. Thislimited warranty is void if the unit is abused,modified, installed improperly, if the housing hasbeen removed, or if the serial number is missing.There are no express warranties covering this productother than those set forth in this warranty. Allexpress or implied warranties for this product arelimited to the above time. Whistler is not liablefor damages arising from the use, misuse, oroperation of this product.NOTE: Any damage to the remote battery orbattery leakage, water damage or any physicaldamage is not covered under the warranty.Check with the battery manufacturer about thiswarranty.Service Under WarrantyDuring the warranty period, defective units willbe repaired without charge when returned with adated store receipt to the address below. Unitsreturned without dated store receipt will behandled as described in section “Service OutOf Warranty.” Due to the specialized equipmentnecessary for testing a Laser-Radar receiver, thereare no authorized service stations for Whistlerbrand detectors other than Whistler.When returning a unit for service, please followthese instructions:1. Ship the unit in the original carton or in a suitable sturdy equivalent, fully insured, with return receipt requested to:Whistler Repair Dept.1201 North Dixieland RdRogers, AR. 72756Please allow 3 weeks turnaround time.IMPORTANT: Whistler will not assumeresponsibility for loss or damage incurred inshipping. Therefore, please ship your unitinsured with return receipt requested. CODswill not be accepted!2. Include with your unit the followinginformation, clearly printed:• Your name and street address (for shipping via UPS), a daytime telephone number and email address, if applicable.• A detailed description of the problem (e.g., “Unit performs self-test but does not respond to radar”).• A copy of your dated store receipt or bill of sale.3. Be certain your unit is returned with its serialnumber. For reference, please write your unit’sserial number in the following space: s/n_______.Units without serial numbers are not covered underwarranty.IMPORTANT: To validate that your unit iswithin the warranty period, make sure youkeep a copy of your dated store receipt. Youmay register your warranty online atwww.whistlergroup.com, however, forwarranty verification purposes, a copy ofyour dated store receipt must accompany anyunit sent in for warranty work.Service Out of WarrantyUnits will be repaired at ‘out of warranty’ servicerates when:•The units original warranty has expired.• A dated store receipt is not supplied.• The unit has been returned without its serial number.•The unit has been abused, modified, installed improperly, or had its housing removed.The minimum out of warranty service fee foryour Whistler detector is $55.00 (U.S.). If yourequire out of warranty service, please returnyour unit as outlined in the section “ServiceUnder Warranty” along with a certified check ormoney order for $55.00. Payment may also bemade by MasterCard, VISA or AmericanExpress; personal checks are not accepted. In the event repairs cannot be covered by theminimum $55.00 service fee, you will becontacted by a Whistler technical servicespecialist who will outline options available toyou. If you elect not to have your unit repaired,it will be returned to you along with your certified check or money order.These and other accessories can be ordereddirectly from Whistler by calling 1-800-531-0004 orvisit our online store at www.whistlergroup.comOrder# Description Price202151 Windshield Bracket Kit $ 9.95206552 Straight Power Cord (5’) $ 14.95206553 Coiled Power Cord (7’) $ 15.95206880 Hardwire Kit (10' ) $ 9.95(for wiring to fuse box)206666 Modular Cord Package $ 17.95(includes coiled and straight cords, and power adapter)159032 Package of 8 Suction Cups $ 2.95402081 Non-Skid Dash Pad $ 6.95206660 Straight Modular Cord & $ 11.95Socket Multiplier206661 Coiled Modular Cord & $ 12.95Socket Multiplier260251 Remote Control $Call260250 Retractable Lanyard Key Ring $ Call*Modular: Interconnecting pieces cord and plug. Shippingand handling (per order) $5.00 Prices are subject to changewithout notice.LASER/RADAR ALERTSARE DETECTORS LEGAL?IMPORTANT: When returning your unit forservice, be certain to include a daytimetelephone number and an email address (ifapplicable).Customer ServiceIf you have questions concerning the operation ofyour Whistler detector, or require service duringor after the warranty period, please callCustomer Service at: 1-800-531-0004Representatives are available to answer yourquestions Monday - Friday from 8:00 a.m. to 5:00p.m. (CT) or visit the FAQ’s atwww.whistlergroup.com.SPECIFICATIONSLaser Wavelength: 905 ± 50 nanometers (nm)Radar Frequencies:10.500 - 10.550 GHz (X Band)24.050 - 24.250 GHz (K Band )33.400 - 36.000 GHz (Ka Superwideband)Operating Temperature Range: -20˚ C to +80˚C (-4˚ F to +176˚ F)Power Requirements:Operational 12 to 15 volts DC, 250mA nominalVehicle Battery Saver, 30mA nominal.Remote: 3V Coin Cell CR2032One or more U.S. patents may apply:#5,146,227, #5,379,456, #5,666,120, #5,990,821POP™ Mode is a trademark of MPH Industries,Inc. Specifications are subject to changewithout notice.DETECTORLASER-RADARTotal Band Protection™XTR-220/520

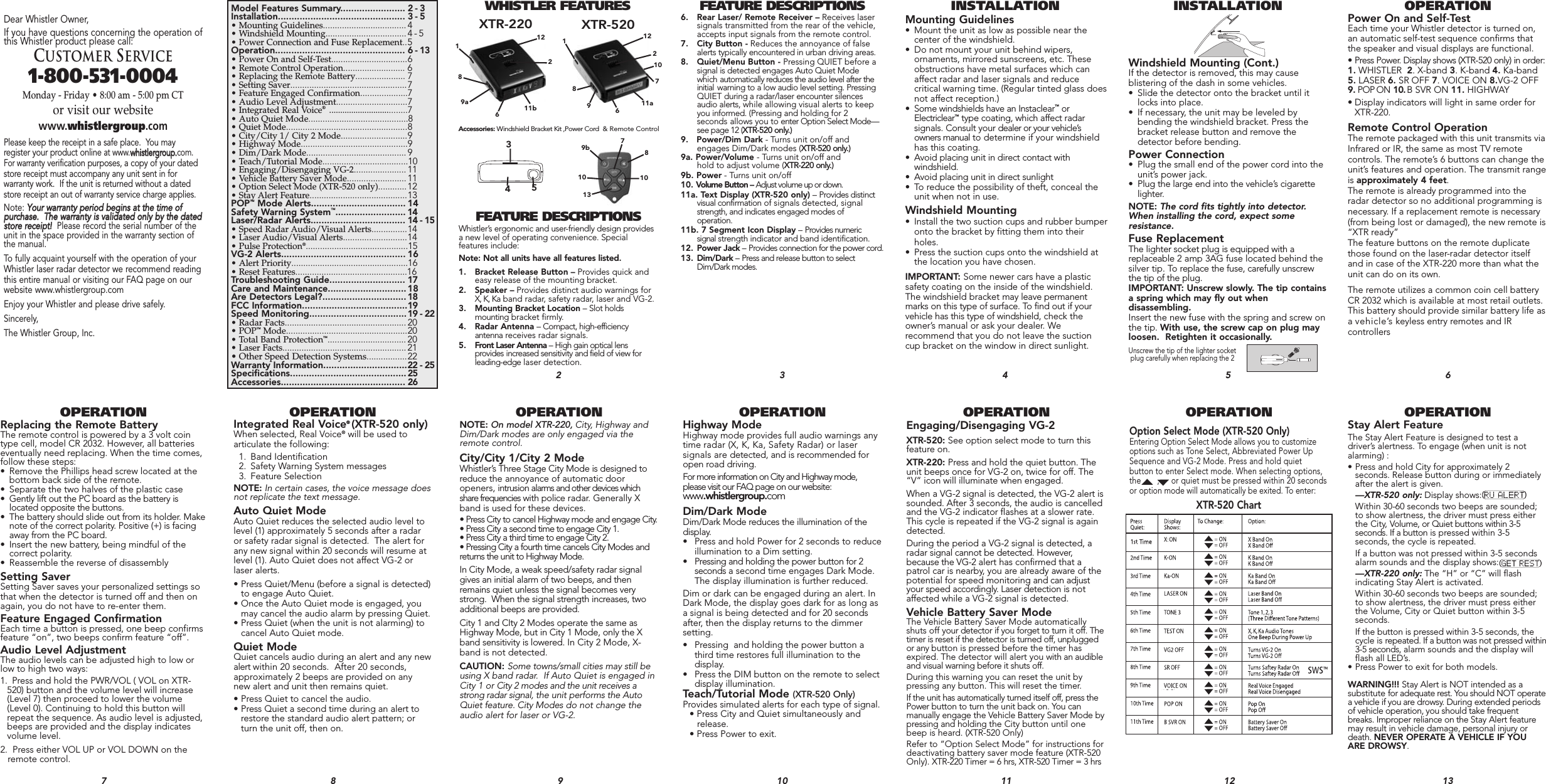

WHISTLER FEATURES FEATURE DESCRIPTIONS INSTALLATION INSTALLATION OPERATIONOPERATION OPERATION OPERATION OPERATION OPERATION OPERATION OPERATIONDear Whistler Owner,If you have questions concerning the operation ofthis Whistler product please call:CuSTOmer SeRVICE1-800-531-0004Monday - Friday • 8:00 am - 5:00 pm CTor visit our websitewww.whistlergroup.comPlease keep the receipt in a safe place. You mayregister your product online at www.wwhhiissttlleerrggrroouupp..com.For warrantyverification purposes, a copy of your datedstore receipt must accompany any unit sent in forwarranty work. If the unit is returned without a datedstore receipt an out of warranty service charge applies. Note: YYoouurr wwaarrrraannttyy ppeerriioodd bbeeggiinnss aatt tthhee ttiimmee ooffppuurrcchhaassee.. TThhee wwaarrrraannttyy iiss vvaalliiddaatteedd oonnllyy bbyy tthhee ddaatteeddssttoorree rreecceeiipptt!! Please record the serial number of theunit in the space provided in the warranty section ofthe manual.To fully acquaint yourself with the operation of yourWhistler laser radar detector we recommend readingthis entire manual or visiting our FAQ page on ourwebsite www.whistlergroup.comEnjoy your Whistler and please drive safely.Sincerely,The Whistler Group, Inc.34567 8 9 10 11 12 13Model Features Summary........................ 2 - 3Installation............................................... 3 - 5• Mounting Guidelines................................... 4•Windshield Mounting..................................4 - 5•Power Connection and Fuse Replacement..5Operation................................................ 6 - 13• Power On and Self-Test................................6• Remote Control Operation.......................... 6• Replacing the Remote Battery..................... 7•Setting Saver.................................................7•Feature Engaged Confirmation....................7•Audio Level Adjustment..............................7• Integrated Real Voice® ...................................7• Auto Quiet Mode..........................................8• Quiet Mode...................................................8• City/City 1/ City 2 Mode............................9•Highway Mode.............................................9•Dim/Dark Mode.......................................... 9• Teach/Tutorial Mode....................................10• Engaging/Disengaging VG-2...................... 11• Vehicle Battery Saver Mode......................... 11•Option Select Mode (XTR-520 only)............12• Stay Alert Feature.........................................13POP™Mode Alerts................................... 14Safety Warning System™.......................... 14Laser/Radar Alerts................................... 14 - 15• Speed Radar Audio/Visual Alerts...............14•Laser Audio/Visual Alerts...........................14• Pulse Protection®...........................................15VG-2 Alerts.............................................. 16• Alert Priority.................................................16• Reset Features...............................................16Troubleshooting Guide............................ 17 Care and Maintenance............................. 18Are Detectors Legal?............................... 18FCC Information.......................................19Speed Monitoring....................................19 - 22• Radar Facts................................................... 20• POP™Mode...................................................20•Total Band Protection™................................. 20•Laser Facts.................................................... 21• Other Speed Detection Systems.................22Warranty Information...............................22 - 25Specifications........................................... 25Accessories.............................................. 26 26. Rear Laser/ Remote Receiver – Receives laser signals transmitted from the rear of the vehicle, accepts input signals from the remote control.7. City Button - Reduces the annoyance of false alerts typically encountered in urban driving areas.8. Quiet/Menu Button - Pressing QUIET before a signal is detected engages Auto Quiet Mode which automatically reduces the audio level after the initial warning to a low audio level setting. PressingQUIET during a radar/laser encounter silences audio alerts, while allowing visual alerts to keep you informed. (Pressing and holding for 2 seconds allows you to enter Option Select Mode—see page 12 (XTR-520 only.)9. Power/Dim Dark - Turns unit on/off and engages Dim/Dark modes (XTR-520 only.)9a. Power/Volume - Turns unit on/off and hold to adjust volume (XTR-220 only.)9b. Power - Turns unit on/off 10. Volume Button – Adjust volume up or down.11a. Text Display (XTR-520 only) – Provides distinct visual confirmation of signals detected, signal strength, and indicates engaged modes of operation.11b. 7 Segment Icon Display – Provides numeric signal strength indicator and band identification.12. Power Jack – Provides connection for the power cord.13. Dim/Dark – Press and release button to select Dim/Dark modes.Mounting Guidelines•Mount the unit as low as possible near the center of the windshield. • Do not mount your unit behind wipers, ornaments, mirrored sunscreens, etc. These obstructions have metal surfaces which can affect radar and laser signals and reduce critical warning time. (Regular tinted glass doesnot affect reception.)• Some windshields have an Instaclear™or Electriclear™type coating, which affect radar signals. Consult your dealer or your vehicle’s owners manual to determine if your windshield has this coating.•Avoid placing unit in direct contact with windshield.•Avoid placing unit in direct sunlight•To reduce the possibility of theft, conceal the unit when not in use.Windshield Mounting• Install the two suction cups and rubber bumperonto the bracket by fitting them into their holes.• Press the suction cups onto the windshield at the location you have chosen. IMPORTANT: Some newer cars have a plasticsafety coating on the inside of the windshield.The windshield bracket may leave permanentmarks on this type of surface. To find out if yourvehicle has this type of windshield, check theowner’s manual or ask your dealer. We recommend that you do not leave the suctioncup bracket on the window in direct sunlight. Power On and Self-TestEach time your Whistler detector is turned on,an automatic self-test sequence confirms thatthe speaker and visual displays are functional.• Press Power. Display shows (XTR-520 only) in order: 1.WHISTLER 2. X-band 3. K-band 4.Ka-band5.LASER 6.SR OFF 7. VOICE ON 8.VG-2 OFF9. POP ON 10. B SVR ON 11. HIGHWAY • Display indicators will light in same order for XTR-220.Remote Control OperationThe remote packaged with this unit transmits viaInfrared or IR, the same as most TV remotecontrols. The remote’s 6 buttons can change theunit’s features and operation. The transmit rangeis approximately 4 feet.The remote is already programmed into theradar detector so no additional programming isnecessary. If a replacement remote is necessary(from being lost or damaged), the new remote is“XTR ready”The feature buttons on the remote duplicatethose found on the laser-radar detector itselfand in case of the XTR-220 more than what theunit can do on its own.The remote utilizes a common coin cell batteryCR 2032 which is available at most retail outlets.This battery should provide similar battery life asa vehicle’s keyless entry remotes and IRcontrollersStay Alert FeatureThe Stay Alert Feature is designed to test adriver’s alertness. To engage (when unit is notalarming) :•Press and hold City for approximately 2 seconds. Release button during or immediately after the alert is given. —XTR-520 only: Display shows: Within 30-60 seconds two beeps are sounded; to show alertness, the driver must press either the City, Volume, or Quiet buttons within 3-5 seconds. If a button is pressed within 3-5 seconds, the cycle is repeated.If a button was not pressed within 3-5 seconds alarm sounds and the display shows:—XTR-220 only: The “H” or “C” will flash indicating Stay Alert is activated. Within 30-60 seconds two beeps are sounded; to show alertness, the driver must press either the Volume, City or Quiet button within 3-5 seconds. If the button is pressed within 3-5 seconds, the cycle is repeated. If a button was not pressed within3-5 seconds, alarm sounds and the display will flash all LED’s.• Press Power to exit for both models.WARNING!!! Stay Alert is NOT intended as asubstitute for adequate rest. You should NOT operatea vehicle if you are drowsy. During extended periodsof vehicle operation, you should take frequentbreaks. Improper reliance on the Stay Alert featuremay result in vehicle damage, personal injury ordeath. NEVER OPERATE A VEHICLE IF YOUARE DROWSY.Engaging/Disengaging VG-2 XTR-520: See option select mode to turn thisfeature on. XTR-220: Press and hold the quiet button. Theunit beeps once for VG-2 on, twice for off. The“V” icon will illuminate when engaged.When a VG-2 signal is detected, the VG-2 alert issounded. After 3 seconds, the audio is cancelledand the VG-2 indicator flashes at a slower rate.This cycle is repeated if the VG-2 signal is againdetected. During the period a VG-2 signal is detected, aradar signal cannot be detected. However,because the VG-2 alert has confirmed that apatrol car is nearby, you are already aware of thepotential for speed monitoring and can adjustyour speed accordingly. Laser detection is notaffected while a VG-2 signal is detected.Vehicle Battery Saver ModeThe Vehicle Battery Saver Mode automaticallyshuts off your detector if you forget to turn it off. Thetimer is reset if the detector is turned off, unpluggedor any button is pressed before the timer hasexpired. The detector will alert you with an audibleand visual warning before it shuts off. During this warning you can reset the unit bypressing any button. This will reset the timer.If the unit has automatically turned itself off, press thePower button to turn the unit back on. You canmanually engage the Vehicle Battery Saver Mode bypressing and holding the City button until onebeep is heard. (XTR-520 Only)Refer to “Option Select Mode” for instructions fordeactivating battery saver mode feature (XTR-520Only). XTR-220 Timer = 6 hrs, XTR-520 Timer = 3 hrsHighway ModeHighway mode provides full audio warnings anytime radar (X, K, Ka, Safety Radar) or lasersignals aredetected, and is recommended foropen road driving.For more information on City and Highway mode,please visit our FAQ page on our website:www.whistlergroup.comDim/Dark ModeDim/Dark Mode reduces the illumination of thedisplay.• Press and hold Power for 2 seconds to reduce illumination to a Dim setting.•Pressing and holding the power button for 2 seconds a second time engages Dark Mode. The display illumination is further reduced.Dim or dark can be engaged during an alert. InDark Mode, the display goes dark for as long asa signal is being detected and for 20 secondsafter, then the display returns to the dimmersetting.• Pressing and holding the power button a third time restores full illumination to the display.• Press the DIM button on the remote to selectdisplay illumination.Teach/Tutorial Mode (XTR-520 Only)Provides simulated alerts for each type of signal.• Press City and Quiet simultaneously and release.•Press Power to exit.NOTE: On model XTR-220, City, Highway andDim/Dark modes are only engaged via theremote control.City/City 1/City 2 ModeWhistler’s Three Stage City Mode is designed toreduce the annoyance of automatic dooropeners, intrusion alarms and other devices whichshare frequencies with police radar. Generally Xband is used for these devices.• Press City to cancel Highway mode and engage City. • Press City a second time to engage City 1.• Press City a third time to engage City 2.• Pressing City a fourth time cancels City Modes andreturns the unit to Highway Mode.In City Mode, a weak speed/safety radar signalgives an initial alarm of two beeps, and thenremains quiet unless the signal becomes verystrong. When the signal strength increases, twoadditional beeps are provided.City 1 and CIty 2 Modes operate the same asHighway Mode, but in City 1 Mode, only the Xband sensitivity is lowered. In City 2 Mode, X-band is not detected.CAUTION: Some towns/small cities may still beusing X band radar. If Auto Quiet is engaged inCity 1 or City 2 modes and the unit receives astrong radar signal, the unit performs the AutoQuiet feature. City Modes do not change theaudio alert for laser or VG-2.Integrated Real Voice® (XTR-520 only)When selected, Real Voice®will be used toarticulate the following:1. Band Identification2. Safety Warning System messages3. Feature SelectionNOTE: In certain cases, the voice message doesnot replicate the text message.Auto Quiet ModeAuto Quiet reduces the selected audio level tolevel (1) approximately 5 seconds after a radaror safety radar signal is detected. The alert forany new signal within 20 seconds will resume atlevel (1). Auto Quiet does not affect VG-2 orlaser alerts.• Press Quiet/Menu (before a signal is detected)to engage Auto Quiet. • Once the Auto Quiet mode is engaged, you may cancel the audio alarm by pressing Quiet.• Press Quiet (when the unit is not alarming) tocancel Auto Quiet mode.Quiet ModeQuiet cancels audio during an alert and any newalert within 20 seconds. After 20 seconds,approximately 2 beeps are provided on anynew alert and unit then remains quiet.• Press Quiet to cancel the audio.• Press Quiet a second time during an alert to restore the standard audio alert pattern; or turn the unit off, then on.Replacing the Remote BatteryThe remote control is powered by a 3 volt cointype cell, model CR 2032. However, all batterieseventually need replacing. When the time comes,follow these steps:• Remove the Phillips head screw located at the bottom back side of the remote. • Separate the two halves of the plastic case• Gently lift out the PC board as the battery is located opposite the buttons.• The battery should slide out from its holder. Makenote of the correct polarity. Positive (+) is facing away from the PC board.• Insert the new battery, being mindful of the correct polarity.• Reassemble the reverse of disassemblySetting SaverSetting Saver saves your personalized settings sothat when the detector is turned off and then onagain, you do not have to re-enter them.Feature Engaged ConfirmationEach time a button is pressed, one beep confirms feature “on”, two beeps confirm feature “off”.Audio Level AdjustmentThe audio levels can be adjusted high to low orlow to high two ways:1. Press and hold the PWR/VOL ( VOL on XTR-520) button and the volume level will increase (Level 7) then proceed to lower the volume (Level 0). Continuing to hold this button will repeat the sequence. As audio level is adjusted, beeps are provided and the display indicates volume level.2. Press either VOL UP or VOL DOWN on the remote control.19a8264531987261012XTR-220 XTR-520Accessories: Windshield Bracket Kit ,Power Cord & Remote Control 11a11bWindshield Mounting (Cont.)If the detector is removed, this may causeblistering of the dash in some vehicles.• Slide the detector onto the bracket until it locks into place.•If necessary, the unit may be leveled by bending the windshield bracket. Press the bracket release button and remove the detector before bending.Power Connection• Plug the small end of the power cord into the unit’s power jack.•Plug the large end into the vehicle’s cigarette lighter.NOTE: The cord fits tightly into detector.When installing the cord, expect someresistance.Fuse ReplacementThe lighter socket plug is equipped with areplaceable 2 amp 3AG fuse located behind thesilver tip. To replace the fuse, carefully unscrewthe tip of the plug.IMPORTANT: Unscrew slowly. The tip containsa spring which may fly out whendisassembling.Insert the new fuse with the spring and screw onthe tip. With use, the screw cap on plug mayloosen. Retighten it occasionally.Unscrew the tip of the lighter socketplug carefully when replacing the 2 Option Select Mode (XTR-520 Only)Entering Option Select Mode allows you to customizeoptions such as Tone Select, Abbreviated Power UpSequence and VG-2 Mode. Press and hold quietbutton to enter Select mode. When selecting options,the , or quiet must be pressed within 20 secondsor option mode will automatically be exited. To enter:XTR-520 Chart12781013109bFEATURE DESCRIPTIONSWhistler’s ergonomic and user-friendly design providesa new level of operating convenience. Specialfeatures include: Note: Not all units have all features listed.1. Bracket Release Button – Provides quick and easy release of the mounting bracket.2. Speaker – Provides distinct audio warnings for X, K, Ka band radar, safety radar, laser and VG-2.3. Mounting Bracket Location – Slot holds mounting bracket firmly.4. Radar Antenna – Compact, high-efficiency antenna receives radar signals.5. Front Laser Antenna – High gain optical lens provides increased sensitivity and field of view for leading-edge laser detection.
