MODELS SHOWN: UCVM36FS 36-INCH DOWNDRAFT WITH CIT365KM INDUCTION COOKTOP184

1.800.735.4328 | THERMADOR.COM

VENTILATION — DOWNDRAFT

185

If you prefer a concealed look, choose a Thermador Downdraft Ventilation Unit, which offers

space efciency when a hood is not preferred. The full-face lter combines a lter with a splatter

shield in one easy-to-remove, dishwasher-safe element. Thermador invented the rst retractable

downdraft, and was also the rst to introduce a recirculation option for downdrafts — making

ventilation possible in any kitchen.

VENTILATION

DOWNDRAFT

186

DOWNDRAFT

FEATURES & BENEFITS

FULL 13-INCH RISE

With an over 13-inch intake, the UCVM rises well above even the

tallest pans. This protects against splatters when cooking and provides

better performance in capturing steam and smoke — even from the

front burners.

DOWNDRAFT RECIRCULATION OPTION

Downdraft recirculation is now available for island or wall applications.

Combine the performance of the UCVM Downdraft with the odor- and

grease-capturing lters in the Recirculation Module for the perfect

ventilation combination for anywhere in your kitchen.

FULL-FACE FILTERS

Full-face lters combine a lter with a splatter shield in one easy-

to-remove, dishwasher-safe element. These lters maximize grease

capture without affecting airow.

PLANNING INFORMATION

MODEL OPTIONS

Thermador Downdraft Hoods are available in 30 and 36-inch

widths to t your kitchen plans and are meticulously crafted for

both function and design. Be sure to reference the correct model

information in this design guide.

ELECTRICAL SPECIFICATIONS

Be sure your Thermador Downdraft Hood is properly installed

and grounded by a qualied technician. Installation, electrical

connections and grounding must comply with all applicable

local codes.

MODEL

REQUIRED CIRCUIT

BREAKER

120V AC, 60 Hz

UCVM30FS, UCVM36FS 15 Amp

INSTALLATION CONSIDERATIONS

The information in this design guide provides key features,

product dimensions, cutouts and installation specications.

Before installing a Thermador Downdraft Hood, be sure to verify

the cutout dimensions and electrical connections. Also, always

consult with the installation manual packed with the product for

complete details before installing.

Thermador Downdraft Hoods may be installed in a wall or island

behind a Thermador non-professional gas, electric or induction

cooktop to create a convenient cooking center. Refer to the

appropriate section for additional specications.

HOOD WIDTH

Downdraft ventilation units should be the same width as the

cooking surfaces they are ventilating.

CHOOSING THE CORRECT BLOWER

A variety of interior and exterior blower options (Remote, Inline

or Integrated) are available for Thermador’s Downdraft Hoods.

If the unit you have selected does not have a blower, one can

be purchased separately. Blower selection will vary based on

the volume of air that needs to be moved and the length and

location of the duct run. For long duct runs with multiple turns

and bends, consider using a more powerful blower. For the most

efcient air ow exhaust, use a straight run or as few elbows

as possible.

Remote Blowers (VTR Series)

Depending on your preference and ducting situation, these

blowers can be mounted on the roof or exterior wall of your

home. An exterior installation may be more appealing to reduce

noise in the kitchen.

Inline Blowers (VTI series)

To minimize noise in the kitchen, these blowers are mounted

along the duct line anywhere between the kitchen and the

exterior wall. If you have easy access to your duct line (in an attic,

for example), this may be an appealing option.

Integrated Blowers (VTN series)

These blowers are purchased separately and integrated into the

hood or onto the downdraft unit at the time of installation. This

option allows you to select your ideal hood with the exact power

you require.

1.800.735.4328 | THERMADOR.COM

VENTILATION — DOWNDRAFT

187

DOWNDRAFT

FEATURES & BENEFITS

CHOOSING THE RIGHT CFM

The power of the cooktop, measured in BTU, is perhaps

the most important factor in determining CFM needs for

a hood. Professional Gas Rangetops generally should

have 1 CFM for every 100 BTU.

You should also consider the cooking space and cooking

style of your client.

• More demanding cooks usually require more exhaust

capacity to handle moisture generated by boiling large

pots of water or the grease and smoke resulting from

grilling or frying. This cooking style could require a hood

or downdraft system with airow of 600 to 1,300 CFM.

• For those who are used to preparing quick meals in a

relatively small kitchen, a hood with 600 CFM may be

adequate ventilation for the cooking space.

• If the cooking surface is in a peninsula or island, a larger

capacity hood can provide better capture when there

are cross currents and when the hood needs to be

mounted higher. Downdraft ventilation systems are also

a good alternative.

• High heat cooking or aromatic foods may require

additional CFM. Increasing capture area by 3" on each

side is also a recommended way to address this issue.

LENGTH AND SIzE OF DUCTWORK

Do not use exible duct; it creates back pressure/air

turbulence and reduces performance.

Straight runs and gradual turns are best. Use the shortest

route with the fewest turns possible.

Proper performance is dependent upon proper ducting.

Use a qualied and trained installer. Local building codes

may require the use of make-up air systems when using

ducted ventilation systems greater than specied CFM

of air movement. The specied CFM varies from locale

to locale. Consult your HVAC professional for specic

requirements in your area.

If using a 10" duct, Thermador recommends not

exceeding 150 feet of duct. Transitions, elbows and

wall or roof caps are all factors that will add more static

pressure, therefore increasing your equivalent duct run.

WARRANTY

Limited warranty parts and labor (2 year)

See page 308 for additional warranty details.

BLOWER OPTIONS

REMOTE Requires CV2T6 or CV2T10 Transition

VTR630D – 600 CFM Use RFPLT600 in roof-mount applications

VTR1030D – 1000 CFM Use RFPLT1000 in roof-mount applications

INLINE Requires CV2T6 or CV2T10 Transition

VTI610D – 600 CFM

VTI1010D – 1000 CFM

INTEGRATED

VTN600CV2C – 600 CFM

REMOTE (Mounted to roof or external wall)

VTR630D – 600 CFM VTR1030D – 1000 CFM

INLINE (Mounted between kitchen and external wall)

VTI610D – 600 CFM VTI1010D – 1000 CFM

INTEGRATED (Mounted on hood)

VTN600CV2C – 600 CFM

REMOTE BLOWER ACCESSORIES

RFPLT600

For use with Remote

Blower VTR630D

RFPLT1000

For use with Remote

Blower VTR1030D

188

UCVM30FS / UCVM36FS

PERFORMANCE

- Suitable for wall or island applications

- Downdraft rises over 13" to capture steam from the tallest pots

- Downdraft recirculation possible with module RECIRC36DF

- Three fan speeds

- Dishwasher-safe full-face lters also act as a splatter shield

- Filter systems are highly efcient at capturing grease

- Powerfully Quiet® ventilation systems

- Blowers sold separately

- Choose from Inline, Remote or Integrated Blowers

- Replacement charcoal lters available (CHFILT3036)

DESIGN

- Brushed stainless steel nish

- Easy-to-operate control buttons

VENTILATION

DOWNDRAFT (30"/36")

UCVM30FS / UCVM36FS

SPECIFICATIONS

Available Hood Widths 30" / 36"

Blower Sold Separately —

See Blower Options Table

Duct Size at Discharge 6" Round

Ducting Direction Down, Left or Right

Dishwasher-safe Filters Full-Face Mesh

Electrical 120V AC, 60Hz

MASTERPIECE

UCVM30FS – 30-Inch

UCVM36FS – 36-Inch

ACCESSORIES

Recirculation Kit

RECIRC36DF

- Comes complete with 2 charcoal lters, 2 venting

grids, and ducting to transition to integrated

blower (blower sold separately)

- For toekick heights of 4" or taller

- Wall or island applications

- Easily mounts to integrated blower (VTN600CV2C)

under cooktop

- Toekick/socket can be vented in any direction

- Mounts to base of cabinet; recesses into toekick

- To be used only with Thermador Downdraft and

Integrated Blower

- Replacement lters are ordered as a service item

- Filters should be replaced twice a year

Replacement Charcoal Filters

Sold separately as a service item

(For use with recirculation module)

TRANSITIONS

Transition piece required for installation of inline and remote

blowers — downdraft applications only

CV2T6

Transition piece required

for installation of 600 CFM

Inline and Remote Blowers

with 6" duct connections —

downdraft applications only

CV2T10

Improves overall

performance when installing

with Thermador’s 1,000 CFM

Inline or Remote Blowers

with 10" duct connections —

downdraft applications only

14 3/8"

14 7

/16"Ø 10"

11"

14 3/8"

Ø 6"

6 3/4"

15 1/8"

1.800.735.4328 | THERMADOR.COM 189

VENTILATION

DOWNDRAFT (30"/36")

UCVM30FS / UCVM36FS

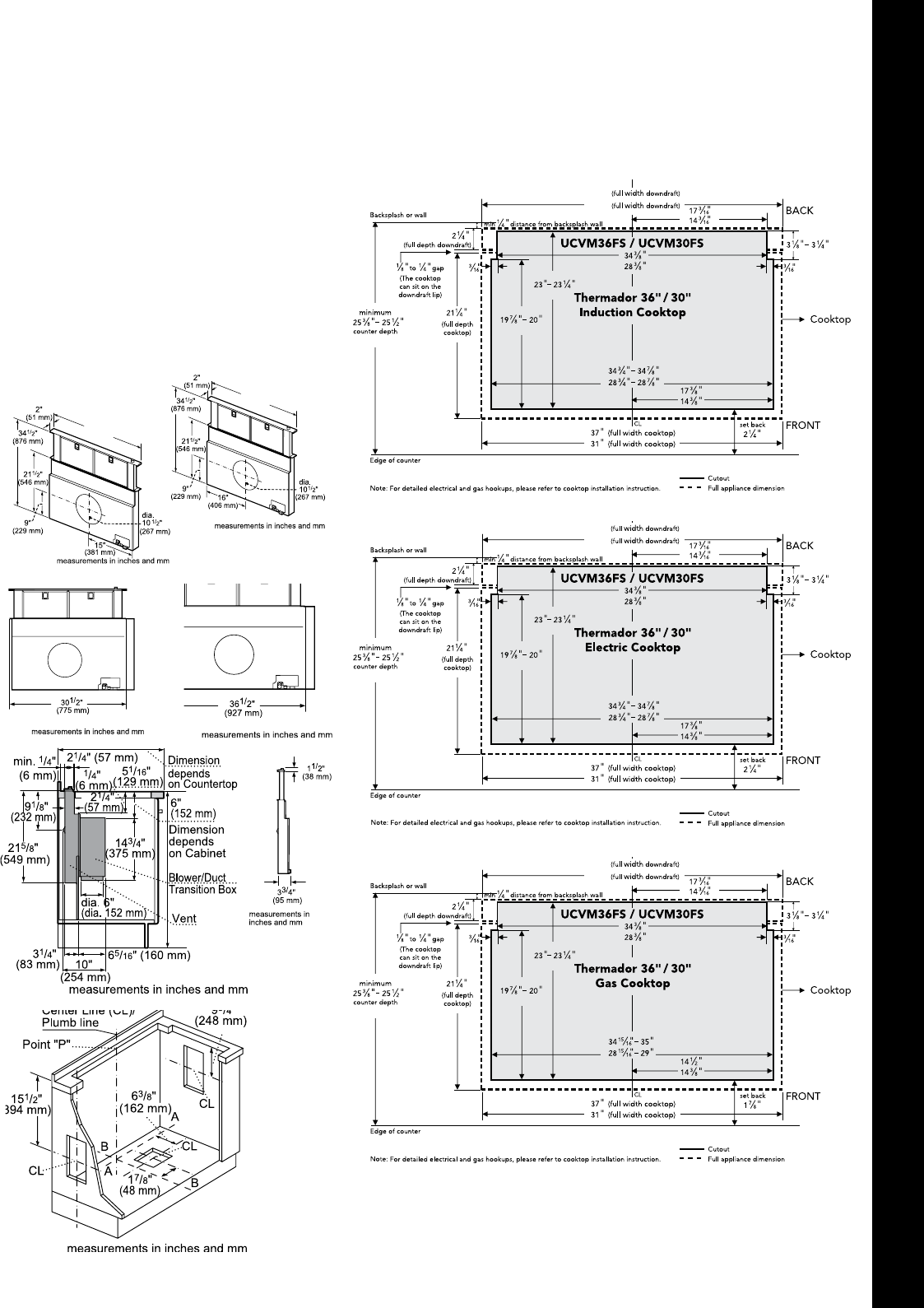

INSTALLATION OPTIONS

The Thermador Downdraft Hood System is

available in 30-inch or 36-inch widths. It is intended

for installation with Thermador non-professional

gas, electric or induction cooktops only.

A Recirculation Kit (RECIRC36DF) can be

purchased separately and used in conjunction with

the Integral Blower if ducting to the outside is not

a viable option. Refer to the appropriate section

for additional specications.

These hoods are designed to be used for side or

downward discharge.

36 7/8"

30 7/8"

36 7/8"

30 7/8"

36 7/8"

30 7/8"

VENTILATION — DOWNDRAFT

30 7/8"

(784 mm)

36 7/8"

(936 mm)

CUTOUT DIMENSIONS (TOP VIEW)
