MODEL 461320508 • PRODUCT GUIDE
/_ CAUTION:
Read and follow all safety statements, assembly
instructions, and use and care directions before
attempting to assemble and cook.
INSTALLER/ASSEMBLIER:
Leave this manualwith consumer.
CONSUMER:
Keep this manual for future reference.
/_ WARNING:
Failure to follow all manufacturer's instructions could
result in serious personal injury and/or property
damage.
CAUTION:
Some parts may contain sharp edges - especially as
noted inthe manual! Wear protective gloves if
necessary.
461320508. 80016479.11-22-07
if you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. Open lid.
4. if odor continues, keep away from the
appliance and immediately call your gas
supplier or your fire department.
1. Do not store or use gasoline or other
flammable liquids or vapors in the vicinity of
this or any other appliance.
2. An LP cylinder not connected for use shall not
be stored in the vicinity of this or any other
appliance.
Call Grill Service Center for Help and Parts
• If you need assistance with your product or warranty parts call
1-800-241-7548. Hours of Service Center Operation are
8:00 A.M. To 6:00 P.M. EST Monday- Friday.
• To order non-warranty replacement parts or accessories
please visit us on the web at www.charbroil.com or call
1-800-241-7548 and one of our friendly and knowledgeable
agents will be glad to assist you.
CALIFORNIA PROPOSITION65
1. Combustion by-products produced when using
this product contain chemicals known to the State of
California to cause cancer, birth defects, and other
reproductive harm.
2. This product contains chemicals, including lead
and lead compounds, known to the State of
California to cause cancer, birth defects or other
reproductive harm.
Wash your hands after handling this product.
installation Safety Precautions
•Use grill, as purchased, only with LP (propane) gas and the
regulator/valve assembly supplied. A conversion kit must be
purchased for use with natural gas.
•Grill installation must conform with local codes, or in their
absence of local codes, with either the National Fuel Gas
Code,ANSI Z223.1/NFPA 54, Natural Gas and Propane
Installation Code, CSA B149.1, or Propane Storage and
Handling Code, B149.2, or the Standard for Recreational
Vehicles,ANS/ A 119.2/NFPA1192,and CSAZ240 RV Series,
Recreational Vehicle Code, as applicable.
• All electrical accessories (such as rotisserie) must be
electrically grounded in accordance with local codes, or
National Electrical Code,ANSI / NFPA 70or Canadian
Electrical Code, CSA C22.1. Keep any electrical cords and/or
fuel supply hoses away from any hot surfaces.
• This grill is safety certified for use in the United States and/or
Canada only. Do not modify for use in any other location.
Modification wilt result in a safety hazard.
Safety Symbols
The symbols and boxes shown below explain what each heading
means. Read and follow all of the messages found throughout
the manual.
iMPORTANT: Fill out the product record information below.
Model Number
Serial Number
Date Purchased
Seeratinglabelongrillfor serialnumber.
CAUT,o.
For residential use only. Do not use for commercial
cooking.
DANGER: Indicates an imminentlyhazardous situation
which, if not avoided,will result in death or serious injury.
WARNING: Indicatesan potentially hazardous situation
which, if not avoided, could result in death or serious injury.
CAUTION
CAUTION: Indicatesa potentially hazardoussituation or
unsafe practicewhich, if not avoided, may result in minor
or moderate injury.
2•461320508
For Your Safety ...................................... 2
Grill Service Center................................... 2
Product Record Information ............................ 2
Installation Safety Precautions .......................... 2
Safety Symbols ...................................... 2
Use and Care ..................................... 4-11
Parts List.......................................... 12
Parts Diagram...................................... 13
Assembly ....................................... 14-22
Troubleshooting .................................. 23-25
Warranty .......................................... 26
Registration Card ................................... 27
461320508 • 3
•NEVER store a spare LP cylinder under or near
the appliance or in an enclosed area.
•Never fill a cylinder beyond 80% full.
•An over filled or improperlystored cylinder is a
hazard due to possible gas release from the
safety relief valve.
• If you see, smell or hear gas escaping,
immediatelyget away from the LP
cylindedappliance and call your fire department.
• This could cause an intense fire with risk of
property damage, serious injury or death.
LP Cylinder Removal, Transport and Storage
•Turn OFF all control knobs and LP cylinder valve. Turn coupling
nut counterclockwise by hand only - do not use tools to
disconnect. Loosen cylinder screw beneath bottom shelf, then
lift LP cylinder up and out of cart. Install safety cap onto LP
cylinder valve. Always use cap and strap supplied with valve.
Failure to use safety cap as directed may result in serious
personal injury and/or property damage.
• Adisconnected LP cylinder in LPCylinder
storage or being transported
must have a safety cap installed (as shown).
Do not store an LP cylinder in enclosed spaces
such as a carport, garage, porch, covered
patio or other building. Never leave an LP cylinder Safety
inside a vehicle which may become overheated Cap
by the sun. RetainerStrap
• Do not store an LP cylinder in an area where children play.
LP Cylinder
•The LP cylinder used with your grill must meet the
following requirements:
•Use LP cylinders only with these required measurements: 12"
(30.5cm) (diameter) x 18" (45.7 cm) (tall) with 20 lb. (9 kg.)
capacity maximum.
• LP cylinders must be constructed and marked in accordance
with specifications for LP cylinders of the U.S. Department of
Transportation (DOT) or for Canada, CAN/CSA-B339,
cylinders, spheres and tubes for transportation of dangerous
goods. Transport Canada (TC). See LP cylinder collar for
marking.
• LP cylinder valve must have:
• Type 1 outlet compatible with
regulator or grill.
• Safety relief valve.
• UL listed Overfill Protection OPDHandWheel
Device (OPD). This OPD safety
feature is identified by a unique triangular hand wheel. Use
only LP cylinders equipped with this type of valve.
• LP cylinder must be arranged for vapor withdrawal and include
collar to protect LP cylinder valve.Always keep LP cylinders in
upright position during use, transit or storage.
LP cylinder in upright position for vapor withdrawal
LP (Liquefied Petroleum Gas)
•LPgas is nontoxic, odorless and colorless when produced. For
Your Safety, LPgas has been given an odor (similar to rotten
cabbage) so that it can be smelled.
• LPgas is highly flammable and may ignite unexpectedly when
mixedwith air.
LP Cylinder Filling
•Use only licensed and experienced dealers.
•LPdealer must purge new cylinder before filling.
• Dealer should NEVER fill LP cylinder more than 80% of LP
cylinder volume. Volume of propane in cylinder wilt vary by
temperature.
• A frosty regulator indicates gas overfill. Immediately close LP
cylinder valve and call local LP gas dealer for assistance.
• Do not release liquid propane (LP) gas into the atmosphere.
This is a hazardous practice.
• To remove gas from LP cylinder, contact an LP dealer or call a
local fire department for assistance. Check the telephone
directory under "Gas Companies" for nearest certified LP
dealers.
4•461320508
LP CylinderE×change
• Many retailers that sell grills offer you the option of replacing
your empty LP cylinder through an exchange service. Use only
those reputable exchange companies that inspect, precision fill,
test and certify their cylinders. Exchange your cylinder only
for an OPB safety feature-equipped cylinder as described
in the "LP Cylinder" section of this manual.
• Always keep new and exchanged LP cylinders in upright
position during use, transit or storage.
• Leak test new and exchanged LP cylinders BEFORE
connecting to grill.
Connecting Regulator to the LP Cylinder
1. LP cylinder must be properly secured onto grill. (Refer to
assembly section.)
2. Turn all control knobs to the OFF position.
3. Turn LP cylinder OFF by turning hand-wheel clockwise to a
full stop.
4, Remove the protective cap from LP cylinder valve. Always use
cap and strap supplied with valve.
LP Cylinder Leak Test
For your safety
•Leak test must be repeated each time LP cylinder is exchanged
or refilled.
•Do not smoke during leak test.
•Do not use an open flame to check for gas leaks.
* Grill must be leak tested outdoors in a well-ventilated area,
away from ignition sources such as gas fired or electrical
appliances. During leak test, keep grill away from open flames
or sparks.
• Use a clean paintbrush and a 50/50 mild soap and water
solution. Brush soapy solution onto areas indicated by arrows
in figure below.
A Do not use household cleaning agents. Damage to gas
train components can result.
Safety ReliefValve
OPD Hand Wheel
//- Type1outlet with
thread on outside
/
Strap and Cap
Do not use a POL transport plug
(plastic part with external threads)!
It will defeat the safety feature of
the valve.
5. Hold regulator and insert nipple into LP
cylinder valve. Hand-tighten the
coupling nut, holding regulator in a
straight line with LP cylinder valve so
as not to cross-thread the connection.
Nipple has to be centered
intothe LP cylinder valve.
If"growing" bubbles appear do not use or move the LP
cylinder. Contact an LP gas supplier or your fire
department!
461320508 * 5
Hold coupling nut and regulator
as shownfor properconnection
to LP cylindervalve.
Leak Testing Valves, Hose and Regulator
1. Turn all grill control knobs to OFF.
2. Be sure regulator is tightly connected to LP cylinder.
3. Completely open LP cylinder valve by turning hand wheel
counterclockwise. If you hear a rushing sound, turn gas off
immediately. There is a major leak at the connection. Correct
before proceeding.
4. Brush soapy solution onto areas where bubbles are shown in
picture below:
6. Turn the coupling nut clockwise and tighten to a full stop. The
regulator will seal on the back-checkfeature in the LP cylinder
valve, resulting in some resistance. An additional one-half to
three-quarters turn is required to complete the
connection. Tighten by hand only - do not use tools.
NOTE:
If you cannot complete the connection, disconnect regulator and
repeat steps 5 and 6. If you are still unable to completethe
connection, do not use this regulator!
,A,Neverremovethreaded
orifice at end of valve.
Do not insert any tool or foreign object into the valve
outlet or safety relief valve. You may damage the valve
and cause a leak. Leaking propane may result in
explosion,fire, severe personal injury, or death.
Outdoor gas appliance is not intended to be installed
in or on a boat.
Outdoor gas appliance is not intended to be installed
in or on an RV.
, Never attempt to attach this grill to the self-contained
LP gas system of a camper trailer or motor home.
, Do not use grill until leak-tested.
, If a leak is detected at any time, STOP and call the fire
department.
, If you cannot stop a gas leak, immediately close
LPcylindervalve and call LP gas supplier or your fire
department!
.
.
If "growing" bubbles appear, there is a leak. Close LP
cylinder valve immediately and retighten connections, if leaks
cannot be stopped do not try to repair. Call for replacement
parts. Order new parts by giving the serial, model number and
name and part number of items needed (see parts list) to the
Grill Service Center at 1-800-435-5194.
Always close LP cylinder valve after performing leak test by
turning hand wheel clockwise.
6•461320508
For Safe Use of Your Grill and to Avoid Serious
Injury:
•Do not letchildren operate or play near grill.
• Keepgrill area clear and free from materials that burn.
• Do not block holes in sides or back of grill.
• Check burnerflames regularly.
• Use grill only in well-ventilated space. NEVER use in
enclosed space such as carport, garage, porch,
covered patio,or under an overhead structure of any
kind.
Do not use charcoal or ceramic briquets in a gas grill.
(Unless briquets are supplied with your grill.)
Use grill at least 3ft. from any wall or surface.
Maintain 10 ft. clearance to objects that can catch fire
or sources of ignition such as pilot lightson water
heaters, live electrical appliances,etc.
• Apartment Dwellers:
Check with managementto learn the requirements
and fire codes for using an LP gas grill in your
apartment complex. If allowed, use outside on the
ground floor with a three (3) foot clearance from walls
or rails. Do not use on or under balconies.
•NEVER attempt to light burner with lid closed. A
buildup of non-ignited gas inside a closed grill is
hazardous.
•Never operate grill with LP cylinder out of correct
position specified in assembly instructions.
•Always close LP cylinder valve and remove
coupling nut before moving LP cylinder from
specified operation position.
Safety Tips
A Before opening LP cylinder valve, check the coupling nut for
tightness.
A When grill is not in use, turn off all control knobs and LP
cylinder valve.
,A, Never move grill while in operation or still hot.
A Use long-handled barbecue utensils and oven mitts to avoid
burns and splatters.
,A, Maximum load for sideburner and side shelf is 10 Ibs.
A The grease tray must be inserted into grill and emptied after
each use. Do not remove grease tray until grill has
completely cooled.
A Clean grill often, preferably after each cookout. If a bristle
brush is used to clean any of the grill cooking surfaces,
ensure no loose bristles remain on cooking surfaces prior to
grilling. It is not recommended to clean cooking surfaces
while grill is hot.
A If you notice grease or other hot material dripping from grill
onto valve, hose or regulator, turn off gas supply at once.
Determine the cause, correct it, then clean and inspect valve,
hose and regulator before continuing. Perform a leak test.
A Keep ventilation openings in cylinder enclosure (grill cart) free
and clear of debris.
A Do not store objects or materials inside the grill cart
enclosure that would block the flow of combustion air to the
underside of either the control panel or the firebox bowl.
A The regulator may make a humming or whistling noise during
operation. This will not affect safety or use of grill.
,A, If you have a grill problem see the "Troubleshooting Section".
A If the regulator frosts, turn off grill and LP cylinder valve
immediately. This indicates a problem with the cylinder and it
should not be used on any product. Return to supplier!
CAuT,oN
•Putting out grease fires by closing the lid is not possible.
Grills are well ventilated for safety reasons.
• Do not use water on a grease fire. Personal injury may
result, if a grease fire develops, turn knobs and LP
cylinder off.
• Do not leave grill unattended while preheating or burning
off food residue on HI. if grill has not been regularly
cleaned, a grease fire can occur that may damage the
product.
Ignitor Lighting
A Do not lean over grill while lighting.
1. Turn OFF gas burner control valves.
2 Turn ON gas source or tank
3. Open lid during lighting..
4. To ignite, turn the IGNITION BURNER knob to_ HIGH.
5. Push and hold ELECTRONIC IGNITOR button.
6. If ignition does NOT occur in 5 seconds, turn the burner
controls OFF,wait 5 minutes, and repeat lighting procedure.
7. Ignite remaining burners by turning to _, starting with the
burners closest to the IGNITION BURNER first.
if ignition still does not occur, follow match-lighting
instructions.
Lighting instructionscontinued on nextpage.
461320508 •7
Turn controls and gas source or tank OFF when not
in use.
CAUTIo.
If ignition does NOT occur in 5 seconds, turn the
burner controls OFF,wait 5 minutes and repeat the
lighting procedure. If the burner does not ignitewith
the valve open, gas will continue to flow out of the
burner and could accidently ignite with risk of injury.
Match-Lighting
ADo not lean over grill while lighting.
1. Open lid. Turn on gas at LP cylinder.
2. Place lit match into match holder (hanging from cart side
panel), light burner on right or left side of grill.
3. Push in and turn far right or far left burner knob to HIGH. Be
sure burner lights and stays lit.
4. Light adjacent burners in sequence by pushing knobs in and
turning to HIGH.
Sideburner ignitor Lighting
,& Do not lean over grill while lighting.
1. Top cover must be open when burner is operational.
2. To ignite SIDEBURNER, open sideburner cover.
3. Turn sidebumer knob to HIGH, push and hold ELECTRONIC
IGNITOR button.
4. If sideburner does NOT light in 5 seconds, turn knob to OFF,
wait 5 minutes, then repeat lighting procedure.
Sideburner Match Lighting
1. Open sideburner cover.
2. Place lit match near burner.
3. Turn sideburner knob to HIGH. Be sure burner lights and
stays lit.
8•461320508
Burner Flame Check
• Remove cooking grates and flame tamers. Light burners, rotate
knobsfrom HIGH to LOW.You should see a smaller flame in
LOW position than seen on HIGH. Perform burner flame check
on sideburner, also.Always check flame prior to each use. If
only low flame is seen refer to "Sudden drop or low flame" in
the Troubleshooting Section.
Turning Grill Off
• Turn all knobs to OFF position. Turn LP cylinder off by turning
hand-wheel clockwise to a full stop.
Ignitor Check
• Turn gas off at LP cylinder. Press and hold electronic ignitor
button. "Click" should be heard and spark seen each time
between collector box or burner and electrode. See
"Troubleshooting" if no click or spark.
Valve Check
• Important: Make sure gas is off at LP cylinder before
checking valves. Knobs lock in OFF position. To check
valves, first push in knobs and release, knobs should spring
back. If knobs do not spring back, replace valve assembly
before using grill. Turn knobs to LOW position then turn back to
OFF position. Valves should turn smoothly.
Hose Check
, Before each use, check to see if hoses are cut or worn.
Replace damaged hoses before using grill. Use only
valve/hose/regulator specified by manufacturer.
General Grill Cleaning
• Do not mistake brown or black accumulation of grease and
smoke for paint. Apply a strong solution of detergent and water
or use a grill cleaner with scrub brush on insides of grill lid and
bottom. Rinse and allow to completely air dry. Do not apply a
caustic grill/oven cleaner to painted surfaces.
• Plastic parts: Wash with warm soapy water and wipe dry.
,A.Do not use citrisol, abrasive cleaners, degreasers or a
concentrated grill cleaner on plastic parts. Damage to and
failure of parts can result.
• Porcelain surfaces: Because of glass-like composition, most
residue can be wiped away with baking soda/water solution or
specially formulated cleaner. Use nonabrasive scouring powder
for stubborn stains.
• Painted surfaces: Wash with mild detergent or nonabrasive
cleaner and warm soapy water. Wipe dry with a soft
nonabrasive cloth.
•Stainless steel surfaces: To maintain your grill's high quality
appearance, wash with mild detergent and warm soapy water
and wipe dry with a soft cloth after each use. Baked-on grease
deposits may require the use of an abrasive plastic cleaning
pad. Use only in direction of brushed finish to avoid damage.
Do not use abrasive pad on areas with graphics.
•Cooking surfaces: If a bristle brush is used to clean any of
the grill cooking surfaces, ensure no loose bristles remain on
cooking surfaces prior to grilling. It is not recommended to
clean cooking surfaces while grill is hot.
cAuTioN

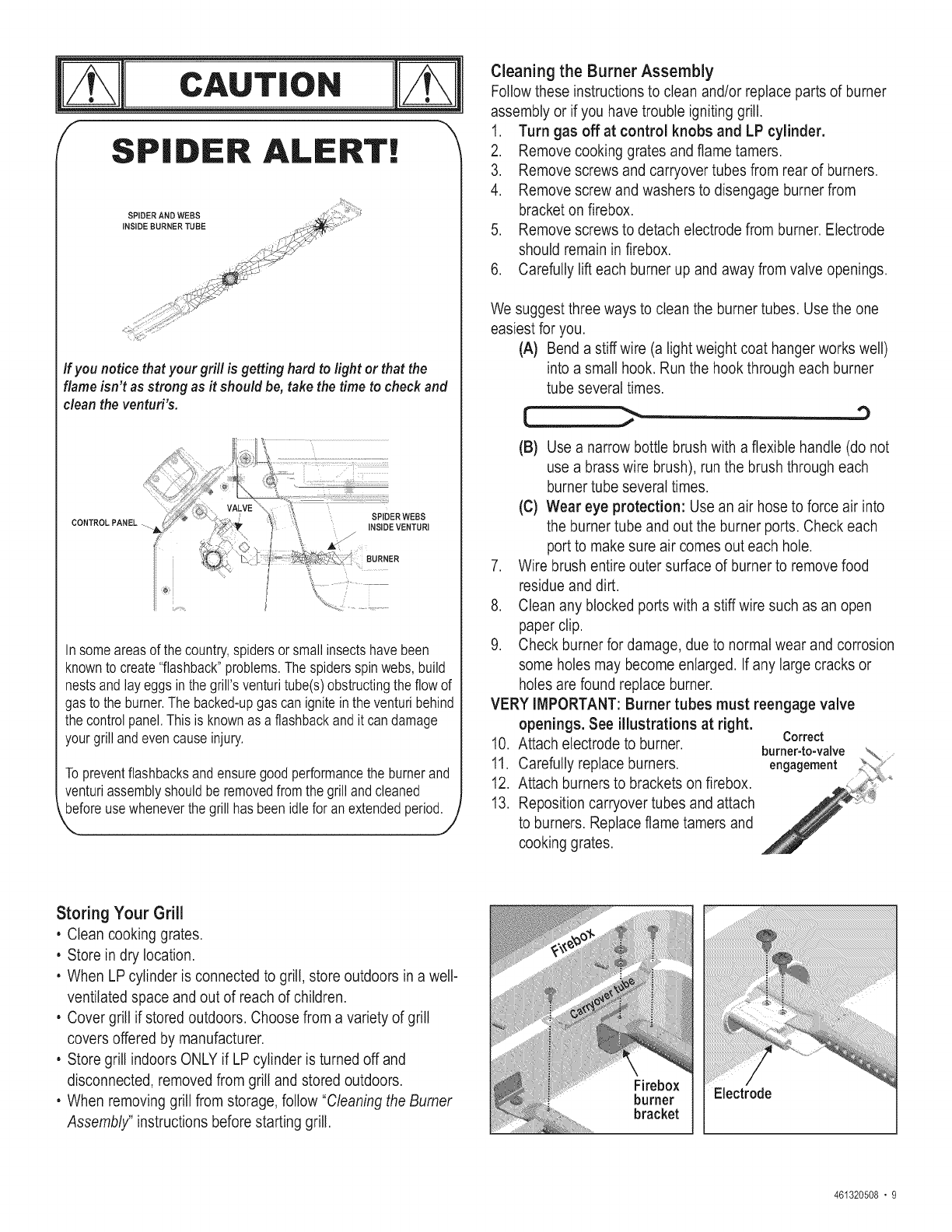

fSP|DNR ALERT!
If you notice that your grill is getting hard to light or thatthe
flame isn't as strong as it should be, takethe time to check and
clean the venturi's.
CONTROLPANEL SPIDERWEBS
INSIDE VENTURI
In someareasof the country,spidersor smallinsectshavebeen
knownto create"flashback"problems.The spidersspinwebs,build
nestsand layeggs inthe grill'sventuritube(s)obstructingthe flowof
gasto the burner.Thebacked-upgascan igniteinthe venturibehind
thecontrolpanel.Thisis knownasa flashbackandit candamage
yourgrillandevencauseinjury.
Topreventflashbacksandensuregoodperformancethe burnerand
venturiassemblyshouldbe removedfromthe grillandcleaned
beforeusewheneverthe grill hasbeenidlefor anextendedperiod.
\ J
Cleaning the Burner Assembly
Follow these instructions to clean and/or replace parts of burner
assembly or if you have trouble igniting grill,
1. Turn gas off at control knobs and LP cylinder.
2. Remove cooking grates and flame tamers.
3. Remove screws and carryover tubes from rear of burners.
4. Remove screw and washers to disengage burner from
bracket on firebox.
5. Remove screws to detach electrode from burner. Electrode
should remain in firebox.
6. Carefully lift each burner up and away from valve openings.
We suggest three ways to clean the burner tubes. Use the one
easiest for you.
(A) Bend a stiff wire (a light weight coat hangerworks well)
into a small hook. Run the hook through each burner
tube several times.
r,,_,,,,, _- ,_9
(B) Use a narrow bottle brush with a flexible handle (do not
use a brass wire brush), run the brush through each
burner tube several times.
(C) Wear eye protection: Use an air hose to force air into
the burner tube and out the burner ports. Check each
port to make sure air comes out each hole.
7. Wire brush entire outer surface of burner to remove food
residue and dirt.
8. Clean any blocked ports with a stiff wire such as an open
paper clip.
9. Check burner for damage, due to normal wear and corrosion
some holes may become enlarged. If any large cracks or
holes are found replace burner.
VERY IMPORTANT: Burner tubes must reengage valve
openings. See illustrations at right.
10. Attach electrode to burner. Correct
burner-to-valve
11. Carefully replace burners, engagement
12. Attach burners to brackets on firebox.
13. Reposition carryover tubes and attach
to burners. Replace flame tamers and
cooking grates.
Storing Your Grill
• Clean cooking grates.
• Store in dry location.
• When LP cylinder is connected to grill, store outdoors in a well-
ventilated space and out of reach of children.
• Cover grill if stored outdoors. Choose from a variety of grill
covers offered by manufacturer.
• Store grill indoors ONLY if LPcylinder is turned off and
disconnected, removed from grill and stored outdoors.
• When removing grill from storage, follow "Cleaning the Burner
Assembly" instructions before starting grill.
Firebox
burner
bracket
Electrode
461320508 •9

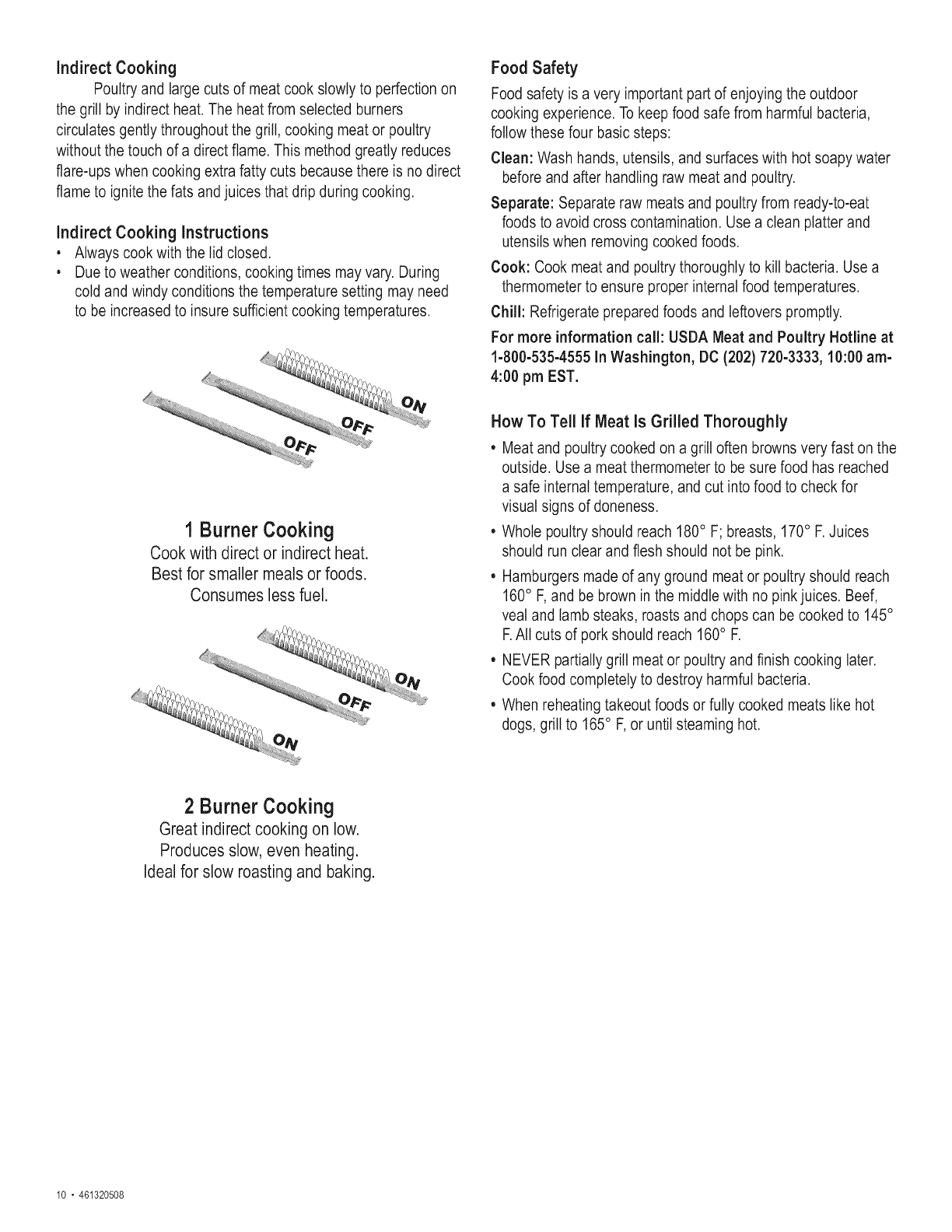

Indirect Cooking
Poultry and large cuts of meat cook slowly to perfection on
the grill by indirect heat. The heat from selected burners
circulates gently throughout the grill, cooking meat or poultry
without the touch of a direct flame. This method greatly reduces
flare-ups when cooking extra fatty cuts because there is no direct
flame to ignite the fats and juices that drip during cooking.
Indirect Cooking Instructions
• Always cook with the lid closed.
• Due to weather conditions, cooking times may vary. During
cold and windy conditions the temperature setting may need
to be increased to insure sufficient cooking temperatures.
1 Burner Cooking
Cook with direct or indirect heat.
Best for smaller meals or foods.
Consumes less fuel.
Food Safety
Food safety is a very important part of enjoying the outdoor
cooking experience. To keep food safe from harmful bacteria,
follow these four basic steps:
Clean: Wash hands, utensils, and surfaces with hot soapy water
before and after handling raw meat and poultry.
Separate: Separate raw meats and poultry from ready-to-eat
foods to avoid cross contamination. Use a clean platter and
utensils when removing cooked foods.
Cook: Cook meat and poultry thoroughly to kilt bacteria. Use a
thermometer to ensure proper internal food temperatures.
Chill: Refrigerate prepared foods and leftovers promptly.
For more information call: USDA Meat and Poultry Hotline at
1-800-535-4555 in Washington, DC (202) 720-3333, 10:00 am-
4:00 pm EST.
How To Tell If Meat is Grilled Thoroughly
•Meat and poultry cooked on a grill often browns very fast on the
outside. Use a meat thermometer to be sure food has reached
a safe internal temperature, and cut into food to check for
visual signs of doneness.
•Whole poultry should reach 180° F; breasts, 170° F.Juices
should run clear and flesh should not be pink.
•Hamburgers made of any ground meat or poultry should reach
160° F, and be brown in the middle with no pink juices. Beef,
veal and lamb steaks, roasts and chops can be cooked to 145°
F.All cuts of pork should reach 160° F.
•NEVER partially grill meat or poultry and finish cooking later.
Cook food completely to destroy harmful bacteria.
•When reheating takeout foods or fully cooked meats like hot
dogs, grill to 165° F,or until steaming hot.
2 BurnerCooking
Great indirect cooking on low.
Produces slow, even heating.
Ideal for slow roasting and baking.
10 •461320508

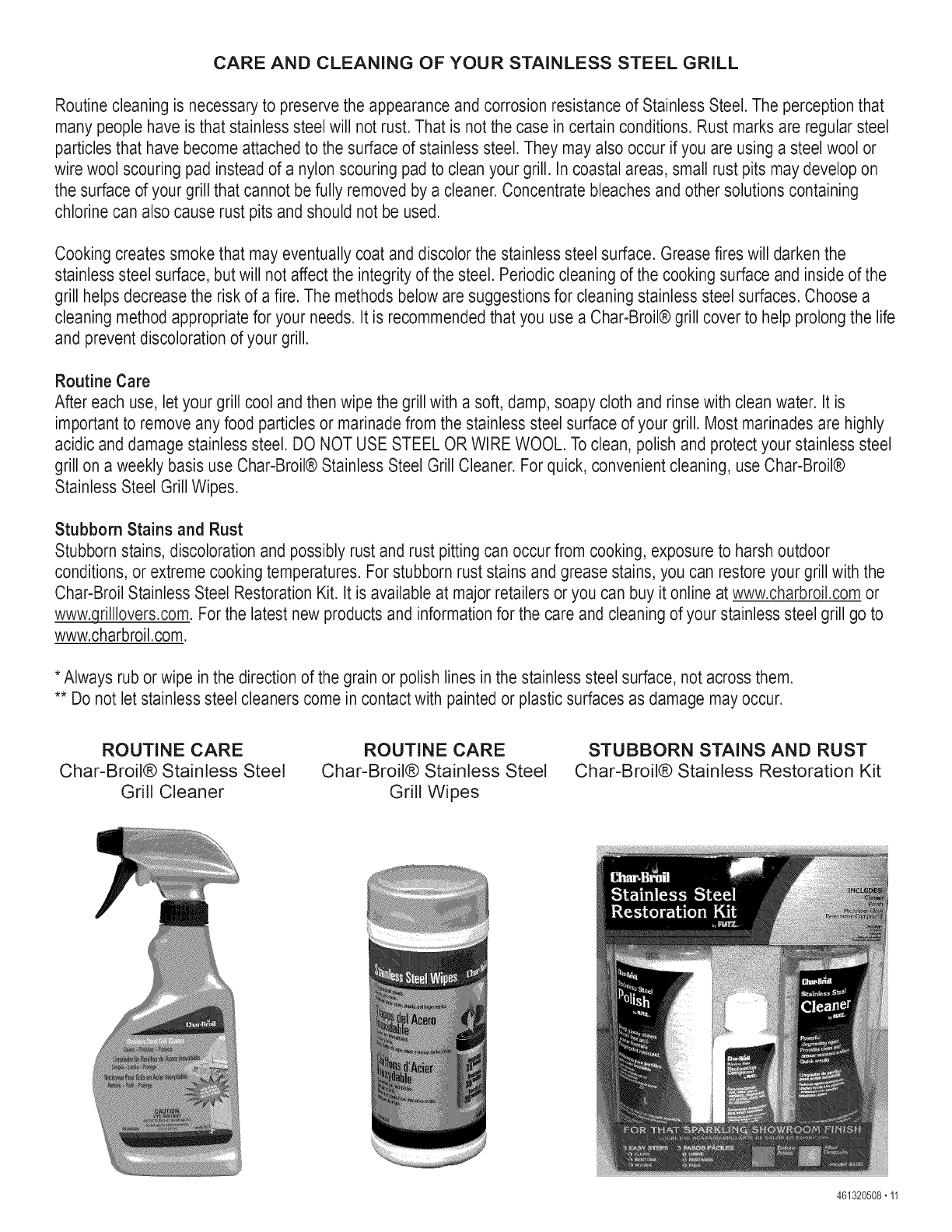

CARE AND CLEANING OF YOUR STAINLESS STEEL GRILL
Routine cleaning is necessaryto preservethe appearance and corrosion resistanceof StainlessSteel. The perceptionthat
many people have is that stainless steel will not rust.That is not the case in certain conditions. Rust marks are regular steel
particles that have become attached to the surface of stainless steel. They may also occur if you are using a steel wool or
wire wool scouring pad instead of a nylon scouring pad to clean your grill. In coastal areas, small rust pits may develop on
the surface of your grill that cannot be fully removed by a cleaner.Concentrate bleaches and other solutions containing
chlorine can also cause rust pits and should not be used.
Cooking creates smoke that may eventually coat anddiscolor the stainlesssteel surface. Grease fires will darken the
stainless steel surface, butwill not affect the integrity of the steel. Periodic cleaning of the cooking surface and inside of the
grill helps decrease the risk of a fire. The methods below are suggestions for cleaning stainless steel surfaces. Choose a
cleaning method appropriate for your needs. It is recommendedthat you use a Char-Broil@grill cover to help prolong the life
and prevent discoloration of your grill.
Routine Care
After each use, let your grill cool and then wipe the grill with a soft, damp, soapy cloth and rinse with clean water. It is
important to remove any food particles or marinadefrom the stainless steel surface of your grill. Most marinades are highly
acidic and damage stainless steel. DO NOT USE STEELOR WIRE WOOL. Toclean, polish and protect your stainless steel
grill on a weekly basis use Char-Broil@Stainless Steel Grill Cleaner. For quick, convenient cleaning, use Char-Broil@
Stainless Steel Grill Wipes.
Stubborn Stains and Rust
Stubborn stains, discoloration and possibly rust and rust pitting can occur from cooking, exposure to harsh outdoor
conditions, or extreme cookingtemperatures. For stubborn ruststains and grease stains, you can restoreyour grill with the
Char-Broil Stainless Steel Restoration Kit. Itis available at major retailers or you can buy it online at www.charbroil.com or
www.grilllovers.com.For the latest new products and informationfor the care and cleaning of your stainless steel grill go to
www.charbroil.com.
* Always rub or wipe in the direction of the grain or polish lines in the stainless steel surface, not across them.
** Do not letstainless steel cleaners come in contact with painted or plastic surfaces as damage mayoccur.
ROUTINE CARE
Char-Broil® Stainless Steel
Grill Cleaner
ROUTINE CARE
Char-Broil@ Stainless Steel
Grill Wipes
STUBBORN STAINS AND RUST
Char-Broil@ Stainless Restoration Kit
461320508.11
A 1
B 3
C 1
D 2
E 1
F 1
G 1
H 1
I 1
J 1
K 1
L 4
M 4
N 1
O 3
P 2
Q 1
R 1
S 1
T 1
U 1
V 1
W 1
X 1
Y 1
Description Part #
Firebox ......................... 80012281
Tube Burner ..................... 80012284
Electrode, Main Burner............. 80009029
Carryover Tubes.................. 80009028
LidAssembly .................... 80012283
Logo Plate ...................... 80006249
Temperature Gauge w/Bezel ........ 80009952
Handle ......................... 80009953
Control Panel .................... 80016484
Electronic Ignition Module .......... 7000160
Valve/Hose/Regulator.............. 80015870
Bezels.......................... 80011742
Control Knobs.................... 80011755
Match Holder w/Chain ............. 80004320
Heat Tent ....................... 80008530
Cooking Grate ................... 80008531
Swing Away ..................... 80011875
Left Side Shelf ................... 80012287
Sideburner, W/Electrode ........... 80015858
Left Fascia ...................... 80016485
Right Side Shelf .................. 80012285
Right Fascia ..................... 80012286
Right Cart Frame ................. 80011804
Left Cart Frame .................. 80011803
Bottom Shelf ..................... 80009035
Qty Description Part #
Z 1 Axle Rod ........................ 80009036
AA 2 Wheels ......................... 80009727
BB 2 Leg Extenders ................... 80000076
CC 1 Front Panel...................... 80012289
DD 1 Grease Cup Clip .................. 80000271
EE 1 Grease Cup ..................... 80000270
FF 1 Tank Exclusion Wire ............... 80008616
GG 1 Sideburner Grate ................. 80000638
HH 1 Sideburner Lid ................... 80009053
II 1 Tank Retainer Screw .............. 80006484
JJ 1 Button, F/El Module............... 7000161
1 Product Guide (English) ............ 80016479
1 Product Guide (French) ............ 80016480
1 Hardware Pack................... 80008565
2 #8-32 X 0.38" (3/8") Machine Screws
2 Wheel Bushing
1 8mm FlatWasher
12 #1/4-20x1/2" Machine Screws
4 #1/4-20x1-1/2" Machine Screws
4 Lock Washers, 7MM
2 Lock Washers, 5MM
4 Flat Washers, 7MM
12 1/4-20 Flange Nuts
8 Fiber Washers
10 #8x3/8" Self-Tap Screws
1 Hitch Pins
1 Sideburner Clip
1 Wing Nut, Metal
Certified Grill PartsAnd Accessories@,Char-Broil and Design@,Char-Broil (Gas Grill Briquettes)@,Char-Diamonds@,CookingZone andDesign@,Diamond Flame@,Executive Chef@,Faststart_, FlareFighter@, FlavorMaste@,Gas Grill
Silouetteand Design@,H20 Smoke@, Lava Flame@,MasterFlame@,MasterFlame Precision CookingSystem@,PowerSpark@,Quantum@,VIP@,PredsionFlame and Design@,Sierra@,and TruFlame@are registered Trademarks of the W.C.
Bradley Company. Thermos@is a registered trademark ofthe Thermos Company and its affiliates.
Artisan Collection by Char-Broil__,C3 and Designr_',Char-Broiland DesignT_',Flame Designn_, FlavorTentsTM,Grill 2 Gor_,Grillin' Stick r_,Keeper of the Flamen_,Keepersof the Flamen_,Natural Gripn_,Outdoor CookingCollection and
Designn_, PatioBistror_ ,PrecisionFlameT_,Pro-Checkr_',QuickSet Grills andDesignrM,SmokerTentsTM ,The Big EasyT_,The Minute GrillT_,The Edger_',The Tuscan Collectionn_,andThe Urban GrillT_are Trademarks ofthe W.C. Bradley
Company. Universal Grill Partsand Designr_'isa trademark ofthe Thermos Company andits affiliates.
Protected under oneor more of the following U.S. Patents: 4,598,692; 4,624,240;4,747,391; 4,747,391; 4,8t7,583; 4,924,846; 4,989,579; 5,003,960;5,076,256; 5,076,257; 5,090,398;5,109,834; 5,224,676;5,277,106; 5,421,3t9; 5,44t ,226;
5,452,707;5,458,309; 5,566,606; 5,566,606;5,579,755; 5,582,094;5,613,486; 5,649,475; 5,706,797;5,7tl,663; 5,765,543;5,931,149; 5,996,573;6,095,132; 6,135,104; 6,173,644B1;6,279,566; 6,397,731; 6,4t8,923; 6,439,222; 6,523,46t;
D282,619; D339,714; D341,292; D343,337; D358,059; D361,466; D364,535; D372,637; D373,701; D377,735; D383,035; D397,9t0; D405,643; D405,643; D406,OO5;D406,oog; I}413,043; D413,22g; D413,22g; D4t4,982; D415,388; D416,164;
D4t6,44t; D4t6,441; D4t7,587; D422,516; D423,274; D423,876; D428,303; D435,396; D436,004; D438,059; D438,060; D438,427; D439,110; D442,505; D443,179; I}443,354; D447,384; D447,385; I}447,909; D448,610; D448,614; D448,6t5;
D448,6t6; D448,975; D449,492; D451,759; D456,202S; D460,313, D461,359 and D504,048. Canada: 87743; 87744; 92607; 92608 and 1,316,424.Other Patents Pending.Assembly instructions @2006.
12 * 461320508
,Q
P\\\
\
E
/
HH
\\\\
GG
//$
AA L ................
....--" T
"o_ ..................,. ............_, ................._ _ ...........
J
L
CC ..........
I
,A
J
BB
W
V
461320508, 13

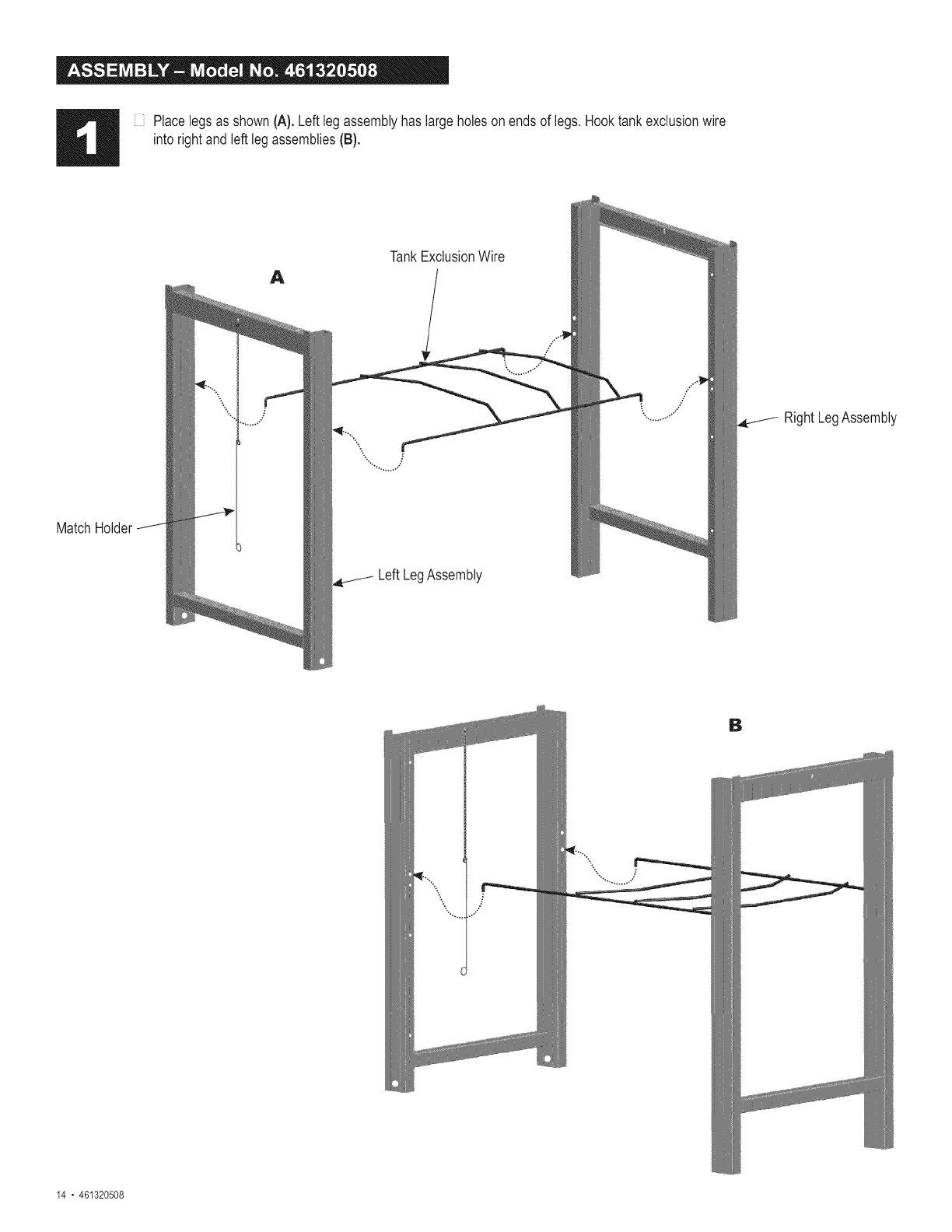

Placelegsas shown(A). Leftlegassemblyhaslargeholesonends of legs.Hooktankexclusionwire
into rightandleftlegassemblies(B).
A
TankExclusionWire
Match
LeftLegAssembly
RightLegAssembly
14 •461320508

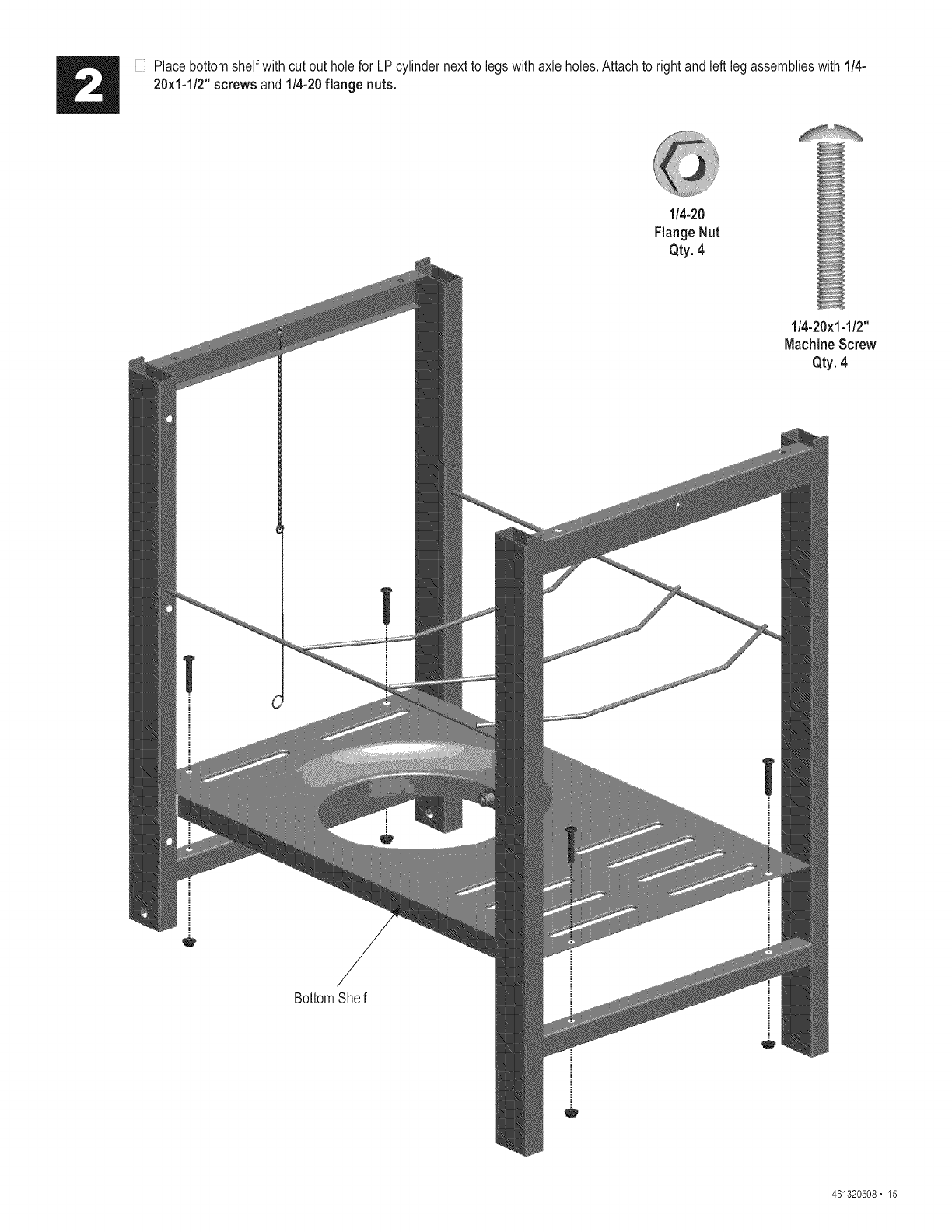

[ Placebottomshelfwithcutout holefor LPcylindernextto legswithaxle holes.Attachto rightand leftlegassemblieswith1/4-
20x1-1/2"screws and 1/4-20flange nuts.
1/4-20
Flange Nut
Qty. 4
BottomShelf
|
1/4-20x1-1/2"
MachineScrew
Qty. 4
461320508, 15
Standcartupright.
Attachfrontpanelto cartwith#8x3/8" screws.
FrontPanel
\\\
Back of cart
T
#8x3/8"
Self-TapScrew
Qty. 6
Turnassemblyupsidedown.
Insertaxlerod intowheel,wheelbusing,legsandotherwheelbushingandwheel.Attachwitha washerandhitchpin.
[ Pushlegextendersintoright legs.
LegExtenders
1" HitchPin
Qty. 1
./
AxleRod
Wheel 8ram FlatWasher
Bushing Qty. 1
Qty. 2
J
Wheel
WheelSpacer
/
/
"Cone" side ofwheelagainst leg
Hitch
Pin
16 • 461320508
Standcartupright.
Thissteprequirestwopeopleto liftandpositiongrillheadonto cart.
[ Carefullylowerthe grillheadontothe cart.Makesurethe regulatorhoseis hangingoutsidethecart.Attachwith 1/4-20x1/2"
screws, 7ramlock washers and7ramflat washers.
GrillHead
7mm FlatWasher 7ram LockWasher 1/4-20x1/2"
Qty. 4 Qty. 4 MachineScrew
Qty. 4
461320508 • 17
Hooksidewallof shelfoversupportbracketson sideof firebox(A).
Insidefireboxinsertfiberwashersand1/4-20x1/2"screws as shown(B).
Attachshelfwithflangenutsoneachside.(C).
1/4-20
FlangeNut
Qty. 4
Fiber Washer
Qty. 4 1/4-20x1/2"
MachineScrew
Qty. 4
B
A
\
RightSideShelf
/'
//
Back of cart
D • Attachfasciato fireboxwith#8x3/8"self-tapscrews.
!"
#8x3/8"
Self-TapScrew
Qty. 2
Fascia,RightSideShelf
18 * 461320508

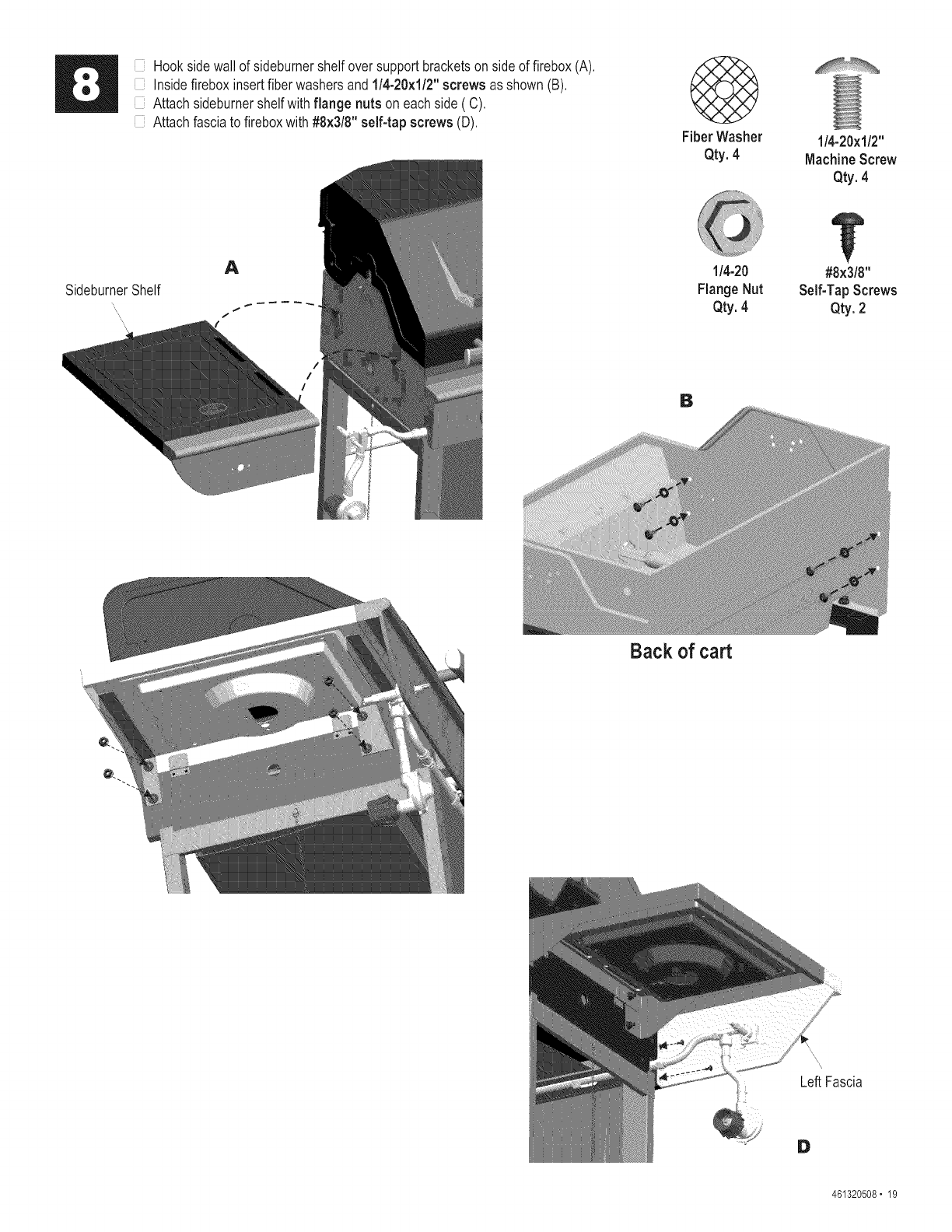

Hooksidewallof sideburnershelfoversupportbracketson sideof firebox(A).
[ Insidefireboxinsertfiberwashersand1/4-20x1/2"screws as shown(B).
[ Attachsideburnershelfwithflange nuts on eachside(C).
[ Attachfasciato fireboxwith#8x3/8" self-tap screws (D).
SideburnerShelf
A
Fiber Washer
Qty. 4
1/4-20
Flange Nut
Qty. 4
B
Back of cart
1/4-20x1/2"
MachineScrew
Qty. 4
T
#8×3/8"
Self-TapScrews
Qty. 2
LeftFascia
D
461320508, 19

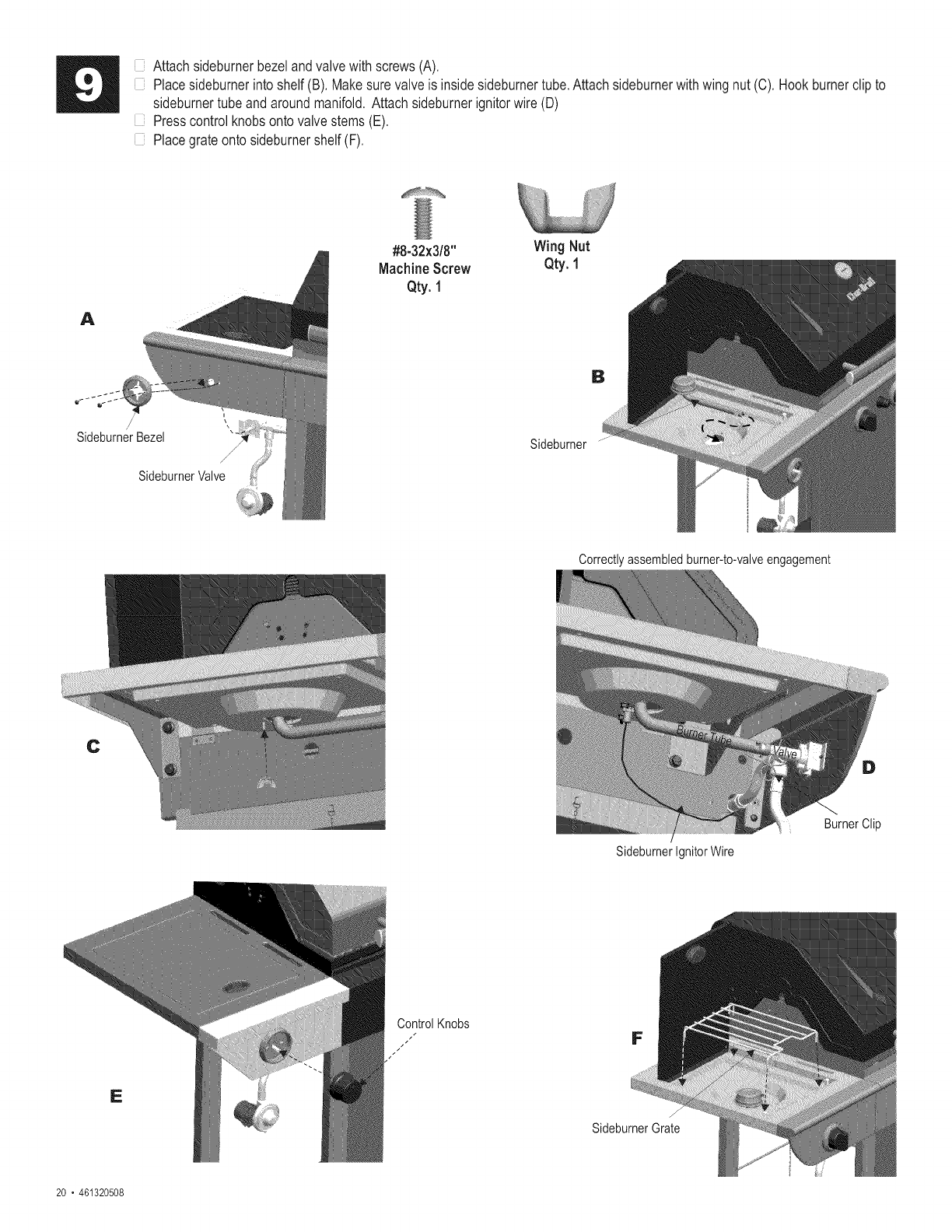

Attachsideburnerbezelandvalvewithscrews(A).
[ Placesidebumerinto shelf(B). Makesurevalveis insidesidebumertube.Attachsidebumerwithwingnut (C). Hookburnerclip to
sideburnertubeand aroundmanifold.Attachsideburnerignitorwire(D)
Presscontrolknobsontovalvestems(E).
Placegrateontosideburnershelf(F).
,6.
#8-32×3/8" WingNut
MachineScrew Qty. 1
Qty. 1
SideburnerBezel
SideburnerValve
Sidebumer
Correctlyassembledburner-to-valveengagement
SidebumerIgnitorWire
D
BurnerClip
ControlKnobs
/
j/
J
F
I=
SidebumerGrate
20 • 461320508
Placeheattentsover burnersby insertingtabsintoslots infrontof firebox.Opposite
endsof heattentsrestonpins inbackof firebox.
Pin
Placecookinggratesontograterests.
[ Placeswingawayontofireboxas shown.
[ Removepushbuttononignitormodule.PlaceAAAbatteryintoelectronicignitionwiththe negative(--) sidefacingoutward.Push
buttonontoignitormoduleandturnright 1/4turnto lockinplace.
Backof button Turn 1/4 Correctposition
SwingAway
/,
CookingGrate
461320508*21
Hanggreasecup clip frombottomof fireboxandplacegreasecup intogreaseclip.
GreaseCup
GreaseCup
-- m
!I 1"rio.
Failureto install greasecup clip and cup
will cause hot greaseto drip from bottom
of grill with risk of fire or property damage.
LPtankis soldseparately.UseonlywithanOPD(over-fillprotectiondevice)equippedLPtank.Fill andleakcheckbeforeattaching
to grillandregulator.
[ PlaceLPtankinto holeinbottomshelfwithtankcollaropeningfacingto side as shown.Fingertightentankthumbscrewto holdLP
tanksecurelyin place.
See Useand Caresection to correctly LeakTest and
performthe Burner FlameCheck. CAUTION
• Failureto installtank correctly may allow gas hose to
be damagedin operation,resultinginthe riskof fire.
LPTank
TankThumbscrew
22 • 461320508

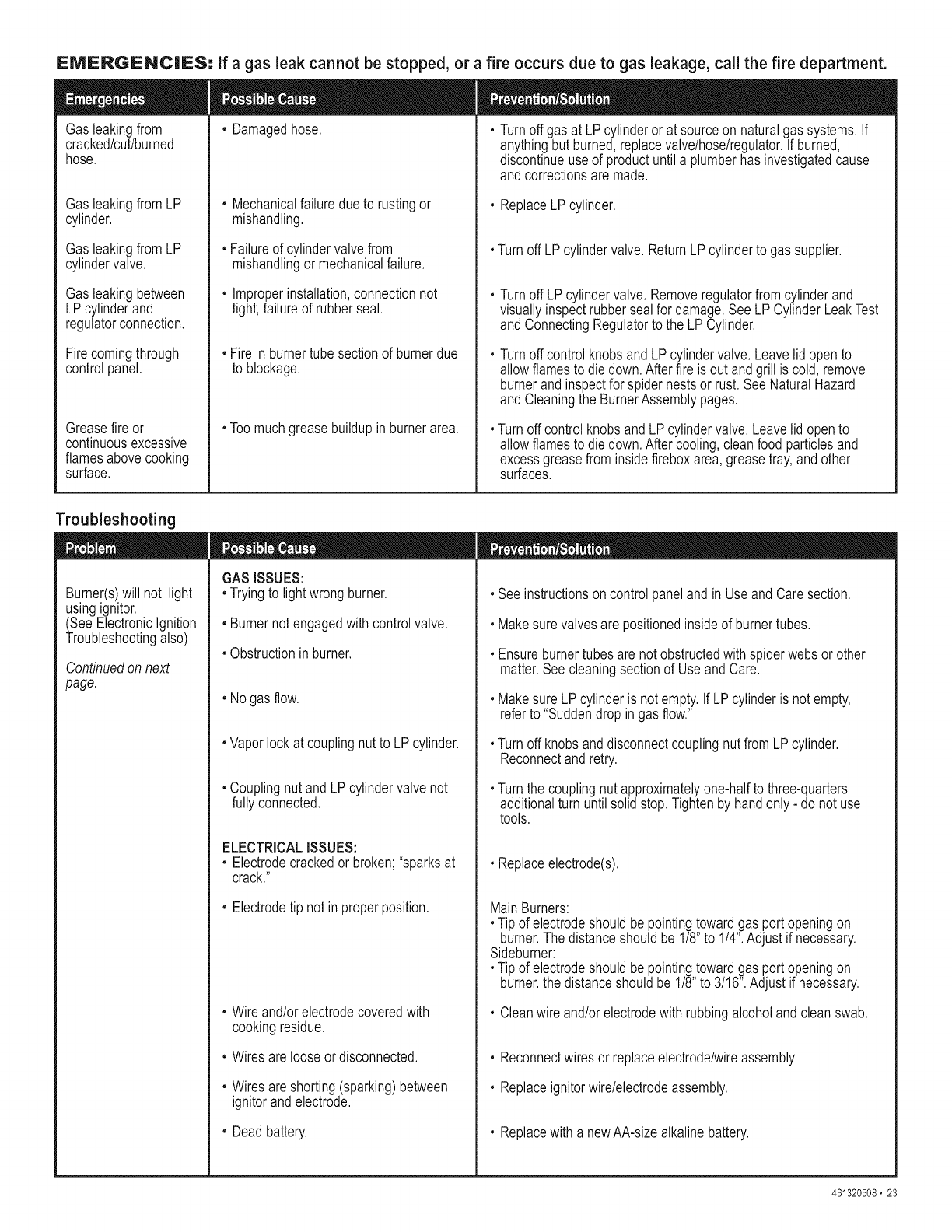

EMERGENCIES; if a gas leak cannot be stopped, or a fire occurs due to gas leakage, call the fire department.
Gasleakingfrom
cracked/cut/burned
hose.
Gasleakingfrom LP
cylinder.
Gasleakingfrom LP
cylindervalve.
Gasleakingbetween
LPcylinderand
regulatorconnection.
Firecomingthrough
controlpanel.
Greasefire or
continuousexcessive
flamesabovecooking
surface.
• Damagedhose.
• MechanicalDilu_ dueto rustingor
mishandling.
• Failureof cylindervalvefrom
mishandlingormechanicalfailure.
• Improperinstallation,connectionnot
tight,failureof rubberseal.
• Firein burnertube sectionof burnerdue
to blockage.
•Toomuchgreasebuildupin burnerarea.
• Turnoffgasat LPcylinderor at sourceonnaturalgassystems.If
anythingbut burned,replacevalve/hose/regulator.If burned,
discontinueuseof productuntila plumberhas investigatedcause
andcorrectionsare made.
• ReplaceLPcylinder.
•Turnoff LPcylindervalve.ReturnLPcylinderto gas supplier.
• TurnoffLPcylindervalve.Removeregulatorfromcylinderand
visuallyinspectrubbersealfor damage.SeeLPCylinderLeakTest
andConnectingRegulatorto the LP Cylinder.
• TurnoffcontrolknobsandLPcylindervalve.Leavelidopento
allowflamesto diedown.Afterfire is outandgrill is cold,remove
burnerandinspectfor spidernestsor rust.SeeNaturalHazard
andCleaningthe BurnerAssemblypages.
•TurnoffcontrolknobsandLPcylindervalve.Leavelidopento
allowflamesto diedown.Aftercooling,cleanfood particlesand
excessgreasefrominsidefireboxarea,greasetray,andother
surfaces.
Troubleshooting
Burner(s)will not light
usingignitor.
(SeeElectronicIgnition
Troubleshootingalso)
Continuedonnext
page.
GASISSUES:
, Tryingto lightwrongburner.
• Burnernot engagedwith controlvalve.
• Obstructioninburner.
• Nogas flow.
•Vaporlockat couplingnutto LPcylinder.
• Couplingnut andLPcylindervalvenot
fullyconnected.
ELECTRICALISSUES:
• Electrodecrackedor broken;"sparksat
• Seeinstructionsoncontrolpanelandin UseandCaresection.
• Makesurevalvesare positionedinsideof burnertubes.
• Ensureburnertubesarenot obstructedwithspiderwebsor other
matter.Seecleaningsectionof UseandCare.
• MakesureLPcylinderis not empty.If LPcylinderis notempty,
referto "Suddendropin gasflow."
•Turnoff knobsanddisconnectcouplingnut fromLPcylinder.
Reconnectandretry.
•Turnthe couplingnutapproximatelyone-halfto three-quarters
additionalturn untilsolidstop.Tightenby handonly-do not use
tools.
• Replaceelectrode(s).
crack."
• Electrodetip notin properposition.
• Wireand/orelectrodecoveredwith
cookingresidue.
• Wiresarelooseordisconnected.
• Wiresareshorting(sparking)between
ignitorandelectrode.
• Deadbattery.
MainBurners:
•Tip of electrodeshouldbepointingtowardgasport openingon
burner.The distanceshouldbe 1/8"to 1/4".Adjustif necessary.
Sideburner:
•Tip of electrodeshouldbepointingtowardgasport openingon
burner,the distanceshouldbe 1/8"to 3/16".Adjustif necessary.
• Cleanwire and/orelectrodewithrubbingalcoholandcleanswab.
• Reconnectwiresorreplaceelectrode/wireassembly.
• Replaceignitorwire/electrodeassembly.
• Replacewitha newAA-sizealkalinebattery.
461320508, 23

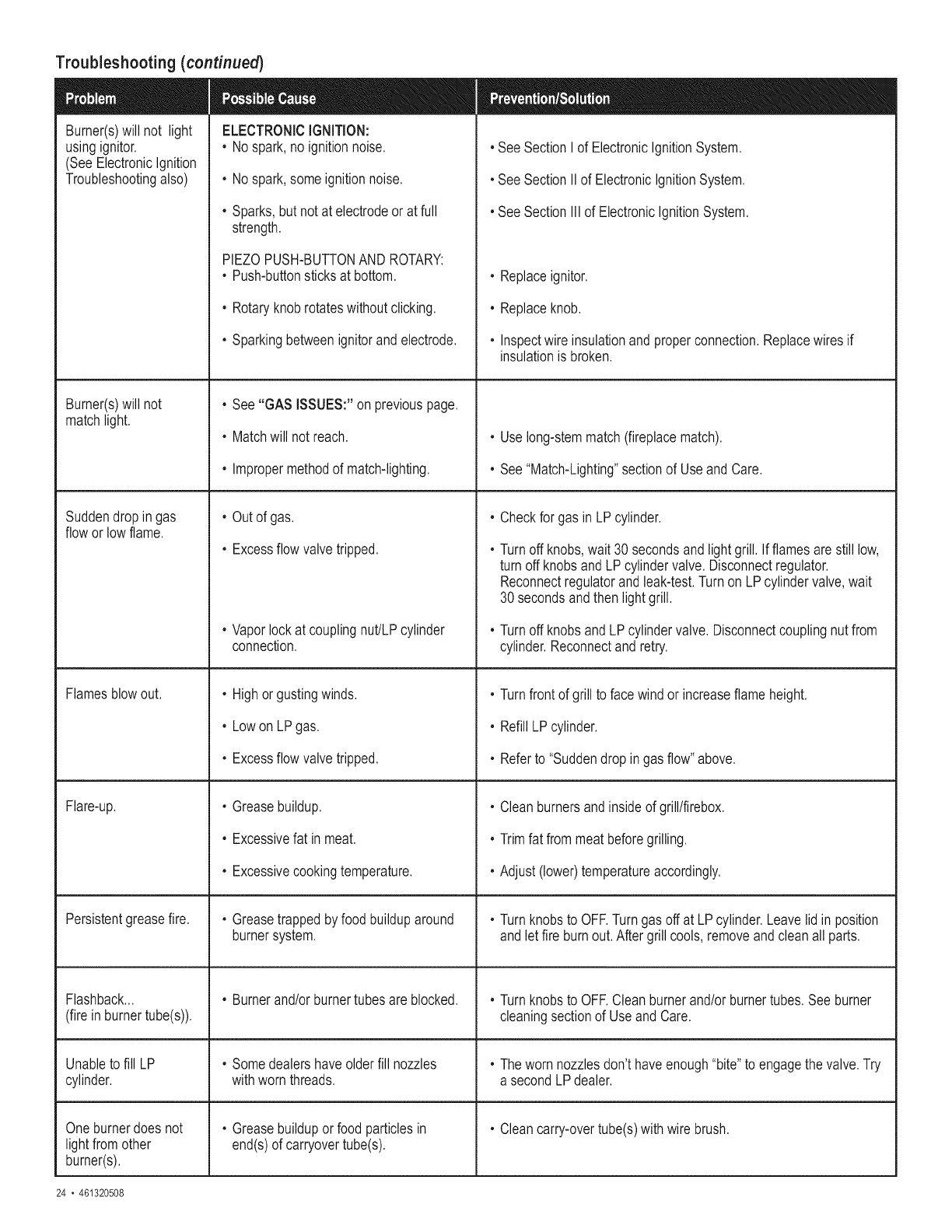

Troubleshooting (continued)
Burner(s) willnot light ELECTRONICIGNITION:
using ignitor. ° No spark, no ignitionnoise.
(See ElectronicIgnition
Troubleshootingalso) ° No spark, some ignitionnoise.
° Sparks, but not at electrode or at full
strength.
PIEZO PUSH-BUTTONANDROTARY:
° Push-button sticks at bottom.
° Rotary knob rotates without clicking.
° Sparking between ignitorand electrode.
Burner(s)will not
matchlight.
Suddendropin gas
floworlow flame.
Flamesblowout.
Flare-up.
Persistentgreasefire.
Flashback...
(firein burnertube(s)).
Unableto fill LP
cylinder.
Oneburnerdoes not
lightfromother
burner(s).
• See"GAS ISSUES:"onpreviouspage.
• Matchwill not reach.
• Impropermethodof match-lighting.
• Outof gas.
• Excessflowvalvetripped.
• Vaporlockat couplingnut/LPcylinder
connection.
• Highorgustingwinds.
• Lowon LPgas.
• Excessflowvalvetripped.
, Greasebuildup.
• Excessivefat inmeat.
• Excessivecookingtemperature.
• Greasetrappedby foodbuilduparound
burnersystem.
• Burnerand/orburnertubesare blocked.
• Somedealershaveolderfill nozzles
withworn threads.
• Greasebuilduporfood particlesin
end(s)of carryovertube(s).
• SeeSectionI of ElectronicIgnitionSystem.
• SeeSectionII of ElectronicIgnitionSystem.
• SeeSectionIII of ElectronicIgnitionSystem.
• Replaceignitor.
, Replaceknob.
• Inspectwire insulationandproperconnection.Replacewiresif
insulationis broken.
, Uselong-stemmatch(fireplacematch).
• See"Match-Lighting"sectionof Useand Care.
• Checkfor gas in LPcylinder.
• Turnoffknobs,wait30 secondsand lightgrill.If flamesarestill low,
turnoff knobsandLPcylindervalve.Disconnectregulator.
Reconnectregulatorandleak-test.Turnon LPcylindervalve,wait
30secondsandthenlightgrill.
• TurnoffknobsandLPcylindervalve.Disconnectcouplingnut from
cylinder.Reconnectandretry.
• Turnfrontof grill to facewindor increaseflameheight.
• RefillLPcylinder.
• Referto "Suddendropin gasflow"above.
• Cleanburnersandinsideof grill/firebox.
, Trimfat frommeatbeforegrilling.
• Adjust(lower)temperatureaccordingly.
• Turnknobsto OFF.Turngasoffat LPcylinder.Leavelidin position
andlet fire burnout.Aftergrillcools,removeandcleanall parts.
• Turnknobsto OFF.Cleanburnerand/orburnertubes.Seeburner
cleaningsectionof UseandCare.
• Thewornnozzlesdon't haveenough"bite"to engagethevalve.Try
a secondLPdealer.
• Cleancarry-overtube(s)withwire brush.
24 •461320508
Troubleshooting -Electronic Ignition
•Battery not installed
properly.
SECTIONI
No sparksappearat
any electrodeswhen
ignitionbuttonis
pushed;nonoisecan
beheardfromspark
module.
SECTIONII
No sparksappearat
any electrodeswhen
ignitionswitchis
pushed;noisecan be
heardfromspark
module.
• Deadbattery.
SECTIONill
Sparksarepresent
but notat all
electrodesand/ornot
at full strength
. Checkbatteryorientation. • Installbattery(makesurethat"-" and"+"
connectorsareorientedcorrectly,with"-" endup
• Buttonassemblynot
installedproperly.
• Hasbatterybeenused
previously?
and"+"enddown.)
• Replacebatterywith newAAA-sizealkalinebattery.
• Faultysparkmodule.
• Outputlead
connectionsnot
connected.
• Outputlead
connectionsnot
connected.
• Arcingto grillaway
fromburner(s).
• Weakbattery.
• Electrodesarewet.
• Electrodescrackedor
broken"sparksat
crack".
Checkto insurethreadsare
properlyengaged.Button
shouldtravelupanddown
withoutbinding.
If nosparksaregenerated
with newbatteryandgood
wire connections,moduleis
faulty.
• Are outputconnectionson
andtight?
• Are outputconnectionson
andtight?
If possible,observegrillin
darklocation.Operate
ignitionsystemandlook for
arcingbetweenoutputwires
andgrillframe.
All sparkspresentbut weak
orat slowrate.
Hasmoistureaccumulated
onelectrodeand/orinburner
ports?
Inspectelectrodesfor
cracks.
• Unscrewbuttoncapassemblyand reinstall,making
surethreadsarealignedandengagedfully.
• Replacesparkmoduleassembly.
• Removeandreconnectalloutputconnectionsat
moduleandelectrodes.
• Removeandreconnectalloutputconnectionsat
moduleandelectrodes.
• If sparksareobservedotherthanfromburner(s),
wireinsulationmaybedamaged.Replacewires.
• Replacebatterywitha newAAA-sizealkaline
battery.
• Usepapertowelto removemoisture.
• Replacecrackedor brokenelectrodes.
461320508. 25

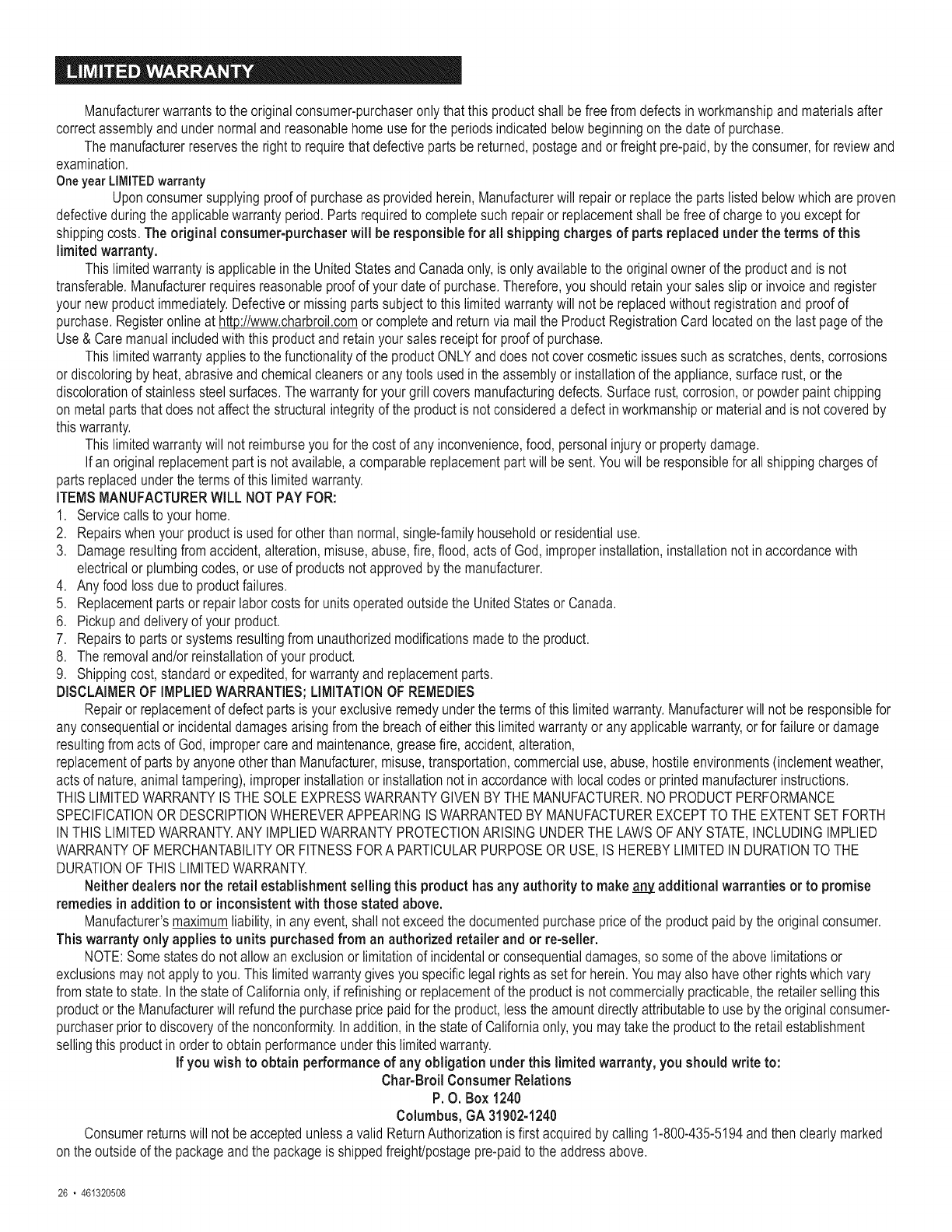

Manufacturerwarrantsto the originalconsumer-purchaseronlythatthis productshallbe freefromdefectsinworkmanshipandmaterialsafter
correctassemblyandundernormalandreasonablehomeuse for theperiodsindicatedbelowbeginningonthe dateof purchase.
Themanufacturerreservestherightto requirethatdefectivepartsbereturned,postageandorfreightpre-paid,by the consumer,for reviewand
examination.
OneyearLIMITEDwarranty
Uponconsumersupplyingproofof purchaseas providedherein,Manufacturerwill repairorreplacethe partslistedbelowwhichareproven
defectiveduringthe applicablewarrantyperiod.Partsrequiredto completesuchrepairor replacementshallbe freeof chargeto youexceptfor
shippingcosts.The original consumer-purchaser will beresponsible for all shipping charges of partsreplaced under the terms of this
limited warranty.
Thislimitedwarrantyis applicablein the UnitedStatesandCanadaonly,is onlyavailableto the originalownerof the productandis not
transferable.Manufacturerrequiresreasonableproofof yourdate of purchase.Therefore,youshouldretainyoursalesslip or invoiceandregister
yournew productimmediately.Defectiveor missingpartssubjectto thislimitedwarrantywill not bereplacedwithoutregistrationandproofof
purchase.Registeronlineat _:/twww.charbroil.com orcompleteandreturnvia mailthe ProductRegistrationCardlocatedonthe lastpageof the
Use& Caremanualincludedwiththisproductandretainyoursalesreceiptfor proofof purchase.
Thislimitedwarrantyappliesto the functionalityof the productONLYanddoesnotcovercosmeticissuessuchas scratches,dents,corrosions
ordiscoloringby heat,abrasiveand chemicalcleanersor anytoolsusedin the assemblyor installationof the appliance,surfacerust,orthe
discolorationof stainlesssteelsurfaces.Thewarrantyforyour grillcoversmanufacturingdefects.Surfacerust,corrosion,or powderpaintchipping
on metalpartsthatdoesnot affectthe structuralintegrityof the productis not considereda defectinworkmanshipor materialandis not coveredby
thiswarranty.
Thislimitedwarrantywill notreimburseyoufor the costof any inconvenience,food,personalinjuryor propertydamage.
Ifanoriginalreplacementpartis notavailable,a comparablereplacementpartwill besent.Youwill beresponsiblefor allshippingchargesof
partsreplacedunderthe termsof thislimitedwarranty.
ITEMSMANUFACTURERWILL NOTPAY FOR:
1. Servicecallsto yourhome.
2. Repairswhenyourproductis usedfor otherthannormal,single-familyhouseholdorresidentialuse.
3. Damageresultingfromaccident,alteration,misuse,abuse,fire,flood,actsof God,improperinstallation,installationnot inaccordancewith
electricalor plumbingcodes,oruseof productsnotapprovedbythe manufacturer.
4. Any foodlossdueto productfailures.
5. Replacementpartsor repairlaborcostsfor unitsoperatedoutsidetheUnitedStatesor Canada.
6. Pickupanddeliveryof yourproduct.
7. Repairsto partsor systemsresultingfromunauthorizedmodificationsmadeto the product.
8. The removaland/orreinstallationof yourproduct.
9. Shippingcost,standardor expedited,forwarrantyandreplacementparts.
DISCLAIMEROF IMPLIEDWARRANTIES;LIMITATIONOF REMEDIES
Repairor replacementof defectpartsis yourexclusiveremedyunderthetermsof this limitedwarranty.Manufacturerwill not beresponsiblefor
anyconsequentialor incidentaldamagesarisingfromthe breachof eitherthislimitedwarrantyor anyapplicablewarranty,or for failureor damage
resultingfromactsof God,impropercareandmaintenance,greasefire,accident,alteration,
replacementof partsby anyoneotherthanManufacturer,misuse,transportation,commercialuse,abuse,hostileenvironments(inclementweather,
actsof nature,animaltampering),improperinstallationor installationnotin accordancewith localcodesorprintedmanufacturerinstructions.
THISLIMITEDWARRANTYISTHESOLEEXPRESSWARRANTYGIVENBYTHEMANUFACTURER.NO PRODUCTPERFORMANCE
SPECIFICATIONORDESCRIPTIONWHEREVERAPPEARINGISWARRANTEDBYMANUFACTUREREXCEPTTOTHEEXTENTSETFORTH
INTHISLIMITEDWARRANTY.ANY IMPLIEDWARRANTYPROTECTIONARISINGUNDERTHELAWSOFANYSTATE,INCLUDINGIMPLIED
WARRANTYOFMERCHANTABILITYOR FITNESSFORAPARTICULARPURPOSEOR USE,IS HEREBYLIMITEDINDURATIONTOTHE
DURATIONOF THISLIMITEDWARRANTY.
Neitherdealers nor the retail establishment selling this producthas any authority to make_ additional warranties or to promise
remediesin addition to or inconsistent with those stated above.
Manufacturer'smaximumliability,in anyevent,shallnotexceedthe documentedpurchasepriceof theproductpaidby theoriginalconsumer.
This warranty onlyapplies to units purchasedfrom an authorized retailer and or re-seller.
NOTE:Somestatesdo notallowanexclusionor limitationof incidentalor consequentialdamages,so someof the abovelimitationsor
exclusionsmaynot applyto you.Thislimitedwarrantygivesyou specificlegalrightsas setfor herein.Youmayalso haveotherrightswhichvary
fromstateto state.In the stateof Californiaonly,if refinishingor replacementof the productis notcommerciallypracticable,theretailersellingthis
productor the Manufacturerwill refundthe purchasepricepaidfor the product,lessthe amountdirectlyattributableto use bythe originalconsumer-
purchaserpriorto discoveryof the nonconformity.In addition,in thestateof Californiaonly,you maytakethe productto the retailestablishment
sellingthis productin orderto obtainperformanceunderthis limitedwarranty.
If you wish to obtain performanceof any obligation under this limited warranty, you should write to:
Char-Broil Consumer Relations
P. O. Box 1240
Columbus, GA 31902-1240
Consumerreturnswill notbeacceptedunlessa validReturnAuthorizationis firstacquiredby calling1-800-435-5194andthenclearlymarked
onthe outsideof the packageandthepackageis shippedfreight/postagepre-paidto the addressabove.
26 •461320508
Pleaseregisteryourproductonlineat:
(if you register online, you do not need to send in this registration card.)
PLEASEFILL OUT THISCARD AND RETURNIT WITHIN10 DAYS OF PURCHASE.FAILURETORETURNMAYAFFECTYOURWARRANTYCOVERAGE.FORWARRANTY
SERVICE PROOFOF PURCHASEWILL BE REQUIRED.PLEASEKEEPYOURSALES RECEIPT.THISWARRANTYIS NON-TRANSFERABLE.
LLENEESTATARJETAY DEVUELVALADENTRODE LOS 10 DIASDE LA COMPRA. SINO LA DEVUELVE,PUEDEVERSEAFECTADASU COBERTURADE GARANTIA.
PARA EL SERVlClO DEGARANTIA ES NECESARIOQUE PRESENTESUCOMPROBANTEDECOMPRA.CONSERVELA FACTURA.ESTAGARANTIA ESINTRANSFERIBLE.
VEUILLEZ COMPLETERCETTECARTE ET LA RETOURNERDANSLES 10 JOURSSUIVANTL'ACHAT. LA COUVERTUREDE VOTREGARANTIEPOURRAITEN ETRE
AFFECTEESI VOUSNE LEFAITES PAS. POUROBTENIRLE SERVICESOUS GARANTIE,UNE PREUVED'ACHAT DOlTETRE PRESENTEE.VEUILLEZCONSERVER
VOTREFACTURE.LA PRESENTEGARANTIEN'EST PAS TRANSFERABLE.
First Name/Nombre/Pr_nom Initial/Inicial/Initiale LastNametApellido/Nomdefamille
111 II II II II III II I LJ III II II II II III II II II II
2
3
4
Address (number and street)/Direcci6n (nOmeroy caile)/Adresse (numero et rue) Apt Number/N_de apart./N_d'appt.
IIIIII
City/CiudadNille State/Estado/Province Zip Code/C6digozip/Codepostal
I II!! III II II II II II III II I I I I I I II II
E-mailAddress/DirecciOnde correo electr6nico/Adresse_lectronique
If you voluntarily provide us with your email address, you give us permission to use your email address to send you offers that may interest you.
Si nos informa voluntariamente su direcci6n de correo electr6nico, nos da permiso para usarto afinde enviarte ofertas que pueden interesarle.
Si vous choisissez de nous foumir votre adresse dectronique, vous nous donnez la permission de Itrtiliser pour vous faire part doffres speciales susceptibles
de vous intoresse_
I I
(Example:yourname@yourhost.corn) (Ejemplo:sunombre@suhost.corn) (Exemple: votrenom@votrehOte.com)
PhoneNumber/N_merotelefOnico/Num_rodet_l@hone 6Dateof Purchase/Fechadecompra/Datede I'achat
IIII IIIII!III IIII III !III
IMPORTANT!/ilMPORTANTEt/IMPORTANT!
WriteSerial Number and Model Number in spaces below.
Escriba en los espacios de abajo el n_mero de serie y el n_mero
de modelo.
Inscrivez le num6ro de s6rie et le num6ro de modele clansles
espaces ci-dessous.
7StoreName/Nombrede la tienda/Nomdu magasin
II III !! II III!! II I
8PurchasePricetPreciode compra/Prixd'achat
$1 ! I I I.00
5 Your Gender/Sexo/Sexe : 1. [] Male/Masculino/Masculin 2. [] Female/Femenino/Feminin
9Which productare your registering?
&Qu_ producto est_ registrando?
Quel produit enregistrezwous?
1 [] Gas Grill/Parrilla a gas/Gril au gaz
2 [] Electric Grill/Parrillaelectrica/Gril electrique
3 [] Smoker/Ahurnador/Furnoir
4 [] Charcoal Grill/Parfilla a carbon/Barbecue au charbon
5 [] Charcoal Srnoker/Ahurnadora carbon/Furnoir au charbon
6 [] Outdoor Fireplace/Chimenea para exteriores/Foyer exterieur
7 [] Cooker/Fryer/Cocina/freidora /CuiseuriFriteuse
8 [] Other/Otro/Autre
Mail to: /Envielo a:
Consumer Warranty Service
P. O. Box 1240
Columbus, GA 31902-1240
Thank youfor completing this questionnaire.Youranswers will help us and other companies reach youwith offers that may interest you. If you prefernot to
receive these offers, please check hereD.
Gracias por completareste cuestionario.Sus respuestasnos ayudaran, a nosotros y a otras compafiias, a Ilegara usted conofertas que puedan resultarle
de interes. Si prefiereno recibir estas ofertas, por favor marque aqui E3.
Merci d'avoir bien voulu remplir ce questionnaire.Vos reponses nous aiderontet aiderontd'autres compagniesa vouscommuniquerdes offres speciales
susceptiblesde vousinteresser. Sivous prderez ne pas recevoird'informations concernant ces offres speciales,veuillez cocher ici 113.
461320508. 27
Should you encounter a problem with our product
CALL US FIRST
Do not return this product to the store,
WE CAN HELP
GRILL SERVICE CENTER
1-800-435-5194
HOURS 8AM-6PM EST Mon-Fri
Please ensure your warranty registration is complete.
Grilling Safety Checklist
[]
[]
[]
[]
Read and understandowners manual.
Never overfill LP cylinder. Overfilled cylinders may cause freeze-up of
regulator.
Check tubesfor spider webs, Ensure valves are correctly installed in
burner tubes,
Always ensure control knobsare in OFF position and regulator is
attached to tank BEFORE opening tank valve to avoid low flames,
[] Perform leak test regularly.
Thank You for Your Purchase!
THERHOs,
Char-Broil,LLC • Columbus,GA31902° PrintedinChina

Navigation menu
