Product Features
Designed to embrace cutting-edge RFID
technologies in a stylish and innovative
package, this advanced access control reader
offers a refreshing breakthrough in the access
security marketplace. Shaped in a sleek mullion
style design, the reader may be mounted to most
plain wall finishes.
This powerfully secure and innovative reader has a
beautifully clean aesthetic, and a bright RGB LED that can be
applied to many applications such as colour coded access levels,
migration status or mood lighting.
The reader housing is moulded using tough polycarbonate plastic, and includes a shadow-line
backplate, a subtle and simple mechanical design feature that makes the reader, when fixed,
appear to float against the wall.
125KHz Proximity
Bluetooth LE
Black textured moulding
Slim profile
RGB LED
Fully encapsulated electronics
Wide range of output formats
5 year limited warranty
Read range up to 10cm (4 inches)
MANUAL
3M
Inline
style or technology - now you can have both
3millID 9249 S. Broadway Building #200 Suite 826 Highlands Ranch CO 80129
+1 303 475 4972 sales@3millid.com
© 3millID
100-02635-A www.3millid.com
3millID acknowledges all copyrights and registered trademarks used by third parties. No affiliation is implied, or should be
inferred, to the use of any tradename or reference to copyright material.
Any reference to copyright material or registered trademarks within this document is used purely to depict or identify such
material for the purpose of comment, description or comparison, and to assist in the evaluation of products or services
described herein.
No part of this publication may be reproduced or translated into other languages or transmitted into a language used by data
processing machines without the express written consent of 3millID.
E&OE
We do our best to provide accurate and reliable information at the time of publication, but due to continuous developments we
cannot be held responsible for clerical errors, omissions or outdated information, and we reserve the right to amend, alter or
withdraw such information, without notice.
Images shown in this document are for illustrative purposes only. The features, colours, style and appearance may change without notice.
EQUIPMENT
*******
These devices comply with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1)
this device may not cause harmful interference, and (2)
this device must accept any interference received,
including interference that may cause undesired
operation.
Any changes or modifications not expressly approved by
the party responsible for compliance could void the user’s
authority to operate the equipment.
These devices contains: FCC ID: TCZ-10103751G1
UTJ-AV00
These RFID proximity readers comply with the essential
requirements and relevant provisions of:
EU Directive 2014/53/EC
.
Together with information provided by suppliers and
subcontractors, these devices comply with the
requirements and relevant provisions of:
EU Directive 2011/65/EC
.
This symbol on the product or on its packaging indicates
that the product must not be disposed of with normal
household waste. Instead, it is your responsibility to
dispose of your waste equipment by arranging to return
it to a designated collection point for the recycling of
waste electrical and electronic equipment. By separating
and recycling your waste equipment at the time of
disposal you will help to conserve natural resources and
ensure that the equipment is recycled in a manner that
protects human health and the environment.
EU Directive 2012/19/EC
SECTION TITLE PAGE
1. Parts List 3
2. Specification 3
3. Installation Guide 4
2
CONTENTS
MANUAL
3M
Inline
style or technology - now you can have both
3millID 9249 S. Broadway Building #200 Suite 826 Highlands Ranch CO 80129
+1 303 475 4972 sales@3millid.com
© 3millID
100-02635-A www.3millid.com
96mm
3.8 inches
52mm
2.1 inches
21mm
0.8 inch
1 x reader MODULE
1 x reader BACKPLATE
1 x 3 x 10mm black cross-head securing screw
10cm
up to
+
-
66
35
C
5yrs

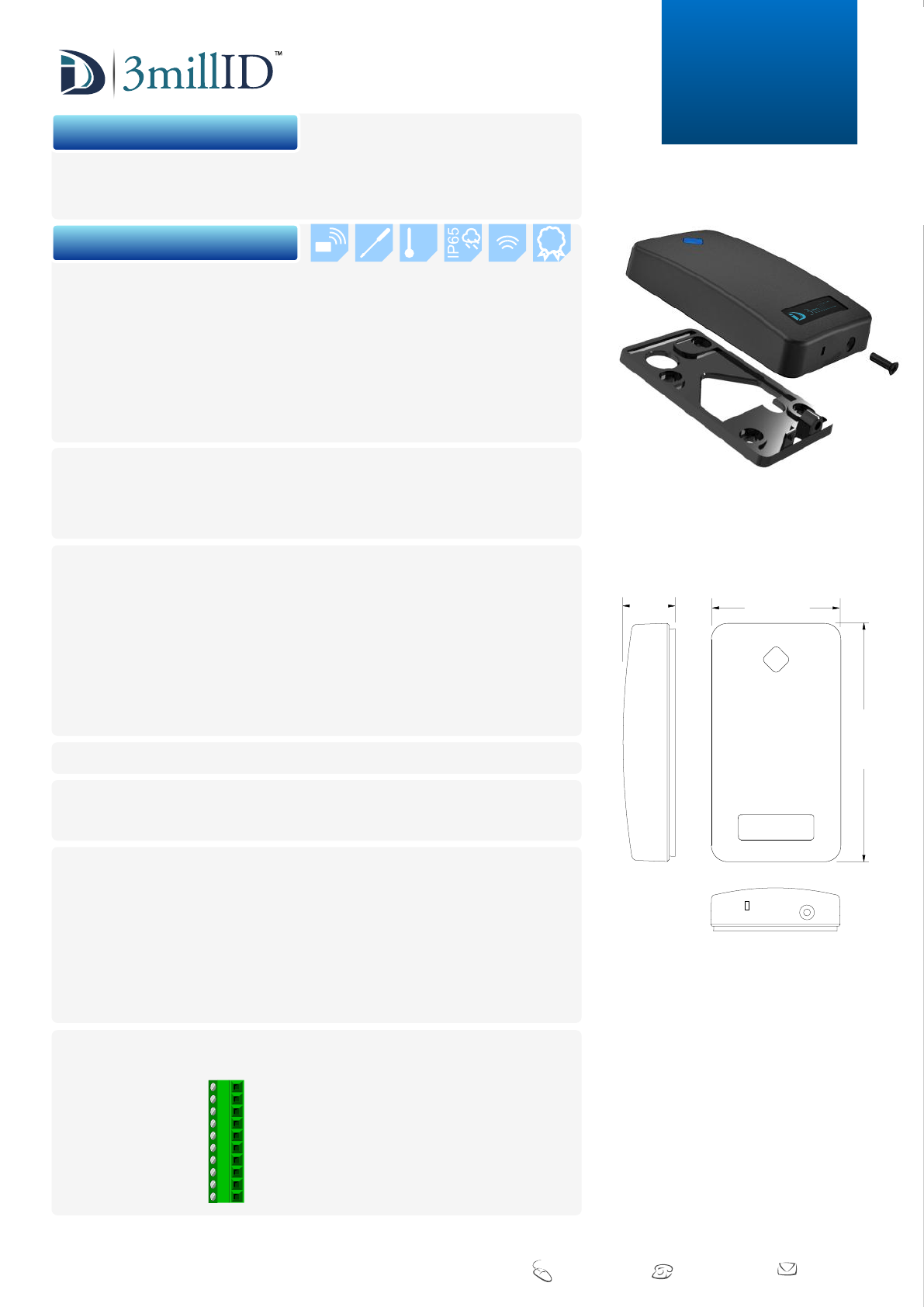

1. parts list
2. specification
performance level for access control
This product complies with the following UL294 Access Control Performance Levels:
Destructive Attack Level I
Line Security Level I
Endurance Level IV
Standby Power Level I
See the UL Listed access control unit controller installation instructions for reader
compatibility.
UL Ref. Number ??????
environmental
Operating Temperature -35°C to +66°C (-31°F to + 151°F)
Humidity 85 ±5% at 30 ±2°C (86 ±3°F)
Ingress Protection IP65 (not evaluated by UL)
Positioning Suitable for INDOOR and OUTDOOR use.
electrical
Power supply Power is to be provided by a UL294 Listed, low-voltage
Class 2 power limited supply or control panel, capable
of 4 hours standby.
Voltage +10Vdc to +16Vdc
Current 35mA typical
Data Voltage Rest >4Vdc / Active <1Vdc
Data Output Wiegand, Clock & Data, Custom Outputs
Indication 1 RGB LED
Sounder Integral speaker
dimensions 96mm x 52mm x 21mm (3.8 x 2.1 x 0.8 inches)
polymeric materials
Potting compound UL R/C (QMFZ2)
Mouldings UL746C
wiring Wiring methods shall be in accordance with the
National Electrical Code (ANSI/NFPA70), local
codes, and the authorities having jurisdiction.
Recommended cable BELDEN 953x (or equivalent UL listed) - Wiegand
BELDEN 9502 (or equivalent UL listed) - RS485
All cable and wiring must be Listed and suitable for use.
Cable length Cable length must not exceed 30 metres maximum
(98.5 feet) for UL
Minimum permissible wire size not less than 26 AWG (0.24mm²)
connections
Screw terminal (All readers in this series use this terminal connection)
1 - 0V Supply voltage ground
2 - +Vdc Supply voltage (+10Vdc to +16Vdc)
3 - DATA1/CLK Wiegand or Clock/Data output
4 - DATA0/DAT Wiegand or Clock/Data output
5 - GREEN Green LED control input
6 - RED Red LED control input
7 - Buzzer Buzzer control input
8 - TMPR/CP Tamper or Card Present output
9 - RS485- RS485 Bus
10 - RS485+ RS485 Bus
MANUAL
3M
Inline
3
3millID 9249 S. Broadway Building #200 Suite 826 Highlands Ranch CO 80129
+1 303 475 4972 sales@3millid.com
© 3millID
100-02635-A www.3millid.com

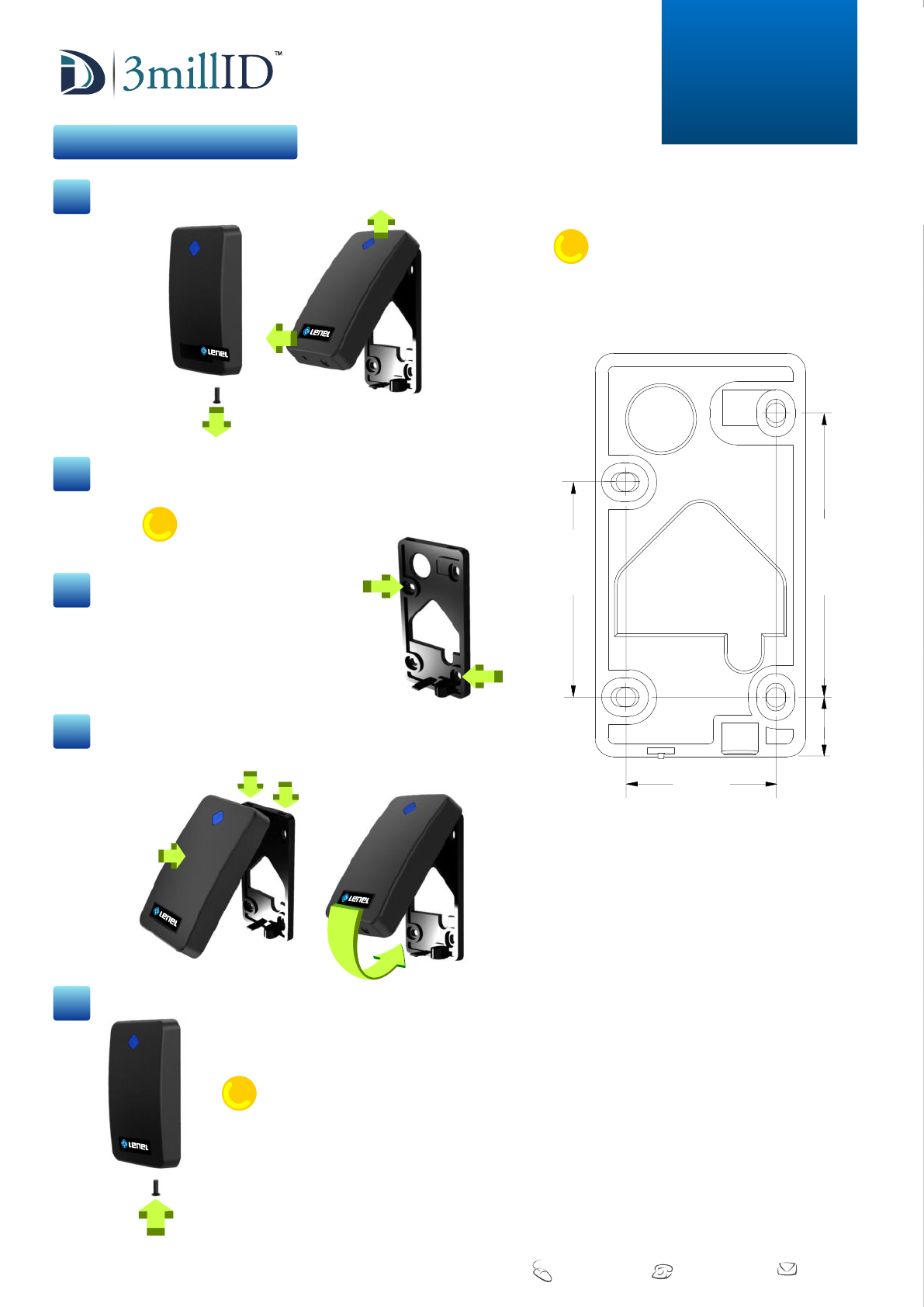

Remove module securement screw. Lever bottom edge of reader module
away from the backplate, and lift up.
3. installation guide
Once the backplate is secured, make wire
connections to the reader, in accordance with
the screw terminal connections shown on
Page 3 of this document and your control panel
requirements. Ensure the cable does not impair or
prevent the reader module being secured.
i
Backplate FIXING TEMPLATE.
If printed full scale, you may use the drawing below as a
fixing template.
MEASURE and CHECK DIMENSIONS before use.
Fix reader BACKPLATE to a plain surface finish, using suitable screw
fixings having a diameter no greater than 0.15 in. (4mm).
Fasten the reader module, ensuring the top-edge fixing lugs engage
correctly with the recesses at the top of the backplate. Swing the bottom
edge of the module down and forward until you feel the unit ‘snap’ shut.
i
Following installation, it is recommended the access
control system and control units are subjected to a
maintenance and operational test procedure.
TEST COMPLETE SYSTEM AT LEAST ONCE A YEAR
1
2
3
4
5Secure the module to the backplate using the M3x10mm screw supplied.
If required, you may opt to use a security screw to the sizes shown here.
i
Mounting this reader on (or near) metal may impair the read
range of the unit.
2.7 in.
(65mm)
1.4 in.
(34.4mm)
1.9 in.
(49mm)
0.5 in.
(13mm)
MANUAL
3M
Inline
4
