Thousandshores Technology EB06 Bluetooth receiver User Manual

Shenzhen Thousandshores Technology Co., Ltd. Bluetooth receiver

User Manual

Bluetooth receiver EB06 User Guide

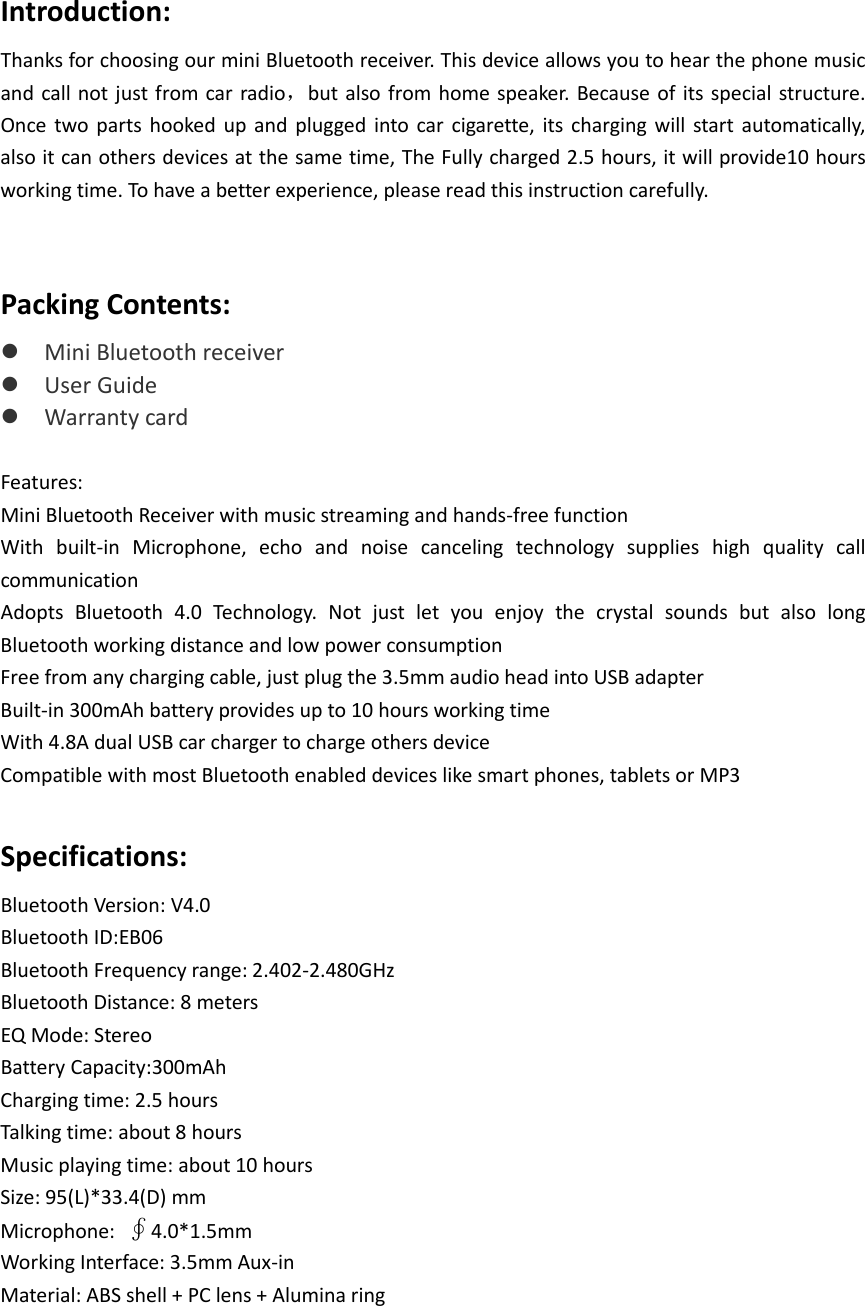

Introduction: Thanks for choosing our mini Bluetooth receiver. This device allows you to hear the phone music and call not just from car radio，but also from home speaker. Because of its special structure. Once two parts hooked up and plugged into car cigarette, its charging will start automatically, also it can others devices at the same time, The Fully charged 2.5 hours, it will provide10 hours working time. To have a better experience, please read this instruction carefully. Packing Contents:  Mini Bluetooth receiver  User Guide  Warranty card Features: Mini Bluetooth Receiver with music streaming and hands-free function With built-in Microphone, echo and noise canceling technology supplies high quality call communication Adopts Bluetooth 4.0 Technology. Not just let you enjoy the crystal sounds but also long Bluetooth working distance and low power consumption Free from any charging cable, just plug the 3.5mm audio head into USB adapter Built-in 300mAh battery provides up to 10 hours working time With 4.8A dual USB car charger to charge others device Compatible with most Bluetooth enabled devices like smart phones, tablets or MP3 Specifications: Bluetooth Version: V4.0 Bluetooth ID:EB06 Bluetooth Frequency range: 2.402-2.480GHz Bluetooth Distance: 8 meters EQ Mode: Stereo Battery Capacity:300mAh Charging time: 2.5 hours Talking time: about 8 hours Music playing time: about 10 hours Size: 95(L)*33.4(D) mm Microphone: ∮4.0*1.5mm Working Interface: 3.5mm Aux-in Material: ABS shell + PC lens + Alumina ring

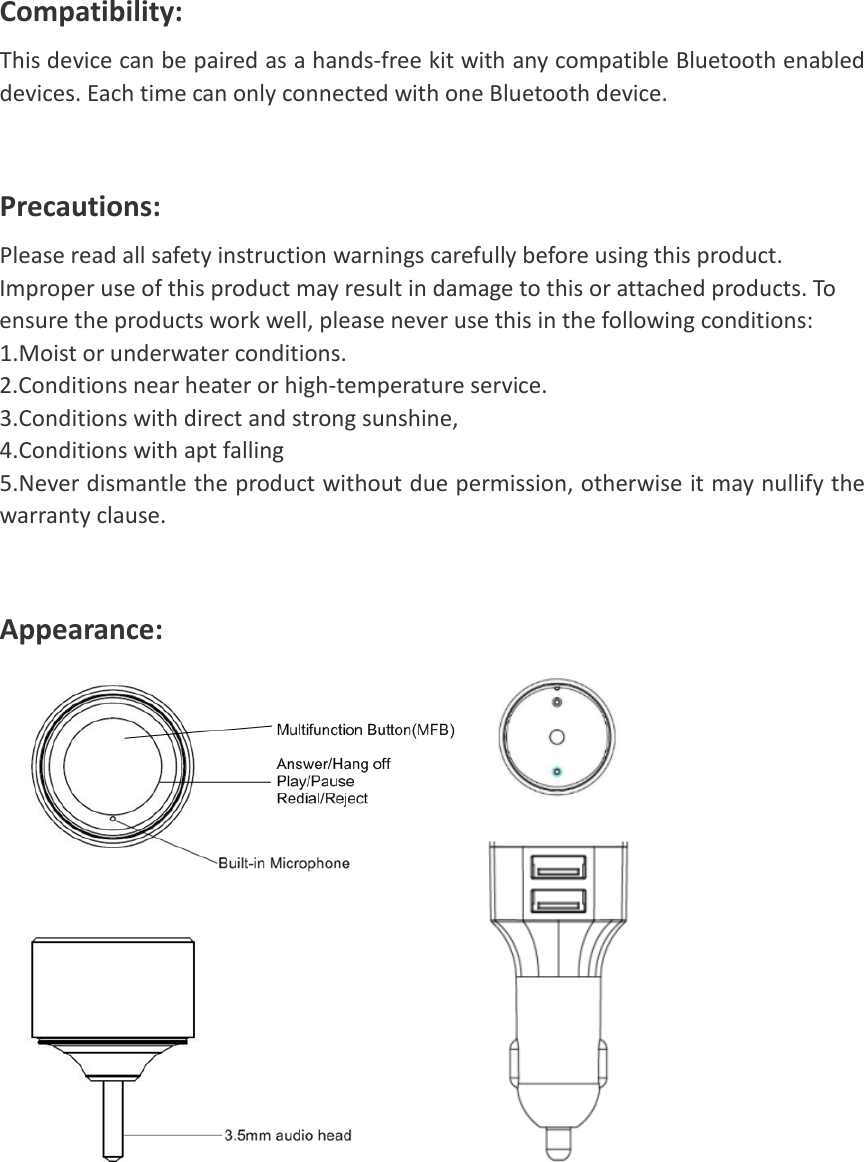

Compatibility: This device can be paired as a hands-free kit with any compatible Bluetooth enabled devices. Each time can only connected with one Bluetooth device. Precautions: Please read all safety instruction warnings carefully before using this product. Improper use of this product may result in damage to this or attached products. To ensure the products work well, please never use this in the following conditions: 1.Moist or underwater conditions. 2.Conditions near heater or high-temperature service. 3.Conditions with direct and strong sunshine, 4.Conditions with apt falling 5.Never dismantle the product without due permission, otherwise it may nullify the warranty clause. Appearance:

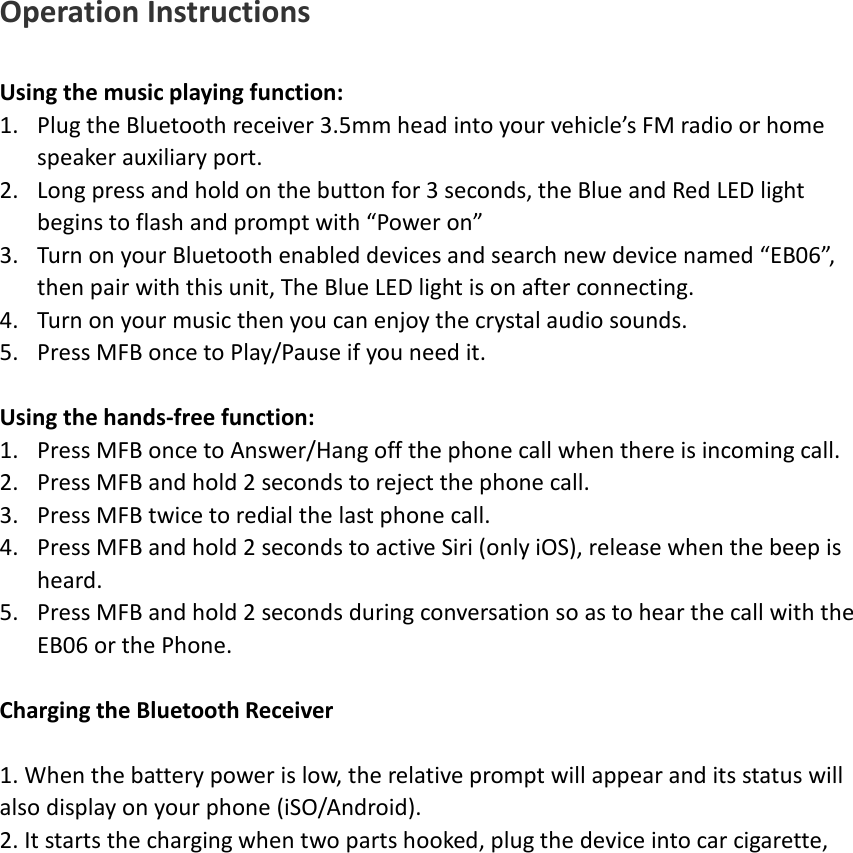

Operation Instructions Using the music playing function: 1. Plug the Bluetooth receiver 3.5mm head into your vehicle’s FM radio or home speaker auxiliary port. 2. Long press and hold on the button for 3 seconds, the Blue and Red LED light begins to flash and prompt with “Power on” 3. Turn on your Bluetooth enabled devices and search new device named “EB06”, then pair with this unit, The Blue LED light is on after connecting. 4. Turn on your music then you can enjoy the crystal audio sounds. 5. Press MFB once to Play/Pause if you need it. Using the hands-free function: 1. Press MFB once to Answer/Hang off the phone call when there is incoming call. 2. Press MFB and hold 2 seconds to reject the phone call. 3. Press MFB twice to redial the last phone call. 4. Press MFB and hold 2 seconds to active Siri (only iOS), release when the beep is heard. 5. Press MFB and hold 2 seconds during conversation so as to hear the call with the EB06 or the Phone. Charging the Bluetooth Receiver 1. When the battery power is low, the relative prompt will appear and its status will also display on your phone (iSO/Android). 2. It starts the charging when two parts hooked, plug the device into car cigarette,

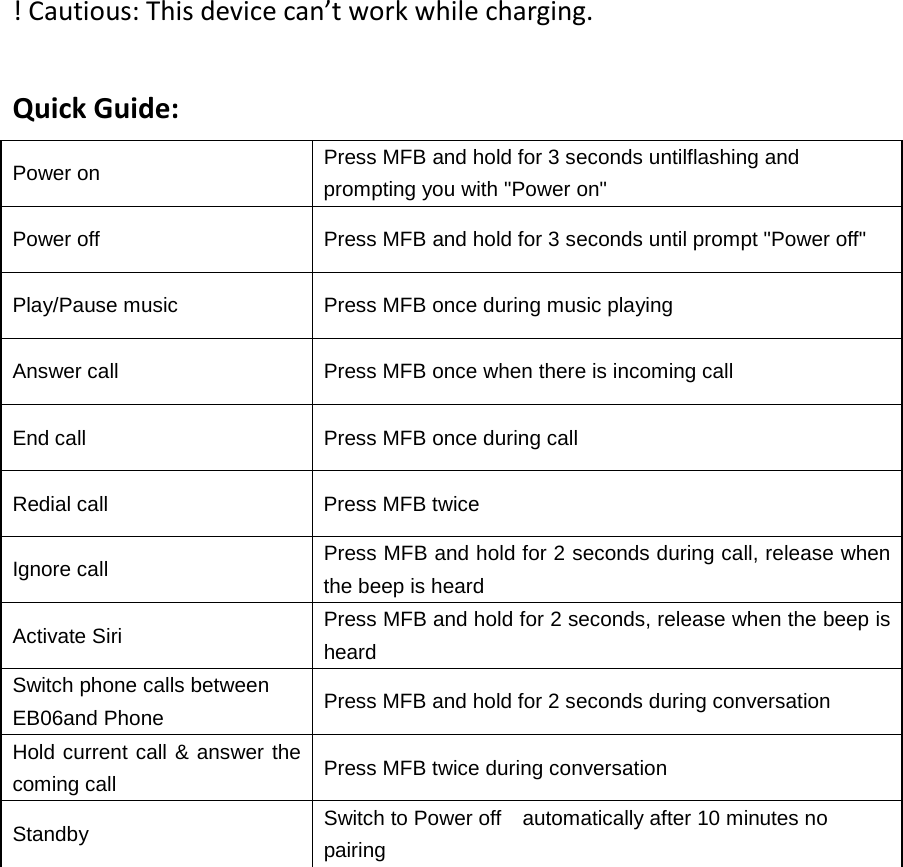

! Cautious: This device can’t work while charging. Quick Guide: Power on Press MFB and hold for 3 seconds untilflashing and prompting you with "Power on" Power off Press MFB and hold for 3 seconds until prompt "Power off" Play/Pause music Press MFB once during music playing Answer call Press MFB once when there is incoming call End call Press MFB once during call Redial call Press MFB twice Ignore call Press MFB and hold for 2 seconds during call, release when the beep is heard Activate Siri Press MFB and hold for 2 seconds, release when the beep is heard Switch phone calls between EB06and Phone Press MFB and hold for 2 seconds during conversation Hold current call & answer the coming call Press MFB twice during conversation Standby Switch to Power off automatically after 10 minutes no pairing
