Thrane and Thrane A S 6390 NAVTEX Receiver User Manual

Thrane & Thrane A/S NAVTEX Receiver

Contents

User manual

i
SAILOR 6390 Navtex Receiver
User manual
Document number: 98-137261-A
Release date: October 16, 2013
98-137261.book Page i Wednesday, October 16, 2013 12:20 PM
ii
Disclaimer
Any responsibility or liability for loss or damage in connection with the use of this
product and the accompanying documentation is disclaimed by Thrane & Thrane
A/S. The information in this manual is provided for information purposes only, is
subject to change without notice and may contain errors or inaccuracies. Manuals
issued by Thrane & Thrane A/S are periodically revised and updated. Anyone relying
on this information should acquire the most current version e.g. from
www.cobham.com/satcom or from the distributor. Thrane & Thrane A/S is not
responsible for the content or accuracy of any translations or reproductions, in whole
or in part, of this manual from any other source.
Thrane & Thrane A/S is trading as Cobham SATCOM.
Copyright
© 2013 Thrane & Thrane A/S. All rights reserved.
Trademark Acknowledgements
• SAILOR is a registered trademark of Thrane & Thrane A/S in the European Union
and the Unites States of America and other countries.
• Other product and company names mentioned in this manual may be trademarks
or trade names of their respective owners.
• This product contains Android™ software. Android is a trademark of Google Inc.
GPL notification
The software included in this product contains copyrighted software that is licensed
under the GPL/LGPL. The verbatim licenses can be found online at:
http://www.gnu.org/licenses/old-licenses/gpl-2.0.html
http://www.gnu.org/licenses/old-licenses/lgpl-2.1.html
You may obtain the complete corresponding source code from us for a period of
three years after our last shipment of this product, which will be no earlier than 2021,
by sending a money order or check for DKK 50 to:
SW Technology/GPL Compliance,
Thrane & Thrane A/S,
Lundtoftegaardsvej 93D
2800 Lyngby
DENMARK
Please write "source for product SAILOR 6390 Navtex Receiver" in the memo line of
your payment. This offer is valid to anyone in receipt of this information.
98-137261.book Page ii Wednesday, October 16, 2013 12:20 PM
iii
Safety summary
Observe the following general safety precautions during all phases of
operation, service and repair of this equipment. Failure to comply with
these precautions or with specific warnings elsewhere in this manual
violates safety standards of design, manufacture and intended use of the
equipment. Thrane & Thrane A/S assumes no liability for the customer's
failure to comply with these requirements.
Ground the equipment
To minimise shock hazard, connect the SAILOR 6390 Navtex Receiver to
an electrical ground and follow the cable instructions.
Warranty limitation
The SAILOR 6390 Navtex Receiver is not a user maintainable unit, and
under no circumstances should the unit be opened beyond the outer
plastic cover, except by authorized personnel. Unauthorized opening of
the unit will invalidate the warranty.
Installation and service
Installation and general service must be done by skilled service personnel.
The SAILOR 6390 Navtex Receiver is intended for use in a protected
environment (-15° to +55°C) according to IEC-60945.
Compass safe distance
Compass safe distance: 20 cm (Standard magnetic compass), 20 cm
(Emergency magnetic compass) from the SAILOR 6390 Navtex Receiver.
98-137261.book Page iii Wednesday, October 16, 2013 12:20 PM
iv
Preface
Approvals and standard compliance
SAILOR 6390 Navtex Receiver is approved to MED 2012/32/EU
and fulfills the requirements in the following standards:
IEC-60945 (2002), IEC-60945 Corrigendum 1 (2008), IEC-
61097-6 (2005-12), IEC-61162-1 (2010-11) (aligned with
NMEA 0183 version 4.00), ITU-T X.27/V.11 (1996)
The SAILOR 6390 Navtex Receiver is approved to SOLAS
Regulations IV/7, IV/14: ITU-R M.540-2 (06/90) and ITU-R
M.625-3 (10/95).
The SAILOR 6390 Navtex Receiver is approved to FCC
Equipment class: RNV, Part 80 NAVTEX Receiver 80.1101(c)(1).
The approvals of the SAILOR 6390 Navtex Receiver are
constantly monitored. New national approvals will be applied for
and granted and new test standards may come into force.
Therefore the above list may not be complete. Contact your
authorized dealer for more information.
About the manual
Intended readers
This manual is a user manual for the SAILOR 6390 Navtex
Receiver system. This manual is intended for anyone who is
using or intends to use this system. No specific skills are required
to operate the SAILOR 6390 Navtex Receiver. However, it is
important that you observe all safety requirements listed in the
beginning of this manual, and operate the system according to
the guidelines in this manual.
Note that this manual does not cover installation of the system.
For information on installation refer to the installation manual.
Part numbers for related manuals are listed in the next section.
98-137261.book Page iv Wednesday, October 16, 2013 12:20 PM
v
Related documents
The following table shows the documents related to this manual
and to the SAILOR 6390 Navtex Receiver.
Typography
In this manual, typography is used as indicated below:
Bold is used for the following purposes:
• To emphasize words.
Example: “Do not touch the antenna”.
• To indicate what the user should select in the user interface.
Example: “Select Settings”.
Italic is used to emphasize the paragraph title in cross-
references.
Example: “For further information, see Connecting Cables
on page...”.
Title and description Document number
SAILOR 6390 Navtex Receiver,
Installation manual
98-139768
SAILOR 6004 Control Panel,
Installation manual
98-136644
SAILOR 6390 Navtex Receiver,
Installation guide
98-137263
98-137261.book Page v Wednesday, October 16, 2013 12:20 PM
vi
98-137261.book Page vi Wednesday, October 16, 2013 12:20 PM
vii
Table of contents
Chapter 1 Introduction
SAILOR 6390 Navtex Receiver .......................................................1
Navtex message (example) ..............................................................3
Use scenarios ..........................................................................................4
Chapter 2 Operation
Operation – SAILOR 6004 Control Panel ..................................5
Operation with INS equipment ...................................................12
Chapter 3 Service & maintenance
Maintenance ........................................................................................13
Alarms and notifications ................................................................15
Reinstalling or updating the Navtex app ................................17
Troubleshooting guide ....................................................................22
Service and repair ..............................................................................24
App. A Specifications
SAILOR 6390 Navtex Receiver ....................................................27
Glossary .....................................................................................................................29
Index .....................................................................................................................31
98-137261.book Page vii Wednesday, October 16, 2013 12:20 PM
Table of contents
viii
98-137261.book Page viii Wednesday, October 16, 2013 12:20 PM
1
Chapter 1
11111
Introduction
Introduction 1
SAILOR 6390 Navtex Receiver
The SAILOR 6390 Navtex Receiver receives Navtex messages on the
international Navtex frequencies 490 kHz, 518 kHz and 4,209.5 kHz. It can
hold 2000 messages per frequency. Messages are not affected by a power
cycle. If not tagged to avoid deletion, messages are cleared from the
message log after 661 hours. You can customise which stations to receive
messages from and which message types you want to receive. The unit has
an alarm relay which is only activated if a message of category D is received
(i.e. SAR, Mayday relay, Pirate attack etc.). The SAILOR 6390 Navtex
Receiver is always on when powered. With its LAN interface the
transponder and the display can be separated, giving access to the Navtex
information available where it is needed.
The SAILOR 6390 Navtex Receiver is delivered as a black box receiver
which can either be connected to the SAILOR 6004 Control Panel, a 7"
touch screen, or used as a standalone unit for integration with an INS,
supporting NMEA0183. A printer can be connected to the receiver.
The SAILOR 6390 Navtex Receiver is approved according to GMDSS (EU
Marine Equipment Directive).
1. Default value.
98-137261.book Page 1 Wednesday, October 16, 2013 12:20 PM
Chapter 1: Introduction
2 SAILOR 6390 Navtex Receiver
Features
2000 messages per frequency, giving a total of 6000 messages

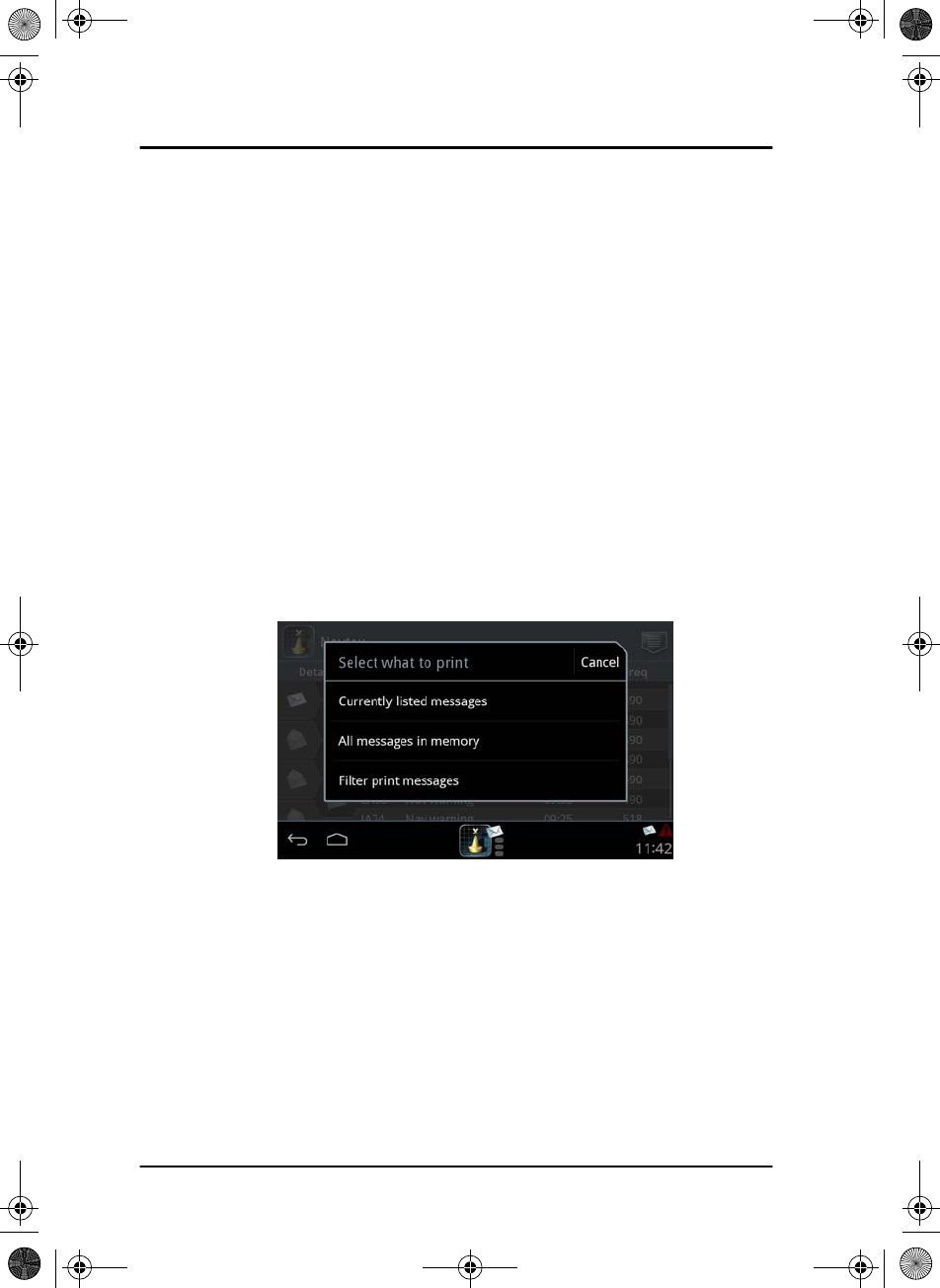

Printing via SAILOR 6004 Control Panel and 3rd party line printer over
LAN
Integrated Navtex app for SAILOR 6004 Control Panel
Low and high impedance antenna switch
Dual LAN connector
TMA (ThraneLINK Management Application) for software upgrade
Prepared for 500 kHz NAVDAT (Software updatable)

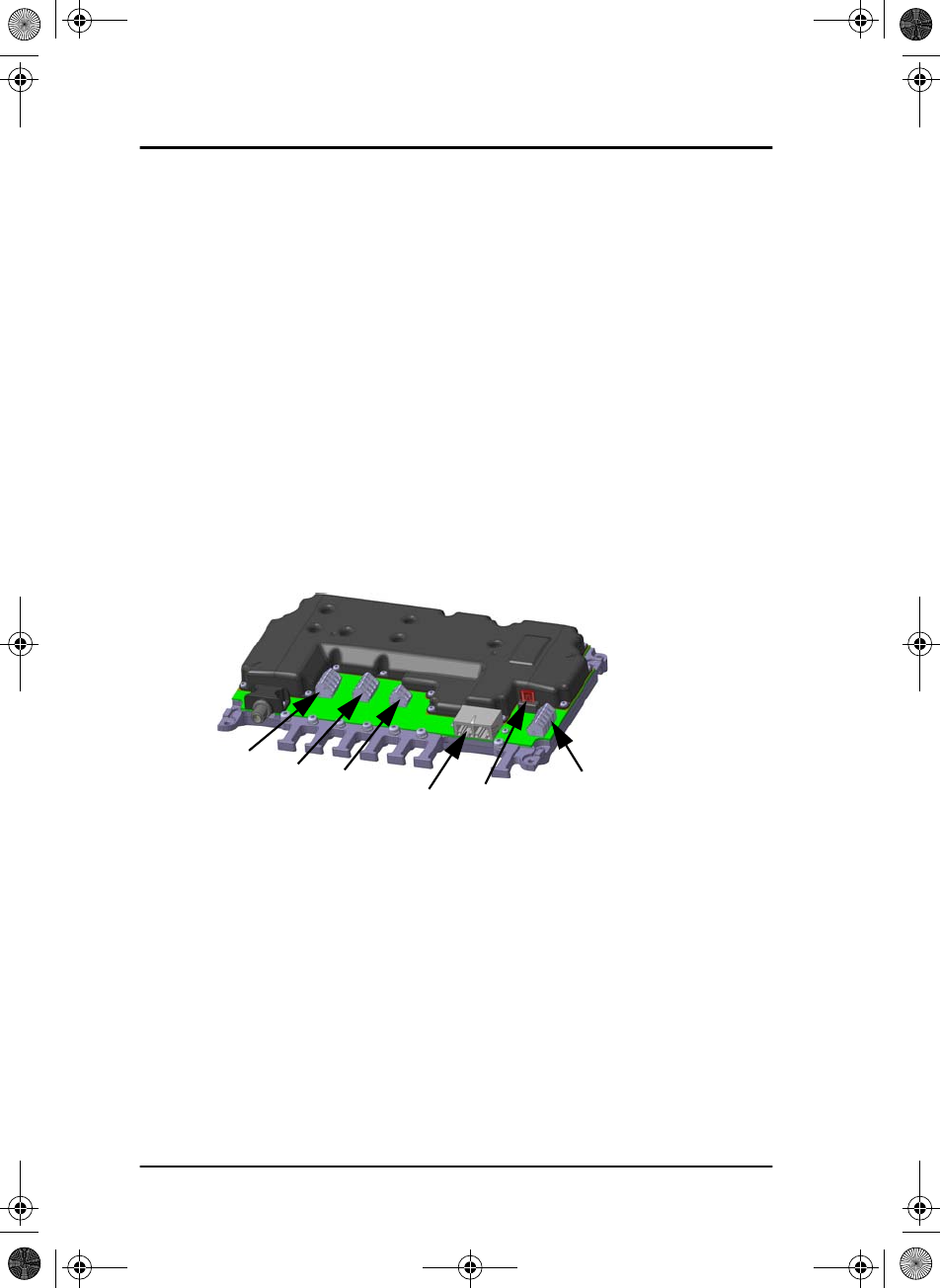

Connector overview
12-24 VDC
NMEA/
INS
Alarm
relay NMEA/
GPS LAN Fuse
98-137261.book Page 2 Wednesday, October 16, 2013 12:20 PM
Chapter 1: Introduction
Navtex message (example) 3
11111
Introduction
Navtex message (example)
The following message shows an example of a Navtex message.
ZCZC XZ28
REYKJAVIK VIA GRINDAVIK
120350 UTC SEPT 2013
NO MESSAGE ON HAND
NNNN
Message item Explanation
ZCZC Start of message (not displayed)
X Coast Station ID in the Navigational Area
Z Message type (See The following list shows the
Navtex message types available. on page 10 for a list
of all message types.)
28 Serial number of message 01-99: (normal), 00: Priority
Message text REYKJAVIK VIA GRINDAVIK
120350 UTC SEPT 2013
NO MESSAGE ON HAND
NNNN End of message (not displayed)
Table 1: Navtex message, example
98-137261.book Page 3 Wednesday, October 16, 2013 12:20 PM
Chapter 1: Introduction
4 Use scenarios
Use scenarios
The SAILOR 6390 Navtex Receiver can be used in the following contexts:
•Use with the SAILOR 6004 Control panel
•Use as a stand-alone unit with an INS
An optional printer can be connected in both use scenarios.

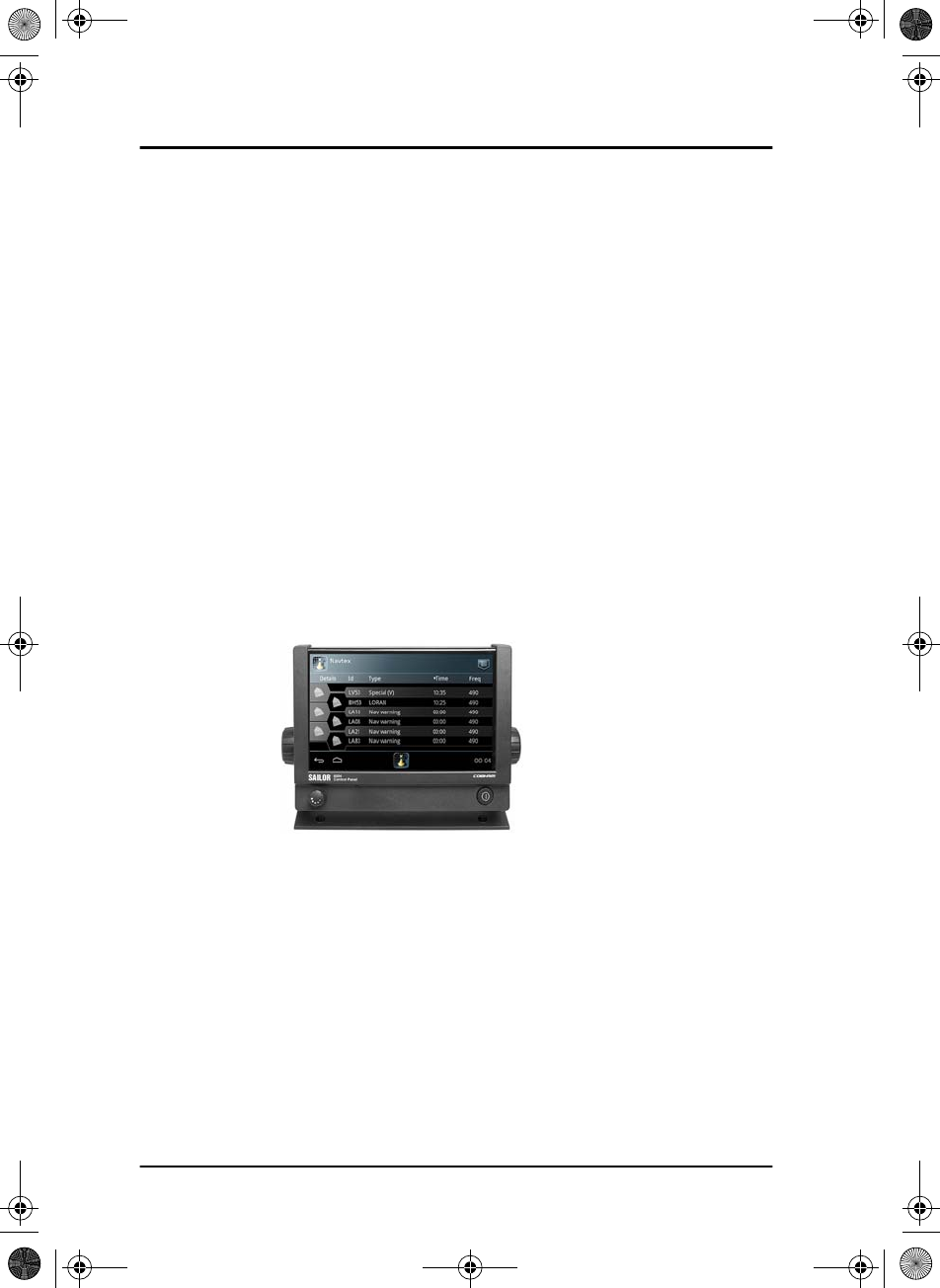

Use with the SAILOR 6004 Control panel
The SAILOR 6004 Control panel is the user interface for the SAILOR 6390
Navtex Receiver. The user interface is in English. All settings that are
relevant for the user are accessed through the touch panel. Alarms and
notifications are shown in the display and via NMEA. The SAILOR 6004
Control panel has a buzzer for alarm tones and the display supports night
mode. The SAILOR 6390 Navtex Receiver has a Navtex application which is
loaded into the SAILOR 6004 Control Panel during installation.
Use as a stand-alone unit with an INS
The SAILOR 6390 Navtex Receiver also works as a stand-alone unit,
integrated in the vessel’s INS. It supports the Navtex specific NMEA
sentences according to the standard IEC 61097–6 and IEC 61162-1. For
further details see the documentation of the INS.
98-137261.book Page 4 Wednesday, October 16, 2013 12:20 PM
5
Chapter 2
22222
Operation
Operation 2
This chapter has the following sections:
•Operation – SAILOR 6004 Control Panel
•Operation with INS equipment

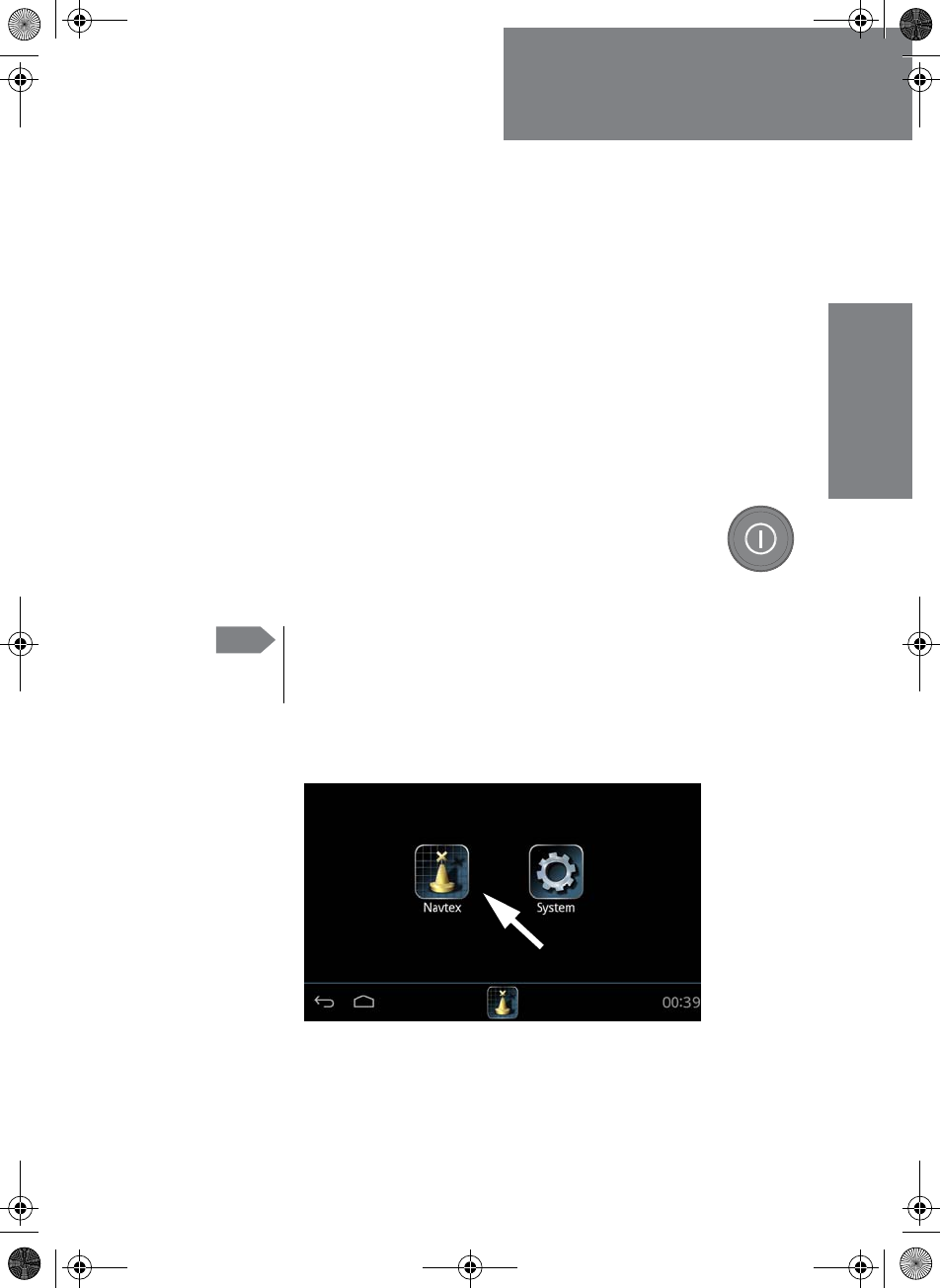

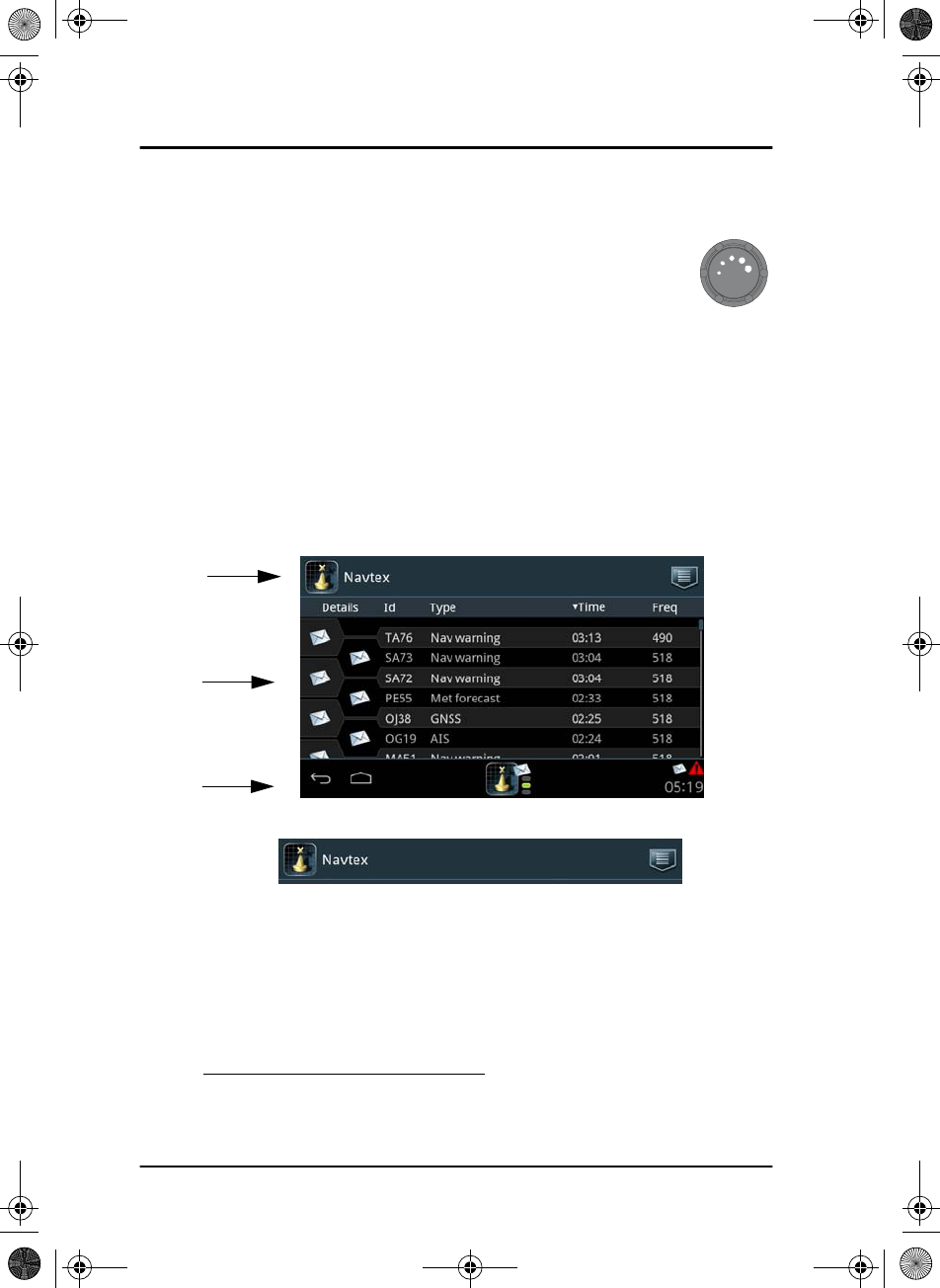

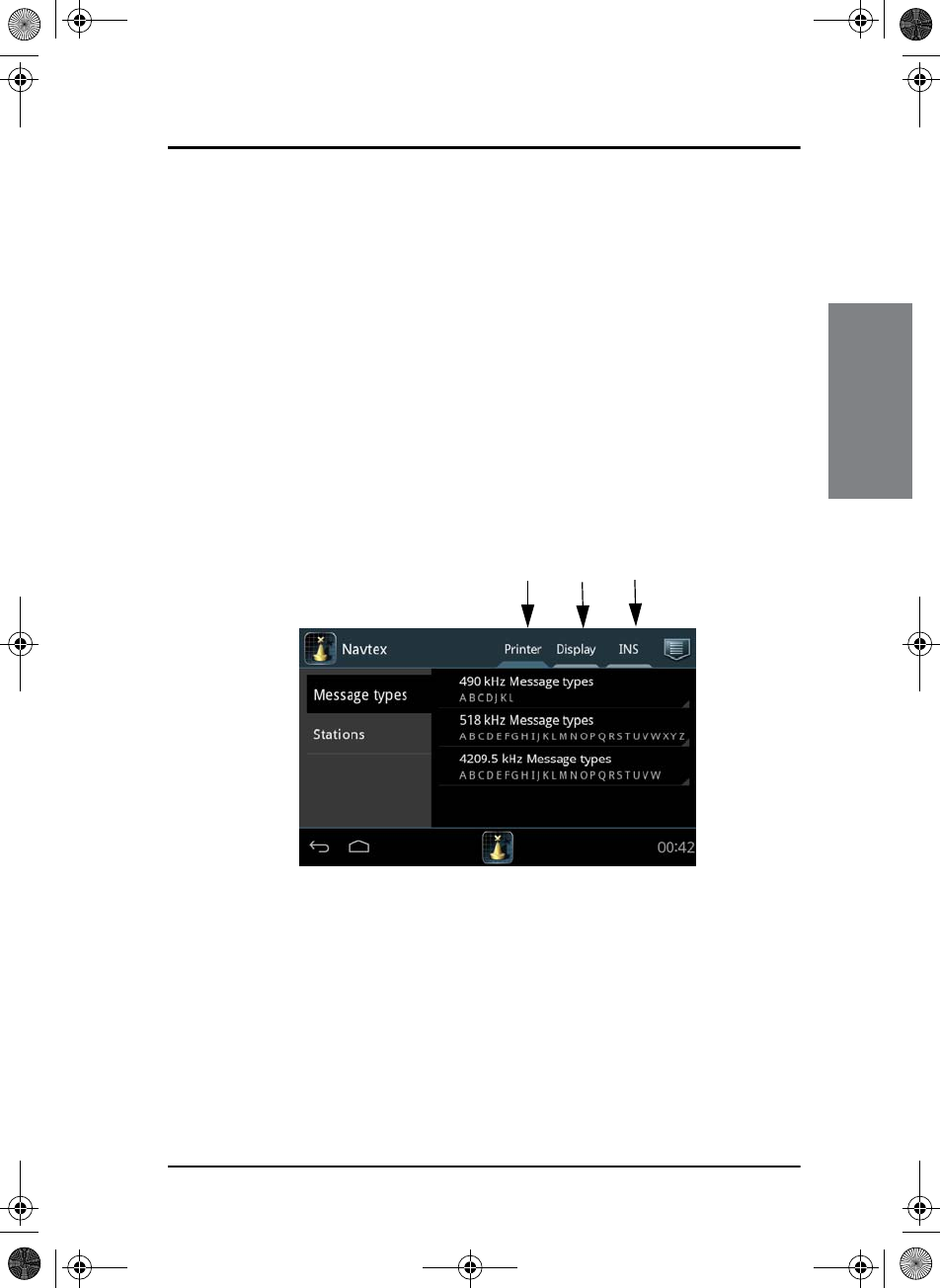

Operation – SAILOR 6004 Control Panel
As soon as DC power is provided the SAILOR 6390 Navtex Receiver is on.
To switch on the SAILOR 6004 Control Panel push the power
button. Operate the SAILOR 6004 Control Panel by tapping the
touch screen. To switch off the SAILOR 6004 Control Panel
push and hold the power button for 2 seconds and follow the
instructions on the screen.
To start the Navtex application tap the Navtex icon in the display of the
SAILOR 6004 Control Panel.

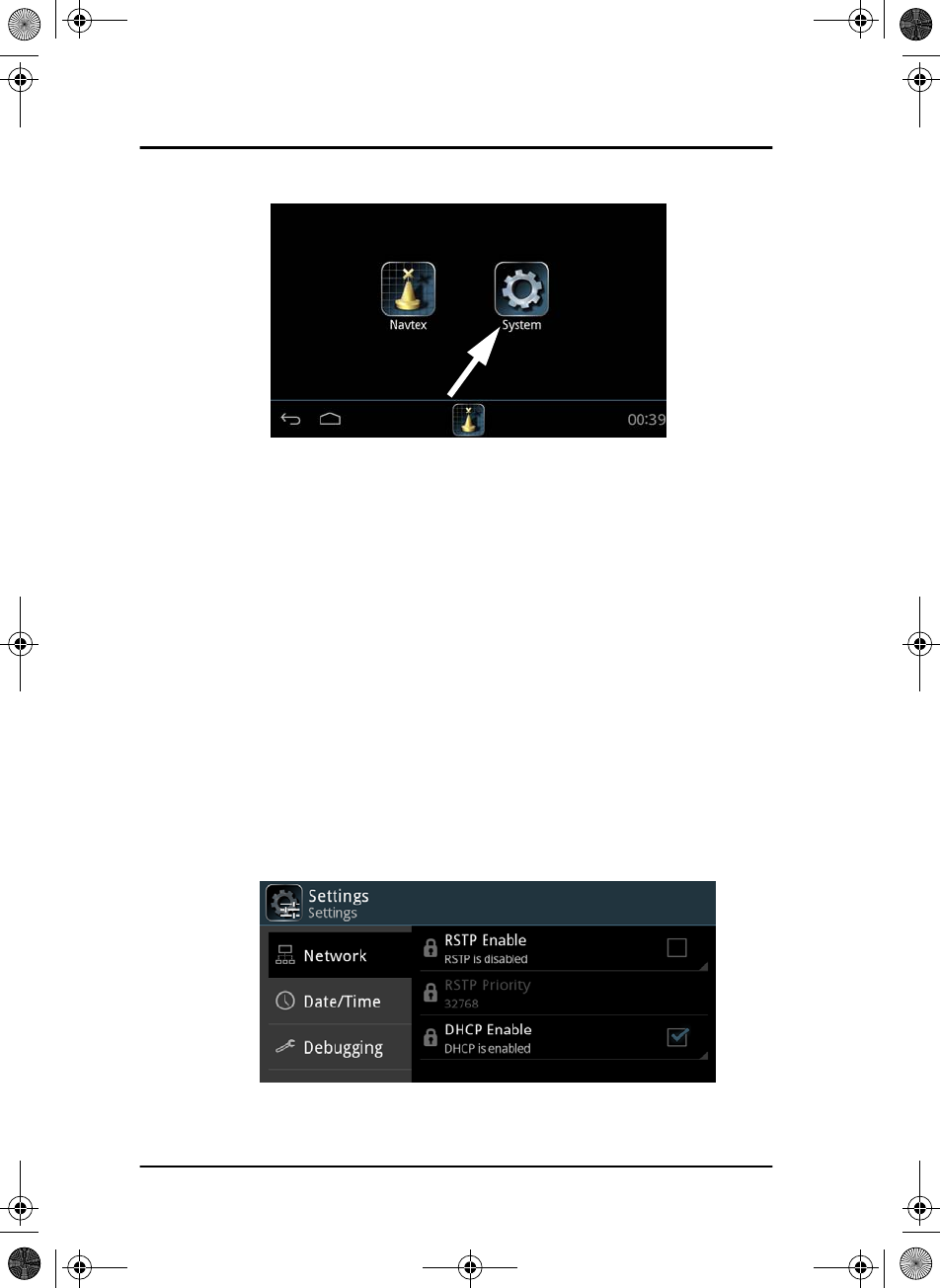

The icon System holds the application manager and settings for the
SAILOR 6004 Control panel, for more details see Reinstalling or updating
the Navtex app on page 17.
Note When the remote switch in the SAILOR 6004 Control Panel is
wired and it is switched on, you can only use the Power button to
reboot the SAILOR 6004 Control Panel, you cannot switch it off.
98-137261.book Page 5 Wednesday, October 16, 2013 12:20 PM
Chapter 2: Operation
6 Operation – SAILOR 6004 Control Panel
Dim and night mode
Turn the dim knob of the SAILOR 6004 Control Panel to
increase or decrease the display brightness. The display goes
into night mode either when turning the dim knob
counterclockwise or when the internal light sensor detects the
light level for changing to night mode1.
To dim to level zero push the power button once. If an alarm appears while
the display is in level zero, the display returns to the latest dim value and the
alarm is displayed.
Navtex screen

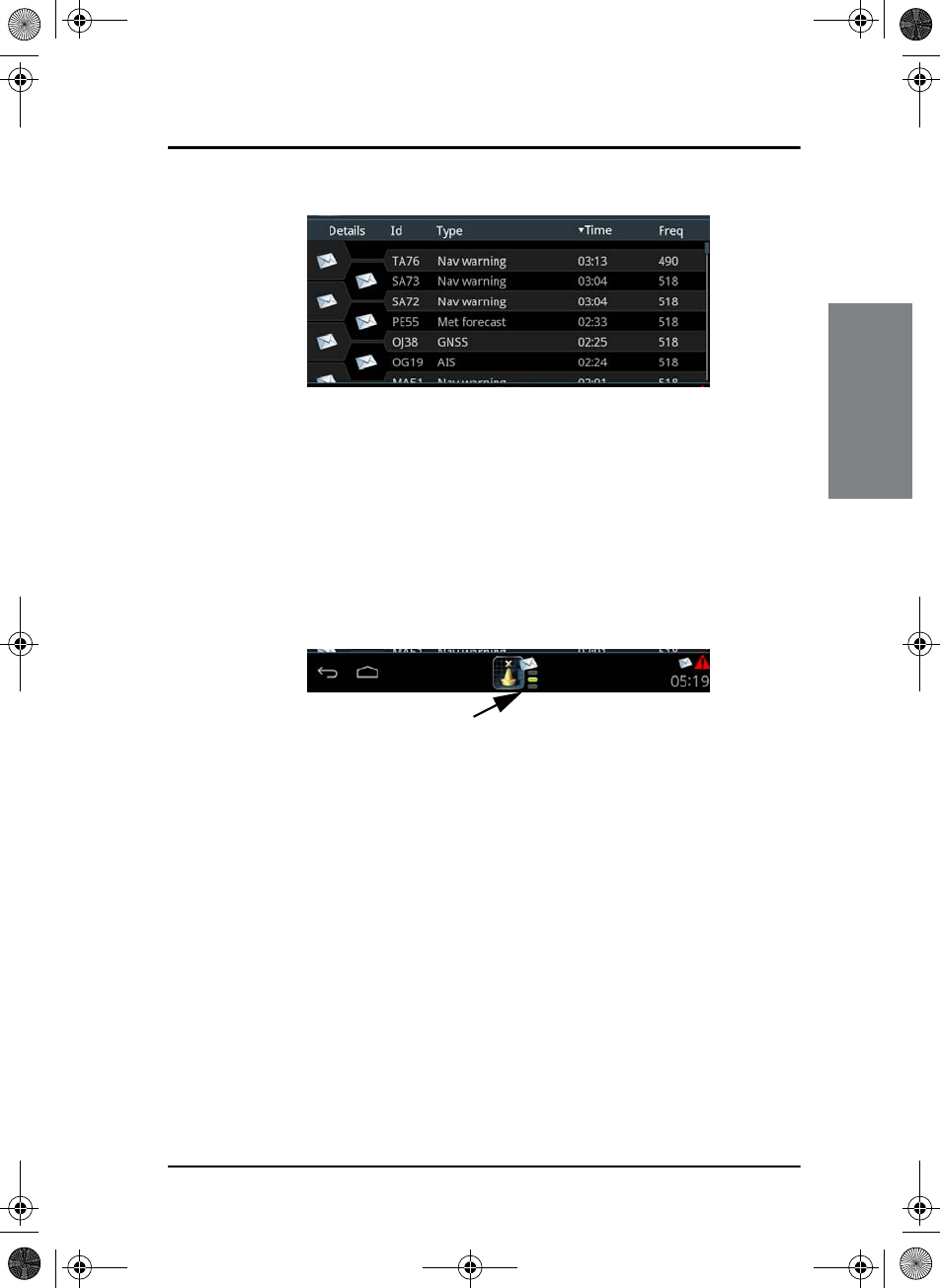

The Navtex app has the following idle screen:
1. Top bar
• Current app, in this case Navtex, showing the name of the
SAILOR 6390 Navtex Receiver
• Icon for accessing the filters, settings and print options.
1. If dimming is set to AUTO.
1
2
3
98-137261.book Page 6 Wednesday, October 16, 2013 12:20 PM
Chapter 2: Operation
Operation – SAILOR 6004 Control Panel 7
22222
Operation
2. Navtex app-specific area
Short message listing, each row represents a Navtex message. Tap a
message to display the full message.
• Open envelope: The message has been read or is older than 24
hours.
• Closed envelope: The message has not been read and is newer than
24 hours.
Only messages filtered for Display are shown in this list. For more
information on filtering message types and stations see Filtering
message types and stations on page 9.
3. Bottom bar
• Icon for back function and collapsing the on-screen keyboard.
• Icon for going to the start screen.
• Icon for app that is operated from this SAILOR 6004 Control Panel,
including status information.
• Icons for new messages (closed envelope). After 24 hours messages
are automatically set to not new (open envelope). Unread SAR
messages are marked with a red exclamation mark.
• 3 indicators, from the top: 4209.5 kHz (local), 518 kHz (international,
mandatory), 490 kHz (local). Green while receiving a message.
• Icon for alarms from any unit controlled by this SAILOR 6004
Control Panel:
– Flashing bright red triangle: Unacknowledged alarm(s).
– Faded red triangle: Acknowledged alarm(s).
• UTC time, received from the Navtex receiver via GPS input.
Receiving at 518 kHz
98-137261.book Page 7 Wednesday, October 16, 2013 12:20 PM
Chapter 2: Operation
8 Operation – SAILOR 6004 Control Panel

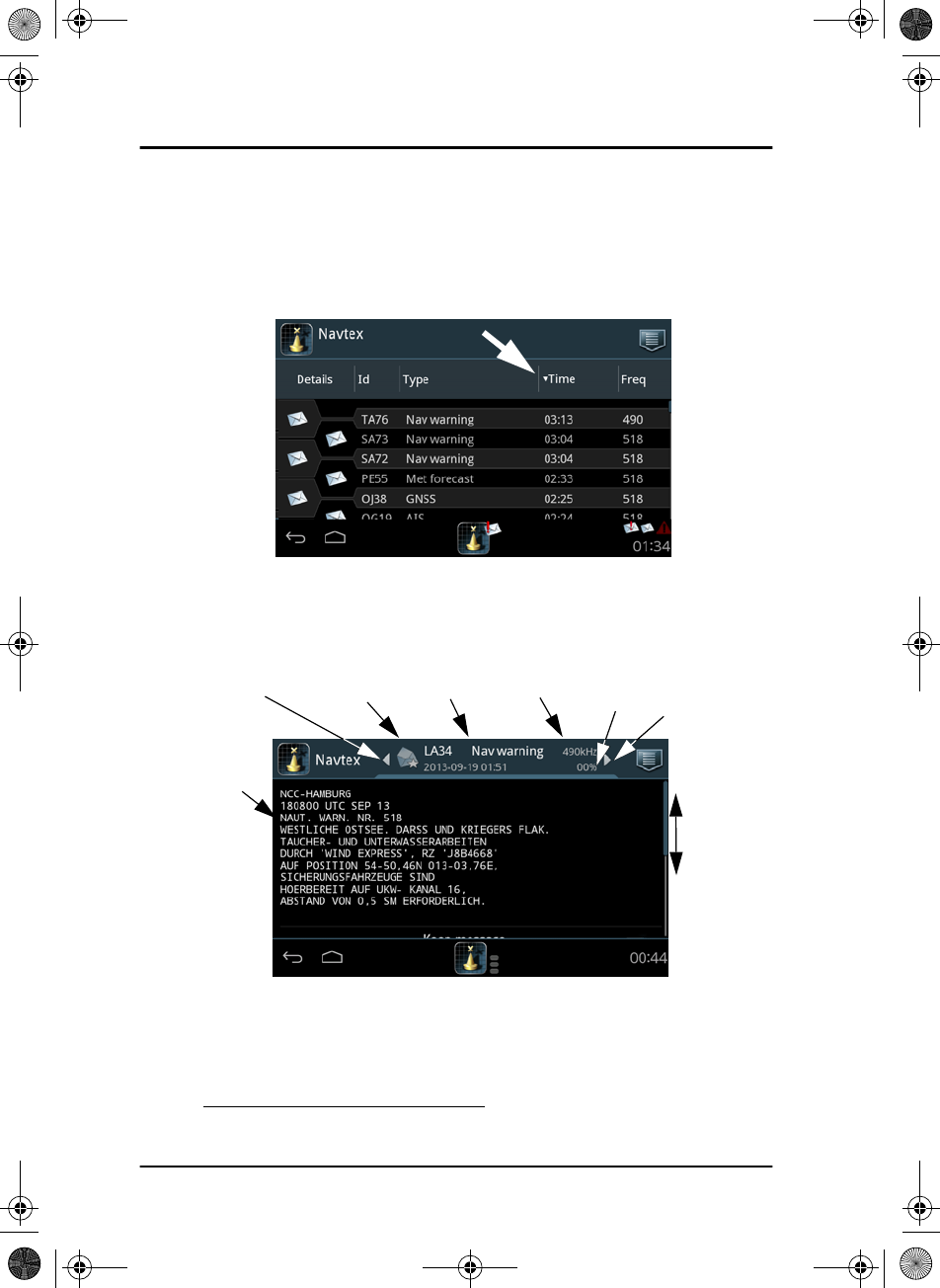

Sorting the list of Navtex messages
To sort the list of Navtex messages tap the heading of the column. Tap it
again to toggle the sorting order, ascending or descending. The default
sorting is for Time, newest on top.
Navtex message in detail
To view details of a navtex message tap the message.
Swipe down, if needed, to select Keep message. Then the envelope icon
for this message is marked with a star and the message is not automatically
deleted after 66 hours1.
To print a message, tap the menu icon and Print.
1. Default value.
Content
of the
message
Sh
ort
form
Swipe up
or down
for more
info
Frequency
Previous Next
Error
rate
Keep
(star)
98-137261.book Page 8 Wednesday, October 16, 2013 12:20 PM
Chapter 2: Operation
Operation – SAILOR 6004 Control Panel 9
22222
Operation
SAR messages
When a SAR message (message type D, see page 9) is received, the
SAILOR 6390 Navtex Receiver emits an audible signal and the message is
displayed in the SAILOR 6004 Control Panel’s display.
Tap the message to acknowledge it.
Filtering message types and stations
You can customise the SAILOR 6390 Navtex Receiver to receive Navtex
messages of certain types and from selected coast stations. You can filter
separately for printer output, SAILOR 6004 Control Panel (Display) and INS
installations. You can set up a filter for each of the 3 receiver frequencies.
The filters are not affected by a power cycle. Filter settings can be copied
from one tab to the others, e.g. from Display to Printer or INS.
Filtering message types
To filter message types for a frequency do as follows:
1. Tap the menu icon and then Filters.
2. Tap Printer, Display or INS to select for which output you want to set
up a filter.
3. Tap the frequency you want to set up a filter for, e.g. 490 kHz
Message types.
Three tabs for filtering
98-137261.book Page 9 Wednesday, October 16, 2013 12:20 PM
Chapter 2: Operation
10 Operation – SAILOR 6004 Control Panel
4. Swipe the field Select message types and select the message types
you want to receive on this frequency. A, B, D and L are mandatory.
5. Tap Apply. The selected message types are displayed directly below the
frequency.
The following list shows the Navtex message types available.
• A – Navigational warnings
• B – Meteorological warnings
• C – Ice reports
• D – Search and rescue information (SAR), acts of piracy
warnings, tsunamis and other natural phenomena
• E – Meteorological forecasts
• F – Pilot and VTS service messages
• G – AIS service messages (non navigational aid)
• H – LORAN messages (LOngRAngeNavigation)
• I – Reserved
• J – GNSS messages
• K – Other electronic navigational aid system messages
• L – Other Navigational warnings
• M,N,O,P,Q,R,S,T,U – Reserved
• V,W,X,Y – Special
• Z – No Message
Copying filter settings
To copy filter settings from one filter to another do as follows:
1. While in the Filter mode tap the menu icon.
2. Tap Copy to...
3. Tap the filter you want to copy to, e.g. from Printer to Display or INS.
4. Tap Close.
Note Message types A, B, D and L cannot be filtered out.
98-137261.book Page 10 Wednesday, October 16, 2013 12:20 PM
Chapter 2: Operation
Operation – SAILOR 6004 Control Panel 11
22222
Operation

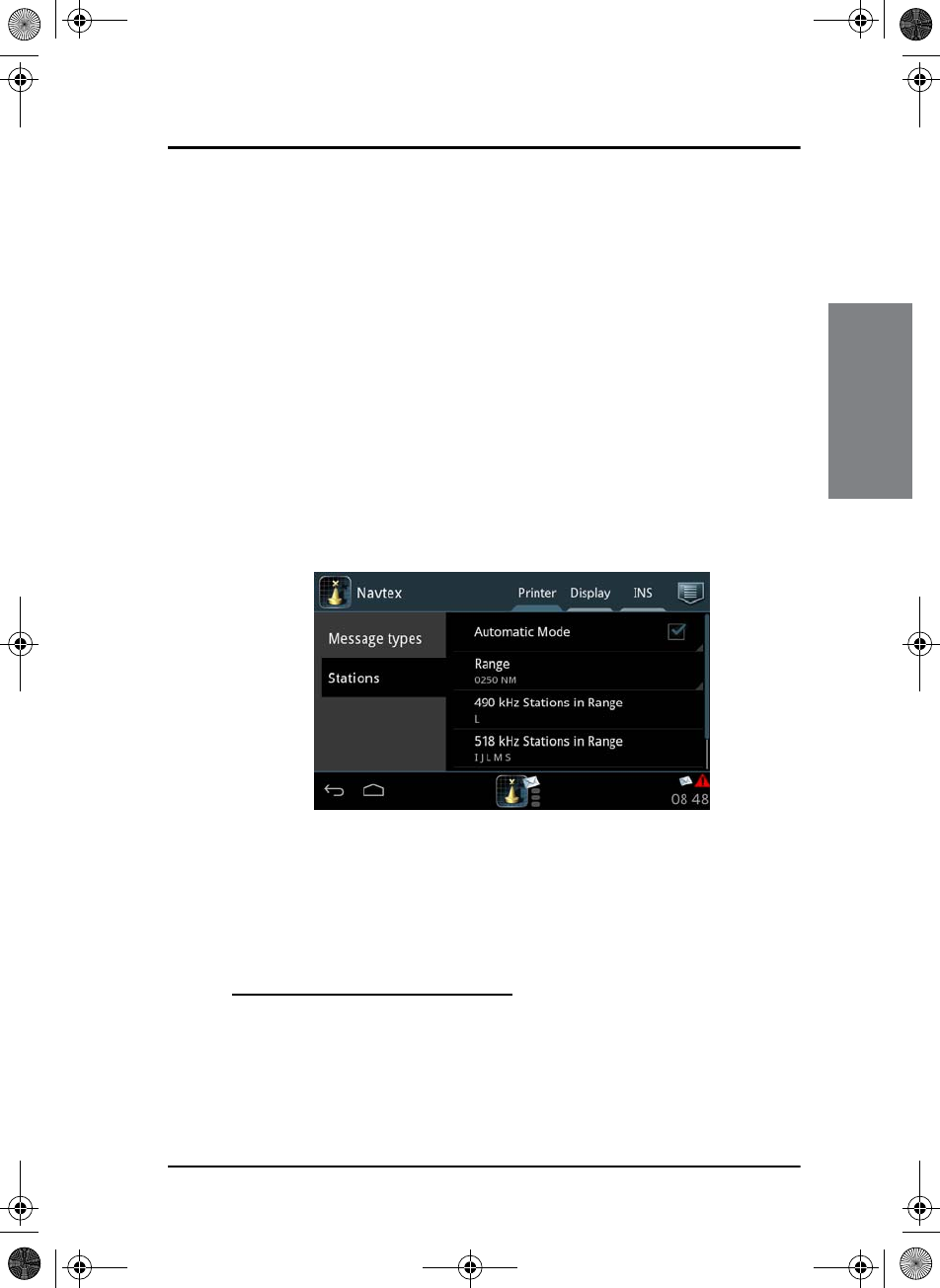

Filtering stations
The SAILOR 6390 Navtex Receiver can automatically filter messages from
coast stations within a certain range of NM of own position (default). You
can also filter coast stations manually.
For a list of stations see the Admiralty List of Radio Signals and ITU List of
Coast stations and Special Service Stations (List IV) (http://www.itu.int).
To set up filters for stations do as follows:
1. Tap the menu icon and then Filters.
2. Tap Printer, Display or INS to select for which output you want to set
up a filter.
3. For automatic filtering select Automatic Mode.
Tap Range, select the wanted radius in Nautical Miles and tap Apply.
The coast stations within this range are displayed.1
4. For manual selection, deselect Automatic Mode and tap the
frequency you want to set up a filter for, e.g. 490 kHz Stations.
Swipe the field Select stations, select the stations you want to receive
on this frequency and tap Apply. The selected stations are displayed
directly below the frequency.
1. For Automatic Mode the SAILOR 6390 Navtex Receiver must have a valid
GPS input. Without a valid GPS input you can only filter manually.
98-137261.book Page 11 Wednesday, October 16, 2013 12:20 PM
Chapter 2: Operation
12 Operation with INS equipment
Printer attached to the SAILOR 6004 Control Panel
A printer can be connected to one of the USB connectors of the SAILOR
6004 Control Panel. Every time a Navtex message is received and applies to
the filtering set up for Printer, the message is output on the printer.
The SAILOR 6390 Navtex Receiver applies header and footer information
to the printout, stating frequency, date and time of reception and serial
number of the SAILOR 6390 Navtex Receiver.
If the printed message line is longer than allowed on the printer, the printer
inserts the sign to indicate a forced line division and breaks the line.
Selecting print lists
To print a selected list do as follows:
1. From the list of messages, tap the menu icon and Print.
2. Tap the list you want to print.
Operation with INS equipment
Messages filtered out using the INS filter settings are sent to the INS
equipment via NMEA. See the user documentation for the INS for further
information how Navtex messages are displayed and printed.
98-137261.book Page 12 Wednesday, October 16, 2013 12:20 PM
13
Chapter 3
33333
Service & maintenance
Service & maintenance 3
This chapter has the following sections:
•Maintenance
•Alarms and notifications
•Reinstalling or updating the Navtex app
•Troubleshooting guide
•Service and repair

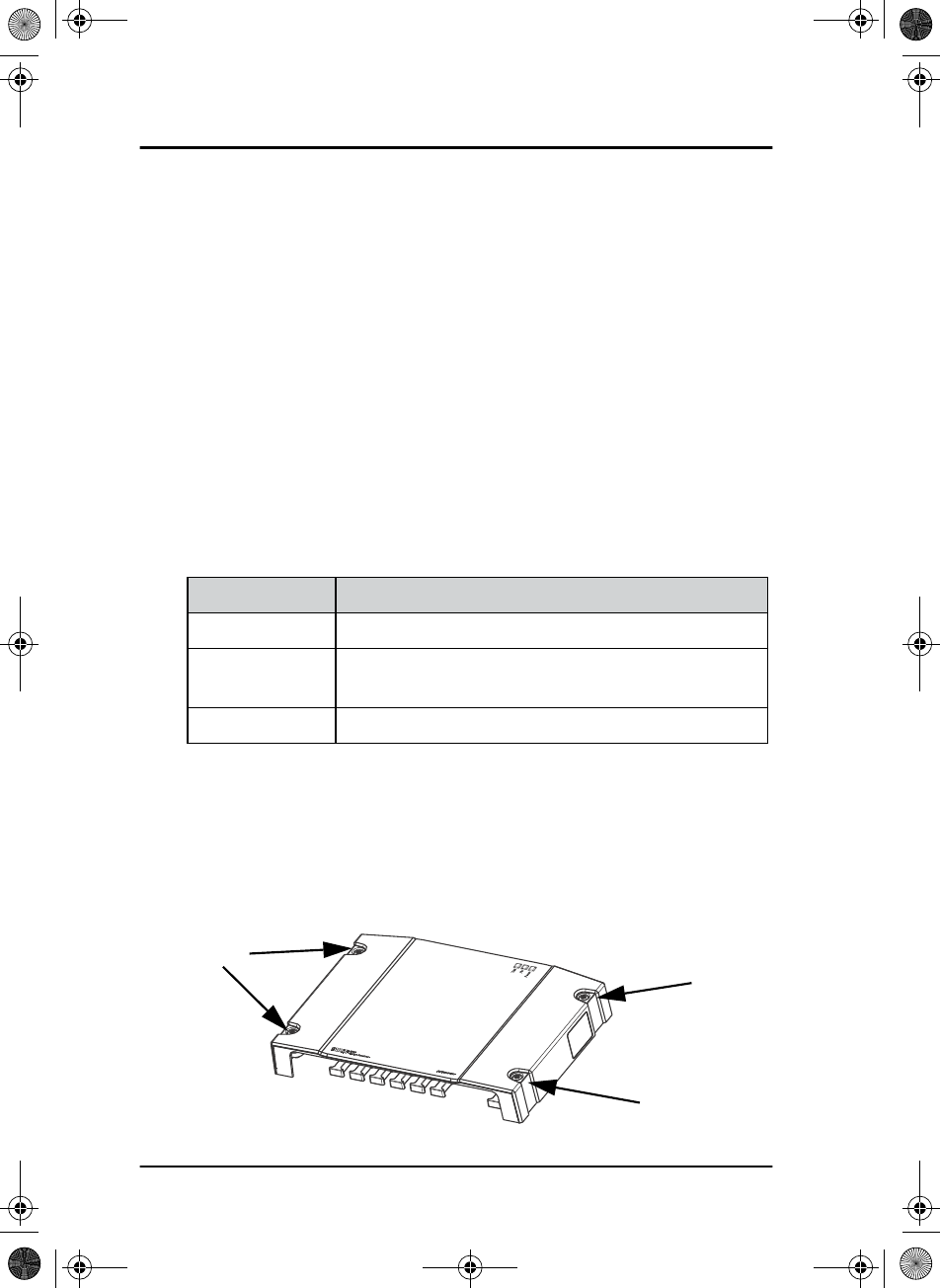

Maintenance
Maintenance of the SAILOR 6390 Navtex Receiver can be reduced to a
maintenance check at each visit of the service staff. Inspect the unit for
mechanical damages, salt deposits, corrosion and any foreign material. Due
to its robust construction and ruggedness the unit has a long lifetime.
Anyway it must carefully be checked at intervals not longer than 12 months
– dependent on the current working conditions.
Contact for support
Contact an authorized dealer for technical service and support of the
SAILOR 6390 Navtex Receiver. Before contacting the authorized dealer you
can go through the troubleshooting guide to solve some of the most
common operational problems.
98-137261.book Page 13 Wednesday, October 16, 2013 12:20 PM
Chapter 3: Service & maintenance
14 Maintenance

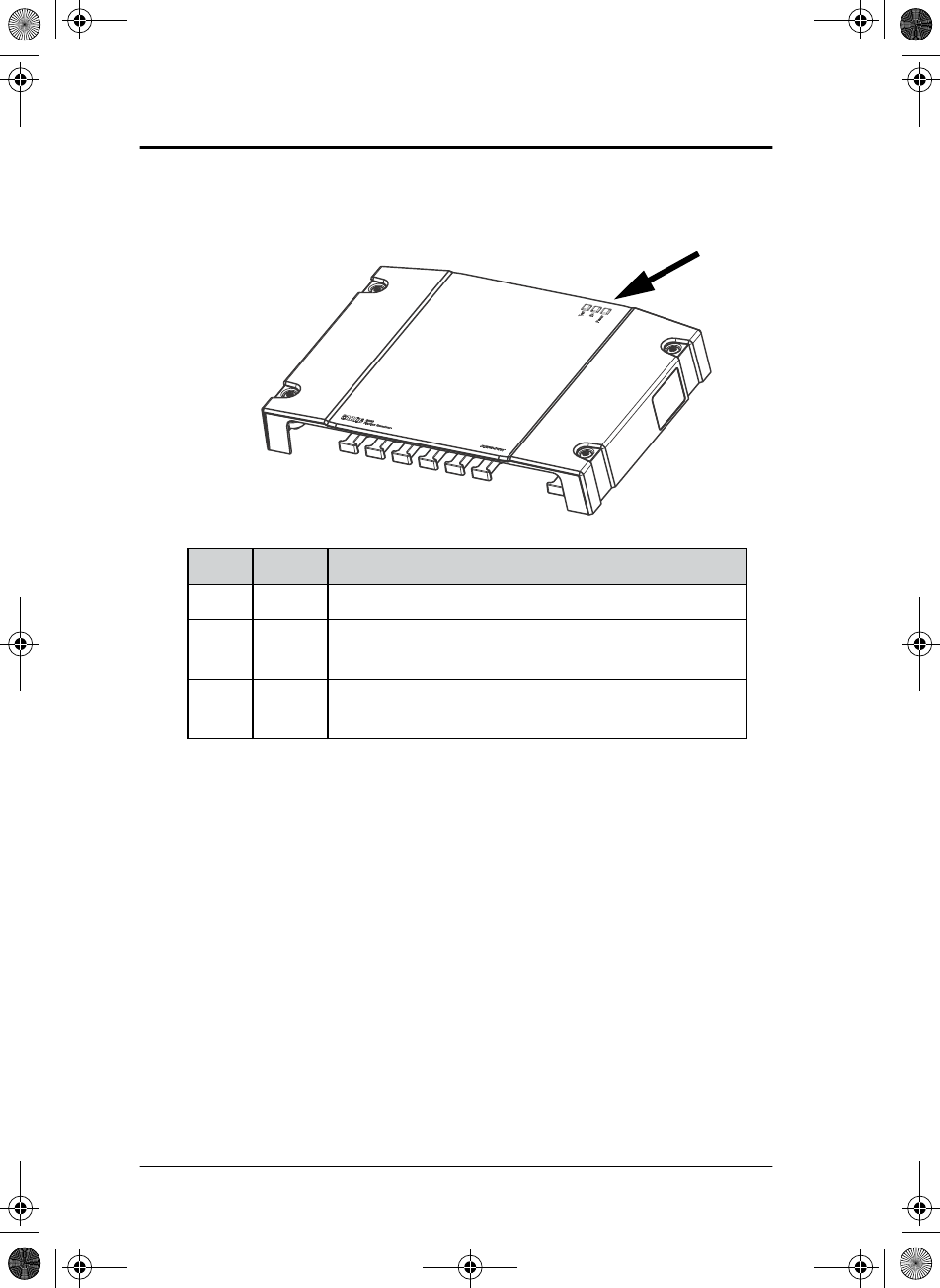

System LEDs
LED Colour Description
Power Green Lit when the device is on.
Rx Green Flashing when receiving Navtex data on any active
frequency.
Test Green Lit when the power-on-self-test is passed. Flashes if
a fault is detected.
Table 2: LEDs on the SAILOR 6390 Navtex Receiver
98-137261.book Page 14 Wednesday, October 16, 2013 12:20 PM
Chapter 3: Service & maintenance
Alarms and notifications 15
33333
Service & maintenance
Alarms and notifications
Overview
If an alarm is reported from the SAILOR 6390 Navtex Receiver a flashing
red triangle appears in the bottom bar of the SAILOR 6004 Control Panel
display:
• Flashing, bright red triangle: Unacknowledged alarm(s).
• Faded red triangle: Acknowledged alarm(s).
To acknowledge an alarm do as follows:
1. Tap the flashing, bright red triangle to display the list with active alarms.
2. Tap the alarm to acknowledge the alarm.
When all active alarms are acknowledged the bright red triangle turns into a
faded red triangle.
Alarms and notifications are either shown in the display of the SAILOR
6004 Control Panel or output via NMEA sentences and displayed in other
equipment.
Flashing,
bright
red
Faded
red
98-137261.book Page 15 Wednesday, October 16, 2013 12:20 PM
Chapter 3: Service & maintenance
16 Alarms and notifications
Installation with SAILOR 6004 Control Panel
If the connection between the SAILOR 6390 Navtex Receiver and the
SAILOR 6004 Control Panel is lost, the SAILOR 6004 Control Panel shows
an error “Connection lost”. Make sure that no one is connected to the
SAILOR 6390 Navtex Receiver using the Service Interface.
Alarm Description Remedy
001 Navigational Warning Read associated message.
002 Meteorological Warning Read associated message.
003 Search and Rescue Information Read associated message.
004 Receiver Malfunction Contact your supplier.
005 Built-in Self Test Failure Check antenna installation.
006 General Failure Power cycle the unit. If this does
not help, contact your suplier.
067 GNSS position lost Check the GPS input.
068 Automatic mode disabled (no
fix)
Check the GPS input. Without a
valid GPS input the automatic
mode does not work.
Table 3: Navtex alarms
Alarm Description Remedy
060 Printer is offline Set online.
061 Printer is busy Wait until current print job is finished.
062 Printer is low on paper Insert more paper.
063 Printer is out of paper Insert more paper.
064 Printer not connected Check the printer connection.a
065 Printer error See the original printer documentation.
066 No default printer
configured
This must be set up during installation.
Contact your installation centre.
Table 4: Navtex alarms, printer
a. Alarm 064 is the only alarm output for 3rd party print servers.
98-137261.book Page 16 Wednesday, October 16, 2013 12:20 PM
Chapter 3: Service & maintenance
Reinstalling or updating the Navtex app 17
33333
Service & maintenance
Installation with an INS
Alarms and notifications are signalled via the NMEA sentence ALR. See the
user documentation of the equipment connected to the SAILOR 6390
Navtex Receiver for further information on how alarms and notifications
are displayed.
Example: $CRALR,246060,002,A,V,NAVTEX: Meteorological Warning*09
CR = Navtex
ALR = alarm sentence
246060 = time (hours,minutes, seconds)1
002 = alarm number (see Table 3 on page 16 and Table 4 on page 16)
A (A – active / V – not active)
V (A – confirmed / V – not confirmed)
NAVTEX: Meteorological Warning (text description)
*09 (checksum indicator and checksum)
Reinstalling or updating the Navtex app
The Navtex app is typically installed in the SAILOR 6004 Control Panel
during installation. If you for one reason or another have to reinstall the
app, read the following sections to familiarize yourself with the app of the
SAILOR 6004 Control Panel and follow the instructions later in this section
how to install the Navtex app.
System app
Having switched on the SAILOR 6004 Control Panel, an icon named
System is always displayed, plus the icon(s) of the applications that are
installed. Under System you can set up and manage the SAILOR 6004
Control Panel.
1. 246060 indicates unknown time (invalid time stamp), e.g. if there is no or
invalid GPS input.
98-137261.book Page 17 Wednesday, October 16, 2013 12:20 PM
Chapter 3: Service & maintenance
18 Reinstalling or updating the Navtex app
Tap the icon System and the following topics are available:
•Settings for Network settings, Date/Time and Debugging.
•Applications to install and manage applications.
•Self Test for testing Touch, Controls, Display, Audio, USB, Light Sensor,
Alarm Output, NMEA and LAN.
•About with Legal information, software versions and network
information.
Settings
The parameters in the section Settings are typically taken care of during
installation.
Tap Settings to enter the section for network configuration, date and time
setting and debugging. Tap the section you want to work with and explore
the touch screen for each setting. To change a setting you must enter the
password for user level (user) and tap OK.
98-137261.book Page 18 Wednesday, October 16, 2013 12:20 PM
Chapter 3: Service & maintenance
Reinstalling or updating the Navtex app 19
33333
Service & maintenance
Applications
Tap Applications to install, uninstall or update applications. This section
has two tabs: Available, showing the apps that are available to the SAILOR
6004 Control Panel on the current network, and Installed, showing the
apps already installed.
To install an app, do as follows:
1. Tap Available to display the apps that are available to this SAILOR
6004 Control Panel.
2. Tap the app you want to install.
• Tap the app name, e.g. Navtex Version 1.0.
•Install to install this app on the SAILOR 6004 Control Panel.
3. Enter the password for user level (user) and tap OK.
To manage an already installed app, do as follows:
1. Tap Installed to display the apps that are installed on this SAILOR
6004 Control Panel.
2. Tap the app you want to manage. For each app there are the following
items:
• App name and version, e.g. Navtex Version 1.0.
•Update (if available, else grayed out) – tap here to update this app.
Enter the password for user level and tap OK.
98-137261.book Page 19 Wednesday, October 16, 2013 12:20 PM
Chapter 3: Service & maintenance
20 Reinstalling or updating the Navtex app
•Uninstall – tap here to uninstall this app from the SAILOR 6004
Control Panel.
3. Enter the password for user level (user) and tap OK.
Self Test
Tap Self Test to start the self test of the SAILOR 6004 Control Panel. For
further details on the self test see the installation manual of the SAILOR
6004 Control Panel.
About
Tap About to view the following:
•Legal with legal and copyright information, open source licences, etc.
•Version with software versions and serial number of the SAILOR 6004
Control Panel.
•Network with IP address and MAC address of the SAILOR 6004 Control
Panel.
Setting device names
The parameters in this section are typically taken care of during installation.
Important If you change the ID for the SAILOR 6390 Navtex Receiver
make sure that the ID in the SAILOR 6390 Navtex Receiver
matches the ID in the SAILOR 6390 Navtex Receiver app
displayed in the SAILOR 6004 Control Panel. Consult your
installation centre.
98-137261.book Page 20 Wednesday, October 16, 2013 12:20 PM
Chapter 3: Service & maintenance
Reinstalling or updating the Navtex app 21
33333
Service & maintenance
To access this screen tap the menu icon and then Settings.
•Own Device Name: Identification of the SAILOR 6004 Control Panel
in the network. It must consist of the letters II followed directly by 4
digits.
•Remote Device Name: Identification of the SAILOR 6390 Navtex
Receiver in the network. It must consist of the letters CR followed
directly by 4 digits. This must be the same ID that has been
programmed into the SAILOR 6390 Navtex Receiver during
installation.
If you need to change a parameter do as follows:
1. Tap the parameter and enter the password (user) and tap OK.
2. Enter the new data and tap Apply.
The ID is now changed in the SAILOR 6390 Navtex Receiver app, but not in
the SAILOR 6390 Navtex Receiver unit. Use the Back icon to return to the
idle screen. When you leave the page, the parameters are locked again.
98-137261.book Page 21 Wednesday, October 16, 2013 12:20 PM
Chapter 3: Service & maintenance
22 Troubleshooting guide
Troubleshooting guide
Problem Symptom Remedy
The
SAILOR 6390
Navtex
Receiver will
not turn on.
Green power
LED on
SAILOR 6390
Navtex
Receiver is off.
If the power cable is connected directly to the
SAILOR 6390 Navtex Receiver then check that
ON IN is wired to VBAT-.
No message
can be
received.
Test LED
flashes.
Check the antenna installation.
The Time
column shows
dashes, but
not time
No valid
message time.
Check the GPS connection.
Device failure If any of the checks and tests described in this
section do not assist in resolving the difficulties
experienced in the operation and/or
performance of the Navtex installation, a fault
may have developed. When contacting an
authorized representative be sure to provide as
much information as possible describing the
observed behaviour - also including the type of
the Navtex units, serial number, and software
release version. You find this information in the
setup menu of the connected SAILOR 6004
Control Panel.
Table 5: Troubleshooting guide
98-137261.book Page 22 Wednesday, October 16, 2013 12:20 PM
Chapter 3: Service & maintenance
Troubleshooting guide 23
33333
Service & maintenance
RX self test (with SAILOR 6004 Control Panel)
The RX self test runs automatically after start-up. You can also manually
start an RX self test.
1. From the idle screen, tap the menu icon in the upper right corner.
2. Tap Settings.
3. Tap the menu icon and tap RX self test.
4. Tap Yes to start the RX self test. The result of the test is shown in the
display. If the test has failed check the antenna installation.
If a printer is connected and enabled the self test results are printed.
SAILOR 6004
Control Panel
cannot be
switched off.
If the SAILOR 6004 Control Panel cannot be
switched off normally (e.g. due to a fault): Push
and hold for 12 seconds. If a remote switch is
installed, see the note on page 5.
Password
entered in the
SAILOR 6004
Control Panel,
but padlock
does not open
Authorization
failed. Wrong
password or
the connection
to the
SAILOR 6390
Navtex
Receiver is lost
Check that you enter the correct password.
Check the power supplies, cabling, Ethernet
connection between the SAILOR 6390 Navtex
Receiver and the SAILOR 6004 Control Panel.
Restart both units:
– SAILOR 6390 Navtex Receiver: remove and
connect power,
– SAILOR 6004 Control Panel: use on/off
button.Password for SAILOR 6004 Control
Panel: user
RX self test
failed
Check the antenna installation.
Problem Symptom Remedy
Table 5: Troubleshooting guide (Continued)
98-137261.book Page 23 Wednesday, October 16, 2013 12:20 PM
Chapter 3: Service & maintenance
24 Service and repair
Service and repair
Should your Cobham SATCOM product fail, please contact your dealer or
installer, or the nearest Cobham SATCOM partner. You will find the partner
details on www.cobham.com/satcom where you also find the Cobham
SATCOM Self Service Center web-portal, which may help you solve the
problem.
Your dealer, installer or Cobham SATCOM partner will assist you whether
the need is user training, technical support, arranging on-site repair or
sending the product for repair.
Your dealer, installer or Cobham SATCOM partner will also take care of any
warranty issue.
Applicable SAILOR part numbers
Disassembling – removing the cover
1. Remove the cover of the SAILOR 6390 Navtex Receiver by
loosening the 4 screws marked in the figure below.
Part number Description
406390A-00500 SAILOR 6390 Navtex Receiver
406391A-00500 SAILOR 6391 Navtex System (SAILOR 6004 Control
Panel and SAILOR 6390 Navtex Receiver)
406004A-00500 SAILOR 6004 Control Panel
Table 6: Part numbers
98-137261.book Page 24 Wednesday, October 16, 2013 12:20 PM
Chapter 3: Service & maintenance
Service and repair 25
33333
Service & maintenance
2. Remove the cables from the spring-loaded terminals and the
connectors.
3. Remove the SAILOR 6390 Navtex Receiver by moving it upwards,
away from the mounting surface.

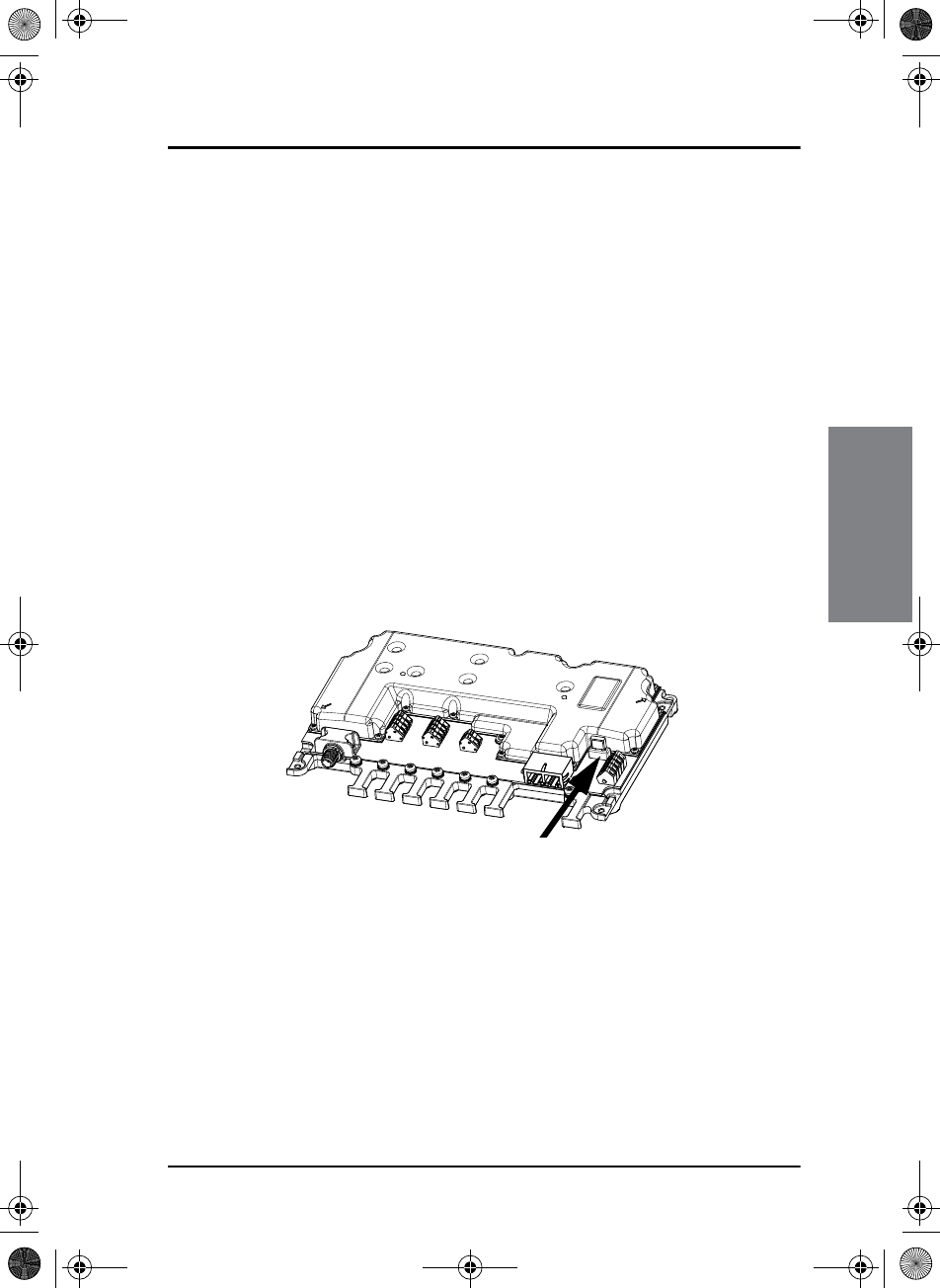

Replacing the fuse
One fuse is installed in the SAILOR 6390 Navtex Receiver. If this fuse is
blown, do as follows:
1. Track down why the fuse was blown and solve the problem, e.g.
incorrect polarity at the DC supply.
2. Remove the cover by loosening the 4 screws.
3. Take out the old fuse. Use the fuse puller.
4. Insert the new fuse. The fuse rating is 1 A.
Repacking for shipment
Should you need to send the product for repair, please read the below
information before packing the product.
The shipping carton has been carefully designed to protect the
SAILOR 6390 Navtex Receiver and its accessories during shipment. This
carton and its associated packing material should be used when repacking
for shipment. Attach a tag indicating the type of service required, return
98-137261.book Page 25 Wednesday, October 16, 2013 12:20 PM
Chapter 3: Service & maintenance
26 Service and repair
address, part number and full serial number. Mark the carton FRAGILE to
ensure careful handling.
If the original shipping carton is not available, the following general
instructions should be used for repacking with commercially available
material.
1. Wrap the defective unit in heavy paper or plastic. Attach a tag
indicating the type of service required, return address, part number and
full serial number.
2. Use a strong shipping container, e.g. a double walled carton.
3. Protect the front- and rear panel with cardboard and insert a layer of
shock-absorbing material between all surfaces of the equipment and the
sides of the container.
4. Seal the shipping container securely.
5. Mark the shipping container FRAGILE to ensure careful handling.
Failure to do so may invalidate the warranty.
Disposal
Old electrical and electronic equipment marked with this
symbol can contain substances hazardous to human beings
and the environment. Never dispose these items together
with unsorted municipal waste (household waste). In order to
protect the environment and ensure the correct recycling of old equipment
as well as the re-utilization of individual components, use either public
collection or private collection by the local distributor of old electrical and
electronic equipment marked with this symbol.
Contact the local distributor for information about what type of return
system to use.
Note Correct shipment is the customer’s own responsibility.
98-137261.book Page 26 Wednesday, October 16, 2013 12:20 PM
27
Appendix A
AAAAA
Specifications
Specifications A
SAILOR 6390 Navtex Receiver
Item Specification
Weight 1.3 kg
Dimensions L x W x H: 190 x 270 x 42.5 mm
Input voltage 12-24 VDC (10.8 VDC to 31.2 VDC)
Power consumption Typical 6.5 W
Heat dissipation <10 W
Temperature -15 °C to +55 °C (Operational)
-15 °C to +55 °C (Storage)
Compass Safe
Distance
20 cm (Standard magnetic compass)
20 cm (Emergency magnetic compass)
IP rating IP22 (estimated)
Navtex receivers 490 kHz, 518 kHz and 4209.5 kHz simultaneous reception.
Software updatable for 500 kHz NAVDAT
Antenna support Active and passive antenna (12 V @ 60 mA antenna supply)
Sensitivity
490/518 kHz
4209.5 kHz:
<12 dBV@10 /150 pF
<-6 dBV@50
<12 dBV@10 /150 pF
<6 dBV@50
Table 7: SAILOR 6390 Navtex Receiver specifications
98-137261.book Page 27 Wednesday, October 16, 2013 12:20 PM
Appendix A: Specifications
28 SAILOR 6390 Navtex Receiver
Interfaces TNC antenna connector
Alarm relay output (normally closed)
2 LAN connectors
Remote on
NMEA0183 in and out for INS support
NMEA0183 in for e.g. GPS input
600 single ended audio interface for troubleshooting
Printer Support via LAN connector
NMEA sentences NMEA0183 input, EN61162-1: ACK, NRM, CRQ sentences
NMEA0183 output, EN61162-1: ALR, NRM, NRX sentences
GPS input: RMC, ZDA sentences
Proprietary sentences
Item Specification
Table 7: SAILOR 6390 Navtex Receiver specifications (Continued)
98-137261.book Page 28 Wednesday, October 16, 2013 12:20 PM
29
Glossary
BBBBB
Glossary
Glossary B
A
AIS Automatic Identification System. Automatic tracking system
used on ships and by vessel traffic services (VTS) for identifying
and locating vessels by electronically exchanging data with
other nearby ships and AIS Base stations.
G
GMDSS Global Maritime Distress and Safety System. The system is
intended to perform the following functions: alerting (including
position determination of the unit in distress), search and
rescue coordination, locating (homing), maritime safety
information broadcasts, general communication, and bridge-to-
bridge communication.
GNSS Global Navigation Satellite System
GPL General Public License, software license, which guarantees
individuals, organizations and companies the freedom to use,
study, share (copy), and modify the software.
GPS Global Positioning System
I
INS Integrated Navigation System
L
LAN Local Area Network
LGPL Lesser General Public License
98-137261.book Page 29 Wednesday, October 16, 2013 12:20 PM
Glossary
30
LORAN LOng RAnge Navigation, a terrestrial radio navigation system
which enables ships and aircraft to determine their position and
speed from low frequency radio signals transmitted by fixed
land based radio beacons.
N
NAVDAT High Speed NAVtex DATa sent out on 500 kHz. Not yet part of
mandatory Navtex reception, but mentioned in ITU-R M.2010
and ITU-R M.2201.
NMEA National Marine Electronics Association (standard). A combined
electrical and data specification for communication between
marine electronic devices such as echo sounder, sonars,
anemometer (wind speed and direction), gyrocompass,
autopilot, GPS receivers and many other types of instruments.
It has been defined by, and is controlled by, the U.S.-based
National Marine Electronics Association.
S
SAR Search And Rescue
U
UTC Universal Time, Coordinated. The International Atomic Time
(TAI) with leap seconds added at irregular intervals to
compensate for the Earth’s slowing rotation. Leap seconds are
used to allow UTC to closely track UT1, which is mean solar
time at the Royal Observatory, Greenwich.
98-137261.book Page 30 Wednesday, October 16, 2013 12:20 PM
31
Index
CCCCC
Index
Index C
A
alarm, 15
acknowledge, 15
icons, 7
alarms
INS, 17
Navtex, 16
printer, 16
app
install, 19
start Navtex, 5
uninstall, 19
update, 19
applications, 18, 19
approvals, iv
automatic mode, 11
B
brightness, 6
buzzer, 4
C
coast station
filtering, 11
collapse keyboard, 7
compass safe distance, iii
contact
support, 13
copy
filter settings, 10
D
device names, 20
dimming function, 6
disassembling, 24
display
brightness, 6
document number
this manual, i
E
error rate, 8
F
features, 2
filter settings
copy, 10
message types, 9
stations, 11
filtering
message types, 9
stations, 11
frequencies
receiver, 7
fuse
rating Navtex Receiver, 25
replace Navtex Receiver, 25
I
ID
Control Panel, 21
Navtex Receiver, 20, 21
idle screen, 6
install app, 18, 19
invalid time stamp
alarm, 17
IP address
Control Panel, 20
Navtex Receiver, 21
K
keyboard
collapse, 7
L
LED
Power, 14
Rx, 14
Tx, 14
license
software, ii
M
MAC address
Control Panel, 20
98-137261.book Page 31 Wednesday, October 16, 2013 12:20 PM
Index
32
maintenance, 13
manual
document number, i
message
keep, 8
message types, 10
filtering, 9
N
NAVDAT, 2
Navtex app
overview, 6
reinstalling, 17
Navtex application
start, 5
Navtex frequencies, 1
Navtex message
detail, 8
example, 3
keep, 8
Navtex Receiver
remove lid, 24
specifications, 27
use stand alone, 4
use with Control panel, 4
night mode, 4, 6
O
open source licences, 20
P
part numbers, 24
password, 19
Power LED, 14
power on, 5
print lists, 12
printer, 12
R
receiver frequencies, 7
reinstall
Navtex app, 17
remove lid of Navtex, 24
RF exposure, iii
Rx LED, 14
RX self test
Navtex Receiver, 23
S
SAR message, 9
self test, 20
Control Panel, 20
Navtex Receiver, 23
settings, icon, 6
software
license, ii
uninstall, 19, 20
sorting messages, 8
specifications
Navtex Receiver, 27
standard compliance, iv
stations
filtering, 11
support
contact info, 13
switch on, 5
T
time
invalid, 17
troubleshooting, 22
Tx LED, 14
U
uninstall, 19, 20
update
Navtex app, 17
use scenario
stand alone, 4
with Control Panel, 4
UTC time, 7
W
warranty, iii, 24
98-137261.book Page 32 Wednesday, October 16, 2013 12:20 PM

Navigation menu
