Thrane and Thrane A S TT-3965A SAILOR 3965 UHF Fire Fighter / McMurdo SmartFind R8F UHF Fire Fighter User Manual
Thrane & Thrane A/S SAILOR 3965 UHF Fire Fighter / McMurdo SmartFind R8F UHF Fire Fighter
user manual
![](/img.php?id=3906706&img=bg1.png)
SAILOR 3965 Portable UHF
ATEX, Fire Fighter
User manual
![](/img.php?id=3906706&img=bg2.png)
Disposal
The Waste Electrical and Electronic Equipment (WEEE) Directive aims to minimise
any adverse impact of electronic equipment on the environment, both during
the product lifetime and when it becomes waste. Within the European Union this
legislation is mandated by Directive 2012/19/EU, and there is similar legislation
in most other continents. The directive applies to all electronic products such as
IT, household appliances, portable electronics etc., and imposes requirements
to collect, treat, recover and recycle each product at its end of life. Electronic
end-user products must also carry a WEEE label (as below) and recovery and
recycling information has to be provided to the recycler.
This product contains traces of lithium in the battery pack. In addition it may
contain lead and brominated ame retardants (BFRs), both in the housing material
and circuit boards. In keeping with the directive,
Thrane & Thrane A/S strongly recommends that this product and its battery pack
be disposed of in a sensible and considerate manner. For example, do not simply
discard the product in the domestic waste. Instead take it to a civil recycling
facility, or contact Thrane & Thrane A/S for advice.
Attention

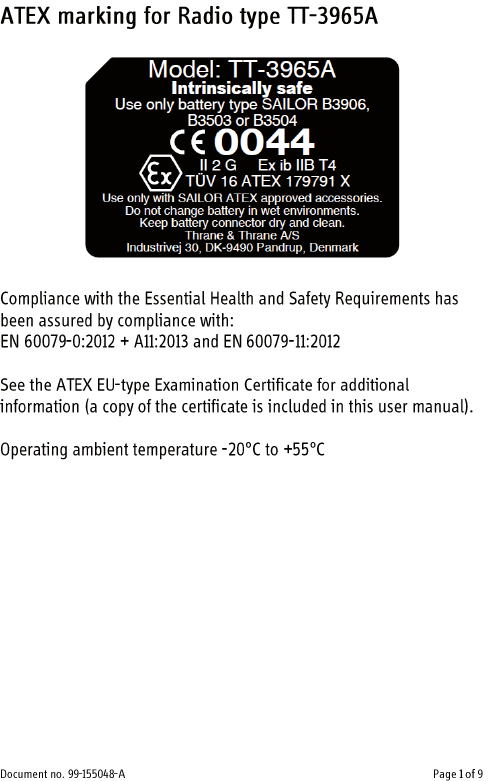

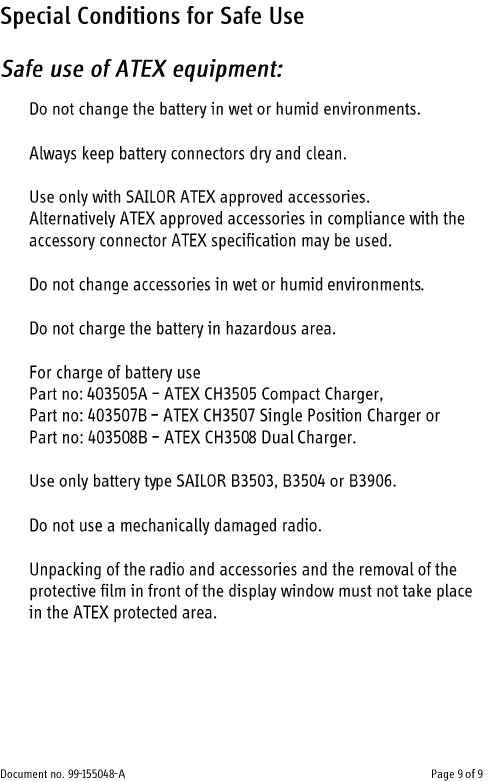

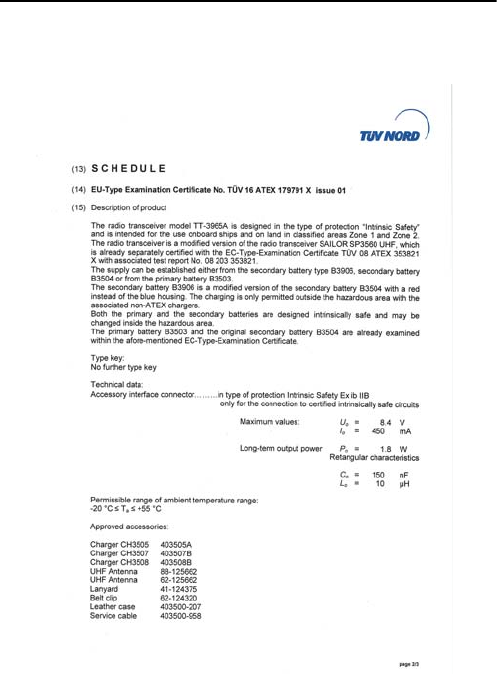

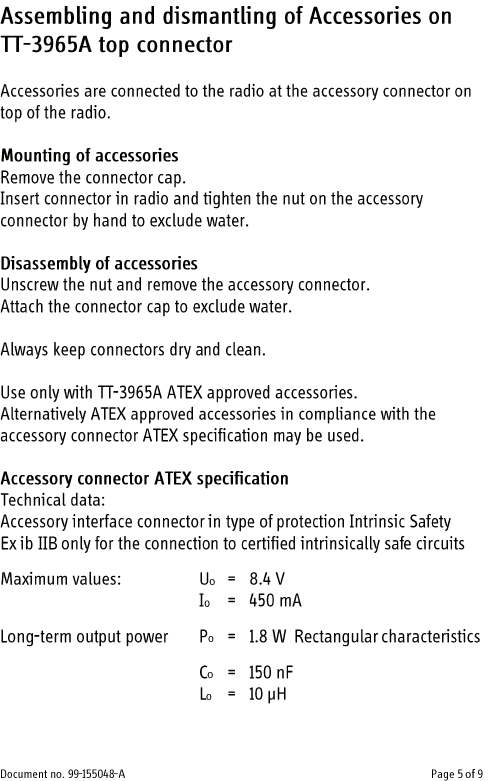

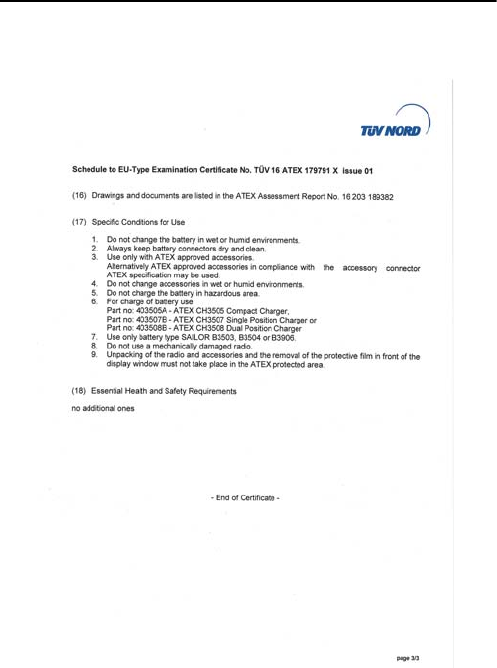

Read important ATEX information in the following 9 pages.
Additional important user information follows after page 9.
![](/img.php?id=3906706&img=bg3.png)

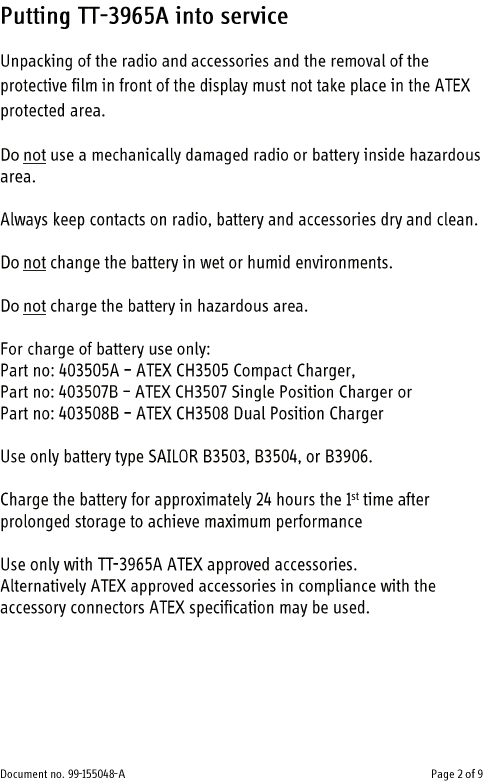

![](/img.php?id=3906706&img=bg4.png)
![](/img.php?id=3906706&img=bg5.png)
![](/img.php?id=3906706&img=bg6.png)
![](/img.php?id=3906706&img=bg7.png)

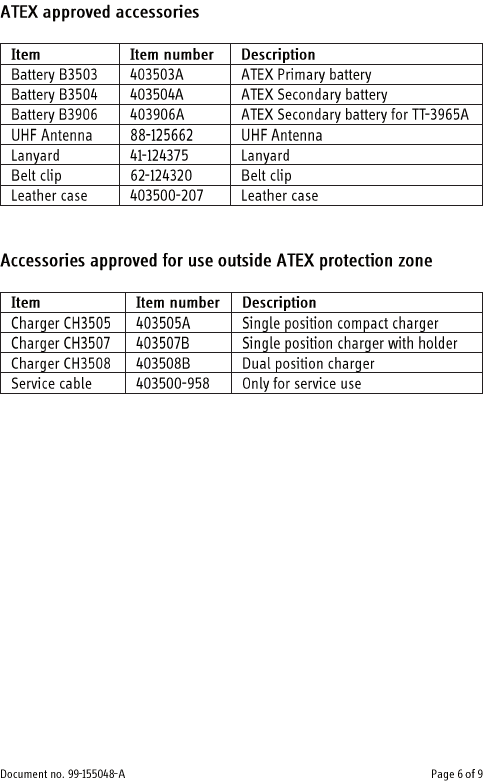

![](/img.php?id=3906706&img=bg8.png)

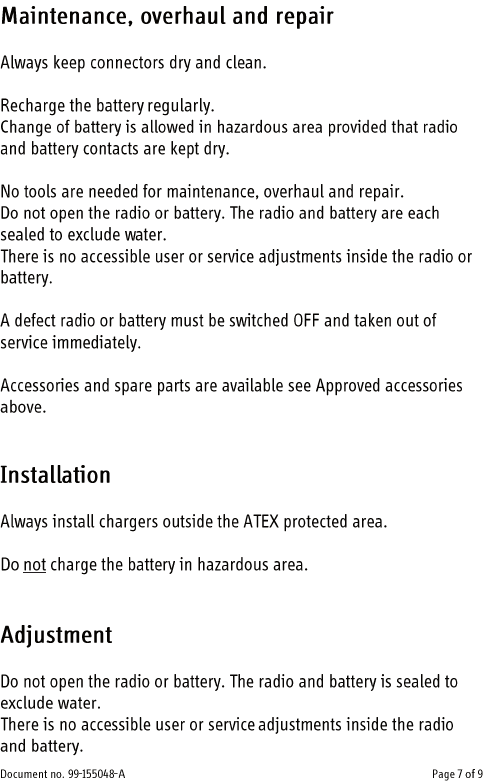

![](/img.php?id=3906706&img=bg9.png)
![](/img.php?id=3906706&img=bga.png)
![](/img.php?id=3906706&img=bgb.png)
i
SAILOR 3965 ATEX UHF Fire
Document number: 98-150078-G_Draft 03
Release date: June 15, 2018
Copyright: © 2018 Thrane & Thrane A/S. All rights reserved.
Trademark Acknowledgements
•SAILOR is a registered trademark of Thrane & Thrane A/S.
•Other product and company names mentioned in this manual may be
trademarks or trade names of their respective owners.
Warranty limitation
IMPORTANT - The radio and batteries are sealed waterproof units. To create and
maintain the waterproof integrity they are assembled in a controlled environment
using special equipment. The radio and batteries are not user maintainable units,
and the units must under no circumstances be opened except by authorized
personnel. Unauthorized opening of the units will invalidate the warranty.
Disclaimer
Any responsibility or liability for loss or damage in connection with the use of this
product and the accompanying documentation is disclaimed by Thrane & Thrane
A/S. The information in this manual is provided for information purposes only, is
subject to change without notice and may contain errors or inaccuracies. Manuals
issued by Thrane & Thrane A/S are periodically revised and updated. Anyone
relying on this information should acquire the most current version e.g. from
www.cobham.com/satcom, Cobham SYNC Partner Portal, or from the distributor.
Thrane & Thrane A/S is not responsible for the content or accuracy of any
translations or reproductions, in whole or in part, of this manual from any other
source. In the event of any discrepancies, the English version shall be the
governing text.
Thrane & Thrane A/S is trading as Cobham SATCOM.
1824
![](/img.php?id=3906706&img=bge.png)
ii
Precautions
Avoid water and salt in the I/O connector and keep it dry and
clean.
Only use original Thrane & Thrane battery packs. Make sure
they are clean and dry before attaching the transceiver.
Be careful not to damage any gaskets.
Only use the original Thrane & Thrane charger for the
rechargeable battery.
Be very careful when handling the Lithium batteries.
With correct use they are safe but any misuse might cause
dangerous situations.
Do not short circuit the battery terminals, or expose the
transceiver and the batteries to extreme temperature or fire.
Beware of RF exposure. Read section RF exposure and safety on
page iii, Training Requirement on page iii and Operating
instruction on page iv before using this radio.
Do not submerge the transceiver more than 1 m for 30 minutes.
Keep the transceiver at least 0.3 m away from the magnetic
compass.
1824
![](/img.php?id=3906706&img=bgf.png)
iii
RF exposure and safety
The SAILOR 3965 ATEX UHF Fire is designed for occupational use only and is also
classified as such. It must be operated by licensed personnel only and thus NOT
intended for use in an uncontrolled environment by general public.
The SAILOR 3965 ATEX UHF Firefighter must only be used in the course of
employment by individuals aware of the radiation hazards as well as the way to
minimize those.
This radio complies with the limits for occupational/controlled RF exposure
environment at operating duty factors of up to 50% transmitting and is authorized
for occupational use only.
To control your exposure and ensure compliance with the occupational/controlled
environment exposure limits always adhere to the following procedures.
• User awareness instructions should accompany device when transferred to
other users.
• Do not use this device if the operational requirements described herein are not
met.
The SAILOR 3965 ATEX UHF Firefighter complies with the limits for
occupational/controlled exposure in the following SAR specifications:
• IEEE 1528-2013
• FCC CFR 47 § 2.1093
• RSS-102 Issue 5
Training Requirement
Operating personnel shall have completed an RF safety program including specific
training and education regarding RF radiation hazards in the use of the
equipment.
Please refer to the following websites for more information on what RF energy
exposure is and how to control your exposure to assure compliance with
established RF exposure limits.
https://www.fcc.gov/engineering-technology/electromagnetic-compatibility-
division/radio-frequency-safety/faq/rf-safety
http://www.ic.gc.ca/eic/site/ceb-bhst.nsf/eng/h_tt00084.html
1824
iv
Operating instruction
Follow these general rules of operation for safe operation and to reduce the RF
exposed energy:
• Transmit no more than the rated duty factor of 50% of the time.
• Hold the radio in a vertical position in front of face with the microphone (and
the other parts of the radio, including the antenna) at least one inch (2.5 cm)
away from the head. Keeping the radio at the proper distance is important
because RF exposures decrease with distance from the antenna.
• When worn on the body, always place the radio with an approved belt clip or
case. Using approved body-worn accessories is important because the use of
other manufacturer’s non-approved accessories may result in exposure levels,
which exceed the occupational/controlled environment RF exposure limits.
• Use only manufacturer’s name approved supplied or replacement antennas,
batteries, and accessories. Use of non-manufacturer-name approved antennas,
batteries, and accessories may exceed the exposure guidelines.
• For best radio performance, hold the radio vertically and 5 cm away from the
head when talking into the microphone.
Channel programming
SAILOR 3965 ATEX UHF Fire is from manufacturer programmed with an approved
set of 25 kHz and 12.5 kHz channels according to ITU-R M.1174-3 specifying the
international channels for on-board vessel communication. For alternative
configuration of the radio contact a general agent.
“Placeholder” for French version of Precautions, RF exposure and safety, Training
Requirement, Operating instruction and Channel programming.
1824
![](/img.php?id=3906706&img=bg11.png)
vii
Contents
Chapter 1 Introduction
Your ATEX UHF Fire ..............................................................1
Performance ........................................................................ 2
Channels ............................................................................. 2
Chapter 2 Operation

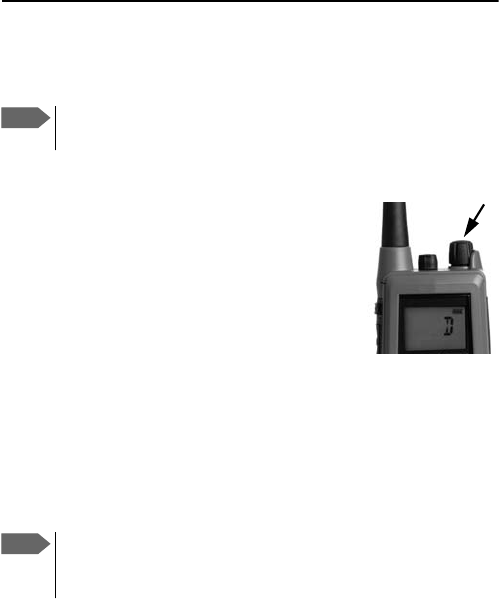

Controls ............................................................................... 5

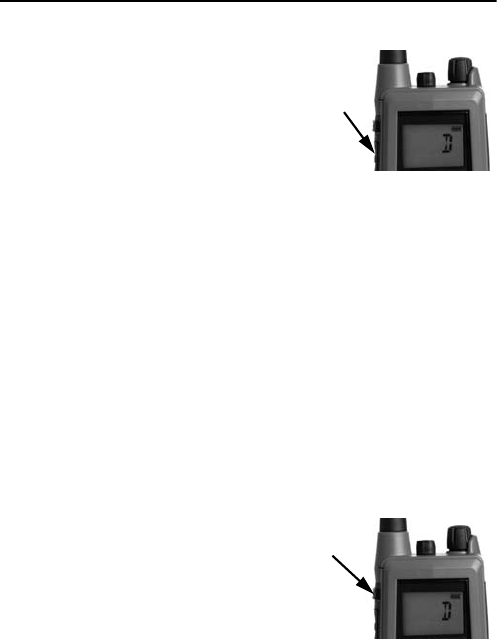

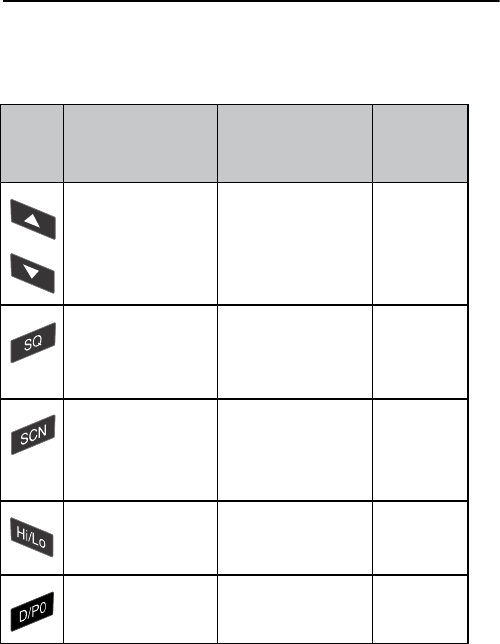

Keys and buttons ................................................................5

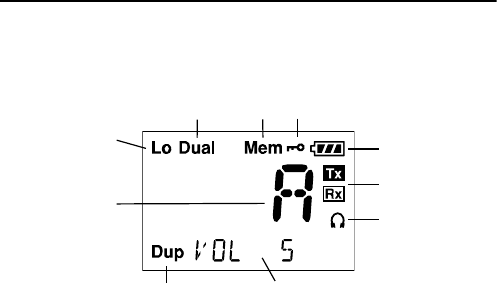

The display .........................................................................7
Using the ATEX UHF ............................................................ 8
Basic functions .................................................................. 8
Other functions ................................................................... 11
Chapter 3 Batteries
Battery level indication ..................................................... 15
The battery chargers ......................................................... 16
Installing the charger ....................................................... 16
Recharging the battery ......................................................17
Chapter 4 Configuring the radio
Configuration mode ............................................................19
Entering and using configuration mode ............................ 19
List of configuration settings .............................................20
1616
![](/img.php?id=3906706&img=bg12.png)
viii
Chapter 5 Equipment and accessories
External equipment ........................................................... 27
List of equipment .............................................................. 27
Connecting external equipment ........................................28
Impact on radio operation ................................................ 29
Accessorie connector ........................................................29
Accessories ....................................................................... 30
List of accessories .............................................................30
Attaching and removing the belt clip ................................ 32
Attaching the lanyard ....................................................... 32
Chapter 6 Troubleshooting
Displaying errors .............................................................. 33
App. A Technical specifications
Technical data SAILOR 3965 .............................................. 35
General ............................................................................35
Transmitter .......................................................................36
Receiver ...........................................................................36
Battery life guidelines ........................................................37
Battery (rechargeable) ..................................................... 37

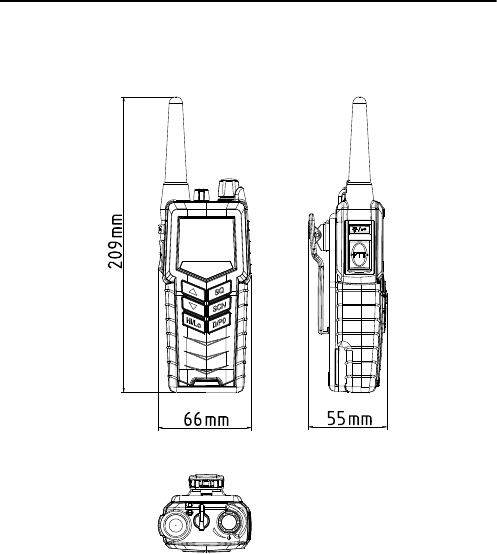

Dimensional drawing, transceiver ................................. 38

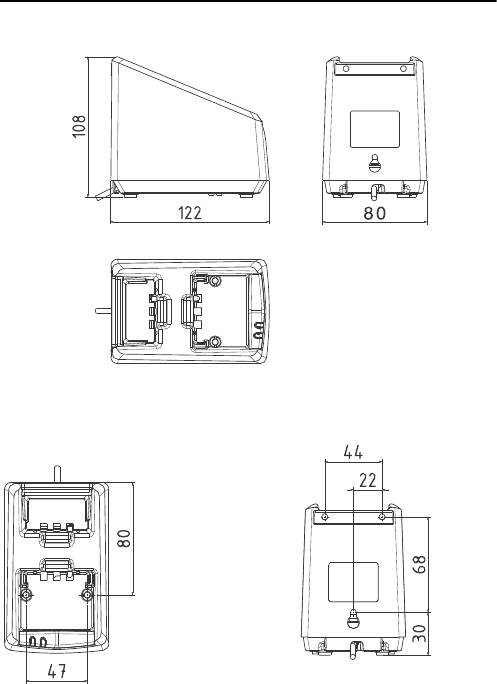

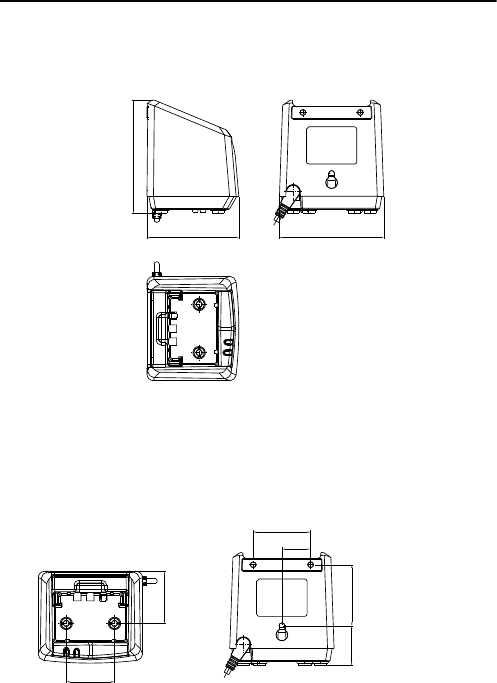

Dimensional drawing, charger .......................................... 39
Declaration of Conformity ..................................................41
App. B Attention
Gore-tex Membrane .......................................................... 47
1616
![](/img.php?id=3906706&img=bg13.png)
Chapter 1
1
Introduction

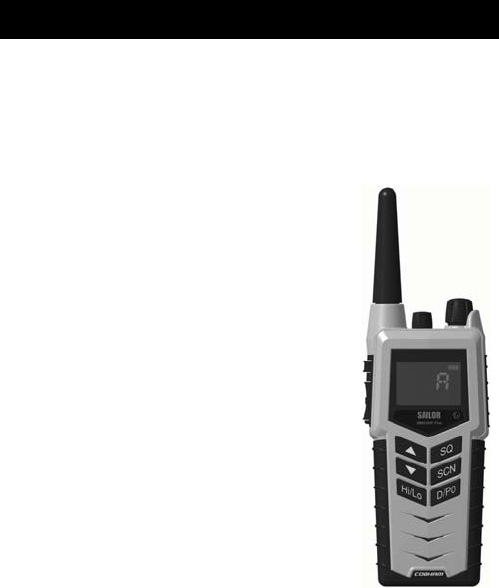

Your ATEX UHF Fire
The ATEX UHF Fire is designed for flexibility in
daily use. It connects easily to external
equipment like headsets and fist mikes, making
the SAILOR 3965 suitable for any noisy
environment.
Main features:
Unique man machine interface, an excellent
grip even with gloves, and large tactile
buttons.
Display with red adjustable backlight which
makes the display visible even at night.
Built-in “sleep” function, minimizing power
consumption and improving battery lifetime.
Selectable 12.5 kHz narrow band or 25 kHz
wide band operation.
Scrambling function for privacy calls.
CTCSS function for selective opening of
Squelch.
Channel read-out function for audible
feedback of channel name in headset upon
channel change
A lanyard and belt clip included.
1616
![](/img.php?id=3906706&img=bg14.png)
Introduction
2
Performance
For best performance of the transceiver keep the following in mind:
• Keep clear of metal environment.
• Hold the transceiver vertically and 5 cm from lips and push the PTT
when transmitting.
• In receive mode carry the transceiver vertically with belt clips.
• To preserve battery power, adjust squelch to close the loudspeaker
when there is no signal.
• If you are in a lifeboat keep the antenna as high as possible.
Channels
SAILOR 3965 ATEX UHF Fire is from manufacturer programmed with an
approved set of 25 kHz and 12.5 kHz channels according to ITU-R M.1174-3
specifying the international channels for on-board vessel communication.
For alternative configuration of the radio contact a general agent.
Table 1: Simplex frequencies (25 kHz or 12.5 kHz(n) use)
Channel designator
(preprogrammed)
Recommendation ITU-R
M.1174-3 Frequency
A4
467.525 MHz
An21
B5
467.550 MHz
Bn23
C6
467.575 MHz
Cn25
1711
![](/img.php?id=3906706&img=bg15.png)
Introduction
3
Table 2: Additional frequencies for 12.5 kHz use
Table 3: Duplex frequencies for use with repeaters only (25 kHz or
12.5 kHz(n) use)
D1
457.525 MHz
Dn11
E2
457.550 MHz
En13
F3
457.575 MHz
Fn15
Channel designator
(preprogrammed)
Recommendation ITU-R
M.1174-3 Frequency
Mn22 467.5375 MHz
Nn24 467.5625 MHz
On12 457.5375 MHz
Pn14 457.5625 MHz
Channel designator
(preprogrammed) Repeater RX Frequency Repeater TX Frequency
G467.525 MHz 457.525 MHz
Gn
H467.550 MHz 457.550 MHz
Hn
Channel designator
(preprogrammed)
Recommendation ITU-R
M.1174-3 Frequency
1711
![](/img.php?id=3906706&img=bg16.png)
Introduction
4
The channel designators are defaulted to the letter formats “A” (25 kHz
frequency separation) or “An“ (12.5 kHz frequency separation). Any
additional explanatory naming can be added (see ADD NAME in Chapter
4 Configuring the radio on page 19.
If no dedicated naming is applicable users are encouraged to add
complimentary channel names as defined in table 2 and 3
(Recommendation ITU-R M.1174-3). Examples:
• 12 kHz operation: “A” - “CH 4”
• 12.5 kHz operation: “An” - “CH 21”
• Both 25 and 12.5 kHz operation: “An” - “CH 4 21”
Your dealer can perform any custom programming.
J467.575 MHz 457.575 MHz
Jn
K467.5375 MHz 457.5375 MHz
Kn
L467.5625 MHz 457.5625 MHz
Ln
Channel designator
(preprogrammed) Repeater RX Frequency Repeater TX Frequency
1711
![](/img.php?id=3906706&img=bg17.png)
Chapter 2
5
Operation

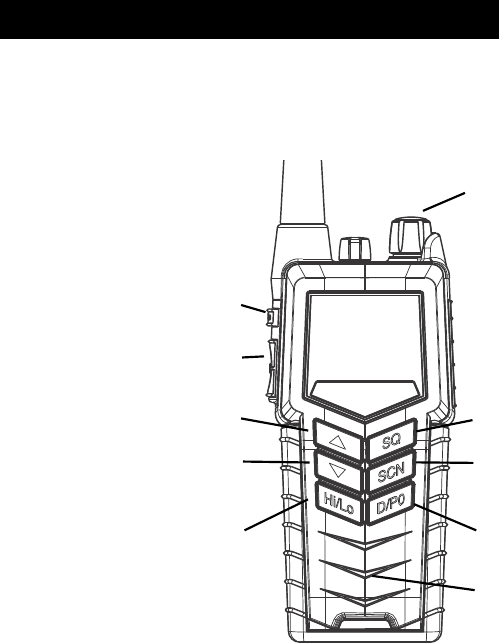

Controls
Keys and buttons
1. On/off/volume
2. Light/Lock
3. Push To Talk (PTT)
4. Up key
5. Down key
6. Hi/Lo output power
7. Squelch
8. Scan
9. D/P0 quick channel select
10. Loudspeaker/microphone
1
2
3
4
5
6
7
8
9
10
1616
![](/img.php?id=3906706&img=bg18.png)
Operation
6
Key presses
Pressing and holding certain keys gives access to additional functions,
shown in the table below.
Key Short press
(1 beep)
Long press
(2 beeps)
Extra long
press
(3 beeps)
Show next available
item in the list (up or
down).
Default: Channel
selection
Run through available
items, or
select tagged channels
P1 () or P2 ().
Run through
available
items if an P1
or P2 channel
is tagged
Activate Squelch
control (Adjust with
up/down arrows).
Monitor function. Open
Squelch completely.Set
period of time in
configuration mode.
1 press: Activate/
terminate Dual watch.
2 presses: Activate
memory scan.
Add/Delete channel
from memory scan.
Toggle between high
and low transmitter
power.
Select channel D. Select preprogrammed
channel P0.
1616
![](/img.php?id=3906706&img=bg19.png)
Operation
7
The display
The display holds various fields of information, explained below.
1. Current working channel.
2. “Lo”: Reduced transmitter power.
Full transmitter power is not shown in display.
3. Dual watch activated.
4. Current working channel is marked for scanning.
5. Keypad is locked.
6. Battery level indicator.
7. Transmitting (TX) /Receiving (RX).
8. Accessory is connected.
9. Service line for various purposes. In this example the volume level.
10. Semi-duplex channel.
1
2
345
6
7
8
9
10
1616
![](/img.php?id=3906706&img=bg1a.png)
Operation
8
Using the ATEX UHF
Basic functions
Switching the radio on and off
•To switch the radio on, turn the knob at the top
of the radio clockwise.
The display lights up showing the last used
channel and the battery level.
•To switch the radio off, Turn the knob back
counter-clockwise until it clicks.
Selecting the working channel
• To select channel D, press the D/P0 key.
• To select among all available channels, press or on the keypad.
For fast selection, press and hold or .
The display shows the currently selected channel. The bottom left corner
of the display shows “Dup” if the channel is a semi-duplex channel.
Note Before using the radio, mount the antenna at the top of the
radio. The antenna is delivered with the radio.
Note Long press on or can also be used to select preferred
channels. For information on how to program preferred
channels, see Configuring the radio on page 19.
1616
![](/img.php?id=3906706&img=bg1b.png)
Operation
9
Activating a call
To activate a call to the selected channel, press and
hold the PTT button on the side of the radio.
The radio transmits as long as the PTT button is
pressed. A small TX sign next to the channel num-
ber indicates when the radio is in transmit mode.
Adjusting the volume
•To increase the volume, turn the on/off knob at the top of the radio
clockwise.
•To decrease the volume, turn the knob counter-clockwise.
The display shows the level of the volume, e.g. “VOL 5”, while it is
adjusted.
Using Squelch control
•To activate Squelch control, press the SQ key.
•To set the Squelch level, press (closing) or (opening). The
display shows the Squelch level while it is adjusted, e.g. “SQ 5”.
Adjusting the display backlight
•To turn on the backlight, press the
Light/Lock button on the side of the radio.
•To adjust the backlight level, press or
within 3 seconds after turning on the light.
The display shows the level while it is
adjusted, e.g. “DIM MED”.
1616
![](/img.php?id=3906706&img=bg1c.png)
Operation
10
Using Dual watch (requires priority channel is programmed)
•To activate Dual watch, press the SCN key.
The display shows “Dual” at the top and “D” at the bottom right.
The radio toggles between the selected channel and channel D (if
channel D is programmed as the priority channel).
•To terminate Dual watch, press SCN again.
Scanning channels
•To activate scanning memory, press 2 times SCN within ½ a second.
During scanning, the display shows “SC” in the channel field. The
radio toggles between channel D and each of the channels are
marked for scanning (only if a priority channel, e.g. D was
programmed).
•To terminate scanning, press SCN once.
Changing the transmitter power
To change the transmitter power, press the Hi/Lo key. The display shows
“Lo” when power is set to low. Otherwise maximum power is used.
Locking the keypad
•To lock the keypad, press and hold the Light/Lock button. The display
shows a key symbol when the keypad is locked.
•To unlock the keypad, press and hold the Light/Lock button again.
1616
![](/img.php?id=3906706&img=bg1d.png)
Operation
11
Other functions
Programming the scanning memory
To add a channel to the scanning memory, select the channel and then
press and hold the SCN key until the display shows MEM at the top.
To remove a channel from the scanning memory, select the channel and
then press and hold the SCN key until the MEM sign disappears from the
display.
Low power operation
The radio can be operated in low power mode. In this mode battery life
time is dramatically increased. Up to the first second of a received call
might be lost if this mode is selected. Refer to SLEEP on page 20.
Continuous Tone Coded Squelch System
Selective squelch opening by sub-tone detection (CTCSS) can be enabled,
using the configuration mode (see CTCSS on page 23). Please note that if
the radio is operating with CTCSS on a channel, and a carrier is received,
it may not be recognized in the loud speaker if the matching sub-tone is
not detected. For this reason, be very careful not to use CTCSS
programmed channels in emergency situations. For the same reason
transmitting is prohibited (reporting "BUSY") if a (silent) carrier
containing any sub-tone is active on the channel while pressing PTT.
Channels programmed with CTCSS will have a clear identification in the
service field, e.g. "CTCSS 22", while selected. Not all channels are allowed
for CTCSS use.
For maritime channels CTCSS is automatically disabled when
• Product is turned off
• A new channel is selected
For private channels, the feature will remain until manually removed.
1616
![](/img.php?id=3906706&img=bg1e.png)
Operation
12
Scrambler
On channels where it is allowed, you can set up voice scrambling, using
configuration mode (see SCRM on page 24).
Please note that if the radio is operating with scrambling on a channel, it
is impossible to communicate with other radios that are not programmed
with the same scrambler code. For this reason, be very careful not to use
scrambled channels in emergency situations. Scrambled channels will
have a clear identification in the service field, e.g. "SCRM 3", while
selected. Not all regions allow the use of voice scrambling.
For maritime channels scrambling is automatically disabled when
• Product is turned off
• A new channel is selected
For private channels, scrambling will remain until manually removed.
Narrow band operation
The radio is prepared for narrow band operation. (see BAND on page 24).
Narrow band configuration is indicated with an “n” next to the channel
designator.
Note Prior to any initiation of scrambling, the operator must always
identify the calling station in clear voice (unscrambled) on that
channel. Use of scrambling may also be restricted by national
laws.
1616
![](/img.php?id=3906706&img=bg1f.png)
Operation
13
Alive beep
To enable “ALIVE” function do as follows:
1. Select the channel where ALIVE function is desired to be transmitted.
2. Press and hold the Hi/Lo until you see “ALIVE ON” on the radio
display. It takes approx. a second.
3. Now “ALIVE” is transmitted by a "beep" on the working channel, with
approx. 4-second intervals.
To deactivate “ALIVE” function do as follows:
• Press and hold the Hi/Lo pressed until “ALIVE ON” no longer appears
on the radio display. It takes approx. a second.
“ALIVE” function is also deactivated when
• The channel is changed.
• The radio is turned OFF and ON again.
• Watch or scanning is enabled.
• Squelch is open.
Refer to ALIVE on page 24
Channel read-out
In some use cases the display is not directly visible to the user (e.g. if the
radio is used in a belt or pocket). Consequently, when changing to a new
channel (using the Up and Down buttons) the user cannot positively
know which channel is now the current one.
The channel read-out feature, however, enables users to get audible
feedback on channel name in a connected headset (or speaker-mike)
1616
![](/img.php?id=3906706&img=bg20.png)
Operation
14
upon channel change (the name of the new channel will be announced
in the headset).
Please note that this feature is disabled as default and can be enabled
either through the Portable Radio Service Tool or the menu settings in
the radio (see chapter 4 for more information).
Please also note that this feature requires external equipment with a
speaker, hence, although the feature is enabled the new channel will not
be announced in the speaker of the radio.
Please also note that if the Monitor function is enabled, the new channel
will not be announced in the speaker of the radio or the head-set
although the channel read-out feature is enabled and a head-set is
connected.
1616
![](/img.php?id=3906706&img=bg21.png)
Chapter 3
15
Batteries

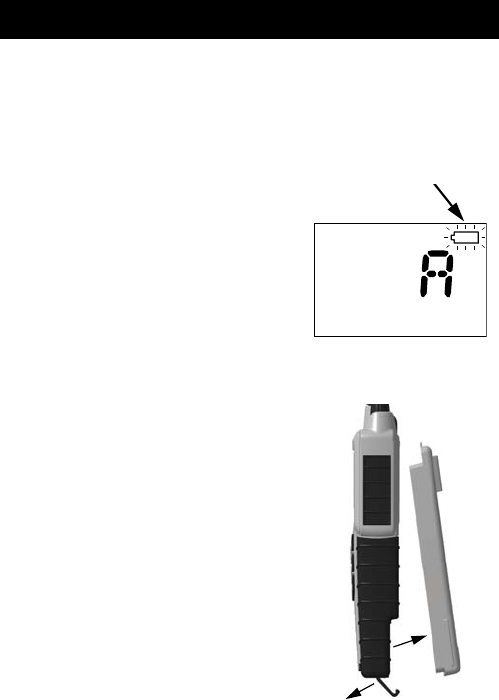

Battery level indication
When the battery level is low, you should recharge the battery.

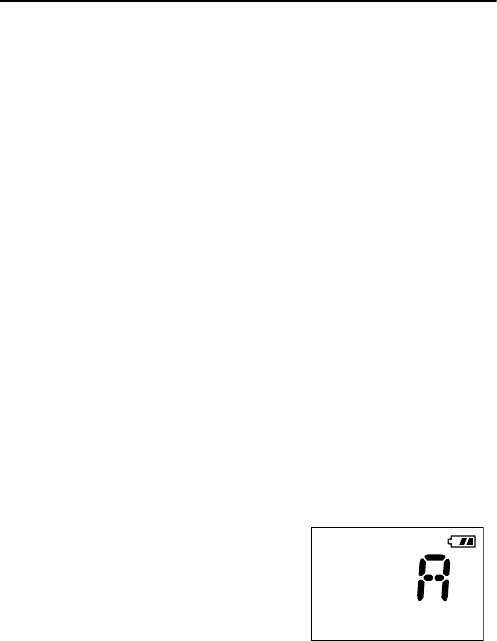

The radio display shows the battery
status. When the battery symbol is empty
and flashing, the battery should be
recharged as soon as possible.

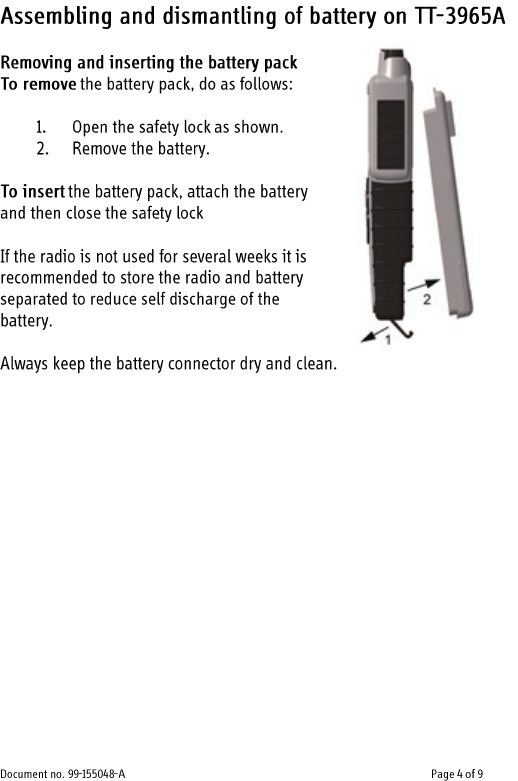

Removing and inserting the battery pack
To remove the battery pack, do as follows:
1. Open the safety lock as shown.
2. Remove the battery.
To insert the battery pack, attach the battery
and then close the safety lock.
If the radio is not used for several weeks it is
recommended to store the radio and battery
separated to reduce self discharge of the
battery.
1
2
1616
![](/img.php?id=3906706&img=bg22.png)
Batteries
16
The battery chargers
The chargers has two compartments.
CH3505
• A compartment for recharging the
battery alone or while attached to
the radio.
CH3507
• A rear compartment only for
storing a spare battery. It does not
have a charger function.
• A front compartment for
recharging the battery alone or
while attached to the radio.
CH3508
• It is possible to charge a battery in
rear compartment simultaneously
with the radio/battery in front.
Installing the charger
Mounting the charger
There are several options for
mounting one or more chargers on a
table or a wall.
For information on dimensions and
screw positions, refer Dimensional
drawing, charger on page 39.
1616
![](/img.php?id=3906706&img=bg23.png)
Batteries
17
When mounting the charger, make sure it is placed in a dry place and
away from direct sunlight. The charger is not waterproof.
Connecting to power
The charger can be supplied from DC or from AC using an AC/DC
converter.
DC: Connect the 12-24VDC Connection Cable between the DC supply and
the connector on the underside of the charger.
AC: Connect the AC/DC converter to the connector on the underside of the
charger. Then connect the AC/DC converter to the AC outlet.

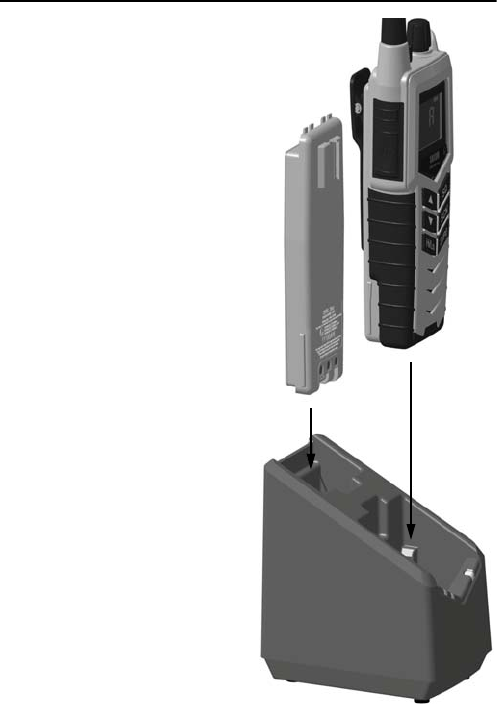

Recharging the battery
To recharge the battery, place the radio with battery or the battery alone
in the front position of the charger cradle.
If the radio cannot turn on due to complete discharged battery, then turn
of the radio and place it in the charger or charge the battery alone.
The light indicators on the charger cradle show the status as follows:
• Green light: Power is connected to the charger.
• Steady red light: Charging completed. Trickle charge mode.
Charging time with empty battery: UHF off
approx. 4 hours, UHF on: approx. 5 hours.
The battery indicator on the radio display
indicates if the radio is placed in the
charger while radio and charger are both
powered.
1616
![](/img.php?id=3906706&img=bg24.png)
Batteries
18 1616
![](/img.php?id=3906706&img=bg25.png)
Chapter 4
19
Configuring the radio
Configuration mode
Entering and using configuration mode
•To enter configuration mode, press and hold the Light/Lock button
while turning on the radio.
The bottom line of the display shows the current menu item/setting.
•To exit configuration mode, turn off the radio or press any key except
, and the Light/Lock button.
Using the PTT button or leaving the radio inactive for 10 seconds also
causes the radio to exit configuration mode.
•To change a setting, press or .
•To confirm the current setting and go to the next menu item, press the
Light/Lock button.
Note The radio is not operational in configuration mode.
1616
![](/img.php?id=3906706&img=bg26.png)
Configuring the radio
20
List of configuration settings
The following settings are available in configuration mode.
Name Values Description
LIGHT MAN Only Light/Lock button activates the backlight.
KEY All keys and buttons, except PTT and volume
control, activate the backlight.
BEEP MAX Status click/beep sound on key press, long
press (settings/programming saved) and
battery alarm. Maximum level.
MIN Status click/beep sound on key press, long
press (settings/programming saved) and
battery alarm. Minimum level.
OFF All beeps off.
VER X.XX.XX Software version. Read-only.
BAT X.XX Battery voltage (V). Read-only.
TEMP XX.X Temperature (C). Read-only.
SLEEP ON Enable sleep mode (to minimize power
consumption).
Sleeps for periods of 1 second after 15 seconds
of idle mode. Idle mode is: no signal detected
and no operation of the radio.
OFF Disable sleep mode.
1616
![](/img.php?id=3906706&img=bg27.png)
Configuring the radio
21
CONTRST 1, 2, 3, 4, 5 Contrast.
1 = lowest and 5 = highest.
SHANG OFF Off. Resumes scanning when signal
disappears.
4, 6, 8, 10 Scan hang time (in seconds) on an active
receiving working channel. The time is
measured from signal detected - remains on
channel even if signal disappears.
RESCN OFF Automatic resume deactivated.
3, 6, 10,
15, 20, 25,
30
Scanning/watch can be automatically resumed
after this time (seconds) if previously
terminated with PTT.
SQ TIME A long press on SQ opens squelch. The squelch
level resumes to setting 3 seconds after SQ is
released.
MAN A long press on SQ opens squelch. The squelch
level resumes to setting as soon SQ is
released.
WORK ON If the default channel D is selected using the
D/P0 key, any push on or will select the
working channel active before D/P0 was
pushed.
OFF If on a distress or call channel, any push on
or will select the channel next to the
displayed channel.
Name Values Description
1616
![](/img.php?id=3906706&img=bg28.png)
Configuring the radio
22
P0 OFF Remove tag “P0” for current working channel.
ON Tag current working channel with “P0”. If
another channel was previously tagged “P0”,
this is overruled.
• The working channel can now be selected
with a long press on “D/P0”.
P1 OFF Remove tag “P1” for current working channel.
ON Tag current working channel with “P1”. If
another channel was previously tagged “P1”,
this is overruled.
• The working channel can now be selected
with a long press on .
P2 OFF Remove tag “B” for current working channel.
ON Tag current working channel with “P2”. If
another channel was previously tagged “P2”,
this is overruled.
• The working channel can now be selected
with a long press on .
Name Values Description
1616
![](/img.php?id=3906706&img=bg29.png)
Configuring the radio
23
SUBC OFF SUBC disabled. Squelch opens on all received
signals.
1, 2, ..., 38 Sub-tone carrier ID.
Squelch opens if the received signal contains
the desired subtone. During transmission the
sub-tone with the corresponding ID is
generated.
Two radios on the same channel and with the
same sub-tone ID, can reduce unwanted
incoming traffic from other users on the same
channel.
CTCSS OFF CTCSS disabled.
ON Activate CTCSS on working channel. Two
radios on the same channel and with SUBC
enabled, can have a certain level of privacy.
Note that if you choose this option, the radio
immediately exits configuration mode and
starts CTCSS on the working channel.
GROUP SEL Selective Mode. Squelch opens only if the
programmed sub-tone is received in the
signal.
ANY Squelch opens on reception of any of the 38
sub-tones.
Name Values Description
1616
![](/img.php?id=3906706&img=bg2a.png)
Configuring the radio
24
SCODE OFF No scrambler code is assigned to the channel
(selecting “ON” in the SCRM setting will have
no effect).
1, 2, 3, 4,
5, CC
A selection between 5 fixed sets of scrambler
characteristics, and a custom code (CC), can be
assigned to the channel.
Note that the custom code can be defined in
the service interface.
SCRM OFF Scrambler disabled.
ON Activate scrambling on working channel. Two
radios on the same channel and with
scrambling enabled, can have a certain level of
privacy.
Note that if you choose this option, the radio
immediately exits configuration mode and
starts scrambling on the working channel.
BAND 25.0 Wide band operation selected.
12.5 Narrow band operation selected.
ALIVE OFF Factory default state.
ON Press to set “ALIVE” on.
Name Values Description
1616
![](/img.php?id=3906706&img=bg2b.png)
Configuring the radio
25
ADD NAME A-Z, 0-9 Makes it possible to name the channels.
The name must contain a maximum of 9
characters, use only capital letters, digits and
spaces.
Press Light/Lock to confirm programming.
Note: The name appears in the service line on
the display.
CHRD OFF Channel read-out disabled - Factory default
ON Channel read-out enabled
Upon channel change the channel name of the
new channel will be spoken in a connected
headset or speaker-mike.
Please note that the channel will not be
announced in the speaker of the radio or
head-set if the Monitor function is enabled.
Name Values Description
1616
![](/img.php?id=3906706&img=bg2c.png)
Configuring the radio
26 1616
![](/img.php?id=3906706&img=bg2d.png)
Chapter 5
27
Equipment and accessories
External equipment
List of equipment
The following equipment can be connected to the radio:
We recommend to remove all accessories during emergency use.
All accessories listed might be used when body worn.
Equipment Order number
SAVOX C-C440AV Push-To Talk unit 403900-942
SAVOX C-C500 Remote Speaker Microphone 403500-944
SAVOX NC/400 Noise-com 403500-003
SAVOX HC-E Helmet-com 403500-004
SAVOX HC-1 Helmet 403500-005
Peltor MT7H79F-50 Headset 403500-006
Peltor MT7H79P3E-50 Headset - Helmet Mount 403500-007
Peltor MT1H7F2-07-51 Tactical ATEX - Headband 403500-008
Peltor MT1H7P3E2-07-51 Tactical ATEX - Helmet 403500-009
1632
![](/img.php?id=3906706&img=bg2e.png)
Equipment and accessories
28
Connecting external equipment
Connect the dedicated interface cable between the external equipment
and the top connector on the radio.

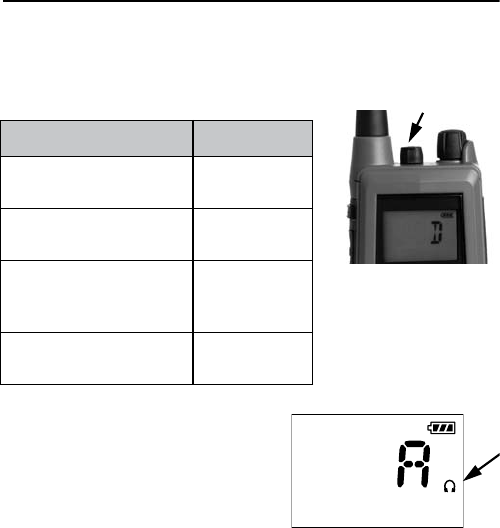

When external equipment is connected
to the radio, the right side of the display
will show a headset.
Interface cable Order number
SAVOX C-C440AV - for SAVOX
PTT unit
403900-942
SAVOX C-C500 - for SAVOX
Headset
403500-944
SAVOX C-C500/C-C440AV -
for PELTOR headset when
using SAVOX PTT
403900-953
Peltor FL5261B - for Peltor
Headset
403900-952
1701
![](/img.php?id=3906706&img=bg2f.png)
Equipment and accessories
29
Impact on radio operation
The external equipment can have a built-in PTT button, speaker and
microphone. Thus a connection has per default the following impact on
the radio operation:
• If a speaker or earpiece is built into the detected external equipment,
the sound device of the external equipment is used, and the internal
radio speaker is disabled.
• The external accessory microphone is selected as audio input device,
when the external PTT button is pressed. The transceiver microphone
is used as audio input device when the transceiver PTT button is
pressed.
• This behaviour can be changed in the service tool.

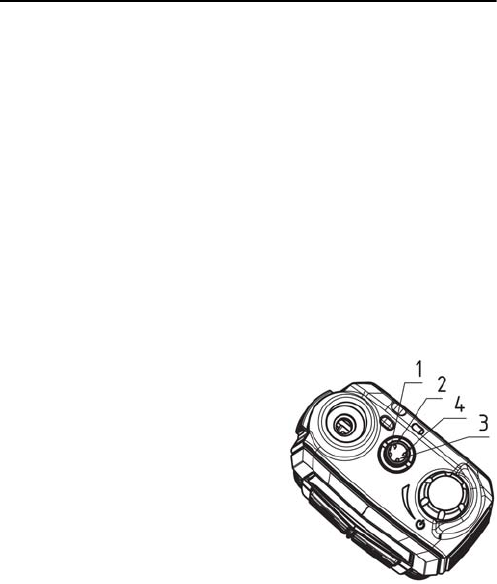

Accessorie connector
Pin 1. Loudspeaker,
minimum 8 ohm impedance.
Pin 2. Accessory power,
3.5V maximum 13mA.
Pin 3. Microphone input,
Ri = 2.2kohm, 3V phantom power.
Pin 4. GND.
1616
![](/img.php?id=3906706&img=bg30.png)
Equipment and accessories
30
Accessories
List of accessories
The following accessories are delivered with your radio:
Batteries, charger, AC/DC Converter and 12VDC Connection are described
in Batteries on page 15.
To mount the antenna, simply screw it into the threaded bush at the top
of the radio.
Use of lanyard is only for hand held operation. Put it around the wrist to
prevent dropping the radio.
Accessory Order number
ATEX Rechargeable battery, B3906 403906A
ATEX Compact Charger, CH3505 403505A
AC/DC converter, length 150cm (100-240V~ /12VDC out) 88-125538
12-24VDC Connection cable, length 150cm 37-124381
Belt clip 62-124320
Antenna 62-125662
Lanyard 41-124375
User Manual (this manual) 98-150078
1629
![](/img.php?id=3906706&img=bg31.png)
Equipment and accessories
31
Accessories you may buy

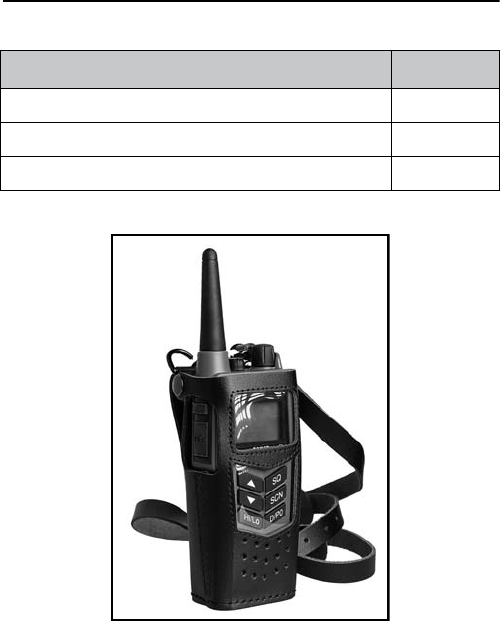

Leather Case
Warning!
The display must always be kept away from the body to reduce the RF
exposure when body worn.
Accessory Part number
ATEX Charger CH3507 403507B
ATEX Dual Position Charger CH3508 403508B
ATEX Leather Case 403500-207
1616
![](/img.php?id=3906706&img=bg32.png)
Equipment and accessories
32
Attaching and removing the belt clip
To attach the belt clip, slide the belt clip upwards
into the rails at the back of the radio until it locks.
To remove the belt clip, press the projection at
the top of the belt clip to release the lock and
slide the belt clip downwards out of the rails.
Attaching the lanyard
Do as follows:
1. Take the lanyard through the
eye at the top of the radio.
2. Put one end of the lanyard
through the loop at the other
end of the lanyard and pull to
tighten.
Release lock
Top view
1616
![](/img.php?id=3906706&img=bg33.png)
Chapter 6
33
Troubleshooting
Displaying errors
Some errors result in an error message in the display. These error
messages are listed below.
Display text Problem Type Actions
Err
EMPTY BAT
The battery voltage is
below a critical level,
where further operation
would damage the battery.
Severe.
Radio is non-
functional.
Change/recharge
the battery.
Err
HW ERR
Hardware error. Severe.
Radio is non-
functional.
Service required.
ILLEGAL
Context fails operation.
This text will appear on
the following occasions:
• Multiple watch is
selected in channel
regions where it is not
allowed.
• High power is selected
on a channel where it is
prohibited.
• Transmission on
blocked channels
Fail
operation
Consider operation
in a different
context.
1616
![](/img.php?id=3906706&img=bg34.png)
Troubleshooting
34 1616
![](/img.php?id=3906706&img=bg35.png)
Appendix A
35
Technical specifications
Technical data SAILOR 3965
General
Item Specification
RX frequency range 457.525 - 457.575 MHz,
467.525 - 467.575 MHz
TX frequency range 457.525 - 457.575 MHz,
467.525 - 467.575 MHz
Modulation
25 kHz/12.5 kHz 16K0G3E/8K50G3E
Power supply VDC Li battery
Current drain at 2 W TX 1.0 A
Current drain at 0.4 W TX 0.7 A
Current drain RX max audio 0.25 A
Antenna port 50 ohm
Battery Lithium-Ion, mAh rechargeable
Operating temperature -20°C to +55°C
Water ingress protection IP67
Frequency stability Better than ±1.0 kHz
Weight with battery 350g
1632
![](/img.php?id=3906706&img=bg36.png)
Technical specifications
36
Transmitter
Receiver
Item Specification
RF output power, maritime 2 W radiated / 0.4 W radiated
Max deviation
25 kHz
12.5 kHz
±5 kHz
±2.5 kHz
Spurious emission < 0.25 µW
Adjacent channel power
25 kHz
12.5 kHz
> 70 dB
> 60 dB
Item Specification
Sensitivity (20 dB SINAD) -117 dBm typical
Intermodulation
EN 300 720
EN 300 086
Better than
68 dB
65 dB
Spurious response > 70 dB
Adjacent channel selectivity
25 kHz
12.5 kHz
> 70 dB
> 60 dB
Audio output, internal 0.25 W at 10% dist.
Audio output, external 0.25 W/8 ohm
1711
![](/img.php?id=3906706&img=bg37.png)
Technical specifications
37
Battery life guidelines
Battery (rechargeable)
During daily use, always keep the battery fully charged and away from
hot areas.
Keep the battery terminals dry and clean.
Never discharge beyond the specifications of the battery.
Operation/Standby time depends on usage. Generally, the more the radio
is transmitting, the faster it will drain the battery. Also, the “Hi” power
setting will drain the battery faster than the “Lo” setting.
Approximate figures are:
• A battery can be stored for 4 to 6 month at 25°C if charged to 40%.
• The battery will normally last for 5 to 9 hours of use on a fully
charged battery.
Note New batteries should be placed in the charger CH3505, CH3507
or CH3508 for minimum 12 hours first time.
1616
![](/img.php?id=3906706&img=bg38.png)
Technical specifications
38
Dimensional drawing, transceiver
1616
![](/img.php?id=3906706&img=bg39.png)
Technical specifications
39
Dimensional drawing, charger
CH3505
Mounting Possibilities
Desktop mounting, top view Wall mounting, rear view
70.4
87
80
37
40
44
22
46.8
30.5
1616
![](/img.php?id=3906706&img=bg3a.png)
Technical specifications
40
CH3507 and CH3508
Mounting Possibilities
Desktop mounting, top view Wall mounting, rear view
![](/img.php?id=3906706&img=bg3b.png)
Technical specifications
41
Declaration of Conformity
Thrane & Thrane A/S
Declaration of Conformity with ATEX Directive 2014/34/EU
Document number: 99-150089-B
Director Radio and Navigation R&D
Henrik Kalstrup
Page 1 of 1
Thrane & Thrane A/S trading as Cobham SATCOM
Lundtoftegårdsvej 93D
,
DK-2800 Kgs. Lyngby, Denmark
T +45 39 55 88 00
·
F +45 39 55 88 88
·
Comp. reg.: 65 72 46 18
·
SATCOM.info@cobham.com
·
cobham.com
The object of the declaration described below is in conformity with the relevant Union harmonization legisla-
tion: Directive 2014/34/EU.
Equipment
TT-3965A ATEX Transceiver SAILOR 3965 UHF Fire PN = 403965A
SAILOR B3906 ATEX Rechargeable Li-ion Battery PN = 403906A
SAILOR B3503 ATEX Primary Lithium battery PN = 403503A
SAILOR B3504 ATEX Rechargeable Li-ion Battery PN = 403504A
Associated equipment for use in non-ATEX area
SAILOR CH3505 Battery Compact Charger for ATEX PN = 403505A
SAILOR CH3507 Battery Charger for ATEX PN = 403507B
SAILOR CH3508 Dual Battery Charger for ATEX PN = 403508B
AC/DC Adapter PN = 88-125538
Equipment Applicability
SAILOR 3965 is a simplex/semi-duplex handheld ATEX / UHF radiotelephone designed for maritime & land-
mobile communication within the frequency range 440 MHz to 470 MHz.
Declaration
The requirement with respect to the ATEX Directive 2014/34/EU is met by conforming to the harmonized EU
standards EN 60079-0:2012 + A11:2013 and EN 60079-11:2012.
SAILOR 3965 meets the ATEX requirement for gas environments of class II 2 G Ex ib IIB T4.
SAILOR 3965 also meets the requirement for Ingress Protection to the level of IP67.
Certi ed by:
TÜV NORD Noti ed Body Id. No. 0044 Certi cate No. TÜV 16 ATEX 179791 X Issue: 01
TÜV Cyprus Noti ed Body Id. No. 2261 Certi cate No. TÜV CY 16 ATEX 0205765 Q
Manufacturer
Thrane & Thrane A/S Lundtoftegårdsvej 93D, DK-2800 Kgs. Lyngby, Denmark
Industrivej 30, DK-9490 Pandrup, Denmark
Place and Date
Pandrup, 19 December, 2016
D
irector Radio and Navig
at
a
a
io
io
io
o
o
n R&
D
2261
0044
1652
![](/img.php?id=3906706&img=bg3c.png)
Technical specifications
42
EU Declaration of Conformity
Thrane & Thrane A/S trading as Cobham SATCOM. Registered no.: DK - 65 72 46 18. Registered address: Lundtoftegaardsvej 93 D, 2800 Kgs. Lyngby, Denmark
This
memo, which may contain confidential information, is intended solely for the use of the individual(s) or organisation to whom it is
addressed. If you are not the addressee, or the employee or agent responsible for delivering this
memo to the addressee, please telephone us as soon
as possible and return the memo to us by post. Improper or unauthorised use, disclosure, distribution or copying of this memo is prohibited.
www.cobham.com
Thrane & Thrane A/S declares that the following equipment complies with the specifications of:
RED directive 2014/53/EU concerning Radio Equipment as described in EU standards
- EN 60950-1:2006-A11:2009 + A1:2010 + A12:2011 + A2:2013
- EN 60945, Ed. 4.0 (2002)
- EN 301 843-1, V2.1.1
- EN 301 843-2, V2.1.1
- ETSI EN 300 720, V2.2.0
Equipment included in this declaration
Model
Description
Part no.
TT-3965A
SAILOR 3965 UHF ATEX Radio transceiver
403965A
TT-3906A
SAILOR B3906 Battery ATEX - Rechargeable
403906A
SAILOR CH3505
Compact Charger
403505A
SAILOR CH3507
Single Position Charger
403507A
SAILOR CH3508
Dual Position Charger
403508A
AC/DC Adapter
88-125538
Equipment Applicability
SAILOR 3965 is a simplex/semi-duplex UHF ATEX radiotelephone designed for maritime communication
within the frequency range 440 MHz to 470 MHz.
Manufacturer
Thrane & Thrane A/S Lundtoftegårdsvej 93D, DK-2800 Kgs. Lyngby, Denmark
Industrivej 30, DK- 9490 Pandrup, Denmark
Place and date
Pandrup, 15 March, 2017
Director Radio and Navigation R&D
Henrik Kalstrup
Document no.: 99-155708-A
e
ct
or
Radio and Naviga
ti
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
on
on
o
n
on
n
on
on
on
on
on
on
on
on
o
on
on
on
o
n
on
n
on
o
on
on
on
on
o
o
o
o
o
o
o
o
o
R&
D
1711
![](/img.php?id=3906706&img=bg3d.png)
Technical specifications
43

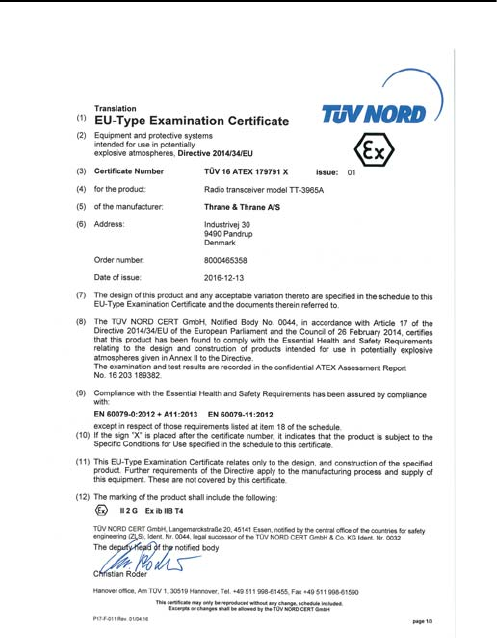

Type Examination Certificate
1652
![](/img.php?id=3906706&img=bg3e.png)
Technical specifications
44 1652
![](/img.php?id=3906706&img=bg3f.png)
Technical specifications
45
1652
![](/img.php?id=3906706&img=bg40.png)
Technical specifications
46 1652
![](/img.php?id=3906706&img=bg41.png)
Appendix B
47
1616

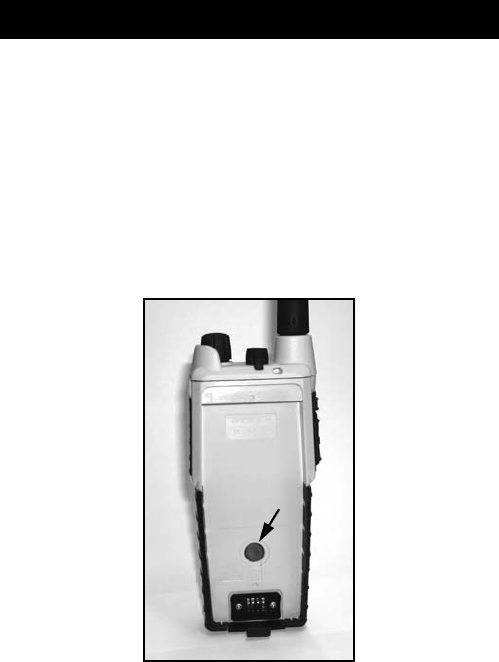

Attention
Gore-tex Membrane
To keep the UHF watertight, is it very important that the Gore-Tex
membrane under no circumstances must be damaged/covered or
removed.
That is, do not remove the Gore-Tex membrane or place any labels in the
area.
![](/img.php?id=3906706&img=bg42.png)
Attention
48 1616
![](/img.php?id=3906706&img=bg44.png)
www.cobham.com/satcom
98-150078-G_Draft 03
