User Manual
I
COPYRIGHT
The entire contents of this manual, including any future updates, revisions, and modifications to
specifications, shall remain the property of Alltek Marine Electronics Corp. (hereinafter AMEC) at all
times. Unauthorized copies or reproductions of this manual, either in part or as a whole, are strictly
prohibited. The contents herein can only be used for the purpose subjects to this manual.
DISCLAIMER
AMEC is devoted in publishing and maintaining this manual. As we continue to improve our Aids to
Navigation Automatic Identification System (AIS AtoN) products, information in this manual is
subjected to changes without notice. AMEC does not make any representations or warranties
(implied or otherwise) regarding the accuracy and completeness of this manual and shall in no
event be liable for any loss of profit or any commercial damage, including but not limited to special,
incidental, consequential, or other damages.
CONTACT US AT:
Technical Support:
Sales & Marketing:
ALLTEK MARINE ELECTRONICS CO., LTD
7F, NO. 605, Ruei-Guang RD., Neihu, Taipei, Taiwan 114
TEL: +886 2 2627 1599
FAX: +886 2 2627 1600
www.alltekmarine.com
(Your Local Dealer/Agent Warranty Stamp)
Version 1.42
II
Please carefully read this manual before start using the AIS AtoN device. This product is an
auxiliary monitoring device, and it should not be relied upon as the sole monitoring navigation
system. Failure to operate this system in accordance with the operating instructions specified in
this manual may result in unreliable or reduced system performance. Improper operation or
installation may cause damage to the equipment or injury to personnel. AMEC shall in no event
be liable for any loss of profit, personal injury, unpredictable damage arising out of incorrect
operation or installation or any kind of product misuse or abuse.
WARNING!
SAFETY INSTRUCTIONS
ELECTRICAL SHOCK HAZARD.
Do not open the case of the
equipment. Only qualified
personnel should work inside the
equipment.
WARNING
TURN OFF THE POWER IMMEDIATELY
IF WATER LEAKS INTO THE
EQUIPMENT OR OBJECT DROPS INTO
THE EQUIPMENT.
Continue operating the equipment could
cause electrical shock or fire. Contact your
nearest distributor for service.
DO NOT DISASSEMBLE OR MODIFY
THE EQUIPMENT.
Improper disassemble or modification
could cause electrical shocks, fire, or
personal injury.
WARNING
DO NOT PLACE ANY
LIQUID-FILLED CONTAINER ON
TOP OF THE EQUIPMENT.
Improper disassemble or
modification could cause electrical
shocks, fire, or personal injury.
TURN OFF THE POWER
IMMEDIATELY IF THE EQUIPMENT
IS EMMITTING SMOKE OR FIRE.
Continue operating the equipment
could cause electrical shock or fire.
Contact your nearest distributor for
service.
EVEN THOUGH THE EQUIPMENT
IS WATERPROOF, PLEASE AVOID
DIRECT CONTACT WITH RAIN
FALLING OR WATER SPLASH.
Electrical shock or fire could be
resulted if water leaks into the
equipment.
AVOID OPERATING THE EQUIPMENT
WITH WET HANDS.
Electrical shocks could be resulted if
operating with wet hands.
PLEASE USE THE PROPER FUSE.
Damage to the equipment or fire could be
resulted if using the wrong fuse.
III
Table of Contents
I. COPY RIGHT & DISCLAIMER
II. WARNING & SAFETY INSTRUCTION
III. FORWARD
Pages
1 INTRODUCTION ................................................................................................ 1
1.1 MANDO-301/303 Overview .................................................................................................. 1
1.2 MANDO-301/303 Features ................................................................................................... 4
1.3 Type of AIS ........................................................................................................................... 5
1.4 AIS AtoN Message ............................................................................................................... 6
1.5 About This Manual .............................................................................................................. 7
2 INSTALLATION.................................................................................................. 8
2.1 General ................................................................................................................................. 8
2.1.1 Safety Instructions ........................................................................................................ 8
2.1.2 Items in the Package .................................................................................................... 9

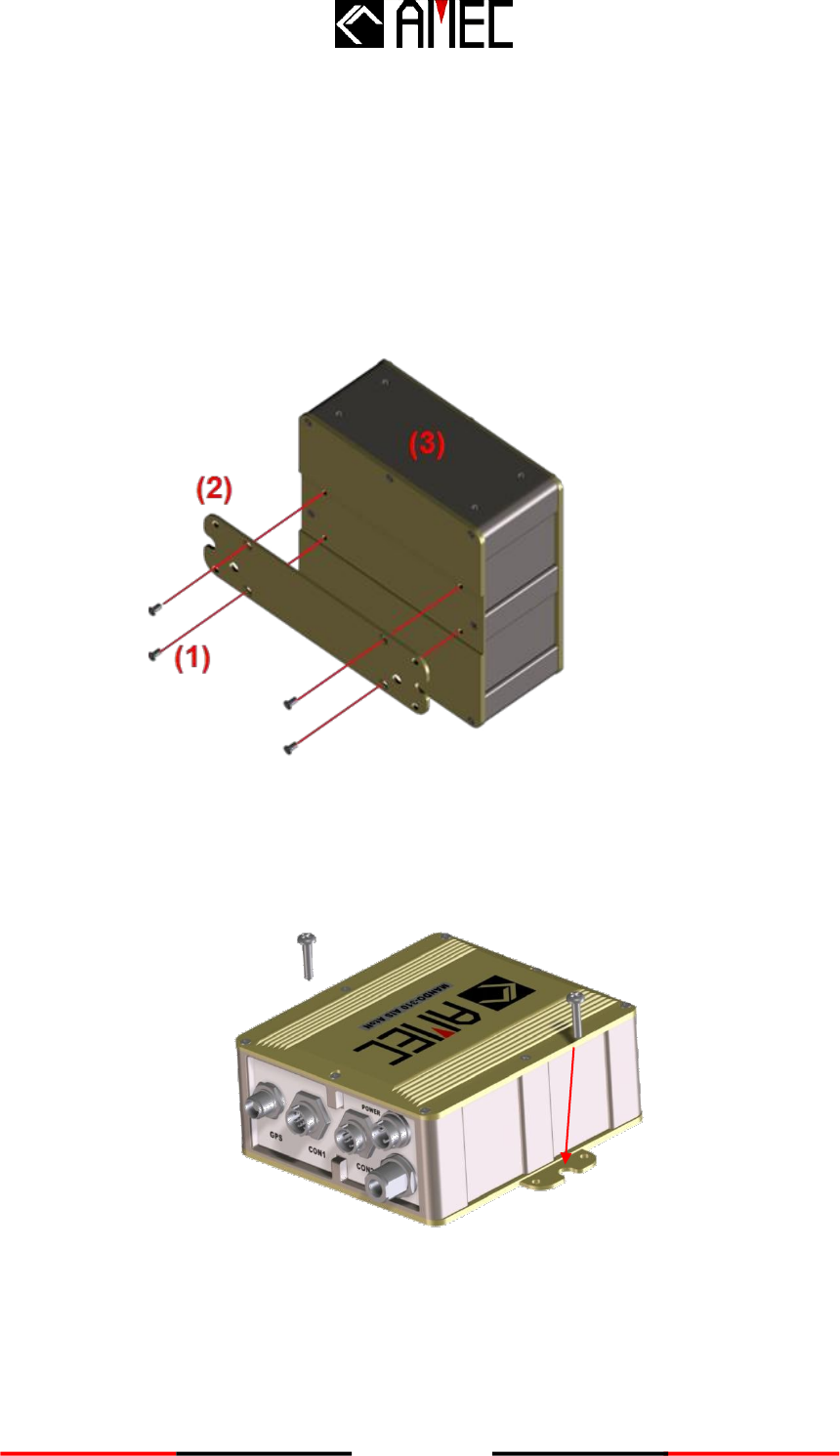

2.2 Installation Procedure ......................................................................................................... 9

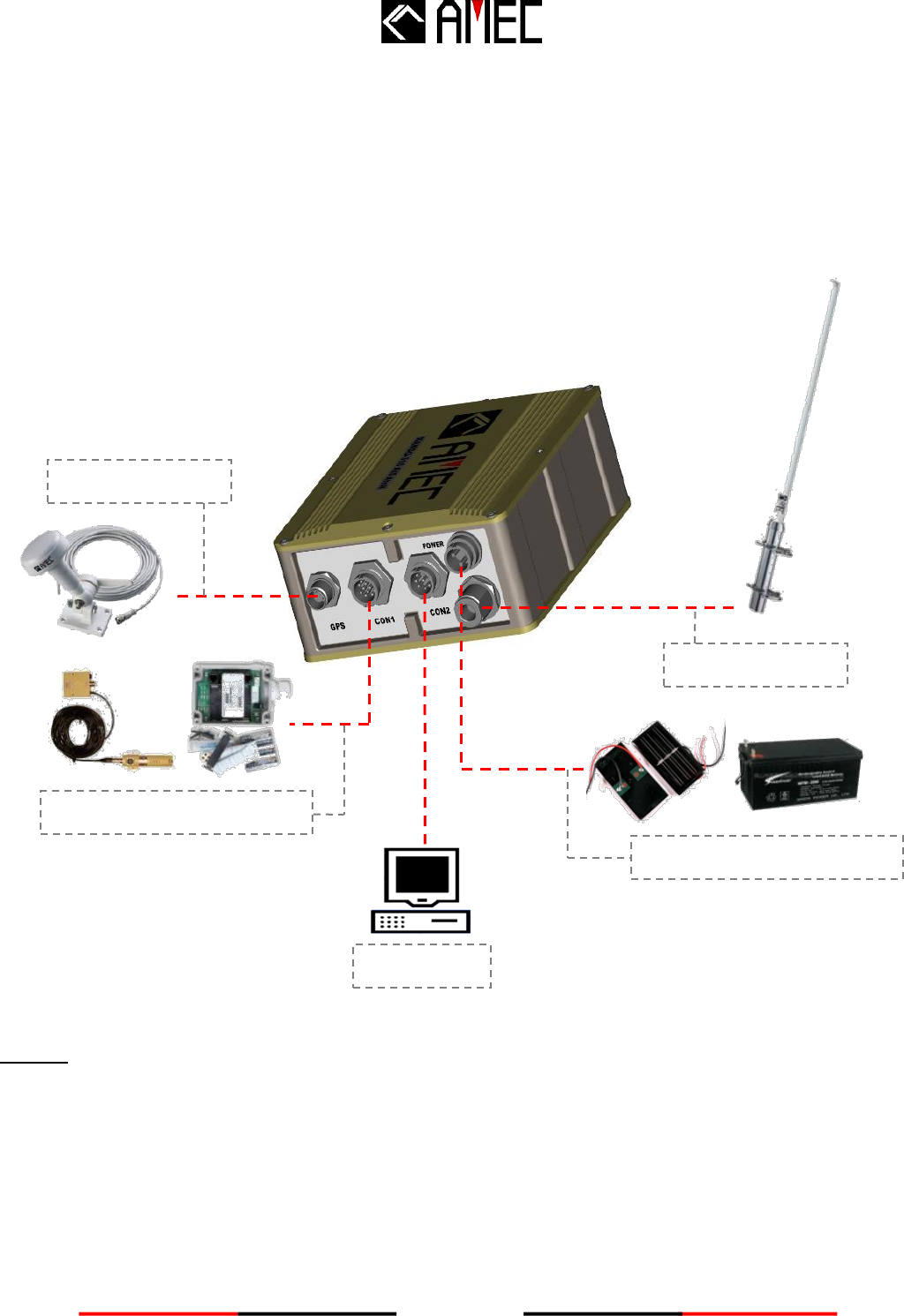

2.3. MANDO-301/303 External Connections .......................................................................... 12
2.4. Installing VHF Antenna .................................................................................................... 13

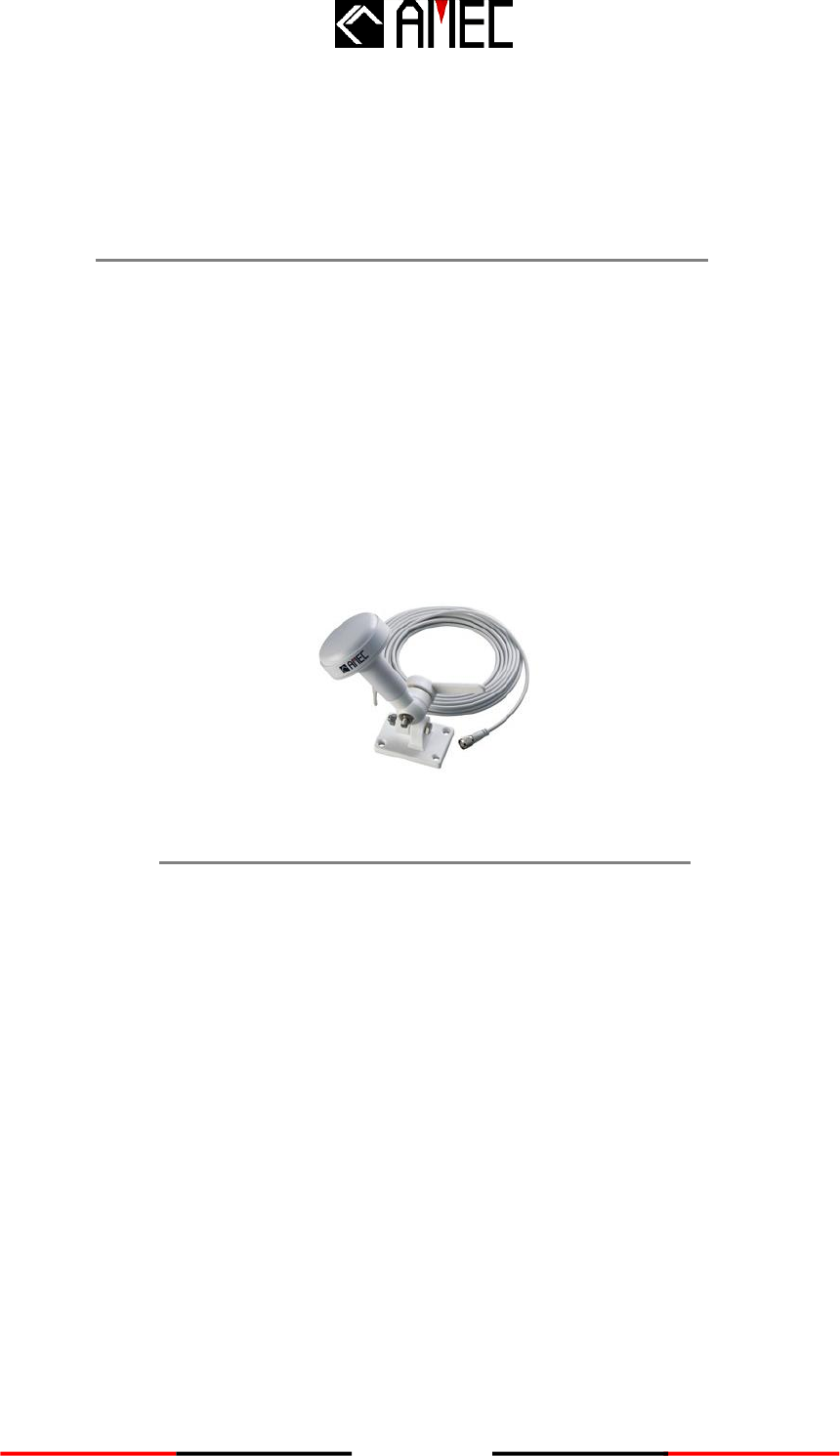

2.5. Installing GPS Antenna .................................................................................................... 15

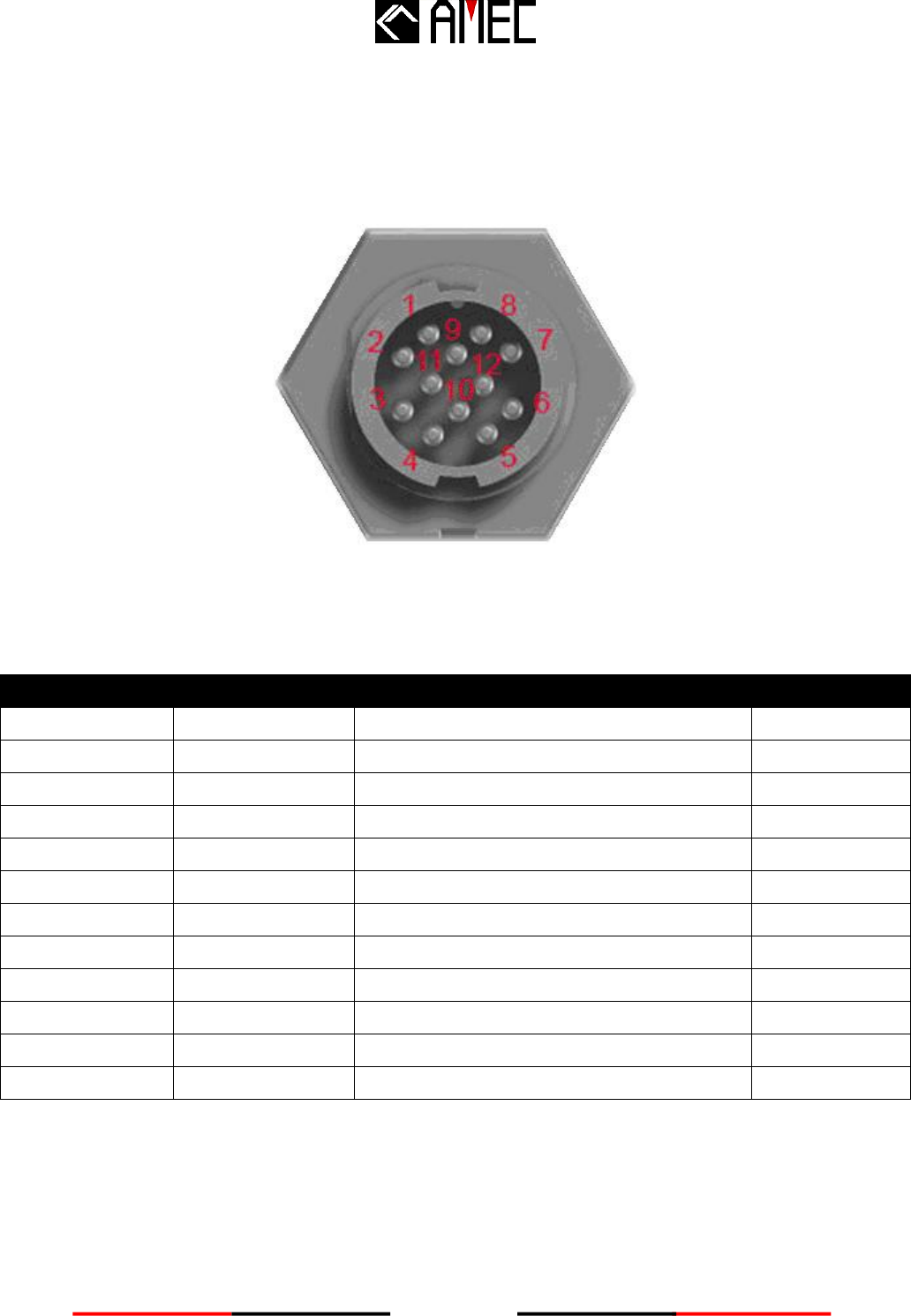

3 WIRING DIAGRAM/PIN DEFINITION .............................................................. 17
4 MANDO-301/303 CONFIGURATION ............................................................... 20

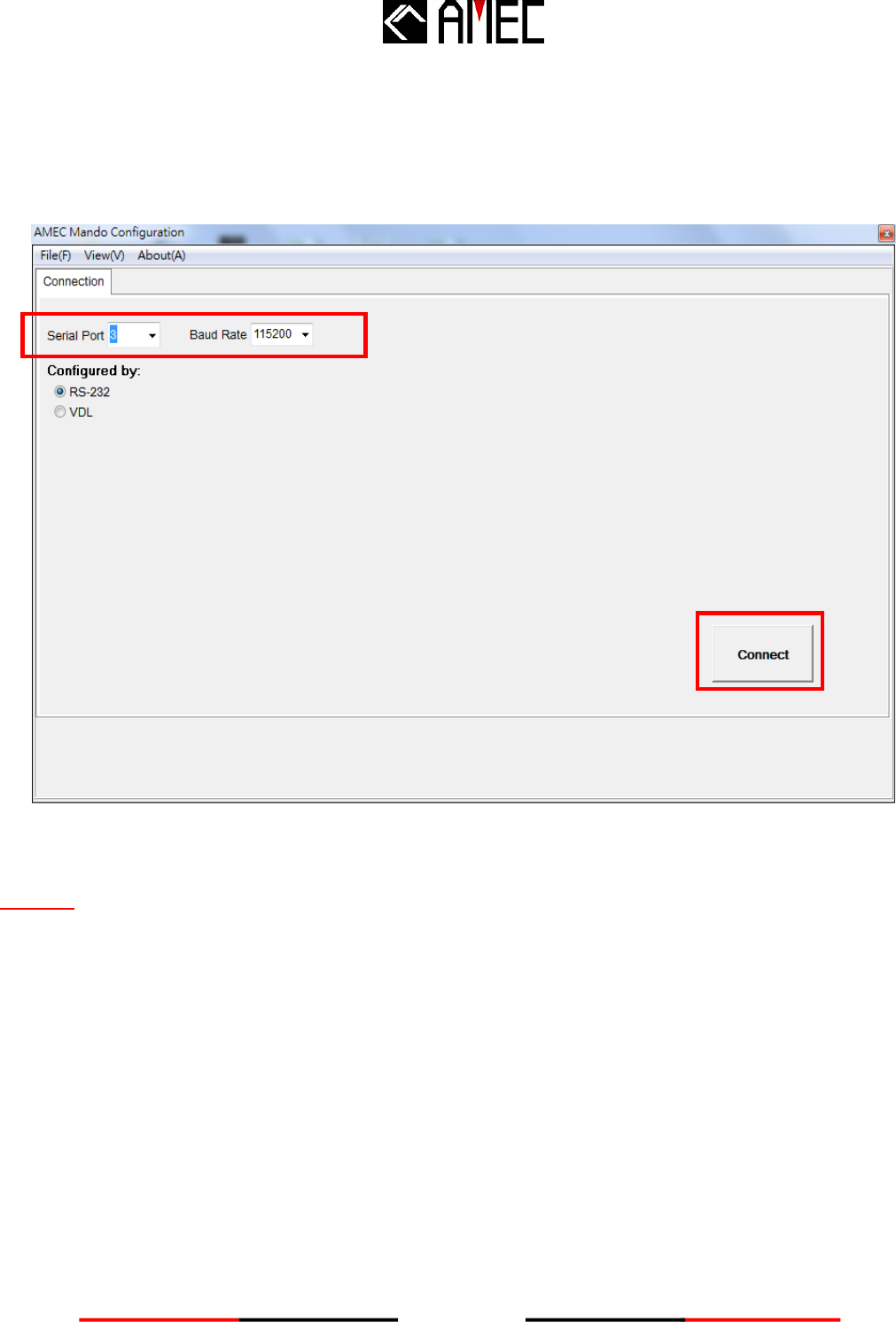

4.1 Configuration Start-up ...................................................................................................... 20

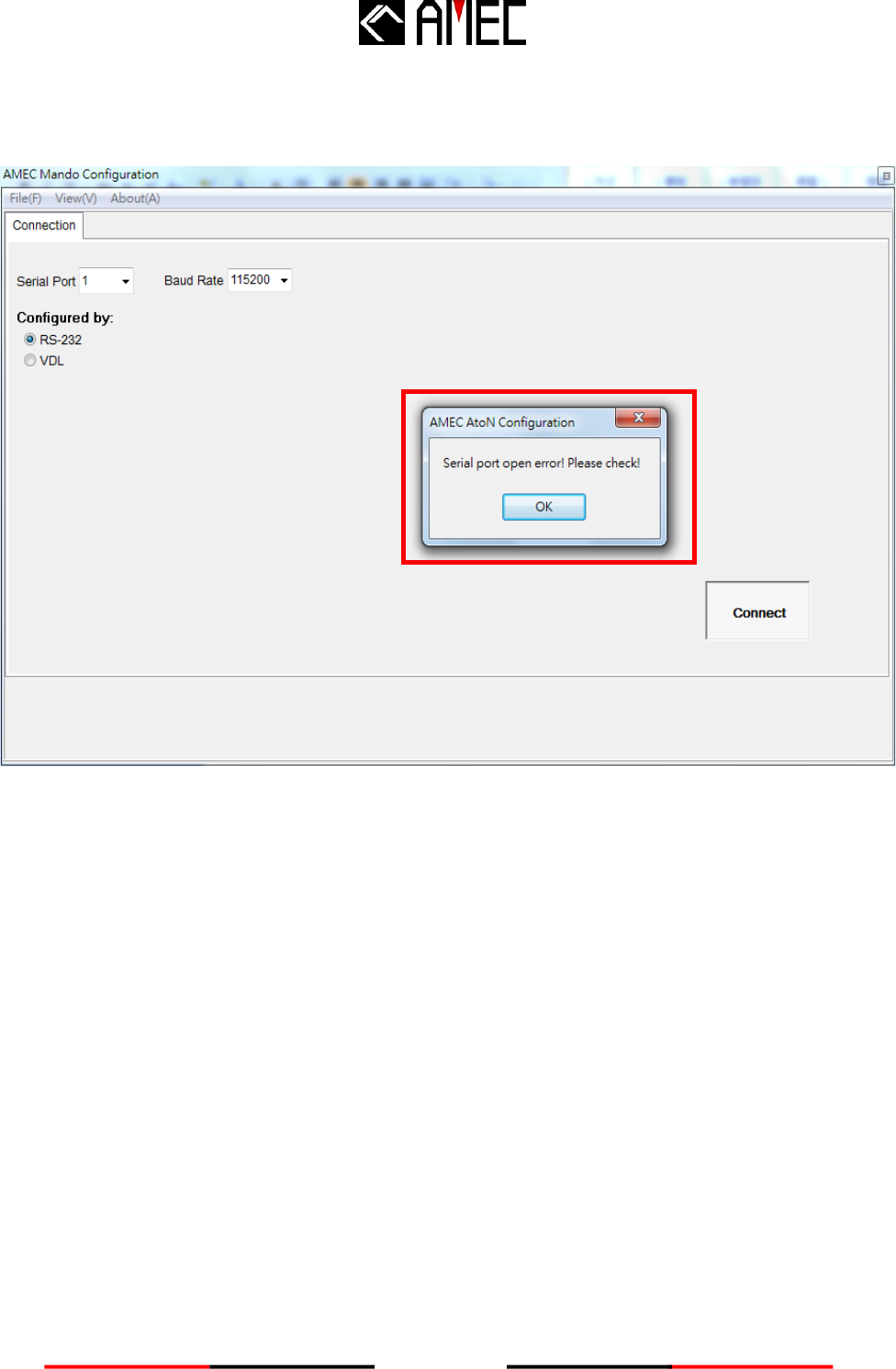

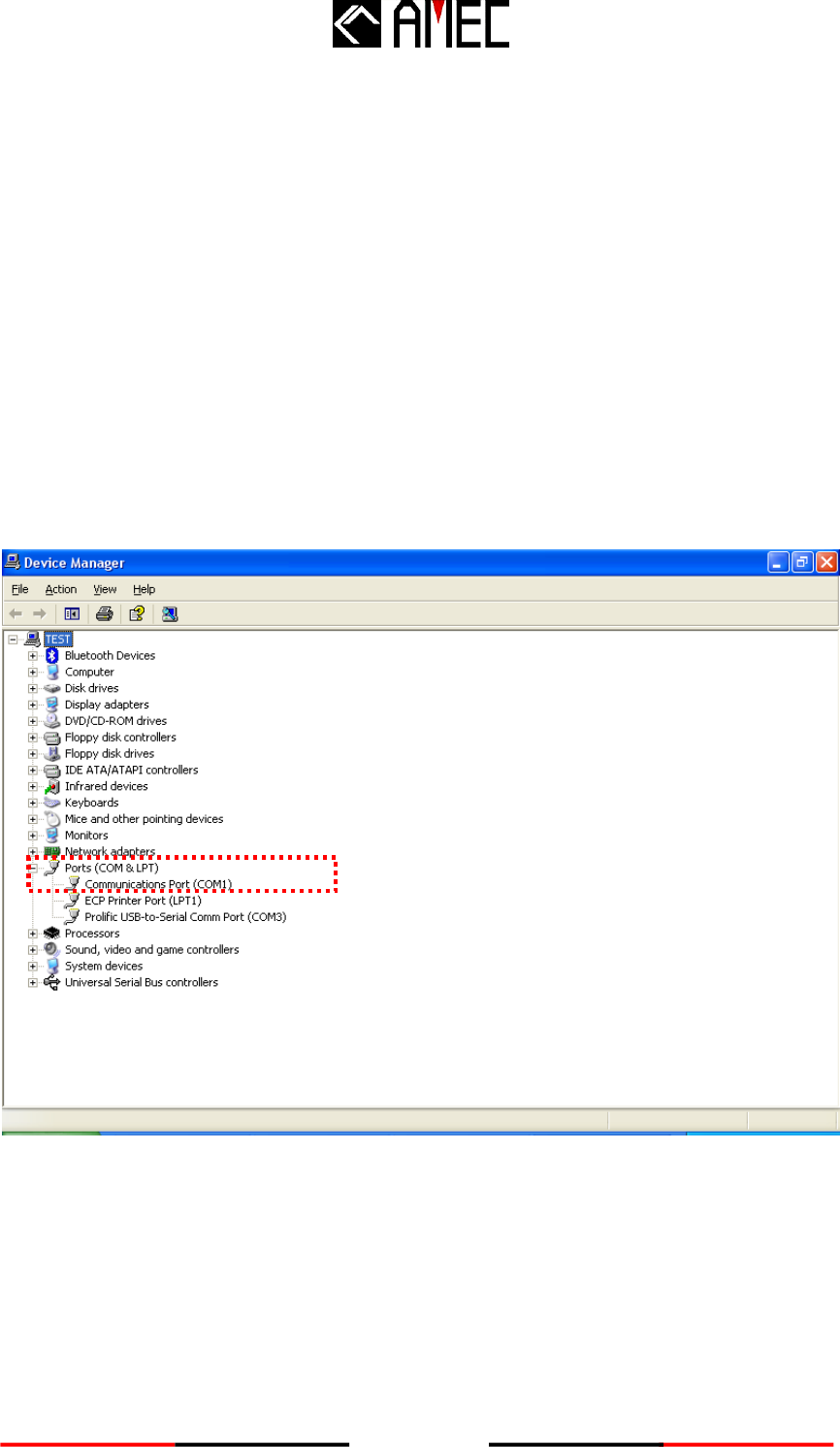

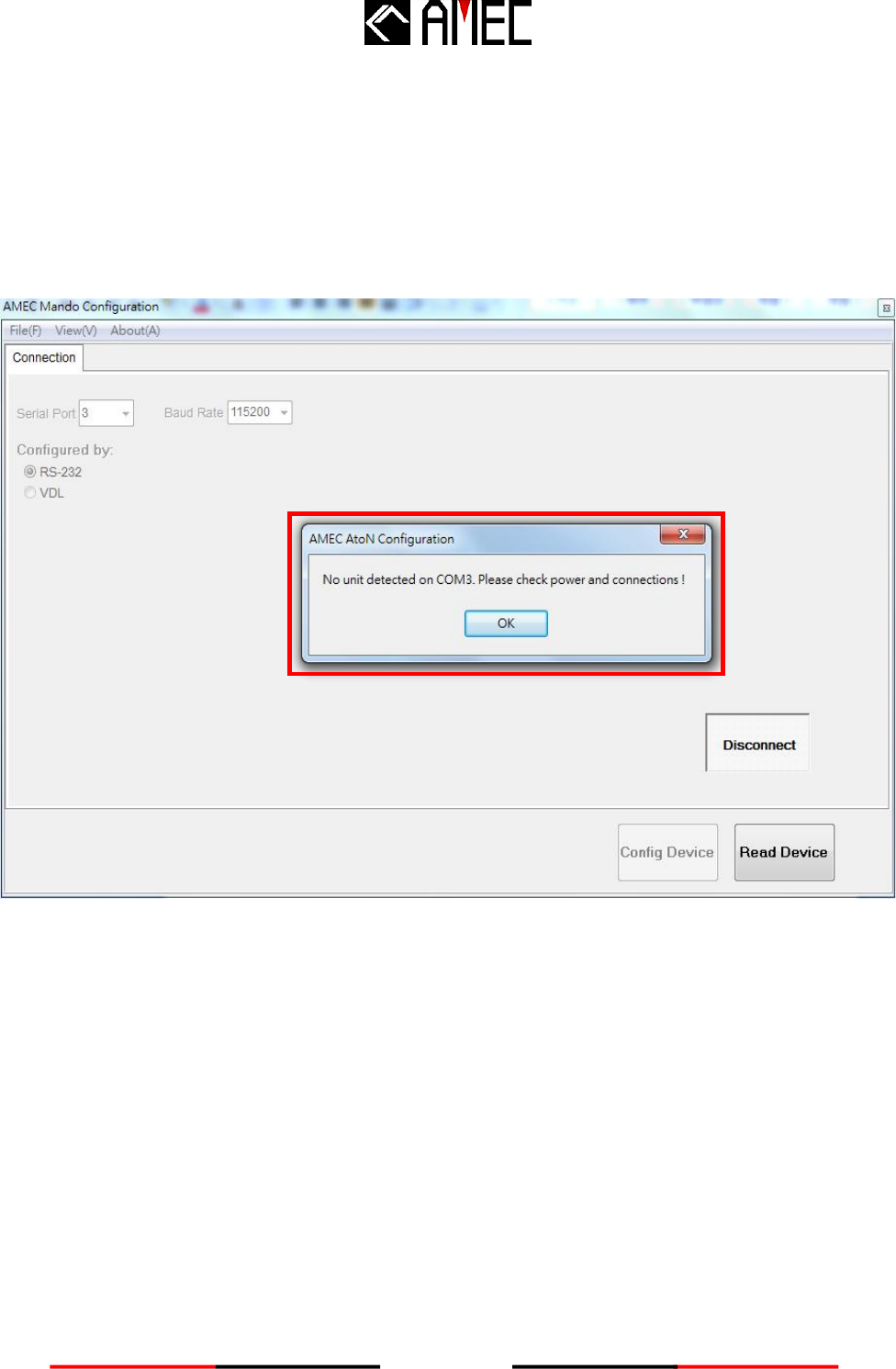

4.2 Serial Port Searching ........................................................................................................ 21
4.2.1 Serial Port Setting ....................................................................................................... 21

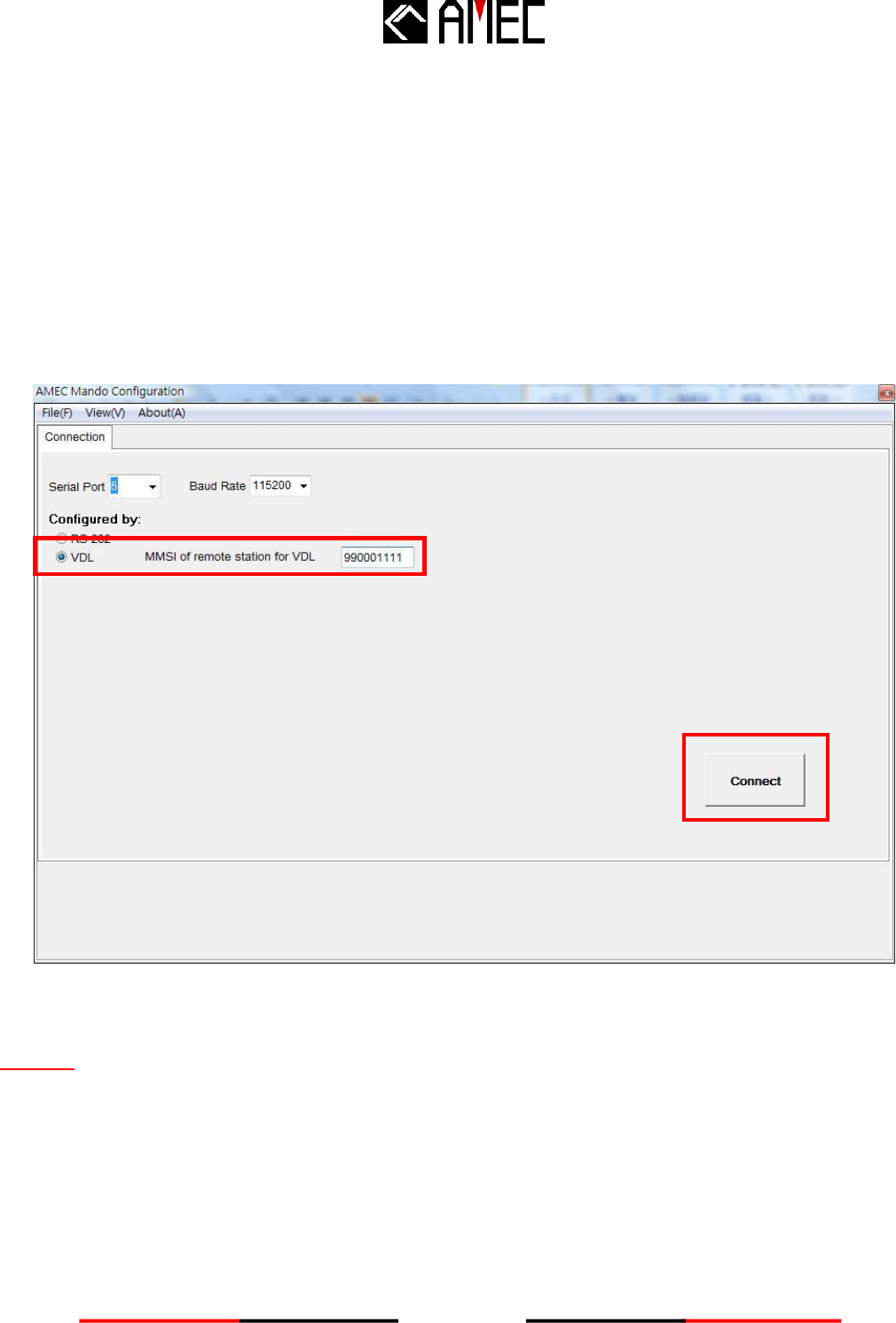

4.2.2 VDL Setting .................................................................................................................. 25
4.3 AtoN MMSI Setup ............................................................................................................... 26

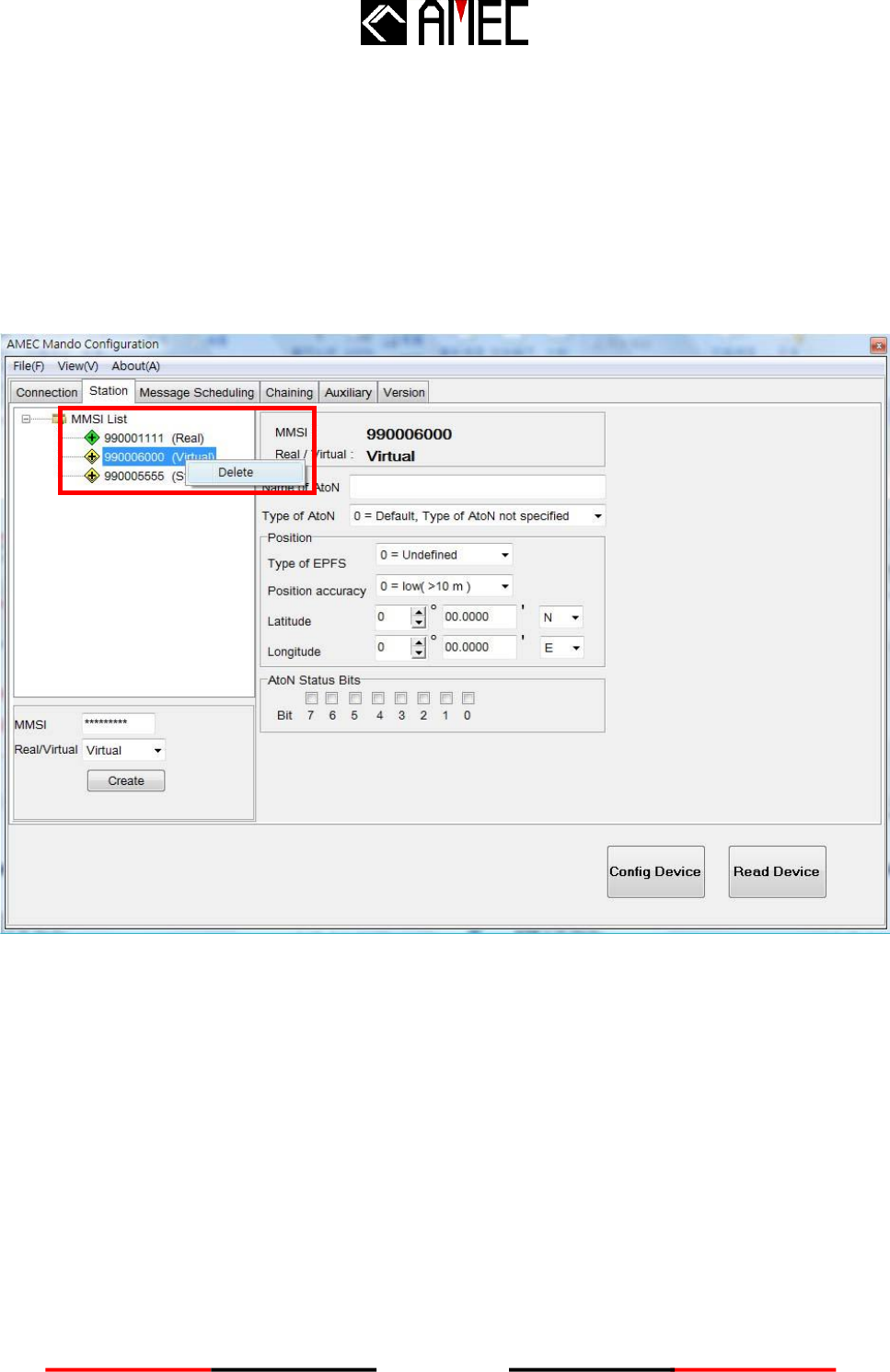

4.4 Delete Selected MMSI ........................................................................................................ 28

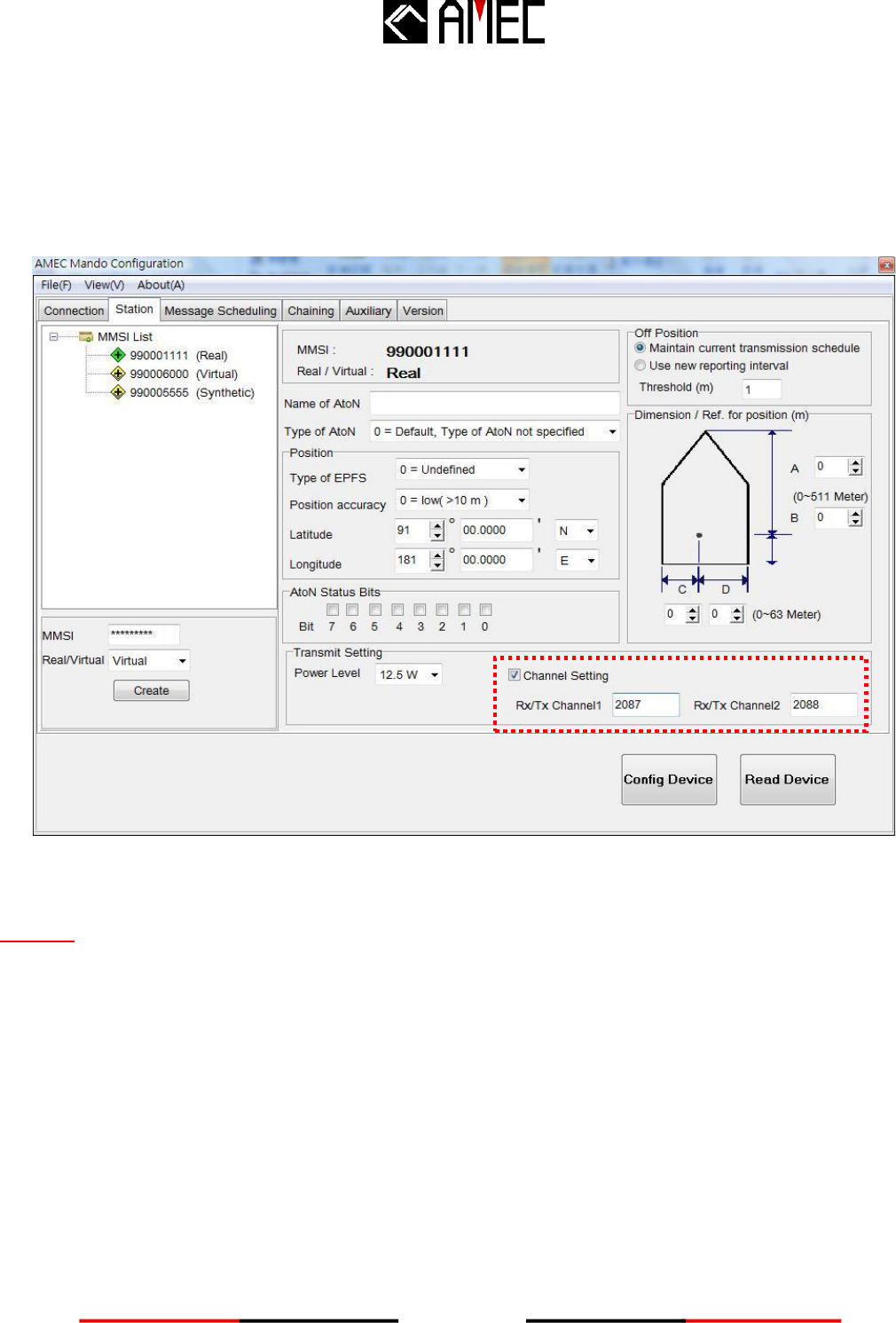

4.5 AtoN Station Data Setting ................................................................................................. 29

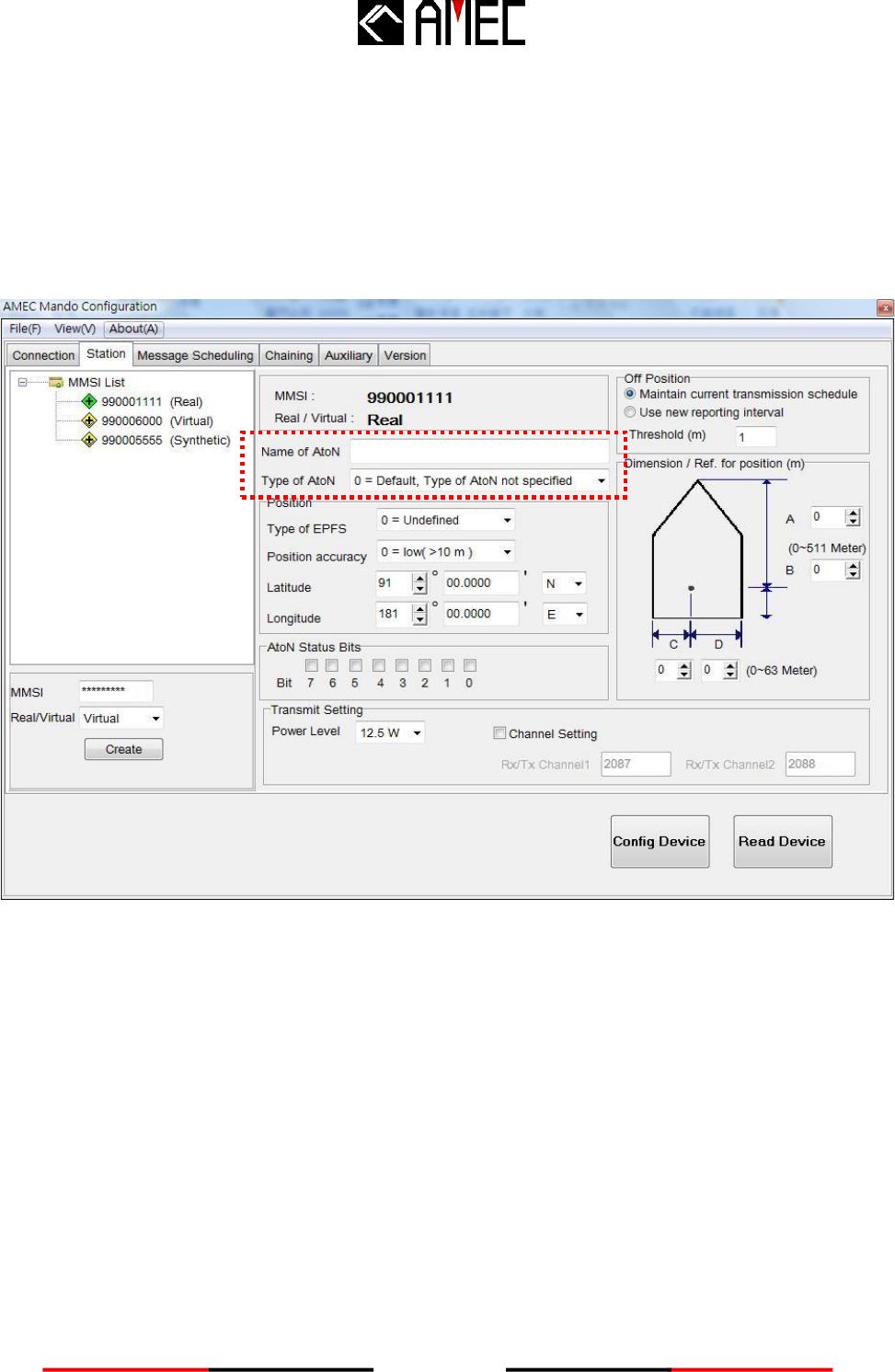

4.5.1 Name and Type of AtoN Device ................................................................................. 30

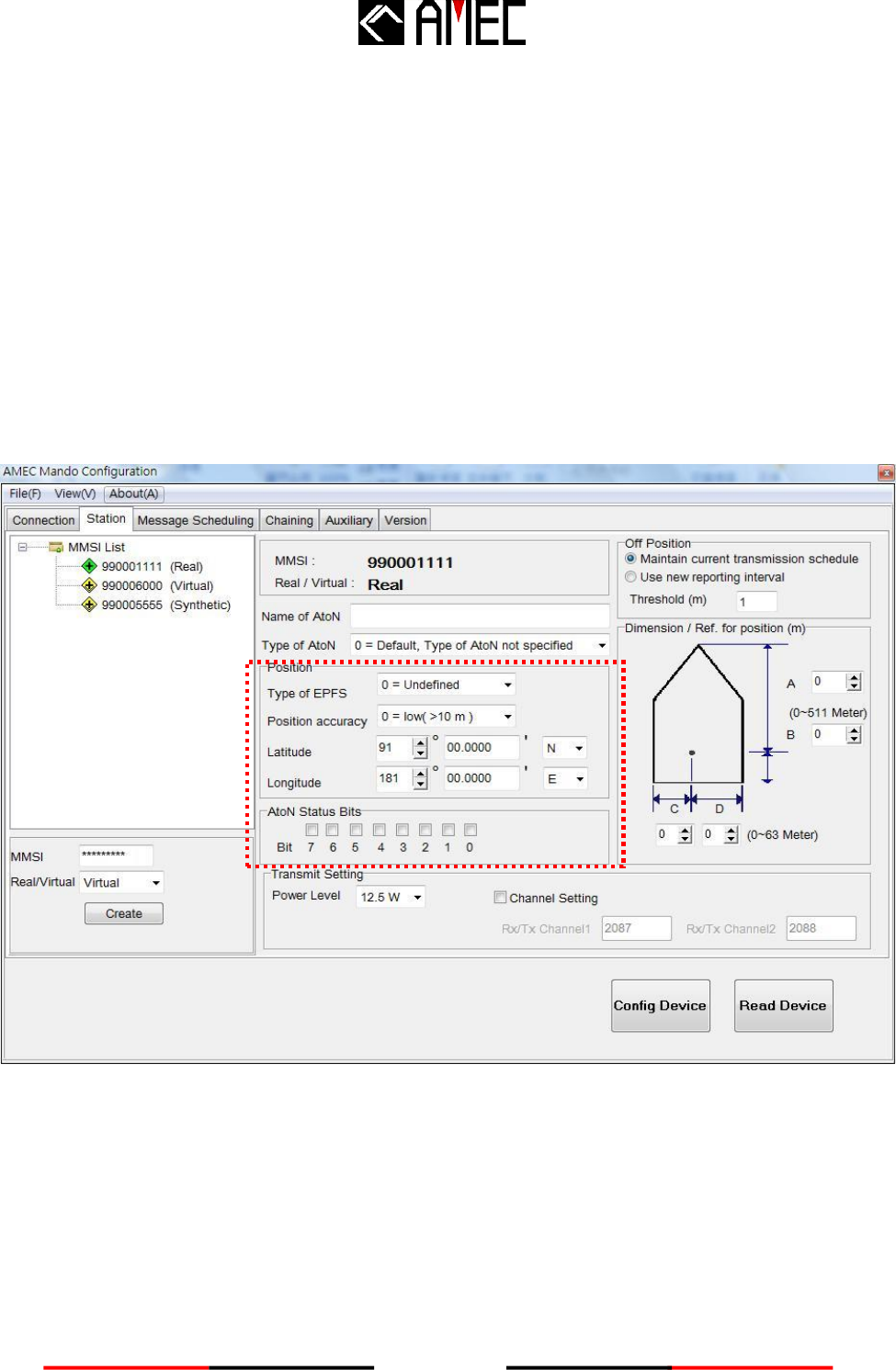

4.5.2 Position Information ................................................................................................... 31

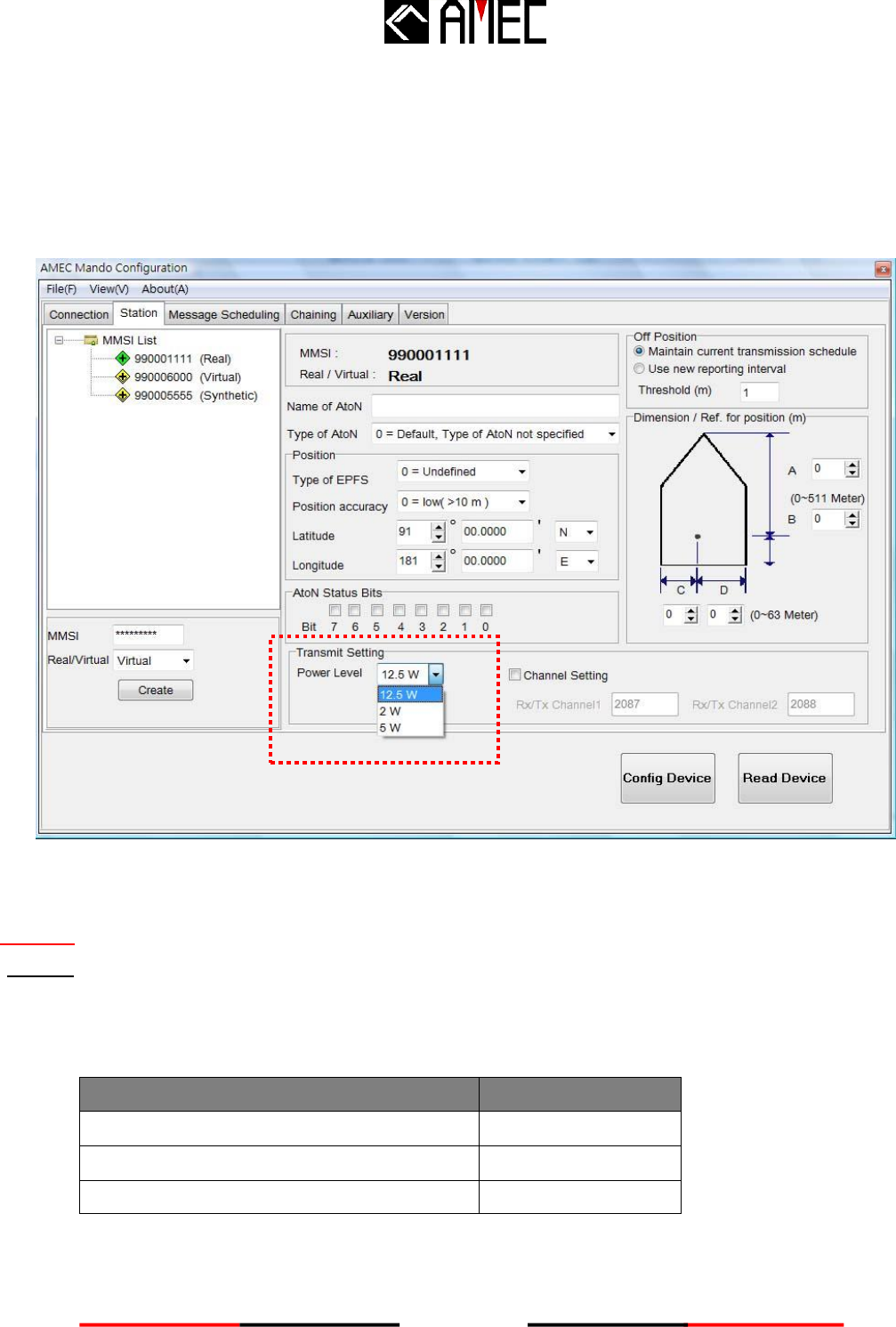

4.5.3 Transmit Setting .......................................................................................................... 32

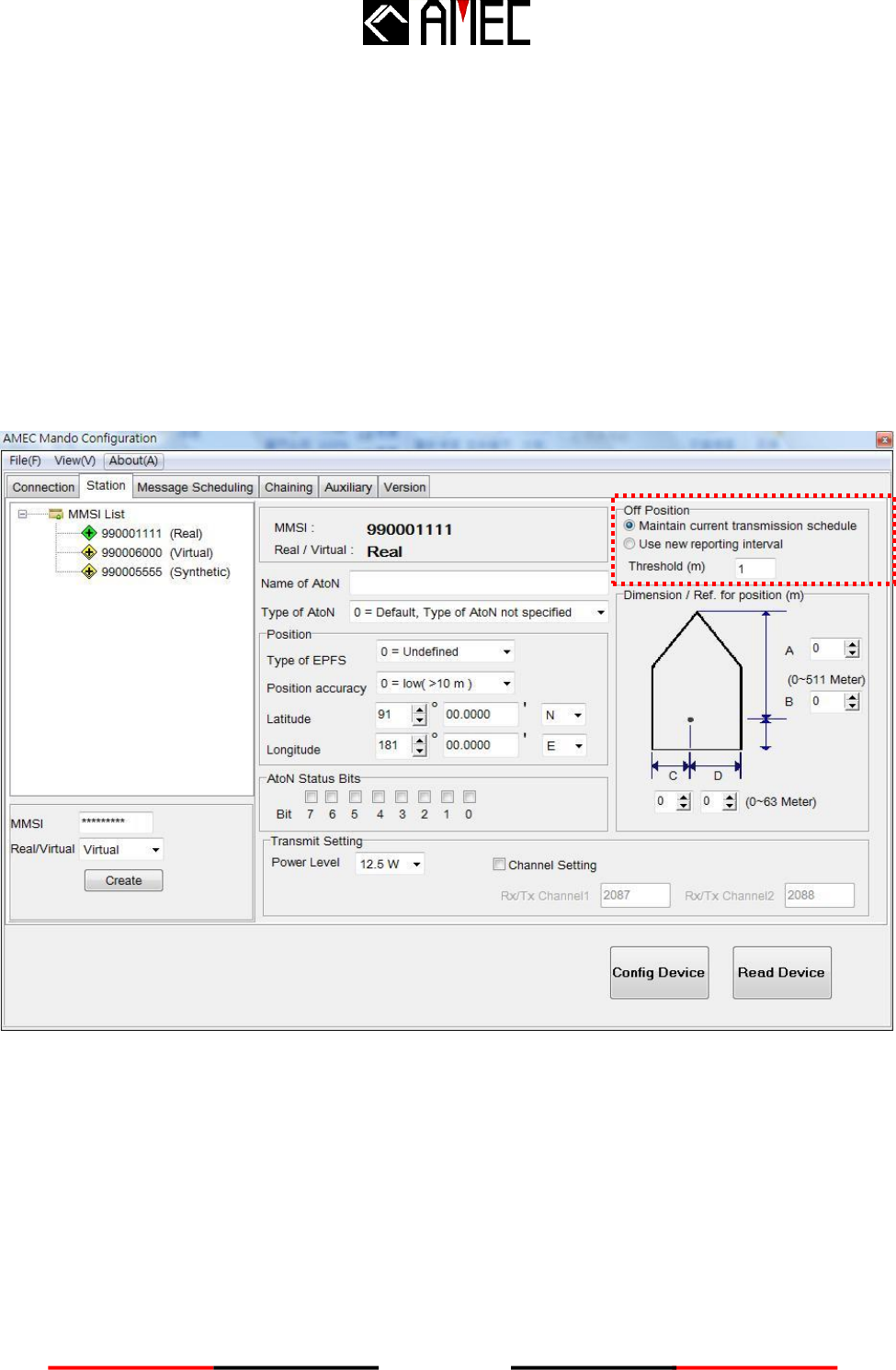

4.5.4 Off Position ................................................................................................................. 34

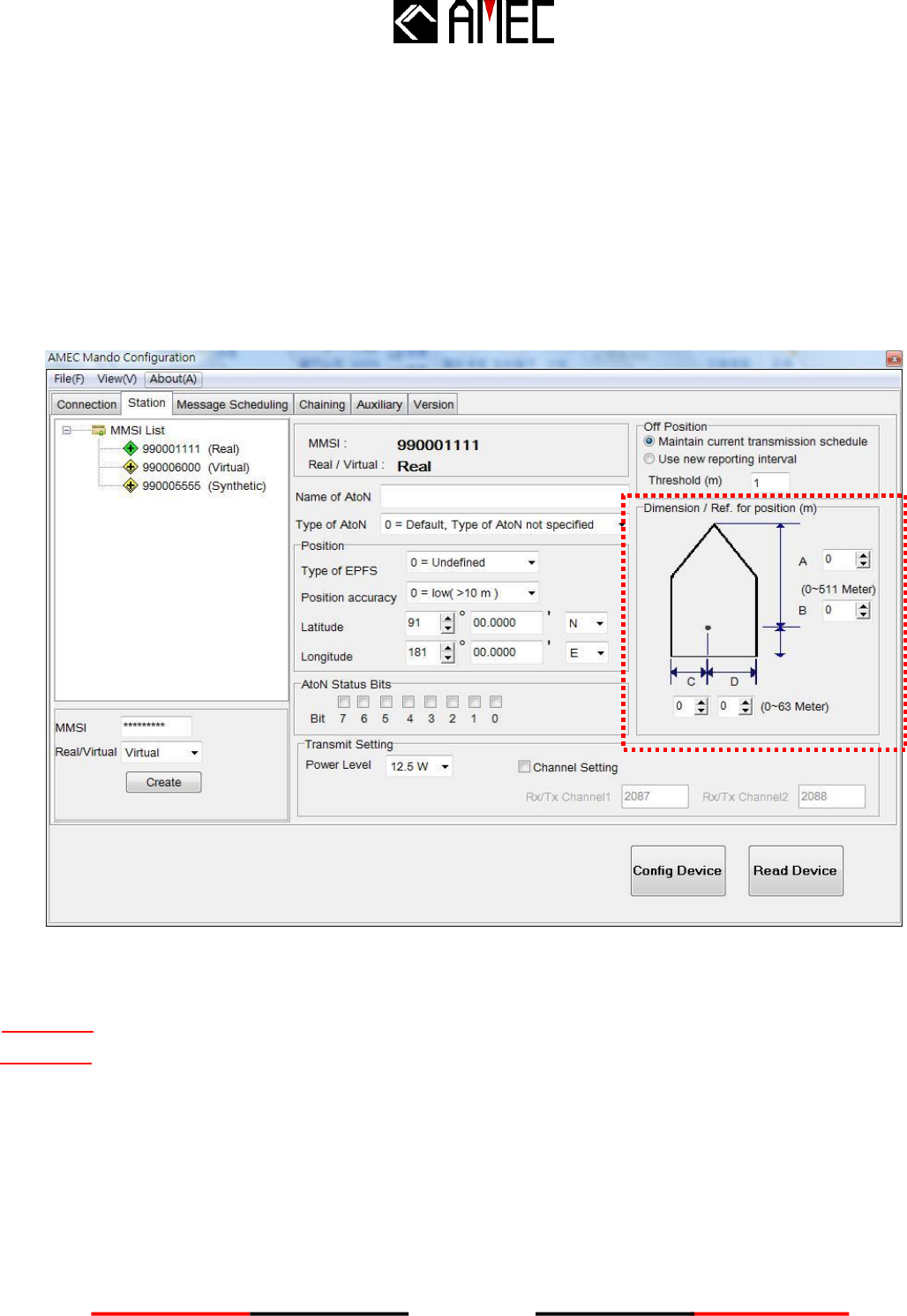

4.5.5 Dimensions ................................................................................................................. 35
IV
4.5.6 All Settings Complete ................................................................................................. 36

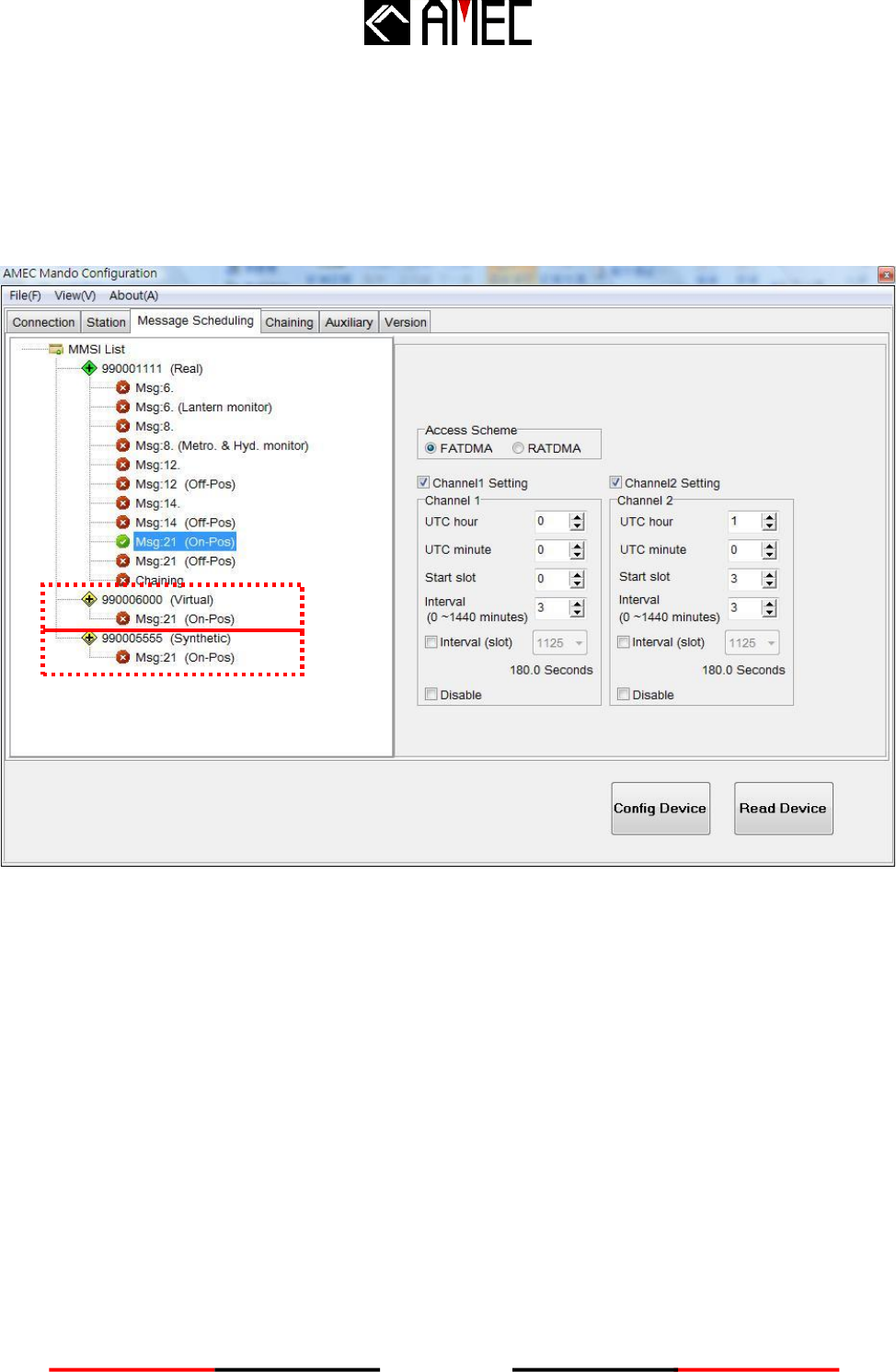

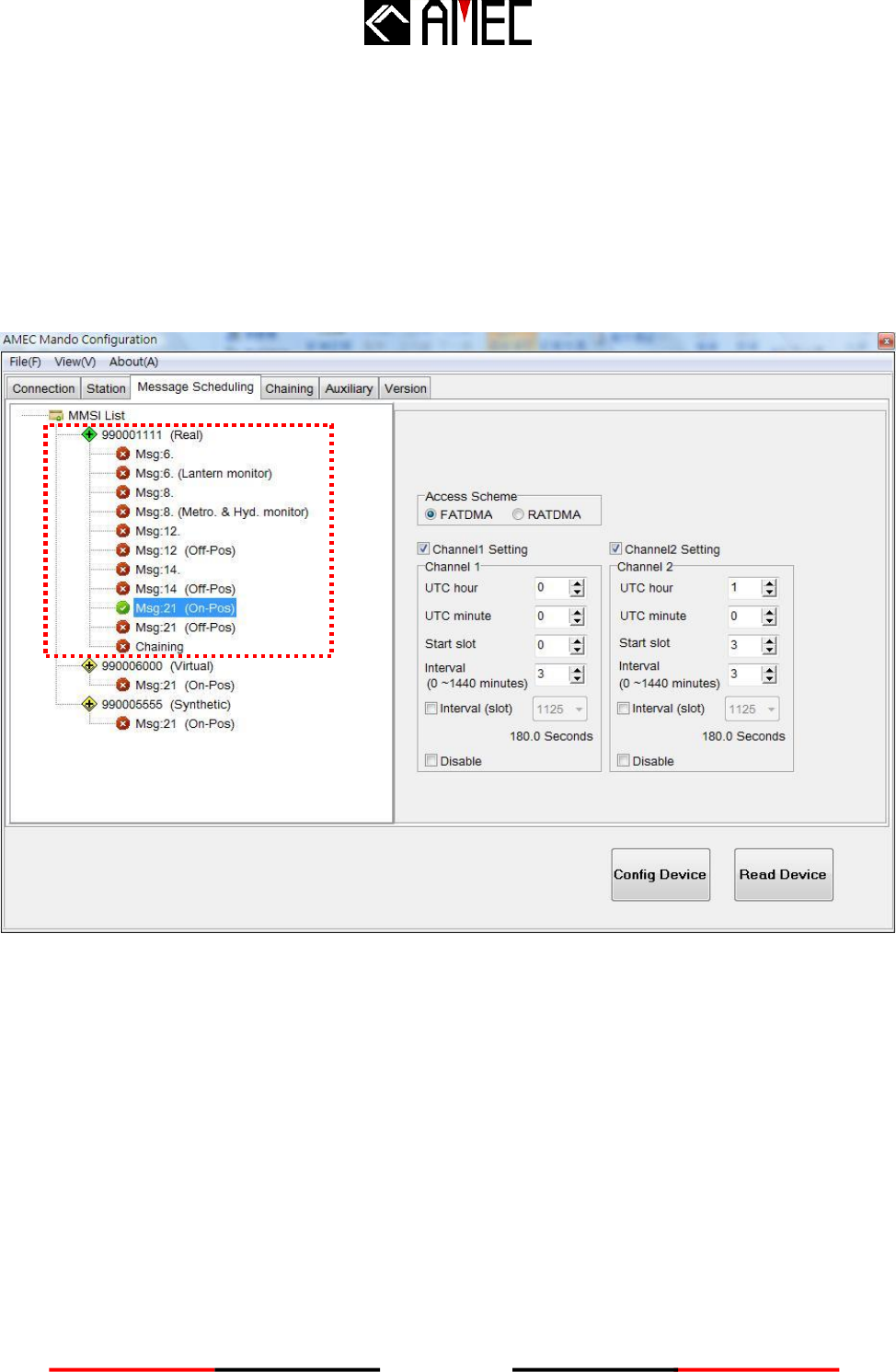

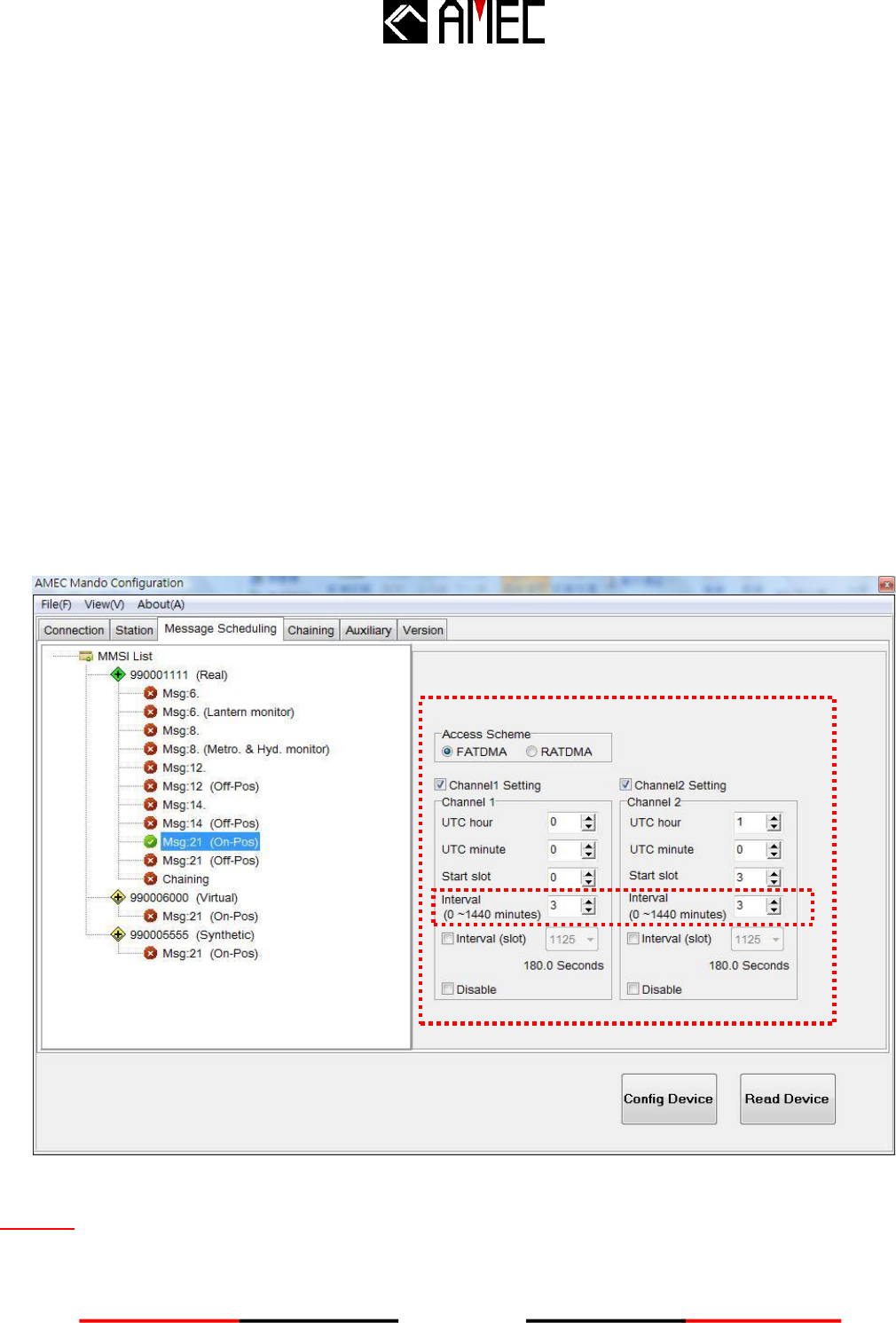

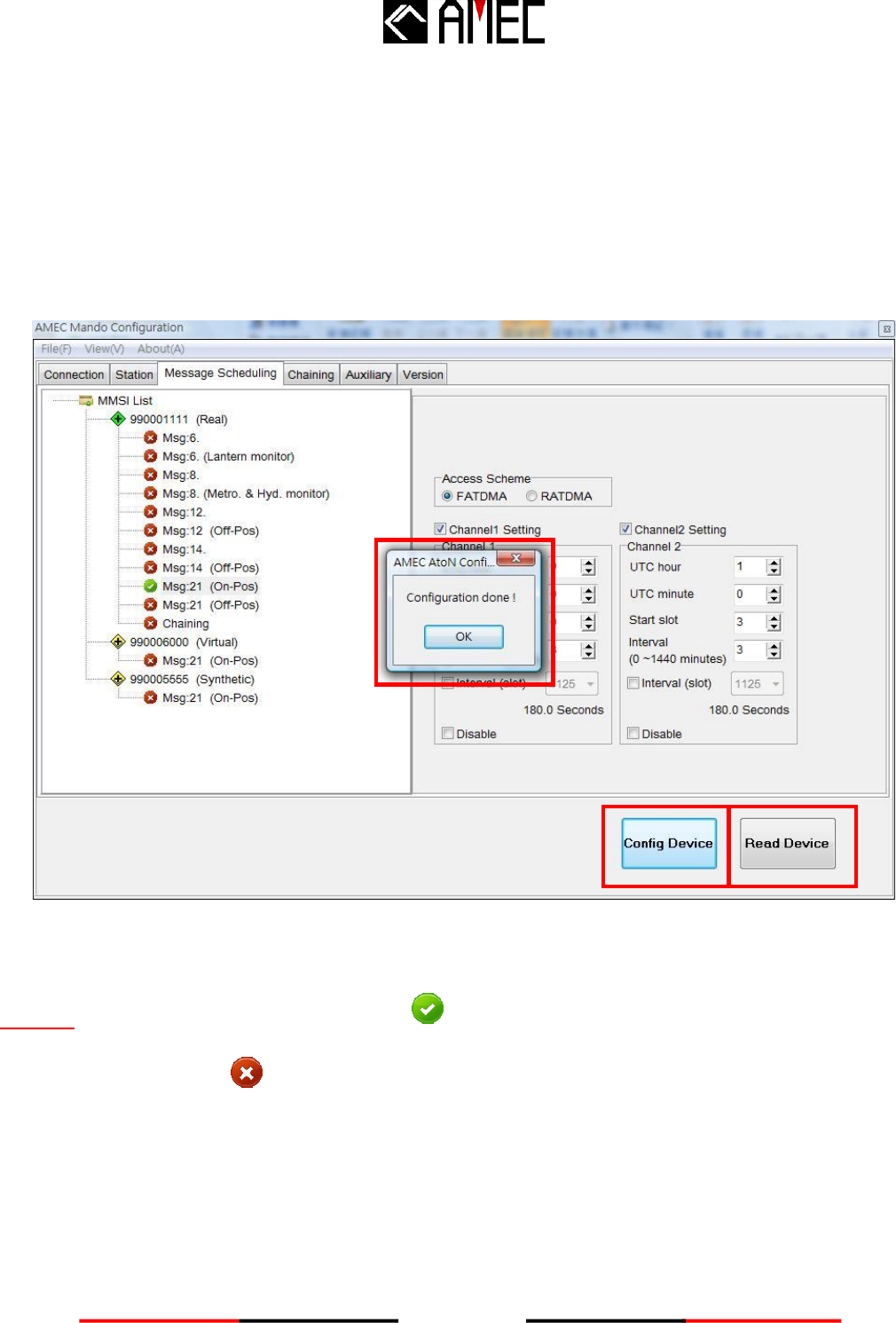

4.6 Message Scheduling ......................................................................................................... 36

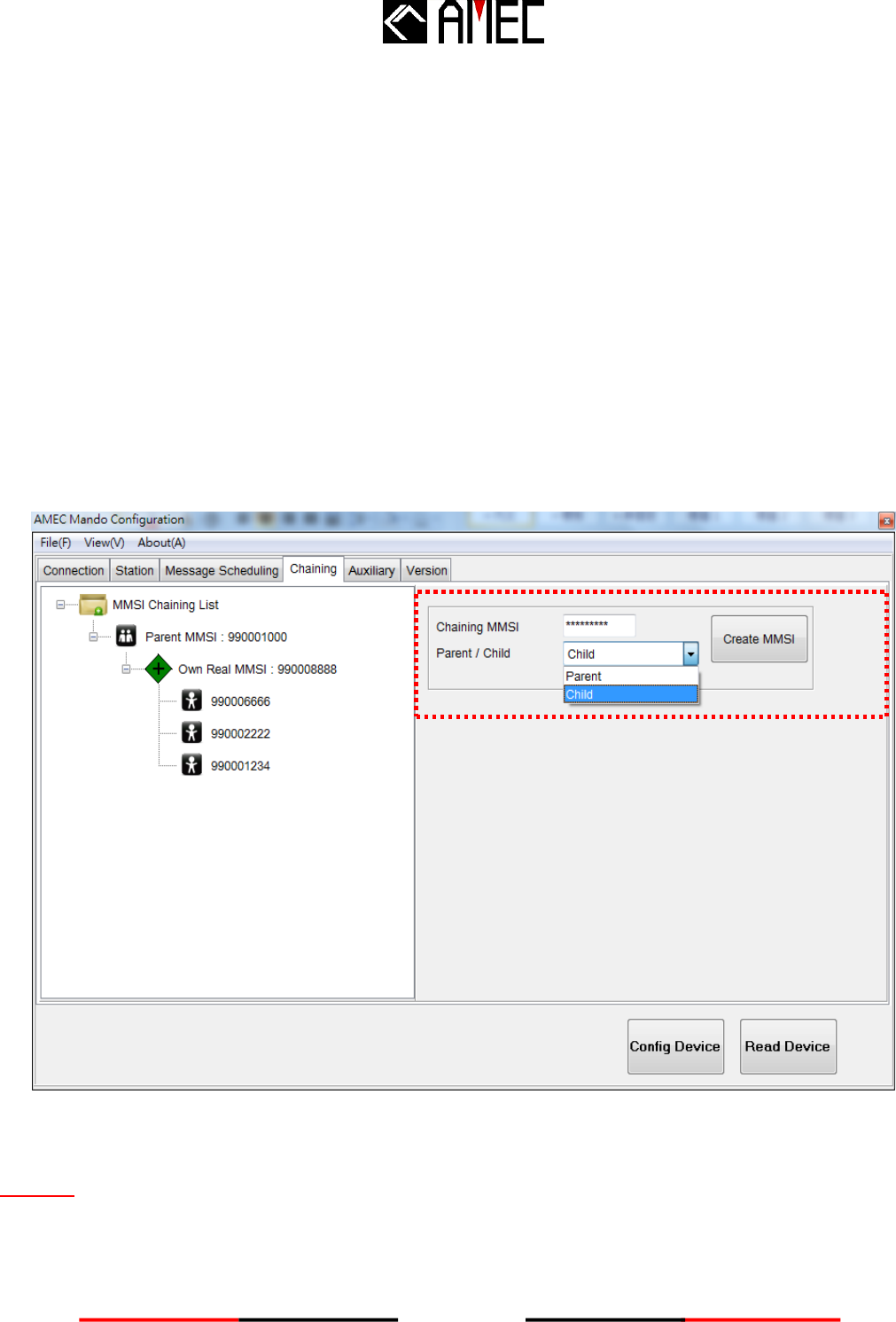

4.7 Chaining Configuration ..................................................................................................... 43

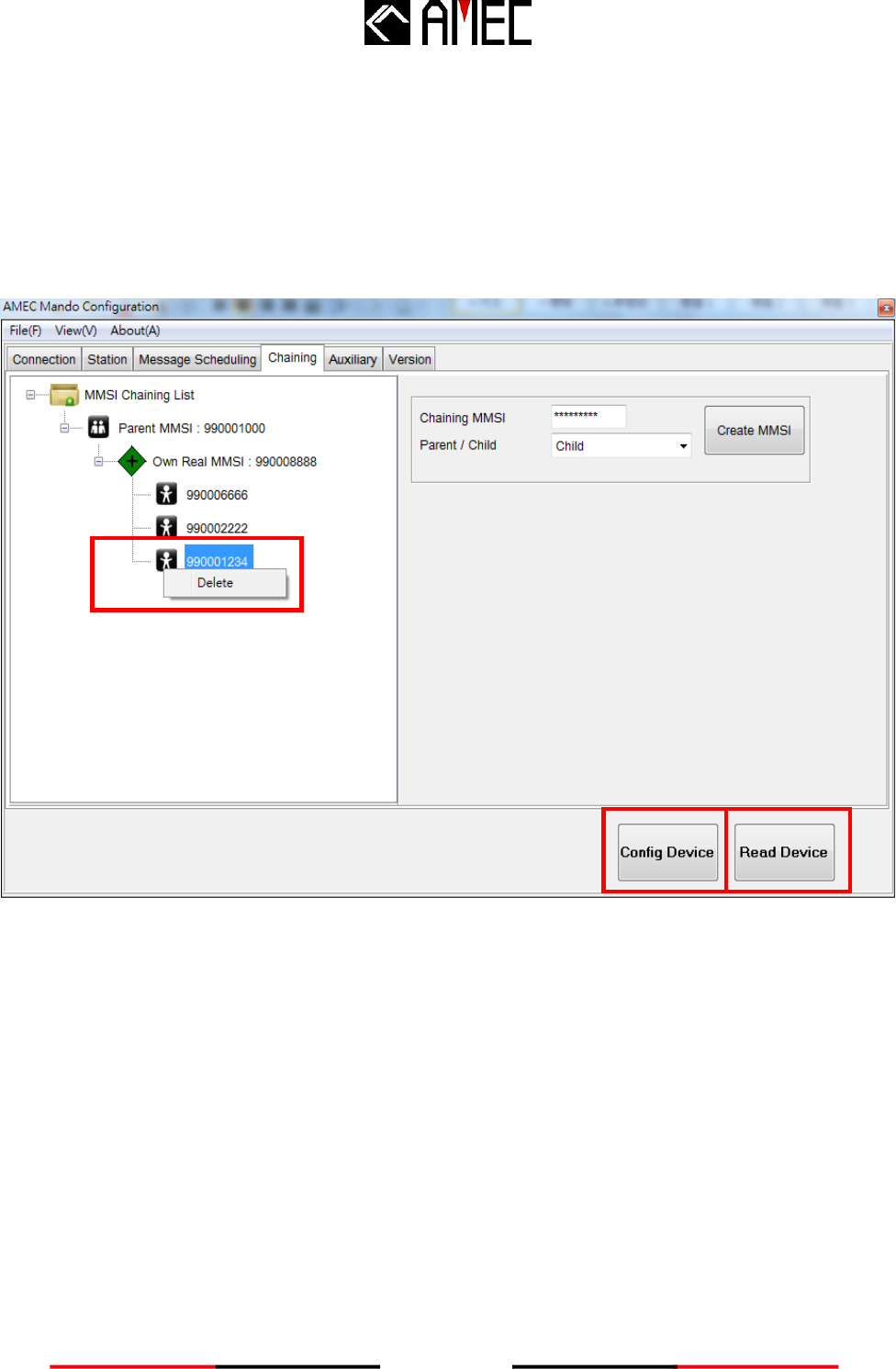

4.8 Delete Selected Child/Parent MMSI.................................................................................. 45

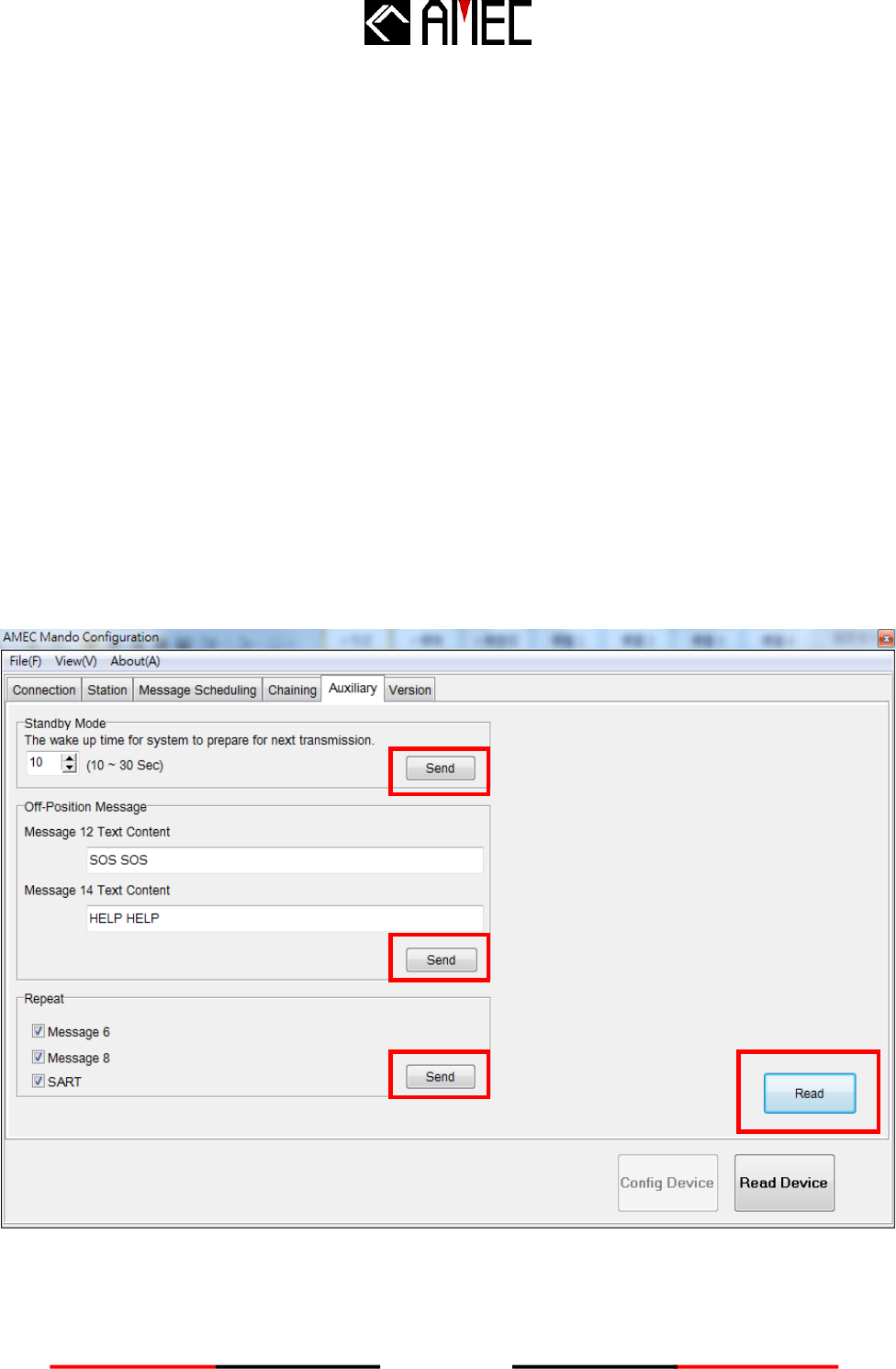

4.9 Auxiliary ............................................................................................................................. 46

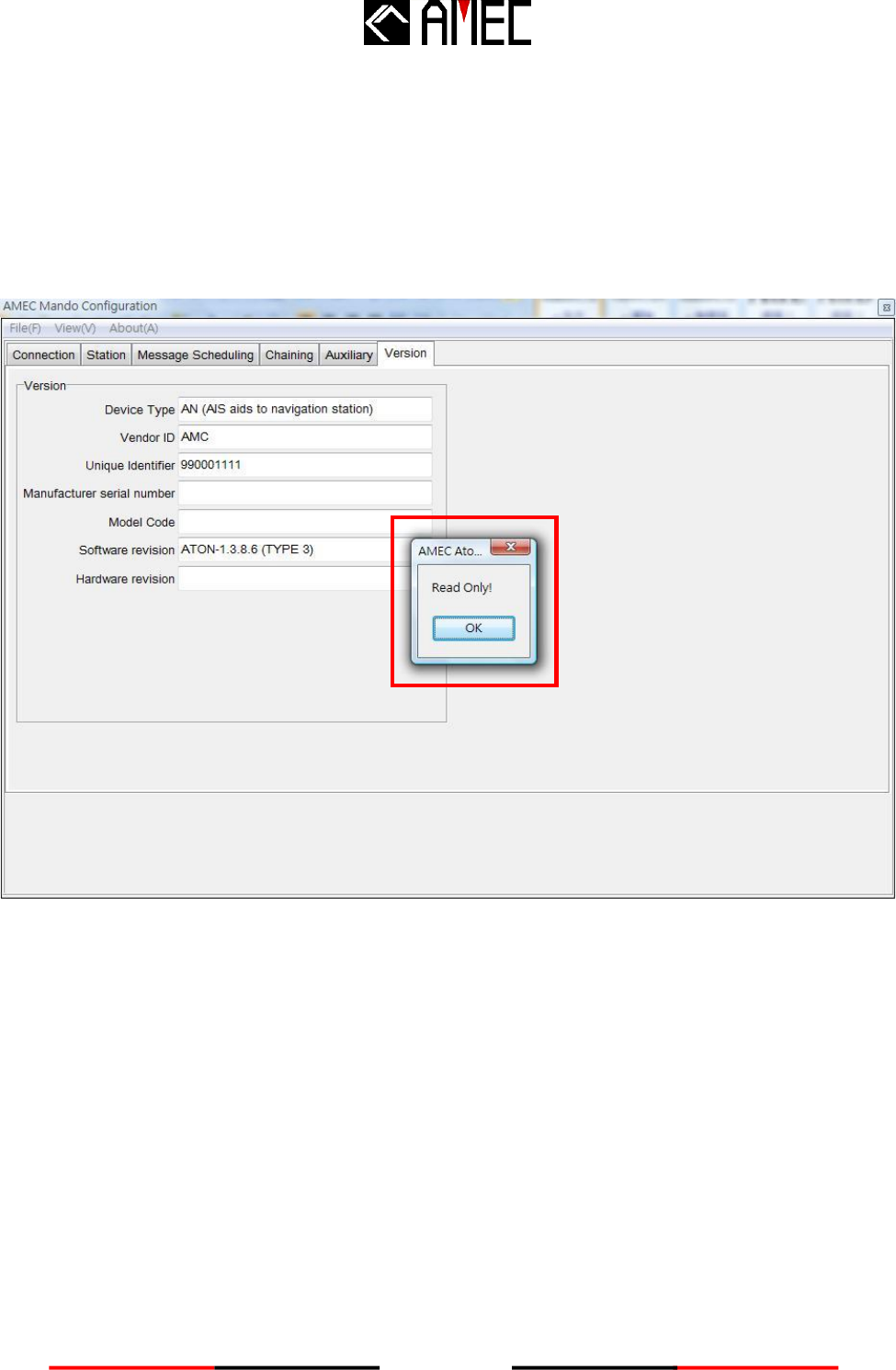

4.10 Version ............................................................................................................................. 47
5 APPENDIX ....................................................................................................... 48
5.1 Product Specifications ...................................................................................................... 48

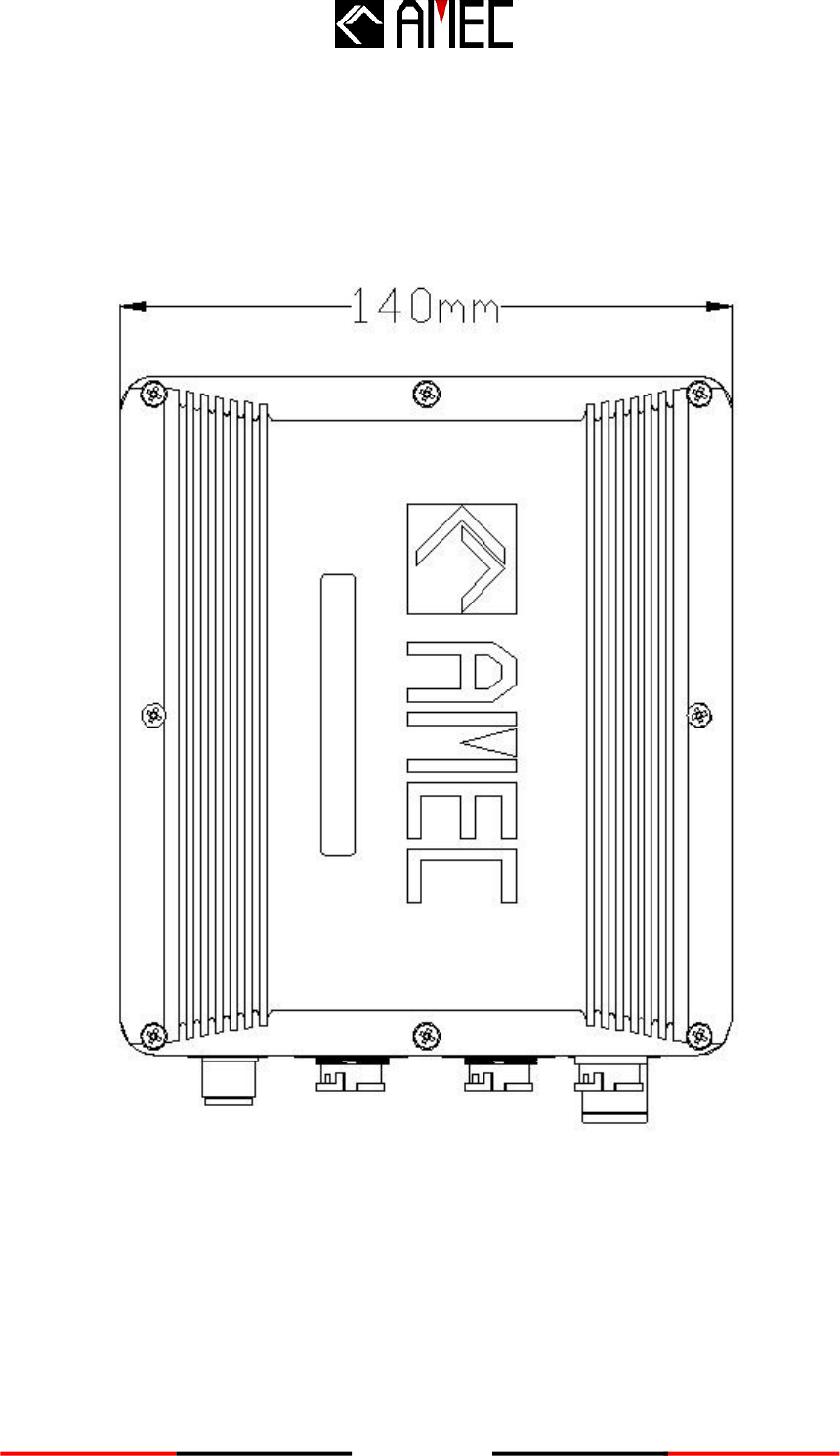

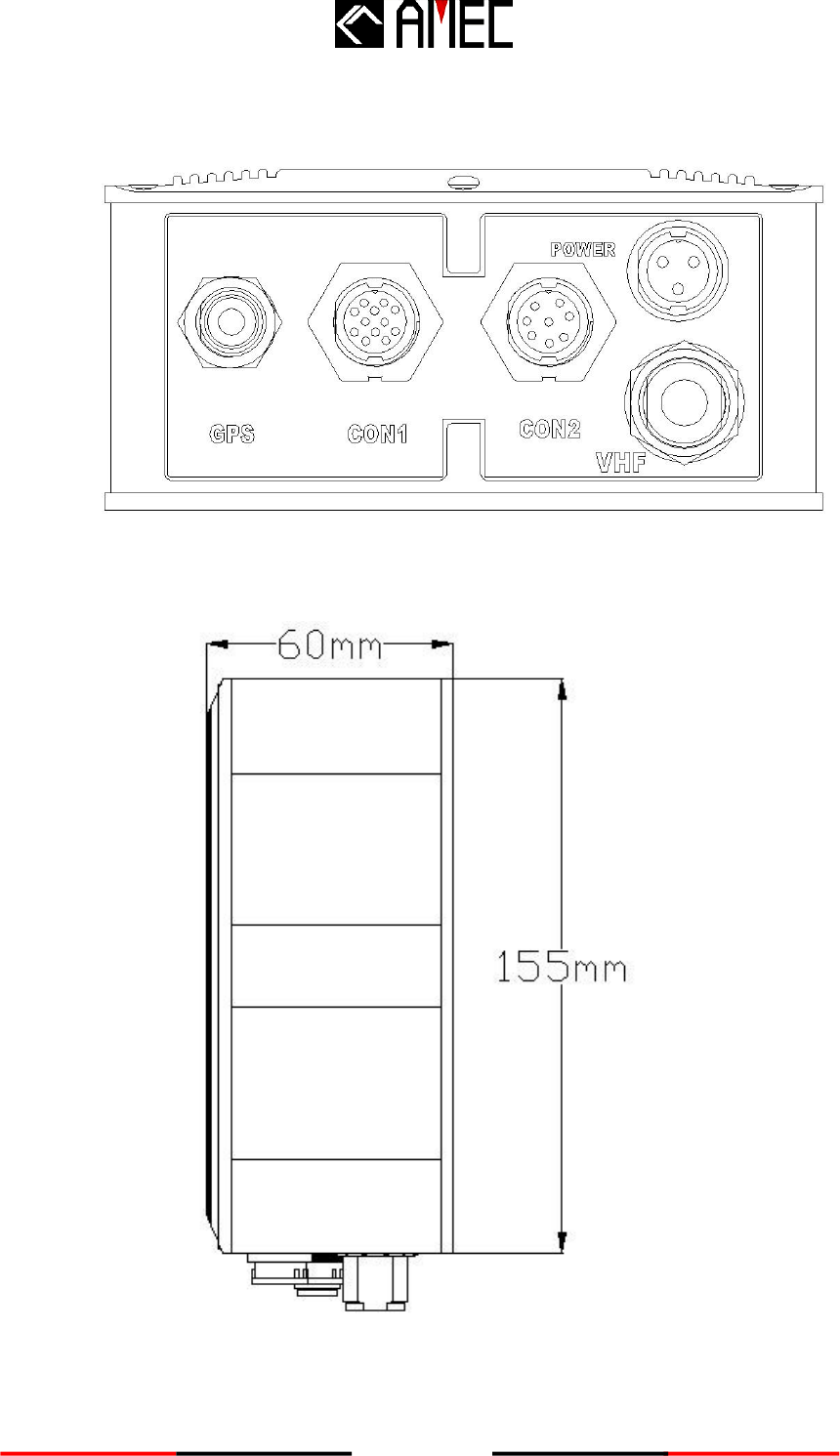

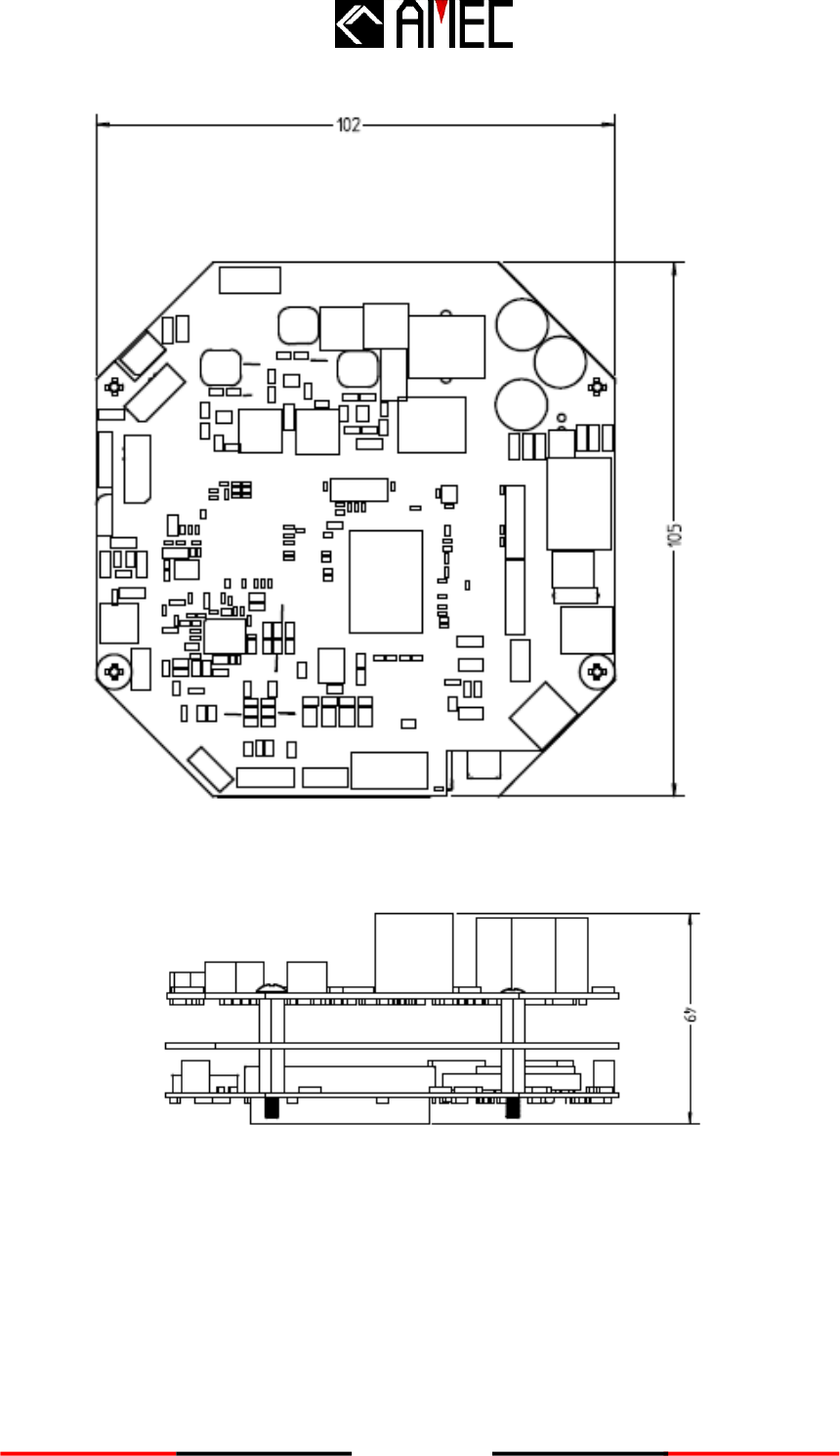

5.2 Dimensions ........................................................................................................................ 51
5.3 Accessories ....................................................................................................................... 54
5.4 Built-in Integrity Test (BIIT) ............................................................................................... 57
5.4.1 BIIT Function for Antenna Disconnect ...................................................................... 57
5.4.2 BIIT Function for Receiver Channel 1 and/or Channel 2 Failure ............................. 57
5.5 Troubleshooting ................................................................................................................ 57
5.6 Type of AtoN ...................................................................................................................... 58
6 WORLDWIDE WARRANTY ............................................................................. 59
7 DECLARATION OF CONFORMITY ................................................................. 62
8 ACRONYMS .................................................................................................... 63
1
1 INTRODUCTION
1.1 MANDO-301/303 Overview
Aids to Navigation (AtoN) AIS is one of the latest applications of AIS technology. The AIS AtoN
transponder can be installed in lighthouse, lantern, buoy, other fixed and floating aids, or offshore
platforms to transmit warning, navigational, and meteorological data to approaching vessels and/or
to shore stations. AMEC offers two types of AIS AtoN: MANDO-301 (Type 1) and MANDO-303
(Type 3).
Type 1 (MANDO- 301) – It transmits on FATDMA slots given in its configuration and has
no receiver. The FATDMA slots must be pre-configured by base station.

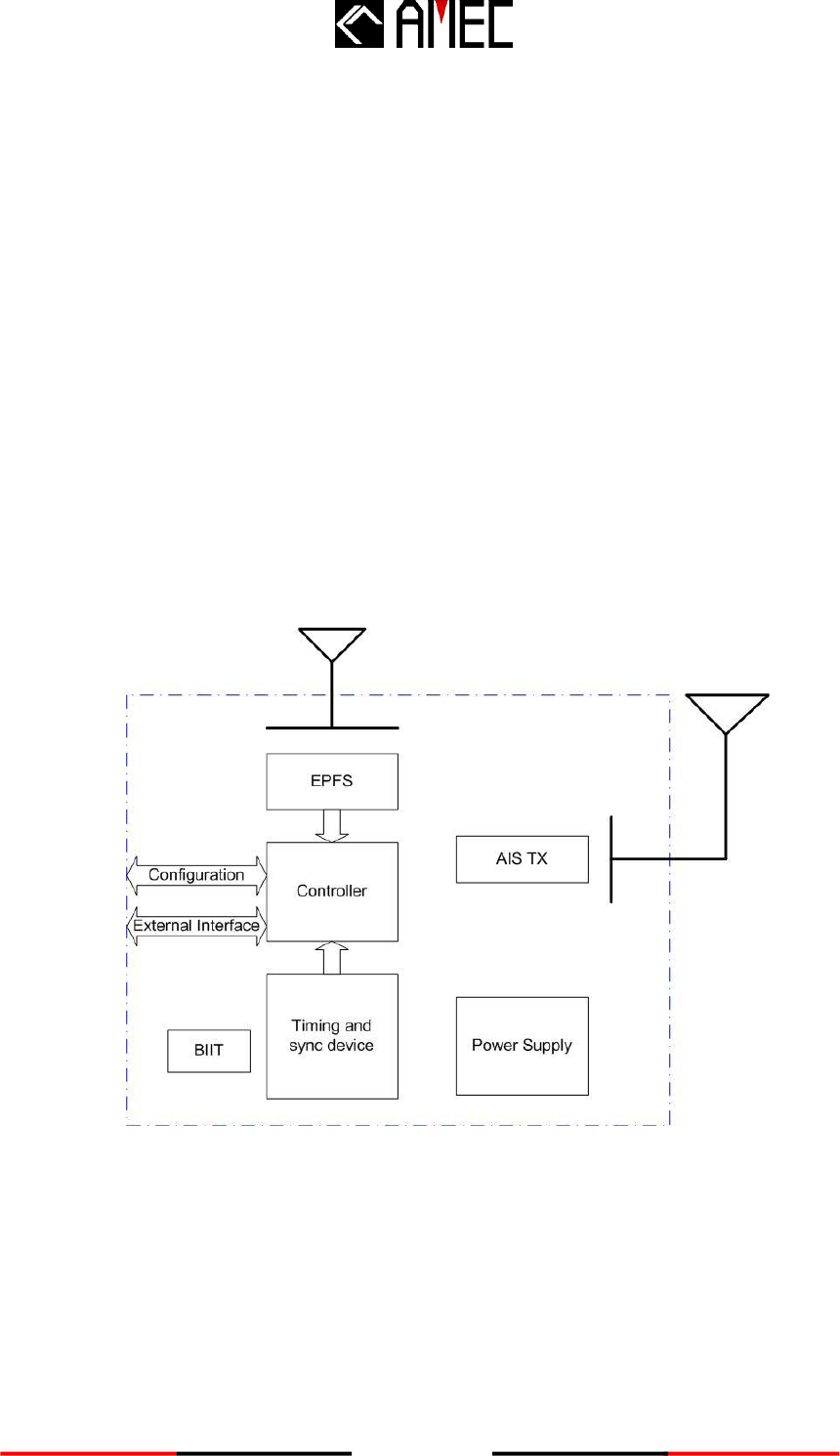

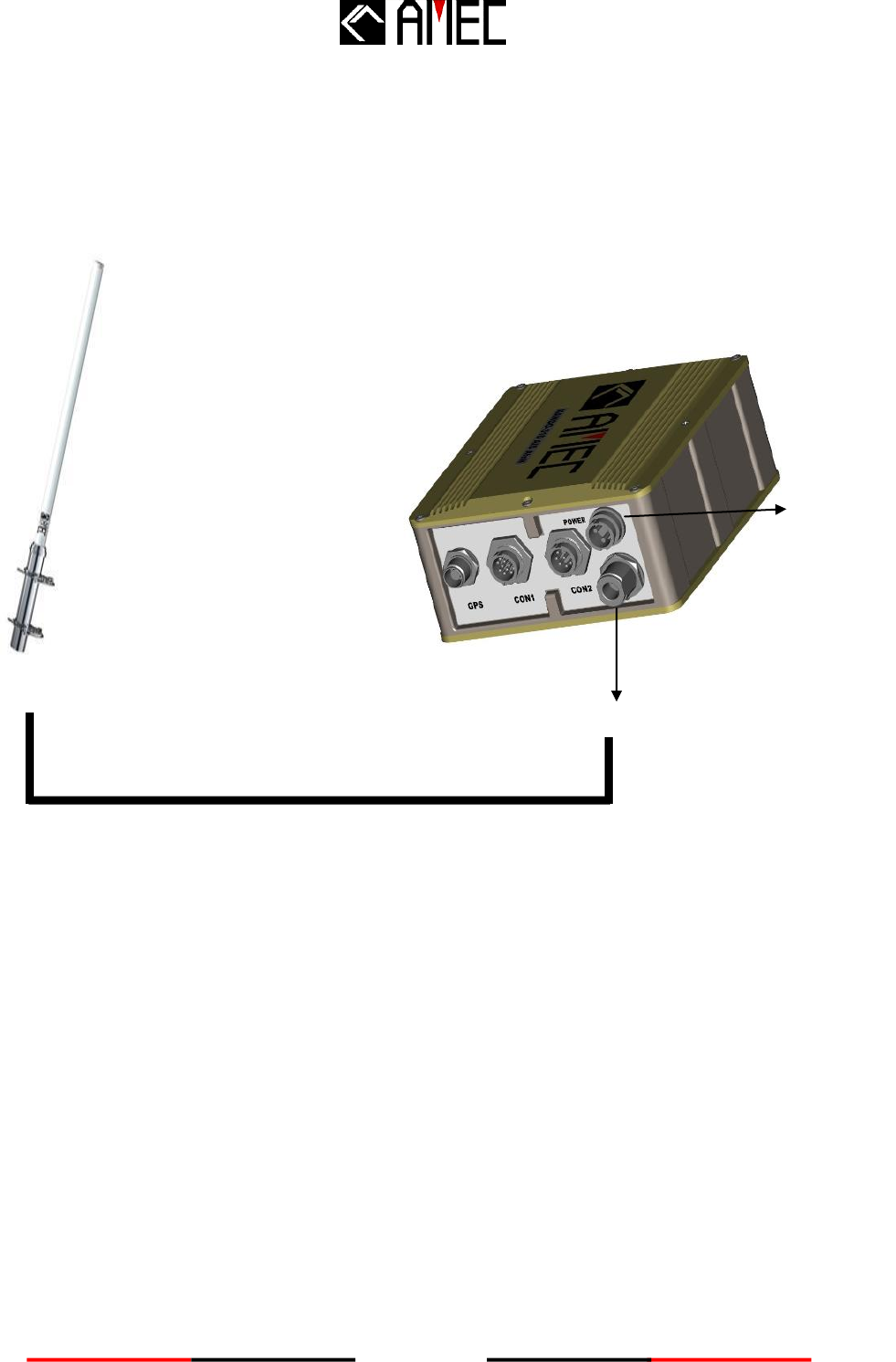

Figure 1-1-1 AIS AtoN Type 1 Block Diagram
VHF Antenna
GPS Antenna
2
Type 3 (MANDO-303) – It has AIS receive and transmit capabilities in accordance with
Recommendation ITU-R M.1371. Using FATDMA/RATDMA.

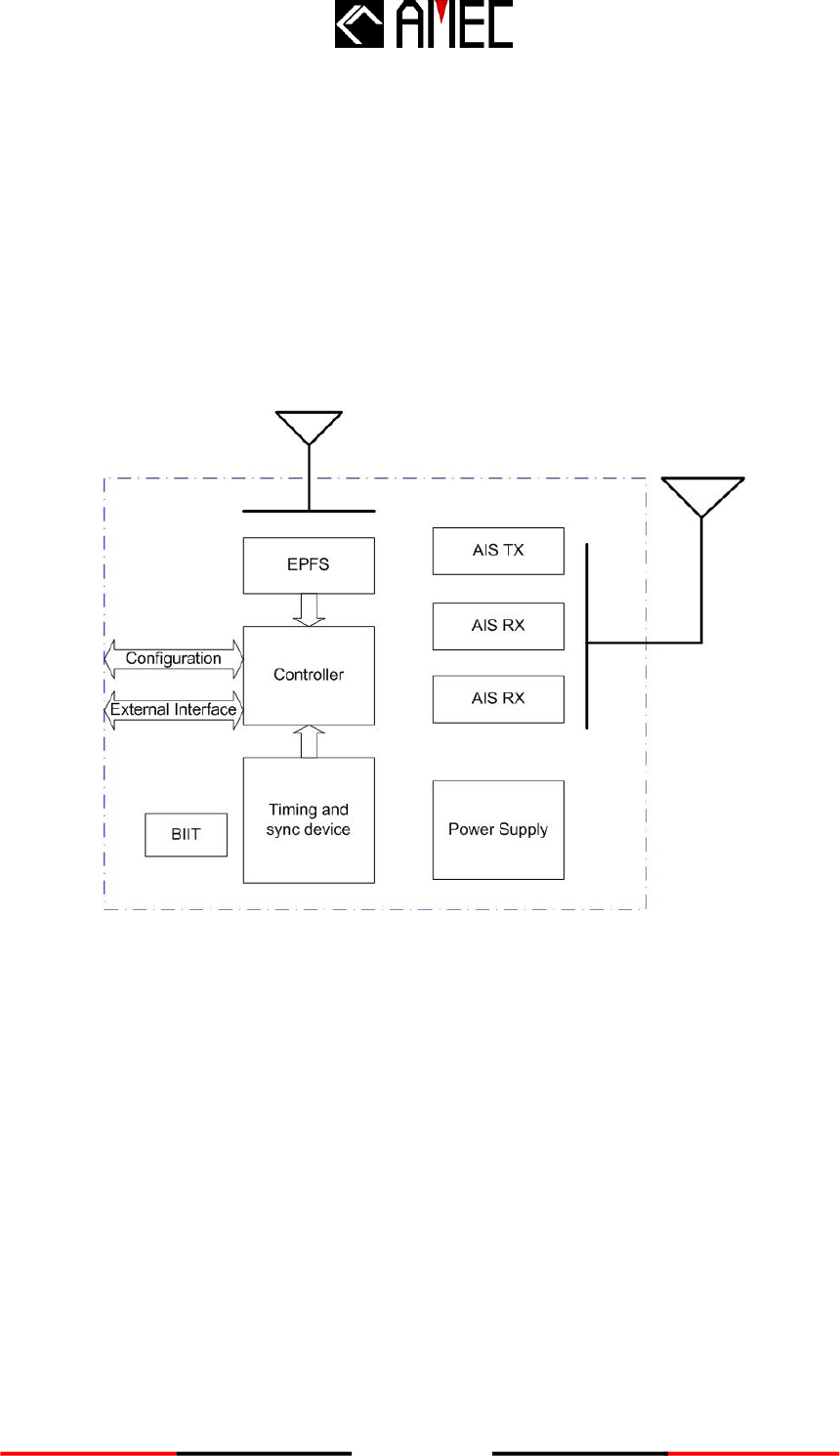

Figure 1-1-2 AIS AtoN Type 3 Block Diagram
A pre-programmed transmitting schedule can be configured to broadcast AtoN messages through
FATDMA or RATDMA. The MANDO-301/303 AtoN transponder is designed to broadcast the
following messages:
Current position;
AtoN status;
Control information;
Support Synthetic, Virtual and Chaining functions;
Meteorological / hydrological information
VHF Antenna
GPS Antenna
3
In normal conditions, the unit transmits a report with AIS AtoN position in an ITU-R M.1371
message 21. In addition, the AIS AtoN broadcasts AIS Message 6, which enables the operator to
monitor the AtoN device for solar/battery voltage, flash setting and light status. Subject to the fitting
of appropriate measuring devices, meteorological/hydrological data and other parameters can be
obtained via Message 8. A brief summary of all the messages processed by the AIS AtoN are
defined in section 1.4.
MANDO-301/303 AIS AtoN are fully IALA and IEC compliant devices, and provide users choices
from basic PCB modules to rugged aluminum enclosed unit. The compact PCB module (102mm x
105mm x 49mm) is giving a great flexibility for users to integrate AIS AtoN transceiver into their
floating lantern or buoy. The weatherproof anodized aluminum housing (140mm x 155mm x 60mm)
offers user the variety of mounting methods.
Moreover, AMEC’s MANDO series is one of the most power-saving AtoN transceivers with the low
power consumption while offshore power resources are limited.
MANDO-303 is also equipped with multiple digital/analog interfaces, which provides user the
flexibility to connect other communication devices, hydraulic, and metrological sensors.
4
1.2 MANDO-301/303 Features
Low power consumption
Operation condition: 12V DC, reporting interval 3 minutes.
- MANDO-301: FATDMA: < 0.288 Ah/day
- MANDO-303: FATDMA: < 0.432 Ah/day
RATDMA: < 1.656 Ah/day
Multiple interfaces:
- Analog input x 4
- Digital output x 1
- Digital input x 1
- RS-232 x 2
- 1 pps from internal GPS output
Support remote configuration (for MANDO-303 only)
Support meteorological & hydrological data
Customer design flexibility upon request
5
1.3 Type of AIS
The marine Automatic Identification System (AIS) is a location and vessel information reporting
system. Some elements of AIS networks are illustrated in the following table:
Table 1-3 Type of AIS elements
Class A AIS
Transponder
‧ Transmits and receives AIS signal.
‧ Intended for vessels meeting the requirements of IMO AIS carriage
requirement.
‧ It is mandatory for all commercial vessels that exceed 300 tons to be
equipped with Class A AIS.
Class B AIS
Transponder
‧ Transmits and receives AIS signal.
‧ Not necessarily in full accord with IMO AIS carriage requirements.
‧ It is not mandatory for vessels to be equipped with Class B AIS.
‧ Suitable for recreational vessel, in enhancing its safety at sea.
AIS
Receiver
‧ Only receives AIS signal.
‧ Does not have transmitter to send out AIS signal.
‧ Suitable for recreational vessel that does not want to send out its vessel
information.
AIS AtoN
‧ AIS Aids to Navigation Station
‧ Transmits AIS AtoN signal.
‧ Receives .AIS AtoN signal. (Type 2 and Type 3 only)
‧ Capable of supporting synthetic and virtual AtoN.
‧ Can be installed in lighthouses, lanterns, buoys.
‧ Support lantern monitoring.
‧ Support meteorological and hydrological messages.
6
1.4 AIS AtoN Message
Table 1-4 Summary of AIS AtoN Messages supported by Mando Series
Message
ID
Message Type
Slot
Length
Description
6
Addressed
Binary
Message
1 to 5
(varies)
Binary payload that contains the MMSI, usually of a base
station, which is designated to receive the message that is
sent until it is acknowledged; May contain information
about the AtoN equipment, such as meteorological and
hydrological information that is obtained from a
daughterboard or external sensors.
8
Broadcast Binary
Message
1 to 5
(varies)
Binary payload that broadcasts to any equipment that can
receive it; May contain information about the AtoN
equipment, such as meteorological and hydrological
information that is obtained from a daughterboard or
sensors.
12
Addressed
Safety
Related
Message
1 to 5
(varies)
Safety-related text that is addressed to a specific MMSI,
usually a base station; Message is sent until it is
acknowledged; Warns of an AtoN malfunction.
14
Broadcast Safety
Related
Message
1 to 5
(varies)
Safety-related text for broadcast communication that is
received by all units that can receive the message; Warns
of an AtoN malfunction.
21
Aids to
Navigation
Report
2 slots
AtoN position report that is usually transmitted every 3
minutes and is meant to be seen by all AIS transponders;
Contains information about the AtoN, such as the
origination MMSI, name of the AtoN (if applicable), and
the type of AtoN (fixed or floating); Sends the Aids to
Navigation Report and a warning to approaching vessels.
25
AtoN Position
Report
1 to 5
(varies)
Intended for short, infrequent data transmissions and is
designed to save bandwidth; Used for chaining.
7
1.5 About This Manual
The manual contains installation instructions and operating information for MANDO-301/303. While
most of the installation can be performed by the user, a final commissioning can be done by your
local agent/dealer where needed or required. AMEC and the local agent/dealer will not bear any
responsibilities over any damages resulted in improper installation by unauthorized agent/dealer.
8
WARNING
Warning
注意
2 INSTALLATION
2.1 General
2.1.1 Safety Instructions
Before proceeding with installation, please take note of the following safety instructions and read
through this installation manual carefully.
SAFETY INSTRUCTION
SAFETY INSTRUCTIONS
ELECTRICAL SHOCK HAZARD
Do not open the case of
the equipment. Only qualified
personnel should work inside the
equipment.
WARNING
TURN OFF THE POWER BEFORE
PROCEEDING WITH INSTALLATION.
Proceeding with installation with the
power on could cause electrical shock or
fire.
AVOID INSTALLING THE EQUIPMENT
WHERE THERE IS DIRECT CONTACT
WITH RAIN FALLING OR WATHER
SPLASH.
Electrical shock or fire could be resulted
if water leaks into the equipment.
PLEASE FOLLOW THIS
INSTRUCTION MANUL TO PROCEED
WITH THE INSTALLATION.
AMEC and your local agent/dealer will
not bare any responsibility of equipment
damage or personnel injury due to
improper installation.
Warning Label
A warning label (Figure 2-1-1) is
attached underneath the equipment.
Warranty of the equipment will be invalid
if this label is detached or broken. AMEC
and your local agent/dealer will not bare
any responsibility of any damage to the
equipment, or damage in related to the
equipment, personnel injury, and etc.
Reject the equipment if this label is
detached or broken. Please contact your
local agent/dealer if this label is missing.
MAKE SURE THE POWER SOURCE
AND THE POWER INPUT OF THE
EQUIPMENT ARE COMPATIBLE.
Damage to the equipment and fire could
be resulted if the power sources are not
correct. Please check the correct power
input on the adaptor.
Figure 2-1-1 Warning label
Name: Warning Label
No Warranty if this label is
detached or broken.
保固撕毁无效
9
2.1.2 Items in the Package
Table 2-1-2 Items in the Package
No.
Description
Qty
1
MANDO-301/303 AIS AtoN main unit
1
2
Installation Kit
Power cable 1.5M, AWG 16
1
8 pin connector with waterproof cup, cable 1M, AWG 24
1
12 pin connector with waterproof cup, cable 1M, AWG 26
1
M4×6 Screw
8
1/4×3/4 Screw
4
3
CD-ROM: AMEC AtoN Configuration and Operation Manual
1
2.2 Installation Procedure
Please complete the AtoN installation by the following steps:
Unpacking
Unpack the standard package and verify all components.
Initial Inspection
Inspect all hardware for damage. If there is any damage, please consult directly with AMEC or
authorized local distributor/dealer. Retain original packing material for possible future use in
shipping the AIS Monitoring System.
Installing the AtoN device
Please survey a suitable place for device installation.
Firmly screw the four M4×6 screws from the standard package to the hole.
10

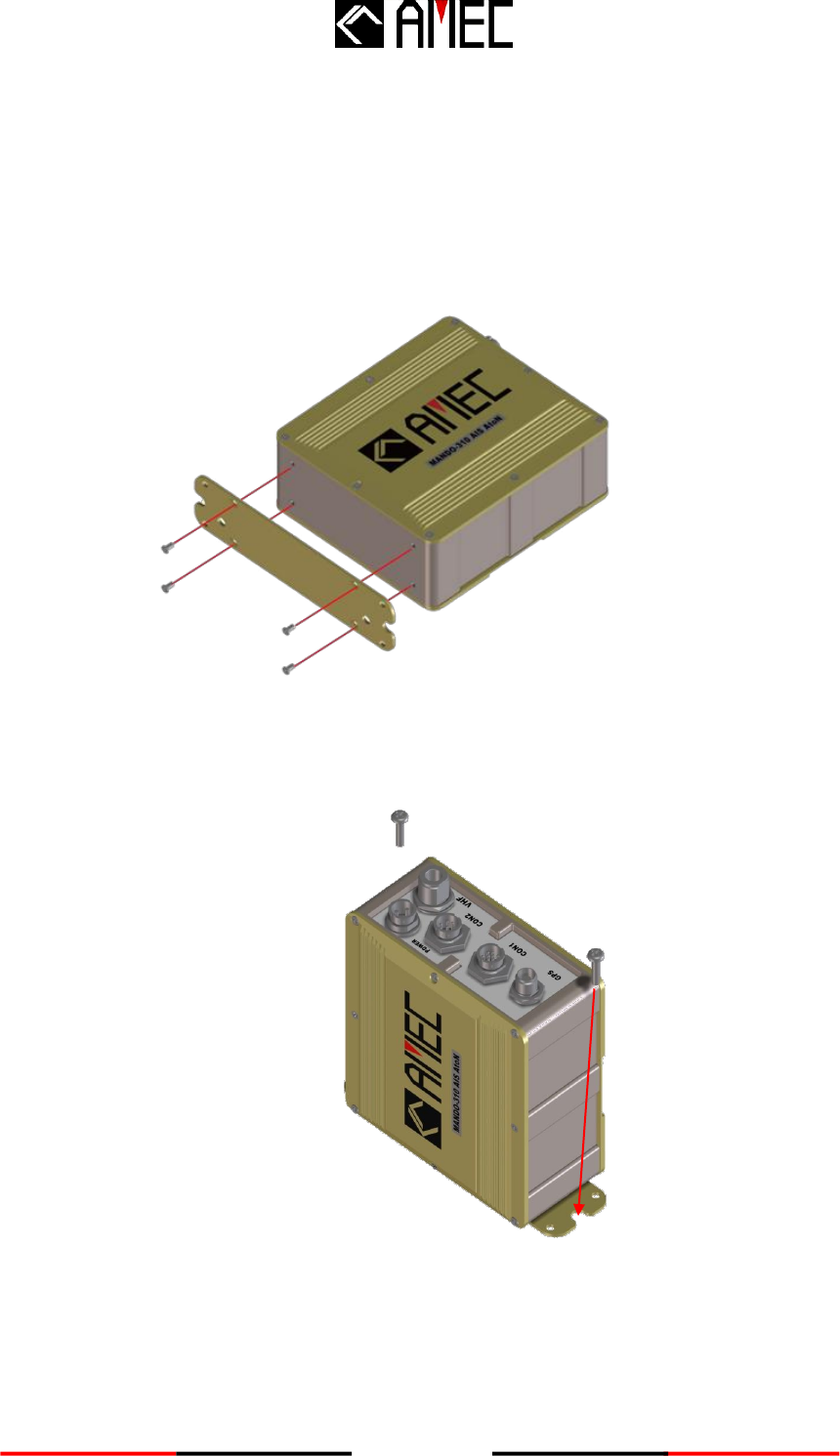

Installation: Horizon Type
A. Fix the mounting plat
B. Use the self drilling screw
C. Finish the installation the Device
Figure2-2-1 Installation: Horizon Type
Figure2-2-2 Installation: Horizon Type
11
Installation: Vertical Type
D. Fix the mounting plat
E. Use the self drilling screw
F. Finish the installation the Device
Figure2-2-3 Installation: Vertical Type
Figure2-2-4 Installation: Vertical Type
12
GPS Antenna
VHF Antenna
Battery / Solar Power
Hydrological / Weather
R
PC / NB
2.3. MANDO-301/303 External Connections
*NOTE: CON1 and CON2 can be alternately used.
13
2.4. Installing VHF Antenna
Installation of a VHF antenna is as important as the transceiver for reliable communications. Please
check the following picture and caution for your installation references.
Figure2-3 Installing VHF Antenna
When installing VHF antenna, please follow all of the manufacturer's instructions with particular
attention to the cable routing and connection. (For better product performance, AMEC VHF
antenna is highly recommended.)
Ensure the cable connector is carefully secured.
Place the antenna as high as practical on the buoy and separate as much as possible.
Ensure the antenna is installed vertically with a minimum of 2 meters of clearance from all
conductive material.
Ensure the antenna has a 360° line of sight to the horizon.
VHF
Connector M Jack/PL-259
POWER
5D-FB cable
14
Avoid the antenna be surrounded by any obstacle or metal object due to signal interference.
Do not stabilize the VHF antenna with metal holder.
The bottom of the VHF antenna is the signal receiving blind spot.
Keep the antenna cable as short as possible.
The antenna cable diameter should be 5D/8D or even better ones.
Avoid bare wire winding & insulating tape wrapping when connecting with extended antenna
cable.
Installation Process
1) Place the VHF antenna mounting bracket on a rigid surface and install the antenna.
2) Install the coaxial cable from the antenna to the AtoN location.
3) Connect the cable to the AtoN device.
Surge absolver
Lightning arrestors should be used in all antenna cables if there is a risk of lightning strike.
15
2.5. Installing GPS Antenna
Since the punctuality of internal transmission of the AtoN device relies on the accuracy of the time
signal obtained from the GPS system, the correct installation of GPS antenna is essential. When
installing GPS antenna, please follow all of the manufacturer's instructions with particular attention
to the cable routing and connection. (For better product performance, AMEC GPS antenna is highly
recommended.)
Figure 2-4 Installing GPS Antenna
Connector TNC female
POWER
GPS
RG-58 cable
16
When installing the GPS antenna, follow the cautions below.
Ensure the cable connector is carefully secured.
Position the antenna as high as possible to prevent ice or spray from negatively affecting
signal reception.
Be sure no obstructions are between the GPS antenna and the sky.
Place the GPS antenna at least 3m from the VHF antenna due to signal interference.
Installation Process
1) Place the GPS antenna mounting bracket on a rigid surface and install the antenna.
2) To reduce signal interference, use only high quality coaxial cable and keep the cable length as
short as possible.
3) Install the coaxial cable from the antenna to the AtoN device location.
4) Connect the cable to the AtoN device.
Surge absolver
Lightning arrestors should be used in all antenna cables if there is a risk of lightning strike.
17
3 WIRING DIAGRAM/PIN DEFINITION

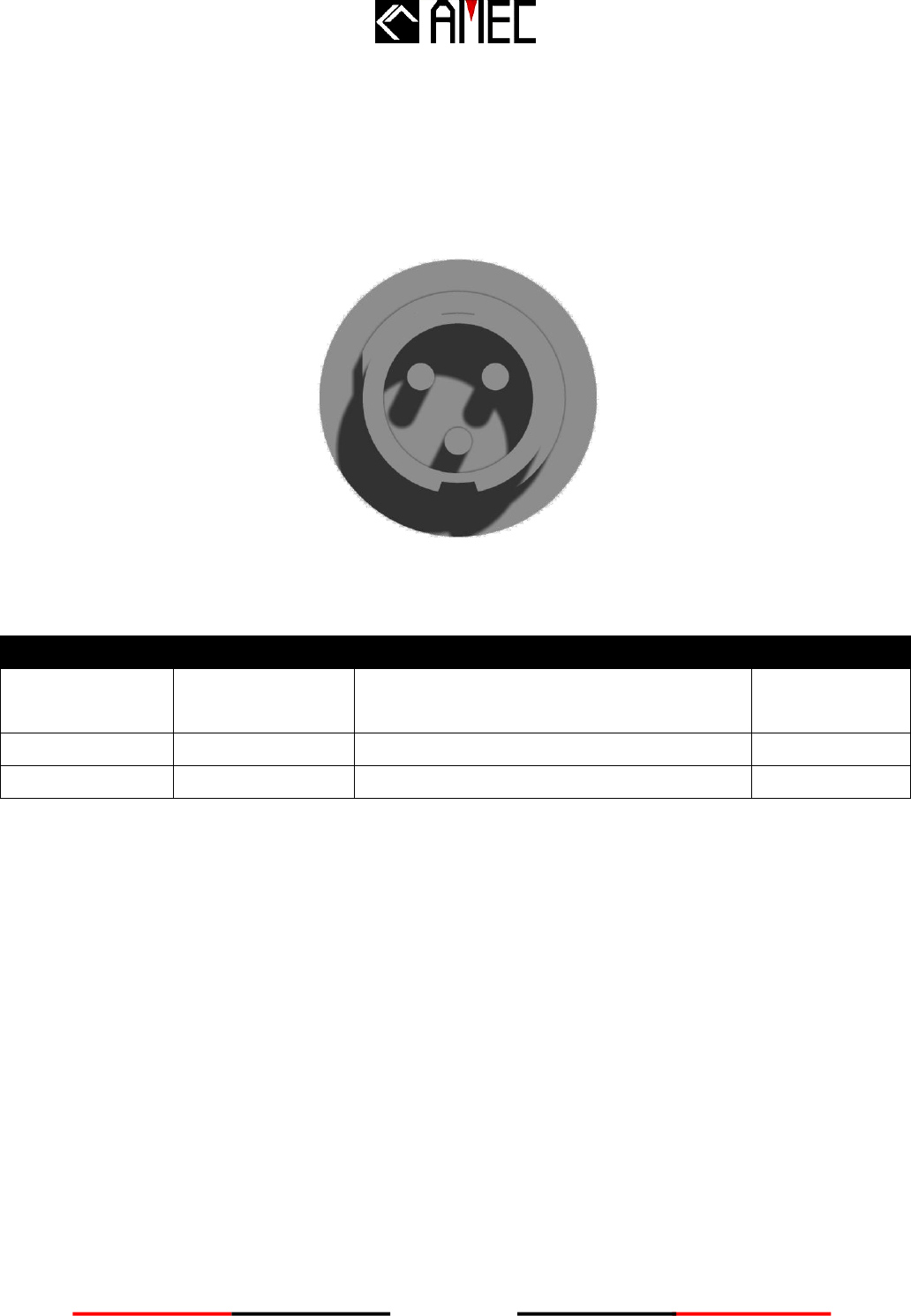

Power Connector
Figure 3-1 Pin Assignments Front View
Pin number
Pin definition
Description
Color
1
PWR
Positive (+),
the input should be 12V DC
Red
2
N/A
N/A
N/A
3
GND
Power ground
Black
1
3
2
18
Con1: (ADC & RS-232 )
Figure 3-1 Pin Assignments Front View
(Part No.: LTWBU-12BFFM-LL7A01 by Amphenol LTW)
* 1pps will be sent out when the GPS is power on and in 3D fix.
*NOTE: Analog to digital input (Pin 5~8) are used to measure voltage between 0V~36V range.
Pin number
Pin definition
Description
Color
1
RS232 TX
Communication interface
Brown
2
GND
Signal ground (RS-232)
Blue
3
1 pps
1 pps (1 pulse per second from GPS) *
White
4
GND
Ground(GPS)
Green
5
ADC4
Analog to Digital input 4
Yellow
6
ADC3
Analog to Digital input 3
Gray
7
ADC2
Analog to Digital input 2
Pink
8
ADC1
Analog to Digital input 1
Red
9
RS232 RX
Communication interface
Black
10
GND
Ground
Orange
11
NC
Not connect
Purple
12
NC
Not connect
Light Green
19
Con2: (Control, Monitor & RS-232)
Figure 3-2 Pin Assignments Front View
(Part No.: LTWBD-08BFFM-LL7A01 by Amphenol LTW)
Pin number
Pin definition
Description
Color
1
RS232_RX
Configuration interface
Black
2
RS232_TX
Configuration interface
Brown
3
GND
Signal ground (RS-232)
White
4
ALM_C
ALARM C
Blue
5
ALM_B
ALARM B
Red
6
ALM_A
ALARM A
Orange
7
CTL_IF
Digital in signal
Yellow
8
V_CTL
Digital in power
Green
*NOTE :
1. RS-232 Tx & Rx should be reversed when connecting to PC. (TxRx; Rx Tx)
2. Software will change depend on customer’s application.
3. Digital in (Pin 7&8) is used to inform MANDO for event was happened. Only need connect V_CTL to the
voltage (0V~36V), and connect the CTL_IF to GND.
4. Under normal operation, ALM_A will be connected to ALM_B. When MANDO works improperly or out of
power, ALM_A is connect to ALM_C to notice user.
20
4 MANDO-301/303 CONFIGURATION
4.1 Configuration Start-up
Step 1: Connect the AtoN device with PC/Laptop via RS-232 serial port. Prepare a RS-232/USB
converter when RS-232 serial port is not supported by your PC/Laptop.
Step 2: Connect the AtoN device with 12V DC (10A) power source. It is highly recommended to
use a power adapter stabilizing the power source.
Step 3: Power on the AtoN device.
Step 4:Turn on PC and load AMEC Configuration Program CD. And make sure it has been properly
installed on your PC/Laptop.
Step 5: Double click and start AMEC Configuration Program.
*NOTE: All message assignments and intervals must be defined and approved by the
appropriate competent authority, such as the local port authority where the AtoN
device is installed.
21
4.2 Serial Port Searching
Windows VISTA version
Click on “Start” Select “My Computer” Mouse right click “Properties” Select “Device
Manager” Click Port (COM&LPT)
Windows XP version
Click on “Start” Select “My Computer” Click “Control Panel” Select “System” Choose
“Hardware” Select “Device Manager” Click Port (COM&LPT)
Choose the Prolific RS-232-to-Serial Com Port (Com3) as designated port numbers.
Figure 4-2 Serial Port Searching
4.2.1 Serial Port Setting
22
Step 1: Start AMEC MANDO-301/303 Configuration Program.
Step 2: Enter the corresponding Serial Port & Baud Rate information.
Step 3: Click “Connect” to complete and save the setting.
Figure 4-2-1-1 Serial Port Setting
*NOTE: Only “Serial Port” and “Baud Rate” need to be set, other parameters are default.
AMEC MANDO-301/303 default Baud Rate is 115,200-bps.
If you key-in wrong Serial Port, you could not enter in and PC/Laptop will jump up a window to
23
remind you to re-check Serial Port.
Figure 4-2-1-2 Error Serial Port
24
If you do not connect Power or other problem, PC/Laptop will jump up a window to remind you to
re-check all connection.
Figure 4-2-1-3 Connections failed
25
4.2.2 VDL Setting
If your device is MANDO-303 (Type 3), you could remote other MANDO-303(Type 3) via VDL.
Step 1: After setting Serial Port and connecting with PC/Laptop, please choose “VDL”.
Step 2: Enter desired MMSI which you would like to remote control.
Step 3: Click “Connect” to complete and save the setting.
Figure 4-2-2 VDL Setting
*NOTE: After setting the “VDL”, you can continue setting the following tabs.
26
4.3 AtoN MMSI Setup
Step 1: Enter the valid MMSI number under “MMSI” column.
Step 2: Select “Real AtoN” under the “Real / Virtual” column.
Step 3: Click “Create” to save and create the new MMSI.
Step 4: Press “Read Device” to confirm and review the MMSI setting.
Figure 4-3-1 AtoN MMSI Setup
*NOTE 1: The MMSI number is controlled by a competent authority and must be a legitimate
number.
*NOTE 2: The default MMSI number is 000000000. A MMSI number for Real AtoN must be
setup first before creating other MMSI for Virtual or Synthetic AtoN .
27
Please follow all steps above to create Virtual MMSI or Synthetic MMSI.
Check if there are all correct MMSI data saved in the “MMSI” column.
Figure 4-3-2 AtoN MMSI Setup
28
4.4 Delete Selected MMSI
Select the desired MMSI to be deleted under the “MMSI” column.
Right-click and it will jump up window written “Delete”.
Click “Delete” to erase all setting of this MMSI number.
Figure 4-4 Delete Selected MMSI
29
4.5 AtoN Station Data Setting
Step 1: After the MMSI (Real/Virtual/Synthetic) is successfully setup, user can continue with
rest of AtoN station data setting.
Step 2: After all AtoN device data setting, please click “Config Device” button to save the data when
all settings are completed. PC/Laptop will pop-up window said “Configuration done!”. Then
press “OK” to complete the setting.
Step 3: Click “Read Device” to check and make sure all AtoN settings are correct.
Figure 4-5 AtoN Station Data Setting
30
4.5.1 Name and Type of AtoN Device
Step 1: Enter the name of AtoN device.
Step 2: Select the correct type for the AtoN device.
Figure 4-5-1 Name and Type of AtoN Device Setting
31
4.5.2 Position Information
Step 1: Select the type of EPFS and position accuracy information.
Step 2: Enter the Latitude and Longitude of the AtoN position.
Step 3: Choose 8-bit data for AtoN Status. (“V” means 1; Empty means 0.)
1. Bit 7, 6, 5 mean Page ID. For example: Page 7 (binary 111);
2. Bit 4, 3 mean RACON status;
3. Bit 2, 1 mean Light Status;
4. Bit 0 means status. Ex: 0= good health; 1=alarm
Figure 4-5-2 Position Information
32
4.5.3 Transmit Setting
Step 1: Choose the desired output power of 2W, 5W, or 12.5W.
Figure 4-5-3-1 Transmit Setting
*NOTE: The output power can only be setup at the Real AtoN.
NOTE: If user makes configuration via the configuration port using the ACF sentence below:
“ $--ACF,xxxxxxxxx,x,llll.llll,a,yyyyy.yyyy,a,x,xxxx,xxxx,xxxx,xxxx,x,xx,x,a*hh<CR><LF>”,
the manufacturer “Power level code” are defined as follows:
Power level of ACF sentence (Note 5)*
Tx power (Watt)
0
12.5 (default)
2
2
5
5
*Please refer to IEC 62320-2
33
Step 2: Adjust the frequency of Channel 1 and Channel 2.
Figure 4-5-3-2 Transmit Setting
*NOTE: The Channel Setting can only be setup at the Real AtoN.
34
4.5.4 Off Position
Step 1: Enter the desired meter of Threshold. When the position of buoy exceeds the Threshold,
MANDO will enter into the off position status.
Step 2: Please select transmission schedule when it is off position. (If user choose “Use new
reporting interval”, user has to set Msg 21“Off-Pos” on “Message Scheduling” tab.)
Figure 4-5-4 Off Position
35
4.5.5 Dimensions
Enter the distance of relative position between the GPS antenna and buoy at the Dimension/ Ref.
for position column, while the black spot in the picture represents the location of GPS antenna.
(Unit: Meter)
Figure 4-5-5 Dimensions
*NOTE 1: The dimensions are NOT allowed to configure at Virtual/ Synthetic AtoN.
*NOTE 2: The dimension diagram shows a vertical view which indicates the distance between
the GPS antenna and periphery of the buoy. For ordinary buoys, the values of A, B,
C, D should be the same.
36
4.5.6 All Settings Complete
Step 1: Click on “Config Device” to finish and save all AtoN settings.
Step 2: Select “Read Device” to review and confirm all settings.
Figure 4-5-6 All Settings Complete
37
4.6 Message Scheduling
Step 1: Choose the desired MMSI number (Real/ Virtual/ Synthetic) to be scheduled under the
“MMSI List” column for further message scheduling.
Figure 4-6-1 Message Scheduling
*NOTE: Please setup the MMSI number before starting message scheduling settings.
38
Step 2: For Real AtoN, select the Message ID to be scheduled from the following: Message 6,
6 (Lantern Monitor), 8, 8(Metro. & Hyd. monitor), 12, 14, 21(On-Pos), 21(Off-Pos) and
Chaining. Please refer to Figure 4-6-2.
Figure 4-6-2 Message Scheduling
39
Step 3: For Virtual or Synthetic AtoN, one could select only Message 21(On-Pos) to be scheduled.
Figure 4-6-3 Message Scheduling
40

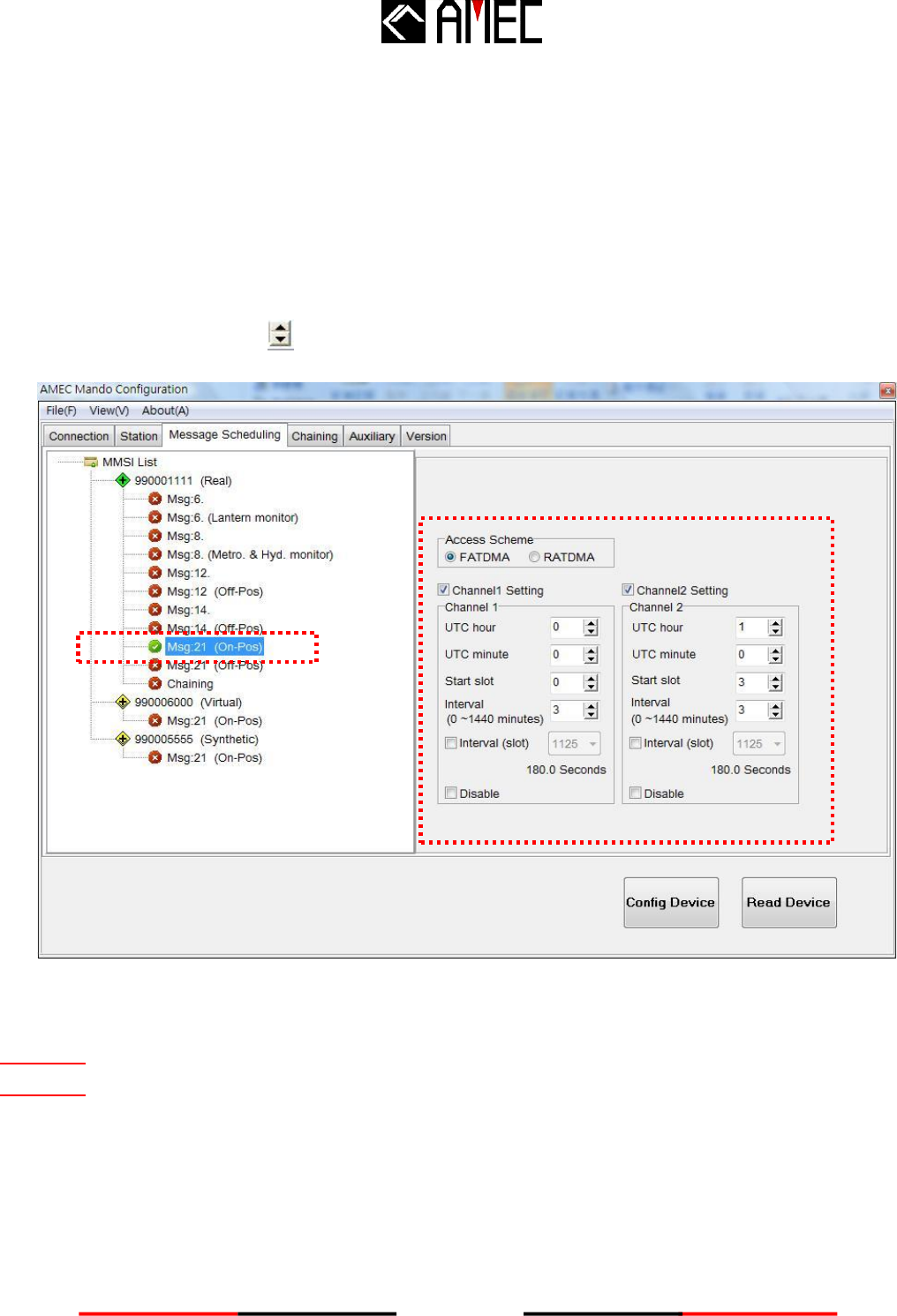

Step 4: Select the desired Access Scheme: FATDMA or RATDMA (For MANDO-303 only)
Step 5: Click the checkbox of “Channel 1 Setting” and “Channel 2 Setting” to setup the broadcast
timing and period parameters (User could choose Single Channel or Dual Channels).
Step 6: Use the arrow keys to adjust each parameter to setup report rate.
Figure 4-6-4 Message Scheduling
*NOTE1: To stop broadcasting the message, please click on the “Disable” checkbox.
*NOTE2: FATDMA could choose “Start Slot” parameters. RATDMA could not choose it.
41
For UTC Hour, Minute, Start Slot and Interval, these are for starting (initial) UTC time for your
message scheduling report. MANDO-301/303 will follow the UTC time from GPS and according to
your message scheduling settings (UTC hour, UTC minute, Start Slot, Interval) to calculate the
nearest next transmitting time.
Example 1, FATDMA: UTC hour: 0 ; UTC minute : 1; Start Slot : 150 (4 seconds); Interval : 10
minutes. (If the UTC time from GPS is 18:03:00 – according to the Example 1. The message will be
sent at UTC time 18:11:04; 18:21:04; 18:31:04...etc)
Example 2, FATDMA: UTC hour: 1 ; UTC minute : 1; Start Slot : 300 (8 seconds); Interval : 70
minutes (1 hour 10 minutes) (If the UTC time from GPS is 18:03:00 – according to the Example 2.
The message will be sent at UTC time 18:31:08; 19:41:08; 20:51:08...etc)
Figure 4-6-4 Message Scheduling
*NOTE: For Msg 21, each channel occupies 2 adjacent slots. Therefore for setting Channel 2,
please select two different slots from Channel 1.
42

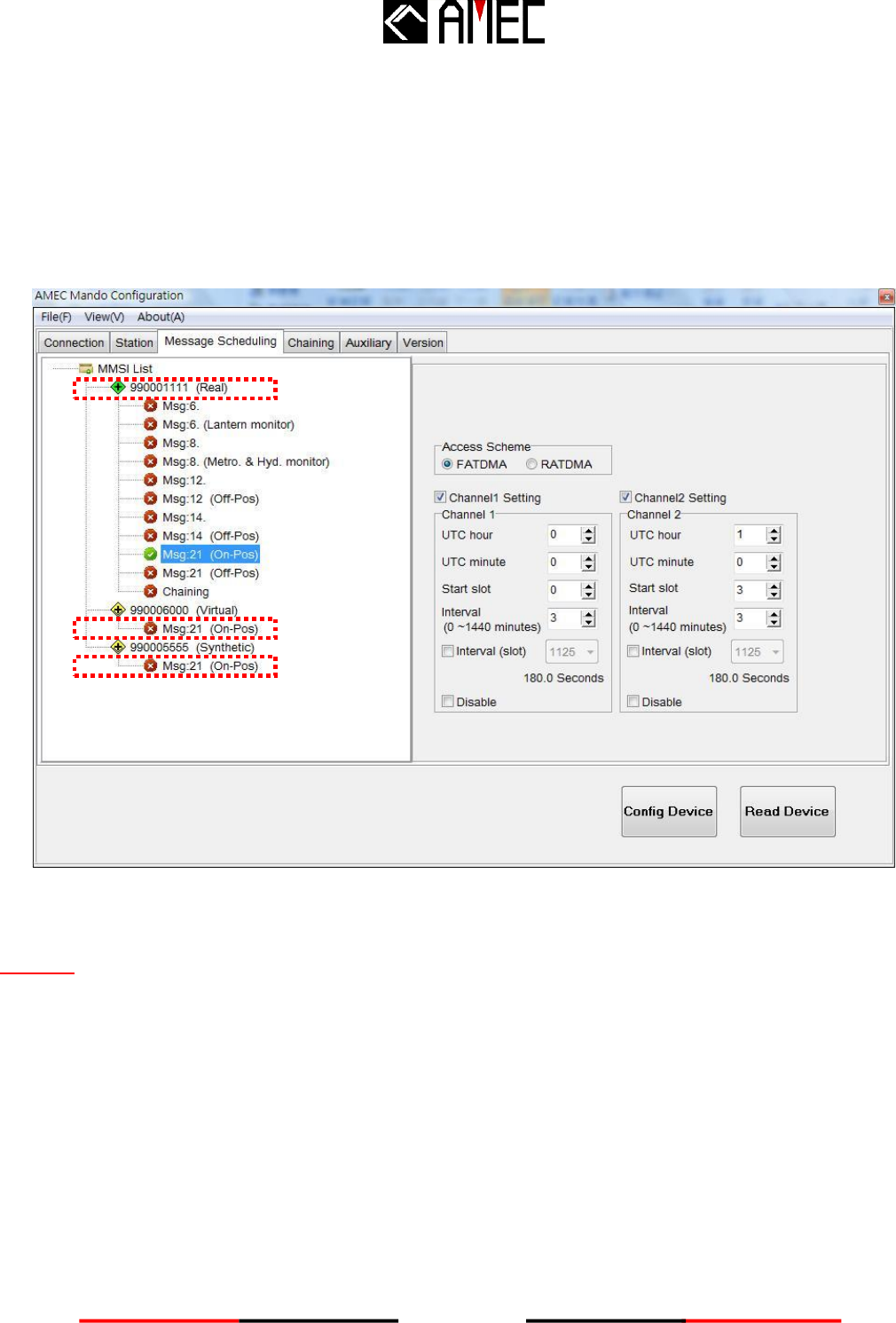

Select “Config Device” to save and input the settings into the AtoN device.
It will pop up a window said “Configure done!” Now press “OK” to complete it.
Press “Read Device” to confirm and review the current device scheduling status.
Figure 4-6-5 Message Scheduling
*NOTE: On the MMSI List, if Msg is with , it means this message schedule is set already.
If Msg is with , means this message schedule is not set yet.
43
4.7 Chaining Configuration
Chaining Configure is for MANDO-303 (Type 3) only. If the device is not MANDO-303 (Type 3), the
tab will be closed automatically.
For MANDO-303, please follow steps as below:
Step 1: Enter the desired MMSI number on “Chaining MMSI” column.
Step 2: Select Parent MMSI or Child MMSI on “Parent/ Child” column.
Step 3: Click on “Create MMSI” first to create and save this chaining.
Step 4: Click on “Read Device” to ensure all settings are properly saved.
Figure 4-7-1 Chaining Configuration
*NOTE: Please noted that “Parent MMSI” only could be set one MMSI.
44
After setting Chaining, please choose “Message Scheduling” tab, and select Msg “Chaining” under
Real AtoN Station to set up for further transmitting report rate.
Figure 4-7-2 Chaining Configuration
*NOTE: All steps are the same as setting “Message Scheduling” when you complete the
“Chaining” Setting.
45
4.8 Delete Selected Child/Parent MMSI
Step 1: Select the desired MMSI to be deleted under the “MMSI Chaining List” column.
Step 2: Right-click and press “Delete” to erase all setting of this certain MMSI number.
Figure 4-8 Delete Selected Child/Parent MMSI
46
4.9 Auxiliary
There are three different parts in this column. User could set those items one by one.
Standby Mode: Please choose desired wake up time on “Standby Mode”. Please use the
arrow keys.
Off-Pos MSG: Please write down the desired words/characters on each Message Test
Content that is used for SRM Message while it is off position.
(There are 50 characters limited)
Repeat: User could choose the desired Message – Message 6, Message 8, SART –
to repeat these three Messages for other AIS AtoN Device. (Only for MANDO-303 (Type
3)
After setting all parts, please click “Send” to complete all setting. And click “Read” to save all
setting.
Figure 4-9 Auxiliary
47
4.10 Version
Please press “Read Device” to confirm and review the current device information, including Device
Type, Vendor ID, Manufacturer Serial Number, Software and Hardware Version (Revision).
Figure 4-10 Version
48
5 APPENDIX
5.1 Product Specifications
APPLICABLE STANDARDS
IEC 60945 Ed. 4 (2002-05)
IEC 61162-1 Ed. 3 (2007-04)
IEC 62320-2 Ed.1 (2008-03)
IEC 61108-1 Ed. 2 (2003-07)
IEC 61108-2 Ed. 1 (1998-06)
ITU-R M.1371-4 (2010-04)
IALA A-126 Ed 1.4 (2008-06)
POWER SUPPLY
Input Voltage
12V DC nominal
(at Power Connector)
POWER CONSUMPTION @ 12V DC
MANDO-301
FATDMA< 0.288 Ah/day *
MANDO-303
FATDMA< 0.432 Ah/day *
RATDMA< 1.656 Ah/day *
* At 12.5W, reporting interval 3 minutes
TRANSMITER PERFORMANCE
TX Frequency Range
156.025 MHz ~ 162.025 MHz
Frequency Accuracy
±500 Hz
Channel Space
25 KHz
Channel Protection
1 Sec max on air
Modulation
GMSK / FM
Data Rate
9,600 bps
TX Power Control
2 / 5 / 12.5 Watt
(programmable)
Carrier Power Error
±1.5 dB (normal)
Nominal Impedance
50Ω
49
RECEIVER PERFORMANCE (Type 3 Only)
Numbers of Receivers
2
RX Frequency Range
156.025MHz ~ 162.025 MHz
Sensitivity
PER 20% at -107 dBm
Data Rate
9,600 bps
PER
20% at -107 dBm
Co-Channel Rejection
10 dB at 1 KHz offset
Adjacent Channel Rejection
70 dB at 25 KHz
Nominal Impedance
50Ω
GPS RECEIVER
Receiving Channels
50 channels
Tracking &Navigation Sensitivity
≧ -159 dBm
Reacquisition Sensitivity
≧ -159 dBm
Horizontal Position
< 2.5 m Autonomous
< 2.0 m SBAS
Receiver Type
SBAS: WAAS, EGNOS.MSAS,
GAGAN
ENVIRONMENTAL
Product Category
IEC 60945 “Protected”
Operating Temperature
-20℃ ~ +55℃
Storage Temperature
-30℃ ~ +70℃
Humidity
95% relative humidity at 40℃
SOFTWARE TOOL
AMEC AtoN Configuration
PC configuration utility,
standard supply in CD
50
INPUT / OUTPUT
1) One RS-232 port for configuration
2) One RS-232 port for communication
3) One isolated control output – N.C. relay for alarm indication
(default) or other control usages
4) One isolated status input channel with 5 mA constant current
sink for external device status input (e.g. read light fault, light
on/off, etc.)
5) Four ADC channels for external sensors
6) VHF connector (M Type)
7) VHF connector (TNC Type)
8) More extra I/O interfaces can be supplied via optional
extension I/O board
CONNECTOR
1) VHF connector (M type)
2) GPS connector (TNC type)
PHYSICAL
Size in mm (w)
140 mm
Size in mm (h)
155 mm
Size in mm (d)
60 mm
Weight
≦1.5 kg
Case Material
Aluminum Alloy
51
5.2 Dimensions
The basic dimensions of the AMEC AtoN device are illustrated in the following pictures:
Figure 5-2-1 Top View of AIS AtoN
52
Figure 5-2-2 Interfaces of AIS AtoN
Figure 5-2-3 Side View of AIS AtoN
53
Figure 5-2-4 AIS AtoN Module
Figure 5-2-5 AIS AtoN Module
54
GENERAL
ENVIRONMENTAL
5.3 Accessories
The following accessories are available from AMEC. Contact our local dealer/agent for
more details.
Table 5-3 Accessories
Item
Description
Product Code
Remark
1
VHF Antenna
TENTA-11
Length: 1,200 mm
2
GPS Antenna
AGGRESSOR-111-C
Dimension:
90.5 mm(Diameter) x 108.5 mm(H)
1. VHF Antenna TENTA-11 SPECIFICATIONS
Frequency Range
156 MHz ~ 163 MHz
Gain
3 dBi
Polarization
Vertical
VSWR
1.2 typical (1.5 max).
Impedance
50Ω
HPB
65.77 degree
FBR
1.81 dB
Product Category
IEC 60945 “Exposed”
Operating Temperature
-30°C to +75°C
Relative Humidity
95% RH at 40°C,
non-condensing
Storage Temperature
-40°C to +85°C
55
PHYSICAL CHARACTERISTICS
GENERAL
Dimensions
36 mm (ψ) x 1,200 mm (L)
Weight
860g (w/o mount)
Connector
M Jack/ PL-259 (female)
Cable
5D-FB cable
2. GPS Antenna AGGRESSOR-111-C SPECIFICATIONS
Center Frequency
1575.42 ± 2 MHz
Gain
30 dB, typical
Noise Figure
1.5 dB, typical
Bandwidth
2 MHz min.
Axial Ratio @ Zenith
3 dB max.
VSWR
1.2 typical (1.5 max)
Output Impedance
50Ω
56
PHYSICAL CHARACTERISTICS
ENVIRONMENTAL
Product Category
IEC 60945 “Exposed”
Operating Temperature
-25°C to +55°C
Relative Humidity
40% to 95% non-condensing
Storage Temperature
-25°C to +70°C
Dimensions
90.5 mm (diameter) × 108.5 mm (H)
Ground Size
74 mm (diameter)
Weight
150 grams (without cable)
Connector
TNC female
Cable
10 m, RG-58 cable included
57
5.4 Built-in Integrity Test (BIIT)
With BIIT (Built-in Integrity Test), the MANDO-301/303 is constantly monitoring and testing the
integrity itself.
5.4.1 BIIT Function for Antenna Disconnect
There is a built-in RF output power detector, which is used to monitor the VSWR of VHF antenna
port. If there is any abnormal condition (open or short) at VHF port of MANDO-301/303,
MANDO-301/303 will cease transmission at next transmission phase.
5.4.2 BIIT Function for Receiver Channel 1 and/or Channel 2 Failure
Receiver at MANDO has built-in receiver signal strength indication (RSSI), which is designed under
pre-defined threshold to judge receiver operating status. If the RSSI level is over pre-defined
threshold, MANDO-301/303 will reflect receiver failure and cease transmission during next
transmission phase.
5.5 Troubleshooting
Please find accordance with above procedure while setting MANDO-301/303. If there is any
problem, please do not hesitate to contact us or our local agent.
58
5.6 Type of AtoN
Table 5-6 The nature and type of AtoN can be indicated with 32 different codes
Code
Definition
0
Default. Type of A to N not specified
1
Reference point
2
RACON
3
Fixed structure off shore, such as oil platforms, wind farms. (Note: This
code should identify an obstruction that is fitted with an AtoN AIS
Station.)
ship
4
Spare, Reserved for future use.
Fixed A to N
5
Light, without sectors
6
Light, with sectors
7
Leading Light Front
8
Leading Light Rear
9
Beacon, Cardinal N
10
Beacon, Cardinal E
11
Beacon, Cardinal S
12
Beacon, Cardinal W
13
Beacon, Port hand
14
Beacon, Starboard hand
15
Beacon, Preferred Channel port hand
16
Beacon, Preferred Channel starboard hand
17
Beacon, Isolated danger
18
Beacon, Safe water
19
Beacon, Special mark
Floating A to N
20
Cardinal Mark N
21
Cardinal Mark E
22
Cardinal Mark S
23
Cardinal Mark W
24
Port hand Mark
25
Starboard hand Mark
26
Preferred Channel Port hand
27
Preferred Channel Starboard hand
28
Isolated danger
29
Safe water
30
Special mark
31
Light Vessel/ LANBY/ Rigs
*NOTE1: It is based on the IALA A-126
*NOTE2: It may be confused when it is decided whether the Aid is lighted or unlighted. Therefore
competent authorities may prefer to use the regional section of the message to dedicate
this.
59
6 WORLDWIDE WARRANTY
Limited warranty
Subject to the terms, conditions and limitations set forth in this Worldwide Limited Warranty
(hereinafter the “Warranty”), AMEC warrants that its products, when properly installed and used,
will be free from defects in material and workmanship for a period of twelve (12) months, from the
date of first purchase (the ‘Warranty Period’)
For the purposes of this warranty, ‘date of first purchase’ means the date that the product was
purchased by the first retail customer, or by the institutional customer, or in the case of a product
installed on a new vessel or any other marine related platform by a certified AMEC original
equipment manufacturer (a ‘AMEC OEM’), the date that such vessel was purchased by the first
retail customer.
AMEC will, at its sole option, repair or replace any defective products or components returned
during the Warranty Period in accordance with the terms, conditions and limitations set forth below.
Such repairs or replacement will be the sole remedy of the customer under this Warranty.
Limited to Original Purchaser
This Warranty is for the sole benefit of the original purchaser of the covered product and shall not
extend to any subsequent purchaser of the product.
Miscellaneous
Apart from the specific warranties provided under this warranty, all other express or implied
warranties relating to the above product is hereby excluded to the fullest extent allowable under law.
The warranty does not extend to any lost profits, loss of good will or any indirect, incidental or
consequential costs or damages or losses incurred by the purchaser as a result of any defect with
the covered product.
Standard Warranty Service
To qualify for standard warranty service the product must be returned to a AMEC-certified service
agent (i) within the Warranty Period, and (ii) within thirty (30) days of the alleged product failure.
Any products returned must be securely packaged and sent pre-paid and insured to AMEC or to a
AMEC-certified service agent. All products returned must be accompanied by a copy of the
original sales receipt to be eligible for standard warranty service.
60
Obtaining Warranty Service
A list of AMEC-certified service agents is available from AMEC Technical Support at
www.alltekmarine.com
Other conditions
This Warranty is fully transferable provided that you furnish the original proof of purchase to the
AMEC -certified service agent. This Warranty is void if the label bearing the serial number has been
removed or defaced.
Limitation and Exclusions
In addition to any other limitations and exclusions set forth herein, AMEC is not responsible for, and
this Warranty does not cover:
Failure due to abuse, misuse, accident, unauthorized alteration, modification or repair,
improper installation or operation (whether or not by a AMEC-certified service agent) or improper
storage, shipping damage or corrosion;
Costs associated with routine system checkouts, alignment/calibration, sea trials or
commissioning;
Defects or damage that result from the use of non-AMEC branded or certified products,
accessories or other peripheral equipment, including without limitation housings, parts, or software;
Aftermarket software (i.e. all software other than the original operating software sold with the
products);
Products that have been refurbished, reconditioned, or remanufactured (The foregoing does
not apply to products repaired or replaced pursuant to the terms of this Warranty).
Products that have been dismantled resulting in the broken label on the Products;
costs associated with overtime or premium labor costs;
differences in material, coloring or size that may exist between actual products and the
pictures or descriptions of such products in our advertising, advertising literature or on the Internet;
TO THE EXTENT PERMITTED BY APPLICABLE LAW, THE FOREGOING WARRANTY IS
AMEC’S SOLE WARRANTY AND IS APPLICABLE ONLY TO NEW PRODUCTS PURCHASED
WORLDWIDE. THE PROVISIONS OF THIS WARRANTY ARE IN LIEU OF ANY OTHER
WRITTEN WARRANTY, WHETHER EXPRESSED OR IMPLIED, WRITTEN OR ORAL,
INCLUDING ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE.
61
THE LIABILITY OF AMEC TO A CUSTOMER UNDER THIS WARRANTY, WHETHER FOR
BREACH OF CONTRACT, TORT, BREACH OF STATUTORY DUTY OR OTHERWISE SHALL IN
NO EVENT EXCEED AN AMOUNT EQUAL TO THE TOTAL PURCHAE PRICE OF THE
PRODUCT GIVING RISE TO SUCH LIABILITY AND IN NO EVENT SHALL AMEC BE LIABLE
FOR SPECIAL, INCIDENTAL, CONSEQUENTIAL OR INDIRECT DAMAGES OR LOST OF
GOODWILL, REPUTATION, LOSS OF OPPORTUNITY OR INFORMATION, DATA, SOFTWARE
OR APPLICATIONS.
SOME JURISDICTIONS DO NOT ALLOW EXCLUSION OR LIMITATION OF INCIDENTAL OR
CONSEQUENTIAL DAMAGES SO THE ABOVE LIMITATIONS OR EXCLUSIONS MAY NOT
APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFICLEGAL RIGHTS AND YOU MAY
ALSO HAVE OTHER RIGHTS, WHICH VARY FROM JURISDICTION TO JURISDICTION.
This Warranty supersedes and replaces all previous Warranties.
In the event that any term or provision contained in this Warranty is found to be invalid, illegal or
unenforceable by a court of competent jurisdiction, then such provision shall be deemed modified
to the extent necessary to make such provision enforceable by such court, taking into account the
intent of the parties.
No oral or written representations made by AMEC or any seller, reseller or distributor of the
products, including employees and agents thereof, shall create any additional warranty obligations,
increase the scope, or otherwise modify in any manner the terms of this Warranty.
All AMEC products sold or provided hereunder are merely aids to navigation. It is the responsibility
of the user to exercise discretion and proper navigational skill independent of any AMEC product.
62
7 DECLARATION OF CONFORMITY
Hereby, Alltek Marine Electronics Corp. (AMEC) declares that this PASO-350 is in compliance
with the essential requirements and other relevant provisions of Directive 1999/5/EC.
63
8 ACRONYMS
ABM
AIS addressed binary and safety related Message
ACK
Acknowledgment Message
AIS
Automatic Identification System
AtoN
Aids to Navigation
BBM
AIS broadcast binary message
COG
Course Over Ground
DGNSS
Differential Global Navigation Satellite System
DGPS
Differential Global Positioning System
DSP
Digital Signal Processor
ECS
Electronic Chart System
EPFS
Electronic Position Fix System
FATDMA
Fixed Access Time Division Multiple Access
GNSS
Global Navigation Satellite System
GPS
Global Positioning System
IEC
International Electrotechnical Commission
IMO
International Maritime Organization
MMSI
Maritime Mobile Service ID
NMEA
National Marine Electronics Association
RATDMA
Random Access Time Division Multiple Access
RF
Radio Frequency
SART
Search and Rescue Transponder
SOG
Speed Over Ground
SRM
Safety Related Message
TDMA
Time Division Multiple Access
TNC
Threaded Neill-Concelman Connector
TX
Transmitter
VDL
VHP Data-link Other Vessel Message
VDM
AIS VHF data-link message
VDO
AIS VHF data-link own-vessel report
VHF
Very High Frequency
VSD
Voyage Static Data
VSWR
Vertical Standing Wave Ratio
VTS
Vessel Traffic Services
