TimeKeeping Systems Inc Precision Locator Tag Users Manual
Users Manual
© 2018 by TimeKeeping Systems, Inc.
www.guard1.com
GUARD1/tracking

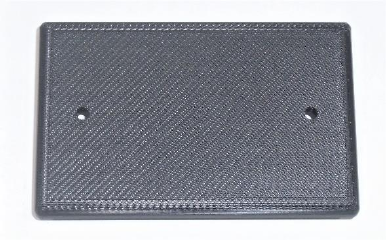

Precision Locator Tag Model PLT-001
Description
The PLT-001 is an optional part of the Guard1 Tracking system. PLT-001 devices work in
conjunction with Duress Device Models DD-005 and DD-007 to provide additional location
precision within a given zone. The PLT-001 is typically mounted at 30 foot intervals in areas
where additional location precision is needed. In this configuration they provide a typical location
accuracy of approximately 15 feet. Since requirements for location accuracy and radio
frequency characteristics vary widely it is necessary to determine the optimal configuration at
each site.
Installation
The PLT-001 mounts in a standard single gang electrical box. It can be mounted vertically or
horizontally. Power can be provided by a hard wired 5 – 24 VDC supply or by a 3 volt CR-123A
lithium battery. Battery life is in excess of 5 years.
For optimal performance the PLT-001 should have a wide and unobstructed view of the area it
monitors. The PLT-001 must be located further than 20 centimeters (7.9”) from people, furniture,
and other obstructions.
© 2018 by TimeKeeping Systems, Inc.
www.guard1.com
FCC Statements:
This equipment has been tested and found to comply with the limits for Class B digital devices
pursuant to Part 15, Subpart B of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential environment. This equipment
generates, uses, and can radiate radio frequency energy, and if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try and
correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and the receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of FCC Rules. Operation is subject to the following two
conditions:
(1) this device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
The distance between user and products should be no less than 20cm.
Changes or modifications not expressly approved by TimeKeeping Systems, Inc. could void the
user's authority to operate the equipment.
This device is exempt from SAR Evaluation, per §4.3.1 of KDB 447498.
Industry Canada Statements:
English
French
This device contains licence-exempt
transmitter(s)/receiver(s) that comply with
Innovation,
Science and Economic Development
Canada’s licence-exempt RSS(s). Operation
is subject
to the following two conditions:
(1) This device may not cause interference.
(2) This device must accept any interference,
including interference that may cause
undesired operation of the device.
The distance between user and products
should be no less than 20cm.
Cet appareil contient des émetteurs /
récepteurs exemptés de licence conformes
aux RSS (RSS)
d'Innovation, Sciences et Développement
économique Canada. Le fonctionnement est
soumis aux
deux conditions suivantes :
(1) Cet appareil ne doit pas causer
d'interférences.
(2) Cet appareil doit accepter toutes les
interférences, y compris celles susceptibles
de provoquer un fonctionnement indésirable
de l'appareil.
La distance entre l'utilisateur et de produits
ne devrait pas être inférieure à 20cm.
