Top Victory Electronics B4319-A-WL WLAN USB CARD WN7511E 3-LF-PV User Manual I

Top Victory Electronics (Taiwan) Co Ltd WLAN USB CARD WN7511E 3-LF-PV I

Contents

User Manual I

Product Specification
1
Product Specification
305GLUSBGA51AC & 305GLUSBGA51AC-L3
IEEE 802.11n USB2.0 Adapter with 350mm antenna
Arcadyan P/N: FICPV7511000J
Product Specification
2
Table of Contents
Chapter 1 Introduction _____________________________________________________ 4
1. Introduction ________________________________________________________ 4
1.1 Product Features ____________________________________________________ 4
1.2 Applications _______________________________________________________ 4
Chapter 2 Hardware _______________________________________________________ 5
2.1 General Overview __________________________________________________ 5
2.2 Hardware Architecture _______________________________________________ 5
BRCM 4319 ___________________________________________________________ 5
2.3 Main Chipset Information ____________________________________________ 5
2.4 PCB dimension ______________________________________________________ 5
2. 5 Block Diagram ______________________________________________________ 6
2. 6 Pin-definition ______________________________________________________ 6
Chapter 3 Software _______________________________________________________ 7
3.1 Operating System Supported __________________________________________ 7
3.2 Wireless Mode Supported ____________________________________________ 7
3.3 Security ___________________________________________________________ 7
Chapter 4 Specifications ___________________________________________________ 8
Product Specification
3
Revision History
Edition # Reason for revision Issue date Written by
V 01 ♦ Initial Document Nov 18 2009 Troy Chen
V 02 ♦ Add Pin-definition
♦ Revise Main chipset configuration
Nov 19 2009 Troy Chen
V 03 ♦ Update PCB outline & antenna spec. Jul 30 2010 Andre Lin
V 04 ♦ Update chip info & antenna spec. Aug 17 2010 Andre Lin
Product Specification
4
Chapter 1 Introduction
1. Introduction
305GLUSBGA51AC (350mm antenna) and 305GLUSBGA51AC-L3 (350mm antenna) are wireless
1x1 802.11n USB Adapter which enables wireless networking systems to attain data
communication speeds up to 150 megabits-per-second (Mbps), while remaining backward
compatible to the existing installed base of Wi-Fi systems worldwide. It supports operation to
the IEEE 802.11b and IEEE 802.11g ,and draft IEEE 802.11n standards.
305GLUSBGA51AC (350mm) and 305GLUSBGA51AC-L3 (350mm) will enable a next generation
of high-data-rate platforms for operation in the 2.4 GHz band that deliver a five-fold speed
increase. The cost and performance advantages will make it an ideal solution for high
bandwidth enterprise applications, such as wireless video conferencing and large file transfers.
It is compatible with 802.11g standard's mandatory modulation schemes—Complementary
Code Keying (CCK), which is used in 802.11b, and Orthogonal Frequency Division
Multiplexing (OFDM), used in 802.11g and draft 802.11n. Using CCK ensures
backward-compatibility with the installed Wi-Fi 802.11b base, while OFDM provides the
speed required for today's high-bandwidth applications.
1.1 Product Features
♦ High speed for wireless LAN connection, RX up at 150 Mbps data rate.
♦ Backward compatible to the existing IEEE 802.11b/g WLAN infrastructure.
♦ Support USB2.0
♦ Single stream 802.11n support for both 20MHz and 40MHz channels provide PHY layer
rate up to MCS7 (150Mbps) for typical upper layer throughput in excess of 70Mbps
1.2 Applications
♦ WiFi Module for TV
Product Specification
5
Chapter 2 Hardware
2.1 General Overview
♦ USB 2.0 Interface and 802.11 n chipset-on-board design.
♦ 1 antenna connector (Reserve one more antenna for diversity)
2.2 Hardware Architecture
BRCM 4319
2.3 Main Chipset Information
BRCM 4319G: Single-band 2.4 GHz 802.11 b, g, and n. integrated with MAC/Baseband/RF
BRCM 4319X: Dual-band 2.4 GHz and 5 GHz 802.11 a, b, g, and n. integrated with MAC/Baseband/RF

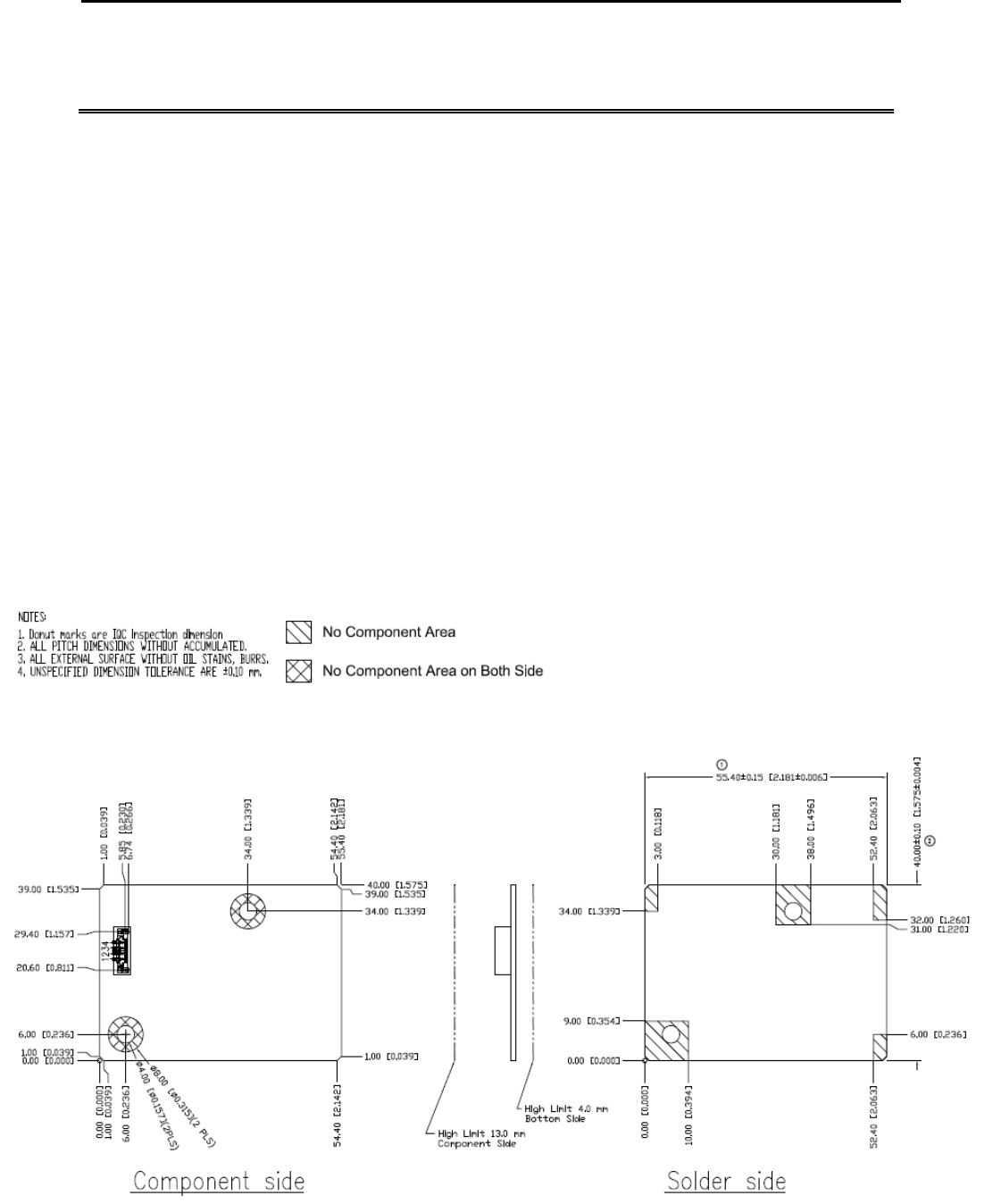

2.4 PCB dimension
55.4x40mm
As for the those area highlighted with color orange/blue indicate the “restricted area”
Product Specification
6

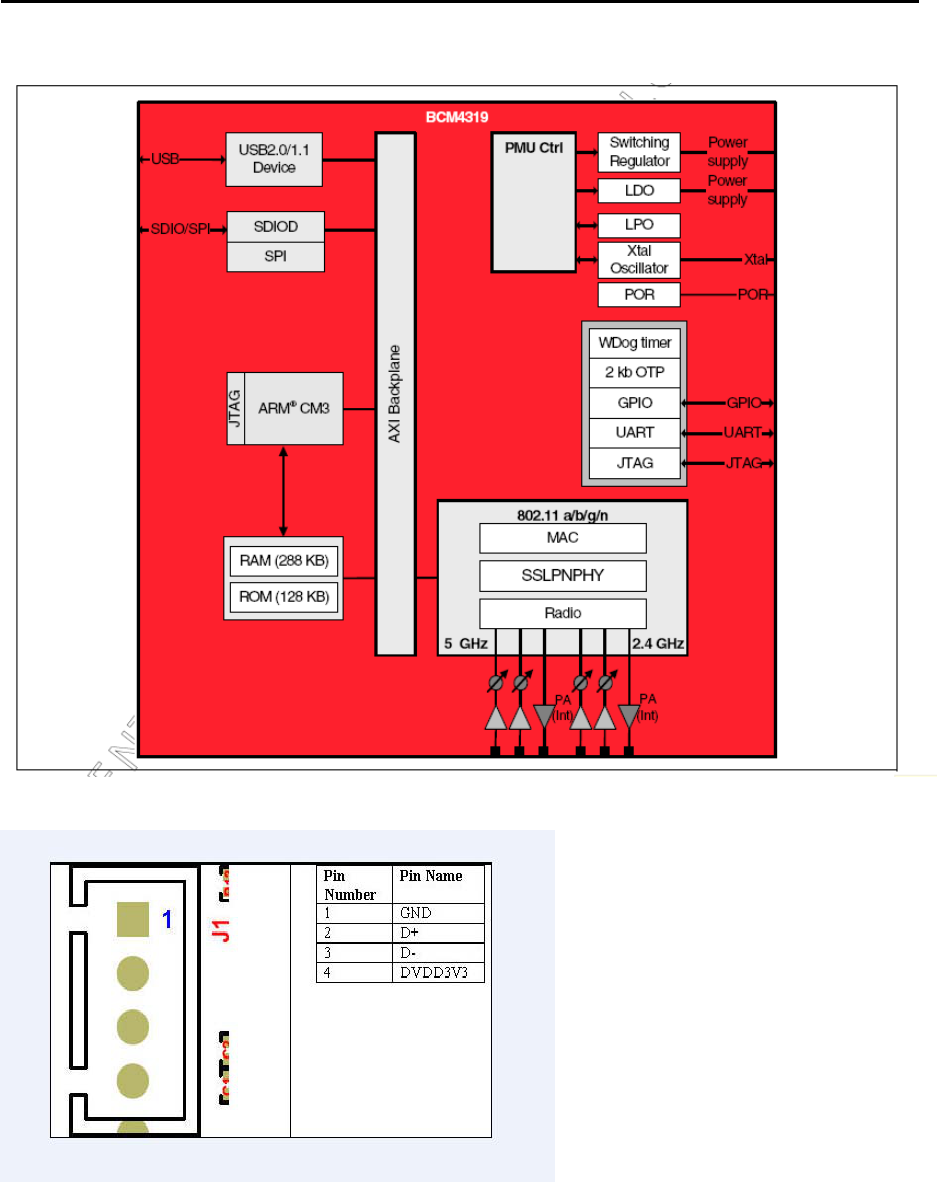

2. 5 Block Diagram
2. 6 Pin-definition
Product Specification
7
Chapter 3 Software
3.1 Operating System Supported
♦ Windows 2000, XP, Vista
3.2 Wireless Mode Supported
♦ AP (Infrastructure) Client mode
3.3 Security
♦ AP (Infrastructure) mode supports
♦ Static WEP that support both 64 and 128 bit keys.
♦ WPA(TKIP) with PSK
♦ Ad-hoc mode supports
♦ None (plaintext)
♦ Static WEP that supports both 64 and 128 bit keys
Product Specification
8
Chapter 4 Specifications
♦ Frequency Band:
Draft 802.11n Radio: 2.4 GHz
802.11g Radio: 2.4 GHz
802.11b Radio: 2.4 GHz
USA – FCC 2412~2462MHz (Ch1~Ch11)
♦ Operating Channels:
IEEE 802.11b/g/n compliant:
11 channels (US, Canada)
♦ Transmit Power and Sensitivity:
TX Output Power:(Typical)
11b 15 +/- 1.5 dBm
11g 14 +/- 1.5 dBm
11n (HT20) 13 +/- 1.5 dBm
11n (HT40) 12 +/- 1.5 dBm
Rx Sensitivity:(Typical)
-88 dBm @6 Mbps
-87 dBm @9 Mbps
-84 dBm @12 Mbps
-81dBm @18 Mbps
-79dBm @24 Mbps
-75dBm @36 Mbps
-71dBm @48 Mbps
-70 dBm @54 Mbps
-64 dBm @64-QAM, 20MHz channel spacing
-61 dBm @64-QAM, 40MHz channel spacing
♦ Modulation
DBPSK @1Mbps
DQPSK@2Mbp
CCK@5.5/11Mbps
BPSK@6/9 Mbps
QPSK@12/18Mbps
Product Specification
9
16-QAM@24Mbps
64-QAM@48/54Mpb and above, RX up to 135Mbps
♦ Data rate:
11b/g:
54, 48, 36, 24, 18, 12, 9, 6, 11, 5.5, 2,1 Mbps
11n:
20MHz BW: 65, 58.5, 52, 39, 26, 19.5, 13, and 6.5Mbps
40MHz BW: 135, , 121.5, 108, 81, 54, 40.5, 27and 13.5Mbps
♦ Current Consumption (5V DC)
TX: 170mA, HT20; 180mA, HT40 at 3.3V
RX: 160mA, HT20; 160 mA HT40 at 3.3V
Idle: 90mA
Radio off 52mA
♦ Operating Temperature: 0 ~ 40 oC ambient
♦ Storage Temperature: -10 ~ 70 oC ambient
♦ Humidity: 5 ~ 90% and must be non-condensing
♦ Regulation and certification compliance available:
FCC
Product Specification
10
References
♦ BRCM Reference Design Functional Specification
♦ IEEE 802.11b Standard Specification
♦ IEEE 802.11g Standard Specification
♦ IEEE 802.11n draft Standard Specification
The drawings, specifications and the data contain herein are the exclusive property of Arcadyan
Technology Corp. issued in strict confidence and shall not, without the prior written permission of
Arcadyan Technology Corp., be reproduced, copied or used, in parts or as a whole, for any purpose
whatsoever, except the manufacture of articles for Arcadyan Technology Corp.
Arcadyan makes no warranties with respect to the correctness, accuracy or wholeness of this
specification. The information in this document is subject to change without notice. Arcadyan
reserves the right to make revisions to this document and the product described herein without
obligation to notify any person or entity of any such changes.
Product Specification
11
FCC Statement
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one of the following measures:
● Reorient or relocate the receiving antenna.
● Increase the separation between the equipment and receiver.
● Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
● Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
For product available in the USA/Canada market, only channel 1~11 can be operated.
Selection of other channels is not possible.
This device and its antenna(s) must not be co-located or operation in conjunction with any
other antenna or transmitter.
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with
minimum distance 20cm between the radiator & your body.
Product Specification
12
IMPORTANT NOTE:
This module is intended for OEM integrator. The OEM integrator is still responsible for
the FCC compliance requirement of the end product, which integrates this module.
20cm minimum distance has to be able to be maintained between the antenna and
the users for the host this module is integrated into. Under such configuration, the
FCC radiation exposure limits set forth for an population/uncontrolled environment
can be satisfied.
Any changes or modifications not expressly approved by the manufacturer could void
the user's authority to operate this equipment.
USERS MANUAL OF THE END PRODUCT:
In the users manual of the end product, the end user has to be informed to keep at
least 20cm separation with the antenna while this end product is installed and
operated. The end user has to be informed that the FCC radio-frequency exposure
guidelines for an uncontrolled environment can be satisfied. The end user has to also
be informed that any changes or modifications not expressly approved by the
manufacturer could void the user's authority to operate this equipment. If the size of
the end product is smaller than 8x10cm, then additional FCC part 15.19 statement is
required to be available in the users manual: This device complies with Part 15 of
FCC rules. Operation is subject to the following two conditions: (1) this device may not
cause harmful interference and (2) this device must accept any interference received,
including interference that may cause undesired operation.
LABEL OF THE END PRODUCT:
The final end product must be labeled in a visible area with the following " Contains
TX FCC ID: ARS-B4319-A-WL ". If the size of the end product is larger than 8x10cm,
then the following FCC part 15.19 statement has to also be available on the label:
This device complies with Part 15 of FCC rules. Operation is subject to the following
two conditions: (1) this device may not cause harmful interference and (2) this device
must accept any interference received, including interference that may cause
undesired operation.
