305GLUSBGA52AC & 305GLUSBGA52AC-L5
IEEE 802.11n USB2.0 Adapter with 500mm antenna
Arcadyan P/N: FICPV7511001J
![](/img.php?id=1356888&img=bg2.png)
Product Specification
2
Table of Contents
Chapter 1 Introduction _____________________________________________________ 4
1. Introduction ________________________________________________________ 4
1.1 Product Features ____________________________________________________ 4
1.2 Applications _______________________________________________________ 4
Chapter 2 Hardware _______________________________________________________ 5
2.1 General Overview __________________________________________________ 5
2.2 Hardware Architecture _______________________________________________ 5
BRCM 4319 ___________________________________________________________ 5
2.3 Main Chipset Information ____________________________________________ 5
2.4 PCB dimension ______________________________________________________ 5
2. 5 Block Diagram ______________________________________________________ 6
2. 6 Pin-definition ______________________________________________________ 6
Chapter 3 Software _______________________________________________________ 7
3.1 Operating System Supported __________________________________________ 7
3.2 Wireless Mode Supported ____________________________________________ 7
3.3 Security ___________________________________________________________ 7
Chapter 4 Specifications ___________________________________________________ 8
References ________________________________________________________________ 10
![](/img.php?id=1356888&img=bg3.png)
Product Specification
3
Revision History
Edition # Reason for revision Issue date Written by
V 01 ♦ Initial Document Nov 18 2009 Troy Chen
V 02 ♦ Add Pin-definition
♦ Revise Main chipset configuration
Nov 19 2009 Troy Chen
V 03 ♦ Update PCB outline & antenna spec. Jul 30 2010 Andre Lin
V 04 ♦ Update chip info & antenna spec. Aug 17 2010 Andre Lin
![](/img.php?id=1356888&img=bg4.png)
Product Specification
4
Chapter 1 Introduction
1. Introduction
305GLUSBGA52AC (500mm antenna) and 305GLUSBGA52AC-L5 (500mm antenna) are wireless
1x1 802.11n USB Adapter which enables wireless networking systems to attain data
communication speeds up to 150 megabits-per-second (Mbps), while remaining backward
compatible to the existing installed base of Wi-Fi systems worldwide. It supports operation to
the IEEE 802.11b and IEEE 802.11g ,and draft IEEE 802.11n standards.
305GLUSBGA52AC (500mm antenna) and 305GLUSBGA52AC-L5 (500mm antenna) will enable a
next generation of high-data-rate platforms for operation in the 2.4 GHz band that deliver a
five-fold speed increase. The cost and performance advantages will make it an ideal solution
for high bandwidth enterprise applications, such as wireless video conferencing and large file
transfers. It is compatible with 802.11g standard's mandatory modulation
schemes—Complementary Code Keying (CCK), which is used in 802.11b, and Orthogonal
Frequency Division Multiplexing (OFDM), used in 802.11g and draft 802.11n. Using CCK
ensures backward-compatibility with the installed Wi-Fi 802.11b base, while OFDM provides
the speed required for today's high-bandwidth applications.
1.1 Product Features
♦ High speed for wireless LAN connection, RX up at 150 Mbps data rate.
♦ Backward compatible to the existing IEEE 802.11b/g WLAN infrastructure.
♦ Support USB2.0
♦ Single stream 802.11n support for both 20MHz and 40MHz channels provide PHY layer
rate up to MCS7 (150Mbps) for typical upper layer throughput in excess of 70Mbps
1.2 Applications
♦ WiFi Module for TV
![](/img.php?id=1356888&img=bg5.png)
Product Specification
5
Chapter 2 Hardware
2.1 General Overview
♦ USB 2.0 Interface and 802.11 n chipset-on-board design.
♦ 1 antenna connector (Reserve one more antenna for diversity)
2.2 Hardware Architecture
BRCM 4319
2.3 Main Chipset Information
BRCM 4319G: Single-band 2.4 GHz 802.11 b, g, and n. integrated with MAC/Baseband/RF
BRCM 4319X: Dual-band 2.4 GHz and 5 GHz 802.11 a, b, g, and n. integrated with MAC/Baseband/RF

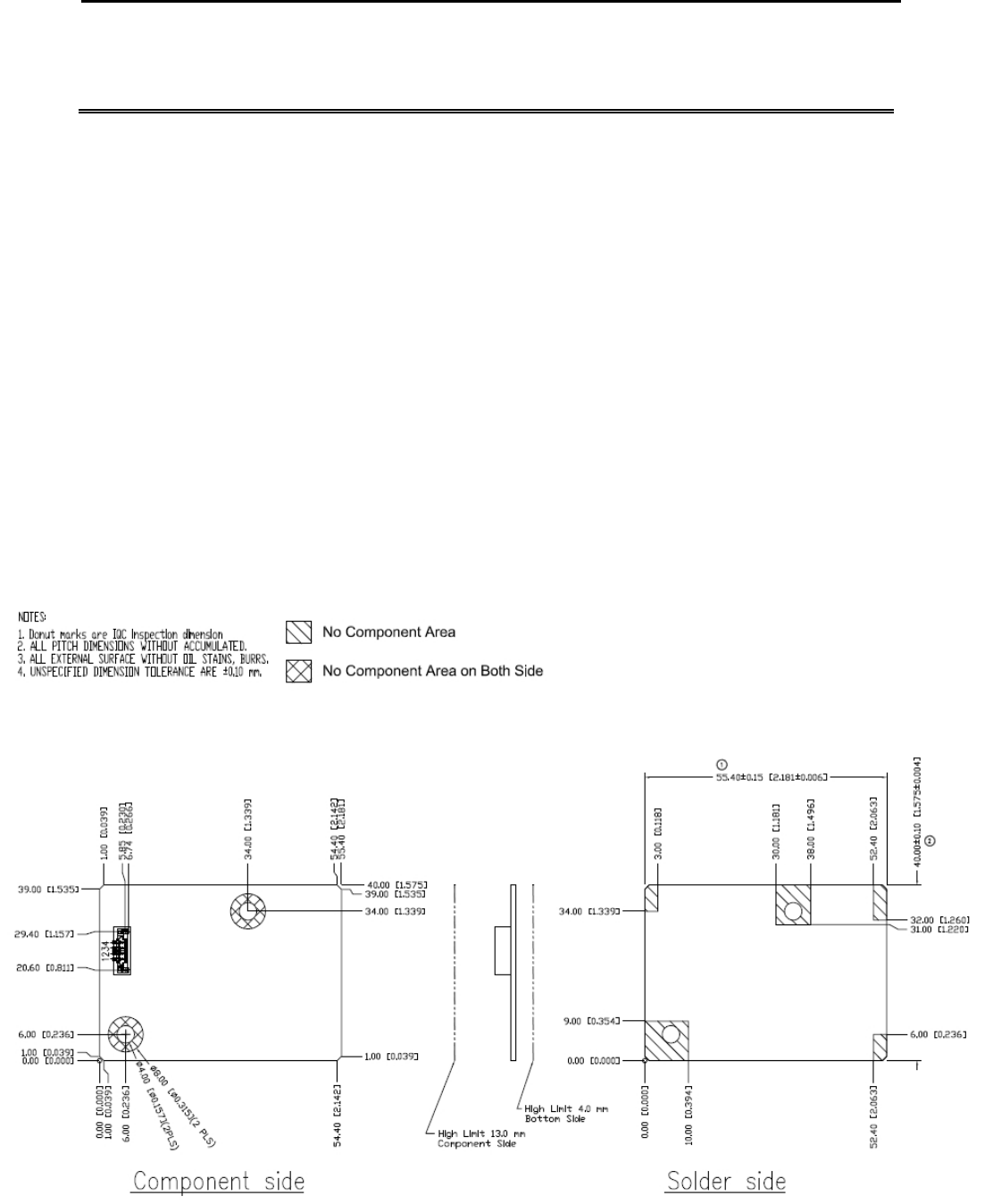

2.4 PCB dimension
55.4x40mm
As for the those area highlighted with color orange/blue indicate the “restricted area”
![](/img.php?id=1356888&img=bg6.png)
Product Specification
6
2. 5 Block Diagram
2. 6 Pin-definition
![](/img.php?id=1356888&img=bg7.png)
Product Specification
7
Chapter 3 Software
3.1 Operating System Supported
♦ Windows 2000, XP, Vista
3.2 Wireless Mode Supported
♦ AP (Infrastructure) Client mode
3.3 Security
♦ AP (Infrastructure) mode supports
♦ Static WEP that support both 64 and 128 bit keys.
♦ WPA(TKIP) with PSK
♦ Ad-hoc mode supports
♦ None (plaintext)
♦ Static WEP that supports both 64 and 128 bit keys.
![](/img.php?id=1356888&img=bg8.png)
Product Specification
8
Chapter 4 Specifications
♦ Frequency Band:
Draft 802.11n Radio: 2.4 GHz
802.11g Radio: 2.4 GHz
802.11b Radio: 2.4 GHz
USA – FCC 2412~2462MHz (Ch1~Ch11)
♦ Operating Channels:
IEEE 802.11b/g/n compliant:
11 channels (US, Canada)
♦ Transmit Power and Sensitivity:
TX Output Power:(Typical)
11b 15 +/- 1.5 dBm
11g 14 +/- 1.5 dBm
11n (HT20) 13 +/- 1.5 dBm
11n (HT40) 12 +/- 1.5 dBm
Rx Sensitivity:(Typical)
-88 dBm @6 Mbps
-87 dBm @9 Mbps
-84 dBm @12 Mbps
-81dBm @18 Mbps
-79dBm @24 Mbps
-75dBm @36 Mbps
-71dBm @48 Mbps
-70 dBm @54 Mbps
-64 dBm @64-QAM, 20MHz channel spacing
-61 dBm @64-QAM, 40MHz channel spacing
♦ Modulation
DBPSK @1Mbps
DQPSK@2Mbp
CCK@5.5/11Mbps
BPSK@6/9 Mbps
QPSK@12/18Mbps
![](/img.php?id=1356888&img=bg9.png)
Product Specification
9
16-QAM@24Mbps
64-QAM@48/54Mpb and above, RX up to 135Mbps
♦ Data rate:
11b/g:
54, 48, 36, 24, 18, 12, 9, 6, 11, 5.5, 2,1 Mbps
11n:
20MHz BW: 65, 58.5, 52, 39, 26, 19.5, 13, and 6.5Mbps
40MHz BW: 135, , 121.5, 108, 81, 54, 40.5, 27and 13.5Mbps
♦ Current Consumption (5V DC)
TX: 170mA, HT20; 180mA, HT40 at 3.3V
RX: 160mA, HT20; 160 mA HT40 at 3.3V
Idle: 90mA
Radio off 52mA
♦ Operating Temperature: 0 ~ 40 oC ambient
♦ Storage Temperature: -10 ~ 70 oC ambient
♦ Humidity: 5 ~ 90% and must be non-condensing
♦ Regulation and certification compliance available:
FCC
![](/img.php?id=1356888&img=bga.png)
Product Specification
10
References
♦ BRCM Reference Design Functional Specification
♦ IEEE 802.11b Standard Specification
♦ IEEE 802.11g Standard Specification
♦ IEEE 802.11n draft Standard Specification
