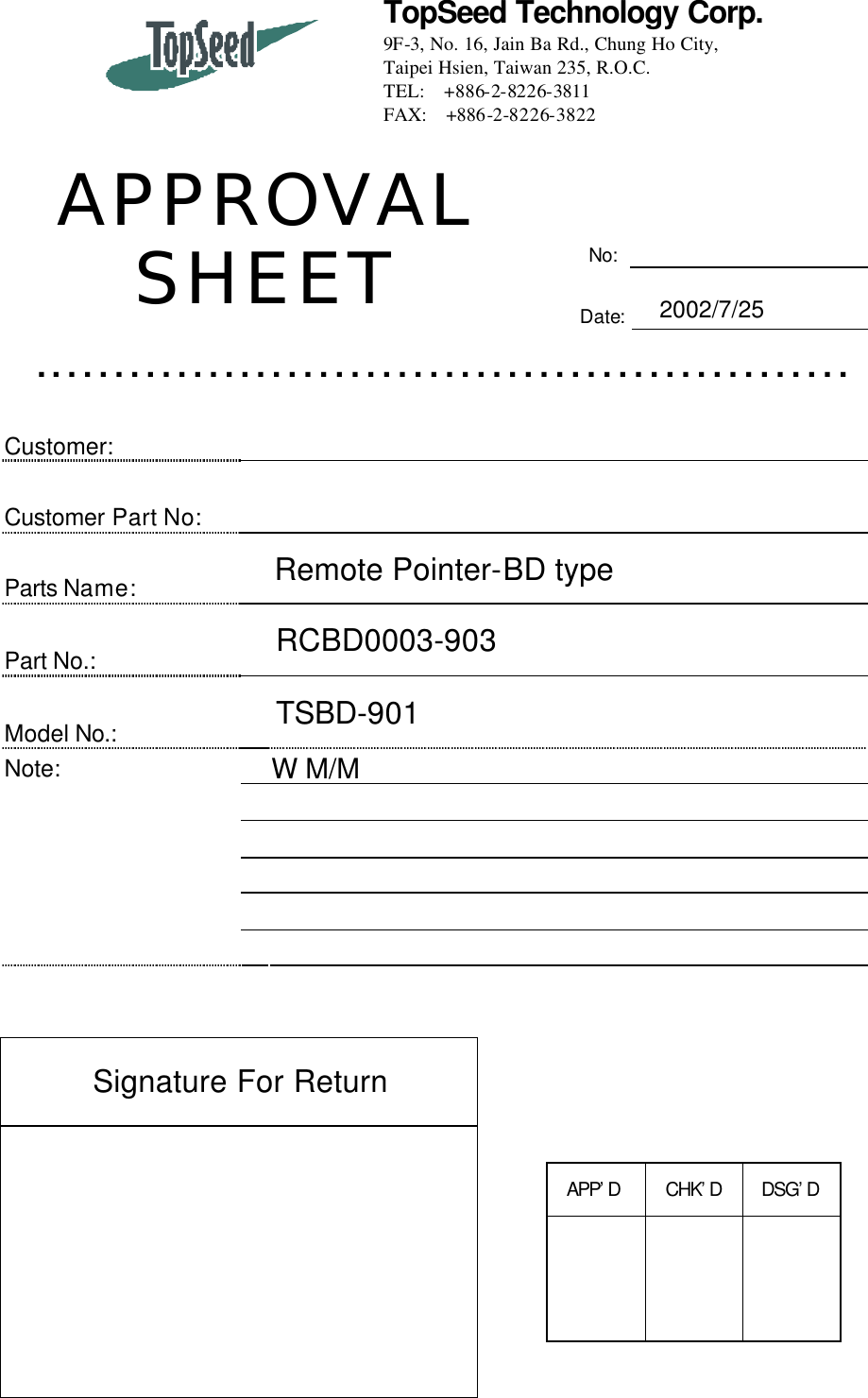

TopSeed Technology Corp. 9F-3, No. 16, Jain Ba Rd., Chung Ho City, Taipei Hsien, Taiwan 235, R.O.C. TEL: +886-2-8226-3811 FAX: +886-2-8226-3822 No: APPROVAL SHEET Date: 2002/7/25 .…………………………………………… Customer: Customer Part No: Parts Name: Remote Pointer-BD type Part No.: RCBD0003-903 Model No.: TSBD-901 W M/M Note: Signature For Return APP’D CHK’D DSG’D

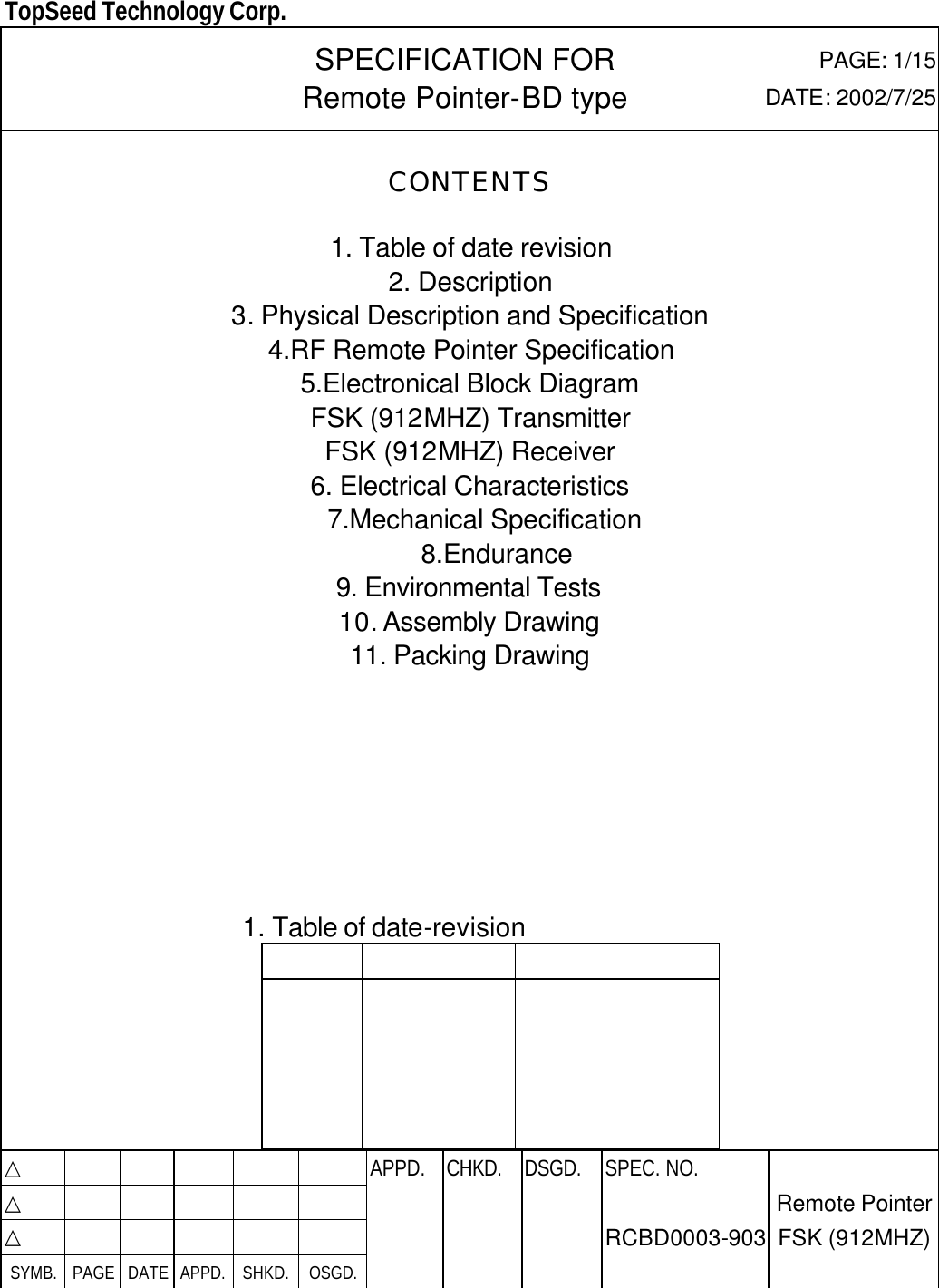

TopSeed Technology Corp. SPECIFICATION FOR Remote Pointer-BD type PAGE: 1/15 DATE: 2002/7/25 CONTENTS 1. Table of date revision 2. Description 3. Physical Description and Specification 4.RF Remote Pointer Specification 5.Electronical Block Diagram FSK (912MHZ) Transmitter FSK (912MHZ) Receiver 6. Electrical Characteristics 7.Mechanical Specification 8.Endurance 9. Environmental Tests 10. Assembly Drawing 11. Packing Drawing 1. Table of date-revision △ APPD. CHKD. DSGD. △ △ SYMB. PAGE DATE APPD. SHKD. OSGD. SPEC. NO. RCBD0003-903 Remote Pointer FSK (912MHZ)

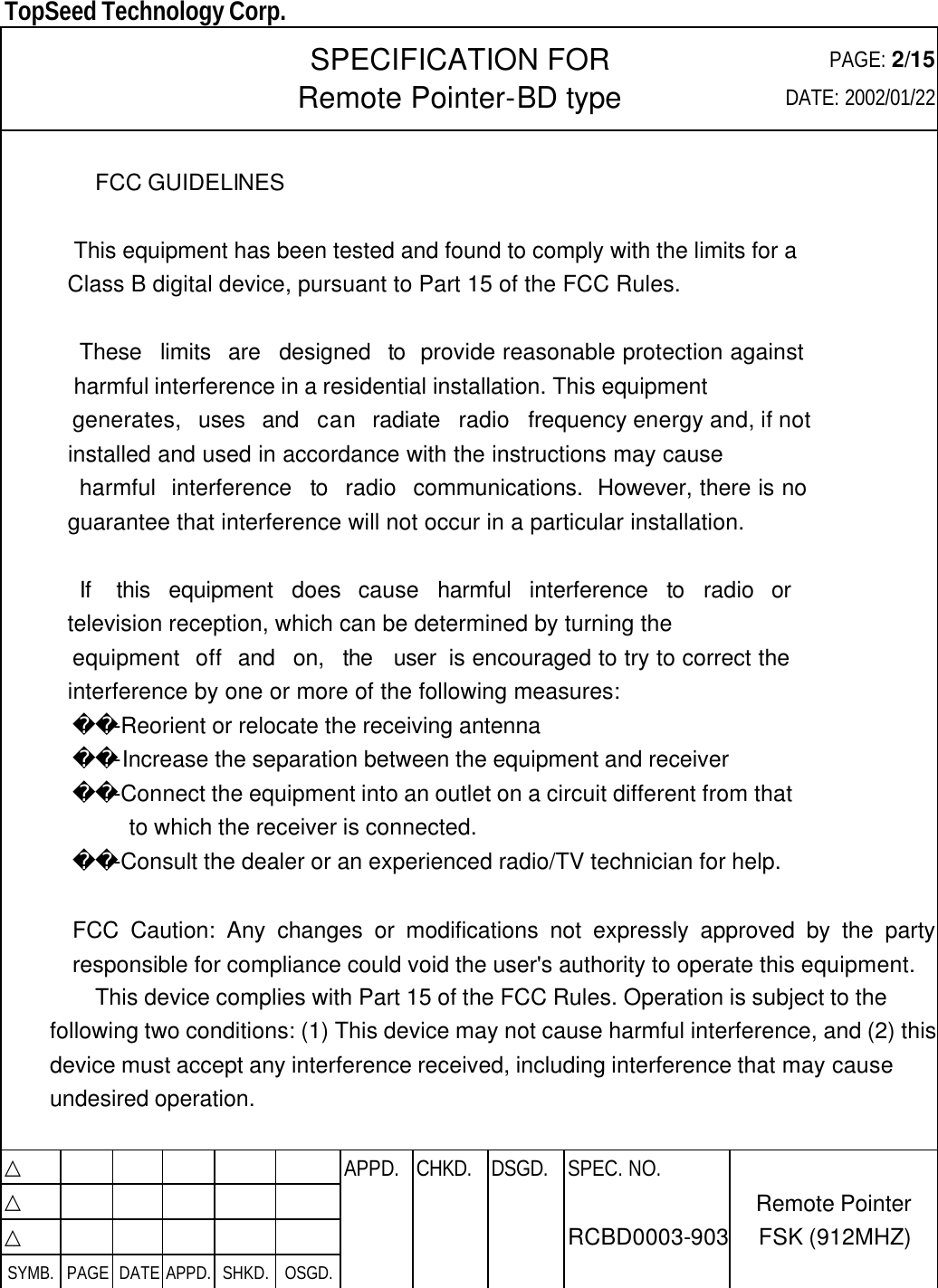

TopSeed Technology Corp. SPECIFICATION FOR Remote Pointer-BD type PAGE: 2/15 DATE: 2002/01/22 FCC GUIDELINES This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:  -Reorient or relocate the receiving antenna  -Increase the separation between the equipment and receiver  -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  -Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. △ APPD. CHKD. DSGD. △ △ SYMB. PAGE DATE APPD. SHKD. OSGD. SPEC. NO. RCBD0003-903 Remote Pointer FSK (912MHZ)
TopSeed Technology Corp. SPECIFICATION FOR Remote Pointer-BD type PAGE: 3/15 DATE: 2002/7/25 2. Description: The RF Remote Pointer is a FSK (Frequency Shift Key) Transmitter for the frequency band 902-928 MHz. The Remote Pointer offers a full-integrated PLL synthesizer and a high efficiency power amplifier to drive a loop antenna, A special circuit design and an unique power amplifier design are used to save current consumption and to save battery life. This RF Remote Pointer is a best companion of Microsoft Power Point with Laser pointer designed, scroll wheel, FSR Moues Sensor, lets you scroll up and down as desired, when browsing the Internet move Mouse cursor or scrolling through any Windows documents gives reliable control and accuracy. Remote Pointer RF's radio frequency wireless technology solves all of your presentation input needs. For the Receiver Modular use with USB 1.1 compliant can be easily actuated without affecting the position of the Remote Pointer. Note that the Channel button (Red button) on the receiver should flash any time the Cordless device is moved or a button is pressed. Then, it will remember your product ID and Channel ID The Radio Frequency designed in this Version of RF Remote Pointer is FSK 912MHz and can be use in a range about 7-10 Meter from the Receiver at any directions. The Remote Pointer can operate for 6 months with AAA X 2 DC 3V batteries △ APPD. CHKD. DSGD. △ △ SYMB. PAGE DATE APPD. SHKD. OSGD. SPEC. NO. RCBD0003-903 Remote Pointer FSK (912MHZ)

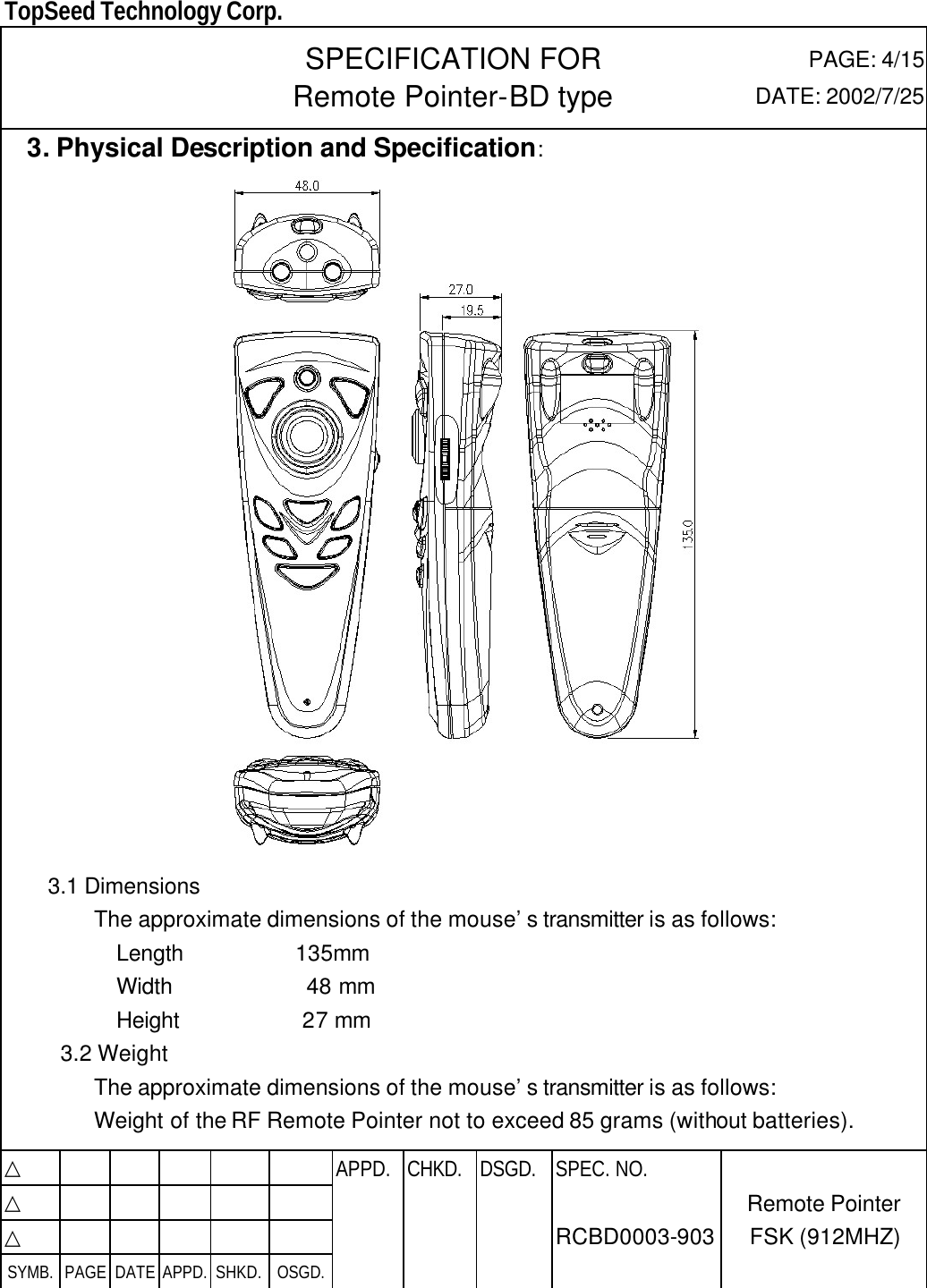

TopSeed Technology Corp. SPECIFICATION FOR Remote Pointer-BD type PAGE: 4/15 DATE: 2002/7/25 3. Physical Description and Specification: 3.1 Dimensions The approximate dimensions of the mouse’s transmitter is as follows: Length 135mm Width 48 mm Height 27 mm 3.2 Weight The approximate dimensions of the mouse’s transmitter is as follows: Weight of the RF Remote Pointer not to exceed 85 grams (without batteries). △ APPD. CHKD. DSGD. △ △ SYMB. PAGE DATE APPD. SHKD. OSGD. SPEC. NO. RCBD0003-903 Remote Pointer FSK (912MHZ)

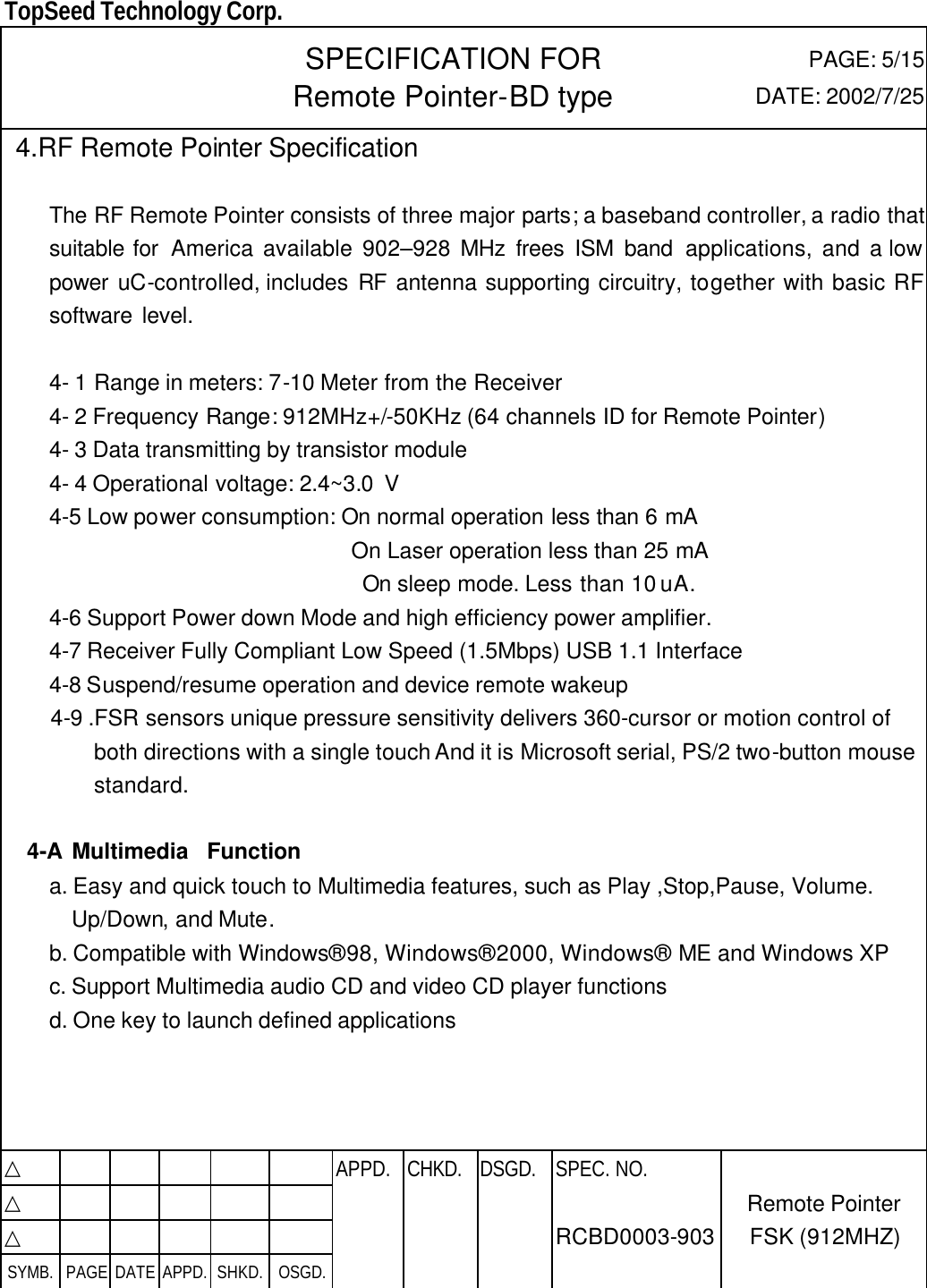

TopSeed Technology Corp. SPECIFICATION FOR Remote Pointer-BD type PAGE: 5/15 DATE: 2002/7/25 4.RF Remote Pointer Specification The RF Remote Pointer consists of three major parts; a baseband controller, a radio that suitable for America available 902–928 MHz frees ISM band applications, and a low power uC-controlled, includes RF antenna supporting circuitry, together with basic RF software level. 4- 1 Range in meters: 7-10 Meter from the Receiver 4- 2 Frequency Range: 912MHz+/-50KHz (64 channels ID for Remote Pointer) 4- 3 Data transmitting by transistor module 4- 4 Operational voltage: 2.4~3.0 V 4-5 Low power consumption: On normal operation less than 6 mA On Laser operation less than 25 mA On sleep mode. Less than 10 uA. 4-6 Support Power down Mode and high efficiency power amplifier. 4-7 Receiver Fully Compliant Low Speed (1.5Mbps) USB 1.1 Interface 4-8 Suspend/resume operation and device remote wakeup 4-9 .FSR sensors unique pressure sensitivity delivers 360-cursor or motion control of both directions with a single touch And it is Microsoft serial, PS/2 two-button mouse standard. 4-A Multimedia Function a. Easy and quick touch to Multimedia features, such as Play ,Stop,Pause, Volume. Up/Down, and Mute. b. Compatible with Windows® 98, Windows® 2000, Windows® ME and Windows XP c. Support Multimedia audio CD and video CD player functions d. One key to launch defined applications △ APPD. CHKD. DSGD. △ △ SYMB. PAGE DATE APPD. SHKD. OSGD. SPEC. NO. RCBD0003-903 Remote Pointer FSK (912MHZ)

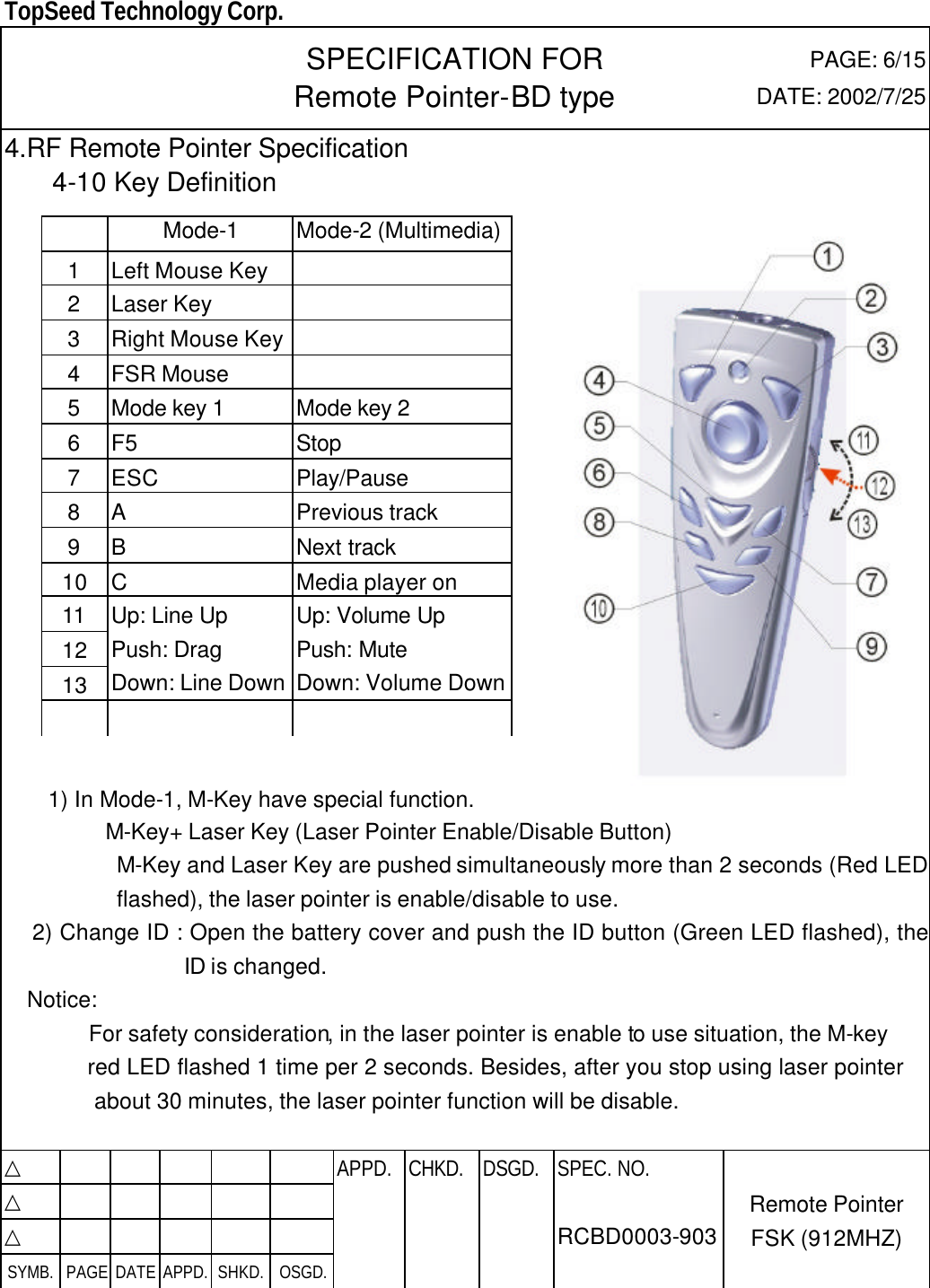

TopSeed Technology Corp. SPECIFICATION FOR Remote Pointer-BD type PAGE: 6/15 DATE: 2002/7/25 4.RF Remote Pointer Specification 4-10 Key Definition 1) In Mode-1, M-Key have special function. M-Key+ Laser Key (Laser Pointer Enable/Disable Button) M-Key and Laser Key are pushed simultaneously more than 2 seconds (Red LED flashed), the laser pointer is enable/disable to use. 2) Change ID : Open the battery cover and push the ID button (Green LED flashed), the ID is changed. Notice: For safety consideration, in the laser pointer is enable to use situation, the M-key red LED flashed 1 time per 2 seconds. Besides, after you stop using laser pointer about 30 minutes, the laser pointer function will be disable. Mode-1 Mode-2 (Multimedia) 1 Left Mouse Key 2 Laser Key 3 Right Mouse Key 4 FSR Mouse 5 Mode key 1 Mode key 2 6 F5 Stop 7 ESC Play/Pause 8 A Previous track 9 B Next track 10 C Media player on 11 12 13 Up: Line Up Push: Drag Down: Line Down Up: Volume Up Push: Mute Down: Volume Down △ APPD. CHKD. DSGD. △ △ SYMB. PAGE DATE APPD. SHKD. OSGD. SPEC. NO. RCBD0003-903 Remote Pointer FSK (912MHZ)

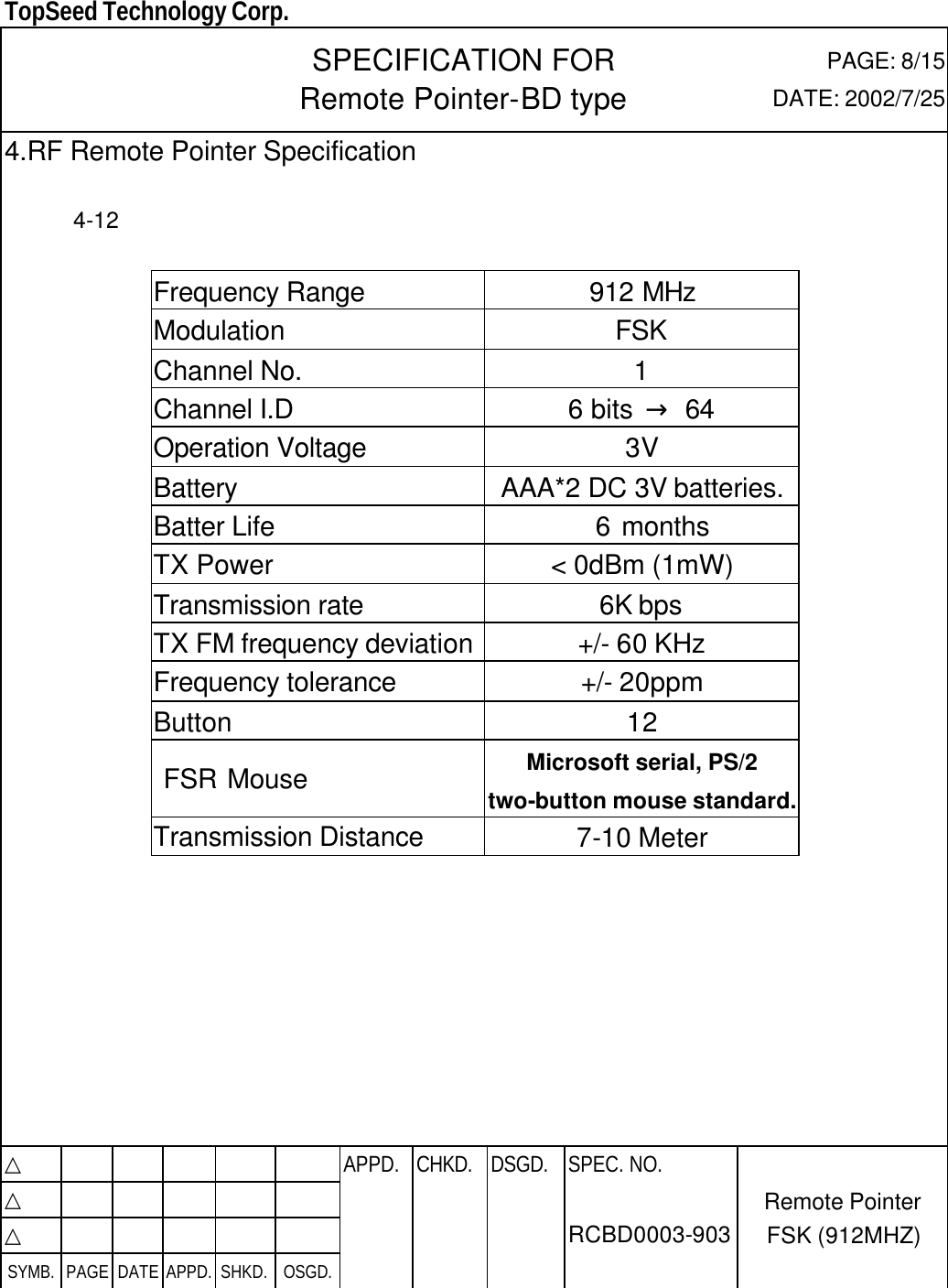

TopSeed Technology Corp. SPECIFICATION FOR Remote Pointer-BD type PAGE: 8/15 DATE: 2002/7/25 4.RF Remote Pointer Specification 4-12 Frequency Range 912 MHz Modulation FSK Channel No. 1 Channel I.D 6 bits → 64 Operation Voltage 3V Battery AAA*2 DC 3V batteries. Batter Life 6 months TX Power < 0dBm (1mW) Transmission rate 6K bps TX FM frequency deviation +/- 60 KHz Frequency tolerance +/- 20ppm Button 12 FSR Mouse Microsoft serial, PS/2 two-button mouse standard. Transmission Distance 7-10 Meter △ APPD. CHKD. DSGD. △ △ SYMB. PAGE DATE APPD. SHKD. OSGD. SPEC. NO. RCBD0003-903 Remote Pointer FSK (912MHZ)

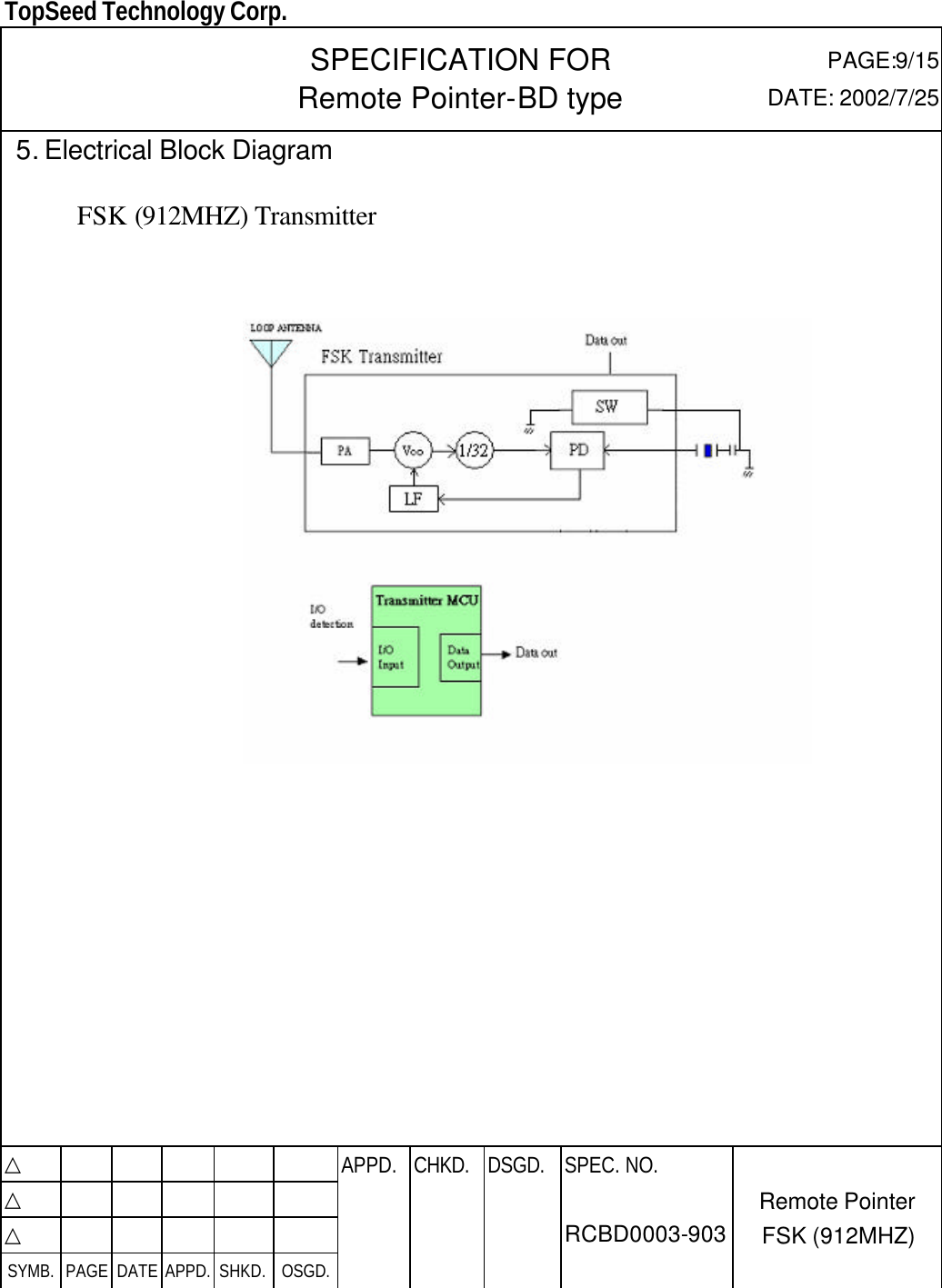

TopSeed Technology Corp. SPECIFICATION FOR Remote Pointer-BD type PAGE:9/15 DATE: 2002/7/25 5. Electrical Block Diagram FSK (912MHZ) Transmitter △ APPD. CHKD. DSGD. △ △ SYMB. PAGE DATE APPD. SHKD. OSGD. SPEC. NO. RCBD0003-903 Remote Pointer FSK (912MHZ)

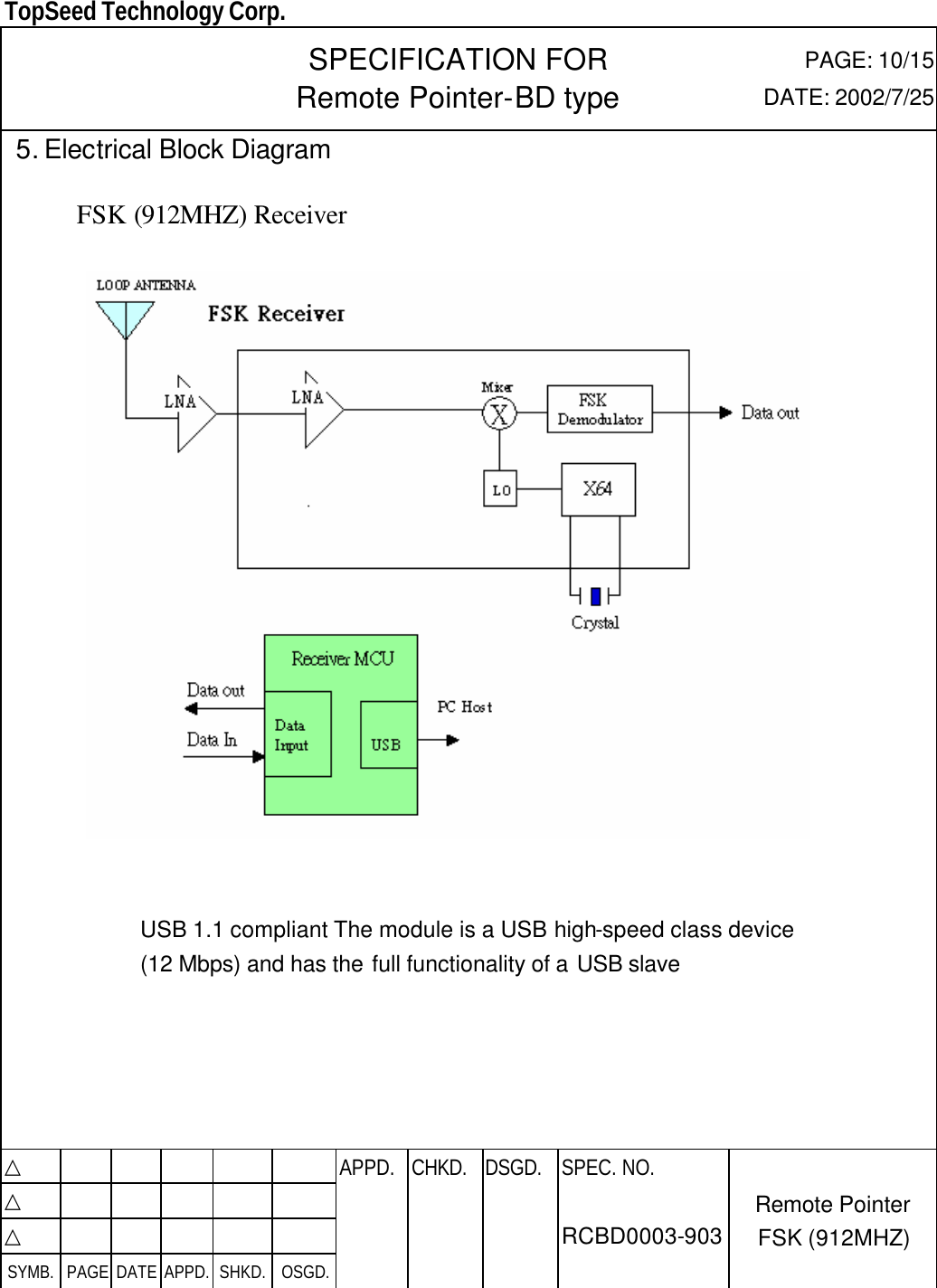

TopSeed Technology Corp. SPECIFICATION FOR Remote Pointer-BD type PAGE: 10/15 DATE: 2002/7/25 5. Electrical Block Diagram FSK (912MHZ) Receiver USB 1.1 compliant The module is a USB high-speed class device (12 Mbps) and has the full functionality of a USB slave △ APPD. CHKD. DSGD. △ △ SYMB. PAGE DATE APPD. SHKD. OSGD. SPEC. NO. RCBD0003-903 Remote Pointer FSK (912MHZ)

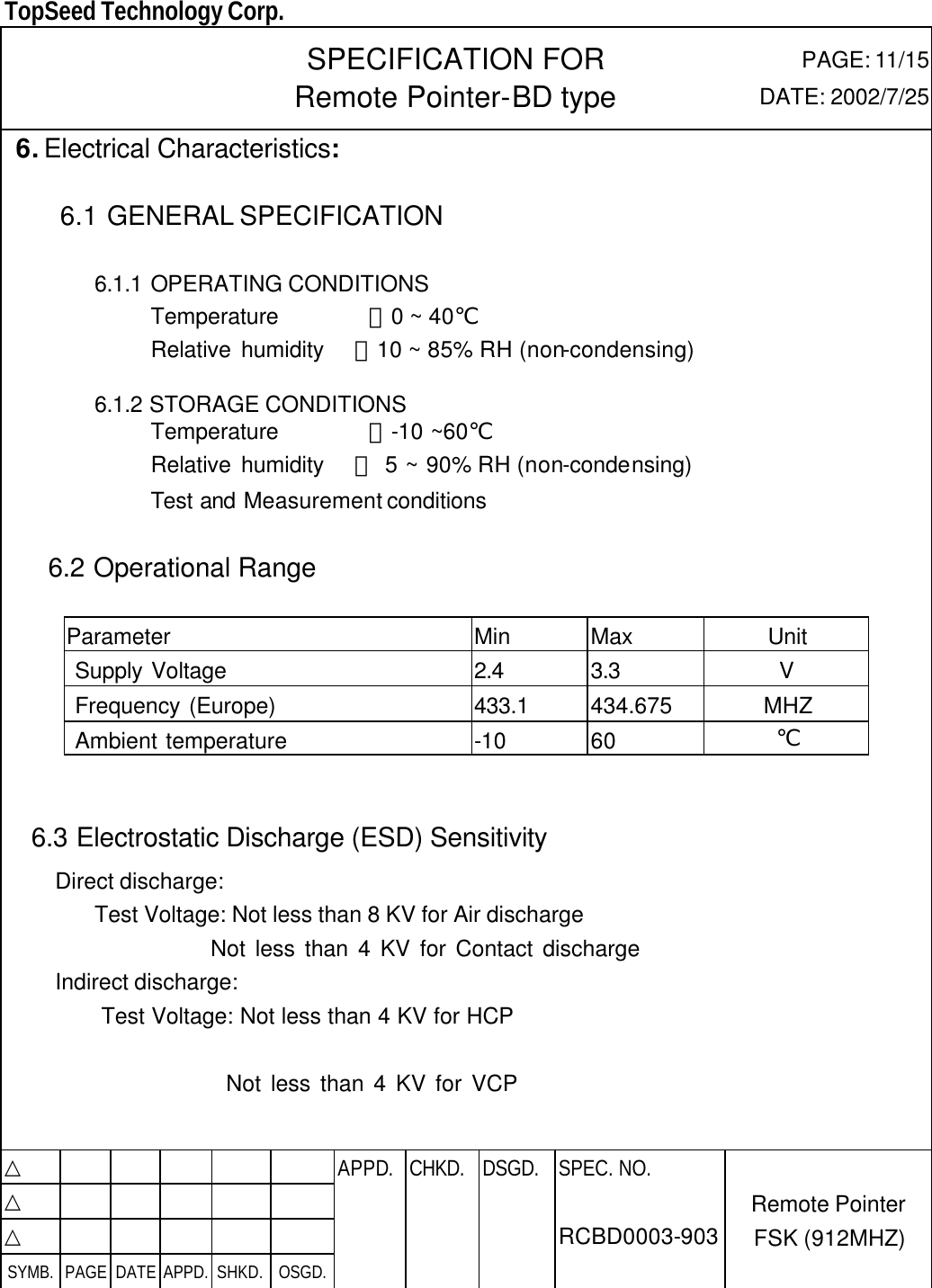

TopSeed Technology Corp. SPECIFICATION FOR Remote Pointer-BD type PAGE: 11/15 DATE: 2002/7/25 6. Electrical Characteristics: 6.1 GENERAL SPECIFICATION 6.1.1 OPERATING CONDITIONS Temperature ：0 ~ 40℃ Relative humidity ：10 ~ 85% RH (non-condensing) 6.1.2 STORAGE CONDITIONS Temperature ：-10 ~60℃ Relative humidity ： 5 ~ 90% RH (non-condensing) Test and Measurement conditions 6.2 Operational Range Parameter Min Max Unit Supply Voltage 2.4 3.3 V Frequency (Europe) 433.1 434.675 MHZ Ambient temperature -10 60 ℃ 6.3 Electrostatic Discharge (ESD) Sensitivity Direct discharge: Test Voltage: Not less than 8 KV for Air discharge Not less than 4 KV for Contact discharge Indirect discharge: Test Voltage: Not less than 4 KV for HCP Not less than 4 KV for VCP △ APPD. CHKD. DSGD. △ △ SYMB. PAGE DATE APPD. SHKD. OSGD. SPEC. NO. RCBD0003-903 Remote Pointer FSK (912MHZ)

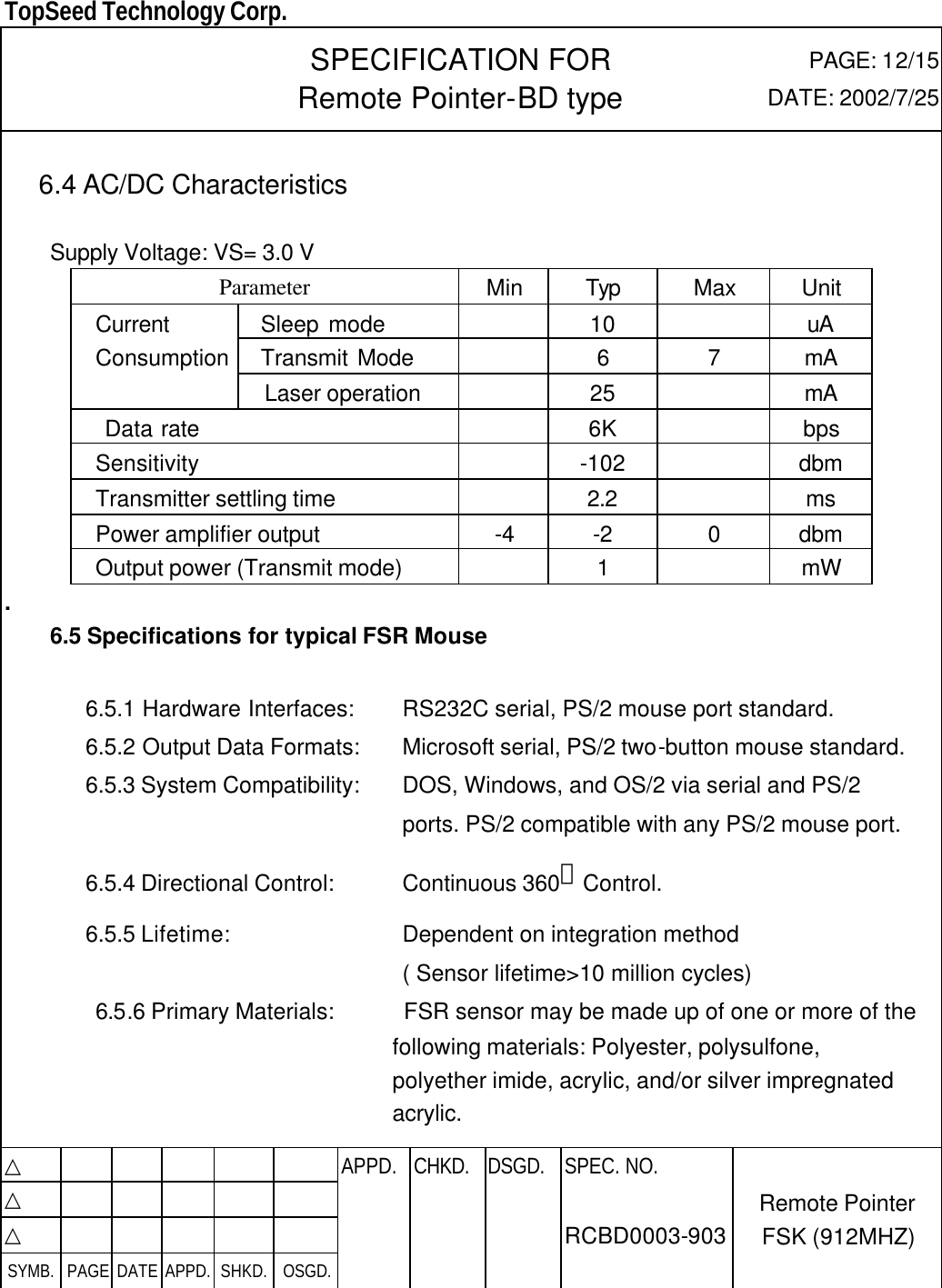

TopSeed Technology Corp. SPECIFICATION FOR Remote Pointer-BD type PAGE: 12/15 DATE: 2002/7/25 6.4 AC/DC Characteristics Supply Voltage: VS= 3.0 V Parameter Min Typ Max Unit Sleep mode 10 uA Transmit Mode 6 7 mA Current Consumption Laser operation 25 mA Data rate 6K bps Sensitivity -102 dbm Transmitter settling time 2.2 ms Power amplifier output -4 -2 0 dbm Output power (Transmit mode) 1 mW . 6.5 Specifications for typical FSR Mouse 6.5.1 Hardware Interfaces: RS232C serial, PS/2 mouse port standard. 6.5.2 Output Data Formats: Microsoft serial, PS/2 two-button mouse standard. 6.5.3 System Compatibility: DOS, Windows, and OS/2 via serial and PS/2 ports. PS/2 compatible with any PS/2 mouse port. 6.5.4 Directional Control: Continuous 360。Control. 6.5.5 Lifetime: Dependent on integration method ( Sensor lifetime>10 million cycles) 6.5.6 Primary Materials: FSR sensor may be made up of one or more of the following materials: Polyester, polysulfone, polyether imide, acrylic, and/or silver impregnated acrylic. △ APPD. CHKD. DSGD. △ △ SYMB. PAGE DATE APPD. SHKD. OSGD. SPEC. NO. RCBD0003-903 Remote Pointer FSK (912MHZ)

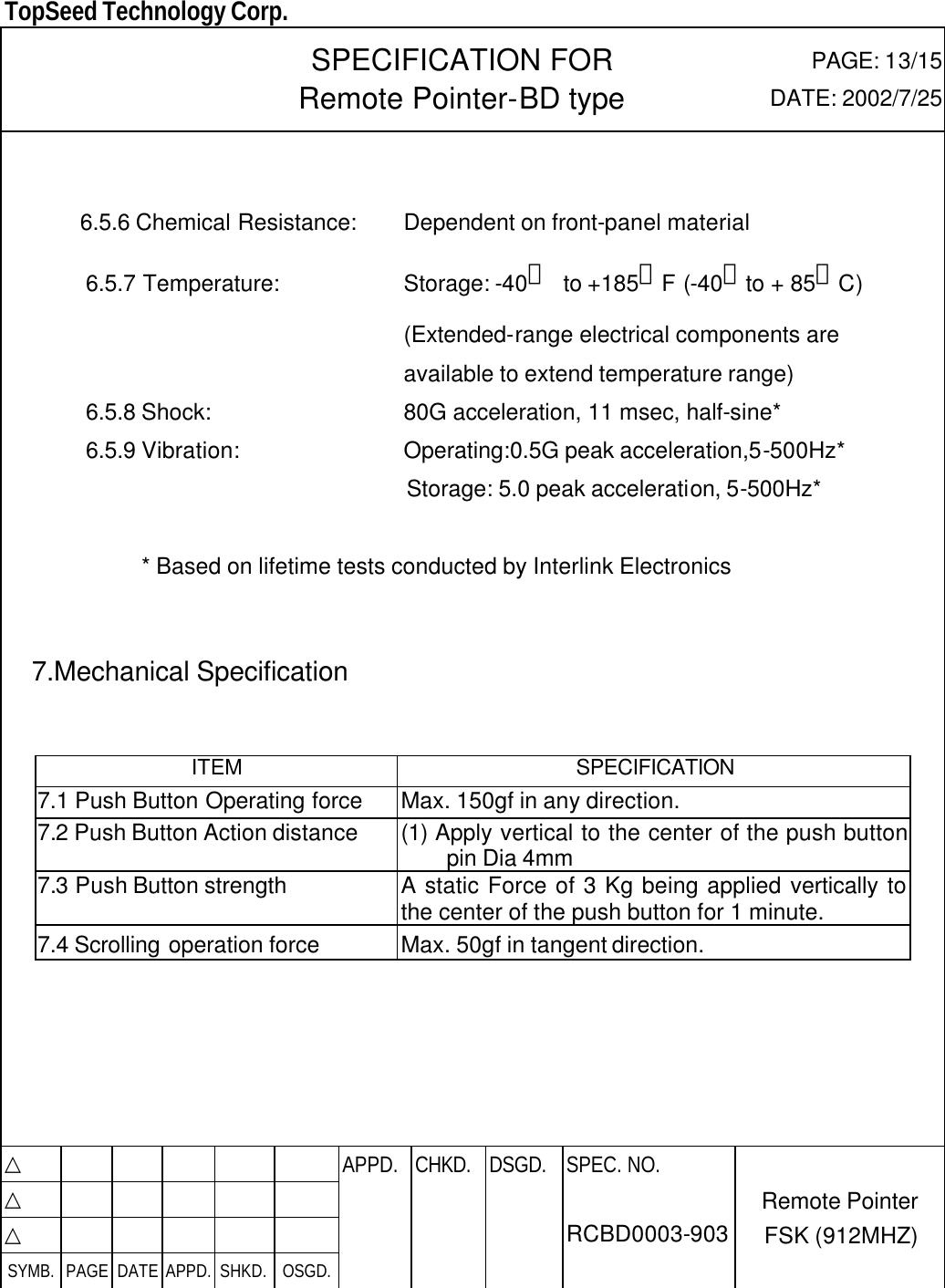

TopSeed Technology Corp. SPECIFICATION FOR Remote Pointer-BD type PAGE: 13/15 DATE: 2002/7/25 6.5.6 Chemical Resistance: Dependent on front-panel material 6.5.7 Temperature: Storage: -40。 to +185。F (-40。to + 85。C) (Extended-range electrical components are available to extend temperature range) 6.5.8 Shock: 80G acceleration, 11 msec, half-sine* 6.5.9 Vibration: Operating:0.5G peak acceleration,5-500Hz* Storage: 5.0 peak acceleration, 5-500Hz* * Based on lifetime tests conducted by Interlink Electronics 7.Mechanical Specification ITEM SPECIFICATION 7.1 Push Button Operating force Max. 150gf in any direction. 7.2 Push Button Action distance (1) Apply vertical to the center of the push button pin Dia 4mm 7.3 Push Button strength A static Force of 3 Kg being applied vertically to the center of the push button for 1 minute. 7.4 Scrolling operation force Max. 50gf in tangent direction. △ APPD. CHKD. DSGD. △ △ SYMB. PAGE DATE APPD. SHKD. OSGD. SPEC. NO. RCBD0003-903 Remote Pointer FSK (912MHZ)

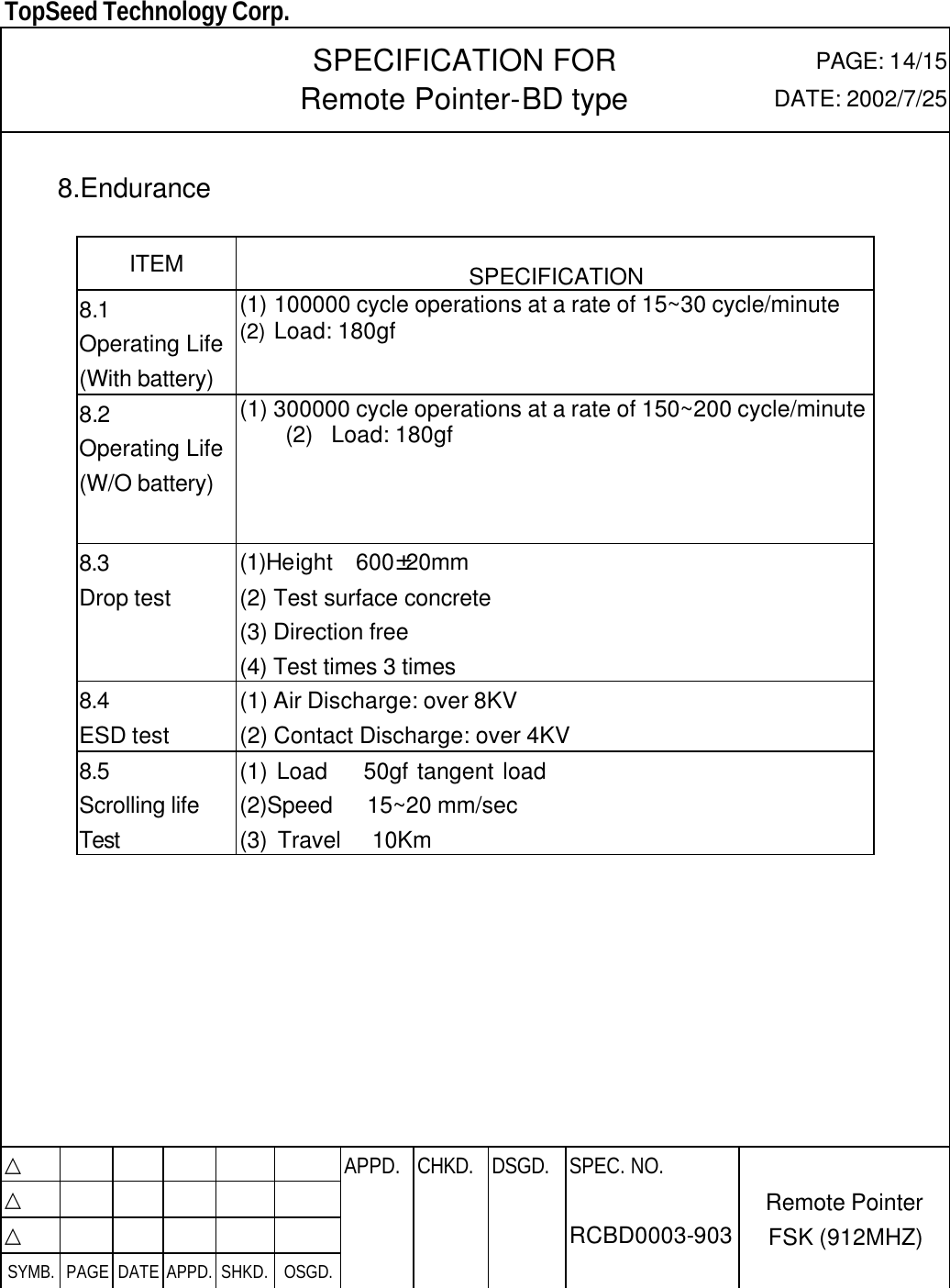

TopSeed Technology Corp. SPECIFICATION FOR Remote Pointer-BD type PAGE: 14/15 DATE: 2002/7/25 8.Endurance ITEM SPECIFICATION 8.1 Operating Life (With battery) (1) 100000 cycle operations at a rate of 15~30 cycle/minute (2) Load: 180gf 8.2 Operating Life (W/O battery) (1) 300000 cycle operations at a rate of 150~200 cycle/minute (2) Load: 180gf 8.3 Drop test (1)Height 600±20mm (2) Test surface concrete (3) Direction free (4) Test times 3 times 8.4 ESD test (1) Air Discharge: over 8KV (2) Contact Discharge: over 4KV 8.5 Scrolling life Test (1) Load 50gf tangent load (2)Speed 15~20 mm/sec (3) Travel 10Km △ APPD. CHKD. DSGD. △ △ SYMB. PAGE DATE APPD. SHKD. OSGD. SPEC. NO. RCBD0003-903 Remote Pointer FSK (912MHZ)

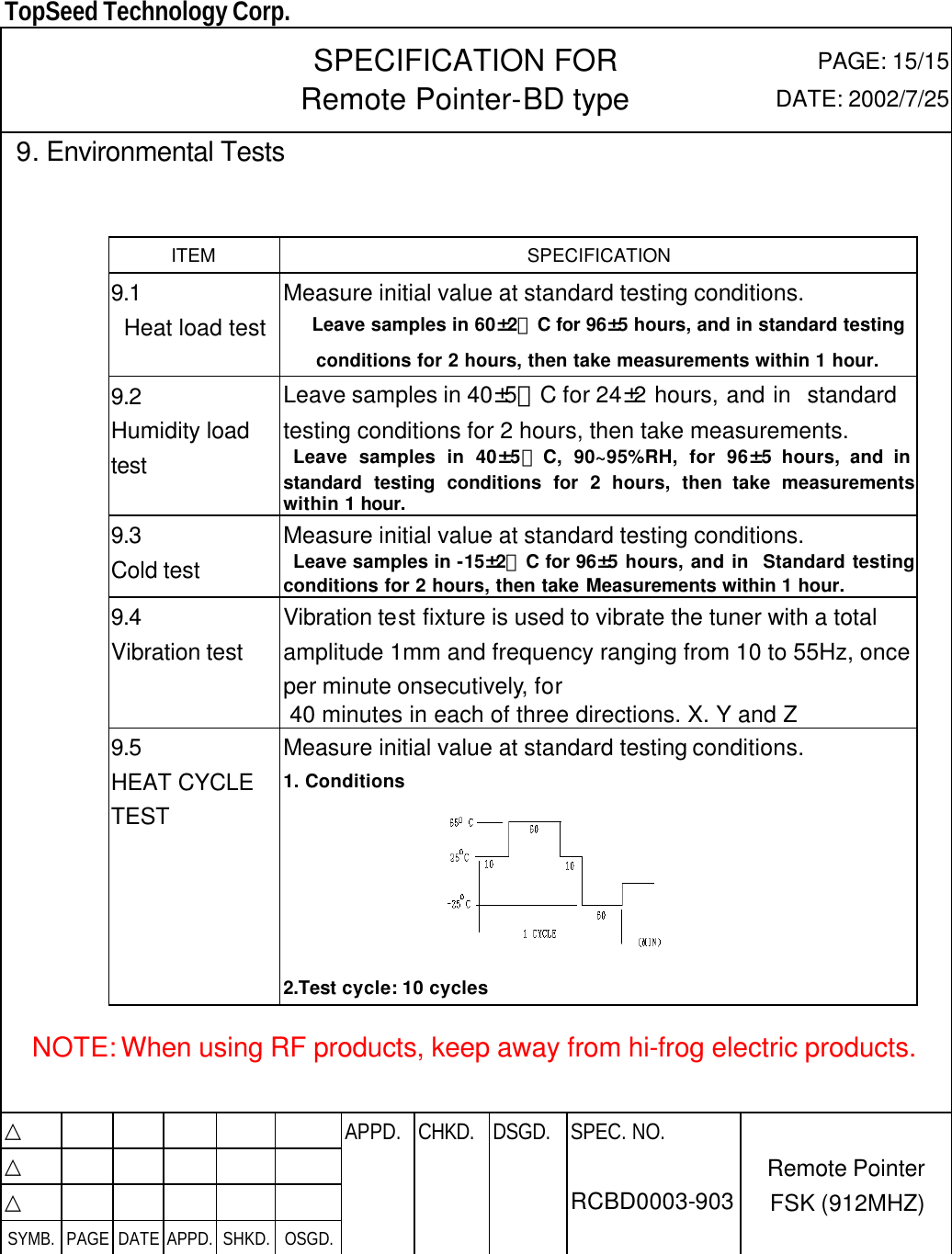

TopSeed Technology Corp. SPECIFICATION FOR Remote Pointer-BD type PAGE: 15/15 DATE: 2002/7/25 9. Environmental Tests ITEM SPECIFICATION 9.1 Heat load test Measure initial value at standard testing conditions. Leave samples in 60±2。C for 96±5 hours, and in standard testing conditions for 2 hours, then take measurements within 1 hour. 9.2 Humidity load test Leave samples in 40±5。C for 24±2 hours, and in standard testing conditions for 2 hours, then take measurements. Leave samples in 40±5。C, 90~95%RH, for 96±5 hours, and in standard testing conditions for 2 hours, then take measurements within 1 hour. 9.3 Cold test Measure initial value at standard testing conditions. Leave samples in -15±2。C for 96±5 hours, and in Standard testing conditions for 2 hours, then take Measurements within 1 hour. 9.4 Vibration test Vibration test fixture is used to vibrate the tuner with a total amplitude 1mm and frequency ranging from 10 to 55Hz, once per minute onsecutively, for 40 minutes in each of three directions. X. Y and Z 9.5 HEAT CYCLE TEST Measure initial value at standard testing conditions. 1. Conditions 2.Test cycle: 10 cycles NOTE: When using RF products, keep away from hi-frog electric products. △ APPD. CHKD. DSGD. △ △ SYMB. PAGE DATE APPD. SHKD. OSGD. SPEC. NO. RCBD0003-903 Remote Pointer FSK (912MHZ)
