TopSeed Technology TSBD-901 RF Flex Pointer User Manual RCBD0003 903 20020725
TopSeed Technology Corp. RF Flex Pointer RCBD0003 903 20020725
Manual
TopSeed Technology Corp.
9F-3, No. 16, Jain Ba Rd., Chung Ho City,
Taipei Hsien, Taiwan 235, R.O.C.
TEL: +886-2-8226-3811
FAX: +886-2-8226-3822
No:
APPROVAL
SHEET
Date:
2002/7/25
.……………………………………………
Customer:
Customer Part No:
Parts Name: Remote Pointer-BD type
Part No.: RCBD0003-903
Model No.: TSBD-901
W M/M
Note:
Signature For Return
APP’D CHK’D
DSG’D
TopSeed Technology Corp.
SPECIFICATION FOR
Remote Pointer-BD type PAGE: 1/15
DATE: 2002/7/25
CONTENTS
1. Table of date revision
2. Description
3. Physical Description and Specification
4.RF Remote Pointer Specification
5.Electronical Block Diagram
FSK (912MHZ) Transmitter
FSK (912MHZ) Receiver
6. Electrical Characteristics
7.Mechanical Specification
8.Endurance
9. Environmental Tests
10. Assembly Drawing
11. Packing Drawing
1. Table of date-revision
△ APPD. CHKD. DSGD.
△
△
SYMB.
PAGE
DATE
APPD.
SHKD.
OSGD.
SPEC. NO.
RCBD0003-903
Remote Pointer
FSK (912MHZ)
TopSeed Technology Corp.
SPECIFICATION FOR
Remote Pointer-BD type
PAGE: 2/15
DATE: 2002/01/22
FCC GUIDELINES
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
-Reorient or relocate the receiving antenna
-Increase the separation between the equipment and receiver
-Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2) this
device must accept any interference received, including interference that may cause
undesired operation.
△ APPD.
CHKD.
DSGD.
△
△
SYMB.
PAGE
DATE
APPD.
SHKD.
OSGD.
SPEC. NO.
RCBD0003-903
Remote Pointer
FSK (912MHZ)
TopSeed Technology Corp.
SPECIFICATION FOR
Remote Pointer-BD type
PAGE: 3/15
DATE: 2002/7/25
2. Description:
The RF Remote Pointer is a FSK (Frequency Shift Key) Transmitter for the frequency
band 902-928 MHz. The Remote Pointer offers a full-integrated PLL synthesizer and a high
efficiency power amplifier to drive a loop antenna, A special circuit design and an unique
power amplifier design are used to save current consumption and to save battery life.
This RF Remote Pointer is a best companion of Microsoft Power Point with Laser pointer
designed, scroll wheel, FSR Moues Sensor, lets you scroll up and down as desired, when
browsing the Internet move Mouse cursor or scrolling through any Windows documents g
ives
reliable control and accuracy. Remote Pointer RF's radio frequency wireless technology
solves all of your presentation input needs.
For the Receiver Modular use with USB 1.1 compliant can be easily actuated without
affecting the position of the Remote Pointer.
Note that the Channel button (Red button) on the receiver should flash any time the Cordless
device is moved or a button is pressed. Then, it will remember your product ID and Channel
ID
The Radio Frequency designed in this Version of RF Remote
Pointer is FSK 912MHz and can
be use in a range about 7-10 Meter from the Receiver at any directions. The Remote Pointer
can operate for 6 months with AAA X 2 DC 3V batteries
△ APPD.
CHKD.
DSGD.
△
△
SYMB.
PAGE
DATE
APPD.
SHKD.
OSGD.
SPEC. NO.
RCBD0003-903
Remote Pointer
FSK (912MHZ)
TopSeed Technology Corp.
SPECIFICATION FOR
Remote Pointer-BD type
PAGE: 4/15
DATE: 2002/7/25

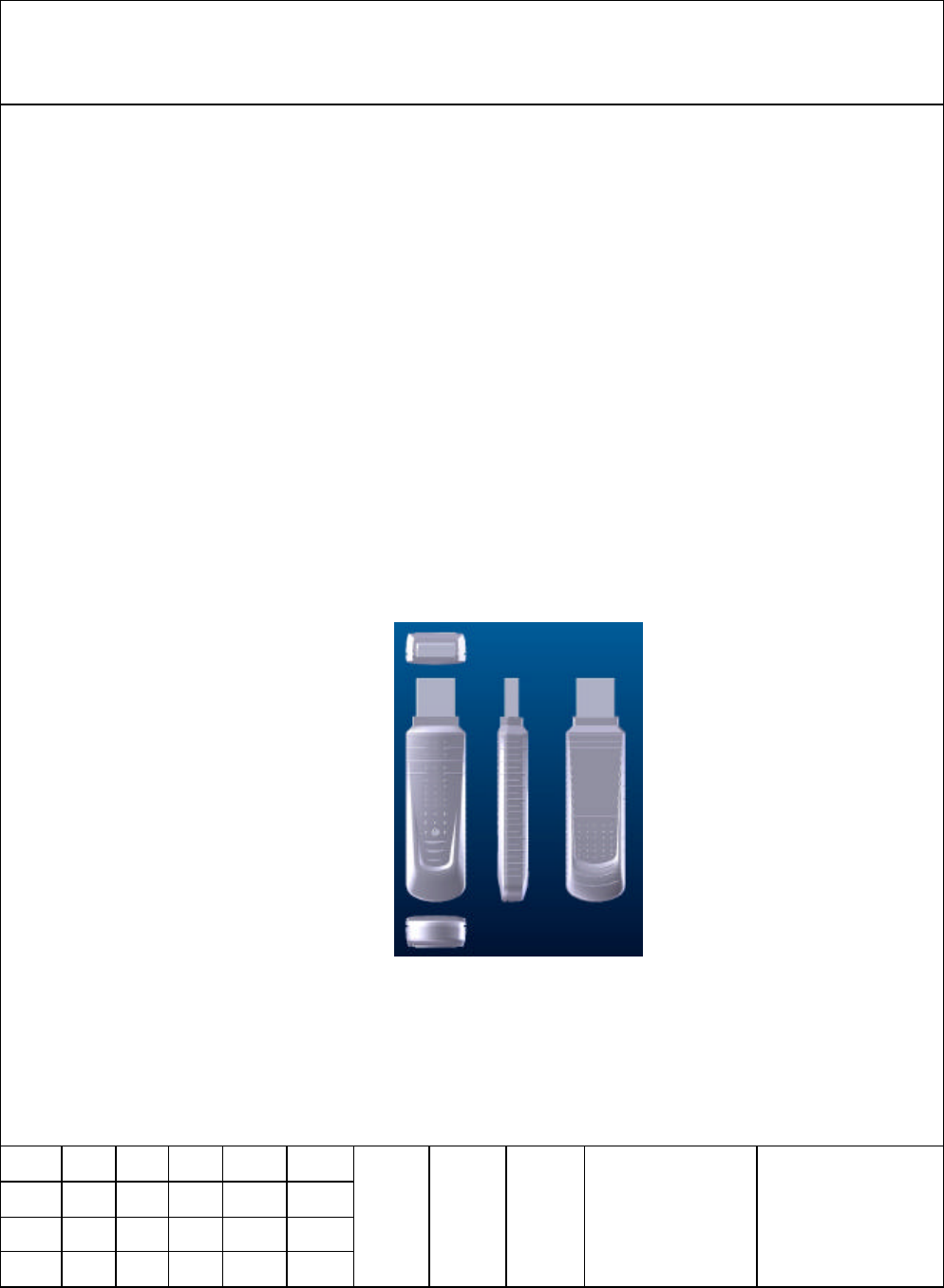

3. Physical Description and Specification:

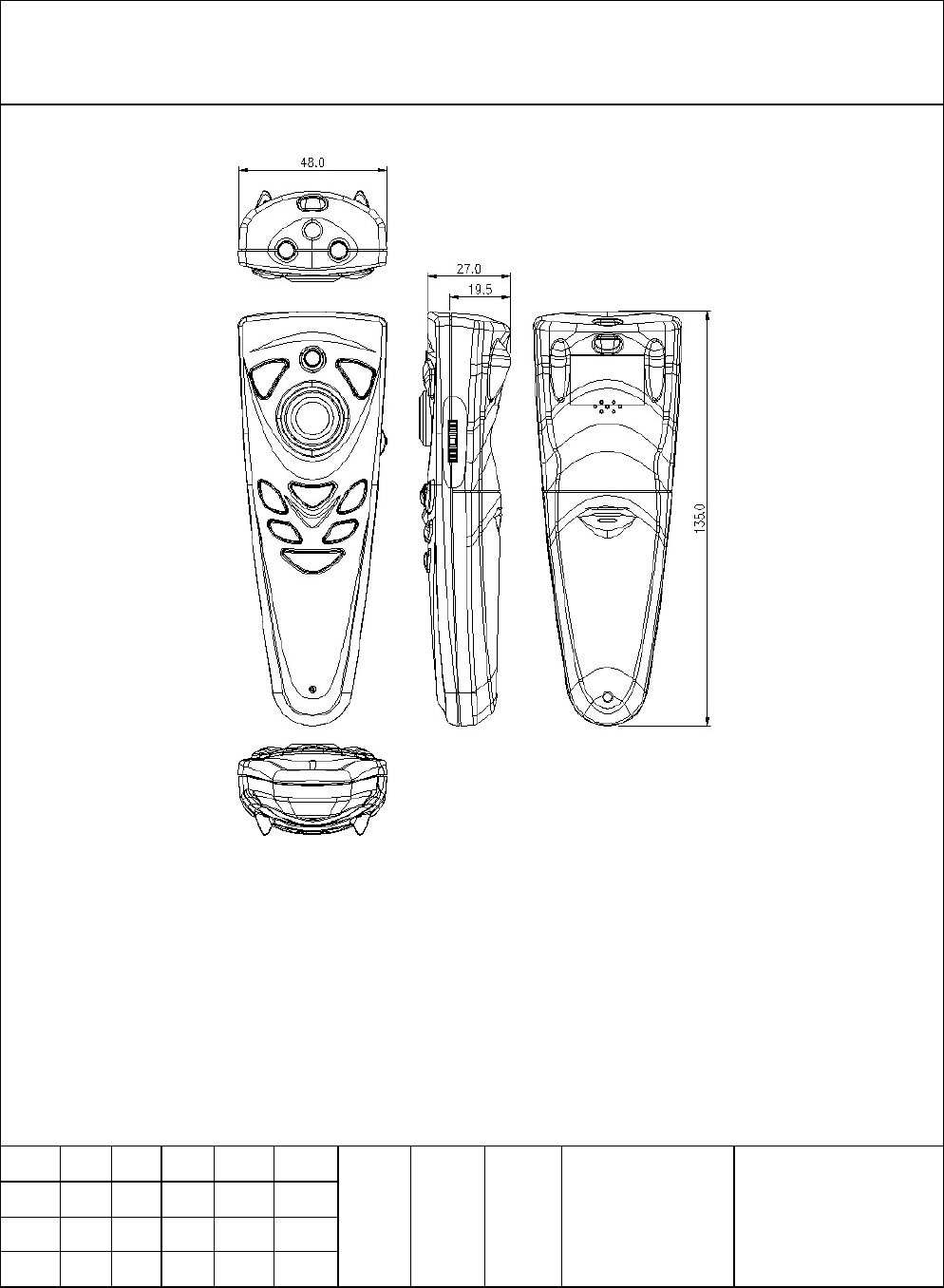

3.1 Dimensions
The approximate dimensions of the mouse’s transmitter is as follows:
Length 135mm
Width 48 mm
Height 27 mm
3.2 Weight
The approximate dimensions of the mouse’s transmitter is as follows:
Weight of the RF Remote Pointer not to exceed 85 grams (without batteries).
△ APPD.
CHKD.
DSGD.
△
△
SYMB.
PAGE
DATE
APPD.
SHKD.
OSGD.
SPEC. NO.
RCBD0003-903
Remote Pointer
FSK (912MHZ)
TopSeed Technology Corp.
SPECIFICATION FOR
Remote Pointer-BD type PAGE: 5/15
DATE: 2002/7/25
4.RF Remote Pointer Specification
The RF Remote Pointer consists of three major parts; a baseband controller,
a radio that
suitable for America available 902–928 MHz frees ISM band applications, and a
low
power uC-controlled, includes RF antenna supporting circuitry, together with basic
RF
software level.
4- 1 Range in meters: 7-10 Meter from the Receiver
4- 2 Frequency Range: 912MHz+/-50KHz (64 channels ID for Remote Pointer)
4- 3 Data transmitting by transistor module
4- 4 Operational voltage: 2.4~3.0 V
4-5 Low power consumption: On normal operation less than 6 mA
On Laser operation less than 25 mA
On sleep mode. Less than 10 uA.
4-6 Support Power down Mode and high efficiency power amplifier.
4-7 Receiver Fully Compliant Low Speed (1.5Mbps) USB 1.1 Interface
4-8 Suspend/resume operation and device remote wakeup
4-9 .FSR sensors unique pressure sensitivity delivers 360-cursor or motion control of
both directions with a single touch And it is Microsoft serial, PS/2 two-button mouse
standard.
4-A Multimedia Function
a. Easy and quick touch to Multimedia features, such as Play ,Stop,Pause, Volume.
Up/Down, and Mute.
b. Compatible with Windows® 98, Windows® 2000, Windows® ME and Windows XP
c. Support Multimedia audio CD and video CD player functions
d. One key to launch defined applications
△ APPD.
CHKD.
DSGD.
△
△
SYMB.
PAGE
DATE
APPD.
SHKD.
OSGD.
SPEC. NO.
RCBD0003-903
Remote Pointer
FSK (912MHZ)
TopSeed Technology Corp.
SPECIFICATION FOR
Remote Pointer-BD type PAGE: 6/15
DATE: 2002/7/25
4.RF Remote Pointer Specification

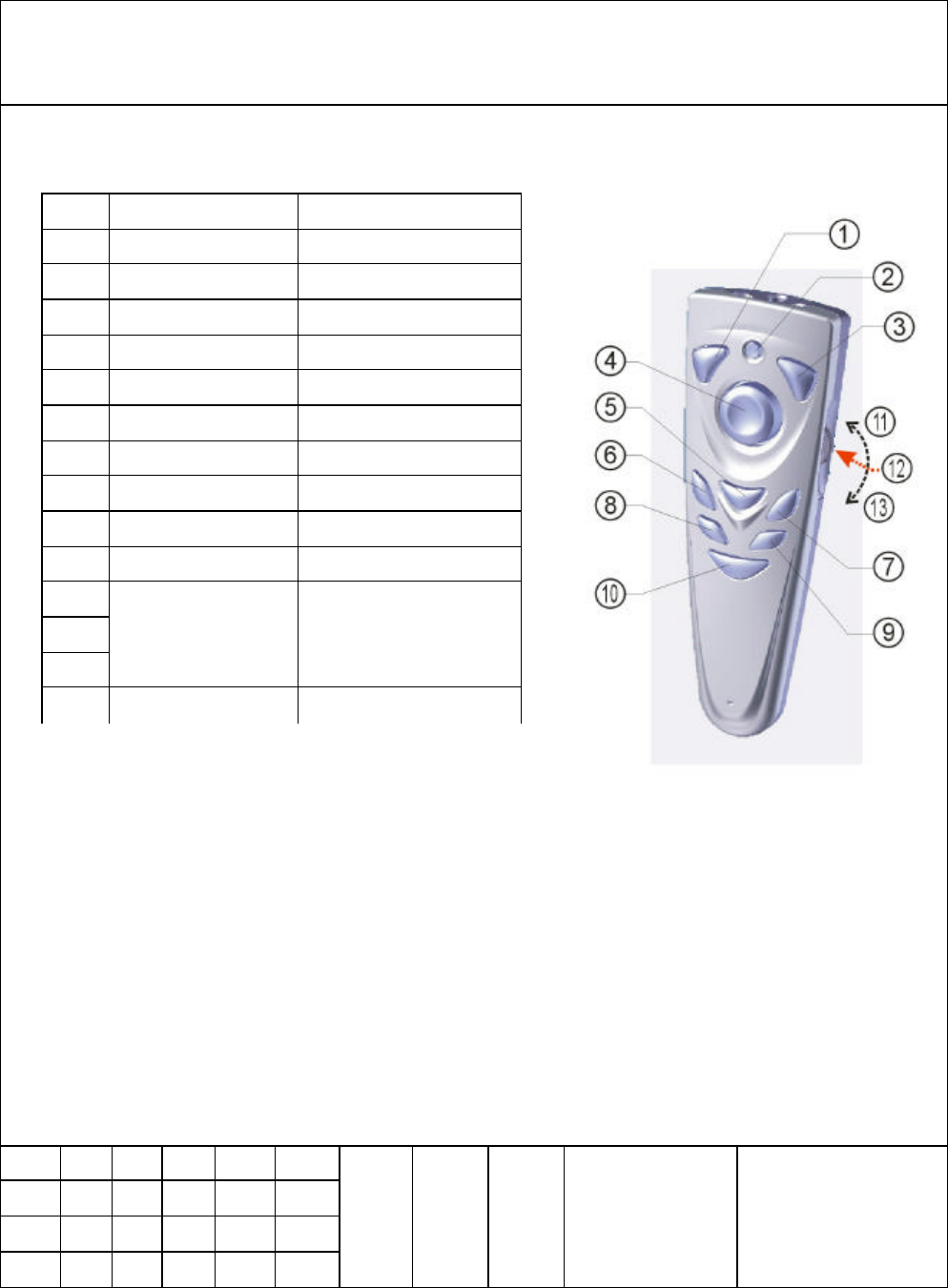

4-10 Key Definition
1) In Mode-1, M-Key have special function.
M-Key+ Laser Key (Laser Pointer Enable/Disable Button)
M-Key and Laser Key are pushed simultaneously
more than 2 seconds (Red LED
flashed), the laser pointer is enable/disable to use.
2) Change ID : Open the battery cover and push the ID button (Green LED flashed), the
ID is changed.
Notice:
For safety consideration, in the laser pointer is enable to use situation, the M-key
red LED flashed 1 time per 2 seconds. Besides, after you stop using laser pointer
about 30 minutes, the laser pointer function will be disable.
Mode-1
Mode-2 (Multimedia)
1 Left Mouse Key
2 Laser Key
3 Right Mouse Key
4 FSR Mouse
5 Mode key 1 Mode key 2
6 F5 Stop
7 ESC Play/Pause
8 A Previous track
9 B Next track
10 C Media player on
11
12
13
Up: Line Up
Push: Drag
Down: Line Down
Up: Volume Up
Push: Mute
Down: Volume Down
△ APPD.
CHKD.
DSGD.
△
△
SYMB.
PAGE
DATE
APPD.
SHKD.
OSGD.
SPEC. NO.
RCBD0003-903
Remote Pointer
FSK (912MHZ)
TopSeed Technology Corp.
SPECIFICATION FOR
Remote Pointer-BD type PAGE: 8/15
DATE: 2002/7/25
4.RF Remote Pointer Specification
4-12
Frequency Range 912 MHz
Modulation FSK
Channel No. 1
Channel I.D 6 bits → 64
Operation Voltage 3V
Battery AAA*2 DC 3V batteries.
Batter Life 6 months
TX Power < 0dBm (1mW)
Transmission rate 6K bps
TX FM frequency deviation
+/- 60 KHz
Frequency tolerance +/- 20ppm
Button 12
FSR Mouse Microsoft serial, PS/2
two-button mouse standard.
Transmission Distance 7-10 Meter
△ APPD.
CHKD.
DSGD.
△
△
SYMB.
PAGE
DATE
APPD.
SHKD.
OSGD.
SPEC. NO.
RCBD0003-903
Remote Pointer
FSK (912MHZ)
TopSeed Technology Corp.
SPECIFICATION FOR
Remote Pointer-BD type PAGE:9/15
DATE: 2002/7/25

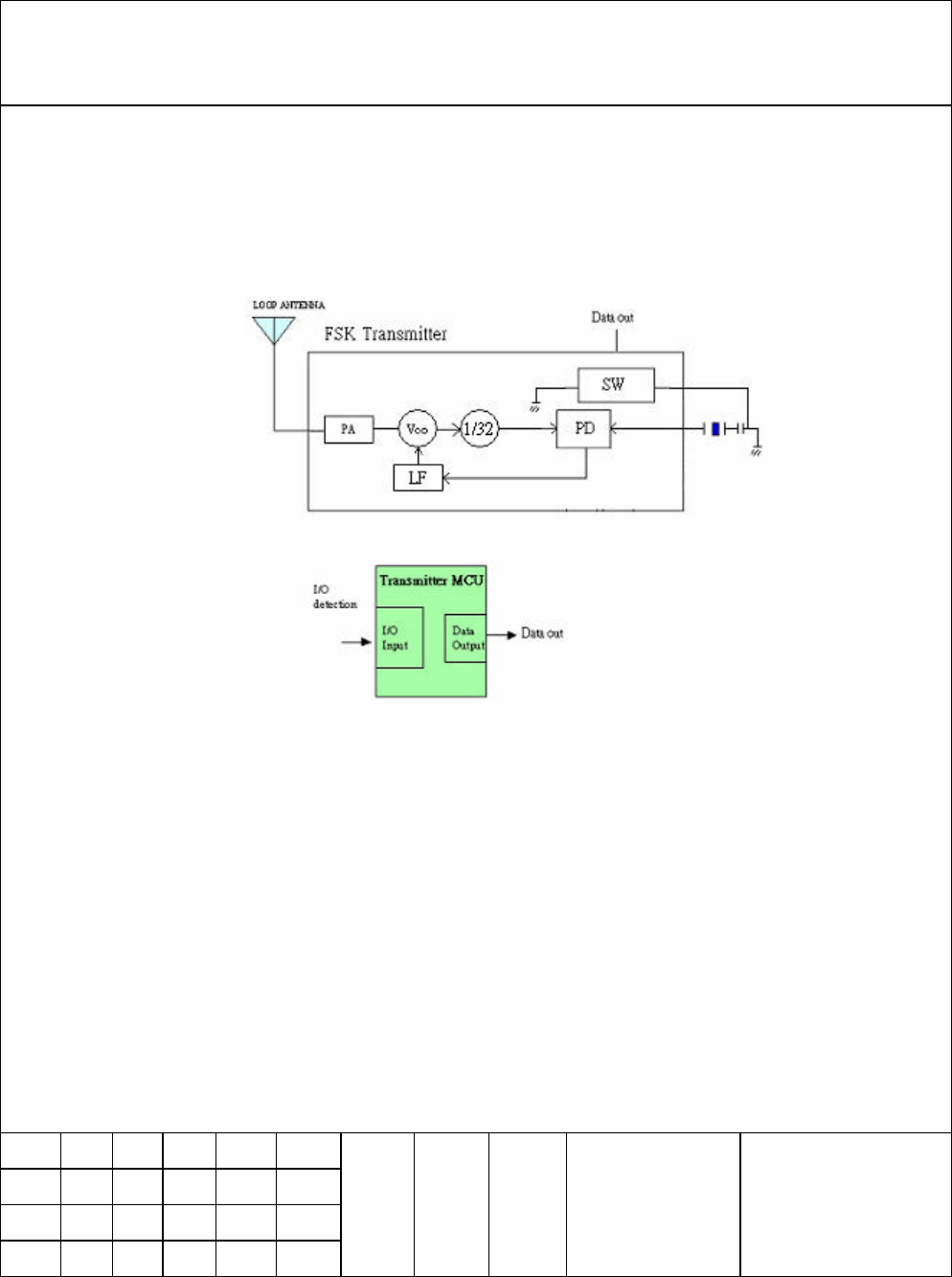

5. Electrical Block Diagram
FSK (912MHZ) Transmitter
△ APPD.
CHKD.
DSGD.
△
△
SYMB.
PAGE
DATE
APPD.
SHKD.
OSGD.
SPEC. NO.
RCBD0003-903
Remote Pointer
FSK (912MHZ)
TopSeed Technology Corp.
SPECIFICATION FOR
Remote Pointer-BD type PAGE: 10/15
DATE: 2002/7/25

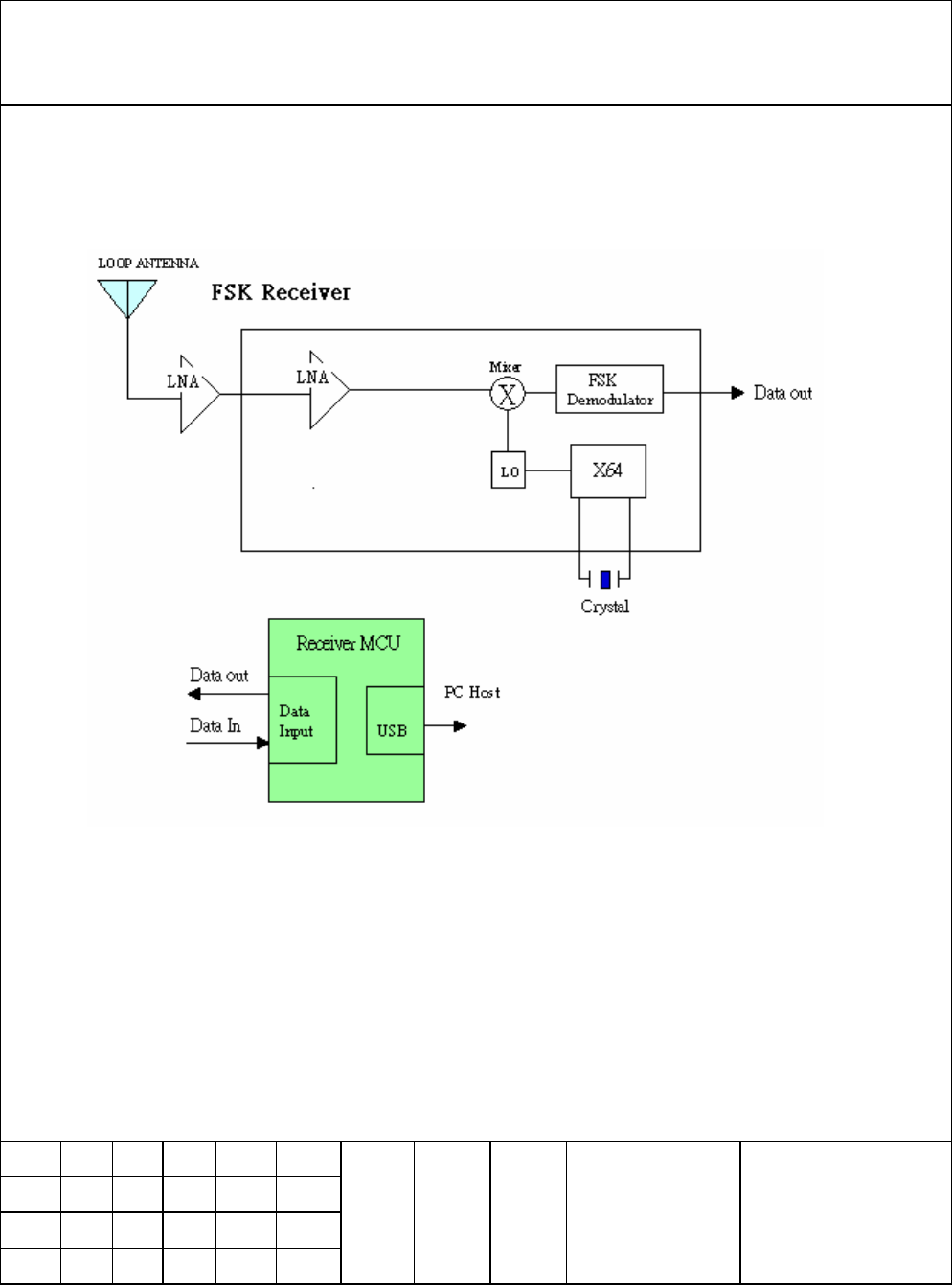

5. Electrical Block Diagram
FSK (912MHZ) Receiver
USB 1.1 compliant The module is a USB high-speed class device
(12 Mbps) and has the full functionality of a USB slave
△ APPD.
CHKD.
DSGD.
△
△
SYMB.
PAGE
DATE
APPD.
SHKD.
OSGD.
SPEC. NO.
RCBD0003-903
Remote Pointer
FSK (912MHZ)
TopSeed Technology Corp.
SPECIFICATION FOR
Remote Pointer-BD type PAGE: 11/15
DATE: 2002/7/25
6. Electrical Characteristics:
6.1 GENERAL SPECIFICATION
6.1.1 OPERATING CONDITIONS
Temperature ：0 ~ 40℃
Relative humidity ：10 ~ 85% RH (non-condensing)
6.1.2 STORAGE CONDITIONS
Temperature ：-10 ~60℃
Relative humidity ： 5 ~ 90% RH (non-condensing)
Test and Measurement conditions
6.2 Operational Range
Parameter Min Max Unit
Supply Voltage 2.4 3.3 V
Frequency (Europe) 433.1 434.675 MHZ
Ambient temperature -10 60 ℃
6.3 Electrostatic Discharge (ESD) Sensitivity
Direct discharge:
Test Voltage: Not less than 8 KV for Air discharge
Not less than 4 KV for Contact discharge
Indirect discharge:
Test Voltage: Not less than 4 KV for HCP
Not less than 4 KV for VCP
△ APPD.
CHKD.
DSGD.
△
△
SYMB.
PAGE
DATE
APPD.
SHKD.
OSGD.
SPEC. NO.
RCBD0003-903
Remote Pointer
FSK (912MHZ)
TopSeed Technology Corp.
SPECIFICATION FOR
Remote Pointer-BD type PAGE: 12/15
DATE: 2002/7/25
6.4 AC/DC Characteristics
Supply Voltage: VS= 3.0 V
Parameter Min Typ Max Unit
Sleep mode 10 uA
Transmit Mode 6 7 mA
Current
Consumption
Laser operation 25 mA
Data rate 6K bps
Sensitivity -102 dbm
Transmitter settling time 2.2 ms
Power amplifier output -4 -2 0 dbm
Output power (Transmit mode) 1 mW
.
6.5 Specifications for typical FSR Mouse
6.5.1 Hardware Interfaces: RS232C serial, PS/2 mouse port standard.
6.5.2 Output Data Formats: Microsoft serial, PS/2 two-button mouse standard.
6.5.3 System Compatibility: DOS, Windows, and OS/2 via serial and PS/2
ports. PS/2 compatible with any PS/2 mouse port.
6.5.4 Directional Control: Continuous 360。Control.
6.5.5 Lifetime: Dependent on integration method
( Sensor lifetime>10 million cycles)
6.5.6 Primary Materials: FSR sensor may be made up of one or more of the
following materials: Polyester, polysulfone,
polyether imide, acrylic, and/or silver impregnated
acrylic.
△ APPD.
CHKD.
DSGD.
△
△
SYMB.
PAGE
DATE
APPD.
SHKD.
OSGD.
SPEC. NO.
RCBD0003-903
Remote Pointer
FSK (912MHZ)
TopSeed Technology Corp.
SPECIFICATION FOR
Remote Pointer-BD type PAGE: 13/15
DATE: 2002/7/25
6.5.6 Chemical Resistance: Dependent on front-panel material
6.5.7 Temperature: Storage: -40。 to +185。F (-40。to + 85。C)
(Extended-range electrical components are
available to extend temperature range)
6.5.8 Shock: 80G acceleration, 11 msec, half-sine*
6.5.9 Vibration: Operating:0.5G peak acceleration,5-500Hz*
Storage: 5.0 peak acceleration, 5-500Hz*
* Based on lifetime tests conducted by Interlink Electronics
7.Mechanical Specification
ITEM SPECIFICATION
7.1 Push Button Operating force Max. 150gf in any direction.
7.2 Push Button Action distance (1) Apply vertical to the center o
f the push button
pin Dia 4mm
7.3 Push Button strength A static Force of 3 Kg being applied
vertically to
the center of the push button for 1 minute.
7.4 Scrolling operation force Max. 50gf in tangent direction.
△ APPD.
CHKD.
DSGD.
△
△
SYMB.
PAGE
DATE
APPD.
SHKD.
OSGD.
SPEC. NO.
RCBD0003-903
Remote Pointer
FSK (912MHZ)
TopSeed Technology Corp.
SPECIFICATION FOR
Remote Pointer-BD type PAGE: 14/15
DATE: 2002/7/25
8.Endurance
ITEM
SPECIFICATION
8.1
Operating Life
(With battery)
(1) 100000 cycle operations at a rate of 15~30 cycle/minute
(2) Load: 180gf
8.2
Operating Life
(W/O battery)
(1) 300000 cycle operations at a rate of 150~200 cycle/minute
(2) Load: 180gf
8.3
Drop test
(1)Height 600±20mm
(2) Test surface concrete
(3) Direction free
(4) Test times 3 times
8.4
ESD test
(1) Air Discharge: over 8KV
(2) Contact Discharge: over 4KV
8.5
Scrolling life
Test
(1) Load 50gf tangent load
(2)Speed 15~20 mm/sec
(3) Travel 10Km
△ APPD.
CHKD.
DSGD.
△
△
SYMB.
PAGE
DATE
APPD.
SHKD.
OSGD.
SPEC. NO.
RCBD0003-903
Remote Pointer
FSK (912MHZ)
TopSeed Technology Corp.
SPECIFICATION FOR
Remote Pointer-BD type PAGE: 15/15
DATE: 2002/7/25

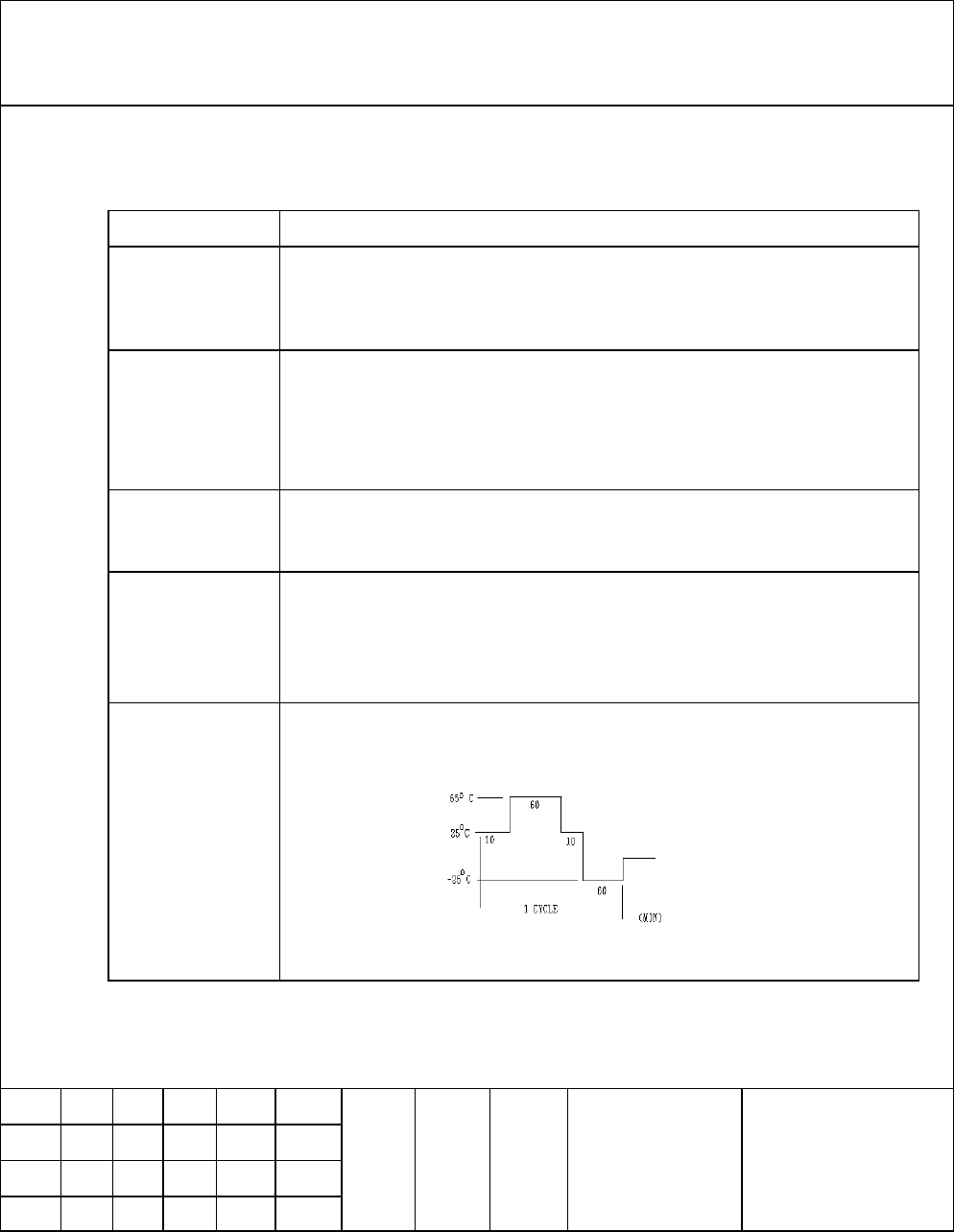

9. Environmental Tests
ITEM SPECIFICATION
9.1
Heat load test
Measure initial value at standard testing conditions.
Leave samples in 60±2。C for 96±5 hours, and in standard testing
conditions for 2 hours, then take measurements within 1 hour.
9.2
Humidity load
test
Leave samples in 40±5。C for 24±2 hours, and in standard
testing conditions for 2 hours, then take measurements.
Leave samples in 40±5。C, 90~95%RH, for 96±
5 hours, and in
standard testing conditions for 2 hours, then
take measurements
within 1 hour.
9.3
Cold test
Measure initial value at standard testing conditions.
Leave samples in -15±2。C for 96±
5 hours, and in Standard testing
conditions for 2 hours, then take Measurements within 1 hour.
9.4
Vibration test
Vibration test fixture is used to vibrate the tuner with a total
amplitude 1mm and frequency ranging from 10 to 55Hz, once
per minute onsecutively, for
40 minutes in each of three directions. X. Y and Z
9.5
HEAT CYCLE
TEST
Measure initial value at standard testing conditions.
1. Conditions
2.Test cycle: 10 cycles
NOTE: When using RF products, keep away from hi-frog electric products.
△ APPD.
CHKD.
DSGD.
△
△
SYMB.
PAGE
DATE
APPD.
SHKD.
OSGD.
SPEC. NO.
RCBD0003-903
Remote Pointer
FSK (912MHZ)
