TopSeed Technology TSCI-401 REMOTE POINTER User Manual TSCI 401 UserMan

TopSeed Technology Corp. REMOTE POINTER TSCI 401 UserMan

USERS MANUAL

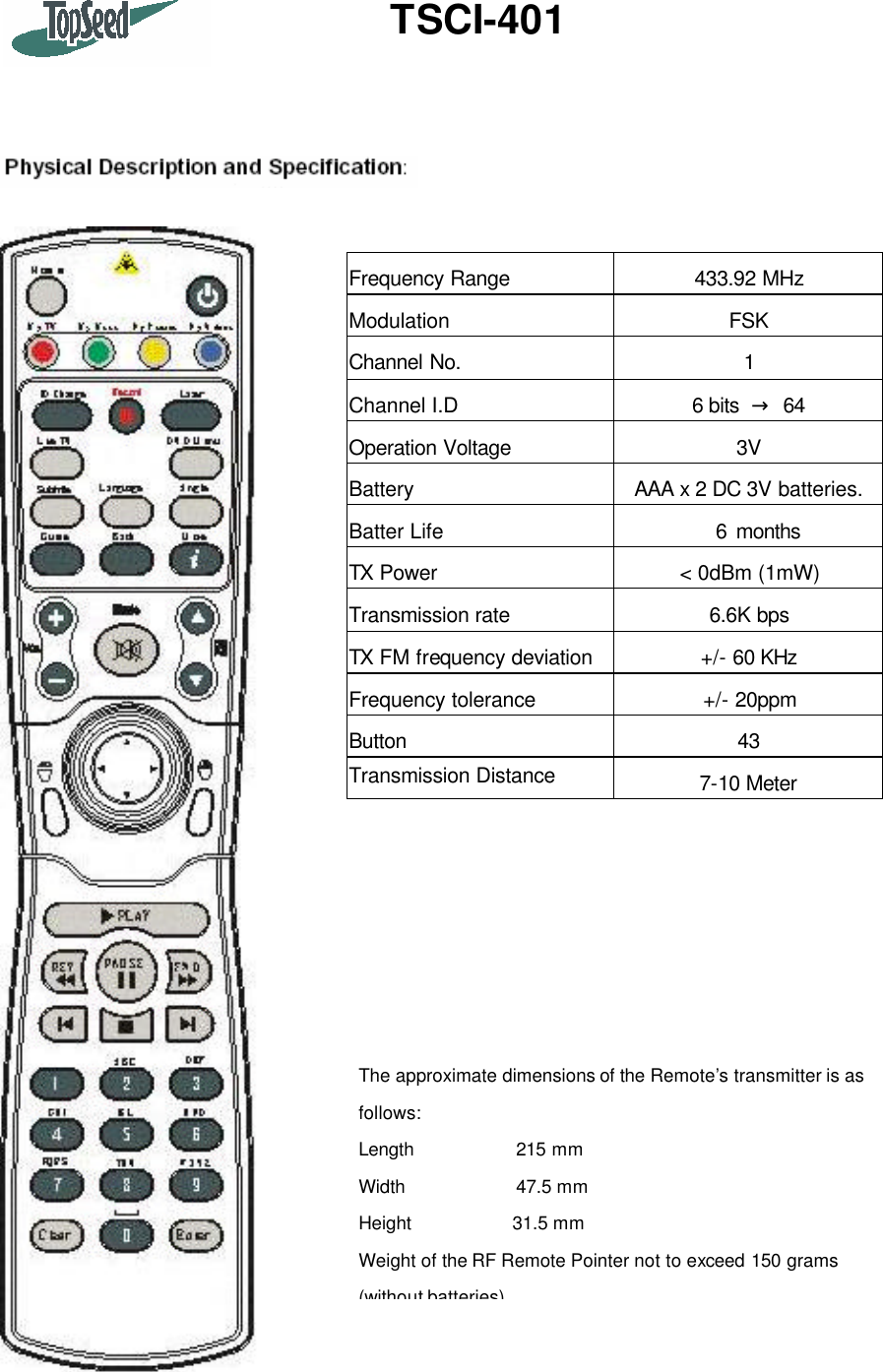

TSCI-401 The approximate dimensions of the Remote’s transmitter is as follows: Length 215 mm Width 47.5 mm Height 31.5 mm Weight of the RF Remote Pointer not to exceed 150 grams (without batteries) Frequency Range 433.92 MHz Modulation FSK Channel No. 1 Channel I.D 6 bits → 64 Operation Voltage 3V Battery AAA x 2 DC 3V batteries. Batter Life 6 months TX Power < 0dBm (1mW) Transmission rate 6.6K bps TX FM frequency deviation +/- 60 KHz Frequency tolerance +/- 20ppm Button 43 Transmission Distance 7-10 Meter

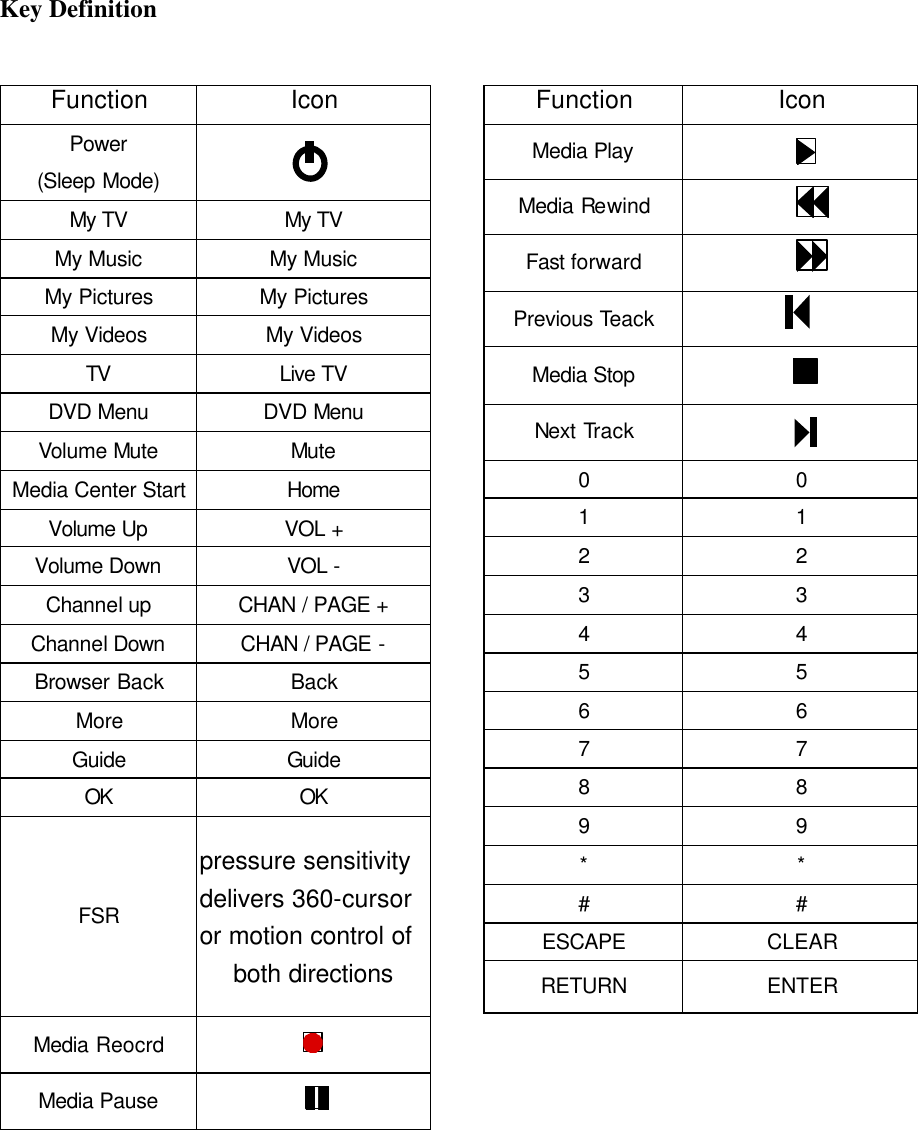

Key Definition Function Icon Power (Sleep Mode) My TV My TV My Music My Music My Pictures My Pictures My Videos My Videos TV Live TV DVD Menu DVD Menu Volume Mute Mute Media Center Start Home Volume Up VOL + Volume Down VOL - Channel up CHAN / PAGE + Channel Down CHAN / PAGE - Browser Back Back More More Guide Guide OK OK FSR pressure sensitivity delivers 360-cursor or motion control of both directions Media Reocrd Media Pause Function Icon Media Play Media Rewind Fast forward Previous Teack Media Stop Next Track 0 0 1 1 2 2 3 3 4 4 5 5 6 6 7 7 8 8 9 9 * * # # ESCAPE CLEAR RETURN ENTER

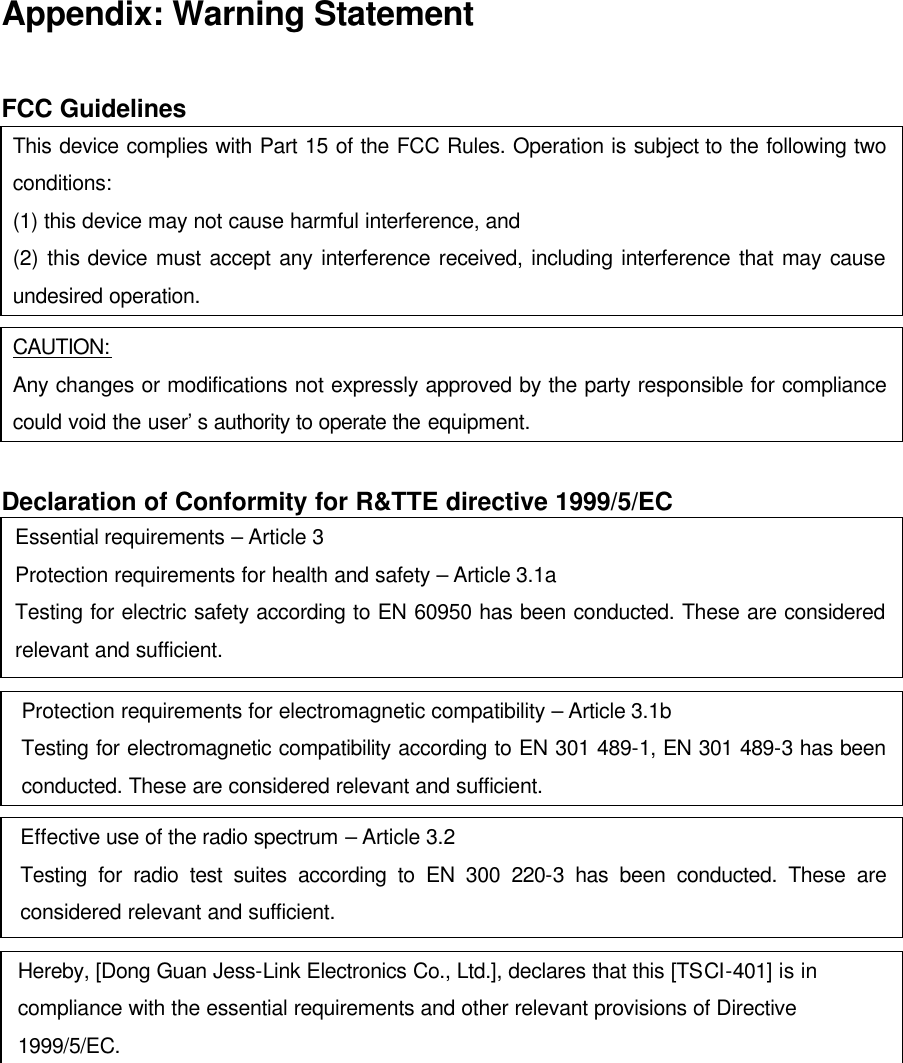

Appendix: Warning Statement FCC Guidelines This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. CAUTION: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Declaration of Conformity for R&TTE directive 1999/5/EC Essential requirements – Article 3 Protection requirements for health and safety – Article 3.1a Testing for electric safety according to EN 60950 has been conducted. These are considered relevant and sufficient. Protection requirements for electromagnetic compatibility – Article 3.1b Testing for electromagnetic compatibility according to EN 301 489-1, EN 301 489-3 has been conducted. These are considered relevant and sufficient. Effective use of the radio spectrum – Article 3.2 Testing for radio test suites according to EN 300 220-3 has been conducted. These are considered relevant and sufficient. Hereby, [Dong Guan Jess-Link Electronics Co., Ltd.], declares that this [TSCI-401] is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.
