TopSeed Technology TSCI-401 REMOTE POINTER User Manual TSCI 401 UserMan
TopSeed Technology Corp. REMOTE POINTER TSCI 401 UserMan
USERS MANUAL
TSCI-401

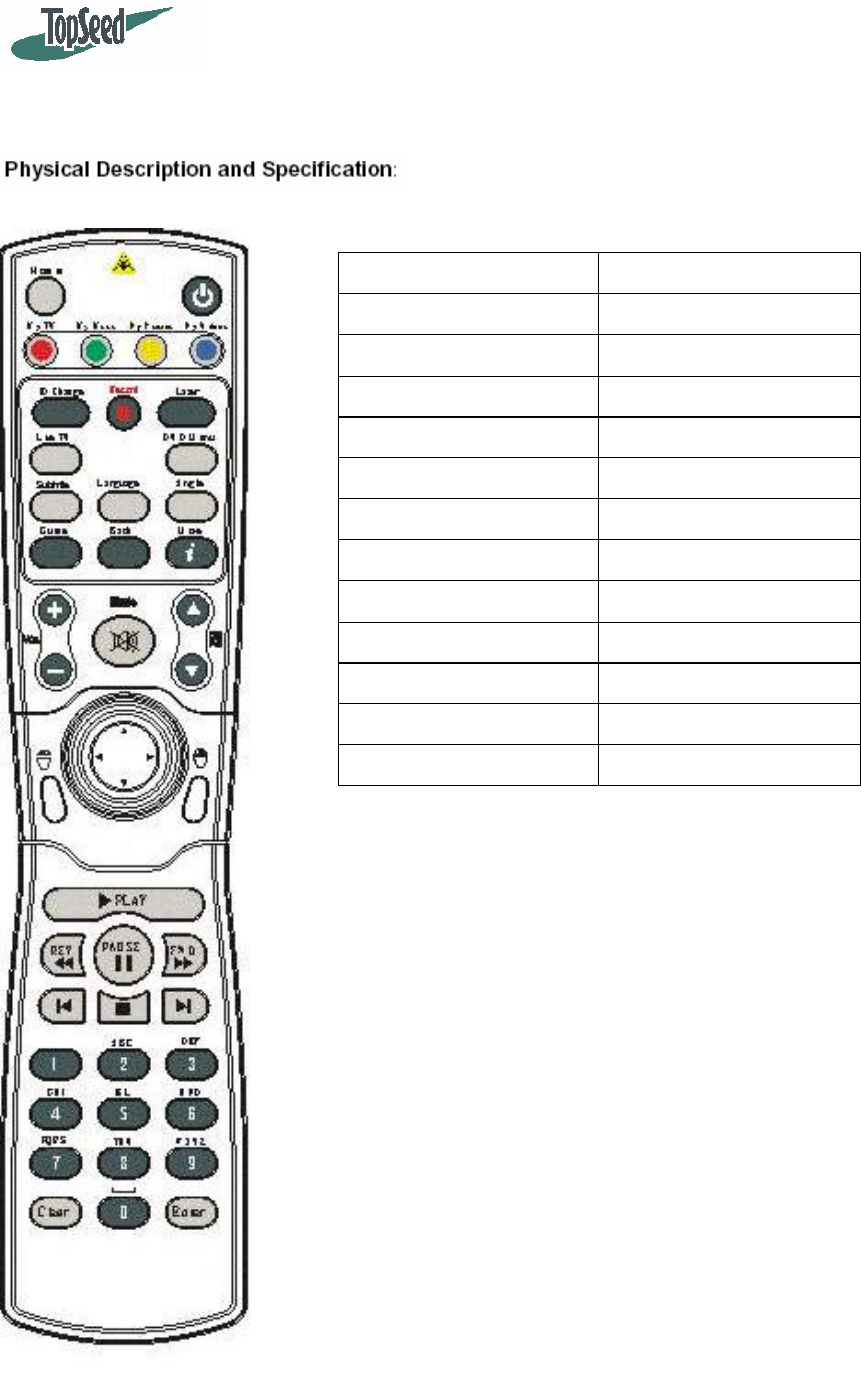

The approximate dimensions of the Remote’s transmitter is as
follows:
Length 215 mm
Width 47.5 mm
Height 31.5 mm
Weight of the RF Remote Pointer not to exceed 150 grams
(with
out
batteries)
Frequency Range 433.92 MHz
Modulation FSK
Channel No. 1
Channel I.D 6 bits → 64
Operation Voltage 3V
Battery AAA x 2 DC 3V batteries.
Batter Life 6 months
TX Power < 0dBm (1mW)
Transmission rate 6.6K bps
TX FM frequency deviation +/- 60 KHz
Frequency tolerance +/- 20ppm
Button 43
Transmission Distance 7-10 Meter
Key Definition
Function
Icon
Power
(Sleep Mode)
My TV My TV
My Music My Music
My Pictures My Pictures
My Videos My Videos
TV Live TV
DVD Menu DVD Menu
Volume Mute Mute
Media Center Start
Home
Volume Up VOL +
Volume Down VOL -
Channel up CHAN / PAGE +
Channel Down CHAN / PAGE -
Browser Back Back
More More
Guide Guide
OK OK
FSR
pressure sensitivity
delivers 360-cursor
or motion control of
both directions
Media Reocrd
Media Pause
Function
Icon
Media Play
Media Rewind
Fast forward
Previous Teack
Media Stop
Next Track
0 0
1 1
2 2
3 3
4 4
5 5
6 6
7 7
8 8
9 9
* *
# #
ESCAPE CLEAR
RETURN ENTER
Appendix: Warning Statement
FCC Guidelines
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesired operation.
CAUTION:
Any changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
Declaration of Conformity for R&TTE directive 1999/5/EC
Essential requirements – Article 3
Protection requirements for health and safety – Article 3.1a
Testing for electric safety according to EN 60950 has been conducted. These are considered
relevant and sufficient.
Protection requirements for electromagnetic compatibility – Article 3.1b
Testing for electromagnetic compatibility according to EN 301 489-1, EN 301 489-3 has been
conducted. These are considered relevant and sufficient.
Effective use of the radio spectrum – Article 3.2
Testing for radio test suites according to EN 300 220-3 has been conducted. These are
considered relevant and sufficient.
Hereby, [Dong Guan Jess-Link Electronics Co., Ltd.], declares that this [TSCI-401] is in
compliance with the essential requirements and other relevant provisions of Directive
1999/5/EC.
