User Manual
1
Ver1.０
July 27, 2006
TOPCON
BT/SD Board
User’s Manual
2
FCC Notices
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including
interference that may cause undesired operation.
CAUTION: Change or modification not expressly approved by the party responsible
for compliance could void the user’s authority to operate this equipment.
CAUTION: In order to comply with FCC radio-frequency radiation exposure
guidelines for an uncontrolled exposure, this device and its antenna must not be
co-located or operating in conjunction with any other antenna or transmitter.
NOTE: This equipment has been tested and found to comply with the limits for a
Class A digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This
equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential
area is likely to cause harmful interference in which case the user will be required
to correct the interference at his or her own expense.
NOTE: The device to which BT/SD Board is installed must display a FCC ID above.
IC Notices
CAUSION: Operation is subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause
undesired operation of the device.
CAUTION: The installer of this radio equipment must ensure that the antenna is located
or pointed such that it does not emit RF field in excess of Health Canada limits for the
general population; consult Safety Code 6, obtainable from Health Canada’s website
www.hc-sc.gc.ca/rpb
FCC ID: H5P-FC200BTSD
IC : 6050
A
FC200BT
3

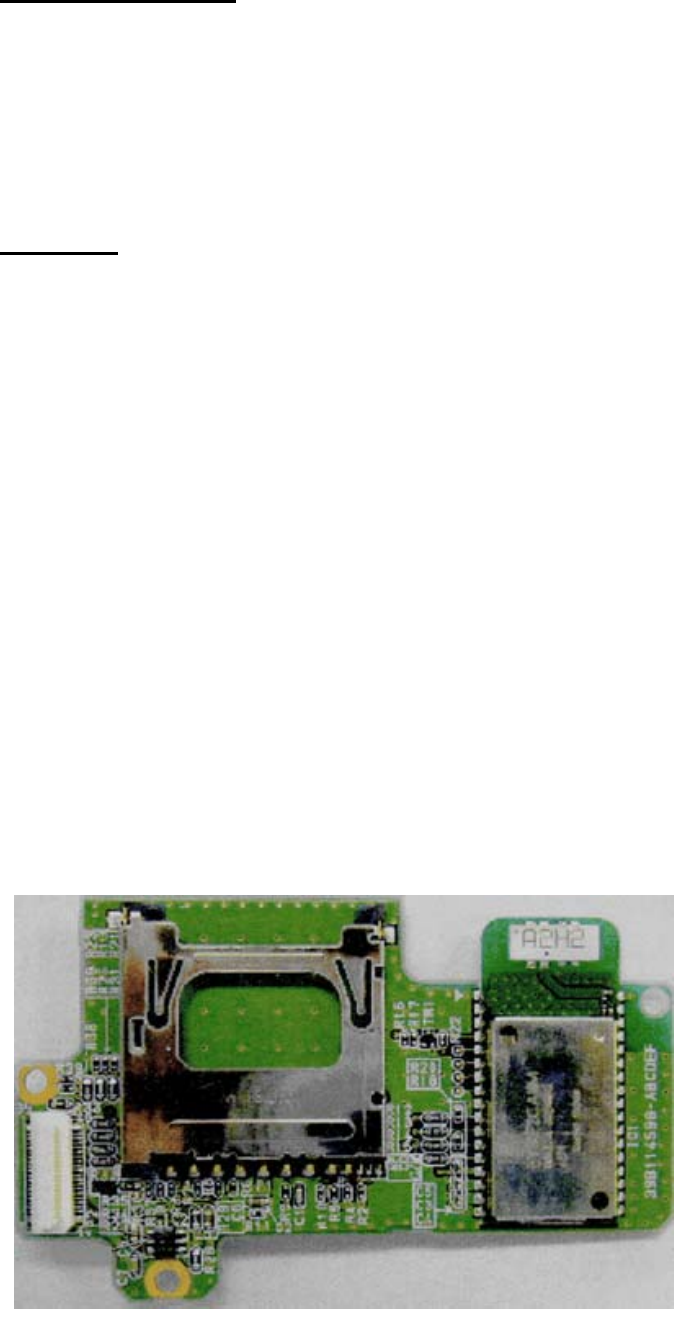

(1) Product Overview
The BT/SD Board is designed to provide wireless communication ability for the
TOPCON’s “FC” Field Controller families to communicate with other Bluetooth devices
via the class 2 of the Bluetooth V1.2 protocol.
This device is equipped with some type of “FC” Field Controllers before shipping.
(2) Features
Bluetooth Features
Compact wireless data communication module designed for Makitra’s battery-operated tools
Low power CSR BlueCore2-Ext Chipset (Bluetooth V1.2)
Tx output: 0.5mW
Tx and Rx Operation Frequency: 2402-2480 MHz
Modulation Method: Frequency Hopping Spectrum Spread (FHSS) / GFSK
Number of Channels: 79 (Normal Mode), 79 - 20 (Adaptive Hopping Mode)
Channel Intervals: 1 MHz
Bit rate: 1 Mbps
Packet type in use: DH1
Physical Attributes
Size: 48mm (L) x 76mm (W) x 5.5mm (D)
Weight: 0.03 Kg
Operating Temperature: -20 deg. C to +50 deg. C
Power Requirements: 0.3 W @ +3.3 VDC from “FC” Field Controller.
4
(3) Operation
To Equip the BT/SD Board with “FC” Field Controller

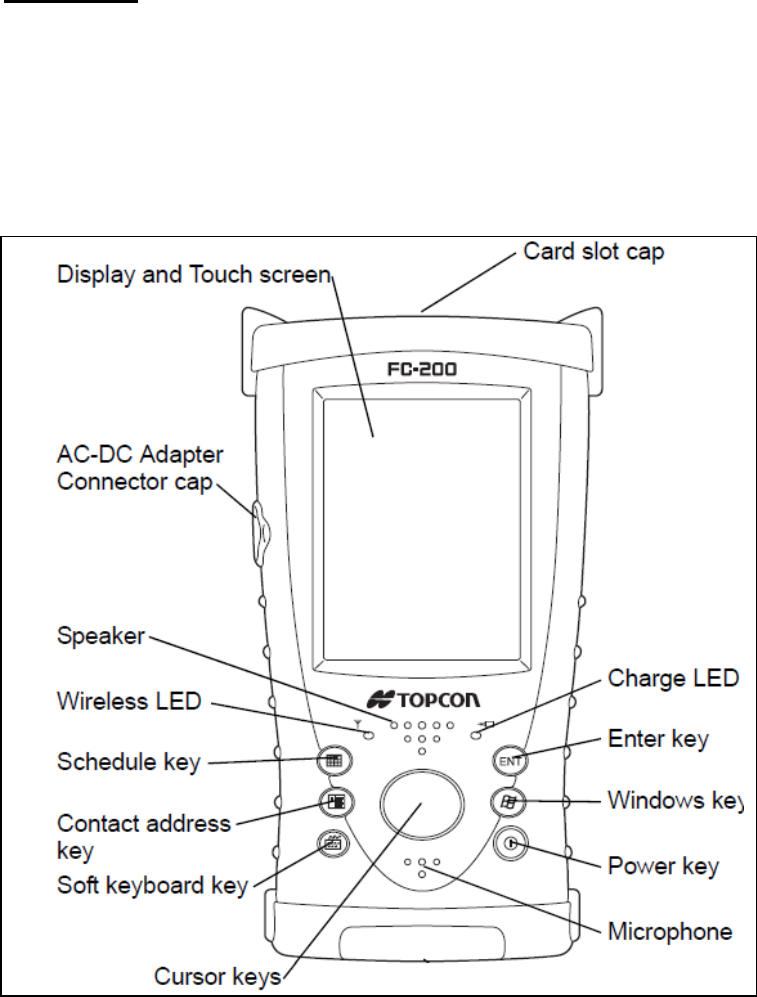

This device is already equipped by TOPCON before shipping. The example of an
equipped Field Controller “FC-200” is shown below.
Setting up BT/SD Board
The FC-200 has Bluetooth transmission function using a built-in BT/SD Board. Information can
be exchanged between instruments equipped with the same function using Bluetooth wireless
technology. The BT/SD Board is running on the operation system of FC-200, Windows Mobile
5.0 Pocket PC by Microsoft
Bluetooth ON/OFF
5
Follow the procedure below to turn on the Bluetooth function.
(1) Tap Start > Settings > Connections tab.
(2) On the [Wireless Manager] display, tap on the [Bluetooth] icon.
(3) Select or clear the Turn on and off Bluetooth check box
(4) When the Bluetooth function is turned ON, the wireless LED will flash in green color.
Create a Bluetooth partnership
Ensure that the two devices are turned on, discoverable, and within close range.
(1) Tap Start > Settings > Connections tab.
(2) Tap Bluetooth > Devices tab > New Partnership. Your device searches for
other devices with Bluetooth capabilities, and displays them in the list.
(3) Tap the name of the other device, and tap Next.
(4) In Passkey, if you want to use a passkey (recommended for enhanced security),
enter a alphanumeric passkey between 1 and 16 characters, and tap Next. Otherwise,
leave the passkey blank, and tap Next
(5) Enter the same passkey on the other device.
(6) Tap Finish
Make a device discoverable
Other devices with Bluetooth capabilities can detect your device and attempt to beam
information to it, establish a partnership, or use a Bluetooth service.
(1) Tap Start > Settings > Connections tab.
(2) Tap Bluetooth.
(3) Select the Turn on Bluetooth check box, and then select the Make this device
discoverable to other devices check box
Other Bluetooth-enabled devices can now detect your phone and attempt to beam
information to it, establish a Bluetooth partnership, or use a Bluetooth service.
Enable a Bluetooth beam
(1) Tap Start > Settings > Connections tab.
(2) Select the Receive all incoming beams check box.
(3) When prompted to receive an incoming beam, tap Yes to receive the beamed
information.
For more “How to and/or Help” on Bluetooth, visit Microsoft! Web site;
http://www.microsoft.com/windowsmobile/help/pocketpc/bluetooth.mspx
6
(4) Hints & Tips
(1) The BT/SD Board may not work well where Microwave ovens and /or other 2.4GHz
ISM devices like wireless LAN are working. Keep RF unit and wireless data
receiver away from these devices.
(2) If you no longer want your device to be discoverable, clear the Make this device
discoverable to other devices check box.
(3) For your safety operation, read carefully the tool’s User’s manual before equipping
the BT/SD Board to the tool together with this manual and that of the wireless
data receiver.
(4) The RF unit complies with Part 15 of the FCC Rules and RS-210. Read carefully
the FCC notice and/or IC notice at beginning page of this manual for legal and
secure operation.
(5) Specification
Operation Voltage 2.79V to 3.63VDC
Power Consumption Tx Operation: 210mW, Stand by Operation: 9mW
Operation Temperature -20 deg. C to +50 deg. C
Size / weight 48mm (L) x 76mm (W) x 5.5mm (H) / 0.003 Kg
Version V1.2
Output Class Class 2 (0.5mW)
Supported Profile Serial Port Profile, Dial-up Profile
Coverage 10m
Bluetooth
Type approval FCC
IC
CE
TELEC
7
TOPCON CORPORATION
75-1 Hasunuma-Cho, Itabashi-Ku, Tokyo 174-8580 Japan
Phone: 3-3558-2577, FAX: 3-3966-0038, URL: www.topcon.co.jp
