Form No. 3329-634

TrimmedBrushcutter

Model No. 51930--230000001 & Up

Model No. 51932-230000001 & Up

Model No. 51934--230000001 & Up

Model No. 51930A--230000001 & Up

Model No. 51932A--230000001 & Up

Model No. 51934A--230000001 & Up

Model No. 51936--230000001 & Up

Model No. 51938--230000001 & Up

Model No. 51940--230000001 & Up

Operator's Manual

........................!

English (E.N), Fre*lch (F), and Spanish (ES)

READ THiS INFORMATION

Before you use your new trimmer/brushcutter, read the following

helpful hints to get you started°

Fueling

_DANGER:

Gasoline is extremdy flammable and explosive. A

[fire or explosion from gasoline will burn you and

1_ Obtain a clean container that is approved for use with gasoline,

2o Mix all of' the 2-cycle oil provided with 1 US gallon of 87-octane, unleaded

gasoline,,

3,. Fill the trimmer's gas tank carefully.

Cold Starting vs. Warm Starting

When you restart the trimmer/brushcutter and you are not sure whether the

engine is still warm, set tile choke lever to B (Choke Open) and pull the starter

cord.. If the engine does not start within 5 pulls, refer to '"To Start a Cold Engine"

later in this manual

Flooded Engine

Will the engine start? If' not, it may be flooded. Relax, this is easy to correct. Set

die choke lever to B (Choke Open). Squeeze the trigger and pull the starter cord

quickly for 10 to 12 pu!ls, if the engine does not start, refer to "Troubleshooting"

later in this manual or call toll f?ee at 1-866-574-9242 (US) or 1-866-574-9243

(Canada)..

For questions concerning your trimmer/

brushcutter, call us toll free at

1-866-574-9242.

_WARNING: Thee.gineexhaust fi'om this product contains chemicals known to the State of

California to cause cancer; biM1 defects, or' other reproductive harm.

8t 11 Lyndalc Ave..,Bloomington, MN 55420, USA

Printed in USA

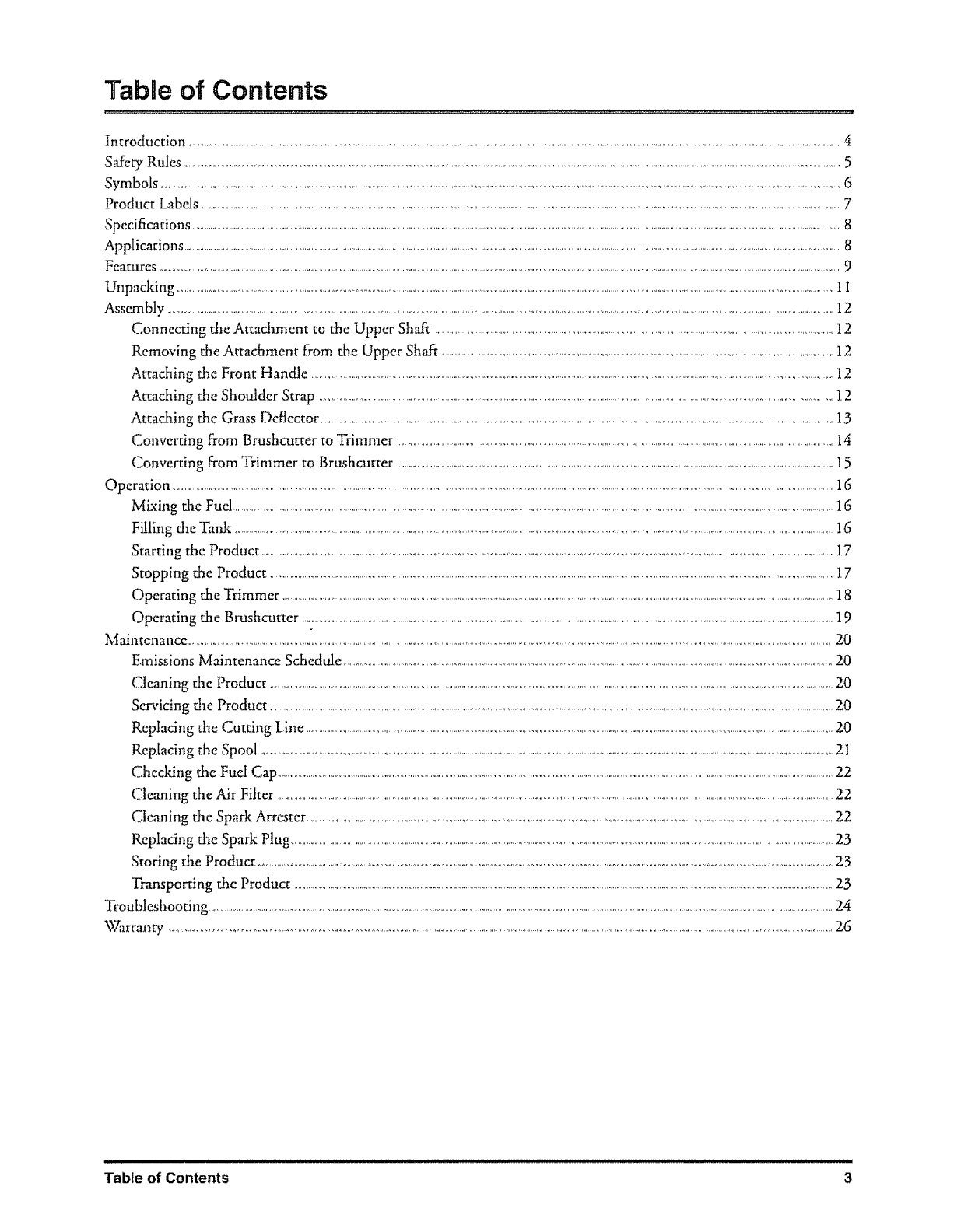

Table of Contents

Introduction ................................................................................................................................................................................................................................................4

Safety Rtfles 5

Symbols .....................................................................................................................................................................................................................................6

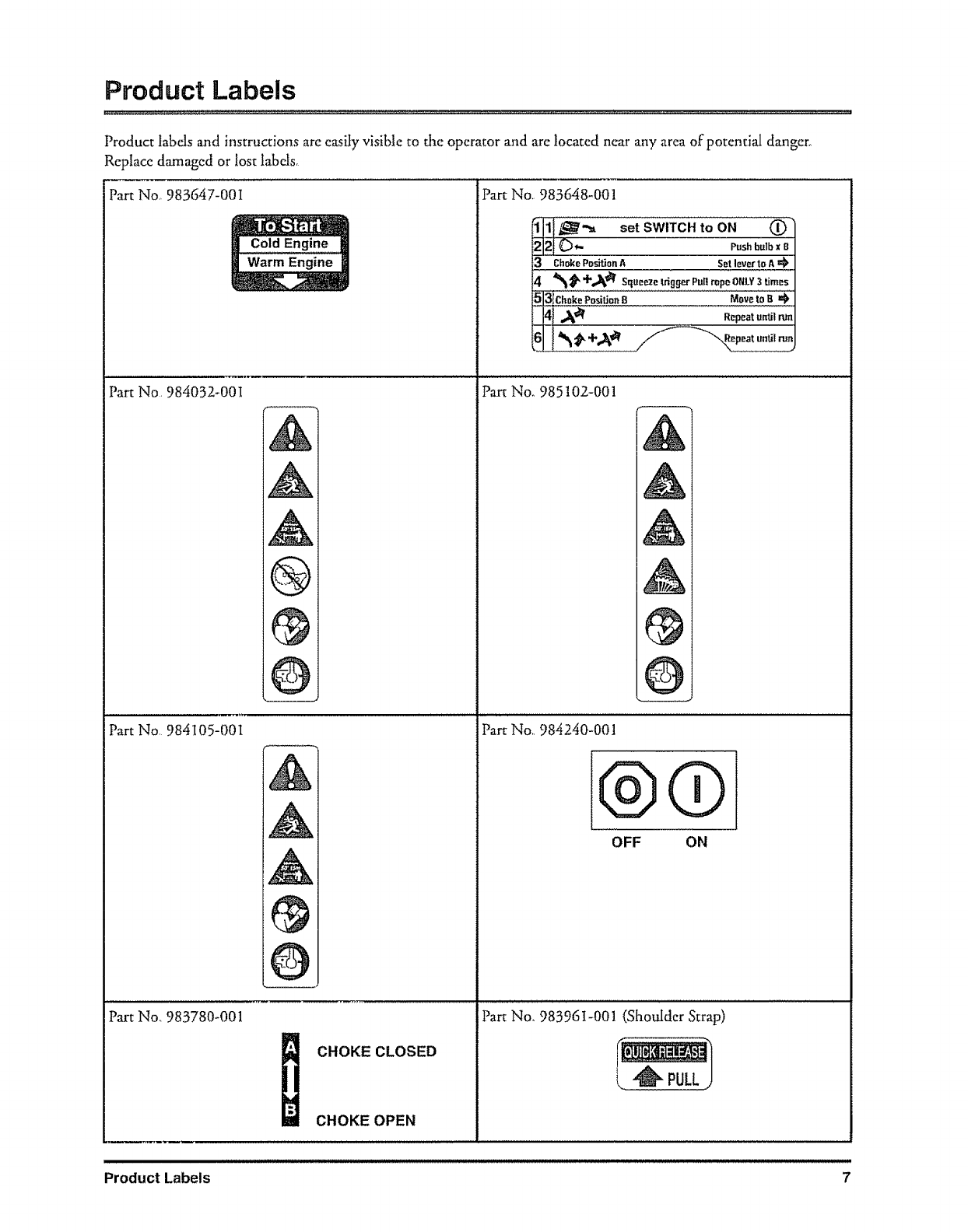

Product Labds ............................................................................................................................................................................................7

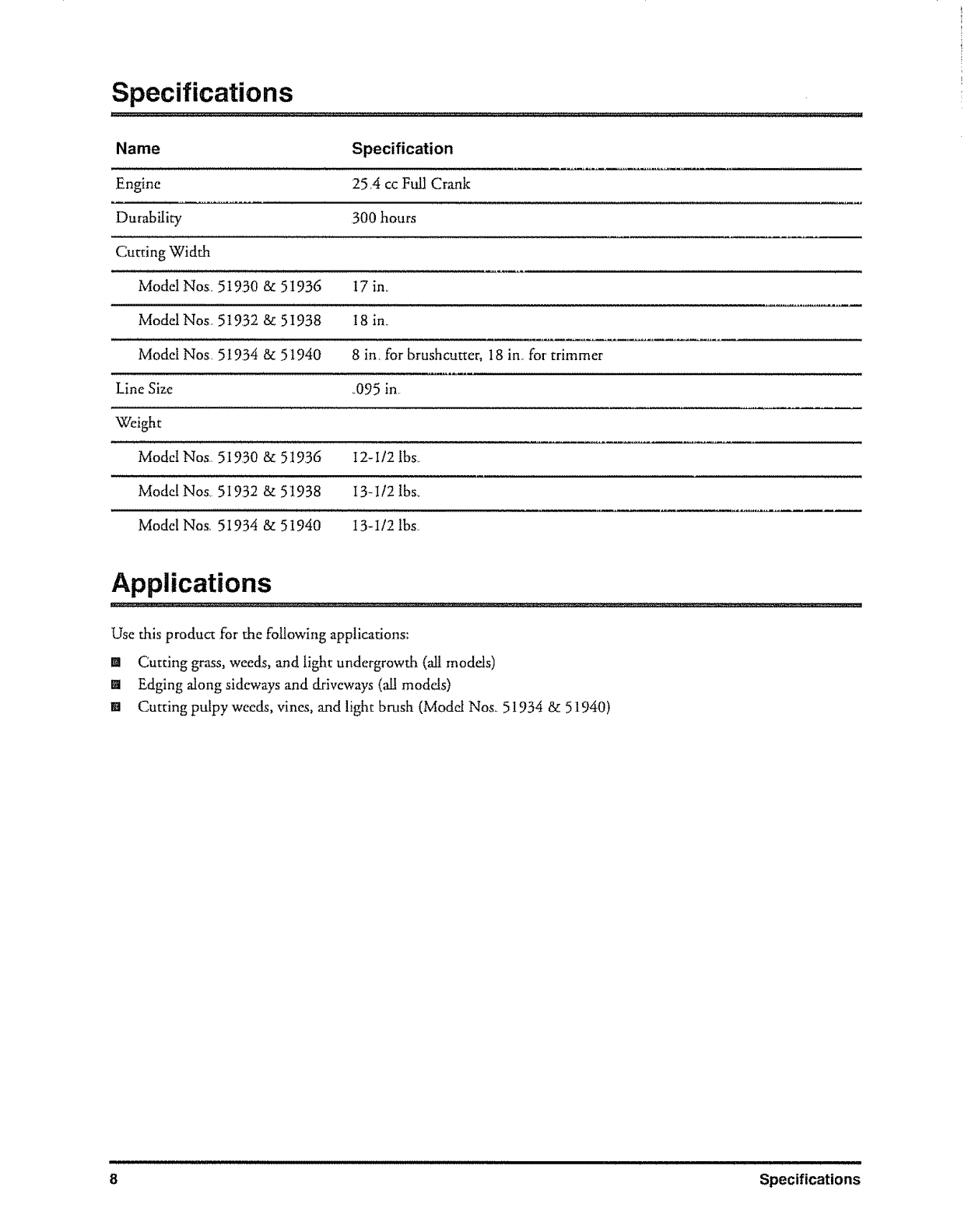

Spedfications ..............................................................................................................................................................................................................8

Applications ..............................................................................................................................................................................................................................................8

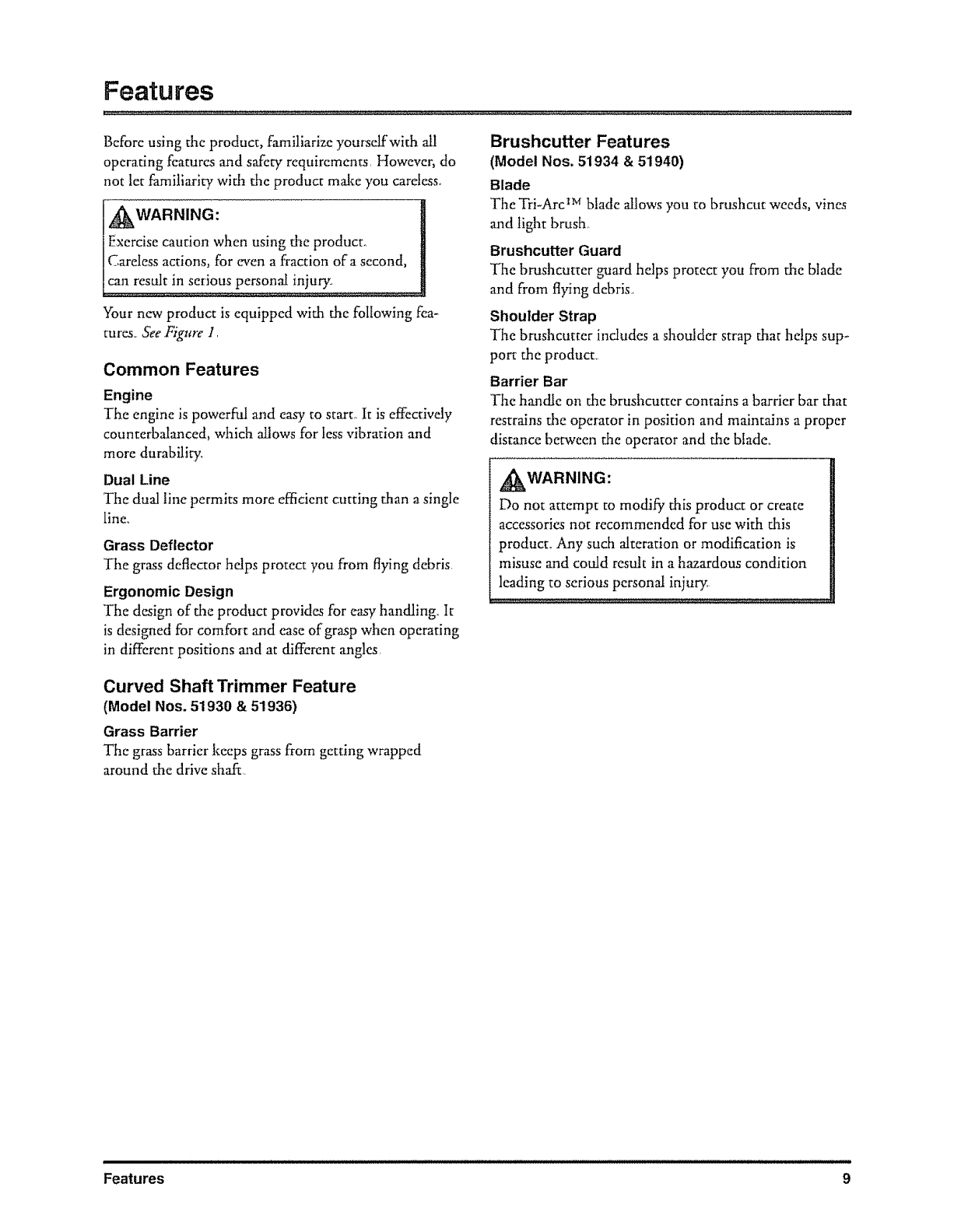

Features ........................................................................................................................................................................................................................9

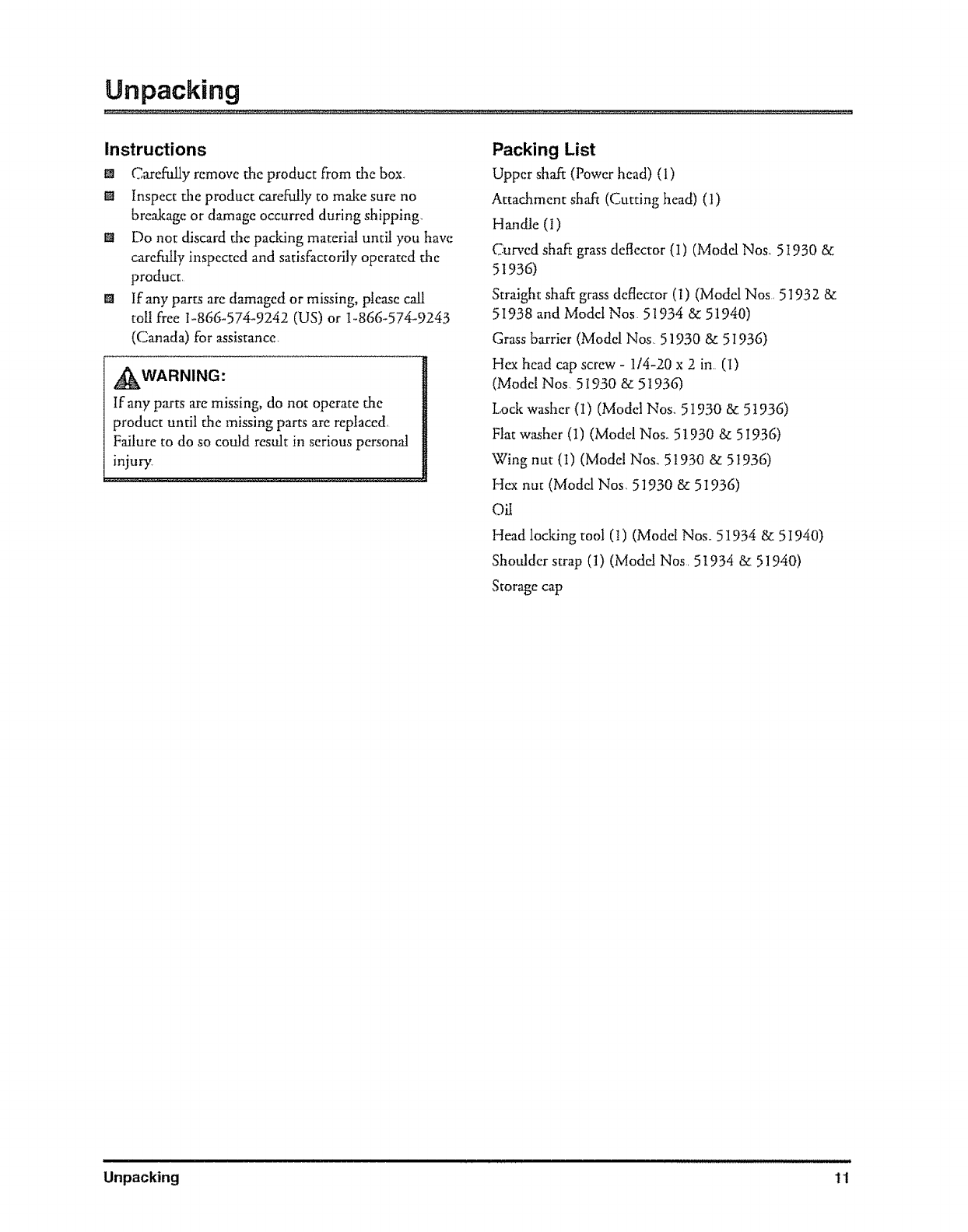

Unpacking .......................................................................................................................................................................................................................1I

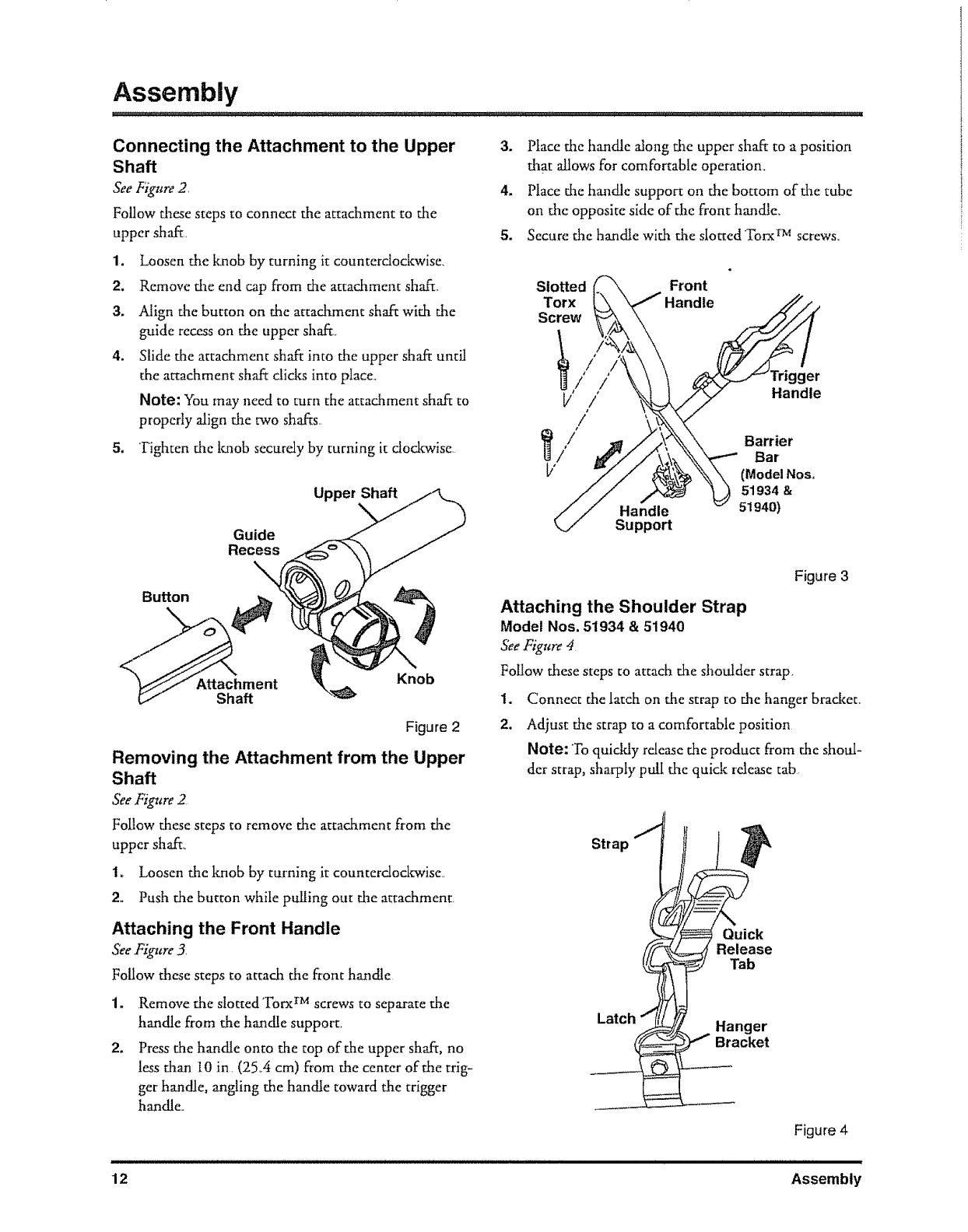

Assembly 12

Connecting the Attadlment to the Upper Shaft ................................................................................................................................12

Removing the Attacfiment from the Upper Shaft ......................................................................................................................12

Attaching the Front Handle ........................................................................................................................................................12

Attaching the Shoulder Strap ..............................................................................................................................................................12

Attaching the Grass Deflecto> ....................................................................................................................................................................13

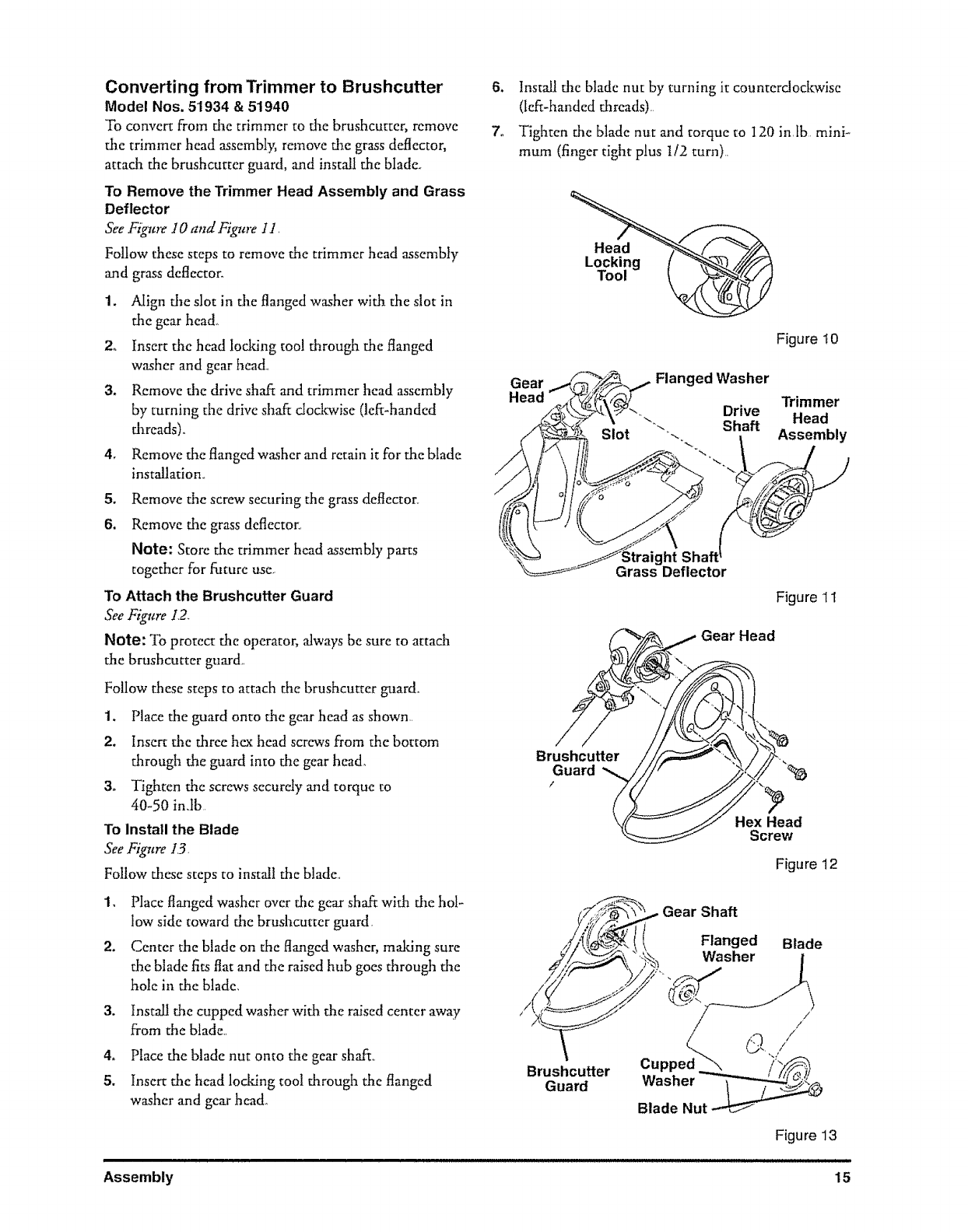

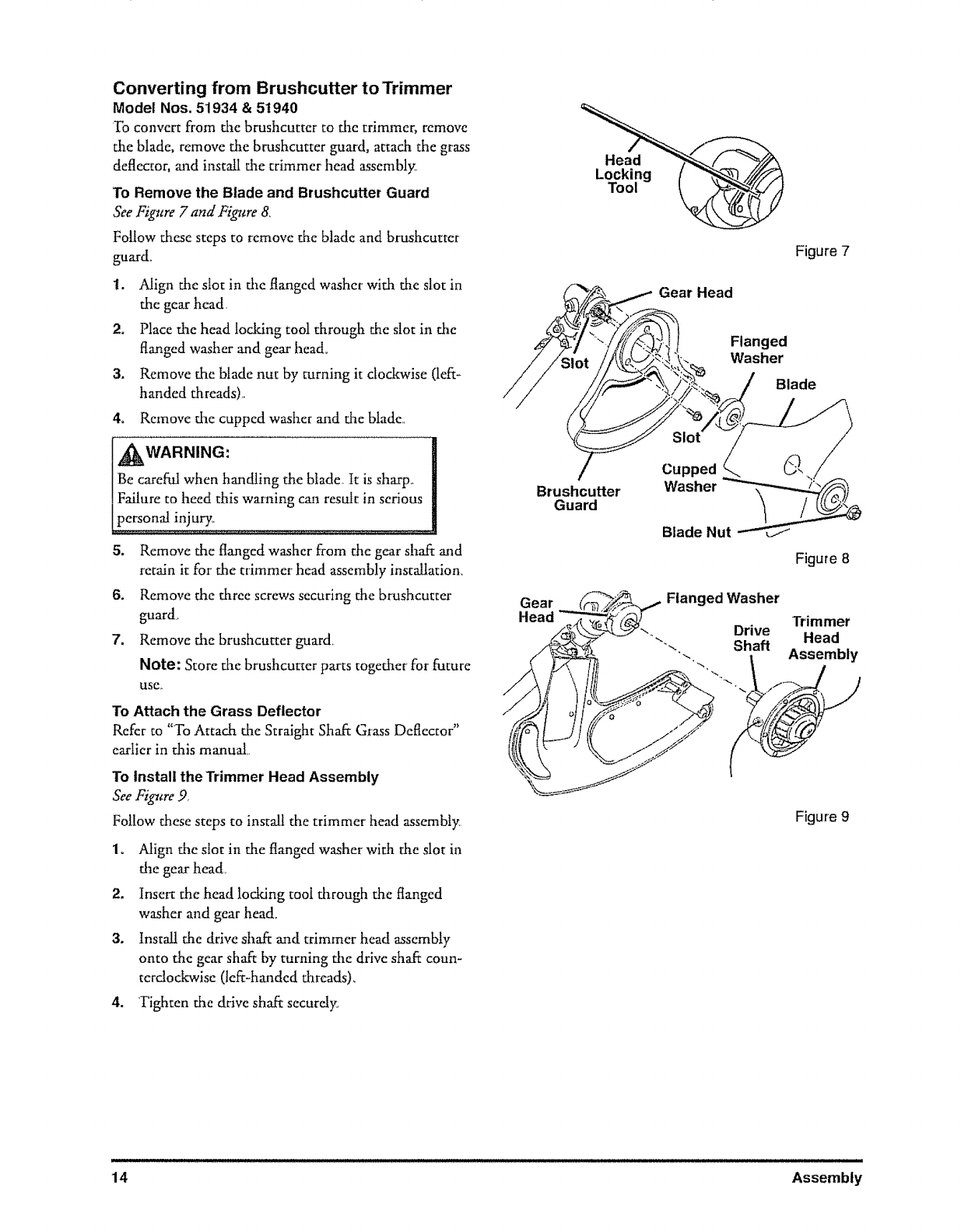

Converting from Brushcutter to Trimmer ...................................................................................................................................14

Converting from Trimmer to Brushcutter ........................................................................................................................................15

Operation ....................................................................................................................................................................................................16

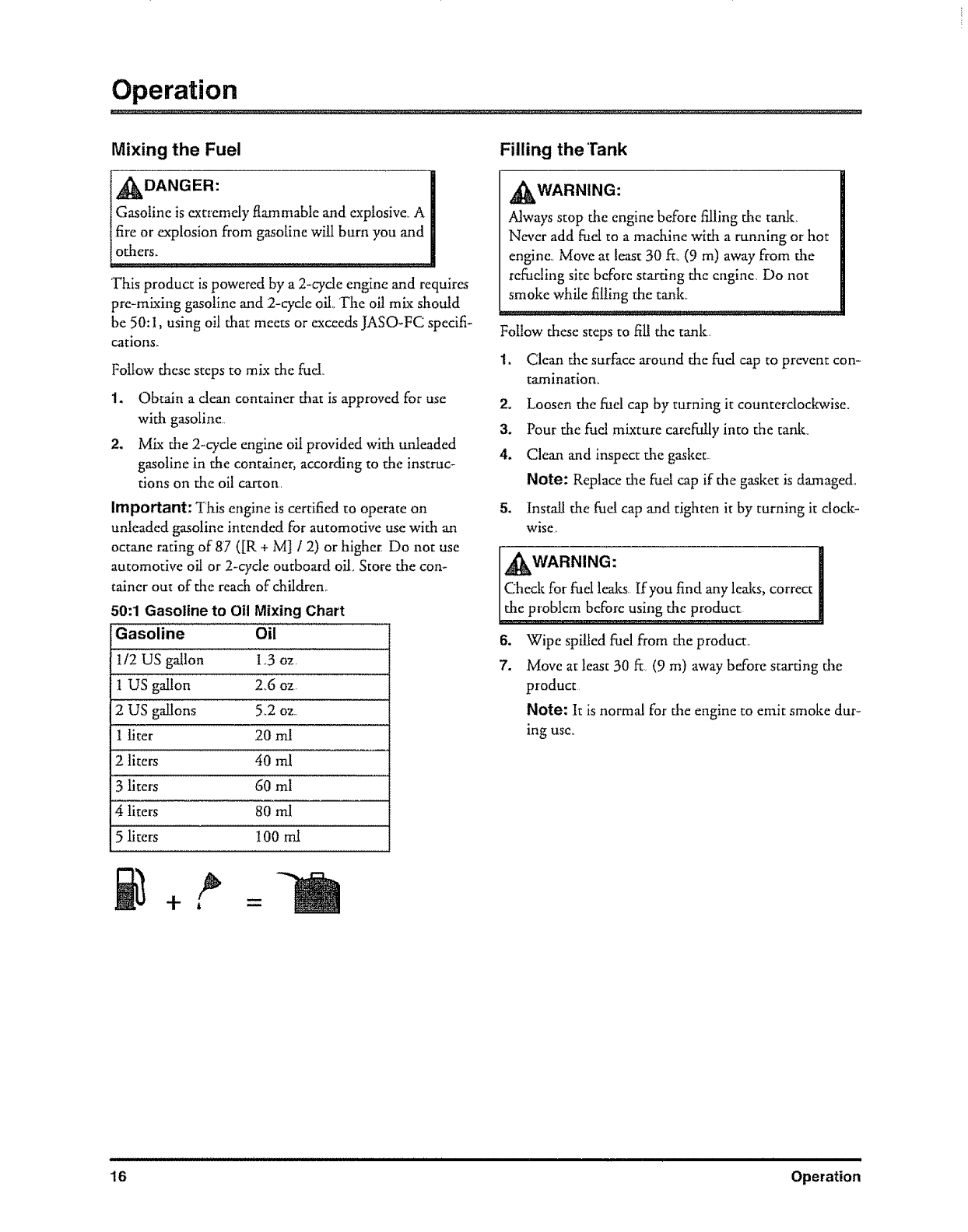

Mixing the Fud ...............................................................................................................................................................................16

Filling the Tank .............................................................................................................................................................................16

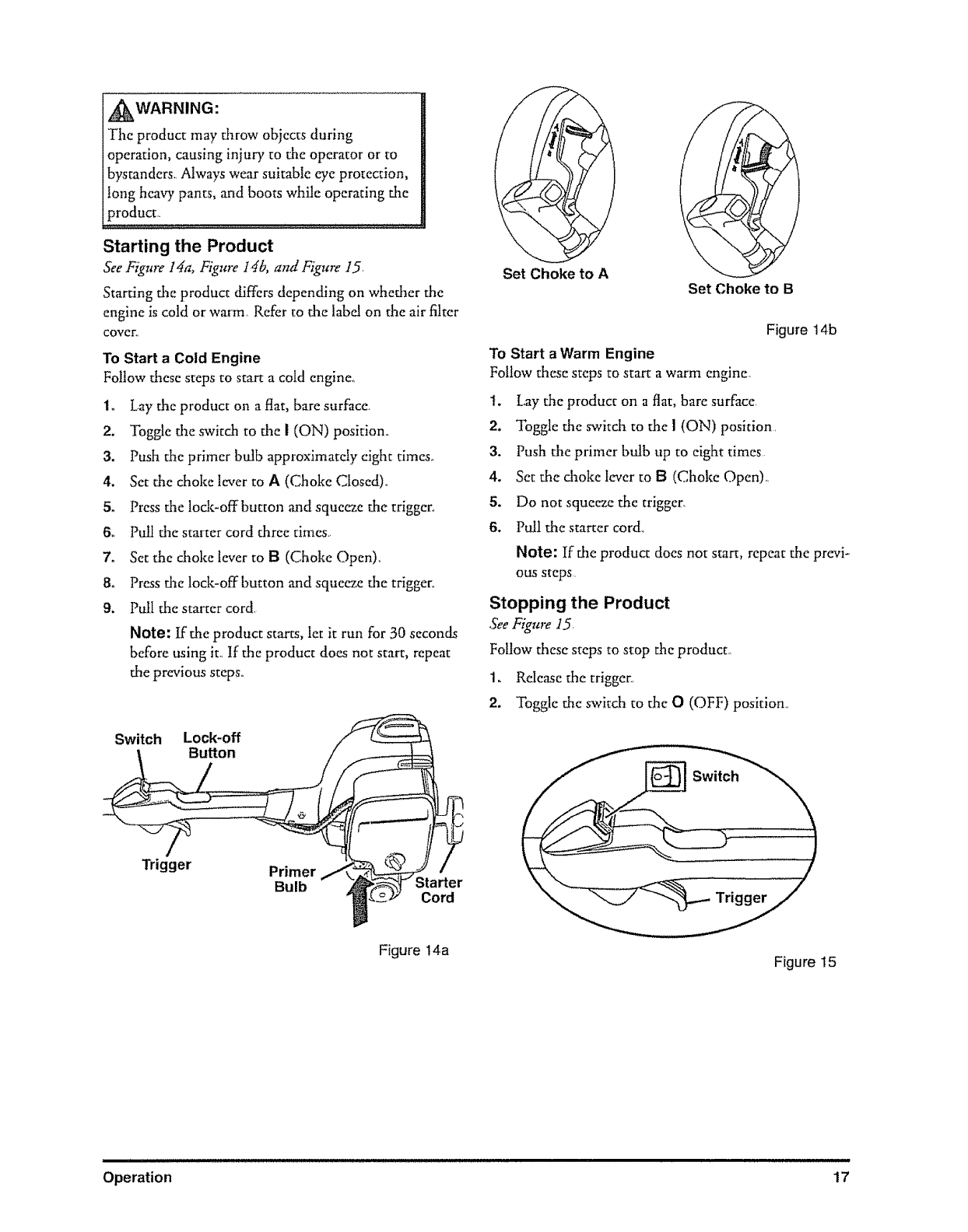

Starting the Product .....................................................................................................................................................................................17

Stopping the Product ..........................................................................................................................................................................17

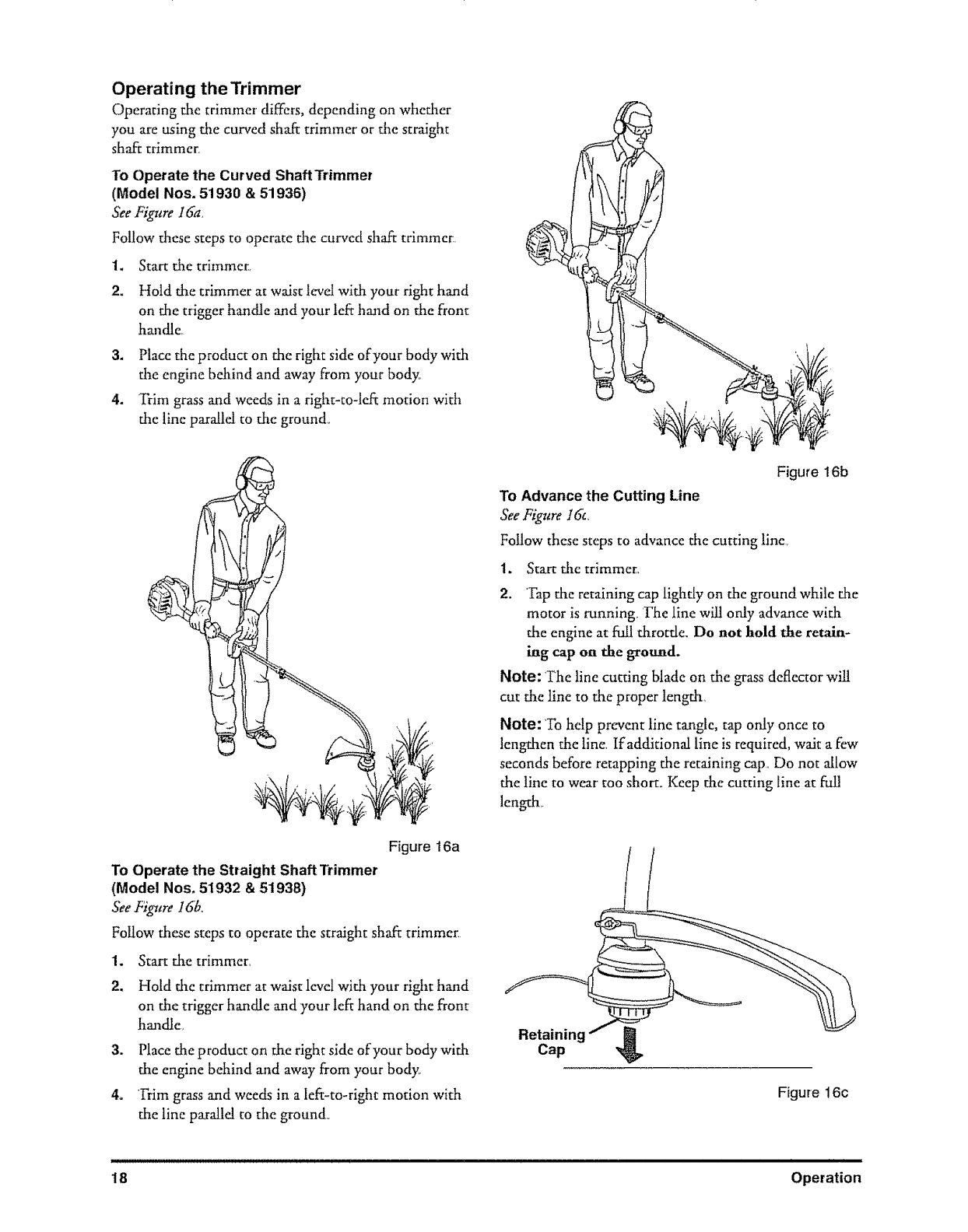

Operating the Trimmer ....................................................................................................................................................................................................18

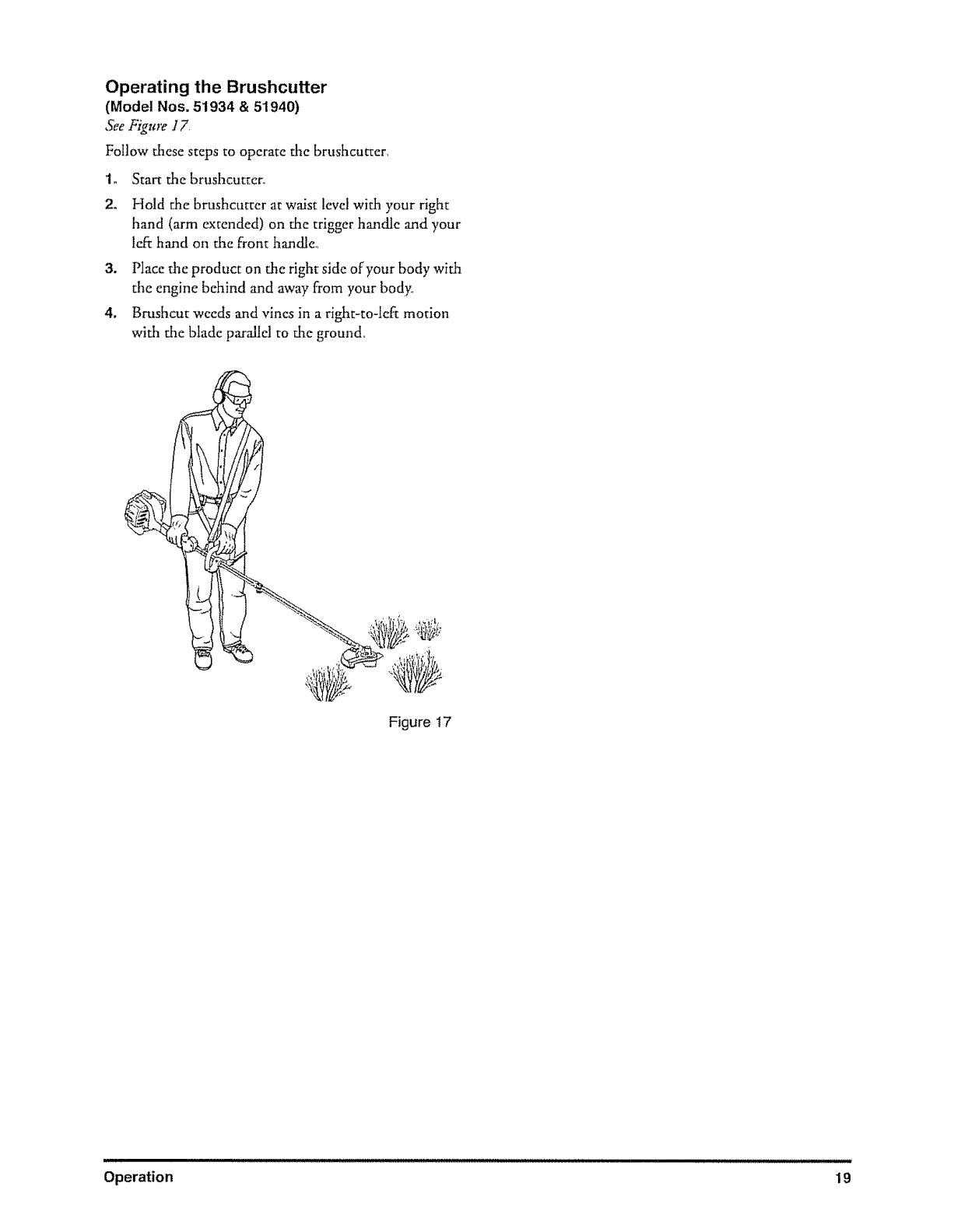

Operating the Brushcurter .............................................................................................................................................................................19

Maintenance ..........................................,,[.........................................................................................................................................................20

Emissions Maintenance Schedule ..................................................................................................................................................................20

Cleaning the Product ............................................................................................................................................................................................20

Servicing the Product ............................................................................................................................................................................20

Replacing the Cutting Line ..............................................................................................................................................................................20

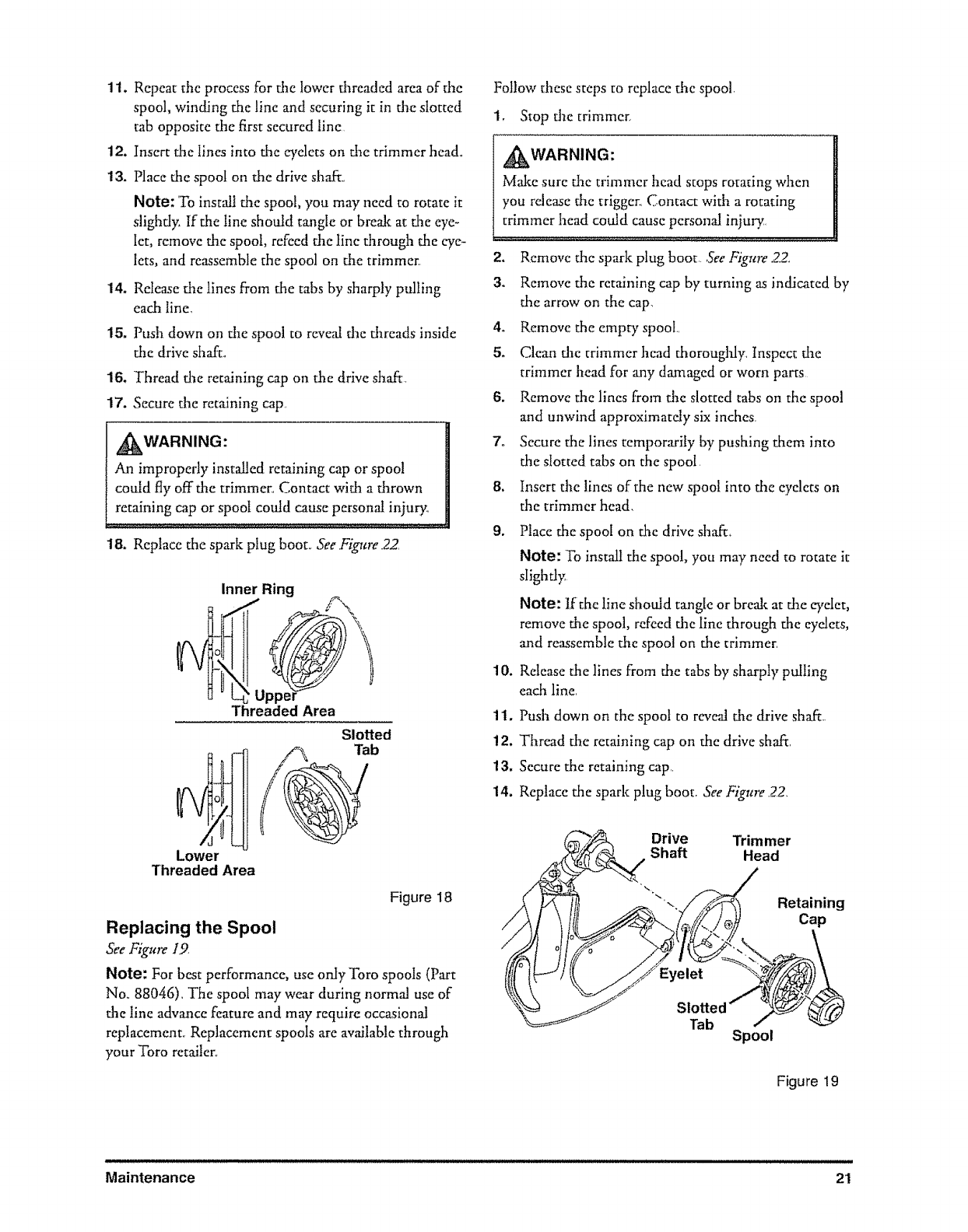

Replacing the Spool ................................................................................................................................................................................................2 t

Checking the Furl Cap .....................................................................................................................................................................................................................22

Cleaning the Air Filter ................................................................................................................................................................22

Cleaning the Spark Arrester .................................................................................................................................................................22

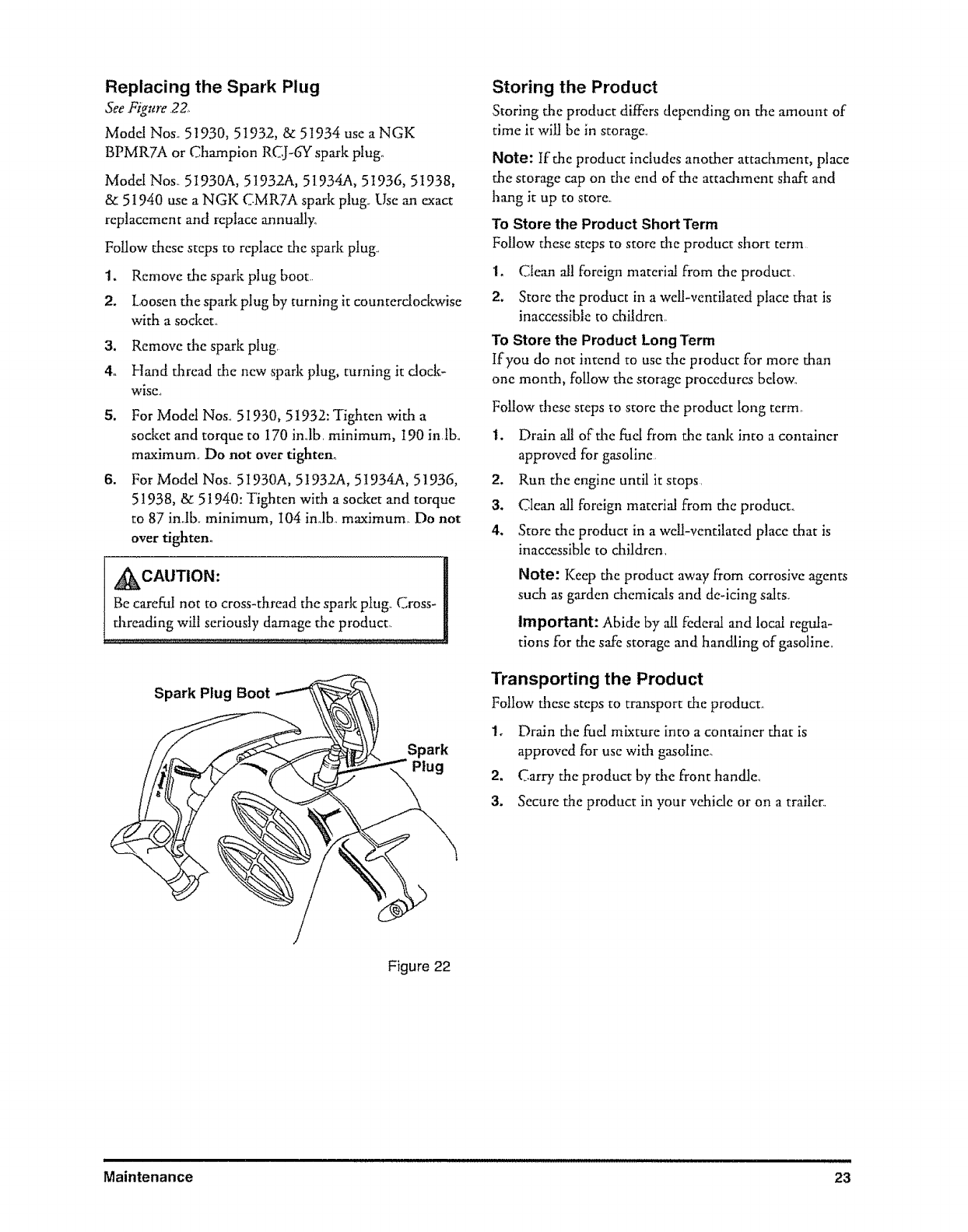

Replacing the Spark Hug ...................................................................................................................................................................................23

Storing die Product ......................................................................................................................................................................................23

Transporting the Product ..................................................................................................................................................................................................23

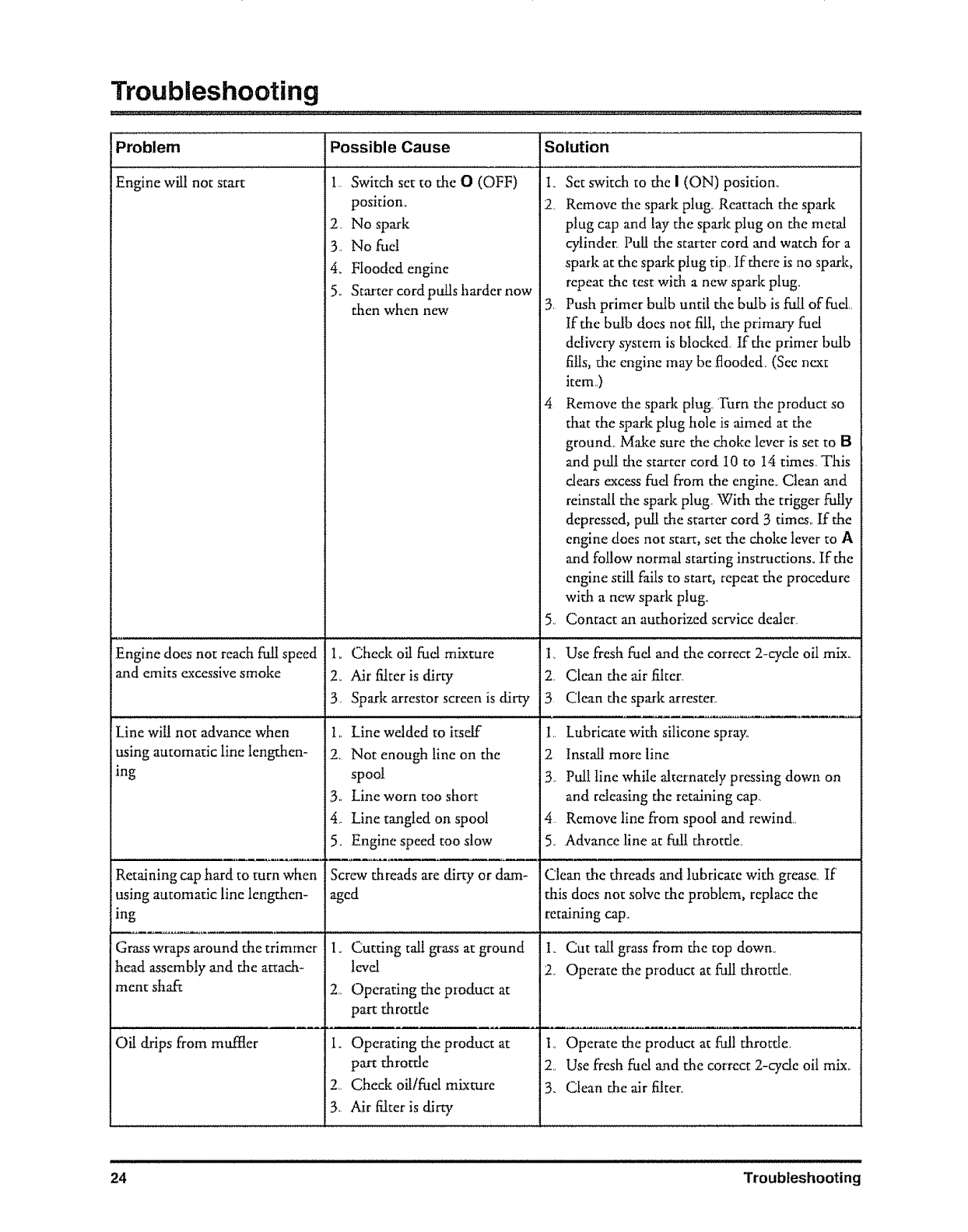

Troubleshooting, ...............................................................................................................................................................................................................................24

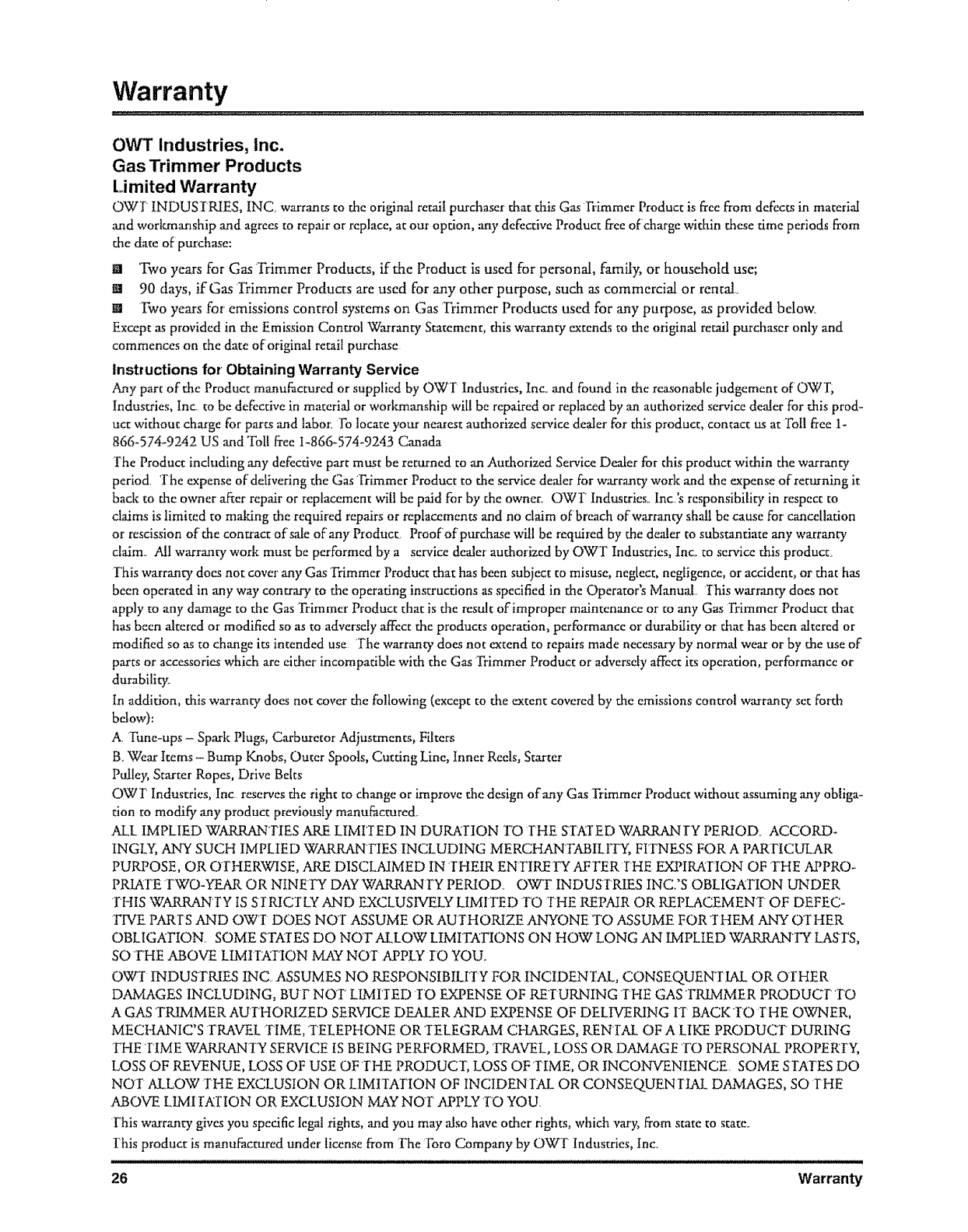

Warranty ...........................................................................................................................................................................................................26

Table of Contents 3

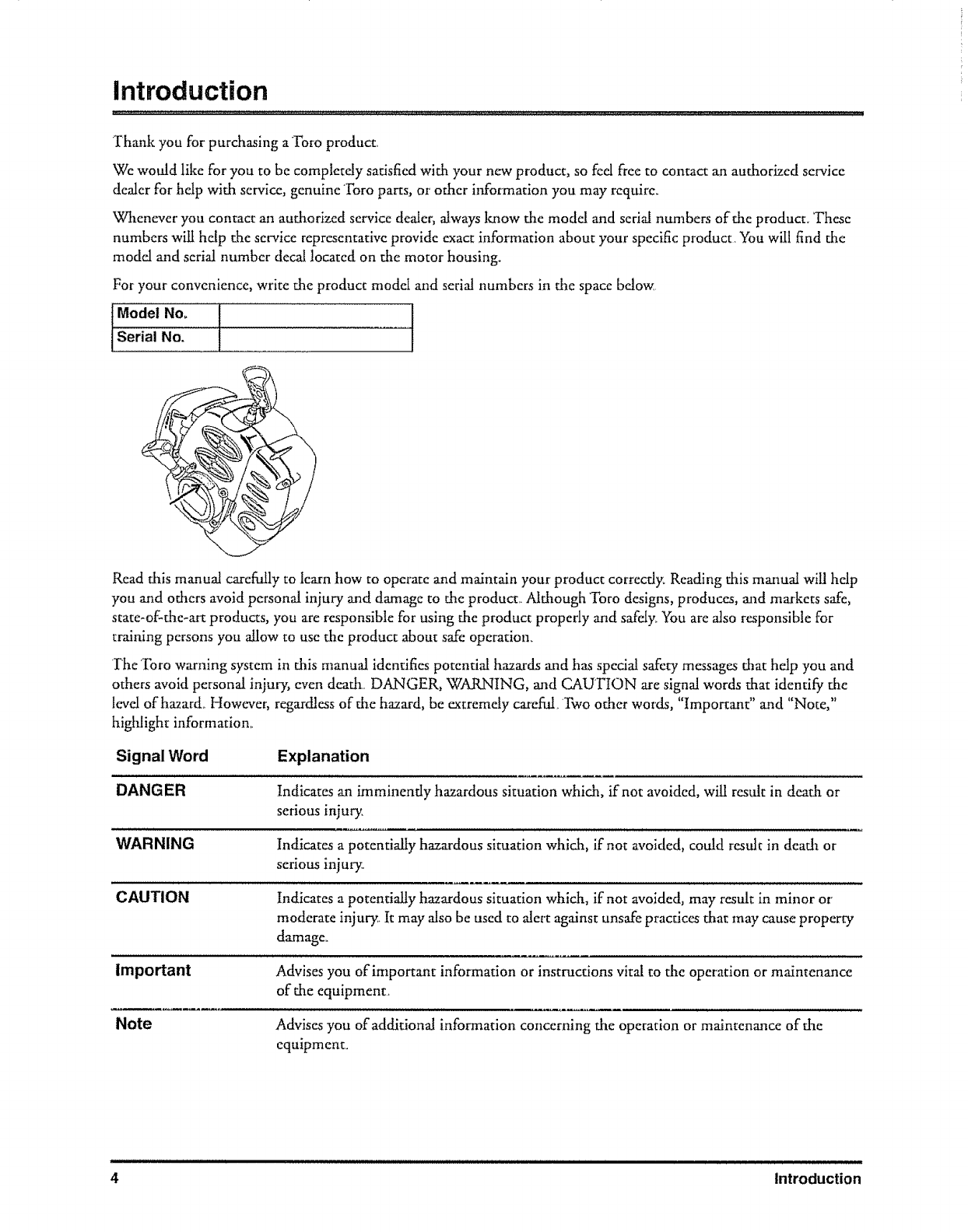

introduction

Thank you for purchasing a Toro product_

We would like for you to be completdy satisfied with your new product, so fed free to contact an authorized service

dealer for help with service, genuine Toro pares, or other iifformation you may require.

VCllenever you contact an authorized service dealer, always know the model and serial numbers of the producL These

numbers wiU help the service representative provide exact information about your specific product. You will find the

model and serial number decal !ocated on die motor housing.

For your convenience, write the product model and serial numbers in the space brow.

Model Not

Serial No.

Read this manual carefully to learn how to operate and maintain your product correcdy_ Reading this manual will help

you and others avoid personal injury and damage to the product.. Although Toro designs, produces, and markets safe,

state-of-the-art products, you are responsible for using the product properly and safely_You are also responsible for

training persons you allow to use the product about safe operation.

The Toro warning system in this manual identifies potential hazards and has special safety messages that help you and

others avoid personal injury, even death.. DANGER, WAaR_NING, and CAUTION are signal words that identif;f the

level of hazard. Howcwer, regardless of the hazard, be extremely careful Two odler words, "Important" and "Note,"

highlight information,.

Signal Word Explanation

DANGER Indicates an imminently hazardous situation which, if not avoided, will result in deadl or

serious injury.

WARNING

CAUTION

Important

Note

Indicates a potentially hazardous situation which, if not avoided, could result in dead_ or

serious injury.

Indicates a potentially hazardous situation which, if not avoided, may result in minor or

moderate injury. It may also be used to alert against unsafe practices that may cause property

damage_

Advises you ofirnportant information or instructions vital to the operation or maintenance

of the equipment.

Advises you of additional information concerning the operation or maintenance of the

equipment°

4 Introduction

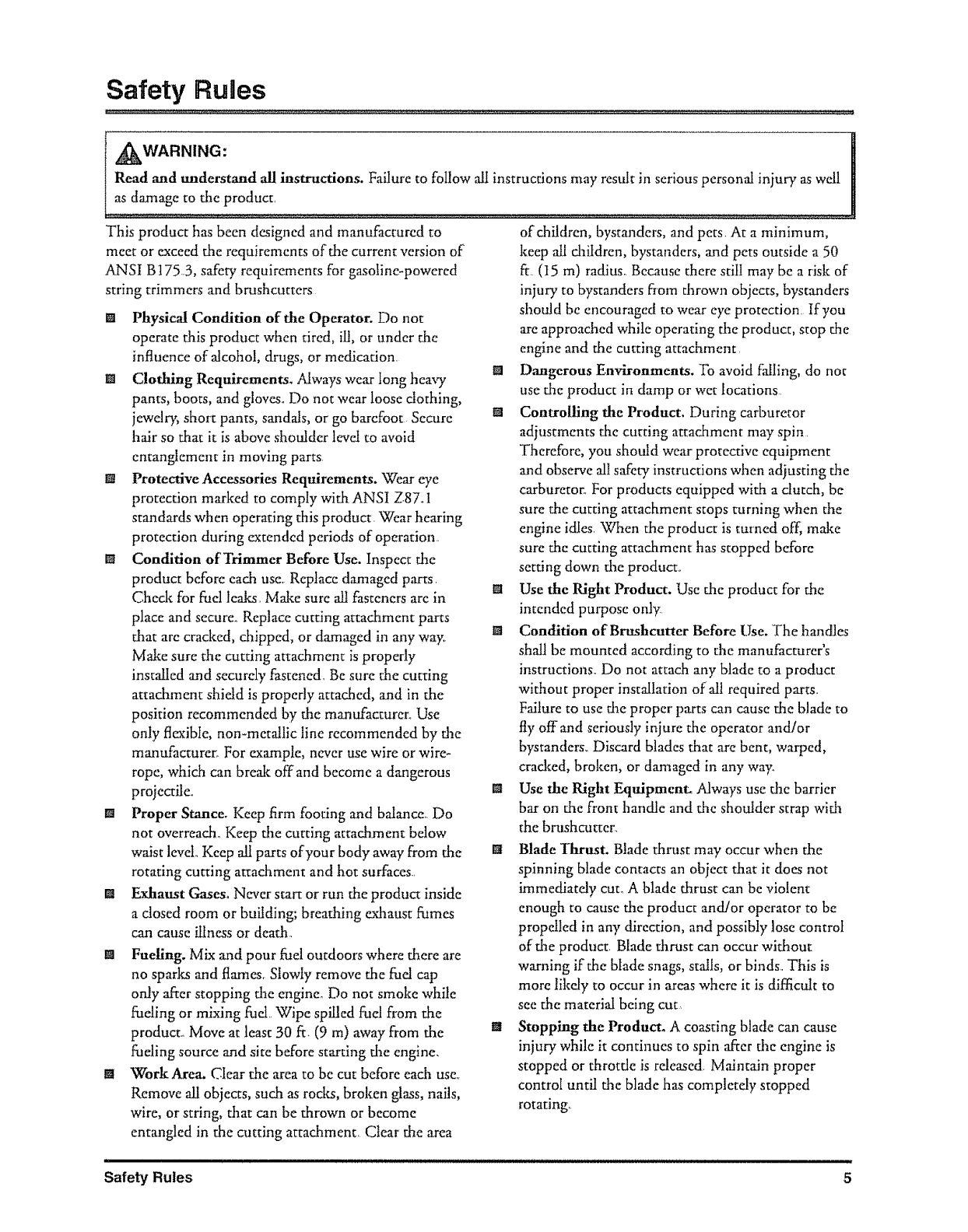

Safety Rules

d_WARNING:

Read and understand all instructions. Failure to follow all instructions may result in serious personal injury as well

as damage to the product_

This product has been designed and manufactured to

meet or exceed the requirements of the current version of'

ANSI Bt75..3, safety requirements for gasoline-powered

string trimmers and brushcutters

[] Physical Condition of the Operator. Do not

operate this product when tired, ill, or under the

influence of alcohol, drugs, or medication

[] Clothing Requirements. Always wear long hea W

pants, boots, and gloves. Do not wear loose clothing,

jewelry, shot1:pants, sandals, or go barefoot Secure

hair so that it is above shoulder level to avoid

entanglement in moving parts

[] Protective Accessories Requirements. Wear eye

protection marked to comply with ANSI Z87° I

standards when operating dais product Wear hearing

protection during extended periods of operation

I_ Condition of Trimmer Before Use. Inspect the

product before each use Replace damaged p_rts

Check for fuel leaks Make sure all fasteners are in

place and secure_ Replace cutting attachment parts

that are cracked, chipped, or damaged in any way

Make sure the cutting attachment is properly

installed and securely fastened Be sure the cutting

attachment shield is properly attached, and in the

position recommended by the manufacturer Use

only flexible, non-metallic line recommended by dae

manufacturer For example, never use wire or wire-

rope, which can break offand become a dangerous

projectile

[] Proper Stance. Keep firm footing and balance. Do

not overreach. Keep the cutting attachment below

waist level Keep all parts of your body away from the

rotating cutting attachment and hot surfaces

[] Exhaust Gases. Never start or run the product inside

a dosed room or building; breathing exhaust fumes

can cause illness or death

[] Fueling. Mix and pour fuel outdoors where there are

no sparlcs and flames Slowly remove the furl cap

only a_er stopping the engine_ Do not smoke while

fueling or mixing furl Wipe spilled fuel from the

product+ Move at least 30 ft (9 m) away from the

fueling source and site before starting the engine.

WWork Area. Clear the area to be cut before each use

Remove all objects, such as rocks, broken gl_s, nails,

wire, or string, that can be thrown or become

entangled in the cutting attadament Clear the area

of children, bystanders, and pets. At a minimum,

keep ,all children, bystanders, and pets outside a 50

ft..(t5 m) radius,. Because there still may be a risk of

injury to bystanders tCromthrown objects, bystanders

should be encouraged to wear eye protection. If you

are approached while operating the product, stop the

engine and the cutting attachment.

[] Dangerous Environments. To avoid falling, do not

use the product in damp or wet locations

[] Controlling die Product. During carburetor

adjustments the cutting attachment may spin.

Therefore, you should we.'u"protective equipment

and observe all safety instructions when adjusting the

carburetor° For products equipped with a clutch, be

sure the cutting attachment stops turning when the

engine idles. When the product is turned off, make

sure the cutting attachment has stopped before

setting down the product,.

[] Use the Right Product. Use the product for the

intended purpose only

[] Condition of Brushcutter Before Use. The handles

shall be mounted according to the manufacturer's

instructions Do not attach any blade to a product

without proper installation of all required parts

Failure to use the proper parts can cause the blade to

fly offand seriously injure the operator and/or

bystanders Discard blades that are bent, warped,

cracked, broken, or damaged in any way

[] Use the Right Equipment, Always use the barrier

bar on the front handle and the shoulder strap with

the brushcutter.

[] Blade Thrust. Blade thrust may occur when the

spinning blade contacts an object that it does not

immediatdy cut. A blade thrust can be violent

enough to cause the product and!or operator to be

propelled in any direction, and possibly lose control

of the product. Blade thrust can occur without

warning if the blade snags, stalls, or binds.. This is

more likdy to occur in areas where it is difficult to

see the material being cut,

[] Stopping the Product. A coasting blade can cause

injury while it continues to spin after die engine is

stopped or throtde is released. Maintain proper

control until the blade has comptetdy stopped

rotating.

Safety Rules 5

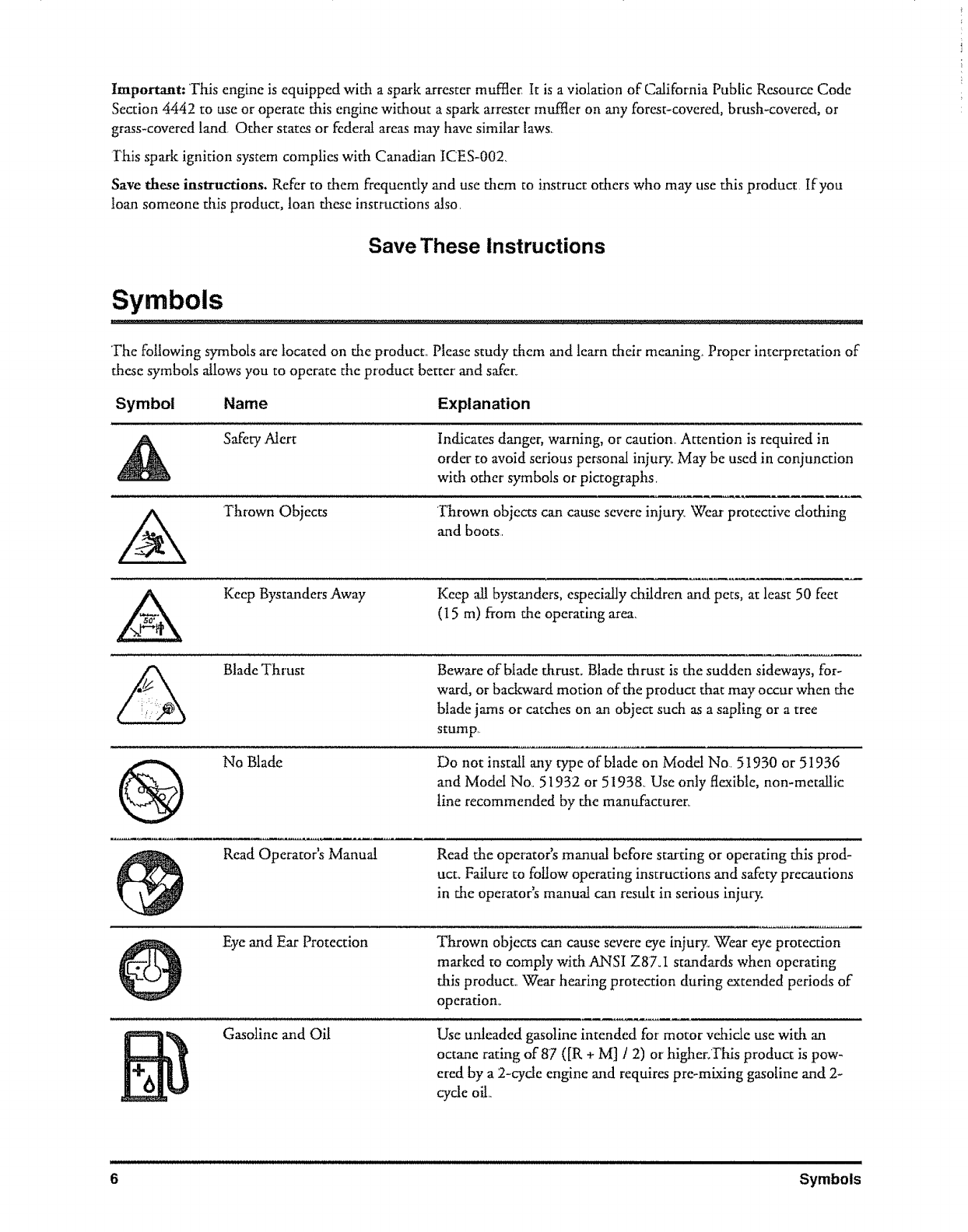

important: This engine is equipped with a spark arrester muffler. It is a violation of California Public Resource Code

Section 4442 to use or operate this engine without a spark at'rester muffler on any forest-covered, brush-covered, or

grass-covered land Other states or federal areas may have similar laws.

This spark ignition system complies with Canadian ICES-002.

Save these instructions. Refer to them frequently and use them to instruct others who may use this product If you

loan someone this product, loan these instructions also

Save These Instructions

Symbols

The following symbols are located on the product.. Please study them and learn their meaning. Proper interpretation of

these symbols allows you to operate the product better and safer.

Symbol Name Explanation

Safety Alert

Indicates danger, warning, or caution.. Attention is required in

order to avoid serious permnal injury. May be used in conjunction

with other symbols or pictographs.

Ttlrown Objects Thrown objects can cause severe injury. Wear protective dothing

and boots.

Keep Bystanders Away Keep all bystanders, especially children and pets, at least 50 feet

(I 5m) from the operating area_

Blade Thrust Beware of btade thrust. Blade thrust is the sudden sideways, for-

ward, or badcward motion of the product that may occur when the

blade jams or catches on an object such as a sapling or a tree

stump,

No Blade Do not install any type of blade on Model No 51930 or 51936

and Model Noo 51932 or 51938. Use only flexible, non-metallic

line recomraended by the manufacturer_

Read Operator's Manual Read the operator's manual before starting or operating this prod-

uct. Failure to follow operating instructions and safety precautions

in the operator's manual can result in serious injury.

Eye and Ear Protection Thrown objects can cause severe eye injury.. Wear eye protection

marked to comply with ANSI Z87.1 standards when operating

this product.. Wear hearing protection during extended periods of

operation°

Gasoline and Oil Use unleaded gasoline intended for motor vehicle use with an

octane rating of 87 (JR +M] /2) or higherA2ais product is pow-

ered by a 2-cycle engine arid requires pre-mixing gasoline and 2-

cycleoil,,

6 Symbols

Product Labels

Product labds and instructions are easily visible to die operator and are located near any area of potential danger.

Replace damaged or lost tabds,

Part No, 983647-00I Part No+ 983648-001

Pa=No,984032-001

Part No, 984105-001

Part No., 983780-001

1_iI _'_t set SWITCHto ON _"

_ Pushbulb x B

13 Choke PositionA Set lever to A =_

[4 %_"+,A '_ s,tueeaet.,igge,-vtmmpeONL;'Ztimes

iSl3+chom+Posmo.8 mo.etos,+

_+ .A+_.... .+pe+tu.t, ,++,,

l+l+%+,a+ /I___o,°.1o.,,°.+

Part No+ 985102-001

_TtY_I

PamNo+,984240-001

rT'd¢_

OFF ON

CHOKE CLOSED

CHOKE OPEN

Part No. 983961-001 (Shoulder Strap)

Product Labels 7

Specifications

Name Specification

Engine 25 Acc Full Crank

Durability .300 hours

Cutting Width

Model Nos. 519.30 & 51936 17 in_

Model Nos. 519.32 & 51938 18 in_

Model Nos 5 t 9.34 & 51940 8 in_ for brushcutter, 18 in_ for trimmer

Line Size .,095 in,

Weight

Model Nos. 519.30 & 519.36 I2-I12 ibs,

Model Nos_ 519.32 & 51938 I3-I/2 lbs_

Model Nos_ 51934 & 51940 1.3-I/2 ibs

Applications

Use this product for the following applications:

[] Cutting grass, weeds, and light undergrowth (all models)

[] Edging ,_ong sideways and driveways (all models)

I Cutting pulpy weeds, vines, and light brush (Model Nos. 51934 & 51940)

8 Specifications

Features

Before using the product, familiarize yourself with all

operating features and safety requirements. However, do

not let familiarity with the product make you careless,.

_WARNING:

Exercise caution when using the product.

Careless actions, for even a fraction of a second,

can result in serious personal injury.

Your new product is equipped with the following fea-

tures.. See Figure 1.

Common Features

Engine

The engine is powerful and easy to siam It is effectively

counterbalanced, which allows for less vibration and

more durability_

Dual Line

The dual line permits more efficient cutting than a single

line,

Grass Deflector

Ttle grass deflector hdps protect you from flying debris

Ergonomic Design

The design of the product provides for easy handling. It

is designed for comfort and ease of grasp when operating

in different positions and at different angles.

Brushcutter Features

(Model Nos. 51934 & 51940)

Blade

The Tri-Arc TM blade allows you ro brushcut weeds, vines

and light brush,

Brushcutter Guard

The brushcurter guard helps protect you from d_e blade

and from flying debris.

Shoulder Strap

The bmshcutter includes a shoulder strap that hdps sup-

port the product,.

Barrier Bar

The handJe on the brushcutter contains a barrier bar that

restrains the operator in position and maintains a proper

distance between the operator and d_e blade,.

A_JkWARNING:

Do not attempt to modff;! this product or create

accessories not recommended for use with this

product.. Any such alteration or modification is

misuse and could result in a hazardous condition

leading to serious personal inju_

Curved Shaft Trimmer Feature

{Model Nos. 51930 & 51936)

Grass Barrier

The grass barrier keeps grass from getting wrapped

around the drive shaft

Features 9

__ Curved Shaft Trimmer

(7_'_ "__(Mode, Nos, 51930 &51936)

Gar_rSeSr_!/\_. _ Front Handle

Curved Shaft -- "_ /

Grass Deflector __/

Trigger r_p'._--_,_

Handle

Straight Shaft Trimmer

(Model Nos, 51932 & 51938)

Dual Line Front Handle

Engine

Straight Shaft

Grass Deflector

Trigger

Handle

Brushcutter

(Model Nos, 51934 & 51940)

Brushcutter

Guard

Shoulder Strap

Barrier

Bar

Front Handle

Trigger

Handle

Engine

Figure 1

10 Features

Unpacking

Instructions

m Carefi_y remove the product from the box.

w Inspect the product carefully to make sure no

breakage or damage occurred during shipping,

IB Do not discard the pacldng material until you have

carefully inspected and satisfactorily operated the

product.

I_I If any parts are damaged or missing, please call

toll flee 1-866-574-9242 (US) or 1-866-574-9243

(Canada) for assistance.

_WARNING:

If any parts are missing, do not operate the

product until the missing parts are replaced,

Failure to do so could result in serious personal

injury.

Packing List

Upper shaft (Power head) (1)

A_tachment shaft (Cutting head) (1)

Handle (1)

Curved shaft grass deflector (I) (Modal Nos. 51930 &

51936)

Straight shaft grass deflector (1) (Model Nos. 5193 2 &

51938 and Model Nos 519.34 &51940)

Grass barrier (Model Nos 51930 &51936)

Hex head cap screw - 1/4-20 x2 in. (I)

(Model Nos. 51930 &51936)

Lock washer (I) (Model Nos. 51930 &5t9.36)

Flat washer (1) (Model Nos.. 51930 &51936)

Wing nut (I) (Model Nos_ 51930 &51936)

Hex nut (Modal Nos, 51930 &519.36)

Oil

Head locking tool (!) (Model Nos,. 51934 &51940)

Shoulder strap (1) (Model Nos. 51934 &51940)

Storage cap

Assembly

Connecting the Attachment to the Upper

Shaft

SeeFigure2,

Follow these steps to connect the attachment to the

upper sh_'t,

1. Loosen the t_ob by turning it counterdockwise.

2. Remove the end cap from the attachment shall

3. Align the button on the attachment shaft with the

guide recess on die upper shaft,.

4. Slide the attachment shaft into the upper shaft until

the attachment shaft clicks into place,.

Note: You may need to turn the attachment shaft to

properly align the two shafts.,

5. Tighten the l_ob securdy by turning it clockwise

Guide

Recess

Upper Shaft

BuRon

__ment

Shaft

Knob

Figure 2

Removing the Attachment from the Upper

Shaft

See Figure 2

Follow these steps to remove the attachment from the

upper shaft_

1_ Loosen the lmob by turning it counterdoclcwise.

2o Push the button while prying out tile attachment.

Attaching the Front Handle

See FigTwe3,

Follow these steps to attach the front handle

Remove the slotted Torx TM screws to separate the

handle fi_om the handle support.

Press the handle onto the top of the upper shaft, no

less than 10 in, (25A cm) from the center of the trig-

ger handle, angling the handle toward the trigger

handle_

3. Place the handle along the upper shaft to a position

that allows for comfortable operation.

4. Place the handle support on the bottom of the tube

on the opposite side of the front handle_

5. Secure the handle with the slotted Torx TM screws

Slotted Front

Torx Handle

Screw

Handle

Support

Trigger

Handle

Barrier

Bar

(ModelNos=

51934 &

51940)

Figure 3

Attaching the Shoulder Strap

Model Nos. 51934 & 51940

See Figure 4

Follow these steps to attach the shoulder strap.

1. Connect the latch on the strap to the hanger bracket.

2, Adjust the strap to a comfortable position

Note: 1o quiddy release the product from the shoul-

der strap, sharply puli the quick rdease tab

Stra

Quick

Release

Tab

Latch Hanger

Bracket

Figure 4

12 Assembly

Attaching the Grass Deflector

Attaching the grass deflector differs depending on the

type of trimmer: curved shaft or straight shaft.,

_WARNING: i

The line cutting blade on the grass deflector is

Ish,_p_ Avoid contact with the blade. Failure to

Rote: To protect the operator, always be sure to attach

the grass deflector..

To Attach the Curved Shaft Grass Deflector

Model Nos. 51934 & 51940

See Figure 5

Follow these steps to attach the curved shaft grass deflec-

tOE

,Press the grass deflector onto the bottom of the

curved shaft as shown.

2. Lift die grass barrier up slightly

3. Insert the hex head cap screw through the grass

deflector, bracket, and grass barrier

4. Place the flat washer and lock washer on the hex head

cap screw,

Place the wing nut or hex nut on the hex head cap

screw and turn clodcwise to secure,,

3. Align the screw hole in the mounting bracket with

the screw hole in the grass deflector.,

4. Insert die slotted hex head screw through the mount-

ing bracket and into file grass deflector.

5. Tighte,a the screw securely:.

Tab

Straight Shaft

Grass Deflector

Slot : _'

Figure 6

Wing

Curved Shaft _Nut Hex

Grass Deflector ./- Nut

Cap Screw

Figure 5

To Attach the Straight Shaft Grass Deflector

Model Nos. 51932 & 51938 and Model Nos, 51934 &

5'I940

See F_we 6

Follow these steps to attach the straight shaft grass deflec-

tOL

Remove die slotted hex head screw from the grass

deflector,

Insert the tab on the mounting bracket in the slot on

the grass deflector

Assembly 13

Converting from Brushcutter to Trimmer

Model Nos. 51934 & 51940

To convert from the brushcutter to the trimmer, remove

the blade, remove the bmshcutter guard, attach the grass

deflector, and install the trimmer head assembly

To Remove the Blade and Brushcutter Guard

See Figure 7 and l;'t_re 8,

Follow these steps to remove the blade and brushcutter

guard,,

1. Align the stot in the flanged washer with the slot in

the gear head,

2, Place the head loddng tool through the slot in the

flanged washer and gear head_

3. Remove the blade nut by turning it clockwise (left-

handed threads),.

4, Remove the cupped washer and the blade,,

_WARNING:

Be careful when handling the blade, It is sharp,,

Failure to heed this warning can result in serious

personal injury,

5. Remove the flanged washer from the gear shaft mad

retain it for the trimmer head assembly instaltation_

6. Remove the three screws securing the brushcutter

guard

7. Remove the brushcutter guard

Note: Store the brushcut_er parts together for future

use,,

To Attach the Grass Deflector

Refer to "To Attach the Straight Shaft Grass Deflector"

earlier in this manual,.

To Install the Trimmer Head Assembly

See Figure 9_

Follow these steps to install the trimmer head assembly

1. Align the slot in the flanged washer with the slot in

the gear head

2. Insert the head loddng tool through the flanged

washer and gear head,

3. Install die drive shaft and trimmer head assembly

onto the gear shaft by turning the drive shaft coun-

terdockwise (left-handed threads)_

4. Tighten the drive shaft securdyo

Tool -

Figure 7

Gear Head

Brushcutter

Guard

Gear

Flanged

Washer

Blade

Cupped 0_ )

Washer

Blade Nut

Figure 8

Flanged Washer

Trimmer

,Drive Head

_"_ _., Shaft Assembly

Figure 9

14 Assembly

Converting from Trimmer to Brushcutter

Model Nos. 5'1934 & 51940

To convert from the trimmer to the brushcutter, remove

the trimmer head assembly, remove file grass deflector,

attadi the brushcutter guard, and install the blade°

To Remove the Trimmer Head Assembly and Grass

Deflector

See Figm'e 10 and Fig,lre I1,

Follow these steps to remove the trimmer head assembly

a_d grass deflector.

1. Align the slot in the flanged washer with the slot in

the gear head

2. Insert the head locking too! through the flanged

washer and gear head..

3. Remove the drive shaft and trimmer head assembly

by turning the drive shaft doclcwise (left-handed

dlreads).

4, Remove the flanged washer and retain it for the blade

installatiom

Remove the screw securing the grass deflector,.

Remove the grass deflector.

Note: Store the trimmer head assembly parts

together for ict,ture use.

To Attach the Brushcutter Guard

See Figure 1.2.

Note: To protect the operator, always be sure to attad_

the brushcutter guard.

Follow these steps to attach the brushcutter guard,

1. Place the guard onto the gear head as shown

2. Insert the three heo: head screws from the bottom

through the guard into the gear head,

3, Tighten the screws securely and torque to

40-50 inJb

To Install the Blade

See Figure 13

Follow these steps to install the blade.

1. Place flanged washer over the gear shaft with the hol-

low side toward the brushcutter guard

2. Center die blade on the flanged washer, making sure

the blade fits flat and the raised hub goes through die

hole in the blade.

3. InstaLl the cupped washer with the raised center away

from the blade_,

4. Place the blade nut onto the gear shaft.

5. Insert the head loddng toot through the flanged

washer and gear hea&

6. Install die blade nut by turning it counterdockwise

(left-handed threads)

7° Tighten the blade nut and torque to 120 in fb mini-

mum (finger tight plus 1/2 turn)

Gear

Head

Slot

Flanged Washer

Figure 10

Trimmer

Drive Head

\'\_ Shaft

\Assembly

ght 5

Grass Deflector

Figure 11

Gear Head

Brushcutter

Guard

Hex Head

Screw

Figure 12

Brushcutter

Guard

Shaft

Flanged

Washer Blade

Figu re 13

Assembly 15

Operation

Mixing the Fuel

_DANGER:

Gasoline is extremely flammable and explosive.. A

Ifire or explosion from gasoline will burn you and

This product is powered by a 2-cycle engine and requires

pre-mixing gasoline and 2-cycle oil The oi! mix should

be 50: I, using oil that meets or exceeds JASO-FC specifi-

cations.

Follow these steps to mix the fad._

1. Obtain a dean container that is approved for use

with gasoline..

2. Mix the 2-cycle engine oil provided with unleaded

gasoline in the container, according to the instruc-

tions oi1die oil carto,_.

Important: This engine is certified to operate on

unleaded gasoline intended for automotive use with an

octane rating of 87 ([R + M] t2) or higher Do not use

automotive oil or 2-o/de outboard oil Store the con-

tainer out of the reach of children,,

50:1 Gasoline to Oil Mixing Chart

Gasoline Oil

112 US gallon I ,.3oz,

1 US gallon 26 oz.

2 US gallons 5.2 oz..

! liter 20 m!

2 liters 40 ml

3 liters 60 ml

4liters 80 ml

5liters 100 m!

Filling the'lank

_IWARNING:

Always stop the engine before filling the tank.

Never add Bad to amachine with a running or hot

engine, Move at least 30 ft, (9 m) away from the

refading site before starting die engine. Do not

smoke while lilling the tank.

Fol!ow these steps to fill the tank.

1. Clean the surface around the fad cap to prevent con-

tamination_

2, Loosen the fuel cap by turning it counterdoclcwise.

3. Pour the fad mixture carefi.d[y into the tank.

4. Clean mad inspect the gasket_

Note: Replace the fad cap if the gasket is damaged,,

5. Install the fael cap and tighten it by turning it do&-

wise.

_IWARNING:

JCheck for fuel leaks If you find any leaks, correct

6. Wipe spilled fuel from the product..

7. Move at least 30 ft_ (9 m) away before starting die

product

Note: It is normal for the engine to emit smoke dur-

ing use_

16 Operation

_WARNING:

The product may throw objects during

operation, causing injury to the operator or to

bystanders,. Always wear suitable eye protection,

long heaW pants, and boots while operating the

product..

Starting the Product

See Figure 14a, Figure t 4b, and Figure 15.

Starting the product differs depending on whether the

engine is cold or warm, Refer to the label on the air filter

coven,

To Start a Cold Engine

Follow these steps to start a cold engine.,

1. Lay the product on a flat, bare surface.

2. Toggle the switch to the i(ON) position,,

3. Push the primer bulb approximately eight times,,

4. Set the choke lever to A(Choke Closed).,

5. Press the lo&-offbutton and squeeze the trigger.

6,, Pull the starter cord three times..

7. Set the choke lever to B (Choke Open),,

8. Press the lock-off button and squeeze the trigger.,

9. Pull the starter cord

Note: If the product starts, let it run for 30 seconds

before using it., If the product does not start, repeat

the previous steps.

Switch Lock-off

Button

Set Choke to A Set Choke to B

To Start a Warm Engine

Follow these steps to start a warm engine,

Figure 14b

lay the product on a flat, bare surface

Toggle the switdl to the i (ON) position

Push the primer bulb up to eight times

Set the drake lever to B(Choke Open),.

Do not squeeze the trigger_

Pull the starter cord,

Note: If the product does not start, repeat the previ-

Otis steps,

Stopping the Product

See Figure 15

Follow these steps to stop the product,

1. Release r_e trigger,,

2. Toggle the switch to the 0(OFF) position,,

Trigger Primer

Bulb Cord

Figure 14a Figure 15

Operation 17

Operating the Trimmer

Operating the trimmer differs, depending on whether

you are using the curved shaft trimmer or the straight

shaft trimmer,

To Operate the Curved ShaftTrimmer

(Model Nos. 51930 & 51936)

See Figure 16a_

Follow these steps to operate the curved shaft trimmer.

1. Start the trimmer,

2. Hold the trimmer at waist level with your right hand

on the trigger handle and your left hand on the front

handle.

3. Place the product on the right side of your body with

the engine behind and away from your body

4. Trim grass and weeds in a right-to-left motion with

the line paralld to the groun&

Figure 16b

To Advance the Cutting Line

See P_gure l&,

Follow these steps to advance the cutting line_

1. Start die trimmer,

2. 'gap the retaining cap lighdy on the ground while the

motor is running, ']7he line will only advance with

the engine at full throttle. Do not hold the retain-

ing cap on the ground.

Note: ']['he line cutting blade on the grass deflector wi!!

cut tile line to the proper length,

Note: 'To help prcwent line tangle, tap only once to

lengthen the line. If additional line is required, wait a few

seconds before retapping the retaining cap, Do not allow

the line to wear too short. Keep the cutting line at flail

length,.

Figure 16a

To Operate the Straight ShaftTrimmer

(Model Nos. 51932 & 5t938)

See Ft_we 16b,

Follow these steps to operate the straight shaft trimmer

1. Start tim trimmer,

2. Hold the trimmer at waist level with your right !aand

on the trigger handle and your left hand on the front

handle,

3. Place the product on the right side of your body with

the engine behind and away from your body°

4. Trim grass and weeds in a left-to-right motion with

the line paralld to the ground_

RetaininCcap ,_

Figure 16c

,_,IU_J,lUU,UllU,,Ut J,

18 Operation

Operating the Brushcutter

(Model Nos. 51934 & 51940)

See Figure ] 7.

Follow these steps to operate the brushcutter,

1. Start thebrushcutter,

Z Hold the brushcutter at waist level with your right

hand (arm extended) on the trigger handle and your

left hand on die front handle_

3. Place die product on the right side of your body with

the engine behind and away from your body

4. Brushcut weeds and vines in a right-to-left motion

with the blade paralld to die ground

Figure 17

Maintenance

Emissions Maintenance Schedule

Maintenance, replacement, or repair of the emission control device and systems may be performed by any non-

road engine repair establishment or individual.

Fuel Tank Assembly (Indudes

Fuel Lines, Fuel Cap, and Fuel

Filter)

Air Filter

Spark Airester

Spark Plug

|L I ..... ,,I ,,I,UL .l|J, ILL,,I , I, , I

AWARNING:

When replacing pa_s other than engine or

emissions parts, Use only Toro replacement parts

Use of any or_herparts may create a hazard or cause

produc_ damage_

Cleaning the Product

I_ Stop the product before deaning

llt Clean the exterior of the product with a damp cloth._

Et Avoid using solvents when cleaning plastic parts..

Most plastics are susceptible to dasnage from various

t_3es of commercial solvents and may be damaged by

their use,

! Wipe or scrape the trimmer head and spool area

when they accumulate dirt or clippings,.

El Scrape debris away from air intake vents on both

sides of the motor housing°

ACAUTION:

Keeping air intake vents five of grass and debris

prevents motor ovethcating and possible faiture_

Note: Depending on the type offiael used, the type

and amount droll used, and/or your operating con-

ditions, the exhaust port and mtLffier may become

blocked with carbon deposits. If you notice a power

loss with your gas powered tool, you may need to

remove d]ese deposits to restore performance We

highly recommended that only qualified service tedl-

nicians perform this sen,ice..

Replacing the Cutting Line

See t:'ig_tre18 and F,_re 1.9.

AWARNING: J

I Use oftine other than the proper monofilament |

Follow these steps to replace the cutting line_

1. Stop the trimmer

Servicing the Product

ml Che& and tighten a]! fksteners_ If any part is

damaged or lost, repair it or replace it

AWARNING:

Make sure the trimmer head stops rotating

Contact with a rotating trimmer head could cause

personal injury_

2. Remove the spark plug boot,. 5;_eFig_¢re22

3. Remove dxe retaining cap.,

4. Remove the empty spool

5. Clean the trimmer head thoroughly. Inspect the

trimmer head for any damaged or worn parts.

6. Hold the spool with the spring positioned upward

7. Insert the end of the new line into the hole in tile

upper threaded area of the spool

8. Wind the line around the spool as indicated by the

arrows on die top of the spool until the line readies

the edge of the spool. Do not wind the line beyond

the edge of the inner ring.

9. Secure the line temporarily by pushing it into one of

the slotted tabs on the spool,,

10. Measure six inches of line from the slotted tab and

cut the line at that point_

20 Maintenance

1t. Repeat the process for the lower threaded area of the

spool, winding the line and securing it in die slotted

tab opposite the first secured line

12. Insert the lines into the eyelets on the trimmer head,,

13. Place the spool on the drive shafx.,

Note: To install the spool, you may need to rotate it

slightly, if the line should tangle or break at the eye-

let, remove the spool, refeed the line through the eye-

lets, and reassemble the spool on the trimmer

14. Release die lines from the tabs by sharply pulling

each line,

18. Push down on the spool to reveal the threads inside

the drive shaiCc°

16, Thread the retaining cap on the drive shaft.

17, Secure the retaining cap

_WARNING:

An improperly installed retaining cap or spool

could fly off the trimmer,, Contact with a thrown

retaining cap or spook could cause personal injury,

18. Replace the spark plug boot., &e Figure 22

Inner Ring

Upper

Threaded Area

Lower

Threaded Area

Slotted

Tab

Figure 18

Replacing the Spool

See Figure 19_

Note." For best performance, use only Toro spools (Part

No., 88046), The spool may wear during normal use of

the line advance feature and may require occasional

replacement. Replacement spools are available through

your Toro retailer`,

Follow these steps to replace die spool.

1, Stop the trimmer,

_WARNING:

Make sure die trimmer head stops rotating when

you release the trigger., Contact with a rotating

trimmer head could cause personal injury,

2. Remove the spark plug hoot ,SeeFigtwe .22,

3. Remove the retaining cap by turning as indicated by

the arrow on the cap.

4. Remove the empty spool.,

5. Clean die trimmer head thoroughly, Inspect the

trimmer head for any damaged or worn parts

6. Remove the lines from die slotted tabs on the spool

and unwind approximatdy six inches,

7o Secure the lines temporarily by pushing them into

the slotted tabs on the spool

8. Insert the lines of the new spool into the eyelets on

the trimmer head,

10.

Place the spool on the drive shaft_

Note: To install the spool, you may need to rotate it

slightly

Note: lfthe line should tangle or break at the c3,det,

remove the spool, refeed daeline through the eyelets,

and reassemble the spool on the trimmer,

Release the lines from the tabs by sharply pulling

each line.

1I. Push down on the spool to reveal die drive shaft.

!2. Thread the retaining cap on the drive shaft,

13. Secure the retaining cap,

14. Replace the spark plug boot, See Figure 22,

Drive Trimmer

Shaft Head

Retaining

Cap

Tab Spool

Figure 19

Maintenance 21

Checking the Fuel Cap

_tWARNING:

A tealdng fuel cap is a fire hazard and must be

replaced irnmediatdy.

The fuel cap contains a non-serviceable filter and check

valve_ A dogged fuel filter causes poor engine perfor-

mance. If performance improves when the fuel cap is

loosened, the check valve may be faulty or the filter may

be dogged.. Replace the fuel cap if necessary.

Cleaning the Air Filter

See Fig_are20 and E_gure22

Clean the air filter as indicated by die maintenance

schedule_

Follow these steps to dean the air filter,,

1. Stop the trimmer,,

_WARNING:

Make sure the trimmer head stops rotating when

you release the trigger. Contact with a rotating

trimmer head could cause personal injury_

20 Remove the spark plug boot.

3. Loosen die air filter cover by turning the knob coun-

terdockwise_

4. Remove the air filter cover,

5. Remove the air filter,

6. Clean the air filter with warm soapy water..

7. Rinse the air filter and let it dry completely_

8. Work two drops ofoil into the air filter

9o Replace the air filter (fits only one way).

10. Replace the air filter cover

11. Tighten the air filter covet' by turning the knob

dodtwise.

12. Replace the spark plug boot.

Note: Replace the air filter (Part No 88048) as indi-

cated by the maintenance schedule_

Air

Filter

Cover i

Knob

Cleaning the Spark Arrester

See F_gure21

Follow these steps to dean the spark arrester_

Figure 20

1. Locate the spark arrester through the hole on the

muffler-side engine cover,

2, Remove die spark arrester by pulling it out with nee-

die-nosed ptiers_

3. Clean the spark arrester with a small wire brush,_

4. Replace the spark a_rrester.

Spark

Arrester

Figure 21

22 Maintenance

Replacing the Spark Plug

See Figure 22

Model Nos.. 51930, 51932, &51934 use a NGK

BPMR7A or Champion RCJ-6Y spark piugo

Model Nos.. 51930A, 51932A, 5t934A, 51936, 519.38,

&51940 use a NGK CMR7A spark plug.. Use an exact

replacement and replace annually.

Follow these steps to replace the spark plug._

1. Remove the spark plug boot

2. Loosen the spark plug by turning it counterclockwise

with a socket.,

3. Remove the spark plug,

4, Hand thread the new spark plug, turning it dock-

wise.,

5. For Modal Nos.. 51930, 51932: Tighten with a

socket and torque to 170 in,.lb, minimum, I90 in lb,.

maximum,. Do not over tighten.

6. For Modal Nos. 51930A, 5193ZA, 51934A, 51936,

51938, & 51940: Tighten with a sodcet and torque

to 87 in.lb, minimum, I04 inolbmmaximum_ Do not

over tighten.

&CAUTION:

I Be careful not to cross-thread the spark plug,. Cross-

Spark Plug Boot

Spark

Plug

Storing the Product

Storing the product differs depending on the amount of

time it will be in storage

Note: If die product includes another attachment, place

the storage cap on the end of the attadnnent shaft and

hang it up to store.

To Store the Product Short Term

Follow these steps to store the product short term

1. Clean ,allforeign material from the product,

2. Store the product in a well-ventilated place that is

inaccessible to &ildren,.

To Store the Product Long Term

if you do not intend to use the product for more than

one month, followthe storage procedures bdow,,

Follow these steps to store die product long term,

1. Drain all of die fud from die tank into a container

approved for gasoline,

2, Run the engine tmtil it stops

3. Clean all foreign material from the product,

4. Store the product in a wall-ventilated place that is

inaccessible to dlildren,

Nolo: Keep the product away from corrosive agents

such as garden diemicals and de-icing salts,

Important: Abide by al! federal and local regula-

tions for the safe storage and handling of gasoline,

Transporting the Product

Follow these steps to transport the product,,

1, Drain the furl mixture into a container that is

approved for use with gasoline,

2. Carry the product by die front handle,

3. Secure the product in your vehicle or on a trailer.,

Figure 22

Maintenance 23

Troubleshooting

Problem Possible Cause Solution

Engine will not start 1,. Switch set to the 0(OFF)

position.

2 No spark

3. No fuel

4. Flooded engine

5_ Starter cord pulls harder now

then when new

I. Set switch to the I(ON) position.

2.. Remove tile spark plug.. Reattach the spark

plug cap and lay the spark plug on the metal

cylinder Pull the starter cord and watch for a

spark at the spark plug tip..If there is no spark,

repeat the test with a new spark plug.

3. Push primer bulb until the bulb is full of fuel..

If the bulb does not fill, the primary fuel

delivery system is blocked.. If the primer bulb

fills, the engine may be flooded. (See next

item..)

4 Remove the spark plug.. ']?urn the product so

that the spark plug hole is aimed at the

ground. Make sure the choke lever is set to B

and puli file starter cord 10 to t4 times.. This

dears excess fuel from the engine_ Clean and

reinstall the spark plug. With the trigger fully

depressed, pul! the starter cord 3 times,. If the

engine does nor start, set the choke lever to A

and follow normal starting instructions. If the

engine still fails to start, repeat the procedure

with a new spark plug.

5.. Contact an authorized service dealer_

Engine does not reach flail speed

and emits excessive smoke

using automatic line lengthen-

ing

Line will not advance when t, Line welded to itself

2_ Not enough line on the

spool

3. Line worn too short

4. Line tangled on spool

5. Engine speed too slow

Retaining cap hard to turn when

using automatic line lengthen-

ing

Grass wraps around the trimmer

head assembly and the attach-

ment shaft

Oil drips from muffler

t. Check oil furl mixture

2, Mr filter is dirty

3, Spark arrestor screen is dirty

Screw threads are dirty or dam-

aged

1,, Use flesh fuel and the correct 2-cycle oil mix,.

2, Clean the air filter,

3 Clean the spark arrester,.

1,, Lubricate with silicone spray,

2 Install more line

3_ Pul! line while alternately pressing down on

and releasing the retaining cap.,

4. Remove line from spool and rewind,,

5,_Advance line at fi.dt throtde,.

Clean the threads and lubricate with grease.. If

this does not solve the problem, replace the

retaining cap.

1_ Cutting tall grass at ground

level

2,, Operating the product at

part throttle

I, Operating the product at

pa*x throrde

2. Check olltfuel mixture

3_ Air filter is dirty

I_ Cut tall grass from the top down°

2., Operate the product at flailthrottle,

I_ Operate the product at flail throttle.

2. Use flesh fuel and the correct 2-cycle oil mix_

3. Clean the air filter.

ii iii iii iiiiii i i i iiiii ii i i iii iiii i i ii iii iiiiiiiill/l/llllllll,l,l/lllJiiill/iJllllJiiii

24 Troubleshooting

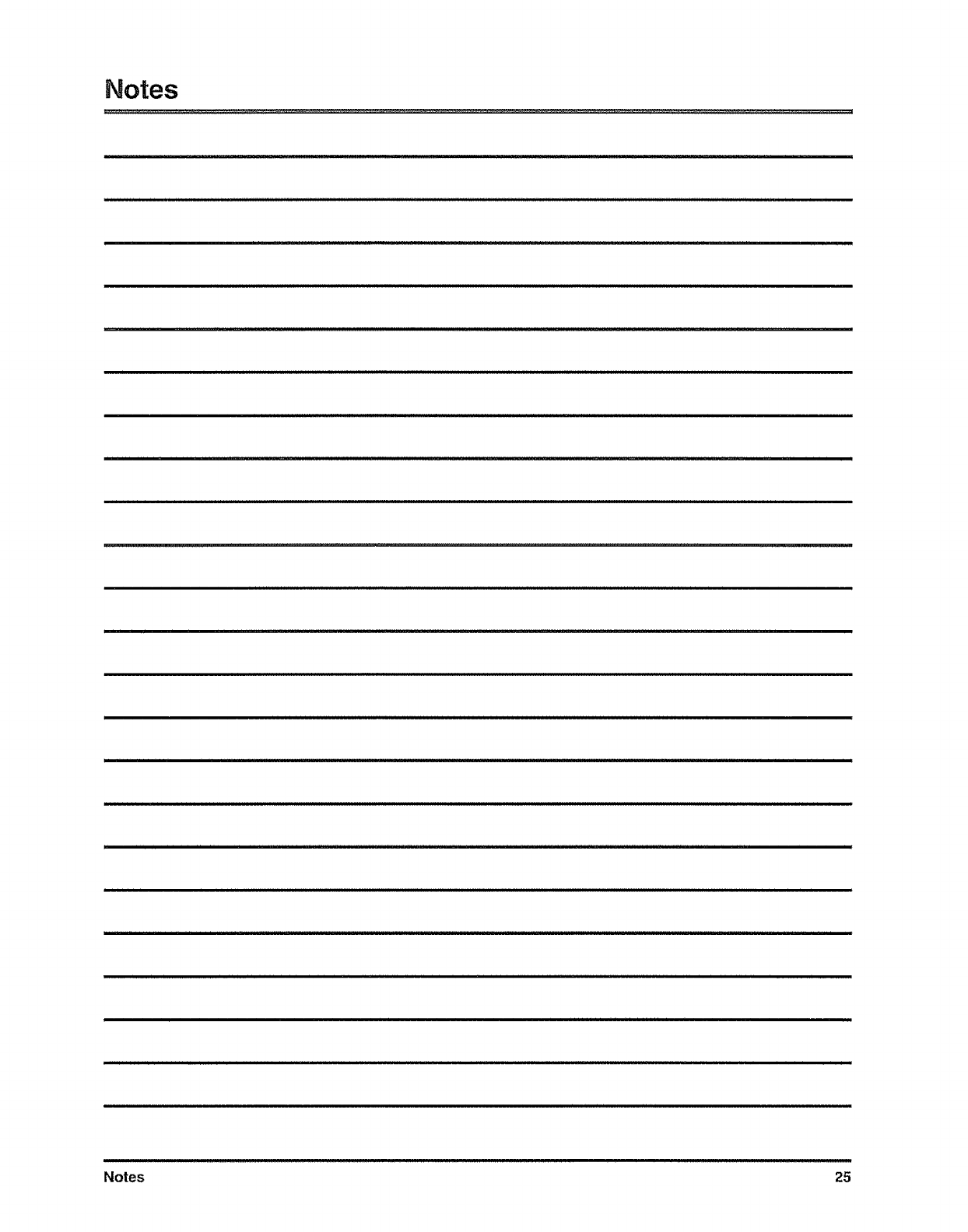

Notes

Notes 25

Warranty

OWT Industries, inc.

Gas Trimmer Products

Limited Warranty

COWT INDUS_fRIES, INC. warrants to the original retai! purchaser that this Gas fi'immer Product is flee from defects in material

,and worl_manship and agrees to repair or replace, at out' option, any defective Product free ofcharge within these time periods from

the date of purchase:

[] Two years for Gas Trimmer Products, if the Product is used for personal, family, or household use;

[] 90 days, if Gas Trimmer Products are used for any other purpose, such as commercial or rentals.

[] Two years for' emissions contro! systems on Gas Trimmer Products used for any purpose, as provided bdow.

Except as provided in the Emission Control Warranty Statement, this warranty extends to the original retail purchaser only and

commences on the date of'original retai! purchase

Instructions for' Obtaining Warranty Service

Any part of the Product manufactured or supplied by OWf Industries, Inc.. and found in the reasonable judgement of OWT,

Industries, Inc. to be defective in material or workmanship will be repaired or replaced by an authorized service dearer for this prod-

uct without charge for parts and labor, Fo locate your nearest authorized service dealer for this product, contact us at Foil free 1-

866-574-9242 US ,andToi[ free 1-866-574-9243 Canada

"Fhe Product induding ,any defective part must be returned to an Authorized Service Dealer for this product within the warranty

period The expense ofddivering the Gas Trimmer Product to the service dealer for warranty work and the expense ofreturning it

back to _e owner after repair or replacement will be paid for by the owner.. OWT' Industries.. Inc.'s responsibility in respect m

claims is limited to maldng the required repairs or replacements and no claim ofbreach of warranty shall be cause for cancellation

or rescission of the contract of sale of any Product. Proof of purchase will be required by the dealer to substantiate any warranty

claim.. All w_ranty work must be performed by a service de£er authorized by OWY Industries, Inc.. to service this product.

1"his warranty does not cover any GasTrimmer Product that has been subject to misuse, neglect, negligence, or accident, or that has

been operated in any way contrary to the operating instructions as specified in the Operator's Manual.. l'his warranty does not

apply to any d_age to the Gas Trimmer Product that is the result of improper maintenance or to any Gas "Frimmer Product that

has been altered or modified so as to adversely affect the products operation, performance or durability or that has been altered or

modified so as to change its intended use The warranty does not extend to repairs made necessary by normal wear or by the use of

parts or accessories which are either incompatible with the Gas Trimmer Product or adversely affect its operation, performance or

durability..

In addition, this warranty does not cover the following (except to the extent covered by the emissions control warranty set forth

below):

ATune-ups - Spark Plugs, Carburetor Adjustments, Filters

B..Wear Items - Bump Knobs, Outer Spools, Cutting Line, Inner Reels, Starter

Pulley, Starter Ropes, Drive Belts

OxY4TIndustries, Inc. reserves the righ_ to change or improve the design of any Gas Trimmer Product without assuming any obliga-

tion to modify ,any product previously manufactured..

ALL IMPLIED WARRANTIES APE LIMH'ED IN DUREI'ION 1"O THE SI-_:I'ED WARRANTY PERIOD ACCORD-

INGLY, ANY SUCH IMPLIED WARRANTIES INCLUDING MERCHANTABILITY, FITNESS FOR A PARHCULAR

PURPOSE, OR OTHERWISE, ARE DISCLAIMED IN ']'HEIR ENTIRE FY AFFER][HE EXPIREHON OF THE APPRO-

PRIKFE TWO-YEAR OR NINETY DAYW_I'Y PERIOD.. OWT INDUSTRIES INC..'S OBLIGEFION UNDER

['HIS WAILP_NI-Y tS STRICTLY AND F-XCLUSIVELY LtMI YED TO THE REPAIR OR REPLACEMENT OF DEFEC-

TIVE PARI-S AND OWT DOES NOT ASSUME OR AUTHORIZE ANYONE TO ASSUME FOR _HEM ANY O'1-HER

OBLtGEFtON SOME STEI-ES DO NOT ALLOW LIMITAHONS ON HOW LONG AN IMPLIED WM_RANTY LASTS,

SO THE ABOVE LIMIT_iHON MAY NOT APPLY _O YOU..

OWT INDUSTRIES INC ASSUMES NO RESPONSIBILITY FOR INCIDEN_fAL, CONSEQUENTIAL OR OTHER

DAMAGES INCLUDING, BUF NOT LIMI'I-ED i-O EXPENSE OF RETURNING THE GAS TRIMMER PRODUCI" TO

A GAS TRIMMER AUI-HORIZED SERVICE DEALER AND EXPENSE OF DELIVERING IT BACK TO I-HE OWNER,

MECHANIC'S !"RAVEL TIME, TELEPHONE OR'TELEGRAM CHARGES, RENI_AL OF A LIKE PRODUCT DURING

THE TIME WARIZANTY SERVICE IS BEING PERFORMED, TRAVEL, LOSS OR DAMAGE TO PERSONAL PROPERI_Y,

LOSS OF REVENUE, LOSS OF USE OFTHE PRODUCT, LOSS OF TIME, OR INCONVENIENCE SOME STA[FES DO

NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENHAL DAMAGES, SO THE

ABOVE LIMI IEI-ION OR EXCLUSION MAY NOI- APPLY'I-O YOU.

This warranty gives you specific legal rights, and you may also have other rights, which vary, from state to state..

+l'hisproduct is manufactured under license from The Toro Company by OWl" Industries, tnc.

26 Warranty

FEDERAL AND CALIFORNIA EMISSION CONTROL WARRANTY STATEMENT

YOUR WARRANTY RIGHTS AND OBLIGATIONS

OWl _industries, Inc,,specificallywarrants the emissions control systemof this Gas Trimmer Product in accordance with the Cali-

fornia and Federallegal requirements described below:

OXY¢TIndustries, Inc. warrants to the original retail pur&asers and subsequent purchasers that file nonroad engine

included with this product has been designed, built and equipped, at the time of sale, to comply with applicable EPA

regulations, and that the engine is free from defects in material and workananship dial would cause it to fail to conform

with the applicable regulations for its warr_ty period.

The following C_RB statement only applies to model numbers 5t 936, 5 I938, and 5t 940.

The California Mr Resources Board (CARB), and OWT Industries, Inc. are pleased to explain the Emission Control

System Warranty on your nonroad or small off-road engine.. In California, new small off-road engines must be

designed, built and equipped to meet the state's stringent anti-smog standards. OWT Industries, Inc,. must (and

does) warrant the emission control wstem on your nonroad or small off-road engine for the period of time listed

above provided there has been no abuse, neglect, or improper maintenance of your nonroad or small off-road engine,

Your emission control system may indude parts sud] as the carburetor or fud injection system, the ignition system,

the catalytic converter Also induded may be hoses, brits, and connectors and other emission rdated assemblles..

Where a warrantable condition exists, OWT Industries, Inc._will repair your nonroad or small off-road engine at no

cost to you, induding diagnosis (if the diagnostic work is performed at an audlorized dealer), parts, and labor,.

Manufacturer's Warranty Coverage

The 1995 and later small off-roadengines are warranted for two years in California from original date ofpurch_e., lf'_y emis-

sion-related part on your engine is defective, the part wilt be repaired or replaced by OWl" Industries, Inc. free of charge,.

Owner's Warranty Responsibilities

As the non-road or small off-road engine owner,you are responsible for the performance of the required maintenance listed in

your owner's manual., OWT Industries, tnc. recommends thar you retain al! receipts covering maintenance on your non-road or

small off-road engine, but OWT Industries, Inc. cannot deny warranty solely for the lack of receiptsor for your £titure to ensure

the performance of'allscheduled maintenance,

Asthe non-road or small off-road engine owner, you should however,be aware that OWT Industries, Inc. may deny you warranty

coverage if your non-road or small off-road engine or a part hasfaild due to abuse, neglect, improper maintenance or unapproved

modifications..

You areresponsible for presenting your nonroad or small off-road engine to an OWT Industries, Inc distribution center or autho-

rized service center as soon a.s a problem eo:ists..The warranty repairs should be completed in a reasonable amount of time, not to

exceed 30 days,.

If you have any questions regarding your warranty rights and responsibilities, you should contact an OWI Industries, Inc.., Cus-

tomer Representative at 1-866-574-9242 (US) or 1-866-574-9243 (Canada)

Emisslon-related warrlmted parts for this product include: Carburetor, Spark Plug, Ignition, .Air Filter and Fuel Filter..

Maintenance Reqirements

The owner is responsible for the performance of the required m,'fintenanee as defined by OWT Industries, Inc in the owner's man-

ual°

Limitations

The Emission Control Systems Warrant 3,sh£1 not cover any of the following:

(a) repair or replacement required because of misuse or negtect, Iack of required maintenance, repairs improperly performed or

replacements not conforming to O\VT Industries, Inc specifications that adversely affect performance and/or durability, and

alterations or modifications not recommended or approved in writing by OWT Industries, Inc.., "rod

(b) replacement of parts and other services and adjustments necessary for required maintenance at and after the first scheduled

replacement point.

The IS:misslons Compliance Period referred to on the Emissions Compliance label indicates the number of' operating hours for

which the engine has been shown to meet Federal emission requirements, Category C= 50 hours, B=!25 hours, ,and A=300 hours._

Customer Service Information

If your product requires service or maintenance, contact your nearest authorized ser-

vice dealer, To locate your nearest authorized service dealer for this product, contact us toll

flee at 1-866-574-9242 (US) or 1-866-574-9243 (Canada),,

OWT industries, Inc.

RO,. Box 35

Highway 8

Pickens, SC 29671

USA

983000-115

Toro 51940 User Manual BRUSHCUTTER Manuals And Guides L0906064

TORO Brush Cutter Manual L0906064 TORO Brush Cutter Owner's Manual, TORO Brush Cutter installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
