Unique User Manual

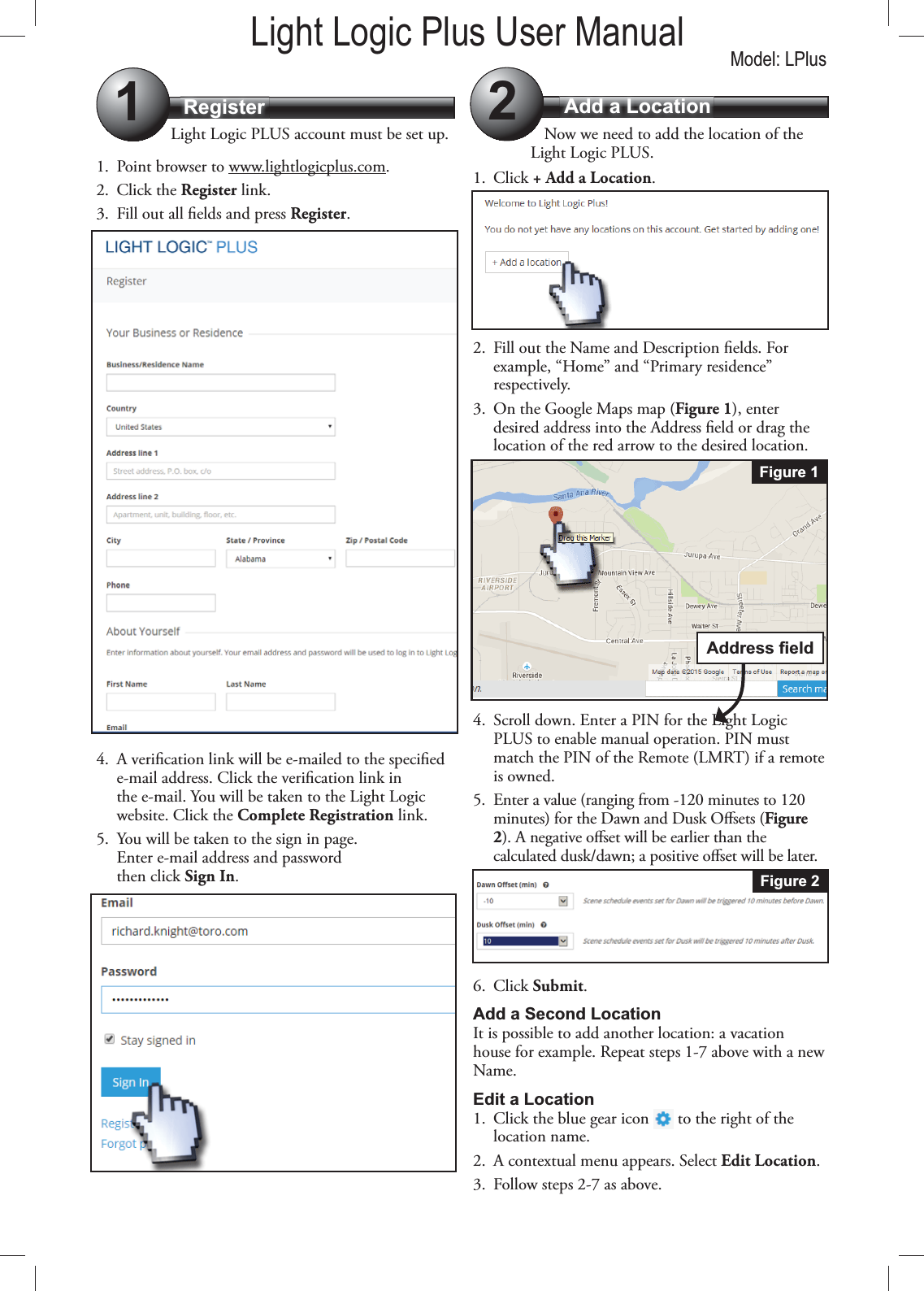

Register Add a Location12Light Logic PLUS account must be set up.1. Point browser to www.lightlogicplus.com. 2. Click the Register link.3. Fill out all elds and press Register.4. A verication link will be e-mailed to the specied e-mail address. Click the verication link in the e-mail. You will be taken to the Light Logic website. Click the Complete Registration link.5. You will be taken to the sign in page. Enter e-mail address and password then click Sign In.Now we need to add the location of the Light Logic PLUS.1. Click + Add a Location.2. Fill out the Name and Description elds. For example, “Home” and “Primary residence” respectively.3. On the Google Maps map (Figure 1), enter desired address into the Address eld or drag the location of the red arrow to the desired location.4. Scroll down. Enter a PIN for the Light Logic PLUS to enable manual operation. PIN must match the PIN of the Remote (LMRT) if a remote is owned.5. Enter a value (ranging from -120 minutes to 120 minutes) for the Dawn and Dusk Osets (Figure 2). A negative oset will be earlier than the calculated dusk/dawn; a positive oset will be later. 6. Click Submit.Add a Second LocationIt is possible to add another location: a vacation house for example. Repeat steps 1-7 above with a new Name.Edit a Location1. Click the blue gear icon to the right of the location name.2. A contextual menu appears. Select Edit Location.3. Follow steps 2-7 as above.Figure 1Figure 2Light Logic Plus User Manual Model: LPlus

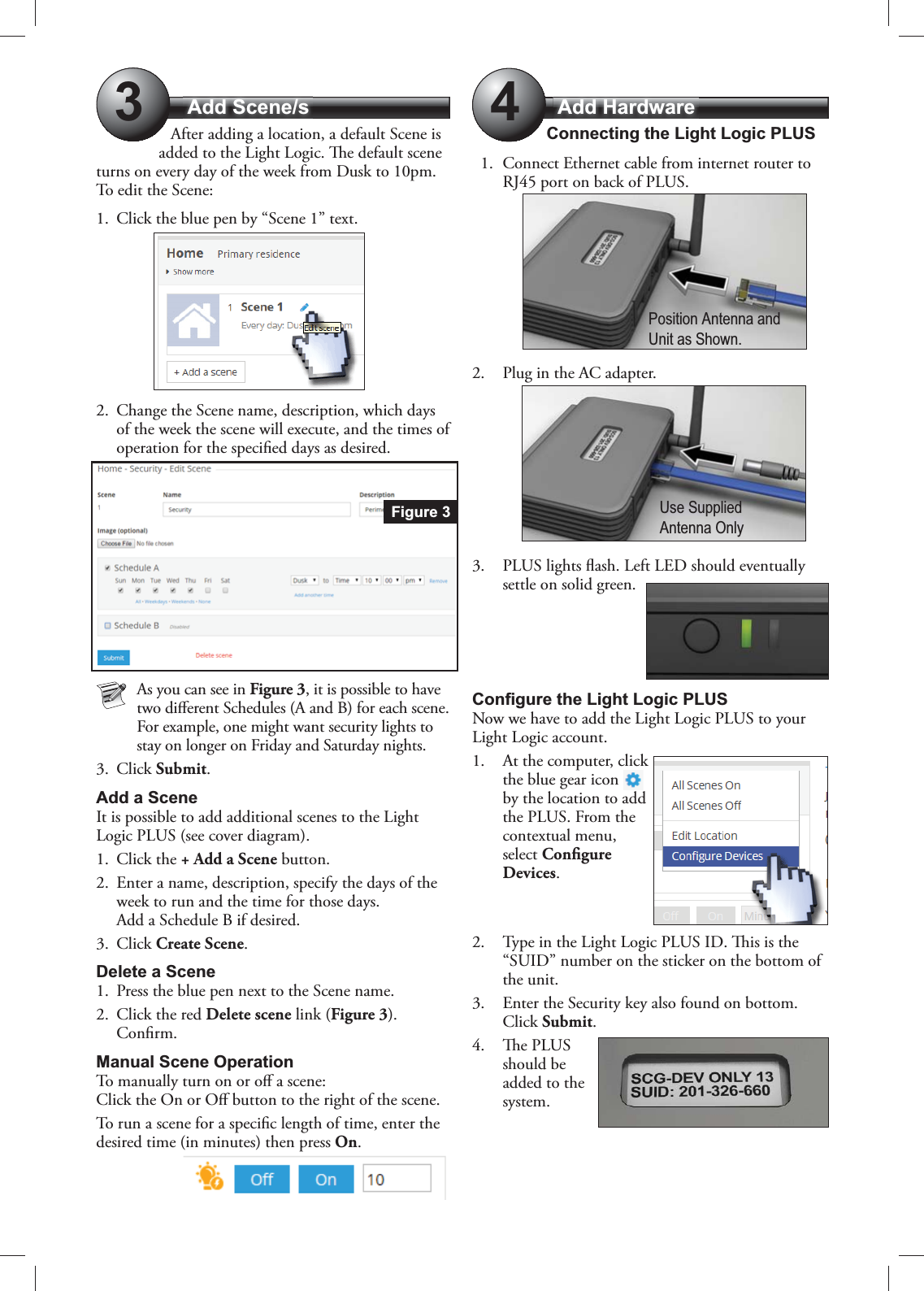

Add Scene/s Add Hardware34After adding a location, a default Scene is added to the Light Logic. e default scene turns on every day of the week from Dusk to 10pm. To edit the Scene: 1. Click the blue pen by “Scene 1” text. 2. Change the Scene name, description, which days of the week the scene will execute, and the times of operation for the specied days as desired. As you can see in Figure 3, it is possible to have two dierent Schedules (A and B) for each scene. For example, one might want security lights to stay on longer on Friday and Saturday nights. 3. Click Submit.Add a SceneIt is possible to add additional scenes to the Light Logic PLUS (see cover diagram).1. Click the + Add a Scene button.2. Enter a name, description, specify the days of the week to run and the time for those days. Add a Schedule B if desired.3. Click Create Scene.1. Press the blue pen next to the Scene name.2. Click the red Delete scene link (Figure 3). Conrm.To manually turn on or o a scene: Click the On or O button to the right of the scene.To run a scene for a specic length of time, enter the desired time (in minutes) then press On.Connecting the Light Logic PLUS1. Connect Ethernet cable from internet router to RJ45 port on back of PLUS.2. Plug in the AC adapter.3. PLUS lights ash. Left LED should eventually settle on solid green.Now we have to add the Light Logic PLUS to your Light Logic account.1. At the computer, click the blue gear icon by the location to add the PLUS. From the contextual menu, select Congure Devices.2. Type in the Light Logic PLUS ID. is is the “SUID” number on the sticker on the bottom of the unit.3. Enter the Security key also found on bottom. Click Submit.4. e PLUS should be added to the system.Figure 3Position Antenna and Unit as Shown.Use Supplied Antenna Only

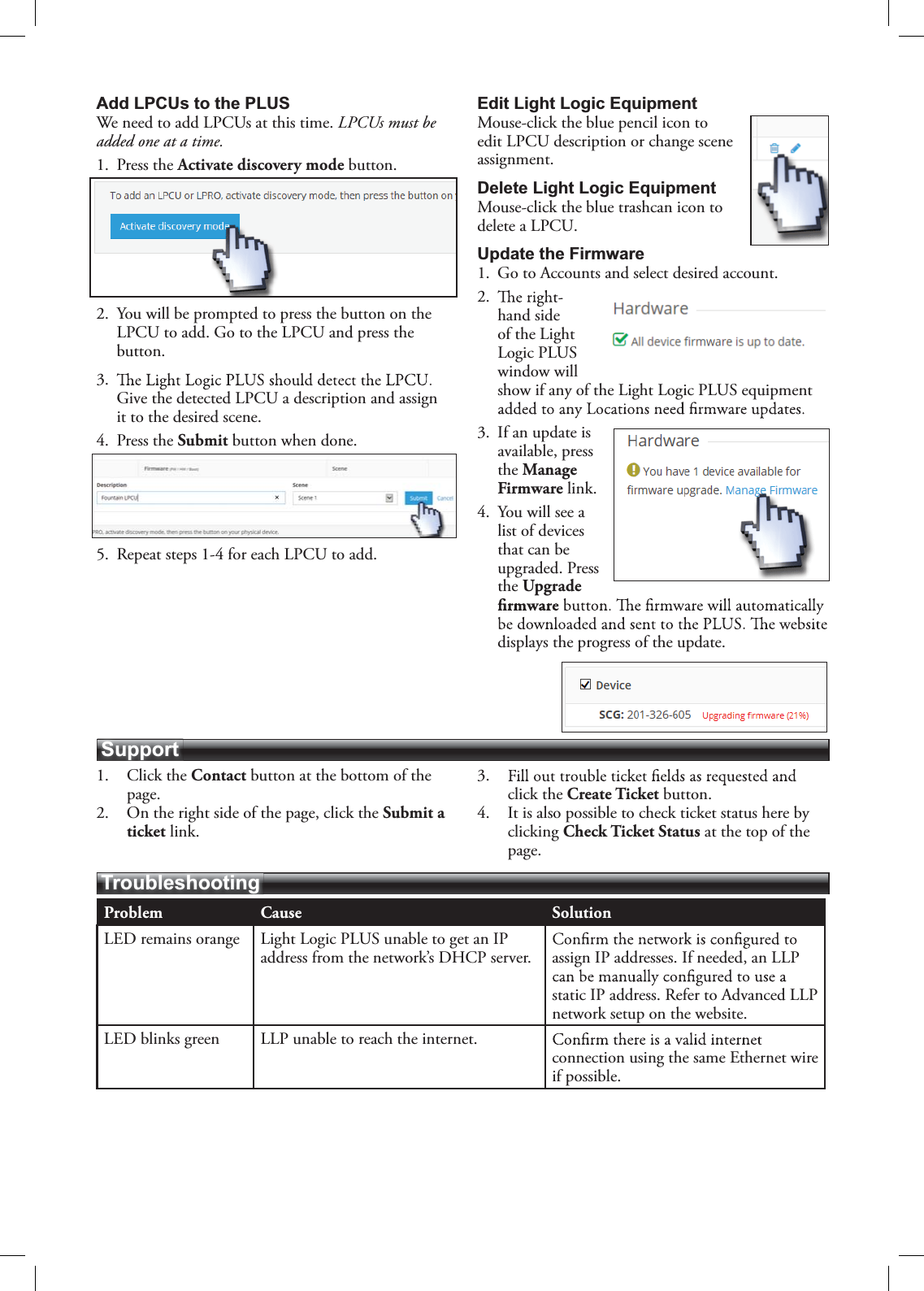

Problem Cause SolutionLED remains orange Light Logic PLUS unable to get an IP address from the network’s DHCP server. assign IP addresses. If needed, an LLP static IP address. Refer to Advanced LLP network setup on the website.LED blinks green LLP unable to reach the internet.connection using the same Ethernet wire if possible.TroubleshootingSupportAdd LPCUs to the PLUSWe need to add LPCUs at this time. LPCUs must be added one at a time.1. Press the Activate discovery mode button.2. You will be prompted to press the button on the LPCU to add. Go to the LPCU and press the button.3.Give the detected LPCU a description and assign it to the desired scene.4. Press the Submit button when done.5. Repeat steps 1-4 for each LPCU to add.Edit Light Logic EquipmentMouse-click the blue pencil icon to edit LPCU description or change scene assignment.Delete Light Logic Equipment Mouse-click the blue trashcan icon to delete a LPCU.Update the Firmware1. Go to Accounts and select desired account.2.hand side of the Light Logic PLUS window will show if any of the Light Logic PLUS equipment 3. If an update is available, press the Manage Firmware link.4. You will see a list of devices that can be upgraded. Press the Upgrade displays the progress of the update.1. Click the Contact button at the bottom of the page.2. On the right side of the page, click the Submit a ticket link.3.click the Create Ticket button.4. It is also possible to check ticket status here by clicking Check Ticket Status at the top of the page.

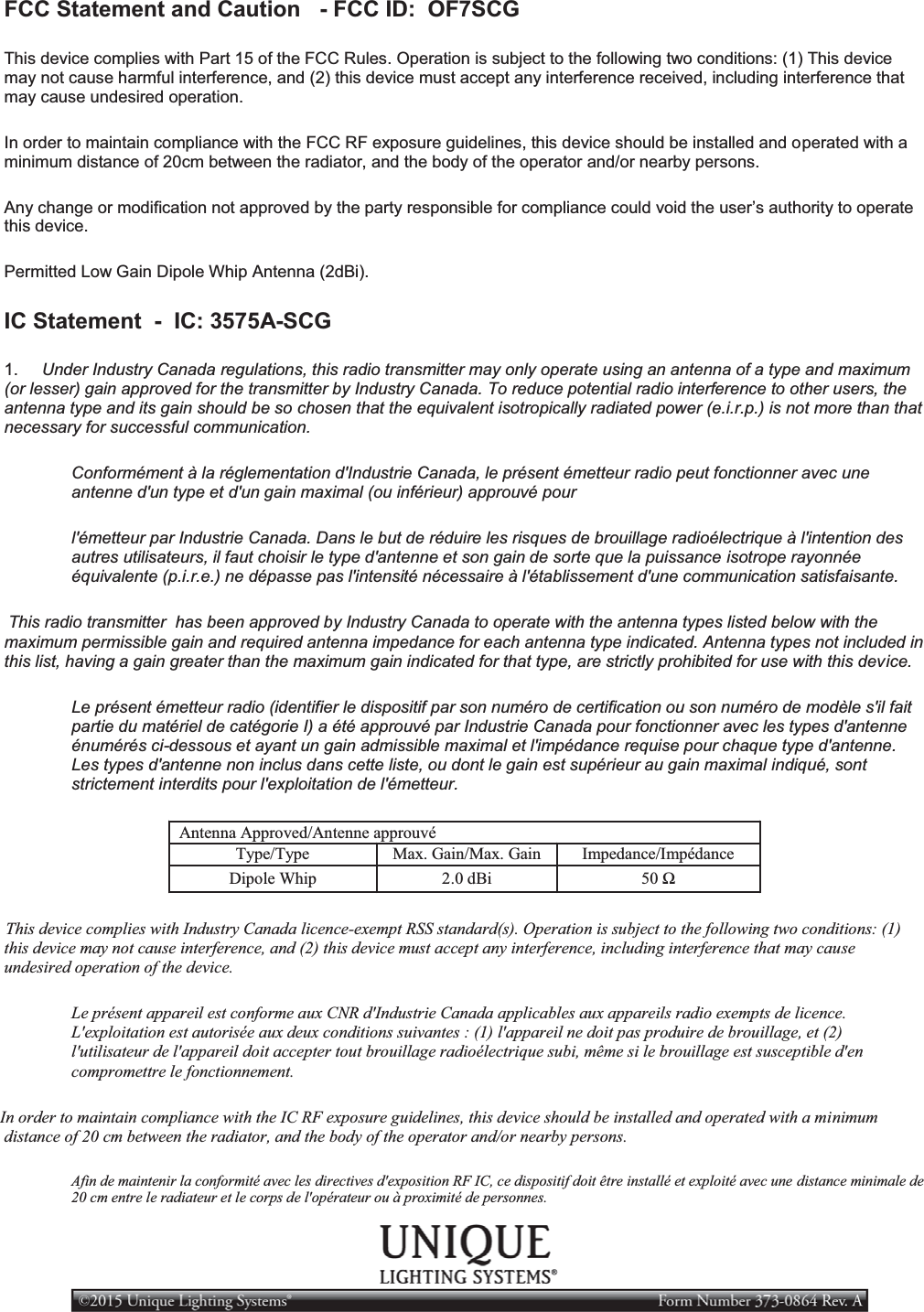

FCC Statement and Caution - FCC ID: OF7SCG This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. In order to maintain compliance with the FCC RF exposure guidelines, this device should be installed and operated with a minimum distance of 20cm between the radiator, and the body of the operator and/or nearby persons. Any change or modification not approved by the party responsible for compliance could void the user’s authority to operate this device. Permitted Low Gain Dipole Whip Antenna (2dBi). IC Statement - IC: 3575A-SCG 1. Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication. Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à l'intention des autres utilisateurs, il faut choisir le type d'antenne et son gain de sorte que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l'intensité nécessaire à l'établissement d'une communication satisfaisante. This radio transmitter has been approved by Industry Canada to operate with the antenna types listed below with the maximum permissible gain and required antenna impedance for each antenna type indicated. Antenna types not included in this list, having a gain greater than the maximum gain indicated for that type, are strictly prohibited for use with this device. Le présent émetteur radio (identifier le dispositif par son numéro de certification ou son numéro de modèle s'il fait partie du matériel de catégorie I) a été approuvé par Industrie Canada pour fonctionner avec les types d'antenne énumérés ci-dessous et ayant un gain admissible maximal et l'impédance requise pour chaque type d'antenne. Les types d'antenne non inclus dans cette liste, ou dont le gain est supérieur au gain maximal indiqué, sont strictement interdits pour l'exploitation de l'émetteur. Antenna Approved/Antenne approuvé Type/Type Max. Gain/Max. Gain Impedance/Impédance Dipole Whip 2.0 dBi 50 Ω This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. In order to maintain compliance with the IC RF exposure guidelines, this device should be installed and operated with a minimum distance of 20 cm between the radiator, and the body of the operator and/or nearby persons. Afin de maintenir la conformité avec les directives d'exposition RF IC, ce dispositif doit être installé et exploité avec une distance minimale de 20 cm entre le radiateur et le corps de l'opérateur ou à proximité de personnes.
