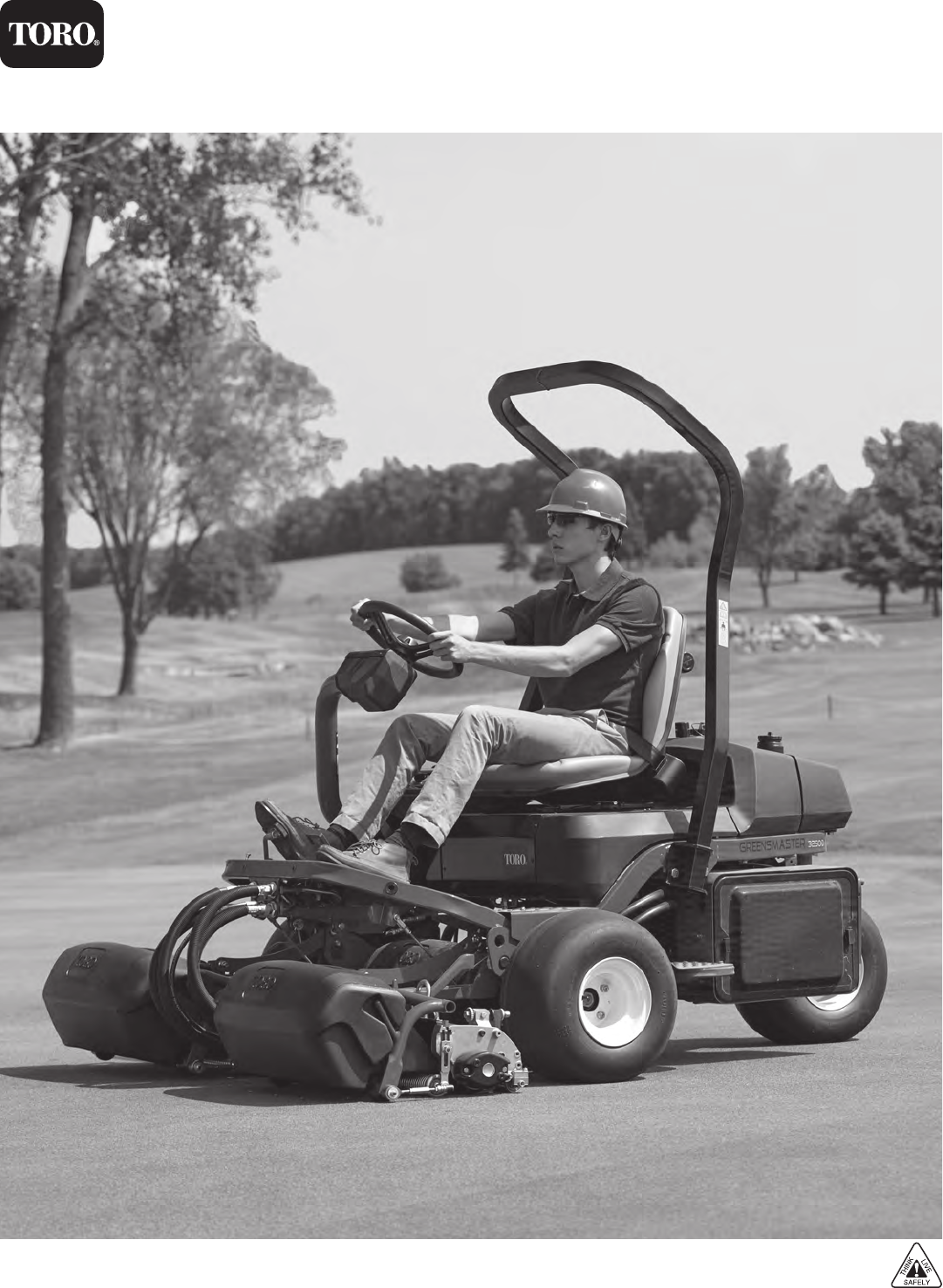

Greensmaster® 3250-D

Unmatched diesel power, innovative design and a lighter footprint make this the ideal greensmower for greens and

surrounding areas.

53

2015 Toro Commercial Equipment Guide 15-003-T Rev. 2/15

GREENSMASTER 3250-D, MODEL 04384

ENGINE

Kubota® 902 tier 4i, 3-cylinder liquid-cooled diesel engine. 55.0 cu. in. (902 cc). Full pressure lubrication, oil filter. 24.8 hp (18.5 kW) @ 3600 rpm. Engine governed

to 2760 rpm high idle, 1500 rpm low idle (no load).

FUEL CAPACITY

6 gallons (22.7 liters). Biodiesel-Ready for use up to B-20 (20% biodiesel and 80% petroleum blend).

TRACTION DRIVE

Hydraulic piston pump, closed loop system. 2WD Parallel Hydrostatic or 3WD Series Parallel piston pump closed loop system. Foot pedal forward and reverse; infinitely variable.

GROUND SPEED

Forward-mowing speed is variable from 2-5 mph (3.2-8 km/h), adjusted by stop on pedal mechanism. Mow speed setting does not affect transport speed. Maximum

Greensmaster 3250-D transport speed is 8.8 mph (14.4 km/h), may be reduced by adjusting stop in footrest pan without affecting mow speeds. Reverse is 2.5 mph

(4.0 km/h) maximum.

TURF COMPACTION

10 psi (.68 bar) average at recommended minimum tire pressures, with a 200 lb. operator, and cutting units down.

STEERING

Power steering. No-tool quick adjust steering arm position, with arm motion allowing a wide range of operator sizes. Steering cylinder has through shaft design for

accurate straight line steering.

CONTROLS/GAUGES

Raise/lower-mow lever. Functional control lever (neutral, mow, transport). Foot operated traction drive and brakes. Hour meter

and 4 bulb warning cluster. Hand operated choke, throttle. Mechanical engine speed control.

ELECTRICAL FEATURES

Maintenance-free 12-volt battery with 530 minimum cold cranking amps at 0° F (-17.7° C) and 95 minutes minimum reserve capacity at 85° F (29.4° C) 40 amp

alternator, circuit fused at 40 amps. Ignition switch/key. Seat switch. High temperature engine kill override switch. Harness terminals, fuse slot, and console switch

location available for optional lights installation.

SOUND LEVEL

84 dBA at operator ear under normal conditions.

OVERALL DIMENSIONS

Width of Cut: 59.0" (150 cm) Overall Height: 77.5" (197 cm)

Wheel Tread: 50.5" (128 cm) Net Weight (no fuel, no operator): 1,216 lbs. (552 kg)

Wheel Base: 48.6" (123 cm) Reel Speed: Approx.1950 rpm @ 2760 rpm (Adjustable)

Overall Length (w/baskets): 93.9" (238 cm)

Overall Width: 68.0" (173 cm)

TIRES

Three 19 x 10.5-8, 2 ply pneumatic tubeless demountable and interchangeable. Smooth tread (approx. 1290 rev/mile). 8-12 psi front; 8-15 psi rear.

LEAK DETECTION

Turf Guardian™ optional.

BACKLAPPING

Standard equipment.

BRAKES

6" (15.2 cm) drum type mechanical with rack and pawl lock for parking.

SEAT

Contour seat with high backrest. 7" (17.8 cm) fore/aft slider adjustment with two mounting positions, allowing 9" (22.8 cm) total seat travel. Operator manual tube

mounted on the seat back for easy access.

ROPS

Roll over protection system standard.

CERTIFICATION

Certified to meet ANSI specification B71.4-2012 and European CE standards with appropriate kits installed.

WARRANTY

Two-year limited warranty. Refer to the Operator’s Manual for further details.

Greensmaster® 3250-D Specifications*

* Specifications and design subject to change without notice. Products depicted in this literature are for demonstration purposes only.

Actual products offered for sale may vary in use, design, required attachments and safety features. Consult your local Toro Distributor.

8 BLADE DPA CUTTING UNITS, 04618

11-BLADE DPA CUTTING UNITS, 04619 14-BLADE CUTTING UNITS, 04624

TRACTOR

These cutting units will mount on any Toro riding Greensmaster (excluding Greensmaster TriFlex 33xx/34xx series).

HEIGHT OF CUT (HOC) RANGE

Cutting height is adjusted on front roller by two vertical screws and held by two locking cap screws. Bench HOC range is .062"-.297" (1.6-7.5 mm). With high HOC kit,

range is .285-1" (7.3-25.4 mm). Effective HOC may vary depending on turf conditions and bedknife installed.

REEL WELDMENT

Reels are 5" (13 cm) in diameter, 21" (53.3 cm) in length. High carbon steel blades are welded to 5 stamped steel spiders, and heat treated to RC 48-54 hardness. The

reel is ground for diameter and concentricity, and backgrind.

REEL BEARINGS

Two double row, self-aligning ball bearings, 30 +/-.1 mm inside diameter slip fit onto reel shaft with lock nut. Multiple seal barriers on both sides of bearing for

added protection. Reel position maintained by a wave washer with no adjusting nut.

MAINTENANCE

No grease zerks, sealed bearing design eliminates daily maintenance.

REEL DRIVE

The reel weldment shaft is a 1.375" (35 mm) diameter tube with drive inserts permanently pressed in both ends. A replaceable floating coupler with an internal eight

tooth spline is factory installed on the right end, and held in place by a snap ring. The floating coupler may be moved to the other end when the cutting unit is used

on the GR3250-D front right position.

FRAME

Precision machined, die-cast aluminum cross member with two bolt-on die-cast aluminum side plates.

AGGRESSIVENESS

Aggressiveness stays constant throughout the life of the reel. Patented design.

BEDKNIFE

Replaceable single edged EdgeMaxTM Microcut Bedknife is standard.

BEDKNIFE ADJUSTMENT

Dual screw, indexed “click” adjustment to the reel; detents corresponding positively to .0007" (.018 mm) bedknife movement for each position.

FRONT & REAR ROLLERS

Front: Not included with cutting unit, purchased separately. Option between full, narrow-spaced and wide-spaced roller.

Rear: Steel full, 2" (5.1 cm) diameter with sealed bearings and through-shaft.

GRASS SHIELD

Non-adjustable shield with adjustable cut-off bar to improve grass discharge from reel in wet conditions.

TOTAL WEIGHT

8-blade: 72 lbs. (32.7 kg) with aluminum Wiehle Roller. 11-blade: 75 lbs. (34 kg) with aluminum Narrow Wiehle Roller. 14-blade: 78 lbs. (35 kg) with aluminum Wiehle Roller.

The Greensmaster 3250-D is manufactured

in Tomah, WI ISO 9002 Certified Plant.

54

2015 Toro Commercial Equipment Guide 15-003-T Rev. 2/15

Greensmaster® 3250-D Accessories*

GREENSMASTER 3250-D ACCESSORIES

* Specifications and design subject to change without notice. Products depicted in this literature are for demonstration purposes only.

Actual products offered for sale may vary in use, design, required attachments and safety features. Consult your local Toro Distributor.

The Greensmaster 3250-D is manufactured

in Tomah, WI ISO 9002 Certified Plant.

TRACTION UNIT ACCESSORIES

04477 3-Wheel Drive Kit

04479 Thatching Reel (Set of 1)

04494 Greens Spiker Kit

04495 Greens Tri-Roller Kit

30707 Armrest Kit

99-4506 Traction Tires

104-7701 Hydraulic Oil Cooler Kit

04554 Light Kit

120-1951 Spark Arrestor

04497 Leak Detector

112-0279 Front Wheel Weight Kit

100-6442 2WD Weight Kit

99-1645 3WD Weight Kit

100-6430 Hose Adapter Kit

105-9766 Radiator Screen Kit

104-9400 Ground Follow Kit

115-4510 Bimini Folding Shade

115-4754 Wireless Hour Meter

ROLLER OPTIONS

04626 Front Narrow Wiehle Roller (set of 3)

04627 Front Wide Wiehle Roller (set of 3)

04625 Front Full Roller (set of 3)

04628 Solid Steel Roller Kit

(front Wiehle & rear steel rollers)

04629 Anti-Bobbing Roller

71-1550 Cast Iron Rear Wiehle Roller

107-3514 Steel Wide Wiehle Roller

121-4675 Extended Wiehle Roller

04258 Extended Narrow Wiehle Roller

04267 Narrow Wiehle Roller (for paspalum)

107-3510 Steel Narrow Wiehle Roller

120-9595 Steel Rear Roller (standard)

125-5180 DPA Rear Roller Extension Kit

120-9600 High Height of Cut Kit

04249 Split Full Front Roller

04250 Split Narrow Wiehle Roller

THATCHING REEL ACCESSORIES

117-6824

Thin dynaBLADE, (1.2mm Thickness)

(Individual)

119-1128

Regular dynaBlade, (2mm Thickness)

(Individual)

117-6839

Replacement Kit, 1.2mm

dynaBlade

(36

Blades)

117-6840 Replacement Kit, 2mm

dynaBlade

(36

Blades)

121-6675 Spring Steel Kit

121-6674 Blade, Spring Steel

121-9525 Thatching Reel Quick Change Kit

GROOMER OPTIONS

04709

Groomer Drive (LH) (Set of 1)

04710 Groomer Drive (RH) (Set of 1)

04712

Groomer Reel, Spring Steel (Set of 1)

04713

Groomer Brush (Set of 1)

04274

Greens Perfection Brush – Soft

04275

Greens Perfection Brush – Stiff

112-9248 Groomer Pull Link Kit

04744 Grooming Reel - Thin Blade (Set of 1)

SCRAPER OPTIONS

125-5303 Front Narrow Wiehle Roller Scraper

125-5304 Front Wide Wiehle Roller Scraper

125-5305 Front Full Roller Scraper

115-7377

Front Narrow Wiehle Roller Scraper Brush

115-7378

Front Wide Wiehle Roller Scraper Brush

115-7379 Front Full Roller Scraper Brush

115-7380

Front Narrow Wiehle Roller Scraper Comb

115-7381

Front Wide Wiehle Roller Scraper Comb

115-7382 Front Full Roller Scraper Comb

115-7383 Rear Roller Scraper

121-2260 Adjustable Rear Roller Scraper

04646 Spring Loaded Rear Roller Scraper

(Set of 3)

107-9561 Anti-Bobbing Roller Scraper Kit

04726

Rotating Rear Roller Brush (LH) (Set of 1)

04724

Rotating Rear Roller Brush (RH) (Set of 1)

BEDKNIFE & BEDBAR OPTIONS

93-4262 Microcut Bedknife

93-4263 Tournament Bedknife

93-4264 Low Cut Bedknife

94-6392 High Cut Bedknife

63-8600 Fairway Bedknife

108-4303 Extended Microcut Bedknife

108-4302 Extended Tournament Bedknife

115-1880

EdgeMaxTM Microcut Bedknife (Standard)

115-1881 EdgeMaxTM Tournament Bedknife

112-7475 EdgeMaxTM Fairway Bedknife

106-2648-01 Bedbar (Standard)

99-3794-03 Aggressive Bedbar

CUTTING UNIT & REEL OPTIONS

04618 8-Blade Cutting Unit

04619 11-Blade Cutting Unit

04624 14-Blade Cutting Unit

119-4103 8-Blade Reel (Individual)

121-6651 8-Blade Reel, Heavy-Duty (Individual)

119-4104 11-Blade Reel (Individual)

127-2202 14-Blade Reel (Individual)

BIO-HYDRAULIC FLUID / HYDRAULIC FLUID / OIL

119-2157 Bio-Hydraulic Fluid, 5 gal. (18.9 L)

119-2158 Bio-Hydraulic Fluid, 55 gal. (208.2 L)

108-1178

Premium Hydraulic Fluid, 5 gal. (18.9 L)

108-1177

Premium Hydraulic Fluid, 55 gal. (208.2 L)

121-6393

Premium Engine Oil SAE 10W30, 5 gal. (18.9 L)

121-6392

Premium Engine Oil SAE 10W30, 55 gal. (208.2 L)

TOOLS

04399 Turf Evaluator

125-5610

Paper – Reel

125-5611

Shim – Reel

94-9010

Height of Cut Bar Assembly
