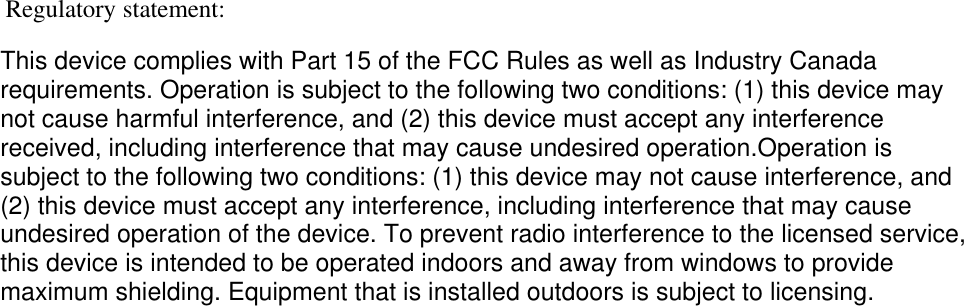

Regulatory statement:This device complies with Part 15 of the FCC Rules as well as Industry Canada requirements. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interferencereceived, including interference that may cause undesired operation.Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. To prevent radio interference to the licensed service, this device is intended to be operated indoors and away from windows to provide maximum shielding. Equipment that is installed outdoors is subject to licensing.

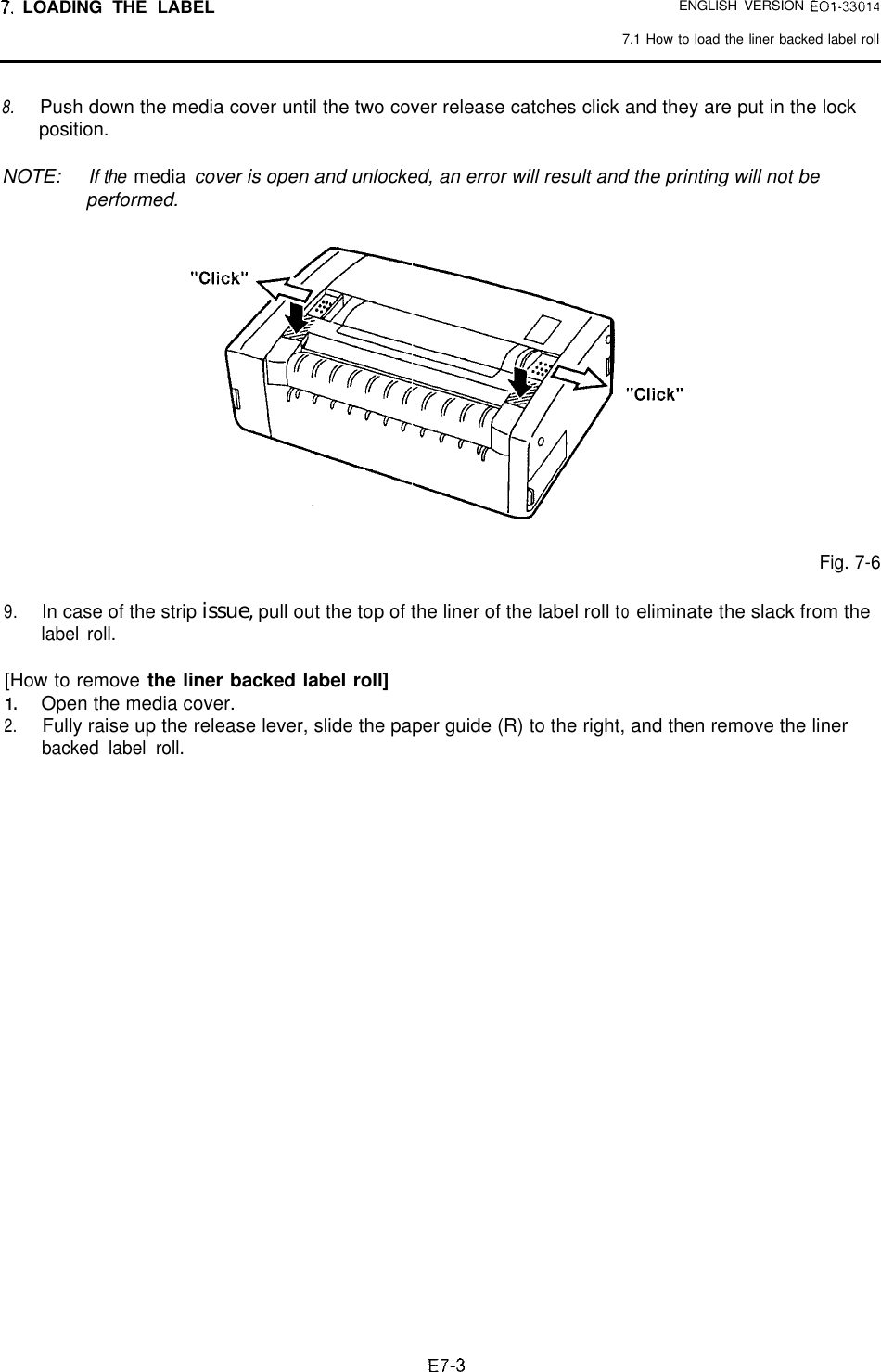

7. LOADING THE LABEL ENGLISH VERSION E01-330147.1 How to load the liner backed label roll8. Push down the media cover until the two cover release catches click and they are put in the lockposition.NOTE: If the mediaperformed. cover is open and unlocked, an error will result and the printing will not beFig. 7-69.In case of the strip issue, pull out the top of the liner of the label roll to eliminate the slack from thelabel roll.[How to remove the liner backed label roll]1.Open the media cover.2.Fully raise up the release lever, slide the paper guide (R) to the right, and then remove the linerbacked label roll.E7-3

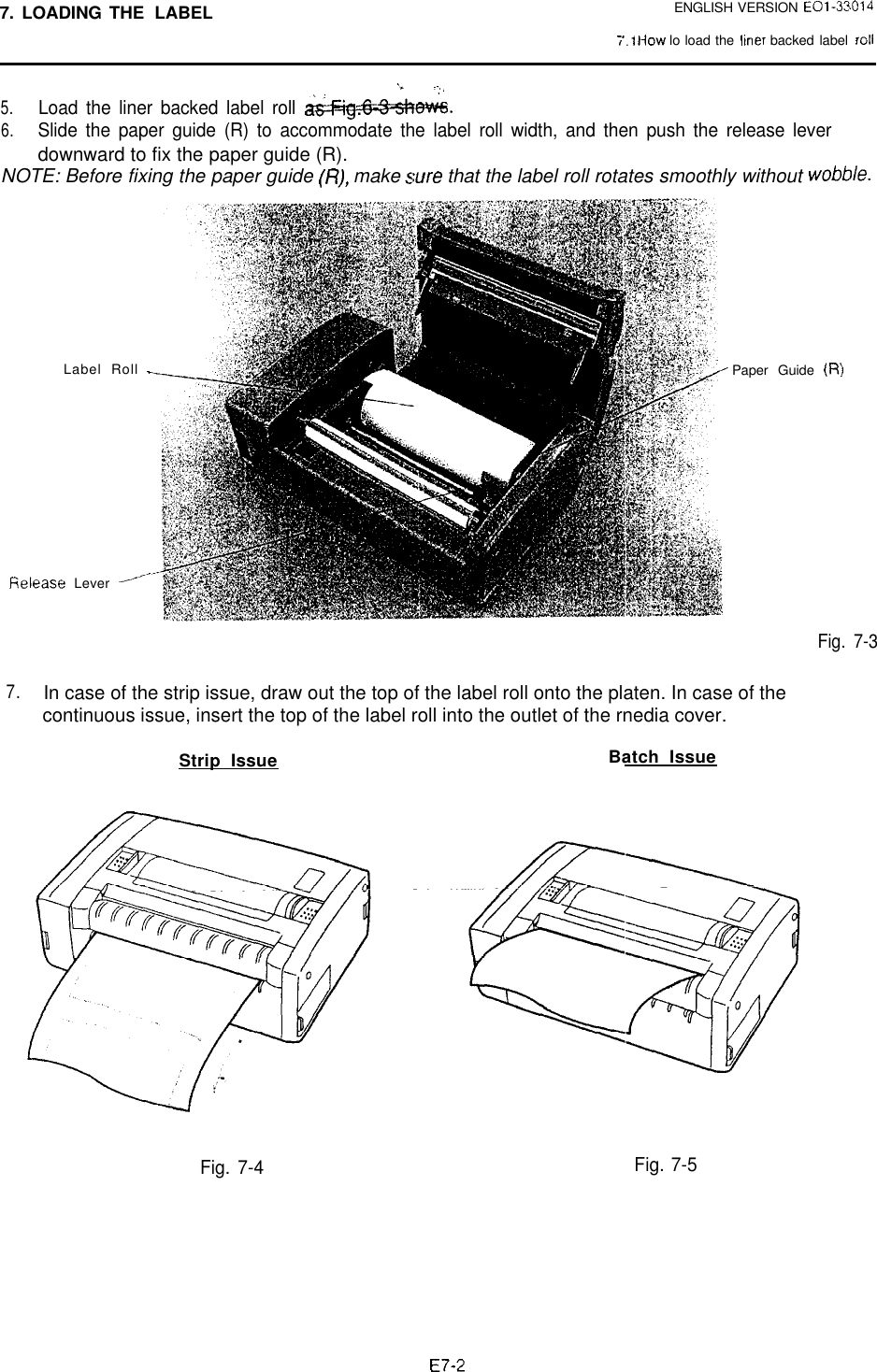

7. LOADING THE LABELENGLISH VERSION EOl-33014;‘.I How lo load the lmer backed label rot1‘* .-,,,5.Load the liner backed label roll WM.6.Slide the paper guide (R) to accommodate the label roll width, and then push the release leverdownward to fix the paper guide (R).NOTE: Before fixing the paper guide (I?), make sure that the label roll rotates smoothly without wobble.Label Roll -fielease Lever --‘-Paper Guide (R)Fig. 7-37.In case of the strip issue, draw out the top of the label roll onto the platen. In case of thecontinuous issue, insert the top of the label roll into the outlet of the rnedia cover.Strip Issue Batch IssueFig. 7-4 Fig. 7-5E7-2

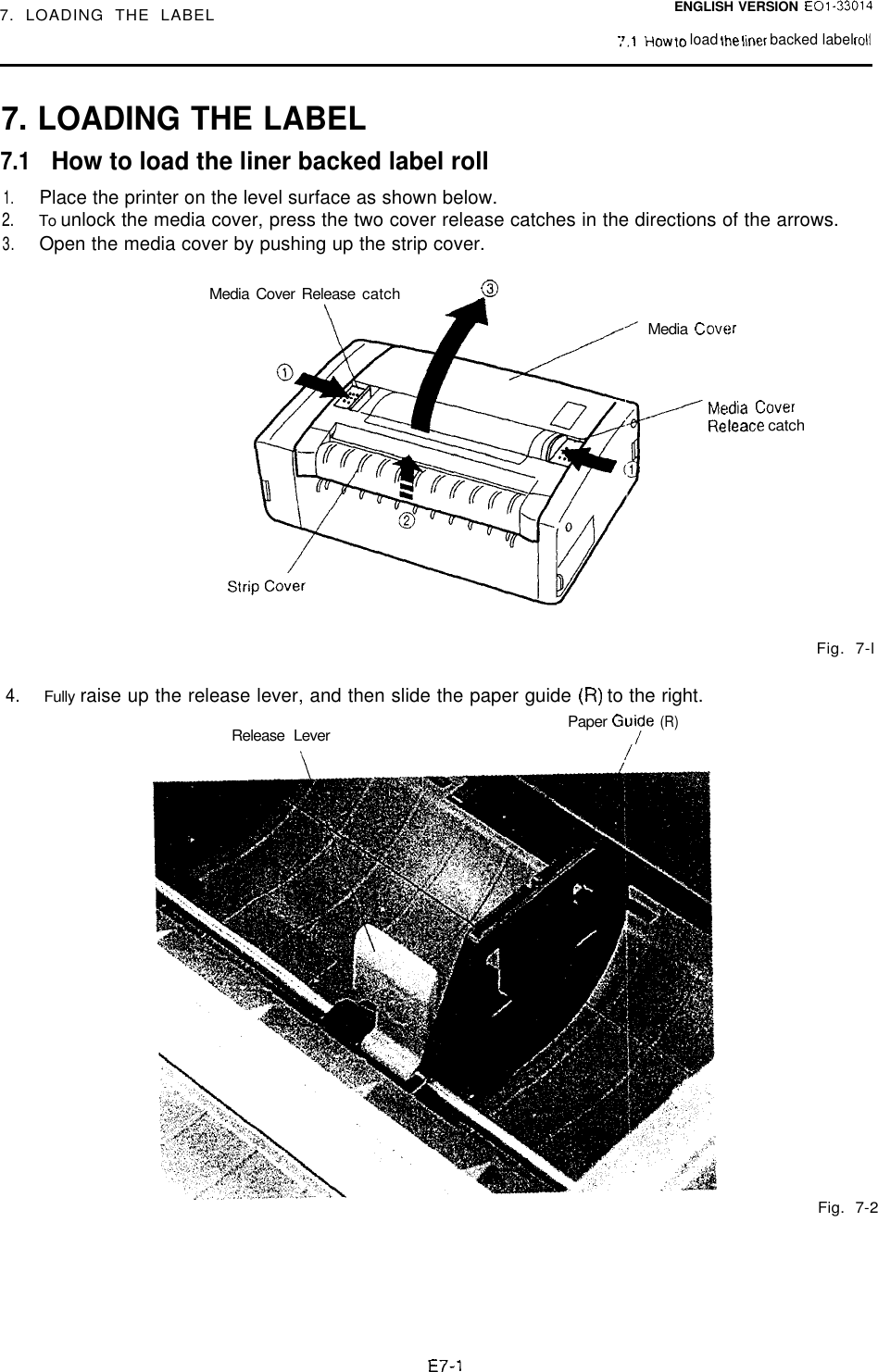

7. LOADING THE LABELENGLISH VERSION EOl-330147.1HOW KI load the lmer backed label roll7. LOADING THE LABEL7.1How to load the liner backed label roll1.Place the printer on the level surface as shown below.2.To unlock the media cover, press the two cover release catches in the directions of the arrows.3.Open the media cover by pushing up the strip cover.Media Cover Release catch0Media CoverMedia CoverReleace catchFig. 7-l4.Fully raise up the release lever, and then slide the paper guide (R) to the right.Paper Gu;de(R)Release LeverFig. 7-2E7-1
