No. MIIXR0002EAC
DICOM CONFORMANCE STATEMENT
MEDIA STORAGE
FOR
TOSHIBA DIGITAL FLUOROGRAPHY SYSTEM
MODEL DFP-2000A
with XIDF-037A and XIDF-038A
or
SRS-1000A
(MIIXR0002EAC)
2001
No. MIIXR0002EAC
IMPORTANT!
(1) No part of this manual may be copied or reprinted, in whole or in part,
without written permission.
(2) The contents of this manual are subject to change without prior notice
and without our legal obligation.
C-1 *
No. MIIXR0002EAC
Table of Contents
Page
1 INTRODUCTION................................................................................................................ 1
1.1 REFERENCES..................................................................................................... 1
1.2 DEFINITIONS....................................................................................................... 1
1.3 ACRONYMS, ABBREVIATIONS AND SYMBOLS....................................... 2
2 IMPLEMENTATION MODEL............................................................................................. 3
2.1 APPLICATION DATA FLOW DIAGRAM ............................................................................... 3
2.2 FUNCTIONAL DEFINITIONS OF AE'S................................................................................. 3
2.2.1 DICOM Recording ............................................................................................... 3
2.2.2 DICOM Reader .................................................................................................... 4
2.3 SEQUENCING OF REAL WORLD ACTIVITIES ..................................................................... 4
2.3.1 Features............................................................................................................... 4
2.3.1.1 Transfer of X-ray Examination.......................................................................................4
2.3.1.2 Review of X-ray Examination ........................................................................................4
2.3.2 Operation ............................................................................................................. 5
2.3.2.1 Transfer of X-ray Examination.......................................................................................5
2.3.2.2 Review of X-ray Examination ........................................................................................5
2.4 FILE META INFORMATION FOR IMPLEMENTATION CLASS AND VERSION ............................. 5
3 AE SPECIFICATIONS ....................................................................................................... 6
3.1 DICOM RECORDING SPECIFICATION.............................................................................. 6
3.1.1 File Meta Information for the Application Entity................................................... 6
3.1.2 Real-World Activity .............................................................................................. 6
3.1.2.1 Real-World Activity - Transfer of X-ray Examination .....................................................6
3.1.3 Media Storage Application Profile........................................................................ 6
3.1.4 Information Object Definition and DICOMDIR keys ............................................ 6
3.2 DICOM READER SPECIFICATION ................................................................................... 6
3.2.1 File Meta Information for the Application Entity................................................... 7
3.2.2 Real-World Activity .............................................................................................. 7
3.2.2.1 Real-World Activity - Review of X-ray Examination .......................................................7
3.2.3 Media Storage Application Profile........................................................................ 7
3.2.4 Information Object Definition and DICOMDIR keys ............................................ 7
4 AUGMENTED AND PRIVATE APPLICATION PROFILES.............................................. 7
4.1 AUGMENTED APPLICATION PROFILES ............................................................................. 7
4.1.1 AUG-XABC-CD.................................................................................................... 7
4.1.1.1 SOP Class Augmentations............................................................................................7
4.1.1.2 Directory Augmentations...............................................................................................7
4.1.1.3 Other Augmentations ....................................................................................................7
4.2 PRIVATE APPLICATION PROFILES.................................................................................... 7
5 EXTENSIONS, SPECIALIZATIONS, AND PRIVATIZATIONS OF SOP CLASSES AND
TRANSFER SYNTAXES........................................................................................................... 8
6 CONFIGURATION............................................................................................................. 8
7 SUPPORT OF EXTENDED CHARACTER SETS............................................................. 8
8 X-RAY ANGIOGRAPHIC INFORMATION OBJECT DEFINITION................................... 9
8.1 ENTITY MODULE DEFINITIONS ........................................................................................ 9
- a -
No. MIIXR0002EAC
8.1.1 Media Storage Directory IOD Modules................................................................ 9
8.1.2 Media Storage XA IOD Modules.......................................................................... 9
8.1.3 XA IOD Modules ................................................................................................ 10
8.2 DICOM FILE META INFORMATION ................................................................................ 11
8.2.1 DICOM File Meta Information of Directory IOD................................................. 11
8.2.2 DICOM File Meta Information of XA IOD........................................................... 11
8.3 BASIC DIRECTORY INFORMATION OBJECT DEFINITIONS ................................................. 11
8.3.1 File-set Identification Module............................................................................. 11
8.3.2 Directory Information Module............................................................................. 12
8.4 DEFINITION OF SPECIFIC DIRECTORY RECORDS............................................................ 12
8.4.1 PATIENT keys ................................................................................................... 12
8.4.2 STUDY keys ...................................................................................................... 13
8.4.3 SERIES keys ..................................................................................................... 13
8.4.4 IMAGE keys....................................................................................................... 14
8.5 XA INFORMATION OBJECT DEFINISIONS........................................................................ 15
8.5.1 Patient Module................................................................................................... 15
8.5.2 General Study Module....................................................................................... 15
8.5.3 Patient Study Module......................................................................................... 15
8.5.4 General Series Module...................................................................................... 16
8.5.5 General Equipment Module............................................................................... 16
8.5.6 General Image Module ...................................................................................... 16
8.5.7 Image Pixel Module ........................................................................................... 17
8.5.8 Contrast/Bolus Module ...................................................................................... 17
8.5.9 Cine Module....................................................................................................... 17
8.5.10 Multi-frame Module ............................................................................................ 17
8.5.11 X-ray Image Module .......................................................................................... 18
8.5.12 X-ray Acquisition Module................................................................................... 18
8.5.13 XA Positioner Module ........................................................................................ 19
8.5.14 Curve Module..................................................................................................... 19
8.5.15 VOI LUT Module ................................................................................................ 19
8.5.16 SOP Common Module....................................................................................... 19
- b - *
No. MIIXR0002EAC
1 Introduction
This document is a DICOM Conformance Statement for Toshiba's Digital Fluorography
Systems. It is intended to provide the reader with the knowledge of how to integrate this product
within DICOM compliant equipments. It details the DICOM Service Classes, Information
Objects, and Application Profiles which are supported by this product.
If the reader is unfamiliar with DICOM, it is recommended that they read the DICOM
Specification (referenced below) prior to reading this conformance statement. Also note that
this document is formatted according to the DICOM Specification, Part 2: Conformance.
1.1 References
• ACR-NEMA Digital Imaging and Communications in Medicine, DICOM V3.0.
1.2 Definitions
• Information Object Definition (IOD) - An IOD is a data model which is an abstraction of
real-world information. This data model defines the nature and attributes relevant to the
class of real-world objects represented.
• Service/Object Pair (SOP) Class - A SOP Class is defined by the union of an Information
Object Definition and a set of DIMSE Services. A DICOM Application Entity may support
one or more SOP Classes. Each SOP Class is uniquely identified by a SOP Class UID.
• SOP Instance - A specific occurrence of a Information Object.
• Transfer Syntax - The Transfer Syntax is a set of encoding rules that allow DICOM
Application Entities to negotiate the encoding techniques (e.g. data element structure, byte
ordering, compression) they are able to support.
• Unique Identifier (UID) - A Unique Identifier is a globally unique, ISO compliant,
ASCII-numeric string. It guarantees uniqueness across multiple countries, sites, vendors
and equipment.
- 1 -
No. MIIXR0002EAC
1.3 Acronyms, Abbreviations and Symbols
• ACC American College of Cardiology
• ACR American College of Radiology
• ASCII American Standard Code for Information Interchange
• AE Application Entity
• ANSI American National Standards Institute
• AP Application Profile
• CEN TC251 Comite Europeen de Normalisation - Technical Committee 251 - Medical
Informatics
• DICOM Digital Imaging and Communications in Medicine
• FSC File-set Creator
• FSR File-set Reader
• FSU File-set Updater
• IOD Information Object Definition
• ISO International Standards Organization
• JIRA Japan Industries Association of Radiological Systems
• NEMA National Electrical Manufacturers Association
• RWA Real-World Activity
• SOP Service-Object Pair
• UID Unique Identifier
- 2 -
No. MIIXR0002EAC
2 Implementation Model

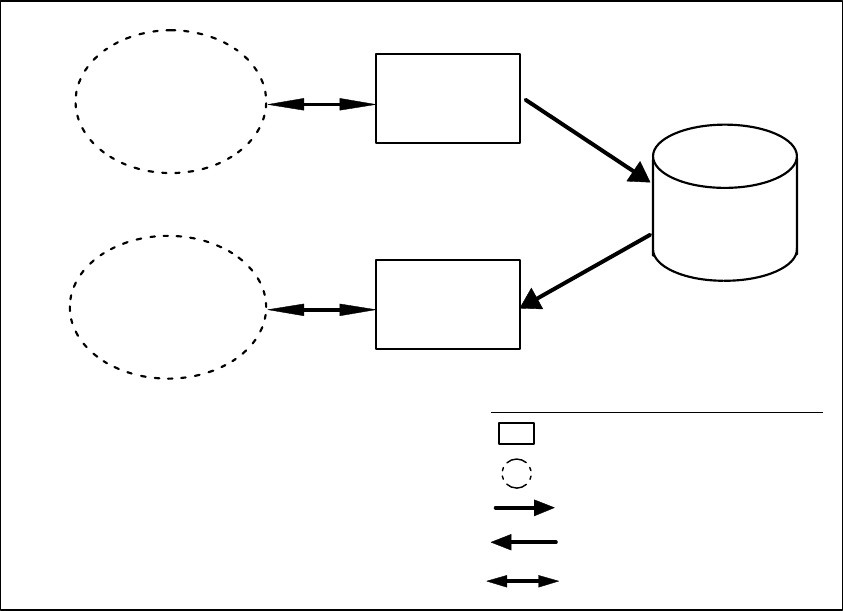

2.1 Application Data Flow Diagram
Transfer of
X-ray
Examination
DICOM
Recording
CD-R
Medium
Review of
X-ray
Examination
DICOM
Reader
Legend
Application Entity
Local Real-World Activity
File-set Creator (FSC)
File-set Reader (FSR)
Local Relationship
Figure 1
2.2 Functional Definitions of AE's
2.2.1 DICOM Recording
The DICOM Recording supports the following tasks:
• Builds DICOM XA Information Objects.
• Creates a DICOMDIR file that represents the contents of DICOM XA Information
Objects to be recorded.
• Records DICOM XA Information Objects and DICOMDIR from the local storage to
the CD-R media.
• Duplicates the File-set of the CD-R media or the local storage onto the blank CD-R
media.
- 3 -
No. MIIXR0002EAC
2.2.2 DICOM Reader
The DICOM Reader supports the following tasks:
• Reads the DICOMDIR file that represents the contents of the data as recorded.
• Displays the ordered list of patient and image identifying information or icon
images.
• Reads the selected image SOP instance from the CD-R media and displays it on
the monitor of the DICOM Reader.
• Reads the File-set of the CD-R media and writes it onto the local storage of DICOM
Reader.
2.3 Sequencing of Real World Activities
2.3.1 Features
2.3.1.1 Transfer of X-ray Examination
Operator requests to transfer images to the local storage after selecting the transferred
images from the Patient List or from the Image List.
Operator requests to record the images of the local storage onto the CD-R media after
transferring all data that are to be recorded.
When the size of images exceeds the capacity of a single CD-R, the request of
transferring images is canceled.
Each CD-R media has a DICOMDIR file that represents the contents of the data as
recorded.
Operator can request to duplicate the CD-R media from the recorded CD-R media to the
blank CD-R media
2.3.1.2 Review of X-ray Examination
Operator inserts the CD-R media to be read.
Operator requests to display the list of images or the catalog of icon images that are
recorded on the CD-R media.
Operator selects one image from the list or from the thumbnail images and requests to
review the image from the CD-R media.
Operator can request to read images from the CD-R media onto the local storage and then
operator can request to review the image from the local storage.
Operator can request to delete the images on the local storage.
The images on the local storage remain after being recorded onto the CD-R media, so
operators can display these images from the local storage also.
- 4 -
No. MIIXR0002EAC
2.3.2 Operation
2.3.2.1 Transfer of X-ray Examination
The operation for manual transfer of X-ray examination is described below:
STEP-1: Select the images or the patient to be transferred.
STEP-2: Request transfer.
STEP-3: Insert the blank CD-R media.
STEP-4: Request recording the transferred images onto the CD-R media.
2.3.2.2 Review of X-ray Examination
The operation for manual review of X-ray examination is described below:
STEP-1: Insert the CD-R media to be review.
STEP-2: Select one image from the list or from the thumbnail images.
STEP-3: Request forward play, backward play, step by step, or other image processings.
2.4 File Meta Information for Implementation Class and Version
• File Meta Information Version 0x0001
• Implementation Class UID 1.2.392.200036.9116.31
• Implementation Version Name TM_XA_DCM_V12
- 5 -
No. MIIXR0002EAC
3 AE Specifications
3.1 DICOM Recording Specification
The DICOM Recording AE provides Standard Conformance to the DICOM Media Storage
Service, File Format Class and the Media Storage Application Profile.
Table 1
Application Profile Identifier Real World Activity Role SC Option
Basic Cardiac X-ray
Angiographic Studies on
CD-R Media STD-XABC-CD Transfer of X-ray
Examination FSC Interchange
1024 X-ray Angiographic
Studies on CD-R Media STD-XA1K-CD Transfer of X-ray
Examination FSC Interchange
3.1.1 File Meta Information for the Application Entity
The Application Entity Title is registered into the DICOM File Meta Information header.
• Source Application Entity Title TM_XA_DCM_V12
3.1.2 Real-World Activity
3.1.2.1 Real-World Activity - Transfer of X-ray Examination
DICOM Recording AE acts as a FSC when chosen by the operator. This AE writes the SOP
instances onto the CD-R media, creates a DICOMDIR and writes it onto the CD-R media.
3.1.3 Media Storage Application Profile
DICOM Recording AE uses the Application Profile defined in Table 1.
3.1.4 Information Object Definition and DICOMDIR keys
Information Object Definition and DICOMDIR keys are described in Chapter 8.
3.2 DICOM Reader Specification
The DICOM Reader AE provides Conformance to the DICOM Media Storage Service,
File Format Class and the Media Storage Application Profile.
Table 2
Application Profile Identifier Real World Activity Role SC Option
Basic Cardiac X-ray
Angiographic Studies on
CD-R Media STD-XABC-CD Review of X-ray
Examination FSR Interchange
Extended Cardiac X-ray
Angiographic Studies on
CD-R Media AUG-XABC-CD Review of X-ray
Examination FSR Interchange
- 6 -
No. MIIXR0002EAC
3.2.1 File Meta Information for the Application Entity
The Application Entity Title is not relevant because this DICOM Reader AE only reads CD-R
media.
3.2.2 Real-World Activity
3.2.2.1 Real-World Activity - Review of X-ray Examination
DICOM Reader AE acts as a FSR when chosen by the operator. This AE reads the DICOMDIR
from the CD-R media and reads the SOP instances from the CD-R media.
3.2.3 Media Storage Application Profile
DICOM Reader AE uses the Application Profile defined in Table 2.
3.2.4 Information Object Definition and DICOMDIR keys
Information Object Definition and DICOMDIR keys are described in Chapter 8.
4 Augmented and Private Application Profiles
4.1 Augmented Application Profiles
DICOM Reader AE supports Augmented Application Profile: AUG-XABC-CD.
This is a extension of the standard Application Profile: STD-XABC-CD.
4.1.1 AUG-XABC-CD
4.1.1.1 SOP Class Augmentations
None
4.1.1.2 Directory Augmentations
None
4.1.1.3 Other Augmentations
The following attributes used within the X-ray Angiographic Image files have the specified
values.
Table 3
Attribute Name Tag Value
Modality (0008, 0060) XA
Rows (0028, 0010) 1024
Columns (0028, 0011) 1024
Bits Allocated (0028, 0100) 8
Bits Stored (0028, 0101) 8
4.2 Private Application Profiles
Not applicable to this product.
- 7 -
No. MIIXR0002EAC
5 Extensions, Specializations, and Privatizations of SOP
Classes and Transfer Syntaxes
Not applicable to this product.
6 Configuration
For the Digital Fluorography System, the configuration can be set.
Note: Settings and changes are performed by Toshiba Service Personnel at the time of
installation of the Digital Fluorography System.
7 Support of Extended Character Sets
This product supports the following character sets:
Table 4
• ISO-IR 6 (default) Basic G0 Set
- 8 -
No. MIIXR0002EAC
8 X-Ray Angiographic Information Object Definition
8.1 Entity Module Definitions
The information modules for the X-Ray Angiographic devices are defined below.
8.1.1 Media Storage Directory IOD Modules
Table 5
Object Module / key Reference Usage1
DICOM File Meta
Information 8.2.1 M
File-set Identification Module 8.3.1 M Basic Directory
Information Object
Definition Directory Information Module 8.3.2 U
PATIENT keys 8.4.1 M
STUDY keys 8.4.2 M
SERIES keys 8.4.3 M
Definition of Specific
Directory Records
IMAGE keys 8.4.4 M
1
M=Mandatory, C=Conditional, U=User option
8.1.2 Media Storage XA IOD Modules
Table 6
Object Module / key Reference Usage1
DICOM File Meta
Information 8.2.2 M
XA Information
Object Definition XA IOD Modules 8.1.3 M
1
M=Mandatory, C=Conditional, U=User option
- 9 -
No. MIIXR0002EAC
8.1.3 XA IOD Modules
Table 7
Information Entity Module Reference Usage1
Patient Patient Module 8.5.1 M
Study General Study Module 8.5.2 M
Study Patient Study Module 8.5.3 U
Series General Series Module 8.5.4 M
Equipment General Equipment Module 8.5.5 M
Image General Image Module 8.5.6 M
Image Image Pixel Module 8.5.7 M
Image Contrast/bolus Module 8.5.8 C
Image Cine Module 8.5.9 C
Image Multi-frame Module 8.5.10 C
Image Frame Pointers Module Not Used U
Image Mask Module Not Used C
Image Display Shutter Module Not Used U
Image Device Module Not Used U
Image Therapy Module Not Used U
Image X-ray Image Module 8.5.11 M
Image X-ray Acquisition Module 8.5.12 M
Image X-ray Collimator Module Not Used U
Image X-ray Table Module Not Used C
Image XA Positioner Module 8.5.13 M
Image Overlay Plane Module Not Used U
Image Multi-Frame Overlay Module Not Used C
Image Curve Module 8.5.14 C (Note)
Image Modality LUT Module Not Used C/U
Image VOI LUT Module 8.5.15 U
Image SOP Common Module 8.5.16 M
1
M=Mandatory, C=Conditional, U=User option
Note : Always set when ECG data is available
- 10 -
No. MIIXR0002EAC
8.2 DICOM File Meta Information
8.2.1 DICOM File Meta Information of Directory IOD
Table 8
Attribute Name Tag Type Attribute Description
File Preamble No Tag 1 Always set
DICOM Prefix No Tag 1 Always set ("DICM")
Group Length (0002, 0000) 1 Always set
File Meta Information Version (0002, 0001) 1 Always set (0x0001)
Media Storage SOP Class UID (0002, 0002) 1 Always set ("1.2.840.10008.1.3.10")
Media Storage SOP Instance UID (0002, 0003) 1 Always set
Transfer Syntax UID (0002, 0010) 1 Always set ("1.2.840.10008.1.2.1")
Implementation Class UID (0002, 0012) 1 Always set
8.2.2 DICOM File Meta Information of XA IOD
Table 9
Attribute Name Tag Type Attribute Description
File Preamble No Tag 1 Always set
DICOM Prefix No Tag 1 Always set ("DICM")
Group Length (0002, 0000) 1 Always set
File Meta Information Version (0002, 0001) 1 Always set (0x0001)
Media Storage SOP Class UID (0002, 0002) 1 Always set
("1.2.840.10008.5.1.4.1.1.12.1")
Media Storage SOP Instance UID (0002, 0003) 1 Always set
Transfer Syntax UID (0002, 0010) 1 Always set ("1.2.840.10008.1.2.4.70")
Implementation Class UID (0002, 0012) 1 Always set
Implementation Version Name (0002, 0013) 3 Always set
8.3 Basic Directory Information Object Definitions
8.3.1 File-set Identification Module
Table 10
Attribute Name Tag Type Attribute Description
File-set ID (0004, 1130) 2 Always set
- 11 -
No. MIIXR0002EAC
8.3.2 Directory Information Module
Table 11
Attribute Name Tag Type Attribute Description
Offset of the First Directory Record of
the Root Directory Entity (0004, 1200) 1 Always set
Offset of the Last Directory Record of
the Root Directory Entity (0004, 1202) 1 Always set
File-set Consistency Flag (0004, 1212) 1 Always set
Directory Record Sequence (0004, 1220) 2 Always set
>Offset of the Next Directory Record (0004, 1400) 1C Always set when condition is met
>Record In-use Flag (0004, 1410) 1C Always set when condition is met
>Offset of Referenced Lower-Level
Directory Entity (0004, 1420) 1C Always set when condition is met
>Directory Record Type (0004, 1430) 1C Always set when condition is met
>Referenced File ID (0004, 1500) 1C Always set when condition is met
>Referenced SOP Class UID in File (0004, 1510) 1C Always set when condition is met
>Referenced SOP Instance UID in File (0004, 1511) 1C Always set when condition is met
>Referenced Transfer Syntax UID in
File (0004, 1512) 1C Always set when condition is met
8.4 Definition of Specific Directory Records
8.4.1 PATIENT keys
Table 12
Attribute Name Tag Type Attribute Description
Patient's Name (0010, 0010) 2 Always set except for urgent patient
Patient ID (0010, 0020) 1 Always set
Patient's Birth Date (0010, 0030) 2 Length=0 when no entry is made
Patient's Sex (0010, 0040) 2 Always set
- 12 -
No. MIIXR0002EAC
8.4.2 STUDY keys
Table 13
Attribute Name Tag Type Attribute Description
Study Date (0008, 0020) 1 Always set
Study Time (0008, 0030) 1 Always set
Study Description (0008, 1030) 2 Length=0 when no entry is made
Study Instance UID (0020, 000D) 1C Always set
Study ID (0020, 0010) 1 Always set
Accession Number (0008, 0050) 2 Length=0 when no entry is made
8.4.3 SERIES keys
Table 14
Attribute Name Tag Type Attribute Description
Modality (0008, 0060) 1 Always set ("XA")
Series Instance UID (0020, 000E) 1 Always set
Series Number (0020, 0011) 1 Always set
Institution Name (0008, 0080) 2 Always set
Institution Address (0008, 0081) 2 Always set
Performing Physician's Name (0008, 1050) 2 Length=0 when no entry is made
- 13 -
No. MIIXR0002EAC
8.4.4 IMAGE keys
Table 15
Attribute Name Tag Type Attribute Description
Instance Number (0020, 0013) 1 Always set
Image Type (0008, 0008) 1 Always set
Image Date (0008, 0023) 3 Always set
Image Time (0008, 0033) 3 Always set
Positioner Primary Angle (0018, 1510) 3 Always set [degree]
Positioner Secondary Angle (0018, 1511) 3 Always set [degree]
Image Comments (0020, 4000) 3 Length=0 when no entry is made
Number of Frames (0028, 0008) 3 Always set
Calibration Image (0050, 0004) 2 Always set
Icon Image Sequence (0088, 0200) 1 Always set
>Samples per Pixel (0028, 0002) 1 Always set (0x0001)
>Photometric Interpretation (0028, 0004) 1 Always set ("MONOCHROME2")
>Rows (0028, 0010) 1 Always set (0x0100)
>Columns (0028, 0011) 1 Always set (0x0100)
>Bits Allocated (0028, 0100) 1 Always set (0x0008)
>Bits Stored (0028, 0101) 1 Always set (0x0008)
>High Bit (0028, 0102) 1 Always set (0x0007)
>Pixel Representation (0028, 0103) 1 Always set (0x0000)
>Pixel Data (7FE0, 0010) 1 Always set
- 14 -
No. MIIXR0002EAC
8.5 XA Information Object Definisions
8.5.1 Patient Module
Table 16
Attribute Name Tag Type Attribute Description
Patient's Name (0010, 0010) 2 Always set except for urgent patient
Patient ID (0010, 0020) 2 Always set
Patient's Birth Date (0010, 0030) 2 Length=0 when no entry is made
Patient's Sex (0010, 0040) 2 Always set
Patient Comments (0010, 4000) 3 Length=0 when no entry is made
8.5.2 General Study Module
Table 17
Attribute Name Tag Type Attribute Description
Study Instance UID (0020, 000D) 1 Always set
Study Date (0008, 0020) 2 Always set
Study Time (0008, 0030) 2 Always set
Referring Physician's Name (0008, 0090) 2 Length=0 when no entry is made
Study ID (0020, 0010) 2 Always set
Accession Number (0008, 0050) 2 Length=0 when no entry is made
Study Description (0008, 1030) 3 Length=0 when no entry is made
8.5.3 Patient Study Module
Table 18
Attribute Name Tag Type Attribute Description
Patient's Size (0010, 1020) 3 Length=0 when no entry is made
Patient's Weight (0010, 1030) 3 Length=0 when no entry is made
- 15 -
No. MIIXR0002EAC
8.5.4 General Series Module
Table 19
Attribute Name Tag Type Attribute Description
Modality (0008, 0060) 1 Always set ("XA")
Series Instance UID (0020, 000E) 1 Always set
Series Number (0020, 0011) 2 Always set
Series Date (0008, 0021) 3 Always set
Series Time (0008, 0031) 3 Always set
Performing Physician's Name (0008, 1050) 3 Length=0 when no entry is made
Series Description (0008, 103E) 3 Always set
8.5.5 General Equipment Module
Table 20
Attribute Name Tag Type Attribute Description
Manufacturer (0008, 0070) 2 Always set
Institution Name (0008, 0080) 3 Always set
Institution Address (0008, 0081) 3 Always set
Station Name (0008, 1010) 3 Always set
Manufacturer's Model Name (0008, 1090) 3 Always set
Device Serial Number (0018, 1000) 3 Always set
Software Versions (0018, 1020) 3 Always set
8.5.6 General Image Module
Table 21
Attribute Name Tag Type Attribute Description
Image Number (0020, 0013) 2 Always set
Patient Orientation (0020, 0020) 2C Always Length=0
Image Date (0008, 0023) 2C Always set
Image Time (0008, 0033) 2C Always set
Image Type (0008, 0008) 3 Always set
Acquisition Date (0008, 0022) 3 Always set
Acquisition Time (0008, 0032) 3 Always set
Image Comments (0020, 4000) 3 Length=0 when no entry is made
- 16 -
No. MIIXR0002EAC
8.5.7 Image Pixel Module
Table 22
Attribute Name Tag Type Attribute Description
Samples per Pixel (0028, 0002) 1 Always set (0x0001)
Photometric Interpretation (0028, 0004) 1 Always set ("MONOCHROME2")
Rows (0028, 0010) 1 Always set (0x0400 or 0x0200)
Columns (0028, 0011) 1 Always set (0x0400 or 0x0200)
Bits Allocated (0028, 0100) 1 Always set (0x0008)
Bits Stored (0028, 0101) 1 Always set (0x0008)
High Bit (0028, 0102) 1 Always set (0x0007)
Pixel Representation (0028, 0103) 1 Always set
Pixel Data (7FE0, 0010) 1 Always set
8.5.8 Contrast/Bolus Module
Table 23
Attribute Name Tag Type Attribute Description
Contrast/Bolus Agent (0018, 0010) 2 Length=0 when no entry is made
Contrast/Bolus Route (0018, 1040) 3 Length=0 when no entry is made
Contrast/Bolus Volume (0018, 1041) 3 Length=0 when no entry is made
Contrast Flow Rate(s) (0018, 1046) 3 Length=0 when no entry is made
8.5.9 Cine Module
Table 24
Attribute Name Tag Type Attribute Description
Frame Time (0018, 1063) 1C Always set
8.5.10 Multi-frame Module
Table 25
Attribute Name Tag Type Attribute Description
Number of Frames (0028, 0008) 1 Always set
Frame Increment Pointer (0028, 0009) 1 Always set (0x00181063)
- 17 -
No. MIIXR0002EAC
8.5.11 X-ray Image Module
Table 26
Attribute Name Tag Type Attribute Description
Frame Increment Pointer (0028, 0009) 1C Always set (0x00181063)
Image Type (0008, 0008) 1 Always set
Pixel Intensity Relationship (0028, 1040) 1 Always set ("DISP" or "LIN")
Samples per Pixel (0028, 0002) 1 Always set (0x0001)
Photometric Interpretation (0028, 0004) 1 Always set ("MONOCHROME2")
Bits Allocated (0028, 0100) 1 Always set (0x0008)
Bits Stored (0028, 0101) 1 Always set (0x0008)
High Bit (0028, 0102) 1 Always set (0x0007)
Pixel Representation (0028, 0103) 1 Always set
Reference Image Sequence (0008, 1140) 1C Not set when Image type(0008,0008)
Value 3 is "SINGLE PLANE"
>Reference SOP Class UID (0008, 1150) 1C Always set when Reference Image
Sequence is present
>Reference SOP Instance UID (0008, 1155) 1C Always set when Reference Image
Sequence is present
8.5.12 X-ray Acquisition Module
Table 27
Attribute Name Tag Type Attribute Description
KVP (0018, 0060) 2 Always set [kV]
Radiation Setting (0018, 1155) 1 Always set
X-ray Tube Current (0018, 1151) 2C Always set [mA]
Exposure Time (0018, 1150) 2C Always set [msec]
Average Pulse Width (0018, 1154) 3 Always set [msec]
Intensifier Size (0018, 1162) 3 Always set [mm]
Field of View Shape (0018, 1147) 3 Always set("ROUND ")
Field of View Dimension(s) (0018, 1149) 3 Always set [mm]
Imager Pixel Spacing (0018, 1164) 3 Always set [mm]
- 18 -
No. MIIXR0002EAC
8.5.13 XA Positioner Module
Table 28
Attribute Name Tag Type Attribute Description
Distance Source to Detector (0018, 1110) 3 Always set [mm]
Estimated Radiographic Magnification
Factor
(0018,1114) 3 Always set
Positioner Motion (0018, 1500) 2C Always set ("STATIC")
Positioner Primary Angle (0018, 1510) 2 Always set [degree]
Positioner Secondary Angle (0018, 1511) 2 Always set [degree]
8.5.14 Curve Module
Table 29
Attribute Name Tag Type Attribute Description
Curve Dimensions (5000, 0005) 1 Always set
Number of Points (5000, 0010) 1 Always set
Type of Data (5000, 0020) 1 Always set
Axis Units (5000, 0030) 3 Always set
Data Value Representation (5000, 0103) 1 Always set
Curve Data Descriptor (5000, 0110) 1C Always set
Coordinate Start Value (5000, 0112) 1C Always set
Coordinate Step Value (5000, 0114) 1C Always set
Curve Data (5000, 3000) 1 Always set
Note : This module is set only if ECG data is available.
8.5.15 VOI LUT Module
Table 30
Attribute Name Tag Type Attribute Description
Window Center (0028, 1050) 3 Always set
Window Width (0028, 1051) 1C Always set
8.5.16 SOP Common Module
Table 31
Attribute Name Tag Type Attribute Description
SOP Class UID (0008, 0016) 1 Always set
SOP Instance UID (0008, 0018) 1 Always set
E
- 19 -

Navigation menu
