TOSHIBA HDD & DVD / Video Cassette Recorder RD-XV48DTKF

HDD & DVD / Video Cassette Recorder

RD-XV48DTKF

OWNER’S MANUAL

Printed in China 1VMN24753 / E3NG0FD ★★★★★

Introduction Connections Basic Setup Playback Editing OthersFunction SetupRecording VHS Functions

COV_E3NG0FD_EN.fm Page 1 Tuesday, January 29, 2008 4:39 PM

2EN

Precautions

Introduction

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE

THIS APPLIANCE TO RAIN OR MOISTURE.

The important note is located on the rear of the cabinet.

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT

REMOVE COVER (OR BACK). NO USER SERVICEABLE

PARTS INSIDE. REFER SERVICING TO QUALIFIED

SERVICE PERSONNEL.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

The lightning flash with

arrowhead symbol, within an

equilateral triangle, is intended to

alert the user to the presence of

uninsulated “dangerous

voltage” within the product’s

enclosure that may be of

sufficient magnitude to constitute

a risk of electric shock to persons.

The exclamation point within an

equilateral triangle is intended

to alert the user to the presence

of important operating and

maintenance (servicing)

instructions in the literature

accompanying the appliance.

Laser Safety

This unit employs a laser. Only a qualified service

personnel should remove the cover or attempt to

service this unit, due to the possibility of eye injury.

CAUTION: USE OF CONTROLS OR

ADJUSTMENTS OR

PERFORMANCE OF PROCEDURES

OTHER THAN THOSE SPECIFIED

HEREIN MAY RESULT IN

HAZARDOUS RADIATION

EXPOSURE.

CAUTION: VISIBLE AND INVISIBLE LASER

RADIATION WHEN OPEN AND

INTERLOCK DEFEATED. DO NOT

STARE INTO BEAM.

LOCATION: INSIDE, NEAR THE DECK

MECHANISM.

Power Supply

The power supply is connected and the unit is live

when the mains cable is plugged into a 220 - 240 V~,

50 Hz AC outlet. To operate the unit, press

[BON\STANDBY].

WARNING: LIVE PARTS INSIDE.

DO NOT REMOVE ANY SCREWS.

Caution

1. Do not attempt to open the cabinet. There are no

parts inside you can service. Refer all servicing to

qualified service personnel.

2. Slots and openings in the cabinet at the sides and

underneath are provided for ventilation. To ensure

reliable operation and to protect the unit from

overheating, these openings must not be blocked

or covered.

Avoid installation in enclosed spaces such as

bookcases unless suitable ventilation is provided.

3. Keep the unit away from radiators and other heat

sources.

4. Avoid use near strong magnetic fields.

5. Do not push objects of any kind into the unit

through the cabinet slots or openings as they

could touch electrically live parts or short circuit

parts resulting in a fire or electric shock.

6. Do not spill liquid on the unit. If liquid is spilled

and enters the unit, consult qualified service

personnel.

7. Do not stand the unit vertically. Use the unit in a

horizontal (flat) position only.

8. Before attempting to operate the unit, make sure

that the timer recording mode is off.

9. This product is in Stand-by mode when turned off

while the mains cable is connected.

10. Do not place any combustible objects on the

device (candles, etc.).

11. Before moving the unit, be sure to remove any

discs and unplug the mains cable from the AC

outlet.

12. Disconnect the mains plug to shut off when find

troubles or not in use.

13. The mains plug shall remain readily operable.

14. Read both manual instructions to ensure correct

and safe installation and interconnection of the

unit in multimedia systems.

15. Keep the distances 20 cm around apparatus of

ventilation openings.

E3NG0FD_EN.book Page 2 Wednesday, January 30, 2008 10:37 AM

A NOTE ABOUT RECYCLING

This product’s packaging materials are recyclable

and can be reused. Please dispose of any

materials in accordance with your local recycling

regulations.

This product consists of materials

which can be recycled and reused if

disassembled by a specialised

company.

Batteries should never be thrown

away or incinerated but disposed of

in accordance with your local

regulations concerning chemical

wastes.

Make your contribution to the environment!!!

• Exhausted batteries do not belong in

the dustbin.

• You can dispose of them at a collection

point for exhausted batteries or special

waste.

• Contact your council for details.

For Customer Use:

Carefully read the Model No. and Serial No.

located at the back of the unit and enter the

information below. Retain this information for

future reference.

Model No. _____________________

Serial No. _____________________

Installation Location

For safety and optimum performance of this unit:

• Install the unit in a horizontal and stable position.

• Do not place anything directly on top of the unit.

• Do not place the unit directly on top of the TV.

• Shield the unit from direct sunlight and keep away

from sources of intense heat. Avoid dusty or humid

locations. Avoid locations with insufficient ventilation

for suitable heat dissipation. Do not block the

ventilation holes on the sides of the unit. Avoid

locations subject to strong vibration or strong

magnetic fields.

Avoid the Hazards of Electrical Shock

and Fire

• Do not handle the mains cable with wet hands.

• Do not pull on the mains cable to disconnect it from

AC outlet. Grasp it by the plug.

• If, by accident, water is spilled on the unit, unplug

the mains cable immediately and take the unit to an

authorised service centre for servicing.

Moisture Condensation Warning

Moisture condensation may occur inside the unit

when it is moved from a cold place to a warm place,

after heating a cold room, or under conditions of high

humidity. Do not use the unit for at least 2 hours to

allow the inside to dry.

About Copyright

Unauthorised copying, broadcasting, public

performance and lending of discs are prohibited.

This product incorporates copyright protection

technology that is protected by U.S. patents and other

intellectual property rights. Use of this copyright

protection technology must be authorised by

Macrovision, and is intended for home and other

limited viewing uses only unless otherwise authorised

by Macrovision. Reverse engineering or disassembly

is prohibited.

Introduction Connections Basic Setup Playback Editing OthersFunction SetupRecording VHS Functions

E3NG0FD_EN.book Page 3 Wednesday, January 30, 2008 10:37 AM

4EN

Maintenance

CLEANING THE UNIT

Use a soft cloth slightly moistened with a mild

detergent solution. Do not use solutions containing

alcohol, spirits, ammonia or abrasive.

CLEANING DISCS

If a disc becomes dirty, clean it with a cleaning cloth.

Wipe the disc from the centre out. Do not wipe in a

circular motion.

Do not use solvents such as benzine, thinner,

commercially available cleaners, detergent, abrasive

cleaning agents or antistatic spray intended for

analogue records.

DISC HANDLING

Handle the discs so that fingerprints and dust do not

adhere to the disc surfaces.

Always store the disc in its protective case when it is

not in use.

HDD HANDLING

• HDD is a precision apparatus that is susceptible to

vibration, strong impact or dirt. Depending on the

installation environment or handling, the unit may

become partially damaged or in the worst case,

recording or replaying may not be available.

Especially while the HDD is in motion, do not subject

it to vibration or strong impact or pull out the power

plug. And if a power failure occurs, the content of the

recording / replaying programme may be lost.

• HDD rotates at high speed when in operation. Be

sure that rotation has stopped and then move the

unit without subjecting it to strong impact or

vibration.

SERVICING

If the unit becomes inoperative, do not try to correct

the problem by yourself. There are no user

serviceable parts inside. Turn the unit off, unplug the

mains cable, and consult your dealer or an authorised

service centre.

Notice for the Progressive Scan

Outputs

Consumers should note that not all high definition

television sets are fully compatible with this product

and may cause artifacts to be displayed in the picture.

In case of picture problems with 480 or 576

progressive scan output, it is recommended that the

user switch the connection to the ‘standard definition’

output. If there are questions regarding your TV set

compatibility with this 480p or 576p product, please

contact our customer service centre.

Manufactured under license from

Dolby Laboratories. Dolby and the

double-D symbol are trademarks of

Dolby Laboratories.

“Dolby® Digital Stereo Creator enables consumers

to create stereo DVD-Videos with stunning Dolby

Digital sound tracks at home. The technology,

when utilised instead of PCM recording, also

saves recordable disc space, allowing for higher

video resolution or extended recording time on

each DVD. DVDs mastered using Dolby Digital

Stereo Creator will play back on all DVD-Video

players.”

Note: This is true when the players are compatible

with actual recordable DVD discs.

Manufactured under license under

U.S. Patent #: 5,451,942 & other

U.S. and worldwide patents issued &

pending. DTS and DTS Digital Out

are registered trademarks and the

DTS logos and Symbol are

HDMI, the HDMI logo

and High-Definition

Multimedia Interface are

trademarks or registered

trademarks of HDMI

Licensing LLC.

DivX, DivX Certified, and

associated logos are

trademarks of DivX, Inc. and

are used under license.

DVB is a registered trademark of the

DVB project

EU Conformity Statement

“This product is marked with “CE” and complies

therefore with the applicable harmonized European

standards listed under the Low Voltage Directive

2006/95/EC and the EMC Directive 2004/108/EC.”

Responsible for CE-marking is

TOSHIBA INFORMATION SYSTEMS (U.K.) LTD,

Toshiba Court, Weybridge Business Park,

Addlestone Road, Weybridge,

Surrey, KT15 2UL, United Kingdom

E3NG0FD_EN.book Page 4 Wednesday, January 30, 2008 10:37 AM

CLEANING THE DISC LENS

If the unit does not perform correctly even though you

have referred to “Troubleshooting” and the relevant

sections in the Owner’s Manual, the laser optical

pickup unit may be dirty. Consult your dealer or an

authorised service centre for inspection and cleaning

of the laser optical pickup unit.

AUTO HEAD CLEANING

• Automatically cleans video heads as you insert or

remove a cassette, so you can see a clear picture.

• Playback picture may become blurred or interrupted

while the TV programme reception is clear. Dirt

accumulated on the video heads after a long period

of use, or the usage of rental or worn tapes can

cause this problem. If a streaky or snowy picture

appears during playback, the video heads in the unit

may need to be cleaned.

1Please visit your local Audio / Video store and

purchase a good quality VHS Video Head Cleaner.

2If a Video Head Cleaner does not solve the

problem, please consult your dealer or an

authorised service centre.

Note

• Remember to read the instructions along with the

video head cleaner before use.

• Clean video heads only when problems occur.

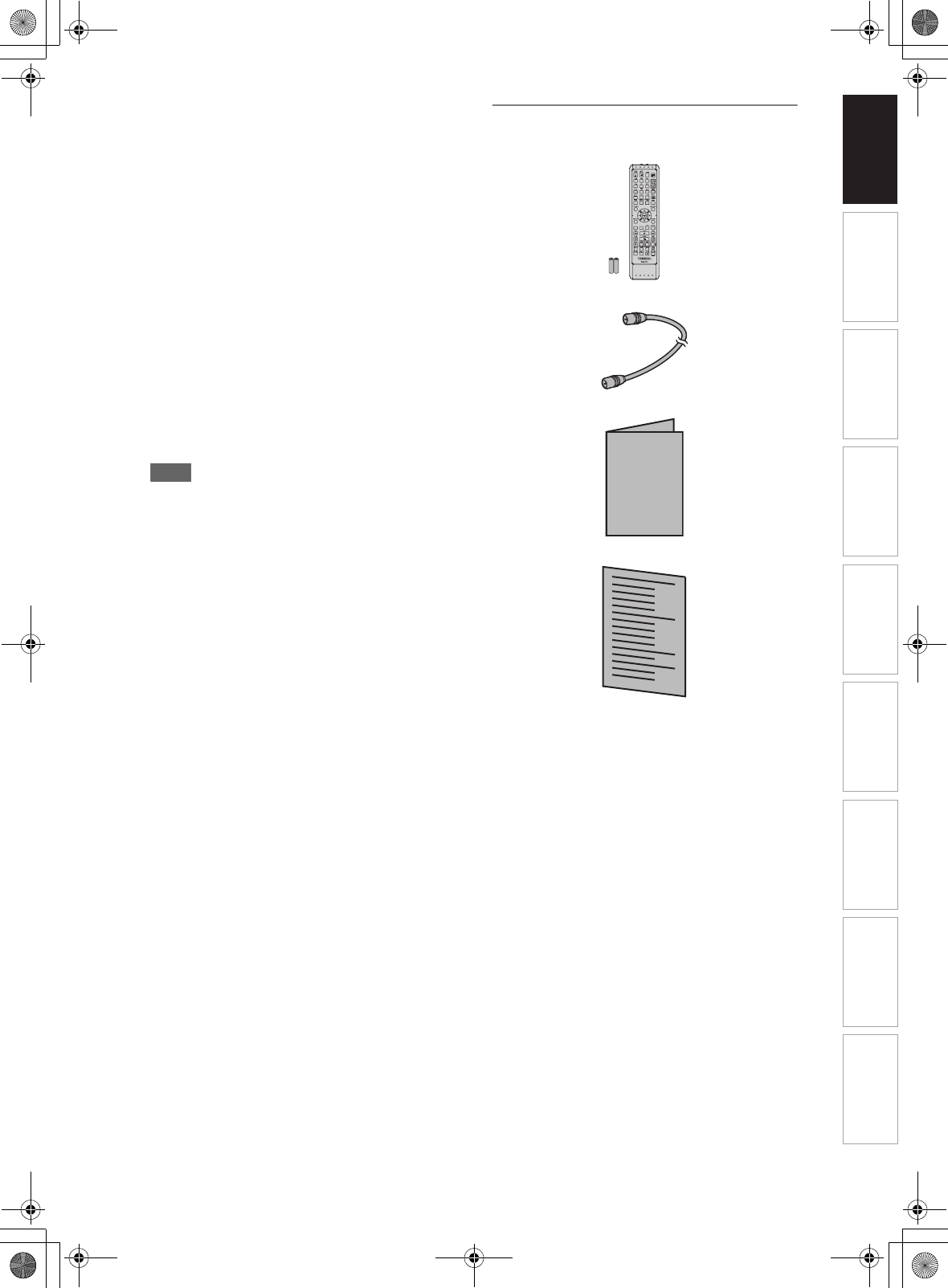

Accessories Supplied

• Remote control with two R6 (AA) batteries

•RF cable

• Owner’s Manual

• Quick Setup Guide

123

456

Owner's Manual

Introduction Connections Basic Setup Playback Editing OthersFunction SetupRecording VHS Functions

E3NG0FD_EN.book Page 5 Wednesday, January 30, 2008 10:37 AM

6EN

Table of Contents

Introduction ........................................... 2

Precautions .......................................................... 2

Features ............................................................... 7

Guide to the Owner’s Manual............................... 8

Functional Overview........................................... 11

Installing Batteries in the Remote Control.......... 14

Switching HDD / DVD / VHS mode .................... 15

Guide to On-Screen Displays............................. 15

Front Panel Display Guide ................................. 19

Connections ........................................ 20

Connections ....................................................... 20

Basic Setup.......................................... 24

Initial Setting....................................................... 24

Channel Setting.................................................. 25

TV View Operation ............................................. 32

DVB Menu Setting.............................................. 34

Selecting the On-Screen Display (OSD)

Language......................................................... 35

Setting the Clock ................................................ 36

Recording ............................................ 37

Information on DVD Recording .......................... 37

Formatting a Disc ............................................... 39

Selecting the Sound Mode ................................. 41

Basic Recording ................................................. 43

One-touch Timer Recording (OTR).................... 44

Timer Recording................................................. 44

Timer Recording (EPG)...................................... 48

Satellite Link....................................................... 49

Settings for External Equipment......................... 50

Information on DV Dubbing................................ 51

DVC to HDD / DVD Dubbing.............................. 52

Information on Dubbing...................................... 53

Setting a Disc to Protect..................................... 58

Finalising Discs .................................................. 59

Playback ............................................... 60

Basic Playback ................................................... 60

PBC Function for Video CDs .............................. 65

Special Playback ................................................ 66

Search ................................................................ 70

Repeat / Random / Programme Playback /

Slide Show ....................................................... 72

Selecting the Format of Audio and Video........... 73

Editing .................................................. 75

Guide to a Title List............................................. 75

Editing Discs....................................................... 75

Deleting Selected Titles...................................... 77

Deleting All Titles in HDD ................................... 83

Function Setup .................................... 84

Playback............................................................. 86

Display................................................................ 89

Video .................................................................. 90

DivX® ................................................................. 91

HDMI .................................................................. 91

Reset All ............................................................. 92

VHS Functions ..................................... 93

Playback............................................................. 93

Recording and One-touch Timer Recording

(OTR) ............................................................... 93

Search ................................................................ 94

Other Operations ................................................ 95

Changing the Video Colour System ................... 95

Hi-Fi Stereo Sound System ................................ 95

Others ................................................... 96

Troubleshooting.................................................. 96

Language Code ................................................ 101

Glossary ........................................................... 102

Specifications ................................................... 103

E3NG0FD_EN.book Page 6 Wednesday, January 30, 2008 10:37 AM

Features

The following features are available with this unit.

Recording

This unit allows you to record on the HDD, a DVD-RW/

+RW (rewritable) and a DVD-R/+R (one-time write).

Also, this unit allows you to record to a videotape. You

can choose either one for your convenience.

Recording up to 36 programmes (HDD/DVD):

You can programme the unit to record up to 36

programmes, up to a month in advance. Daily or

weekly programme recordings are also possible.

One-touch Timer Recording:

[E Page 44] (HDD/DVD) or [E Page 94] (VHS)

You can set your required recording time easily. Every

time [REC I] is pressed during recording, the

recording time will be increased by 30 minutes up to 8

hours. It will be turned off automatically when the

recording time you set is finished.

Left channel stereo recording:

This unit can record the sound of the Left channel

monaural input as Left and Right channels

automatically (available only for AV3 jacks on the front

panel).

Automatic Chapter mark setting: [E Page 40]

Chapter marks will be added to recordings as you set

them in “Setup” menu before starting to record.

Automatic Playlist making:

The unit creates a Playlist automatically after

recording.

160 GB hard disc:

This unit is equipped with a 160GB hard disc which

allows you to record up to 267 hours (with SLP mode).

VPS/PDC: [E Page 46]

This system assures that the TV programme you want

to record using timer recording will be recorded

exactly from beginning to end even if the actual

broadcasting time differs. This feature is only available

for analogue channels.

Alternate recording: [E Page 45]

If there is no recordable disc in the unit, if the disc

does not have enough space to complete the

recording, or if the material is “copy-once” programme

and prohibited to be recorded on a DVD in the unit,

the unit will detect it and automatically record to the

HDD even when DVD is selected as the recording

media. This feature is available only for timer

recording. Not available for one-touch timer recording.

Automatic finalising: [E Page 59]

You can finalise discs automatically at the end of the

disc space if you set this in “Setup” menu.

Automatic Title menu making: [E Page 59]

The unit creates Title menus automatically when

finalising discs.

Dubbing

With this unit, you can enjoy bi-directional dubbing

with HDD, DVD or VHS.

High speed dubbing: [E Page 53]

This feature offers you the dubbing speed of 32 times

the SLP mode dubbing at the maximum.

Auto recording mode dubbing: [E Page 53]

When dubbing, if you set the recording mode to

“Auto”, the recording mode will automatically be

adjusted so the titles will fit nicely in the remaining

space of the disc.

DV dubbing:

[E Pages 51 - 52] (HDD/DVD) or

[E Page 94] (VHS)

This function helps you to easily dub the contents of

the DVC (digital video camcorder) to HDD/DVD/VHS.

Playback

Theatre surround sound: [E Page 23]

When the unit is connected to an amplifier or a

decoder compatible with Dolby Digital or DTS, you

can enjoy theatre-quality surround sound from discs

recorded with the surround sound system.

Quick search: [E Pages 70 - 71]

You can easily find the part you want to watch using

the search function. Search for a desired point on a

disc by title, chapter / track or time.

Variable skip: [E Page 67]

You can skip forward a certain time, which is specified

in “Playback” menu in advance, with one-touch during

playback.

Variable replay: [E Page 67]

You can skip back a certain time, which is specified in

“Playback” menu in advance, with one-touch during

playback.

Playback from Original or a Playlist:

You can play back titles using either the Original list or

a Playlist.

Virtual Surround System: [E Page 74]

You can enjoy stereophonic space through your

existing 2 channel stereo system.

Chasing Playback during Recording and

Simultaneous Playback and Recording:

[E Pages 69 - 70]

You can play the already recorded part of the current

recording or another title during recording.

Pausing a TV broadcast to resume later (Pause

TV): [E Pages 69 - 70]

With [TIME SLIP], you can virtually pause and

resume the live TV broadcast.

Playing back MP3 / JPEG / DivX® files:

[E Pages 61 - 64]

You can enjoy MP3 / JPEG / DivX® files which are

recorded on CD-RW/-R.

DivX® files can also be recorded on DVD-RW/-R and

DVD+RW/+R discs.

HDD DVD VHS

HDD DVD

HDD

DVD

HDD DVD

HDD DVD VHS

HDD DVD

HDD

DVD

Introduction Connections Basic Setup Playback Editing OthersFunction SetupRecording VHS Functions

E3NG0FD_EN.book Page 7 Wednesday, January 30, 2008 10:37 AM

8EN

Quick search: [E Pages 94 - 95]

You can easily find the part you want to watch using

the Index or Time search functions. An index mark will

be assigned at the beginning of each recording you

make. For Time search function, you can go to a

specific point on a tape by entering the exact amount

of time you want to skip.

Editing

Adding or Deleting Chapter Marks Manually:

[E Pages 78 - 79]

You can add or delete chapter marks manually.

Creating Titles to a Playlist: [E Page 81]

You can create a title to the Playlist.

Deleting Titles: [E Page 76]

You can delete titles which you do not need anymore.

Deleting a Scene of a Title: [E Pages 82 -83]

You can delete a specific scene of a title.

Editing title name: [E Pages 77 -78]

You can name titles or change the title name.

Combining Titles: [E Page 81]

You can combine two titles into a single title.

Dividing Titles: [E Pages 80 -81]

You can divide a title into two new titles.

Protecting titles: [E Page 80]

To avoid accidental editing or erasing of titles, the

protect function is useful when set to “ON” in the

Original list.

Adding or Deleting chapter marks at once

(Video mode DVD-RW only)

[E Page 79]

You can easily add chapter marks at every selected

time interval or delete all chapter marks at once for

easy editing.

Hiding chapters: [E Pages 79 -80]

To keep others from playing back some chapters

without permission, you can hide chapters.

Compatibility

Playing back discs recorded in Video mode in any

regular DVD player: [E Page 59]

Discs recorded in Video mode can be played back in

regular DVD players, including computer DVD drives

compatible with DVD-Video playback. You will need to

finalise the discs recorded in Video mode to play back

in other DVD players.

Although DVD+RW / +R discs are playable in other

units without finalisation in most cases, it is

recommended to finalise in order to stabilise the

performance.

* DVD-Video Format (Video mode) is a new format for

recording on DVD-RW/-R discs that was approved

by the DVD Forum in 2000. Adoption of this format is

optional for manufactures of DVD playback devices

and there are DVD-Video players, DVD-ROM drives

and other DVD playback devices available that

cannot play back DVD-RW/-R discs recorded in the

DVD-Video Format.

Others

Progressive scan system: [E Pages 21, 90]

Unlike conventional interlace scanning, the

progressive scan system provides less flickering and

images in higher resolution than that of traditional

television signals.

HDMI: [E Pages 21, 91 -92]

(High-Definition Multimedia Interface)

You can enjoy clearer audio/video output when

connecting this unit to a display device with an HDMI-

compatible port.

Guide to the Owner’s Manual

Symbols Used in the Owner’s Manual

To show what recording mode or disc type applies to

each function, the following symbols appear at the

beginning of each operating item.

Symbols for Tuner Setting

The following is the description for the symbols for

tuner setting used in this manual.

VHS

HDD DVD

DVD

HDD DVD

Symbol Description

Available to (internal) HDD

Available to DVD-Videos

Available to DVD-RW discs in Video

mode

Available to DVD-RW discs in VR mode

Available to DVD-R discs in Video mode

Available to DVD+RW discs

Available to DVD+R discs

Available to Audio CDs

Available to Video CDs

Available to CD-RW/-R discs with MP3

files

Available to CD-RW/-R discs with JPEG

files

Available to DVD-RW/-R, DVD+RW/+R

and CD-RW/-R discs with DivX® files

Available to VHS tapes

Use only cassettes marked VHS ( )

ANALOG : Settings only for the Analogue

mode

DVB : Settings only for the DVB mode

HDDHDD

VD-V

DVD-V

VD-R

DVD-RW

Video

DVD-RWDVD-RW

DVD-RDVD-R

VD+R

DVD+RW

VD+R

DVD+R

VCD

MP3

JPEG

DivX

DivX®

VHS

VHS SECAMPAL

E3NG0FD_EN.book Page 8 Wednesday, January 30, 2008 10:37 AM

DVD players with are capable of playing DVD-RW recorded in VR mode.

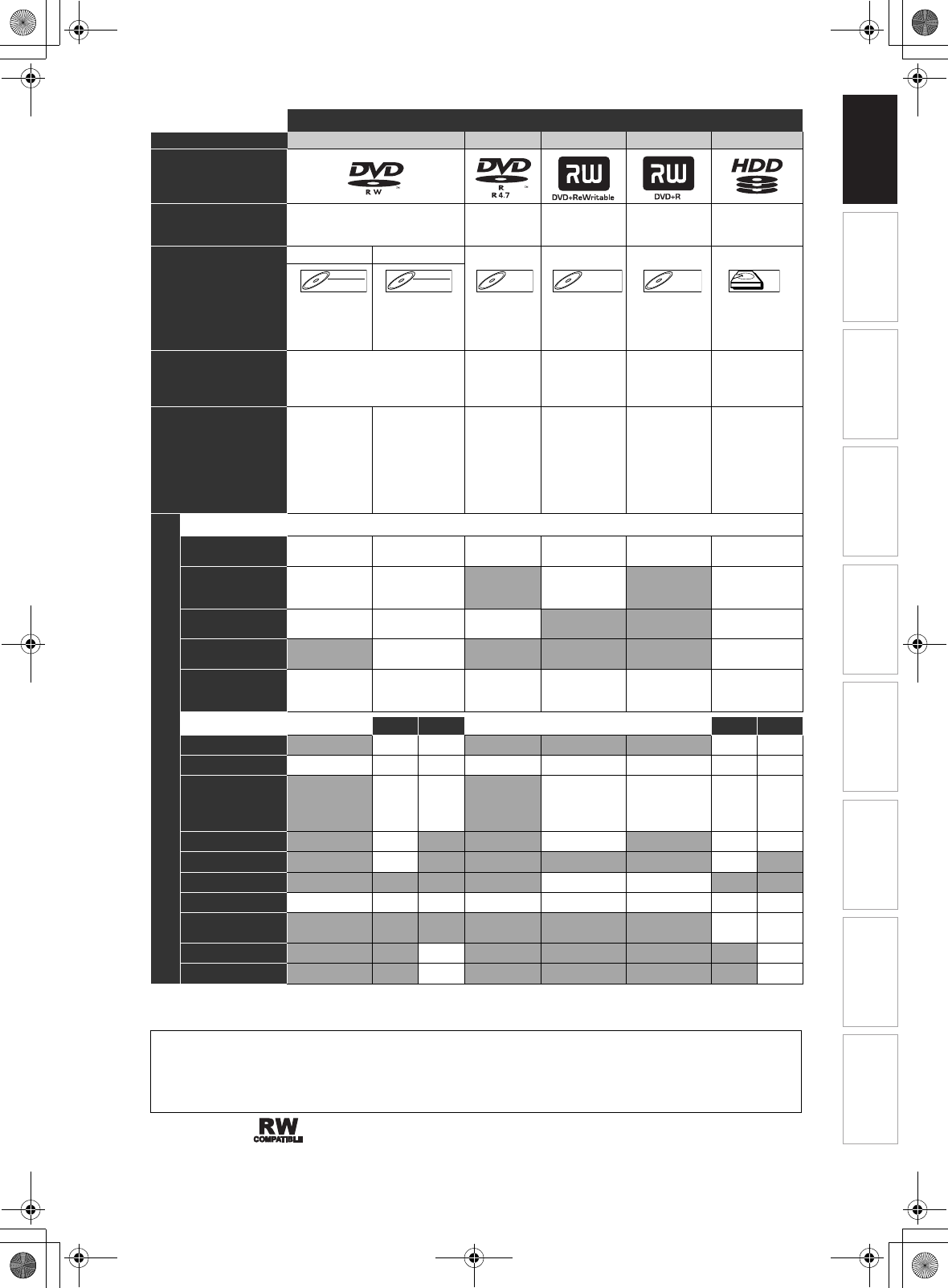

Medias for Recording / Playing

Disc Type DVD-RW DVD-R DVD+RW DVD+R HDD

Logo

Format Can be formatted in VR or Video

mode

Automatically

formatted in

Video mode

Automatically

formatted in

+VR mode

Automatically

formatted in

+VR mode

–

Video Mode VR Mode

Icon

Maximum Record Time

480 min

(12 cm)

144 min

(8 cm)

480 min

(12 cm)

144 min

(8 cm)

480 min

(12 cm)

144 min

(8 cm)

480 min

(12 cm)

144 min

(8 cm)

480 min

(12 cm)

144 min

(8 cm)

267 hrs

(with SLP

mode)

Recordable/Playable

Versions

Ver. 1.1, 1.2

Ver. 1.1/2× CPRM compatible

Ver. 1.2/4× CPRM compatible

Ver. 2.0

Ver. 2.0/4×

Ver. 2.0/8×

Ver. 2.0/16×

1×-4× 1×-16× –

Compatibility

Playable on

most DVD

players.

Finalisation

necessary.

(Title menu will

be created)

Playable only on

VR mode

compatible unit.

Finalisation

recommended.

Playable on

most DVD

players.

Finalisation

necessary.

(Title menu

will be

created)

Playable on

DVD+RW

compatible

players.

Finalisation

recommended.

(Title menu will

be created)

Playable on

most DVD

players.

Finalisation

recommended.

(Title menu will

be created)

–

Available Features

Recording Features

Record TV

Programmes ✔✔✔✔✔✔

Reuse by Deleting

the Current

Contents

✔✔ ✔ ✔

Record 16:9 Size

Pictures ✔✔✔ ✔

Record Copy-once

Programmes

✔*✔

Create Chapters

at Fixed Intervals

(auto chapter)

✔✔✔✔✔✔

Editing Features

Playlist Original Playlist Original

Scene Delete ✔✔ ✔✔

Edit Title Name ✔✔✔✔ ✔ ✔✔✔

Create Chapters

Wherever You

Like (chapter

mark)

✔✔ ✔✔✔✔

Divide a Title ✔ ✔ ✔✔

Combine Titles ✔ ✔

Hide Chapters ✔✔

Delete a Title ✔✔✔✔ ✔ ✔✔✔

Deleting Selected

Titles ✔✔

Create a Playlist ✔ ✔

Protect a Title ✔ ✔

✔: Available Gray: Not available

* CPRM compatible disc only.

DVD-RWDVD-RW

Video

DVD-RWDVD-RW

DVD-RDVD-R D

VD+R

DVD+RW D

VD+R

DVD+R HDD

HDD

Because of problems and errors that can occur during the creation of DVD and CD software and/or the

manufacture of DVD and CD discs, Toshiba cannot guarantee that product will play every feature of every DVD

bearing the DVD logo and/or every CD bearing the CD logo. As one of the creators of DVD technology, Toshiba

DVD players are manufactured using the highest standards of quality, and as a result, such incompatibilities are

rare.

Introduction Connections Basic Setup Playback Editing OthersFunction SetupRecording VHS Functions

E3NG0FD_EN.book Page 9 Wednesday, January 30, 2008 10:37 AM

10 EN

is a trademark of DVD Format/Logo Licensing

Corporation.

• Official DivX® Certified product

• Plays all versions of DivX® video (including DivX®6)

with standard playback of DivX® media files.

• Discs containing the DivX® files with the DivX®GMC

(Global Motion Compensation) playback feature,

which is DivX® supplemental function, cannot be

played back on this unit.

Unplayable Discs

The following discs will not play back on this unit.

On the following disc, the sound may not be heard.

• Super audio CD - Only the sound on the CD layer

can be heard. The sound on the high-density super

audio CD layer cannot be heard.

Colour Systems

DVDs are recorded using different colour systems

throughout the world. The most common colour

system, used primarily in the U.K. and other EU

countries, is PAL.

This unit uses the PAL system. However, it is also

possible to play back DVDs using other colour

systems, such as NTSC.

Region Codes

This unit has been designed to play DVD

with region 2. DVD must be labelled for ALL

regions or for region 2 in order to play on the

unit. You cannot play back DVD that are

labelled for other regions. Look for the

symbols on the right on your DVD. If these

region symbols do not appear on your DVD,

you cannot play back the DVD in this unit.

The number inside the globe refers to region of the

world.

A DVD labelled for a specific region can only play

back on the unit with the same region code.

Following discs are recommended for good recording

quality and are proven to be compatible with this unit.

However, depending on the media condition the unit

may not read the disc properly.

Performance of any other discs are not guaranteed.

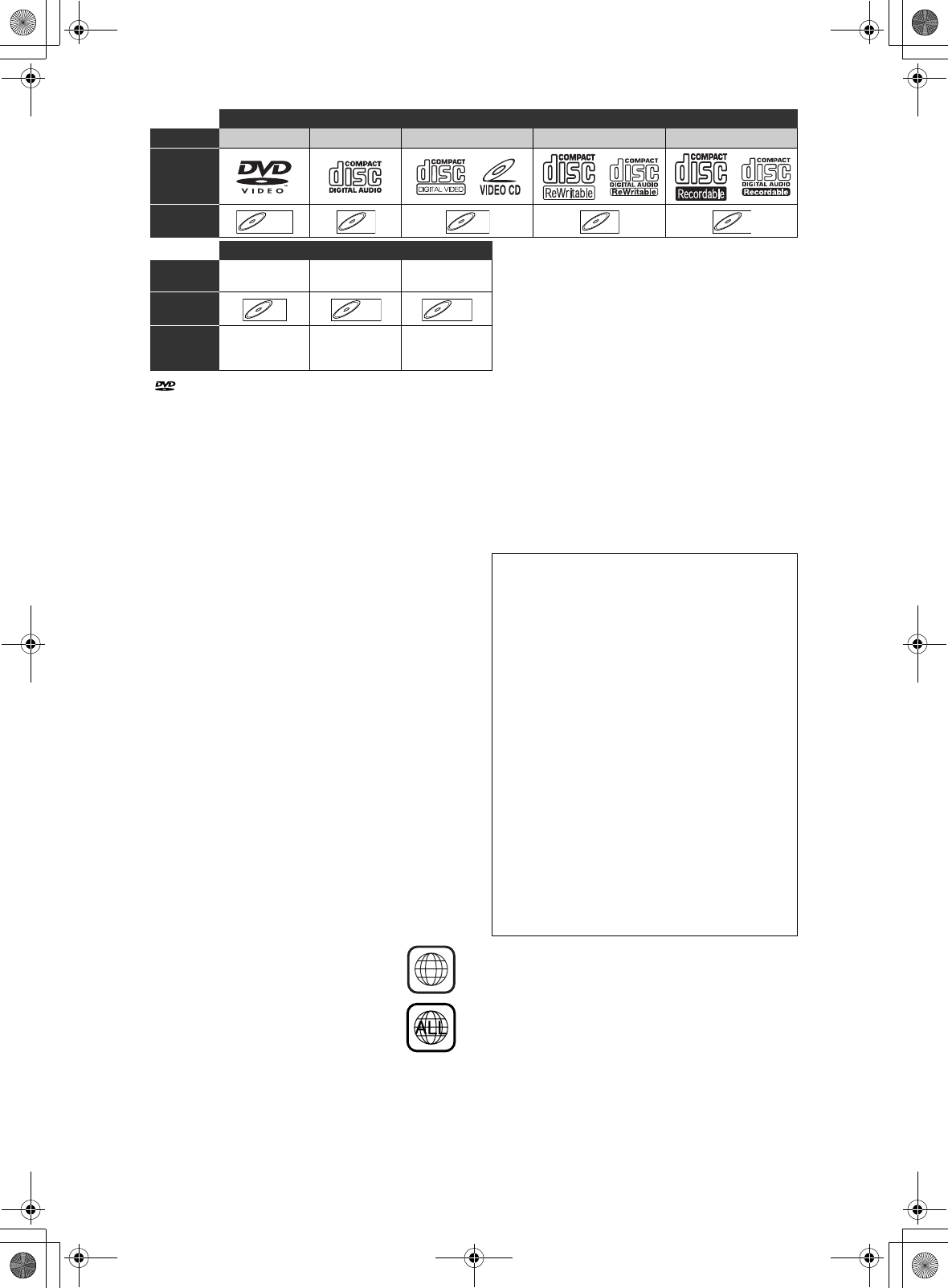

Discs for Playing

Disc Type DVD-VIDEO CD-DA Video CD CD-RW CD-R

Logo

Icon

Files for Playing

Type of

title MP3 JPEG DivX®

Icon

Media CD-RW/-R CD-RW/-R

CD-RW/-R

DVD-RW/-R

DVD+RW/+R

DVD-VDVD-V CD

CD VCD

VCD

VCD CD

CD CD

MP3

MP3 JPEG

JPEG

JPEG DivX

DivX

DivX®

• CD-ROM • Compact Disc-Interactive

(CD-I)

• Video Single Disc (VSD) • DVD-ROM

• DVD-audio • Unfinalised disc

• DVD contains MP3, Windows Media™ Audio or

JPEG files

• DVD-RW/-R recorded in non compatible recording

format

• Blu-ray Disc • HD DVD

Verbatim DVD+R 8x, DVD+RW 4x, DVD-R 8x,

DVD-RW 2x

JVC DVD-RW 4x

Maxell DVD+R 4x/8x/16x, DVD-R 8x/16x

SONY DVD+R 4x/8x/16x, DVD+RW 4x

TDK DVD+R 4x/8x/16x

• Toshiba is not liable for any damage or loss

caused directly or indirectly by the malfunction of

this recorder, including, without limitation, any one

of the following:

• Failure to record contents intended to be

recorded by the consumer.

• Failure to edit contents as intended by the

consumer.

• When a DVD-RW/-R, DVD+RW/+R disc

created on this recorder is used (e.g.,

insertion, playback, recording or editing) in

another DVD player, recorder or personal

computer drive.

• When a DVD-RW/-R, DVD+RW/+R disc that

is used in the manner described in the

immediately preceding bullet point is used

again in this recorder.

• When a DVD-RW/-R, DVD+RW/+R disc that

was recorded in another DVD recorder, or in a

personal computer drive is used in this

recorder.

• Some functions may not work with personal

computer discs.

• Discs recorded in this recorder may not operate

as expected on other DVD players, recorders or

personal computer drives.

E3NG0FD_EN.book Page 10 Wednesday, January 30, 2008 10:37 AM

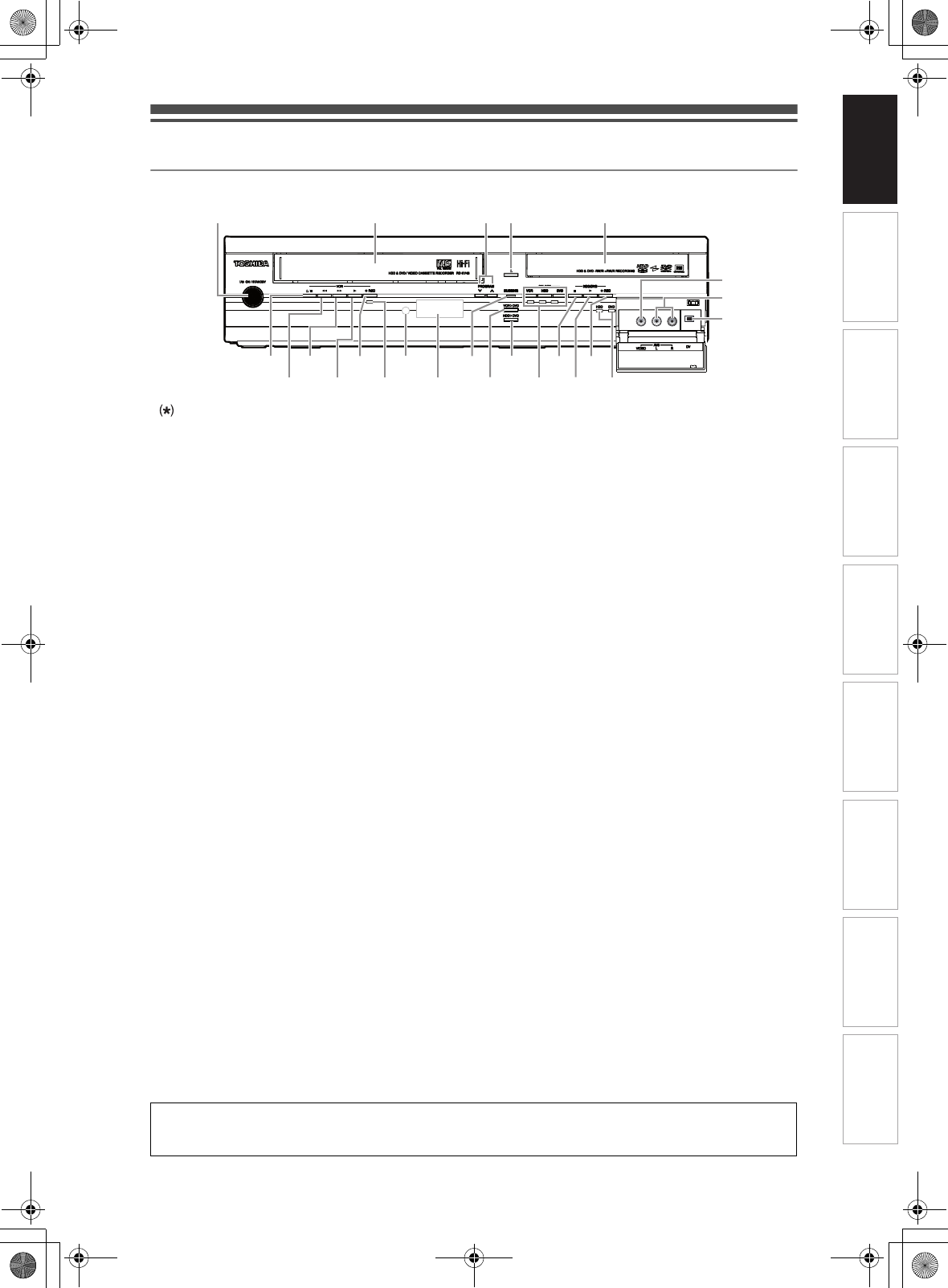

Functional Overview

Front Panel

1BON\STANDBY button

• Press to turn the unit on and off.

2 Cassette compartment

• Insert a tape here.

3 PROGRAM G\H buttons

4A(OPEN\CLOSE) button* (DVD)

• Press to open or close the disc tray.

5 Disc tray

• Place a disc when the disc tray is opened.

6 VIDEO input jack (AV3)

• Connect the video output of an external device

here using a commercially available Video

cable.

7 AUDIO input jacks (AV3)

• Connect the audio output of an external device

here using a commercially available Audio

(L / R) cable.

8 DV input jack (AV4)

• Use to connect the DV output of external device

with a DV cable.

9 REC indicators (HDD/DVD)

• Lights up during HDD/DVD recording.

10 IREC button (HDD/DVD)

• Press once to start a recording. Press

repeatedly to start one-touch timer recording.

Each press increases the recording time by 30

minutes up to 8 hours.

11 B(PLAY) button* (HDD/DVD)

• Press to start or resume playback.

12 C(STOP) button (HDD/DVD)

• Press to stop playback, recording or dubbing.

13 Device Select Buttons / Indicators

14 DUBBING HDD M DVD button

• Press to start One Touch Dubbing from HDD to

DVD.

15 DUBBING VCR M DVD button

• Press to start One Touch Dubbing from VCR to

DVD.

16 DUBBING indicator

• Lights up during dubbing

17 Display

• Shows information and messages. Refer to

“Front Panel Display Guide” on page 19.

18 Infrared sensor window

• Receive signals from your remote control so that

you can control the unit from a distance.

19 REC indicator (VHS)

• Lights up during VCR recording.

20 IREC button (VHS)

• Press once to start a recording. Press

repeatedly to start one-touch timer recording.

Each press increases the recording time by 30

minutes up to 8 hours.

21 B(PLAY) button* (VHS)

• Press to start playback. Press to turn on the unit

to start playback.

22 D(FWD) button* (VHS)

• Press to fast forward or fast search. Press to

turn on the unit to fast forward.

23 E(REV) button* (VHS)

• Press to rewind or rewind search.

• Press to turn on the unit to rewind.

24 A/C(EJECT\STOP) button (VHS)

• Press to stop playback, recording or dubbing.

• Press to eject the videotape.

23*

22*

21* 19 17 15 13 11* 9

2 53 4*

24 20 18 16 14 12 10

You can also turn on the unit by pressing these buttons.

HDD/DVD: Press to change the channel up or

down.

VHS : Press to change the channel up or

down. Press to adjust the tracking

during playback or in slow motion of

the tape. While playback is in still

mode, you can adjust the vertically

blurred picture.

VHS : Press to activate the VCR. Lights up when

VCR is selected.

HDD: Press to activate the HDD. Lights up when

HDD is selected.

DVD : Press to activate the DVD. Lights up when

DVD is selected.

Button names described in the Owner’s Manual

The instructions in this manual are described mainly with the operations using the remote control. Some

operations can be carried out using the buttons on the front panel.

Introduction Connections Basic Setup Playback Editing OthersFunction SetupRecording VHS Functions

E3NG0FD_EN.book Page 11 Wednesday, January 30, 2008 10:37 AM

12 EN

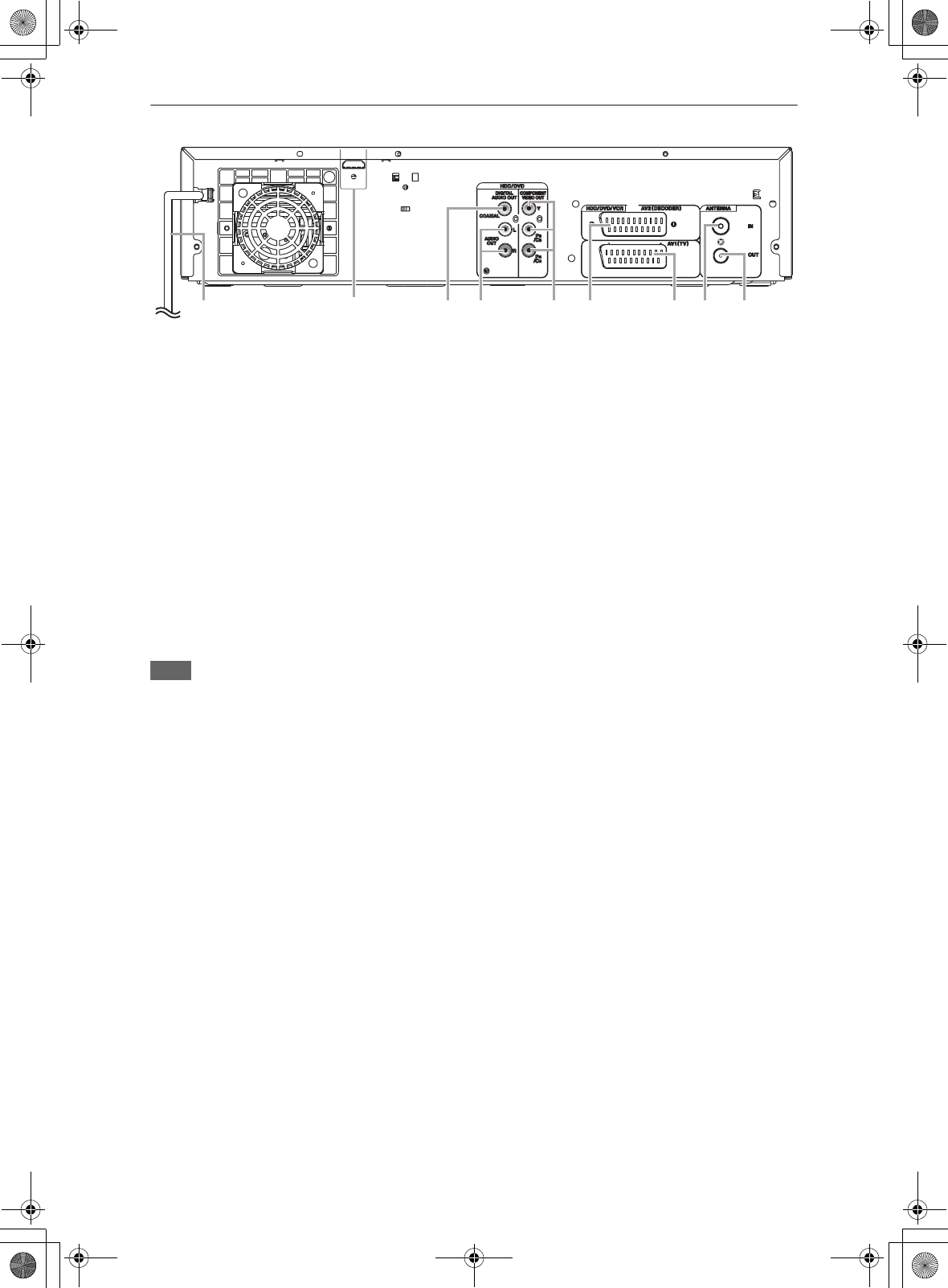

Rear Panel

1 Mains cable

• Connect to a standard AC outlet.

2 HDMI OUT jack (HDD/DVD)

• Connect to a display with an HDMI compatible

port. Use a commercially available HDMI cable.

3 DIGITAL AUDIO OUT (COAXIAL) jack

(HDD/DVD)

• Connect to an amplifier with a digital input jack

such as a Dolby Digital decoder, DTS decoder

or MPEG decoder. Use a commercially available

Coaxial cable.

4 AUDIO OUT (L\R) jacks (HDD/DVD)

• Connect to the audio input jacks on your TV.

Use a commercially available Audio cable.

5 COMPONENT VIDEO OUT jacks

(HDD/DVD)

• Connect to the component video input jacks on

your TV. Use a commercially available

Component Video cable.

6 AV2 (DECODER) socket (HDD/DVD/VHS)

• Connect to VCR, camcorder, or other

Audio-Video equipment. Use a commercially

available Scart cable.

7 AV1 (TV) socket (HDD/DVD/VHS)

• Connect to the Scart socket on your TV. Use a

commercially available Scart cable.

8 ANTENNA IN

• Connect to an antenna or a cable.

9 ANTENNA OUT

• Connect to the Aerial jack on your TV, cable box

or direct broadcast system to output the signal

received at ANTENNA IN. Use the supplied RF

cable.

Note

• Do not touch the inner pins of the jacks on the rear panel. Electrostatic discharge may cause permanent damage

to the unit.

• This unit does not have an RF modulator.

HDMI OUT

1 3 456 87 92

E3NG0FD_EN.book Page 12 Wednesday, January 30, 2008 10:37 AM

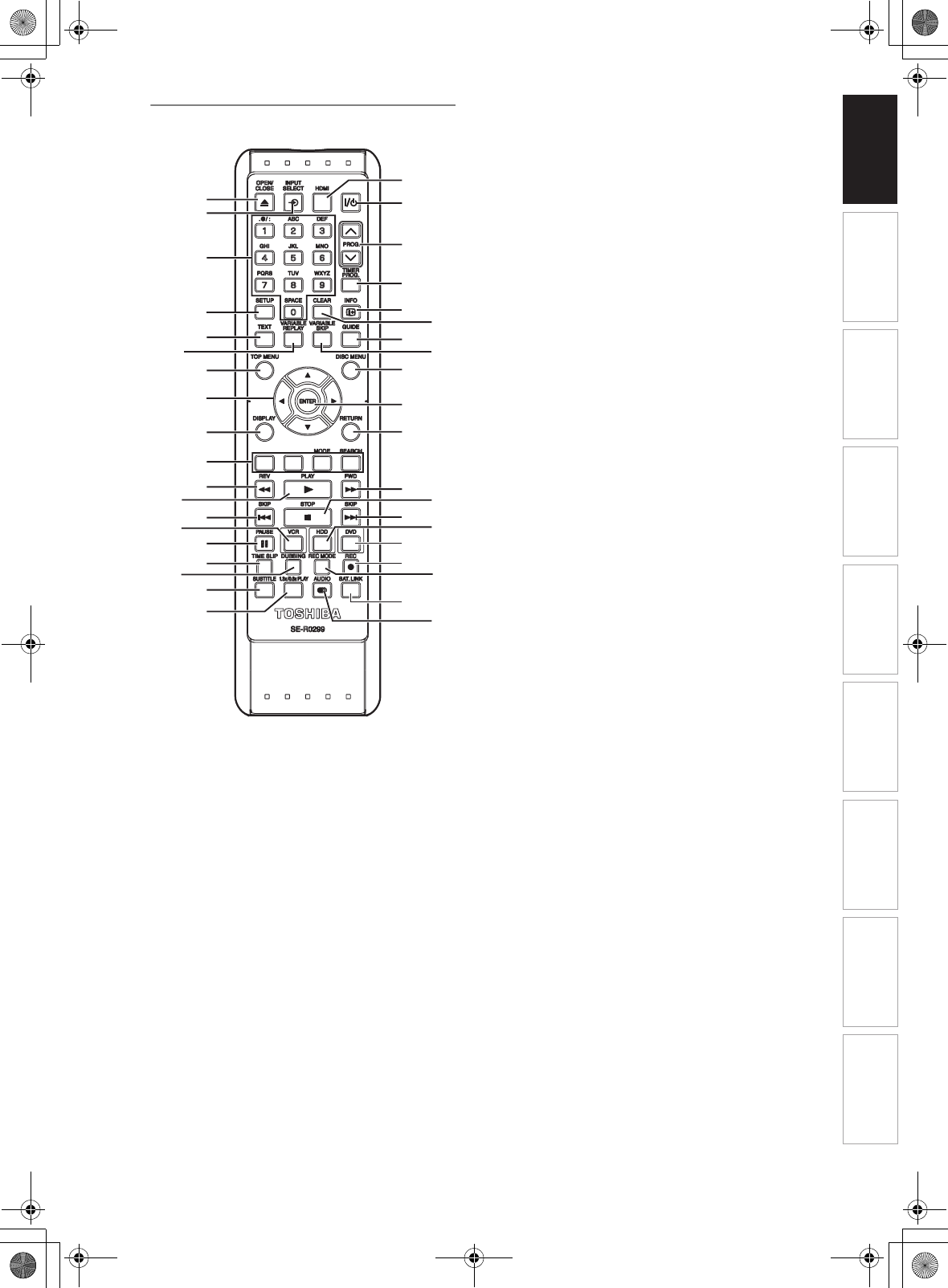

Remote Control

1 OPEN\CLOSE A button (DVD/VHS)

• Press to open or close the disc tray.

• Press to remove the videotape from the unit.

2 INPUT SELECT F button

• Press to select the DVB, analogue mode or

appropriate input.

3 Number buttons

• Press to select channel numbers.

• Press to select a title / chapter / track on the

display.

• Press to enter values for settings in “Setup”

menu.

• Press to enter the characters in edit function.

4 SETUP button

• Press to display “Setup” menu in stop mode.

5 TEXT button

• Press to switch Teletext on or off.

6 VARIABLE REPLAY button (HDD/DVD)

• Replays by the amount of time set in advance.

7 TOP MENU button (HDD/DVD)

• Press to display the Title list.

8Direction U\D\L\P buttons

• Press to move the cursor and determine items

or settings.

9 DISPLAY button

• Press to display the On-Screen Display.

10 RED/GREEN/YELLOW/BLUE button

• Press to follow the DVB instruction displayed on-

screen.

MODE (YELLOW) button (VHS)

• Press to change the video colour system.

SEARCH (BLUE) button (VHS)

• Press to call up the index or time search menu.

11 REV E button

(HDD/DVD)

• During playback, press to fast reverse.

• When playback is paused, press to reverse

slowly.

(VHS)

• Press to rewind the videotape.

• Press to view the picture rapidly in reverse

during the playback mode.

12 PLAY B button

• Press to start or resume playback.

13 SKIP H button (HDD/DVD)

• During playback, press twice in quick

successions to skip to the previous chapter or

track.

• When playback is paused, press to play reverse

step by step.

14 VCR button

• Press to select the VCR output mode.

15 PAUSE F button

• Press to pause playback or recording.

16 TIME SLIP button (HDD)

• Press to virtually pause and resume the live TV

broadcast.

17 DUBBING button

• During playback, press to start dubbing right

away.

• In stop mode, press to display “Dubbing” menu.

18 SUBTITLE button

• During playing back DVD or watching a DVB

channel which has subtitle information, press to

call up the Subtitle menu.

19 1.3x\0.8x PLAY button (HDD/DVD)

• During playback, press to playback in a slightly

faster/slower speed.

20 HDMI button

• Press to set the HDMI connector’s video signal

output mode.

21 BON/STANDBY button

• Press to turn on or off the unit.

22 PROG. G\H buttons

• Press to change the channel up or down.

23 TIMER PROG. button

• Press to display the timer programme setting

menu.

24 INFO C button

• Press to display the DVB programme

information.

25 CLEAR button

(HDD/DVD)

• Press to clear the password once entered.

• Press to cancel the programming for a disc.

• Press to clear the selecting marker number in

the marker setup mode.

• Press to clear the programme once entered in

the CD programme playback mode.

(VHS)

• Press to reset the tape counter.

26 GUIDE button

• Press to call up the EPG list in DVB mode.

276

Introduction Connections Basic Setup Playback Editing OthersFunction SetupRecording VHS Functions

E3NG0FD_EN.book Page 13 Wednesday, January 30, 2008 10:37 AM

14 EN

27 VARIABLE SKIP button (HDD/DVD)

• Skips by the amount of time set in advance.

28 DISC MENU button (HDD/DVD)

• Press to display the Disc menu during playback.

• Press to change the Original and Playlist on the

TV screen.

29 ENTER button

• Press to acknowledge or approve a menu

selection.

• While watching a DVB channel, press to display

the “Quick select” menu.

30 RETURN button

• Press to return to the previously displayed menu

screen.

31 FWD D button

• When playback is paused, press to forward slowly.

(HDD/DVD)

• During playback, press to fast forward.

(VHS)

• Press to advance the videotape rapidly.

• Press to view the picture rapidly in forward

during playback.

32 STOP C button

• Press to stop playing back or recording.

33 SKIP G button (HDD/DVD)

• During playback, press to skip to the next

chapter or track.

• When playback is paused, press to advance

step by step.

34 HDD button

• Press to select the HDD output mode.

35 DVD button

• Press to select the DVD output mode.

36 REC I button

• Press once to start a recording.

• Press repeatedly to start a One-touch Timer

Recording.

37 REC MODE button

• Press to switch the recording mode.

38 SAT.LINK button (HDD)

• Press to activate the Satellite Link Timer

Recording.

39 AUDIO D button

• For analogue channels when receiving a

bilingual broadcast, press to change the audio

out setting to “Main”, “Sub” or “Main/Sub”.

• Press to change the bilingual audio source of an

external equipment to “Main”, “Sub” or “Main/Sub”.

(Available only when the “External Input Audio” in

“Setup” menu is set to “Bilingual” in advance.)

• Press to select the sound mode for DVB channels.

(HDD/DVD)

• Press to display the audio menu during playback.

(VHS)

• During playback of Hi-Fi videotape, press to

change the audio out setting to “STEREO”,

“LEFT”, “RIGHT” and “MONO”.

Note

• If you turn off this unit,

[OPEN

]

on the remote

control is not available. Be sure to use

[

OPEN

CLOSE]

[

EJECT/STOP]

on the unit.

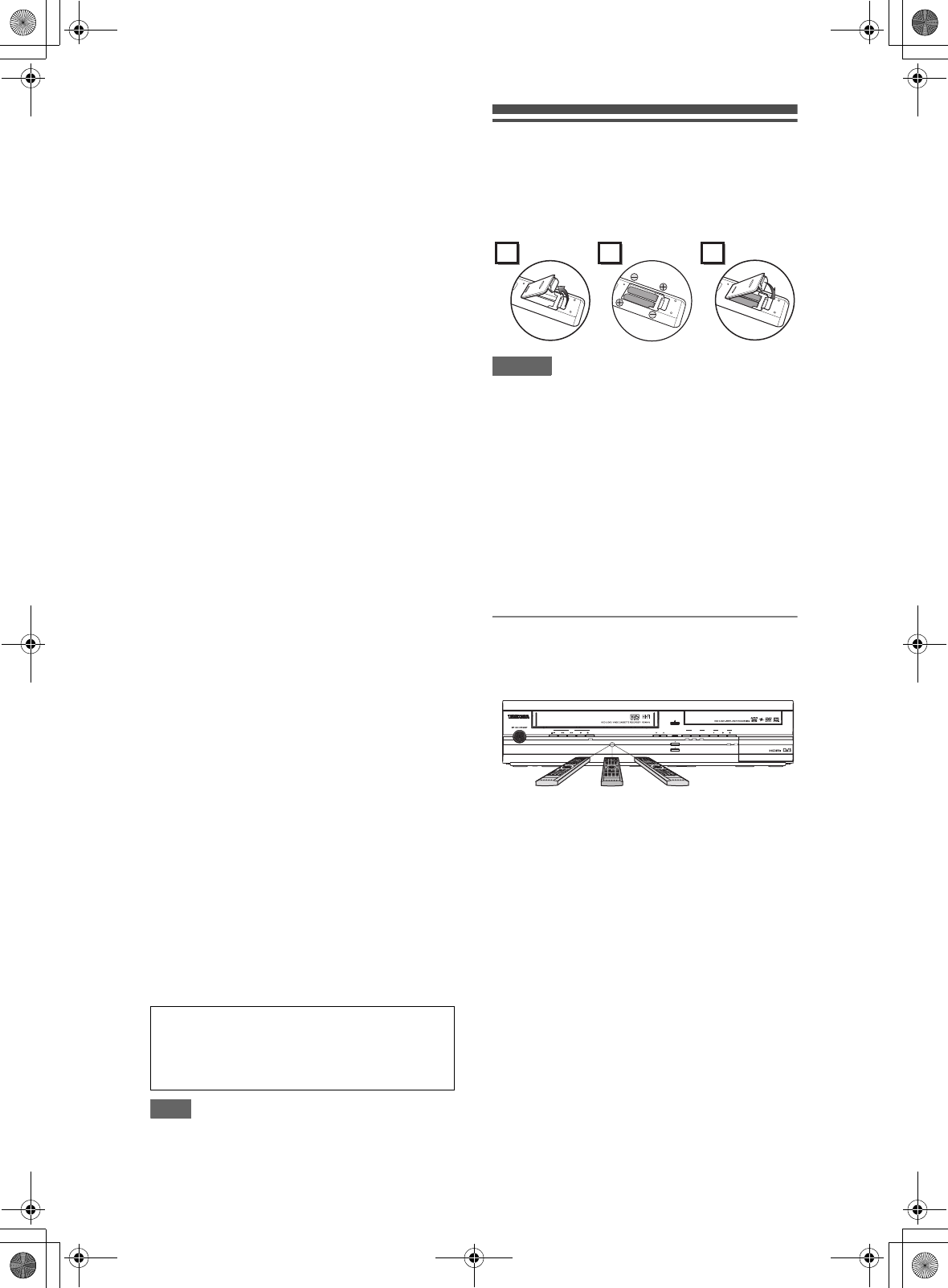

Installing Batteries in the

Remote Control

Install two R6 (AA) batteries (supplied) into the

remote control, carefully match with the polarity

indicated inside the battery compartment.

Caution

• Incorrect use of batteries can result in hazards such

as leakage and bursting.

• Do not mix new and old batteries together.

• Do not use different kinds of batteries together.

• Make sure that the plus (+) and minus (–) ends of

each battery match the indications inside the battery

compartment.

• Remove batteries if the equipment will not be used

for a month or more.

• When disposing used batteries, please comply with

governmental regulations or the public instructions

for environmental protection that apply in your

country or area.

• Do not recharge, short-circuit, heat, burn or

disassemble batteries.

About the Remote Control

• Make sure there is no obstacle between the remote

control and the remote control sensor on the unit.

• Use within the operating range and angle as shown.

• The maximum operable range as follows:

• Remote control operation may become unreliable if

the remote control sensor of the unit is being

exposed by the strong sunlight or fluorescent light.

• Remote controls for different devices can interfere

with each other. Be careful when using remote

controls for other equipment located close to the

unit.

• Replace the batteries when the operating range of

the remote control reduces.

Button names described in the Owner’s Manual

The instructions in this manual are described mainly

with the operations using the remote control. Some

operations can be carried out using the buttons on

the front panel.

Line of sight: approximately 7 m

Either side of centre: approximately 7 m within

30 degrees

21 3

VCR

REC

PROGRAM

DUBBING VCR HDD DVD

SELECT

REC

HDD/DVDSELECTSELECT

DVDVCR

DVDHDD

Within

about 7 m

Remote control

7 m (30°)7 m

7 m (30°)

E3NG0FD_EN.book Page 14 Wednesday, January 30, 2008 10:37 AM

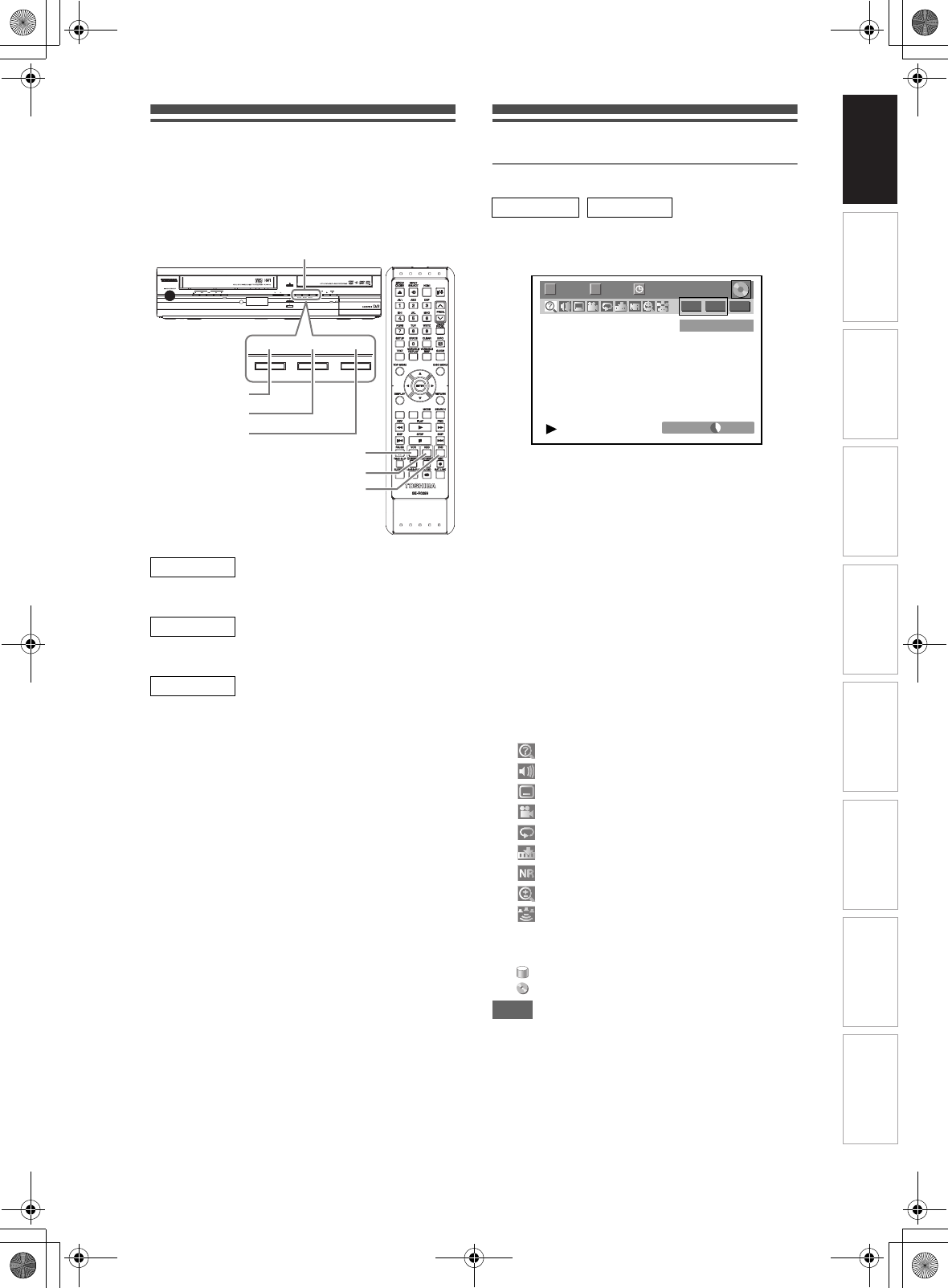

Switching HDD / DVD / VHS

mode

Because this unit is a combination of an HDD, a DVD

and a VHS recorder, you must select which

component you want to operate first.

Press [HDD] on the remote control or the front panel.

(Verify that the HDD indicator is lit in blue.)

Press [DVD] on the remote control or the front panel.

(Verify that the DVD indicator is lit in green.)

Press [VCR] on the remote control or the front panel.

(Verify that the VCR indicator is lit in orange.)

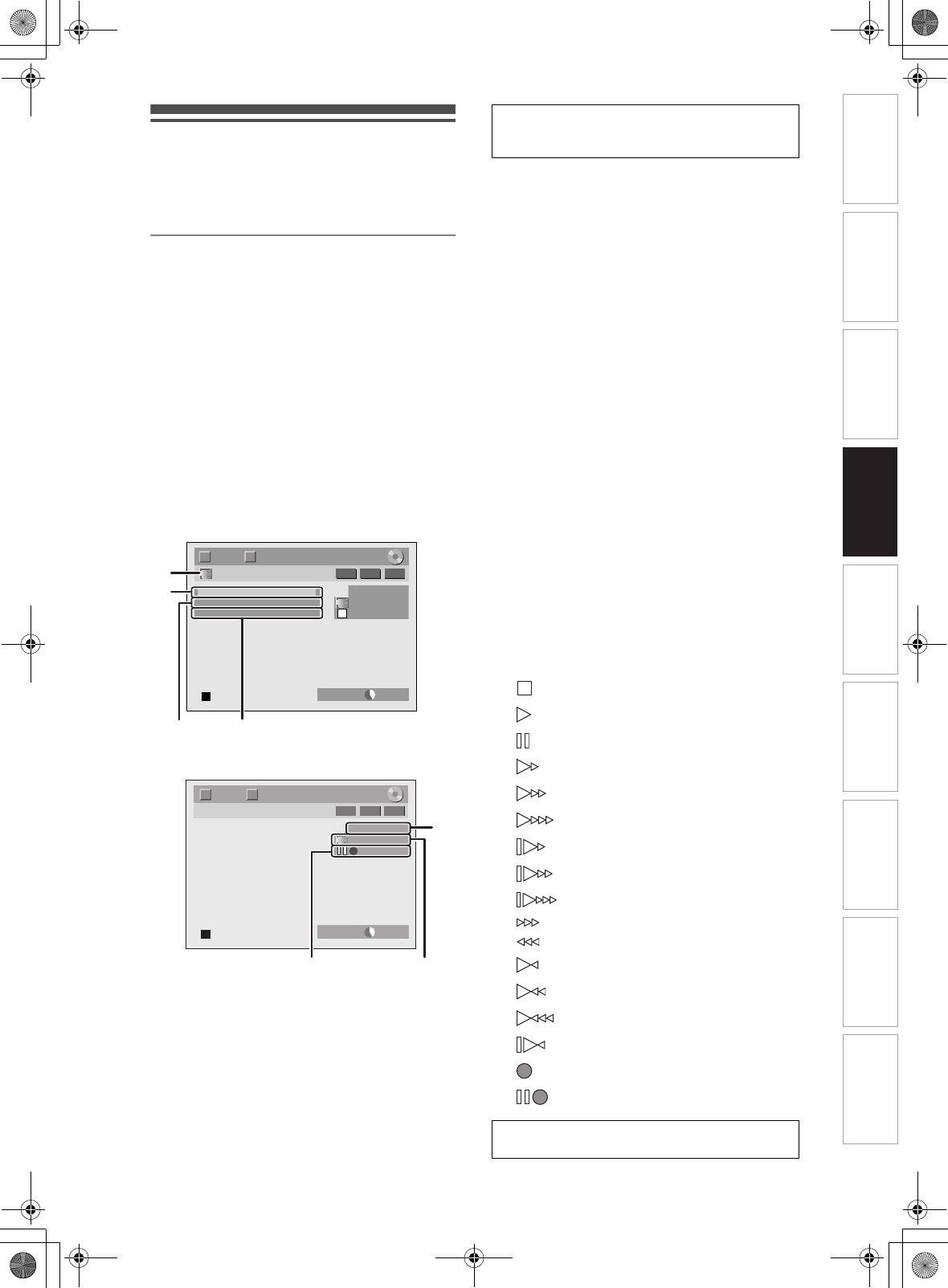

Guide to On-Screen Displays

DISPLAY Menu

With a disc inserted into the unit, press [DISPLAY] to

display the On-Screen Display. The menu shows

information about what is recorded on the disc.

This is an example screen for explanation. Displayed

items vary depending on the actual mode.

1 Indicates a disc type and format mode.

(DVD mode only)

2 Indicates a type of titles for HDD and VR

mode DVD-RW disc.

3 Indicates a channel number, station

name (analogue channel only) or

selected external input mode.

4 Indicates a media, recording mode and

possible recording time left.

5 Indicates the current title number/total

number of titles, the current chapter

number/total number of chapters, and

time lapse of the current title playback/

total duration of the title.

6 Each icon means:

7 Indicates an operation status.

8 Indicates the component in use.

: HDD

: DVD

Note

• For some descriptions on this manual, only one disc

type is indicated as an example.

HDD

DVD

VHS

VCR

REC

PROGRAM

DUBBING VCR HDD DVD

SELECT

REC

HDD/DVDSELECTSELECT

DVDVCR

DVDHDD

HDD DVDVCR

Device Select Indicators

HDD indicator

DVD indicator

HDD button

DVD button

VCR indicator

VCR button

HDD DVD

: Search

: Audio

: Subtitle

: Angle

: Repeat

: Marker

: Noise Reduction

6611

901 TF1

T C

DVD SP 1:53

Introduction Connections Basic Setup Playback Editing OthersFunction SetupRecording VHS Functions

E3NG0FD_EN.book Page 15 Wednesday, January 30, 2008 10:37 AM

16 EN

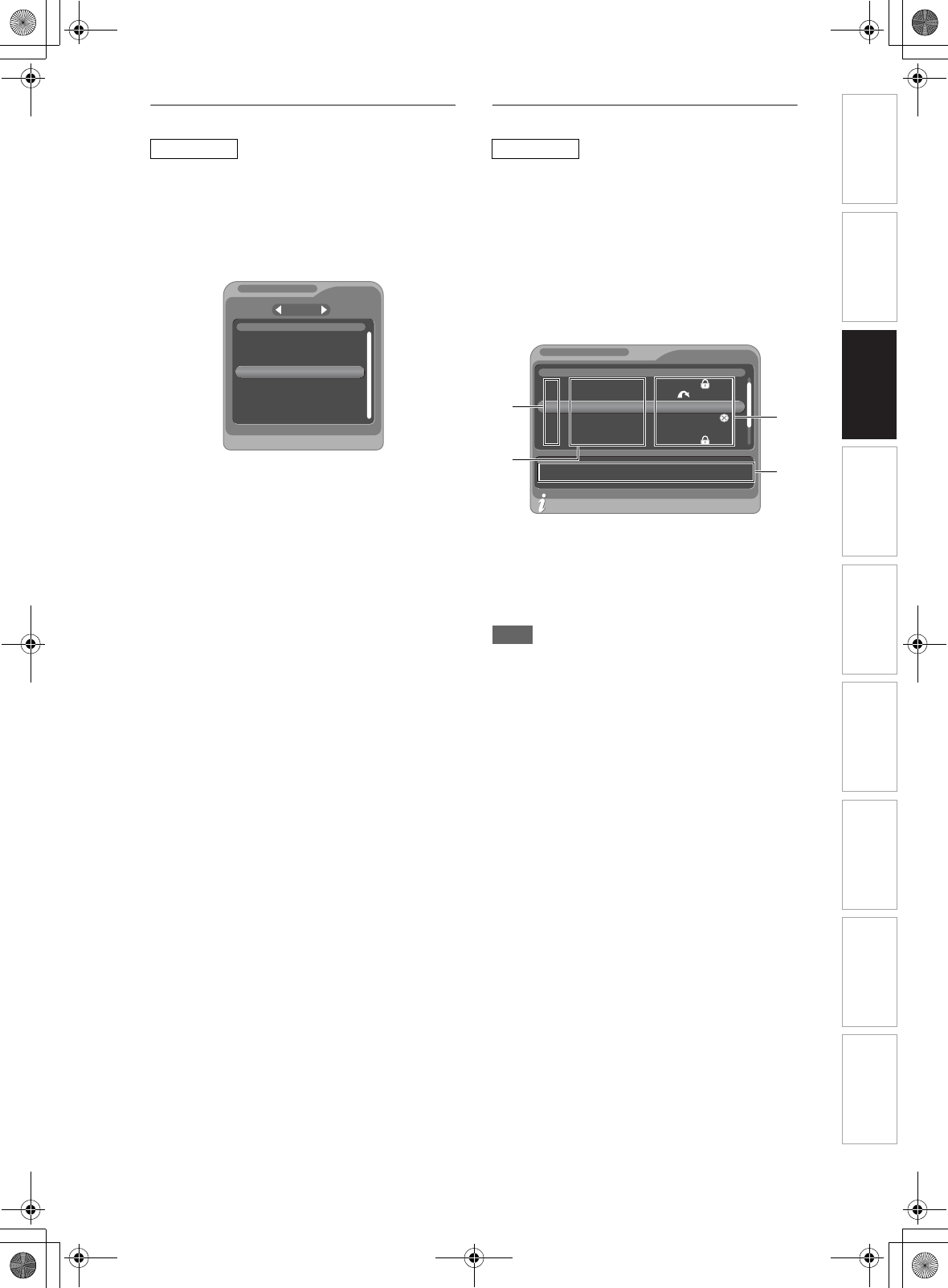

Press [DISPLAY] while the On-Screen Display is

displayed to display the following information.

1 Indicates the resolution of the HDMI

output image.

2 Indicates the HDMI video format.

3 Indicates the HDMI audio format.

• “- - -” will be displayed, when it does not have any

information.

Press [VCR] first.

Press [DISPLAY] to display the On Screen Display.

1 Current time

2Position number

3 Audio status of the receiving broadcast

or external equipment

4 Audio status of the currently playing

back videotape

5 Tape counter

6 Recording or playing back speed

7 Status of the current tape

While in the VHS mode, the On Screen Display of the

VHS mode is displayed.

INFO Menu

Press [INFO C] while viewing a DVB programme to

display the programme information.

1 Channel number

2 Channel name

3 Current programme information

4 Next programme information

The window will automatically exit after 3 seconds, or

press [INFO C] to exit.

File name information

(only when a CD with MP3/JPEG/DivX® files

is in playback)

Title name information

(only when DVD+RW/+R, VR mode

DVD-RW/-R, unfinalised Video mode

DVD-RW/-R disc or HDD is in playback)

(only when a CD with MP3 files is in playback)

Title name information

Artist name information

Album name information

(only for the images output through the HDMI

output)

File Name

My File

Title Name

My Title

Title Name

Artist Name

Album Name

480p /YCbCr

1122

Video Info. :

Audio Info. : Bitstream

VHS

DVB

0:00:00 STEREO

AV2

STEREO

12:00

This is an example screen for explanation.

Displayed items are depending on the actual mode.

10:00 -11:00

11:00 -12:00

TV gossip show

UKTV Gold

Cooking show

1_Introduction_EN.fm Page 16 Wednesday, January 30, 2008 10:52 AM

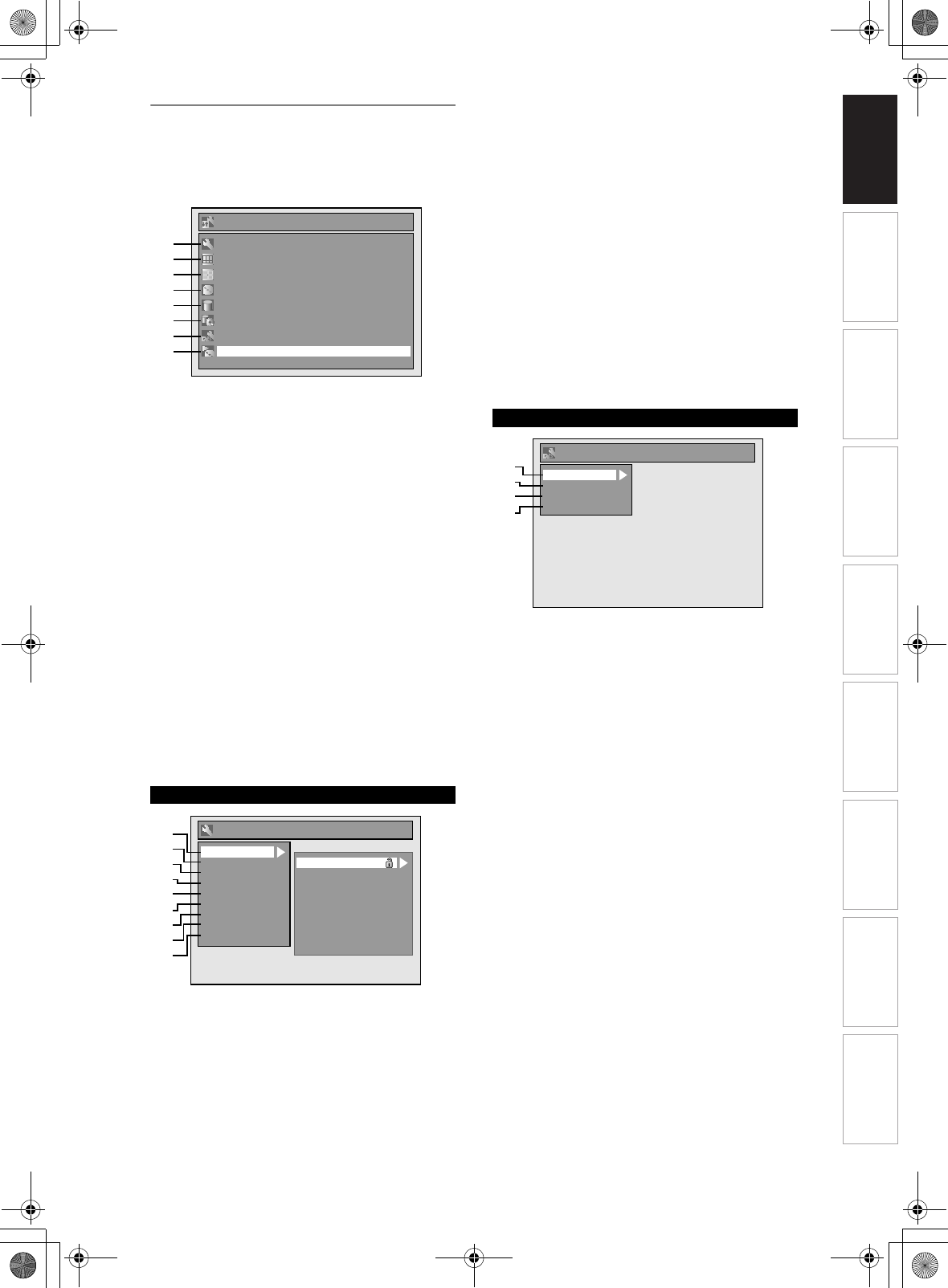

Main Menu

Press [SETUP] to display the main menu. Then use

[U\D] to select a menu and press [ENTER] to

display the sub menu. These menus provide entries to

all main functions of the unit.

1 General Setting:

To go to General Setting menu.

2 Timer Programming:

To programme a timer recording.

3 Title List:

To call up the title list.

4DVD Menu:

To set up the DVD disc setting.

5 HDD Menu:

To set up the HDD setting.

6 Dubbing:

• To dub the content of the HDD to DVD or vice versa.

• To dub the content of the HDD to VHS or vice versa.

• To dub the content of the DVD to VHS or vice versa.

• “Dubbing” is available only when a recordable disc

or videotape is loaded.

7 DVB Menu:

To set up the DVB setting.

8 CD Playback Mode:

To set up the CD playback setting.

• “CD Playback Mode” is available only when an audio

CD, a video CD, a CD-RW/-R with MP3 / JPEG /

DivX® files is inserted into the unit.

1 Playback:

To set up the unit to play discs as you prefer.

2Display:

To set up the OSD screen as you prefer.

3Video:

To set up the video setting.

4 Recording:

To set up the unit to record to discs as you prefer.

5Clock:

To set up the clock of the unit as you need.

6 Channel:

To adjust the channel setting of the unit as you prefer.

7DivX:

To set up the setting for the DivX® playback.

8HDMI:

To set up the HDMI connection setting.

You cannot select if the HDMI cable is not connected.

9 Reset All:

To reset the setting to the factory default.

1 Adult Lock:

To set up the Pincode for “Adult Lock”.

2 Maturity Lock:

To set the age restriction for DVB programmes.

3 Language:

To set up the language for audio and subtitle.

4 About:

To check the current DVB system software version of

this unit.

General Setting

Setup

General Setting

Timer Programming

Title List

DVD Menu

HDD Menu

Dubbing

DVB Menu

CD Playback Mode

Playback

Display

Video

Recording

Clock

Channel

DivX

HDMI

Reset All

Parental Lock

Audio Out

Disc Menu Language

Audio Language

Subtitle Language

Angle Icon

Still Mode

Variable Skip / Replay

TV System

General Setting

DVB Menu

Adult Lock

Maturity Lock

Language

About

DVB Menu

Introduction Connections Basic Setup Playback Editing OthersFunction SetupRecording VHS Functions

E3NG0FD_EN.book Page 17 Wednesday, January 30, 2008 10:37 AM

18 EN

1 Format (DVD-RW, DVD+RW only):

Allows you to format the disc.

2Finalise:

Allows you to finalise a disc containing recorded titles.

3 Disc Protect (VR mode DVD-RW,

DVD+RW/+R disc only):

Allows you to protect a disc from accidental editing or

recording.

4 Delete All Playlists (VR mode DVD-RW

disc only):

Allows you to delete all Playlists.

5Random Play:

Allows you to activate the random playback feature.

6 Programme Play (Audio CD/Video CD

only):

Allows you to activate the programme playback

feature.

7 PBC (Video CD only):

Allows you to select images or information on the

menu screen by activating PBC (playback control)

function.

8 Slide Show (JPEG files only):

Allows you to select the display time of the slide show

mode.

9 Delete All Titles:

Allows you to delete all titles, including the protected

titles in the HDD title list.

10 Delete All Unprotected Titles:

Allows you to delete all unprotected titles in the HDD

title list.

11 Delete All Playlists:

Allows you to delete all Playlists for HDD.

12 HDD A DVD:

Allows you to dub from HDD to DVD.

13 DVD A HDD:

Allows you to dub from DVD to HDD.

14 HDD A VCR:

Allows you to dub from HDD to VHS.

15 VCR A HDD:

Allows you to dub from VHS to HDD.

16 DVD A VCR:

Allows you to dub from DVD to VHS.

17 VCR A DVD:

Allows you to dub from VHS to DVD.

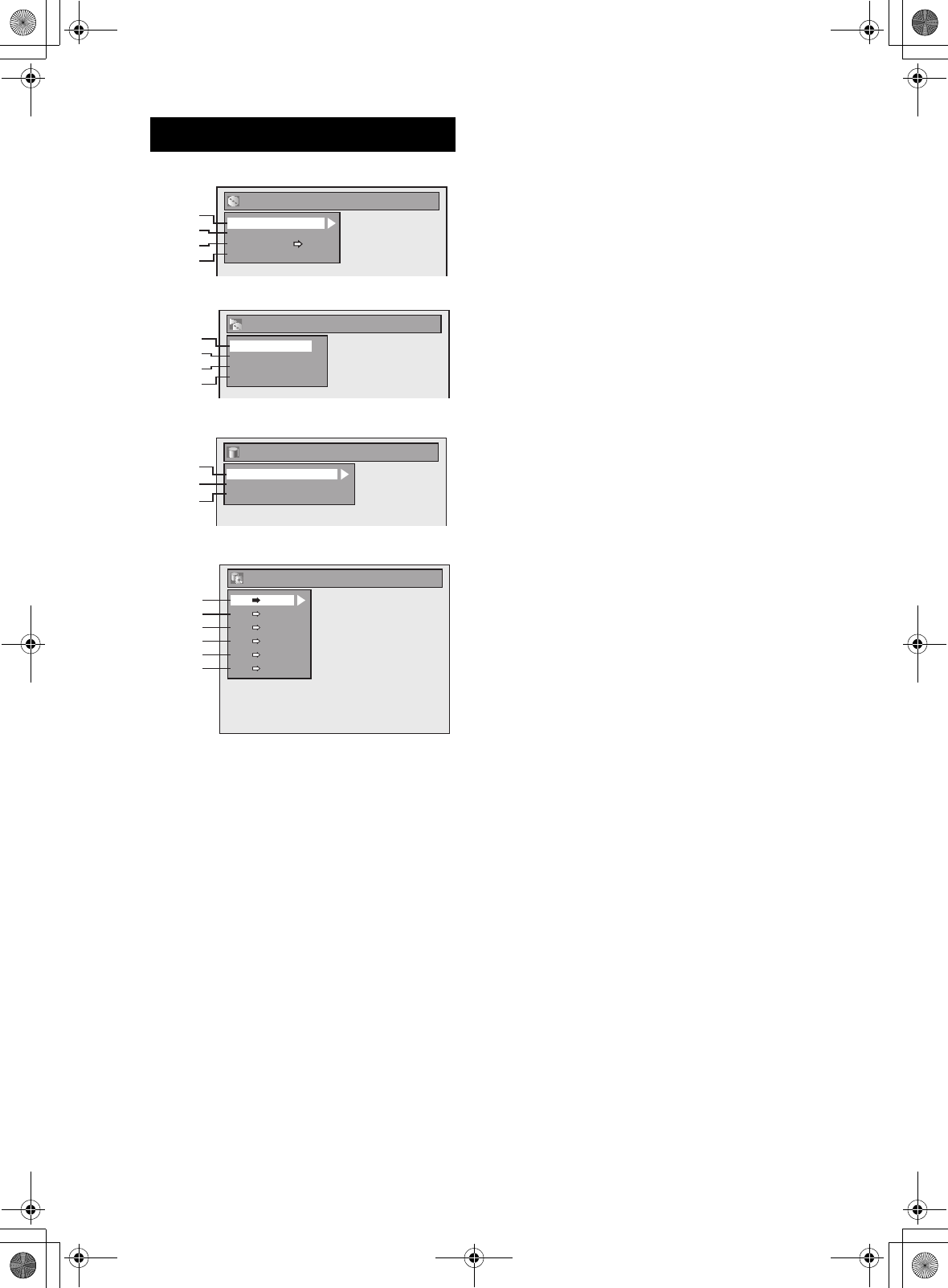

DVD Menu / CD Playback Mode / HDD Menu /

Dubbing

Format

Finalise

Disc Protect OFF

Delete All Playlists

DVD Menu

CD Playback Mode

Random Play

Programme Play

Slide Show

PBC (Video CD only)

HDD Menu

Delete All Titles

Delete All Unprotected Titles

Delete All Playlists

Dubbing

DVD

HDD

DVD

VCRHDD

HDDVCR

VCRDVD

DVDVCR

E3NG0FD_EN.book Page 18 Wednesday, January 30, 2008 10:37 AM

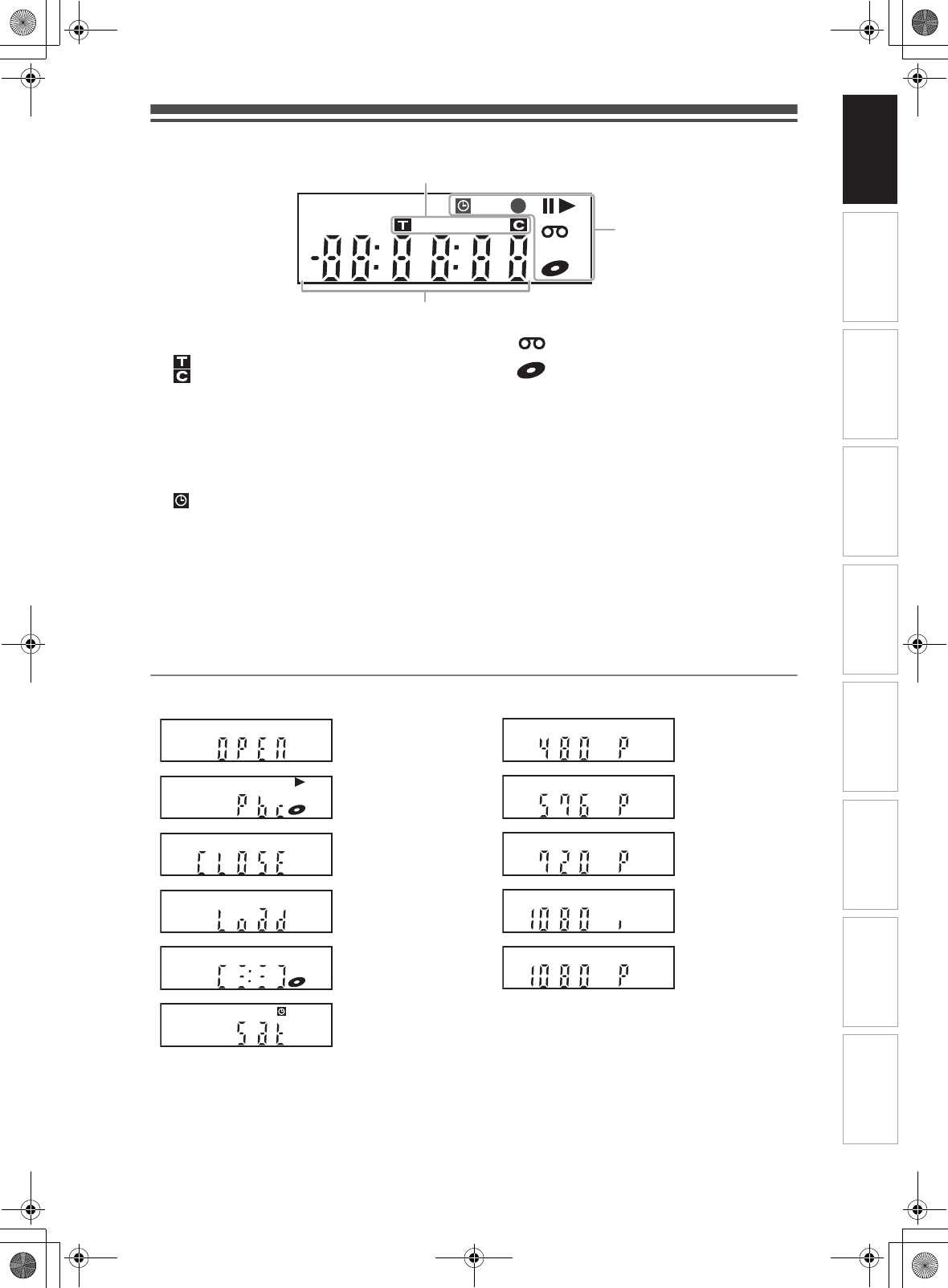

Front Panel Display Guide

1 Title / Track and Chapter number

2 Current status of the unit

3 Displays the following

• Playing back time

• Current title / chapter / track number

• Recording time / remaining time

•Clock

• Channel number

• One-touch Timer Recording (OTR) remaining

time

• Selected HDMI output mode

Display Messages

The disc tray is

opening.

The PBC function

of the Video CD is

activated.

The disc tray is

closing.

A disc is loading.

Data is being

recorded on a disc.

Appears when the

Satellite Link

Recording is in

standby.

Appears when

HDMI output mode

(480p) is selected.

Appears when

HDMI output mode

(576p) is selected.

Appears when

HDMI output mode

(720p) is selected.

Appears when

HDMI output mode

(1080i) is selected.

Appears when

HDMI output mode

(1080p) is selected.

:Title / track number

:Chapter number

F:Appears when disc playback is paused.

Appears during step by step playback.

B:Appears when playing back a disc.

F B:Appears during slow forward / reverse

playback.

:Appears when the timer programming or

One-touch Timer Recording (OTR) is set

and is operating.

Appears when the unit goes into the

Satellite Link standby mode.

Flashes when timer programming was not

executed because of some error.

I:Appears when recording.

Flashes when recording being paused.

:Appears when a videotape is in this unit.

:Appears when a disc is in this unit.

:Appears during dubbing.

Introduction Connections Basic Setup Playback Editing OthersFunction SetupRecording VHS Functions

E3NG0FD_EN.book Page 19 Wednesday, January 30, 2008 10:37 AM

20 EN

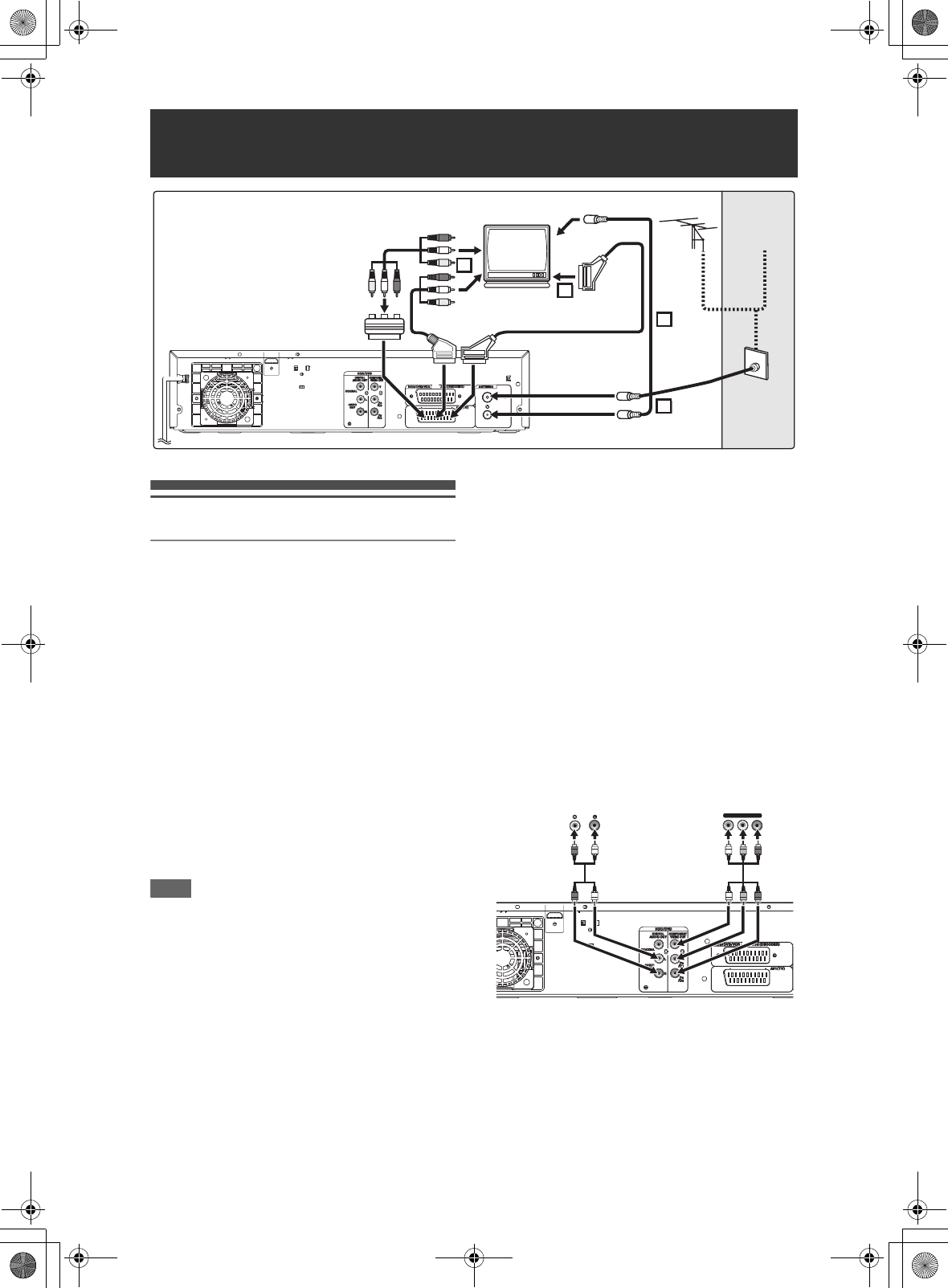

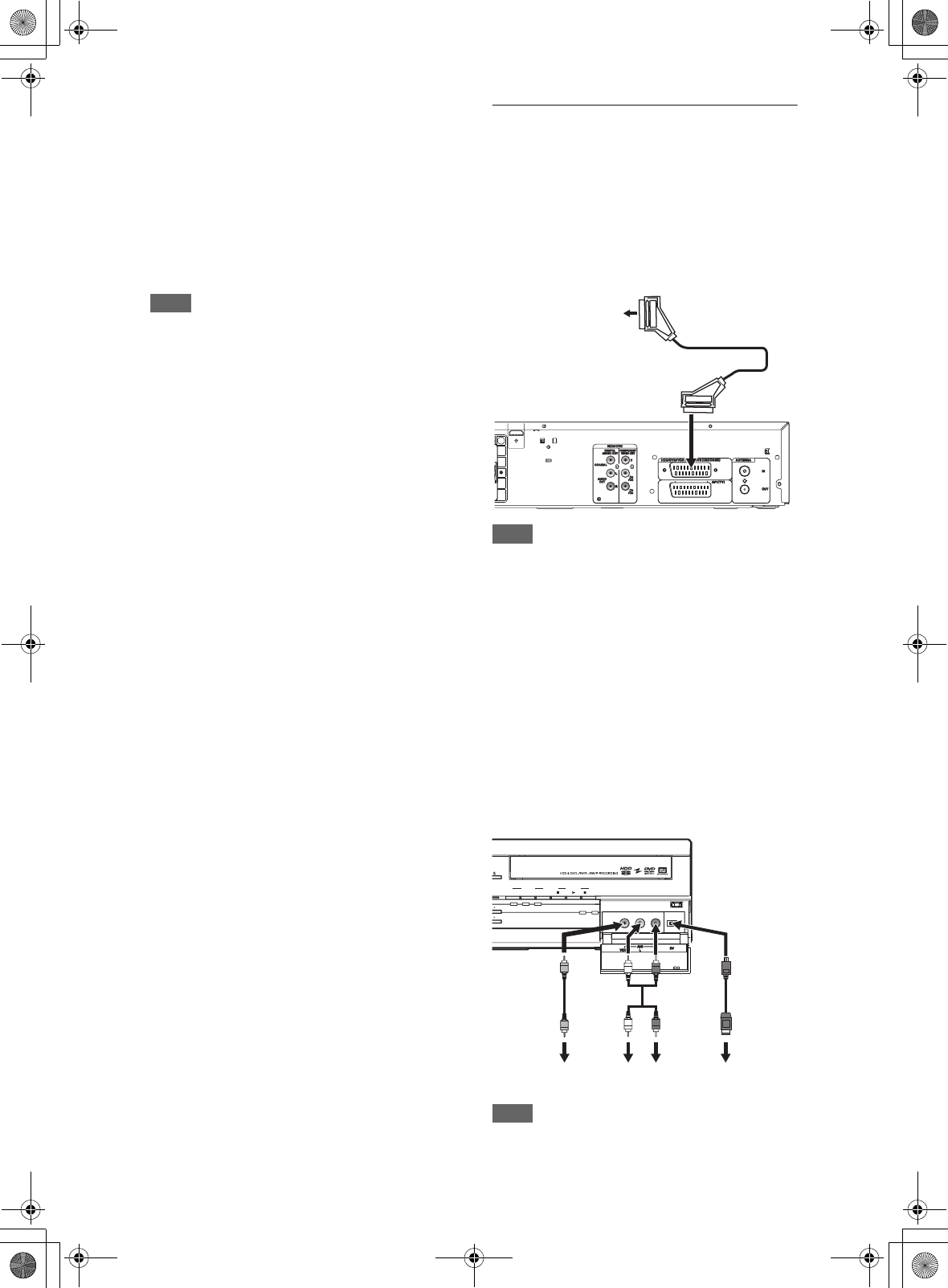

Connections

Connecting to a TV

Connect the unit to a TV after considering the

capabilities of your existing equipment.

Before installation, unplug your TV and this

unit.

1Connect the antenna or cable to the

ANTENNA IN jack of this unit.

2Connect the ANTENNA OUT jack of

this unit to the Aerial jack of your TV.

Use the supplied RF cable.

Using the Scart socket

3Connect AV1 (TV) Scart socket of

this unit to the Scart socket of your

TV. Use a commercially available

Scart cable.

Note

• If your TV does not have a Scart socket, use a

commercially available Scart adaptor or Scart/RCA

cable to connect.

• Connect this unit directly to the TV. If the AV cables

are connected to a VCR, pictures may be distorted

due to the copy protection system.

• When changing the “Video Out” setting

(“SCART (RGB)”, “Component (Interlace)” or

“Component (Progressive)”), connect to the

corresponding jack on the TV. If the setting is

changed, for example, to “Component (Interlace)” or

“Component (Progressive)” while the scart cable is

connected to the TV, a distorted video signal may be

output.

Using the COMPONENT VIDEO OUT jacks

and the AUDIO OUT (L\R) jacks

If your TV has Component Video input jacks, use a

Component Video cable and an Audio cable (to

connect the AUDIO OUT (L\R) jacks).

• Component connection provides the better quality

picture.

3Connect the COMPONENT VIDEO

OUT jacks of this unit to the

Component Video input jacks of your

TV. Use a commercially available

Component video cable.

4Connect the AUDIO OUT (L\R) jacks

of this unit to the analogue Audio

input jacks of your TV. Use a

commercially available Audio cable.

• After you have made the connections, set the “Video

Out” setting. (See page 90.)

Connections

HDMI OUT

Audio/Video cable (not supplied)

Scart/RCA cable

(not supplied)

Scart adaptor

(not supplied) Scart cable (not supplied) RCA cable

(supplied)

To Aer i a l jac k Antenna

Cable

Signal

RCA cable

(not supplied)

HDMI OUT

YPB/CBPR/CR

Component

Video IN

AUDIO IN

Audio cable

(not supplied) Component

Video Cable

(not supplied)

E3NG0FD_EN.book Page 20 Wednesday, January 30, 2008 10:37 AM

Selecting Progressive Scan (576p/480p or

Interlaced 576i/480i) Playback

• If your TV is compatible with progressive scanning

(576p/480p), connect the TV to the COMPONENT

VIDEO OUT jacks of this unit and set “Video Out”

setting to “Component (Progressive)” in “Setup”

menu (See page 90.). Next, set your TV to the

progressive scan mode.

• If your TV is not compatible with progressive scan,

set “Video Out” setting to “Component (Interlace)”.

• Use a commercially available adaptor if the Video

input jacks of your TVs or monitors are the BNC

type.

• Only component and HDMI connections are

compatible with the Progressive Scan.

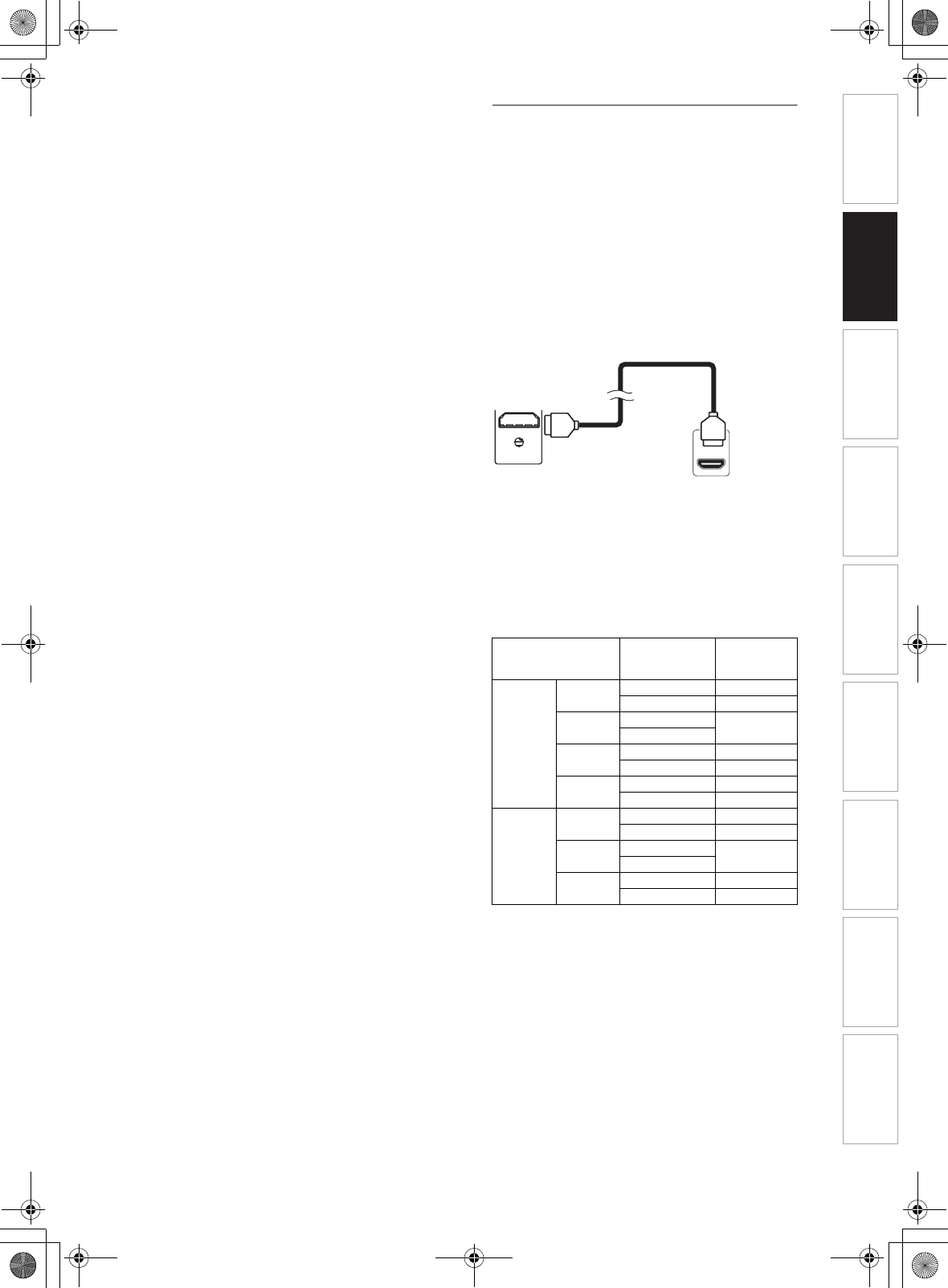

Connecting to a TV with an HDMI

Compatible Port

[HDMI CONNECTION]

A simple 1-cable connection with a device having an

HDMI (high-definition multimedia interface) connector

allows digital transfer of both digital video signals and

multi-channel audio signals. This is the best method

to connect this unit. It can minimise the deterioration

of image quality.

Use the HDMI cable (commercially available) for

connection.

Connect the HDMI output jack of this unit to the HDMI

input jack of TV.

Selecting HDMI mode

Press [HDMI] to select the HDMI output mode. The

output mode changes as follows every time [HDMI] is

pressed. 576p (PAL) / 480p (NTSC) J 720p J 1080i

J 1080p (An HDMI mode that is not supported by the

display device will be skipped.)

Actual Output Modes by Media

For Audio CD, Video CD and MP3 files, 2 channel

PCM will be output regardless of the “Dolby Digital”

setting.

If the connected device is not compatible with HDMI

BITSTREAM, audio will be output as PCM even if you

select “Stream” in “Dolby Digital” setting.

(See page 87.)

Audio recording format

of the disc

Dolby Digital /

DTS / MPEG

setting of this unit

Actual output

DVD-video

Dolby

Digital

PCM 2channel PCM

Stream Dolby Digital

LPCM PCM 2channel PCM

Stream

DTS ON DTS

OFF -

MPEG PCM 2channel PCM

Stream MPEG

DivX®

Dolby

Digital

PCM 2channel PCM

Stream Dolby Digital

MP3 PCM 2channel PCM

Stream

MP2 PCM 2channel PCM

Stream MPEG

HDMI IN

HDMI OUT

To HDMI

input jack

this unit

HDMI cable (not supplied)

Introduction Connections Basic Setup Playback Editing OthersFunction SetupRecording VHS Functions

E3NG0FD_EN.book Page 21 Wednesday, January 30, 2008 10:37 AM

22 EN

To play back the digital video images of a DVD via an

HDMI connection, it is necessary that both the player

and the display device (or an AV amplifier) support a

bandwidth digital content protection system). HDCP is

copy protection technology that comprises data

encryption and authentication of the connected AV

device. This unit supports HDCP. Please read the

operating instructions of your display device (or AV

amplifier) for more information.

* HDMI: High Definition Multimedia Interface

Note

• Because HDMI is an evolving technology, it is

possible that some devices with an HDMI input may

not operate properly with this unit.

• When using an HDCP-incompatible display device,

the image will not be viewed properly.

• Among the devices that support HDMI, some

devices can control other devices via the HDMI

connector; however, this unit cannot be controlled by

another device via the HDMI connector.

• The audio signals from the HDMI connector

(including the sampling frequency, the number of

channels and bit length) may be limited by the

device that is connected.

• Among the monitors that support HDMI, some do

not support audio output (for example, projectors).

In connections with device such as this unit, audio

signals are not output from the HDMI output

connector.

• When this unit’s HDMI connector is connected to a

DVI-D compatible monitor (HDCP compatible) with

an HDMI-DVI conversion cable, the signals are

output in digital RGB.

• If the connected equipment is not compatible with

HDMI BITSTREAM, DTS sound will not be output.

• When the power failure occurs, or when you unplug

the unit, some problems in the HDMI setting might

occur.

Please check and set the HDMI setting again.

Connecting to an External Equipment

This unit has three input terminals which can be

selected using [INPUT SELECT F] on the remote

control, AV1 or AV2 on the rear panel and AV3 on the

front panel. Be sure that all the units are switched off

before making connections.

Recording from a DVD player, Satellite Box

or other Audio-Video equipment with a Scart

output socket (AV2)

Note

• When you record a TV programme from a Satellite

Box, you must connect a Scart cable to AV2

(DECODER). (See page 49.)

• When AV2 is connected, the signal from the AV2 will

be output automatically. If you want to monitor the

signal from other input, you must press [DISPLAY]

first. Then, select the desired input to monitor with

[INPUT SELECT F].

Recording from a camcorder or other

Audio-Video equipment with no Scart output

socket (AV3)

Connect to AUDIO / VIDEO input jacks on the front

panel using an RCA Audio/Video cables.

When connecting a DV-camcorder, use DV input jack

of AV4 (Front).

Note

• When connecting an external device of monaural

output to this unit, use AUDIO L jack of AV3.

HDMI OUT

AV output jack

(Scart)

Scart cable (not supplied)

AV2 (DECODER)

BING VCR HDD DVD

SELECT

REC

HDD/DVDSELECTSELECT

DVD

DVDHDD

AV3 (Front)

AUDIO OUT

Audio cable

(not supplied)

DV cable

(4-pin)

(not supplied)

DV OUT

Video cable

(not supplied)

VIDEO OUT

E3NG0FD_EN.book Page 22 Wednesday, January 30, 2008 10:37 AM

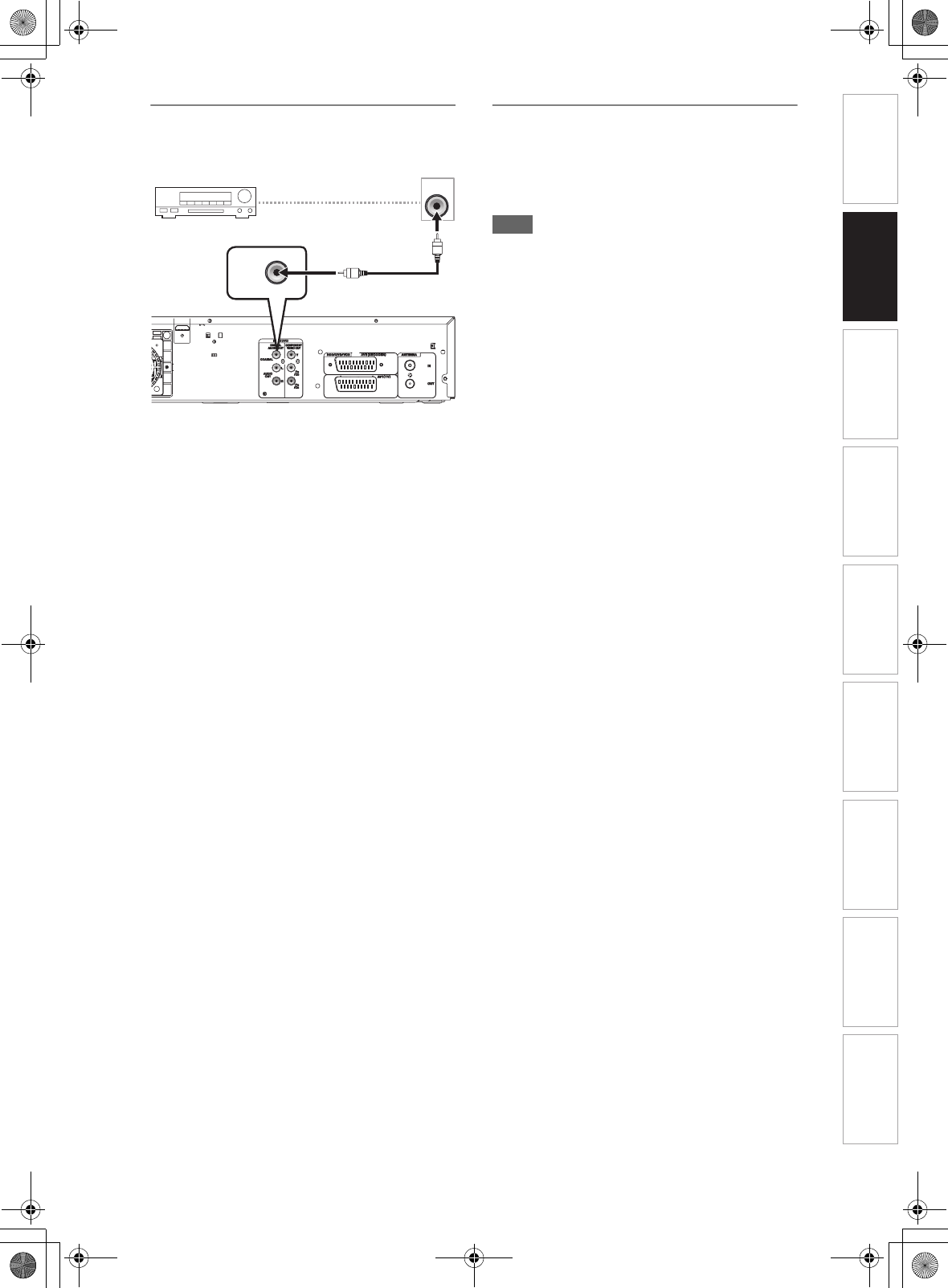

Digital Audio for Better Sound Quality

The connections illustrated above are

optional for better sound.

1For clear digital sound quality, use

the DIGITAL AUDIO OUT (COAXIAL)

jack to connect your digital audio

equipment.

If the audio format of the digital output does not

match the capabilities of your receiver, the

receiver will produce a strong, distorted sound or

no sound at all.

Connecting a Dolby Digital™ decoder, DTS

decoder or MPEG decoder

• Connecting multi-channel Dolby Digital decoder

allows you to enjoy the Multi-channel Dolby Digital

surround system as well as DTS decoder, Multi-

channel surround system.

• After connecting to a Dolby Digital decoder, set

“Dolby Digital” to “Stream” in “Audio Out” menu.

(See pages 86 - 87.)

• After connecting to a DTS decoder, set “DTS” to

“ON” in “Audio Out” menu. (See pages 86 - 87.)

• After connecting to a MPEG decoder, set “MPEG” to

“Stream” in “Audio Out” menu. (See pages 86 - 87.)

Connecting to an MD deck or DAT deck

• The audio source recorded in Dolby Digital Multi-

channel surround format cannot be recorded using

an MD or DAT deck as a digital sound.

• If not connected to a Dolby Digital decoder, set

“Dolby Digital” to “PCM” in “Audio Out” menu.

Playing back a DVD using incorrect settings may

generate noise distortion and damage speakers.

• Set “Dolby Digital” and “MPEG” to “PCM” and set

“DTS” to “OFF” in “Audio Out” menu for connecting

to an MD or DAT deck.

• You can use AUDIO OUT (L\R) jacks for the

connection of your audio system.

After You Have Completed

Connections

Switch the input selector on your TV to an appropriate

external input channel. For details, refer to the

Owner’s Manual of your TV.

Note

• Connect this unit directly to the TV. If the AV cables

are connected to a VHS, pictures may be distorted

due to the effects of the copy protection system.

HDMI OUT

COAXIAL

Dolby Digital decoder,

DTS decoder or

MPEG decoder, etc.

Digital audio

input jacks

Coaxial cable

(not supplied)

Introduction Connections Basic Setup Playback Editing OthersFunction SetupRecording VHS Functions

E3NG0FD_EN.book Page 23 Wednesday, January 30, 2008 10:37 AM

24 EN

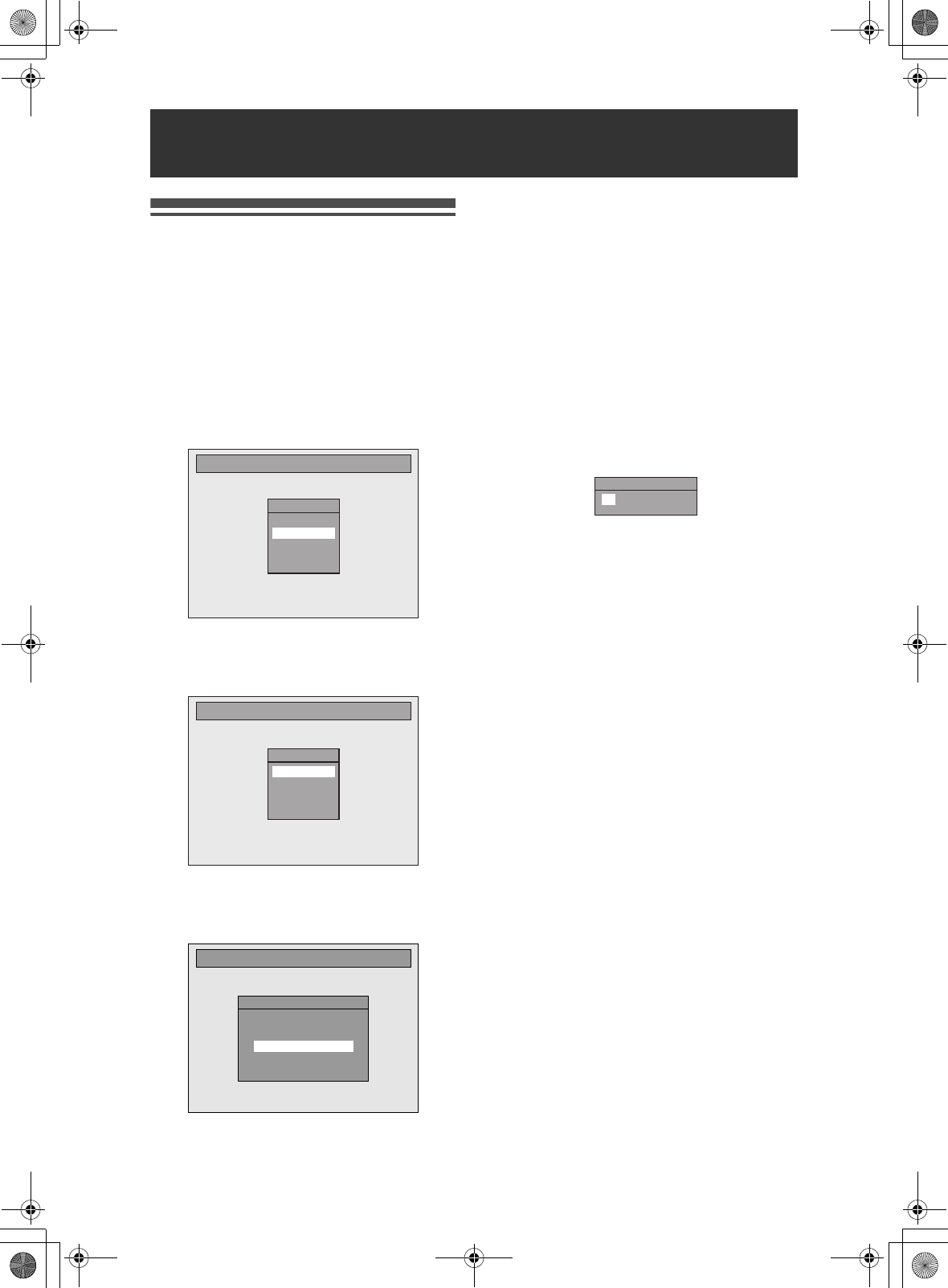

Initial Setting

When you turn on this unit for the first time, you need

to follow these steps.

1Press [BON\STANDBY].

2Turn the TV on. Select the input to

which the unit is connected.

“Réglage initial” will automatically appear.

3Select your desired language for the

OSD using [U\D]. Then press

[ENTER] to go to the next step.

4Select your desired country to the

channel plan using [U\D]. Then

press [ENTER] to go to the next step.

5Select your desired channel preset

type using [U\D]. Then press

[ENTER].

The unit will start getting channels available in

your area.

Digital tuning:

Only the DVB channels receivable in your area

are automatically scanned and memorised.

Digital & Analog tuning:

Both analogue and DVB channels receivable in

your area are scanned and memorised

automatically.

Analog tuning:

Only the analogue channels receivable in your

area are automatically scanned and memorised.

• If no channel has been memorised, the antenna

confirmation display will appear. Press [ENTER] to

start auto scanning again or press [RETURN] to

cancel the initial settings.

6After finishing channel setting,

“Clock Setting” will appear. Then

press [ENTER].

• If you want to adjust the clock, follow to step 5

on page 36 in “Manual Clock Setting”.

7Press [ENTER] to exit.

Basic Setup

Réglage initial

Langue Aff. écran

Français

English

Español

Deutsch

Italiano

Initial Setting

Country

France

Spain

Germany

Italy

Switzerland

Initial Setting

Auto Tuning

Make sure the antenna is

connected to “ANTENNA IN” jack.

Digital tuning

Digital & Analog tuning

Analog tuning

0 : 00

01 / 01 / 2008

Clock Setting

(TUE)

E3NG0FD_EN.book Page 24 Wednesday, January 30, 2008 10:37 AM

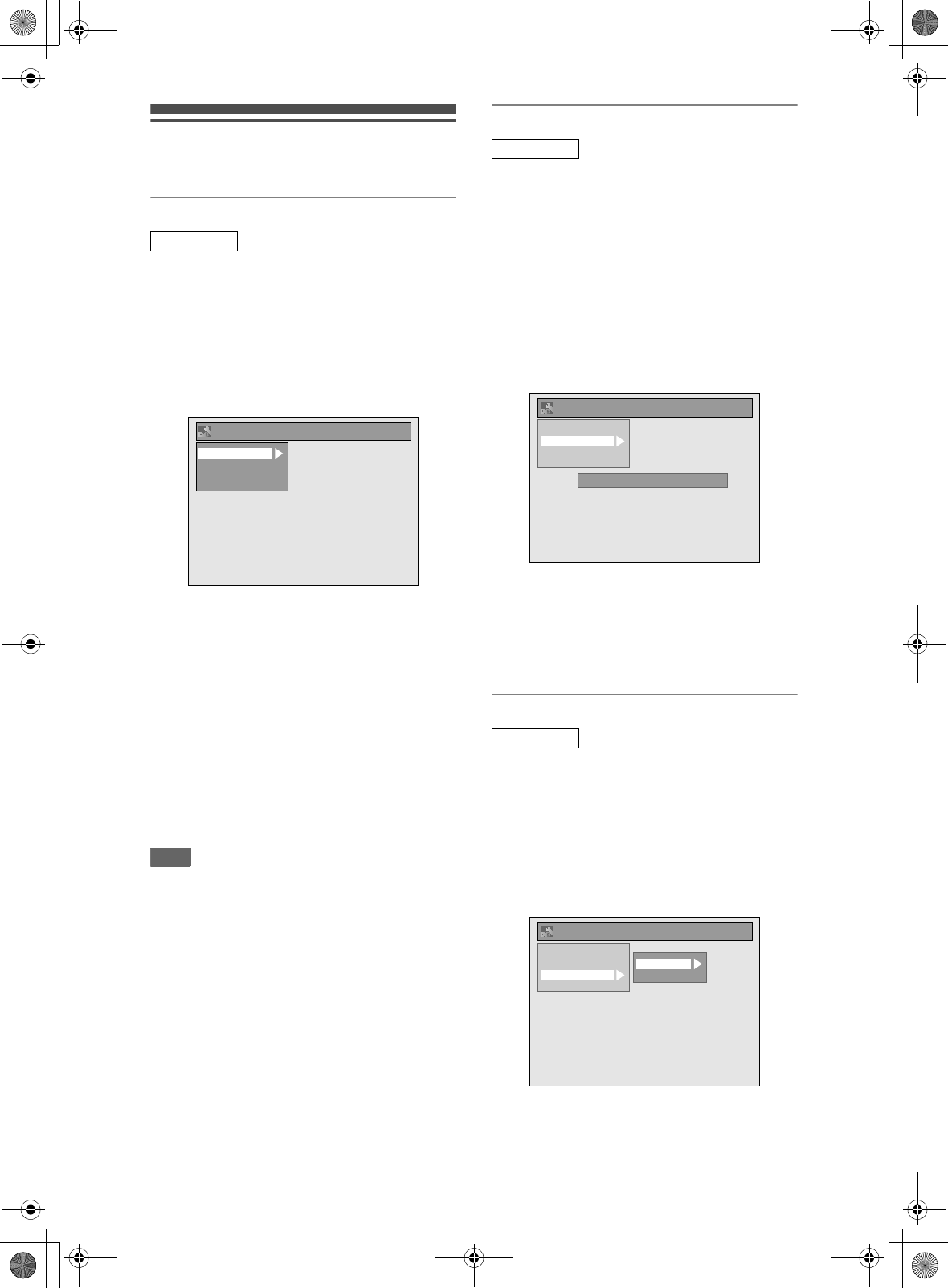

Channel Setting

You can retune this unit or edit the channel setting

with following methods.

Auto Tuning (DVB & ANALOG)

Programme the tuner to scan both analogue and DVB

channels you can receive in your area.

1In stop mode, press [SETUP]. Select

“General Setting” using [U\D],

then press [ENTER].

General Setting menu will appear.

2Select “Channel” using [U\D],

then press [ENTER].

3Select “Auto Tuning (DVB &

ANALOG)” using [U\D], then press

[ENTER].

The unit will start storing channels available in

your area.

Wait for several minutes to finish channel storing.

• Analogue channels will be stored in channel

901-999 after it is scanned by this unit.

4Press [SETUP] to exit.

You can select only the channels memorised in

this unit by using [PROG. G\H].

To cancel auto tuning

Press [RETURN] or [SETUP] during scanning.

Note

• The selection will be affected by how you receive TV

channels in your local area.

• If the auto tuning is cancelled during scanning,

some channels not yet tuned may not be received.

• You cannot change the channel when this unit is in

any recording mode (normal recording, One-touch

Timer Recording or timer recording).

Auto Tuning (ANALOG)

Programme the tuner to scan only the analogue

channels you can receive in your area.

1In stop mode, press [SETUP]. Select

“General Setting” using [U\D],

then press [ENTER].

2Select “Channel” using [U\D],

then press [ENTER].

3Select “ANALOG Channel Setup”

using [U\D], then press [ENTER].

4Select “Auto Tuning” using [U\D],

then press [ENTER].

The unit will start storing channels available in

your area.

Wait for several minutes to finish channel storing.

• Analogue channels will be stored in channel

901-999 after it is scanned by this unit.

5Press [SETUP] to exit.

You can select only the channels memorised in

this unit by using [PROG. G\H].

To cancel auto tuning

Press [RETURN] or [SETUP] during scanning.

Note

• The selection will be affected by how you receive TV

channels in your local area.

• If the auto tuning is cancelled during scanning,

some channels not yet tuned may not be received.

• You cannot change the channel when this unit is in

any recording mode (normal recording, One-touch

Timer Recording or timer recording).

• Sorting of TV channels from 901 to 906 will be

performed automatically as follows.

General Setting

Playback

Display

Video

Recording

Clock

Channel

DivX

HDMI

Reset All

Auto Tuning (DVB & ANALOG)

DVB Channel Setup

ANALOG Channel Setup

Country

ANALOG

901: TF1 902: F2 903: F3

904: CANAL+ 905: F5/ARTE 906: M6

ANALOG Channel Setup

Auto Tuning

Manual Tuning

Move

Introduction Connections Basic Setup Playback Editing OthersFunction SetupRecording VHS Functions

E3NG0FD_EN.book Page 25 Wednesday, January 30, 2008 10:37 AM

26 EN

Manual Tuning (ANALOG)

You can preset an analogue channel manually and

individually.

1In stop mode, press [SETUP]. Select

“General Setting” using [U\D],

then press [ENTER].

2Select “Channel” using [U\D],

then press [ENTER].

3Select “ANALOG Channel Setup”

using [U\D], then press [ENTER].

4Select “Manual Tuning” using

[U\D], then press [ENTER].

5Select “Position” using [U\D], then

press [P].

6Select the position number you want

to use using [the Number buttons] or

[U\D], then press [L].

• You can select position number 901-999.

•With [the Number buttons], you only need to

enter the last 2-digit numbers.

7Select “System” using [U\D], then

press [P].

8Select “L” or “BG” using [U\D],

then press [L].

• If your system is SECAM-L, select “L”.

• If your system is PAL-B/G, select “BG”.

9Select “Channel” using [U\D],

then press [P].

10 Press [U\D] to start scanning.

• The tuner will begin to search up or down

automatically. When a channel is found, the unit

will stop searching and the picture will appear

on the TV screen.

• You can select a desired channel number using

[the Number buttons]. Refer to the following

Channel Plan table and press the three digits to

select the channel number.

(To select channel 4, press [0] first and then

press [0] and [4]. Or press [4] and then “– – 4”

appears and wait for 2 seconds.)

• If this is the channel you want, press [L].

[L (SECAM-L)]

[BG (PAL-B/G)]

This unit can receive the Hyper and Oscar

frequency bands.

• If “Skip” is set to “ON”, select “Skip” using

[U\D], then press [P]. Select “OFF” using

[U\D], then press [L].

• If you want to decode scrambled signals, select

“Decoder” using [U\D], then press [P]. Select

“ON” using [U\D], then press [L].

• To store another channel, repeat steps 5 to 10.

11 Press [SETUP] to exit.

Skip a Preset Channel

You can set the unit to skip channels. You can no

longer receive or watch when you access channels

using [PROG. G\H].

1Follow steps 1 to 4 in “Manual Tuning

(ANALOG)” on this page.

2Select “Position” using [U\D], then

press [P].

3Select the position number you want

to skip using [the Number buttons]

or [U\D], then press [L].

4Select “Skip” using [U\D], then

press [P].

5Select “ON” using [U\D], then

press [L].

• To skip another channel, repeat steps 2 to 5.

6Press [SETUP] to exit.

ANALOG

901

Manual Tuning

Position

Channel

Decoder

Skip

OFF

System L

Channel Plan

CH Indication TV Channel

01 – 10 F1 - F10

21 – 69 E21 – E69

74 – 86 B – Q

90 – 106 S4 – S20

121 – 141 S21 – S41

Channel Plan

CH Indication TV Channel

02 – 12 E2 - E12

13 – 20 A – H (only ITALY)

21 – 69 E21 – E69

74 – 78 X, Y, Z, Z+1, Z+2

80 – 99, 100 S1 – S20, GAP

121 – 141 S21 – S41

ANALOG

E3NG0FD_EN.book Page 26 Wednesday, January 30, 2008 10:37 AM

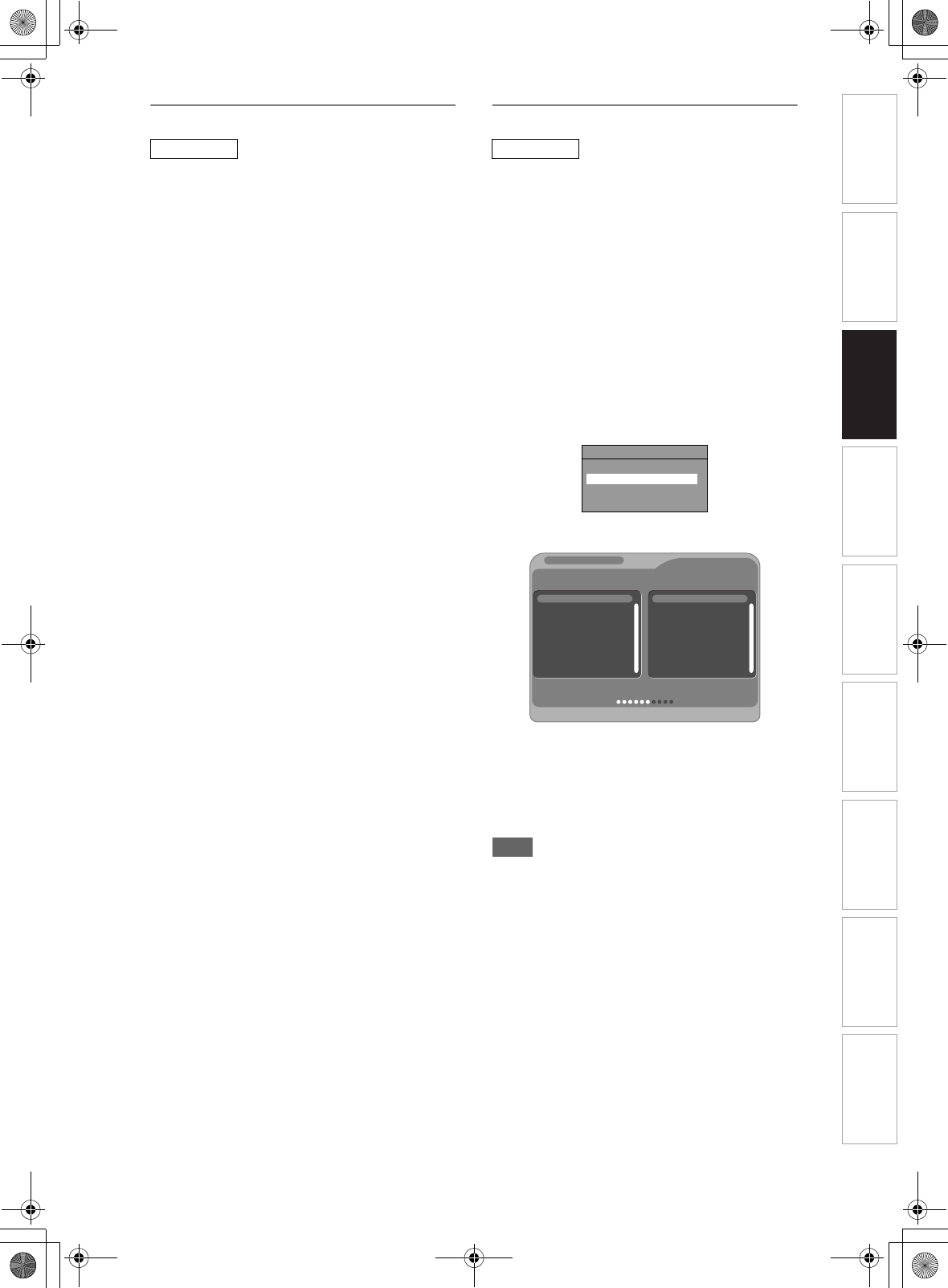

Move

You can replace two channels.

1In stop mode, press [SETUP]. Select

“General Setting” using [U\D],

then press [ENTER].

2Select “Channel” using [U\D],

then press [ENTER].

3Select “ANALOG Channel Setup”

using [U\D], then press [ENTER].

4Select “Move” using [U\D], then

press [ENTER].

5Select the position number of which

you want to change the channel

using [U\D], then press [ENTER].

You cannot select a position number where

“– – –” appears next to the number, because

“Skip” is set to “ON” for that position number.

6Move the channel to another position

number using [U\D], then press

[ENTER].

• To move another channel, repeat steps 5 to 6.

7Press [SETUP] to exit.

Auto Tuning (DVB)

You can programme the tuner to scan only the DVB

channels that you can receive in your area.

1In stop mode, press [SETUP]. Select

“General Setting” using [U\D],

then press [ENTER].

2Select “Channel” using [U\D],

then press [ENTER].

3Select “DVB Channel Setup” using

[U\D], then press [ENTER].

4Select “Auto Tuning” using [U\D],

then press [ENTER].

The unit will start storing channels available in

your area.

The tuner scans and memorises all the active

DVB channels (TV / Radio) in your area.

•Press [ENTER] after Auto Tuning is completed,

then the lowest memorised DVB channel

appears on the screen.

5Press [SETUP] to exit.

You can use [PROG. G\H] for the memorised

DVB channels.

Note

• If you press [RETURN] during the scanning, the

screen will return to the previous displayed

menu, and Auto Tuning will be cancelled.

• If you press [SETUP] during the scanning, this

operation will stop and the lowest memorised

DVB channel will appear on the TV screen.

ANALOG DVB

DVB Channel Setup

Edit Channels

Auto Tuning

Manual Tuning

Signal Information

1 ITV1

2 ITV2

3 Channel

4 E4

Channel48 UHF

700 BBC Radio 1

701 BBC Radio 2

702 Magic Radio

703 Classic FM

690000kHz/8M

60%

Channel search

TV channelS. No. Radio channelS. No.

Progress

Introduction Connections Basic Setup Playback Editing OthersFunction SetupRecording VHS Functions

E3NG0FD_EN.book Page 27 Wednesday, January 30, 2008 10:37 AM

28 EN

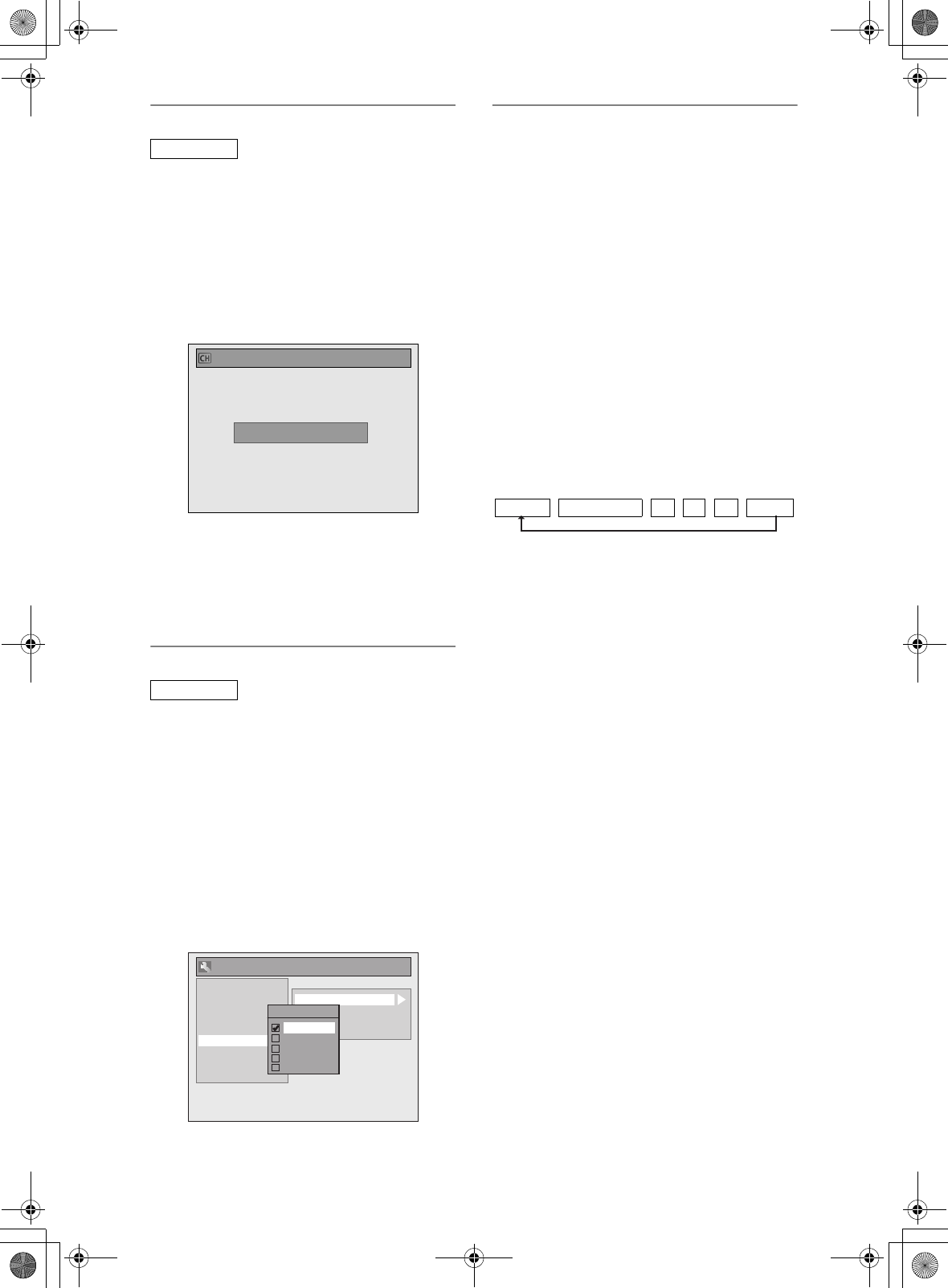

Manual Tuning (DVB)

You can preset a DVB channel manually and

individually.

1Follow steps 1 to 3 in “Auto Tuning

(DVB)” on page 27.

2Select “Manual Tuning” using

[U\D], then press [ENTER].

3Select your desired position number

using [U\D], then press [ENTER].

• The tuner will begin to search up or down

automatically. When a DVB channel is found,

the unit will stop searching.

• When “Auto” is selected the unit will search for

the channels which have not been stored in

channels memory.

Press [SETUP] to activate the setting.

Country Setting

You can set the DVB channels to Channel Plan of

each country.

1In stop mode, press [SETUP]. Select

“General Setting” using [U\D],

then press [ENTER].

2Select “Channel” using [U\D],

then press [ENTER].

3Select “Country” using [U\D], then

press [ENTER].

4Select your desired country using

[U\D], then press [ENTER].

5Press [SETUP] to exit.

Select a Channel

You can select memorised channels by using

[PROG. G\H].

You can select a channel using [PROG. G\H] or

directly enter the channel using

[the Number buttons].

Notes on using [the Number buttons]:

• For one or two-digit number channels, the channels

will be identified 2 seconds after you press the

channel number, or right after you press [ENTER].

For example, if you want to select channel 6, press

[6] and wait for 2 seconds or press [ENTER]. You

can only select channels 1 to 999.

• Analogue channels will be stored in channel 901-

999 and DVB channels will be stored in channel 1-

900 after it is scanned by this unit.

To switch DVB, analogue and external input (AV1/

AV2/AV3/DV(AV4)) mode.

You can switch between DVB, analogue and external

input (AV1/AV2/AV3/DV(AV4)) mode by pressing

[INPUT SELECT F] repeatedly. The mode changes

as follows:

• You can also switch the mode by using

[PROG. G\H].

• You can select any DVB channels using

[the Number buttons] when you are in analogue or

external input (AV1/AV2/AV3/DV(AV4)) mode.

• You can select any analogue channels using

[the Number buttons] when you are in DVB mode.

DVB

Manual Tuning (DVB)

Channel Auto

Auto Tuning (DVB & ANALOG)

DVB Channel Setup

ANALOG Channel Setup

Playback

Display

Video

Recording

Clock

Channel

DivX

HDMI

Reset All

Country

General Setting

Country

France

Spain

Germany

Italy

Switzerland

DVB mode Analogue mode AV1 AV2 AV3 DV(AV4)

E3NG0FD_EN.book Page 28 Wednesday, January 30, 2008 10:37 AM

Quick Select

With “Quick select” menu, you can select your

favourite DVB channel quickly. Refer to “Edit Group

Lists” on page 30.

1Press [ENTER] while watching a DVB

channel.

• “Quick select” menu will appear.

2Press [L\P] to select your favourite

group list. (“All”, “Group1” -

“Group8”)

• “All” shows a list of all the memorised DVB

channels.

• If the favourite group does not have any

channels, the group will be skipped.

3Select the DVB channel you want to

watch using [U\D], then press

[ENTER].

4Press [RETURN] to exit.

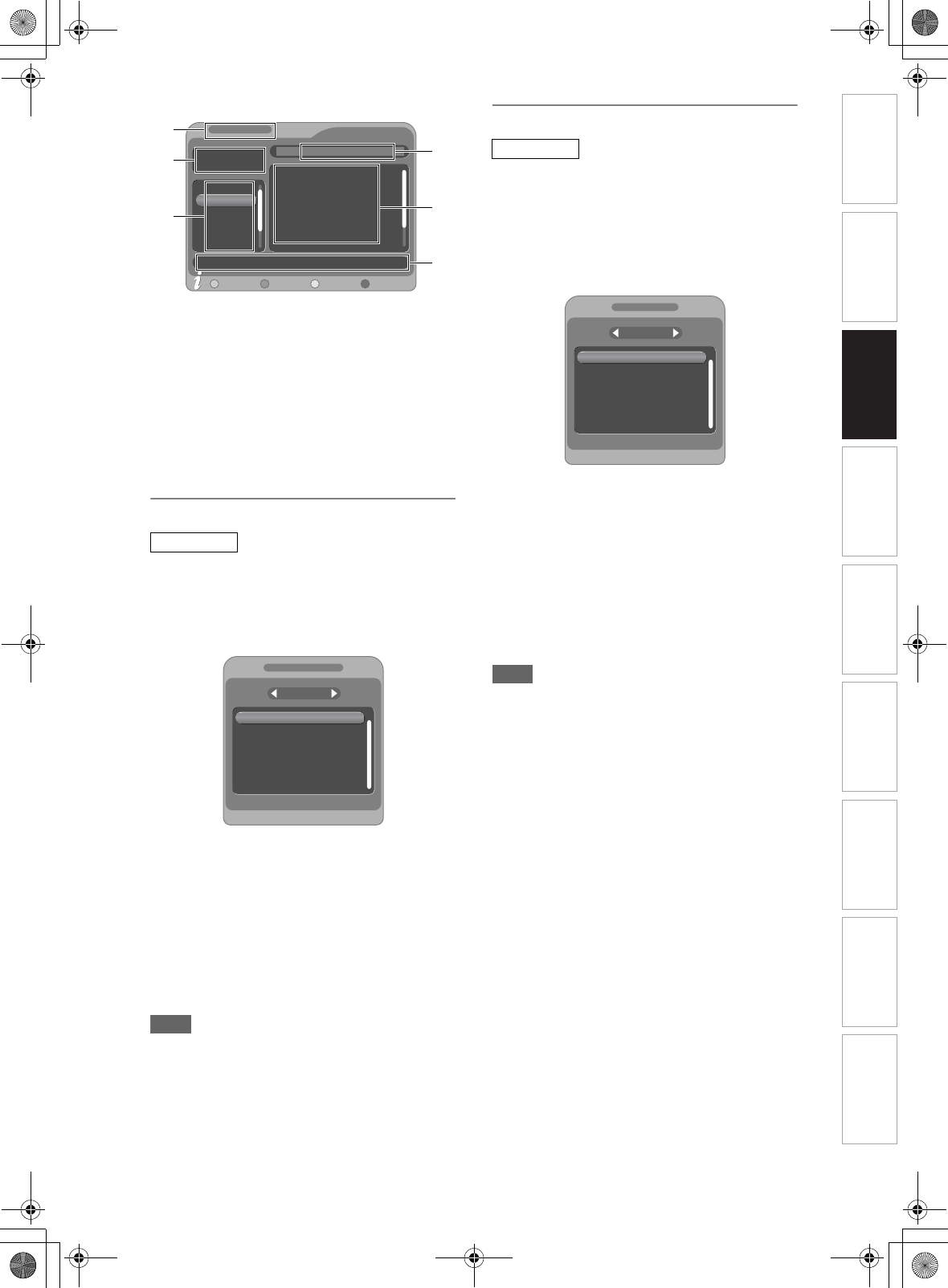

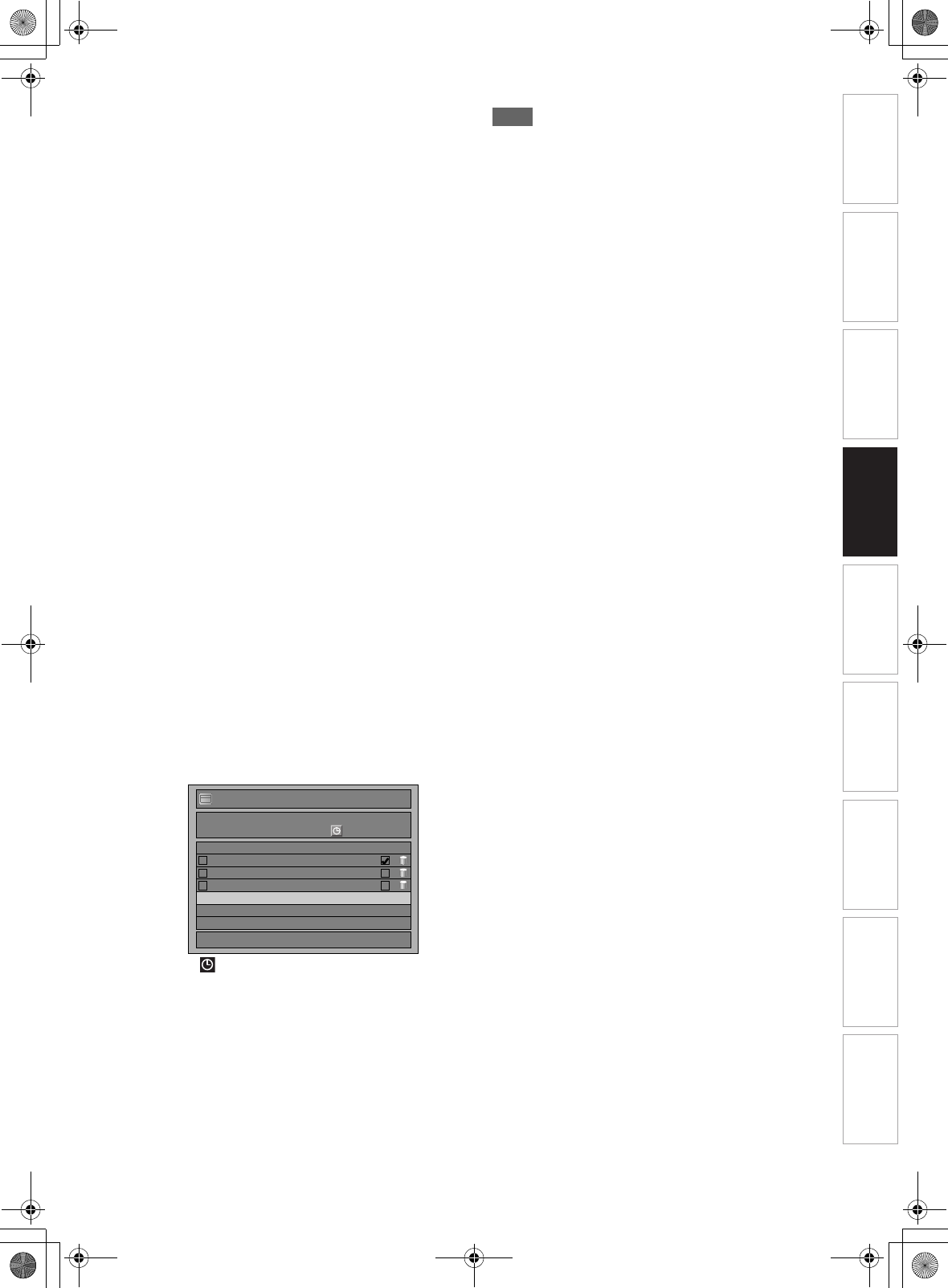

Edit Channels (DVB)

With “Edit Channels” menu, you can see all the

memorised DVB channels and sort them into the

group lists (“Quick select”) or set the viewer limitation

(“Adult Lock”), etc.

1Follow steps 1 to 3 in “Auto Tuning

(DVB)” on page 27.

2Select “Edit Channels” using

[U\D], then press [ENTER].

• “Edit Channels” menu will appear..

1Channel numbers

2Channel names

3Channel information

4Channel setting

3Press [SETUP] to exit.

Note

•Press [INFO C] to display the using guide. You can

see each explanation of the buttons which can be

used in “Edit Channels” menu. Press [RETURN] to

return to “Edit Channels” menu.

DVB

2 ITV1

3 ITV2

4 ITV3

5 Channel

6 E4

7 More 4

Channel nameS. No.

Quick select

Moving picture 576i

All

DVB

1 1

2 ITV1

3 ITV2

4 ITV3

5 Channel 4

6 E4 4

France Crystal Palac 562000kHz/8M

Edit Channels

Channel nameS. No.

Moving picture 576i

Fav Skip Lock Del

Introduction Connections Basic Setup Playback Editing OthersFunction SetupRecording VHS Functions

E3NG0FD_EN.book Page 29 Wednesday, January 30, 2008 10:37 AM

30 EN

Edit Group Lists

You can sort each DVB channel into 8 different

favourite group lists (“Group1” -“Group8”). With “Quick

select” menu, you can select your favourite DVB

channel quickly. Refer to “Quick Select” on page 29.

1Follow steps 1 to 2 in “Edit Channels

(DVB)” on page 29.

2Select the DVB channel you want to

add to the favourite group list using

[U\D], then select the number of

the favourite group list you want to

add to using [the Number buttons]

([1] - [8]).

• The number you selected will appear.

•Press [0] to cancel from the favourite group list.

3Press [SETUP] to exit.

Skip Channels

You can set the unit to skip the unwanted DVB

channels when you use [PROG. G\H].

1Follow steps 1 to 2 in “Edit Channels

(DVB)” on page 29.

2Select the DVB channel you want to

skip using [U\D], then press

[GREEN].

• “ ” will appear.

•Press [GREEN] to cancel. “ ” will disappear.

3Press [SETUP] to exit.

Adult Lock

You can set the unit to limit the access to the DVB

channels.

1Follow steps 1 to 2 in “Edit Channels

(DVB)” on page 29.

2Select the DVB channel you want to

limit the access to using [U\D],

then press [YELLOW].

• “ ” will appear.

•Press [YELLOW] to cancel. “ ” will disappear.

3Press [SETUP] to exit.

• Once you turn off the unit, Pincode will be

required to view the locked channels.

• To set the Pincode, refer to “Pincode Setting for

Adult Lock” on page 34.

Delete Channels

You can delete the DVB channels from the memorised

DVB channels.

1Follow steps 1 to 2 in “Edit Channels

(DVB)” on page 29.

2Select the DVB channel you want to

delete using [U\D], then press

[BLUE].

• “ ” will appear.

•Press [BLUE] to cancel. “ ” will disappear.

3Press [SETUP] to exit.

• The channel has been deleted from the “Edit

Channels” menu.

DVB

1 1

2 ITV1

3 ITV2

4 ITV3

5 Channel 4

6 E4 4

France Crystal Palac 562000kHz/8M

Edit Channels

Channel nameS. No.

Moving picture 576i

Fav Skip Lock Del

1 1

2 ITV1

3 ITV2

4 ITV3

5 Channel 4

6 E4 4

France Crystal Palac 562000kHz/8M

Edit Channels

Channel nameS. No.

Moving picture 576i

Fav Skip Lock Del

DVB

2 ITV1

3 ITV2

4 ITV3

5 Channel 4

6 E4 4

France Crystal Palac 562000kHz/8M

Edit Channels

Channel nameS. No.

Moving picture 576i

Fav Skip Lock Del

1 1

2 ITV1

3 ITV2

4 ITV3

5 Channel 4

6 E4 4

France Crystal Palac 562000kHz/8M

Edit Channels

Channel nameS. No.

Moving picture 576i

Fav Skip Lock Del

E3NG0FD_EN.book Page 30 Wednesday, January 30, 2008 10:37 AM

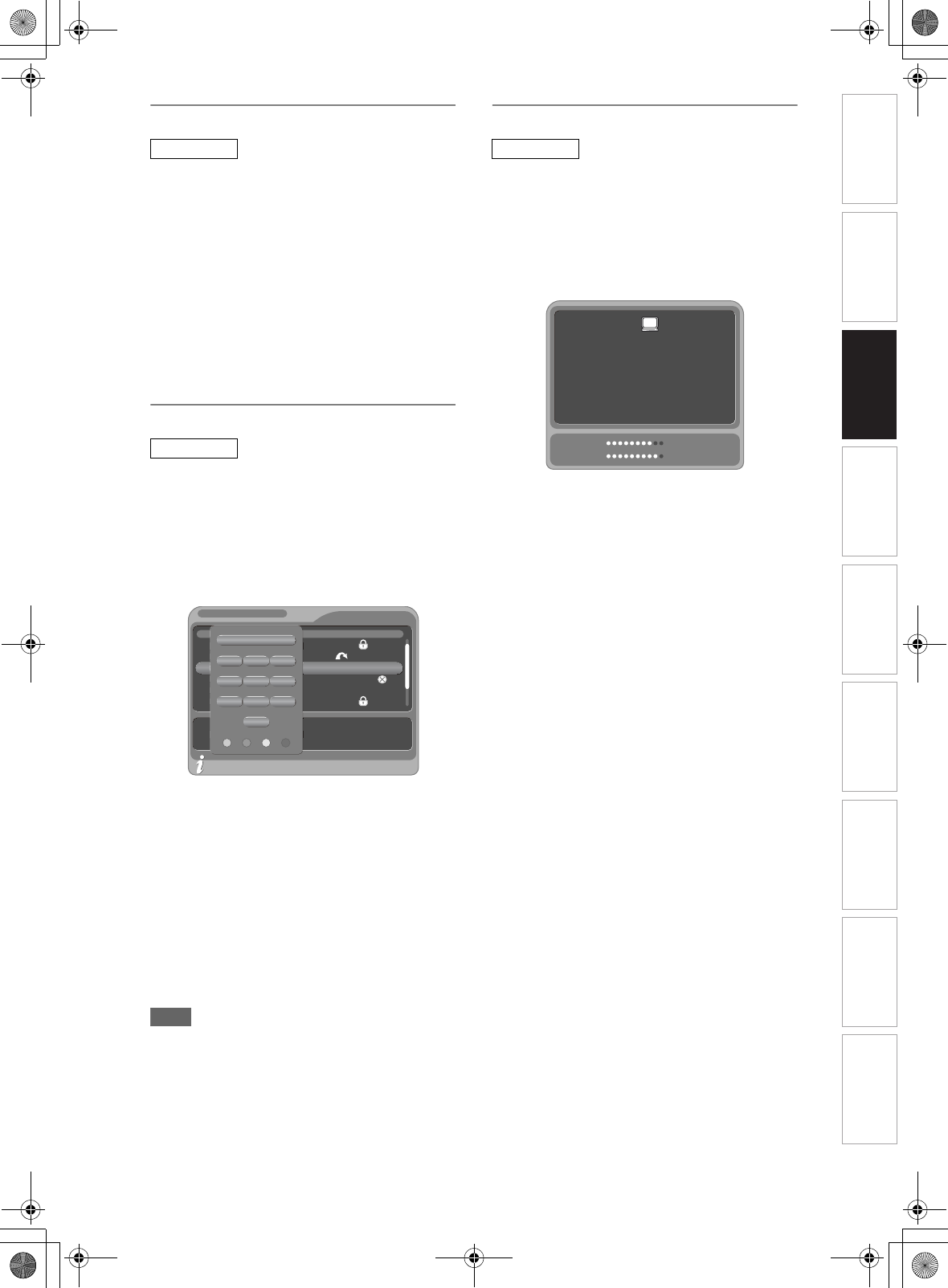

Channel Move

You can change the order of the DVB channels when

you use [PROG. G\H].

1Follow steps 1 to 2 in “Edit Channels

(DVB)” on page 29.

2Select the DVB channel of which you

want to change the position using

[U\D], then press [ENTER].

3Select the channel you want to

replace with using [U\D], then

press [ENTER].

• The channel will be replaced.

4Press [SETUP] to exit.

Edit Channel Names

You can edit the DVB channel names as you want.

1Follow steps 1 to 2 in“Edit Channels

(DVB)” on page 29.

2Select the DVB channel of which you

want to edit the name to using

[U\D], press [RED].

• Name editing display will appear.

3Edit the name using [the Number

buttons].

•Press [the Number buttons] repeatedly until

the desired letter appears.

•Press [L\P] to move the cursor left or right.

•Press [RED] to select alphabet or numbers.

•Press [GREEN] to select capital or small letters.

•Press [YELLOW] to move the letter on the

cursor to the right.

•Press [BLUE] to delete the letter on the cursor,

and move the cursor to the left.

4After completion, press [ENTER].

5Press [SETUP] to exit.

Note

• You can enter up to 19 letters.

Signal Information

You can check the detailed information of the current

DVB channel.

1Follow steps 1 to 3 in “Auto Tuning

(DVB)” on page 27.

2Select “Signal Information” using

[U\D], then press [ENTER].

• “Signal Information” display will appear.

3Press [SETUP] to exit.

• “Signal Information” is not available for analogue

channel and external input (AV1/AV2/AV3/

DV(AV4)).

• “Signal Information” is also not available while

the Pincode input field for locked DVB channel is

displayed.

DVB

S. No. Channel Name

1 Moving picture 576i 1

2 ITV1

3 ITV2

4 ITV3

5 Channel 4

6 E4 4

France Crystal Palace 562000kHz/8M

TUV

SPACE

0-9 A->a INS DEL

PQRS

WXYZ

JKL

GHI

MNO

ABC

@S#

DEF

Edit Channels

Fav Skip Lock Del

DVB

80%

90%

DVB-T 8M France

474000KHz A.PID 0274

8M V.PID 0273

P.PID 0512

12:00-15:00 CITV 576i

15:00-18:00 CITV 576i

15 CITV

Frequency

Bandwidth

Signal

Quality

Introduction Connections Basic Setup Playback Editing OthersFunction SetupRecording VHS Functions

E3NG0FD_EN.book Page 31 Wednesday, January 30, 2008 10:37 AM

32 EN

TV View Operation

The following operations are available while viewing

TV channels through this unit’s tuner.

Selecting the TV Aspect Ratio

You can select the TV aspect ratio to match the format

of the programme you are playing back with the unit

and that of your TV screen (4:3 standard or 16:9 wide

screen TV).

1In stop mode, press [SETUP]. Select

“General Setting” using [U\D],

then press [ENTER].

2Select “Video” using [U\D], then

press [ENTER].

3Select “TV Aspect” using [U\D],

then press [ENTER].

4Select the desired option using

[U\D], then press [ENTER].

5Press [SETUP] to exit.

Hint

If you have a standard TV:

• Select “4:3 Letter Box” for a full width picture

with black bars at the top and bottom.

• Select “4:3 Pan & Scan” for a full height picture

with both sides trimmed.

If you have a wide screen TV:

• Select “16:9 Wide”.

Selecting the Audio Mode

You can switch between TV audio modes by pressing

[AUDIO D]. Each mode is indicated on the TV

screen.

• During reception of analogue bilingual broadcasts

• If the programme does not have more than one

sound track, [AUDIO D] is not effective.

Digital Teletext Reception

Many broadcasters provide a DVB Teletext service in

the form of a dedicated Teletext channel. This Digital

service includes high quality text and graphics along

with advanced navigation options.

1Press [TEXT] to display Teletext

screen.

• Teletext for the TV channel you have selected

will be displayed.

2Use [RED] / [GREEN] / [YELLOW] /

[BLUE] to follow the instructions on

screen.

3Press [TEXT] to switch the Teletext

display off.

Note

•[TEXT] is not available during recording.

EPG (Electronic Programme Guide)

Electronic programme guide (EPG) gives you a list of

the DVB programmes and detailed information about

the programmes. To call up EPG while viewing DVB/

analogue channel or external input (AV1/AV2/AV3/

DV(AV4)), press [GUIDE]. You can also call up EPG

by following steps.

1In stop mode, press [SETUP]. Select

“Timer Programming” using [U\D],

then press [ENTER].

2Select “EPG” using [U\D], then

press [ENTER].

• Select the TV programme using

[U\D\L\P], then press [SETUP] or

[GUIDE] to exit.

• From the EPG screen, you can also set the

timer recording. Select the TV programme using

[U\D\L\P], then press [ENTER] or

[BLUE] to go to “Timer Programming” menu.

Refer to “Timer Recording (EPG)” on page 48.

Playback

Display

Video

Recording

Clock

Channel

DivX

HDMI

Reset All

TV Aspect

Video Out

General Setting

TV Aspect

4:3 Letter Box

4:3 Pan & Scan

16:9 Wide

ANALOG

Mode Audio output Display on

the TV screen

Main Main audio from both speakers Main

Sub Sub audio from both speakers Sub

Main /

Sub

• Main audio from the left speaker

• Sub audio from the right speaker

Main/Sub

DVB

E3NG0FD_EN.book Page 32 Wednesday, January 30, 2008 10:37 AM

e.g.) Daily mode

1EPG menu mode

2Date / Time

3Date

4Channel number / name

5Channel programme

6Programme you select now

•Press [GUIDE] to exit.

•Press [RED] or [GREEN] to change “Daily mode” or

“Weekly mode”.

•Press [YELLOW] to see more detailed information

of the selected programme.

•Press [INFO C] to display the using guide.

Multiaudio

Many DVB channels transmit Multi audio information

along with their DVB channels. You can select the

desired audio mode and audio language.

1While viewing a DVB programme,

press [AUDIO].

2Select “Stereo”, “Right” or “Left”

using [L\P].

3Select your desired audio language

using [U\D].

• The available audio language varies depending

on the DVB programmes.

4Press [ENTER] to activate the

settings.

Note

• If the programme is changed, the audio language

will be switched back to the default language you set

in the “DVB Menu”. Refer to “Language Setting” on

pages 34 to 35.

Subtitle

Many DVB channels transmit Subtitle information

along with their DVB channels. You can retrieve and

display it on the TV screen.

1While viewing a DVB programme,

press [SUBTITLE].

• If the programme has no subtitle information,

“No information” will appear.

2Select “On” using [L\P].

• If you do not want to display the subtitle, select

“Off” using [L\P].

3Select your desired subtitle

language using [U\D].

• The available subtitle language varies

depending on the DVB programmes.

4Press [ENTER] to activate the

settings.

Note

• If the programme is changed, the subtitle language

will be switched back to the default language you set

in the “DVB Menu”. Refer to “Language Setting” on

pages 34 to 35. If the default subtitle language is not

available on the new programme, no subtitle will be

displayed.

DVB

10:25-11:10 news

12:00-13:00 show

13:00-13:30 musical

13:30-14:35 variety show

19:30-20:00 news

20:00-21:00 drama

18/01/2008

10:30:56

18/01/2008

10:25-11:10 The Montel

1 ITV1

2 ITV2

3 ITV3

4 Channel

5 E4

6 More 4

Daily mode

Daily Weekly Extended Timer

Date

Time

(Friday)

English

Stereo

Multiaudio

DVB

English

Subtitle

Introduction Connections Basic Setup Playback Editing OthersFunction SetupRecording VHS Functions

E3NG0FD_EN.book Page 33 Wednesday, January 30, 2008 10:37 AM

34 EN

DVB Menu Setting

You can make settings of the digital tuner from the

DVB Menu.

Pincode Setting for Adult Lock

You can set “Adult Lock” to “ON” or “OFF” and also

change Pincode.

1In stop mode, press [SETUP].

2Select “DVB Menu” using [U\D],

then press [ENTER].

3Select “Adult Lock” using [U\D],

then press [ENTER].

4Select “ON” or “OFF” using [U\D],

then press [ENTER].

5To set “Adult Lock” to “ON”:

1) Enter your desired Pincode using

[the Number buttons], then press [ENTER].

2) For confirmation, enter the Pincode again

using [the Number buttons] then press

[ENTER].

To set “Adult Lock” to “OFF”:

Enter the Pincode using [the Number buttons].

• While entering the Pincode, use [L] or [CLEAR]

to clear the numbers once entered.

6Press [SETUP] to exit.

Note

• Once “Adult Lock” has been set to “ON”, Pincode

will be required in order to view the locked channels

or make the timer recording of them, and when you

try to execute the “Auto Tuning” for DVB or “Edit

Channels”.

• If you forget the Pincode, press [4], [7], [3], [7] to

cancel the Pincode.

Maturity Lock

According to the age rating signal which comes with

each DVB programme, you can lock each programme.

1Follow steps 1 to 2 in “Pincode

Setting for Adult Lock” on this page.

2Select “Maturity Lock” using

[U\D], then press [ENTER].

• If “Adult Lock” is set to “ON”, enter the Pincode

to proceed to next step.

3Select the desired rating using

[U\D], then press [ENTER].

• Select “OFF” to disable “Maturity Lock”.

4Press [SETUP] to exit.

• Once “Maturity Lock” has been set, Pincode will

be required in order to view the programme that

exceeds the age restriction.

• In order to activate “Maturity Lock”, “Adult Lock”

has to be set to “ON”. To set “Adult Lock”, refer

to “Pincode Setting for Adult Lock” on this page.

Language Setting

1Follow steps 1 to 2 in “Pincode

Setting for Adult Lock” on this page.

2Select “Language” using [U\D],

then press [ENTER].

3Select the item by which you want to

change the language using [U\D],

then press [ENTER].

DVB

Adult Lock

Maturity Lock

Language

About

DVB Menu

DVB

Audio : Set the Audio language

Subtitle : Set the Subtitle language

Adult Lock

Maturity Lock

Language

About

DVB Menu

Maturity Lock OFF

Adult Lock

Maturity Lock

Language

About

DVB Menu

Audio

Subtitle

E3NG0FD_EN.book Page 34 Wednesday, January 30, 2008 10:37 AM

4Select a language using [U\D],

then press [ENTER].

5Press [SETUP] to exit.

Note

• The Audio and Subtitle setting may not be available

for some broadcast.

• To change the audio language, refer to “Multiaudio”

on page 33.

• To display the subtitle or choose the subtitle

language, refer to “Subtitle” on page 33.

About

You can check the current DVB system software

version of this unit.

1Follow steps 1 to 2 in “Pincode

Setting for Adult Lock” on page 34.

2Select “About” using [U\D], then

press [ENTER].

3Press [SETUP] to exit.

Selecting the On-Screen Display

(OSD) Language

1In stop mode, press [SETUP]. Select

“General Setting” using [U\D],

then press [ENTER].

2Select “Display” using [U\D], then

press [ENTER].

3Select “OSD Language” using

[U\D], then press [ENTER].

4Select the appropriate OSD language

using [U\D], then press [ENTER].

5Press [SETUP] to exit.

DVB

OSD Language

Français

English

Español

Deutsch

Italiano

Introduction Connections Basic Setup Playback Editing OthersFunction SetupRecording VHS Functions

E3NG0FD_EN.book Page 35 Wednesday, January 30, 2008 10:37 AM

36 EN

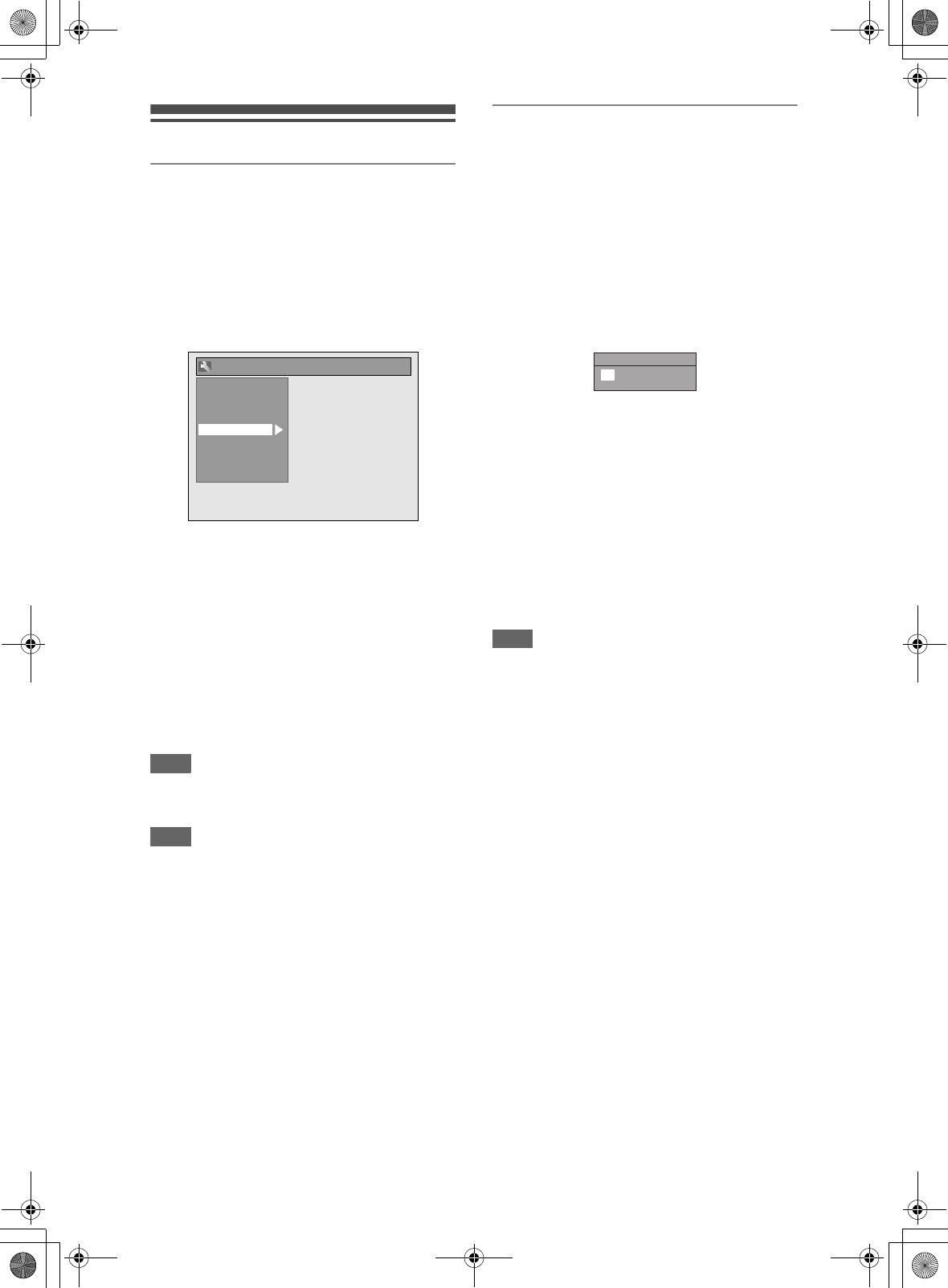

Setting the Clock

Auto Clock Setting

This unit receives time signals from the analogue /

DVB channels, and set the clock automatically. Set

the channel tuning before setting Auto Clock.

1In stop mode, press [SETUP]. Select

“General Setting” using [U\D],

then press [ENTER].

2Select “Clock” using [U\D], then

press [ENTER].

3Select “Auto Clock Setting” using

[U\D], then press [ENTER].

4Select “ON” using [U\D], then

press [ENTER].

5Press [SETUP] to exit.

6Press [BON\STANDBY] to turn the

unit off.

• The Auto clock function is activated.

• This unit will search for the time every time when

the power is turned off.

• Leave the unit off for about 10 seconds to give it

time to set the clock.

Hint

• If you want to cancel “Auto Clock Setting”, select

“OFF” using [U\D], and then press [ENTER] at

step 4.

Note

• The default setting of “Auto Clock Setting” is “ON”.

• The clock may set itself automatically after you

connect the antenna cable to the unit and plug in the

mains cable. In this case, the current time will

appear on the front panel display.

• If there are only analogue channels memorised in

this unit:

- The channel assigned to “901” must receive the

PDC signal in order to set the clock automatically.

- The unit will correct the current time by receiving

PDC broadcasts whenever the power is turned off.

- Between 23:00 and 1:00, the Auto Clock function

will not operate even when the power is turned off.

• The clock cannot be set automatically if you are not

receiving a channel in your area that carries a time

signal. In this case, set the clock manually.

• The unit will also correct the current time

automatically at 8:00 and 1:10 if the unit is in

standby mode or if you are watching DVB channel.

Manual Clock Setting

1In stop mode, press [SETUP]. Select

“General Setting” using [U\D],

then press [ENTER].

2Select “Clock” using [U\D], then

press [ENTER].

3Select “Clock Setting” using

[U\D], then press [ENTER].

Default date will appear.

4Press [ENTER] again.

5Enter the date (day / month / year)

using [U\D].

Press [P] to move the cursor to the next field. If

you want to go back to the previous field, press

[L].

6Enter the time (hours / minutes)

using [U\D], then press [ENTER].

The clock will start.

• Although seconds are not displayed, they will be

counted from zero.

7Press [SETUP] to exit.

Note

• Your clock setting will be lost if either there is a

power failure or the unit is unplugged for more than

30 seconds.

Playback

Display

Video

Recording

Clock

Channel

DivX

HDMI

Reset All

General Setting

0 : 00

01 / 01 / 2008

Clock Setting

(TUE)

E3NG0FD_EN.book Page 36 Wednesday, January 30, 2008 10:37 AM

Information on DVD Recording

Type of Discs

This unit can record on DVD-RW/-R discs and

DVD+RW/+R discs.

DVD-R/+R discs allow you to record programmes only

once, and the recorded contents can be erased

although the space left on the disc does not change.

DVD-RW/+RW discs allow you to record programmes

repeatedly, and the recorded contents can be erased.

There are 3 recording formats: VR mode, Video mode

and +VR mode. VR and Video modes are available for

DVD-RW discs while as only Video mode is available

for DVD-R discs. +VR mode is available for DVD+RW/

+R discs.

Video mode is the same recording format as used on

the pre-recorded DVD-Videos you purchase in local

shops. You can play back the discs recorded in this

format in most of the DVD players. You will need to

finalise such discs (see page 59) before playing them

back in other DVD players. Unless finalised, you can

record additional materials or edit discs recorded in

Video mode with this unit. VR (Video Recording)

mode is a basic recording format for DVD-RW discs.

VR mode offers advanced editing, and you can record

and edit material repeatedly, however it is playable

only on VR mode compatible unit. Finalisation is

recommended before playing them back in other unit.

+VR mode is a recording format for DVD+RW/+R

disc. +VR mode offers basic editing, and it is playable

in most DVD players. Finalisation is recommended

before playing them back in other unit.

Recording Mode

You can select a recording mode from 5 options.

The recording time will vary depending on the

recording mode you select as follows.

• The recording times are estimates and actual

recording time may differ.

• The audio and video quality becomes poorer as the

recording time gets longer.

Restrictions on Recording

You cannot record copy-protected video using this

unit. Copy-protected video includes DVD-Videos and

some satellite broadcasts.

If copy-protected material is detected, recording will

pause or stop automatically and an error message

appears on the screen.

You can only record “Copy-once only” video using a

DVD-RW disc in VR mode with Content Protection for

Recordable Media (CPRM) or internal HDD.

When recording a TV broadcast or an external input,

you can display copy control information on the

screen.

CPRM is a scrambling copy protection system for the

protection of “copy-once” broadcast programmes.

This unit is CPRM compatible, which means that you

can record copy-once broadcast programmes, but you

cannot then make a copy of those recordings. CPRM

recordings can only be played back on DVD players

that are specifically compatible with CPRM.

Information on Copy Control

Some satellite broadcasts include copy-protected

information. If you want to record them, refer to the

following.

Note

• This unit cannot record on CD-RW or CD-R discs.

• DVD-RW/-R, DVD+RW/+R and CD-RW/-R discs

recorded on a personal computer or a DVD or CD

recorder may not be played back if the disc is

damaged or dirty or if there is condensation on the

recorder’s lens.

• If you record a disc using a personal computer, even

if it is recorded in a compatible format, it may not be

played back because of the settings of the

application software used to create the disc. (Check

with the software publisher for more detailed

information.)

Recording

mode

Recording time Video /

Sound

Quality

DVD

12 cm

DVD

8 cm HDD

XP 60 min 18 min 33 hrs

SP 120 min 36 min 66 hrs

LP 240 min 72 min 133 hrs

EP 360 min 108 min 200 hrs

SLP 480 min 144 min 267 hrs

DVD-RW

Video

DVD-R

DVD+RW

DVD+R

HDD

VHS

Disc type / format Copy-

free

Copy-

once

Copy-

prohibited

: Recordable

: Not recordable

ver. 1.1 / ver. 1.2

ver. 1.1 / ver. 1.2 CPRM compatible

ver. 1.1 / ver. 1.2

ver. 1.1 / ver. 1.2 CPRM compatible

ver. 2.0

Introduction Connections Basic Setup Playback Editing OthersFunction SetupRecording VHS Functions

E3NG0FD_EN.book Page 37 Wednesday, January 30, 2008 10:37 AM

38 EN

• Discs recorded in Video mode on this unit cannot

record additional information using other DVD

recorders.

• Since recording is performed using the Variable Bit

Rate (VBR) method, the actual remaining time for

recording may be a little shorter than the remaining

time displayed on the OSD, depending on the

picture you are recording.

Making Discs Playable in Other DVD

Players (Finalise)

After recording, you must finalise the disc to play it

back in other players. (See page 59.)

You cannot finalise discs in other DVD recorders.

After finalising

• After DVD-R discs are finalised:

- A Title menu is created automatically.

- Undo finalising is not possible.

- Additional recording or editing is not possible.

• After DVD-RW (Video mode) discs are finalised:

- A Title menu is created automatically.

- Undo finalising is possible. (See page 59.)

- Additional recording or editing is possible if you

undo finalise. (See page 59.)

• After DVD-RW (VR mode) discs are finalised:

- A Title menu is not created.

- Undo finalising is possible. (See page 59.)

- Additional recording or editing is possible if you

undo finalise. (See page 59.)

• After DVD+RW discs are finalised:

- A Title menu is created automatically.

- Undo finalising is possible. (See page 59.)

- Additional recording or editing is possible even

without undo finalising.

• After DVD+R discs are finalised:

- A Title menu is created automatically.

- Undo finalising is not possible.

- Additional recording or editing is not possible.

About HDD

HDD is a special device which has high recording

density and is suited for long-time recording or high-

speed cueing but by contrast, has many factors which

can cause breakage. Use HDD on the premise that

you should dub the recorded programmes to a DVD

disc to protect your precious videos.

HDD is a temporary storage location:

HDD is not a permanent storage location of the

recorded contents. Be sure to use it as a temporary

storage location until you watch the programmes

once, edit them, or dub them to a DVD disc.

Be sure to dub (back up) data promptly if you find

abnormalities in HDD:

If there is mechanical trouble with the HDD, grinding

or other sounds may be heard or blocky noise may

appear on the image. If you continue to use as it is,

deterioration may continue and eventually the HDD

may not be used at all. If you notice these symptoms

of a failing HDD, promptly dub the data to a DVD disc.

When an HDD fails, recovery of recorded content

(data) may be impossible.

About the remaining capacity of HDD recording

time:

In recording to HDD, the Remaining Capacity Display

may differ from the actual recordable time as this unit

adopts Variable Bit Rate encoding, which varies the

recording (storage) amount of data in conformity with

the information amount of video. Before recording to

the HDD, ensure there is sufficient space on the HDD

by deleting unnecessary titles in advance. (Remaining

capacity will not increase if you only delete Playlists.)

Maximum Recordable Numbers of

Title / Chapters

HDD:

600 Original titles

600 Playlists

99 chapters per Original/Playlist title

VR mode DVD:

99 titles per each Playlist and Original

999 chapters per each Playlist and Original

Video mode DVD:

99 titles per disc

99 chapters per title

+VR mode DVD:

49 titles per discs

254 chapters per disc

99 chapters per title

E3NG0FD_EN.book Page 38 Wednesday, January 30, 2008 10:37 AM

Formatting a Disc

Choosing the Recording Format of a

Blank DVD-RW Disc

When inserting a brand-new DVD-RW/+RW disc, the

unit automatically starts to initialise the disc.

DVD+RW disc will always be formatted in +VR mode,

and DVD-RW disc will be formatted either Video or

VR mode according to the recording format mode

setting of the unit. Before insert a brand-new DVD-RW

disc, you need to set the recording format to the

desired mode. You can also manually format a DVD-

RW disc once it has been used.

1In stop mode, press [SETUP].

2Select “DVD Menu” using [U\D],

then press [ENTER].

3Select “Format” using [U\D], then

press [ENTER].

4Select “Format Mode” using [U\D],

then press [ENTER].

5Select “Video mode” or “VR mode”

using [U\D], then press [ENTER].

6Press [SETUP] to exit.

7Insert a blank disc.

Formatting will start.

8Formatting is complete.

“100%” is indicated.

Note

• The recording format setting is effective only for

DVD-RW discs. You cannot change the recording

format for a DVD-R disc and DVD+RW/+R disc.

• You cannot mix two formats on one DVD-RW disc.

If you insert a disc that has been recorded before,

the recording format cannot be changed even if you

change it in “Setup” menu.

Make Recording Compatible

Use this feature to make the unfinalised +VR mode

discs recorded on other unit recordable on this unit.

When you make an additional recording on this unit

with “Make Recording Compatible” set to “ON”, the

title list is automatically converted to this unit’s style.

1In stop mode, press [SETUP]. Select

“General Setting” using [U\D],

then press [ENTER].

2Select “Recording” using [U\D],

then press [ENTER].

3Select “Make Recording Compatible”

using [U\D], then press [ENTER].

4Select “ON” or “OFF” using [U\D],

then press [ENTER].

5Press [SETUP] to exit.

DVD-RWDVD-RW

Video

DVD-RWDVD-RW

Format Mode

Video mode

VR mode

Video mode

VR mode

DVD Player Compatibility mode.

Editing possibility mode.

ON: Title list will be replaced when you make

additional recordings to the discs recorded by

other units.

OFF: Prohibiting additional record to the disc that has

a title list created by other units.

DVD+RWDVD+RW D

VD+R

DVD+R

Make Recording Compatible

OFF

Introduction Connections Basic Setup Playback Editing OthersFunction SetupRecording VHS Functions

E3NG0FD_EN.book Page 39 Wednesday, January 30, 2008 10:37 AM

40 EN

Setting Aspect Ratio for Video Mode

Recording

You can set aspect ratio for video mode recording.

1In stop mode, press [SETUP]. Select

“General Setting” using [U\D],

then press [ENTER].

2Select “Recording” using [U\D],

then press [ENTER].

3Select “Aspect Ratio (Video mode)”

using [U\D], then press [ENTER].

4Select your desired setting using

[U\D], then press [ENTER].

5Press [SETUP] to exit.

Note

• For HDD and VR mode DVD-RW disc, the image will

be recorded in whichever the ratio that the

programme you record is broadcasted with,

regardless of the “Aspect Ratio (Video mode)”

setting.

• For DVD+RW/+R disc, the image will always be

recorded in aspect ratio of 4:3.

Setting Auto Chapter

The unit inserts a chapter mark periodically (every 15

minutes by default) during recording. Using the Auto

Chapter menu, you can set this function off or change

the time period.

1In stop mode, press [SETUP]. Select

“General Setting” using [U\D],

then press [ENTER].

2Select “Recording” using [U\D],

then press [ENTER].

3Select “Auto Chapter” using [U\D],

then press [ENTER].

4If you want to set “Auto Chapter” off,

select “OFF” using [U\D], then

press [ENTER].

If you want to change the time period

for “Auto Chapter”, select the required

time period using [U\D], then press

[ENTER].

5Press [SETUP] to exit.

Note

• The interval for auto chapter may be up to 2 minutes

different from the time option you set.

• While recording, no more chapter mark will be

added after coming up to the maximum chapter

mark number.

Auto (default): It will be recorded with whichever the

ratio that the programme you started

to record is broadcasted with.

4:3 : Recorded in the aspect ratio of 4:3.

16:9 : Recorded in the aspect ratio of 16:9.

DVD-RWDVD-RW

Video

DVD-RDVD-R

4:3

16 : 9

Aspect Ratio (Video mode)

Auto

HDDHDD D

VD-R

DVD-RW

Video

DVD-RWDVD-RW

DVD-RDVD-R

VD+R

DVD+RW D

VD+R

DVD+R

Playback

Display

Video

Recording

Clock

Channel

DivX

HDMI

Reset All

General Setting

Auto Chapter

Recording Audio Select (XP)

Auto Finalise

Aspect Ratio (Video mode)

Make Recording Compatible

Bilingual Recording Audio

External Input Audio

Video Colour System

Auto Chapter

OFF

5 minutes

10 minutes

15 minutes

30 minutes

60 minutes

E3NG0FD_EN.book Page 40 Wednesday, January 30, 2008 10:37 AM

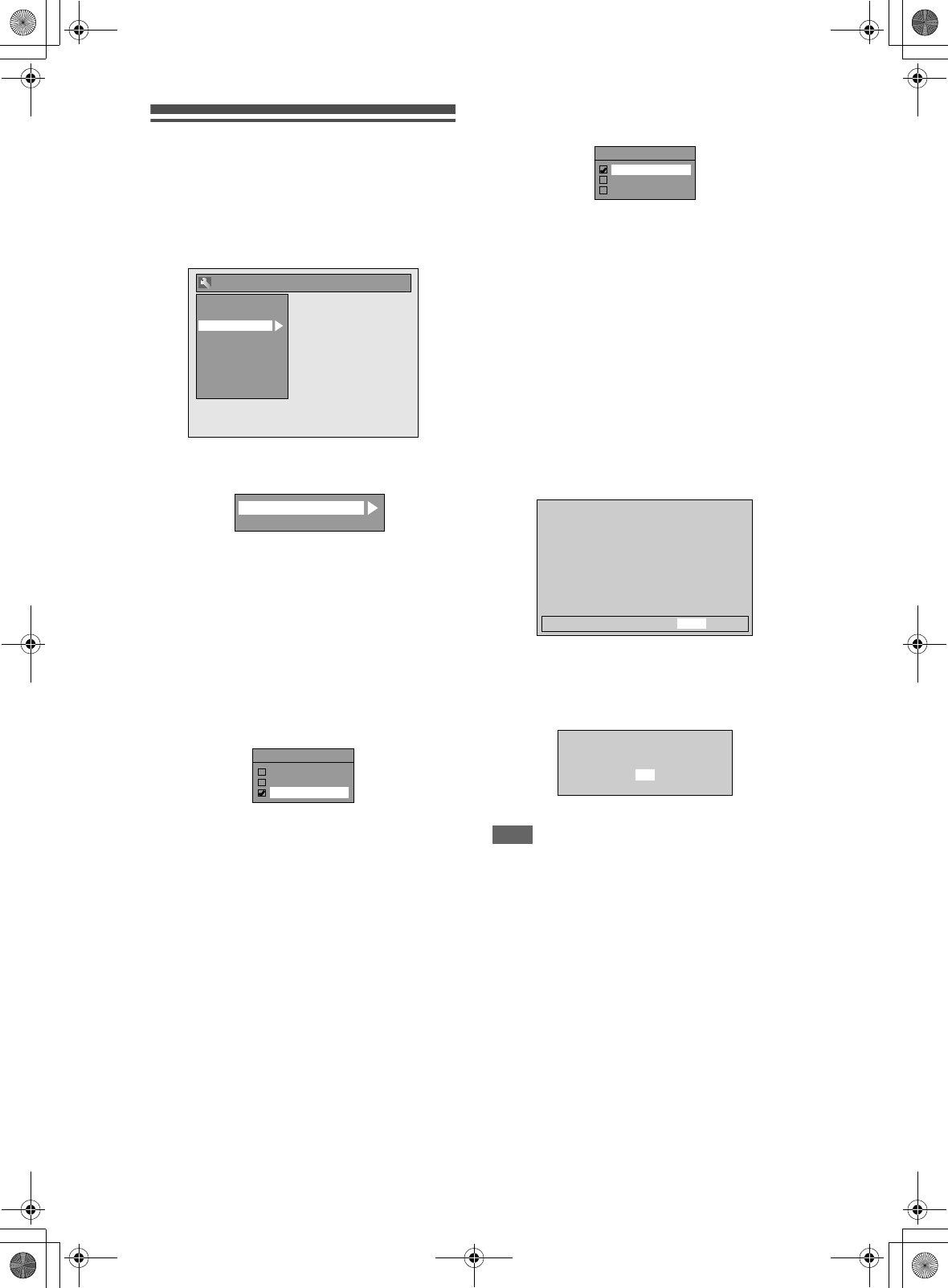

Reformatting a Disc Manually

If you are using a DVD-RW/+RW disc, you can format

the disc by performing “Format”. You can format DVD-

RW disc for either Video mode recording or VR mode

recording. DVD+RW disc can be formatted in order to

erase all content of the disc.

Note

• When you reformat the disc, the contents of the disc

are erased.

• Make sure that the recording format is set to the

desired mode. (Refer steps 1 to 6 in “Choosing the

Recording Format of a Blank DVD-RW Disc” on

page 39.)

Insert a recordable disc.

1In stop mode, press [SETUP].

2Select “DVD Menu” using [U\D],

then press [ENTER].

3Select “Format” using [U\D], then

press [ENTER].

4Select “Start” using [U\D], then

press [ENTER].

For DVD+RW, use [U\D] to select “Yes”, then

press [ENTER].

A pop up window will appear and prompt you to

confirm.

5Select “Yes” using [U\D], then

press [ENTER].

e.g.) VR mode DVD-RW

Formatting will start.

If you want to cancel formatting, select “No”.

6Formatting is complete.

Note

• It is not possible to use a disc formatted with this unit

in other DVD recorder. When you use a disc with

another DVD recorder, format a disc using that DVD

recorder.

Selecting the Sound Mode

This unit can receive bilingual broadcasts.

You can switch between modes by pressing

[AUDIO D]. Each mode is indicated on the TV.

When you record a DVB channel, only output sound

channel will be recorded.

Setting External Input Audio

When the external input audio is a bilingual

broadcast, you can choose “Stereo” or “Bilingual” to

record on an HDD/DVD. This setting is only for

recording external input (AV1/AV2/AV3).

1In stop mode, press [SETUP]. Select

“General Setting” using [U\D],

then press [ENTER].

2Select “Recording” using [U\D],

then press [ENTER].

3Select “External Input Audio” using

[U\D], then press [ENTER].

4Select “Stereo” or “Bilingual” using

[U\D], then press [ENTER].

5Press [SETUP] to exit.

Hint

• If you select “Stereo”:

The audio will be recorded as “stereo audio”.

• If you select “Bilingual”:

The audio will be recorded as “bilingual audio”. (See

“Setting Bilingual Recording Audio” on page 42 for

more detail.)

DVD-RWDVD-RW

Video

DVD-RWDVD-RW

DVD+RWDVD+RW

Are you sure?

Yes

HDDHDD D

VD-R

DVD-RW

Video

DVD-RWDVD-RW

DVD-RDVD-R

VD+R

DVD+RW D

VD+R

DVD+R

Playback

Display

Video

Recording

Clock

Channel

DivX

HDMI

Reset All

General Setting

Auto Chapter

Recording Audio Select (XP)

Auto Finalise

Aspect Ratio (Video mode)

Make Recording Compatible

Bilingual Recording Audio

External Input Audio

Video Colour System

External Input Audio

Stereo

Bilingual

Introduction Connections Basic Setup Playback Editing OthersFunction SetupRecording VHS Functions

E3NG0FD_EN.book Page 41 Wednesday, January 30, 2008 10:37 AM

42 EN

Setting Bilingual Recording Audio

You can select either “Main” or “Sub” audio to record a

bilingual broadcast in Video mode or +VR mode.

This setting is only for recording analogue channel.

1In stop mode, press [SETUP]. Select

“General Setting” using [U\D],

then press [ENTER].

2Select “Recording” using [U\D],

then press [ENTER].

3Select “Bilingual Recording Audio”

using [U\D], then press [ENTER].

4Select “Main” or “Sub” using

[U\D], then press [ENTER].

5Press [SETUP] to exit.

Note

• If you are recording onto an HDD or VR mode disc,

both “Main” and “Sub” will be recorded regardless of

your setting here. And when you play back, you can

choose either audio format or a combination of both

as your playback audio.

Recording Audio Select (XP)

You can enjoy high quality sound recording. This

function works only when the recording mode is set at

XP.

1In stop mode, press [SETUP]. Select

“General Setting” using [U\D],

then press [ENTER].

2Select “Recording” using [U\D],

then press [ENTER].

3Select “Recording Audio Select

(XP)” using [U\D], then press

[ENTER].

4Select “PCM” or “Dolby Digital”

using [U\D], then press [ENTER].

5Press [SETUP] to exit.

Note

• “PCM” stands for Pulse Code Modulation. It

changes analogue sound to digital sound without

compressing audio data.

• When the recording mode is set at other than XP,

the unit records “Dolby Digital” audio automatically

even if you selected “PCM”.

DVD-RWDVD-RW

Video

DVD-RDVD-R D

VD+R

DVD+RW D

VD+R

DVD+R

Bilingual Recording Audio

Main

Sub

PCM: Records PCM audio for the best

quality sound.

Dolby Digital: Records Dolby Digital audio for good

quality sound.

HDDHDD D

VD-R

DVD-RW

Video

DVD-RWDVD-RW

DVD-RDVD-R

VD+R

DVD+RW D

VD+R

DVD+R

Recording Audio Select (XP)

PCM

Dolby Digital

E3NG0FD_EN.book Page 42 Wednesday, January 30, 2008 10:37 AM

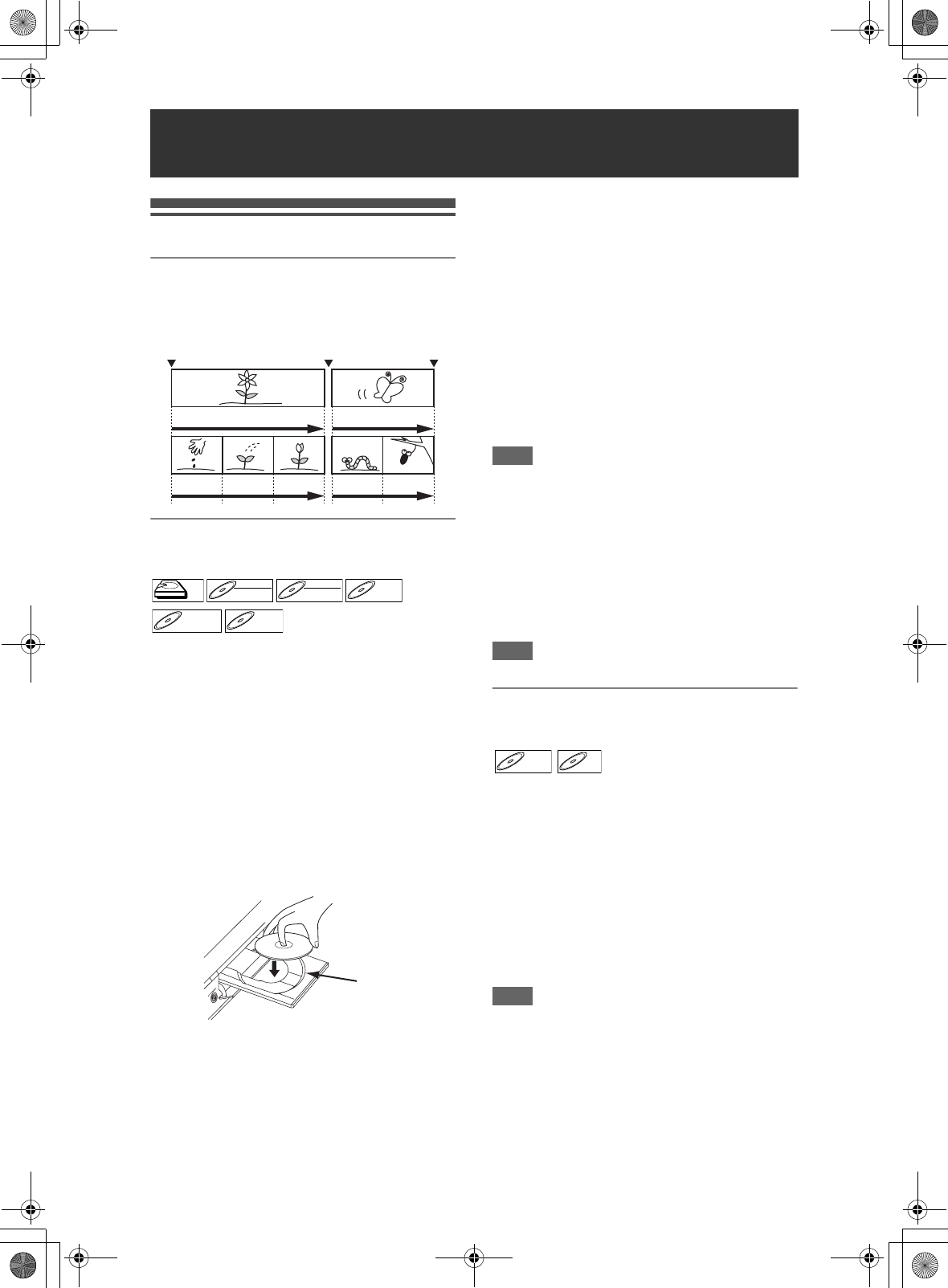

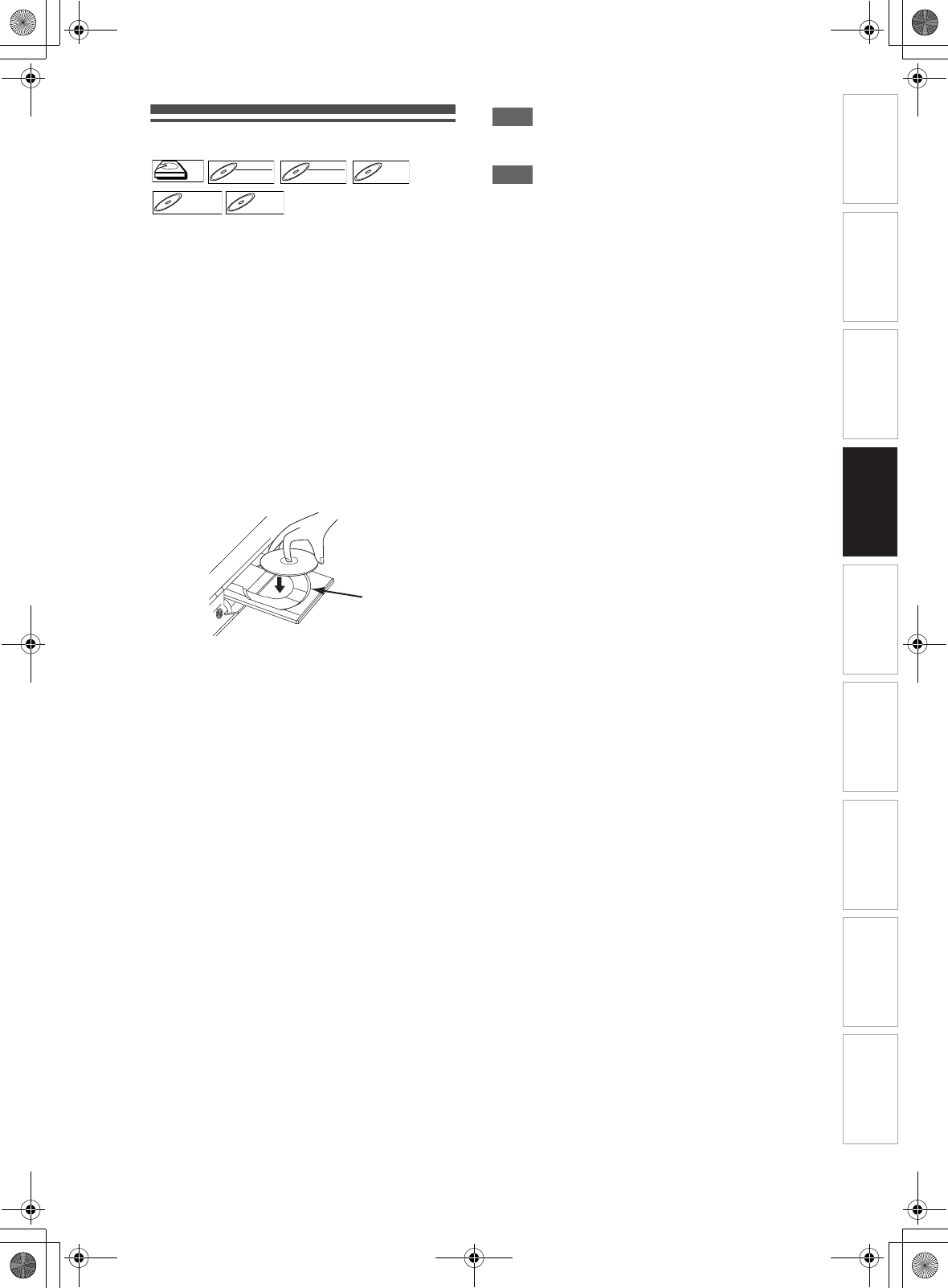

Basic Recording

Follow the steps below to record a TV programme.

(See page 93 for VHS recording.)

1Press [BON\STANDBY] to turn on

the unit.

Turn on the TV and be sure to select the input to

which the unit is connected.

If you are recording to the HDD, press [HDD],

then proceed to step 5.

If you are recording to a disc, press [DVD].

2Press [OPEN\CLOSE A] to open the

disc tray.

3Place the disc on the disc tray with

its label facing up. Be sure to align

the disc with the disc tray guide.

4Press [OPEN\CLOSE A] to close the

disc tray.

5Select the recording mode using

[REC MODE]. (See page 37.)

6Press [INPUT SELECT F] to select

DVB, analogue or external input

mode, then select the desired

channel to record using

[PROG. G\H] or

[the Number buttons].

7Press [REC I] to start recording.

The “IHDD” or “IDVD” mark will be displayed

on the TV screen briefly.

To pause the recording, press [PAUSE F]. Press

[PAUSE F] or [REC I] again to restart the

recording.

8Press [STOP C] to stop the

recording.

This operation may take a few moments to

complete.

Hint

• You can change the channel while in the REC pause

mode.

Note

• Recording starts immediately and continues until the

disc is full or you stop recording.

• You cannot change the recording mode in the REC

or REC pause mode.

• Even if the broadcasting you are recording is in the

SECAM system, this unit automatically converts it to

the PAL system when recording.

• If the external equipment is connected to AV2, the

picture of the external equipment will be output

except during the DVD playback of this unit. Turn off

the external equipment or press [DISPLAY] to

output the picture of this unit.

• You can play back a title on one component while

making a recording on the other component. To do

so, simply select the component (HDD or DVD) you

want to use for the playback by pressing [HDD] or

[DVD] during HDD / DVD recording. And then follow

the normal playback procedure.

• If playback and recording are in progress at the

same time, select the appropriate component by

pressing [HDD] or [DVD] before you press

[PAUSE F] or [STOP C] to pause or stop the

operation.

• NTSC recording is prohibited in this unit.

HDDHDD D

VD-R

DVD-RW

Video

DVD-RWDVD-RW

DVD-RDVD-R

VD+R

DVD+RW D

VD+R

DVD+R

Disc tray guide

Introduction Connections Basic Setup Playback Editing OthersFunction SetupRecording VHS Functions

E3NG0FD_EN.book Page 43 Wednesday, January 30, 2008 10:37 AM

44 EN

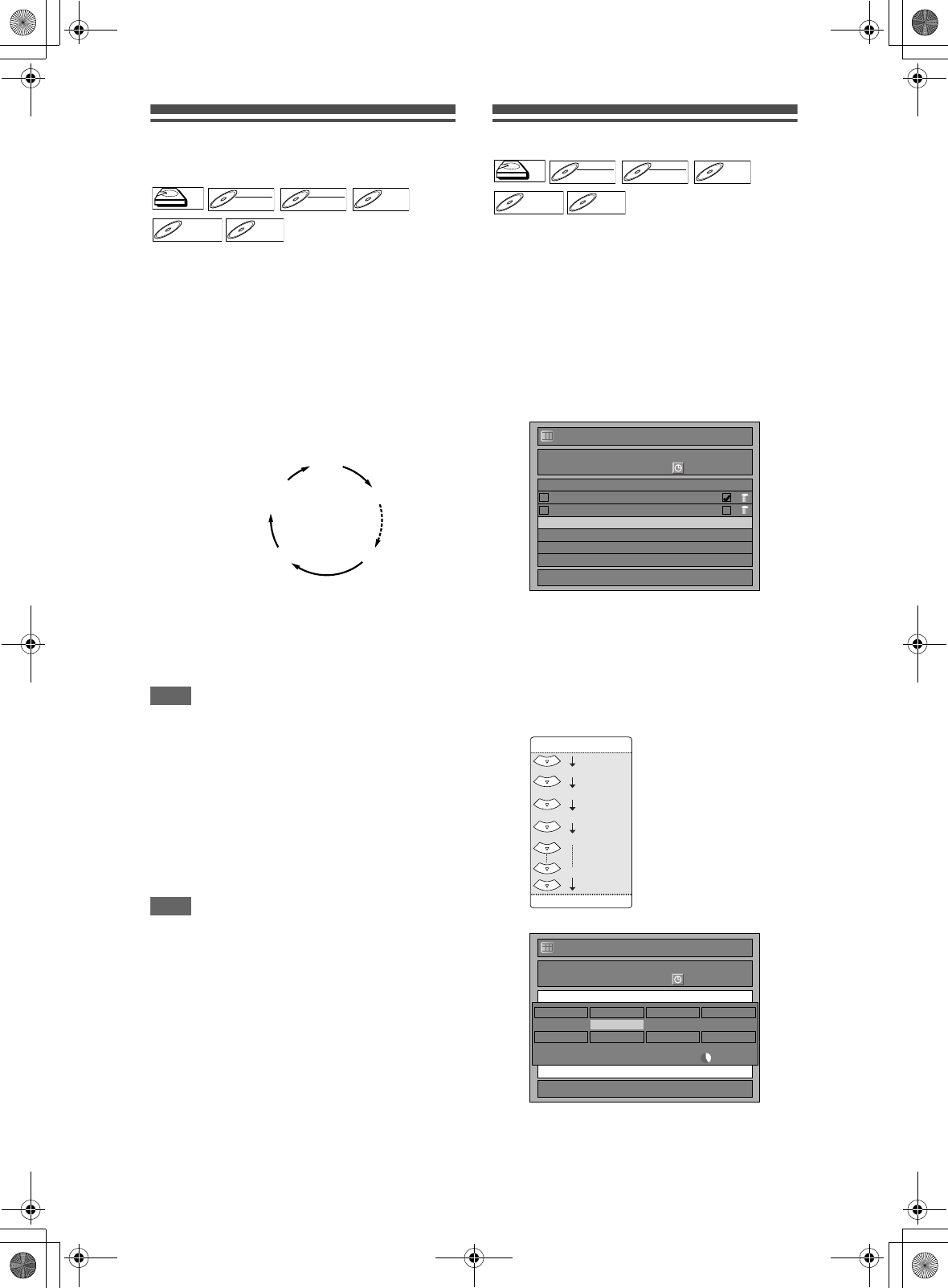

One-touch Timer Recording

(OTR)

This is a simple way to set the recording time in blocks

of 30 minutes. Check that the disc you are recording

onto has enough space remaining for the time you

set. (See page 94 for VHS recording.)

1Follow steps 1 to 6 in “Basic

Recording” on page 43.

2Press [REC I] repeatedly until the

desired recording time (30 minutes

to 8 hours) appears on the TV

screen.

One-touch Timer Recording will start.

• When the unit reaches the specified time, it will

be turned off automatically.

• To change the recording length during One-

touch Timer Recording, press [REC I]

repeatedly until the desired length appears.

• To cancel One-touch Timer Recording within the

specified time, press [STOP C].

Hint

• The remaining recording time will appear on the TV

screen during One-touch Timer Recording. Press

[DISPLAY] to see it on the TV screen.

• The remaining recording time will be displayed on

the front panel display during One-touch Timer

Recording.

• Unlike the timer recording, you can perform the

following operations during One-touch Timer

Recording.

- Turn off the power. (One-touch timer recording will

be cancelled.)

-Use [REC I] on the remote control.

Note

• You cannot use the pause function during One-

touch Timer Recording.

• The unit will be turned off automatically under the

following conditions.

- No space remains on the disc.

- If a power failure occurs.

• If the external equipment is connected to AV2, the

picture of the external equipment will be output

except during the DVD playback of this unit. Turn off

the external equipment or press [DISPLAY] to

output the picture of this unit.

Timer Recording

You can set the unit to record up to 36 programmes,

up to a month in advance. Daily or weekly programme

recordings are also available.

• Be sure to set the clock before entering a timer

programming.

Insert a recordable disc.

1In stop mode, press [TIMER PROG.].

“Timer Programming” list will appear.

2Select “New Programme” using

[U\D], then press [ENTER].

• If there are 7 programmes or more, use

[SKIP H\G] to turn the page.

3Enter the date using [U\D], then

press [P].

Each time you press [D] at the current date, the

timer recording date will change as follows.

e.g., 1st January

4Enter the time to start and to end

using [U\D], then press [P].

HDDHDD D

VD-R

DVD-RW

Video

DVD-RWDVD-RW

DVD-RDVD-R

VD+R

DVD+RW D

VD+R

DVD+R

0:30

8:00 7:30

1:00

Normal

Recording

HDDHDD D

VD-R

DVD-RW

Video

DVD-RWDVD-RW

DVD-RDVD-R

VD+R

DVD+RW D

VD+R

DVD+R

1/1

06/120:00

06/12

07/12

7:00

9:00

9:30

190

Timer Programming

THU

Date Start End CH

New Programme

STTL

VPS/PDC

01/01

31/01

Daily

M-F

W-SAT

W-FRI

W-SUN

(Mon.-Fri.)

1/1

901

01/01

XP 1:00

-:- -:-

0:00 06/12

Timer Programming

THU

Skip Date Start End

REC To Mode VPS/PDC

HDD OFF

E3NG0FD_EN.book Page 44 Wednesday, January 30, 2008 10:37 AM

5Select the channel number to record

using [U\D], then press [P].

To record from the external input, select “AV1”,

“AV2”, or “AV3”.

6Select the recording media (“HDD”

or “DVD”) using [U\D], then press

[P].

7Select the recording mode using

[U\D], then press [P].

Refer to “Recording Mode” on page 37.

8For DVB channel recording:

Select “STTL” to “ON” or “OFF”

using [U\D].

If you set “STTL” to “ON”, subtitle will be recorded

too.

• When analogue channel is selected, “VPS/PDC”

will be displayed instead of “STTL”.

For analogue channel recording:

Select “VPS/PDC” to “ON” or “OFF”

using [U\D].

Refer to “VPS (Video Programme System) / PDC

(Programme Delivery Control)” on page 46.

• When DVB channel is selected, “STTL” will be

displayed instead of “VPS/PDC”.

• VPS/PDC system is only available for HDD.

• VPS/PDC system is not available for “Daily” and

“M-F” timer programme.

9Press [ENTER] when all information

required is entered.

Your programme setting is stored.

• To set another programme, repeat steps 2 to 9.

• To exit, press [TIMER PROG.].

• When 2 or more programmes are overlapped,

“Timer programme overlapped” appears, and

the overlapped programme will be displayed in

blue. To correct the timer programme, refer to

“Checking, Cancelling or Correcting the Timer

Programming Information” on page 46.

The icon will appear on the front panel display.

Note

• If you have not set the clock, the clock setting

window will appear instead of the Timer

Programming list. Continue from step 4 in “Manual

Clock Setting” on page 36 before programming the

timer.

•Press [U\D] to move the cursor in “Timer

Programming” list.

• If you have a timer programme with VPS/PDC

function, and if you are watching different channel

from the timer programme, confirmation message to

change the channel will appear 15 minutes before

the programme starts (the message will also re-

appear 30 seconds before the programme starts).

The channel will automatically be changed to the

programmed channel 15 seconds before the

programme starts.

Alternate recording (DVD only)...

If there is no recordable disc in the unit, if the disc

does not have enough space to complete the

recording, or if the material is “copy-once” programme

and prohibited to be recorded on a DVD in the unit,

the unit will detect it and automatically record to the

HDD even when DVD is selected as the recording

media. If the available space on the HDD is less than

that of DVD, the unit will not perform the alternate

recording. This feature is available only for timer

recording. Not available for one-touch timer recording.

1/1

06/120:00

06/12

07/12

7:00

9:00

17:00

9:00

9:30

18:00

190

901

Timer Programming

THU

Date Start End CH

New Programme

STTL

VPS/PDC

Introduction Connections Basic Setup Playback Editing OthersFunction SetupRecording VHS Functions

E3NG0FD_EN.book Page 45 Wednesday, January 30, 2008 10:37 AM

46 EN

VPS (Video Programme System) /

PDC (Programme Delivery Control)

The Video Programme System (VPS) or Programme

Delivery Control (PDC) assures that the TV

programmes you have programmed for timer

recording are recorded exactly from beginning to end,

even if the actual broadcasting time differs from the

scheduled time due to a delayed start or extension of

the programme duration. Furthermore, if a

programme is interrupted, the recording will also be

interrupted automatically and resumed when the

programme starts again.

If the VPS/PDC signal drops out because the

broadcast signal is weak, or if a broadcasting station

does not transmit a regular VPS/PDC signal, the timer

recording is performed in normal mode (without VPS/

PDC) even if it was programmed for VPS/PDC. If the

starting time of the VPS/PDC timer recording is

between 0:00 and 3:59 on a given day, the VPS/PDC

function will operate from 20:00 on the previous day to

4:00 on the next day. If the starting time of the VPS/

PDC timer recording is between 4:00 and 23:59 on a

given day, the VPS/PDC function will operate from

0:00 on the given day to 4:00 on the next day. This

means that if the relevant programme is broadcasted

within this period, it is recorded correctly. If the timer is

not programmed correctly, the incorrect timer setting

stays in effect unless you cancel it. To cancel an

incorrect timer setting, refer to “Checking, Cancelling

or Correcting the Timer Programming Information” on

this page.

Note

• This feature is only available for analogue channels.

Checking, Cancelling or Correcting

the Timer Programming Information

1Press [TIMER PROG.].

2A) To delete the timer programme:

1) Select the programme you want to delete using

[U\D], then press [ENTER].

2) Select “Delete” using [U\D], then press

[ENTER].

Confirmation window will appear.

3) Select “Yes” using [U\D], then press

[ENTER].

B) To correct the timer programme:

1) Select the programme you want to correct

using [U\D], then press [ENTER].

2) Select “Programme Change” using [U\D],

then press [ENTER].

3) Correct the timer programme by using

[U\D\L\P], then press [ENTER].

3Press [TIMER PROG.] to exit.

To check the timer programming in progress

Press [TIMER PROG.].

Skip the Periodical Timer Recording

You can deactivate the periodical (Daily, Mon-Fri or

Weekly) timer recording temporarily.

1In stop mode, press [TIMER PROG.].

2Select the periodical timer recording

programme you want to skip using

[U\D], then press [ENTER].

3Select “Programme Change” using

[U\D], then press [ENTER].

4Move the cursor to the “Skip” field

using [L\P], then select “ON” using

[U\D] and then press [ENTER] to

activate the setting.

• “✔” will be displayed on the left side of the timer

programme.

• The setting will go back to “OFF” after the

programme is skipped once.

Stop the Timer Recording in Progress

On the front panel of the unit, press

[CSTOP] to stop the recording, or

press and hold [STOP C] on the remote

control for 2 seconds.

• You can also stop the timer recording in progress by

deleting the timer programme. Press

[TIMER PROG.] while the timer recording is in

progress, then follow steps 2-A) and 3 of the

“Checking, Cancelling or Correcting the Timer

Programming Information” on this page.

If the Timer Programming Did Not

Complete Correctly

The error number appears on “Timer Programming”

list.

The error programme will be displayed in gray

with an error number.

1/1

E40

06/12 7:00 9:00

901

06/120:00

Timer Programming

THU

Date Start End

New Programme

STTL

VPS/PDC

E3NG0FD_EN.book Page 46 Wednesday, January 30, 2008 10:37 AM

The error numbers indicate:

• Timer programme with an error number will be

cleared once the entry screen for the

programme is displayed.

Hints for the Timer Recording

• If there is a power failure or the unit is unplugged for

more than 30 seconds, the clock setting and all

timer settings will be lost.

• If a disc is not inserted or if a inserted disc is not

recordable (finalised DVD-RW/-R, finalised DVD+R,

a fully recorded disc, etc.), the unit will perform the

alternate recording to the HDD. (See page 45.)

• When a timer recording is completed, the unit will

ask you whether to turn off the unit if there is no

timer recording which starts within 4 minutes, except

under conditions listed below.

- During playback of HDD or DVD.

- While displaying menus or information on the

screen.

• The unit will be turned off automatically if you select

“Yes” or if you do not reply in 1 minute.

• When the programmed starting and ending time are

earlier than the current time, the setting will not be

accepted.

• The audio language which is selected in the “DVB

Menu” will be recorded for the timer recording of

digital TV broadcasting.

• Timer recording whose recording time exceeds 12

hours cannot be made.

• It is prohibited to turn off the unit from 4 minutes

before the programmed starting time.

• It is prohibited to change channel from 15 seconds

before the programmed starting time.

•[REC I] does not work from 2 minutes before the

programmed starting time. If it comes to 2 minutes

before the starting time during regular or one-touch

timer recording, the recording in progress will be

stopped.

• Playback of DVD/CD is prohibited from 2 minutes

before the programmed starting time when the

recording media is DVD. If it comes to 2 minutes

before the programmed starting time during DVD/

CD playback, the playback will be stopped.

• When 2 or more programmes are overlapped,

“Timer programme overlapped” appears, and the

overlapped programme will be displayed in blue. To

correct the timer programme refer to “Checking,

Cancelling or Correcting the Timer Programming

Information” on page 46.

• If the Start time is earlier and the End time is later

than the current time, the recording will start

immediately after you press [ENTER] at step 9 on

page 45.

E1–E22,

E37–E39 : Recording error

E23–E24 : Unrecordable disc

E25/E51 :

• Copy prohibited programme

• Cannot record because of the NTSC

/ PAL-60 signal is received.

E26–E28 : Copy prohibited programme

E29 : Disc protected

E30 : Disc full

E31 : Already recorded 99 titles (Video

mode)

E32 : Already recorded 99 titles (VR mode)

E33 : Already recorded 999 chapters

E34 : No space for Control Information

E35 : PCA (Power Calibration Area) full

E36 : Already finalised Video format disc

E40 :

• There are some unrecorded parts

due the overlapped timer

programmes.

• Recording did not start at the start

time.

E41 : Power failure

E42 : No disc

E43 : Already 49 titles recorded

(+VR mode)

E44 : Already 254 chapters recorded

(+VR mode)

E45 : Copy prohibited programme

E46 : It is impossible to record additionally

on a disc recorded by other units

when setting “Make Recording

Compatible” to “OFF”. (+VR mode)

E47 : Already 600 titles recorded on the

HDD.

E49–E50 : HDD recording is cancelled due to the

insufficiency of the disc space on the

HDD.

Introduction Connections Basic Setup Playback Editing OthersFunction SetupRecording VHS Functions

E3NG0FD_EN.book Page 47 Wednesday, January 30, 2008 10:37 AM

48 EN

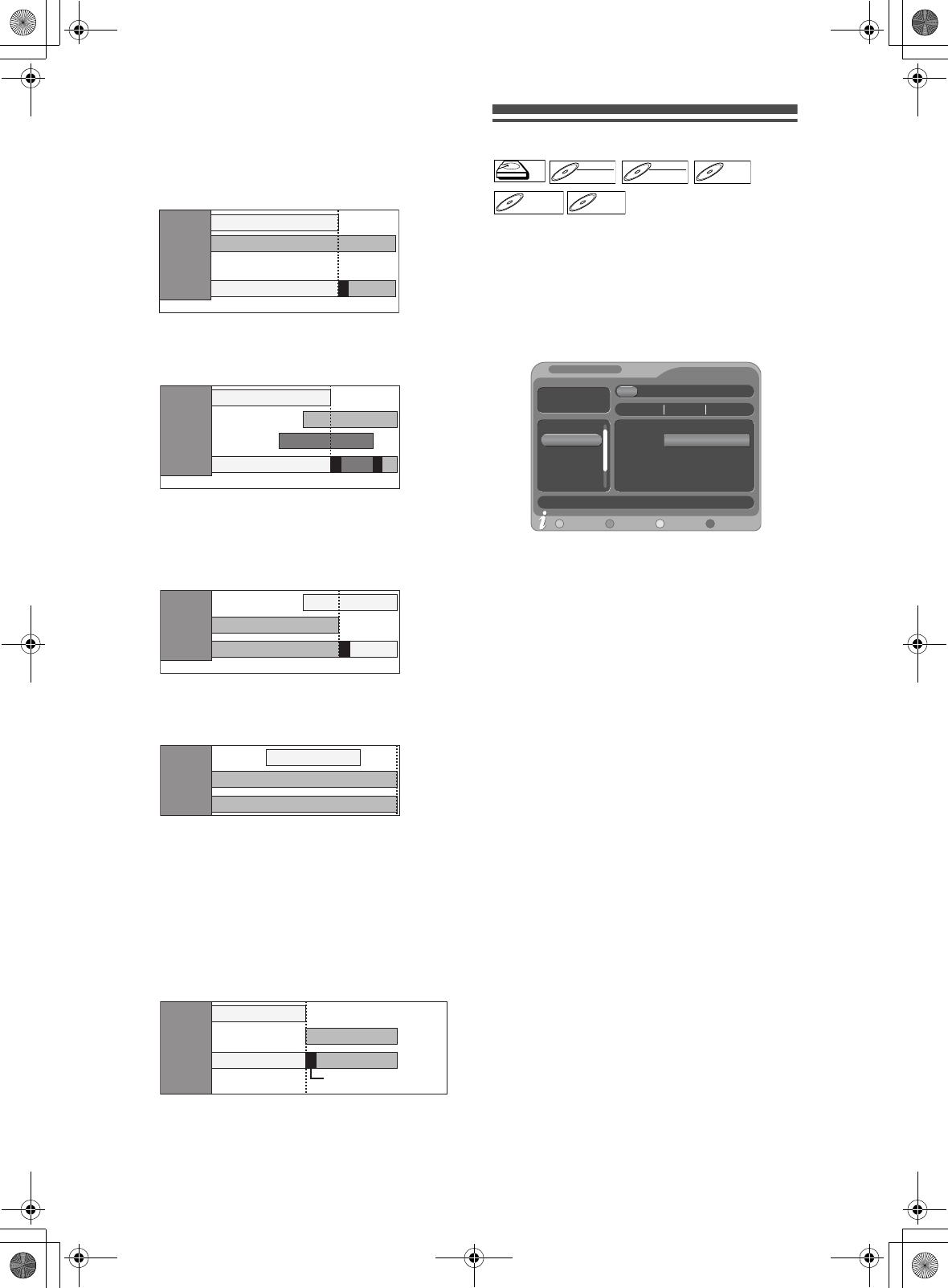

Priority of overlapped settings

The unit records programmes according to priority if

the timer programmes overlap.

If the starting time is same:

• The timer programming set first (PROG. 1) has

priority.

When the starting time and the ending time for

each programmes are different:

• A programme that has earlier start time has priority.

If the recording time is partially overlapped:

• The timer programming with the earlier start time

(PROG. 2) has priority. PROG. 1 will start after

PROG. 2 recording is complete.

If the recording time entirely overlaps:

• The shorter timer programming (PROG. 1) is not

recorded.

Note for DVD recording

• If the recording time of two programmes are

overlapped, or the End time of a programme and the

Start time of another is same, the first 2 minutes (at

the longest) of the subsequent programme will be

cut off.

If the End time of the programme currently being

recorded and the Start time of the subsequent

programme are same:

• The beginning of the PROG. 2 may be cut off.

* If the cut off time exceeds 3 minutes, the error

number “E40” will appear in “Timer Programming”

list.

Timer Recording (EPG)

With EPG system, you can programme DVB channel

recording much easier. You can only choose one

programme and enter the selection.

1While viewing a DVB programme,

press [GUIDE].

List of DVB programmes will be displayed.

e.g.) Weekly mode

Press [RED] or [GREEN] to change “Daily mode”

or “Weekly mode”.

2Select a desired programme using

[U\D\L\P], then press [ENTER]

or [BLUE].

3Set “End”, “REC To”, “Mode” and

“STTL” using [U\D\L\P], then

press [ENTER].

PROG. 2

recording

will start

after

PROG. 1

recording

completed.

Actual

recording

The first 2 minutes (at the longest) will be cut off.

PROG. 2

PROG. 1

PROG. 1 PROG. 2

The first 2 minutes (at the longest) will be cut off.

PROG. 2

PROG. 1

PROG. 3

PROG. 1

PROG. 3

PROG. 2

Actual

recording

The first 2 minutes (at the longest) will be cut off.

Actual

recording

PROG. 2

PROG. 1

PROG. 2 PROG. 1

Actual

recording

PROG. 2

PROG. 1

PROG. 2

Actual

recording

The first 2 minutes (at the

longest) will be cut off.*

PROG. 2

PROG. 1

PROG. 2PROG. 1

HDDHDD D

VD-R

DVD-RW

Video

DVD-RWDVD-RW

DVD-RDVD-R

VD+R

DVD+RW D

VD+R

DVD+R

1 ITV1

2 ITV2

3 ITV3

4 Channel

5 E4

6 More 4

10:00 11:00 12:00

19/01/2008

10:24:00

Quiz Call Quiz Call

Frien Frien Smallville Holly Girls

Easter Parad Deal or N Jamie The

ITV4 return Marri Marri Now and Ag

My P The N CITV returns at 06:00

11:00-12:00 Quiz Call

Date

Time

Daily Weekly Extended Timer

Weekly mode

Frid Sat Sun Mon Tue Thu FridWed

E3NG0FD_EN.book Page 48 Wednesday, January 30, 2008 10:37 AM

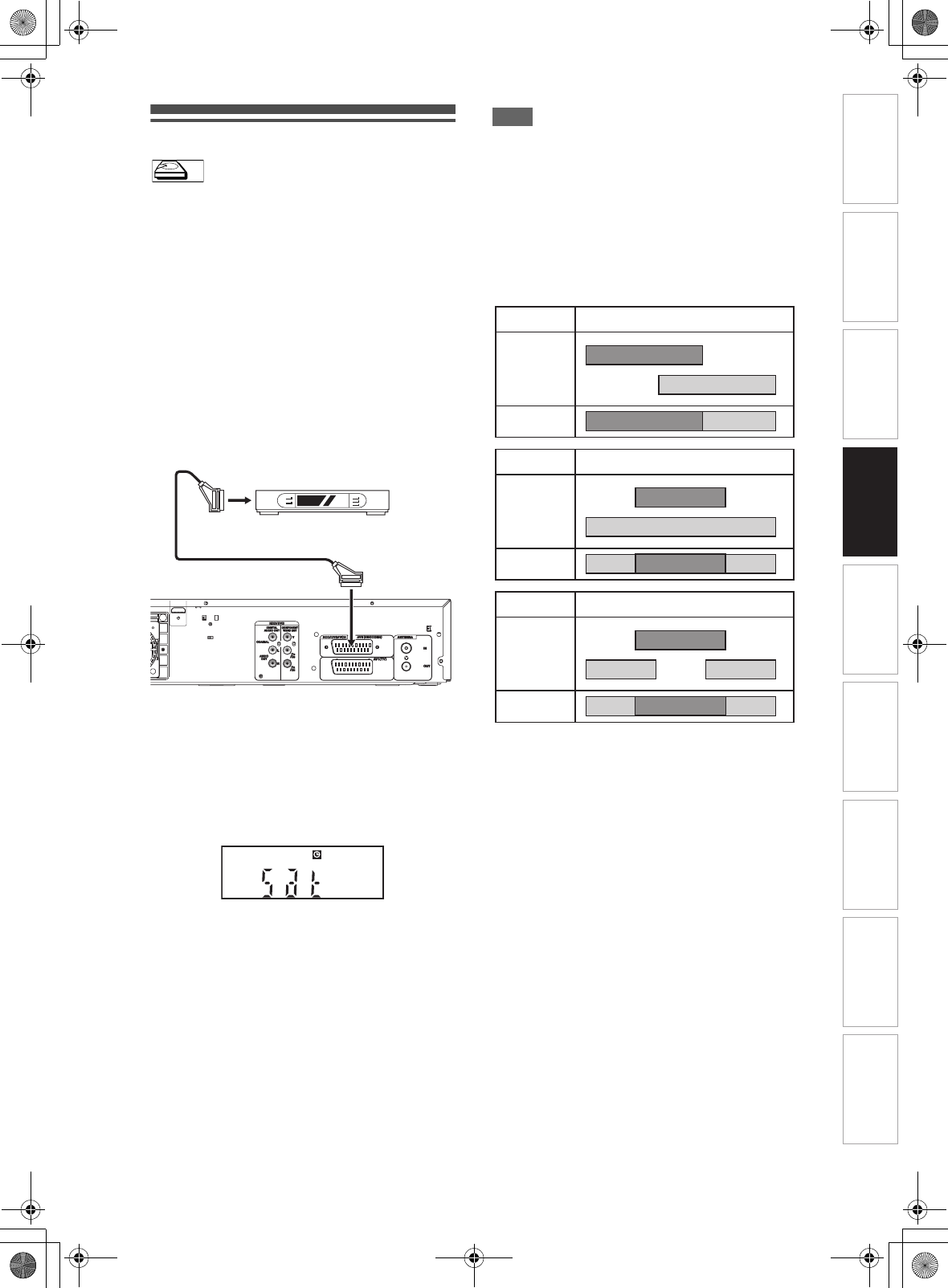

Satellite Link

You can set the unit to start recording whenever it

detects the video scart control from the external tuner.

Preparing for the Satellite Link Timer Recording:

[Preparation of the external tuner]

• The external tuner should be equipped with

some kind of timer function. Using timer function

of the tuner, set it to be turned on when it comes

to the time you want to start recording, and off

when it comes to the time you want to finish

recording. (Refer to the tuner’s manual on how

to set the timer.)

• Make sure to turn off the external tuner when

you finish setting.

[Preparation of this unit]

• Make sure to select the desired Recording

mode beforehand.

1In stop mode, press [HDD] then

select the recording mode for HDD

using [REC MODE].

2Press [SAT.LINK].

• “Sat” will appear on the front panel display and

the unit goes into the Satellite Link standby

mode.

To cancel the Satellite Link function in the

Satellite Link standby mode:

Press [BON\STANDBY] or [SAT.LINK] to turn on

the unit.

To cancel the Satellite Link function while the

Satellite Link Recording is in progress:

Press [CSTOP] on the front panel of the unit, or

press and hold [STOP C] on the remote control for

2 seconds.

Note

• Recording picture will be distorted if the copy

protection signal is being detected during Satellite

Link Timer Recording.

•[SAT.LINK] does not work under the following

circumstances:

- Setup menus are displayed.

- “Timer Programming” menu is displayed.

- Title list or any file list is displayed.

• When a regular Timer Recording and the Satellite

Link Timer Recording are overlapped, the examples

are given below.

HDDHDD

HDMI OUT

Scart cable (not supplied)

External tuner

(not supplied)

Example 1

Example 2

Example 3

Timer

Recording

Satellite Link

Actual

Recording

Timer

Recording

Satellite Link

Actual

Recording

Timer

Recording

Satellite Link

Actual

Recording

Introduction Connections Basic Setup Playback Editing OthersFunction SetupRecording VHS Functions

E3NG0FD_EN.book Page 49 Wednesday, January 30, 2008 10:37 AM

50 EN

Settings for External Equipment

Video Colour System

When you record from external equipment or copy a

videotape to a DVD disc, you can set the format Auto,

PAL or SECAM.

1In stop mode, press [SETUP]. Select

“General Setting” using [U\D],

then press [ENTER].

2Select “Recording” using [U\D],

then press [ENTER].

3Select “Video Colour System” using

[U\D], then press [ENTER].

4Select “Auto”, “PAL” or “SECAM”

using [U\D], then press [ENTER].

5Press [SETUP] to exit.

Note

• During recording, when a signal other than PAL or

SECAM is detected, an error message appears on

the screen and recording will be paused. Recording

will be resumed when a PAL or SECAM signal is

detected.

Recording from External Equipment

Before recording from external equipment, see page

22 for connection instructions.

1Turn the TV and the unit on, and

select the input of the TV to which

the unit is connected.

If you are recording to the HDD, press [HDD].

If you are recording to a disc, press [DVD] and

insert a recordable disc.

If you are recording to a videotape,

press [VCR] and insert a recordable

videotape.

2Select the input terminal to which the

external equipment is connected

(AV1, AV2, or AV3).

To use the input jacks on the rear of the unit,

select “AV1” or “AV2” position by pressing

[INPUT SELECT F] or [PROG. G\H].

To use the input jacks on the front of this unit,

select “AV3” position by pressing

[INPUT SELECT F] or [PROG. G\H].

3Select a recording mode using

[REC MODE]. (See page 37.)

4Press [IREC] on the unit to start

recording.

5Press the [PLAY] button on the

external equipment.

6Press [CSTOP] (HDD/DVD) or

[A/CEJECT/STOP] (VHS) on the

unit to stop recording.

Note

• During recording, recording will be paused when a

signal other than PAL or SECAM is detected. (See

“Video Colour System” on this page for details.)

• If the external equipment is connected to AV2, the

picture of the external equipment will be output

except during the DVD playback of this unit. Turn off

the external equipment or press [DISPLAY] to

output the picture of this unit.

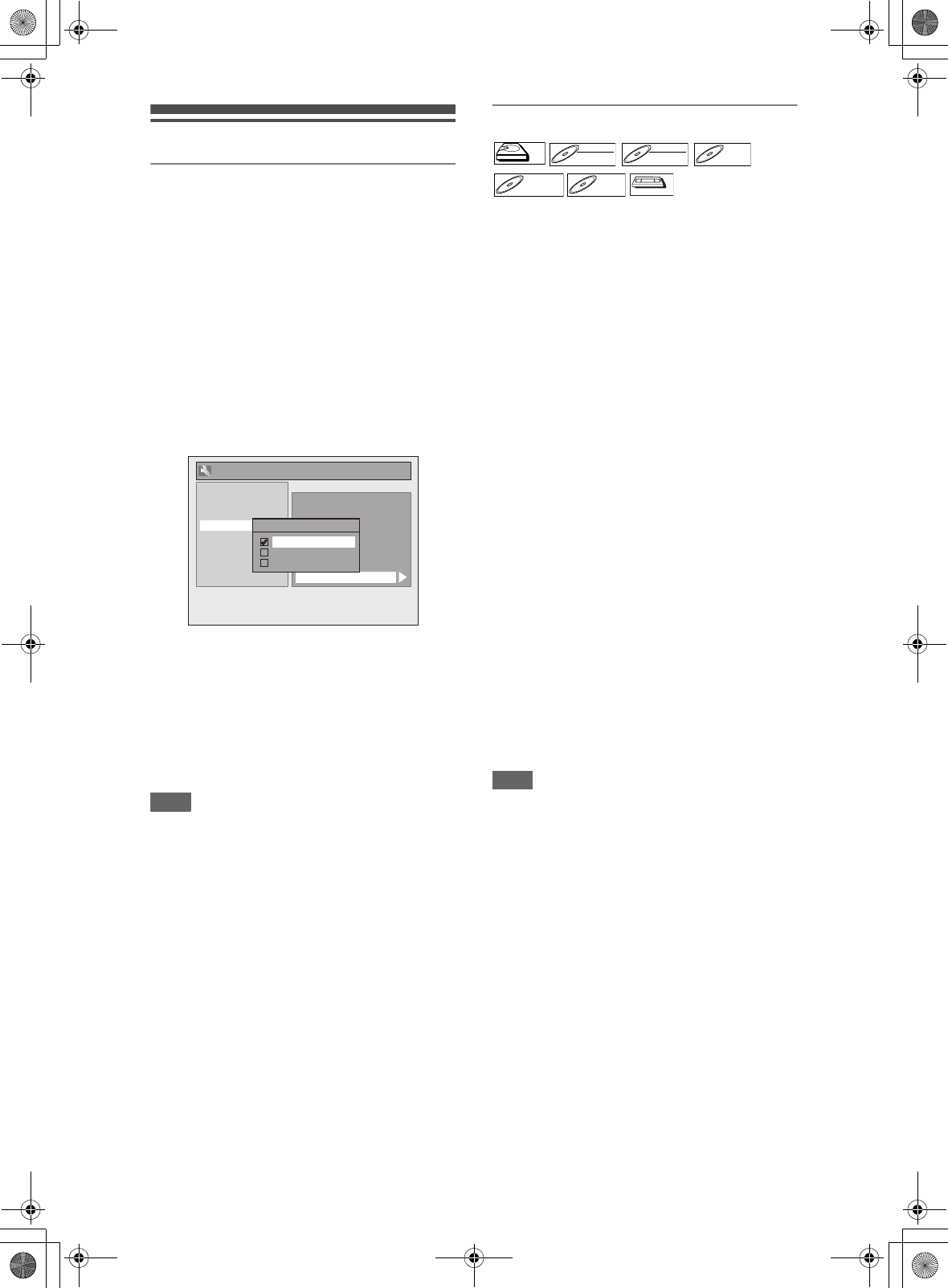

Auto :

The video colour system will be set

automatically according to the

recording material.

PAL : The video colour system will be set to

PAL .

SECAM: The video colour system will be set to

SECAM.

Auto Finalise

Aspect Ratio (Video mode)

Make Recording Compatible

Bilingual Recording Audio

External Input Audio

Playback

Display

Video

Recording

Clock

Channel

DivX

HDMI

Reset All

General Setting

Auto Chapter

Recording Audio Select (XP)

Video Colour System

Auto

PAL

SECAM

HDDHDD D

VD-R

DVD-RW

Video

DVD-RWDVD-RW

DVD-RDVD-R

VD+R

DVD+RW D

VD+R

DVD+R VHS

VHS

E3NG0FD_EN.book Page 50 Wednesday, January 30, 2008 10:37 AM

Information on DV Dubbing

This function helps you to dub the contents in the

DVC (digital video camcorder) to HDD, DVD or VHS

easily. (See page 94 for “DVC to VHS Dubbing”.)

You can control basic operations of the DVC from the

remote control of this unit if the DVC is in video mode.

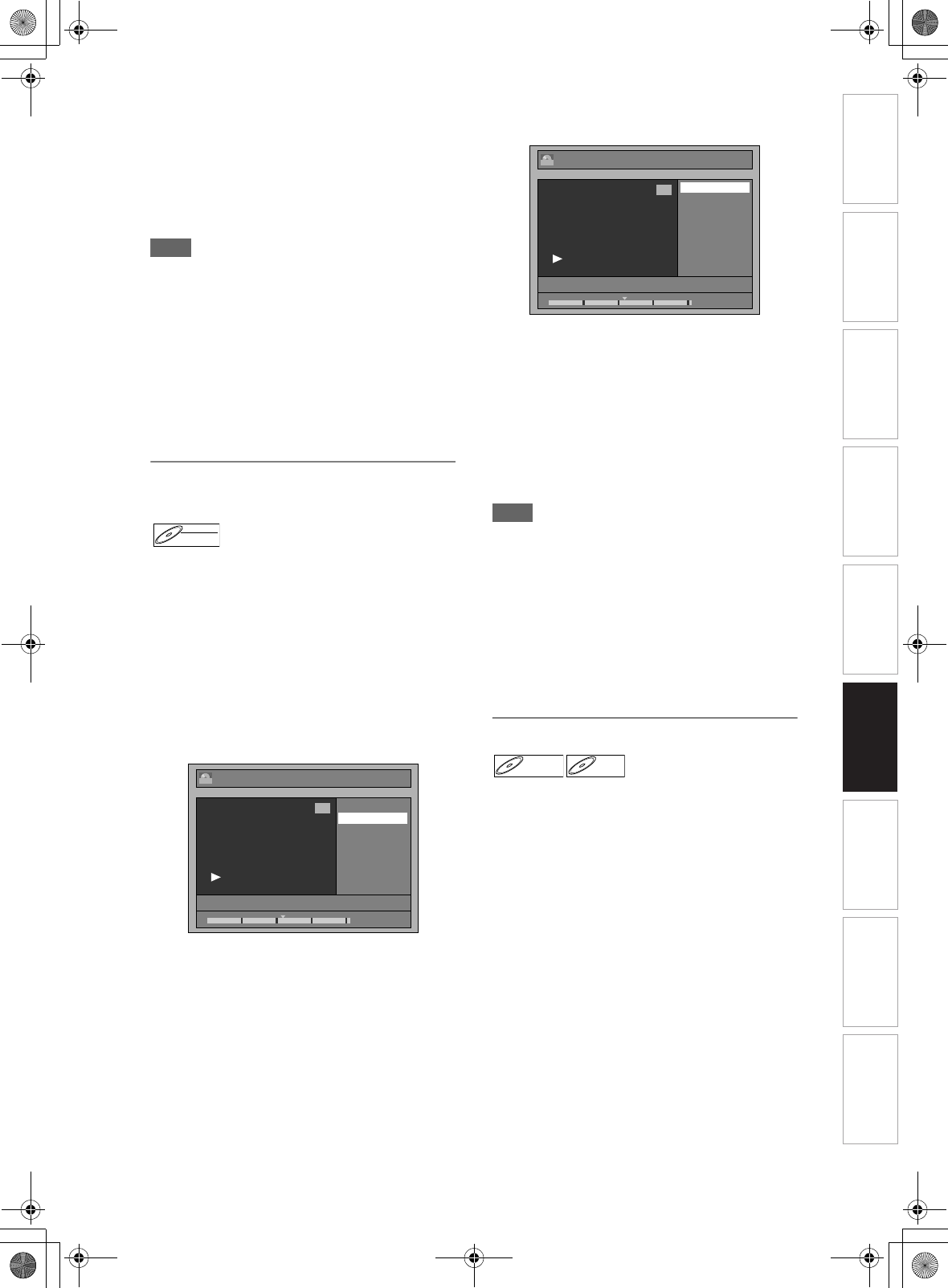

Guide to DV and On-Screen Display

1Connect your DVC to the DV input

jack on the front panel using a DV

cable. (Use the DV cable that has 4-

pin input jack and is compliance with

the IEEE 1394 standards.)

2Press [INPUT SELECT F]

repeatedly to select the appropriate

external input channel for DV input

jack (AV4).

3Press [DISPLAY] to display the DVC

information on the screen.

When the DVC is in video mode...

When the DVC is in camera mode...

The menu changes according to the mode of DVC.

Switch the mode on the DVC to video mode for the

dubbing information.

1DV icon

2 Indicator of active device

• With “Control” highlighted, press [ENTER] to

display the available devices to control with the

remote control of this unit. Select the device you

want to operate using [U\D], then press

[ENTER].

- Select “HDD” / “DVD” to control this unit with the

remote control of this unit.

- Select “DVC” to control your DVC with the

remote control of this unit.

3 Recording audio mode

• “DV Audio” can be changed. With “DV Audio”

selected, press [ENTER] to display “DV Audio”

menu. Select the audio you want to output using

[U\D], then press [ENTER].

- Select “Stereo1” to dub the stereo sound.

- Select “Stereo2” to dub the sound that was

added after the recording.

- Select “Mix” to dub the stereo1 and stereo2.

4 Command menu

• “Start Rec” or “Pause Rec” will appear.

5 External input channel

6 Product name of your DVC

• If the unit cannot recognise the input signal from

the DVC or if it is the unknown product,

“No Device” or “****” will appear instead.

7 Status of the current operation and the

time counter

Each icon means (Available icons may vary

depending on the DVC):

AB-1234

0:12:34

1/ 1 1/ 1

DVD SP 2:00

RW VR ORG

T C

Control

DV Audio

Start Rec

DVD

Stereo1

AB-1234

0:12:34

1/ 1 1/ 1

RW VR ORG

DVD SP 2:00

T C

The following instructions are described with

the operations using the remote control of this

unit.

DVC is in stop mode.

DVC is in playback mode.

DVC is in pause mode.

DVC is fast forwarding. (standard speed)

DVC is fast forwarding. (faster than above)

DVC is slow forwarding. (standard speed)

DVC is slow forwarding. (faster than above)

DVC is fast forwarding. (in stop mode)

DVC is fast reversing. (in stop mode)

DVC is fast reversing. (standard speed)

DVC is fast reversing. (faster than above)

DVC is in slow reverse playback.

DVC is in recording.

DVC is in recording pause mode.

Please also read the operating instructions of

your DVC for more information.

Introduction Connections Basic Setup Playback Editing OthersFunction SetupRecording VHS Functions

E3NG0FD_EN.book Page 51 Wednesday, January 30, 2008 10:37 AM

52 EN

DVC to HDD / DVD Dubbing

Before recording from DVC, see page 22 for

connection instructions. (See page 94 for DVC to VHS

Dubbing.)

If you are dubbing to the HDD, press [HDD] first.

If you are dubbing to a disc, press [DVD] first.

1Select “DV” channel using

[INPUT SELECT F] or

[PROG. G\H].

2Press [REC MODE] to select a

recording mode. (See page 37.)

3Press [DISPLAY].

4With “Control” highlighted, press

[ENTER] to display the available

devices to control with the remote

control of this unit. Select “DVC”

using [U\D], then press [ENTER].

e.g.) DVC to DVD dubbing

Now you can operate your DVC with the remote

control of this unit.

5Press [PLAY B] to start playing back

the DVC, and find where you want to

start dubbing.

Press [STOP C] when it comes to the

desired start point.

6Select “Start Rec” using [U\D],

then press [ENTER].

The dubbing will start.

To stop dubbing;

1Select “Control” using [U\D], then press

[ENTER].

2Select “HDD” / “DVD” using [U\D]

(whichever the recording component you

are using), then press [ENTER].

3Press [STOP C].

Note

• The tape will rewind a few seconds when you press

[ENTER] at step 6 so that the dubbing starts exactly

where you press [PAUSE F] instead of [STOP C]

at step 5.

• The unit does not send out the output signal to DVC.

• For the proper operation, connect DVC to the unit

directly. Do not connect this unit and DVC via any

other unit.

• Do not connect more than one DVC.

• The unit can only accept DVC. Other DV device

such as cable/satellite box or D-VHS VCR cannot be

recognised.

• If no video signal is detected from the DVC during

DVC to HDD or DVD dubbing, the recording will be

paused and “I” will flash on the TV screen. The

recording will resume when the unit detects the

video signal again.

• When the DVC is in camera mode, refer to “Guide to

DV and On-Screen Display” on page 51.

• Date / time and cassette memory data will not be

recorded.

• Pictures with a copy-guard signal cannot be

recorded.

• A DV terminal is a terminal that can use the

transmission mode conforming to the IEEE 1394

standards called “Fire Wire”. It serves as the

interface that connects the PC and peripheral device

such as “i.Link” (registered trademark of SONY). It

enables digital dubbing between DV devices with

little degradation.

• You cannot dub from DVC to both HDD and DVD at

the same time.

Preparing for DV dubbing (DVC to HDD):

• Make sure your DVC is in video mode.

Preparing for DV dubbing (DVC to DVD):

• Insert a recordable DVD.

• Make sure your DVC is in video mode.

HDDHDD D

VD-R

DVD-RW

Video

DVD-RWDVD-RW

DVD-RDVD-R

VD+R

DVD+RW D

VD+R

DVD+R

AB-1234

0:00:00

AB-1234

0:00:00

1/ 1 1/ 1

DVD SP 2:00

RW VR ORG

T C

Control

DV Audio

Start Rec

DVD

Stereo1

E3NG0FD_EN.book Page 52 Wednesday, January 30, 2008 10:37 AM

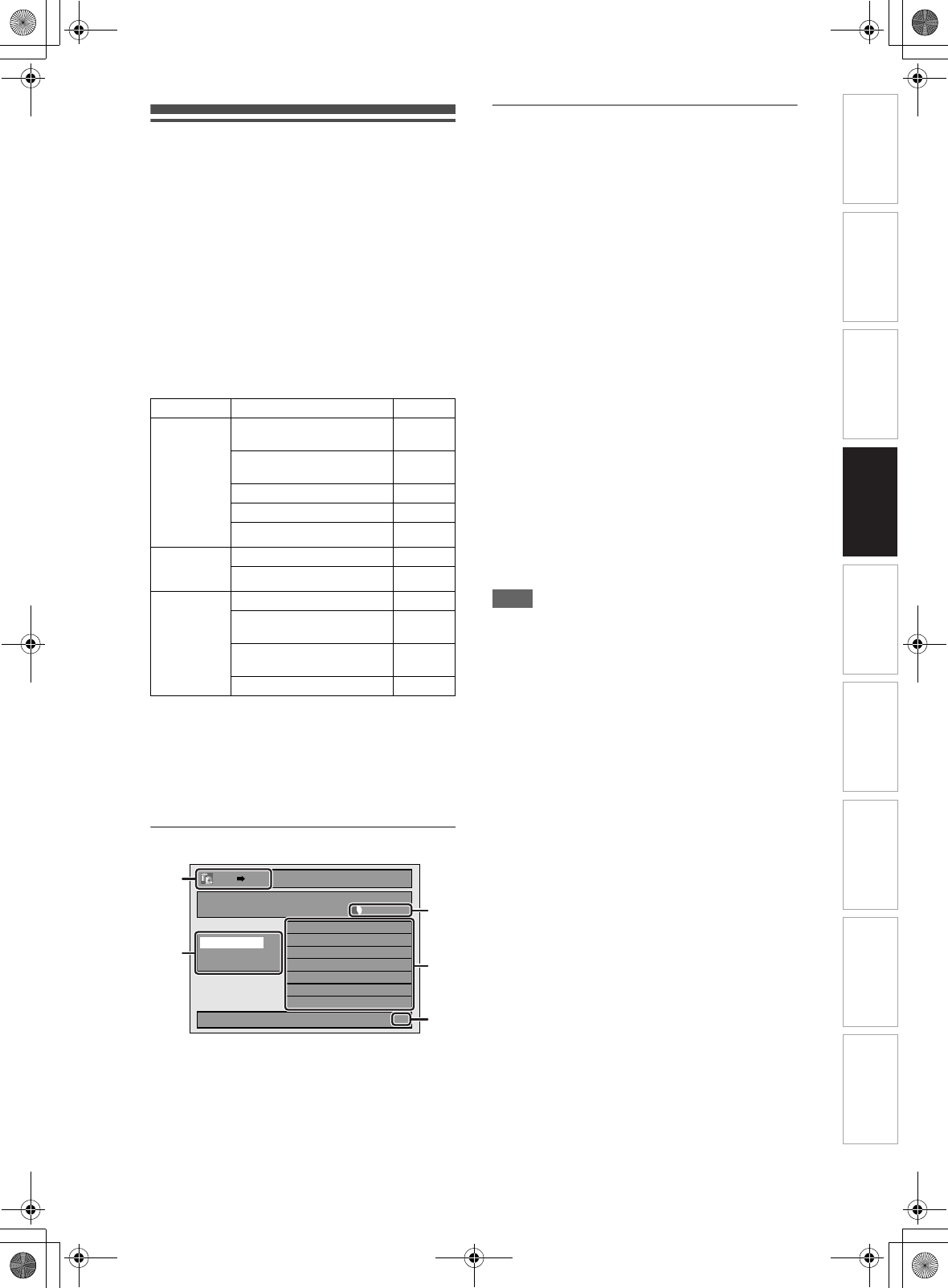

Information on Dubbing

You can copy an HDD / DVD disc to a videotape or

copy a videotape to an HDD / DVD disc. This function

will be possible only if the DVD or the videotape is not

copy protected.

Before dubbing, prepare for the recording on the DVD-

RW / R disc, DVD+RW / +R disc or the videotape. See

pages 37 to 38 (HDD / DVD) or page 93 (VHS).

Difference between “Copy” and “Move”:

Available dubbing direction for copy-once

programme:

嘷: Available

⳯: Not available

*1 The programme (recorded) moves. (It will be

deleted from HDD.)

*2 You cannot dub the recorded programme to HDD

or DVD-RW again. (Copy control signal will be

recorded to the videotape.) (Refer to page 37 for

details about CPRM.)

Guide to Dubbing Menu Display

1 Dubbing direction

2 Dubbing menu

3 Remaining recordable space

4 Dubbing list

5 Current page number / total number of

pages

Recording Mode for Dubbing

“High”

This unit is compatible with the high speed dubbing

from HDD to DVD or VR mode DVD-RW disc to HDD.

With the high speed dubbing, you can dub a title much

faster than the normal speed dubbing without

changing the quality of the picture and sound. (e.g. If

you dub a title recorded in SLP mode to DVD-R or

DVD+R, dubbing speed will be 32 times faster than

the normal dubbing speed.) To perform the high

speed dubbing, set the recording mode to “High”.

• Duration of high speed dubbing will vary depending

on the recording mode or the title amount.

• High speed dubbing is not available when;

- recording mode is set to other than “High”.

- dubbing from a video mode DVD-RW/-R or

DVD+RW/+R disc to the HDD.

- there is not enough space in the disc.

- dubbing a title recorded in EP or SLP mode to

DVD+RW / +R discs.

• High speed dubbing of an HDD title which has

bilingual audio is only available to VR mode

DVD-RW disc.

“Auto”

When “Auto” is selected as a recording mode, the unit

calculates how much time is available on the disc and

selects the best recording mode available

automatically.

• The recording may be cut short when the available

recording space of the disc is too limited.

Note

• During normal dubbing, you can watch the playback

picture of the title being dubbed (the audio cannot

be changed). During high speed dubbing, the

playback picture will not appear.

• When you dub an HDD title that has bilingual audio

to Video mode DVD-RW / -R or DVD+RW / +R disc,

select an appropriate audio format in the “Bilingual

Recording Audio” menu. Refer to “Setting Bilingual

Recording Audio” on page 42.

• In order to dub a DVD recorded with the NTSC, set

the “TV System” to “PAL”. Refer to “9. TV System”

on page 88.

• If you stop the dubbing halfway, the contents will be

dubbed up to where you stop the dubbing (except

for the high speed dubbing). With high speed

dubbing, nothing will be dubbed if you stop it

halfway.

• To stop the dubbing in progress, press [CSTOP] on

the front panel or press [STOP C] for 2 seconds on

the remote control. If you stop the high speed

dubbing or stop the dubbing copy-once

programmes, confirmation message appears. Select

“Yes” using [U\D], then press [ENTER] to

proceed.

Other recording modes

Refer to page 37 for the information on other

recording modes.

Copy : After dubbing the programme, the original

programme will remain.

Move: After dubbing the programme, the original

programme will not remain.

From To

HDD

(Internal)

DVD-RW (VR)

(CPRM-compatible) 嘷*1,*2

DVD-RW (VR)

(Not CPRM-compatible) ⳯

DVD-RW (Video) ⳯

DVD-R / +RW / +R ⳯

Videotape 嘷*2

DVD-RW

(VR)

HDD (Internal) ⳯

Videotape 嘷*2

Videotape

HDD (Internal) 嘷

DVD-RW (VR)

(CPRM-compatible) 嘷*2

DVD-RW (VR)

(Not CPRM-compatible) ⳯

DVD-R / +RW / +R ⳯

1/1

3000 MB

DVDHDD

Add

Delete All

Dubbing Start

Dubbing List

Introduction Connections Basic Setup Playback Editing OthersFunction SetupRecording VHS Functions

E3NG0FD_EN.book Page 53 Wednesday, January 30, 2008 10:37 AM

54 EN

Before Starting Dubbing

You can copy the contents between HDD and DVD.

Limitation (DVD to HDD):

• If a copy control signal is detected during

dubbing, the dubbing will be stopped.

Preparing for dubbing (HDD to DVD):

• Insert a recordable DVD.

Preparing for dubbing (DVD to HDD):

• Insert a disc to be dubbed.

• Discs dubbed with other devices may not be

dubbed.

You can copy the contents of a videotape to HDD or

DVD disc.

Limitation:

• If a copy control signal is detected during

dubbing, the dubbing will be stopped.

• Copy-once programmes which are recorded

directly from the TV can be dubbed to the HDD

and CPRM compatible VR mode DVD-RW.

• Copy-once programmes which are copied from

the HDD / DVD to a videotape cannot be dubbed

further from the videotape to the HDD / DVD.

Limitation (VHS to HDD):

• With VHS to HDD dubbing, the unit recognise

the HDD’s remaining time as the dubbing

duration. The maximum possible duration is 12

hours.

Limitation (VHS to DVD):

• You cannot dub to the finalised Video mode

DVDs.

• You cannot dub to the protected VR mode

DVDs.

Preparing for dubbing:

• Insert a videotape to be dubbed.

Preparing for dubbing (VHS to HDD):

• Make sure there is enough space on the HDD.

Preparing for dubbing (VHS to DVD):

• Insert a recordable DVD.

• Make sure there is enough space on the DVD.

You can copy the contents of the HDD / DVD to a

videotape.

Limitation:

• If a copy control signal is detected during

dubbing, the dubbing will be stopped.

Limitation (DVD to VHS):

• The contents of DVDs made on this unit can be

dubbed. Other discs may not be dubbed.

Preparing for dubbing:

• Insert a recordable videotape with a record tab

intact.

• Make sure that the videotape has enough space

to record the contents.

Preparing for dubbing (DVD to VHS):

• Insert a disc to be dubbed.

One Touch Dubbing

You can start dubbing right away with just one touch.

One Touch Dubbing between HDD and DVD

If you are dubbing a title in the HDD, press [HDD]

first.

If you are dubbing a title in a disc, press [DVD]

first.

During playback of the title you want to dub, press

[DUBBING].

If you are playing back an HDD, HDD to DVD

dubbing will start right away.

If you are playing back a DVD, DVD to HDD

dubbing will start right away.

(HDD to DVD only)

During playback of the title you want to dub, press

[DUBBING HDD M DVD] on the front panel.

HDD to DVD dubbing will start right away.

To stop the dubbing in progress:

Press [CSTOP] on the front panel.

Press [STOP C] for 2 seconds on the remote control.

Note

• When dubbing from DVD to HDD, only One Touch

Dubbing will be available for finalised DVD-R, Video

mode DVD-RW or DVD+R.

• The dubbing will start from the beginning of the title

being played back.

• The unit will dub only the title being played back.

• If the title was in the resume stop mode, the dubbing

will start from the beginning to the end of the

resume stopped title.

• When dubbing from HDD to DVD or VR mode DVD-

RW to HDD, recording mode will automatically be

set to “High” whenever the conditions are met.

(See page 53.)

• If the high speed dubbing is not available, the title

will be dubbed in normal speed with the recording

mode of the title.

• If the title is recorded in other brand's DVD recorder,

the title will be dubbed in normal speed with the

recording mode that you set with [REC MODE].

• If there is not enough space left on the disc for high/

normal speed dubbing with the title’s recording

mode, the title will be dubbed in normal speed with

“Auto” mode. If there is not enough space left on the

disc for normal speed dubbing with SLP mode, the

title will be dubbed in normal speed with SLP mode

until the space of the disc runs out.

• If you press [DUBBING HDD M DVD] on the front

panel in stop mode without selecting any title, the

unit will start dubbing the last title in the Original List

or the Playlist. It will start dubbing the title in the

Original List if the Original List was the last selected

list. It will start dubbing the title in the Playlist if the

Playlist was the last selected list.

HDD to DVD / DVD to HDD

VHS to HDD / DVD

HDD / DVD to VHS

HDDHDD D

VD-R

DVD-RW

Video

DVD-RWDVD-RW

DVD-RDVD-R

VD+R

DVD+RW D

VD+R

DVD+R VHS

VHS

E3NG0FD_EN.book Page 54 Wednesday, January 30, 2008 10:37 AM

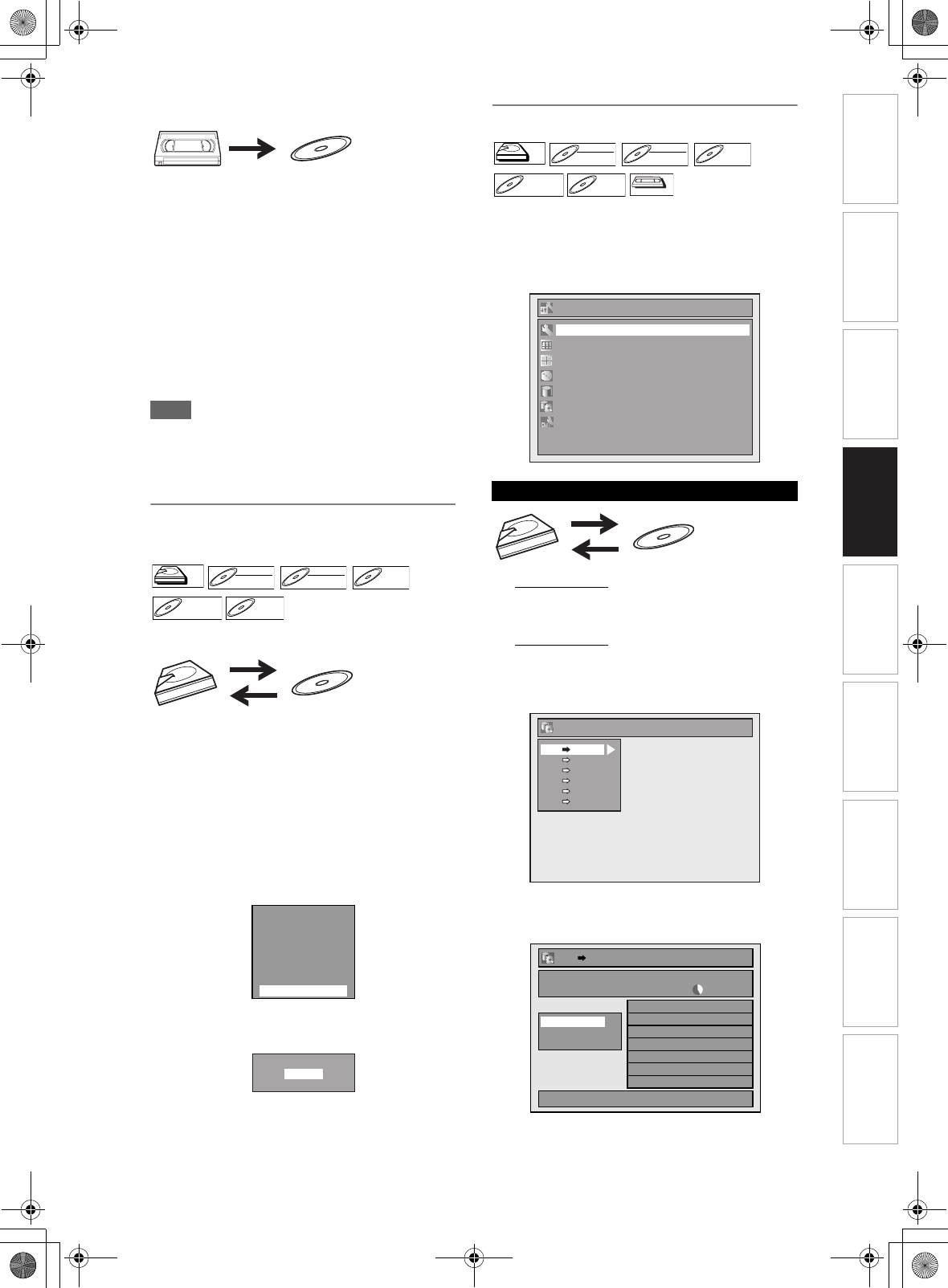

One Touch Dubbing from VHS to DVD

If you are dubbing a title in the videotape, press

[VCR] first.

1Press [PLAY B] to start the playback

of the videotape you want to dub.

2Press [STOP C] or [PAUSE F] where

you want to start dubbing.

3Press [DUBBING VCR M DVD] on the

front panel.

The dubbing will start from there to the end.

To stop the dubbing in progress:

Press [CSTOP] on the front panel.

Press [STOP C] for 2 seconds on the remote control.

Note

• When dubbing starts, the video image may be

distorted because of the Digital Tracking function.

This is not a malfunction. Play the videotape until

the image clears up and then start the dubbing.

• Dubbing takes as much time as the playback does.

One-Title Dubbing between HDD and

DVD

This function lets you select one specific title from the

title list for dubbing.

If you are dubbing a title in the HDD, press [HDD]

first.

If you are dubbing a title in a disc, press [DVD] first.

1Press [TOP MENU].

2Select a desired title to be dubbed

using [U\D\L\P], then press

[ENTER].

3Select“Dubbing” using [U\D], then

press [ENTER].

e.g.) HDD Original

4Select “Yes” using [U\D], then

press [ENTER].

Dubbing of the selected title will start.

To stop the dubbing in progress:

Press [CSTOP] on the front panel.

Press [STOP C] for 2 seconds on the remote control.

Selected Title Dubbing

1In stop mode, press [SETUP].

2Select “Dubbing” using [U\D],

then press [ENTER].

3HDD A DVD

Select “HDD A DVD” using [U\D],

then press [ENTER].

DVD A HDD

Select “DVD A HDD” using [U\D],

then press [ENTER].

e.g.) HDD A DVD

4Select “Add” using [U\D], then

press [ENTER].

• If you have registered any dubbing before, they

will be listed in the dubbing title list.

HDDHDD D

VD-R

DVD-RW

Video

DVD-RWDVD-RW

DVD-RDVD-R

VD+R

DVD+RW D

VD+R

DVD+R

Resume Playback

Play From Start

Edit

Title Delete

Add To Playlist

Delete Plural Titles

Dubbing

Start Dubbing?

Yes

HDD to DVD / DVD to HDD

HDDHDD D

VD-R

DVD-RW

Video

DVD-RWDVD-RW

DVD-RDVD-R

VD+R

DVD+RW D

VD+R

DVD+R VHS

VHS

Setup

General Setting

Timer Programming

Title List

DVD Menu

HDD Menu

Dubbing

DVB Menu

Dubbing

DVDHDD

HDDDVD

VCRHDD

HDDVCR

VCRDVD

DVDVCR

1/1

3000 MB

DVDHDD

Add

Delete All

Dubbing Start

Dubbing List

Introduction Connections Basic Setup Playback Editing OthersFunction SetupRecording VHS Functions

E3NG0FD_EN.book Page 55 Wednesday, January 30, 2008 10:37 AM

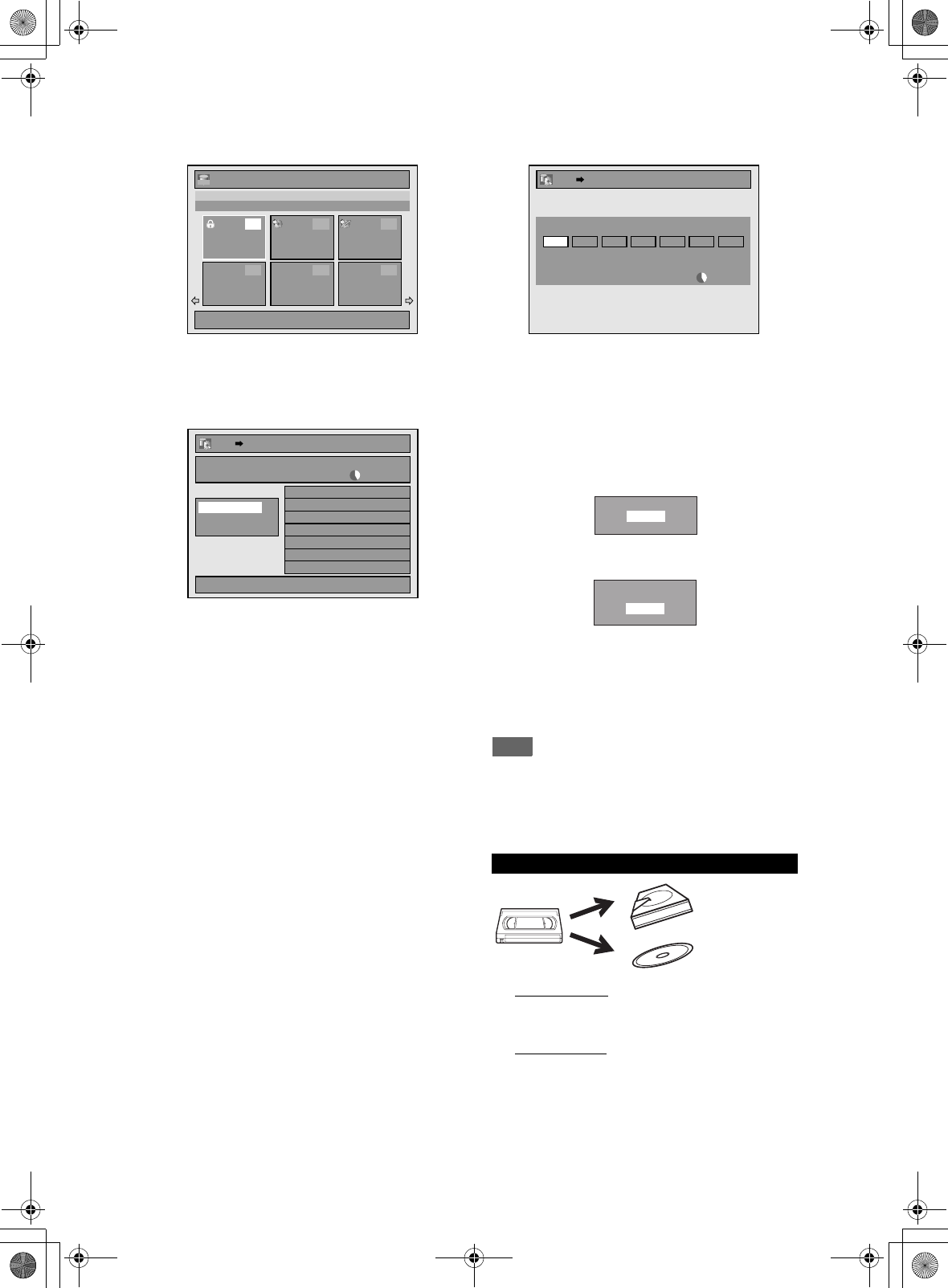

56 EN

5Select a desired title using

[U\D\L\P], then press [ENTER].

e.g.) HDD

The title is now registered in the dubbing list.

6Repeat steps 4 to 5 until you register

all the titles to be dubbed.

e.g.) HDD A DVD

To delete a title:

1Go to the dubbing list, then select a title

using [U\D]. Then press [ENTER].

2Select “Delete” using [U\D], then press

[ENTER].

3Select “Yes” using [U\D], then press

[ENTER].

To move a title:

1Go to the dubbing list, then select a title

using [U\D]. Then press [ENTER].

2Select “Move” using [U\D], then press

[ENTER].

3Select a desired insert point using [U\D],

then press [ENTER].

To erase all the titles in the dubbing title list:

1Select “Delete All” in the dubbing menu

using [U\D], then press [ENTER].

2Select “Yes” using [U\D], then press

[ENTER]. Final confirmation message will

appear.

3Select “Yes” using [U\D], then press

[ENTER].

• To go back and forth between dubbing menu

and dubbing list, use [L\P].

7After adding all the titles you want,

select “Dubbing Start” in the

dubbing menu using [U\D], then

press [ENTER].

8Select a desired recording mode

using [L\P], then press [ENTER].

e.g.) HDD A DVD

Confirmation message will appear.

• Depending on the dubbing direction, the

available recording mode varies.

• When dubbing from HDD to DVD, you can select

“High” to perform the high speed dubbing (refer

to “Recording Mode for Dubbing” on page 53 for

more details).

9Select “Yes” using [U\D], then

press [ENTER].

If dubbing continues when timer recording starts,

the next display will appear.

Dubbing will start.

• It may take awhile to prepare for the dubbing.

To stop the dubbing in progress:

Press [CSTOP] on the front panel.

Press [STOP C] for 2 seconds on the remote

control.

Note

• The device mode change is available only between

HDD and DVD during the videotape to the HDD /

DVD dubbing.

• Dubbing will be cancelled 2 minutes before starting

timer recording.

3VHS A HDD

Select “VCR A HDD” using [U\D],

then press [ENTER].

VHS A DVD

Select “VCR A DVD” using [U\D],

then press [ENTER].

1/6

21/ 01/ 08 07:00 22 SP

07:00 (00:30:00) 21/01/08 22 SP

4 5 6

2 3

ORG

Title List

1/1

3000 MB

1.01/01/08 0:00 P10 SP

DVDHDD

Add

Delete All

Dubbing Start

Dubbing List

VHS to HDD / DVD

3000 MB

500 MB

LP EP SLPXP SP

DVDHDD

High Auto

Please select REC MODE.

Dubbing Titles

Start Dubbing?

Yes

Timer Recording is in standby.

Start Dubbing?

Yes

E3NG0FD_EN.book Page 56 Wednesday, January 30, 2008 10:37 AM

e.g.) VCR A HDD

4Select a desired recording mode

using [U\D], then press [ENTER].

e.g.) VCR A HDD

Confirmation message will appear.

5Select “Yes” using [U\D], then

press [ENTER].

If dubbing continues when timer recording starts,

the next display will appear.

Dubbing will start.

• It may take awhile to prepare for the dubbing.

To stop the dubbing in progress:

Press [CSTOP] on the front panel.

Press [STOP C] for 2 seconds on the remote

control.

Note

• Dubbing will start where the tape is stopped.

• After starting dubbing, the picture may be distorted

because of the digital tracking function. This is not a

malfunction. Be advised to play back the videotape

until the picture is stabilised, then set the starting

point at which you want to start recording, and start

dubbing.

• Dubbing will be cancelled 2 minutes before starting

timer recording.

3HDD A VHS

Select “HDD A VCR” using [U\D],

then press [ENTER].

DVD A VHS

Select “DVD A VCR” using [U\D],

then press [ENTER].

e.g.) HDD A VCR

4Select “Add” using [U\D], then

press [ENTER].

• If you have registered any dubbing before, they

will be listed in the dubbing title list.

5Select a desired title using

[U\D\L\P], then press [ENTER].

e.g.) HDD

The title is now registered in the dubbing list.

Dubbing

DVDHDD

HDDDVD

VCRHDD

HDDVCR

VCRDVD

DVDVCR

143480 MB

LP EP SLPXP SP

HDDVCR

Please select REC MODE.

Start Dubbing?

Yes

Timer Recording is in standby.

Start Dubbing?

Yes

HDD / DVD to VHS

Dubbing

DVDHDD

HDDDVD

VCRHDD

HDDVCR

VCRDVD

DVDVCR

1/1

VCRHDD

Add

Delete All

Dubbing Start

Dubbing List

1/6

21/ 01/ 08 07:00 22 SP

07:00 (00:30:00) 21/01/08 22 SP

4 5 6

2 3

ORG

Title List

Introduction Connections Basic Setup Playback Editing OthersFunction SetupRecording VHS Functions

E3NG0FD_EN.book Page 57 Wednesday, January 30, 2008 10:37 AM

58 EN

6Repeat steps 4 to 5 until you register

all the titles to be dubbed.

e.g.) HDD A VCR

To delete a title:

1Go to the dubbing list, then select a title

using [U\D]. Then press [ENTER].

2Select “Delete” using [U\D], then press

[ENTER].

3Select “Yes” using [U\D], then press

[ENTER].

To move a title:

1Go to the dubbing list, then select a title

using [U\D]. Then press [ENTER].

2Select “Move” using [U\D], then press

[ENTER].

3Select a desired insert point using [U\D],

then press [ENTER].

To erase all the titles in the dubbing title list:

1Select “Delete All” in the dubbing menu

using [U\D], then press [ENTER].

2Select “Yes” using [U\D], then press

[ENTER]. Final confirmation message will

appear.

3Select “Yes” using [U\D], then press

[ENTER].

• To go back and forth between dubbing menu

and dubbing list, use [L\P].

7After adding all the titles you want,

select “Dubbing Start” in the

dubbing menu using [U\D], then

press [ENTER].

8Select a desired recording mode

using [L\P], then press [ENTER].

e.g.) HDD A VCR

Confirmation message will appear.

• Depending on the dubbing direction, the

available recording mode varies.

9Select “Yes” using [U\D], then

press [ENTER].

If dubbing continues when timer recording starts,

the next display will appear.

Dubbing will start.

• It may take awhile to prepare for the dubbing.

To stop the dubbing in progress:

Press [CSTOP] on the front panel.

Press [STOP C] for 2 seconds on the remote

control.

Note

• Dubbing will be cancelled 2 minutes before starting

timer recording.

Setting a Disc to Protect

To prevent accidental over-recording, editing or

erasing of recordings, you can protect them using

“Setup” menu.

Insert a recordable disc.

1In stop mode, press [SETUP].

2Select “DVD Menu” using [U\D],

then press [ENTER].

3Select “Disc Protect OFF A ON”

using [U\D], then press [ENTER].

4Select “Yes” using [U\D], then

press [ENTER].

The disc is protected.

5Press [SETUP] to exit.

Note

• The Disc Protect setting is available only when a

disc recorded in VR or +VR mode is inserted.

• You can select only “Disc Protect ON A OFF” when

a protected disc is inserted.

To cancel the disc protect:

• Select “Disc Protect ON A OFF” at step 3, then

select “Yes”.

• If you insert a disc protected with this unit,

“Disc Protect ON A OFF” will appear instead of

“OFF A ON”.

1/1

1.01/01/08 0:00 P10 SP

VCRHDD

Add

Delete All

Dubbing Start

Dubbing List

LPSP

VCRHDD

Please select REC MODE.

Start Dubbing?

Yes

Timer Recording is in standby.

Start Dubbing?

Yes

DVD-RWDVD-RW

DVD+RWDVD+RW D

VD+R

DVD+R

E3NG0FD_EN.book Page 58 Wednesday, January 30, 2008 10:37 AM

Finalising Discs

You will need to finalise discs to play them back in

other units.

Finalising may take from several minutes up to an

hour.

A shorter recording period on the disc will require a

longer time period for finalisation. Do not unplug the

mains cable during finalisation.

Insert a recordable disc before

finalising.

1In stop mode, press [SETUP].

2Select “DVD Menu” using [U\D],

then press [ENTER].

3Select “Finalise” using [U\D], then

press [ENTER].

4Select “Yes” using [U\D], then

press [ENTER].

e.g.) VR mode DVD-RW disc

Finalising will start.

To cancel finalising (DVD-RW disc only):

At step 4, press [STOP C]. Select “Yes” using

[U\D], then press [ENTER]. Finalising is

cancelled and the unit switches to stop mode.

If “ ” appears when [STOP C] is pressed, you

cannot cancel finalising because the finalising has

already reached at a critical point in its process.

If “No” is selected and [ENTER] or [RETURN] is

pressed, finalising is continued.

You cannot cancel finalising a DVD-R and

DVD+RW/+R disc once it has started.

5Finalising is complete.

Hint

• Finalising a disc in Video mode and +VR mode

automatically creates a Title menu.

• After you finalise the DVD+RW disc, you can call up

the title list by pressing [TOP MENU], or you can call

up the Title menu by pressing [DISC MENU].

• Even after DVD+RW disc is finalised, you can still

record or edit. After you finalise DVD-RW/-R or

DVD+R disc, you cannot edit or record anything else

on that disc.

• To release the finalisation of the disc, select “Undo

Finalise” at step 3.

• To release the finalisation of the DVD+RW disc,

make an additional recording to the disc.

• For DVD+RW disc, if you have added or deleted

chapters, or made chapters hidden, you must

finalise the disc before being able to see those

effects on other units. To play back discs other than

DVD+RW disc in other DVD players, you will need to

finalise.

Note

• If you insert a DVD-RW disc finalised with this unit,

“Undo Finalise” will appear instead of “Finalise”.

• DO NOT power off during finalising. This may result

in a malfunction.

Auto Finalise

You can finalise discs automatically when the disc

space runs out if you set this in “Setup” menu.

1In stop mode, press [SETUP]. Select

“General Setting” using [U\D],

then press [ENTER].

2Select “Recording” using [U\D],

then press [ENTER].

3Select “Auto Finalise” using [U\D],

then press [ENTER].

4Select “ON” using [U\D], then

press [ENTER].

5Press [SETUP] to exit.

Note

• Auto finalise function is not available for discs

formatted in VR mode or a DVD+RW disc.

DVD-RWDVD-RW

Video

DVD-RWDVD-RW

DVD-RDVD-R D

VD+R

DVD+RW

VD+R

DVD+R

Finalise disc?

Yes

10%

Do you want to cancel?

Yes

Finalising

DVD-RWDVD-RW

Video

DVD-RDVD-R D

VD+R

DVD+R

Auto Finalise

OFF

Introduction Connections Basic Setup Playback Editing OthersFunction SetupRecording VHS Functions

E3NG0FD_EN.book Page 59 Wednesday, January 30, 2008 10:37 AM

60 EN

Basic Playback

Hint for HDD / DVD Playback

The contents of an HDD / DVD are generally divided

into titles. Titles are sometimes further subdivided into

chapters.

Playing Back an HDD / DVD-RW /

DVD-R / DVD+RW / DVD+R Disc

1Press [BON\STANDBY] to turn on

the unit.

Turn on the TV and be sure to select the input to

which the unit is connected.

If you are playing back the titles in HDD, press

[HDD] first, then proceed to step 5.

If you are playing back the titles in DVD, press

[DVD] first.

2Press [OPEN\CLOSE A] to open the

disc tray.

3Place the disc on the disc tray with

its label facing up. Be sure to align

the disc with the disc tray guide.

4Press [OPEN\CLOSE A] to close the

disc tray.

5Press [TOP MENU] to display the

Title list.

You can switch between the “Original” and

“Playlist” in the HDD or VR mode DVD-RW disc

using [DISC MENU].

6Select the desired title using

[U\D\L\P], then press [ENTER].

Pop up window will appear.

7Select “Play From Start” using

[U\D], then press [ENTER].

Playback will start.

For title in the HDD, you can also select “Resume

Playback” to play from the resume points.

8Press [STOP C] to stop playback.

To eject the disc, press [OPEN\CLOSE A] to

open the disc tray, then remove the disc. Press

[OPEN\CLOSE A] to close the disc tray before

turning off the unit.

Hint

• For DVD-R (Video mode), DVD-RW (Video mode)

and DVD+R discs that are already finalised, a Title

menu will be displayed instead of thumbnails.

• After you finalise the DVD+RW, you can call up the

Title list by pressing [TOP MENU], or you can call

up the title menu by pressing [DISC MENU].

• You can resume playback from where you stopped

playing back the disc (Resume playback).

See page 66 for details.

• You can also start playback by pressing [PLAY B]

instead of [ENTER] at steps 6 and 7.

Note

• Some discs may start playback automatically.

Playing Back a DVD-V / Video CD

(without PBC Function)

1Follow steps 1 to 4 in “Playing Back

an HDD / DVD-RW / DVD-R / DVD+RW

/ DVD+R Disc”.

2Press [PLAY B] to start playback.

Playback will start.

If you are playing back a DVD-Video, a menu may

appear.

See pages 64 - 65 for details.

3Press [STOP C] to stop playback.

Note

• Some discs may start playback automatically.

• For playing back a Video CD with PBC function, see

page 65.

Playback

Start Rec. Stop/Start Stop Rec.

Title 1 Title 2

Chapter 1 Chapter 2 Chapter 3 Chapter 1 Chapter 2

HDDHDD D

VD-R

DVD-RW

Video

DVD-RWDVD-RW

DVD-RDVD-R

VD+R

DVD+RW D

VD+R

DVD+R

Disc tray guide

DVD-VDVD-V VCD

VCD

E3NG0FD_EN.book Page 60 Wednesday, January 30, 2008 10:37 AM

Playing Back an Audio CD, MP3 or

JPEG

1Follow steps 1 to 4 in “Playing Back

an HDD / DVD-RW / DVD-R / DVD+RW

/ DVD+R Disc” on page 60.

The “File List” will appear.

To exit the File List, press [TOP MENU] or press

[STOP C].

To resume the File List, press [TOP MENU].

2Press [U\D] to select the desired

folder or track / file, then press

[ENTER].

If a track / file is selected:

Playback will start.

If a folder is selected:

The files in the folder will appear.

Press [U\D] to select the folder you want, then

press [ENTER].

•Press [PLAY B], [ENTER] or [P] to move to

any lower folders.

•Press [L] or [RETURN] to move back to the

folder above.

Hints for Audio CD tracks and MP3 / JPEG

files:

• Folders are shown with the icon.

• Audio CD tracks are shown by .

• MP3 files are shown with the icon.

Playback will start from the selected track and

continue with each one after.

• JPEG files are shown with the icon.

• The unit can recognise up to 255 folders and up

to 99 tracks / 999 files.

• Letters of a file / folder name overflowing the

given space will be displayed as “...”.

• Unplayable folders and tracks / files may be

displayed depending on the recording

conditions.

• For MP3 file recorded in Variable Bit Rate

(VBR), the unit may not display the actual

elapsed time.

• If there are no files in the folder, “No Files” is

displayed.

• High resolution or large-size JPEG files take a

few moments to be displayed.

• It is not possible to play back progressive

JPEGs (JPEG files saved in progressive format)

on this unit.

• It is not possible to play back JPEG files of 12

MB or more.

It is recommended that files to be played back in

this unit are recorded under the following

specifications:

[MP3]

[JPEG] Size of picture

Note

• MP3 files cannot be recorded as digital sound using

an MD or DAT deck.

• Files with extensions other than “.mp3 (MP3)” or

“.jpg / .jpeg (JPEG)” will not be listed in the File List.

• Some folders or tracks listed in the File List may be

unplayable due to their recording status.

• The File List displays only up to 8 folders and file

names.

Notes on JPEG:

After file is displayed for 5 seconds or 10 seconds (set

in the “Slide Show” on page 73), the display moves to

the next file.

During JPEG playback, press [P] or [L] to rotate a

picture 90 degrees clockwise or counterclockwise

respectively. (Not available when the display menu

appears.)

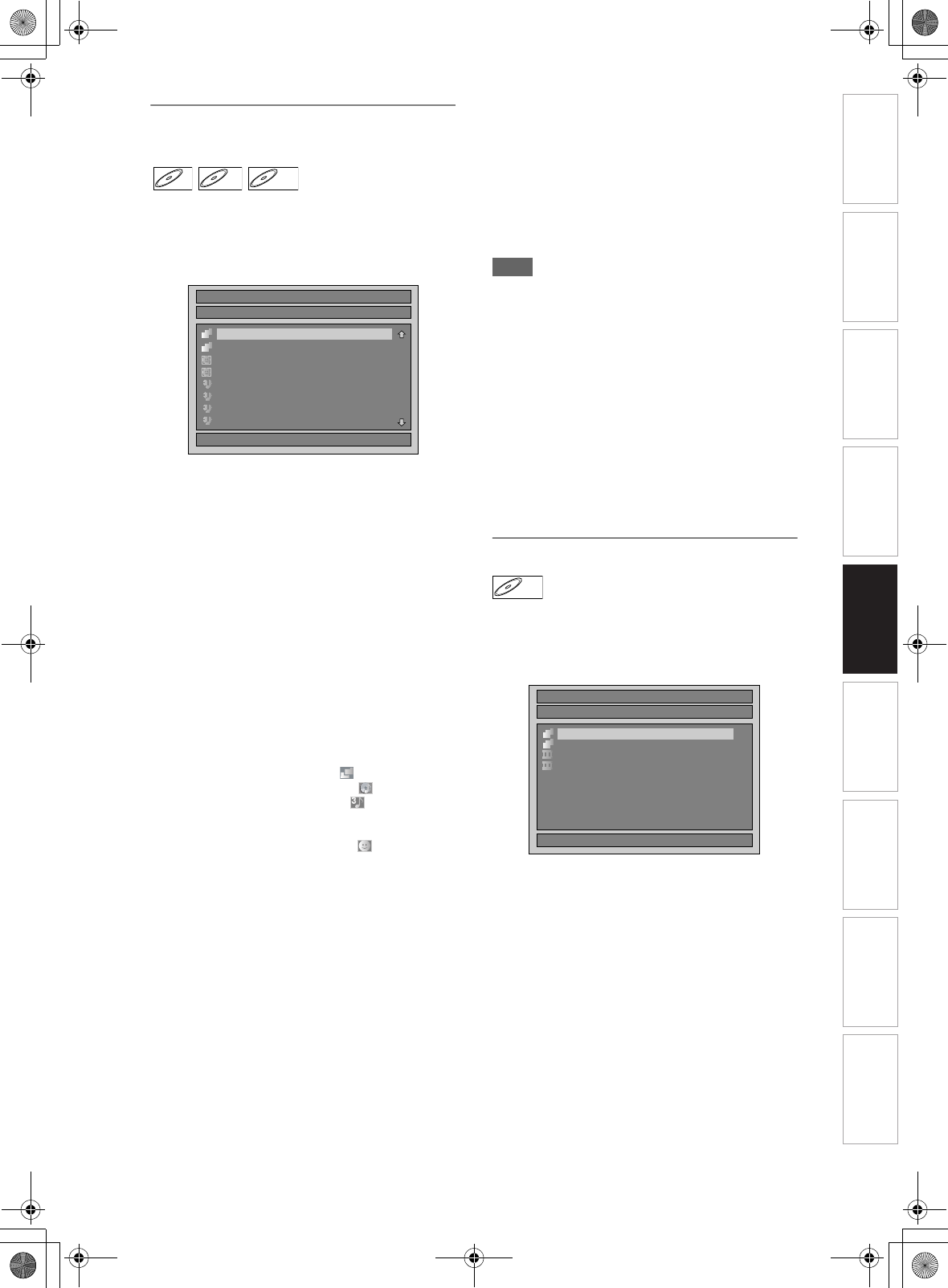

Playing Back a DivX®

1Follow steps 1 to 4 in “Playing Back

an HDD / DVD-RW / DVD-R / DVD+RW

/ DVD+R Disc” on page 60.

The “File List” will appear.

To exit the File List, press [TOP MENU] or press

[STOP C].

To resume the File List, press [TOP MENU].

2Press [U\D] to select the desired

folder or file, then press [ENTER].

If a file is selected:

Playback will start.

If a folder is selected:

The files in the folder will appear.

Press [U\D] to select the file or folder you want,

then press [ENTER].

•Press [PLAY B], [ENTER] or [P] to move to

any lower folders.

•Press [L] or [RETURN] to move back to the

folder above.

CDCD MP3MP3 JPEG

JPEG

1/ 2

File List

DISC NAME

JPEG file1

JPEG file2

MP3 file 1

MP3 file 2

MP3 file 3

MP3 file 4

• Sampling frequency : 44.1 kHz or 48 kHz

• Constant Bit Rate : 112 kbps to 320 kbps

• Upper limit : 6,300 x 5,100 dots

• Lower limit : 32 x 32 dots

• Capacity limit : less than 12 MB

DivX®

1/ 1

File List

DISC NAME

Folder1

Folder2

DivX File1

DivX File2

Introduction Connections Basic Setup Playback Editing OthersFunction SetupRecording VHS Functions

E3NG0FD_EN.book Page 61 Wednesday, January 30, 2008 10:37 AM

62 EN

DivX® Subtitle

The subtitle created by the user can be displayed

during DivX® playback.

1After the DivX® file is selected,

“Subtitle List” will appear.

2Select the desired extension you

want to display using [U\D], then

press [ENTER]. DivX® with the

subtitle starts playback. The subtitle

cannot be displayed when the

setting is “OFF”.

• If there is more than one extension, the

extension selection will appear in “Subtitle

List”.

Note

• “DivX Subtitle” must be activated in the DivX Menu.

(Refer to “DivX Subtitle” on page 91.)

• Playback file and the subtitle file must have the

same name.

• Playback file and the subtitle file must locate in the

same folder.

• Only the subtitle files with the following extensions

are supported; .smi (.SMI), .srt (.SRT), .sub

(.SUB), .ass (.ASS), .ssa (.SSA), .txt (.TXT). (.sub

(.SUB) and .txt (.TXT) files may not be recognised.)

• The subtitles that exceed the playback time of the

DivX® file will not be displayed.

SMI

SRT

SUB

ASS

SSA

TXT

DivX File1

Subtitle List

OFF

DivX®VOD

This unit allows you to play back the files purchased

or rented from DivX® Video-On-Demand (VOD)

services. The files are available on the internet.

When you purchase or rent DivX®VOD files on the

internet, you will be asked to enter a registration

code. This menu item provides you with the

registration code.

1Press [SETUP].

2Select “General Setting” using

[U\D], then press [ENTER].

3Select “DivX” using [U\D], then

press [ENTER].

4Select “DivX®VOD” using [U\D],

then press [ENTER].

Your registration code will appear.

Note

• One registration code is only valid for one

DivX®VOD file.

• You must first download the file from the internet

and play it back on this unit before you are able to

get another code.

• You must follow this step every time you purchase

or rent a DivX®VOD file from the internet.

• For more information for DivX®, please visit

http://www.divx.com/vod.

DivX®

Playback

Display

Video

Recording

Clock

Channel

DivX

HDMI

Reset All

General Setting

DivX

VOD

DivX Subtitle

DivX

VOD

Your registration code is:

To learn more visit:

www.divx.com/vod

E3NG0FD_EN.book Page 62 Wednesday, January 30, 2008 10:37 AM

It is recommended that files to be played back in

this unit are recorded under the following

specifications:

[DivX®]

• Official DivX® Certified product

Hint for the purchased or rental official DivX®

Certified product

• When you purchased or rental a DivX® file through

the official site of DivX® Video which is called DivX®

Video-On-Demand (VOD) services, a registration

code is required every time you get the new file from

the DivX®VOD services. Refer to “DivX®VOD” on

page 62.

• Some DivX®VOD files are restricted with the limited

playable times (you cannot play them back beyond

the limit). If your DivX®VOD file has such limit, the

playback confirmation screen will appear.

Use [L\P] to select “Yes” if you want to play back

the file, or to select “No” if you do not want to play it

back. Then press [ENTER] to confirm the selection.

• You cannot play back the DivX®VOD files of which

rental period has been expired. In such case, press

[TOP MENU] and select other files that can be

played back.

Hint

•DivX

® is a codec (compression/decompression) that

can compress images to a very small amount of

data. The software can compress video data from

almost any sources to the size that can be sent on

the Internet without compromising visual quality of

the images.

• A file with an extension of “.avi” and “.divx” is called

an DivX® file. All files with the “.avi” extension are

recognised as MPEG4.

• Files whose extension other than “.avi” and “.divx”

will not be listed on the DivX® menu. However,

unplayable groups or tracks may be displayed,

depending on the recording conditions.

• Even if the file has an extension of either “.avi” and

“.divx”, this unit cannot play it back if it is recorded in

the format other than DivX®.

• Folders are known as Groups; files are known as

tracks.

• A symbol of is shown on the top of the file name.

• A maximum of 255 folders or 999 files may be

recognised in one disc.

• Up to 8 hierarchies can be recognised in one folder.

Files in the 9th or deeper hierarchies cannot be

played back.

• If the track extends beyond the scope of screen, a

down arrow “ ” appears, indicating that the user

can view another part on the next page. The current

page number and the number of total pages are

shown on the right of the down arrow “ ”.

• Letters of a file / folder name overflowing the given

space will be displayed as “...”.

• You can play back the disc recorded in multi-

session.

• It may take awhile for audio and images to be output

after you inserted a disc and pressed [PLAY B].

• When playing back the files recorded in high bit

rates, the images can be interrupted in some

occasions.

• Although DivX® logo has been obtained for this unit,

it may not be able to play back some data,

depending on the characteristics, bit rates, or audio

format settings, etc.

• Use the software recognised by the DivX, Inc. when

you make DivX® files.

•A DivX

® file whose file size exceeds 2 GB cannot be

played back.

• If you try to play back the DivX® file that has the

screen resolution which this unit does not support,

the playback will be stopped and error message will

appear.

• If a large-sized DivX® file is selected, it may take

awhile to start the playback (over 20 seconds

sometimes).

• If DivX® files written on CD discs cannot be played

back, rewrite them on a DVD disc and try to play

back.

• For more information for DivX®, please visit

http://www.divx.com.

• Playable Codec of AVI files : DivX®3.x,

DivX®4.x,

DivX®5.x,

DivX®6.x

• Maximum size of image : 720 x 480 @30 fps

720 x 576 @25 fps

• Sampling frequency of audio : 8 kHz - 48 kHz

• Audio type : MPEG1 audio layer

3 (MP3), MPEG1

audio layer 2,

Dolby Digital

DivX

VOD Rental

This rental has O views left.

Do you want to use one

of your O views now?

Yes No

Rental Expired

This rental is expired.

Please push ‘TOP MENU’.

Introduction Connections Basic Setup Playback Editing OthersFunction SetupRecording VHS Functions

E3NG0FD_EN.book Page 63 Wednesday, January 30, 2008 10:37 AM

64 EN

• If you insert a CD-RW/-R with DivX® files that are

mixed with MP3 and JPEG files, the Playback Media

Selection screen will be displayed. Please select

“Video” and proceed to next step.

•Press [DISC MENU] to call up the Playback Media

Selection screen in stop mode.

• If you select “Audio & Picture” instead of “Video” on

the Playback Media Selection screen, this unit can

play back MP3/JPEG files.

• You cannot play back the DivX®VOD files obtained

with different registration codes on this unit. Press

[TOP MENU] and select other files that can be

played back.

• This unit does not support the DivX® file with UDF

format.

Playing Back Discs Using the Disc

A DVD contains a disc menu, which lists the contents

and enables you to customise playback. The menu

may offer choices for subtitle languages, special

features, and chapter selection. Usually this

information appears automatically when you start

playback, but sometimes you need to press

[DISC MENU] to display the menu.

1Press [DISC MENU].

If the feature is not available, “ ” may appear on

the TV screen.

2Select an item using [U\D\L\P],

then press [ENTER].

Repeat this step until all the features you want are

set up or to start playing back the disc from the

menu. The following operations are available.

[DISC MENU] button:

Displays the disc menu, which will vary among

discs, and may be same with the Title menu.

[U\D\L\P] buttons:

Move the cursor from item to item on the screen.

[ENTER] button:

Selects the currently highlighted menu option.

[the Number buttons]:

Selects a numbered menu option (available on

certain discs).

3Press [DISC MENU] to exit the disc

menu.

Note

• Menus vary among discs. Refer to the information

accompanying the disc for details.

Please select the media

to play back.

Video

Audio & Picture

Authorization Error

This player is not authorized to

play this video.

Please push ‘TOP MENU’.

DVD-VDVD-V

E3NG0FD_EN.book Page 64 Wednesday, January 30, 2008 10:37 AM

Playing Back a Disc Using the Title

Some DVDs have a Title menu, which lists the titles

available on the DVD. You can start playing back such

discs at a specific title.

On this unit, if you finalise video mode or +VR mode

discs, a Title Menu will be created automatically.

1Press [TOP MENU].

The Title Menu will appear.

• For some discs, the Title Menu appears

automatically.

If the feature is not available, “ ” may appear on

the TV screen.

2Select a desired item using

[U\D\L\P], then press [ENTER].

The disc will start playing back at the title you

selected. The following operations are available.

[TOP MENU] button:

Displays the DVD “Title Menu” which will vary

between discs.

[U\D\L\P] buttons:

Move the cursor from item to item on the screen.

[ENTER] button:

Selects the currently highlighted menu option.

[the Number buttons]:

Selects a numbered menu option (available on

certain discs).

3Press [TOP MENU] to exit.

Note

•[TOP MENU] will not be available for some DVDs.

• Menus vary among discs. Refer to the information

accompanying the disc for details.

• For DVD+RW discs finalised on this unit, press

[DISC MENU] to display the Title Menu.

PBC Function for Video CDs

This unit conforms to ver.1.1 and ver.2.0 of the Video

CD standard playback control (PBC) function. This

enables you to play back interactive software using

menu screens. Refer to the information

accompanying the Video CD.

Ver.1.1 (without PBC function): You can still enjoy

playback of pictures and music from the CD.

Ver.2.0 (with PBC function): “Pbc” will appear on the

screen and display when playing back a Video CD

with the PBC function.

Hint

• When playing back Video CDs with the PBC

function, “Pbc” is displayed instead of the playing

back time and current track indications on the front

panel display.

Note

• Some operations cannot be performed unless the

function is cancelled either automatically or

intentionally by you.

• Operations that are not available when the PBC

function is set to “ON” are indicated by the following

symbol in this manual:

Playing Back a Video CD Using the

Title Menu

1When playing back a Video CD with

the PBC function, the Title Menu will

appear automatically.

2Press [the Number buttons] to select

the desired title.

Playback will start at the selected title.

3Press [RETURN] to go back to the

Title menu.

Note

• While the On-Screen Display appears, you cannot

perform steps 2 and 3.

DVD-VDVD-V D

VD-R

DVD-RW

Video

DVD-RDVD-R D

VD+R

DVD+RW

VD+R

DVD+R

VCD

(PBC OFF)

VCDVCD

Introduction Connections Basic Setup Playback Editing OthersFunction SetupRecording VHS Functions

E3NG0FD_EN.book Page 65 Wednesday, January 30, 2008 10:37 AM

66 EN

Cancelling and Recalling the PBC

Function

Insert a Video CD.

1In stop mode, press [SETUP].

2Select “CD Playback Mode” using

[U\D], then press [ENTER].

3Select “PBC (Video CD only)” using

[U\D], then press [ENTER].

4Select “OFF” using [U\D], then

press [ENTER].

5Press [SETUP] to exit.

To recall the PBC function, select “ON” at step 4

above.

Note

• The default setting of “PBC (Video CD only)” is

“ON”.

Special Playback

Resume Playback

You can resume playback from the point where you

stopped it before.

1During playback, press [STOP C].

The resume message will appear.

2Press [PLAY B].

In a few seconds, playback will resume from the

point at which you stopped it before. Even if you

turn off the unit, you can resume playback at the

same point after turning back on the unit.

For title in the HDD, you can also play from the

resume point by selecting “Resume Playback” at

step

of “Playing Back an HDD / DVD-RW / DVD-R

/ DVD+RW / DVD+R Disc” on page 60.

To cancel the resume playback and start playing

back the disc from the beginning:

Press [STOP C] while playback is stopped.

For HDD:

You can set a resume point per every title.

For DVD-Videos, DVD+RW/+R, DVD-RW/-R, Video

CD, Audio CD, MP3 files, JPEG files, and DivX®

files:

You can set only one resume point per disc.

Note

• For Video CDs, if you turn PBC on using “Setup”

menu, the resume function is cancelled.

• For MP3 and JPEG files, playback will resume from

the beginning of the track at which playback was

stopped.

VCDVCD

(PBC OFF)

Random Play

Programme Play

PBC (Video CD only)

Slide Show

CD Playback Mode

HDDHDD D

VD-V

DVD-V D

VD-R

DVD-RW

Video

DVD-RWDVD-RW

DVD-RDVD-R D

VD+R

DVD+RW D

VD+R

DVD+R CD

CD VCD

VCD

(PBC OFF)

MP3MP3 JPEG

JPEG

JPEG DivX

DivX

DivX®

E3NG0FD_EN.book Page 66 Wednesday, January 30, 2008 10:37 AM

Fast Forward / Fast Reverse

1During playback, press [FWD D] or

[REV E].

Each time you press [FWD D] or [REV E], the

approximate speed will change as follows.

Fast forward or fast reverse playback across titles

(for DVDs) or tracks / files (for Video CD / MP3 /

DivX®) is not possible.

• For Audio CDs and MP3 files approximate

speed is fixed at 8x with sound.

• For Video CDs, approximate forward / reverse

speeds are 2x, 8x and 16x.

•For DivX

® files, approximate forward speeds are

2x, 20x and 40x, and approximate reverse

speeds are 5x, 20x and 40x.

• To return to playback at normal speed, press

[PLAY B].

• Picture quality of DivX® files in fast reverse is

lower than that in fast forward.

• For some DivX® files, Fast forward/Fast reverse

may not function.

Hint

• Forward / reverse speeds are indicated with icons as

follows.

Forward (Approx. Speed):

2x:

20x:

40x:

Reverse (Approx. Speed):

5x:

20x:

40x:

Variable Skip / Variable Replay

During playback, you can skip forward or backward by

the amount of time you set in “Playback” menu. To set

the time amount, refer to “8. Variable Skip / Replay”

on page 88.

During playback, press [VARIABLE SKIP] if you

want to skip forward. Press [VARIABLE REPLAY]

if you want to skip backward.

Pause

1During playback, press [PAUSE F].

Playback will pause with the sound muted.

2Press [PLAY B] to resume playback.

Rapid Playback

Rapid Playback function is available

only during playback.

Available only on discs recorded in the Dolby Digital

format, Rapid Playback plays back in a slightly faster/

slower speed while keeping the sound output.

1During playback, press

[1.3x\0.8x PLAY].

2Press [PLAY B] to resume playback.

Note

• Audio (language) setting cannot be changed while

using this mode.

• This feature may not work at some point in a disc.

• Audio is PCM during Rapid Playback mode.

• When you select “PAL” in “TV System” (see page

88), this function is not available with discs recorded

using the NTSC system.

HDDHDD D

VD-V

DVD-V D

VD-R

DVD-RW

Video

DVD-RWDVD-RW

DVD-RDVD-R D

VD+R

DVD+RW D

VD+R

DVD+R CD

CD VCD

VCD

MP3

MP3 DivX

DivX

DivX®

REV

FWD

REV

FWD

REV

FWD

REV

FWD

REV

FWD

REV

FWD

20x 2x 20x5x 40x40x

Normal

speed

playback

HDDHDD D

VD-V

DVD-V D

VD+R

DVD+RW D

VD+R

DVD+R

VD-R

DVD-RW

Video

DVD-RWDVD-RW

DVD-RDVD-R

Bx0.8 : Press [1.3x\0.8x PLAY] once during

playback.

Plays back approximately at 0.8 times of

normal playback.

Bx1.3 : Press [1.3x\0.8x PLAY] twice during

playback.

Plays back approximately at 1.3 times of

normal playback.

B: Press [1.3x\0.8x PLAY] thrice to play

back in normal speed.

No effects.

HDDHDD D

VD-V

DVD-V D

VD-R

DVD-RW

Video

DVD-RWDVD-RW

DVD-RDVD-R D

VD+R

DVD+RW D

VD+R

DVD+R CD

CD VCD

VCD

MP3

MP3 JPEG

JPEG

JPEG DivX

DivX

DivX®

HDDHDD D

VD-V

DVD-V D

VD-R

DVD-RW

Video

DVD-RWDVD-RW

DVD-RDVD-R D

VD+R

DVD+RW D

VD+R

DVD+R

Introduction Connections Basic Setup Playback Editing OthersFunction SetupRecording VHS Functions

E3NG0FD_EN.book Page 67 Wednesday, January 30, 2008 10:37 AM

68 EN

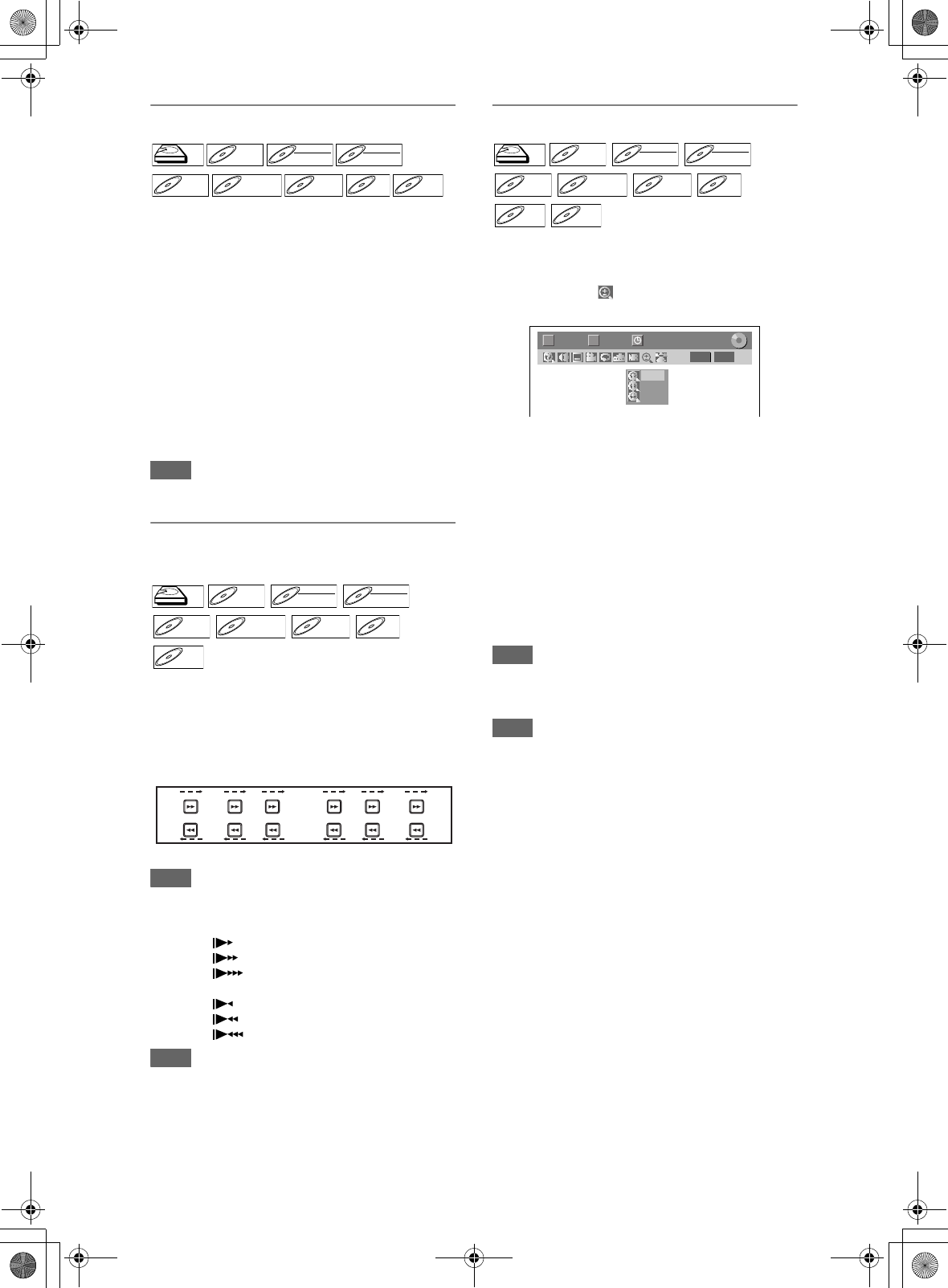

Step by Step Playback

1During playback, press [PAUSE F].

2Press [SKIP H\G] repeatedly.

Each time you press [SKIP G], playback will go

forward one frame (or step) at a time with the

sound muted.

To go backward one frame (or step), press

[SKIP H].

Press and hold [SKIP G] to continue going

forward.

To continue going backward, press and hold

[SKIP H].

3Press [PLAY B] to resume playback.

Note

• Only step by step forward is available when playing

back Video CDs and discs with DivX® files.

Slow Forward /

Slow Reverse Playback

1During playback, press [PAUSE F],

then press [FWD D] or [REV E].

Each time you press [FWD D] or [REV E], the

approximate speed changes as follows.

(The sound will remain muted.)

To return to normal playback, press [PLAY B].

Hint

• Forward / reverse speeds are indicated with icons as

follows.

Forward (Approx. Speed):

1/16x:

1/8x:

1/3x:

Reverse (Approx. Speed):

1/16x:

1/8x:

1/4x:

Note

•For some DivX

® files, Slow forward may not function.

• Only slow forward is available when playing back

Video CDs and discs with DivX® files.

Zoom

1During playback, press [DISPLAY].

2Select the icon using [L\P],

then press [ENTER].

Four options are available, “x1.0”, “x1.2”, “x1.5”

and “x2.0”. These are displayed excluding the

current zoom rate.

3Select the desired zoom factor to

zoom using [U\D], then press

[ENTER].

The zoom area is displayed.

4Select the desired zoom position

using [U\D\L\P], then press

[ENTER].

Zoom playback will start.

Hint

• To cancel the zoom function, select “x1.0” using

[U\D], then press [ENTER].

Note

• If selecting a smaller factor than that currently

selected, the zoom area is not displayed.

• You cannot slide the zoomed picture on some JPEG

files.

HDDHDD D

VD-V

DVD-V D

VD-R

DVD-RW

Video

DVD-RWDVD-RW

DVD-RDVD-R D

VD+R

DVD+RW D

VD+R

DVD+R VCD

VCD

VCD DivX

DivX

DivX®

HDDHDD D

VD-V

DVD-V D

VD-R

DVD-RW

Video

DVD-RWDVD-RW

DVD-RDVD-R D

VD+R

DVD+RW D

VD+R

DVD+R VCD

VCD

DivX

DivX®

REV

FWD

REV

FWD

REV

FWD

REV

FWD

REV

FWD

REV

FWD

/8x

/3x

/4x

Pause

HDDHDD D

VD-V

DVD-V D

VD-R

DVD-RW

Video

DVD-RWDVD-RW

DVD-RDVD-R D

VD+R

DVD+RW D

VD+R

DVD+R VCD

VCD

JPEG

JPEG DivX

DivX

DivX®

1/ 5 1/ 5

DVD

0:01:00 / 1:23:45

Video

T C

x1.2

x2.0

x1.5

E3NG0FD_EN.book Page 68 Wednesday, January 30, 2008 10:37 AM

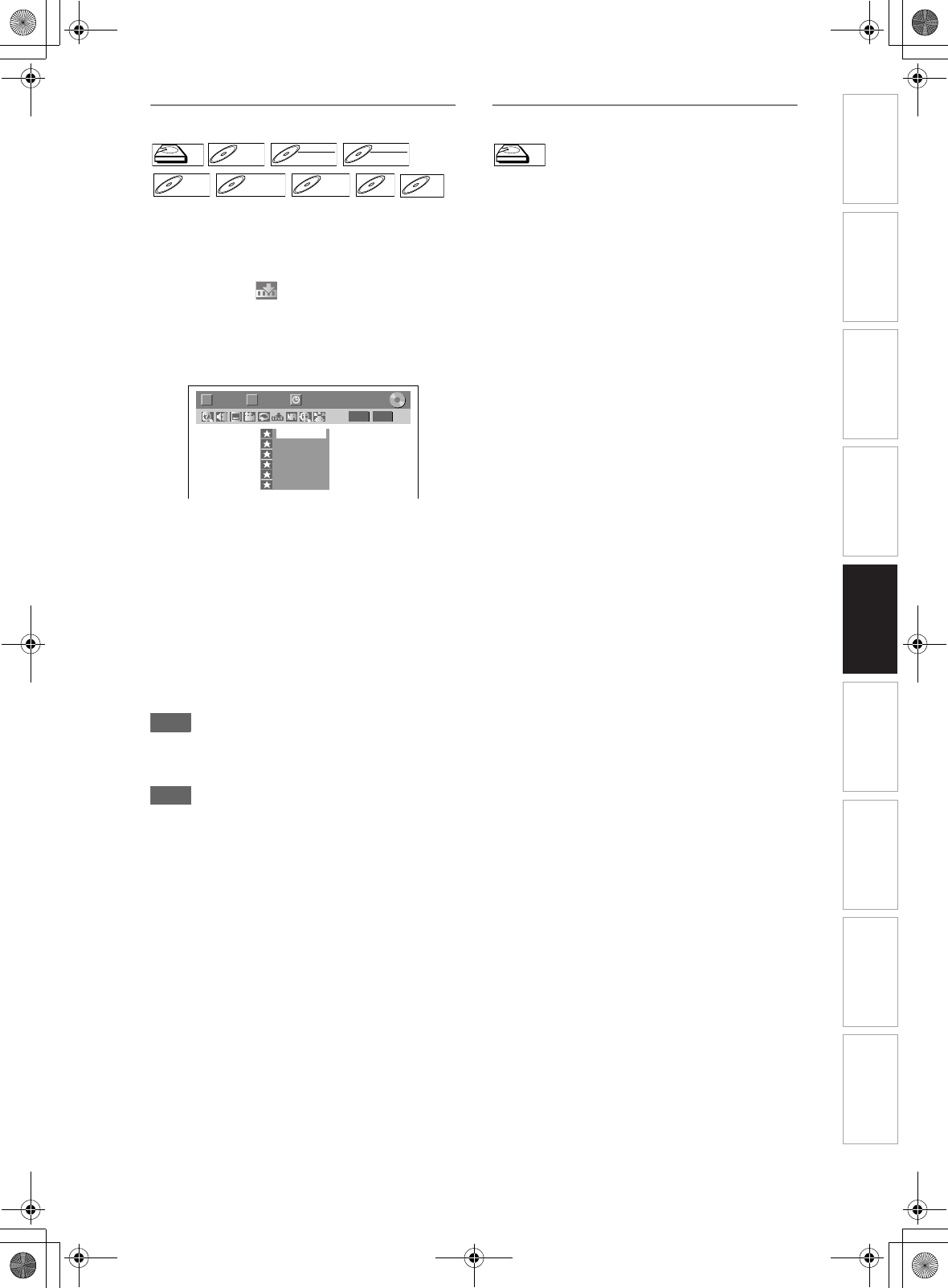

Marker Setup

You can assign a specific point on a disc to return

later.

1During playback, press [DISPLAY].

2Select the icon using [L\P],

then press [ENTER] within 1 second,

or wait for 1 second to display the

marker list.

e.g.) Marker setup menu for DVD-Video

3Select the desired marker number

using [U\D]. When the disc

reaches the desired point, press

[ENTER].

The title (track) number and the time are

displayed.

4To return to the marker, select the

desired marker number using

[U\D], then press [ENTER].

Hint

• To clear a marker, select the marker number you

want to clear, then press [CLEAR].

• You can mark up to 6 points.

Note

• All markers are erased when you perform the

following operations.

- Opening the disc tray (CD/DVD only)

- Turning off the power (CD/DVD only)

- Making additional recording on the disc (DVD only)

- Editing any title (DVD only)

- Dividing the title (HDD only)

- Deleting a scene of the title (HDD only)

- Changing the mode between Original and Playlist.

(VR mode DVD-RW disc only)

• Marker setting is not available when you play back

the Video CD with PBC function.

Chasing Playback during Recording

You can play back a title being recorded from the

beginning while recording continues.

1During recording, press [PLAY B].

Playback of the title you are recording will start

from the beginning.

• Elapsed playback time will be displayed on the

front panel display.

2To stop the playback, press

[STOP C] once.

The front panel display will switch back to show

the elapsed recording time.

If you press [STOP C] twice, it will stop the

recording.

Using the [TIME SLIP] button

With [TIME SLIP], even if you leave your couch while

you are watching TV through this unit, you can come

back and watch the rest of the programme right from

where you left at any the convenient time with just one

button.

1When you leave the TV, press

[TIME SLIP] twice. (When you are

recording the TV programme to HDD,

press once.)

Unless the unit is in HDD recording mode, the unit

will start recording the TV broadcast with the first

press. With the second press, or the first press

when the unit is in HDD recording mode, the

image will be paused while the recording

continues. (It is as if you have paused the live TV

broadcast.)

2When you come back, press

[TIME SLIP] again.

The pause will be cancelled, and the playback will

start from the point where the image is paused in

step 1.

• While viewing the recorded content, you can

pause and resume the playback by pressing

[TIME SLIP].

3Press [STOP C] once to resume live

TV.

Press [STOP C] twice to stop the

recording.

HDDHDD D

VD-V

DVD-V D

VD-R

DVD-RW

Video

DVD-RWDVD-RW

DVD-RDVD-R D

VD+R

DVD+RW D

VD+R

DVD+R CD

CD VCD

VCD

(PBC OFF)

1/ 5 1/ 5

DVD

---

0:01:00 / 1:23:45

Video

T C

HDDHDD

Introduction Connections Basic Setup Playback Editing OthersFunction SetupRecording VHS Functions

E3NG0FD_EN.book Page 69 Wednesday, January 30, 2008 10:37 AM

70 EN

Note

•[TIME SLIP] is not available during DVD recordings.

• If you press [TIME SLIP] when the unit is in DVD

mode, the output mode will automatically be

switched to HDD, and the unit will start chasing

playback of the title being recorded.

• You can also use the special playback functions

such as [REV E], [FWD D] etc. during chasing

playback mode.

• The programs you recorded with [TIME SLIP] will

be stored in the title list.

•[REC I] is invalid during chasing playback.

• You can no longer fast forward the playback when it

comes to a few seconds before the current recording

point.

Simultaneous Playback and

Recording

With regard to HDD, you can continue recording a

programme while playing back another title in the

same component (HDD).

To do so, press [TOP MENU] during recording and

select a title you like to play back, and then press

[PLAY B].

(You can also start the playback from the title list

menu.)

To playback a title being recorded while

continuing to record, refer to “Chasing Playback

during Recording” on page 69 (available only with

HDD).

Note

• Video CD, Audio CD, MP3/JPEG files recorded on a

disc and DivX® files can also be played back during

HDD recording.

Title / Chapter Search

Using [SKIP H\G] buttons

1During playback, press [SKIP G] to

skip the current title or chapter and

move to the next.

The unit moves to the next title or chapter one

after another.

To go back to the previous title or chapter, press

[SKIP H] twice in quick successions.

Note

• With regard to HDD, chapter search using

[SKIP H\G] is available only within the same

title.

Using the [DISPLAY] button

1During playback, press [DISPLAY].

2Select the icon using [L\P],

then press [ENTER].

for the title number is highlighted.

Searching for a Title:

3Enter the desired title number to

search for using [U\D] or

[the Number buttons], then press

[ENTER].

Title search will start.

Hint

• Total number of chapters and playback time of the

selected title are also displayed.

Searching for a Chapter:

3Press [L\P] to highlight the number

displayed in the right side of the

icon.

4Enter the desired chapter number to

search for using [U\D] or

[the Number buttons], then press

[ENTER] .

Chapter search will start.

Hint

• The title number and playback time of the selected

chapter are also displayed.

HDDHDD

HDDHDD D

VD-V

DVD-V D

VD-R

DVD-RW

Video

DVD-RWDVD-RW

DVD-RDVD-R D

VD+R

DVD+RW D

VD+R

DVD+R

E3NG0FD_EN.book Page 70 Wednesday, January 30, 2008 10:37 AM

Track Search

Using [SKIP H\G] buttons

1During playback, press [SKIP G] to

skip the current track and move to

the next.

The unit moves to the next track one after

another.

To go back to the previous track, press [SKIP H]

twice in quick successions. The unit moves

backward one track at a time.

Using the [DISPLAY] button

For audio CD, skip to step 2.

1During playback, press [DISPLAY].

2Select the icon using [L\P],

then press [ENTER].

for the track number is highlighted.

3Enter the desired track number to

search for using [U\D] or

[the Number buttons], then press

[ENTER].

Track search will start.

Hint

• For Video CDs, you can perform the track search

function in stop mode without turning PBC off

manually.

Note

• During Random playback or Programme playback,

you cannot search the desired track.

Direct Search

You can search the desired track directly.

Using [the Number buttons]

1During playback, if the display menu

is not displayed, press

[the Number buttons] to enter the

desired track number.

Note

• During Random playback or Programme playback,

you cannot search the desired track directly.

Time Search

For audio CD, skip to step 2.

1During playback, press [DISPLAY].

2Select the icon using [L\P],

then press [ENTER].

for the title or track number is highlighted.

3Press [L\P] to highlight .

4Enter the desired time to search for

using [U\D] or

[the Number buttons], then press

[ENTER].

Time search will start.

Note

• During Random playback or Programme playback,

you cannot search the desired time.

• The title number and chapter number of the setting

time are also displayed.

• Time search function is available only in the same

track or title.

CDCD VCD

VCD

(PBC OFF)

MP3MP3 JPEG

JPEG

JPEG DivX

DivX

DivX®

CDCD

HDD

HDD D

VD-V

DVD-V D

VD-R

DVD-RW

Video

DVD-RWDVD-RW

DVD-RDVD-R D

VD+R

DVD+RW D

VD+R

DVD+R CD

VCD

(PBC OFF)

DivX®

Introduction Connections Basic Setup Playback Editing OthersFunction SetupRecording VHS Functions

E3NG0FD_EN.book Page 71 Wednesday, January 30, 2008 10:37 AM

72 EN

Repeat / Random / Programme

Playback / Slide Show

Repeat Playback

For audio CD or MP3, skip to step 2.

1During playback, press [DISPLAY].

2Select the icon using [L\P],

then press [ENTER] within 1 second,

or wait for 1 second to display the

selection menu.

3Select the desired option to repeat

using [U\D], then press [ENTER].

The selected repeat playback will start.

The following operations are available.

Title:

The current title will be played back repeatedly.

(HDD, DVD only)

Chapter:

The current chapter will be played back

repeatedly. (HDD, DVD only)

All:

The current disc will be played back repeatedly.

(DVD-RW (VR mode), Audio CD, Video CD, MP3,

JPEG and DivX® only)

A-B:

The A-B point will be played back repeatedly.

(HDD, DVD, Audio CD, Video CD and DivX® only)

When pressing [ENTER] while A-B is highlighted,

A-B repeat is set.

•Press [ENTER] again to decide the starting

point (A).

•Press [ENTER] after setting point (A) to select

the ending point (B).

Track:

The current track will be played back repeatedly.

(Audio CD, Video CD, MP3, JPEG and DivX®

only)

Group:

The current group will be played back

repeatedly. (MP3, JPEG and DivX® only)

Hint

• To cancel the repeat playback, select “OFF” at step

3. The repeat setting is also cancelled when you

stop playback.

Note

• Point B for the repeat A-B playback should be set

within the same title or track as point B.

• You cannot select “Group” during the random

playback of MP3 and JPEG files.

• Chapter / Track repeat will be cancelled whenever a

Chapter / Track is skipped forward or backward.

•For some DivX

® files, A-B Repeat playback may not

function.

• For Video CDs with PBC function, repeat playback

does not work while the PBC function is on.

Random Playback

You can use this function to play back a disc randomly

instead of in the recorded order.

1In stop mode, press [SETUP].

2Select “CD Playback Mode” using

[U\D], then press [ENTER].

“CD Playback Mode” menu will appear.

3Select “Random Play” using

[U\D], then press [ENTER].

Random playback will start.

Hint

• To cancel random playback, press [STOP C] twice

during random playback. “OFF” appears on the

screen.

• For Video CDs with PBC function, the PBC setting

will be switched to off automatically when you start

random playback.

Note

• During random playback, if you forward the track to

the end, the playback speed of the next track will be

normal.

• During random playback, you cannot use the search

function except for the search with [SKIP H\G].

By pressing [SKIP H], you can return only to the

beginning of the current track.

Programme Playback

You can programme the disc to play back in your

desired order.

1Follow steps 1 to 2 in “Random

Playback” on this page.

2Select “Programme Play” using

[U\D], then press [ENTER].

HDDHDD D

VD-V

DVD-V D

VD-R

DVD-RW

Video

DVD-RWDVD-RW

DVD-RDVD-R D

VD+R

DVD+RW D

VD+R

DVD+R CD

CD VCD

VCD

(PBC OFF)

MP3MP3 JPEG

JPEG

JPEG DivX

DivX

DivX®

CDCD VCD

VCD

(PBC OFF)

MP3MP3 JPEG

JPEG

CDCD VCDVCD

(PBC OFF)

E3NG0FD_EN.book Page 72 Wednesday, January 30, 2008 10:37 AM

3Select the desired track using

[U\D], then press [ENTER] or [P].

4Press [PLAY B] to start programme

playback.

Hint

• To erase tracks you selected, press [CLEAR].

• You can make up to 50 track settings.

• To cancel programme playback, press [STOP C]

twice during programme playback. “OFF” appears

on the screen.

• You may also select the desired track using

[the Number buttons] at step 3.

• For Video CDs with PBC function, the PBC setting

will be switched to off automatically when you start

programme playback.

Note

• During programme playback, if you forward the track

to the end, the playback speed of the next track will

be normal.

• During programme playback, you cannot use the

search function except for the search with

[SKIP H\G].

Slide Show

You can select the display time between 5 seconds

and 10 seconds.

1Follow steps 1 to 2 in “Random

Playback” on page 72.

2Select “Slide Show” using [U\D],

then press [ENTER].

3Select the display time using

[U\D], then press [ENTER].

4Press [SETUP] to exit.

Note

• Large-size JPEG files take a few moments to be

displayed.

Selecting the Format of Audio

and Video

You can select the format of audio and video to suit

the content of the disc you are playing back.

Switching Subtitles

Many DVD-Videos have subtitles in one or more

languages. The available languages are usually

printed on the disc case. You can switch subtitle

languages at any time during playback.

1During playback, press [DISPLAY].

Or press [SUBTITLE] during playback and follow

from step 3.

2Select the icon using [L\P],

then press [ENTER] within 1 second,

or wait for 1 second to display the

selection menu.

3Select the desired subtitle language

using [U\D], then press [ENTER].

Subtitles are displayed in the selected language.

If you select “OFF”, subtitles will disappear.

Note

• With some discs it is only possible to change the

subtitle language from the disc menu. Press

[TOP MENU] or [DISC MENU] to display the disc

menu.

• If a 4-digit language code appears in the subtitle

menu at step 3, refer to the “Language Code” on

page 101.

• For discs with DivX® files, the screen only displays

the number of subtitle languages.

Switching Audio Soundtrack

When playing back a DVD-Videos recorded with two

or more soundtracks (often in different languages),

you can switch among them during playback.

When playing back the titles in HDD or VR mode

DVD-RW discs recorded with bilingual audio, you can

switch to main audio (L), sub audio (R) or a

combination of both (L / R).

When playing back Audio CDs or Video CDs, you can

switch among the left, the right channel and stereo.

For audio CD, skip to step 2 or press [AUDIO D] and

skip to step 3.

1During playback, press [DISPLAY].

Or press [AUDIO D] during playback and follow

from step 3.

0:00:00

-- -- -- -- -- -- -- -- --

-- -- -- -- -- -- -- -- -- --

CD Playback Mode

Programme Play

Total

JPEGJPEG

VD-V

DVD-V D

VD-R

DVD-RW

DVD+RWDVD+RW D

VD+R

DVD+R

DivX

DivX®

HDDHDD D

VD-V

DVD-V D

VD-R

DVD-RW

CDCD VCD

VCD

DivX®

Introduction Connections Basic Setup Playback Editing OthersFunction SetupRecording VHS Functions

E3NG0FD_EN.book Page 73 Wednesday, January 30, 2008 10:37 AM

74 EN

2Select the icon using [L\P],

then press [ENTER] within 1 second,

or wait for 1 second to display the

selection menu.

3Select a desired audio soundtrack or

audio channel using [U\D], then

press [ENTER].

With a DVD-Video, VR mode DVD-RW, or DivX®

files:

Audio soundtrack will switch.

Example:

English J Spanish J French

If the title contains both main and sub audio, you

can further select L (main), R (sub), L/R (mixed of

main and sub).

With an Audio CD or Video CD:

The Audio channel will switch.

Example:

L/R J L J R

Note

• For some discs, it is only possible to change the

soundtrack from the disc menu. Press [TOP MENU]

or [DISC MENU] to display the disc menu.

Switching Virtual Surround System

You can enjoy stereophonic virtual space through

your existing 2 channel stereo system.

For audio CD or MP3, skip to step 2.

1During playback, press [DISPLAY].

Display menu will appear.

2Select the icon using [L\P],

then press [ENTER] within 1 second,

or wait for 1 second to display the

selection menu.

Virtual Surround menu will appear.

e.g.) DVD-Video

3Select “OFF”, “Type 1” or “Type 2”

using [U\D], then press [ENTER].

e.g.) DVD-Video

Note

• Select Virtual Surround to “OFF” in case the sound

is distorted.

• The setting will be kept “OFF” when the unit is

turned off.

Switching Camera Angles

Some DVD-Videos feature scenes shot from two or

more angles. The disc case is usually marked with an

angle icon if the disc has multi-angle scenes.

1During playback, press [DISPLAY].

The angle icon appears when a switching camera

angle is available. (Available only when the angle

icon appears in bottom right on the TV screen.)

2Select the icon using [L\P],

then press [ENTER].

The angle will switch each time you press

[ENTER].

Note

• If the Angle Icon setting is “OFF” in “Setup” menu,

the icon will appear only when the disc is played

back and the Display menu appears. (See page 88.)

• Even when the icon is not displayed, you can

select the angle if the currently played back title has

at least two multi-angle scenes.

Reducing Block Noise

1During playback, press [DISPLAY].

2Select the icon using [L\P],

then press [ENTER] within 1 second,

or wait for 1 second to display the

selection menu.

Noise Reduction menu will appear.

3Select the desired option using

[U\D], then press [ENTER].

This function reduces noise in the playback picture.

When playing back discs recorded in long time modes

such as EP or SLP, select “Type 1” or “Type 2”.

“Type 2” is more effective.

When playing back discs with a little noise, such as

DVD-Videos, select “OFF”.

• OFF: No effect

• Type 1: Natural effect

• Type 2: Emphasised effect

HDDHDD D

VD-V

DVD-V D

VD-R

DVD-RW

Video

DVD-RWDVD-RW

DVD-RDVD-R D

VD+R

DVD+RW D

VD+R

DVD+R CD

CD MP3

MP3

1/ 5 1/ 5

DVD

0:01:00 / 1:23:45

Video

T C

1/ 5 1/ 5

DVD

0:01:00 / 1:23:45

Video

T C

OFF

Type 1

Type 2

DVD-VDVD-V

HDD

HDD DVD-VDVD-V D

VD-R

DVD-RW

Video

DVD-RWDVD-RW

DVD-RDVD-R D

VD+R

DVD+RW D

VD+R

DVD+R VCD

VCD

DivX

DivX®

E3NG0FD_EN.book Page 74 Wednesday, January 30, 2008 10:37 AM

Guide to a Title List

Title list allows you to check the titles recorded on the

disc easily. You can choose a title to play back from

this list and easily edit the titles as you prefer.

Press [HDD] or [DVD], then press

[TOP MENU].

1Title name.

2Title information, which displays recorded

time, length of the title, date / month / year,

recorded CH, and the recording mode.

3Title list: List of titles recorded on the HDD

or disc. Each title is indicated by its index

picture. Index picture for the selected title

can be seen in motion. Following icons may

be displayed on the index picture.

4Arrow: Indicating there is a previous / next

page.

5Title list page number: Current page / total

pages.

6Title list icon, which indicates a type of the

displayed title list.

7Submenu: Submenus for the selected menu

are displayed here.

8Title name (editable): If you do not name the

title, the recorded date, time, channel, and

the recording mode are displayed here.

9Progress bar: Indicating the progress of the

playback.

10 Preview window: Preview of the selected

title is displayed here.

11 Playback status: Indicating the current

playback status of the selected title.

Press [RETURN] to exit the title list.

Editing Discs

You will find editing discs is easy. This unit offers

convenient edit functions.

You can edit the following from a title list.

• Assigning a name to a title

• Dividing a title

• Combining titles

• Adding titles to a Playlist

• Erasing all Playlist

• Setting or releasing the title protection

• Adding or deleting chapter marks

• Deleting titles or parts of titles

(Possible editing functions depend on the recording

format and editing method.)

What “Original” or “Playlist” is for?

There are 2 types for the title list: Original and Playlist.

Original:

Original is the list of the recorded programmes (titles)

when they are recorded. Original is available for HDD

and DVD-RW. Please note that editing the titles in the

Original is like editing the original data. For example, if

you erase a title in the Original, the title cannot be

recovered.

Editing

: Indicating the title has never been

played back yet.

: Indicating the title is protected.

: Indicating the title is a copy-protected

title.

: Indicating the title is a copy-once

programme.

I: If you call up the title list while

recording, “I” will be displayed on the

index picture of the title currently being

recorded.

For DVD+RW/+R, empty title always

appears at the last of the title list.

0:00:59

ORG

23/03/08 18:00 22 SP

1 / 6

ABCDE

11:00 (10:00:00) 27/03/08 125 SP

4 5 6

2 3

ORG

1011 9 78

3445

Title List

Edit

Scene Delete

Edit Title Name

Chapter Mark

Protect

: HDD (Original) mode

: HDD (Playlist) mode

: VR (Original) mode

: VR (Playlist) mode

:+VR mode

: Video mode

: Available to edit in the HDD Original

:Available to edit in the VR mode

DVD-RWs Original

ORG

+VR

Video

HDD

Original

DVD-RW

Original

Introduction Connections Basic Setup Playback Editing OthersFunction SetupRecording VHS Functions

E3NG0FD_EN.book Page 75 Wednesday, January 30, 2008 10:37 AM

76 EN

Playlist:

Playlist is the copy of the Original. You can edit the

titles in the Playlist as you like without affecting the

original data in the Original. It works like a backup for

the Original. Delete a Playlist does not delete the

corresponding Original. But if you delete an Original,

the corresponding Playlists will be deleted. Playlist is

available only for the HDD and the VR mode DVD-

RWs.

About Edit Mark:

Edit marks will be added automatically where title is

edited, for example where a title is divided or

combined. These marks work as chapter marks when

you search for a chapter, but cannot be deleted like

chapter marks. Also, when a title with chapter marks

are dubbed from DVD to the HDD, those marks

become edit marks once they are dubbed to the HDD.

Using these editing functions to modify

copyrighted content for any purpose other than

your private viewing may be prohibited under the

countries, and may subject you to civil and

criminal liability.

Note

• A Playlist is not available for DVD-R or Video mode

DVD-RW and DVD+RW/+R discs.

• It is not possible to edit a disc recorded in another

video system other than PAL, such as NTSC.

• After finalising a DVD-RW/-R or DVD+R disc, you

cannot edit any information that is on that disc.

Deleting Titles

You can delete titles you do not want to keep.

When an Original is deleted from HDD or VR mode

DVD-RW disc, the recordable disc space will

increase. Even when a Playlist is deleted, the original

of the Playlist will remains, and recordable disc space

will not increase.

Recordable disc space of Video mode DVD-RW and

DVD+RW disc will increase when the last title on the

title list is deleted. However, deleting the title will not

change recordable disc space for DVD-R and DVD+R

disc.

Note

• It is not possible to retrieve deleted titles.

If you edit the HDD, press [HDD] first.

If you edit a disc, press [DVD] first.

1In stop mode, press [TOP MENU].

Title List will appear.

For HDD and VR mode DVD-RW disc, press

[DISC MENU] to switch between “Original” and

“Playlist”.

2Press [ENTER] at the desired title

with [U\D\L\P].

e.g.) VR mode DVD-RW disc

Pop up window will appear.

3Select “Title Delete” using [U\D],

then press [ENTER].

4Select “Yes” using [U\D], then

press [ENTER].

“Are you sure?” will appear. Select “Yes” using

[U\D], and then press [ENTER].

Title is deleted.

5Press [RETURN] or [STOP C] to exit.

Writing onto the disc starts.

It may take awhile to write the data on a disc.

Note

• If you delete the title in DVD+RW disc, deleted title

will be displayed as “Empty”.

• You cannot overwrite on the “Empty”.

: Available to edit in the HDD Playlist

:Available to edit in the VR mode

DVD-RWs Playlist

HDD

Playlist

DVD-RW

Playlist

HDDHDD D

VD-R

DVD-RW

Video

DVD-RWDVD-RW

DVD-RDVD-R

VD+R

DVD+RW D

VD+R

DVD+R

1 / 2

01/01/08 12:00 901 LP

12:00 (2:00:00)

01/01/08 901 LP

4 5 6

12 3

ORG

Title List

Play From Start

Edit

Title Delete

Add To Playlist

Dubbing

Delete this title?

Yes

E3NG0FD_EN.book Page 76 Wednesday, January 30, 2008 10:37 AM

Deleting Selected Titles

You can delete titles which you do not need anymore.

Please be advised that the titles once deleted cannot

be brought back.

1Press [HDD], then press

[TOP MENU].

2Select the title you want to delete

using [U\D\L\P], then press

[ENTER].

3Select “Delete Plural Titles” using

[U\D], then press [ENTER].

4Select other title you want to delete

using [U\D\L\P], then press

[ENTER].

Trash mark will appear whose title number is

highlighted for deletion.

5Repeat step 4 until you select all the

titles you want to delete.

To remove the trash mark from the title:

Select the title with the trash mark, then press

[ENTER].

6Press [CLEAR].

Confirmation message will appear.

7Select “Yes” using [U\D], then

press [ENTER].

Final confirmation message will appear. Select

“Yes”, then press [ENTER].

Editing Title Name

You can edit the title names from this menu.

The title names you edit will appear on the title list.

If you edit the HDD, press [HDD] first.

If you edit a disc, press [DVD] first.

1In stop mode, press [TOP MENU].

Title List will appear.

For HDD and VR mode DVD-RW disc, press

[DISC MENU] to switch between “Original” and

“Playlist”.

2Press [ENTER] at the desired title

with [U\D\L\P].

e.g.) VR mode DVD-RW disc

Pop up window will appear.

3Select “Edit” with [U\D], then

press [ENTER].

Edit menu will appear.

4Select “Edit Title Name” using

[U\D], then press [ENTER].

A window for entering the title name will appear.

HDDHDD

Resume Playback

Play From Start

Edit

Title Delete

Add To Playlist

Delete Plural Titles

Dubbing

1 / 1

ABCDE

11:00 (10:00:00) 27/03/08 125 SP

4 5 6

2 3

ORG

Title List

1 / 1

ABCDE

11:00 (10:00:00) 27/03/08 125 SP

4 5 6

ORG

Title List

1 / 1

ABCDE

11:00 (10:00:00) 27/03/08 125 SP

2 3

ORG

Title List

HDDHDD D

VD-R

DVD-RW

Video

DVD-RWDVD-RW

DVD-RDVD-R

VD+R

DVD+RW D

VD+R

DVD+R

1 / 2

01/01/08 12:00 901 LP

12:00 (2:00:00)

01/01/08 901 LP

4 5 6

12 3

ORG

Title List

Introduction Connections Basic Setup Playback Editing OthersFunction SetupRecording VHS Functions

E3NG0FD_EN.book Page 77 Wednesday, January 30, 2008 10:37 AM

78 EN

5To enter the title name, refer to

“Guide to Editing Title Names” on

this page.

When you finish entering the title name, press

[ENTER].

6Select “Yes” using [U\D], then

press [ENTER].

The name you edited becomes the title.

7Press [RETURN] and then [RETURN]

or [STOP C] to exit.

Writing onto the disc starts.

It may take awhile to write the data on a disc.

Guide to Editing Title Names

• Characters set will be changed to the “@!?”

automatically if you press [1] after you selected the

“ABC” or “abc” mode.

Note

• To delete letters, press [CLEAR] repeatedly. Press

and hold [CLEAR] to delete all letters.

•Press [L\P] to move the cursor to the left or right.

• You can enter up to 30 letters.

• Unrecognisable characters will be replaced with

asterisks (*). If you delete them, adjoining

characters may change to asterisks (*) or other.

Adding or Deleting Chapter Markers

Manually

You can add chapter marks to a title. After a title is

marked with chapters, you can use the chapter search

feature.

You can set a chapter mark anywhere you want.

If you edit the HDD, press [HDD] first.

If you edit a disc, press [DVD] first.

1Follow the steps 1 to 3 in “Editing

Title Name” on page 77.

2Select “Chapter Mark” using

[U\D], then press [ENTER].

3Use [SKIP H\G], [REV E],

[FWD D], [PLAY B] and [PAUSE F]

to find where you want to create a

new chapter mark.

Or, use [SKIP H\G] to find a

chapter mark that you want to delete.

4Select “Add” or “Delete” accordingly

using [U\D], then press [ENTER].

e.g.) VR mode DVD-RW disc Original

You cannot delete the first chapter of a title.

5Select “Yes” using [U\D], then

press [ENTER].

e.g.) VR mode DVD-RW disc Original

A chapter mark is added.

Adding a chapter mark:

If you select “Add” at step 4, a new chapter mark is

created at the point you specified.

Deleting a chapter mark:

If you select “Delete” at step 4, the chapter mark you

selected is deleted.

Step 1 : Select the desired character set using

[U\D], then press [ENTER].

Step 2 : Using the list below as a guide, press

[the Number buttons] repeatedly until the

desired letter appears.

ABC

abc

123

@! ?

0:00:59

3/03/08 18:00 22 SP

ORG

Edit - Edit Title Name

ABC

DEF

GHI

JKL

MNO

PQRS

TUV

WXYZ

abc

def

ghi

jkl

mno

pqrs

tuv

wxyz

! ” # $ % & ’ ( )

∗ + , - . / : ; < = >

? @ [ ] ^ _ { | }

ABC abc @ ! ?

123

––

–

Press

Select

HDDHDD D

VD-R

DVD-RW

DVD+RWDVD+RW D

VD+R

DVD+R

ORG

1 : 25 : 47

3/03/08 18:00 22 SP

3 / 5

Edit - Chapter Mark

Chapter

Add

Delete

ORG

3/03/08 18:00 22 SP

1 : 25 : 47

3 / 5

Edit - Chapter Mark - Add

Yes

Chapter

E3NG0FD_EN.book Page 78 Wednesday, January 30, 2008 10:37 AM

6Press [RETURN].

7Press [RETURN] again and then

[RETURN] or [STOP C] to exit.

For DVD, the data will be written onto the disc

momentarily.

This operation may take awhile to be

completed.

Note

• Maximum numbers of chapter for each media:

• Only with regard to DVD editing, you may not be

able to add chapter marks depending on the

duration of the title or the number of chapters.

• Only with regard to DVD editing, remaining time of

the disc may decrease when adding chapter marks

or increase when clearing chapter marks depending

on the recording time or edited contents.

Adding or Deleting Chapter Marks at

once for Video Mode DVD-RW disc

For titles in Video mode DVD-RW disc, you can set or

edit chapter at every selected time interval at once.

You can also clear all the chapter marks at once.

You can only specify the interval of chapter marks that

last for more than 5 minutes.

Press [DVD] first.

1Follow the steps 1 to 3 in “Editing

Title Name” on page 77.

2Select “Chapter Mark” using

[U\D], then press [ENTER].

3Select the desired interval using

[U\D], then press [ENTER].

4Select “Yes” using [U\D], then

press [ENTER].

Chapter marks are added.

If you select “OFF” at step 3, all the chapter marks

are erased.

5Press [RETURN] and then [RETURN]

or [STOP C] to exit.

Writing onto the disc starts.

It may take awhile to write the data on a disc.

Note

• You cannot select the chapter mark the title of which

is less than 5 minutes.

• You cannot select a chapter mark interval that

exceeds the length of a title.

• The length of chapters may slightly deviate from the

one specified at the step 3.

• A chapter mark may be delayed depending on the

recording content.

• Maximum number of chapter for Video mode DVD is

99 chapters per disc and title.

• You may not add any chapter marks to the title

dubbed from HDD.

Hiding Chapters

You can hide chapters from the title list.

Hidden chapters are skipped during playback.

Press [DVD] first.

1Follow the steps 1 to 3 in “Editing

Title Name” on page 77.

2Select “Hide Chapter” using [U\D],

then press [ENTER].

3Use [SKIP H\G], [PLAY B] and

[PAUSE F] to decide the chapter to

be hidden.

HDD : 99 chapters per title

VR mode DVD : 999 chapters per entire Playlist

and Original

+VR mode DVD : 254 chapters per disc, 99

chapters per title

DVD-RWDVD-RW

Video

1:25:47

Video

3/03/08 18:00 22 SP

Edit

Edit Title Name

Chapter Mark

1:25:47

Video

3/03/08 18:00 22 SP

Edit - Chapter Mark

OFF

5 minutes

10 minutes

15 minutes

30 minutes

60 minutes

DVD+RWDVD+RW D

VD+R

DVD+R

Introduction Connections Basic Setup Playback Editing OthersFunction SetupRecording VHS Functions

E3NG0FD_EN.book Page 79 Wednesday, January 30, 2008 10:37 AM

80 EN

4Select “Hidden” using [U\D], then

press [ENTER].

5Press [RETURN].

6Press [RETURN] again and then

[RETURN] or [STOP C] to exit.

Writing onto the disc starts.

It may take awhile to write the data on a disc.

If you want hidden chapters to be “Visible”,

select the chapter to be shown. Then use

[U\D] to select “Visible” at the step 4 on this

page.

Data will be written onto the disc momentarily.

Note

• “Hidden” will be displayed in the preview window

while previewing the hidden chapter.

• When you make all chapters in the title “Hidden”,

“Hidden” is displayed in a thumbnail of the title list.

Protecting Titles

To prevent the accidental editing or erasing of the

titles, you can protect them in the Original menu.

If you edit the HDD, press [HDD] first.

If you edit a disc, press [DVD] first.

1Follow the steps 1 to 3 in “Editing

Title Name” on page 77.

2Select “Protect” using [U\D], then

press [ENTER].

e.g.) VR mode DVD-RW disc Original

3Press [ENTER] again.

For DVD, writing onto the disc starts.

It may take awhile to write the data on a disc.

• If the title is already protected, “ON A OFF” will

appear instead. Press [ENTER], to release the

title from protection.

• The protected title will be marked with icon.

4Press [RETURN] and then [RETURN]

or [STOP C] to exit.

For DVD, writing onto the disc starts.

It may take awhile to write the data on a disc.

To protect a whole disc

(VR mode DVD-RW and DVD+RW/+R discs

only):

Select “Disc Protect OFF A ON” from the Disc

Menu, then select “Yes”. Refer to “Setting a Disc

to Protect” on page 58.

Dividing a Title

You can divide a title into two new titles.

If you edit the HDD, press [HDD] first.

If you edit a disc, press [DVD] first.

1Follow steps 1 to 3 in “Editing Title

Name” on page 77.

2Use [SKIP H\G], [REV E],

[FWD D], [PLAY B] and [PAUSE F]

to find where you want to divide the

title.

3Select “Title Dividing” using [U\D],

then press [ENTER].

4Select “Yes” using [U\D], then

press [ENTER].

+VR

1 : 25 : 47

3/03/08 18:00 22 SP

3 / 5

Edit - Hide Chapter

Visible

Hidden

VisibleChapter

HDD

Original

DVD-RW

Original

1:25:47

ORG

3/03/08 18:00 22 SP

Edit

Scene Delete

Edit Title Name

Chapter Mark

Protect

ORG

1:25:47

3/03/08 18:00 22 SP

Edit - Protect

OFF ON

HDDHDD DVD-RW

DVD-RW

Playlist

DVD+RWDVD+RW

E3NG0FD_EN.book Page 80 Wednesday, January 30, 2008 10:37 AM

e.g.) VR mode DVD-RW disc Playlist

The title is divided into two new titles with the

same title names.

5Press [RETURN] or [STOP C] to exit.

For DVD, writing onto the disc starts.

It may take awhile to write the data on a disc.

Note

• You cannot divide a title of the disc when the number

of recording titles reaches the maximum of 600

(HDD), 99 (-RW) or 49 (+RW), or the number of

recording chapters reaches the maximum of 999

(-RW) or 254 (+RW).

• If there is not enough recordable space left in HDD,

you cannot divide a title of the HDD Original.

Combining Titles

You can combine two titles into a single title.

If you edit the HDD, press [HDD] first.

If you edit a disc, press [DVD] first.

1Follow steps 1 to 3 in “Editing Title

Name” on page 77.

2Select “Title Combining” using

[U\D], then press [ENTER].

3Select another title to combine using

[U\D\L\P], then press [ENTER].

4Select “Yes” using [U\D], then

press [ENTER].

The two titles will combine into a single title.

e.g.) VR mode DVD-RW disc Playlist

5Press [RETURN] or [STOP C] to exit.

For DVD, writing onto the disc starts.

It may take awhile to write the data on a disc.

Note

• You cannot select the same title twice and combine

it into a single title.

• If either one of the two original titles is deleted, the

combined new title is also deleted.

Adding Titles to a Playlist

For HDD and VR mode DVD-RW disc, you can add a

title to the Playlist as you want.

If you edit the HDD, press [HDD] first.

If you edit a disc, press [DVD] first.

1Follow the steps 1 to 2 in

“Deleting Titles” on page 76.

2Select “Add To Playlist” using

[U\D], then press [ENTER].

3Select “Yes” using [U\D], then

press [ENTER].

The title is added to Playlist.

4Press [RETURN] or [STOP C] to exit.

For DVD, writing onto the disc starts.

It may take awhile to write the data on a disc.

Hint

• To delete a title from the Playlist, refer to “Deleting

Titles” on page 76.

• When the number of the Playlist reaches its

maximum (refer to page 38), or when the number of

the total chapter marks of the Playlists reaches 999

(only for VR mode DVD-RW), “Add To Playlist”

cannot be selected.

For DVD+RW : Writing onto the disc starts.

It may take awhile to write

the data on a disc.

For HDD and VR

mode DVD-RW disc

: Proceed to step 5.

1:25:47

3/03/08 18:00 22 SP

Edit - Title Dividing

Yes

HDD

Playlist

DVD-RW

Playlist

1 / 6

1 + 2

4 5 6

2 3

03/01/08 12:00 901 LP

12:00(0:30:00)

03/01/08

901 LP

Combine selected titles?

Yes

Edit - Title Combining

1 / 6

4 5 6

2 3

01/01/08 12:00 901 LP

12:00 (2:30:00)

01/01/08

901 LP

Title List

HDD

Original

DVD-RW

Ori

inal

Play From Start

Edit

Title Delete

Add To Playlist

Dubbing

Introduction Connections Basic Setup Playback Editing OthersFunction SetupRecording VHS Functions

E3NG0FD_EN.book Page 81 Wednesday, January 30, 2008 10:37 AM

82 EN

Deleting All Playlists

All Playlists can be deleted if it is no longer needed.

1Press [SETUP].

2Select “DVD Menu” (for DVD) or

“HDD Menu” (for HDD) using

[U\D], then press [ENTER].

3Select “Delete All Playlists” using

[U\D], then press [ENTER].

e.g.) DVD

4Select “Yes” using [U\D], then

press [ENTER].

“Are you sure?” will appear. Select “Yes” using

[U\D], and then press [ENTER].

Playlist is deleted.

For DVD, writing onto the disc starts.

It may take awhile to write the data on a disc.

Note

• Deleting a Playlist will not increase the available

recording time on the disc.

Deleting Parts of Titles

You can delete a specific part of a title.

Even when a title is deleted from the Playlist, the

original title will remain as it is.

If you edit the HDD, press [HDD] first.

If you edit a disc, press [DVD] first.

1Follow the steps 1 to 3 in “Editing

Title Name” on page 77.

2Select “Scene Delete” using [U\D],

then press [ENTER].

e.g.) VR mode DVD-RW disc Playlist

3Use [SKIP H\G], [REV E],

[FWD D], [PLAY B] and [PAUSE F]

to find the start point, then press

[ENTER].

Then use [SKIP H\G], [REV E],

[FWD D], [PLAY B] and [PAUSE F]

again to move to the end point, and

press [ENTER].

HDDHDD D

VD-R

DVD-RW

Format

Finalise

Disc Protect OFF

Delete All Playlists

DVD Menu

Delete entire playlist?

Yes

HDDHDD D

VD-R

DVD-RW

1:25:47

3/03/08 18:00 22 SP

Scene Delete

Edit Title Name

Chapter Mark

Title Dividing

Title Combining

Edit

1:00:00

3/03/08 18:00 22 SP

Start

End

Preview

Delete

Edit - Scene Delete

1:15:00

3/03/08 18:00 22 SP

Edit - Scene Delete

Start

End

Preview

Delete

E3NG0FD_EN.book Page 82 Wednesday, January 30, 2008 10:37 AM

The cursor will move to “Preview”.

The bar at the bottom of the screen indicates the

total and the elapsed time of the title, and the area

selected for deletion is indicated in red.

You can check the preview by pressing [ENTER].

• Before and after 5 seconds of the deleted point

will be playback for preview.

4Select “Delete” using [U\D], then

press [ENTER].

5Select “Yes” using [U\D], then

press [ENTER].

“Are you sure?” will appear. Select “Yes” using

[U\D], and then press [ENTER].

The part of the title is deleted.

6Press [RETURN] and then [RETURN]

or [STOP C] to exit.

For DVD, writing onto the disc starts.

It may take awhile to write the data on a disc.

Note

• For VR mode DVD-RW disc, you cannot select

“Scene Delete” if the number of chapter marks in the

Original or Playlist is 999. (Depends on the content,

there is a case that you cannot select “Scene

Delete” before the number of chapter marks reaches

999.)

• When a scene is deleted from an original, the scene

on the Playlist will also be deleted.

Deleting All Titles in HDD

Press [STOP C] if you are playing back a disc.

1Press [SETUP].

2Select “HDD Menu” using [U\D],

then press [ENTER].

3Select the desired type of deletion

using [U\D], then press [ENTER].

Select “Delete All Titles” if you want to delete all

titles including the ones protected.

Select “Delete All Unprotected Titles” if you want

to delete only the unprotected titles.

Select “Delete All Playlists” if you want to delete

all Playlists.

4Select “Yes” using [U\D], then

press [ENTER].

“Are you sure?” will appear. Select “Yes” using

[U\D], and then press [ENTER].

Titles are deleted.

3/03/08 18:00 22 SP

1 : 40 : 00

Edit - Scene Delete

Start

End

Preview

Delete

3/03/08 18:00 22 SP

1:40:00

Edit - Scene Delete

Are you sure?

Yes

HDDHDD

Delete All Titles

Delete All Unprotected Titles

Delete All Playlists

HDD Menu

Delete entire titles?

Yes

Introduction Connections Basic Setup Playback Editing OthersFunction SetupRecording VHS Functions

E3NG0FD_EN.book Page 83 Wednesday, January 30, 2008 10:37 AM

84 EN

The following table is the contents which you can set and the default settings.

Refer to the following table for useful operation.

Function Setup

Setup Items (highlight is the default) Contents

General Setting

Playback Parental Lock

E Page 86 level 1 to 8

Set the parental level for DVD disc playback.

Audio Out

E Pages 86-

Dynamic Range

Control OFF

Compressing the range of sound volume.

PCM

96kHz

Set whether the sound recorded in 96kHz will be

down sampled to 48kHz.

Dolby Digital PCM Set whether to convert Dolby Digital into PCM or

to output Dolby Digital signals.

MPEG

Stream

Set whether to convert MPEG into PCM or to

output MPEG signals.

DTS

OFF

Set whether DTS signal is output or not.

Disc Menu Language

E Page 87 English

Spanish

German

Italian

Other

Set the language for Disc Menu.

Audio Language

E Page 87 French

English

Spanish

German

Italian

Other

Set the language for audio.

Subtitle Language

E Page 88 French

English

Spanish

German

Italian

Other

Set the language for subtitles.

Angle Icon

E Page 88 OFF

Set whether or not to display the angle icon.

Still Mode

E Page 88 Field

Frame

Set the type of still image in pausing playback.

Variable Skip / Replay

E Page 88

Variable Skip

5 seconds

15 seconds

1 minute

5 minutes

Set the amount of skip time when you press

[VARIABLE SKIP].

Variable Replay

5 seconds

15 seconds

1 minute

5 minutes

Set the amount of rewind time when you press

[VARIABLE REPLAY].

TV System

E Page 88 Auto

Set the TV system.

Display OSD Language

E Page 89 English

Español

Deutsch

Italiano

Set the language for OSD (on-screen display).

Screen Saver

E Page 89

OFF

5 minutes

15 minutes

30 minutes

Set the idling time before the screen saver starts.

FL Dimmer

E Page 89

Auto

Dark

Set the brightness of the Front Panel Display.

Video TV Aspect

E Page 90

4:3 Letter Box

4:3 Pan & Scan

Set a picture size according to aspect ratio of

your TV.

Video Out

E Page 90 Component

(Progressive)

Component

(Interlace)

Sets the video output mode.

All

48kHz

Stream

PCM

French

Original

OFF

Auto

30 seconds

PA L

Français

10 minutes

Bright

16:9 Wide

SCART (RGB)

E3NG0FD_EN.book Page 84 Wednesday, January 30, 2008 10:37 AM

Note

• Your change to each settings stays on even when the power is switched off.

• An item which is not currently available is grayed in the settings.

General Setting

Recording Auto Chapter

E Page 40

OFF

5 minutes

10 minutes

30 minutes

60 minutes

Insert chapter marks periodically.

Recording Audio Select (XP)

E Page 42

PCM Set the recording audio type. (Only when the

recording mode is set to “XP”.)

Auto Finalise

E Page 59

ON Set the unit to finalise the disc automatically.

Aspect Ratio (Video mode)

E Page 40 4:3

16:9

Set a aspect ratio for Video mode recording.

Make Recording Compatible

E Page 39

ON Set to prohibiting additional recording (OFF) or to

replace the title list after recording (ON).

Bilingual Recording Audio

E Page 42 Sub

Set the audio type for recording.

External Input Audio

E Page 41 Bilingual

Set the external input audio type for recording.

Video Colour System

E Page 50

PAL

SECAM

Set the video colour system to “PAL” or “SECAM”

automatically.

Set the video colour system to “PAL”.

Set the video colour system to “SECAM”.

Clock Auto Clock Setting

E Page 36 OFF

Set the clock automatically.

Clock Setting

E Page 36

Set the clock manually.

Channel Country

E Page 28 Spain

Germany

Italy

Switzerland

Set the DVB channels to Channel Plan of each

country.

Auto Tuning (DVB & ANALOG)

E Page 25

Tune the DVB and analogue channels

automatically.

DVB Channel

Setup

Edit Channels

E Page 29

Lock the DVB channels, edit the favourite lists.

Auto Tuning

E Page 27

Tune the DVB channels automatically.

Manual Tuning

E Page 28

Tune the DVB channels manually.

Signal

Information

E Page 31

Display the detailed information of the current

DVB channel.

ANALOG

Channel Setup

Auto Tuning

E Page 25

Tune the analogue channels automatically.

Manual Tuning

E Page 26

Tune the analogue channels manually.

Move

E Page 27

Move the analogue channels to different position.

DivX DivX®VOD

E Page 62

Provide DivX®VOD registration code.

DivX Subtitle

E Page 91 English

French

Spanish

German

Italian

Swedish

Dutch

Russian1

Russian2

Hungarian

Polish

Czech

Hebrew

Set the language for DivX® Subtitle.

HDMI Format

E Page 91 YCbCr

Set the colour space for the HDMI output.

HDMI Audio

E Page 91 OFF

Set whether to output the HDMI audio signal or

not.

RGB Range

E Page 92 Enhanced

Set the black-white contrast level for HDMI RGB

output.

Reset All

E Page 92

Set to the default setting.

Setup Items (highlight is the default) Contents

15 minutes

Dolby Digital

OFF

Auto

OFF

Main

Stereo

Auto

France

OFF

RGB

Normal

Introduction Connections Basic Setup Playback Editing OthersFunction SetupRecording VHS Functions

E3NG0FD_EN.book Page 85 Wednesday, January 30, 2008 10:37 AM

86 EN

Playback

1In stop mode, press [SETUP]. Select

“General Setting” using [U\D],

then press [ENTER].

2Select “Playback” using [U\D],

then press [ENTER].

3Select a desired item using [U\D],

then press [ENTER].

4Refer to 1. to 9. on pages 86 to 88 and

set the selected item.

5When you finish with the setting,

press [SETUP] to exit.

1. Parental Lock (Default: All) (DVD only)

Set “Parental Lock” level.

Change “Parental Lock” level using

[U\D], then press [ENTER].

Proceed to either of the following steps.

Parental level

Note

• “Parental Lock” function may not be available on

some discs.

• It may be difficult to determine if some DVDs

support the parental lock function. Be sure to

confirm that “Parental Lock” function operates in the

way that you have set.

• Record the password in case you forget it.

Select “Yes” using [U\D], then

press [ENTER]. Enter a new

password using

[the Number buttons], then press

[ENTER].

Your setting is activated.

If you select “No”, press [SETUP] to exit.

Enter the current password using

[the Number buttons].

If you want to change the password, select “Yes”

using [U\D], then press [ENTER].

Enter a new password using

[the Number buttons], then press

[ENTER].

Your setting is activated.

Note

•Press [CLEAR] to erase numbers entered

incorrectly.

• If you forget your password or you want to clear all

settings in “Parental Lock”, enter [4], [7], [3], [7]

using [the Number buttons] at the option window.

Your password is cleared and parental levels are set

to “All”.

2. Audio Out

Choose the appropriate audio setting for your

external device.

It will only affect a disc playback.

Select a desired item using [U\D],

then press [ENTER].

All: All parental locks are cancelled.

8: DVD software of any grade (adult / general

/ children) can be played back.

7 to 2: Only DVD software intended for general

use and children can be played back.

1: Only DVD software intended for children

can be played back.

Playback

Display

Video

Recording

Clock

Channel

DivX

HDMI

Reset All

General Setting

Parental Lock

Audio Out

Disc Menu Language

Audio Language

Subtitle Language

Angle Icon

Still Mode

Variable Skip / Replay

TV System

Parental Lock

All

A password is not yet set

A password is already set

Change Password?

Yes

Password Input

Ye s

Password Input

Change Password?

Yes

Password Input

Audio Out

Dynamic Range Control

PCM

Dolby Digital

MPEG

DTS

E3NG0FD_EN.book Page 86 Wednesday, January 30, 2008 10:37 AM

Set to “ON” to make the dynamic range narrower.

Select a setting using [U\D], then

press [ENTER].

Your setting is activated.

“Dynamic Range Control” function is effective only

with analogue audio connection.

Note

• “Dynamic Range Control” function is available only

on discs recorded in the Dolby Digital format.

Select a setting using [U\D], then

press [ENTER].

Your setting is activated.

Note

When playing back a disc with copyright protection:

• Even if you select “96kHz”, the sound is down

sampled to 48 kHz.

Select a setting using [U\D], then

press [ENTER].

Your setting is activated.

Hint

When playing back a DVD-RW disc recorded in VR

mode:

• If the audio source on a disc is in Dolby Digital

format, set “Dolby Digital” to “PCM” so that you can

switch to main audio (L), sub audio (R), or a

combination of both (L / R) using your amplifier /

decoder.

Select a setting using [U\D], then

press [ENTER].

Your setting is activated.

Select a setting using [U\D], then

press [ENTER].

Your setting is activated.

3. Disc Menu Language (Default: French)

(DVD only)

Set “Disc Menu Language”.

Select a setting using [U\D], then

press [ENTER].

Your setting is activated.

4. Audio Language (Default: Original)

(DVD only)

Set “Audio Language”.

Select a setting using [U\D], then

press [ENTER].

Your setting is activated.

If “Original” is selected, the audio language is the

default of the inserted disc.

Dynamic Range Control (Default: ON)

(DVD only)

PCM sampling (Default: 48kHz)

48kHz: If your amplifier / decoder is NOT

compatible with 96 kHz PCM, select

“48kHz”. Sound recorded at 96 kHz is

down sampled to 48 kHz.

96kHz: If your amplifier / decoder is compatible

with 96 kHz PCM, select “96kHz”. Sound

is sampled at 96 kHz.

Dolby Digital conversion (Default: Stream)

PCM: Converts the Dolby Digital into PCM

(2 channel).

If your amplifier / decoder is NOT

compatible with Dolby Digital, set to

“PCM”.

Stream: Outputs Dolby Digital signals.

If your amplifier / decoder is compatible

with Dolby Digital, set to “Stream”.

Dynamic Range Control

OFF

PCM

48kHz

96kHz

Dolby Digital

PCM

Stream

Settings for MPEG (Default: PCM) (DVD only)

PCM: Converts MPEG into PCM.

If your amplifier / decoder is NOT

compatible with MPEG, set to “PCM”.

Stream: Outputs MPEG Audio signals.

If your amplifier / decoder is compatible

with MPEG, set to “Stream”.

Settings for DTS (Default: ON) (DVD only)

ON: Outputs DTS signals.

If your amplifier / decoder is compatible

with DTS, set to “ON”.

OFF: No DTS signal is output.

If your amplifier / decoder is NOT

compatible with DTS, set to “OFF”.

MPEG

PCM

Stream

DTS

OFF

Disc Menu Language

French

English

Spanish

German

Italian

Other

Audio Language

Original

French

English

Spanish

German

Italian

Other

Introduction Connections Basic Setup Playback Editing OthersFunction SetupRecording VHS Functions

E3NG0FD_EN.book Page 87 Wednesday, January 30, 2008 10:37 AM

88 EN

5. Subtitle Language (Default: OFF)

(DVD only)

Set “Subtitle Language”.

Select a setting using [U\D], then

press [ENTER].

Your setting is activated.

If “Other” is selected, enter the

appropriate 4-digit code using

[the Number buttons].

Refer to “Language Code” on page 101.

When you finish entering the code,

press [ENTER].

Hint

• You can also change or switch off the subtitles on a

DVD from the disc menu if it is available.

•Press [CLEAR] or [L] to erase numbers entered

incorrectly.

Note

• You can only select the languages supported by the

inserted disc.

• “Audio Language” setting may not be available for

some discs.

6. Angle Icon (Default: ON) (DVD only)

Set “Angle Icon”.

Select a setting using [U\D], then

press [ENTER].

Your setting is activated.

7. Still Mode (Default : Auto) (DVD only)

Select a setting using [U\D], then

press [ENTER].

Your setting is activated.

Note

• An individual picture on TV screen is called as

Frame, which consists of two separate images

called as Field. Some pictures may be blurred at the

“Auto” setting in still mode due to their data

characteristics.

8. Variable Skip / Replay

Assign [VARIABLE SKIP] or

[VARIABLE REPLAY] to skip or rewind by a

certain amount of time when they are pressed.

Select a desired item using [U\D], then

press [ENTER].

Refer to the explanations below and set the

selected item.

A : Variable Skip (Default: 30 seconds)

Sets the amount of skip time for

[VARIABLE SKIP].

B : Variable Replay (Default: 30 seconds)

Sets the amount of rewind time for

[VARIABLE REPLAY].

9. TV System (Default : PAL) (DVD only)

Select a setting using [U\D], then press

[ENTER].

Your setting will be activated.

Note

• With discs recorded using the PAL system, a PAL

signal is output for viewing on a PAL system TV.

• Discs recorded with the PAL system cannot be

viewed on an NTSC system TV.

• With discs recorded using the NTSC system, an

NTSC signal is output for viewing on an NTSC or

Multi system TV.

• With discs recorded using the NTSC system, select

PAL to view on a PAL system TV.

Auto: Automatically select the best resolution

setting (“Frame” or “Field”) based on the

data characteristics of the pictures.

Field: Select “Field” when the pictures are still

unstable even if “Auto” is selected. “Field”

stabilises the pictures, although the picture

quality may become coarse due to the

limited amount of data.

Subtitle Language

OFF

French

English

Spanish

German

Italian

Other

----

Code Input

Angle Icon

OFF

Still Mode

Auto

Field

Frame

Frame: Select “Frame” to display relatively

motionless pictures in higher resolution.

“Frame” improves the picture quality,

although it may unstabilise the pictures

due to simultaneous output of two Field

data.

PAL: Outputs a modified PAL signal for viewing

discs recorded with the NTSC system on a

PAL system TV.

Auto: Changes the video system (PAL / NTSC)

automatically according to the format of

the inserted disc.

Variable Skip / Replay

Variable Skip

Variable Replay

Variable Skip

5 seconds

15 seconds

30 seconds

1 minute

5 minutes

Variable Replay

5 seconds

15 seconds

30 seconds

1 minute

5 minutes

TV System

PAL

Auto

E3NG0FD_EN.book Page 88 Wednesday, January 30, 2008 10:37 AM

Display

1In stop mode, press [SETUP]. Select

“General Setting” using [U\D],

then press [ENTER].

2Select “Display” using [U\D], then

press [ENTER].

3Select the desired item using

[U\D], then press [ENTER].

4Refer to 1. to 3. on this page and set

the selected item.

5When you finish with the setting,

press [SETUP] to exit.

1. OSD Language (Default: Français)

Set the OSD language.

Select a language using [U\D],

then press [ENTER].

2. Screen Saver (Default: 10 minutes)

Set the screen saver time delay.

Select a setting using [U\D], then

press [ENTER].

Your setting is activated.

3. FL Dimmer (Default: Bright)

Set the front panel display brightness.

Select a setting using [U\D], then

press [ENTER].

You can choose one from “Auto”, “Bright” or

“Dark”.

If “Auto” is selected, the display gets dark when

the power is off.

Playback

Display

Video

Recording

Clock

Channel

DivX

HDMI

Reset All

General Setting

OSD Language

Screen Saver

FL Dimmer

Langue Aff. écran

Français

English

Español

Deutsch

Italiano

Screen Saver

OFF

5 minutes

10 minutes

15 minutes

30 minutes

FL Dimmer

Auto

Bright

Dark

Introduction Connections Basic Setup Playback Editing OthersFunction SetupRecording VHS Functions

E3NG0FD_EN.book Page 89 Wednesday, January 30, 2008 10:37 AM

90 EN

Video

1In stop mode, press [SETUP]. Select

“General Setting” using [U\D],

then press [ENTER].

2Select “Video” using [U\D], then

press [ENTER].

3Select the desired item using

[U\D], then press [ENTER].

4Refer to 1. and 2. on this page and set

the selected item.

5When you finish with the setting,

press [SETUP] to exit.

1. TV Aspect (Default: 16:9 Wide)

You can select the TV aspect ratio to match the

formats of what you are playing back with the unit and

your TV screen (4:3 standard or 16:9 widescreen TV).

Select the desired setting using

[U\D], then press [ENTER].

If you have a standard TV:

Select “4:3 Letter Box”, so that black bars appear on

the top and bottom of the TV screen when playing

back a wide-screen picture. Select “4:3 Pan & Scan”

for a full height picture with both sides trimmed when

playing back wide-screen picture.

If you have a widescreen TV:

Select “16:9 Wide”.

2. Video Out (Default: SCART (RGB))

This unit is compatible with the Progressive Scan

System. The feature provides you with the higher

definition images than the traditional output system

does. You can enjoy Progressive Scan image by using

HDMI OUT or COMPONENT VIDEO OUT. To utilise

the Progressive Scan system through the

COMPONENT VIDEO OUT, you must set Video

Output mode in “Setup” menu by following the steps

on right. “SCART (RGB)” is selected as the default.

• When you set the “Video Out” setting, make sure

that the AV1 (TV) Scart socket is connected to your

TV with Scart cable.

1Select the desired setting using

[U\D], then press [ENTER].

• If your TV is compatible with progressive

scanning (576p/480p), connect the TV to the

COMPONENT VIDEO OUT jacks of this unit

and select “Component (Progressive)” and set

your TV to the progressive scan mode.

• If your TV is not compatible with progressive

scan, select “Component (Interlace)” for

component connection, or select

“SCART (RGB)” for Scart cable connection.

• Refer to pages 20 to 21 for more details.

Only if you select the “Component (Progressive)”,

proceed to step 2. If you select “Component

(Interlace)” or “SCART (RGB)”, your setting is

activated.

2Use [L\P] to select “Yes”. Press

[ENTER].

Final confirmation window will appear.

3Use [U\D] to select “Yes”. Press

[ENTER] within 15 seconds.

Your setting is activated.

Note

• When changing “Video Out” setting

(“SCART (RGB)”, “Component (Interlace)” or

“Component (Progressive)”), connect to the

corresponding jack on the TV. If the setting is

changed, for example, to “SCART (RGB)” while the

COMPONENT VIDEO OUT jacks are used to

connect to the TV, a distorted video signal may be

output.

Playback

Display

Video

Recording

Clock

Channel

DivX

HDMI

Reset All

General Setting

TV Aspect

Video Out

TV Aspect

4:3 Letter Box

4:3 Pan & Scan

16:9 Wide

Video Out

SCART (RGB)

Component (Progressive)

Component (Interlace)

Activating progressive scan:

Check your TV has progressive scan

and connect with component video cable.

NOTE:

If there is no picture or picture is

distorted after selecting “Yes”,

wait about 15 seconds for autorecovery.

Activate? Yes No

Confirm again to use progressive scan.

If picture is good, select “Yes”.

Yes

E3NG0FD_EN.book Page 90 Wednesday, January 30, 2008 10:37 AM

DivX®

1In stop mode, press [SETUP]. Select

“General Setting” using [U\D],

then press [ENTER].

2Select “DivX” using [U\D], then

press [ENTER].

3Select the desired item using

[U\D], then press [ENTER].

For “DivX®VOD”, refer to page 62 in details.

DivX Subtitle (Default: OFF)

Select the desired setting using

[U\D], then press [ENTER].

4When you finish with the setting,

press [SETUP] to exit.

HDMI

1In stop mode, press [SETUP]. Select

“General Setting” using [U\D],

then press [ENTER].

• Make sure that the HDMI cable is connected and the

TV input is set to HDMI.

2Select “HDMI” using [U\D], then

press [ENTER].

3Select the desired item using

[U\D], then press [ENTER].

4Refer to 1. to 3. on pages 91 to 92 and

set the selected item.

5When you finish with the setting,

press [SETUP] to exit.

1. Format (Default: RGB)

You can select the colour space for HDMI output.

Set the appropriate colour space for your display

device.

Select a setting using [U\D], then

press [ENTER].

• When the connected device is not compatible with

the Y/Cb/Cr, HDMI signal is output as RGB

regardless of the setting.

Your setting is activated.

2. HDMI Audio (Default: ON)

If you do not want to output the audio through HDMI

(when you digitally output the audio through the

DIGITAL AUDIO OUT (COAXIAL) jack to your audio

system, etc.), you can set the HDMI audio output off.

Select a setting using [U\D], then

press [ENTER].

• Set to “OFF” when the HDMI sound is not output.

Your setting is activated.

Playback

Display

Video

Recording

Clock

Channel

DivX

HDMI

Reset All

General Setting

DivX

VOD

DivX Subtitle

OFF

English

French

Spanish

German

Italian

Swedish

Playback

Display

Video

Recording

Clock

Channel

DivX

HDMI

Reset All

General Setting

Format

HDMI Audio

RGB Range

Format

RGB

YCbCr

HDMI Audio

OFF

Introduction Connections Basic Setup Playback Editing OthersFunction SetupRecording VHS Functions

E3NG0FD_EN.book Page 91 Wednesday, January 30, 2008 10:37 AM

92 EN

3. RGB Range (Default: Normal)

You can adjust the RGB range to make the dark areas

of the HDMI images brighter.

Select a setting using [U\D], then

press [ENTER].

• Select “Enhanced” if the black-white contrast is not

clear.

• This setting is effective only for HDMI RGB output.

Your setting is activated.

Reset All

1In stop mode, press [SETUP]. Select

“General Setting” using [U\D],

then press [ENTER].

2Select “Reset All” using [U\D],

then press [ENTER].

3Select “Yes” using [U\D], then

press [ENTER].

“Are you sure?” will appear. Select “Yes” using

[U\D], and then press [ENTER].

4When you finish with the setting,

press [SETUP] to exit.

Note

• The settings listed below will remain unchanged

even after resetting to the factory default.

- Clock setting

- Channel setting

- Parental lock setting

-DivX

®VOD code

- Timer Programmes

RGB Range

Normal

Enhanced

Playback

Display

Video

Recording

Clock

Channel

DivX

HDMI

Reset All

General Setting

Reset to factory default?

Yes

E3NG0FD_EN.book Page 92 Wednesday, January 30, 2008 10:37 AM

Playback

1Press [BON\STANDBY] to turn on

the unit.

To play back a tape, turn on the TV and be sure to

select the input to which the unit is connected.

2Press [VCR].

3Insert a pre-recorded tape, then

press [PLAY B] to begin playback.

4During playback, press [PAUSE F].

Playback will be paused and sound will be muted.

5Press [PLAY B] to resume playback.

6Press [STOP C] to stop playback.

7Press [OPEN\CLOSE A] to eject the

tape.

Note

• When a tape without record tab is inserted, the unit

will start playback automatically.

• Tracking will be automatically adjusted upon

playback. To adjust the tracking manually,

press [PROG. G\H].

Recording and One-touch Timer

Recording (OTR)

Basic Recording

Before recording, make sure:

• The desired channel is selected by pressing

[the Number buttons] or [PROG. G\H] on the

remote control.

• There is a tape with a record tab in the unit.

1Turn on the unit and insert a

recordable videotape.

Make sure that the TV input is set on the unit.

2Press [VCR].

3Select the recording mode using

[REC MODE].

• The desired recording mode is selected in SP

(standard play) or LP (long play) mode by

pressing [REC MODE].

4Select the desired channel to record

using [PROG. G\H] or

[the Number buttons].

5Press [REC I] to start recording.

To temporarily stop recording or to resume it,

press [PAUSE F].

After the unit has been in pause mode for 5

minutes, it will stop automatically to protect the

tape and the video head from damage.

6Press [STOP C] when the recording

is completed.

VHS Functions

VHS

Tape speed Recording / Playback Time

Type of tape E60 E120 E180 E240

SP mode 1 hour 2 hours 3 hours 4 hours

LP mode 2 hours 4 hours 6 hours 8 hours

VHS

Introduction Connections Basic Setup Playback Editing OthersFunction SetupRecording VHS Functions

E3NG0FD_EN.book Page 93 Wednesday, January 30, 2008 10:37 AM

94 EN

Accidental erasure prevention

To prevent accidental recording on a recorded

cassette, remove its record tab. To record on it later,

cover the hole with cellophane tape.

One-touch Timer Recording

This feature allows you to set the recording length

simply by pressing [REC I].

1Turn on the unit and insert a

recordable videotape.

Make sure that the TV input is set on the unit.

2Press [VCR].

3Select the recording mode using

[REC MODE]. (See page 93.)

4Select the desired channel to record

using [PROG. G\H] or

[the Number buttons].

5Press [REC I] repeatedly until the

desired recording time (30 minutes

to 8 hours) appears on the TV

screen.

One-touch Timer Recording will start.

• When the unit reaches the specified time, it will be

turned off automatically.

• To change the recording length during One-touch

Timer Recording, press [REC I] repeatedly until

desired length appears.

• To cancel One-touch Timer Recording within the

specified time, press [STOP C].

Hint

• The remaining recording time will appear on the TV

screen during One-touch Timer Recording. Press

[DISPLAY] to see it on the TV screen.

Note

• If VHS One-touch Timer Recording is completed

during HDD/DVD playback or recording, the VHS

will be in stop mode and the HDD/DVD keeps the

current mode.

• You cannot use the pause function during One-

touch Timer Recording.

• When One-touch Timer Recording is finished and

the power is turned off, the unit will switch to the

timer-standby mode automatically if a timer

recording has been programmed.

DVC to VHS Dubbing

This function helps you to dub the contents in the

DVC (digital video camcorder) to VHS.

Preparing for DV dubbing (DVC to VHS):

• Insert a recordable videotape.

• Make sure your DVC is in video mode.

1Press [VCR].

2Select “DV” channel using

[INPUT SELECT F] or

[PROG. G\H].

3Select the recording mode using

[REC MODE]. (See page 93.)

4Stop or pause the DVC where you

want to start dubbing.

5Play back the DVC.

6Press [REC].

The dubbing will start.

Note

• Dubbing will start from where the tape is stopped.

Index Search

1Press [VCR].

2Press [SEARCH] so that the index

search menu appears.

3Enter the number of recordings you

want to skip using

[the Number buttons] within 30

seconds.

4Press [FWD D] or [REV E] to start

index search.

If you want to go in the forward direction, press

[FWD D].

If you want to go in the reverse direction, press

[REV E].

After index search, the VHS will play back the

tape automatically.

Note

• This function is not available during recording.

• Every time a tape is recorded, an index mark is

written on the tape.

• You can make the index mark up to 20.

Record tab

VHS

0:30

8:00 7:30

1:00

Normal Recording

VHS

E3NG0FD_EN.book Page 94 Wednesday, January 30, 2008 10:37 AM

Time Search

This feature allows you to go to a specific point on a

tape by entering the exact amount of time you want to

skip in order to reach the point.

1Press [VCR].

2Press [SEARCH] repeatedly until the

time search menu appears.

3Enter your desired time to skip using

[the Number buttons] within 30

seconds.

4Press [FWD D] or [REV E] to start

time search.

If you want to go in the forward direction, press

[FWD D].

If you want to go in the reverse direction, press

[REV E].

After index search, the unit will play back the tape

automatically.

Note

• This function is not available during recording.

•Press [STOP C] to stop the search.

• If the tape reaches the end during the search, this

unit will cancel it and rewind the tape.

• You can set the time up to 9:59.

Other Operations

Press [VCR] first.

To cue or review picture during playback

(Picture Search):

Press [FWD D] or [REV E] during playback.

Press it again and the unit will search in super high

speed (in the LP mode only).

To freeze the picture on TV screen during

playback (Still mode):

Press [PAUSE F]. Each time you press the button,

the picture will be forwarded frame by frame.

If the picture begins to vibrate vertically during the still

mode, stabilise the picture by pressing the

[PROG. G\H]. If the picture is distorted or rolling

vertically, adjust the vertical hold control on your TV, if

equipped.

To reset the tape counter:

Press [CLEAR].

To play back in slow forward motion:

During playback, press [PAUSE F], then press

[FWD D].

If the noise bars appear on the TV screen, you can

reduce it by pressing [PROG. G\H]. Slow reverse

is not available in VHS mode.

Note

• Still / Slow / Pause mode will be automatically

cancelled after 5 minutes to prevent damage to the

tape and the video head.

• To return to normal play back from the Picture

Search / Still / Slow mode, press [PLAY B].

Changing the Video Colour

System

Different countries use different television colour

systems.

This unit will distinguish the video colour system

(SECAM, PAL or MESECAM) automatically according

to the format of a pre-recorded video tape during

playback or the input signal from the tuner or external

devices.

To change the video colour system manually, press

[MODE].

Each time you press [MODE], the colour system will

change as follows.

Note

• If the playback picture on the TV screen is black and

white, change the video colour system manually.

• When you change the video colour system

manually, be sure to change it before recording. If

you select the wrong video colour system for

recording, the colour of the picture may be

deteriorated.

Hi-Fi Stereo Sound System

This unit will record and playback Hi-Fi stereo sound.

In addition, it has an A2 and NICAM stereo sound

decoder. This unit will receive stereo and bilingual

broadcasts and it is possible to record in several ways

and to play back the sound.

Selecting the Sound Mode

You can select each mode by pressing [AUDIO D]

on the remote control. Each mode is indicated on the

TV screen as following.

• During playback of the recorded tape in Hi-Fi mode

• During reception of bilingual broadcasts

Note

• If you play back non-Hi-Fi tapes, the unit will play

back automatically in monaural even if you select

any mode.

• If the stereo signal becomes weak, the broadcast is

automatically recorded in monaural.

VHS

Mode Audio output Display on

the TV screen

Stereo Stereo STEREO

L L audio from both speakers LEFT

R R audio from both speakers RIGHT

Normal Monaural MONO

Mode Audio output Display on

the TV screen

Main Main audio from the both

speakers Main

Sub Sub audio from the both

speakers Sub

Main /

Sub

• Main audio from the left

speaker

• Sub audio from the right

speaker

Main

Sub

AUTO SECAM PAL MESECAM

Introduction Connections Basic Setup Playback Editing OthersFunction SetupRecording VHS Functions

E3NG0FD_EN.book Page 95 Wednesday, January 30, 2008 10:37 AM

96 EN

Troubleshooting

Before requesting service for this unit, check the table below for a possible cause of the problem you are

experiencing. Some simple checks or a minor adjustment on your part may eliminate the problem and restore

proper operation.

Others

Symptom Remedy

POWER

The power does not turn on. • Check that the AC power cord is connected securely.

• Batteries of the remote control are weak.

The unit turns on automatically without any

operation.

• The unit turns on automatically 2 seconds before the timer recording.

GENERAL

The unit does not function. • “ ” or error message appears if the operation is prohibited.

• Batteries of the remote control are weak or exhausted.

No picture, sound or menu appears on the

screen.

• Check if the connections are made securely and correctly.

• Check if the cables are damaged.

• Check if a correct external input channel is selected on your TV.

(See page 22.)

• Check if you have completed “Channel” setting. (See pages 25-31.)

“Clock” setting and “Channel” setting cannot

be performed.

• If a recording is in progress, these operations cannot be performed.

The unit does not operate properly. • Moisture has condensed inside the unit. Remove the disc and leave the

unit turned on for about 2 hours until the moisture evaporates.

(See page 3.)

The clock display does not appear on the

front panel display.

• Check that the AC power cord is connected securely.

• (In case of power failure) Check the breaker and “Clock” setting.

When you forget the password for parental

lock.

• Please cancel the password and the set level. (See page 86.)

DV signal cannot be input. • Before connection, turn on the power supplies for both this unit and the

DVC, and make sure that these units have stopped.

• Only a “DVC-SD” signal can be input from the DVC to this unit. Other

types of signals are not supported.

• Do not connect any device other than the DVC. Even if a recorder or PC

with another DV terminal is connected, the DV function will not operate.

• If the DVC is not recognised after connection, turn off the power supply

for the unit and re-connect the DVC.

The DVC cannot be operated with this unit. • Signal input or DVC operation from this unit may be disabled depending

on the type of DVC.

• If a DVC signal cannot be input, use an external input (AV2/AV3) for

analogue connection via audio/video cables. Use Scart adaptor for

connecting to AV2.

• DVC control may be disabled depending on the type of DVC, even in a

mode other than camera mode. In this case, switch to DVD control and

execute the normal recording procedure while operating the DVC.

Certain functions of the DVC cannot operate. • Some functions may not operate depending on the type of DVC. For

example, if the DVC does not support slow playback mode, the slow

playback function is disabled.

• With DV (AV4), the disc display menu does not appear unless disc

playback is executed.

DV audio signal cannot be switched. • For recording with the DVC, the recording audio signal can be set to 12

bits or 16 bits. However, when 16-bit recording mode is selected, audio

signal cannot be switched. To record an audio signal, set it to 12 bits.

No image from HDMI connection. • Check the HDMI connection. (Check the status of the HDMI related

indications.)

• Check whether the connected monitor device or other device supports

HDCP. (This unit will not output a video signal unless the other device

supports HDCP.)

• Check the setting of HDMI.

• Check whether the output format of this unit (HDMI FORMAT) matches

the supported input format of other connected device.

• If the unit is connected to the unauthorised display device with an HDMI

cable, the audio and video signals may not be output when playing back

a commercial DVD-video.

E3NG0FD_EN.book Page 96 Wednesday, January 30, 2008 10:37 AM

Symptom Remedy

CHANNEL

TV channels cannot be changed. • Check if the connections are made securely and correctly.

• Check if the cables are damaged.

• Try “Channel” setting by following the steps on pages 25-31.

Only specific channels do not appear. • The channels may be set to be skipped. (See page 26.)

The external input channels (such as AV2 or AV3)

cannot be skipped.

• This unit does not skip the external input channels. This is not a

malfunction.

RECORDING

GENERAL

The image from the external device cannot be

displayed.

• Try pressing [INPUT SELECT F] repeatedly.

• Turn on all connected devices.

• Check if the connections are made securely and correctly.

HDD / DVD

Recording is impossible. • It is prohibited to make a recording from 2 minutes before the

programmed start time of a timer recording.

• This unit cannot record programmes that contain copy protection signal.

This is not a malfunction.

• The space of the recording media may be used up. Try deleting

unnecessary titles, or exchange it with the recordable media.

• The maximum number of titles or chapters has exceeded. Delete the

unnecessary titles to make enough space or insert a new recordable

media.

• Check if the connections are made securely and correctly.

Timer recording cannot be performed. • The internal clock of the unit may have been stopped due to a power

failure that lasted for more than 30 seconds. Reset the clock. (See page

36.)

DVD

Recording is impossible. • Check if the disc is CPRM compatible. Copy-once programmes can only

be copied onto the disc which is CPRM compatible.

• Check if the disc is protected or finalised. Undo the protection or the

finalisation.

• Video mode DVD-RW once formatted in other unit cannot be recorded in

this unit unless formatted in this unit.

• Check if the connections are made securely and correctly.

“Repairing” appears on the TV screen. • If there is a power failure or unplugging during recording, finalising,

formatting or editing (even after “Repairing” disappears), a repairing

process will begin automatically just after turning the unit on again.

• It may take several minutes up to about several hours.

In a case you intend to cancel the repairing

process.

• If you intend to cancel the repairing process, press [AOPEN\CLOSE]

on the front panel, then select “Yes” and press [ENTER]. After that, press

[OPEN\CLOSE A] to take out the disc. The disc cancelled during the

repairing process MAY NOT work.

The indication

“ ” does

not disappear.

• “ ” may remain on screen for the

maximum of 20 seconds even after it reached 100%. This is not a

malfunction.

VHS

Recording does not start immediately after

pressing [REC I].

• Make sure the videotape has a recorded tab when you record to a

videotape. If needed, cover the hole with cellophane tape.

PLAYBACK

GENERAL

TV aspect ratio does not match your TV

screen.

• Check “TV Aspect” setting. (See page 90.)

• A different aspect ratio will be used when the aspect ratio specified by

the disc is not supported by this unit.

Playback picture is distorted.

Colour of the picture is abnormal.

• During fast forward or fast reverse, playback picture may be distorted.

This is not a malfunction.

• Connect to TV directly. When you connect this unit with the television via

VCR or other devices, the picture may be distorted due to the copy-

protection signal.

• Check if the cables are damaged.

• Keep the equipment which may cause electrical disturbances, such as a

cellular phone, away.

There is no sound, or no subtitle. • Turn on all connected devices.

• Check if the external input channel is set correctly.

• Check if the connections are made securely and correctly.

• If using the HDMI connection, sound is not output when “HDMI Audio” is

set to “OFF”.

• Check the RCA audio cable connection. If you are using HDMI-DVI

conversion cable, you must connect the RCA audio cable, too.

• If using the HDMI connection, check whether the output format of this

unit (HDMI FORMAT) matches the supported input format of other

connected device.

Repairing

Do you want to cancel a repairing

process? When selecting “Yes”,

the disc may not be usable.

Yes

100%

Writing to Disc

100%

Writing to Disc

Introduction Connections Basic Setup Playback Editing OthersFunction SetupRecording VHS Functions

E3NG0FD_EN.book Page 97 Wednesday, January 30, 2008 10:37 AM

98 EN

PLAYBACK

HDD/DVD

Playback does not start from the beginning. • Resume function may be activated. Refer to page 66 to cancel the

resume point.

HDD

HDD playback suddenly stops. • When DVD recording finishes during HDD playback, the unit will stop the

HDD playback, and start writing data to the DVD. This is not a

malfunction.

DVD

Playback cannot be performed. • Check if the playable disc is inserted.

• Check if the disc is loaded correctly with the labelled side facing up.

• Discs made on other devices or on personal computers cannot be played

back on this unit unless it is finalised on the device.

• Even if it is finalised, the performance of those discs are not guaranteed

on this unit.

• The disc may be dirty or flawed. Clean the disc.

• Check if all the connections are made correctly.

• Check “Parental Lock” setting. (See page 86.)

• Playback of DVD is prohibited from 2 minutes before the programmed

start time of a timer recording when the recording media is DVD.

There is no sound, or no subtitle. • Check if all the connections are made correctly.

• Check if the “Audio Out” is set correctly. (See pages 86-87.)

• There is a possibility that the selected subtitle language is not supported

by the disc.

Digital audio setting cannot be changed to

main audio (L), sub audio (R) or combination

of both.

• If the audio source is in the Dolby Digital format, set “Dolby Digital”

setting to “PCM” in “Playback” menu. (available only for DVD) (See page

87.)

Audio language or the subtitle language of the

DVD cannot be changed.

• Multilingual subtitles are not supported by the disc.

• Some audio languages or the subtitle languages can be changed only

from the disc menu. Please refer to the disc’s manual.

Angles cannot be changed. • Even though the multi-angle feature is supported by the disc, that does

not mean all the scenes are shot from multi-angles. Changing angles is

available only for those scenes shot from the multi-angle.

The disc cannot be played back on other

player even though it is finalised properly.

• Some DVD players do not play back the disc made on other recorder.

Refer to the manual of the unit.

VHS

Picture noise appears. • Adjust tracking control for better picture by pressing [PROG. G\H]

while you are playing back a videotape.

• Head cleaning for VHS may be necessary.

Refer to “AUTO HEAD CLEANING” on page 5.

The unit does not play back the videotape. • Check if a videotape is in this unit.

The motor rotates even when playback /

recording is stopped.

• The motor may rotate for the duration of approximately 5 minutes for

efficient operation. This is not a malfunction.

EDITING

HDD / DVD

Titles cannot be edited or deleted. • The titles or the disc itself may be protected. Cancel the protection by

following the steps on page 80 for title protection and page 58 for disc

protection.

Dubbing cannot be executed. • When the number of the titles or the chapters exceeds the maximum

recordable number, the dubbing will not be executed.

DVD

Titles cannot be edited or deleted. • The titles in the DVD+R/-R cannot be edited or deleted if they are

finalised. If it is DVD-RW, undo the finalisation by following the steps on

page 59.

The capacity of the disc doesn’t increase

even if the recorded programme is deleted.

• With DVD+RW and video mode DVD-RW, the disc space will increase

only when the last title is deleted. With DVD-R/+R, deleting a title will not

increase the disc space.

Dubbing cannot be executed. • Check if the disc is compatible for recording. (See page 37.)

REMOTE CONTROL

The remote control does not function. • No batteries in the remote control or the batteries may be weak. Replace

the batteries.

• Make sure there is no obstacle between the remote control and the unit.

• Try getting closer to the unit. (See page 14.)

• If above solutions do not solve the problem, please call an Authorised

Service Centre.

Symptom Remedy

E3NG0FD_EN.book Page 98 Wednesday, January 30, 2008 10:37 AM

Error message Cause Solution

Disc Error

— Please eject the disc. —

Playback feature may not be

available on this disc.

• An unplayable disc is inserted in the unit.

• The disc is upside down.

• Insert a standard disc. (See pages 9-10.)

• Insert the disc with the labelled side facing

up.

Region Error

— Please eject the disc. —

Playback is not authorized in

your region.

• Playback is not authorised in the region of

the DVD-Video that you inserted in the

unit.

• Insert a DVD-Video with region codes 2 or

ALL.

Parental Lock On

The current selected parental

level prohibits playback.

• The current selected parental level in

“Setup” menu prohibits playback.

• Check the “Parental Lock” setting.

(See page 86.)

Recording Error

This programme is not allowed to

be recorded.

• The recording function encountered a

copy prohibited programme.

• Original source is in NTSC system.

• You cannot record copy prohibited

programmes.

Recording Error

This programme is not

recordable in Video mode.

• You are trying to record a copy-once

programme onto a DVD-RW disc in Video

mode.

• Set “Format Mode” to “VR mode”.

(See page 39.)

Recording Error

Can not record on this disc.

• You are trying to record onto a disc that is

unrecordable, or the disc status does not

satisfy recording requirements.

• The disc is dirty.

• The disc is damaged.

• You are trying to record onto a VR mode

DVD-RW disc which contained recordings

from another recorder.

• Insert a recordable disc, and ensure the

disc status satisfies the recording

requirements. (See page 37.)

• Clean the disc with a cleaning cloth.

• Replace the disc.

• Disc may need formatting.

Recording Error

This programme is not allowed to

be recorded on this disc.

• You are trying to record a copy-once

programme onto a DVD disc that is not

compatible with CPRM.

• Insert a ver. 1.1 or ver. 1.2 DVD-RW disc

(compatible with CPRM.)

Recording Error

This disc is protected and not

recordable.

• You are trying to record onto the VR mode

DVD-RW, DVD+RW / +R disc that is set

as protected in “Setup” Menu.

• Remove the disc protect setting in “DVD

Menu” menu. (See page 58.)

Recording Error

Disc is full.

(No area for new recording)

• You are trying to record onto the VR mode

DVD-RW disc that has no space for

recording.

• Insert a recordable disc with enough

recording space.

• Delete unnecessary original titles.

(See page 76.)

Recording Error

You cannot record more than 99

titles on one disc.

(The maximum is 99)

• You are trying to record onto the

DVD-RW / -R disc on which the number of

recorded titles has reached the maximum

(99).

• Delete unnecessary original titles.

(See page 76.)

Recording Error

You cannot record more than

999 chapters on one disc.

(The maximum is 999)

• You are trying to record onto the VR mode

DVD-RW disc on which the number of

recorded chapters has reached the

maximum (999).

• Delete unnecessary chapter mark from an

Original list. (See pages 78 - 79.)

Recording Error

You cannot record more than 49

titles on one disc.

(The maximum is 49)

• You are trying to record onto the

DVD+RW/+R disc on which the number of

recording titles comes up to the maximum

(49).

• Delete unnecessary titles. (See page 76.)

Recording Error

You cannot record more than

254 chapters on one disc.

(The maximum is 254)

• You are trying to record onto the DVD+RW

disc on which the number of recording

chapters comes up to the maximum (254).

• Delete unnecessary chapter marks.

(See pages 78 - 79.)

Recording Error

You cannot record on this disc as

Control Information is full.

• This disc has no space to write Control

Information when recording or deleting

contents.

• When editing has been repeatedly

performed, the control information area

may become full even though the

recording area has enough space.

• Delete unnecessary original titles.

(See page 76.)

Recording Error

You cannot record on this disc as

Power Calibration Area is full.

• When recordings are performed

repeatedly onto an unstable disc, this area

may become full.

• Every time you insert a disc for recording,

part of the disc’s working area will be

used. If you repeat this frequently, it will be

used up quicker and you may not be able

to record maximum number of titles for the

disc.

• Insert a new disc.

Recording Error

This disc is already finalised.

• You are trying to record onto a disc that is

already finalised.

• Release the finalising for the disc. (See

page 59.)

Introduction Connections Basic Setup Playback Editing OthersFunction SetupRecording VHS Functions

E3NG0FD_EN.book Page 99 Wednesday, January 30, 2008 10:37 AM

100 EN

* If you are still having trouble with the unit after checking all the Troubleshooting points, write down the error code

and the error description and consult your dealer or an authorised service centre.

Recording Error

The disc has no recording

compatibility.

Set “Make Recording

Compatible” to “ON” to convert

the disc.

• You are trying to record onto the

unfinalised +VR mode discs recorded on

other unit.

• Set “Make Recording Compatible” to “ON”

to rewrite the menu, after that you will

record to disc. (See page 39.)

Recording Error

You cannot record more than

600 titles on HDD. (The

maximum is 600).

• You are trying to record onto the HDD

when total title number is already at its

limit.

• Delete unnecessary titles. (See page 76.)

Recording Error

HDD is full.

(No area for new recording)

• There is not enough space on the internal

HDD.

• Delete unnecessary titles. (See page 76.)

Error message Cause Solution

E3NG0FD_EN.book Page 100 Wednesday, January 30, 2008 10:37 AM

101

Language Code

Abkhazian 4748

Afar 4747

Afrikaans 4752

Albanian 6563

Amharic 4759

Arabic 4764

Armenian 5471

Assamese 4765

Aymara 4771

Azerbaijani 4772

Bashkir 4847

Basque 5167

Bengali;Bangla 4860

Bhutani 5072

Bihari 4854

Bislama 4855

Breton 4864

Bulgarian 4853

Burmese 5971

Byelorussian 4851

Cambodian 5759

Catalan 4947

Chinese 7254

Corsican 4961

Croatian 5464

Czech 4965

Danish 5047

Dutch 6058

English 5160

Esperanto 5161

Estonian 5166

Faroese 5261

Fiji 5256

Finnish 5255

French 5264

Frisian 5271

Galician 5358

Georgian 5747

German 5051

Greek 5158

Greenlandic 5758

Guarani 5360

Gujarati 5367

Hausa 5447

Hebrew 5569

Hindi 5455

Hungarian 5467

Icelandic 5565

Indonesian 5560

Interlingua 5547

Interlingue 5551

Inupiak 5557

Irish 5347

Italian 5566

Japanese 5647

Javanese 5669

Kannada 5760

Kashmiri 5765

Kazakh 5757

Kinyarwanda 6469

Kirghiz 5771

Kirundi 6460

Korean 5761

Kurdish 5767

Laothian 5861

Latin 5847

Latvian; Lettish 5868

Lingala 5860

Language Code

Lithuanian 5866

Macedonian 5957

Malagasy 5953

Malay 5965

Malayalam 5958

Maltese 5966

Maori 5955

Marathi 5964

Moldavian 5961

Mongolian 5960

Nauru 6047

Nepali 6051

Norwegian 6061

Occitan 6149

Oriya 6164

Oromo (Afan) 6159

Panjabi 6247

Pashto; Pushto 6265

Persian 5247

Polish 6258

Portuguese 6266

Quechua 6367

Rhaeto-Romance 6459

Romanian 6461

Russian 6467

Samoan 6559

Sangho 6553

Sanskrit 6547

Scots Gaelic 5350

Serbian 6564

Serbo-Croatian 6554

Sesotho 6566

Setswana 6660

Shona 6560

Language Code

Sindhi 6550

Singhalese 6555

Siswat 6565

Slovak 6557

Slovenian 6558

Somali 6561

Spanish 5165

Sundanese 6567

Swahili 6569

Swedish 6568

Tagalog 6658

Tajik 6653

Tamil 6647

Tatar 6666

Telugu 6651

Thai 6654

Tibetan 4861

Tigrinya 6655

Tonga 6661

Tsonga 6665

Turkish 6664

Turkmen 6657

Twi 6669

Ukrainian 6757

Urdu 6764

Uzbek 6772

Vietnamese 6855

Volapuk 6861

Welsh 4971

Wolof 6961

Xhosa 7054

Yiddish 5655

Yoruba 7161

Zulu 7267

Language Code

Introduction Connections Basic Setup Playback Editing OthersFunction SetupRecording VHS Functions

E3NG0FD_EN.book Page 101 Wednesday, January 30, 2008 10:37 AM

102 EN

Glossary

Analogue audio

An electrical signal that directly

represents sound. In contrast,

digital audio can also be an

electrical signal, but is an indirect

representation of sound. See also

“Digital audio”.

Aspect ratio

The width of a TV screen relative to

its height. Conventional TVs are 4:3

(i.e., the screen is almost square).

Widescreen models are 16:9 (the

screen is almost twice as wide as its

height).

Chapter

Just as a book is split up into

several chapters, a title on an HDD/

DVD is usually divided into

chapters. See also “Title”.

Component video output

Each signal of luminance(Y) and

component (PB/CB, PR/CR) is

independent to output so that you

can experience picture colour as it

is.

Also, due to compatibility with

progressive video (576p/480p), you

can experience higher-density

picture than that in interlace (576i/

480i).

CPRM

(Content Protection for

Recordable Media)

CPRM is a scrambling copy

protection system for the protection

of “copy-once” broadcast

programmes (e.g. some satellite

broadcasts).

Digital audio

An indirect representation of sound

using numbers. During recording,

the sound is measured at discrete

intervals (44,100 times a second for

CD audio) by an analogue-to-digital

converter, generating a stream of

numbers. On playback, a digital-to-

analogue converter generates an

analogue signal based on these

numbers. See also “Sampling

frequency” and “Analogue audio”.

Dolby Digital

A system developed by Dolby

Laboratories that compresses

digital sound. It works with stereo

(2ch) or multi-channel audio.

DTS

(Digital Theater System)

DTS is a multi channel surround

sound system. By connecting to

DTS decoder, you can enjoy

dynamic and realistic sound like

movie theatre. DTS surround sound

technologies were developed by

DTS, Inc.

Finalise

To make DVDs that have been

recorded playable in DVD players. It

is possible to finalise DVD-RW/-R

and DVD+RW/+R discs with this

unit.

HDMI

(High Definition Multimedia

Interface)

A digital interface between audio

and video source. It can transmit

component video, audio, and control

signal with one cable connection.

JPEG

(Joint Photographic Experts

Group)

JPEG is a method of compressing

still image files. You can copy JPEG

files on CD-RW/-R discs from a

computer and play back the files on

this unit.

MP3

(MPEG Audio Layer 3)

MP3 is a method of compressing

files. You can copy MP3 files on

CD-RW/-R discs from a computer

and play back the files on this unit.

PBC (Video CD only)

(Playback Control)

This function enables you to play

back interactive software using a

menu screen. See also “Title”.

PCM

(Pulse Code Modulation)

PCM is a format that converts audio

into digital data. It is mainly used for

Audio CDs and DAT. This unit can

play back sounds as realistic as

possible by converting even

compressed Dolby Digital and

MPEG audio to PCM.

Playlist

From this list, you can play back

contents of a disc in your desired

order or in sequence. It is also

possible to directly search for a

specific scene.

Progressive Scan (576p/480p)

A type of display that does not split

each frame into fields, and instead

scans directly through all the

scanlines of each frame in order.

Progressive Scan provides less

flickering and higher image

resolution than traditional (576i/

480i) TV signals. Refer to pages 20

to 21 and 90 for instructions on the

Progressive Scan mode selection.

Region code

Regions associate discs and

players with particular areas of the

world. This unit will only play back

discs that have compatible region

codes. You can find the region code

of your unit by looking on the rear

panel. Some discs are compatible

with more than one region (or all

regions).

Sampling frequency

The rate at which sound is

measured by a specified interval to

turn it into digital audio data. The

number of samples in one second is

defined as the sampling frequency.

The higher the rate is, the better the

possible sound quality.

Title

(HDD/DVD)

A collection of chapters on an HDD/

DVD. See also “Chapter”.

(Video CD)

The contents of a Video CD. When

playing back a Video CD with the

PBC function, the Title Menu will

appear automatically.

Track

Audio CDs and Video CDs use

tracks to divide the contents of a

disc. The DVD equivalent is called a

chapter. See also “Chapter”.

Video mode

Video mode is the same recording

format as used on the DVD-Videos

you purchase in local shops. You

can play back the discs recorded in

this format in most DVD players,

however it offers only limited editing.

You will need to finalise discs

recorded in Video mode before

playing them back on other unit.

VR mode

A basic recording format for

DVD-RW. VR mode offers advanced

editing, and you can record and edit

material repeatedly, however it is

playable only on VR mode

compatible unit. Finalisation is

recommended before playing them

back on other unit.

+VR mode

A recording format for DVD+RW/+R.

+VR mode offers basic editing, and

it is playable on most DVD players.

Finalisation is recommended before

playing them back in other unit.

E3NG0FD_EN.book Page 102 Wednesday, January 30, 2008 10:37 AM

103

Specifications

Note

The specifications and design of this product are subject to change without notice.

General

System HDD, DVD-Video, DVD-RW/-R, DVD+RW/+R, Video CD,

CD-DA, CD-RW/-R, Videotape

VHS video heads Four heads

HDD Internal 3.5 inch HDD 160 GB

Power requirements 220–240 V ± 10%, 50 Hz ± 0.5%

Power consumption 48 W (standby: 8.0 W)

Weight 5.8 kg

Dimensions (width x height x depth) 435 x 99.5 x 388 mm

Operating temperature 5°C to 40°C

Operating humidity Less than 80% (no condensation)

TV format PAL-B/G, SECAM-LL’

Recording

Recording format Video Recording (VR) format (DVD-RW only), Video format

(DVD-RW, DVD-R), +VR format (DVD+RW, DVD+R)

Recordable discs DVD-ReWritable, DVD-Recordable, DVD+ReWritable,

DVD+Recordable

Video recording format

Sampling frequency

Compression format

13.5 MHz

MPEG

Audio recording format

Sampling frequency

Compression format

48 kHz

Dolby Digital

Tuner

Analogue channels

L (SECAM L)

BG (PAL B/G)

F1 - E69

E2 - E69

DVB-T channels

VHF

UHF

F5 - F10

E21 - E69

Input/Output

Front Panel : (AV3)

Video input

Input level

One RCA connector

1 Vp-p (75 Ω)

Audio input

Input level

Two RCA connectors

2 Vrms (input impedance: more than 10 kΩ)

DV input

DV 4-pin jack

IEEE 1394

Rear Panel :

VHF/UHF antenna input/output terminal 75 Ω

Audio input /output Two 21-pin scart sockets (AV1, AV2)

Video input /output

Input /output level

Two 21-pin scart sockets (AV1, AV2)

1 Vp-p (75 Ω) each

Component video output

Output level

Three RCA connectors

Y: 1.0 Vp-p (75 Ω)

PB/CB, PR/CR: 0.7 Vp-p (75 Ω) each

Audio output

Output level

Two RCA connectors

2 Vrms (output impedance: 680 Ω)

Digital audio output

Output level

One Coaxial pin jack

500 mVp-p (75 Ω)

HDMI output HDMI jack

Introduction Connections Basic Setup Playback Editing OthersFunction SetupRecording VHS Functions
