May 2000
Telecommunication Systems Division
Digital Business Telephone Systems
Electronic Telephone
User Guide
(includes LCD and Direct Station Selection Console)
Publication Information
Toshiba America Information Systems, Inc., Telecommunication
Systems Division, reserves the right, without prior notice, to
revise this information publication for any reason, including, but
not limited to, utilization of new advances in the state of technical
arts or to simply change the design of this document.
Further, Toshiba America Information Systems, Inc.,
Telecommunication Systems Division, also reserves the right,
without prior notice, to make such changes in equipment design
or components as engineering or manufacturing methods may
warrant.
DKA-UG-EKTEL-VC
4016150
Version C.4, May 2000
Version C.3, October 1999
Version C.2, May 1999
Version C.1, December 1998
Version C, April 1998
Version B, October 1997
Version A, September 1996
© Copyright 2000
Toshiba America Information Systems, Inc.
Telecommunication Systems Division
All rights reserved. No part of this manual, covered by the
copyrights hereon, may be reproduced in any form or by any
means—graphic, electronic, or mechanical, including recording,
taping, photocopying, or information retrieval systems—without
express written permission of the publisher of this material.
Strata is a registered trademark of Toshiba Corporation. Stratagy
is a registered trademark of Toshiba America Information
Systems, Inc.
Trademarks, registered trademarks, and service marks are the
property of their respective owners.
Strata DK Electronic Telephone 5/00 i
Contents
Introduction
Organization .................................................................................................................... viii
Conventions .................................................................................................................... viii
Action/Response ..............................................................................................................x
Related Documents/Media ..................................................................................................x
Chapter 1 – The Grand Tour

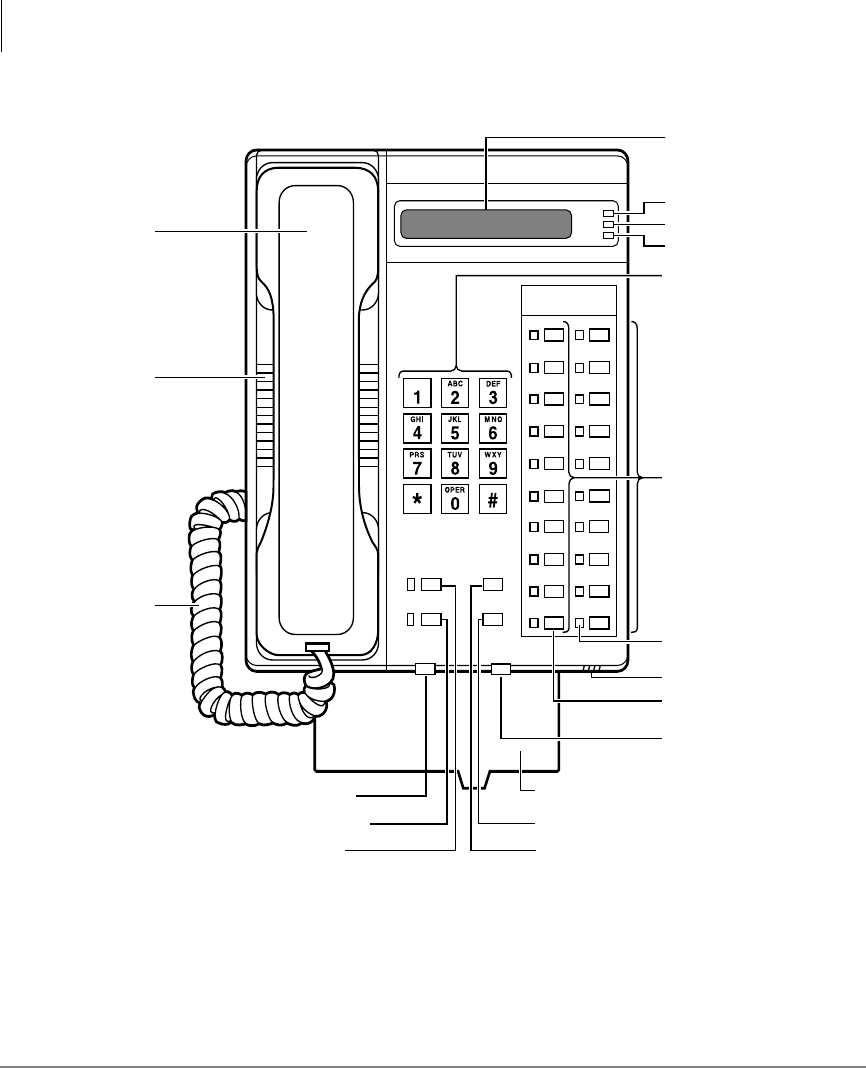

Electronic Telephone Diagram ...........................................................................................2
LCD .................................................................................................................................7
LED Indicators ...............................................................................................................10
On-hook/Off-hook .........................................................................................................11
Volume Controls ............................................................................................................11
Chapter 2 – Features
Before You Begin .............................................................................................................13
Automatic Line Selection ..............................................................................................14
Ringing Line Preference ................................................................................................14
Signaling ........................................................................................................................14
Quick Reference ................................................................................................................15
Making an Internal Call .................................................................................................15
Making an Outside Call .................................................................................................15
Making an Outside Call to an ISDN Trunk ...................................................................16
Contents
Chapter 2 - Features
ii Strata DK Electronic Telephone 5/00
On-Hook Dialing ...........................................................................................................16
Answering Calls .............................................................................................................17
Incoming Call Notification ............................................................................................17
Calling a Forwarded [DN] .............................................................................................17
Receiving a Forwarded Call ..........................................................................................17
Account Code Calls ..........................................................................................................18
Forced Account Codes (Verified/Non-Verified) ...........................................................18
Voluntary Account Codes (Verified/Non-Verified) ......................................................18
Alarm Reset ......................................................................................................................20
Alert Signaling ..................................................................................................................20
Attendant Console Calling ................................................................................................20
Automatic Busy Redial (ABR) .........................................................................................21
All Call Voice Page ..........................................................................................................22
Automatic Callback (ACB) ...............................................................................................23
Automatic Hold .................................................................................................................24
Background Music (BGM) ...............................................................................................24
Call Forwarding ................................................................................................................25
Access Codes .................................................................................................................25
LCD Telephones ............................................................................................................25
Call Forward–All Calls ..................................................................................................26
Call Forward–Busy ........................................................................................................26
Call Forward–No Answer ..............................................................................................27
Call Forward–Busy/No Answer ....................................................................................28
Call Forward–Fixed .......................................................................................................30
Call Forward–External ...................................................................................................30
Call Forward Remote Destination Change ....................................................................31
Call Park Orbits .................................................................................................................32
Call Park and Page ............................................................................................................34
Call Pickup ........................................................................................................................35
Group Pickup ....................................................................................................................36
Call Transfer with Camp-on .............................................................................................37
Call Waiting ......................................................................................................................38
Conference Calls ...............................................................................................................39
Date/Time/Day Adjustment ..............................................................................................39
Direct Inward System Access (DISA) ..............................................................................40
Direct Station Selection (DSS) .........................................................................................41
Contents
Chapter 2 - Features
Strata DK Electronic Telephone 5/00 iii
Do Not Disturb (DND) .....................................................................................................42
Door Lock .........................................................................................................................43
Door Phones ......................................................................................................................43
DTMF Tone Dialing with and # ....................................................................................45
Emergency Ringdown/Hotline Service .............................................................................46
Group Listening ................................................................................................................46
Handsfree Answerback .....................................................................................................47
Handsfree Monitoring .......................................................................................................47
ISDN Outgoing Calling ....................................................................................................48
Making an Outgoing Call with a Subaddress to an ISDN Trunk ..................................48
Message Waiting ...............................................................................................................49
Microphone Cut-Off .........................................................................................................52
Off-hook Call Announce (OCA) ......................................................................................53
Voice First Signaling .....................................................................................................53
Tone Signaling ...............................................................................................................54
SP-OCA .........................................................................................................................54
Override Calls ...................................................................................................................55
Busy Station Override ....................................................................................................56
Do Not Disturb Override ...............................................................................................56
Executive Override ........................................................................................................56
Privacy Override ............................................................................................................57
Toll Restriction Override ...............................................................................................57
Page Announcements ........................................................................................................57
All Call Page ..................................................................................................................58
Privacy On-Line ................................................................................................................58
Privacy Release .................................................................................................................58
Release and Answer ..........................................................................................................59
Saved Number Redial .......................................................................................................60
Speakerphone ....................................................................................................................60
Speed Dial .........................................................................................................................61
Speed Dial–Advanced Features .....................................................................................63
Speed Dial Pause ...........................................................................................................66
Speed Dial Number Linking ..........................................................................................66
Chain Dialing Speed Dial Numbers ..............................................................................68
Timed Reminders ..............................................................................................................69
Tone/Pulse Dialing ............................................................................................................70
Contents
Chapter 3 - LCD Operation
iv Strata DK Electronic Telephone 5/00
Two (Tandem) CO Line Connection ................................................................................70
Voice Mail Integration ......................................................................................................74
Chapter 3 – LCD Operation
Control Buttons .................................................................................................................79
Busy Lamp Field (BLF) Display ......................................................................................81
Caller ID/ANI/DNIS Information Mode ..........................................................................82
DNIS ..............................................................................................................................82
ANI/Caller ID ................................................................................................................82
Call Park Orbit List Display .............................................................................................84
Retrieve and Auto Dial Lost Calls ....................................................................................84
Messages ...........................................................................................................................86
Message Notification .....................................................................................................91
Group Notification Station Messaging ..........................................................................93
Silent Messaging (Busy Station) ...................................................................................94
Memos ...............................................................................................................................96
Speed Dial Memos .........................................................................................................96
Timed Reminders ...........................................................................................................98
Name/Number Display .....................................................................................................98

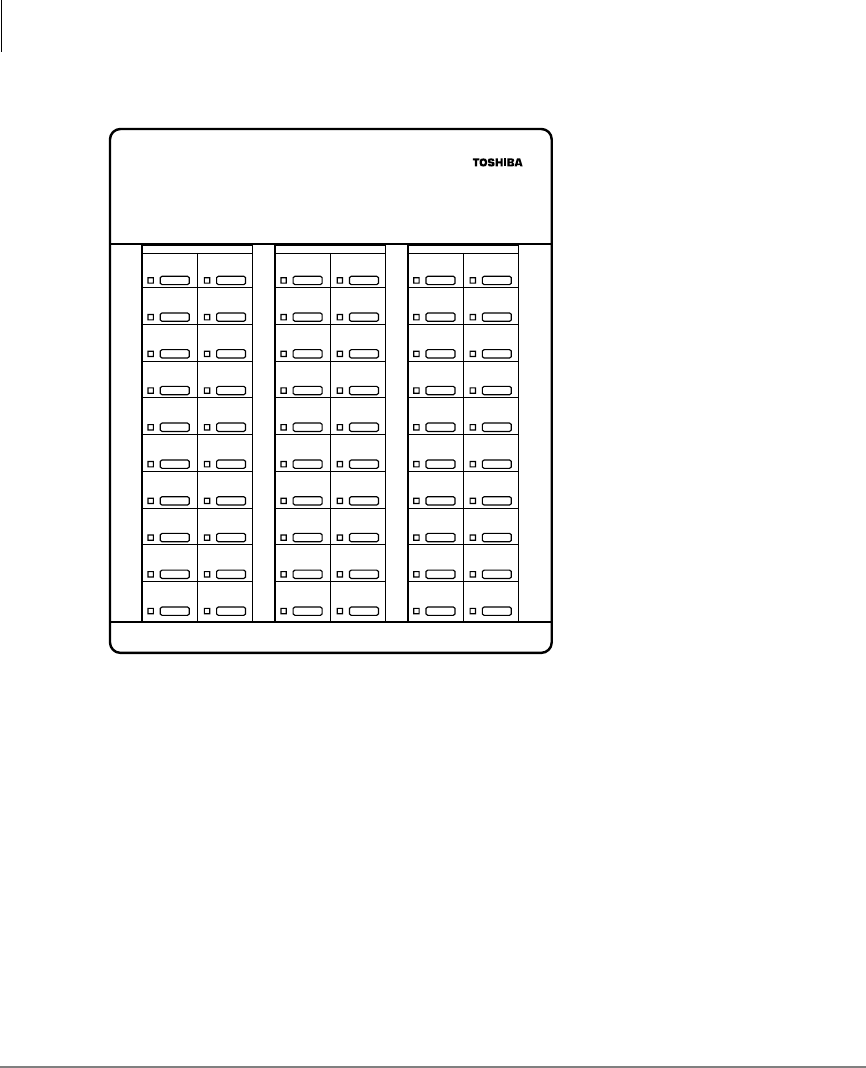

Chapter 4 – DSS Console
[DSS] Buttons .................................................................................................................102
Features ...........................................................................................................................103
Calling a Station ..........................................................................................................103
Transferring a Call .......................................................................................................103
Answering a (CO Line) ...............................................................................................104
Speed Dial ....................................................................................................................105
Paging ..........................................................................................................................105
Call Forward Override .................................................................................................105
Night Transfer ..............................................................................................................105
Appendix A –Access Codes
CO Line Access Codes ...................................................................................................107
Feature Access Codes .....................................................................................................108
Contents
Appendix B – Centrex Application
Strata DK Electronic Telephone 5/00 v
Paging Access Codes ......................................................................................................108
Speed Dial Access Codes ................................................................................................110
Appendix B –Centrex Application
Flexible Directory Numbering ........................................................................................111
Centrex Feature Buttons .................................................................................................111
Ringing Repeat ................................................................................................................112
Delayed Ringing .............................................................................................................112
Appendix C –Button Labels
Flexible Buttons ..............................................................................................................113
Index ....................................................................................................................................119
Contents
Chapter 4 - Button Labels
vi Strata DK Electronic Telephone 5/00
Strata DK Electronic Telephone 5/00 vii
Introduction
This guide describes how to use electronic telephones for Strata DK systems. Models
covered in this user guide include electronic telephones equipped with a Liquid
Crystal Display (LCD) and/or speakerphone. Instructions for the Electronic Direct
Station Selection (DSS) Console are included. The Strata DK systems which support
this equipment are:
♦DK14
♦DK16e and 16
♦DK40i and 40
♦DK424i, DK424 and DK280 (Release 3.0 or higher)
Note This user guide incorporates the information in the Strata DK Liquid Crystal
Display Electronic Telephone User Guide. This guide is discontinued.
Introduction
Organization
viii Strata DK Electronic Telephone 5/00
Organization
♦Chapter 1 – The Grand Tour provides an overview of the equipment, buttons,
Light Emitting Diodes (LEDs), and LCDs.
♦Chapter 2 – Features describes the available electronic telephone features in
alphabetical order. Detailed instructions on using each feature are covered.
♦Chapter 3 – LCD Operation includes an explanation of the Control button
operations. Features which are available only on the LCD electronic telephone are
presented alphabetically and include detailed LCD displays.
♦Chapter 4 – DSS Consoles describes the DSS Console features and buttons.
♦Appendix A – Access Codes provides instructions for programming a sequence
of steps or access codes onto feature buttons. It includes CO Line Access Codes,
Paging Group Codes, Feature Access Codes (User Programmable Buttons), and
Speed Dial Access Codes.
♦Appendix B – Centrex Application describes the Centrex features which may be
available with your Strata DK system.
♦Appendix C – Button Labels lists the feature button designations of the
electronic telephone models.
Conventions
Letters in [brackets] represent buttons which have Directory Numbers on them. For
example:
Conventions Description
Note Elaborates specific items or references other information.
Within some tables, general notes apply to the entire
table and numbered notes apply to specific items.
Important! Calls attention to important instructions or information.
CAUTION! Advises you that hardware, software applications, or
data could be damaged if the instructions are not
followed closely.
Introduction
Conventions
Strata DK Electronic Telephone 5/00 ix
WARNING! Alerts you when the given task could cause personal
injury or death.
[DN] Represents any Directory Number button, also known as
an extension or intercom number.
[PDN] Represents any Primary Directory Number button (the
extension number for the telephone).
[SDN] Represents any Secondary appearance of a PDN. A PDN
which appears on another telephone is considered an
SDN.
[PhDN] Represents any Phantom Directory Number button (an
additional DN).
$ULDO%ROG Represents telephone buttons.
Courier Shows a computer keyboard entry or screen display.
Helvetica Bold Represents LCD displays, tokens or custom IVR
functions. For example: M ( ).
“Type”Indicates entry of a string of text.
“Press”Indicates entry of a single key. For example: Type prog
then press Enter.
Plus (+)
Shows a multiple PC keyboard or phone button entry.
Entries without spaces between them show a
simultaneous entry. Example: Esc+Enter. Entries with
spaces between them show a sequential entry. Example: #
+ 5.
Tilde (~) Means “through.” Example: 350~640 Hz frequency
range.
➤Denotes the step in a one-step procedure.
➤Denotes a procedure.
See Figure 10
Grey words within the printed text denote cross-
references. In the electronic version of this document
(Strata DK Library CD-ROM or FYI Internet download),
cross-references appear in blue hypertext.
Conventions Description
Introduction
Related Documents and Media
xStrata DK Electronic Telephone 5/00
Action/Response
Related Documents and Media
Note Some documents listed here may appear in different versions on the
CD-ROM, FYI, or in print. To find the most current version, check the
version/date in the Publication Information on the back of the document’s title
page.
Refer to the following documents for more information:
♦Electronic Telephone Quick Reference Guide
♦PC/Data Interface User Guide
♦System Administrator Guide
For authorized users, Internet site FYI (http://fyi.tsd.toshiba.com) contains all current
Strata DK documentation and enables you to view, print, and download current
publications.
The left column gives you
single or numbered steps
that you need to perform a
procedure.
The right column gives the immediate response to your
action. This column also includes additional notes and
comments.
Strata DK Electronic Telephone 5/00 1
The Grand Tour 1
This chapter familiarizes you with the controls and indicators located on your
electronic key telephone (EKT) (see “20-Button Electronic Key Telephone with LCD”
on Page 2).
Toshiba electronic telephones incorporate state-of-the-art telecommunications
technology and provide a vast array of calling features. They are easy to operate, and
all features are accessed with a feature button or a brief access code.
If your telephone is equipped with an LCD, information and feature prompting makes
call handling more efficient and provides easy access to frequently-used features.
Abbreviated feature prompts guide you through specific tasks.
In addition to the standard features, the LCD telephones provide Alphanumeric
Messaging, Busy Lamp Field (BLF) Identification, Central Office (CO) Line
Identification, Timed Reminders with Messaging, Speed Dial Memo Directory
Dialing, User Name/Number, Call Duration, Date/Time of Day displays, and the
ability to display names and telephone numbers of outside, incoming callers.
Telephones equipped with a speakerphone, enable you to make and receive outside
and internal calls without lifting the handset.
Feature operations in this guide apply to all EKTs, except the 10x and 20x series,
connected to a Strata DK system.
The Grand Tour
Electronic Telephone Diagram
2Strata DK Electronic Telephone 5/00
Electronic Telephone Diagram
Figure 1 20-Button Electronic Key Telephone with LCD
RNG VOL
Flexible Buttons
Microphone
Sliding Memo Tray
Speaker Volume
Control
Hold Button
Conference Transfer Button
Ring Volume Control
Speaker On/Off Button
Speaker
Handset
Dial Pad
Microphone Button
MIC CONF/TRNS
SPKR HOLD INT
[DN] or Intercom Button
Feature and
Function LEDs
Modular
Handset Cord
LCD Display
Scroll Button
Page Button
Mode Button
SCRL
PAGE
MODE
2548
The Grand Tour
Electronic Telephone Diagram
Strata DK Electronic Telephone 5/00 3
Buttons
There are two sets of buttons, fixed and flexible. The fixed buttons, such as 0,&,
+2/', &21)7516, and 92/ are shown in Figure 1 on the prior page. The
flexible buttons consist of directory numbers (Primary, Secondary, Phantom) and
feature buttons. The number of preprogrammed flexible buttons varies by telephone.
Fixed Buttons
The fixed buttons are located below your dial pad and enable you to perform standard
functions quickly and easily.
Table 1 Fixed Button Instructions
Button Instructions
&21)7516
(Conference/Transfer)
➤Press to set up conference and transfer calls (see “Conference Calls”
on Page 39).
+2/'
➤Press once to hold internal or outside calls
(the CO LED flashes at the internal hold
rate)
...or press twice to enable Exclusive Hold. The CO LED flashes at the
exclusive hold rate.
Note Exclusive Hold enables you to place a call on hold so that only you
or somebody using a Call Pickup code at another station can
retrieve it.
To retrieve a call on hold:
➤Press &2 or [DN] which is on hold
...or if the call is on Exclusive Hold, from
another station dial  plus your [DN], or dial  plus the CO Line
number (001~200) that the call is held on.
If a call is not retrieved by a certain time (set in system programming),
it recalls back to your phone. You hear repeated recall tone (or if you
are on the phone, you hear recall tone twice).
HOLD LINE 10
JAN 01 SUN 12:19
HOLD LINE 201
LINE 10 RECALL
The Grand Tour
Electronic Telephone Diagram
4Strata DK Electronic Telephone 5/00
+2/'(continued)
If the held party hangs up, the call is released and the &2 provides a
hold-release signal.
Note If your telephone is programmed for Automatic Hold, existing calls
are automatically placed on hold when you answer a call or make
another call. (See “Automatic Hold” on Page 24.)
A different call can be held on each [DN] or
&2 button on your phone. Each time you
press 6&5/, a different [DN] or &2 is
selected. The selected button’s LED flashes
rapidly and your LCD displays information for
the call holding on that button (samples shown
at right).
0,&
(Microphone)
➤Press to toggle the microphone ON/OFF while the telephone is in use.
The LED indicates the status of the microphone.
Notes
●The microphone and accompanying LED are always ON when
receiving “voice first” internal [DN] calls to enable Handsfree
Answerback and OFF if you receive a ring-first call. 0,& may be ON/
OFF when placing an on-hook CO Line or internal [DN] call.
●Each station’s 0,& can be set in system programming to switch ON/
OFF with one touch, to switch OFF only while pressed and held, or to
be either ON/OFF at the start of handsfree dialing.
●0,& functions on Handsfree Answerback and OCA calls for privacy.
63.5
(Speaker)
➤Press to toggle the speaker ON/OFF. The LED indicates the status of
the speaker. Also selects a line or the internal [PDN] if programmed for
auto preference in system programming. Can be used to disconnect
on-hook speakerphone calls.
92/ ➤Slide to adjust volume levels (see “Volume Controls” on Page 11).
5,1* ➤Slide to adjust the ring volume levels, and the voice levels of the caller
(Handsfree Answerback operation).
Table 1 Fixed Button Instructions (continued)
Button Instructions
CO LINE 02 HOLD
DN 202 HOLD
The Grand Tour
Electronic Telephone Diagram
Strata DK Electronic Telephone 5/00 5
Flexible Buttons
All flexible buttons must be programmed for your telephone in system programming
and vary for individual telephones. If a button does not appear on your display or
telephone keystrip label, see your System Administrator for button assignments.
Line Buttons
You may have buttons designated as /LQH and/or 3/ which enable you to directly
access outside Central Office (CO) lines. 3/ enables you to access available CO Lines
from a group of lines appearing under one button.
If your telephone does not have a /LQH or 3/ button, and you want to access outside
CO lines, you can use access codes. For a listing of these codes, see Table 11 on Page
108.

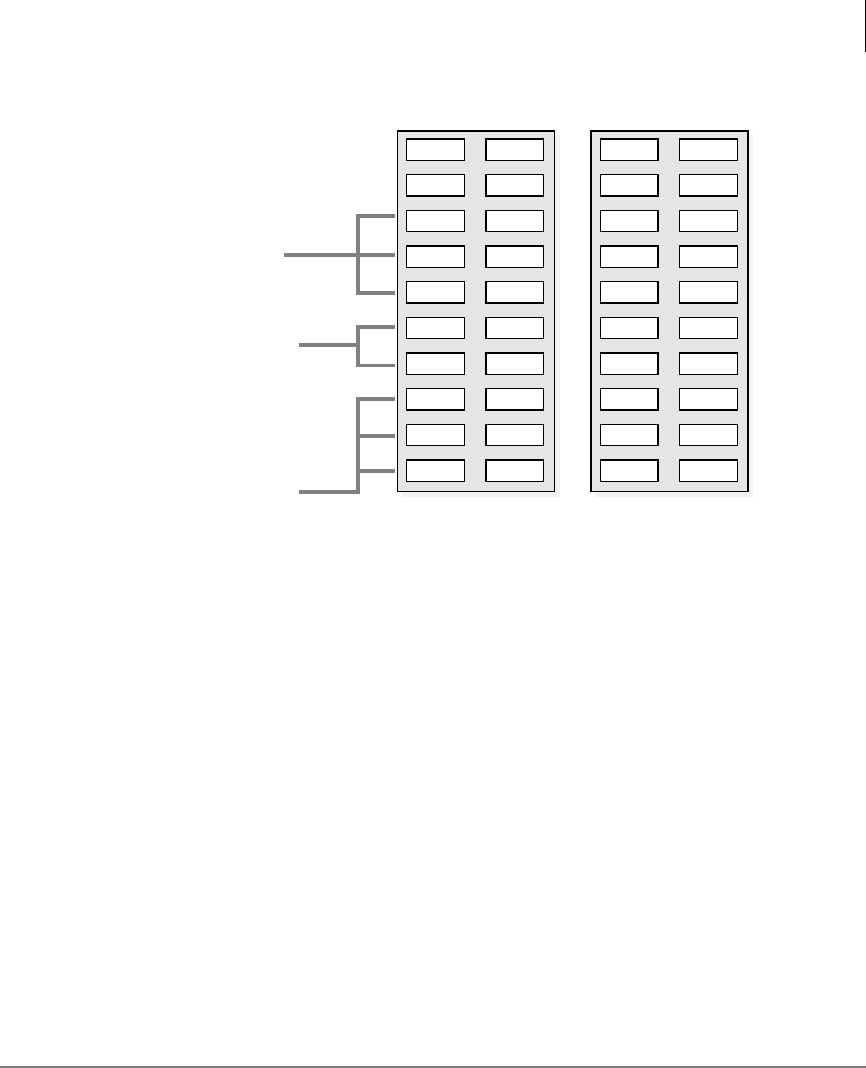

Directory Number [DN] Buttons
The [DN] buttons consist of: [PDNs], [SDNs], and [PhDNs]. They are used to make or
answer a call and are known as your extension or intercom number. You can have
multiple [DN] buttons on your telephone (see Figure 2 on Page 7), including [DNs]
belonging to another [SDNs].
Incoming calls ring your telephone [PDNs] from the top down. For example,
incoming calls to Station 10 [PDNs] first ring the “10-1” button, then “10-2,” and
finally “10-3.” Your station is considered busy only when all of the [PDNs] are being
used by your telephone or other telephones and/or when your telephone is on a call on
any type of CO Line or [DN].
If you have an LCD telephone, you can find out the actual
[DN] of a [DN] button by pressing the [DN] you want to
display and dialing . The number (210) displays. DN = 210
The Grand Tour
Electronic Telephone Diagram
6Strata DK Electronic Telephone 5/00
Table 2 Directory Button Definitions
Button Definitions
[PDN]
Primary Directory Number
➤Press to answer a call to the Primary Directory Number or to
initiate a phone call.
The [PDN] is specifically your Extension Number or Intercom
Number. Your telephone can have up to four [PDN] buttons with
your number. You can set Call Forward and Voice Mail ID code for
your [PDN].
[SDN]
Secondary Directory
Number
➤Press to answer a call on a [PDN] of another telephone which
appears on your telephone as a [SDN].
You cannot set Call Forward and Voice Mail ID code for [SDNs] on
your telephone.
[PhDN]
Phantom Directory Number
➤Press to answer a call to the [PhDN].
Up to 8 [PhDNs] can be assigned to one station. A [PhDN] can be
assigned exclusively to a station or shared among a group of
stations. An example of a [PhDN] application is using the [PhDN] as
a common phone number for an entire department, such as a Sales
Department. The [PhDN] rings on all of the telephones of the group
when it is called.
You can only set Call Forward and Voice Mail ID code for [PhDNs]
that are owned by your telephone. You can have a separate
message waiting button and mailbox for each up to four [PhDNs] on
your telephone.
The Grand Tour
Electronic Telephone Diagram
Strata DK Electronic Telephone 5/00 7
Figure 2 Multiple Directory Numbers Example
Feature Buttons
Preprogrammed feature buttons can be assigned to your telephone and vary for
individual telephones. See Table 7 on Page 64 for a list of all the possible feature
buttons.
If a button does not appear on your display or telephone keystrip label, see your
System Administrator for button assignments.
There are two available features that may not be programmed to buttons on your
telephone – 6'6 and5'/. For the 6'6 feature, you can substitute thekey in any
of the procedures. For the 5'/ feature, you can substitute the key for any of its
referenced procedures.
LCD
In its idle state, the 32-character LCD feature of your EKT gives you an accurate desk
clock and calendar combination. The LCD automatically provides a variety of
information and feature prompts to make your call handling easier. When you have an
10-3
10-2
10-1
11-2
11-1
50 MW/50
51
54
Station 10's Primary Directory
Numbers [PDNs]
Secondary Directory Numbers
[SDNs] of Station 11
Calls to Station 11 can be originated
or answered by Station 10 by
pressing the 11-1 or 11-2 button.
Phantom Directory Numbers
[PhDNs]
Station 10
11-2
11-1
10-3
10-2
10-1
50
51
58
Station 11
2516
The Grand Tour
Electronic Telephone Diagram
8Strata DK Electronic Telephone 5/00
outside call in progress, the elapsed time display shows the duration of the call. You
can also send/receive short messages with other LCD telephones (see “Messages” on
Page 86). All display functions occur automatically as call processing proceeds.
A “+” next to the LCD readout (sample shown at right) on
your telephone indicates there is more data in memory. Press
6&5/ to advance through the information.
LCD Buttons
The three buttons to the right of the display provide various functions.

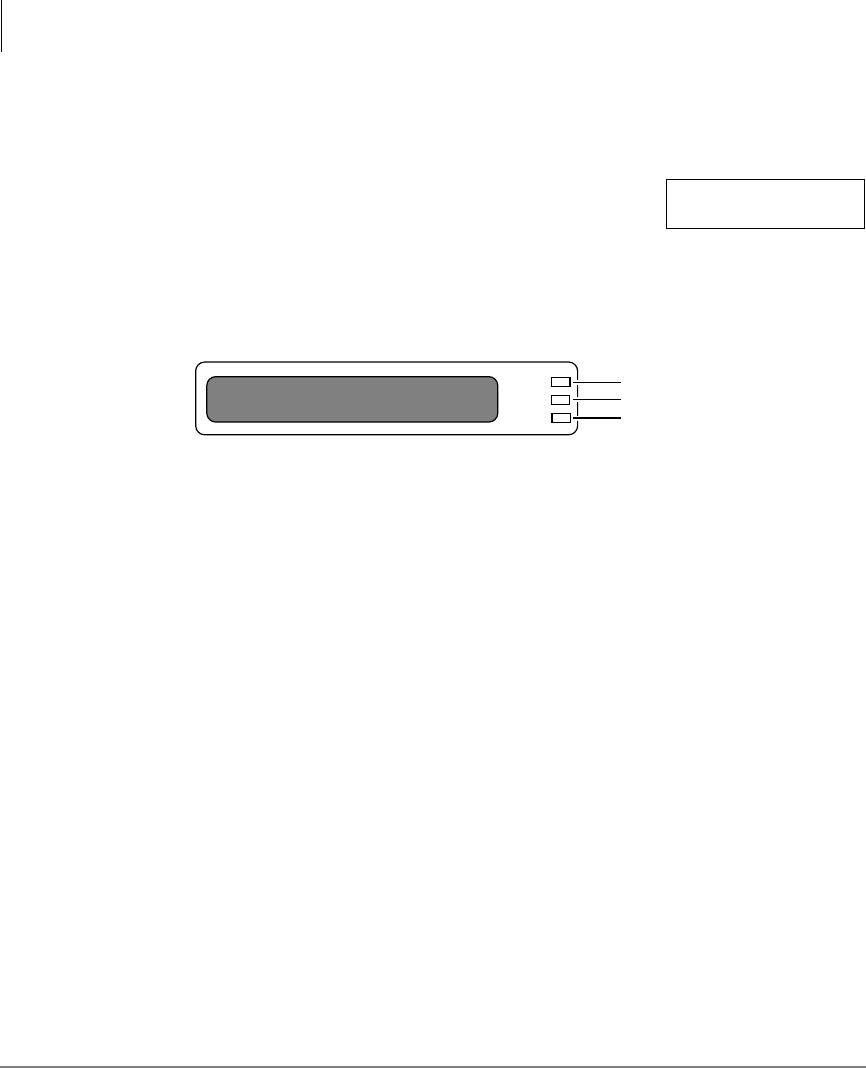

Figure 3 LCD Buttons
These functions are:
6&5/ which scrolls through:
♦Message Waiting station numbers
♦Speed dial digits (if more than 16 digits) when in Mode 8.
3$*( which:
♦Changes Busy Field groups.
♦Records a user NAME/NUMBER for another station (used by station 200).
Station 200 must be an LCD EKT to record a NAME/NUMBER display for any
other station type.
♦Changes displays (date/time, elapsed time, message, call forward, dialed number).
♦Scrolls through speed dial numbers when using Mode 8.
02'( which:
♦Enters or exits various mode functions (see Mode Definitions).
♦Cancels the beeping tone when using timed reminders.
CF-A 201-203+
JAN 01 TUE 12: 19
Scroll Button
Page Button
Mode Button
SCRL
PAGE
MODE
2549
The Grand Tour
Electronic Telephone Diagram
Strata DK Electronic Telephone 5/00 9
(See Chapter 3 – LCD Operation for an explanation of how to use these buttons.)
Table 3 Mode Definitions
MODE Definition
Exit mode and return to clock/calendar display.
Display Busy Field.
Send a message to a Busy station.
Send a message to a Called station.
Displays LCD message number NN, where NN is a personal or message. Only
displays the selected message and cannot be used to edit or create a new
message.
Check a Speed Dial number and memo dialing.
Turn OFF Caller ID/ANI/DNIS information mode.
Turn ON Caller ID/ANI/DNIS information mode.
Display Caller ID/ANI/Lost Call stored information.
View Call Park Orbit list.
Send a message to a Remote called station.
Send a message to a Remote calling station.
The Grand Tour
Electronic Telephone Diagram
10 Strata DK Electronic Telephone 5/00
LED Indicators
Each line and feature button has a LED next to it which indicates the status of the line
or feature associated with the button. Line LEDs light and/or flash at varying rates to
indicate call status (see Table 4).
Table 4 LED Indicators
Use Your Station Other Station (Red)
Interval Rates
CO In-Use
(access outside line) 2 seconds ON, 1/8 second
OFF— 1/8 second ON/OFF steady
Incoming Call
(while ringing) 1 second ON at 10 pulses/
second—1 second OFF one second ON/OFF
Hold (outside line)
If using Pooled Line, the hold indication is only
at the station that places the call on hold.
4 pulses/second for 1/8
second ON/OFF 1/2 second ON/OFF
Hold – Consultation
(during consultation/transfer to another
station) 10 pulses/second steady
Hold – Exclusive (outside line) 10 pulses/second steady
Hold – Recall
(when held call recalls your idle station)
1 second at 2 pulses/
second, 1 second at 10
pulses/second flashes
Hold – Exclusive Recall 1 second at 2 pulses/
second, 1 second at 10
pulses/second steady
Internal Call
(while station ringing)
Your [DN] flashes 10
pulses/second—1 second
OFF
Busy Station Transfer
(outside call transferred to your busy station
from a designated station or AA)
4 pulses/second, 1/8
second ON/OFF 3/4 second ON, 1/8
second OFF
After disconnecting first call... 10 pulses/second 2 pulses/second
Alert Signal .5 seconds 4 seconds
Conference 10 pulses/second steady
The Grand Tour
Electronic Telephone Diagram
Strata DK Electronic Telephone 5/00 11
On-hook/Off-hook
Some procedures in this user guide instruct you to perform a step while “on-hook” or
“off-hook.” These terms refer to the position of the handset. “Off-hook” indicates that
the handset should be lifted off of the telephone cradle. “On-hook” indicates that the
handset should remain in the cradle and should not be lifted.
Volume Controls
Voice and ring volume levels are controlled by adjustable slides located at the bottom
of the front panel. The right 92/ control adjusts the speaker volume for dial tone,
station Background Music (BGM), Off-hook Call Announce, and voice. The left
5,1* control adjusts the ring tone and handsfree voice announcement levels. The
method for changing the volume varies (see Tables 5 and 6).
Table 5 Using VOL
Feature Phone Status Slide Comments
Ring Tone Volume/
Incoming Handsfree
Answerback and
Speaker OCA
On-hook, Idle 5,1*
control
Adjusting the ring tone volume also
changes the volume level of incoming
Handsfree Answerback and Speaker
OCA calls before they are answered by
pressing a [DN].
Table 6 Using VOL with Additional Buttons
Feature Phone Status Press Comments
BGM over Telephone
Speakers On-hook, Idle
%*0
...or [DN] +
and
63.5
BGM is activated over your telephone
speakers.
BGM Volume On-hook, Idle
[DN] and
slide the
92/
control
You hear dial tone after pressing the
button. Adjust the volume of the BGM
while listening to the dial tone. The dial
tone volume should be the same as the
BGM after you have adjusted it.
Press 63.5 after setting the volume
level.
The Grand Tour
Electronic Telephone Diagram
12 Strata DK Electronic Telephone 5/00
Strata DK Electronic Telephone 5/00 13
Features 2
This chapter lists all the electronic telephone features in alphabetical order beginning
on Page 18. These features apply to all EKTs connected to Strata DK Systems, but
they do not apply to digital telephones (DKTs).
Features requiring a telephone equipped with a speakerphone are noted.
Before You Begin
If you are a new user of the Strata DK electronic telephone, you need to find out if
your telephone has been set up for Automatic Line Selection and Ringing Line
Preference. You also need to know if your telephone has Tone or Voice First signaling
when you receive an internal call. The differences between Tone First and Voice First
signaling are:
♦Tone First signaling rings.
♦Voice First signaling does not ring, but sends a long tone, then the caller’s voice.
Each of these features are enabled in system programming and determine how you
make and answer calls on your telephone.
Features
Before You Begin
14 Strata DK Electronic Telephone 5/00
Automatic Line Selection
You have Automatic Line Selection, if you go off-hook and
hear dial tone and the [DN], CO, or Pooled Line (PL) LED
lights steady. The LCD displays the station number (201) and
the seized CO Line (11).
➤To make a call when you have Automatic Line Selection
➤ Lift the handset or press 63.5.
You do not have Automatic Line Selection, if you have to press an available [DN] or
CO Line before dialing.
➤To make a call when you do not have Automatic Line Selection
➤Press the [DN] or &2 first before using the handset or 63.5.
Ringing Line Preference
You have Ringing Line Preference, if you can answer a &2 ringing your station by
lifting the handset or pressing 63.5.
You do not have Ringing Line Preference, if you have to press the button associated
with the ringing call (flashing LED) to answer the call.
Signaling
If you hear a long tone, followed by a caller’s voice, you have Voice First Signaling. If
you hear suasive ring tones, you have Tone Signaling.
➤To answer a call if you have Voice First Signaling
➤Talk in the direction of your telephone, or answer the call as you normally would
using either the handset or 63.5.
➤To answer a call if you have Tone First Signaling
➤Lift the handset or press 63.5 or press the flashing button.
Note You can change to the alternate signaling method when making a call on a
call-by-call basis by pressing after dialing an internal telephone number.
NO. 201
USING LINE 11
Features
Quick Reference
Strata DK Electronic Telephone 5/00 15
Quick Reference
The following is a quick reference chart for using your telephone’s standard features.
Making an Internal Call
Making an Outside Call
1. Lift the handset
...or press 63.5
...or a [DN] if you do
not have Automatic
Line Selection.
You hear dial tone.
2. Dial a directory
number (201). Your LCD displays the called
number and your number.
3. Hang up
...or press 63.5.
1. Lift the handset or
press 63.5
...or press &2 if you
do not have
Automatic Line
Selection
You hear dial tone and your
LCD displays the line
number.
...or 3/
...or [DN], then enter
a CO Line or line
group access code.
See Table 11 on Page 108.
2. Dial the telephone
number. The LED flashes and the
digits are displayed as you
dial (shown at right).
NO. 203
201
NO. 203
USING LINE 6
NO. 203
5551374
Features
Quick Reference
16 Strata DK Electronic Telephone 5/00
Making an Outside Call to an ISDN Trunk
On-Hook Dialing
The display automatically
changes from dialed
number to elapsed time
after a programmed period.
After you hang up, elapsed
time is displayed for 15
seconds and then changes to
date/time display.
3. Hang up
...or press 63.5.
1. Access an outside CO
line.
2. Dial the number.
3. Press 67$57. The dialed digits will not be sent until you press this
button or until the timer expires. Refer to “ISDN
Outgoing Calling” on Page 48 for more information
on ISDN calls.
1. Press63.5if you have Automatic line selection.
2. Access an outside &2 and dial a telephone number.
3. Lift the handset when the called party answers.
Note If you have a full speakerphone, you do not have to lift the handset.
4. Hang up
...or press 63.5.
NO. 203
00: 13: 23
Features
Quick Reference
Strata DK Electronic Telephone 5/00 17
Answering Calls
When you receive an incoming call, the LCD displays either
the CO Line (10)
... or the station [PDN] (210).
➤To answer the incoming call
Incoming Call Notification
Muted ringing while you are on a call indicates an incoming call. If another call comes
in during the first call, you can release, transfer, or place the call on hold, then answer
the second call.
➤To answer the incoming call
➤Press 5/6$16, or hold down the hookswitch for about one second.
Calling a Forwarded [DN]
When you call a [DN] that is forwarded (203), the [DN] you
called is shown first. The display changes to the [DN] where
your call forwarded (210).
Receiving a Forwarded Call
When a call is forwarded to your [DN] (210), the calling [DN]
(205) is displayed on the left and the [DN] called is displayed
on the right (203).
➤Lift the handset
...or press 63.5
...or the flashing
[DN], &2, or 3/ and
lift the handset (if
you do not have
Ringing Line
Preference).
The LED changes from incoming call rate to the in-
use rate. Your LCD displays the answered line.
For information on Caller ID/ANI/DNIS LCD
displays for incoming calls, see “LCD Operation” on
Page 79.
NO. 203
LINE 10 RINGING
NO. 203
210 CALLING
NO. 203
210
NO. 201
205 CALL 203
Features
Account Code Calls
18 Strata DK Electronic Telephone 5/00
Account Code Calls
Entered before or after a call, Account Codes can be used for a variety of reasons
including billing, tracking, and line restriction applications. Account Codes are
recorded by the system and can, along with the details of the calls, be printed on a
Station Message Detail Recording (SMDR) report.
Forced Account Codes (Verified/Non-Verified)
Some applications require that you enter a Forced Account Code before dialing a
telephone number. There are Verified and Non-Verified Account Codes. If the system
is set for Verified Account Codes, you must enter specific verified codes or the call
does not execute. Verified Account Codes are established in system programming or
by designated stations.
You can bypass Forced Account Code requirements with three emergency numbers,
including 911. See your System Administrator for these numbers.
Voluntary Account Codes (Verified/Non-Verified)
Voluntary Account Codes are optional and are used to track calls for client billing
purposes. They can be entered after accessing a CO Line or during a call. An
exception is a code which is required to change the Toll Restriction classification of
your station. This voluntary code gives you access to telephone numbers outside your
usual dialing area and must be entered prior to dialing the telephone number. For
example, if your station is restricted to local area calls, you can make out-of-state calls
by using a Voluntary Account Code set in system programming.
1. Access a CO Line. You hear dial tone after accessing the line.
Note If you used LCR, you will not hear dial tone.
2. Enter the Forced
Account Code. Dial tone stops after entering the first digit. If the
account Code is valid, you hear dial tone again. If the
code is invalid, you hear a busy tone.
3. Dial a telephone
number.
Features
Account Code Calls
Strata DK Electronic Telephone 5/00 19
If the system is set for Verified Account Codes, you must enter specific verified codes
when entering the Voluntary Account Code or the code is not validated for the SMDR
report.
1. After accessing a CO
Line, press $&&17
...or 6'6+ 
...or 6'6+ 
(RCTU E/F)
...or  if your
telephone does not
have a 6'6 button.
Your conversation is not
interrupted.
Note If the Voluntary
Account Code is
not required to dial
out, the account
code can be entered
during a call.
2. Enter the Account
Code. When your station is set for
Verified Account Codes,
you hear a half-second
confirmation tone if the
code is valid.
The outside party is not able to hear any confirmation
tones when the Account Code digits are being entered.
If your station is programmed not to verify Account
Codes, you do not hear a confirmation tone.
If the code is invalid, you
hear two short tones.
3. Repeat Steps 1 and 2
to enter more codes. The last code entered is recorded.
4. Dial a telephone
number. Any digits dialed after the code is entered in Step 2 is
treated as part of a telephone number.
NO. 204
ENTER ACCT CODE
NO. 204
CODE VERIFIED
NO. 204
CODE NOT VALID
Features
Alarm Reset
20 Strata DK Electronic Telephone 5/00
Alarm Reset
Your Strata DK system can be connected to a facility alarm system. All telephones
produce a startling tone whenever this alarm is activated.
➤To reset the alarm
➤ Press $/50.
Alert Signaling
Alert Signaling enables you to send an alert sound to a designated station or partner by
pressing a single button. This feature is based on the “buzz” key, where, for example,
a manager might alert an administrative assistant to enter the office.
You can have as many as four Alert Signals to send or receive to/from other
telephones. An Alert Signal is sent even if the alerted telephone is busy (on/off-hook)
or in the DND or Call Forward mode.
➤To send an Alert Signal
➤Press $/(57 and an alert tone sounds at the designated station.
Attendant Console Calling
Up to four Attendant Consoles can be installed per system. There can be up to three
ways to call the Attendant Console depending upon system programming.
1. Press a [DN] + . The call rings the Attendant Console button.
2. Dial .The calls rotate between the consoles, if more than
one console is installed.
Features
Automatic Busy Redial (ABR)
Strata DK Electronic Telephone 5/00 21
➤To call a specific console
➤To call all consoles for an emergency
Automatic Busy Redial (ABR)
After reaching a busy outside number, you can activate ABR so that the Strata DK
system automatically redials the number at regular intervals. If the system redials an
outside number that is still busy, ABR resets and tries again. This feature may not be
allowed on some (or all) lines in your system—depending on the telephone line type
connected.
ABR is not attempted while your station is busy, but continues
to time-out. The system inserts a pause (P) on your LCD
before redialing the number.
➤Press a [DN] + the
console [DN]. The call rings the console ,Q'1 (incoming [DN]
button).
Note Your System Administrator can provide the
Attendant Console ,Q'1s.
Press [DN] + . The call rings the (PJU button on all attendant
consoles.
1. Press $%5 The LED flashes red.
...or &21)7516 +
.You hear confirmation tone.
2. Hang up
...or press 63.5.
The system redials, up to 15
times, every 30 or 60
seconds depending on
system programming.
Your telephone receives ring tone, when ABR dials
the number if it is available.
The [DN] or CO and SPKR LEDs flash.
NO. 202
P555 3700
NO. 202
ABR SET
Features
All Call Voice Page
22 Strata DK Electronic Telephone 5/00
➤To cancel ABR
➤Press $%5
...or [DN] + .
All Call Voice Page
You can make an All Call Page to electronic telephones assigned to the “All Call Page
Group.” Stations are assigned to the “All Call Page Group” in system programming.
3. Lift the handset or
press 63.5 and wait
for the party to
answer.
If you do not pick up the handset or press 63.5
within 30 seconds after a connection is made, you hear
a muted ring for another 30 seconds, then the call
disconnects.
1. Press $&
...or [DN] + .
The $&button pages “All Call Page” telephones, but
does not access external page speakers.
Note  may also Page external speakers as well
as “All Call Page” telephones depending on
system programming.
2. Make your
announcement in a
normal voice level
and repeat it.
3. Hang up.
Features
Automatic Callback (ACB)
Strata DK Electronic Telephone 5/00 23
Automatic Callback (ACB)
After reaching a busy/DND station, you can set ACB to have the system call you
when the called station becomes available. You can also set ACB to place you in a
queue for an available CO Line, if you reach a line group in which all lines are busy.
1. Press $&%
...or .
You hear a busy tone,
followed by dial tone for
two seconds, then busy tone.
When you set ACB at a
busy line group, its access
code number (801) displays.
2. Hang up
...or press 63.5.
You can make other calls while waiting for the called
station/line to become available.
Your telephone rings at a
fast rate when the called
station or CO Line is idle.
The busy or DND station
LED flashes (incoming call)
and its number (210)
displays when it is available.
The CO Line LED from which you attempted to first
access the line flashes red (incoming call rate). The
seized line number (3) is displayed.
3. Press [DN] to answer
the call within three
rings.
After you answer, you hear a single tone, and the LED
flashes.
If you hear a busy tone after answering a callback, the
called party is already on another call or the line has
been seized. Your request is not cancelled. You are
called again the next time the line is idle.
If the original call was made using LCR, the telephone
number is automatically dialed. If you did not use
LCR, you have to redial the telephone number.
NO. 204
INT 210 ACB SET
NO. 204
INT 801 ACB SET
NO. 204
210 ACB
NO. 204
LINE 3 ACB
Features
Automatic Hold
24 Strata DK Electronic Telephone 5/00
➤To cancel ACB to a busy or DND station
➤Press $&% or [DN] + .
Automatic Hold
Automatic Hold enables you to automatically place a call on hold by pressing another
outside &2 or [DN] button—there is no need to press +2/'. Your telephone must be
programmed for this feature, otherwise existing calls drop if you do not press +2/'
before answering or making another call.
➤To switch between held calls
Background Music (BGM)
If BGM is enabled, you can turn it ON/OFF for your individual station speaker.
Note BGM over external speakers is controlled by the System Administrator.
➤Press a &2 or [DN]. You can make or receive a new call while on another
call. The LED of the accessed CO flashes (in-use), and
your first call is put on hold (LED flashes on-hold).
➤Press the &2 or [DN]
of the held call. The LED of the CO just accessed flashes (in-use). The
LED of the CO or [DN] placed on hold flashes (on-
hold).
➤Press %*0 Toggles BGM ON/OFF.
...or [DN] +  +
63.5.Turns BGM ON.
➤Press [DN] +  +
63.5.Turns BGM OFF.
Note Ignore busy tone after dialing  and
.
Features
Call Forwarding
Strata DK Electronic Telephone 5/00 25
Call Forwarding
If your telephone has been system programmed for a &DOO)RUZDUG button, you can
use a &DOO)RUZDUG button to set the feature for a [PDN].
If your telephone has more than one [DN], you can assign Call Forward destinations
for each [DN] on your telephone (one [PDN] and up to eight [PhDNs]). Each [DN]
can be independently set for a different Call Forward feature.
Call Forward must be set before the call is received and has priority over the Station
Hunt feature. To set call forward from a [PDN] or [PhDN], you must set the call
forward from your telephone, and it must be programmed as the owner of the [PDN]
or [PhDN].
Note If you hear a re-order tone when following any of the Call Forward steps, your
telephone is not the owner of the [PDN]/[PhDN].
After Call Forward is set, the following calls to your station are forwarded except in
Call Forward-External mode:
♦Internal calls (handsfree and OCA calls optionally may or may not).
♦Auto Attendant calls.
♦CO Line calls that ring only on your station.
♦Transferred CO Line or station calls.
Note CO lines that ring more than one station do not forward.
Access Codes
If your telephone has not been programmed for &DOO)RUZDUG buttons or you are
forwarding a [PhDN], you must use access codes, such as , to set the Call
Forward feature.
LCD Telephones
The LCD on your telephone provides you with call forwarding information. The LCD
examples below are identical to those on your telephone LCD. At times, the entries on
the display scroll off the LCD and only portions of the entries remain.
Features
Call Forwarding
26 Strata DK Electronic Telephone 5/00
Call Forward–All Calls
This feature enables you to forward all calls automatically to another station. Your
station does not ring.
➤To cancel a Call Forward–All Calls
➤Press &)$& + 63.5
...or [PDN] +  + 63.5.
Call Forward–Busy
Call Forward–Busy forwards calls immediately when your station, [PDN], or [PhDN]
is busy or in the DND mode. On “Tone First” systems, if your [PDN] appears on more
than one button on your telephone, Call Forward Busy forwards calls only when all
[PDN] buttons are in use; if there is an idle [PDN], it flashes or rings when called. On
“Voice First” systems, Call Forward Busy forwards all calls any time your telephone
is in use.
1. Press &)$&
...or [PDN]/[PhDN] +
.
The LED flashes red. You
hear confirmation tone after
 is dialed.
2. Enter the destination
[DN].
3. Press &)$&
...or 63.5 (if access
code used).
The LED is steady red and
calls forward to the stored
directory number (203).
1. Press &)%
...or [PDN]/[PhDN] +
.
The LED flashes red.
You hear confirmation tone
after  is dialed.
NO. 201
CALL FORWARD TO
NO. 201
ALL FORWARD TO 203
CF-A 201-203
JAN 01 TUE 12: 19
NO. 201
CALL FORWARD TO
Features
Call Forwarding
Strata DK Electronic Telephone 5/00 27
➤To cancel a Call Forward–Busy
➤Press &)% + 63.5.
...or [PDN] +  + 63.5.
Call Forward–No Answer
This feature forwards all calls to your station if you fail to answer within a designated
time (set by you when you enable the feature). Your station can be programmed to
bypass Call Forward-No Answer when receiving Voice First (handsfree). Callers can
activate ring first by dialing during their voice announcement.
2. Enter the destination
[DN].
3. Press &)%
...or 63.5 (if access
code used).
The LED is steady red and
calls forward to the stored
directory number (203).
1. Press &)1$
...or [PDN]/[PhDN] +
.
The LED flashes red.
You hear confirmation tone
after  is dialed.
2. Enter the destination
[DN].
3. Press 6'6
...or if your
telephone does not
have the 6'6 button.
Skip this step, if you
pressed &)1$ in step 1.
The pre-set time delay for
calls forwarding is 12
seconds.
NO. 201
CALL FORWARD TO 203
CF-B 201-203
JAN 01 TUE 12: 19
NO. 201
CALL FORWARD TO
NO. 201
CALL FORWARD TO 203
NO. 201
LL FORWARD TO 203*
Features
Call Forwarding
28 Strata DK Electronic Telephone 5/00
➤To cancel a Call Forward–No Answer
➤Press &)1$ + 63.5.
...or [PDN] +  + 63.5.
Call Forward–Busy/No Answer
This feature forwards all calls to your station immediately whenever you are busy, in
the DND mode, or after ringing and you do not answer the call within a designated
time (set by you when you enable the feature). Your station can be programmed to
bypass Call Forward/No Answer when receiving Voice First (handsfree). Callers can
activate ringing and Call Forward by dialing during their voice announcement.
On “tone-first” systems, if your [PDN] appears on more than one button on your
telephone, Call Forward Busy forwards calls only when all [PDN] buttons are in use;
if there is an idle [PDN], it flashes or rings when called. On “voice-first” systems, Call
4. Enter the time delay
(a) seconds. The LCD displays the
amount of time entered
(16).
Note Skip this step if you
do not want to
change the time.
5. Press &)1$
...or 5'/, then
63.5 (if access
code was used in Step
1).
...or if your
telephone does not
have the 5'/ button.
The LED lights steady red
and calls forward to the
stored directory number
(203).
NO. 201
FORWARD TO 203*16
CF-NA 201-203
JAN 01 TUE 12: 19
Features
Call Forwarding
Strata DK Electronic Telephone 5/00 29
Forward Busy forwards all calls any time your telephone is in use and/or any time all
of your [PDNs] are in use by other telephones.
1. Press &)%1$
...or [PDN]/[PhDN] +
.
The LED flashes red.
You hear confirmation tone
after  is dialed.
2. Enter the destination
[DN].
3. Press 6'6
...press if your
telephone does not
have the 6'6 button.
The pre-set time delay for
calls to ring before
forwarding is 12 seconds.
Note Skip this step, if
you pressed &)%
1$ in step 1.
4. Enter the time delay
(a) seconds. The LCD displays the
amount of time entered
(16).
Note Skip this step, if
you do not want to
change the time.
5. Press &)1$
...or 5'/, then
63.5
(if access code used
in step 1).
...or if your
telephone does not
have an 5'/ button.
The LED lights steady red
and calls forward to the
stored directory number
(203).
NO. 201
CALL FORWARD TO
NO. 201
LL FORWARD TO 203
NO. 201
LL FORWARD TO 203*
NO. 201
FORWARD TO 203*16
CF-BN 201-203
JAN 01 TUE 12: 19
Features
Call Forwarding
30 Strata DK Electronic Telephone 5/00
➤To cancel a Call Forward–Busy/No Answer
➤Press &)%1$ + 63.5.
...or [PDN] +  + 63.5.
Call Forward–Fixed
Call Forward–Fixed forwards calls immediately to a station or voice mail device set in
system programming all internal, private or DID CO Line calls to your station. Your
station does not ring when called. Your station must be assigned with a &)) button in
system programming to activate this feature.
Call Forward–External
This feature forwards new incoming calls directed to your [PDN] to a destination
outside of the system. [PhDNs] assigned to your telephone do not call forward to
external destinations. Internal calls and transferred calls to your [PDN] also do not
forward to external destinations.
Only incoming calls over CO lines dedicated to immediately ring your [PDN], the
private &2 button, and/or DID line, call forward externally. Any of the other Call
Forward modes can be set for your [PDNs] or [PhDNs] simultaneously with Call
Forward-External.
➤Press &)) The LED lights steady red and all calls forward to a
station [PDN] or voice mail device set in system
programming.
1. Store the destination
number at Station
Speed Dial location
Code 49.
The Call Forward-External destination can be a
telephone number over a CO Line, a station over a Tie
line, or a station within your Strata DK system. If the
destination is over a CO Line, the CO Line must only
ring at your station.
Only perform Step 1 the first time CF-EXT is set or when you change the
destination. It is not necessary to store the destination each time; it remains in
system memory.
See “Speed Dial–Advanced Features” on Page 63 for details.
Features
Call Forwarding
Strata DK Electronic Telephone 5/00 31
➤To cancel a Call Forward–External
➤Press &)²(;7
...or [PDN] +  + 63.5.
Call Forward Remote Destination Change
If Call Forward-External mode is set at your station, you can change the forwarding
destination from a telephone outside of the system.
When forwarding to an outside destination include the CO line (or CO line
group) access code before the telephone number,
See Table 11 on Page 108 for CO Line/Line Group access codes. The LCR
access code “9” cannot be used.
2. Press &)(;7
...or the [PDN]/
[PhDN] + .
Incoming calls forward to the destination stored at
Station Speed Dial Location 49.
1. Call into the DK
system over a CO
Line programmed for
the DISA feature.
You hear ringback tone signal, then internal dial tone
for 10 seconds.
Try again if you hear busy tone.
Note See the System Administrator for DISA
telephone numbers.
2. Press  then dial
your [PDN] after you
receive dial tone.
You hear a confirmation tone.
If a number is not dialed, the system automatically
makes the DISA CO Line ring as a normal incoming
call. Then, if the call is not answered within 15
seconds after the ringing starts, it disconnects.
3. Enter the Remote
Call Forward-
External security
code.
You hear a confirmation tone. See the System
Administrator for the security code which is assigned
to your telephone in system programming.
Features
Call Park Orbits
32 Strata DK Electronic Telephone 5/00
Call Park Orbits
The Call Park feature enables you to hold a call temporarily in an orbit (the area where
the call is held). Anyone can retrieve the call from the orbit using the same or a
different station. There are 20 General Park Orbits for the system and 1 Personal Park
Orbit for each station.
Once you have parked a call in an orbit, you can:
♦Hang up and retrieve the parked call at a later time.
♦Originate another call.
♦Access a voice paging device to announce the parked call for pickup from another
station.
If you park a call, and it is not retrieved the following occurs:
♦If your station is idle when the system Call Park recall timer expires, the parked
call automatically recalls to your station.
4. Enter the new
destination number.
You can enter an
internal number,
Voice Mail number,
or a CO Line access
code plus an external
telephone number.
With some systems,
you can dial a line
group code instead of
a CO Line number
access code. (See
Appendix A, See
“CO Line Access
Codes” on Page 107.)
Notes
●LCR access code “9” cannot be used as the CO
Line access code.
●When entering CO line access codes (;;;),
enter ;;; instead of ;;;.
5. Press . You hear a confirmation tone.
Features
Call Park Orbits
Strata DK Electronic Telephone 5/00 33
♦If your station is busy, the parked call camps-on.
If you have an LCD telephone, you can let the system automatically select an
available orbit number which displays on your LCD. To monitor the calls parked at
your station, see “Call Park Orbit List Display” in Chapter 3 – LCD Operation.
➤To park a call
1. Press 3$5. while
on a call
...or &21)7516 +
.
The LED flashes
(consultation-hold).
2. Enter a General Orbit
Number (~)
...or a valid [PDN]
The call is parked and the CO Line flashes (hold), or
the [DN] LED turns OFF.
...or if you have an
LCD, press .The system parks the call on the lowest vacant Orbit
Number.
3. Hang up. The calling extension or line
number and the orbit
number are shown.
If the parked call is not
retrieved within a specified
time, the call rings back to
your phone.
When a parked call recalls
your phone, the LCD shows
the line or [DN] that is
recalling and the orbit
number.
ENTER ORBIT NO
RTRN
6793 PK ORBIT 900
LN 2 ORBIT 900
L 2 PK ORBIT 900
Features
Call Park and Page
34 Strata DK Electronic Telephone 5/00
➤To retrieve a parked call
Call Park and Page
You can use the Park feature in conjunction with the Page feature. This operation can
be programmed on a 6' button for one-touch activation (See “Feature Access Codes”
on Page 64.)
1. Press 3$5.
...or [DN] + .[DN] can be [PDN], [SDN] or [PhDN].
2. Enter the Orbit
Number where the
call is parked.
The [DN] LED flashes at the in-use rate when the call
is retrieved.
1. Press &33* while
on a call
...or &21)7516+
.
The LED flashes
(consultation-hold).
2. Enter a General Orbit
Number (~)
or a valid [PDN]
The call is parked and the CO Line flashes (hold), or
the [DN] LED turns OFF.
...or if you have an
LCD, press .The system parks the call on the lowest vacant Orbit
Number.
3. Enter a [DN] or a
Page Group or Zone
access code (see
Tables 12 and 13 on
Page 109).
After you enter an Orbit Number, a short burst of dial
tone prompts you to enter the Page access code.
The LCD shows the 
Auto Park entry.
The LCD shows the line
being held and its orbit
number. Example: Line 2 is
held on orbit 900.
ENTER ORBIT NO.
HOLD LINE 2
999
HOLD LINE 2
HOLD LINE 2
L 2 ORBIT 900
Features
Call Pickup
Strata DK Electronic Telephone 5/00 35
Call Pickup
You can pick up a call that is ringing another station [PDN] or [PhDN], a call placed
on hold at another station, and other types of calls.
When you pick up an internal call, the calling station (200)
displays on the left and the called station (201) displays on the
right.
If your call is picked up by another station, the LCD shows
that your call to station (200) was picked up by station (201).
➤To use call pickup
4. Make your
announcement
(include the Orbit
Number).
5. Hang up to free the
paging device. If the parked call is not
retrieved within a specified
time, the call rings back to
your phone.
When a parked call recalls
your phone, the LCD shows
the line or [DN] that is
recalling and the orbit
number.
➤Press 3.83
...or [DN] +  +
[PDN]
...or [PhDN].
Picks up the [DN] or CO Line that has the ringing or
held call. (This feature is not available on all systems.)
PARK ORBIT 900
HOLD
L 2 PK ORBIT 900
NO. 204
200 CALL 201
NO. 204
200 PICKUP 201
Features
Group Pickup
36 Strata DK Electronic Telephone 5/00
➤To pick up a ringing CO Line in a tenant system
Group Pickup
Stations can be assigned in system programming to pickup groups. As many as 20
groups can be created to enable easy pickup of incoming (new or transferred) or
internal calls that are ringing stations in your group or in other groups. This feature
does not pickup held calls. You may belong to more than one group. See your System
Administrator for group assignments.
➤To pickup calls ringing within your group
➤Press *533.83or a [DN] + .
➤To pickup calls ringing to other groups
➤Press 3.83a
...or [DN] + .
You are connected to a incoming CO Line call for a
Tenant Group (1~4).
Notes
●In non-tenant systems, 3.83picks up any
ringing CO Line.
●This feature does not pickup held lines or
transferred CO lines that are ringing; use Pickup.
1. Press [DN]. You hear dial tone.
2. Enter , then the
access code
(~) of the
group to which the
station belongs.
You are connected to the call. If the called station
belongs to more than one group, any of the Group
Pickup codes associated with those groups pickup the
call.
Features
Call Transfer with Camp-on
Strata DK Electronic Telephone 5/00 37
Call Transfer with Camp-on
You can transfer calls to idle or busy [DNs], Hunt Group Numbers, ACD Group
[DNs], etc. You cannot transfer (or camp-on) to a station [PDN] or [PhDN] if the
station is in the DND mode, unless the station [PDN] or [PhDN] appears on other
stations.
1. Press &21)7516. The CO or [DN] LED flashes (conference rate). You
hear internal dial tone.
2. Dial the [DN] where
the call is be
transferred.
The CO Line rings the called station. If you hear a
single tone, you can then announce the call over the
called telephone’s speaker. (If you hear ringing tone,
the call was made with Tone Signaling.)
3. Announce the call
and hang up if the
station is idle
...or if the station is
busy or does not
answer, hang up
The CO LED flashes (on-hold). If you transferred the
call from a [DN], the [DN]’s LED turns off. The CO
Line or [DN] camps onto the called station and the
called station receives a warning tone. The camped-on
call rings when you hang up.
...or to reconnect to
the transferred line
before it is answered,
press the flashing &2
or [DN] + .
The CO LED is a steady red
when the called station
answers the transferred call.
If the call is not answered
after a specified Recall time
set in system programming,
Camp-on is cancelled. The transferred call returns to
your station if your station or [DN] is idle, sends a
two-tone burst if your telephone is busy.
The LCD shows the CO Line number and the station
number (203) where it was originally transferred.
NO. 204
CAMP-ON 4
HOLD LINE 2
LN 2 RECALL 203
Features
Call Waiting
38 Strata DK Electronic Telephone 5/00
Call Waiting
You can answer a call that is transferred to your station, even when your station is
busy. When another call is camped onto your station, you hear two camp-on tone
beeps and the [DN] or CO LED flashes red (on-hold).
If a call is sent to your station when busy, and your station does not have a [DN] or
&2 button available to receive the call, two camp-on tone beeps are sent to your
telephone. You must disconnect or transfer the existing call to answer the waiting call.
➤To answer a waiting call by placing the current call on hold
➤To answer a waiting call by disconnecting or transferring the current call
➤Press +2/' The existing call is placed on hold. The camped-on
line rings your station (the CO LED flashes to indicate
an incoming call).
...or if your telephone
has the Auto Hold
feature, just press the
flashing [DN] or &2.
You are connected to the transferred call. The [DN] or
CO LED flashes (in-use).
Note See your System Administrator to find out if
you have Auto Hold.
➤Hang up or transfer
the existing call The camped-on line rings your telephone, and the CO
LED flashes (incoming call).
...or press the
flashing [DN] or &2.This disconnects the current call and connects you to
the transferred call. The [DN] or CO LED flashes (in-
use).
Features
Conference Calls
Strata DK Electronic Telephone 5/00 39
Conference Calls
This feature enables you to add other parties to an existing call. The following
conferencing configurations are possible:
♦Up to two stations and two CO lines.
♦Up to three stations and one CO Line.
♦Up to four stations.
The new station is not conferenced unless its user lifts the handset or presses a [DN] to
answer.
Date/Time/Day Adjustment
This feature is performed from a designated station. See the System Administrator
Guide for instructions.
1. Press &21)7516. You hear dial tone and the [DN] or line LED flashes
(conference-rate).
2. Dial a [DN] or access
a CO Line and dial
the telephone number
to be conferenced.
If you receive a busy tone or no answer, press &21)
7516 to return to the original connection.
3. Press &21)7516,
when the called party
answers.
All parties are conferenced. If the second call was
placed on a [DN] or CO Line that appears on your
telephone, the LED also flashes (in-use rate).
Repeat the procedure to add other CO lines or [DNs],
remembering not to exceed the allowed number.
Features
Direct Inward System Access (DISA)
40 Strata DK Electronic Telephone 5/00
Direct Inward System Access (DISA)
Outside callers with telephones that send Dual-tone Multi-frequency (DTMF) tones
can call on CO lines programmed for DISA and dial a [DN] or outgoing CO Line
without going through an attendant or operator. See the System Administrator for this
number.
➤ To make an internal DISA Call
➤ To make an external DISA Call
1. Dial the DISA CO
Line telephone
number.
You hear a ringback tone signal, then an internal dial
tone for 10 seconds.
If you do not dial within 10 seconds, the system
automatically causes the DISA CO Line to ring a
telephone or group of telephones designated in system
programming. Then, if the call is not answered within
15 seconds after the ringing starts, it disconnects.
2. Dial a [DN]. You hear ring tone. When the station answers, you are
connected.
Note If the call is not answered after 6 rings or 24
seconds, (whichever comes first) you hear
busy tone.
3. Press anytime you
hear busy tone and
repeat Step 2 to make
another call.
Note To call another station after completing a
DISA station call, the internal party must
transfer you. Station and System Page cannot
be accessed on DISA calls.
1. Call the DISA CO
Line telephone
number.
You hear a ringback tone signal, then an internal dial
tone for 10 seconds.
If you do not dial within 10 seconds, the system
automatically rings the DISA CO Line as a normal
incoming call. Then, if the call is not answered within
15 seconds after the ringing starts, it disconnects.
Features
Direct Station Selection (DSS)
Strata DK Electronic Telephone 5/00 41
Direct Station Selection (DSS)
This optional feature enables you to use a '66 button to connect directly to another
station. The LED of the button shows the status (idle/busy) of the station and/or the
station’s [PDN].
For example, a station DSS LED shows busy (light steady red) when the station is:
♦Busy on a call on any button or is in the DND mode.
♦Idle, but all appearances of the [PDN] are in use by other stations.
➤To connect directly to another station [PDN]
2. Dial a CO Line or CO
Line access code
when you hear dial
tone
If you do not hear dial tone, you must also dial a DISA
security code. See Table 7 on Page 64.
...or dial a CO Line
or CO Line access
code and then a
DISA security code.
You hear dial tone.
Note See the System Administrator for the DISA
security code number. If the correct code is
not entered, the call disconnects.
3. Dial a telephone
number. If set in system programming, both parties hear a
warning tone approximately 4, 10, or 20 minutes after
the call was made. Press to reset the timer each time
the tone sounds (for an additional 4, 10, or 20
minutes). If you do not press , the call disconnects
approximately one minute after the tone.
1. Press '66, while
connected to a CO
Line or another
station.
The original party is put on hold. You can call a station
even if the DSS LED shows busy (steady red).
Features
Do Not Disturb (DND)
42 Strata DK Electronic Telephone 5/00
Do Not Disturb (DND)
If your station is in the DND mode, internal, external and transferred calls do not ring
your station and OCA calls are denied. You can continue to make calls while in the
DND mode.
If your [PDN] or [PhDN] appears on other stations, the calls flash on your station and
flash or ring the other stations. Other stations can answer your calls or you can, even
while your station is in the DND mode.
Your “alert partner” telephone can override your DND and signal your telephone by
pressing $/(57 (a). Telephones with DND Override can also call your telephone.
Notes
●Calls forward from your station immediately, while in the DND mode, if it is set
for Call Forward-Busy or Call Forward-Busy/No Answer.
●If you press '1' while a call is ringing, the ringing stops, but the LED continues
to flash.
2. Announce the call
...or transfer the call
by hanging up
...or transfer the call
by pressing
5/6$16.
Note You can transfer the call to an idle or busy
station.
➤Press '1' The LED lights steady red and DND mode is
activated.
...or press it again to
deactivate the
feature.
Features
Door Lock
Strata DK Electronic Telephone 5/00 43
Door Lock
Your telephone may have up to five '5/. (a) buttons, which enables you to
unlock a door.
Door Phones
Door phones are used to call digital/electronic telephones selected in system
programming. When a door phone calls, you hear a distinctive ringing tone, one or
five times (set in system programming). You can also call a door phone and monitor
the surrounding area. The number of possible door phones vary by Strata DK system,
with up to 12 as the maximum for larger systems.
LCD telephones display the door phone ID when calls are
made to/from door phones. This helps you identify the door
phone [DN]. For example, door phone 1A corresponds to
Door Phone [DN] , 1B to , etc.
➤Press a door lock
button: The door unlocks for three or six seconds (set in
system programming). The Unlock Door LED is lit
while the door is unlocked.
Location
'5/.
'5/.
'5/.
'5/.
'5/.
NO. 204
DOOR PHONE 1A
Features
Door Phones
44 Strata DK Electronic Telephone 5/00
➤To answer a door phone call
➤To pick up a door phone call ringing at another telephone
1. Lift the handset
...or lift the handset
and press /,1(.
You hear dial tone.
2. Dial the door
number:

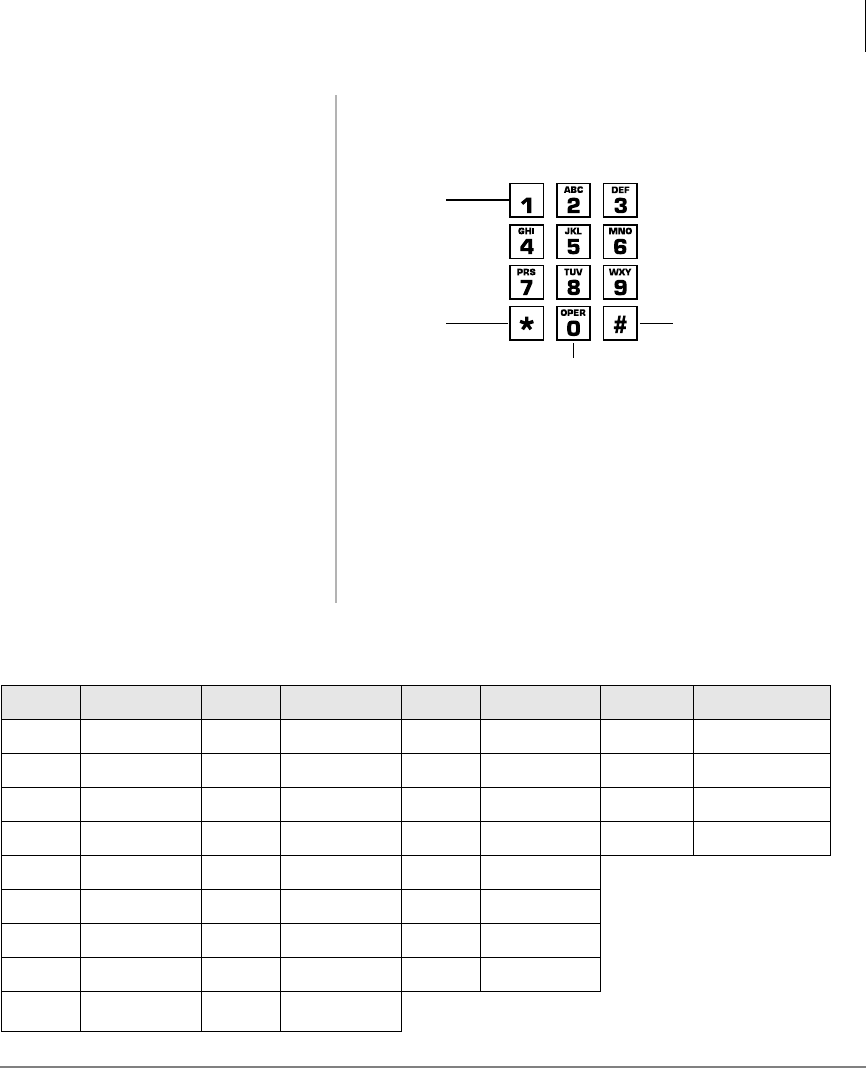

Door Phone Location
 1A
 1B
 1C
 2A
 2B
 2C
 3A
 3B
 3C
 4A
 4B
 4C
➤Press [DN] + . The [DN] LED flashes (in-use) and you are connected
to the door phone.
Note  access is a system option that may not
be turned on for your system.
Features
DTMF Tone Dialing with and #
Strata DK Electronic Telephone 5/00 45
➤To call/monitor a door phone
DTMF Tone Dialing with and #
You may have to send and DTMF tones to some devices or services, such as a
voice mail device or computer output service. DTMF tones are automatically enabled
on stations with 5'/ and 6'6. If you do not have 6'6 and 5'/, you must first dial
, to enable these tones.
This feature disables the Speed Dial feature during the call. Speed Dial is restored
when you complete the call or place it on hold.
➤To output and DTMF tones on a telephone without a SDS/RDLbutton
1. With the handset
off-hook, press a
[DN].
You hear dial tone and the LED flashes (in-use).
2. Dial the [DN] for the
desired door location. A two-way talk-path exists between your telephone
and the called door phone. You can audibly monitor
the area around the door phone.
Note Door phone [DNs] can be stored on 6'
buttons. See “Speed Dial–Advanced Features”
on Page 63.
➤Press , then You can now output and , DTMF tones, and digits
~ for the duration of the outside call. This
procedure must be repeated on each call when you
require such output.
Features
Emergency Ringdown/Hotline Service
46 Strata DK Electronic Telephone 5/00
Emergency Ringdown/Hotline Service
The Emergency Ringdown or Hotline Service feature enables standard telephones to
automatically ring a designated extension by going off-hook. Electronic telephones
cannot perform this feature, but they can receive Emergency Ringdown or Hotline
Service from standard telephones.
Emergency Ringdown is used in healthcare facilities, where it
is used to assist callers who may not be able to complete a call
by dialing. An example of an incoming Emergency Ringdown
call is shown on the right. The calling [DN] and “Ringdown” displays whether soft
keys are ON or OFF.
This same feature is also known as Hotline Service and is often used for telephones in
hotel/motel lobbies.
Group Listening
This feature enables you and people near your telephone to hear the called party over
your speaker, but the called party cannot hear you. You can alternate between parties
as long as the handset is off-hook.
➤To deactivate group listening
➤When your telephone
is off-hook on a call,
hold down 63.5.
The SPKR LED lights red.
The person to whom you are talking can be heard
through the telephone speaker. The person cannot hear
you.
➤Release 63.5. The SPKR LED turns OFF. You can talk through the
handset.
RINGDOWN
205 CALLING
Features
Handsfree Answerback
Strata DK Electronic Telephone 5/00 47
Handsfree Answerback
You can talk back to internal or incoming Tie-line calls without lifting the handset.
Handsfree Monitoring
Calls placed on hold by an outside party may be monitored handsfree. This feature
frees you from having to hold the handset to your ear until the outside party returns to
the call.
➤Press 0,&.
When the call comes into your station, do not lift the handset; speak toward the
telephone in a normal voice level. You hear a single long tone, followed by the
caller’s voice.
The LED flashes (incoming call). The MIC LED lights steady red, indicating
your microphone is active. The SPKR LED flashes red.
If you have a speakerphone, the performance is better if you press the called
[DN] button first.
Notes
●A [DN] must be pressed or the handset must be taken off-hook to actually
answer the call. This is necessary before transferring or placing an internal call
on hold.
●You can press 92/ to control the volume of the Handsfree Answerback
caller’s voice and ring tone (see “Volume Controls” on Page 11 for more
information).
1. Press and hold
63.5.The SPKR LED lights red.
2. Place the handset
on-hook. The SPKR LED stays on and you can hear the other
party through your telephone speaker.
3. Release 63.5. For privacy, press 0,& to turn the microphone off,
otherwise, your conversations may be heard.
Features
ISDN Outgoing Calling
48 Strata DK Electronic Telephone 5/00
ISDN Outgoing Calling
This feature enables you to make outgoing calls using an Integrated Services Digital
Network (ISDN) trunk, provided that you are connected to a Strata DK424i, DK424
with software Release 4.0 or higher, or DK40i, and that you subscribe to ISDN lines.
ISDN trunks offer faster call connection setup, and they also provide more connection
circuits.
Making an ISDN outgoing call will either be handled automatically with a timer or by
you initiating the ISDN “Start” sequence. The method depends on your system’s
programming. See your System Administrator to determine the method.
➤To make an outgoing call to an ISDN trunk
Making an Outgoing Call with a Subaddress to an ISDN Trunk
Subaddress digits may be required for dialing another department, or to send a call to
equipment, such as a printer. If you need to enter subaddress digits, follow these
instructions:
4. Lift the handset when
the party returns. Note Your telephone’s 0,& can be set in system
programming to switch ON/OFF with one
touch, to switch OFF only while pressed and
held, or to be either ON/OFF at the start of
handsfree dialing. See your System
Administrator if you want the setting changed.
1. Access an outside CO
line
2. Dial the number.
3. Press 67$57. The dialed digits will not be sent until you press this
button or until the timer expires.
1. Access an outside CO
line
Features
Message Waiting
Strata DK Electronic Telephone 5/00 49
Message Waiting
All telephones have a standard MW/FL LED for receiving/retrieving messages left by
callers that called a [PDN] that was busy or did not answer. Telephones that own
[PhDNs] can also have up to four additional (flexible) message waiting [PhDN/MW]
buttons and LEDs. The fourth message waiting button is reserved for the Message
Center.
The MW/FL LED at the called station flashes to notify you that someone called while
you were busy on another call or away from your office. You can call the other party
back by pressing the 0:)/ button. Voice mail devices, as well as people, can leave
message waiting indications.
If you have an LCD telephone, up to four message waiting
displays may be stored on the LCD per each [DN]. The LCD
can show up to three stations that have left messages for your
[PDN] and three for each of your [PhDNs]. The fourth message waiting button is
reserved for the Message Center.
➤To answer a Message Waiting on your [PDN]
2. Dial the number.
3. Press 68%. This informs the system that the following digits are
the subaddress.
4. Enter the subaddress.
5. Press 67$57. The dialed digits will not be sent until you press this
button or until the timer expires.
1. Press 0:)/ and lift
the handset. Your phone rings the station or voice mail device that
set the indication. The LED continues to flash red.
If you reach a station that is busy or does not answer,
go on-hook and press 0:)/ again. The system
rotates to the next message sender.
NO. 204
CALL 203-201+
Features
Message Waiting
50 Strata DK Electronic Telephone 5/00
➤To cancel the Message Waiting on your [PDN]
The LCD can show
up to three stations
that have left
messages for the
[PDN] and three for
each of your
[PhDNs].
2. Press 6&5/ to
display them.
In the example (shown at
right), the display indicates
that station DN [203] received
a message signal from DN [201]. The “+” indicates
additional messages.
3. After receiving the
message(s), place the
handset on hook.
If the MW/FL LED continues to flash, you have more
messages—repeat the Steps to retrieve them. Voice
mail devices may cancel the indication after a short
delay.
➤Press 0:)/ and lift
the handset Your MW/FL LED turns OFF when the called party
answers.
Note The called party must answer by either going
off-hook or by pressing 63.5 for the call to
be cancelled automatically.
...or [DN] + to
cancel the light. This
must be done for
each message
recorded.
Your MW/FL LED turns OFF without calling the
telephone or VM device.
NO. 204
CALL 203-201+
Features
Message Waiting
Strata DK Electronic Telephone 5/00 51
➤To retrieve a Message Waiting on your [PhDN]
➤To cancel the Message Waiting on your [PhDN]
1. Press the flashing red
MW/FL LED. Your phone rings the station or voice mail device that
left the message. If the called party or voice mail
device answers, the message waiting indication is
cancelled automatically.
If there is no answer, hang up and try at a later time.
The red
MW/FL LED on your phone continues to flash.
2. Press 63.5 after
receiving the
message
...or place the handset
on-hook.
If you have more messages, the MW/FL LED
continues to flash (red). To answer the next message.
Repeat this procedure.
1. Press 0:)/. You hear a steady dial tone.
2. Enter . The dial tone stops.
3. Press 63.5. The MW/FL LED turns OFF indicating that the
message has been canceled.
Features
Microphone Cut-Off
52 Strata DK Electronic Telephone 5/00
➤To set the Message Waiting LED on another telephone
➤To cancel a Message Waiting light set on another station
➤Press [DN] and dial  + [PDN] or [PhDN].
Microphone Cut-Off
This feature prevents callers from monitoring the sounds near your telephone when
your telephone receives a handsfree call or cuts-off the telephone microphone. The
MCO LED lights steady red and the MIC and SPKR LEDs do not light when your
telephone is called. When the feature is OFF, the MCO LED is not lit and your
microphone works. The 0&2 functions on Handsfree Answerback and speaker OCA
calls for privacy.
➤Press 0&2 to toggle Microphone ON/OFF.
1. Press [DN] and dial
an internal number. You hear ringback or busy tone.
2. Press 0:)/ or . The MW/FL flashes red at
the called telephone. The
MW/FL LED lights steady
red at your telephone. The
LCD displays the station
[203] where you set a
message waiting light.
3. Press 63.5. The MW/FL LED on your
telephone turns OFF. The
MW/FL LED on the called
telephone flashes until the
called party presses the
flashing LED .
NO. 201
INT 203 MW SET
SENT 203
JAN 01 SUN 12: 19
Features
Off-hook Call Announce (OCA)
Strata DK Electronic Telephone 5/00 53
Off-hook Call Announce (OCA)
This feature enables you to call and speak through the handset or speaker of an busy,
off-hook telephone. The called station must be set in system programming for this
feature to work. The calling station can be set in system programming for OCA to
occur automatically when calling a busy station or by dialing an access code after
receiving busy tone. Automatic OCA only functions on Voice First Signaling systems.
Your telephone can receive Speaker Off-hook Call Announce (SP-OCA) calls which
enables callers to make an announcement through the speaker of your telephone when
it is off-hook. Your telephone must be equipped with optional hardware.
When you receive an OCA call while you are on another call, you hear a short
warning tone followed by an announcement through your telephone speaker.
Stations in the DND mode cannot receive OCA calls unless
the calling station is programmed for DND Override.
While on a speaker OCA call, 0,& and 0&2 can be used to
prevent an OCA caller from listening to your conversation with the original party (see
“Microphone Cut-Off” on Page 52).
Voice First Signaling
➤To make an OCA call
1. Lift the handset and
dial the [DN]. You hear a single tone (optional) or nothing and can
talk to the station (Automatic OCA).
2. Press to OCA the
station and talk, if
you receive a busy
tone.
An optional tone is heard at
the busy station, indicating
that you are connected on an
OCA call.
NO. 204
210 BUSY OVRD
NO. 203
205 BUSY OVR
Features
Off-hook Call Announce (OCA)
54 Strata DK Electronic Telephone 5/00
Tone Signaling
➤To make an OCA call
SP-OCA
➤To answer an SP-OCA call
➤ To disconnect an SP-OCA call to your station
1. Lift the handset and
dial the [DN]. You may hear busy or ring tone.
2. Press if you hear
busy tone and speak
to the called station
...or  if you hear a
ring tone and speak
to the called station.
If you hear busy or ring tone after dialing the first digit
(2 or 1), disregard the tone and dial the second digit to
OCA the called telephone.
If you still hear a busy tone after dialing 21 or 12, the
called telephone is either busy on a speakerphone call
or does not have the OCA option set in system
programming. Either condition blocks OCA.
➤Speak toward the
microphone of your
phone.
You may want to hold your hand over the handset
mouth piece to prevent the other party from hearing
you.
➤Press 63.5. The SP-OCA call made to your station disconnects.
Features
Override Calls
Strata DK Electronic Telephone 5/00 55
Override Calls
The available override features are:
♦Busy Override – enables you to send a muted ring tone to a busy station to
indicate that a call is waiting. The muted ring is programmed for each station as
two muted rings only or continued muted rings until the call is answered. This
option applies to the station receiving the muted ring. The muted ring can be sent
to the telephone speaker or to the telephone handset/headset and speaker.
♦Do Not Disturb Override – enables you to send a tone
to an idle or busy station in the DND mode to indicate
that a call is coming in. Your telephone can be
programmed to block DND Override. The LCD shows
that the station you called (210) is in the DND mode.
OCA is possible to DND stations from stations that are programmed for DND
Override.
♦Executive Override – enables you to enter an established conversation. Your
phone can also be programmed to block Executive Override from other phones.
The 35,9does not block this feature.
♦Privacy Override – enables you to enter an established call on a private common
CO Line; it does not operate on common [DNs] which are always private (see
“Conference Calls” on Page 39 which allow up to four parties to talk on a [DN]
button).
Up to two station users can enter an existing CO Line-to-station call (i.e., up to three
stations can be connected to a CO Line). You can also use this feature if the station
that is already connected to the CO Line is in the Privacy Release mode. Station users
with 3595/6 can allow stations to enter their conversations, even if the station
entering the conversation is not programmed for Privacy Override.
Privacy Override is blocked by DND.
♦Toll Restriction Override – enables toll restriction on individual stations. Each
station can be allowed or denied specific area and office codes, long distance
information calls, international calls, and/or operator-assisted calls. You can
completely override Toll Restriction at selected stations or you can change the
station Toll Restriction class. The station resumes its normal class at the
conclusion of the call.
NO. 204
INT 210 DND
Features
Override Calls
56 Strata DK Electronic Telephone 5/00
Busy Station Override
Do Not Disturb Override
Executive Override
➤Press . A muted tone is heard at the
busy station, indicating that
a call is waiting. The station
number (210) displays.
➤Press . A tone signal is heard at the
DND station, indicating a
call is coming in. On your
station, the LCD shows the
station number (210) you
have overridden.
Your LCD displays DND
OVR DENY, if the station you
called denies your override.
➤Press . You enter the conversation. The called parties may
hear an optional tone signal prior to your entering the
conversation.
The overridden station
number (210) displays on
your LCD until the call is
ended.
The overriding station
number (204) displays on
the called station LCD until
the override is
disconnected.
NO. 203
210 BUSY OVR
NO. 204
210 DND OVR
NO. 204
DND OVR DENY
NO. 204
210 EXEC OVRD
NO. 210
204 EXEC OVRD
Features
Page Announcements
Strata DK Electronic Telephone 5/00 57
Privacy Override
Toll Restriction Override
Page Announcements
Station users can make page announcements to telephones and external speakers.
➤Press &2. Connected parties may hear
an optional tone signal
before you are connected.
Your LCD displays the CO
Line identification (CO 03).
The overridden station LCD
displays your station
number (204).
1. Access a CO Line. You hear dial tone. The LED flashes at the in-use rate.
2. Press &21)7516
+ .You no longer hear dial tone
and your LCD prompts you
to enter a code.
3. Enter the Toll
Restriction Override
Code (four digits).
You hear dial tone. For security reasons, the override
codes are only available on a selected basis. See your
System Administrator.
4. Dial a telephone
number. The toll call is connected.
1. Press [DN], lift the
handset, and enter a
paging access code.
Each of the page access codes (including the [PDN]
button) can be stored on an 6' button. See Tables 12
and 13 on Page 109.
2. Use a normal voice level to make your announcement, then repeat it.
3. Hang up.
NO. 204
LINE 03 PRV OVRD
NO. 205
204 PRV OVRD
NO. 204
OVERRIDE CODE
Features
Privacy On-Line
58 Strata DK Electronic Telephone 5/00
All Call Page
You can make an All Call Page to electronic telephones assigned to the “All Call Page
Group.” Stations are assigned to the “All Call Page Group” in system programming.
Privacy On-Line
With this feature, you can block Privacy Override from being used on your CO Line.
The button does not block Busy or Executive Override.
Privacy Release
This feature enables others to enter your call on a common CO Line just by pressing
&2 on their telephone. It only works on common CO lines (appearing on more than
one telephone). Privacy Release cannot be used on single appearing CO lines or
multiple [DN] buttons. Calls on common [DNs] are always private and cannot be
accessed by more than one telephone.
1. Press $&
...or [DN] + .
The $&button pages “All Call Page” telephones, but
does not access external page speakers.
Note  may also Page external speakers as well
as “All Call Page” telephones, depending on
system programming.
2. Make your announcement in a normal voice level and repeat it.
3. Hang up.
➤Press 35,9 The LED lights steady red. Others are blocked from
entering your CO Line calls when they press a
common &2 Line button.
...or 35,9 again to
cancel the feature. The LED turns OFF.
Features
Release and Answer
Strata DK Electronic Telephone 5/00 59
Similar to conference calls, up to three stations can be connected to a CO Line.
Release and Answer
This feature enables you to automatically disconnect or transfer an active call and
answer a new call using a button, instead of the hookswitch. When you receive the
new call, the LED flashes red and you hear a muted, Busy Override or Camp-on busy
tone.l
➤Press 3595/6. The LED lights red. The CO Line flashes at all
appearances. When another station user enters the CO
call by pressing a common CO Line, the Privacy
Release LED turns OFF.
To add a third station, press 3595/6 again and the
process is repeated.
➤Press 5/6$16 Releases the original call and answers the new
incoming call.
Note You can press +ROG before 5HOHDVHDQG
$QV if you do not wish to release the original
call.
...or &21)7516
and dial a “transfer
to” destination. Then
press 5/6$16
Transfers the original call and answers the new call.
...or '66 of a
“transfer to”
destination, then
press 5/6$16.
Transfers the original call and answers the new call.
Features
Saved Number Redial
60 Strata DK Electronic Telephone 5/00
Saved Number Redial
This feature enables you to store a dialed telephone or station number, then redial that
number with the touch of a button.
Speakerphone
All electronic telephone users can answer internal calls handsfree (on-hook), but only
users with a speakerphone can make and receive calls without lifting the handset. Any
electronic telephone model with an “S” in the model name is equipped with a
speakerphone.
➤To change from speakerphone to handset
➤To make a call (on-hook dialing)
➤Press 6$9(. The last number you dialed is saved for automatic
redial the next time you press this button.
1. Press and hold
63.5.
2. Return the handset
on-hook.
3. Release 63.5. The call is handsfree (on-hook).
➤Lift the handset. Your call is now heard through the handset.
1. Access a CO Line
...or press a [DN].
You hear dial tone and the CO or [DN] LED flashes
(in-use).
2. Dial a telephone
number. You hear ringback tone or busy tone, if busy.
Features
Speed Dial
Strata DK Electronic Telephone 5/00 61
➤To answer an incoming call using speakerphone
Speed Dial
Speed Dial enables you to call a telephone number with a two- or three-digit access
code. There are two types of Speed Dial numbers:
♦Station—assigned by individual station users to their own station and can only be
dialed from the station that assigns it.
♦System—assigned only from attendant consoles or a designated station (typically
the System Administrator station), and can be used by other stations. (See System
Administrator User Guide for storing instructions.)
Important! If you do not perform the following procedures within a specified time
(set in system programming for either one or three minutes) when
storing speed dial numbers, the operation times out and your telephone
returns to idle mode.
3. Speak in a normal
voice level toward
the telephone.
Note Your 0,& button must be set in system
programming to ON at the start of a call. If
not, you must press the 0,& button before
talking.
4. Press 63.5. Your call is disconnected.
1. Press the &2 or [DN]
with the flashing
LED with the handset
on-hook.
The CO or [DN] LED flashes (in-use) and you are
connected to the call.
2. Speak at a normal voice level toward the telephone.
3. Press 63.5 to disconnect the call.
Features
Speed Dial
62 Strata DK Electronic Telephone 5/00
➤To store/replace a telephone number on a Station Speed Dial button
➤To clear a telephone number on a Station SD button
➤Repeat the previous procedure, skipping Step 3.
➤To program one-touch telephone number dialing
➤To make a call using a SD button or access code
1. Press 5'/ (or )
with the handset on-
hook
2. Press 6' to store the
telephone number on 6' buttons are assigned in system programming.
...or 6'6 (or) and enter the Speed Dial code that you want to store the
telephone number in. See Table 14 on Page 110 for codes.
3. Enter the telephone number (max. 20 digits).
To store longer dialing strings, see Table 15 on Page 110.
To insert a pause or flash signal in the number, see “Speed Dial Pause” on Page
66.
4. Press 5'/ (or ) The number is stored.
➤Repeat the previous procedure, except for Step 3. For Step 3, press [PDN] +
CO Line access code before the telephone number. See “CO Line Access
Codes” on Page 108.
1. Access a CO Line.
If your 6' button
programmed to
automatically access
a CO line, skip this
step.
Features
Speed Dial
Strata DK Electronic Telephone 5/00 63
Speed Dial–Advanced Features
You can program Speed Dial buttons with feature access codes for a single feature or a
sequence of features as long as the keyed dial pad characters do not exceed 20 digits.
To determine how many digits you have, count 2 digits for &21)7516, [PDN] and
+2/' feature buttons and 1 digit for all other dial pad characters.
➤To store a feature with a specific 6' button
➤To store a feature with a specific access code
2. Press 6'
...or 6'6 (or ) +
access code. (See
Table 14 on Page
110.)
The system dials the telephone number assigned to the
button/code.
➤Press 5'/ (or )+ 6' + Feature Access Code + 5'/(or ).
See Table 7 on Page 64 for Feature Access code sequences. Your System
Administrator can tell you which features can be programmed on your
telephone.
➤Press 5'/ (or)+
6'6 (or ) + Speed
Dial Access Code +
Feature Access Code
+ 5'/(or ).
Important!
●Do not lift the handset while entering the
sequence.
●If you do not enter the entire sequence within a
specified time (set in system programming for
either one or three minutes), the operation times
out and your telephone returns to idle mode.
●[PDNs] can be stored in speed dial sequences, but
[PhDNs] and [SDNs] cannot.
Features
Speed Dial
64 Strata DK Electronic Telephone 5/00
Table 7 Feature Access Codes
Features Feature Access Code Sequence
Account Code1 (Frequently used codes) &21)7516 +  + Account code digits
Automatic Callback
Background Music2 (Telephone Speaker ON) [PDN] + 
Background Music2 (Telephone Speaker OFF) [PDN] + 
Call Forward—All Calls (To Station or VM) [PDN] +  + Directory Number
Call Forward—Busy (To Station or VM) [PDN] +  + Directory Number
Call Forward Cancel [PDN] + 
Call Forward—No Answer [PDN] + 
Call Forward External [PDN] + 
Call Forward External Cancel [PDN] + 
Door Phone Calling [PDN] + door phone Directory Number
Hookflash Signal1&21)7516 + 
ISDN Subaddress 
ISDN Start 
ISDN Tone 
Off-hook Call Announce (Manual Mode) Voice First:; Tone First: , , or
Overrides (Busy, DND)
Overrides (Executive)
Page Access4
+ROG + [PDN] + XXX
XXX = Page Access code - see Table 12 on
Page 109.
Features
Speed Dial
Strata DK Electronic Telephone 5/00 65
Park Call/Access Page
The existing call is parked, and you are
automatically connected to the Page.
&21)7516 +  + [X X X] + [Y Y Y]
[X X X]3= 900~919 or 999 park zone number;
[Y Y Y] = page group/zone (See Tables 12 and 13
on Page 109.)
Pickup4 (To station, new, or transferred call) +2/' + [PDN] +  + station number [PDN]
Pickup a held or ringing [PDN] or [PhDN]
(not available on all systems)
[PDN] + + [X X X X]
[X X X X] = [PDN] or [PhDN] to be picked up
Pickup4 any ringing CO Line (new call only) +2/' + [PDN] +
Pickup Station Page or Ringing Door Phone4+2/' + [PDN] + 
Pickup4 External Page +2/' + [PDN] +
Pickup Line on Hold (lines 1~99)5[PDN] +  + (a)
Pickup Line on Hold (lines 100~200)6[PDN] +  +(a)
One-touch Voice Mail Access [PDN] + Voice Mail [DN]
Outgoing Calls [PDN] + CO Line Access Code, see Table 11 on
Page 108.)
1. These codes can be used during a CO Line call.
2. Background music speakers can only be turned ON/OFF from Station 200.
3. XXX = Auto Park Orbit 9 9 9 (access the next available park orbit), or General Park Zones 900~919,
or [PDN] on which the call should be parked. Only use 999 with LCD telephones.
4. This feature holds an existing call when the button is pressed. If the button is pressed when not on a
call, pickup or page can still be accessed. These codes can be used during a CO Line call.
5. After pressing the feature button, the user dials the line number (01~99) to pickup the line.
6. After pressing the feature number, the user dials the line number (100~200) to pickup the line.
Table 7 Feature Access Codes (continued)
Features Feature Access Code Sequence
Features
Speed Dial
66 Strata DK Electronic Telephone 5/00
Speed Dial Pause
Some Speed Dial numbers may require a pause (long or regular) or hookflash be
included (e.g., tone delay requires a pause at the beginning of a Speed Dial number).
Speed Dial Number Linking
You can link any of the Station Speed Dial numbers to System Speed Dial codes or to
any of the optional buttons associated with these codes. This enables up to 36 digits to
be stored under one Station 6SHHG'LDO button or code. Typically, long, frequently
used access numbers are stored as part of this digit string. The System Speed Dial
number dials out first, then the number linked to it.
Note A designated station can be used to link System Speed Dial codes. See the
System Administrator User Guide.
Important! Before linking Speed Dial Numbers, make sure the System
Administrator has stored the desired number in the System Speed Dial
that you are planning to use.
Hookflash Regular Pause Long Pause
The 0:)/ is programmed to
allow a 0.5 or 2 seconds long
(set in system programming)
CO line hookflash when
inputting Speed Dial numbers. It
is displayed on the LCD as “F-”.
Press 0:)/
...or enter the hookflash dial
code (&21)7516 + ).
The pause is either 1.5 or 3
seconds (set in system
programming). The LCD
displays “P-”.
Press3$8.
Ten-second pause, which can
be entered anywhere in the
Speed Dial number. The LCD
displays “L-”.
Press 3$8/.
Note Your telephone must have a 3$8 key to allow 0:)/ to be used to store a hookflash in Speed
Dial.
Features
Speed Dial
Strata DK Electronic Telephone 5/00 67
➤To link station/system speed dial numbers
Speed Dial Linking Example
The following examples illustrate what a System Administrator and station user can
store (CO Line access code plus international long distance dialing codes in System
Speed Dial locations) as linked speed dial codes.
The System Administrator stores the CO Line access code and the international
dialing sequence (9011813) in the System Speed Dial location *690 from the
administrator’s station.
➤Press 5'/ (or ) + 6'6 (or ) +  + [PDN] +  + 5'/(or ).
Note When you press [PDN], the letter “I” (Intercom) is displayed on your LCD. It
is the [PDN] that is used to automatically access internal dial tone before
dialing the remaining numbers in the Speed Dial sequence (in our example
that number is 9011813).
 is the System Speed Dial Code that is to be linked.
is the CO Line access code.
1. Press 5'/ (or).
2. Press 6'
...or 6'6 (or ) + a Station Speed Dial Access Code. (See “Speed Dial Access
Codes” on Page 110 for access codes.)
3. Press 6'6(or ).
Enter the System Speed Dial Access Code to which the number is to be linked.
(See “System Speed Dial Number Linking” on Page 110.)
4. Enter the telephone number to be stored (max. 16 digits).
5. Press 5'/(or ).
The number is stored and is automatically dialed when the optional linked
station 6' button is pressed or the linked Station Speed Dial access code is
dialed.
Features
Speed Dial
68 Strata DK Electronic Telephone 5/00
 is the international area code.
 is the country code (example: Japan).
is the city code (example: Tokyo).
The Station User stores the System Speed Dial information on Speed Dial Code 10.
➤Press 5'/(or ) + 6'6(or ) + + 6'6(or) +  + 5'/ (or
).
 is the Station Speed Dial Code.
 is the System Speed Dial Code being linked to Speed Dial Code 10.
 is the local Tokyo telephone number.
➤To use the new link
Chain Dialing Speed Dial Numbers
You can call two or more Speed Dial numbers during one call. This enables you to add
additional parties (conference calls) to your conversation. Chain Dialing also allows
dialing of a stored code, such as a credit card number, to send to a far-end computer.
➤To chain dial Speed Dial numbers
1. Access a CO Line. (See Table 11 on Page 108 for CO Line Access Codes.)
2. Press 6'6 (or )and dial the Speed Dial code for the telephone number to be dialed.
(See Table 11 on Page 108 for Speed Dial Codes.)
3. To dial another telephone number, press &21) and repeat Steps 1 and 2.
➤Press the 6'()
...or 6'6 (or)+
.
Your telephone automatically dials to access a CO
Line, the international dialing sequence (011813), and
the local telephone number (58769374).
Features
Timed Reminders
Strata DK Electronic Telephone 5/00 69
Timed Reminders
You can set five separate reminders at your station. At the time (hour and minute) set
by you, your telephone beeps. If your phone has an LCD, the message is also
displayed. You can set the reminder to occur once or on a daily basis.
1. Press a [DN] and dial a timed reminder number
(~).
2. Enter the time you want to be reminded.
Use a 24-hour clock format (HHMM).
3. Press for the reminder to be repeated every day, or
for a one-time reminder only.
4. Enter desired LCD message station number (~)
or system number (~)
...or enter if your telephone does not have an
LCD or if you do not want a message to display
when the time reminder tone sounds.
5. Press 5'/.
The time is recorded in memory and you should hear
a beeping tone (along with the displayed message)
for 30 seconds at the set time.
6. To cancel the beeping/message prior to 30 seconds,
press 0RGH + or take the phone off-hook.
#605 TIMER SET
#605 TIMER SET 0800
#605 TIMER SET 08001
605 TIMER SET 0800110
DATA PROGRAMED
Features
Tone/Pulse Dialing
70 Strata DK Electronic Telephone 5/00
➤To cancel a Timed Reminder
Tone/Pulse Dialing
With some older Central Offices, you may have to make calls on CO lines that are
programmed for rotary dial pulses. This feature enables you, while on these lines, to
switch to tone dial in order to access remote equipment (such as an answering
machine) requiring DTMF tones.
Two (Tandem) CO Line Connection
This feature enables a station user to connect two CO lines, then drop out of the
conversation. On some systems, both &2 buttons (or 3/buttons) must appear on
your telephone to allow Tandem connections to be established from your telephone.
1. Press [DN], then the
number of the timed
reminder
(~) you
want to cancel.
You can only cancel one reminder at a time.
2. Press 5'/. The reminder is cancelled.
1. Access a CO Line. Although the CO Line is programmed for rotary dial
pulses, access the CO Line and dial the telephone
number like any other call.
2. Dial a telephone
number.
3. Press 721( while
on the call. The Tone LED lights steady red, and you are able to
send DTMF tones with your dial pad. The feature is
cancelled when the call is completed.
Features
Two (Tandem) CO Line Connection
Strata DK Electronic Telephone 5/00 71
➤To connect two outside lines using a [DN] button
1. Press &21)7516
while talking on an
outside call using a
[DN] button.
You hear dial tone. The [DN] LED flashes (conference
rate).
2. Enter a CO Line
access code and then
the outside telephone
number.
See Table 11 on Page
108 for CO Line
access codes or ask
your System
Administrator.
3. Press &21)7516
after the party
answers.
The [DN] LED flashes (in-use rate), and all parties are
conferenced.
...or [DN] to return to
the original
connection if you
receive a busy tone/
no answer.
4. Press &21)7516
and hang-up. You hear dial tone before
you hang-up. The [DN]
LED flashes (exclusive-
hold rate) and the two lines
are connected. N1 and N2
identify the connected CO
lines.
TRK-TRK N1 N2
JAN 10 THU 11: 57
Features
Two (Tandem) CO Line Connection
72 Strata DK Electronic Telephone 5/00
➤To connect two outside lines (using a &2 button)
The LED turns OFF when the parties hang-up.
Note If the public telephone company provides auto
disconnect, the connection may release
automatically when the parties hang up. If not,
the lines must be supervised to be
disconnected. See “To connect two outside
lines (using a &2 button)” on Page 72.
1. Press &2
...or 3/ and dial a
telephone number.
You hear dial tone.
2. After the party
answers, press
&21)7516.
You hear dial tone. The CO LED flashes (conference
rate). The new CO LED flashes (in-use rate).
3. Press another &2
...or 3/ and dial a
telephone number.
...or on some
systems, you can
press &21)7516
and dial a CO Line
access code and then
dial a telephone
number.
It is not necessary to have both &2 buttons on your
telephone.
4. Press &21)7516
after the party
answers.
...or the original &2
button if you receive
a busy tone/no
answer.
The CO LEDs both flash (in-use rate) and all parties
are conferenced.
Features
Two (Tandem) CO Line Connection
Strata DK Electronic Telephone 5/00 73
➤To supervise a tandem call and release it
5. Press &21)7516
and hang up. You hear dial tone. Both
CO LEDs continue to flash
(exclusive-hold rate) and
the two lines are connected.
N1 and N2 identify the
connected CO lines.
The LED turns OFF when the parties hang-up.
Note If the public telephone company provides auto
disconnect, the connection may release
automatically when the parties hang up. If not,
the lines must be supervised to be
disconnected.
1. Press [DN]
...or &2
...or 3/.
You are connected to both
CO lines. Both CO LEDs
flash (in-use rate). N1 and
N2 identify the connected
CO lines.
2. Go back on-hook if
the parties have hung
up
...or press &21)
7516 and hang-up
if the parties are still
talking.
Both CO LEDs turn OFF, and the connection is
released.
TRK-TRK N1 N2
JAN 10 THU 11: 57
TRK-TRK N1 N2
JAN 10 THU 11: 57
Features
Voice Mail Integration
74 Strata DK Electronic Telephone 5/00
Voice Mail Integration
This section explains how to program your telephone to forward and retrieve
messages when using a Toshiba Voice Mail System with your Strata DK system. Refer
to the appropriate Toshiba Voice Mail User Guide for more information:
♦Stratagy Voice Processing User Guide
♦Toshiba VP User Guide
To direct forwarded calls to your mailbox—your personal storage space for voice
messages—and to ensure that callers receive your personal greeting, you must store a
Voice Mail (VM) Identification (ID) code. You need to store the ID code only once.
Once the ID code is stored, whenever a call is forwarded from your station, it is
automatically sent to voice mail and to your mailbox. Your [PDN] and up to four
[PhDNs] can be set up for unique (or the same) mailbox numbers. Telephones must
be programmed as the owners of a [PhDN] to be able to use this feature.
➤To assign a voice mail message mailbox number
This procedure is required for the initial storage of VM ID code to the Toshiba Voice
Mail system. Once programmed, these digits remain in memory until changed. To
change the code, repeat this procedure.
1. Press [DN] + . You hear confirmation tone.
2. Enter the voice mail
ID code and the voice
mailbox [DN], plus
any required pauses
(up to 16 characters).
Example: for Toshiba voice
mail systems, enter  + the
mailbox number.
203= mailbox number of the
[DN] you pressed in Step 1.
3. Press 5'/ (or ). You hear a confirmation
tone. The LCD confirms the
data storage.
656 ID CODE SET
91203
DATA PROGRAMED
Features
Voice Mail Integration
Strata DK Electronic Telephone 5/00 75
➤To cancel the mailbox number
You can program a flashing 0:)/ to automatically retrieve your voice mail
messages when it is pressed. Storing the message retrieval sequence in Steps 1~4
below is required only once. It remains in memory unless cancelled or changed.
➤To assign the message retrieval sequence
➤To retrieve messages with MW/FL button
➤Press [DN] +  +
5'/ (or). Your mailbox number is canceled.
1. Press [DN] + . You hear a confirmation
tone.
2. Enter the voice mail
system code and the
voice mailbox [DN],
plus any required
pauses (16 chars.
max.).
Example: for Toshiba voice
mail systems, enter  + the
mailbox number.
203= mailbox number.
3. Enter your security
code. By storing your security code, you avoid having to
enter your code every time you access your mailbox;
however, this also allows anyone to retrieve your
messages from your phone. If a security code is not
desired, do not include it.
4. Press 5'/ (or ). You hear confirmation tone.
The LCD confirms the data
storage.
➤Press the MW/FL
flashing LED. Message is retrieved.
657 ID CODE SET
92203
DATA PROGRAMMED
Features
Voice Mail Integration
76 Strata DK Electronic Telephone 5/00
➤To cancel automatic retrieval
➤To retrieve multiple messages (LCD Telephones)
By setting Call Forward to the Toshiba Voice Mail System on your telephone, callers
are automatically connected to your voice mailbox.
Note Call Forward buttons can only be used to Call Forward [PDNs]; access codes
can be used to Call Forward [PDNs] or [PhDNs].
➤To forward calls to voice mail
➤Press [DN] +  +
5'/ (or ). Automatic retrieval is canceled.
1. Press 0:)/ with
the flashing LED. The displayed station is
called.
2. Press 6&5/ to rotate
through more
message waiting
sources.
When a message waiting
voice mail is displayed, a V
follows the station number.
If a + sign is displayed, you
have message waiting
indications from more than
one source (voice mail or
stations).
1. Press &)$&, &)%,
&)%1$, &)1$, or
&))
The LED flashes.
Note Select the button that reflects the type of call
you want to forward to voice mail (e.g.,
forward all calls, forward busy/no answer
calls, etc).
NO. 203
CALL 200 216V+
Features
Voice Mail Integration
Strata DK Electronic Telephone 5/00 77
➤To cancel Call Forward
...or a [PDN] or
[PhDN] + access
code.
You hear a confirmation tone after entering the access
code. The Call Forward access codes are:
Call Forward-All Calls: 
Call Forward-Busy: 
Call Forward-No Answer: 
Call Forward-Busy-No Answer: 
2. Dial the Voice Mail
System Directory
number__________.
See your System Administrator for the correct voice
mail [DN]. After dialing, you hear confirmation tone.
3. Press &)
...or 6'6 (or ) +
5'/ (or ) + 63.5.
If your phone has &) assigned, its LED lights steady
red.
➤Press &) The Call Forward LED turns off.
...or a [PDN] or
[PhDN] + ,
then hang up.
You hear a confirmation tone, and Call Forward is
cancelled.
Features
Voice Mail Integration
78 Strata DK Electronic Telephone 5/00
Strata DK Electronic Telephone 5/00 79
LCD Operation 3
This chapter covers the LCD, its buttons and displays. Special features available only
with the LCD are described in detail and step-by-step instructions on using them are
given. (For electronic telephone standard features, see Chapter 1 – The Grand Tour.)
Control Buttons
The 02'(, 3$*( and 6&5/ buttons are active when your telephone is idle. Table 8
on Page 79 lists button functions.
Table 8 Button Definitions
Button Definitions
02'(
Cancels the beeping tone when using timed reminders and enables you to enter/
exit the following mode functions.
Used to exit another mode and return to clock/calendar display (see “To
exit from any mode” on Page 80).
Busy Lamp Field (BLF) display (see “Busy Lamp Field (BLF) Display”
on Page 81).
Busy station messaging (see “Silent Messaging (Busy Station)” on
Page 94).
Called station messaging (see “Notification Station Messaging” on
Page 91).
LCD Operation
Control Buttons
80 Strata DK Electronic Telephone 5/00
➤To exit from any mode
02'(
(continued)
Displays LCD message number NN, where NN can be personal
messages or system messages. Mode only displays the selected
message. It cannot be used to edit or create a new message.
Speed Dial number check and memo dialing (see “Retrieve and Auto
Dial Lost Calls” on Page 84).
 Caller ID/ANI/DNIS information mode OFF (see “Caller ID/ANI/DNIS
Information Mode” on Page 82).
 Caller ID/ANI/DNIS information mode ON (see “Caller ID/ANI/DNIS
Information Mode” on Page 82).
 Caller ID/ANI/Lost Call stored information display (see “Retrieve and
Auto Dial Lost Calls” on Page 84).
 View Call Park Orbit list (see “Call Park Orbit List Display” on Page 84).
 Remote called station messaging (see “Group Notification Station
Messaging” on Page 93).
 Remote calling station messaging (see “Notification Station
Messaging” on Page 91).
3$*(
●Changes Busy Field groups.
●Changes displays (date/time, elapsed time,
message, call forward, dialed number).
●Scrolls through speed dial numbers when in
Mode 8.
6&5/
●Scrolls through message waiting numbers.
●Scrolls through the speed dial digits (if more than 16 digits) when in Mode 8.
1. Press 02'(.
2. Press . The LCD displays date/day/
time.
Table 8 Button Definitions (continued)
Button Definitions
AY 24 MON 12: 05
NO. 204
MODE NO. ?
JUNE 03 TUE 03:54
LCD Operation
Busy Lamp Field (BLF) Display
Strata DK Electronic Telephone 5/00 81
Busy Lamp Field (BLF) Display
This feature displays when a station is busy or ringing on any type of [DN] or CO
Line. If one or all telephone [PDNs] are in use on another telephone, the telephone
shows busy on the BLF, even though it may be idle. If a telephone is in the DND
mode, the telephone BLF appearance displays busy.
Starting with the number entered, the BLF displays a group of 10 [PDNs] per line; a
total of 20 for the LCD. Pressing 3$* ( scrolls the display. The BLF mode stops all
other displays from appearing on your LCD.
1. Press 02'( + .
2. Press if [PDNs] are
two digits
...or enter the first
digit of a three-digit
[PDN]
...or enter the first two
digits of a four-digit
[PDN].
3. Press .
For example, if you enter 2#
for 200, the list of telephone
[DNs] beginning with the
200 display.The sample
LCD (shown at right)
indicates that stations 200,
205, and 217 are in use or
DND mode.
4. Press 3$*( to rotate
BLF groups. The 200/210 group changes
to 210/220.
BLF NO. ?
200 0...5.....
210 ......7...
210 ......7...
220 ..2.4....9
LCD Operation
Caller ID/ANI/DNIS Information Mode
82 Strata DK Electronic Telephone 5/00
Caller ID/ANI/DNIS Information Mode
Automatic Number Identification (ANI) information cannot co-exist on the same
telephone LCD with Dialed Number Identification Service (DNIS) information. If
your system is programmed to receive both ANI and DNIS information on incoming
calls, press 3$*( while the call is ringing to alternate between DNIS and ANI/Caller
ID LCD displays. After you answer the call, you cannot alternate between displays.
DNIS
Incoming DNIS telephone numbers can be correlated in the system database with
assigned DNIS names. These names, up to 16 alphanumeric characters, display on
your telephone’s LCD, enabling incoming calls to be instantly identified and
appropriately answered. Table 9 on Page 83 shows DNIS samples.
ANI/Caller ID
If your telephone is programmed to receive Caller ID names and numbers, the calling
party name displays.
➤To display the number while the call is ringing
Table 9 on Page 83 shows ANI samples. If Caller ID was activated, then the caller
name and/or number would appear on the first line.
➤To activate the Caller ID/ANI or DNIS display mode
➤Press 02'( + . The system default is ON.
➤To deactivate the Caller ID/ANI or DNIS display mode
➤Press 02'( + .
➤While the call is
ringing, press 3$*(.MR. JONES
LINE 3 RINGING
LCD Operation
Caller ID/ANI/DNIS Information Mode
Strata DK Electronic Telephone 5/00 83
Table 9 DNIS/ANI Samples
Function ANI/Caller ID Number1
1. Caller ID numbers do not display CN: before the number, whereas ANI does.
DNIS/Caller ID Name
Incoming Call
Incoming ACD Call
Answered incoming or transferred call.
Display changes to call duration.
Call placed on-hold.
Held call recalls your station.
Station 201 is transferring a call to you
(station 200).
Transferred station (201) hangs up.
Transferred call recalls your station (201).
Call forwarded to your phone.
CN: 7145556782
LINE 3 RINGING TOSHIBA TSD
LINE 3 CALLING
TOSHIBA TSD
LINE 3 RINGING
CN: 7145556782
ANSWERED LINE 3 TOSHIBA TSD
ANSWERED LINE 3
HOLD LINE 3
SEP 9 TUES 18:30
CN: 7145556782
LINE 3 RECALL TOSHIBA TSD
LINE 3 RECALL
NO. 200
201 CALLING
CN: 7145556782
LN 3 TRANS 201 TOSHIBA TSD
LINE 3 TRANS 201
CN: 7145556782
L 3 RECALL 201 TOSHIBA TSD
L 3 RECALL 201
TOSHIBA TSD
LINE 3 CALL 201
LCD Operation
Call Park Orbit List Display
84 Strata DK Electronic Telephone 5/00
Call Park Orbit List Display
This feature enables you to monitor (view) the calls that are parked at your station.
Retrieve and Auto Dial Lost Calls
The system automatically saves the numbers for all calls that ring at your telephone,
but are unanswered (lost calls). This feature enables you to view the stored
information, view the time and date, delete the information without returning the call,
and/or Auto Dial the saved numbers.
➤To view lost calls
➤Press 02'( + 
while your phone is
idle.
LCD shows the CO Line
number (003) and the orbit
number where the call is
parked (900).
...or 2UELW/LVW. To
scan the Orbit List,
press 6&5/.
1. Press 02'( + . The phone number and
caller name are displayed on
your LCD. ANI/Caller ID
numbers always include
area codes.
2. Press 6&5/ The next lost call is
displayed.
...or The lost call prior to the call
displayed after pressing
6&5/ is displayed.
LN 3 ORBIT 900+
MR. JONES
7145553700
MR. SMITH
7145568725
MS. DOE
7143723546
LCD Operation
Retrieve and Auto Dial Lost Calls
Strata DK Electronic Telephone 5/00 85
➤To delete lost call
➤To Auto Dial the lost call
...or 3$* (.You can toggle between the
phone number and caller
name screen and the date
and time screen.
Note CN: Identifies ANI
calls as opposed to
Caller ID calls
which do not
display CN:.
1. Press 02'( + . The first lost call phone
number and caller name are
displayed on your LCD.
ANI/Caller ID numbers
always include area codes.
2. Press 6&5/ The next lost call is
displayed.
...or The lost call prior to the call
displayed after pressing
6&5/ is displayed.
...or .The lost call information is deleted without auto
dialing the call.
1. Press 02'( + . The phone number and
caller name are displayed on
your LCD. ANI/Caller ID
numbers always include
area codes.
2. Press 6&5/ The next lost call is
displayed.
MR. JONES
7145553700
06/02 17: 46
CN: 7145553700
MR. SMITH
7145568725
MS. DOE
7143723546
MR. SMITH
7145568725
LCD Operation
Messages
86 Strata DK Electronic Telephone 5/00
Messages
The LCD on your telephone can be used to send or receive
messages to/from other LCD telephone users (sample shown
at right). It can also display the names/numbers of the person
calling your telephone or the name of the person you are calling. Names and memos
can also be set to display with speed dial numbers and timed reminders.
You can write or edit a station message (10~19), “fill in the blanks” of system
messages 62~64, enter a name/title that you want to display when other stations call
your station (see “Name/Number Display” on Page 98), or enter a Speed Dial (see
“Speed Dial Memos” on Page 96) or Timed Reminder memo (see “Timed Reminders”
on Page 69).
System messages 65~99, if available, are written by the System Administrator and
cannot be edited by the user
➤To enter LCD characters
...or .The lost call prior to the call
displayed after pressing
6&5/ is displayed.
3. Press &2
...or a [DN] + CO
Line access code.
You hear dial tone.
4. Press /&$'. The DK System auto dials the digit “1” before dialing
the saved, outgoing telephone number.
1. Access message/
memo/name display. A cursor (—) appears at the first character in the
display.
MS. DOE
7143723546
BACK AT 2-PM-CALL
MEETING FOR 3PM
LCD Operation
Messages
Strata DK Electronic Telephone 5/00 87
2. Enter the message/
name/memo (up to 32
alphanumeric
characters), using the
following dial pad keys
(dial pad shown at
right):
– moves right
– moves left
²toggles between
alphanumeric mode
(dial pad defaults to
numeric mode)
– scrolls the alpha/
special characters.
See Table 10 on Page 87 for dial pad key equivalents.
3. To blank out any
portion of a message,
press (in alpha mode)
and move the cursor to
the right.
Each character the cursor transverses is deleted.
Table 10 Dial Pad Key Equivalents
Letter Key Equiv. Letter Key Equiv. Letter Key Equiv. Symbol Key Equiv.
AJS :
B K T–
C L U +
DMV /
E N WNote Symbols shown
above must be
made in alpha
character mode
on the dial pad.
F O X
GPY
H Q Z
I R
2358
Toggles between
alphanumeric
characters
Scrolls alpha/
special characters
Move Left
Move Right
(Alpha mode only)
LCD Operation
Messages
88 Strata DK Electronic Telephone 5/00
There are three basic LCD message functions:
♦Advisory messaging enables you to store an informative message for LCD
telephones that call your phone.
♦Silent messaging enables you to write a message that you can send to busy LCD
telephones. Silent messaging lets you communicate visually to someone who is
occupied on the telephone.
♦Notifications enable you to send your station number and message indication to
another LCD station. Responding to the message, the called station receives your
message.
There are two types of messages—station and system.
System Messages 60~64
System messages 60~64 are standard messages. You can “fill in the blanks” of
messages 62~64 (see below). Example: Message 64 can be edited to read RETURN ON
JAN. 4. This message is displayed to callers with LCD phones.
System Messages 65~99
System messages 65~99 can only be programmed or permanently changed at the
Administrator’s telephone. Any messages programmed at Administrator’s telephone
remain in memory until canceled from Administrator’s telephone or until the system is
reinitialized.
System Message
Number Preprogrammed message
(Max. 32 digits per message)
60 OUT TO LUNCH
61 IN A MEETING
62 CALL _____________
63 BACK AT __________
64 RETURN ON________
LCD Operation
Messages
Strata DK Electronic Telephone 5/00 89
Station Messages
You can create up to 10 station messages (10~19). Once entered, a message can never
be deleted; only overwritten. This is a station option that is enabled in system
programming.
➤To enter/store a station message
➤To set an advisory message for incoming calls
1. Press /&'0
...or [PDN] + .
The LCD M or [PDN] LED
flashes.
2. Enter the two-digit
message number
(10~19) to be stored.
The current message, if any, is displayed.
3. Enter the message.
(See “To enter LCD
characters” on Page
86.)
The LCD M or [PDN] LED lights, and the message
displays. The message is now stored in system
memory.
4. Repeat Steps 1~3 for
any additional
messages you want to
store.
5. Press /&'0
...or 63.5.
The message displays on your LCD as an Advisory
Message (see below). To cancel the message display,
press [PDN] and dial  or press /&'0.
1. Press /&'0
...or a [PDN] + .
The LCD M or [PDN] LED
flashes.
MSG NO. ?
MSG NO. ?
LCD Operation
Messages
90 Strata DK Electronic Telephone 5/00
➤To cancel an advisory message that has been set at your station
➤To set an advisory station message for a remote station
2. Enter the desired
message number:
~ (station)
...or ~ (system)
The selected message
displays. This assumes the
message has already been
stored in memory.
3. Press /&'0
...or 63.5.
The message displays on your LCD. The LCD M
[PDN] LED lights continuously. The selected message
is sent to LCD phones when they call your [PDN] or
any [PhDN] owned by the telephone.
4. Press 3$*( to
display the message
instead of the CF
display if you have
Call Forward set.
➤Press /&'0
...or [PDN] + +
63.5.
The LED goes out. If a station message was sent, this
procedure does not erase it.
1. Press 02'( + 
while your telephone
is idle.
2. Dial the destination
[PDN]. 207 = the destination [PDN]
3. Press 3$*(.
MSG NO. 10
MODE 95
DEST EKT NO.?
MODE 95 DEST EKT
EKT NO. 207
MW TO ST123
MSG NO?
LCD Operation
Messages
Strata DK Electronic Telephone 5/00 91
Message Notification
With an LCD telephone, you can set short messages (up to 32 characters) that display
to callers with LCD telephones. Any station can record a message; however, only
stations with an LCD are able to see the stored messages.
Notification Station Messaging
Your station number and a message indication can be sent to another LCD station.
When that station responds, it receives the message.
4. Enter the message
number (station
a; system
a).
This assumes the message is
already stored in memory.
5. Press 3$*(. Remote calling station
messaging allows you to set
a calling station message for
only one station at a time.
6. Press 02'(.207 = the [PDN] where the
message is to appear.
010 = the message number.
M = message is set. Called Station
7. Press . Your LCD shows the time
and date. The message is
displayed at station 207.
LCD telephones calling
station 207 receives the
message.
Your Station
1. Press [PDN] and dial
the station DN. Station does not answer or is busy.
2. Press 02'( + .
MW TO STXXX
MSG NO?10
CALL 207-010M
SENT 207
MW TO STXXX
MSG NO.?
LCD Operation
Messages
92 Strata DK Electronic Telephone 5/00
➤To receive a notification station message
➤Press 06*: when the LED flashes.
➤To cancel the message from the telephone that has the message set
3. Enter the message
number. Station message (10~19), system message (60~99).
The LCD displays the message. This assumes the
message has already been stored in memory.
4. Press 06*:. MSG W LED flashes on the
called station and the LCD
displays:
204 = the called [DN]
207 = the [PDN] of the
station that sent the message
M = message has been sent.
Called Station
Your LCD displays:
204 = the called [DN]
SENT = message has been
sent. Your LCD
5. Press 63.5 or hang
up to release.
➤Press [PDN] and dial
;;;.XXX is the [PDN] of the telephone that has the
message set.
CALL 204-207M
SENT 204
LCD Operation
Messages
Strata DK Electronic Telephone 5/00 93
Group Notification Station Messaging
This feature enables a station to set a Called Station Message for a group of stations.
1. Press 02'( + .Prompted for the destination
number.
2. Dial the destination
[DN]
...or press  for all
call page stations,
...or enter a group
code (~).
Station groups correspond
to the same stations that are
in respective Page groups
assigned in system
programming.
207=destination [DN] or
group number.
~ for Page Group
1~8 respectively.
3. Press 3$*(.
4. Dial the originating
[PDN]. This can be your number or
another station number.
5. Press 3$*(.
6. Enter the message
number (station
~; system,
~).
The LCD displays the
message. In this example,
system message 60 was
entered. This assumes the
message is already stored in
memory.
MODE 94
DEST EKT NO.?
MODE 94
DEST EKT NO. 207
MODE 94
ORG EKT NO.?
MODE 94
ORG EKT NO. XXX
MSG NO.?
OUT TO LUNCH
LCD Operation
Messages
94 Strata DK Electronic Telephone 5/00
➤To receive a notification message
➤Press 06*:.
➤To cancel the message from the telephone that has the message set
Silent Messaging (Busy Station)
An audible tone and an LCD message can be sent to an LCD station that is busy. The
busy station can return a message to the calling station LCD. The two stations may
continue this procedure to carry on a “silent” conversation.
7. Press 3$*(.
8. Press 02'(.
9. Press . At the destination station,
the LCD displays the
originating station number
and the 06*: LED
flashes.
➤Press [PDN] and dial
;;;.XXX is the [PDN] of the telephone that has the
message set.
1. Press 02'( +
when you receive a
busy tone.
The called number is
displayed, 210=[DN], and
you are prompted for the
message number.
MSG NO.?
MODE NO.?
SENT 207M
OVER TO ST210
MSG NO?
LCD Operation
Messages
Strata DK Electronic Telephone 5/00 95
➤To return to a busy station message after receiving a busy station message
2. Enter the message
number. Station message (10~19)
and system message
(60~99). The LCD displays
the message. This assumes
the message is already
stored in memory.
3. Press 3$*(. The destination station
beeps four times and the
message displays for 30
seconds or until you hang
up.
Your LCD confirms the
message was sent.
1. Press 02'( + . You are prompted for the
message number.
2. Enter the message
number. Station message (10~19) and system message (60~99).
The LCD displays the message. This assumes the
message is already stored in memory.
3. Press 3$*(. Your LCD confirms the
message was sent.
MSG SENT
OVR TO ST210
MSG NO?
MSG SENT
LCD Operation
Memos
96 Strata DK Electronic Telephone 5/00
Memos
Speed Dial Memos
You can store names (12 characters maximum) for each of 40 station speed dial
numbers. The memo pad of names can be scrolled to select the appropriate party. The
station must be enabled via system programming for LCD message memory.
➤To program Speed Dial names and numbers
➤To display the SD number and memo
1. Press 5'/ (or ),
then 6'6 (or).
2. Dial a station speed
dial code. See Table 14 on Page 110
for speed dial codes.
3. Press 02'(. If a name was previously
stored on this code, it
appears on the top line.
4. Enter the name or
memo (12 characters
maximum).
The name appears on the bottom line as you enter it.
(See “To enter LCD characters” on Page 86.)
5. Press 02'(.
6. Enter a phone number
(16 characters
maximum).
The number displays on the top line as you enter it.
7. Press 5'/ (or ) to
record data in
memory.
➤Press 02'( +
;a;.X~X is the speed dial number to be displayed.
# * 10 SPEED DIAL
*10 NAME
SPEED DIAL
LCD Operation
Memos
Strata DK Electronic Telephone 5/00 97
➤To dial a SD number
➤To check a SD number
1. Press 02'( +
when your phone is
idle.
2. Enter Station Speed
Dial Code
...or System Speed
Dial Code.
3. Press 3$*( to see
more of the directory
of numbers/memos.
4. Press an available &2
...or [DN] and enter a
CO Line access code.
The number is dialed.
1. Press 02'( +
when phone is idle.
2. Dial a speed dial
number. TOSHIBA is the memo (up to
12 characters).
714 583 3700 is the number
(up to 16 digits).
3. Press 3$*( to scan
the directory for the
appropriate number/
memo.
4. Press 6&5/ to
display any remaining
digits.
If the number is longer than 16 digits, a “+” appears in
the far right corner of the display.
SPEED DIAL NO. 10
MODE NO.? 8
*11 TOSHIBA
7145553700
LCD Operation
Name/Number Display
98 Strata DK Electronic Telephone 5/00
Timed Reminders
See “Timed Reminders” on Page 69.
Name/Number Display
This feature enables you to enter a name/title, telephone number, location, etc. in
system memory. This name/title (e.g., LOBBY) displays on your LCD while it is idle,
and on other station LCDs when you call them or they call you.
Name display information for non-LCD telephones or voice mail/auto attendant
devices may be entered by the System Administrator for display on other stations
LCDs when called.
When this feature is set, your Name/Number displays during direct, forwarded, and
hunted calls. The name/number is not displayed on overridden or OCA calls.
➤To enter name/number information
1. Press [DN] + . You are prompted for your
name.
2. Enter the new
information (up to 16
characters can be
entered, e.g., your
name and station
number). See “To
enter LCD
characters” on Page
86.
3. Press 63.5. The information is stored
and appears on the top line
of your station LCD.
USER NAME ?
TOSHIBA EXT. 200
DATE DAY TIME
LCD Operation
Name/Number Display
Strata DK Electronic Telephone 5/00 99
➤To clear name/number display
➤To erase name/number display
When you call a station, the
name/title displays on the
bottom of the called station
LCD.
1. Press [DN] + . You hear confirmation tone, then busy tone.
2. Press 63.5.
During the clear, the
message on the right is
displayed.
After the clear, a name is
displaced by message and
call forward settings if they
are set.
Note This procedure does not erase the name/
number. To restore the display, press [DN] +
.
1. Press [DN] + . Current information
displays on the lower line of
the LCD. You are asked for
the user name.
2. Press in the alpha
mode to enter blanks. Blank characters replace the information.
3. Press 63.5. The information is erased and the [PDN] of the
telephone is displayed.
NO. 213
TOSHIBA EXT. 200
NO. 213
USER NAME RESET
NO. 213
DATE DAY TIME
USER NAME ?
LCD Operation
Name/Number Display
100 Strata DK Electronic Telephone 5/00
Strata DK Electronic Telephone 5/00 101
DSS Console 4
This chapter provides an overview of the Direct Station Selection (DSS) Console that
is available for system operators who do not have an attendant console. It describes
the features buttons and their associated LEDs. It applies to the DSS Console models
HDSS2060 (see Table 10 on Page 102), HDSS1060, and HDSS6560.
The DSS Console operates alongside of a electronic telephone to provide the
telephone with 60 additional feature buttons. The buttons can be programmed for:
♦&2 Line access
♦$OO&DOO3DJH
♦1LJKW7UDQVIHU
♦6WDWLRQ and/or 6\VWHP6SHHG'LDO
LEDs on the HDSS2060, HDSS1060, and HDSS6560 models light or flash red. For
the HDSS2060 and HDSS1060 models, the CO and [DSS] LEDs act in the same
manner as the electronic telephone and other LEDs on both of these models is red
when activated.
DSS Console
[DSS] Buttons
102 Strata DK Electronic Telephone 5/00
[DSS] Buttons
Each [DSS] button is associated with a particular station in your telephone system. It
can be used to transfer an outside call to the associated station or to make a direct call
to the associated station. The [DSS] LED lights steady red when the station associated
with the [DSS] is ringing, busy on a call, or in the DND mode. When the associated
station is idle, but all appearances of the station [PDNs] are busy or in-use by other
stations, the [DSS] LED lights steady red.
Note [DSS] buttons cannot call stations [PhDNs], Distributed Hunt Groups [DNs],
or ACD Groups.
209
208
207
206
205
204
203
202
201
200
219
218
217
216
215
214
213
212
211
210
229
228
227
226
225
224
223
221
221
220
239
238
237
236
235
234
233
232
231
230
249
248
247
246
245
244
243
242
241
240
NT
AC
257
256
255
254
253
252
251
250
2039
Notes
●The button numbers
shown in this figure
are examples only
and may not reflect
the numbers on your
particular station
equipment.
●Not available on
DK14 systems.
DSS Console
Features
Strata DK Electronic Telephone 5/00 103
Features
The LED color indications described here apply to DSS Console models HDSS2060
and HDSS1060. Flash conditions described here apply to all DSS Console models.
Calling a Station
To call a station [PDN] from a DSS Console, press the [DSS] associated with the
station. A station call with a [DSS] button can be made on-hook or off-hook and with
Voice First or Tone signaling. After pressing the button, treat the call like any other
station call made from a electronic telephone.
[DSS] LEDs show if the associated station is idle or busy. The LED is steady red if the
station is busy or ringing, and is not lit if idle. If all the station’s PDN buttons are
being used by other stations, the [DSS] LED of the station lights steady red, but the
station may be idle. If the station is in the DND mode, its [DSS] LED lights steady
red.
Transferring a Call
You can transfer internal or outside calls to an idle station from a DSS Console. You
can transfer a call to a busy station from your DSS Console. Use [DSS] to transfer the
call, even though the [DSS] LED for the station you are transferring to is red.
➤To transfer a call to an idle station
1. Press the [DSS]
button associated
with the called
station.
The call is automatically placed on hold. The CO or
[DN] LED flashes at double the on-hold rate, and the
[DSS] LED flashes.
You hear a single-ring tone. If using the tone signaling
mode, you hear successive ring tones.
2. Announce the call. With tone signaling, you have to wait for the called
station to answer before announcing the call.
3. Hang up. The call rings the called station when you hang up.
While the called station is ringing, the [DSS] LED is
steady red, and the CO LED flashes at the on-hold rate
or if on a [DN] button, it goes idle.
DSS Console
Features
104 Strata DK Electronic Telephone 5/00
➤To transfer call with camp-on to a busy station
Answering a (CO Line)
If your DSS Console is equipped with a &2 button, you can answer CO Line calls
from the console as you would from a electronic telephone. See Chapter 2 – Features,
beginning on Page 61 for detailed information.
➤Press the flashing &2.
When the called station answers the call, the [DSS]
LED stays steady red, and the CO LED becomes
steady red.
If the station does not answer before a period set in
system programming, the call recalls your station.
1. Press [DSS]
corresponding to the
busy station.
You may hear a busy tone. The original caller is
placed automatically on hold. The CO or [DN] LED
flashes at double the on-hold rate, and the [DSS] LED
remains steady red.
2. Hang up. The call rings the called station once with the camp-on
tone. While the called station is receiving this tone, the
CO LED on your telephone flashes (on-hold rate) or if
you are on a [DN] button, it goes idle. The [DSS] LED
remains steady red.
When the called station answers the transferred call,
the CO LED becomes steady red. The [DSS] LED
remains steady red.
Note If the busy station is in the DND mode, the
call is not transferred, but recalls your
telephone immediately.
If the call is not answered after a specified recall time
set in system programming, camp-on is cancelled and
the transferred call rings back.
DSS Console
Features
Strata DK Electronic Telephone 5/00 105
Speed Dial
Your DSS Console may be equipped with 6' buttons that can be programmed to dial
telephone numbers or to access features. 6' buttons on the console function like 6'
buttons on electronic telephones. See Chapter 2 – Features, beginning on Page 18 for
detailed information.
Paging
You can make an announcement page to a group of station telephone speakers selected
in system programming with $& on the DSS Console. 6' (if programmed) can be
used for page announcements. See “All Call Voice Page” on Page 22.
Call Forward Override
Either the [DSS] buttons on your DSS Console or the dial pad on the associated
telephone can be set in system programming to ring stations that are in the Call
Forward mode instead of being forwarded. Usually the console’s telephone is the unit
activated to perform this function. This feature can be used to notify a person who
forgets to deactivate the Call Forward feature after returning to the office.
Important! DSS buttons cannot override Call Forward.
➤To override call forward with your DSS associated telephone
➤To override call forward with your DSS Console
➤Press the station [DSS] set for call forward.
Night Transfer
You can use the DSS Console to make the system ring different telephones for
incoming calls during different times of the day. See the Strata DK System
Administrator Guide for more information on Night Transfer.
1. Press &21)7516
or [PDN].
2. Dial the station
number set for call
forward.
Make the call as you would from any other station.
This procedure assumes your station has a typical
program setting.
DSS Console
Features
106 Strata DK Electronic Telephone 5/00
Strata DK Electronic Telephone 5/00 107
Access Codes A
This appendix contains access codes for outside Speed Dial (SD) numbers, CO lines,
Paging Group and Paging Zone Codes.
CO Line Access Codes
CO lines are used when you dial an outside number. If your telephone does not have a
&2 button, you can enter the appropriate code listed in Table 11 on Page 108 to access
an outside line.
You can also store the code on a 6' button for one-touch access. If you are storing a
CO Line access code onto a Speed Dial code, enter  before the CO access code
(e.g., to store code , enter ).
In some systems, is used as a general group code or to access Least Cost Routing
(LCR). System users are required to dial in order to access an outside line. If you
press in a system programmed with LCR, you may not hear internal dial tone,
depending on system programming.
See your System Administrator for the code which applies to your telephone.
➤To access a line
➤Press [PDN] + CO Line Access Code.
Access Codes
Feature Access Codes
108 Strata DK Electronic Telephone 5/00
Notes
♦accesses LCR or general line group.
♦a accesses line groups 1~16, respectively.
♦a accesses individual lines 1~200, respectively.
Feature Access Codes
See Table 12 on Page 109.
Paging Access Codes
Your telephone can be assigned to page groups. Telephones can be a member of more
than one group and each group can have as many as 120 stations. Station users can
access each group separately by dialing an access code (see Tables 12~13 on Page
109).
Table 11 CO Line Access Codes
System CO Line Access Codes
DK14 RUaRUa
DK16, DK16e RUaRUa
DK40, DK40i RUaRUa
DK424 (RCTUA) RUaRUa
DK424 (RCTUBA/BB) and
DK424i (B1CU) RUaRUa
DK424 (RCTUC/D) and
DK424i (B2CAU/B2CBU)
(B3CAU/B3CBU)
RUaRUa
DK424 (RCTUE/F) and
DK424i (B5CAU/B5CBU) RUaRUa
Access Codes
Paging Access Codes
Strata DK Electronic Telephone 5/00 109
➤To enter a paging group access code
➤Press [PDN] + Access Code.
Table 12 Paging Groups
Paging Group Access Code Paging Group Access Code
Station Group A  Station Group E 
Station Group B  Station Group F 
Station Group C  Station Group G 
Station Group D  Station Group H 
Table 13 External Paging Zones
External Paging Zone Access Code External Paging Zone Access Code
DK14, DK40, DK40i, DK424, DK424i (all processors)
Paging
All Call Page Zone  Paging All Call,
External Page Zone 
DK40, DK40i, DK424 (RCTUA, RCTUBA/BB, RCTUC/D), and
DK424i (B1CU, B2CAU/B2CBU, B3CAU/B3CBU)
Zone A  Zone C 
Zone B  Zone D 
DK424 (RCTUE/F) and DK424i (B5CAU/B5CBU)
Zone A  Zone E 
Zone B  Zone F 
Zone C  Zone G 
Zone D  Zone H 
Access Codes
Speed Dial Access Codes
110 Strata DK Electronic Telephone 5/00
Speed Dial Access Codes
The number of station and system speed dial numbers available to you depends on the
size of your company’s telephone system. Check with your System Administrator to
find out which codes apply to your system.
Once you store a telephone number on any of the codes listed below, you can dial the
number by entering the code, such as  or 6' + .
Table 14 Speed Dial Access Codes
Telephone System Size Station
Speed Dial Codes System
Speed Dial Codes
Small System
(DK14, DK16, DK16e, DK40, DK40i, RCTUA) a a
Medium System
(RCTUBA/BB and RCTUC/D, B1CU,
B2CAU/B2CBU and B3CAU/B3CBU)
a a
Large System
(RCTUE/F and B5CAU/B5CBU) a a
Table 15 System Speed Dial Number Linking
System System Speed Dial Codes that can be linked to
other Speed Dial Codes
DK14, DK16, DK16e, DK40, DK40i, RCTUA a
RCTUBA/BB, RCTUC/D, B1CU,
B2CAU/B2CBU and B3CAU/B3CBU a
RCTUE/F and B5CAU/B5CBU a
Strata DK Electronic Telephone 5/00 111
Centrex Application B
Your system may be equipped with the Centrex Application, which enhances its
feature capability when installed behind a Centrex or PBX system.Your telephone
may have access to one or more of the enhanced Centrex features listed below.
Flexible Directory Numbering
A station [PDN] can be three or four digits. It is, therefore, possible to match a station
[PDN] and Centrex line extension number. Dial the entire station number when
indicated.
Note Some access code numbers may have been changed to avoid system
numbering plan conflicts.
Centrex Feature Buttons
You can access some Centrex features by pressing a preprogrammed flexible button
on your telephone, instead of dialing a Centrex access code. The Centrex access code,
including the necessary flash and/or pause sequence, is activated when the button is
pressed. See your Centrex or PBX operations manual for specific details.
Centrex Application
Ringing Repeat
112 Strata DK Electronic Telephone 5/00
Ringing Repeat
The distinctive ring patterns available in your Centrex system are automatically
repeated with your electronic telephone enabling you to answer appropriately for
either outside, inside or callback calls.
Delayed Ringing
CO or Centrex line(s) can be programmed for a 12-second and/or 24-second ring
delay at stations to permit alternate answering conditions. Answer the line when your
telephone is ringing.
Strata DK Electronic Telephone 5/00 113
Button Labels C
Flexible Buttons
All flexible buttons must be programmed for your telephone in system programming
and vary for individual telephones. If a button does not appear on your display or
telephone keystrip label, see your System Administrator for button assignments.
Table 16 Flexible Button Labels
Button Label Definitions
$%5
Automatic Busy Redial Button
Press to set up Automatic Busy Redial after receiving a busy tone on a
dialed CO line call (not available on tie or DID CO lines).
$&
All Call Voice Page Button
Press to page all of the digital and electronic telephones in the All Call
Page group.
$&%
Automatic Callback Button
Press to recall a busy station or station in the Do Not Disturb (DND)
mode as soon as that station becomes idle or deactivates DND. Also
used for CO line queuing.
$&&17
Account Code Button
Press to enter a Voluntary Account Code anytime during a Central Office
(CO) line call without interrupting the conversation.
Button Labels
Flexible Buttons
114 Strata DK Electronic Telephone 5/00
$/(57a
Alert Signaling Buttons
Press to alert with a distinctive sound and to indicate a pre-arranged
meaning and visual indication to a predesignated station. Up to four
Alert Signal buttons can be assigned to a telephone.
$/50
Alarm Reset Button
Press to turn off a telephone alarm connected to a facility alarm
mechanism.
%*0 Background Music Button
Press to turn Background Music ON or OFF over your station speaker.
&)$& Call Forward-All Calls Button
Press to forward all calls to another station or voice mail device.
&)%
Call Forward-Busy Button
Press to forward calls immediately to another station or voice mail
device when your station is busy or in the DND mode.
&)%1$
Call Forward-Busy/No Answer Button
Press to forward calls immediately to another station or voice mail
device when your station is busy or in DND mode. Also forwards calls
when your station is not answered after 8~60 seconds (set at your
station).
&)1$
Call Forward-No Answer Button
Press to forward calls to another station or voice mail device when your
station is not answered after 8~60 seconds (set at your station).
&)(;7
Call Forward-External Button
Press to forward Private or DID line calls to an external or internal
telephone number.
&))
Call Forward-Fixed Button
Press to forward all calls to a station or voice mail device assigned in
system programming.
&2 Line Button
Press to answer or access an outside Central Office (CO) line.
&21)7516 Conference/Transfer Button
Press to set up conference and transfer calls.
&3'
Park Orbit Display Button - LCD Telephones Only
Press to display call(s) parked in orbit. If there are multiple parked calls,
a + sign appears on the LCD.
Table 16 Flexible Button Labels (continued)
Button Label Definitions
Button Labels
Flexible Buttons
Strata DK Electronic Telephone 5/00 115
&33*
Park/Page Button
Press to park internal or outside call in orbit and announce to other
telephones or paging speakers to retrieve the parked calls.
>'1@
Directory Number Button
Press to answer a call to the Directory Number [DN] or to initiate a
phone call. The [DN] is also known as an Extension Number or Intercom
Number. You can have multiple [DN] buttons on your telephone,
including DNs belonging to another telephone [SDN]. See “Directory
Button Definitions” on Page 6 for more information.
'1' Do Not Disturb Button
Press to lock your station in or out of the DND mode.
'5/.a Door Lock Buttons
Press to unlock a door lock mechanism.
'66
Direct Station Selection Button(s)
Press to ring a preselected station. The LED associated with each DSS
button provides the status (idle/busy) of the station assigned to the
button.
)/$6+
Flash Button
Press to perform the following functions: Disconnect and recall dial tone
on a CO line; access Centrex or PBX features; enter a pause or flash
signal when programming speed dial numbers.
*533.83
Group Pickup Button
Press to pick up a call that is ringing a station that belongs to a Pickup
Group that your station is a member of.
+2/' Hold Button (Fixed)
Press to hold internal or outside calls.
/&'0
Message Select Button
Press to allow system and personal messages to be displayed on the
optional 32-character Liquid Crystal Display (LCD).
/&$'
Unanswered (Lost) Call Automatic Dial Button
Press to automatically dial the stored ANI (Automatic Number
Identification) or Caller ID number shown on the LCD. Unanswered calls
will be stored on this button and on the LCD.
Table 16 Flexible Button Labels (continued)
Button Label Definitions
Button Labels
Flexible Buttons
116 Strata DK Electronic Telephone 5/00
0&2
Microphone Cutoff Button
Press to turn the microphone off/on while idle, providing privacy when
you receive handsfree internal calls. Also functional when your station
receives calls—the Mic button controls the microphone when you
originate calls.
0,& Microphone Button (Fixed)
Press to turn the microphone off/on while telephone is in use.
02'(0
Modem Button
Press to reserve a modem from a pool. The LED of the button indicates
the status of the modem pool. See the Strata DK PC/Data Interface User
Guide.
06*:
Additional Message Waiting Buttons
Phantom Directory Numbers allow multiple Message Waiting buttons
with LED indications for up to four different Directory Numbers [DNs]
other than your Primary Directory Number [PDN]. It performs the same
Message Waiting functions as the MW/FL button.
0:)/
Message Waiting/Flash Button
The MW/FL LED flashes to indicate that a message is waiting. Press the
MW/FL button to call back the station or voice mail device that activated
the LED. This button performs the following functions: Disconnect and
recall dial tone on a CO line; access Centrex or PBX features; enter a
pause or flash signal when programming speed dial numbers.
17
Night Transfer Button
Press to control the system’s CO line ringing pattern for after-hours
incoming calls.
17a
Tenant Night Transfer Buttons
Press the appropriate button to control the system’s CO line ringing
patterns for after hours incoming calls for either of the tenants that share
a single Strata DK system.
17/a
Night Transfer Lock Buttons
Initiates entry of the NT Lock password. NT L LED will be on when the
system ring mode (Day/Day2/Night) is locked.
3$5.
Park Button
Press to park internal or outside calls in an orbit. Call retrieval can be
made locally from the same parking telephone or remotely from a
different telephone.
Table 16 Flexible Button Labels (continued)
Button Label Definitions
Button Labels
Flexible Buttons
Strata DK Electronic Telephone 5/00 117
3$8/
Pause (Long) Button
Press to insert a 10-second pause when programming Speed Dial
numbers.
3$8
Pause Button
Press to set either a one-half or two-second pause when programming
Speed Dial numbers. (The pause time is set in system programming).
>3'1@
Primary Directory Number Button
Press to answer a call to the [PDN] or to initiate a phone call. The [PDN]
is your Extension Number or Intercom Number. Your telephone can
have up to four [PDN] buttons with your number. See “Directory Button
Definitions” on Page 6 for more information.
>3K'1@
Phantom Directory Number Button
Up to eight [PhDN]s can be dedicated to a station or shared by a group
of stations.See “Directory Button Definitions” on Page 6 for more
information.
3.83 Call Pickup Button
Press to initiate a Directed Call Pickup of CO line, [DN], and page calls.
3.83a
Tenant Call Pickup Buttons
If the system is shared by tenants, the Directed Pickup 1~4 buttons pick
up ringing CO line calls for Tenants 1~4 respectively.
3/
Pooled Line Button
Press to access an available CO line from a group of lines appearing
under one button.
35,9
Privacy Button
Press to block Privacy Override on common CO line buttons. This
button does not block Busy Override or Executive Override.
3595/6
Privacy Release Button
Press to release privacy on common CO line buttons, enabling other
station users to enter your conversations on those buttons. Privacy
release does not apply to common [DN] buttons which are always
private.
5'/
Redial Button
Press to have the system redial the last telephone number you dialed or
begin to store a speed dial number. If RDL is not programmed on your
telephone, you can substitute the # key for any of its referenced
procedures.
Table 16 Flexible Button Labels (continued)
Button Label Definitions
Button Labels
Flexible Buttons
118 Strata DK Electronic Telephone 5/00
5/6$16
Release and Answer Button
Press to disconnect or complete the transfer the current CO or [DN] call
and automatically answer the new incoming CO or [DN] call.
Operational for Pooled Lines, [DN], and CO line buttons.
5/6
Release Button
Press to disconnect or complete the transfer of the current CO or [DN]
call and to place your station in the idle condition.
6$9(
Save Button
After dialing an outside or internal directory number, press to “save” the
number. Later, you can have the system automatically redial the number
for you when you press the button after accessing an internal or outside
line.
6'
Speed Dial Button
Press to Speed Dial a telephone number or feature access codes. SD
buttons can be used as either System Speed Dial numbers or Station
Speed Dial numbers.
6'6
Speed Dial Select Button
Press to store and access Speed Dial number. If SDS is not
programmed on your telephone, you can substitute the * key for any of
its referenced procedures.
63.5
Speaker Button (Fixed)
Press to turn the speaker on and off. This button also selects a line or an
internal [PDN] if programmed for auto preference in system
programming. Also used to disconnect on-hook speakerphone calls.
67$57 Start Button
Press to make an outgoing call using an ISDN trunk.
68% Subaddress Button
Press to enter a subaddress on an ISDN trunk outgoing call.
721(
Tone Button
Press to change the outgoing dialing of the CO line in use from dial
pulse to tone signaling.
Table 16 Flexible Button Labels (continued)
Button Label Definitions
Strata DK Electronic Telephone 5/00 119
Index
A
about this book
conventions, viii
organization, viii
related documents, x
ABR, 21
ACB, 23
access codes
CO line, 107
feature, 63
speed dial, 110
using, 25
account code
calls, 18
forced account codes (verified/non-
verified), 18
alert signaling, 20
ANI/Caller ID, 82
attendant console calling, 20
auto dial lost calls, 84
automatic busy redial, 21
automatic callback, 23
automatic hold, 24
B
before you begin, 13
BGM over telephone speakers, 24
BLF display, 81
busy override, 56
button labels, 113
buttons, 3
[DSS], 102
[PDN], 6
[PhDN], 6
[SDN], 6
CONF/TRNS, 3
directory number, 5
feature, 7
fixed, 3
flexible, 5
HOLD, 3
LCD, 8
MODE, 79
PAGE, 80
RING, 4
SCRL, 80
SPKR, 4
VOL, 4
Index
C ~ H
120 Strata DK Electronic Telephone 5/00
C
call forward, 25
all calls, 26
busy⁄no answer, 28
external, 30
fixed, 30
no answer, 27
call park
orbit list display, 84
orbits, 32
call pickup, 35
call transfer, 37
with camp-on, 37
call waiting, 38
called station messaging, 91
caller ID/ANI/DNIS information mode, 82
centrex application, 111
CO line access codes, 107
CONF/TRNS, 3
conference calls, 39
control buttons, 79
D
datetime⁄day adjustment, 39
delayed ringing, 112
directory number, 5
DISA
internal calls, 40
outgoing calls, 40
DNIS, 82
do not disturb (DND), 42
do not disturb override, 56
door lock, 43
door phone, 43
[DSS] button, 102
DSS, 101
E
emergency ringdown, 46
executive override, 56
exit from any mode, 80
external paging zones, 109
F
feature access codes, 63
feature buttons, 7
features, 103
call answering (CO line), 104
call forward override ([DSS]
override), 105
calling a station, 103
night transfer, 105
paging, 105
speed dial, 105
transfer to an idle station, 103
flexible buttons, 5, 113
flexible directory numbering, 111
forced account codes (verified/non-
verified), 18
