Radio Frequency (RF)
Remote Control System
Service Manual
POWERTouch 1200
Manual NST11424-2
2010-04-05 Rev F
57315 Nagy Drive
Elkhart, IN 46517
T T Iouch ronics, nc. Ph: 800-294-2570
Fx: 574-293-1611
www.touchtronics.com
touchtronics@touchtronics.com
1230-R
Harness w/
Sealing Gasket

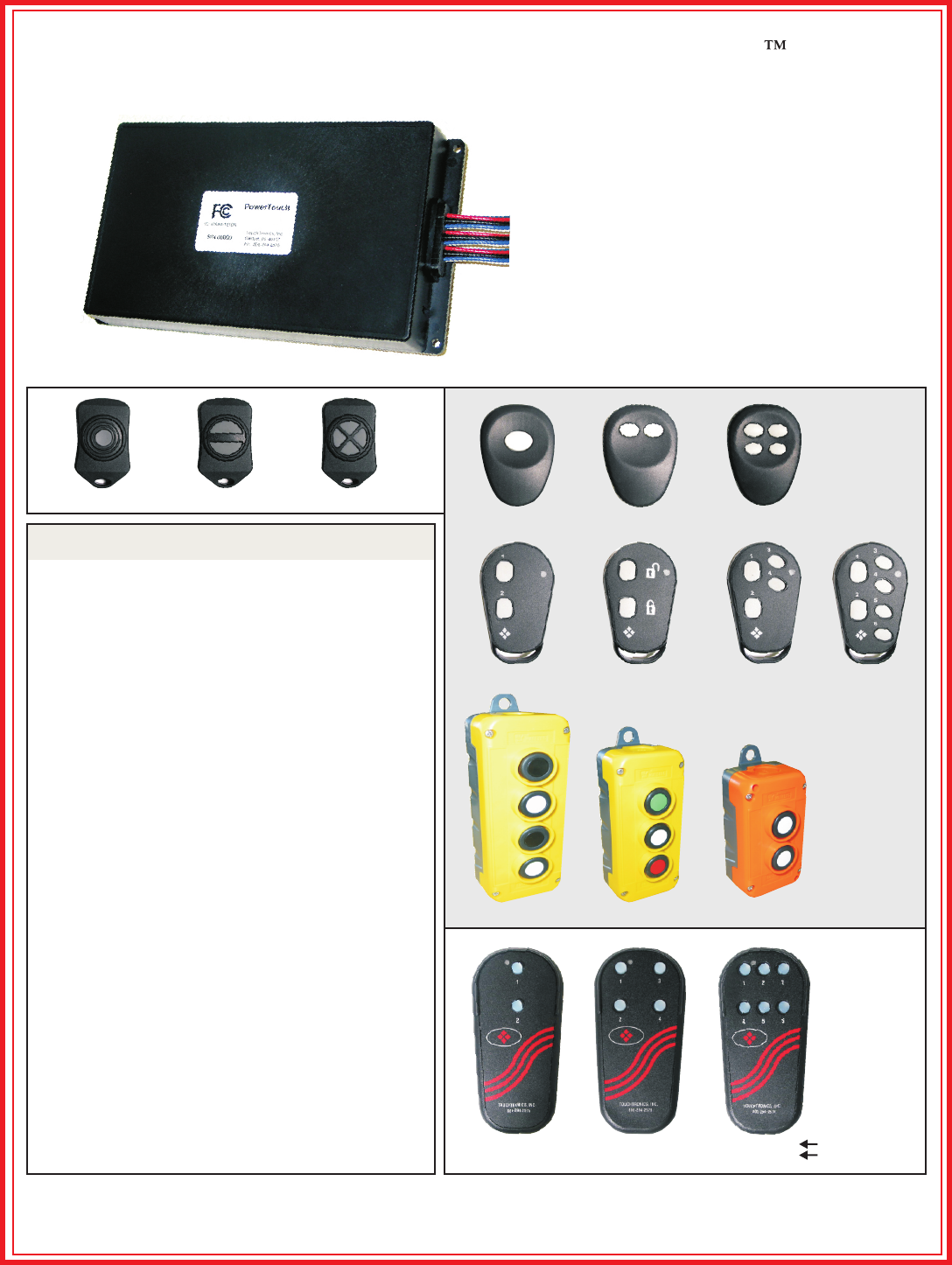

Sealed Receiver:
Moisture & Dust
Model # P12xx-R Sealed
(see pg 2 for model number chart)
Range - 300 Feet Typical
- Up to 600 Feet
Output - 4 Relays
Optional - 7 Relays
Input - 2 (+12v) A1 & A2
Optional - 6 (+12v or Ground) B1 - B6
.
Frequency - 433MHz
Codes - Rolling Codes
- Secure Encryption
Voltage - 12VDC
- 24VDC
Current - 5 Amps Max per Output
- 10 Amp Input - Standard
- 30 Amp Input - Optional
Antenna - Fixed - Standard (shown)
Optional - TNC Whip
- Flex Whip / Roof Mount
- Flex Whip / Glass Mount
Harness - 9” Standard, 14 pin
Battery - All transmitter styles (except TR style)
- Coin Style, Lithium, CR2032
- 100,000 1-second pulses
- 10 year shelf life
- TR Style - 2 x “AA” Batteries
System Specifications
P1000-TM1 P1000-TM2 P1000-TM4
P1000-TK1 P1000-TK2 P1000-TK4
P1000-TF2 P1000-TF2-LK P1000-TF4
P1000-TX2 P1000-TX4 P1000-TX6
P1000-TX2S P1000-TX4S P1000-TX6S
No ON/OFF Switch
With ON/OFF Switch
P1000-TF6
TK, TF & TR Series
Sealed
Transmitters
P1000-TR4 P1000-TR3 P1000-TR2
Receiver Installation
Determine mounting location of receiver and
antenna - typically under the dash or behind a
wall.
Antenna Installation
1. The antenna must be installed in an open,
non-metal area in order to receive RF (radio
frequency) transmissions.
2. Antenna range will be reduced if located:
A) within 6 feet of a large motor
B) near large bundles of wires
C) near other RF devices
D) touching any metal
To Increase Antenna Range
A) Install exterior mount NMO Antenna
See page 4 for accessory antenna options
Each time a button is pressed on the transmitter, the corresponding output will turn On. For example, if button #1
is pressed, output #1 will turn On as long as the button is held.
If an input signal is sent to inputs A1 or A2, or any inputs B1 - B6, the corresponding output will turn On as long as
the signal is present. (A1 or B1 = Output #1 is ON. A2 or B2 = Output #2 is ON)
Each output is factory set as momentary. To change output from momentary to latching (push on / push off) see
DIP Switch options detail on page 3.
ENROLLING NEW TRANSMITTERS - Self-Learning Receiver
1. Remove and reconnect power to unit. This will place unit into LEARN mode for 5-seconds.
2. Press any button on transmitter once. Wait 5-seconds and confirm the transmitter has been enrolled by
pressing any button and verifying the correct output turned ON.
OR
1. Remove cover from receiver enclosure.
2. Locate LEARN switch (*small, push-button style switch located in the corner of the printed circuit board).
3. Press and release the LEARN switch
The Red LEARN LED next to the switch will flash
4. Press any button on NEW transmitter.
6. Red LEARN LED double blinks to confirm enrollment.
7. Press any button on the new transmitter to confirm that the new transmitter code has been enrolled.
8. Replace receiver enclosure cover.
Erasing Enrolled Codes
1. Press and hold the LEARN switch (*see # 2 above) for 10-seconds.
2. Red status LED will flash while holding LEARN switch
3. Release LEARN switch when Red LED double flashes to confirm ALL transmitter codes are erased.
System Operation
Code Enrollment
Installation
1210-R
1211-R
1212-R
1213-R
1220-R
1221-R
1222-R
1223-R
1230-R
1231-R
1232-R
1233-R
1240-R
1241-R
1242-R
1243-R
Receiver
Model
4 - Relays
7 - Relays
12VDC
24VDC
30A
Connector
Fixed
Antenna
TNC
Antenna
A1 & A2
Switch Inputs
B1 - B6
Switch Inputs
Input
Status
LEDs

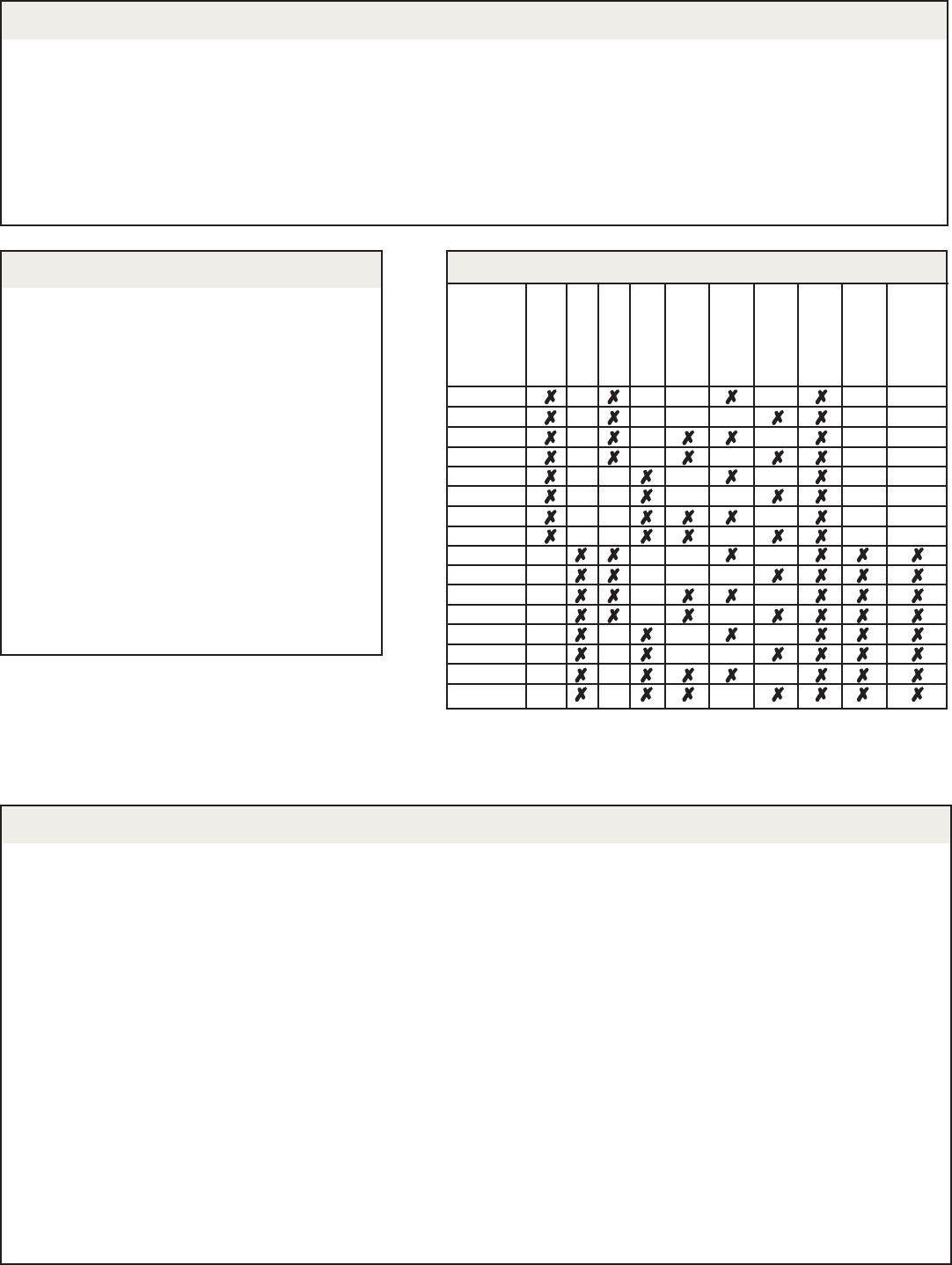

Sealed Receiver Model Number Chart
Page -2-
ON
OFF
1
Out
# 1
DIP Switch Options
(DIP switch located on PCB inside receiver enclosure)
ON
OFF
Out
# 3
Out
# 2
Out
# 4
Out
# 5
Out
# 6
2345678
DIP Switches 1 - 6 control outputs 1 - 6 respectively:
OFF = Momentary (Standard)
ON = Latching (Optional)
#10 Screw
#10 Star Washer
#10 Ring Terminal
Vehicle Frame
Scrape paint and clean area before installing ground screw.
A loose chassis ground connection WILL cause
intermittent operation!
Call factory for more
information on other DIP
switch options, including
hydraulic pump, cascade
and courtesy lights.

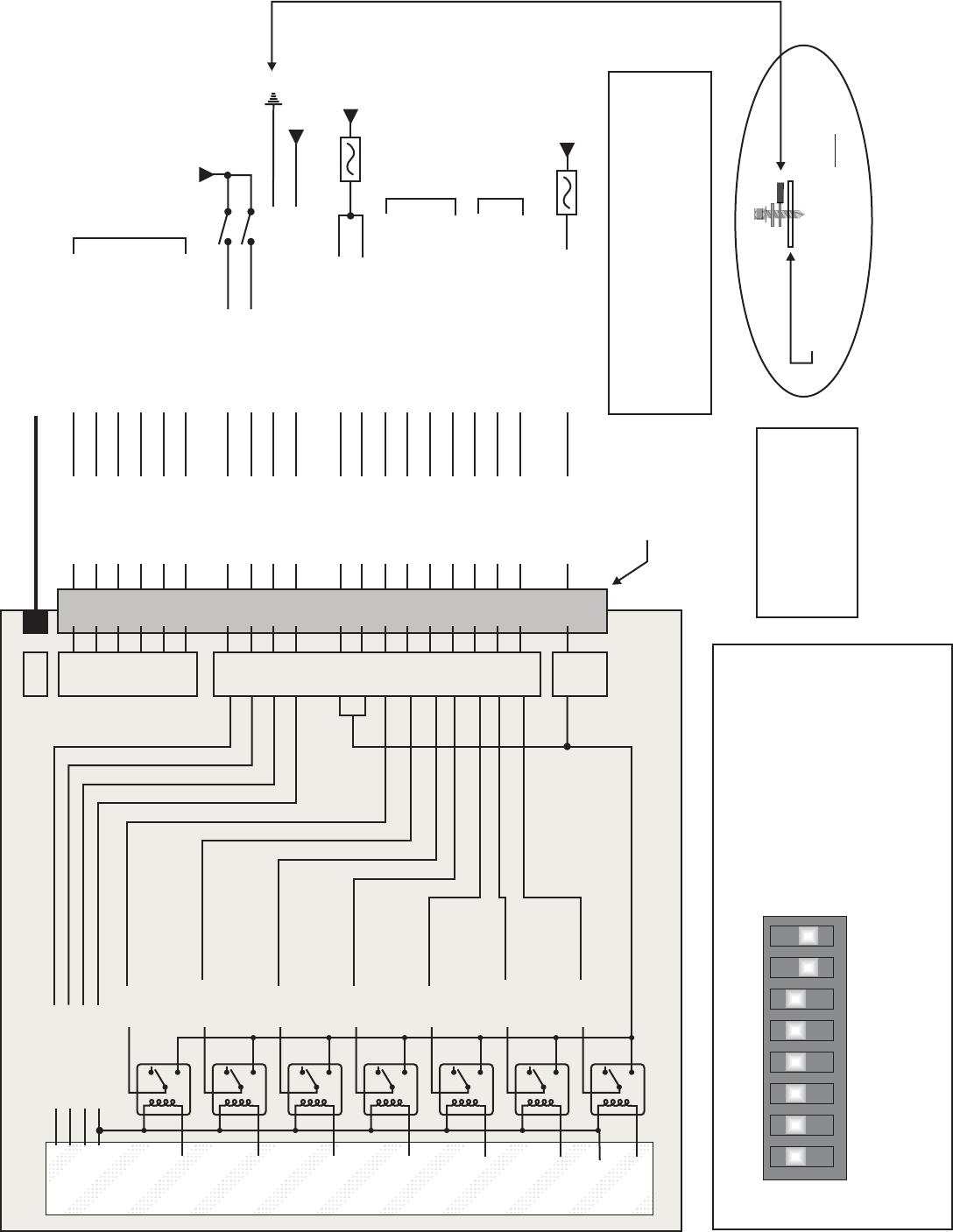

ANTENNA (FIXED or TNC)
Output 1
J2-8
Output 2
J2-9
Output 3
J2-10
Output 4
J2-11
Output 6
J2-13
Output 5
J2-12
Output 7
J2-14
Switch Input A2, J2-2
Switch Input A1, J2-1
Logic Power, J2-4
Logic Ground, J2-3
LOGIC
1
2
3
4
5
6
7
8
9
10
11
12
13
14
1
2
1
2
3
4
5
6
WHT/RED
GRY/RED
BLK/WHT
RED/WHT
NOT USED
RED
RED
YEL
ORG
BLU
GRN
PNK
VIO
TAN
RED
NOT USED
YEL/BLK
ORG/BLK
BLU/BLK
GRN/BLK
PNK/BLK
VIO/BLK
+12V / A1
+12V / A2
CHASSIS GROUND
+12V LOGIC POWER
POWER / 5 AMP
POWER / 5 AMP
OUTPUT 1 - 5 AMP (+)
OUTPUT 2 - 5 AMP (+)
OUTPUT 3 - 5 AMP (+)
OUTPUT 4 - 5 AMP (+)
OUTPUT 5 - 5 AMP (+)
OUTPUT 6 - 5 AMP (+)
OUTPUT 7 - 5 AMP (+)
POWER / 30 AMP
+12v or GND / B1
+12v or GND / B2
+12v or GND / B3
+12v or GND / B4
+12v or GND / B5
+12v or GND / B6
STANDARD
RELAYS 1-4
OPTIONAL
RELAYS 5-7
J3
J2
J1
ALL INPUTS, B1-B6, ARE
LOGIC SIGNALS (1mA)
ACTIVE WITH EITHER
+12V OR GROUND.
INPUT A1, A2
Logic Signals (1mA)
BATTERY
BATTERY
10 AMP
BATTERY
30 AMP
Optional / Customer Supplied
Optional / Customer Supplied
Output 7
Used only with DIP Switch
Option 7 & 8
Call Factory for
Custom Applications
TouchTronics, Inc.
1-800-294-2570
BATTERY
All output signals can be either +12VDC or Ground.
For +12VDC output signals, supply +12vdc to:
J1-1, J2-6 and J2-7
For Ground output signals, supply +12vdc to:
J1-1 and J2-7
Page -3-
1
2
3
4
5
6
7
8
9
10
11
12
13
14
1
2
1
2
3
4
5
6
Sealing
Gasket
Limited One (1) Year Warranty
1) Each individual product is warranted under the TouchTronics Limited Warranty program for 1 full year from date of purchase or a maximum
of 2 years from the date of manufacture.
2) No product will be covered under the TouchTronics Limited Warranty program that has a manufacture date older than 2 years.
3) To receive technical support or warranty service, call our technical support center during regular business hours. 1-800-294-2570
4) To enable our technical support staf f to better serve you, please have the following information available when you call.
Purchase
Installation
Date Of:
Dealer Name
Dealer Phone
Make / Model
Vehicle Information:
Model Number
Serial Number
Product Information:
Fill in all pertinent information at the time of purchase or installation.
TouchTronics, Inc. Warranty Policies and Procedures
© 2005 TouchTronics, Inc. All Rights Reserved. TouchTronics, the TouchTronics logo, and other TouchTronics marks are owned by TouchTronics and may be registered. TouchTronics assumes no responsibility for any errors that may
appear in this manual. Information contained herein is subject to change without notice.
FCC Compliance and Advisory Statement. This hardware device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and 2) this device must
accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed or used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: 1) reorient or relocate the receiving antenna; 2) increase the
separation between the equipment and the receiver 3) connect the equipment to an outlet on a circuit different from that to which the receiver is connected; 4) consult the dealer or an experienced radio/TV technician for help. Any changes
or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Where shielded interface cables have been provided with the product or specified additional
components or accessories elsewhere defined to be used with the installation of the product, they must be used in order to ensure compliance with FCC regulations.
Canadian DOC Statement. This digital device does not exceed the Class B limits for radio noise emissions from digital apparatus specified in the interference-causing equipment standard entitled “Digital Apparatus,” ICES-003 of the
Department of Communications.
This device complies with RSS-210 of Industry Canada. Operation is subject to the following two conditions: 1) this device may not cause interference, and 2) this device must accept any interference, including interference that may cause
undesired operation of the device.
© 2005 TouchTronics, Inc. Tous droits réservés. TouchTronics, le logo TouchTronics et les autres marques TouchTronics sont la propriété exclusive de TouchTronics et sont susceptibles d'être des marques déposées. Toutes les autres
marques sont la propriété exclusive de leurs détenteurs respectifs. TouchTronics décline toute responsabilité en cas d'erreurs dans ce manuel. Les informations énoncées dans le présent document peuvent faire l'objet de modifications
sans avis préalable.
Déclaration FCC. Cet équipement a été testé et déclaré conforme à la section 15 du règlement de la FCC. Son fonctionnement est soumis aux conditions suivantes: 1) l'équipement concerné ne doit pas causer d'interférences
dangereuses, et 2) il doit accepter toute interférence reçue, y compris les interférences risquant d'engendrer un fonctionnement indésirable. Cet équipement a été testé et déclaré conforme aux limitations prévues dans le cadre de la
catégorie B des appareils numériques défini par la section 15 du règlement de la FCC. Ces limitations sont stipulées aux fins de garantir une protection raisonnable contre les interférences gênantes en installation résidentielle. Cet
équipement génère, utilise et diffuse des ondes radio, et s'il n'est pas installé ni utilisé en conformité avec les instructions dont il fait l'objet, peut causer des interférences gênantes avec les communications radio. Cependant, nous ne
pouvons vous garantir qu'une interférence ne se produira pas dans une installation particulière. Si cet équipement produit des interférences graves lors de réceptions radio ou télévisées qui peuvent être détectées en allumant et en
éteignant l'équipement, vous êtes invités à les supprimer de plusieurs manières: 1) Réorienter ou déplacer l'antenne de réception; 2) Augmenter la distance séparant l'équipement et le récepteur 3) Connecter l'équipement à un circuit
différent de celui auquel le récepteur est connecté; 4) Contacter votre revendeur ou un technicien radio/TV qualifié. Toutes modifications ou tous changements effectués sans l'accord exprès de la partie responsable de la conformité aux
normes pourraient contraindre l'utilisateur à ne plus utiliser son équipement. Afin d'assurer la conformité avec les règlements FCC, les câbles d'interface blindés fournis avec le produit doivent être utilisés, ainsi que tout autres composants
ou accessoires également spécifiés, lors de l'installation du produit.
Déclaration du Ministère des Communications Canadien. Cet appareil numérique est conforme aux limitations concernant l'émission d'interférences radio par des appareils numériques de catégorie B, telles que stipulées dans le cadre de
la norme Appareils numériques ICES-003 édictée par le Ministère canadien de l'industrie.
Cet équipement a été déclaré conforme à la norme RSS-210 édictée par le Ministère canadien de l'industrie. Son fonctionnement est soumis aux conditions suivantes: 1) l'équipement concerné ne doit pas causer d'interférences, et 2) il
doit accepter toute interférence reçue, y compris les interférences risquant d'engendrer un fonctionnement indésirable.
Technical Support Via Web Site / Email
www.touchtronics.com
Techsupport@touchtronics.com or
‘Contact Request’ link on the web page
Technical Support
Indiana Local 1-574-294-2570
Toll Free 1-800-294-2570
Fax 1-574-293-1611
Numbers Sales Support
Phone 1-800-294-2570
Fax 1-574-293-1611
Email sales@touchtronics.com
Page -4-
Section One
Seller will warrant any product originally manufactured or assembled and sold by seller for a period of up to TWO YEARS (24 months) from the original date of manufacture or ONE YEAR (12 months) from
the original retail sale or O.E.M. in-service date.
Section Two
The following are in lieu of all warranties; expressed; implied; or statutory, including but not limited to, any implied warranty of merchantability of fitness for a particular purpose and of any other warranty
obligation on the part of seller. Seller, except as otherwise hereinafter provided, warrants the goods against faulty workmanship or defective materials for a period of up to TWO YEARS (24 months) from the
original date of manufacture or ONE YEAR (12 months) from the original retail or O.E.M. in-service date.
Seller’s sole and exclusive liability shall be (at seller’s option) to repair; replace; or credit buyer for such goods which are returned by buyer during the applicable warranty period set forth above, provided
that (I) seller is promptly notified in writing or by phone upon discovery by buyer that such goods failed to conform and an explanation of any alleged deficiencies, (II) such goods are returned to seller, (III)
sellers examination of such goods shall disclose that such alleged deficiencies actually exist and were not caused by accident, misuse, neglect, alteration, improper installation, unauthorized repair or
improper testing. If seller elects to repair or replace such goods, seller shall have a reasonable time to make such repairs or replace such goods.
Seller’s warranties as herein above set forth shall not be enlarged, diminished, or affected by, and no obligation or liability shall arise or grow out of, sellers rendering of technical advice or service.
Damage to products caused by the customer or during installation cannot be claimed under this warranty. All devices returned that are not covered under the seller’s warranty policy, will be charged a
minimum of $25.00 for evaluation plus additional charges for components and labor to repair the device not to exceed the original selling price. Seller considers the following to be typical examples of
customer or installation damage: burned or broken traces on the printed circuit board, burned or damaged components, dirt or water residue on the printed circuit board or inside the case, modifications by
the customer, broken cases or housings and dead batteries
Section Three
A return material authorization number (RMA) must be issued by seller before any product is returned for evaluation or repair. Warranty repairs must be completed at authorized repair facilities.
ANT11405-1
ANT10430-2
ANT11514-1
Accessories Minimum Orders: $25.00
TNC, Wire Whip Antenna
Glass Mount Antenna Kit, 14 foot cable
Flex Whip Antenna Kit, 10 foot cable, roof mount
Call Factory for Current Pricing and Availability
