2005 SEQUOIA from Sep. ’04 Prod. (OM34431U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Overview of instruments and controls
Instrument panel overview 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Instrument cluster overview 8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Indicator symbols on the instrument panel 10. . . . . . . . . . . . . . . . . . . . . .
SECTION 1− 1
05_SEQUOIA_U (L/O 0409)
2
2005 SEQUOIA from Sep. ’04 Prod. (OM34431U)

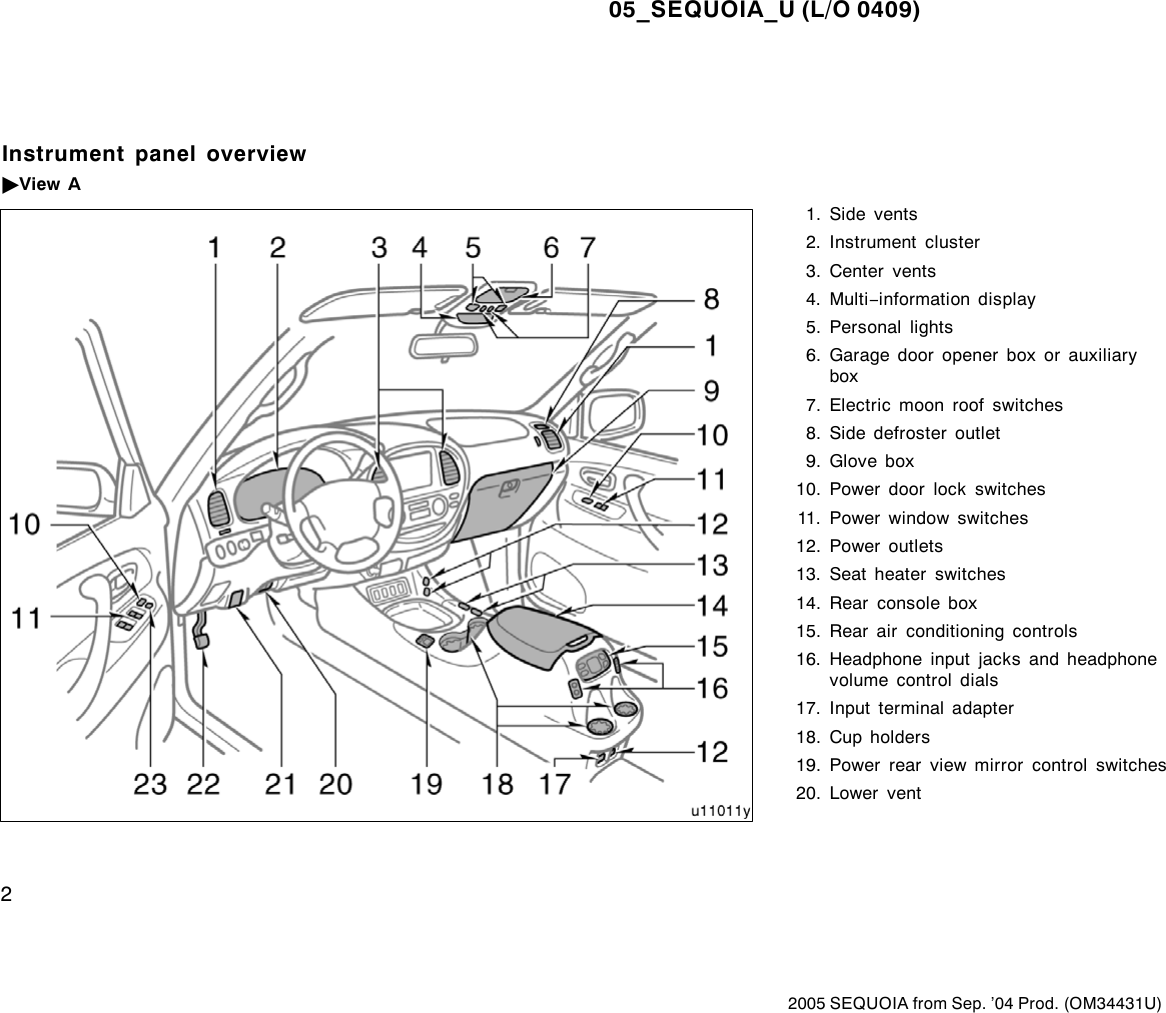

1. Side vents
2. Instrument cluster
3. Center vents
4. Multi−information display
5. Personal lights
6. Garage door opener box or auxiliary
box
7. Electric moon roof switches
8. Side defroster outlet
9. Glove box
10. Power door lock switches
11. Power window switches
12. Power outlets
13. Seat heater switches
14. Rear console box
15. Rear air conditioning controls
16. Headphone input jacks and headphone
volume control dials
17. Input terminal adapter
18. Cup holders
19. Power rear view mirror control switches
20. Lower vent
Instrument panel overview
"View A
05_SEQUOIA_U (L/O 0409)
3
2005 SEQUOIA from Sep. ’04 Prod. (OM34431U)

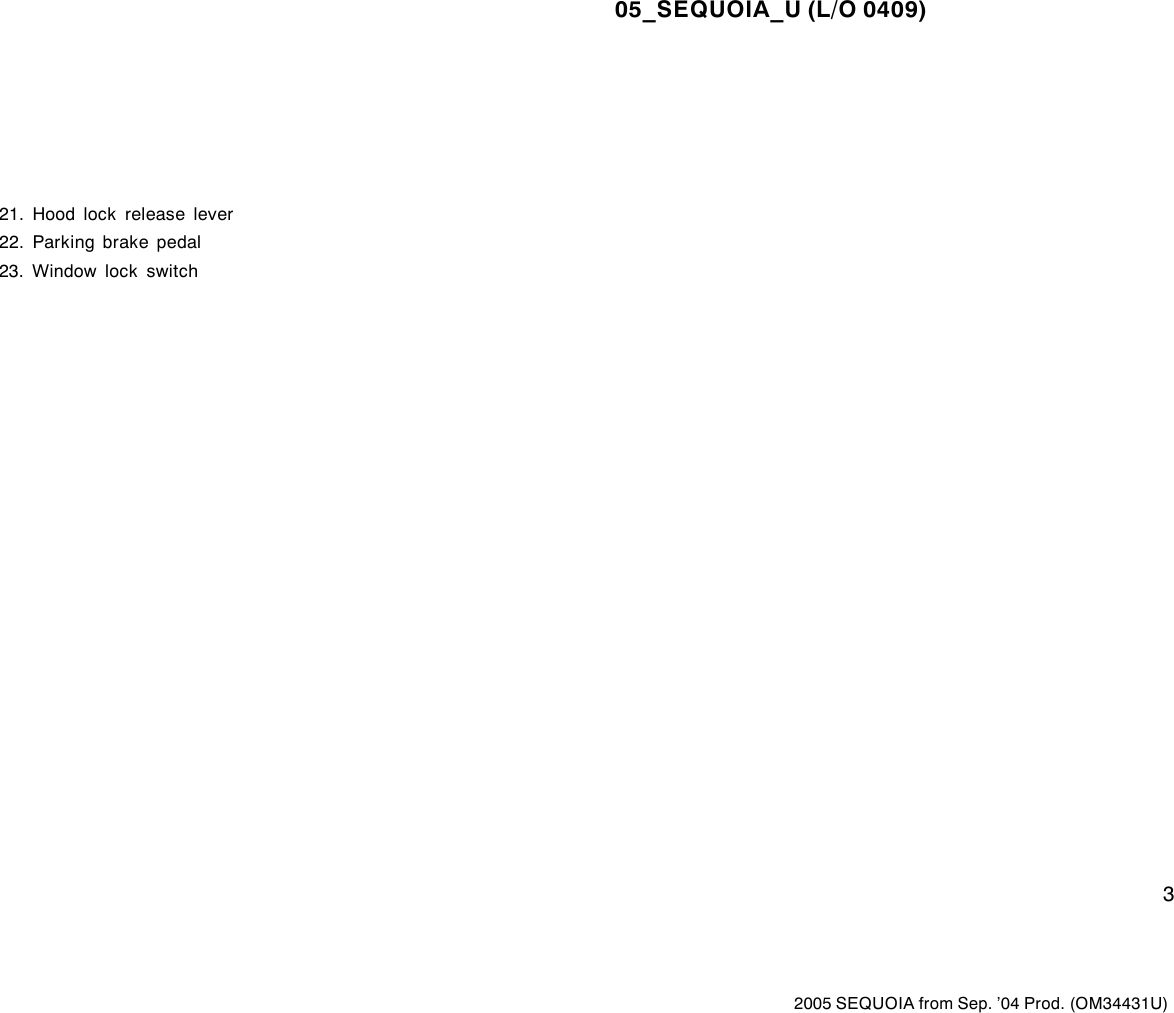

21. Hood lock release lever
22. Parking brake pedal
23. Window lock switch
05_SEQUOIA_U (L/O 0409)
4
2005 SEQUOIA from Sep. ’04 Prod. (OM34431U)
1. Power back window switch
2. Driving position memory switches
3. Headlight, turn signal and front fog
light switches
4. Ignition switch
5. Wiper and washer switches
6. Automatic transmission selector lever
7. Emergency flasher switch
8. Automatic transmission shift position
“L” switch (“SHIFT L” switch)
9. Audio system or navigation system
including audio system (For the
navigation system, see the separate
“Navigation System Owner’s Manual”.)
10. Air conditioning controls
11. Front passenger occupant classification
indicator light/front passenger’s seat
belt reminder light
12. Back window and outside rear view
mirror defogger switch
13. Clock
14. Cup holder
15. Glass breakage sensor
16. Power outlet main switch
17. Height control switch

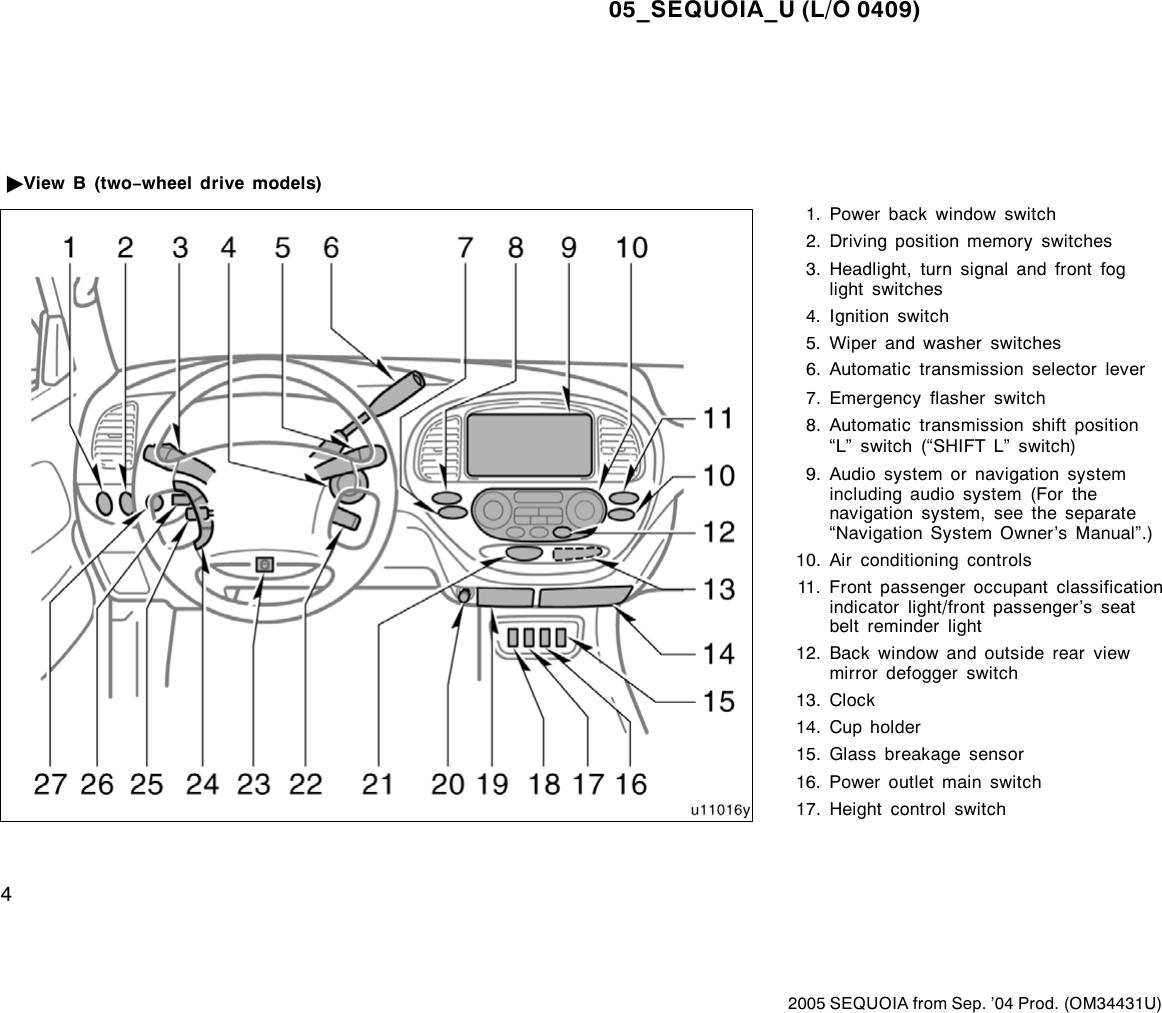

"View B (two−wheel drive models)
05_SEQUOIA_U (L/O 0409)
5
2005 SEQUOIA from Sep. ’04 Prod. (OM34431U)

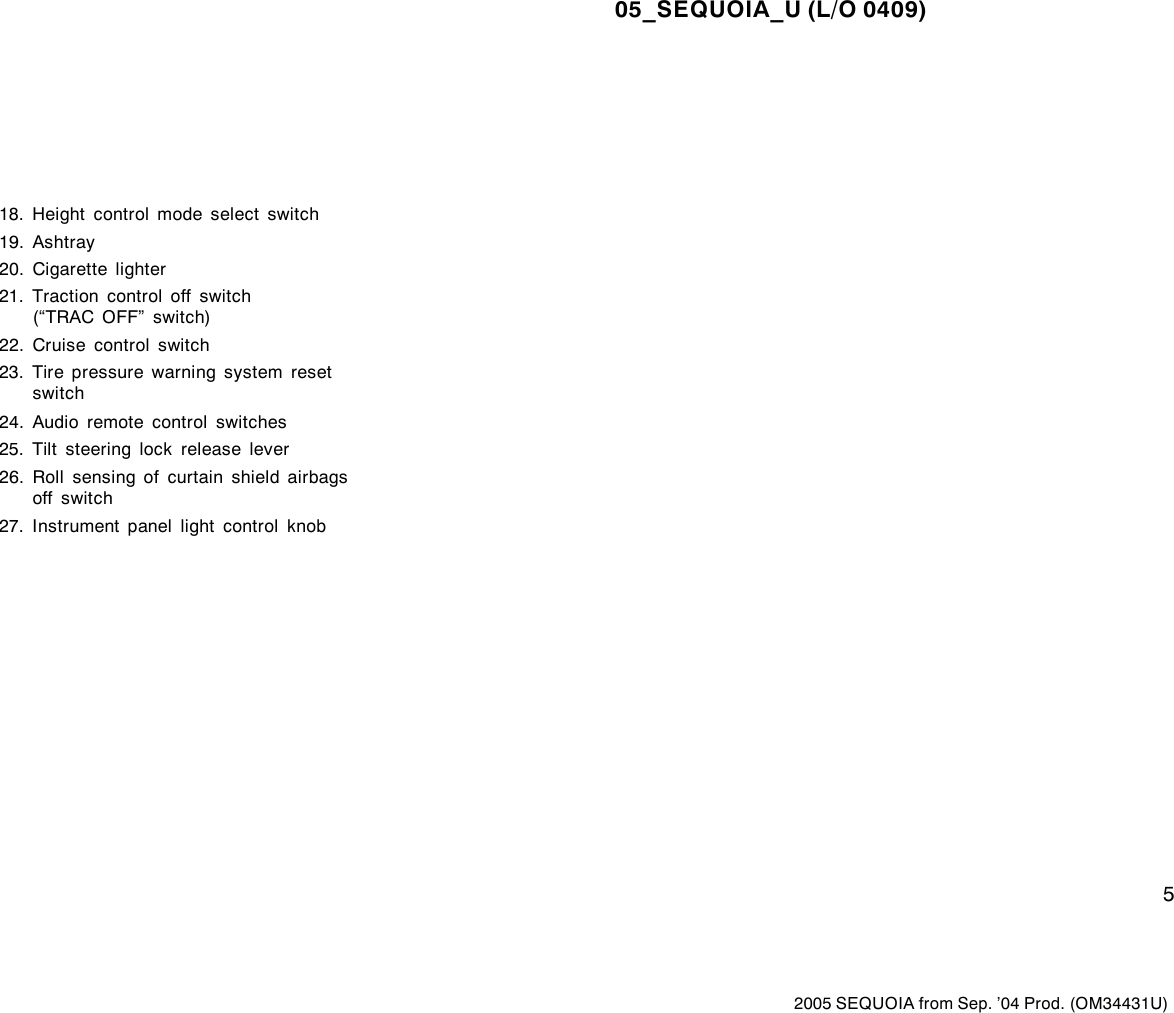

18. Height control mode select switch
19. Ashtray
20. Cigarette lighter
21. Traction control off switch
(“TRAC OFF” switch)
22. Cruise control switch
23. Tire pressure warning system reset
switch
24. Audio remote control switches
25. Tilt steering lock release lever
26. Roll sensing of curtain shield airbags
off switch
27. Instrument panel light control knob
05_SEQUOIA_U (L/O 0409)
6
2005 SEQUOIA from Sep. ’04 Prod. (OM34431U)
1. Power back window switch
2. Driving position memory switches
3. Headlight, turn signal and front fog
light switches
4. Ignition switch
5. Wiper and washer switches
6. Automatic transmission selector lever
7. Emergency flasher switch
8. Automatic transmission shift position
“L” switch (“SHIFT L” switch)
9. Audio system or navigation system
including audio system (For the
navigation system, see the separate
“Navigation System Owner’s Manual”.)
10. Air conditioning controls
11. Front passenger occupant classification
indicator light/front passenger’s seat
belt reminder light
12. Back window and outside rear view
mirror defogger switch
13. Clock
14. Cup holder
15. Glass breakage sensor
16. Power outlet main switch
17. Height control switch

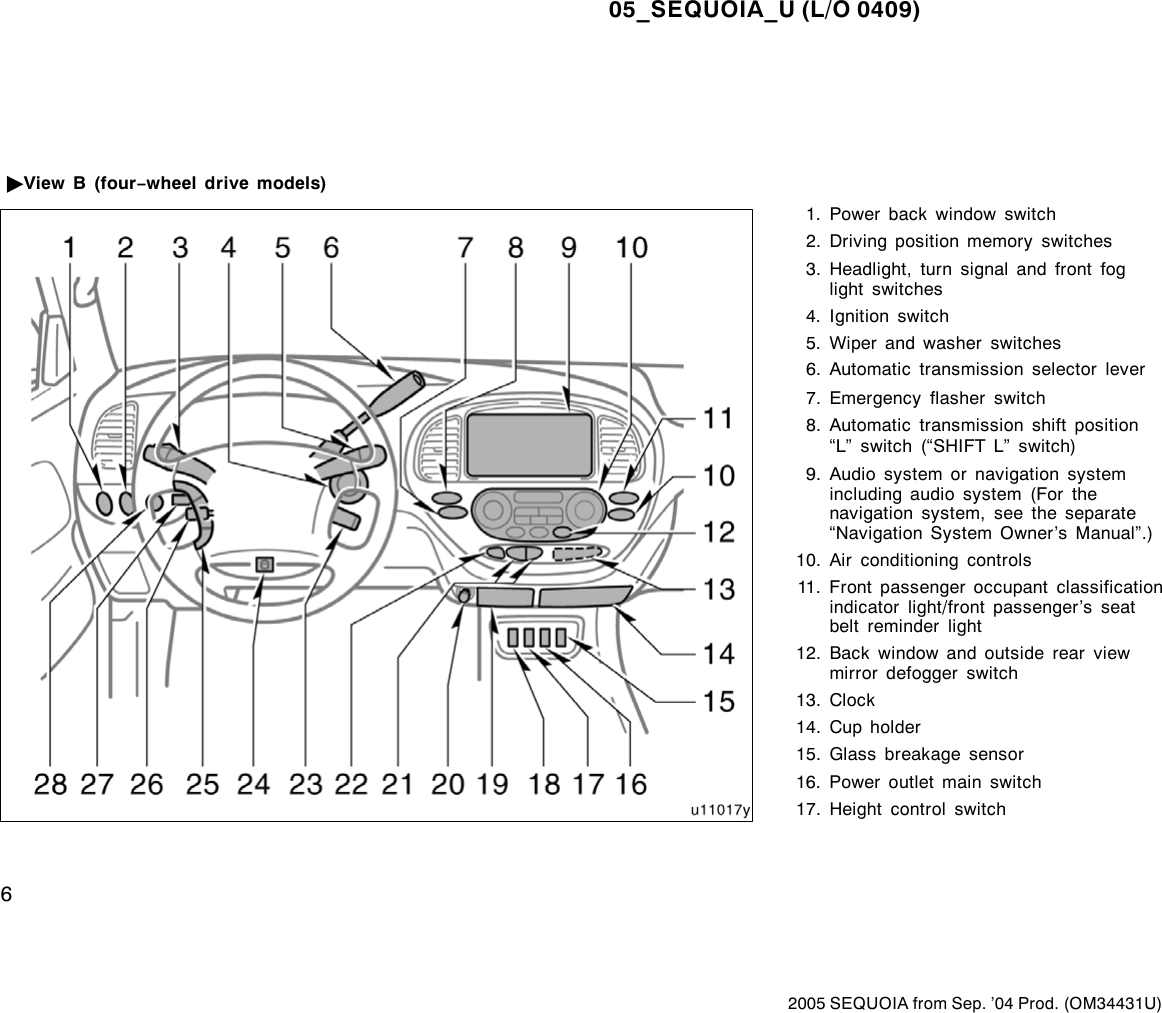

"View B (four−wheel drive models)
05_SEQUOIA_U (L/O 0409)
7
2005 SEQUOIA from Sep. ’04 Prod. (OM34431U)
18. Height control mode select switch
19. Ashtray
20. Cigarette lighter
21. Front drive control switches
22. Center differential lock switch
23. Cruise control switch
24. Tire pressure warning system reset
switch
25. Audio remote control switches
26. Tilt steering lock release lever
27. Roll sensing of curtain shield airbag off
switch
28. Instrument panel light control knob
05_SEQUOIA_U (L/O 0409)
8
2005 SEQUOIA from Sep. ’04 Prod. (OM34431U)
1. Service reminder indicators and
indicator lights
2. Oil pressure gauge
3. Tachometer
4. Speedometer
5. Fuel gauge
6. Engine coolant temperature gauge
7. Trip meter reset knob
8. Odometer and two trip meters
9. Height control indicator lights
10. Volt meter
Instrument cluster overview

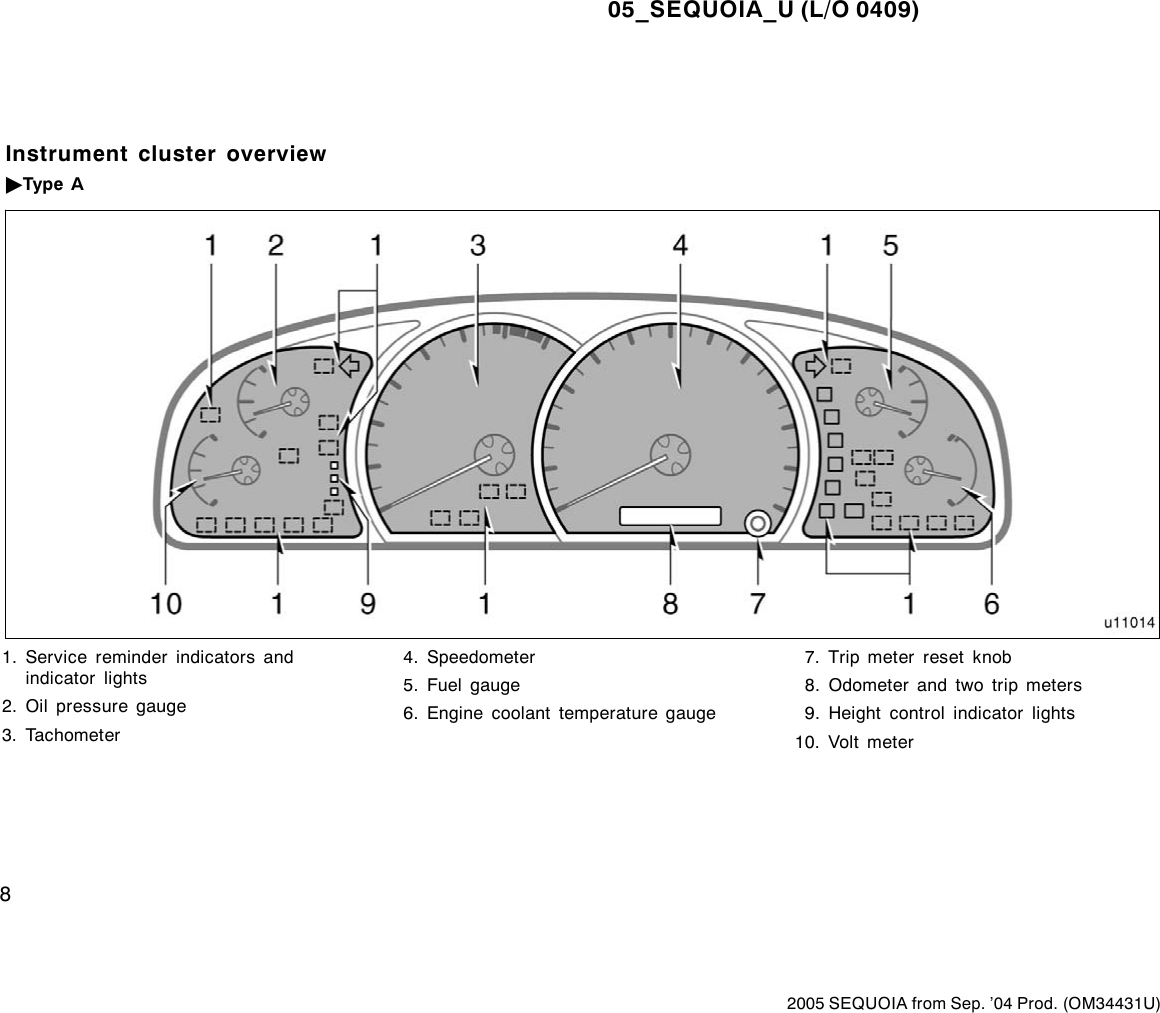

"Type A
05_SEQUOIA_U (L/O 0409)
9
2005 SEQUOIA from Sep. ’04 Prod. (OM34431U)
1. Service reminder indicators and
indicator lights
2. Oil pressure gauge
3. Tachometer
4. Speedometer
5. Fuel gauge
6. Engine coolant temperature gauge
7. Trip meter reset knob
8. Odometer and two trip meters
9. Height control indicator lights
10. Volt meter
"Type B
05_SEQUOIA_U (L/O 0409)
10
2005 SEQUOIA from Sep. ’04 Prod. (OM34431U)
or
Driver’s seat belt reminder light∗1
Discharge warning light∗1
Low fuel level warning light∗1
Brake system warning light∗1
Malfunction indicator lamp∗1
Anti−lock brake system warning light∗1
Automatic transmission fluid temperature
warning light (four−wheel drive models)∗1
SRS warning light∗1
Open door warning light∗1
Low windshield washer fluid level warning
light∗1
Front passenger’s seat belt reminder light∗1
Vehicle stability control system/traction control
system (two−wheel drive models) or active
traction control system (four−wheel drive
models) warning light∗1
Low tire pressure warning light∗1
Engine oil replacement reminder light∗1
Indicator symbols on the instrument panel
05_SEQUOIA_U (L/O 0409)
11
2005 SEQUOIA from Sep. ’04 Prod. (OM34431U)

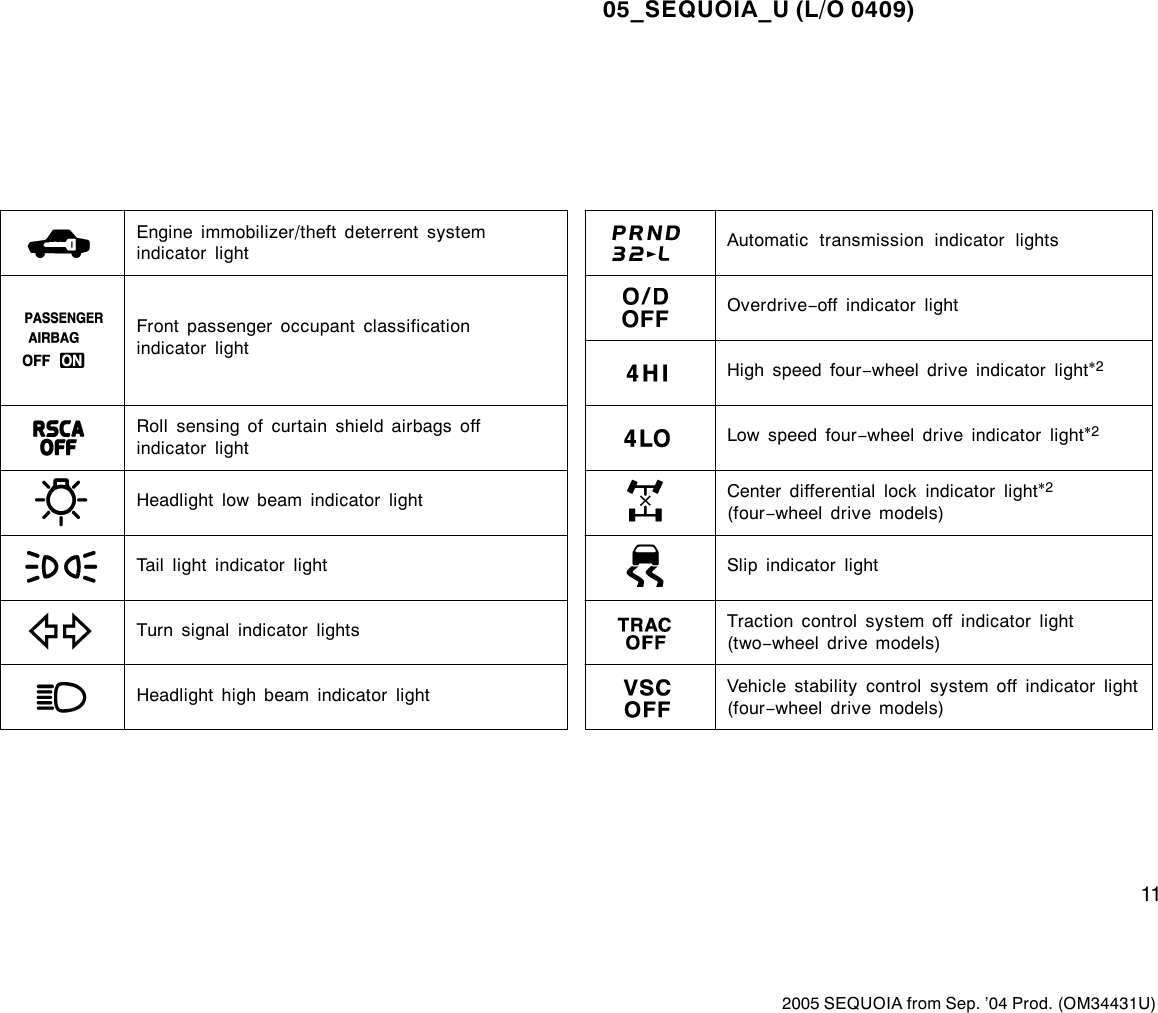

Automatic transmission indicator lights
Traction control system off indicator light
(two−wheel drive models)
Vehicle stability control system off indicator light
(four−wheel drive models)
Slip indicator light
Headlight high beam indicator light
Overdrive−off indicator light
Turn signal indicator lights
Engine immobilizer/theft deterrent system
indicator light
Front passenger occupant classification
indicator light
Roll sensing of curtain shield airbags off
indicator light
Headlight low beam indicator light
Tail light indicator light
Low speed four−wheel drive indicator light∗2
High speed four−wheel drive indicator light∗2
Center differential lock indicator light∗2
(four−wheel drive models)
05_SEQUOIA_U (L/O 0409)
12
2005 SEQUOIA from Sep. ’04 Prod. (OM34431U)

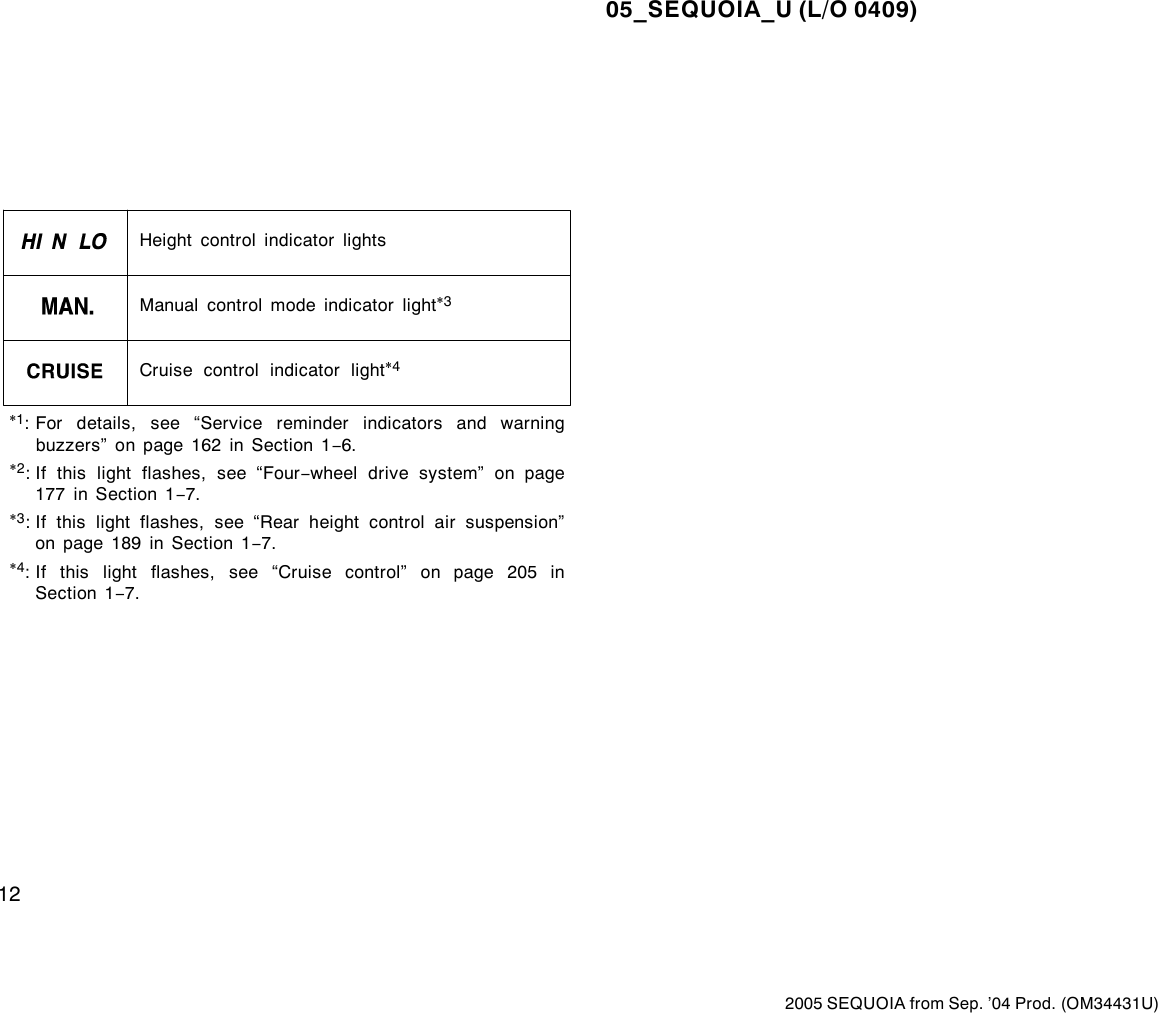

Cruise control indicator light∗4
∗1: For details, see “Service reminder indicators and warning
buzzers” on page 162 in Section 1−6.
∗2: If this light flashes, see “Four−wheel drive system” on page
177 in Section 1−7.
∗3: If this light flashes, see “Rear height control air suspension”
on page 189 in Section 1−7.
∗4: If this light flashes, see “Cruise control” on page 205 in
Section 1−7.
Manual control mode indicator light∗3
Height control indicator lights
