OPERATION OF INSTRUMENTS AND

CONTROLS

Overview of instruments and controls

Instrument panel overview 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Instrument cluster overview 8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Indicator symbols on the instrument panel 10. . . . . . . . . . . . . . . . . . . . . .

SECTION 1− 1

05_SEQUOIA_U (L/O 0409)

2

2005 SEQUOIA from Sep. ’04 Prod. (OM34431U)

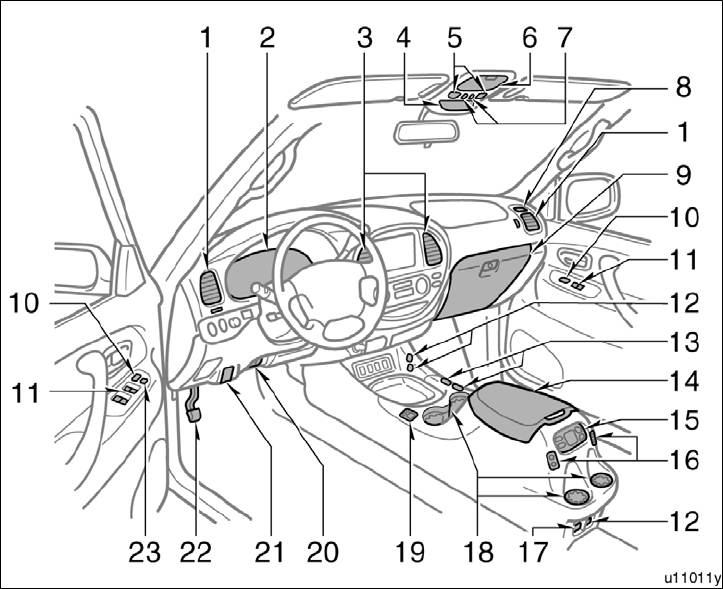

1. Side vents

2. Instrument cluster

3. Center vents

4. Multi−information display

5. Personal lights

6. Garage door opener box or auxiliary

box

7. Electric moon roof switches

8. Side defroster outlet

9. Glove box

10. Power door lock switches

11. Power window switches

12. Power outlets

13. Seat heater switches

14. Rear console box

15. Rear air conditioning controls

16. Headphone input jacks and headphone

volume control dials

17. Input terminal adapter

18. Cup holders

19. Power rear view mirror control switches

20. Lower vent

Instrument panel overview

"View A

05_SEQUOIA_U (L/O 0409)

3

2005 SEQUOIA from Sep. ’04 Prod. (OM34431U)

21. Hood lock release lever

22. Parking brake pedal

23. Window lock switch

05_SEQUOIA_U (L/O 0409)

4

2005 SEQUOIA from Sep. ’04 Prod. (OM34431U)

1. Power back window switch

2. Driving position memory switches

3. Headlight, turn signal and front fog

light switches

4. Ignition switch

5. Wiper and washer switches

6. Automatic transmission selector lever

7. Emergency flasher switch

8. Automatic transmission shift position

“L” switch (“SHIFT L” switch)

9. Audio system or navigation system

including audio system (For the

navigation system, see the separate

“Navigation System Owner’s Manual”.)

10. Air conditioning controls

11. Front passenger occupant classification

indicator light/front passenger’s seat

belt reminder light

12. Back window and outside rear view

mirror defogger switch

13. Clock

14. Cup holder

15. Glass breakage sensor

16. Power outlet main switch

17. Height control switch

"View B (two−wheel drive models)

05_SEQUOIA_U (L/O 0409)

5

2005 SEQUOIA from Sep. ’04 Prod. (OM34431U)

18. Height control mode select switch

19. Ashtray

20. Cigarette lighter

21. Traction control off switch

(“TRAC OFF” switch)

22. Cruise control switch

23. Tire pressure warning system reset

switch

24. Audio remote control switches

25. Tilt steering lock release lever

26. Roll sensing of curtain shield airbags

off switch

27. Instrument panel light control knob

05_SEQUOIA_U (L/O 0409)

6

2005 SEQUOIA from Sep. ’04 Prod. (OM34431U)

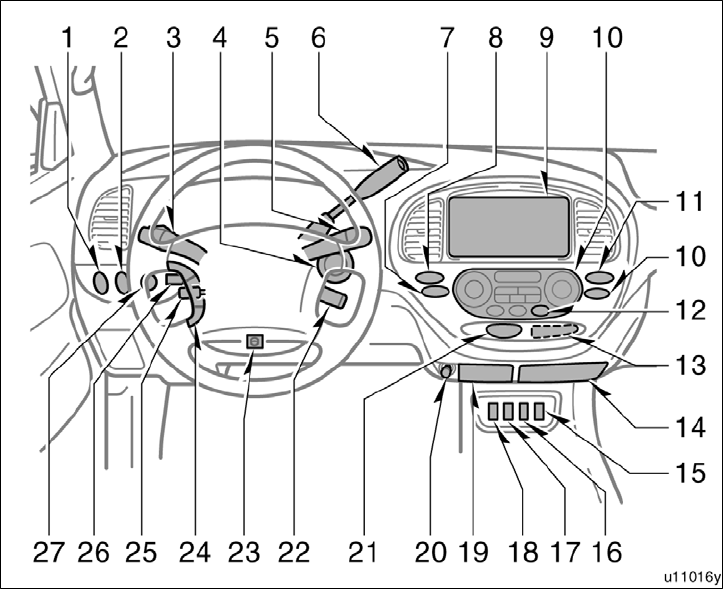

1. Power back window switch

2. Driving position memory switches

3. Headlight, turn signal and front fog

light switches

4. Ignition switch

5. Wiper and washer switches

6. Automatic transmission selector lever

7. Emergency flasher switch

8. Automatic transmission shift position

“L” switch (“SHIFT L” switch)

9. Audio system or navigation system

including audio system (For the

navigation system, see the separate

“Navigation System Owner’s Manual”.)

10. Air conditioning controls

11. Front passenger occupant classification

indicator light/front passenger’s seat

belt reminder light

12. Back window and outside rear view

mirror defogger switch

13. Clock

14. Cup holder

15. Glass breakage sensor

16. Power outlet main switch

17. Height control switch

"View B (four−wheel drive models)

05_SEQUOIA_U (L/O 0409)

7

2005 SEQUOIA from Sep. ’04 Prod. (OM34431U)

18. Height control mode select switch

19. Ashtray

20. Cigarette lighter

21. Front drive control switches

22. Center differential lock switch

23. Cruise control switch

24. Tire pressure warning system reset

switch

25. Audio remote control switches

26. Tilt steering lock release lever

27. Roll sensing of curtain shield airbag off

switch

28. Instrument panel light control knob

05_SEQUOIA_U (L/O 0409)

8

2005 SEQUOIA from Sep. ’04 Prod. (OM34431U)

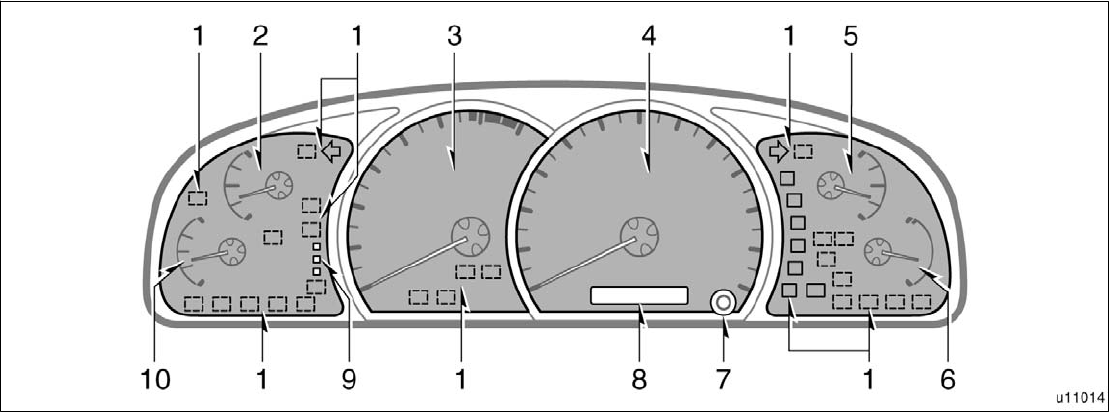

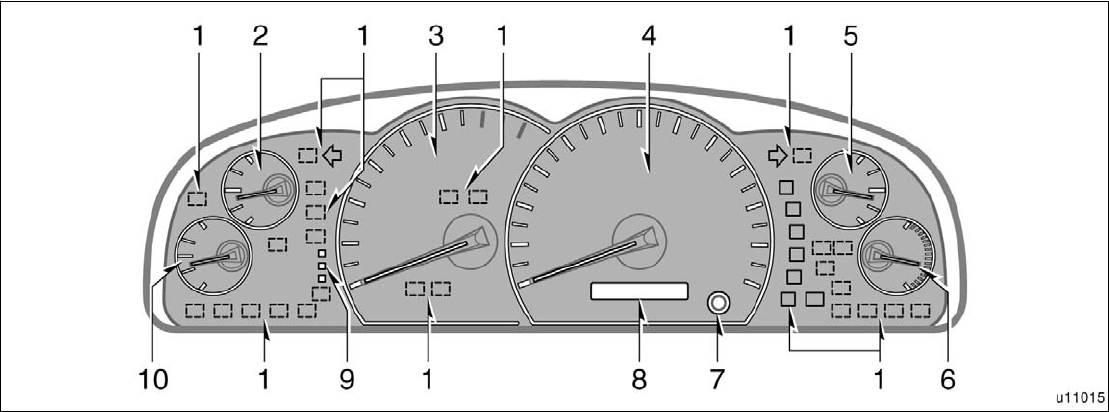

1. Service reminder indicators and

indicator lights

2. Oil pressure gauge

3. Tachometer

4. Speedometer

5. Fuel gauge

6. Engine coolant temperature gauge

7. Trip meter reset knob

8. Odometer and two trip meters

9. Height control indicator lights

10. Volt meter

Instrument cluster overview

"Type A

05_SEQUOIA_U (L/O 0409)

9

2005 SEQUOIA from Sep. ’04 Prod. (OM34431U)

1. Service reminder indicators and

indicator lights

2. Oil pressure gauge

3. Tachometer

4. Speedometer

5. Fuel gauge

6. Engine coolant temperature gauge

7. Trip meter reset knob

8. Odometer and two trip meters

9. Height control indicator lights

10. Volt meter

"Type B

05_SEQUOIA_U (L/O 0409)

10

2005 SEQUOIA from Sep. ’04 Prod. (OM34431U)

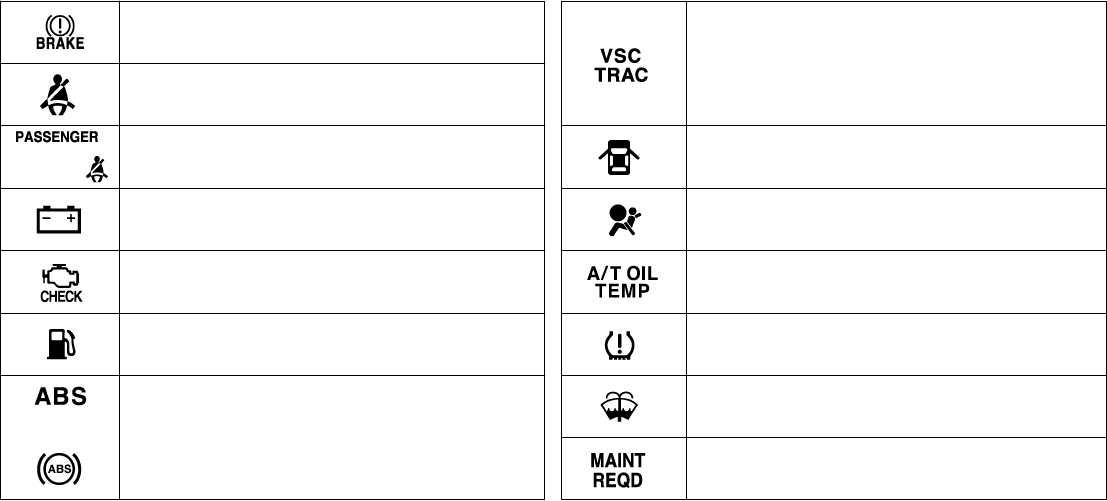

or

Driver’s seat belt reminder light∗1

Discharge warning light∗1

Low fuel level warning light∗1

Brake system warning light∗1

Malfunction indicator lamp∗1

Anti−lock brake system warning light∗1

Automatic transmission fluid temperature

warning light (four−wheel drive models)∗1

SRS warning light∗1

Open door warning light∗1

Low windshield washer fluid level warning

light∗1

Front passenger’s seat belt reminder light∗1

Vehicle stability control system/traction control

system (two−wheel drive models) or active

traction control system (four−wheel drive

models) warning light∗1

Low tire pressure warning light∗1

Engine oil replacement reminder light∗1

Indicator symbols on the instrument panel

05_SEQUOIA_U (L/O 0409)

11

2005 SEQUOIA from Sep. ’04 Prod. (OM34431U)

Automatic transmission indicator lights

Traction control system off indicator light

(two−wheel drive models)

Vehicle stability control system off indicator light

(four−wheel drive models)

Slip indicator light

Headlight high beam indicator light

Overdrive−off indicator light

Turn signal indicator lights

Engine immobilizer/theft deterrent system

indicator light

Front passenger occupant classification

indicator light

Roll sensing of curtain shield airbags off

indicator light

Headlight low beam indicator light

Tail light indicator light

Low speed four−wheel drive indicator light∗2

High speed four−wheel drive indicator light∗2

Center differential lock indicator light∗2

(four−wheel drive models)

05_SEQUOIA_U (L/O 0409)

12

2005 SEQUOIA from Sep. ’04 Prod. (OM34431U)

Cruise control indicator light∗4

∗1: For details, see “Service reminder indicators and warning

buzzers” on page 162 in Section 1−6.

∗2: If this light flashes, see “Four−wheel drive system” on page

177 in Section 1−7.

∗3: If this light flashes, see “Rear height control air suspension”

on page 189 in Section 1−7.

∗4: If this light flashes, see “Cruise control” on page 205 in

Section 1−7.

Manual control mode indicator light∗3

Height control indicator lights
