Overview
TRX-310 is TSI’s latest offering for 2-way wireless
broadband Internet application at UHF band. It
accepts an IF signal of 30~42MHz from cable
modem, upconverts the signal to 704~716MHz and
transmits it back to the MMDS headend site.
With its built-in automatic on/off switch, TRX-310
will enter sleep mode to eliminate the broadband
noise when there is no data packet transmission.
Without exception, TRX-310 embodies the long
term stability and reliability common to all TSI
products.
With the integrated downconverter and
upconverter, TRX-310 provides the best cost /
performance solution for your 2-way MMDS
operation.
Key Features
• QPSK, 16 QAM Transmission Compatible
• 256 QAM Reception Compatible
• Automatic On/Off switch
• Up to 50Km cell coverage
• Low phase noise
• High frequency stability
• Low power consumption
• Meet FCC spectral mask requirement

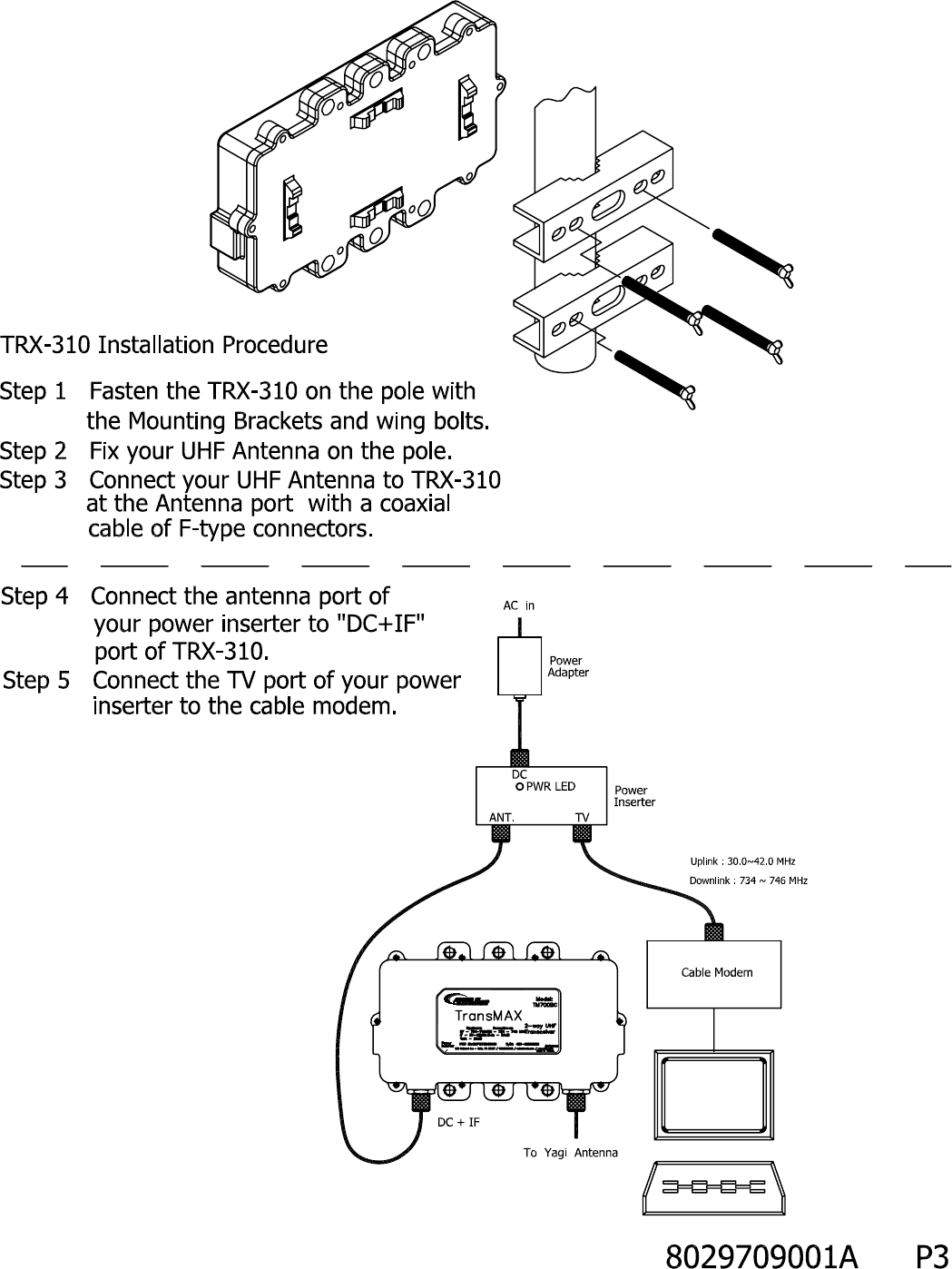

• Easy installation
• RoHS compliant
Application
• UHF Band 2 way MMDS CPE Internet access
TRANSYSTEM INC.
An A
+
supplier of RF microwave & GPS p
roducts
T
TR
RX
X-
-3
31
10
0
Rev: 0.9
Specifications
Downstream
Input frequency 734 ~ 746 MHz
Output frequency 734 ~ 746 MHz
Gain 24 ± 2dB @ 25°C
Noise Figure 5dB typ.
7dB max.
Leakage of Tx to IF
Port
-50dBm min
@O/P=+24dBm
Upstream
IF Input Center Freq. 30 ~ 42 MHz
RF Output Frequency 704 ~ 716 MHz
IF Input Signal
Bandwidth 12 MHz max
Gain 20 ± 2dB
Linear Output Power +24 dBm typ.
P1dB +27dBm typical
LO Phase Noise
-85dBc/Hz @ 1KHz
-87 dBc/Hz @ 10 KHz
-95 dBc/Hz @ 100 KHz
LO Stability ± 10KHz
TX Output Spurious -37dBc max
TX Output Power
Blanking Threshold -45dBm
TX Switch Latency < 1.2 micro second
Interface
RF Port 75 ohm
RF Connector F-type Female
RF Return Loss 10 dB typ.
IF Port 75 ohm
IF Connector F-type Female
IF Return Loss 10 dB typ.
IF Spurious
Emissions
≦ -85 dBm 734-746MHz
≦ -50 dBm from 100-
860MHz except above
Power Supply
Voltage +18 to +24 VDC
Power Consumption 8 Watt max.
Environment
Temperature -30°C～+60°C
Humidity 100% waterproof
Physical
Dimensions 175 x 116 x 33 mm

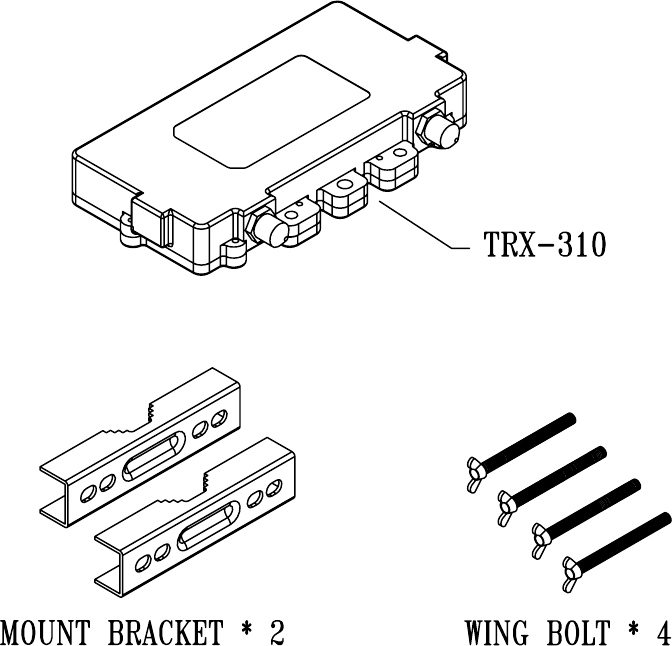

Accessories Options
Power Supply 110V/220V Adapter & Inserter
Typical value @ 25°C, unless otherwise specified.
Specifications are subject to change without prior notice.
©2008 TRANSYSTEM INC. all rights reserved.
No.1-2 Li-Hsin Rd.I, Science-Based Industrial Park,
Taiwan 300, R.O.C.
T: +886-3-5780393 / F: +886-3-5784111
sales@transystem.com.tw
www.transystem.com.tw
