Air-Cooled Series R™

Helical-Rotary Liquid Chiller

Model RTAC 120 to 200

(400 to 760kw - 50 Hz)

Built for the Industrial and

Commercial Markets

RLC-PRC005-E4

The new Trane Model RTAC Air-Cooled

Helical-Rotary Chiller is the result of a

search for higher reliability, higher

energy efficiency, and lower sound

levels for today’s environment.

In an effort to reduce energy consumed

by HVAC equipment and to continually

produce chilled water, Trane has

developed the Model RTAC chiller with

higher efficiencies and a more reliable

design than any other air cooled chiller

available on the market today.

The Model RTAC chiller uses the proven

design of the Trane helical-rotary

compressor, which embraces all of the

design features that have made the

Trane helical-rotary compressor liquid

chillers such a success since 1987.

Introduction

©American Standard Inc. 2000 RLC-PRC005-E4

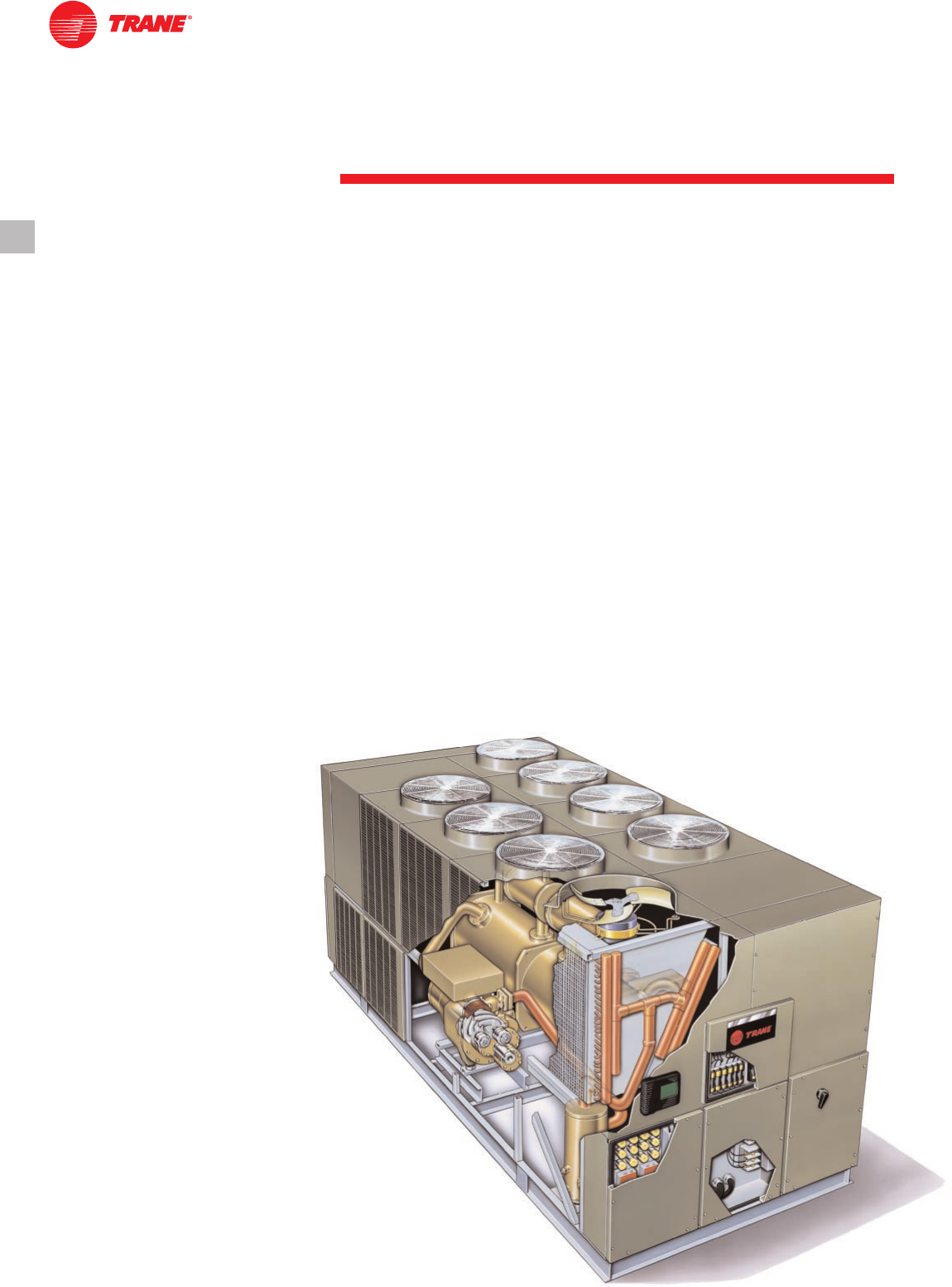

Figure 1

What Is New

The RTAC offers the same high

reliability coupled with greatly improved

energy efficiency, vastly reduced

physical footprint, and improved

acoustical performance, due to its

advanced design, low-speed, direct-

drive compressor, and proven

Series R™ performance.

The major differences between the

Series R, Model RTAC and Model RTAA

are:

• Smaller physical footprint

• Lower sound levels

• Higher energy efficiency

• Designed specifically for operating

with environmentally-safe HFC-134a.

The Series R Model RTAC helical-rotary

chiller is an industrial-grade design, built

for both the industrial and commercial

markets. It is ideal for schools, hospitals,

retailers, office buildings, and industrial

applications.

3

RLC-PRC005-E4

Contents

Introduction

Features and Benefits

Improved Acoustical Performance

Simple Installation

Superior Control with Tracer™ Chiller Controls

Options

Application Considerations

Selection Procedure

General Data

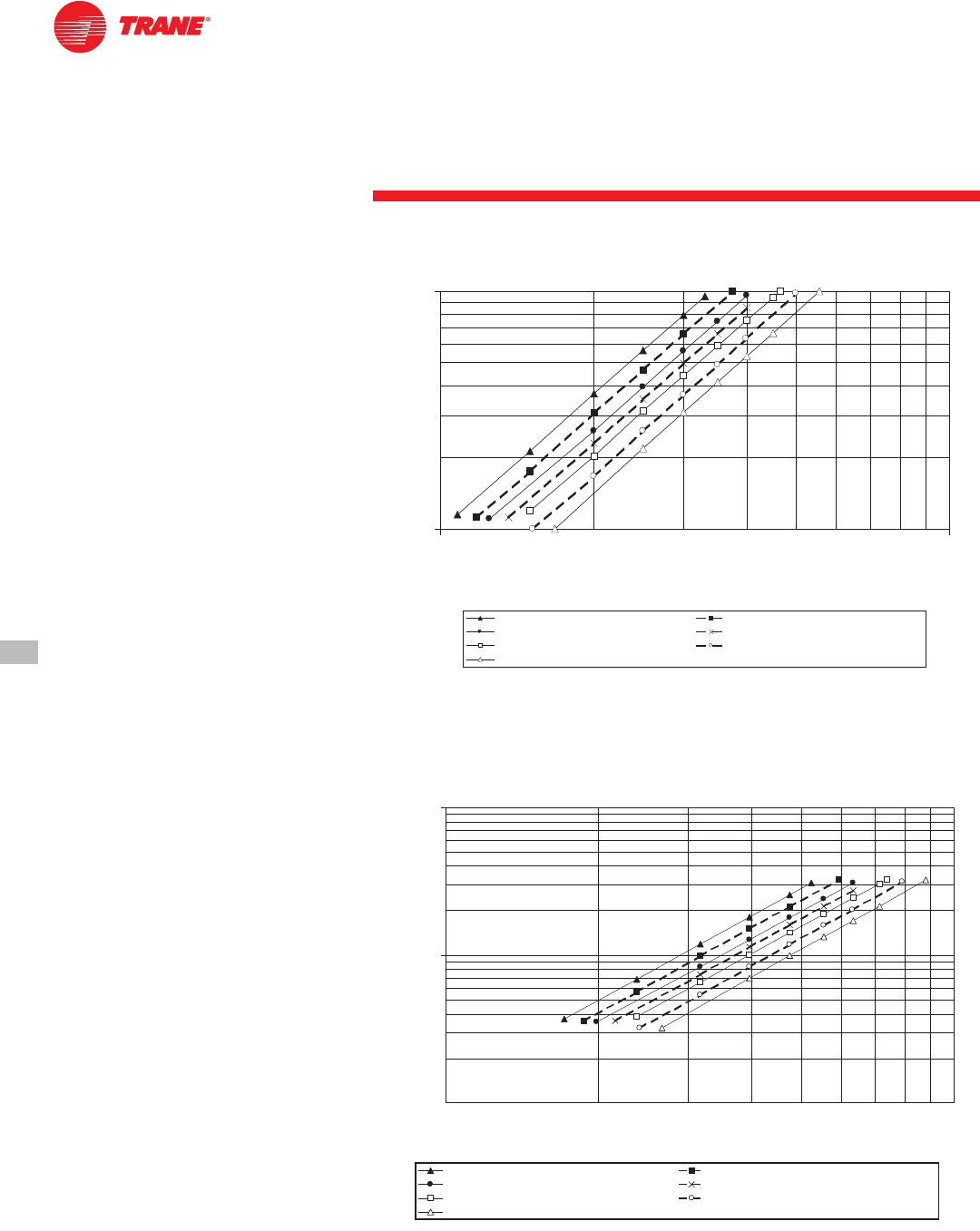

Performance Data

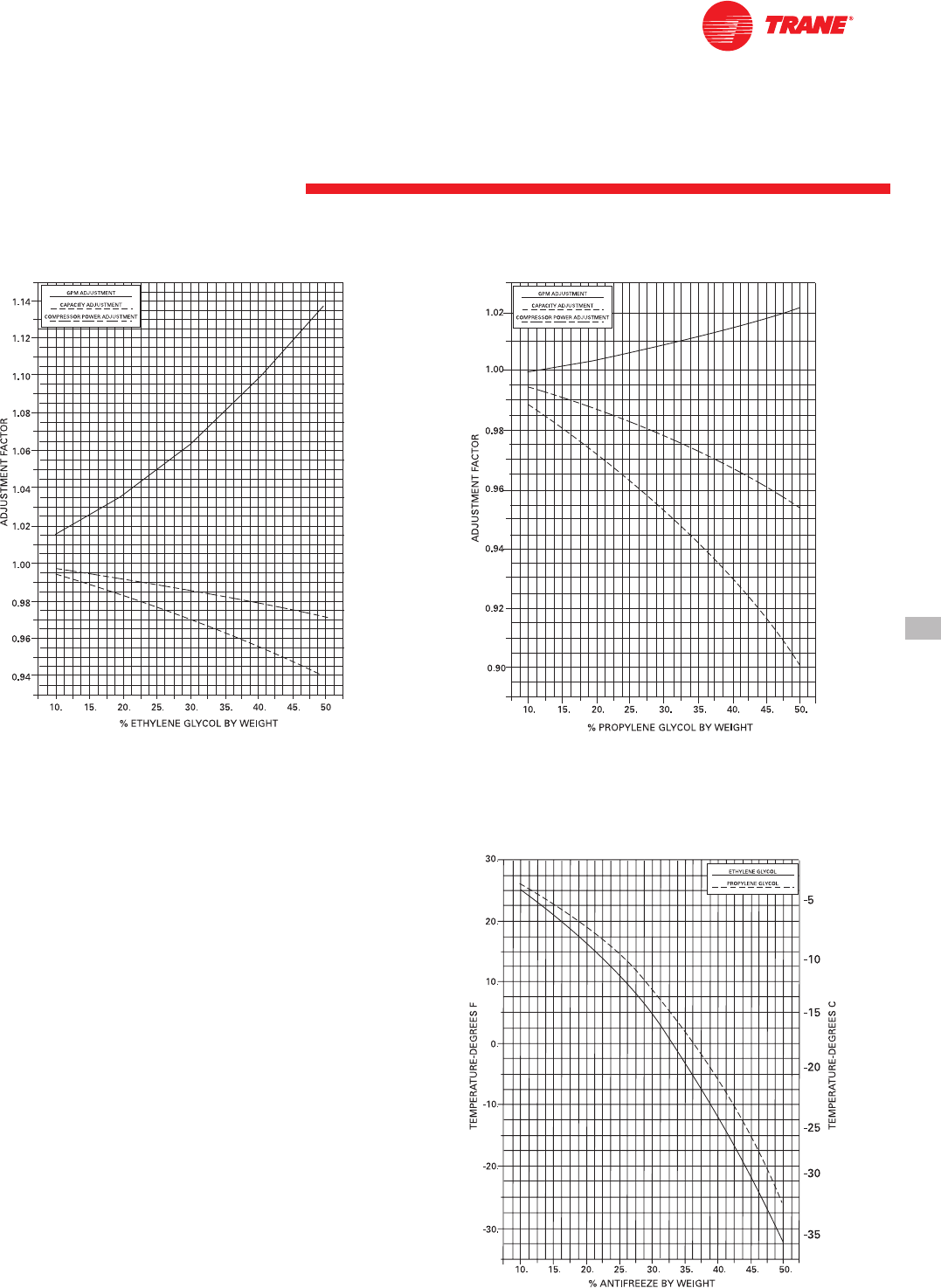

Performance Adjustment Factors

Controls

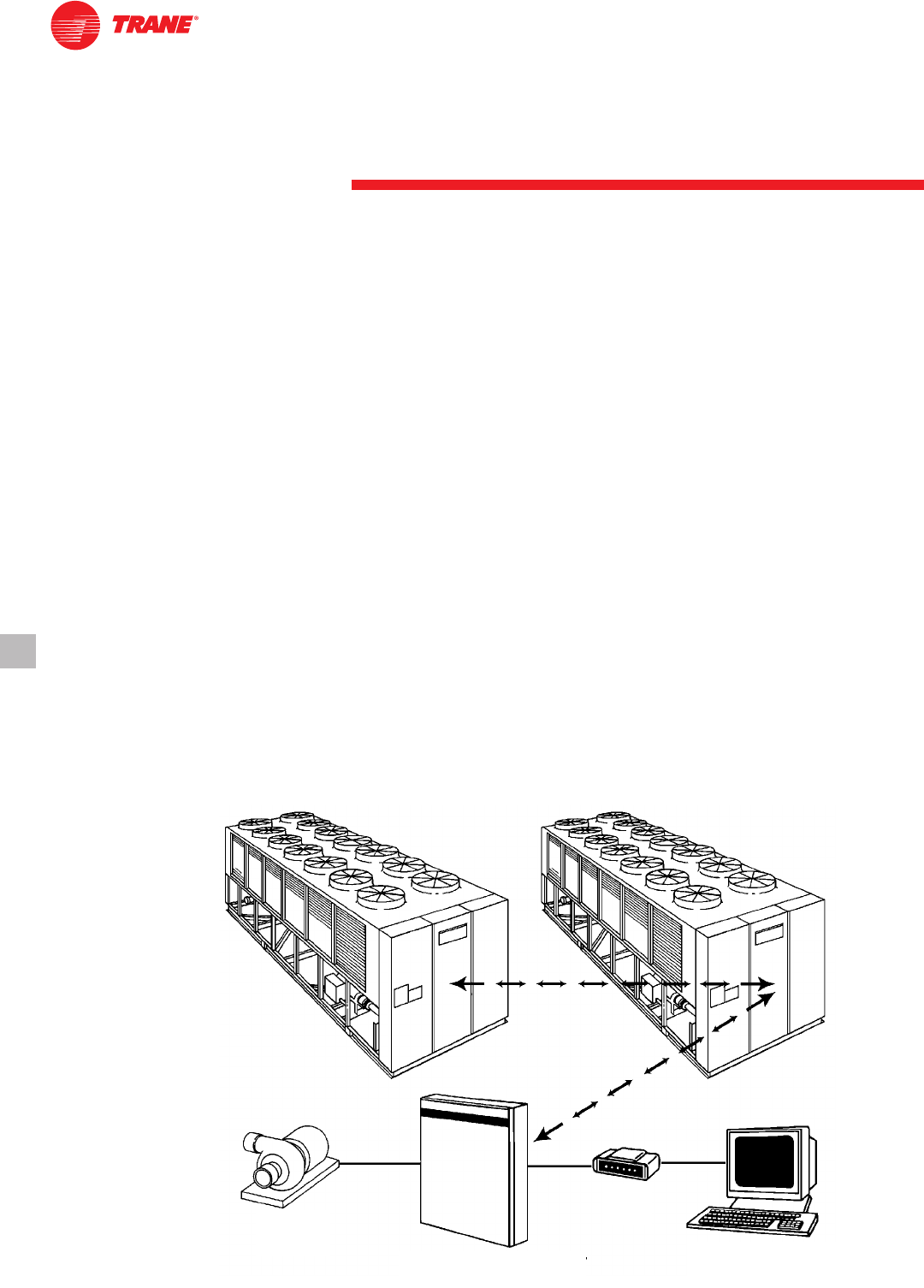

Generic Building Automation System Controls

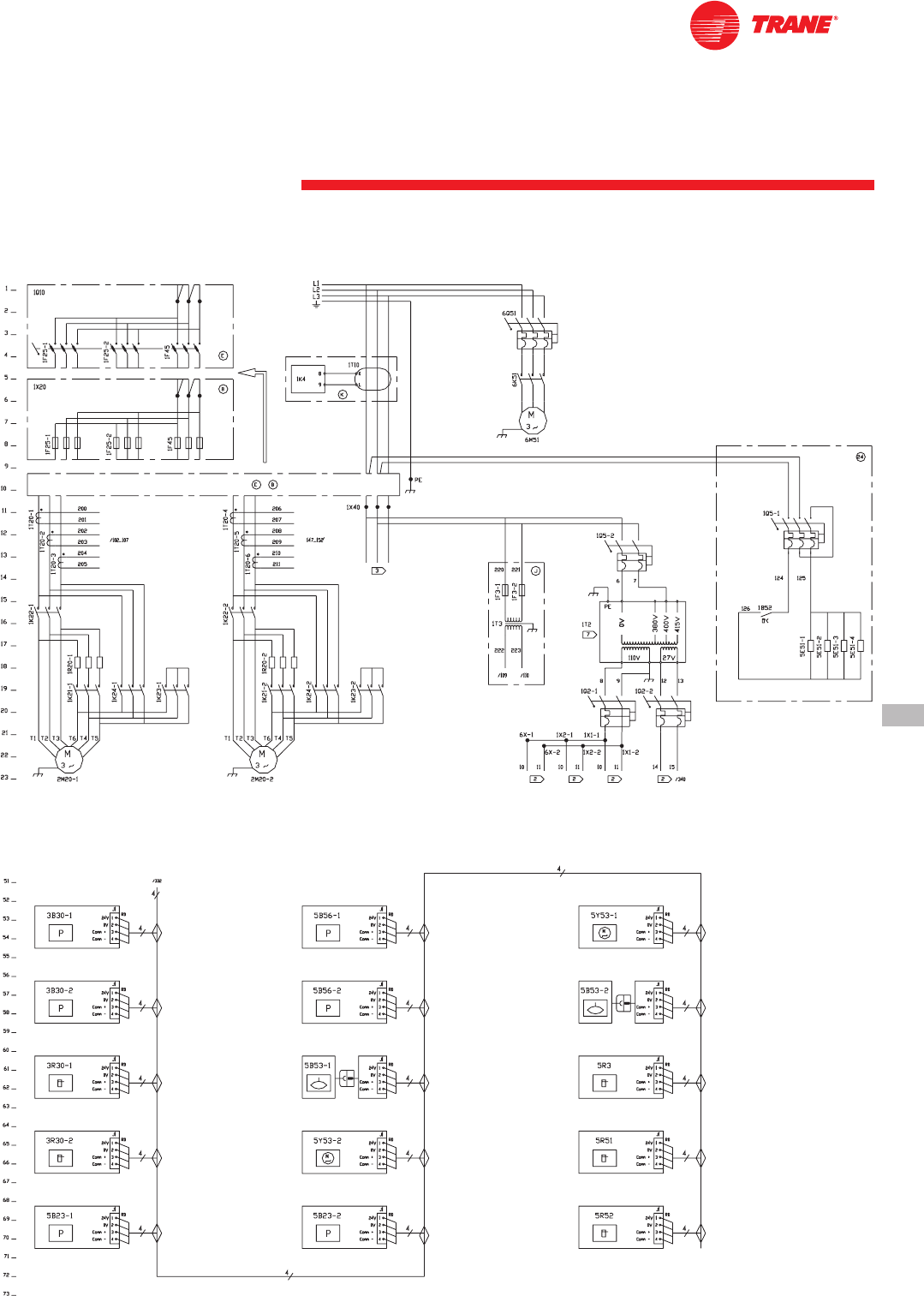

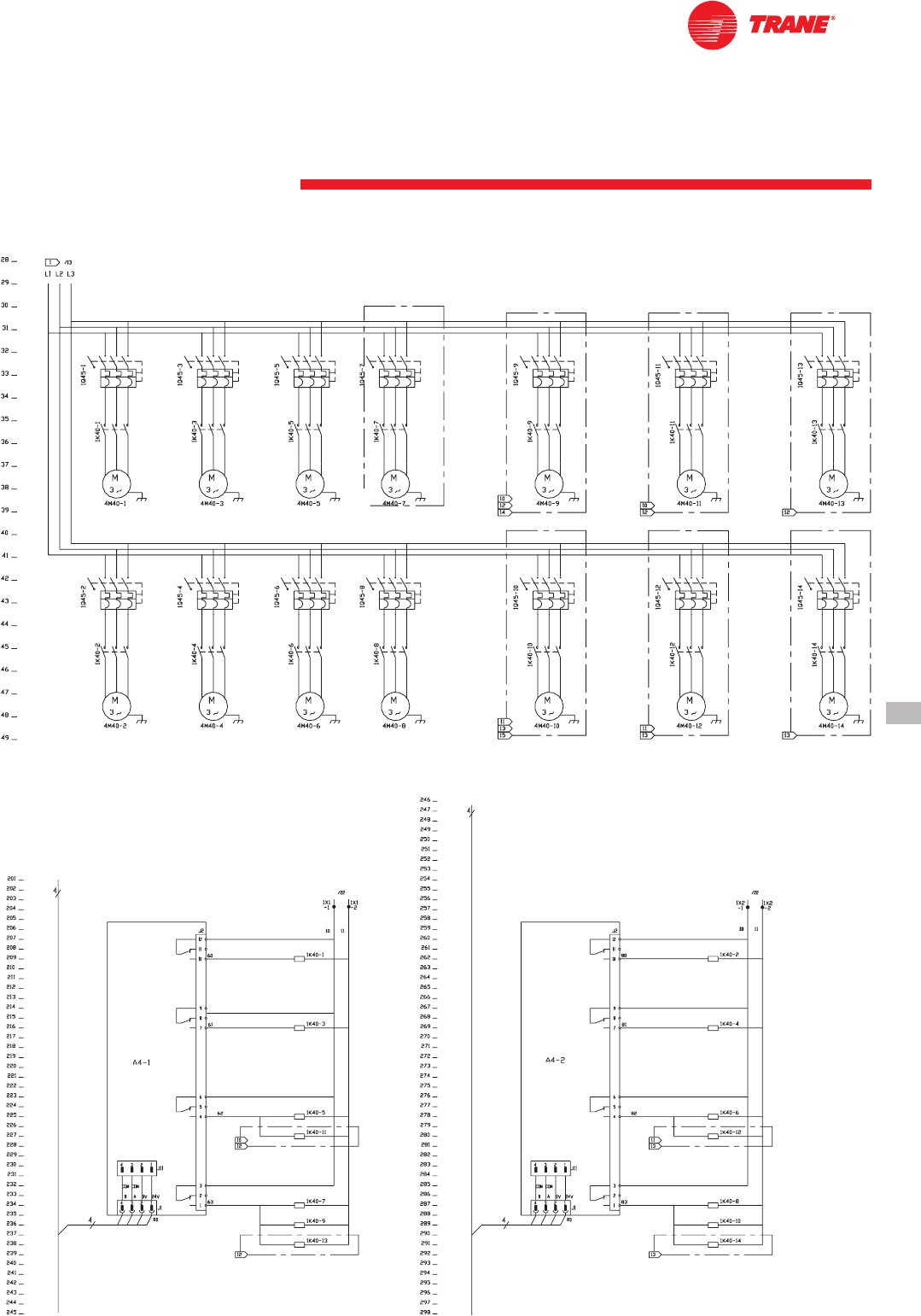

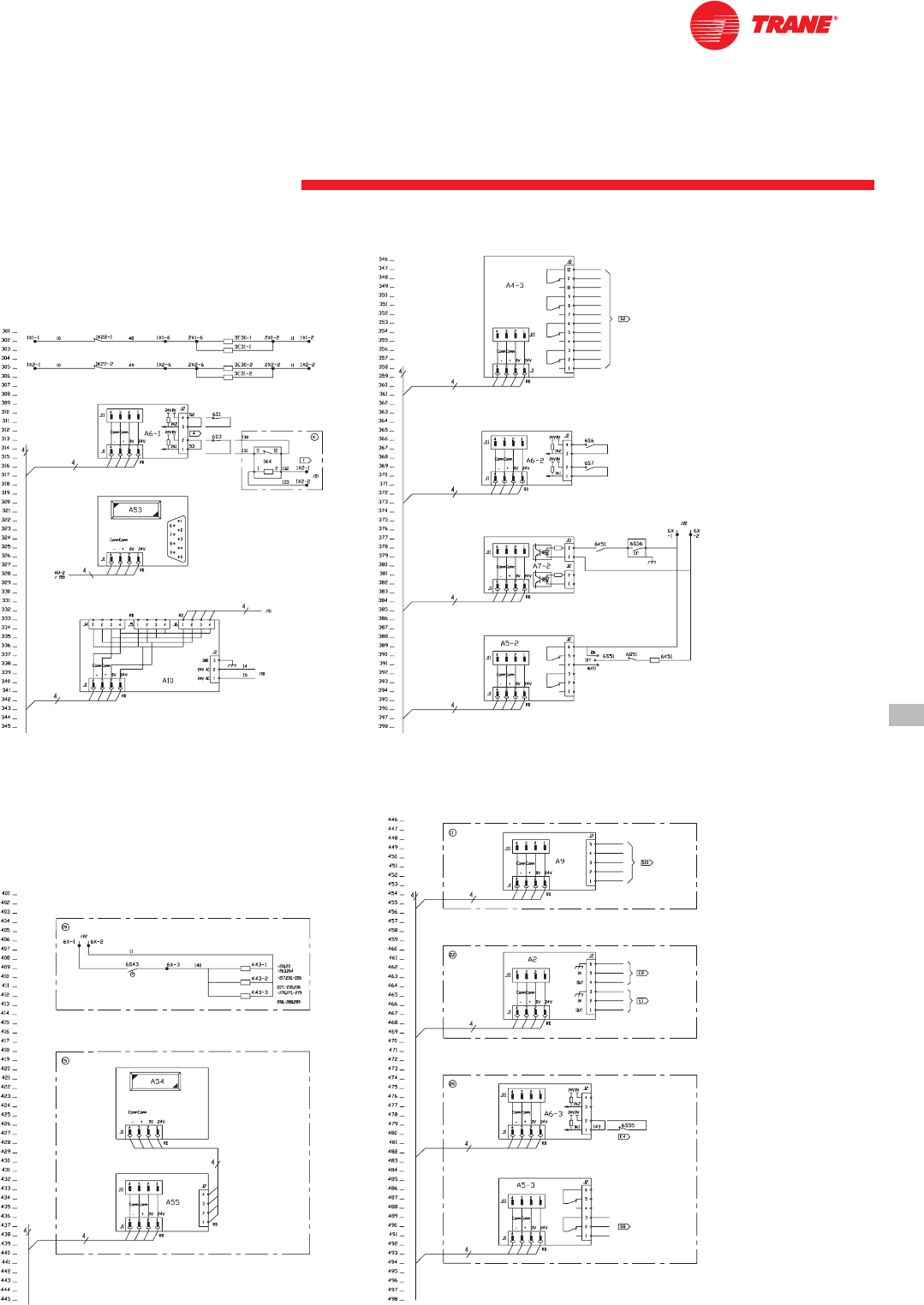

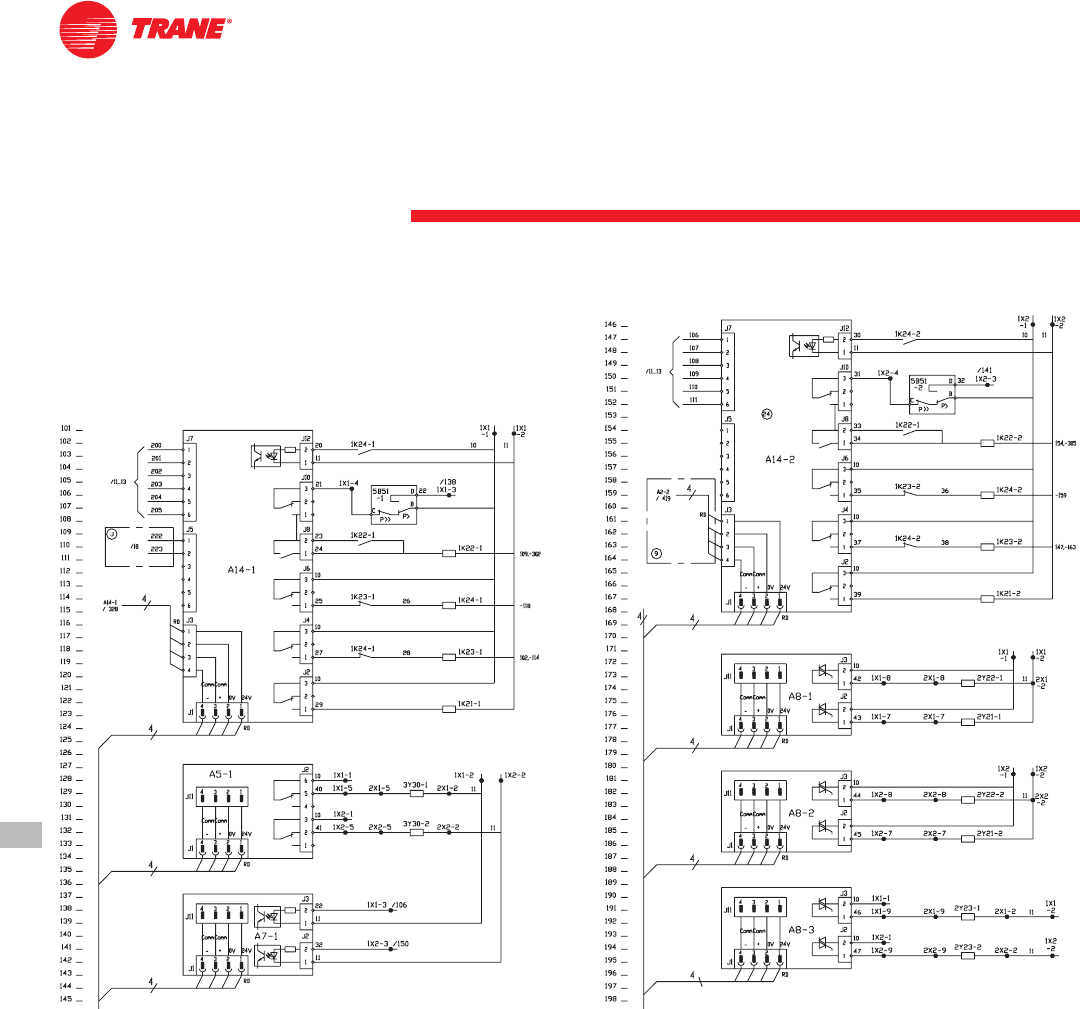

Typical Wiring Diagrams

Job Site Data

Electrical Data

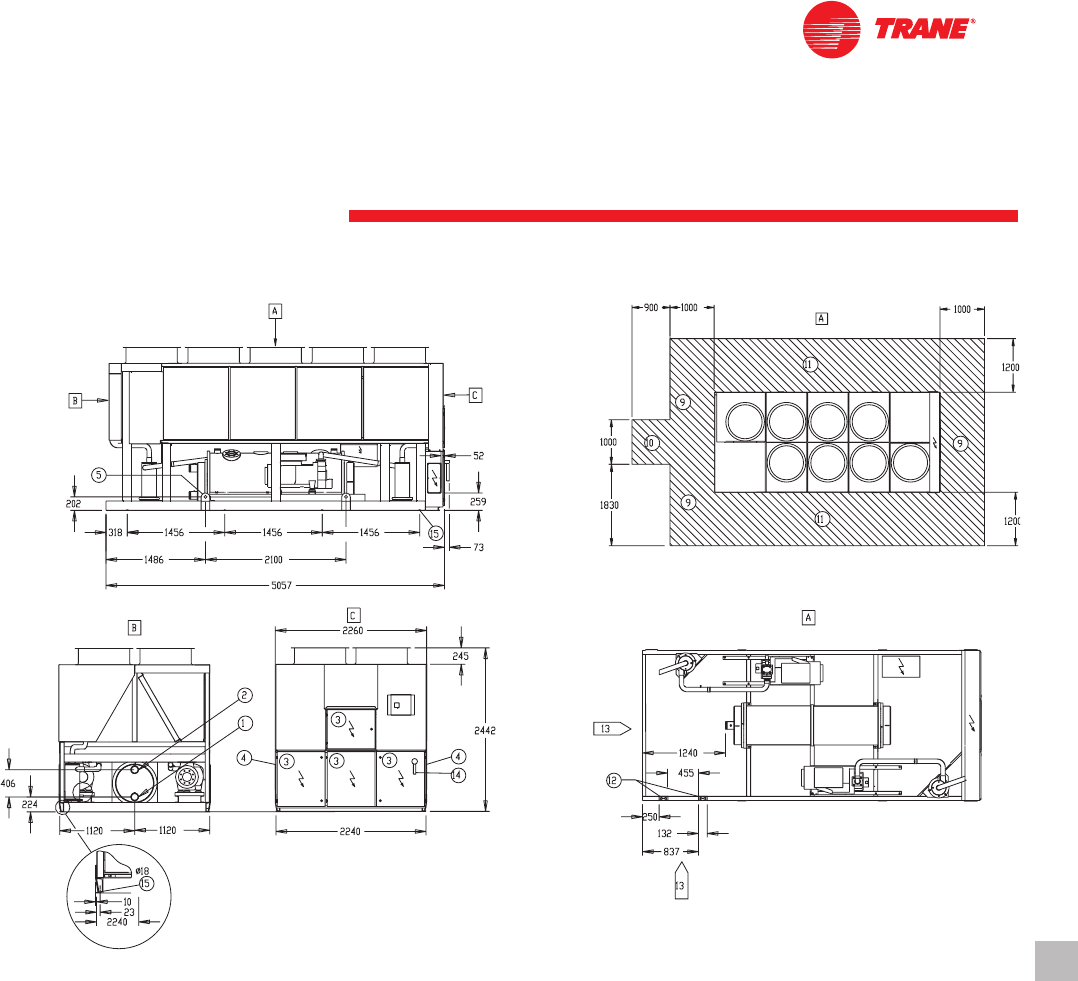

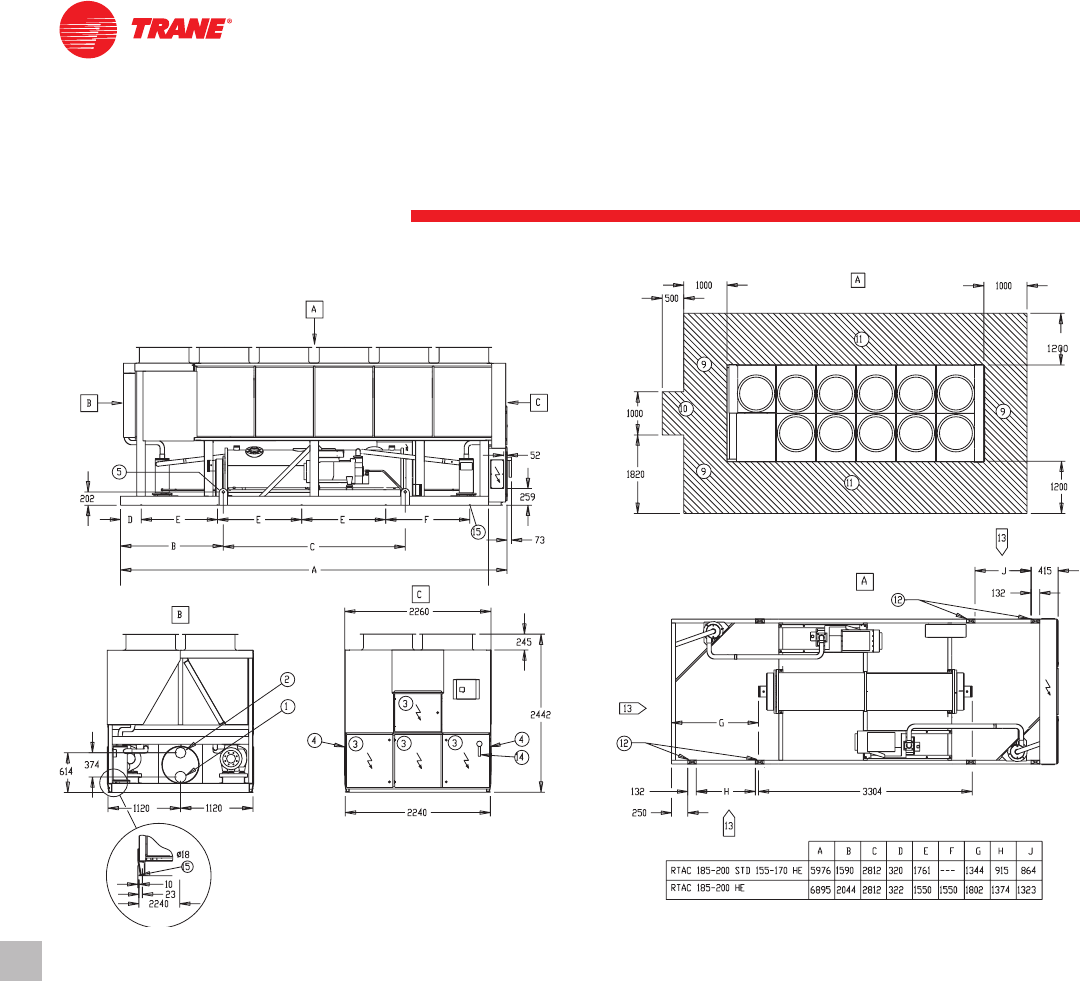

Dimensional Data

Mechanical Specifications

2

4

9

12

13

19

36

5

6

7

8

33

45

47

50

36

39

44

Features and

Benefits

4RLC-PRC005-E4

Water Chiller Systems Business Unit The Series R™

Helical-Rotary Compressor

• Unequaled reliability. The next

generation Trane helical-rotary

compressor is designed, built, and

tested to the same demanding and

rugged standards as the Trane scroll

compressors, the centrifugal

compressors, and the previous

generation helical-rotary compressors

used in both air- and water-cooled

chillers for more than 13 years.

• Years of research and testing. The

Trane helical-rotary compressor has

amassed thousands of hours of

testing, much of it at severe operating

conditions beyond normal commercial

air-conditioning applications.

• Proven track record. The Trane

Company is the world’s largest

manufacturer of large helical-rotary

compressors used for refrigeration.

Over 90,000 compressors worldwide

have proven that the Trane helical-

rotary compressor has a reliability rate

of greater than 99.5 percent in the first

year of operation—unequalled in the

industry.

• Resistance to liquid slugging. The

robust design of the Series R

compressor can ingest amounts of

liquid refrigerant that normally would

severely damage reciprocating

compressor valves, piston rods, and

cylinders.

• Fewer moving parts. The helical-rotary

compressor has only two rotating

parts: the male rotor and the female

rotor. Unlike reciprocating

compressors, the Trane helical-rotary

compressor has no pistons,

connecting rods, suction and

discharge valves, or mechanical oil

pump. In fact, a typical reciprocating

compressor has 15 times as many

critical parts as the Series R

compressor. Fewer moving parts leads

to increased reliability and longer life.

• Direct-drive, low-speed, semi-hermetic

compressor for high efficiency and

high reliability.

• Field-serviceable compressor for easy

maintenance.

• Suction-gas-cooled motor. The motor

operates at lower temperatures for

longer motor life.

• Five minute start-to-start and two

minute stop-to-start anti-recycle timer

allows for closer water-loop

temperature control.

Improved

Acoustical

Performance

5

RLC-PRC005-E4

The sound levels of the Series R Model

RTAA have been steadily improved

since its introduction. With the advent of

the Model RTAC, sound levels are

reduced significantly by addressing two

major sources: the compressor and the

refrigerant piping. First, the compressor

has been specifically designed to

minimize sound generation. Second, the

refrigerant components and piping have

been optimized to reduce sound

propagation throughout the system. The

result: sound levels achieved on the

Model RTAC represent the lowest sound

levels ever on Trane air-cooled helical-

rotary compressor water chillers.

Superior Efficiency Levels:

The Bar Has Been Raised

The standard-efficiency Trane Model

RTAC has COP levels up to 2.90 kW/kW

[9.9 EER] (including fans), while the

premium-efficiency, or high-efficiency,

units leap to COP levels of 3.08 kW/kW

[10.51 EER] (including fans).

The modern technology of the RTAC

with the efficient direct-drive

compressor, the flooded evaporator, the

unique design to separate liquid and

vapor, the electronic expansion valve,

and the revolutionary Tracer™Chiller

Controls, has permitted Trane to achieve

these efficiency levels, unmatched in the

industry.

Precise Rotor Tip Clearances

Higher energy efficiency in a helical-

rotary compressor is obtained by

reducing the rotor tip clearances. This

next-generation compressor is no

exception. With today’s advanced

manufacturing technology, clearances

can be controlled to even tighter

tolerances. This reduces the leakage

between high- and low-pressure cavities

during compression, allowing for more

efficient compressor operation.

Capacity Control and Load Matching

The combination patented unloading

system on Trane helical-rotary

compressors uses the variable

unloading valve for the majority of the

unloading function. This allows the

compressor to modulate infinitely, to

exactly match building load and to

maintain chilled-water supply

temperatures within ± 0.3°C [±0.5°F] of

the set point. Reciprocating and helical-

rotary chillers that rely on stepped

capacity control must run at a capacity

equal to or greater than the load, and

typically can only maintain water

temperature to around ± 1°C [±2°F].

Much of this excess capacity is lost

because overcooling goes toward

removing building latent heat, causing

the building to be dried beyond normal

comfort requirements. When the load

becomes very low, the compressor also

uses a step unloader valve, which is a

single unloading step to achieve the

minimum unloading point of the

compressor. The result of this design is

optimized part-load performance far

superior to single reciprocating

compressors and step-only helical-

rotary compressors.

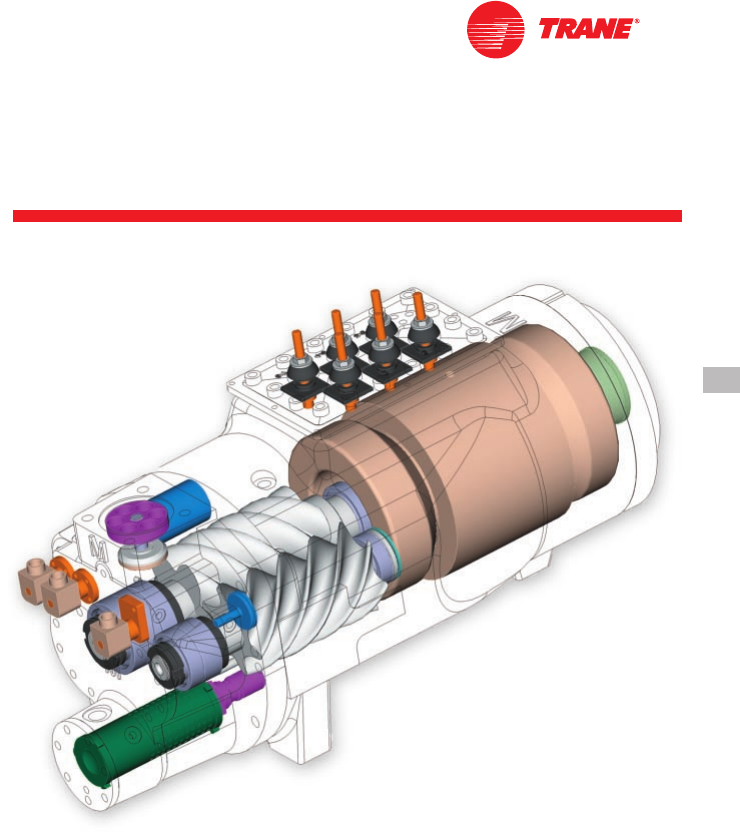

Figure 2  Cutaway of a compressor

Simple Installation

6RLC-PRC005-E4

Compact Physical Size

The Trane Model RTAC chiller averages a

20 percent reduction in physical

footprint, while the greatest change is

actually 40 percent smaller when

compared against the previous design.

This improvement makes the RTAC the

smallest air-cooled chiller in the industry

and a prime candidate for installations

that have space constraints. All physical

sizes were changed without sacrificing

the side clearances needed to supply

fresh airflow without coil starvation—the

tightest operational clearances in the

industry.

Close Spacing Installation

The air-cooled Series R™chiller has the

tightest recommended side clearance in

the industry, 1.2 meters, but that is not

all. In situations where equipment must

be installed with less clearance than

recommended, which frequently occurs

in retrofit applications, restricted airflow

is common. Conventional chillers may

not work at all. However, the air-cooled

Series R chiller with the Adaptive

Control™microprocessor will make as

much chilled water as possible given the

actual installed conditions, stay on-line

during any unforeseen abnormal

conditions, and optimize its

performance. Consult your Trane sales

engineer for more details.

Factory Testing Means Trouble-Free

Start-up

All air-cooled Series R chillers are given

a complete functional test at the factory.

This computer-based test program

completely checks the sensors, wiring,

electrical components, microprocessor

function, communication capability,

expansion valve performance, and fans.

In addition, each compressor is run-

tested to verify capacity and efficiency.

Where applicable, each unit is factory

preset to the customer’s design

conditions. An example would be the

leaving-liquid temperature set point. The

result of this test program is that the

chiller arrives at the job site fully tested

and ready for operation.

Factory-Installed and Tested Controls

and Options Speed Installation

All Series R chiller options, including

main power-supply disconnect, low

ambient control, ambient temperature

sensor, low ambient lockout,

communication interface and ice-

making controls are factory installed and

tested. Some manufacturers send

accessories in pieces to be field

installed. With Trane, the customer saves

on installation expense and has

assurance that ALL chiller controls and

options have been tested and will

function as expected.

Superior Control with

Tracer™Chiller Controls

7

RLC-PRC005-E4

The End of Nuisance

Trip-Outs and

Unnecessary Service Calls?

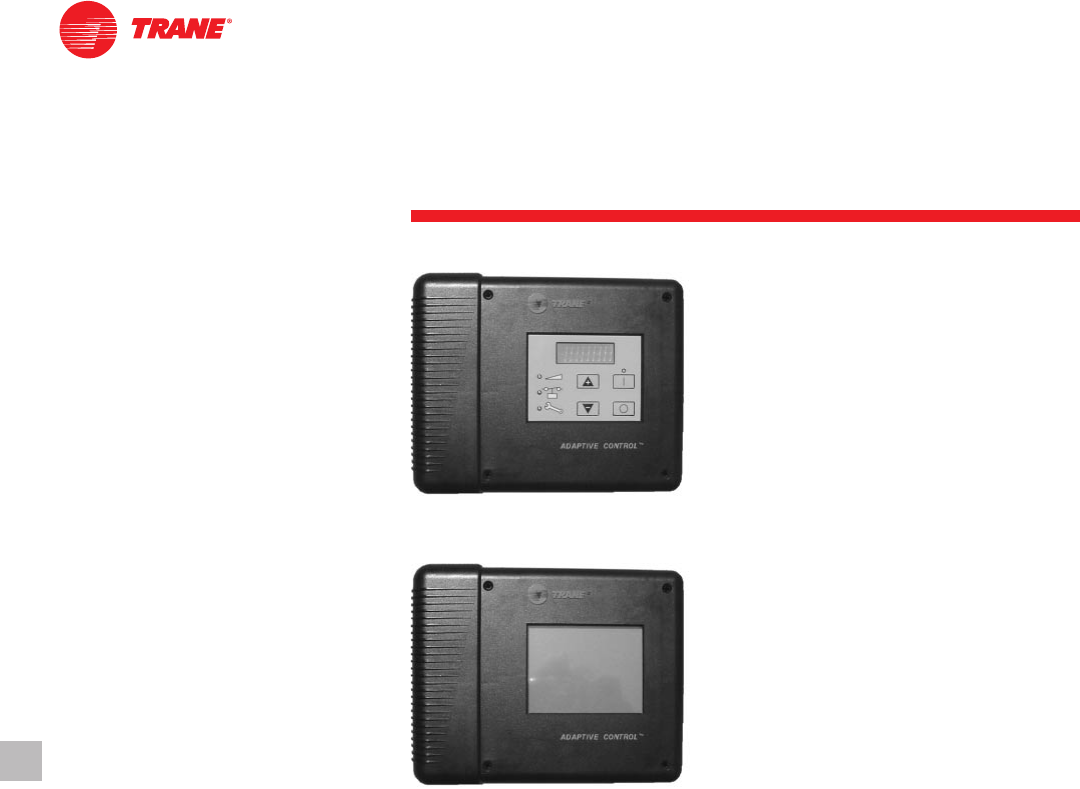

The Adaptive Control™microprocessor

system enhances the air-cooled Series R

chiller by providing the very latest chiller

control technology. With the Adaptive

Control microprocessor, unnecessary

service calls and unhappy tenants are

avoided. The unit does not nuisance-trip

or unnecessarily shut down. Only when

the Tracer chiller controls have

exhausted all possible corrective

actions, and the unit is still violating an

operating limit, will the chiller shut

down. Controls on other equipment

typically shut down the chiller, usually

just when it is needed the most.

For Example:

A typical five-year-old chiller with dirty

coils might trip out on high-pressure

cutout on a 38°C [100°F] day in August.

A hot day is just when comfort cooling

is needed the most. In contrast, the air-

cooled Series R chiller with an Adaptive

Control microprocessor will stage fans

on, modulate the electronic expansion

valve, and modulate the slide valve as it

approaches a high-pressure cutout,

thereby keeping the chiller on line when

you need it the most.

System Options: Ice Storage

Trane air-cooled chillers are well-suited

for ice production. The unique ability to

operate at decreased ambient

temperature while producing ice results

in approximately the same amount of

work for the compressor. An air-cooled

machine typically switches to ice

production at night. Two things happen

under this assumption. First, the leaving

brine temperature from the evaporator

4. Freeze ice storage

5. Freeze ice storage when comfort

cooling is required

6. Off

Tracer optimization software controls

operation of the required equipment

and accessories to easily move from

one mode of operation to another. For

example: even with ice-storage systems,

there are numerous hours when ice is

neither produced nor consumed, but

saved. In this mode, the chiller is the

sole source of cooling. For example, to

cool the building after all ice is produced

but before high electrical-demand

charges take effect, Tracer sets the air-

cooled chiller leaving-fluid set point to

its most efficient setting and starts the

chiller, chiller pump, and load pump.

When electrical demand is high, the ice

pump is started and the chiller is either

demand limited or shut down

completely. Tracer controls have the

intelligence to optimally balance the

contribution of the ice and the chiller in

meeting the cooling load.

The capacity of the chiller plant is

extended by operating the chiller and ice

in tandem. Tracer rations the ice,

augmenting chiller capacity while

reducing cooling costs. When ice is

produced, Tracer will lower the air-

cooled chiller leaving-fluid set point and

start the chiller, ice and chiller pumps,

and other accessories. Any incidental

loads that persists while producing ice

can be addressed by starting the load

pump and drawing spent cooling fluid

from the ice storage tanks.

For specific information on ice storage

applications, contact your local Trane

sales office.

is lowered to around -5.5 to -5°C [22 to

24°F]. Second, the ambient temperature

has typically dropped about 8.3 to 11°C

[15 to 20°F] from the peak daytime

ambient. This effectively places a lift on

the compressors that is similar to

daytime running conditions. The chiller

can operate in lower ambient at night

and successfully produce ice to

supplement the next day’s cooling

demands.

The Model RTAC produces ice by

supplying ice storage tanks with a

constant supply of glycol solution. Air-

cooled chillers selected for these lower

leaving-fluid temperatures are also

selected for efficient production of

chilled fluid at nominal comfort-cooling

conditions. The ability of Trane chillers to

serve “double duty” in ice production

and comfort cooling greatly reduces the

capital cost of ice-storage systems.

When cooling is required, ice-chilled

glycol is pumped from the ice storage

tanks directly to the cooling coils. No

expensive heat exchanger is required.

The glycol loop is a sealed system,

eliminating expensive annual chemical

treatment costs. The air-cooled chiller is

also available for comfort-cooling duty

at nominal cooling conditions and

efficiencies. The modular concept of

glycol ice-storage systems, and the

proven simplicity of Trane Tracer™

controls, allow the successful blend of

reliability and energy-saving

performance in any ice-storage

application.

The ice-storage system is operated in

six different modes, each optimized for

the utility cost at a particular time of day.

1. Provide comfort cooling with chiller

2. Provide comfort cooling with ice

3. Provide comfort cooling with ice and

chiller

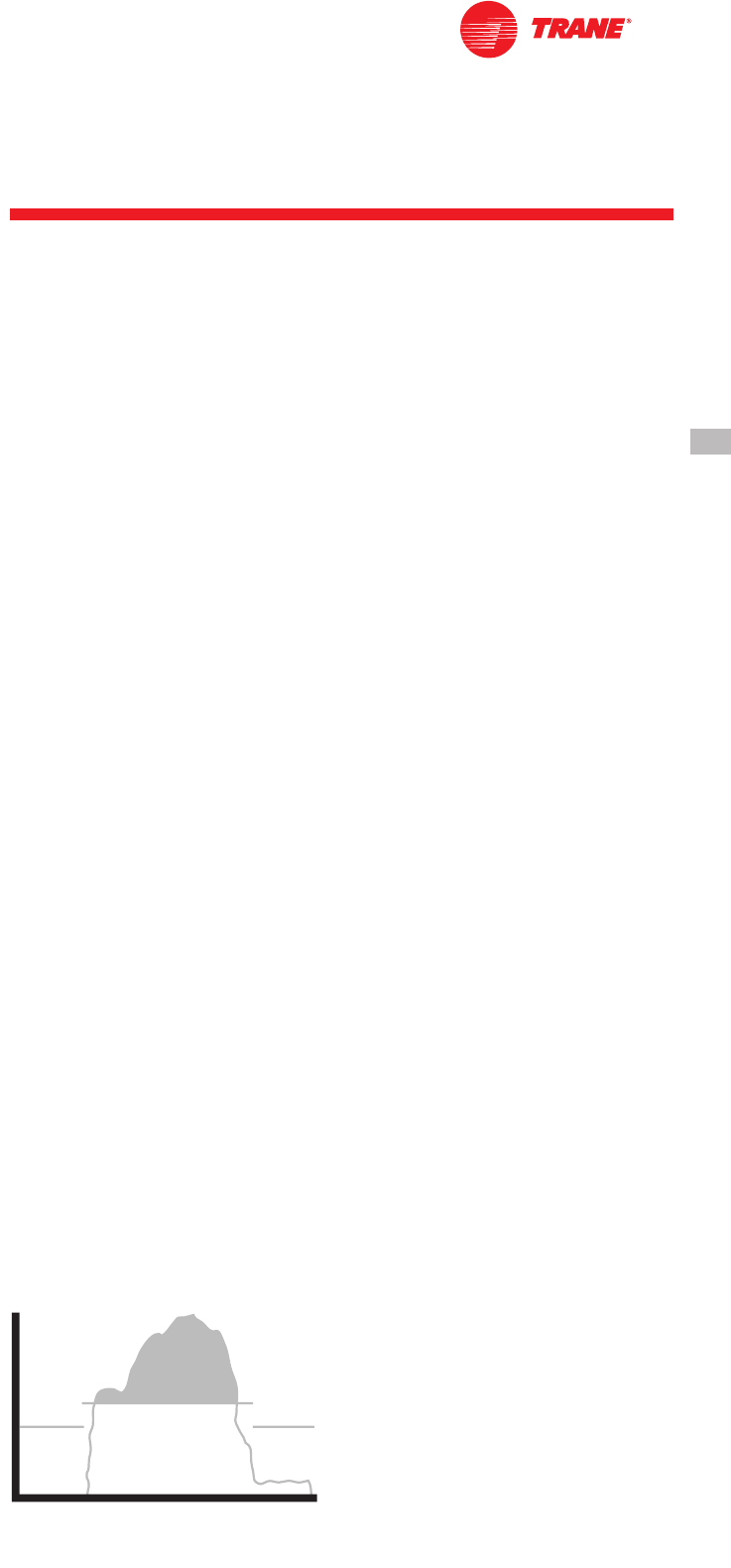

Figure 3 — Ice storage demand cost savings

MN 6 A.M. NOON 6 P.M. MN

ICE

CHILLER

LOAD

Premium Efficiency and

Performance Option

This option provides oversized heat

exchangers with two purposes. One, it

allows the unit to be more energy

efficient. Two, the unit will have

enhanced operation in high-ambient

conditions.

Low-Temperature Brine

The hardware and software on the unit

are factory set to handle low-

temperature brine applications, typically

below 5°C [41°F].

Ice Making

The unit controls are factory set to

handle ice making for thermal storage

applications.

Tracer Summit™ Communication

Interface

Permits bi-directional communication to

the Trane Integrated Comfort™ system.

Remote Input Options

Permits remote chilled-liquid set point,

remote current-limit set point, or both,

by accepting a 4-20 mA or 2-10 VDC

analog signal.

Remote Output Options

Permits alarm relay outputs, ice-making

outputs, or both.

Chilled-Water Reset

This option provides the control logic

and field-installed sensors to reset

leaving-chilled-water temperature. The

set point can be reset based on either

ambient temperature or return

evaporator-water temperature.

Night Noise Setback

At night, on contact closure all the fans

run at low speed, bringing the overall

sound level further down.

SCR (Short-Circuit Rating)

Offers a measure of safety for what the

starter-panel enclosure is able to

withstand in the event of an explosion

caused by a short circuit; protection up

to 35,000 amps is available on most

voltages.

Neoprene Isolators

Isolators provide isolation between the

chiller and the structure to help

eliminate vibration transmission.

Neoprene isolators are more effective

and recommended over spring

isolators.

Victaulic Connection Kit

Provides a kit that includes a set of two

pipe stubs and Victaulic couplings.

Low Noise Version

The unit is equipped with low-speed

fans and a compressor sound-

attenuating enclosure. All the

sound-emitting parts, like refrigerant

lines and panels subject to vibration, are

acoustically treated with sound-

absorbent material.

Evaporator Freeze Protection

Factory-installed and -wired trace

heaters on the water boxes and on the

intermediate tube plate, with an ambient

thermostat and protected by a circuit

breaker.

Ground Fault Detection

Sensing ground current for improved

chiller protection.

Protection Grilles

Protection grilles cover the complete

condensing coils and the service areas

beneath the coils.

Coil Protection

A coated wire mesh that covers the

condenser coils only.

Access Protection

A coated wire mesh that covers the

access area underneath the condenser

coils.

Service Valves

Provides a service valve on the suction

and discharge lines of each circuit to

facilitate compressor servicing.

High-Ambient Option

The high-ambient option consists of

special control logic to permit high-

ambient (up to 52°C [125°F]) operation.

This option offers the best performance

when coupled with the premium

efficiency and performance option.

Low-Ambient Option

The low-ambient option consists of

special control logic and fans to permit

low-ambient (down to -23°C [-9°F])

operation.

Low-Ambient Lockout

A factory-installed ambient sensor and

control logic will prevent starting below

the recommended ambient

temperature.

Power Disconnect Switch

A disconnect switch with a through-the-

door handle, plus compressor

protection fuses, is provided to

disconnect main power.

Options

8RLC-PRC005-E4

Application Considerations

9

RLC-PRC005-E4

Certain application constraints should

be considered when sizing, selecting,

and installing Trane air-cooled Series R

chillers. Unit and system reliability is

often dependent on properly and

completely complying with these

considerations. When the application

varies from the guidelines presented, it

should be reviewed with your local

Trane sales engineer.

Unit Sizing

Unit capacities are listed in the

performance data section. Intentionally

oversizing a unit to ensure adequate

capacity is not recommended. Erratic

system operation and excessive

compressor cycling are often a direct

result of an oversized chiller. In addition,

an oversized unit is usually more

expensive to purchase, install, and

operate. If oversizing is desired, consider

using two units.

Water Treatment

Dirt, scale, products of corrosion, and

other foreign material will adversely

affect heat transfer between the water

and system components. Foreign matter

in the chilled-water system can also

increase pressure drop and,

consequently, reduce water flow. Proper

water treatment must be determined

locally, depending on the type of system

51°C [125°F], and selecting the low-

ambient option will increase the

operational capability of the water chiller

to ambient temperatures as low as 18°C

[0°F]. For operation outside of these

ranges, contact the local Trane sales

office.

Water Flow Limits

The minimum water flow rates are

given in Tables G-1 and G-2. Evaporator

flow rates below the tabulated values

will result in laminar flow and cause

freeze-up problems, scaling,

stratification, and poor control. The

maximum evaporator water flow rate is

also given in the general data section.

Flow rates exceeding those listed may

result in excessive tube erosion.

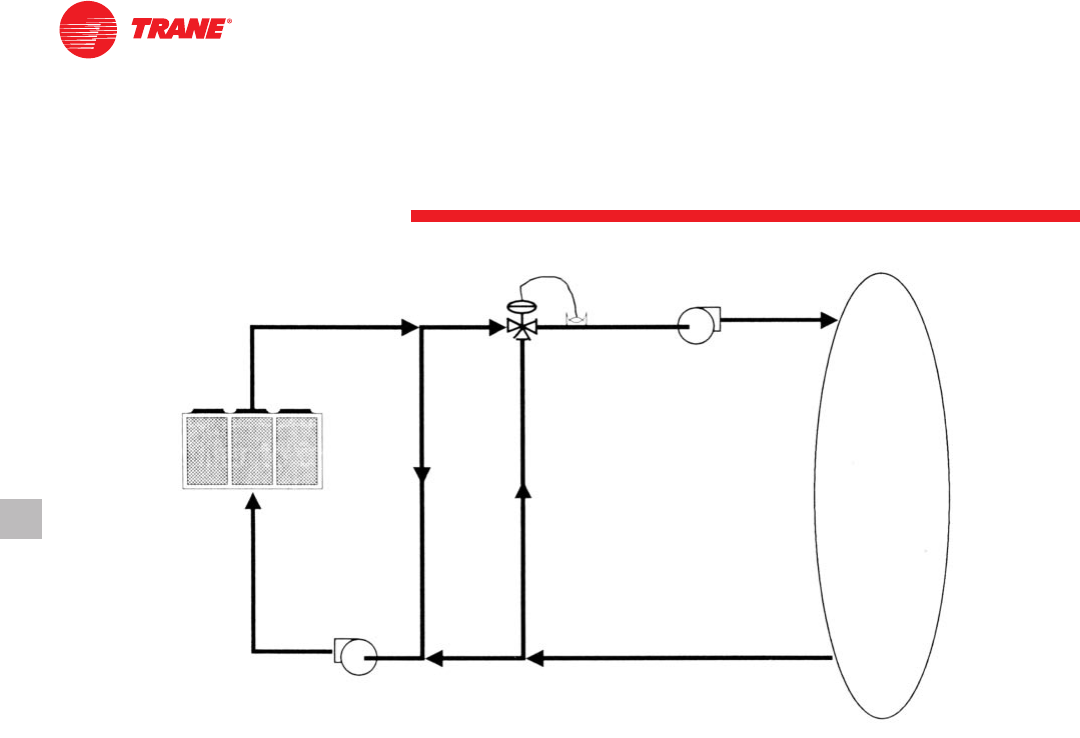

Flow Rates Out of Range

Many process cooling jobs require flow

rates that cannot be met with the

minimum and maximum published

values within the Model RTAC

evaporator. A simple piping change can

alleviate this problem. For example: a

plastic injection molding process

requires 5.0 Lps [80 gpm] of 10°C [50°F]

water and returns that water at 15.6°C

[60°F]. The selected chiller can operate at

these temperatures, but has a minimum

flow rate of 7.6 Lps [120 gpm]. The

following system can satisfy the process.

and local water characteristics. Neither

salt nor brackish water is recommended

for use in Trane air-cooled Series R

chillers. Use of either will lead to a

shortened chiller life. The Trane

Company encourages the employment

of a reputable water-treatment specialist,

familiar with local water conditions, to

assist in this determination and in the

establishment of a proper water-

treatment program.

Effect of Altitude on Capacity

Air-cooled Series R chiller capacities

given in the performance data tables are

for use at sea level. At elevations

substantially above sea level, the

decreased air density will reduce

condenser capacity and, therefore, unit

capacity and efficiency. The adjustment

factors in Table F-1 can be applied

directly to the catalog performance data

to determine the unit’s adjusted

performance.

Ambient Limitations

Trane air-cooled Series R chillers are

designed for year-round operation over

a range of ambient temperatures. The

air-cooled Model RTAC chiller will

operate in ambient temperatures of 4 to

46°C [25 to 115°F]. Selecting the high-

ambient option will allow the chiller to

operate in ambient temperatures of

10°C

7.6 Lps

13.7°C

7.6 Lps

CV pump

7.5 Lps

10°C

2.5 Lps

CV Pump

5 Lps

10°C

5 Lps

15.6°C

5 Lps

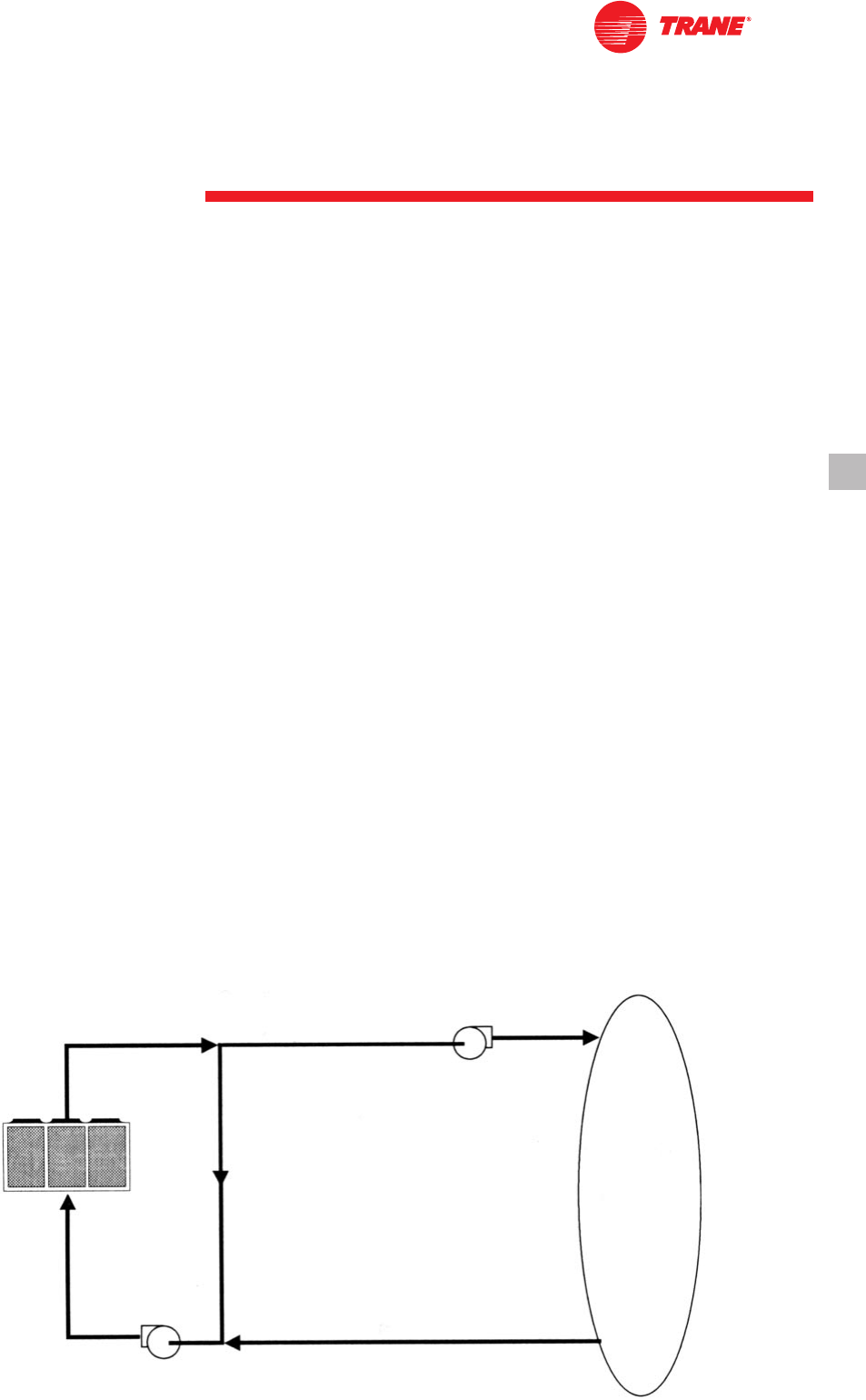

Figure 4 — GPM Out of Range

Load

Application Considerations

10 RLC-PRC005-E4

15.6°C

7.6 Lps

21°C

7.6 Lps

CV Pump

15°C

5.4 Lps

35°C

5.4 Lps

35°C

7.6 Lps

29.4°C

7.6 Lps

15.6°C

2.2 Lps

35°C

2.2 Lps

Figure 5 — GPM Out of Range

Leaving-Water Temperature Range

Trane air-cooled Series R chillers have

three distinct leaving-water categories:

standard, low temperature, and ice

making. The standard leaving-solution

temperature range is 4.4 to 15.6°C [40 to

60°F]. Low-temperature machines

produce leaving-liquid temperatures

less than 4.4°C [40°F]. Since liquid

supply temperature set points less than

4.4°C [40°F] result in suction

temperatures at or below the freezing

point of water, a glycol solution is

required for all low-temperature

machines. Ice-making machines have a

leaving-liquid temperature range of -6.7

to 15.6°C [20 to 60°F]. Ice-making

controls include dual set point controls

and safeties for ice making and standard

cooling capabilities. Consult your local

Trane sales engineer for applications or

selections involving low temperature or

ice making machines. The maximum

water temperature that can be circulated

through an evaporator when the unit is

not operating is 42°C [108°F].

Leaving-Water Temperature

Out of Range

Similar to the flow rates above, many

process cooling jobs require

temperature ranges that cannot be met

with the minimum and maximum

published values for the Model RTAC

evaporator. A simple piping change can

alleviate this problem. For example: a

laboratory load requires 7.6 Lps [120

gpm] of water entering the process at

29.4°C [85°F] and returning at 35°C

[95°F]. The accuracy required is higher

than the cooling tower can give. The

selected chiller has adequate capacity,

but has a maximum leaving-chilled-

water temperature of 15.6°C [60°F].

In the example shown, both the chiller and

process flow rates are equal. This is not

necessary. For example, if the chiller had a

higher flow rate, there would be more water

bypassing and mixing with warm water.

Supply-Water Temperature Drop

The performance data for the Trane air-

cooled Series R chiller is based on a

chilled-water temperature drop of 6°C

[10.8°F]. Chilled-water temperature

drops from 3.3 to 10°C [6 to 18°F] may

be used as long as minimum and

maximum water temperature, and

minimum and maximum flow rates, are

not violated. Temperature drops outside

this range are beyond the optimum

range for control, and may adversely

affect the microcomputer’s ability to

maintain an acceptable supply-water

temperature range. Further, temperature

drops of less than 3.3°C [6°F] may result

in inadequate refrigerant superheat.

Sufficient superheat is always a primary

concern in any direct-expansion

refrigerant system and is especially

important in a package chiller where the

evaporator is closely coupled to the

compressor. When temperature drops

are less than 3.3°C [6°F], an evaporator

runaround loop may be required.

Load

CV Pump

Application Considerations

11

RLC-PRC005-E4

Variable Flow in the Evaporator

An attractive chilled-water system

option may be a variable primary flow

(VPF) system. VPF systems present

building owners with several cost-

saving benefits that are directly related

to the pumps. The most obvious cost

savings result from eliminating the

secondary distribution pump, which in

turn avoids the expense incurred with

the associated piping connections

(material, labor), electrical service, and

variable-frequency drive. Building

owners often cite pump-related energy

savings as the reason that prompted

them to install a VPF system. With the

help of a software analysis tool such as

System Analyzer™, TRACE™, or DOE-2,

you can determine whether the

anticipated energy savings justify the

use of variable primary flow in a

particular application. It may also be

easier to apply variable primary flow in

an existing chilled-water plant. Unlike

the “decoupled” design, the bypass can

be positioned at various points in the

chilled-water loop and an additional

pump is unnecessary. The evaporator in

the Model RTAC can withstand up to 50

percent water flow reduction as long as

this flow is equal to or above the

minimum flow-rate requirements. The

microprocessor and capacity control

algorithms are designed to take a

minimum of 10 percent change in water

flow rate per minute.

Short Water Loops

The proper location of the temperature

control sensor is in the supply (outlet)

water connection or pipe. This location

allows the building to act as a buffer and

assures a slowly-changing return-water

temperature. If there is not a sufficient

volume of water in the system to

provide an adequate buffer, temperature

control can be lost, resulting in erratic

system operation and excessive

compressor cycling. A short water loop

has the same effect as attempting to

control using the building return water.

Typically, a two-minute water loop is

sufficient to prevent a short water loop.

Therefore, as a guideline, ensure that

the volume of water in the evaporator

loop equals or exceeds two times the

evaporator flow rate. For a rapidly

changing load profile, the amount of

volume should be increased. To prevent

the effect of a short water loop, the

following item should be given careful

consideration: a storage tank or larger

header pipe to increase the volume of

water in the system and, therefore,

reduce the rate of change of the return

water temperature.

Applications Types

• Comfort cooling

• Industrial process cooling

• Ice or thermal storage

• Low-temperature process cooling.

Ice Storage Provides

Reduced Electrical Demand

An ice-storage system uses a standard

chiller to make ice at night, when utilities

charge less for electricity. The ice

supplements, or even replaces,

mechanical cooling during the day,

when utility rates are at their highest.

This reduced need for cooling results in

big utility cost savings.

Another advantage of ice storage is

standby cooling capacity. If the chiller is

unable to operate, one or two days of

ice may still be available to provide

cooling. In that period of time, the chiller

can be repaired before building

occupants feel any loss of comfort.

The Trane Model RTAC chiller is uniquely

suited to low-temperature applications

like ice storage because of the ambient

relief experienced at night. This allows

the Model RTAC chiller to produce ice

efficiently, with less stress on the

machine.

Simple and smart control strategies are

another advantage the Model RTAC

chiller offers for ice-storage applications.

Trane Tracer™building management

systems can actually anticipate how

much ice needs to be made at night,

and operate the system accordingly. The

controls are integrated right into the

chiller. Two wires and preprogrammed

software dramatically reduce field

installation cost and complex

programming.

Selection Procedure

12 RLC-PRC005-E4

The chiller capacity tables cover the

most frequently encountered leaving-

liquid temperatures. The tables reflect a

6°C [10.8°F] temperature drop through

the evaporator. For other temperature

drops, apply the appropriate

performance data adjustment factors.

For chilled brine selections, refer to

Figures F-3 and F-4 for ethylene and

propylene glycol adjustment factors.

To select a Trane air-cooled Series R™

chiller, the following information is

required:

Selection Procedure SI Units

The chiller capacity tables P-1 through

P-4 cover the most frequently

encountered leaving-water

temperatures. The tables reflect a 6°C

temperature drop through the

evaporator

To select a Trane air-cooled RTAC chiller,

the following information is required:

1

Design load in kW of refrigeration

2

Design chilled-water temperature drop

3

Design leaving-chilled-water

temperature

4

Design ambient temperature

Evaporator flow rates can be

determined by using the following

formula:

Lps = kW (capacity) x 0.239 ÷

temperature drop (°C)

To determine the evaporator pressure

drop we use the flow rate (Lps) and the

evaporator water pressure drop Figure

F1.

For selection of chilled brine units, or

applications where the altitude is

significantly greater than sea level or the

temperature drop is different than 6°C,

the performance adjustment factors

from Table F-1 should be applied at this

point.

For example:

Corrected Capacity = Capacity

(unadjusted) x Glycol Capacity

Adjustment Factor

Corrected Flow Rate = Flow Rate

(unadjusted) x Glycol Flow Rate

Adjustment Factor

5

The final unit selection is:

• Quantity (1) RTAA 140

• Cooling capacity = 505.9 kW

• Design ambient temperature 35°C

• Entering chilled-water

temperatures = 12°C

• Leaving chilled-water

temperatures = 7°C

• Chilled-water flow rate = 24.2 Lps

• Evaporator water pressure

drop = 53 kPa

• Compressor power input = 159 kW

• Unit COP = 2.9 kW/kW

Contact the local Trane sales engineer

for a proper selection at the given

operating conditions.

For a selection in English units:

• 1 ton = 3.5168 kW

• Evaporator flow rate in gpm =

24 x tons ÷ delta T (°F)

• Delta T (°F) = delta T (°C) x 1.8

• 1 gpm = 0.06309 Lps

• 1 ft WG = 3 kPa

• EER = COP ÷ 0.293

General Data

13

RLC-PRC005-E4

SI Units

Table G-1 — RTAC Standard

Size 140 155 170 185 200

Compressor Quantity 2 2 2 2 2

Nominal Size (1) tons 70/70 70/85 85/85 85/100 100/100

Evaporator

Evaporator Model F140 F155 F170 F185 F200

Water Storage L 132.3 141.3 150.7 156 163.5

Minimum Flow Lps 10.8 11.5 12.5 13.6 13.6

Maximum Flow Lps 33.1 38.2 43.1 39.5 48.4

Condenser Qty of Coils 4 4 4 4 4

Coil Length mm 3962/3962 4572/3962 4572/4572 5486/4572 5486/5486

Coil Height mm 1067 1067 1067 1067 1067

Fin series fins/ft 192 192 192 192 192

Number of Rows 3 3 3 3 3

Condenser Fans

Quantity (1) 4/4 5/4 5/5 6/5 6/6

Diameter mm 762 762 762 762 762

Total Air Flow m3/s 35.82 39.53 43.22 47.55 51.88

Nominal RPM 915 915 915 915 915

Tip Speed m/s 36.48 36.48 36.48 36.48 36.48

Motor kW kW 1.9 1.9 1.9 1.9 1.9

Min Starting/Operating Ambient(2)

Standard Unit °C -4 -4 -4 -4 -4

Low-Ambient Unit °C -23 -23 -23 -23 -23

General Unit

Refrigerant HFC 134a HFC 134a HFC 134a HFC 134a HFC 134a

Number of Independent

Refrigerant Circuits 2 2 2 2 2

% Minimum Load (3) 15 15 15 15 15

Refrigerant Charge (1) kg 65.8/65.8 70.3/65.8 70.3/70.3 99.8/95.3 99.8/99.8

Oil Charge (1) L 7.6/7.6 7.6/7.6 7.6/7.6 9.9/7.6 9.9/9.9

Operating Weight kg 5216 5407 5586 6268 6396

Shipping Weight kg 5107 5265 5434 6111 6232

Table G-2 — RTAC High Efficiency

Size 120 130 140 155 170 185 200

Compressor Quantity 2 2 2 2 2 2 2

Nominal Size (1) tons 60/60 60/70 70/70 70/85 85/85 85/100 100/100

Evaporator

Evaporator Model F140 F155 F170 F185 F200 F220 F240

Water Storage L 132.3 141.3 150.7 156 163.5 175.9 188.3

Minimum Flow Lps 10.8 11.5 12.5 13.6 13.6 14.9 16.3

Maximum Flow Lps 33.1 38.2 43.3 39.5 48.4 53.5 58.6

Condenser Qty of Coils 4 4 4 4 4 4 4

Coil Length mm 3962/3962 4572/3962 4572/4572 5486/4572 5486/5486 6400/2486 6400/6400

Coil Height mm 1067 1067 1067 1067 1067 1067 1067

Fin series fins/ft 192 192 192 192 192 192 192

Number of Rows 3 3 3 3 3 3 3

Condenser Fans

Quantity (1) 4/4 5/4 5/5 6/5 6/6 7/6 7/7

Diameter mm 762 762 762 762 762 762 762

Total Air Flow m3/s 35.82 39.53 43.22 47.55 51.88 56.17 60.47

Nominal RPM 915 915 915 915 915 915 915

Tip Speed m/s 36.48 36.48 36.48 36.48 36.48 36.48 36.48

Motor kW kW 1.9 1.9 1.9 1.9 1.9 1.9 1.9

Min Starting/Operating Ambient(2)

Standard Unit °C -4 -4 -4 -4 -4 -4 -4

Low-Ambient Unit °C -23 -23 -23 -23 -23 -23 -23

General Unit

Refrigerant HFC 134a HFC 134a HFC 134a HFC 134a HFC 134a HFC 134a HFC 134a

Number of Independent

Refrigerant Circuits 2 2 2 2 2 2 2

% Minimum Load (3) 15 15 15 15 15 15 15

Refrigerant Charge (1) kg 65.8/65.8 70.3/65.8 70.3/70.3 99.8/95.3 99.8/99.8 104.4/99.8 104.4/104.4

Oil Charge (1) L 7.6/7.6 7.6/7.6 7.6/7.6 7.6/7.6 7.6/7.6 9.9/7.6 9.9/9.9

Operating Weight kg 5198 5271 5274 6073 6323 6555 6759

Shipping Weight kg 5089 5129 5122 5916 6159 6378 6569

General Data

14 RLC-PRC005-E4

SI Units

Table G-3 — RTAC Low Noise Standard

Size 140 155 170 185 200

Compressor

Quantity 2 2 2 2 2

Nominal Size (1) tons 70/70 70/85 85/85 85/100 100/100

Evaporator

Evaporator Model F140 F155 F170 F185 F200

Water Storage L 132.3 141.3 150.7 156 163.5

Minimum Flow Lps 10.8 11.5 12.5 13.6 13.6

Maximum Flow Lps 33.1 38.2 43.1 39.5 48.4

Condenser

Qty of Coils 4 4 4 4 4

Coil Length mm 3962/3962 4572/3962 4572/4572 5486/4572 5486/5486

Coil Height mm 1067 1067 1067 1067 1067

Fin series fins/ft 192 192 192 192 192

Number of Rows 3 3 3 3 3

Condenser Fans

Quantity (1) 4/4 5/4 5/5 6/5 6/6

Diameter mm 762 762 762 762 762

Total Air Flow m3/s 25.61 28.27 30.93 34.02 37.11

Nominal RPM 680 680 680 680 680

Tip Speed m/s 27.5 27.5 27.5 27.5 27.5

Motor kW kW 0.85 0.85 0.85 0.85 0.85

Min Starting/Operating Ambient(2)

Standard Unit °C -4 -4 -4 -4 -4

Low-Ambient Unit °C -23 -23 -23 -23 -23

General Unit

Refrigerant HFC 134a HFC 134a HFC 134a HFC 134a HFC 134a

Number of Independent

Refrigerant Circuits 2 2 2 2 2

% Minimum Load (3) 15 15 15 15 15

Refrigerant Charge (1) kg 65.8/65.8 70.3/65.8 70.3/70.3 99.8/95.3 99.8/99.8

Oil Charge (1) L 7.6/7.6 7.6/7.6 7.6/7.6 9.9/7.6 9.9/9.9

Operating Weight kg 5306 5497 5676 6358 6486

Shipping Weight kg 5197 5355 5524 6201 6322

15

RLC-PRC005-E4

Table G-4 — RTAC High Efficiency Low Noise

Size 120 130 140 155 170 185 200

Compressor

Quantity 2 2 2 2 2 2 2

Nominal Size (1) tons 60/60 60/70 70/70 70/85 85/85 85/100 100/100

Evaporator

Evaporator Model F140 F155 F170 F185 F200 F220 F240

Water Storage L 132.3 141.3 150.7 156 163.5 175.9 188.3

Minimum Flow Lps 10.8 11.5 12.5 13.6 13.6 14.9 16.3

Maximum Flow Lps 33.1 38.2 43.3 39.5 48.4 53.5 58.6

Condenser

Qty of Coils 4 4 4 4 4 4 4

Coil Length mm 3962/3962 4572/3962 4572/4572 5486/4572 5486/5486 6400/2486 6400/6400

Coil Height mm 1067 1067 1067 1067 1067 1067 1067

Fin series fins/ft 192 192 192 192 192 192 192

Number of Rows 3 3 3 3 3 3 3

Condenser Fans

Quantity (1) 4/4 5/4 5/5 6/5 6/6 7/6 7/7

Diameter mm 762 762 762 762 762 762 762

Total Air Flow m3/s 25.61 28.27 30.93 34.02 37.11 40.23 43.34

Nominal RPM 680 680 680 680 680 680 680

Tip Speed m/s 27.5 27.5 27.5 27.5 27.5 27.5 27.5

Motor kW kW 0.85 0.85 0.85 0.85 0.85 0.85 0.85

Min Starting/Operating Ambient(2)

Standard Unit °C -4 -4 -4 -4 -4 -4 -4

Low-Ambient Unit °C -23 -23 -23 -23 -23 -23 -23

General Unit

Refrigerant HFC 134a HFC 134a HFC 134a HFC 134a HFC 134a HFC 134a HFC 134a

Number of Independent

Refrigerant Circuits 2 2 2 2 2 2 2

% Minimum Load (3) 15 15 15 15 15 15 15

Refrigerant Charge (1) kg 65.8/65.8 70.3/65.8 70.3/70.3 99.8/95.3 99.8/99.8 104.4/99.8 104.4/104.4

Oil Charge (1) L 7.6/7.6 7.6/7.6 7.6/7.6 7.6/7.6 7.6/7.6 9.9/7.6 9.9/9.9

Operating Weight kg 5288 5361 5364 6163 6413 6645 6849

Shipping Weight kg 5179 5219 5212 6006 6249 6468 6659

Notes:

1. Data containing information on two circuits shown as follows: ckt1/ckt2

2. Minimum start-up/operation ambient based on a 2.22 m/s (5mph) wind across the condenser.

3. Percent minimum load is for total machine at 10°C (50°F) ambient and 7°C (44°F) leaving chilled water temperature. Not each individual circuit.

SI Units

General Data

16 RLC-PRC005-E4

General Data

English Units

Table G-5 — RTAC Standard

Size 140 155 170 185 200

Compressor Quantity 2 2 2 2 2

Nominal Size (1) tons 70/70 70/85 85/85 85/100 100/100

Evaporator Evaporator Model F140 F155 F170 F185 F200

Water Storage gal 35 37.3 39.8 41.2 43.2

Minimum Flow gpm 171.2 182.3 198.2 215.6 215.6

Maximum Flow gpm 524.7 605.6 683.2 626.2 767.2

Condenser Quantity of Coils 4 4 4 4 4

Coil Length ft 13/13 15/13 15/15 18/15 18/18

Coil Height ft 3.5 3.5 3.5 3.5 3.5

Fin Series fins/ft 192 192 192 192 192

Number of Rows 3 3 3 3 3

Condenser Fans Quantity (1) 4/4 5/4 5/5 6/5 6/6

Diameter in. 30 30 30 30 30

Total Air Flow cfm 75867 83725 91540 100710 109882

Nominal RPM 915 915 915 915 915

Tip Speed ft/s 120 120 120 120 120

Motor kW kW 1.9 1.9 1.9 1.9 1.9

Minimum Starting/Operating Ambient(2)

Standard Unit °F 25 25 25 25 25

Low-Ambient Unit °F -9 -9 -9 -9 -9

General Unit Refrigerant HFC 134a HFC 134a HFC 134a HFC 134a HFC 134a

Number of Independent

Refrigerant Circuits 2 2 2 2 2

% Minimum Load (3) 15 15 15 15 15

Refrigerant Charge (1) lb 145/145 155/145 155/155 220/210 220/220

Oil Charge (1) gal 2/2 2.2 2.2 2.6/2 2.6/2.6

Operating Weight lb 12018 12459 12871 14442 14737

Shipping Weight lb 11767 12131 12521 14081 14359

Table G-6 — RTAC High Efficiency

Size 120 130 140 155 170 185 200

Compressor Quantity 2 2 2 2 2 2 2

Nominal Size (1) tons 60/60 60/70 70/70 70/85 85/85 85/100 100/100

Evaporator

Evaporator Model F140 F155 F170 F185 F200 F220 F240

Water Storage gal 35 37.3 39.8 41.2 43.2 46.5 49.8

Minimum Flow gpm 171.2 182.3 198.2 215.6 215.6 231.4 258.4

Maximum Flow gpm 524.7 605.6 683.2 626.2 767.2 848.1 928.9

Condenser

Quantity of Coils 4 4 4 4 4 4 4

Coil Length ft 13/13 15/13 15/15 18/15 18/18 21/18 21/21

Coil Height ft 3.5 3.5 3.5 3.5 3.5 3.5 3.5

Fin Series fins/ft 192 192 192 192 192 192 192

Number of Rows 3 3 3 3 3 3 3

Condenser Fans

Quantity (1) 4/4 5/4 5/5 6/5 6/6 7/6 7/7

Diameter in. 30 30 30 30 30 30 30

Total Air Flow cfm 75867 83725 91540 100710 109882 118968 128075

Nominal RPM 915 915 915 915 915 915 915

Tip Speed ft/s 120 120 120 120 120 120 120

Motor kW kW 1.9 1.9 1.9 1.9 1.9 1.9 1.9

Minimum Starting/Operating Ambient(2)

Standard Unit °F 25 25 25 25 25 25 25

Low-Ambient Unit °F -9 -9 -9 -9 -9 -9 -9

General Unit

Refrigerant HFC 134a HFC 134a HFC 134a HFC 134a HFC 134a HFC 134a HFC 134a

Number of Independent

Refrigerant Circuits 2 2 2 2 2 2 2

% Minimum Load (3) 15 15 15 15 15 15 15

Refrigerant Charge (1) lb 145/145 155/145 155/155 220/210 220/220 230/220 230/230

Oil Charge (1) gal 2/2 2.2 2.2 2.6/2 2.6/2.6 2.6/2 2.6/2.6

Operating Weight lb 11977 12145 12152 13993 14569 15104 15574

Shipping Weight lb 11726 11818 11802 13631 14191 14696 15136

17

RLC-PRC005-E4

General Data

English Units

Table G-7 — RTAC Low Noise Standard

Size 140 155 170 185 200

Compressor

Quantity 2 2 2 2 2

Nominal Size (1) tons 70/70 70/85 85/85 85/100 100/100

Evaporator

Evaporator Model F140 F155 F170 F185 F200

Water Storage gal 35 37.3 39.8 41.2 43.2

Minimum Flow gpm 171.2 182.3 198.2 215.6 215.6

Maximum Flow gpm 524.7 605.6 683.2 626.2 767.2

Condenser

Quantity of Coils 4 4 4 4 4

Coil Length ft 13/13 15/13 15/15 18/15 18/18

Coil Height ft 3.5 3.5 3.5 3.5 3.5

Fin Series fins/ft 192 192 192 192 192

Number of Rows 3 3 3 3 3

Condenser Fans

Quantity (1) 4/4 5/4 5/5 6/5 6/6

Diameter in. 30 30 30 30 30

Total Air Flow cfm 54242 59876 65510 72054 78600

Nominal RPM 680 680 680 680 680

Tip Speed ft/s 90 90 90 90 90

Motor kW kW 0.85 0.85 0.85 0.85 0.85

Minimum Starting/Operating Ambient(2)

Standard Unit °F 25 25 25 25 25

Low-Ambient Unit °F -9 -9 -9 -9 -9

General Unit

Refrigerant HFC 134a HFC 134a HFC 134a HFC 134a HFC 134a

Number of Independent

Refrigerant Circuits 2 2 2 2 2

% Minimum Load (3) 15 15 15 15 15

Refrigerant Charge (1) lb 145/145 155/145 155/155 220/210 220/220

Oil Charge (1) gal 2/2 2.2 2.2 2.6/2 2.6/2.6

Operating Weight lb 12226 12666 13078 14650 14945

Shipping Weight lb 11975 12339 12728 14288 14567

18 RLC-PRC005-E4

General Data

English Units

Table G-8 — RTAC High Efficiency Low Noise

Size 120 130 140 155 170 185 200

Compressor

Quantity 2 2 2 2 2 2 2

Nominal Size (1) tons 60/60 60/70 70/70 70/85 85/85 85/100 100/100

Evaporator

Evaporator Model F140 F155 F170 F185 F200 F220 F240

Water Storage gal 35 37.3 39.8 41.2 43.2 46.5 49.8

Minimum Flow gpm 171.2 182.3 198.2 215.6 215.6 231.4 258.4

Maximum Flow gpm 524.7 605.6 683.2 626.2 767.2 848.1 928.9

Condenser

Quantity of Coils 4 4 4 4 4 4 4

Coil Length ft 13/13 15/13 15/15 18/15 18/18 21/18 21/21

Coil Height ft 3.5 3.5 3.5 3.5 3.5 3.5 3.5

Fin Series fins/ft 192 192 192 192 192 192 192

Number of Rows 3 3 3 3 3 3 3

Condenser Fans

Quantity (1) 4/4 5/4 5/5 6/5 6/6 7/6 7/7

Diameter in. 30 30 30 30 30 30 30

Total Air Flow cfm 54242 59876 65510 72054 78600 85207 91794

Nominal RPM 680 680 680 680 680 680 680

Tip Speed ft/s 90 90 90 90 90 90 90

Motor kW kW 0.85 0.85 0.85 0.85 0.85 0.85 0.85

Minimum Starting/Operating Ambient(2)

Standard Unit °F 25 25 25 25 25 25 25

Low-Ambient Unit °F -9 -9 -9 -9 -9 -9 -9

General Unit

Refrigerant HFC 134a HFC 134a HFC 134a HFC 134a HFC 134a HFC 134a HFC 134a

Number of Independent

Refrigerant Circuits 2 2 2 2 2 2 2

% Minimum Load (3) 15 15 15 15 15 15 15

Refrigerant Charge (1) lb 145/145 155/145 155/155 220/210 220/220 230/220 230/230

Oil Charge (1) gal 2/2 2.2 2.2 2.6/2 2.6/2.6 2.6/2 2.6/2.6

Operating Weight lb 12184 12353 12359 14200 14776 15311 15781

Shipping Weight lb 11933 12025 12009 13839 14399 14903 15343

Notes:

1. Data containing information on two circuits shown as follows: ckt1/ckt2

2. Minimum start-up/operation ambient based on a 5mph wind across the condenser.

3. Percent minimum load is for total machine at 10°C [50°F] ambient and 7°C [44°F] leaving chilled water temperature. Not each individual circuit.

19

RLC-PRC005-E4

Performance Data

Standard Units (SI Units)

Table P-1 — RTAC 140 Entering Condenser Air Temperature (°C)

LWT 25 30 35 40 46 50

°C C.C. P.I. COP C.C. P.I. COP C.C. P.I. COP C.C. P.I. COP C.C. P.I. COP C.C. P.I. COP

kW kW/kW kW kW kW/kW kW kW kW/kW kW kW kW/kW kW kW kW/kW kW kW kW/kW kW

5 536.3 131.3 3.65 505.7 141.8 3.21 474.1 153.5 2.80 441.6 166.5 2.42 400.7 184.0 2.01 374.2 196.1 1.77

7 571.1 136.4 3.75 539.0 147.1 3.31 505.9 159.0 2.90 471.7 172.1 2.51 428.8 189.8 2.09 400.9 202.1 1.84

9 606.9 141.7 3.85 573.2 152.6 3.41 538.4 164.6 2.99 502.6 177.9 2.60 457.6 195.8 2.16 409.6 197.1 1.92

11 643.4 147.2 3.95 608.1 158.2 3.50 571.7 170.4 3.07 534.2 183.9 2.68 486.9 202.0 2.24 417.2 191.3 2.01

13 680.6 152.8 4.04 643.7 164.0 3.58 605.6 176.4 3.15 566.3 190.0 2.75 509.4 204.9 2.31 423.3 184.6 2.11

Table P-2 — RTAC 155 Entering Condenser Air Temperature (°C)

LWT 25 30 35 40 46 50

°C C.C. P.I. COP C.C. P.I. COP C.C. P.I. COP C.C. P.I. COP C.C. P.I. COP C.C. P.I. COP

kW kW/kW kW kW kW/kW kW kW kW/kW kW kW kW/kW kW kW kW/kW kW kW kW/kW kW

5 587.8 145.8 3.60 554.5 156.9 3.18 520.0 169.4 2.78 484.5 183.2 2.41 440.0 201.9 2.00 411.0 214.9 1.77

7 625.7 151.7 3.70 590.6 163.0 3.27 554.4 175.6 2.87 517.1 189.6 2.50 470.2 208.5 2.08 439.7 221.7 1.84

9 664.3 157.8 3.79 627.5 169.3 3.36 589.5 182.0 2.95 550.3 196.2 2.57 501.1 215.3 2.15 450.5 217.4 1.92

11 703.7 164.1 3.87 665.1 175.7 3.44 625.3 188.7 3.03 584.2 203.0 2.65 532.6 222.3 2.22 454.9 209.3 2.00

13 743.7 170.6 3.95 703.4 182.4 3.52 661.7 195.5 3.10 618.7 209.9 2.72 561.8 225.5 2.31 461.3 202.5 2.10

Table P-3 — RTAC 170 Entering Condenser Air Temperature (°C)

LWT 25 30 35 40 46 50

°C C.C. P.I. COP C.C. P.I. COP C.C. P.I. COP C.C. P.I. COP C.C. P.I. COP C.C. P.I. COP

kW kW/kW kW kW kW/kW kW kW kW/kW kW kW kW/kW kW kW kW/kW kW kW kW/kW kW

5 640.2 160.5 3.56 603.9 172.2 3.15 566.5 185.4 2.77 527.9 200.0 2.41 479.5 220.0 2.00 448.1 233.9 1.77

7 681.1 167.2 3.65 642.9 179.1 3.24 603.5 192.4 2.85 562.9 207.2 2.48 511.9 227.4 2.07 478.8 241.4 1.84

9 722.7 174.2 3.73 682.6 186.2 3.32 641.2 199.7 2.93 598.6 214.6 2.56 545.0 234.9 2.14 491.5 237.7 1.91

11 765.0 181.4 3.81 723.0 193.5 3.39 679.5 207.2 3.00 634.9 222.2 2.63 578.7 242.7 2.21 497.9 230.3 1.99

13 807.9 188.8 3.88 763.9 201.1 3.46 718.5 214.8 3.07 671.8 230.0 2.69 607.7 245.1 2.30 504.4 222.7 2.08

Table P-4 — RTAC 185 Entering Condenser Air Temperature (°C)

LWT 25 30 35 40 46 50

°C C.C. P.I. COP C.C. P.I. COP C.C. P.I. COP C.C. P.I. COP C.C. P.I. COP C.C. P.I. COP

kW kW/kW kW kW kW/kW kW kW kW/kW kW kW kW/kW kW kW kW/kW kW kW kW/kW kW

5 708.2 177.3 3.57 669.4 190.2 3.16 629.1 204.6 2.78 587.4 220.8 2.43 534.9 242.8 2.03 500.5 258.0 1.79

7 753.1 184.7 3.66 712.2 197.8 3.25 669.8 212.5 2.86 625.9 228.9 2.50 570.5 251.2 2.09 525.9 261.3 1.86

9 798.8 192.3 3.74 755.9 205.7 3.33 711.3 220.6 2.94 665.2 237.3 2.57 607.0 259.9 2.16 539.2 256.9 1.94

11 845.3 200.2 3.81 800.3 213.8 3.40 753.6 229.0 3.01 705.3 245.9 2.64 644.2 268.9 2.22 548.1 249.3 2.03

13 892.5 208.4 3.88 845.4 222.2 3.47 796.6 237.6 3.08 746.1 254.8 2.70 672.6 271.9 2.29 551.0 238.7 2.12

Table P-5 — RTAC 200 Entering Condenser Air Temperature (°C)

LWT 25 30 35 40 46 50

°C C.C. P.I. COP C.C. P.I. COP C.C. P.I. COP C.C. P.I. COP C.C. P.I. COP C.C. P.I. COP

kW kW/kW kW kW kW/kW kW kW kW/kW kW kW kW/kW kW kW kW/kW kW kW kW/kW kW

5 777.8 194.3 3.58 736.2 208.3 3.18 692.9 224.2 2.80 647.9 241.8 2.44 591.0 265.7 2.04 553.7 282.4 1.81

7 827.0 202.4 3.66 783.1 216.7 3.26 737.4 232.9 2.88 690.1 250.8 2.52 630.0 275.3 2.11 580.4 285.5 1.88

9 877.0 210.8 3.75 830.9 225.5 3.34 782.9 241.9 2.95 733.1 260.2 2.59 670.1 285.1 2.17 588.7 276.7 1.96

11 928.0 219.5 3.82 879.7 234.5 3.41 829.4 251.3 3.02 777.2 270.0 2.65 711.0 295.4 2.23 598.7 268.6 2.05

13 979.8 228.5 3.89 929.3 243.8 3.48 876.7 260.9 3.08 822.1 280.0 2.71 741.1 298.2 2.31 607.0 258.8 2.15

Notes :

1. Ratings based on sea level altitude and evaporator fouling factor of 0.0176 m²°K/kW.

2. Consult Trane representative for performance at temperatures outside of the ranges shown.

3. P.I. kW = compressor power input only.

4. COP = Coefficient of Performance (kW/kW). Power input includes compressors, condenser fans and control power.

5. Ratings are based on an evaporator temperature drop of 6°C.

6. Interpolation between points is permissible. Extrapolation is not permitted.

7. Above 40°C ambient, the units will have the High-Ambient option.

8. Shaded area reflects Adaptive Control™ Microprocessor control algorithms.

20 RLC-PRC005-E4

Performance Data

High Efficiency Units (SI Units)

Table P-6

—

RTAC 120 Entering Condenser Air Temperature (°C)

LWT 25 30 35 40 46 52

°C C.C. P.I. COP C.C. P.I. COP C.C. P.I. COP C.C. P.I. COP C.C. P.I. COP C.C. P.I. COP

kW kW kW/kW kW kW kW/kW kW kW kW/kW kW kW kW/kW kW kW kW/kW kW kW kW/kW

5 459.3 104.9 3.81 433.2 112.9 3.37 406.2 122.1 2.95 378.2 132.4 2.55 342.9 146.6 2.11 310.0 161.0 1.75

7 490.9 108.9 3.94 463.4 117.0 3.49 434.8 126.3 3.06 405.3 136.8 2.66 368.1 151.2 2.21 333.4 165.8 1.84

9 523.2 113.0 4.07 494.3 121.3 3.61 464.2 130.7 3.17 433.1 141.4 2.76 393.9 155.9 2.29 350.7 167.0 1.92

11 556.3 117.2 4.18 525.8 125.7 3.72 494.2 135.3 3.27 461.5 146.1 2.85 420.3 160.8 2.38 366.3 167.0 2.00

13 590.0 121.6 4.29 558.0 130.3 3.82 524.8 140.0 3.37 490.6 150.9 2.94 447.3 165.8 2.46 383.8 167.5 2.09

Table P-7

—

RTAC 130 Entering Condenser Air Temperature (°C)

LWT 25 30 35 40 46 52

°C C.C. P.I. COP C.C. P.I. COP C.C. P.I. COP C.C. P.I. COP C.C. P.I. COP C.C. P.I. COP

kW kW kW/kW kW kW kW/kW kW kW kW/kW kW kW kW/kW kW kW kW/kW kW kW kW/kW

5 506.6 115.3 3.81 478.2 124.2 3.37 448.7 134.2 2.95 418.3 145.5 2.56 380.0 160.9 2.13 344.3 176.5 1.77

7 541.5 119.7 3.94 511.5 128.7 3.50 480.4 138.9 3.07 448.4 150.3 2.67 408.1 165.9 2.22 370.4 181.7 1.86

9 577.2 124.3 4.07 545.7 133.4 3.61 513.0 143.8 3.18 479.3 155.3 2.77 436.9 171.0 2.32 393.9 185.0 1.94

11 613.9 129.0 4.19 580.8 138.3 3.73 546.5 148.7 3.28 511.1 160.4 2.87 466.5 176.3 2.41 413.3 185.9 2.03

13 651.4 133.9 4.30 616.7 143.3 3.83 580.7 153.9 3.39 543.5 165.7 2.97 496.7 181.7 2.49 425.5 182.7 2.12

Table P-8

—

RTAC 140 Entering Condenser Air Temperature (°C)

LWT 25 30 35 40 46 52

°C C.C. P.I. COP C.C. P.I. COP C.C. P.I. COP C.C. P.I. COP C.C. P.I. COP C.C. P.I. COP

kW kW kW/kW kW kW kW/kW kW kW kW/kW kW kW kW/kW kW kW kW/kW kW kW kW/kW

5 554.6 125.8 3.82 523.6 135.5 3.38 491.7 146.5 2.96 458.7 158.7 2.57 417.4 175.3 2.14 378.9 192.0 1.79

7 592.8 130.7 3.95 560.2 140.5 3.50 526.6 151.6 3.08 491.9 163.9 2.68 448.4 180.7 2.24 407.8 197.6 1.88

9 632.1 135.7 4.07 597.9 145.7 3.62 562.6 156.9 3.19 526.2 169.3 2.79 480.3 186.2 2.33 437.6 203.3 1.96

11 672.6 140.9 4.19 636.7 151.0 3.73 599.6 162.3 3.30 561.3 174.9 2.89 513.1 191.9 2.43 457.7 203.5 2.05

13 714.2 146.3 4.31 676.5 156.5 3.84 637.5 167.9 3.40 597.3 180.6 2.99 546.7 197.7 2.52 466.4 197.6 2.15

Table P-9

—

RTAC 155 Entering Condenser Air Temperature (°C)

LWT 25 30 35 40 46 52

°C C.C. P.I. COP C.C. P.I. COP C.C. P.I. COP C.C. P.I. COP C.C. P.I. COP C.C. P.I. COP

kW kW kW/kW kW kW kW/kW kW kW kW/kW kW kW kW/kW kW kW kW/kW kW kW kW/kW

161.7 2.93 501.0 174.7 2.55 456.0 192.6 2.13 414.1 210.7 1.78

7 645.9 145.3 3.88 610.6 155.7 3.45 574.0 167.5 3.04 536.3 180.7 2.65 489.0 198.7 2.22 444.8 217.0 1.87

9 687.9 151.0 3.99 650.7 161.6 3.56 612.3 173.5 3.14 572.6 186.8 2.75 522.8 205.0 2.31 476.3 223.4 1.95

11 730.9 157.0 4.10 691.9 167.7 3.66 651.5 179.7 3.24 609.9 193.2 2.84 557.5 211.4 2.39 501.2 225.6 2.03

13 774.8 163.2 4.20 733.9 174.0 3.76 691.6 186.1 3.33 648.0 199.6 2.93 593.1 218.0 2.48 506.2 217.5 2.12

Table P-10

—

RTAC 170 Entering Condenser Air Temperature (°C)

LWT 25 30 35 40 46 52

°C C.C. P.I. COP C.C. P.I. COP C.C. P.I. COP C.C. P.I. COP C.C. P.I. COP C.C. P.I. COP

kW kW kW/kW kW kW kW/kW kW kW kW/kW kW kW kW/kW kW kW kW/kW kW kW kW/kW

5 656.3 153.7 3.71 619.9 164.6 3.30 582.3 177.0 2.91 543.6 190.9 2.54 494.8 210.0 2.12 449.4 229.4 1.78

7 700.0 160.0 3.82 661.6 171.1 3.40 622.0 183.6 3.01 581.2 197.6 2.63 529.8 216.9 2.21 481.9 236.4 1.86

9 744.6 166.6 3.92 704.3 177.7 3.50 662.7 190.4 3.10 619.7 204.5 2.72 565.7 223.9 2.29 515.3 243.5 1.93

11 790.3 173.3 4.02 748.0 184.6 3.60 704.2 197.4 3.19 659.2 211.6 2.81 602.5 231.1 2.37 539.5 245.1 2.01

13 836.8 180.3 4.11 792.5 191.7 3.69 746.7 204.5 3.28 699.5 218.8 2.89 640.1 238.4 2.45 546.7 237.3 2.10

Table P-11

—

RTAC 185 Entering Condenser Air Temperature (°C)

LWT 25 30 35 40 46 52

°C C.C. P.I. COP C.C. P.I. COP C.C. P.I. COP C.C. P.I. COP C.C. P.I. COP C.C. P.I. COP

kW kW kW/kW kW kW kW/kW kW kW kW/kW kW kW kW/kW kW kW kW/kW kW kW kW/kW

5 728.8 170.9 3.72 689.7 182.8 3.32 649.0 196.4 2.93 606.9 211.6 2.56 553.8 232.6 2.15 504.2 253.8 1.81

7 777.3 178.0 3.83 736.0 190.1 3.42 693.1 203.8 3.03 648.7 219.3 2.65 592.8 240.5 2.23 540.3 261.9 1.88

9 827.0 185.3 3.93 783.5 197.6 3.52 738.3 211.5 3.12 691.6 227.2 2.74 632.7 248.6 2.31 577.5 270.3 1.95

11 877.8 192.9 4.03 832.0 205.4 3.61 784.7 219.5 3.21 735.7 235.3 2.82 673.8 257.0 2.39 590.5 264.2 2.04

13 929.6 200.8 4.11 881.7 213.4 3.70 832.0 227.7 3.29 780.7 243.7 2.90 715.8 265.6 2.46 599.4 256.0 2.13

21

RLC-PRC005-E4

Performance Data

High Efficiency Units (SI Units)

Table P-12

—

RTAC 200 Entering Condenser Air Temperature (°C)

LWT 25 30 35 40 46 52

°C C.C. P.I. COP C.C. P.I. COP C.C. P.I. COP C.C. P.I. COP C.C. P.I. COP C.C. P.I. COP

kW kW kW/kW kW kW kW/kW kW kW kW/kW kW kW kW/kW kW kW kW/kW kW kW kW/kW

5 803.3 188.3 3.73 761.2 201.3 3.33 717.3 216.1 2.95 671.8 232.6 2.59 614.2 255.4 2.17 560.1 278.4 1.83

7 856.9 196.2 3.84 812.3 209.4 3.44 766.0 224.4 3.05 717.9 241.2 2.68 657.1 264.3 2.26 600.0 287.8 1.91

9 911.8 204.4 3.94 864.8 217.8 3.53 816.0 233.0 3.14 765.4 250.2 2.76 701.3 273.7 2.33 629.6 290.6 1.98

11 968.0 212.9 4.04 918.6 226.5 3.62 867.3 242.0 3.22 814.1 259.4 2.84 746.8 283.3 2.41 642.5 283.5 2.07

13 1025.5 221.6 4.12 973.7 235.5 3.71 919.9 251.2 3.31 864.1 269.0 2.92 793.5 293.3 2.48 648.9 272.4 2.17

Notes :

1. Ratings based on sea level altitude and evaporator fouling factor of 0.0176 m²°K/kW.

2. Consult Trane representative for performance at temperatures outside of the ranges shown.

3. P.I. kW = compressor power input only.

4. COP = Coefficient of Performance (kW/kW). Power input includes compressors, condenser fans and control power.

5. Ratings are based on an evaporator temperature drop of 6°C.

6. Interpolation between points is permissible. Extrapolation is not permitted.

7. Above 40°C ambient, the units will have the High-Ambient option.

8. Shaded area reflects Adaptive Control™ Microprocessor control algorithms.

22 RLC-PRC005-E4

Performance Data

Low Noise Standard Units (SI Units)

Table P-13 — RTAC 140 Entering Condenser Air Temperature (°C)

LWT 25 30 35 40

°C C.C. kW P.I. kW COP kW/kW C.C. kW P.I. kW COP kW/kW C.C. kW P.I. kW COP kW/kW C.C. kW P.I. kW COP kW/kW

5 510.3 144.5 3.36 478.7 156.3 2.92 446.2 169.3 2.52 412.9 183.5 2.16

7 541.1 150.7 3.42 507.9 162.7 2.98 473.7 175.9 2.58 438.8 190.4 2.22

9 572.3 157.1 3.48 537.4 169.4 3.04 501.6 182.8 2.64 465.3 197.4 2.27

11 603.8 163.7 3.53 567.3 176.2 3.09 529.7 189.9 2.68 491.5 204.7 2.32

13 635.6 170.6 3.57 597.3 183.3 3.13 558.0 197.2 2.73 509.0 205.6 2.39

Table P-14

—

RTAC 155 Entering Condenser Air Temperature (°C)

LWT 25 30 35 40

°C C.C. kW P.I. kW COP kW/kW C.C. kW P.I. kW COP kW/kW C.C. kW P.I. kW COP kW/kW C.C. kW P.I. kW COP kW/kW

5 560.0 159.7 3.33 525.5 172.2 2.91 490.0 186.1 2.52 453.8 201.2 2.16

7 593.4 166.7 3.39 557.0 179.5 2.97 519.8 193.5 2.57 481.6 208.9 2.22

9 627.1 173.9 3.44 588.9 186.9 3.02 549.8 201.2 2.62 509.8 216.8 2.26

11 661.1 181.4 3.48 621.1 194.7 3.06 580.0 209.2 2.67 538.1 224.9 2.31

13 695.3 189.1 3.52 653.4 202.6 3.10 610.5 217.3 2.71 556.8 225.9 2.38

Table P-15 — RTAC 170 Entering Condenser Air Temperature (°C)

LWT 25 30 35 40

°C C.C. kW P.I. kW COP kW/kW C.C. kW P.I. kW COP kW/kW C.C. kW P.I. kW COP kW/kW C.C. kW P.I. kW COP kW/kW

5 610.3 175.1 3.31 572.8 188.3 2.90 534.3 203.0 2.52 494.8 219.1 2.17

7 646.3 182.9 3.36 606.8 196.4 2.95 566.2 211.3 2.57 524.8 227.7 2.22

9 682.6 191.0 3.41 641.1 204.7 3.00 598.4 219.9 2.61 555.0 236.3 2.26

11 719.1 199.4 3.45 675.6 213.3 3.04 630.9 228.6 2.65 585.5 245.3 2.30

13 755.8 208.0 3.48 710.2 222.1 3.07 663.5 237.6 2.69 604.8 246.2 2.37

Table P-16

—

RTAC 185 Entering Condenser Air Temperature (°C)

LWT 25 30 35 40

°C C.C. kW P.I. kW COP kW/kW C.C. kW P.I. kW COP kW/kW C.C. kW P.I. kW COP kW/kW C.C. kW P.I. kW COP kW/kW

5 675.9 193.4 3.32 635.4 208.0 2.91 593.7 224.3 2.53 550.9 242.1 2.19

7 715.5 202.1 3.37 672.8 217.1 2.96 628.9 233.6 2.58 583.8 251.7 2.23

9 755.4 211.1 3.42 710.6 226.4 3.01 664.4 243.3 2.62 615.2 261.0 2.27

11 795.7 220.5 3.45 748.6 236.1 3.04 700.2 253.3 2.66 648.6 271.3 2.31

13 836.2 230.1 3.48 787.0 246.1 3.07 736.3 263.7 2.69 668.0 271.0 2.38

Table P-17 — RTAC 200 Entering Condenser Air Temperature (°C)

LWT 25 30 35 40

°C C.C. kW P.I. kW COP kW/kW C.C. kW P.I. kW COP kW/kW C.C. kW P.I. kW COP kW/kW C.C. kW P.I. kW COP kW/kW

5 742.7 212.0 3.33 699.2 228.1 2.93 654.1 245.8 2.55 607.7 265.2 2.20

7 786.1 221.6 3.38 740.1 238.0 2.97 692.6 256.2 2.59 643.7 276.1 2.24

9 829.9 231.6 3.42 781.5 248.5 3.01 731.6 267.1 2.63 680.5 287.3 2.28

11 874.1 242.0 3.46 823.3 259.3 3.05 771.0 278.4 2.66 717.1 299.2 2.31

13 918.6 252.8 3.48 865.5 270.6 3.07 810.6 290.2 2.69 730.4 292.2 2.41

Notes :

1. Ratings based on sea level altitude and evaporator fouling factor of 0.0176 m²°K/kW.

2. Consult Trane representative for performance at temperatures outside of the ranges shown.

3. P.I. kW = compressor power input only.

4. COP = Coefficient of Performance (kW/kW). Power input includes compressors, condenser fans and control power.

5. Ratings are based on an evaporator temperature drop of 6°C.

6. Interpolation between points is permissible. Extrapolation is not permitted.

7. Above 40°C ambient, the units will have the High-Ambient option.

8. Shaded area reflects Adaptive Control™ Microprocessor control algorithms.

23

RLC-PRC005-E4

Performance Data

Low Noise HE Units (SI Units)

Table P-18

—

RTAC 120 Entering Condenser Air Temperature (°C)

LWT 25 30 35 40 46

°C C.C. P.I. COP C.C. P.I. COP C.C. P.I. COP C.C. P.I. COP C.C. P.I. COP

kW kW kW/kW kW kW kW/kW kW kW kW/kW kW kW kW/kW kW kW kW/kW

5 443.2 113.4 3.67 416.2 122.4 3.20 388.3 132.6 2.77 359.7 143.9 2.38 323.9 159.2 1.94

7 471.8 118.0 3.76 443.3 127.3 3.29 413.9 137.7 2.85 383.7 149.1 2.45 345.9 164.8 2.01

9 500.8 122.9 3.84 470.8 132.4 3.37 439.8 142.9 2.92 408.0 154.6 2.52 363.8 167.4 2.08

11 530.2 128.0 3.91 498.6 137.6 3.44 466.1 148.4 2.99 432.7 160.3 2.58 376.7 166.8 2.16

13.0 560.0 133.2 3.98 526.8 143.1 3.50 492.6 154.0 3.05 457.6 166.1 2.64 391.7 166.8 2.25

Table P-19

—

RTAC 130 Entering Condenser Air Temperature (°C)

LWT 25 30 35 40 46

°C C.C. P.I. COP C.C. P.I. COP C.C. P.I. COP C.C. P.I. COP C.C. P.I. COP

kW kW kW/kW kW kW kW/kW kW kW kW/kW kW kW kW/kW kW kW kW/kW

5 489.3 124.6 3.68 459.8 134.6 3.22 429.5 145.7 2.79 398.4 158.0 2.40 359.6 174.6 1.97

7 520.9 129.8 3.77 489.9 139.9 3.30 458.0 151.2 2.87 425.2 163.7 2.47 384.2 180.5 2.03

9 553.2 135.2 3.85 520.5 145.5 3.38 486.9 157.0 2.94 452.4 169.6 2.54 406.1 184.9 2.10

11 585.9 140.7 3.93 551.6 151.3 3.46 516.3 162.9 3.01 480.0 175.8 2.61 422.9 185.7 2.18

13 619.1 146.5 4.00 583.1 157.2 3.52 546.0 169.0 3.08 508.0 182.0 2.67 434.8 182.8 2.27

Table P-20

—

RTAC 140 Entering Condenser Air Temperature (°C)

LWT 25 30 35 40 46

°C C.C. P.I. COP C.C. P.I. COP C.C. P.I. COP C.C. P.I. COP C.C. P.I. COP

kW kW kW/kW kW kW kW/kW kW kW kW/kW kW kW kW/kW kW kW kW/kW

5 535.9 136.0 3.69 503.9 146.8 3.23 471.1 158.9 2.80 437.5 172.1 2.41 395.5 189.9 1.99

7 570.7 141.7 3.78 537.1 152.7 3.32 502.5 164.9 2.89 467.1 178.3 2.49 422.9 196.4 2.06

9 606.3 147.5 3.87 570.9 158.7 3.40 534.5 171.1 2.96 497.3 184.7 2.56 450.9 202.9 2.13

11 642.5 153.6 3.95 605.3 165.0 3.47 567.1 177.6 3.04 527.9 191.3 2.63 468.5 203.5 2.20

13 679.4 159.9 4.02 640.3 171.5 3.54 600.2 184.2 3.10 559.0 198.1 2.70 476.8 197.6 2.31

Table P-21 — RTAC 155 Entering Condenser Air Temperature (°C)

LWT 25 30 35 40 46

°C C.C. P.I. COP C.C. P.I. COP C.C. P.I. COP C.C. P.I. COP C.C. P.I. COP

kW kW kW/kW kW kW kW/kW kW kW kW/kW kW kW kW/kW kW kW kW/kW

5 584.6 150.5 3.64 550.0 162.0 3.20 514.3 174.9 2.78 477.8 189.1 2.40 432.1 208.3 1.98

7 621.9 156.9 3.73 585.3 168.6 3.28 547.8 181.7 2.86 509.3 196.1 2.47 461.2 215.5 2.04

9 659.8 163.5 3.80 621.3 175.4 3.35 581.8 188.7 2.93 541.4 203.3 2.54 491.1 222.9 2.11

11 698.3 170.4 3.87 657.9 182.5 3.42 616.4 195.9 2.99 573.9 210.6 2.60 511.6 224.4 2.18

13 737.3 177.5 3.93 695.0 189.7 3.48 651.5 203.3 3.05 606.9 218.2 2.66 519.4 217.6 2.28

Table P-22

—

RTAC 170 Entering Condenser Air Temperature (°C)

LWT 25 30 35 40 46

°C C.C. P.I. COP C.C. P.I. COP C.C. P.I. COP C.C. P.I. COP C.C. P.I. COP

kW kW kW/kW kW kW kW/kW kW kW kW/kW kW kW kW/kW kW kW kW/kW

5 634.0 165.0 3.60 596.5 177.3 3.17 557.9 191.0 2.76 518.4 206.2 2.39 468.9 226.8 1.97

7 673.7 172.2 3.68 634.2 184.7 3.24 593.6 198.6 2.83 551.9 213.9 2.45 499.8 234.8 2.03

9 714.1 179.6 3.75 672.5 192.3 3.31 629.7 206.4 2.90 585.9 221.9 2.52 531.3 242.8 2.09

11 755.0 187.3 3.81 711.3 200.1 3.37 666.4 214.4 2.96 620.4 230.1 2.57 551.4 243.6 2.17

13 796.3 195.2 3.86 750.5 208.2 3.42 703.5 222.6 3.01 655.3 238.4 2.63 561.1 237.4 2.26

Table P-23

—

RTAC 185 Entering Condenser Air Temperature (°C)

LWT 25 30 35 40 46

°C C.C. P.I. COP C.C. P.I. COP C.C. P.I. COP C.C. P.I. COP C.C. P.I. COP

kW kW kW/kW kW kW kW/kW kW kW kW/kW kW kW kW/kW kW kW kW/kW

5 704.3 183.7 3.60 663.7 197.1 3.18 621.7 212.2 2.78 578.6 228.9 2.40 524.5 251.5 1.99

7 748.4 191.7 3.68 705.5 205.5 3.25 661.2 220.8 2.84 615.7 237.8 2.47 558.6 260.8 2.05

9 793.2 200.1 3.74 747.9 214.2 3.31 701.3 229.8 2.90 653.4 247.0 2.52 590.1 267.9 2.11

11 838.5 208.9 3.80 791.0 223.1 3.37 742.0 239.0 2.96 691.7 256.6 2.58 605.9 264.3 2.19

13 884.5 217.8 3.85 834.7 232.4 3.42 783.3 248.6 3.01 730.6 266.4 2.63 614.9 256.3 2.29

24 RLC-PRC005-E4

Performance Data

Low Noise HE Units (SI Units)

Table P-24

—

RTAC 200 Entering Condenser Air Temperature (°C)

LWT 25 30 35 40 46

°C C.C. P.I. COP C.C. P.I. COP C.C. P.I. COP C.C. P.I. COP C.C. P.I. COP

kW kW kW/kW kW kW kW/kW kW kW kW/kW kW kW kW/kW kW kW kW/kW

5 776.4 202.6 3.61 732.4 217.3 3.19 686.9 233.7 2.79 640.1 251.9 2.42 581.1 276.6 2.01

7 824.9 211.6 3.68 778.4 226.6 3.25 730.3 243.4 2.85 680.8 262.0 2.48 618.6 287.2 2.06

9 874.3 221.0 3.74 825.2 236.4 3.31 774.5 253.6 2.91 722.4 272.5 2.53 644.6 289.6 2.13

11 924.4 230.8 3.80 872.8 246.5 3.37 819.5 264.1 2.96 764.6 283.5 2.58 654.7 281.3 2.23

13 975.2 240.9 3.85 921.0 257.1 3.42 865.1 275.1 3.01 807.5 294.9 2.63 665.5 272.6 2.33

Notes :

1. Ratings based on sea level altitude and evaporator fouling factor of 0.0176 m²°K/kW.

2. Consult Trane representative for performance at temperatures outside of the ranges shown.

3. P.I. kW = compressor power input only.

4. COP = Coefficient of Performance (kW/kW). Power input includes compressors, condenser fans and control power.

5. Ratings are based on an evaporator temperature drop of 6°C.

6. Interpolation between points is permissible. Extrapolation is not permitted.

7. Above 40°C ambient, the units will have the High-Ambient option.

8. Shaded area reflects Adaptive Control™ Microprocessor control algorithms.

25

RLC-PRC005-E4

Performance Data

Standard Units (English Units)

Table P-25

—

RTAC 140 Entering Condenser Air Temperature (°F)

LWT 77 86 95 104 115 122

°F C.C. P.I. EER C.C. P.I. EER C.C. P.I. EER C.C. P.I. EER C.C. P.I. EER C.C. P.I. EER

Ton kW Ton k W Ton kW Ton kW Ton kW Ton kW

41 152.5 131.3 12.45 143.8 141.8 10.96 134.8 153.5 9.56 125.6 166.5 8.27 114.0 184.0 6.85 106.4 196.1 6.03

44 160.8 135.5 12.75 151.7 146.2 11.24 142.4 158.1 9.83 132.7 171.2 8.52 120.6 188.9 7.08 112.8 201.1 6.24

45 163.6 137.0 12.85 154.4 147.7 11.34 144.9 159.6 9.92 135.1 172.8 8.60 122.9 190.5 7.15 114.3 201.5 6.31

46 166.4 138.5 12.95 157.1 149.2 11.43 147.5 161.2 10.00 137.6 174.4 8.68 125.1 192.2 7.22 115.0 200.1 6.39

48 172.0 141.4 13.14 162.5 152.3 11.61 152.6 164.3 10.17 142.5 177.6 8.84 129.7 195.5 7.37 116.3 197.4 6.55

Table P-26 — RTAC 155 Entering Condenser Air Temperature (°F)

LWT 77 86 95 104 115 122

°F C.C. P.I. EER C.C. P.I. EER C.C. P.I. EER C.C. P.I. EER C.C. P.I. EER C.C. P.I. EER

Ton kW Ton k W Ton kW Ton kW Ton kW Ton kW

41 167.2 145.8 12.28 157.7 156.9 10.84 147.9 169.4 9.49 137.8 183.2 8.24 125.1 201.9 6.84 116.9 214.9 6.03

44 176.2 150.7 12.56 166.3 162.0 11.11 156.0 174.6 9.74 145.5 188.5 8.47 132.3 207.4 7.05 123.7 220.6 6.23

45 179.2 152.4 12.65 169.1 163.7 11.20 158.8 176.3 9.83 148.1 190.3 8.55 134.7 209.3 7.12 125.4 221.2 6.30

46 182.2 154.1 12.74 172.1 165.4 11.28 161.6 178.1 9.91 150.7 192.1 8.62 137.2 211.2 7.19 126.2 220.0 6.38

48 188.3 157.5 12.91 177.9 168.9 11.44 167.1 181.7 10.06 156.0 195.8 8.77 142.0 214.9 7.33 127.9 217.6 6.53

Table P-27 — RTAC 170 Entering Condenser Air Temperature (°F)

LWT 77 86 95 104 115 122

°F C.C. P.I. EER C.C. P.I. EER C.C. P.I. EER C.C. P.I. EER C.C. P.I. EER C.C. P.I. EER

Ton kW Ton k W Ton kW Ton kW Ton kW Ton kW

41 182.1 160.5 12.14 171.8 172.2 10.75 161.1 185.4 9.44 150.2 200.0 8.21 136.4 220.0 6.83 127.4 233.9 6.04

44 191.8 166.1 12.40 181.0 177.9 11.00 169.9 191.2 9.67 158.4 206.0 8.43 144.1 226.1 7.04 134.7 240.1 6.23

45 195.0 168.0 12.48 184.1 179.9 11.08 172.8 193.2 9.75 161.2 208.0 8.50 146.6 228.2 7.10 136.5 241.0 6.29

46 198.3 170.0 12.56 187.2 181.9 11.16 175.8 195.2 9.82 164.0 210.1 8.57 149.3 230.3 7.17 137.5 240.0 6.36

48 204.9 173.8 12.72 193.5 185.8 11.31 181.8 199.3 9.97 169.7 214.2 8.71 154.5 234.5 7.30 139.5 237.9 6.51

Table P-28 — RTAC 185 Entering Condenser Air Temperature (°F)

LWT 77 86 95 104 115 122

°F C.C. P.I. EER C.C. P.I. EER C.C. P.I. EER C.C. P.I. EER C.C. P.I. EER C.C. P.I. EER

Ton kW Ton k W Ton kW Ton kW Ton kW Ton kW

41 201.4 177.3 12.17 190.4 190.2 10.80 178.9 204.6 9.50 167.1 220.8 8.28 152.1 242.8 6.91 142.4 258.0 6.11

44 212.1 183.4 12.43 200.5 196.5 11.04 188.6 211.2 9.73 176.2 227.5 8.49 160.6 249.8 7.11 148.3 260.8 6.31

45 215.6 185.5 12.51 203.9 198.6 11.12 191.8 213.4 9.80 179.3 229.8 8.56 163.4 252.1 7.17 150.0 260.8 6.38

46 219.3 187.6 12.59 207.4 200.8 11.20 195.1 215.7 9.88 182.4 232.1 8.63 166.3 254.6 7.23 151.0 259.6 6.45

48 226.5 191.9 12.74 214.3 205.2 11.35 201.6 220.2 10.02 188.6 236.8 8.76 172.1 259.4 7.35 153.1 257.1 6.60

Table P-29 — RTAC 200 Entering Condenser Air Temperature (°F)

LWT 77 86 95 104 115 122

°F C.C. P.I. EER C.C. P.I. EER C.C. P.I. EER C.C. P.I. EER C.C. P.I. EER C.C. P.I. EER

Ton kW Ton k W Ton kW Ton kW Ton kW Ton kW

41 221.2 194.3 12.21 209.4 208.3 10.85 197.1 224.2 9.56 184.3 241.8 8.34 168.1 265.7 6.98 157.5 282.4 6.18

44 232.9 201.0 12.46 220.5 215.3 11.09 207.6 231.4 9.78 194.3 249.3 8.55 177.3 273.7 7.17 163.8 285.0 6.38

45 236.8 203.3 12.54 224.2 217.7 11.17 211.2 233.9 9.85 197.6 251.9 8.62 180.5 276.3 7.23 165.3 284.5 6.45

46 240.7 205.7 12.62 228.0 220.1 11.24 214.8 236.4 9.93 201.0 254.5 8.69 183.6 279.1 7.29 166.0 282.1 6.53

48 248.6 210.3 12.77 235.6 225.0 11.39 221.9 241.4 10.06 207.8 259.7 8.81 189.9 284.6 7.40 167.3 277.2 6.68

Notes :

1. Ratings based on sea level altitude and evaporator fouling factor of 0.0176 m²°K/kW.

2. Consult Trane representative for performance at temperatures outside of the ranges shown.

3. P.I. kW = compressor power input only.

4. COP = Coefficient of Performance (kW/kW). Power input includes compressors, condenser fans and control power.

5. Ratings are based on an evaporator temperature drop of 6°C.

6. Interpolation between points is permissible. Extrapolation is not permitted.

7. Above 40°C ambient, the units will have the High-Ambient option.

8. Shaded area reflects Adaptive Control™ Microprocessor control algorithms.

26 RLC-PRC005-E4

Performance Data

High Efficiency Units (English Units)

Table P-30

—

RTAC 120 Entering Condenser Air Temperature (°F)

LWT 77 86 95 104 115 122

°F C.C. P.I. EER C.C. P.I. EER C.C. P.I. EER C.C. P.I. EER C.C. P.I. EER C.C. P.I. EER

Ton kW EER Ton kW EER Ton kW EER Ton kW EER Ton kW EER Ton kW EER

41 130.6 104.9 12.99 123.2 112.9 11.49 115.5 122.1 10.06 107.6 132.4 8.71 97.5 146.6 7.21 88.1 161.0 1.72

44 138.1 108.2 13.37 130.4 116.3 11.84 122.3 125.6 10.38 114.0 136.1 9.01 103.5 150.4 7.48 93.7 165.0 6.22

45 140.6 109.3 13.49 132.8 117.5 11.96 124.6 126.8 10.49 116.2 137.3 9.11 105.5 151.7 7.56 95.3 165.9 6.30

46 143.2 110.5 13.62 135.2 118.7 12.07 126.9 128.0 10.59 118.3 138.6 9.20 107.5 153.0 7.65 96.7 166.3 6.38

48 148.3 112.7 13.85 140.1 121.0 12.29 131.6 130.5 10.80 122.7 141.1 9.39 111.6 155.7 7.81 99.4 166.9 6.53

Table P-31

—

RTAC 130 Entering Condenser Air Temperature (°F)

LWT 77 86 95 104 115 122

°F C.C. P.I. EER C.C. P.I. EER C.C. P.I. EER C.C. P.I. EER C.C. P.I. EER C.C. P.I. EER

Ton kW EER Ton kW EER Ton kW EER Ton kW EER Ton kW EER Ton kW EER

41 144.1 115.3 13.01 136.0 124.2 11.51 127.6 134.2 10.08 119.0 145.5 8.75 108.1 160.9 7.27 97.9 176.5 1.74

44 152.4 119.0 13.38 143.9 128.0 11.86 135.1 138.1 10.41 126.1 149.5 9.05 114.7 165.1 7.54 104.1 180.8 6.30

45 155.1 120.2 13.51 146.6 129.2 11.98 137.7 139.5 10.52 128.5 150.9 9.15 117.0 166.5 7.62 106.1 182.0 6.38

46 158.0 121.5 13.63 149.3 130.5 12.09 140.2 140.8 10.62 131.0 152.2 9.25 119.2 167.9 7.71 107.9 183.0 6.46

48 163.6 124.0 13.86 154.7 133.2 12.31 145.4 143.5 10.83 135.8 155.0 9.44 123.8 170.8 7.89 111.6 184.8 6.62

Table P-32 — RTAC 140 Entering Condenser Air Temperature (°F)

LWT 77 86 95 104 115 122

°F C.C. P.I. EER C.C. P.I. EER C.C. P.I. EER C.C. P.I. EER C.C. P.I. EER C.C. P.I. EER

Ton kW EER Ton kW EER Ton kW EER Ton kW EER Ton kW EER Ton kW EER

41 157.7 125.8 13.03 148.9 135.5 11.53 139.8 146.5 10.11 130.5 158.7 8.79 118.7 175.3 7.31 107.7 192.0 6.11

44 166.8 129.8 13.40 157.6 139.7 11.88 148.1 150.7 10.44 138.3 163.0 9.10 126.1 179.8 7.59 114.6 196.6 6.36

45 169.8 131.2 13.52 160.5 141.1 12.00 150.9 152.2 10.55 141.0 164.5 9.20 128.5 181.3 7.68 116.9 198.2 6.44

46 172.9 132.6 13.64 163.5 142.5 12.11 153.7 153.6 10.66 143.7 166.0 9.30 131.1 182.8 7.77 119.3 199.8 6.53

48 179.2 135.4 13.88 169.5 145.4 12.33 159.4 156.6 10.87 149.1 169.0 9.49 136.1 185.9 7.95 124.0 203.0 6.69

Table P-33

—

RTAC 155 Entering Condenser Air Temperature (°F)

LWT 77 86 95 104 115 122

°F C.C. P.I. EER C.C. P.I. EER C.C. P.I. EER C.C. P.I. EER C.C. P.I. EER C.C. P.I. EER

Ton kW EER Ton kW EER Ton kW EER Ton kW EER Ton kW EER Ton kW EER

41 172.1 139.7 12.82 162.5 150.0 11.38 152.7 161.7 10.01 142.5 174.7 8.72 129.7 192.6 7.27 117.7 210.7 6.09

44 181.8 144.3 13.16 171.8 154.8 11.70 161.5 166.5 10.31 150.9 179.7 9.00 137.5 197.7 7.53 125.0 215.9 6.32

45 185.0 145.9 13.27 174.9 156.4 11.81 164.5 168.2 10.41 153.7 181.4 9.09 140.1 199.4 7.62 127.5 217.7 6.40

46 188.4 147.5 13.38 178.1 158.0 11.91 167.5 169.9 10.51 156.6 183.1 9.19 142.8 201.2 7.70 130.0 219.4 6.48

48 195.0 150.7 13.59 184.4 161.3 12.12 173.5 173.2 10.70 162.3 186.5 9.37 148.2 204.7 7.87 134.9 223.0 6.63

Table P-34

—

RTAC 170 Entering Condenser Air Temperature (°F)

LWT 77 86 95 104 115 122

°F C.C. P.I. EER C.C. P.I. EER C.C. P.I. EER C.C. P.I. EER C.C. P.I. EER C.C. P.I. EER

Ton kW EER Ton kW EER Ton kW EER Ton kW EER Ton kW EER Ton kW EER

41 186.7 153.7 12.66 176.3 164.6 11.26 165.6 177.0 9.92 154.6 190.9 8.66 140.7 210.0 7.24 127.8 229.4 6.07

44 197.0 159.0 12.97 186.2 170.0 11.56 175.0 182.5 10.21 163.5 196.5 8.93 149.0 215.7 7.48 135.5 235.2 6.29

45 200.5 160.7 13.07 189.5 171.8 11.66 178.2 184.3 10.30 166.5 198.4 9.02 151.8 217.7 7.56 138.1 237.2 6.36

46 204.0 162.6 13.17 192.9 173.6 11.76 181.4 186.2 10.39 169.6 200.3 9.10 154.7 219.6 7.64 140.7 239.1 6.44

48 211.1 166.2 13.37 199.6 177.4 11.94 187.8 190.0 10.57 175.6 204.1 9.27 160.3 223.5 7.80 146.0 243.1 6.58

Table P-35

—

RTAC 185 Entering Condenser Air Temperature (°F)

LWT 77 86 95 104 115 122

°F C.C. P.I. EER C.C. P.I. EER C.C. P.I. EER C.C. P.I. EER C.C. P.I. EER C.C. P.I. EER

Ton kW EER Ton kW EER Ton kW EER Ton kW EER Ton kW EER Ton kW EER

41 207.3 170.9 12.69 196.2 182.8 11.32 184.6 196.4 10.00 172.6 211.6 8.75 157.5 232.6 7.34 143.4 253.8 6.17

44 218.8 176.8 13.00 207.1 188.9 11.61 195.0 202.6 10.28 182.5 218.0 9.01 166.7 239.1 7.57 151.9 260.6 6.38

45 222.7 178.8 13.10 210.8 190.9 11.71 198.5 204.7 10.37 185.9 220.2 9.09 169.9 241.4 7.65 154.8 262.9 6.45

46 226.6 180.8 13.20 214.6 193.0 11.80 202.1 206.8 10.46 189.3 222.4 9.18 173.0 243.6 7.72 157.8 265.2 6.52

48 234.4 184.9 13.39 222.1 197.2 11.99 209.3 211.1 10.63 196.0 226.7 9.34 179.3 248.1 7.87 163.6 269.9 6.66

27

RLC-PRC005-E4

Performance Data

Table P-36

—

RTAC 200 Entering Condenser Air Temperature (°F)

LWT 77 86 95 104 115 122

°F C.C. P.I. EER C.C. P.I. EER C.C. P.I. EER C.C. P.I. EER C.C. P.I. EER C.C. P.I. EER

Ton kW EER Ton kW EER Ton kW EER Ton kW EER Ton kW EER Ton kW EER

232.6 8.83 174.7 255.4 7.42 159.3 278.4 6.26

44 241.2 194.9 13.04 228.6 208.1 11.67 215.5 223.0 10.34 202.0 239.8 9.08 184.9 262.8 7.65 168.7 286.2 6.46

45 245.5 197.1 13.14 232.7 210.3 11.76 219.4 225.4 10.43 205.7 242.2 9.17 188.3 265.4 7.73 171.5 288.1 6.53

46 249.8 199.4 13.24 236.8 212.7 11.86 223.4 227.8 10.52 209.4 244.7 9.25 191.8 268.0 7.80 173.9 288.9 6.61

48 258.5 204.0 13.43 245.1 217.3 12.04 231.3 232.6 10.69 216.9 249.7 9.41 198.8 273.1 7.95 178.6 290.4 6.75

Notes :

1. Ratings based on sea level altitude and evaporator fouling factor of 0.0176 m²°K/kW.

2. Consult Trane representative for performance at temperatures outside of the ranges shown.

3. P.I. kW = compressor power input only.

4. COP = Coefficient of Performance (kW/kW). Power input includes compressors, condenser fans and control power.

5. Ratings are based on an evaporator temperature drop of 6°C.

6. Interpolation between points is permissible. Extrapolation is not permitted.

7. Above 40°C ambient, the units will have the High-Ambient option.

8. Shaded area reflects Adaptive Control™ Microprocessor control algorithms.

28 RLC-PRC005-E4

Performance Data

Low Noise Standard Units (English Units)

Table P-37

—

RTAC 140 Entering Condenser Air Temperature (°F)

LWT 77 86 95 104

°F C.C.Ton P.I. kW EER C.C.Ton P.I. kW EER C.C.Ton P.I. kW EER C.C.Ton P.I. kW EER

41 145.1 144.5 11.46 136.1 156.3 9.97 126.9 169.3 8.61 117.4 183.5 7.38

44 152.4 149.7 11.64 143.1 161.7 10.15 133.4 174.8 8.78 123.5 189.2 7.54

45 154.9 151.4 11.70 145.4 163.5 10.20 135.6 176.7 8.83 125.6 191.1 7.59

46 157.3 153.2 11.75 147.7 165.3 10.26 137.8 178.6 8.89 127.7 193.1 7.64

48 162.3 156.7 11.86 152.4 169.0 10.36 142.2 182.4 8.98 131.9 197.0 7.74

Table P-38

—

RTAC 155 Entering Condenser Air Temperature (°F)

LWT 77 86 95 104

°F C.C.Ton P.I. kW EER C.C.Ton P.I. kW EER C.C.Ton P.I. kW EER C.C.Ton P.I. kW EER

41 159.3 159.7 11.37 149.5 172.2 9.93 139.4 186.1 8.60 129.0 201.2 7.39

44 167.2 165.5 11.54 156.9 178.3 10.09 146.4 192.3 8.76 135.6 207.7 7.54

45 169.8 167.5 11.59 159.4 180.3 10.14 148.8 194.4 8.81 137.8 209.8 7.58

46 172.5 169.5 11.64 162.0 182.4 10.19 151.2 196.5 8.85 140.1 212.0 7.63

48 177.8 173.5 11.73 167.0 186.5 10.28 155.9 200.8 8.94 144.5 216.3 7.72

Table P-39

—

RTAC 170 Entering Condenser Air Temperature (°F)

LWT 77 86 95 104

°F C.C.Ton P.I. kW EER C.C.Ton P.I. kW EER C.C.Ton P.I. kW EER C.C.Ton P.I. kW EER

41 173.6 175.1 11.30 162.9 188.3 9.90 152.0 203.0 8.59 140.7 219.1 7.40

44 182.1 181.6 11.45 171.0 195.0 10.05 159.5 209.9 8.74 147.8 226.2 7.53

45 185.0 183.8 11.50 173.7 197.3 10.09 162.1 212.3 8.78 150.2 228.6 7.58

46 187.8 186.0 11.54 176.4 199.6 10.13 164.6 214.6 8.82 152.6 231.0 7.62

48 193.6 190.6 11.63 181.8 204.3 10.22 169.7 219.4 8.91 157.3 235.8 7.71

Table P-40

—

RTAC 185 Entering Condenser Air Temperature (°F)

LWT 77 86 95 104

°F C.C.Ton P.I. kW EER C.C.Ton P.I. kW EER C.C.Ton P.I. kW EER C.C.Ton P.I. kW EER

41 192.2 193.4 11.34 180.7 208.0 9.94 168.9 224.3 8.65 156.7 242.1 7.46

44 201.6 200.6 11.48 189.6 215.6 10.08 177.2 232.0 8.78 164.4 250.1 7.59

45 204.7 203.1 11.53 192.6 218.1 10.13 180.0 234.7 8.83 167.0 252.8 7.63

46 207.9 205.6 11.57 195.5 220.7 10.17 182.8 237.4 8.87 169.5 255.3 7.66

48 214.2 210.6 11.65 201.5 225.9 10.25 188.4 242.7 8.94 174.4 260.5 7.74

Table P-41

—

RTAC 200 Entering Condenser Air Temperature (°F)

LWT 77 86 95 104

°F C.C.Ton P.I. kW EER C.C.Ton P.I. kW EER C.C.Ton P.I. kW EER C.C.Ton P.I. kW EER

41 211.2 212.0 11.37 198.9 228.1 9.99 186.0 245.8 8.70 172.8 265.2 7.51

44 221.5 220.0 11.51 208.6 236.4 10.12 195.2 254.5 8.83 181.3 274.3 7.63

45 225.0 222.7 11.55 211.8 239.2 10.16 198.2 257.4 8.87 184.2 277.3 7.67

46 228.4 225.5 11.59 215.1 242.1 10.20 201.3 260.4 8.90 187.1 280.4 7.71

48 235.3 231.0 11.67 221.6 247.9 10.28 207.5 266.5 8.98 192.9 286.7 7.78

Notes :

1. Ratings based on sea level altitude and evaporator fouling factor of 0.0176 m²°K/kW.

2. Consult Trane representative for performance at temperatures outside of the ranges shown.

3. P.I. kW = compressor power input only.

4. COP = Coefficient of Performance (kW/kW). Power input includes compressors, condenser fans and control power.

5. Ratings are based on an evaporator temperature drop of 6°C.

6. Interpolation between points is permissible. Extrapolation is not permitted.

7. Above 40°C ambient, the units will have the High-Ambient option.

8. Shaded area reflects Adaptive Control™ Microprocessor control algorithms.

29

RLC-PRC005-E4

Performance Data

Low Noise HE Units (English Units)

Table P-42

—

RTAC 120 Entering Condenser Air Temperature (°F)

LWT 77 86 95 104 115

°F C.C.Ton P.I. kW EER C.C.Ton P.I. kW EER C.C.Ton P.I. kW EER C.C.Ton P.I. kW EER C.C.Ton P.I. kW EER

41 126.0 113.4 12.51 118.4 122.4 10.93 110.4 132.6 9.46 102.3 143.9 8.11 92.1 159.2 6.63

44 132.8 117.3 12.78 124.8 126.5 11.18 116.5 136.8 9.69 108.0 148.3 8.32 97.3 163.8 6.82

45 135.1 118.6 12.86 126.9 127.9 11.25 118.5 138.2 9.76 109.9 149.8 8.38 98.9 165.1 6.88

46 137.4 119.9 12.94 129.1 129.3 11.33 120.6 139.7 9.83 111.8 151.3 8.45 100.3 165.8 6.95

48 142.0 122.6 13.09 133.5 132.1 11.47 124.7 142.6 9.97 115.6 154.3 8.58 103.2 167.3 7.08

Table P-43

—

RTAC 130 Entering Condenser Air Temperature (°F)

LWT 77 86 95 104 115

°F C.C.Ton P.I. kW EER C.C.Ton P.I. kW EER C.C.Ton P.I. kW EER C.C.Ton P.I. kW EER C.C.Ton P.I. kW EER

41 139.2 124.6 12.56 130.8 134.6 10.98 122.2 145.7 9.52 113.3 158.0 8.18 102.2 174.6 6.71

44 146.7 128.9 12.82 137.9 139.1 11.23 128.9 150.3 9.75 119.7 162.7 8.39 108.1 179.5 6.90

45 149.2 130.4 12.90 140.3 140.6 11.31 131.2 151.9 9.82 121.8 164.4 8.46 109.9 181.0 6.97

46 151.7 131.9 12.98 142.7 142.1 11.38 133.4 153.5 9.90 123.9 166.0 8.53 111.7 182.2 7.03

48 156.8 134.9 13.14 147.6 145.2 11.53 138.0 156.7 10.04 128.2 169.3 8.66 115.1 184.6 7.16

Table P-44

—

RTAC 140 Entering Condenser Air Temperature (°F)

LWT 77 86 95 104 115

°F C.C.Ton P.I. kW EER C.C.Ton P.I. kW EER C.C.Ton P.I. kW EER C.C.Ton P.I. kW EER C.C.Ton P.I. kW EER

41 152.4 136.0 12.60 143.3 146.8 11.02 134.0 158.9 9.57 124.4 172.1 8.24 112.5 189.9 6.78

44 160.7 140.7 12.86 151.2 151.7 11.27 141.4 163.9 9.81 131.5 177.3 8.46 119.0 195.3 6.98

45 163.4 142.3 12.94 153.8 153.3 11.36 143.9 165.6 9.88 133.8 179.0 8.53 121.1 197.1 7.05

46 166.3 143.9 13.03 156.5 155.0 11.43 146.5 167.3 9.96 136.2 180.8 8.60 123.4 198.9 7.11

48 171.9 147.2 13.19 161.8 158.4 11.59 151.5 170.8 10.10 140.9 184.4 8.74 127.8 202.5 7.24

Table P-45

—

RTAC 155 Entering Condenser Air Temperature (°F)

LWT 77 86 95 104 115

°F C.C.Ton P.I. kW EER C.C.Ton P.I. kW EER C.C.Ton P.I. kW EER C.C.Ton P.I. kW EER C.C.Ton P.I. kW EER

41 166.3 150.5 12.43 156.4 162.0 10.91 146.3 174.9 9.49 135.9 189.1 8.19 122.9 208.3 6.75

44 175.1 155.8 12.67 164.8 167.5 11.14 154.2 180.5 9.71 143.4 194.9 8.39 129.8 214.3 6.94

45 178.1 157.6 12.75 167.6 169.4 11.21 156.9 182.5 9.78 145.9 196.9 8.46 132.1 216.4 7.00

46 181.1 159.4 12.82 170.5 171.3 11.28 159.6 184.4 9.85 148.4 198.9 8.52 134.4 218.4 7.06

48 187.1 163.1 12.96 176.1 175.1 11.42 164.9 188.3 9.98 153.4 202.9 8.65 139.2 222.5 7.18

Table P-46

—

RTAC 170 Entering Condenser Air Temperature (°F)

LWT 77 86 95 104 115

°F C.C.Ton P.I. kW EER C.C.Ton P.I. kW EER C.C.Ton P.I. kW EER C.C.Ton P.I. kW EER C.C.Ton P.I. kW EER

41 180.3 165.0 12.30 169.7 177.3 10.82 158.7 191.0 9.43 147.4 206.2 8.15 133.3 226.8 6.73

44 189.7 171.0 12.52 178.6 183.4 11.03 167.1 197.3 9.63 155.4 212.6 8.34 140.6 233.4 6.91

45 192.9 173.0 12.59 181.6 185.5 11.09 170.0 199.4 9.70 158.1 214.9 8.40 143.1 235.7 6.97

46 196.1 175.1 12.65 184.6 187.6 11.16 172.8 201.6 9.76 160.7 217.1 8.46 145.6 237.9 7.02

48 202.5 179.2 12.78 190.7 191.9 11.28 178.5 205.9 9.88 166.1 221.5 8.58 150.6 242.4 7.14

Table P-47

—

RTAC 185 Entering Condenser Air Temperature (°F)

LWT 77 86 95 104 115

°F C.C.Ton P.I. kW EER C.C.Ton P.I. kW EER C.C.Ton P.I. kW EER C.C.Ton P.I. kW EER C.C.Ton P.I. kW EER

41 200.3 183.7 12.30 188.8 197.1 10.84 176.8 212.2 9.47 164.6 228.9 8.21 149.1 251.5 6.80

44 210.8 190.4 12.51 198.7 204.1 11.04 186.2 219.4 9.67 173.4 236.3 8.39 157.2 259.3 6.96

45 214.3 192.7 12.58 202.0 206.4 11.11 189.3 221.8 9.73 176.3 238.9 8.44 159.8 261.6 7.02

46 217.8 195.0 12.64 205.3 208.9 11.17 192.5 224.3 9.79 179.3 241.4 8.50 162.3 263.6 7.08

48 224.9 199.7 12.76 212.0 213.7 11.29 198.8 229.3 9.90 185.2 246.5 8.61 167.3 267.5 7.19

30 RLC-PRC005-E4

Performance Data

Table P-48 — RTAC 200 Entering Condenser Air Temperature (°F)

LWT 77 86 95 104 115

°F C.C.Ton P.I. kW EER C.C.Ton P.I. kW EER C.C.Ton P.I. kW EER C.C.Ton P.I. kW EER C.C.Ton P.I. kW EER

41 220.8 202.6 12.32 208.3 217.3 10.87 195.4 233.7 9.52 182.0 251.9 8.26 165.2 276.6 6.86

44 232.3 210.1 12.52 219.2 225.1 11.07 205.7 241.8 9.70 191.7 260.3 8.43 174.1 285.4 7.01

45 236.2 212.6 12.58 222.9 227.7 11.13 209.1 244.6 9.76 195.0 263.2 8.48 176.7 287.4 7.07

46 240.1 215.3 12.64 226.6 230.4 11.19 212.6 247.4 9.81 198.2 266.1 8.53 178.8 288.1 7.14

48 247.9 220.5 12.76 234.0 235.8 11.30 219.6 253.0 9.92 204.8 272.0 8.64 182.9 289.5 7.27

Notes :

1. Ratings based on sea level altitude and evaporator fouling factor of 0.0176 m²°K/kW.

2. Consult Trane representative for performance at temperatures outside of the ranges shown.

3. P.I. kW = compressor power input only.

4. COP = Coefficient of Performance (kW/kW). Power input includes compressor, condenser fans and control power.

5. Ratings are based on an evaporator temperature drop of 6°C.

6. Interpolation between points is permissible. Extrapolation is not permitted.

7. Above 40°C ambient, the units will have the High-Ambient option.

8. Shaded area reflects Adaptive Control Microprocessor control algorithms.

31

RLC-PRC005-E4

Performance Data

SI Units English Units

Table P-49 — ARI Part-Load Values RTAC Standard Table P-51 — ARI Part-Load Values RTAC Standard

(along with ARI 550/590-98) (along with ARI 550/590-98)

Unit % Load kW cooling P.I. kW COP (kW/kW) IPLV (kW/kW) Unit % Load tons P.I. kW EER IPLV

140 100 505.9 159.0 2.90 4.09 140 100 143.9 159.0 9.88 13.95

75 372.0 85.8 3.67 75 105.8 85.8 12.51

50 247.9 47.3 4.47 50 70.5 47.3 15.24

25 124.1 21.0 4.25 25 35.3 21.0 14.51

155 100 554.3 175.6 2.87 3.98 155 100 157.6 175.6 9.79 13.59

75 407.6 94.7 3.63 75 115.9 94.7 12.39

50 271.9 52.2 4.36 50 77.3 52.2 14.89

25 135.7 24.8 3.89 25 38.6 24.8 13.29

170 100 603.4 192.4 2.85 3.98 170 100 171.6 192.4 9.72 13.58

75 443.8 103.7 3.60 75 126.2 103.7 12.29

50 295.8 58.4 4.32 50 84.1 58.4 14.74

25 148.1 26.0 4.11 25 42.1 26.0 14.02

185 100 669.7 212.5 2.86 3.98 185 100 190.4 212.5 9.77 13.60

75 491.7 114.6 3.62 75 139.8 114.6 12.34

50 328.1 62.6 4.40 50 93.3 62.6 15.02

25 164.2 31.1 3.81 25 46.7 31.1 13.00

200 100 737.6 232.9 2.88 4.00 200 100 209.7 232.9 9.83 13.64

75 542.3 125.8 3.64 75 154.2 125.8 12.42

50 361.5 71.3 4.34 50 102.8 71.3 14.81

25 180.8 32.7 4.05 25 51.4 32.7 13.81

Table P-50 — ARI Part-Load Values RTAC High-Efficiency Table P-52 — ARI Part-Load Values RTAC High-Efficiency

(along with ARI 550/590-98) (along with ARI 550/590-98)

Unit % Load kW cooling P.I. kW COP (kW/kW) IPLV (kW/kW) Unit % Load tons P.I. kW EER IPLV

120 100 434.8 126.3 3.06 4.17 120 100 434.8 126.3 10.45 14.23

75 320.0 70.5 3.71 75 320.0 70.5 12.66

50 213.1 38.3 4.58 50 213.1 38.3 15.63

25 106.6 16.3 4.34 25 106.6 16.3 14.82

130 100 480.3 138.9 3.07 4.14 130 100 480.3 138.9 10.47 14.14

75 353.5 76.9 3.74 75 353.5 76.9 12.76

50 235.3 41.2 4.59 50 235.3 41.2 15.66

25 117.8 19.6 3.97 25 117.8 19.6 13.55

140 100 526.6 151.6 3.08 4.18 140 100 526.6 151.6 10.50 14.27

75 387.2 83.4 3.76 75 387.2 83.4 12.84

50 258.1 46.2 4.59 50 258.1 46.2 15.65

25 129.1 20.6 4.21 25 129.1 20.6 14.37

155 100 574.0 167.5 3.04 4.08 155 100 574.0 167.5 10.37 13.93

75 423.4 92.1 3.73 75 423.4 92.1 12.73

50 281.4 50.7 4.49 50 281.4 50.7 15.31

25 140.7 24.2 3.89 25 140.7 24.2 13.26

170 100 622.0 183.6 3.01 4.08 170 100 622.0 183.6 10.26 13.92

75 456.9 100.1 3.70 75 456.9 100.1 12.64

50 304.9 56.5 4.45 50 304.9 56.5 15.20

25 152.3 25.4 4.07 25 152.3 25.4 13.90

185 100 693.1 203.9 3.03 4.08 185 100 693.1 203.9 10.33 13.91

75 510.3 111.9 3.72 75 510.3 111.9 12.71

50 339.7 61.7 4.50 50 339.7 61.7 15.35

25 169.9 30.6 3.82 25 169.9 30.6 13.04

200 100 765.9 224.4 3.05 4.10 200 100 765.9 224.4 10.40 13.98

75 561.7 122.8 3.75 75 561.7 122.8 12.80

50 375.6 70.6 4.45 50 375.6 70.6 15.17

25 187.8 32.2 4.08 25 187.8 32.2 13.93

32 RLC-PRC005-E4

Performance Data

SI Units English Units

Table P-53 — ARI Part-Load Values RTAC Low-Noise Standard Table P-55 — ARI Part-Load Values RTAC Low-Noise Standard

(along with ARI 550/590-98) (along with ARI 550/590-98)

Unit % Load kW cooling P.I. kW COP (kW/kW) IPLV (kW/kW) Unit % Load tons P.I. kW EER IPLV

140 100 473.9 175.9 2.58 4.03 140 100 473.9 175.9 8.82 13.75

75 353.4 90.2 3.62 75 353.4 90.2 12.35

50 232.5 49.6 4.33 50 232.5 49.6 14.77

25 116.1 21.9 4.47 25 116.1 21.9 15.26

155 100 519.8 193.6 2.57 3.98 155 100 519.8 193.6 8.78 13.60

75 382.6 99.5 3.55 75 382.6 99.5 12.11

50 254.6 53.5 4.35 50 254.6 53.5 14.86

25 127.3 25.1 4.24 25 127.3 25.1 14.48

170 100 566.1 211.3 2.57 3.96 170 100 566.1 211.3 8.76 13.51

75 417.1 108.8 3.53 75 417.1 108.8 12.06

50 277.5 60.1 4.27 50 277.5 60.1 14.56

25 138.9 26.6 4.40 25 138.9 26.6 15.03

185 100 628.8 233.5 2.58 3.98 185 100 628.8 233.5 8.81 13.58

75 463.5 120.6 3.55 75 463.5 120.6 12.11

50 308.1 64.4 4.39 50 308.1 64.4 14.98

25 154.0 32.1 4.07 25 154.0 32.1 13.89

200 100 692.7 256.2 2.59 3.96 200 100 692.7 256.2 8.85 13.53

75 508.9 131.9 3.56 75 508.9 131.9 12.16

50 339.4 73.5 4.28 50 339.4 73.5 14.61

25 169.9 33.8 4.29 25 169.9 33.8 14.64

Table P-54 — ARI Part-Load Values RTAC Low-Noise High-Efficiency Table P-56 — ARI Part-Load Values RTAC Low-Noise High-

(along with ARI 550/590-98) Efficiency (along with ARI 550/590-98)

Unit % Load kW cooling P.I. kW COP (kW/kW) IPLV (kW/kW) Unit % Load tons P.I. kW EER IPLV

120 100 412.6 137.4 2.85 4.24 120 100 117.3 137.4 9.72 14.48

75 302.8 73.9 3.72 75 86.1 73.9 12.70

50 202.2 39.8 4.61 50 57.5 39.8 15.73

25 101.3 16.9 4.83 25 28.8 16.9 16.49

130 100 458.1 151.2 2.87 4.27 130 100 130.3 151.2 9.80 14.58

75 337.9 81.1 3.78 75 96.1 81.1 12.89

50 224.4 42.7 4.71 50 63.8 42.7 16.09

25 112.2 20.2 4.45 25 31.9 20.2 15.20

140 100 502.6 164.9 2.89 4.28 140 100 142.9 164.9 9.85 14.62

75 370.7 87.8 3.82 75 105.4 87.8 13.04

50 246.2 48.1 4.64 50 70.0 48.1 15.83

25 123.1 21.3 4.69 25 35.0 21.3 15.99

155 100 547.7 181.7 2.86 4.24 155 100 155.7 181.7 9.75 14.46

75 401.6 95.8 3.79 75 114.2 95.8 12.95

50 268.3 52.1 4.63 50 76.3 52.1 15.81

25 134.3 24.7 4.41 25 38.2 24.7 15.04

170 100 593.7 198.6 2.83 4.20 170 100 168.8 198.6 9.67 14.35

75 437.9 105.1 3.78 75 124.5 105.1 12.88

50 291.2 58.4 4.54 50 82.8 58.4 15.49

25 145.6 26.0 4.58 25 41.4 26.0 15.62

185 100 661.2 220.9 2.84 4.21 185 100 188.0 220.9 9.70 14.36

75 484.3 116.4 3.78 75 137.7 116.4 12.90

50 324.3 63.5 4.63 50 92.2 63.5 15.79

25 162.1 31.5 4.25 25 46.1 31.5 14.49

200 100 730.4 243.4 2.85 4.20 200 100 207.7 243.4 9.74 14.34

75 536.7 129.0 3.79 75 152.6 129.0 12.94

50 358.0 72.3 4.54 50 101.8 72.3 15.48

25 179.0 33.2 4.49 25 50.9 33.2 15.33

33

RLC-PRC005-E4

Performance Adjustment Factors

Table F1

—

Performance Data Adjustment Factors

Chilled

Altitude

Fouling Water

Sea level 600 m 1200 m 1800 m

Factor Temperature Cooling Evaporator Compressor Cooling Evaporator Compressor Cooling Evaporator Compressor Cooling Evaporator Compressor

(SI) Drop °C Capacity Flow Rate kW Capacity Flow Rate kW Capacity Flow Rate kW Capacity Flow Rate kW

4 0.998 1.500 0.999 0.986 1.485 1.011 0.974 1.466 1.026 0.96 1.443 1.044

5 1.000 1.200 1.000 0.989 1.188 1.011 0.975 1.172 1.027 0.961 1.154 1.045

0.0176 6 1.000 1.000 1.000 0.99 0.990 1.013 0.977 0.977 1.028 0.962 0.962 1.046

m² K/kW 7 1.002 0.857 1.001 0.991 0.849 1.013 0.979 0.837 1.029 0.964 0.825 1.047

8 1.003 0.750 1.001 0.992 0.743 1.015 0.98 0.733 1.03 0.966 0.722 1.049

9 1.004 0.667 1.02 0.995 0.660 1.016 0.982 0.651 1.031 0.967 0.641 1.05

10 1.005 0.600 1.025 0.997 0.594 1.017 0.983 0.586 1.032 0.97 0.577 1.051

4 0.982 1.479 0.99 0.972 1.464 1.020 0.96 1.446 1.017 0.946 1.425 1.035

5 0.984 1.183 0.991 0.974 1.171 1.030 0.962 1.157 1.019 0.947 1.140 1.036

0.044 6 0.986 0.986 0.992 0.976 0.976 1.050 0.964 0.964 1.02 0.95 0.950 1.038

m² K/kW 7 0.987 0.845 0.993 0.978 0.837 1.060 0.966 0.826 1.021 0.952 0.814 1.039

8 0.99 0.740 0.995 0.98 0.732 1.080 0.968 0.723 1.022 0.954 0.713 1.041

9 0.993 0.657 0.996 0.983 0.651 1.090 0.97 0.643 1.023 0.956 0.633 1.042

10 0.995 0.592 0.997 0.985 0.586 1.010 0.973 0.578 1.024 0.958 0.570 1.043

Chilled

Altitude

Fouling Water

Sea level 2000 ft 4000 ft 6000 ft

Factor Temperature Cooling Evaporator Compressor Cooling Evaporator Compressor Cooling Evaporator Compressor Cooling Evaporator Compressor

(US) Drop °F Capacity gpm kW Capacity gpm kW Capacity gpm kW Capacity gpm kW

8 0.997 1.246 0.999 0.987 1.233 1.012 0.975 1.217 1.027 0.960 1.200 1.045

10 1 1 1 0.989 0.989 1.013 0.977 0.977 1.028 0.963 0.963 1.047

0.0001 12 1.003 0.835 1.001 0.992 0.826 1.014 0.979 0.816 1.030 0.965 0.804 1.048

14 1.004 0.717 1.002 0.993 0.710 1.016 0.981 0.701 1.031 0.966 0.690 1.049

16 1.006 0.629 1.003 0.995 0.622 1.016 0.982 0.614 1.032 0.968 0.605 1.050

8 0.982 1.227 0.991 0.972 1.215 1.003 0.961 1.200 1.018 0.947 1.183 1.036

10 0.986 0.985 0.992 0.975 0.975 1.005 0.963 0.963 1.020 0.950 0.950 1.038

0.00025 12 0.988 0.823 0.994 0.978 0.815 1.006 0.966 0.805 1.022 0.952 0.793 1.040

14 0.991 0.708 0.995 0.980 0.700 1.008 0.968 0.692 1.023 0.954 0.682 1.041

16 0.992 0.621 0.996 0.982 0.614 1.009 0.970 0.606 1.024 0.956 0.598 1.042

34 RLC-PRC005-E4

Performance Adjustment Factors

10

100

10 100

Flow Lps

Evp. F140 (RTAC 120/140) Evp. F155 (RTAC 130/155)

Evp. F170 (RTAC 140/170) Evp. F185 RTAC (155/185)

Evp. F200 (RTAC 170/200) Evp. F220 (RTAC 185HE)

Evp. F240 (RTAC 200HE) Legend (RTAC HE/STD)

20 30 40 50 60 70 80 90

20

30

40

50

60

70

80

90

Figure F1 — Evaporator Water Pressure Drops, RTAC 120 to 200 (SI)

1.0

10.0

100.0

100.0 1000.0

Flow GPM

WPD ft of WG

Evp. F140 (RTAC 120/140) Evp. F155 (RTAC 130/155)

Evp. F170 (RTAC 140/170) Evp. F185 RTAC (155/185)

Evp. F200 (RTAC 170/200) Evp. F220 (RTAC 185HE)

Evp. F240 (RTAC 200HE) Legend (RTAC HE/STD)

200 300 400 500 600 700 800 900

Figure F2 — Evaporator Water Pressure Drops, RTAC 120 to 200 (US Units)

35

RLC-PRC005-E4

Performance Adjustment Factors

Figure F-3 — Ethylene Glycol Performance Factors Figure F-4 — Propylene Glycol Performance Factors

Figure F-5 — Ethylene Glycol and Propylene Glycol Freeze Point

36 RLC-PRC005-E4

Simple Interface with Other

Control Systems

Microcomputer controls afford a simple

interface with other control systems,

such as time clocks, building automation

systems, and ice storage systems. This

means you can have the flexibility to

meet job requirements while not having

to learn a complicated control system.

This setup has the same standard

features as a stand-alone water chiller,

with the possibility of having the

following optional features.

Alarm Indication Contacts

The unit provides four single-pole,

double-throw contact closures to

indicate that a failure has occurred, if

any compressors are running, or if the

compressors are running at maximum

capacity. These contact closures may be

used to trigger job-site-provided alarm

lights or alarm bells.

Generic Building Automation

System Controls

External Chilled-Water Set Point

Allows the external setting independent

of the front panel set point by one of

two means:

a) 2-10 VDC input, or

b) 4-20 mA input.

External Current-Limit Set Point

Allows the external setting independent

of the front panel set point by one of

two means:

a) 2-10 VDC input, or

b) 4-20 mA input.

Ice-Making Control

Provides an interface to ice-making

control systems.

Chilled-Water Temperature Reset

Reset can be based on return water

temperature or outdoor air temperature.

Figure 6

Pumps

Tracer Chiller Plant Manager IBM PC with Building

Management Network

Modem

Tracer Summit™ Controls —

Interface with the Trane

Integrated Comfort System (ICS)

Trane Chiller Plant Manager with ICS

The Tracer Chiller Plant Manager

building management system provides

building automation and energy

management functions through stand-

alone control. The Chiller Plant Manager

is capable of monitoring and controlling

your entire chiller plant system.

Application software available:

• Time-of-day scheduling

• Duty cycle

• Demand limiting

• Chiller sequencing

• Process control language

• Boolean processing

• Zone control

• Reports and logs

• Custom messages

• Run time and maintenance

• Trend log

• PID control loops

And of course, the Trane Chiller Plant

Manager panel can be used on a stand-

alone basis or tied into a complete

building automation system.

When the air-cooled Series R™chiller is

used in conjunction with a Trane Tracer™

system, the unit can be monitored and

controlled from a remote location. The

air-cooled Series R chiller can be

controlled to fit into the overall building

automation strategy by using time-of-

day scheduling, timed override, duty

cycling, demand limiting, and chiller

sequencing. A building owner can

completely monitor the air-cooled Series

R chiller from the Tracer system, since all

of the monitoring information indicated

on the microcomputer can be read on

the Tracer system display. In addition, all

the powerful diagnostic information can

be read back at the Tracer system. Best

of all, this powerful capability comes

over a single twisted pair of wires! Air-

cooled Series R chillers can interface

with many different external control

systems, from simple stand-alone units

to ice-making systems. Each unit

requires a single-source, three-phase

power supply and a 115-volt power

supply. The 115-volt supply handles the

freeze protection for the evaporator

heaters.

A single twisted pair of wires tied

directly between the air-cooled Series R™

chiller and a Tracer™system provides

control, monitoring, and diagnostic

capabilities. Control functions include

auto/stop, adjustment of leaving-water-

temperature set point, compressor

operation lockout for kW demand

limiting, and control of ice-making

mode. The Tracer system reads

monitoring information such as

entering- and leaving-evaporator-water

temperatures and outdoor air

temperature. Over 60 individual

diagnostic codes can be read by the

Tracer system. In addition, the Tracer

system can provide sequencing control

for two to six units on the same chilled-

water loop. Pump sequencing control

can be provided from the Tracer system.

Tracer ICS is not available in conjunction

with the remote display or the external

set point capability.

Required Options

1

Tracer Comm 3 Interface

Additional Options that May Be Used

Ice-Making Control

External Trane Devices Required

Tracer Summit™, Tracer 100 System or

Tracer Chiller Plant Manager

Ice-Making Systems Controls

An ice-making option may be ordered

with the air-cooled Series R™chiller. The

unit will have two operating modes, ice

making and normal daytime cooling. In

the ice-making mode, the air-cooled

Series R chiller will operate at full

compressor capacity until the return

chilled-fluid temperature entering the

evaporator meets the ice-making set

point. This ice-making set point is

manually adjusted on the unit’s

microcomputer. Two input signals are

required to the air-cooled Series R chiller

for the ice-making option. The first is an

auto/stop signal for scheduling, and the

second is required to switch the unit

between the ice-making mode and

normal daytime operation. The signals are

provided by a remote job site building-

automation device such as a time clock or

a manual switch. In addition, the signals

may be provided over the twisted wire

pair from a Tracer™system.

Required Options

External Auto/Stop (Standard)

Ice-Making Control

Additional Options That May Be Used

Failure Indication Contacts

Communications Interface (For Tracer

Systems)

Chilled-Water Temperature Reset

External Trane Devices Required-None

Note: All wiring outside the unit is

supplied at the job site.

Generic Building Automation

System Controls

37

RLC-PRC005-E4

38 RLC-PRC005-E4

Controls

Safety Controls

A centralized microcomputer offers a

higher level of machine protection.

Because the safety controls are smarter,

they limit compressor operation in order

to avoid compressor or evaporator

failures, thereby minimizing nuisance

shutdowns. Tracer™Chiller Controls

directly senses the control variables that

govern the operation of the chiller:

motor current draw, evaporator

pressure, condenser pressure, and so

forth. When any one of these variables

approaches a limit condition at which

the unit may be damaged or shut down

on a safety, Tracer Chiller Controls takes

corrective action to avoid shutdown and

keep the chiller operating. It does this

through combined actions of

compressor slide-valve modulation,

electronic expansion-valve modulation,

and fan staging. Tracer Chiller Controls

optimizes total chiller power

consumption during normal operating

conditions. During abnormal operating

Tracer™Chiller Control human interfaces

The Trane air-cooled Series R Model

RTAC chiller offers two easy-to-use

operator interface panels, the EasyView,

and the DynaView.

Standard Features

External Auto/Stop

A job-site-provided contact closure will

turn the unit on and off.

Chilled Waterflow Interlock

A job-site-provided contact closure from

a chilled-water pump contactor, or a

flow switch, is required and will allow

unit operation if a load exists. This

feature will allow the unit to run in

conjunction with the pump system.

External Interlock

A job-site-provided contact opening

wired to this input will turn the unit off

and require a manual reset of the unit

microcomputer. This closure is typically

triggered by a job-site-provided system

such as a fire alarm.

Chilled Water Pump Control

Unit controls provide an output to

control the chilled-water pump(s). One

contact closure to the chiller is all that is

required to initiate the chilled-water

system.

Additional Features That May Be Used

(requires some optional factory-installed

hardware)

Alarm Indication Contacts

Chilled-Water Temperature Reset

Note: All wiring outside the unit is

supplied at the job site.

Integrated Comfort™

System Interface

Easy Interface to a Generic Building

Management System

Controlling the air-cooled Series R chiller

with building management systems is

state-of-the-art, yet simple. Chiller inputs

include:

• Chiller enable/disable

• Circuit enable/disable

• Chilled liquid set point

• Current limit set point

• Ice-making enable

Chiller outputs include:

• Compressor running indication

• Alarm indication (ckt 1/ckt 2)

• Maximum capacity

• Ice making

conditions, the microprocessor will

continue to optimize chiller performance

by taking the corrective action necessary

to avoid shutdown. This keeps cooling

capacity available until the problem can

be solved. Whenever possible, the chiller

is allowed to perform its function: make

chilled water. In addition,

microcomputer controls allow for more

types of protection, such as over and

under voltage! Overall, the safety

controls help keep the building or

process running and out of trouble.

Stand-alone controls

Interfacing to stand-alone units is very

simple: only a remote auto/stop for

scheduling is required for unit operation.

Signals from the chilled-water pump

contactor auxiliary, or a flow switch, are

wired to the chilled-water flow interlock.

Signals from a time clock or some other

remote device are wired to the external

auto/stop input.

Figure 7 — Easy View

Figure 8 — Dyna View

39

RLC-PRC005-E4

Typical Wiring Diagram

Figure 9 — Compressor wiring diagram and control supply

RTAC 120-200

Figure 10 — Control diagram

40 RLC-PRC005-E4

Typical Wiring Diagram

Figure 11 — Compressor control diagram

RTAC 120-200

41

RLC-PRC005-E4

Figure 13 — Option control diagram

Typical Wiring Diagram

Figure 12 — Control wiring diagram

RTAC 120-200

42 RLC-PRC005-E4

Notes

1 Refer to Power Wiring Diagram

2 Refer to Control Wiring Diagram

3 Refer to Fans Power Wiring

Diagram

4 Remove the Jumper Wire When

Using the Remote Contact

5 Not Supplied with Night Noise

Setback (Option 19)

6 Supplied When PED Approval

7 Factory Connected

10 Valid for RTAC 155-170-185-200

11 Valid for RTAC 185-200

12 Valid for RTAC 170 - 185 - 200

13 Valid for RTAC 200

14 Valid for RTAC 130- 140-155-170-

185-200

15 Valid for RTAC 140- 155- 170-

185- 200

Customer Inputs

E1 External Current Limit Set Point

E2 External Chilled-Water Set Point

E4 Ice-Making Enable Customer

Outputs

S2 Programmable Relays

S8 Ice-Making Enable

S10 Tracer™ Communication Link

Trane Wiring

Customer Wiring

Component Identification

Ex 1K20-1

Index

Attribute

Designation

Location

Location Numbering

Nothing = Control Panel Wiring

1 Control Panel Power Wiring

2 Compressor

3 Oil Circuit

4 Fans

5 Heat Exchanger

6 Customer Wiring

7 Miscellaneous

Typical Wiring Diagram

RTAC 120-200

Legend

Item Designation

A2 Dual Analog Input/Output

Module

A3 Fans Inverter Interface Module

A4 4 Relays Output Module

A5 2 Relays Output Module

A6 Dual Low Voltage Binary Input

Module

A7 Dual High Voltage Binary Input

Module

A8 Dual Triac Output Module

A9 Communication Module

A10 Power Supply Module

A14 Starter Module

A53 Local Human Interface

A54 Remote Human Interface

A55 IPC Buffer

K43 6S43 Relay

Q2 Circuit Breaker

1B52 Evaporator Heater Thermostat

1 F3 1T3 Protection Fuse

1F25 Compressor Fuse

1F45 Fan Motor Fuse

1K4 Protection Relay

1K21 Compressor Transition

Contactor

1K22 Compressor Line

Contactor

1K23 Star Compressor Contactor

1K24 Delta Compressor Starter

1K40 Fan Contactor

1Q5 Circuit Breaker

1Q10 Disconnect Switch

1Q45 Condenser Fan Motor Circuit

Breaker

1R20 Compressor Transition Resistors

1T2 Control Power Transformer

1T3 Over/Undervoltage Transformer

1T10 to 1T20 Current Transformers

1X Control Terminal

1X20 Compressor Power Terminal

2M20 Compressor Motor

2Y21 Compressor Unloading

Solenoid Valve

2Y22 Compressor Loading Solenoid

Valve

2Y23 Compressor Unloading Step

Solenoid Valve

3B30 Oil Control Sensor

3E30 Compressor Oil Heater

3E31 Oil Separator Heater

3R30 Oil Temperature Sensor

3Y30 Oil Line Solenoid Valve

4M40 Condenser Fan Motor

5B23 Low Pressure Control

5B51 High Pressure Control

5B53 Evaporator Refrigerant Level

Control

5B56 High Pressure Transducer

5E51 Evaporator Heater

5R3 Ambient Air Sensor

5R51 Leaving-Evaporator-Water

Temperature Sensor

5R52 Entering-Evaporator-Water

Temperature Sensor

5Y53 Electronic Expansion Valve

6K51 Chilled-water Pump Contactor

6M51 Chilled-Water Pump Motor

6Q... Circuit Breaker

6S1 Chiller On/Off Switch

6S3 Stop/Manual Reset Switch

6S6 Circuit 1 Interlock Switch

6S7 Circuit 2 Interlock Switch

6S43 Time Clock Contact

6S51 Chilled-water Pump On/Off

Switch

6S55 Ice-making Enable

6S56 Chilled-water Flow Switch

6X Customer Wiring Terminal

Optional

Item Designation (circled items)

B Main Terminal Block and Fuses

E Unit Disconnect Switch

J Over/Undervoltage Transformer

K Ground Fault Detection Relay

R Evaporator Heater Thermostat

9 Low-Ambient Option

11 Communication Card

15 Remote Operator Interface

19 Night Noise Setback

20 Ice-Making Controls Card

22 External Setpoints Input Card

24 Evaporator Heaters

43

RLC-PRC005-E4

Figure 15 — Condenser fan control diagram

Typical Wiring Diagram

RTAC 120-200

Figure 14 — Condenser fan wiring diagram

44 RLC-PRC005-E4

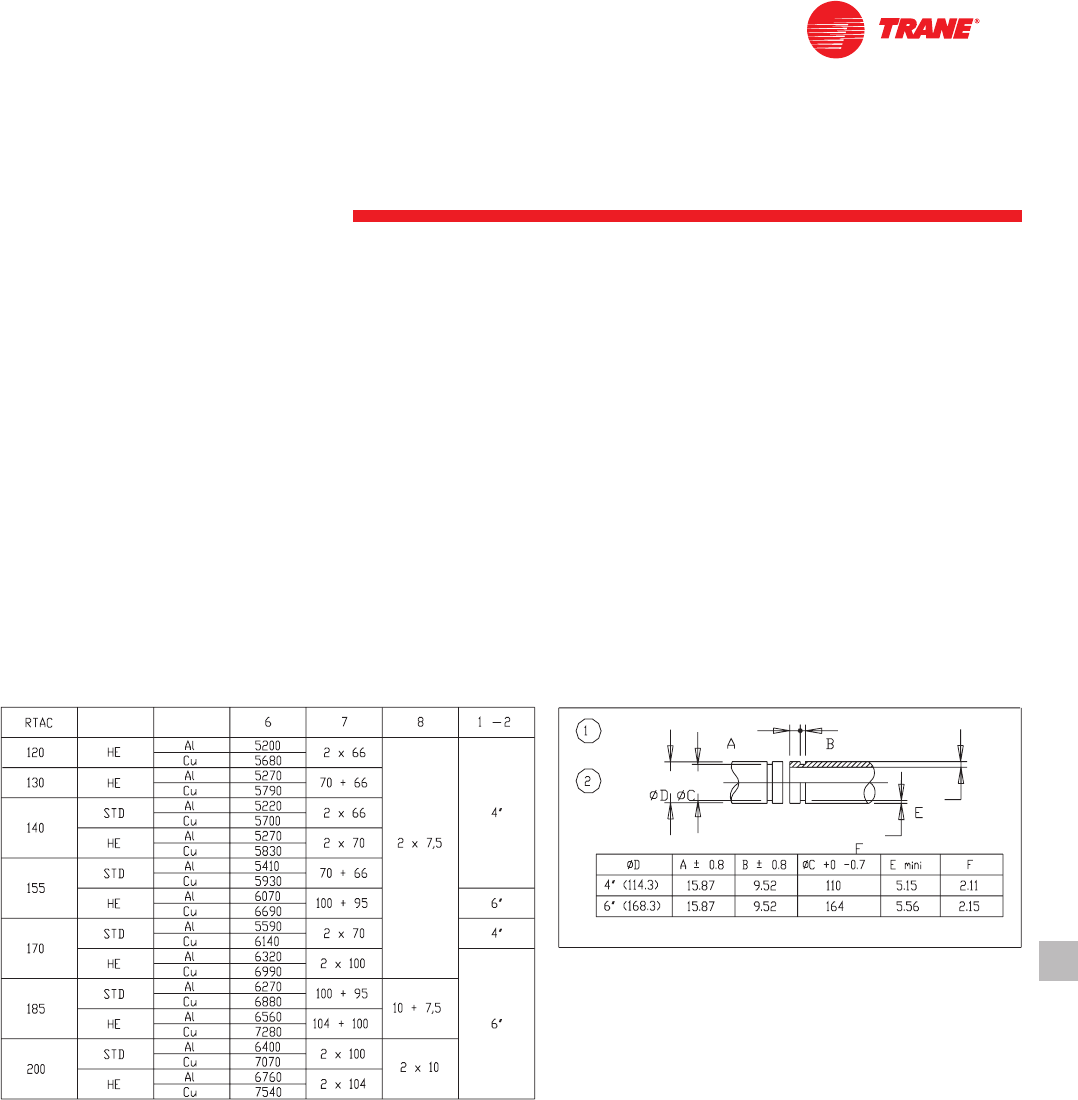

Job Site Data

Job Site Connections

Table J-1

—

Customer Wire Selection

Unit without Disconnect Switch Unit with Disconnect Switch

Voltage 400/3/50 Wire Selection Size Wire Selection Size

to Main Terminal Block to Disconnect Switch

Unit Minimum cable Maximum cable Disconnect Switch Minimum cable Maximum cable

Size size mm²size mm²Size (amps) size mm²size mm²

Standard

140 2x95 mm²2x240 mm²6x250 + 3x125 2x95 mm²2x240 mm²

155 2x185 mm²2x240 mm²6x400 + 3x125 2x185 mm²2x240 mm²

170 2x185 mm²2x240 mm²6x400 + 3x125 2x185 mm²2x240 mm²

185 2x185 mm²2x240 mm²6x400 + 3x125 2x185 mm²2x240 mm²

200 2x185 mm²2x240 mm²6x400 + 3x125 2x185 mm²2x240 mm²

Standard Low Noise

140 2x95 mm²2x240 mm²6x250 + 3x125 2x95 mm²2x240 mm²

155 2x185 mm²2x240 mm²6x400 + 3x125 2x185 mm²2x240 mm²

170 2x185 mm²2x240 mm²6x400 + 3x125 2x185 mm²2x240 mm²

185 2x185 mm²2x240 mm²6x400 + 3x125 2x185 mm²2x240 mm²

200 2x185 mm²2x240 mm²6x400 + 3x125 2x185 mm²2x240 mm²

High Efficiency

120 2x95 mm²2x240 mm²6x250 + 3x125 2x95 mm²2x240 mm²

130 2x95 mm²2x240 mm²6x250 + 3x125 2x95 mm²2x240 mm²

140 2x95 mm²2x240 mm²6x250 + 3x125 2x95 mm²2x240 mm²

155 2x185 mm²2x240 mm²6x400 + 3x125 2x185 mm²2x240 mm²

170 2x185 mm²2x240 mm²6x400 + 3x125 2x185 mm²2x240 mm²

185 2x185 mm²2x240 mm²6x400 + 3x125 2x185 mm²2x240 mm²

200 2x185 mm²2x240 mm²6x400 + 3x125 2x185 mm²2x240 mm²

High Efficiency Low Noise

120 2x95 mm²2x240 mm²6x250 + 3x125 2x95 mm²2x240 mm²

130 2x95 mm²2x240 mm²6x250 + 3x125 2x95 mm²2x240 mm²

140 2x95 mm²2x240 mm²6x250 + 3x125 2x95 mm²2x240 mm²

155 2x185 mm²2x240 mm²6x400 + 3x125 2x185 mm²2x240 mm²

170 2x185 mm²2x240 mm²6x400 + 3x125 2x185 mm²2x240 mm²

185 2x185 mm²2x240 mm²6x400 + 3x125 2x185 mm²2x240 mm²

200 2x185 mm²2x240 mm²6x400 + 3x125 2x185 mm²2x240 mm²

45

RLC-PRC005-E4

Electrical Data

Table E-1

—

Electrical Data 400/3/50

Unit Wiring

Unit Number of Power Maximum Starting Power Disconnect Compressor

Size Connections Amps (1) Amps (2) Factor Switch Size Fuse Size (A)

Standard

140 1 398 469 0.88 6x250 + 3x125 250/250

155 1 437 494 0.88 6x400 + 3x125 315/250

170 1 475 532 0.88 6x400 + 3x125 315/315

185 1 525 596 0.88 6x400 + 3x125 400/400

200 1 574 645 0.88 6x400 + 3x125 400/400

Standard Low Noise 0.88

140 1 383 454 0.88 6x250 + 3x125 250/250

155 1 420 477 0.88 6x400 + 3x125 315/250

170 1 456 513 0.88 6x400 + 3x125 315/315

185 1 504 575 0.88 6x400 + 3x125 400/400

200 1 551 622 0.88 6x400 + 3x125 400/400

High Efficiency 0.88

120 1 330 398 0.88 6x250 + 3x125 250/250

130 1 369 440 0.88 6x250 + 3x125 250/250

140 1 407 478 0.88 6x250 + 3x125 250/250

155 1 444 501 0.88 6x400 + 3x125 315/250

170 1 484 541 0.88 6x400 + 3x125 315/315

185 1 534 605 0.88 6x400 + 3x125 400/400

200 1 583 654 0.88 6x400 + 3x125 400/400

High Efficiency Low Noise 0.88

120 1 315 383 0.88 6x250 + 3x125 250/250

130 1 352 423 0.88 6x250 + 3x125 250/250

140 1 388 459 0.88 6x250 + 3x125 250/250

155 1 423 480 0.88 6x400 + 3x125 315/250

170 1 461 518 0.88 6x400 + 3x125 315/315

185 1 509 580 0.88 6x400 + 3x125 400/400

200 1 557 628 0.88 6x400 + 3x125 400/400

Notes:

1. Maximum Compressors FLA + all fans FLA + control Amps

2. Starting Amps of the circuit with the largest compressor circuit including fans plus RLA of the second circuit including fans and control amps

Electrical Data

46 RLC-PRC005-E4

Table E-1

—

Electrical Data 400/3/50

Motor Data Option

Compressor (Each) Fans (Each) Control Evaporator

Max Amps (1) Starting Amps (2) Fans Fuse Heater

Quantity Circuit 1 Circuit 2 Circuit 1 Circuit 2 Quantity kW FLA Size (A) VA A kW

Standard

2 180 180 251 251 8 1.88 4.5 80 860 2.15 0.5

2 214 180 271 251 9 1.88 4.5 80 860 2.15 0.5

2 214 214 271 271 10 1.88 4.5 80 860 2.15 0.5

2 259 214 330 271 11 1.88 4.5 80 860 2.15 0.5

2 259 259 330 330 12 1.88 4.5 80 860 2.15 0.5

Standard Low Noise

2 180 180 251 251 8 0.85 2.6 80 860 2.15 0.5

2 214 180 271 251 9 0.85 2.6 80 860 2.15 0.5

2 214 214 271 271 10 0.85 2.6 80 860 2.15 0.5

2 259 214 330 271 11 0.85 2.6 80 860 2.15 0.5

2 259 259 330 330 12 0.85 2.6 80 860 2.15 0.5

High Efficiency

2 146 146 214 214 8 1.88 4.5 80 860 2.15 0.5

2 180 146 251 214 9 1.88 4.5 80 860 2.15 0.5

2 180 180 251 251 10 1.88 4.5 80 860 2.15 0.5

2 214 178 271 251 11 1.88 4.5 80 860 2.15 0.5

2 214 214 271 271 12 1.88 4.5 80 860 2.15 0.5

2 259 214 330 271 13 1.88 4.5 80 860 2.15 0.5

2 259 259 330 330 14 1.88 4.5 80 860 2.15 0.5

High Efficiency Low Noise

2 146 146 214 214 8 0.85 2.6 80 860 2.15 0.5

2 180 146 251 214 9 0.85 2.6 80 860 2.15 0.5

2 180 180 251 251 10 0.85 2.6 80 860 2.15 0.5

2 214 178 271 251 11 0.85 2.6 80 860 2.15 0.5

2 214 214 271 271 12 0.85 2.6 80 860 2.15 0.5

2 259 214 330 271 13 0.85 2.6 80 860 2.15 0.5

2 259 259 330 330 14 0.85 2.6 80 860 2.15 0.5

Notes:

1. Maximum FLA per compressor.

2. Compressors starting amps, Star delta start.

47

RLC-PRC005-E4

Dimensional Data

140-155-170 STD

120-130-140 HE

Figure 16

48 RLC-PRC005-E4

Dimensional Data

185-200 STD

185-200 HE

Figure 17

49

RLC-PRC005-E4

Dimensional Data

Liquid Chillers

1 Evaporator Water Inlet Connection

2 Evaporator Water Outlet Connection

3 Electrical Panel

4 Power Supply Inlet (155 X 400)

5 Rigging Eyes 045

6 Operating Weight (Kg)

7 Refrigerant Charge (Kg) R134a

8 Oil Charge (Litres)

9 Minimum Clearance (For Maintenance)

10 Minimum Clearance (Evaporator Tubes

Removal)

11 Minimum Clearance (Air Entering)

12 Frame Post

13 Recommended Chilled Water Pipework Layout

Options

14 Power Disconnect Switch

15 Isolators

16 Chilled Water Pump Starter Panel

Figure 18

50 RLC-PRC005-E4

Mechanical Specifications

General

Units are leak- and pressure-tested at

24.5 bars [350 psi] high side and 14 bars

[200 psi] low side, and then evacuated

and charged. Packaged units ship with a

full operating charge of oil and

refrigerant. Unit panels, structural

elements, and control boxes are

constructed of 1.5 to 3 mm [11 to 16

gauge] galvanized sheet metal and

mounted on a welded structural-steel

base. Unit panels and control boxes are

finished with baked-on powder paint,

and the structural-steel base is finished

with an air-dry paint RAL 1019.

Evaporator

The evaporator is a tube-in-shell heat

exchanger design, with internally-finned

copper tubes roller-expanded into the

tube sheet. The evaporator is designed,

tested, and stamped in accordance with

the appropriate pressure-vessel code

approval. The evaporator is designed for

a waterside working pressure of 14

bars[200 psi]. Water connections are

grooved pipe for Victaulic couplings.

Each shell includes a vent, a drain, and

fittings for temperature control sensors,

and is insulated with 19mm [3/4 inch]

Armaflex II (or equivalent) insulation

(K=0.26). Optional evaporator heaters

with thermostats are provided to protect

the evaporator from freezing at ambient

temperatures down to -25°C [-13°F].

Condenser and Fans

Air-cooled condenser coils have

aluminum fins mechanically bonded to

internally-finned seamless copper

tubing. The condenser coil has an

integral subcooling circuit. Condensers

are factory proof- and leak-tested at 35

bars [500 psi]. Direct-drive vertical-

discharge airfoil

ZephyrWing

condenser

fans are dynamically balanced. Three-

phase condenser fan motors with

permanently-lubricated ball bearings

are provided. Standard units will start

and operate from -4 to 46°C [25 to

115°F] ambient.

Compressor and Lube Oil System

The helical-rotary compressor is semi-

hermetic, direct drive, 3000 rpm, with

capacity-control slide valve, a

load/unload valve, rolling element

bearings, differential refrigerant

pressure oil pump, and oil heater. The

motor is a suction-gas-cooled,

hermetically sealed, two-pole squirrel-

cage induction motor. Oil separator and

filtration devices are provided separate

from the compressor. Check valves in

the compressor discharge and lube oil

system, and a solenoid valve in the

lube system, are provided.

Refrigeration Circuits

Each unit has two refrigerant circuits,

with one helical-rotary compressor per

circuit. Each refrigerant circuit includes

a removable-core filter drier, liquid-line

shutoff valve, liquid-line sight glass with

moisture indicator, charging port, and

an electronic expansion valve. Fully

modulating compressors and electronic

expansion valves provide variable

capacity modulation over the entire

operating range. (Optional compressor

discharge and suction service valve).

Unit Controls

All unit controls are housed in a

weather-tight enclosure, with

removable plates to allow for customer

connection of power wiring and remote

interlocks. All controls, including

sensors, are factory-mounted and -

tested prior to shipment.

Microcomputer controls provide all

control functions including startup and

shutdown, leaving-chilled-water

temperature control, compressor and

electronic expansion-valve modulation,

fan sequencing, anti-recycle logic,

automatic lead/lag compressor starting,

and load limiting. The unit control

module, utilizing the Adaptive Control™

microprocessor, automatically takes

action to avoid unit shutdown due to

abnormal operating conditions

associated with low refrigerant pressure,

high condensing pressure, and motor

current overload. Should the abnormal

operating condition continue until a

protective limit is violated, the unit will

be shut down. Unit protective functions

include loss of chilled-water flow,

evaporator freezing, loss of refrigerant,

low refrigerant pressure, high refrigerant

pressure, reverse rotation, compressor-

starting and -running overcurrent, phase

loss, phase imbalance, phase reversal,

and loss of oil flow. A digital display

indicates chilled-water set point and

leaving-chilled-water temperature as

standard, while current-limit set point,

evaporator and condenser refrigerant

pressures, and electrical information are

an option. Both standard and optional

displays can be viewed on the unit

without opening any control panel

doors. Standard power connections

include main three-phase power to the

compressors, condenser fans, and

control power transformer, and optional

connections are available for the 230

volt single-phase power for freeze

protection on the evaporator heaters.

Starters

Starters are housed in a weather-tight

enclosure with hinged doors to allow for

customer connection of power wiring.

Wye-Delta closed transition starters (33

percent of LRA inrush) are standard. An

optional Wye-Delta closed transition

starter (33 percent of LRA inrush) is

available on 400/3/50 volt units.

Literature Order Number

File Number

Supersedes

Stocking Location

Since The Trane Company has a policy of continuous product improvement, it reserves the right to change

design and specifications without notice.

Société Trane – Société Anonyme au capital de 41500 000 F – Siege Social: 1 rue des Amériques –

88190 Golbey – France – Siret 306 050 188-00011 – RSC Epinal B 306 050 188

Numéro d’identification taxe intracommunanutaire: FR 83 3060501888

The Trane Company

An American Standard Company

www.trane.com

For more information contact

your local sales office or

e-mail us at comfort@trane.com

RLC-PRC005-E4

PL-RF-RLC-PRC-0005-E4-0800

New

La Crosse
