Cooling Only Split System Air Conditioning
30 to 50 MBh - 50 Hz
TWE5-PRC000-EN
April 1999
Insight™
Ducted Air Handler
Air Handler Models
TWE030C
TWE040C
TWE050C
Condensing Models
TTB524-536C
TTA030-060C
2TWE5-PRC000-EN
Features and Benefits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
System Performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Model Nomenclature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Product Data
TWE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
TTB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
TTA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Performance Data
TTB/TWE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
TTA/TWE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Supplementary Heaters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

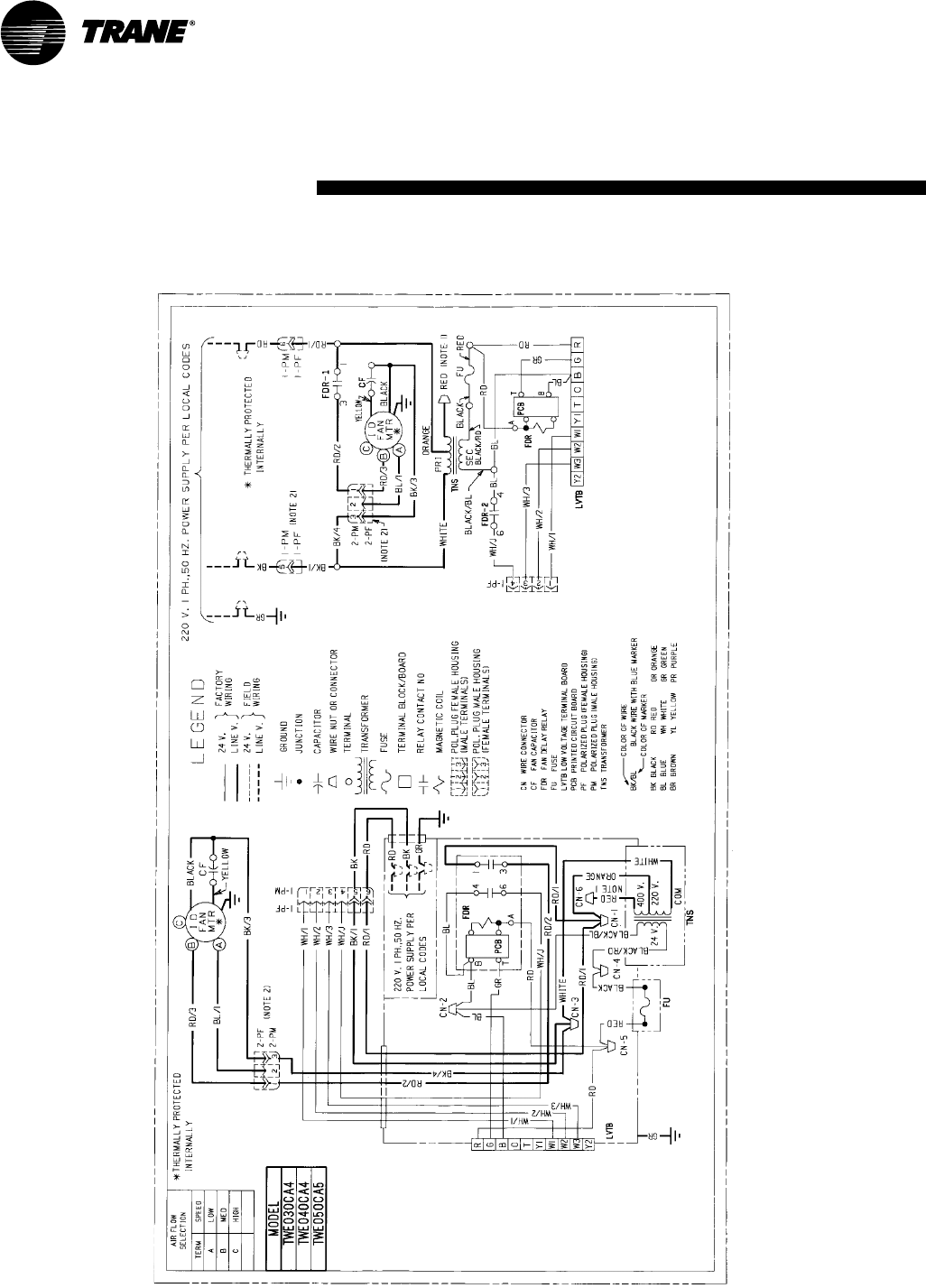

System Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

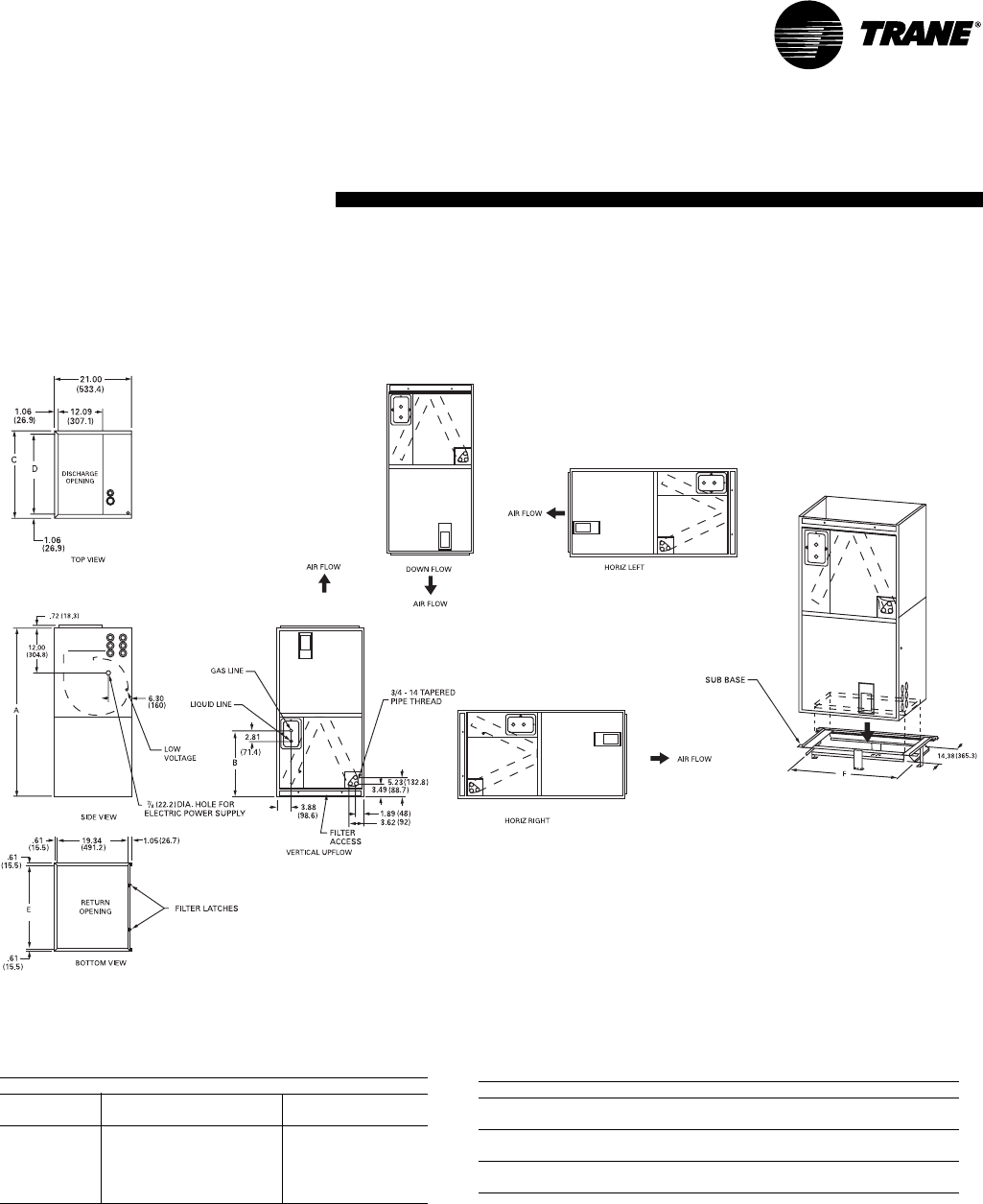

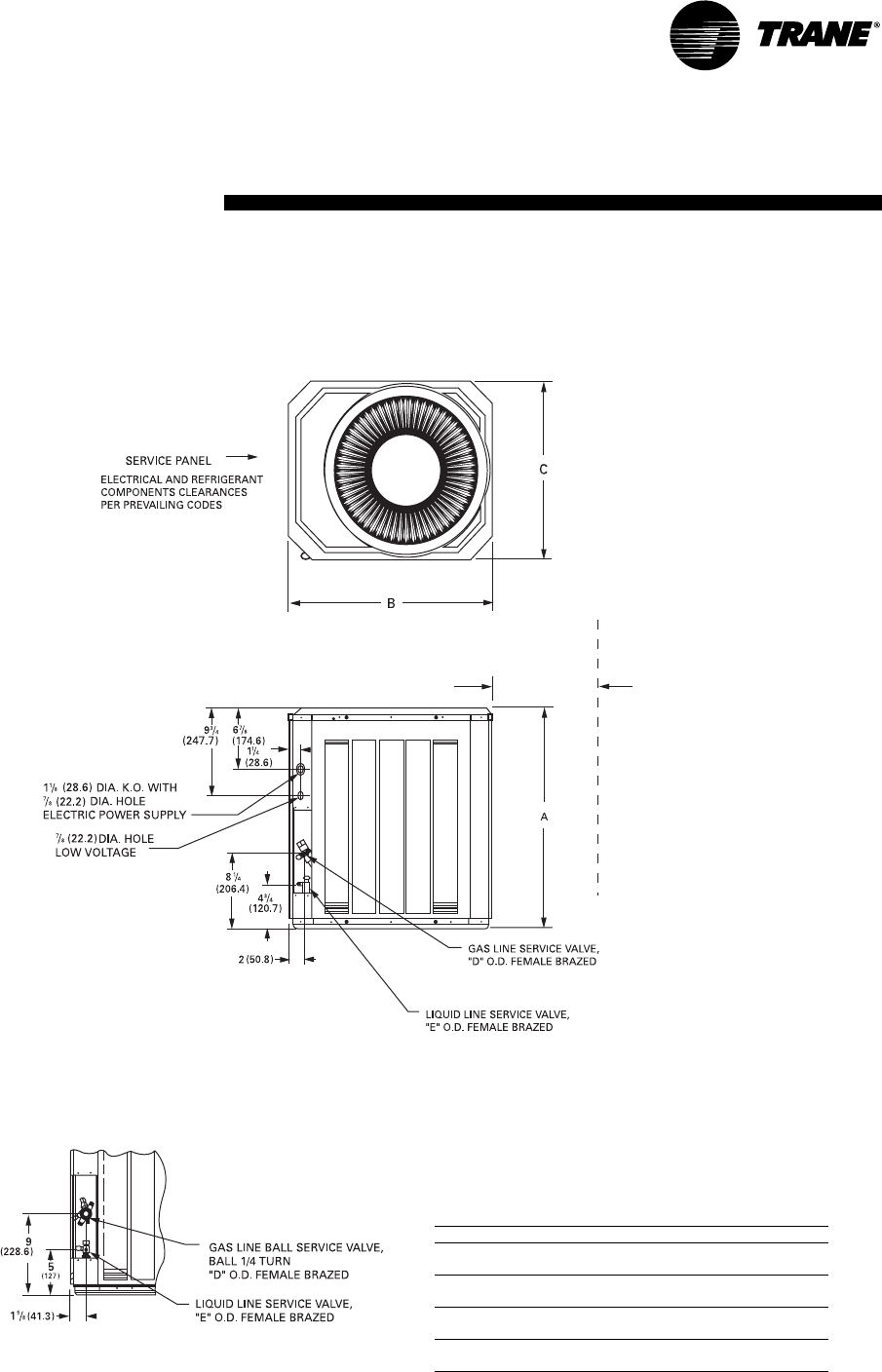

Dimensional Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Mechanical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Table of
Contents
©American Standard Inc. 1999
3TWE5-PRC000-EN
Features and
Benefits

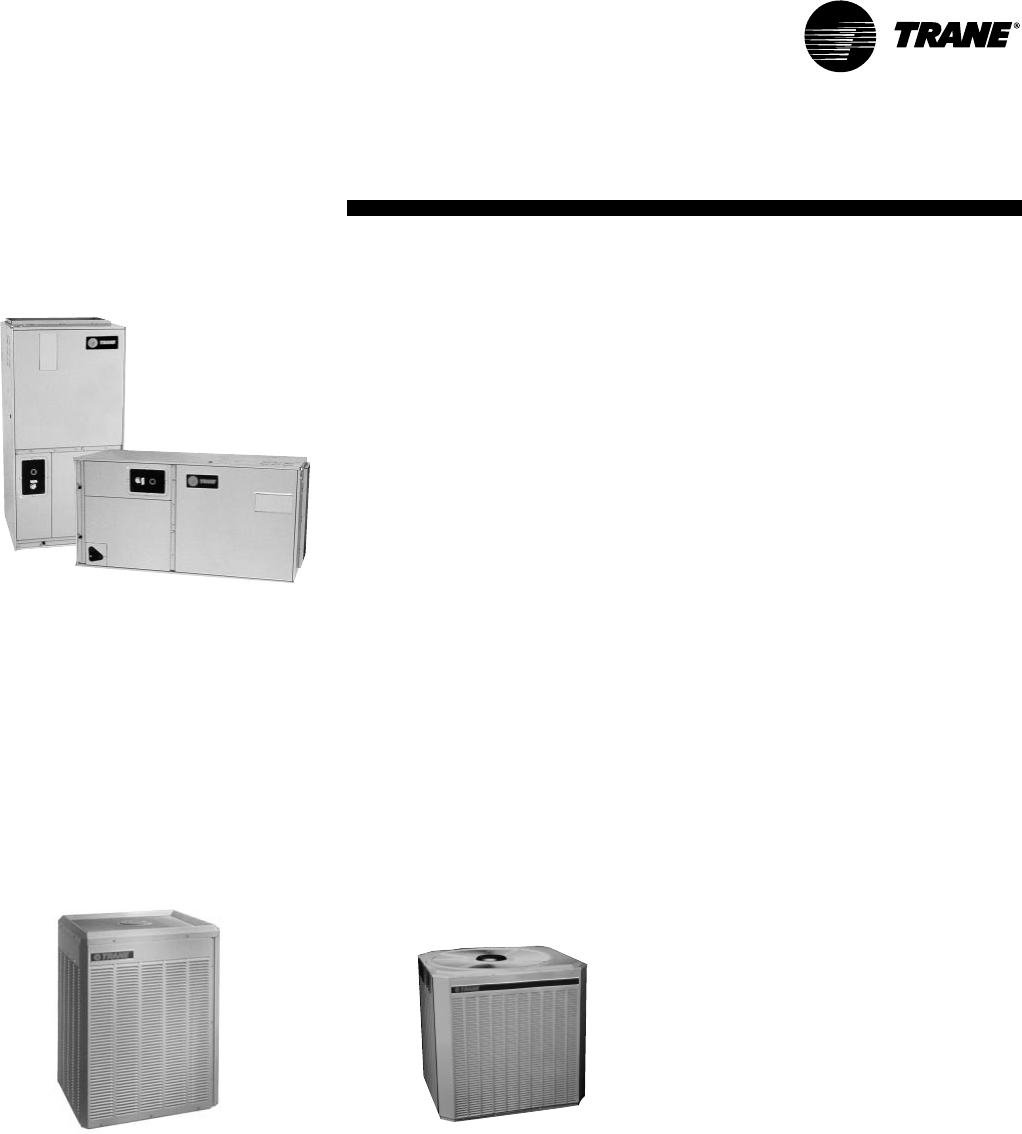

AIR HANDLING UNITS
Features
• Ships horizontal
• Six way convertibility- horizontal (left
and right), upflow, downflow (front and
rear access)
• Electrical, refrigerant, condensate and
blower access convertible to either side
• Corrosion resistant galvanized steel with
attractive finish
• Internally enhanced finned coil tubes
• Direct drive motor
• Standard filters
• Multi-speed blower
• 220 volt primary and 24 volt secondary
transformer
• Insulated cabinet
• External access to heater circuit breakers
• Start kits are not required
• Built-in indoor fan delay function for
increased efficiency. No kit required.
TTA
TTB
CONDENSING UNITS
Features:
• Vertical Air Discharge
• High Efficiency TRANE Climatuff®
Compressor
• Powder Paint finish
• Brazed or flare connections
Benefits:
• Flexibility in application
• Quality and reliability
• Uniform covering for a smooth,
attractive and corrosion-resistant finish
TWE
New Features
• Improved filter access and latch -
Eliminate current T-bar and shipping
bracket.
• Provision for 1 1/8” thick field supplied
electrostatic filter
• Reversible Duct Flanges - Fits up to
1 1/2” duct board
• Improve controls access with control
box mounted next to blower.
• 40 VA transformer with 5 amp
automotive style fuse on 3 tons and less
• 5 Amp automotive style fuse replaces
Bussman “red cap” fuse on 3.5 to 5 ton
models
• Blower mounting brackets improved -
Front access to screw with power driver
• Improved bottom carton cushioning
• 1” thick foil faced insulation for all
models
4TWE5-PRC000-EN
System
Performance
95º F Indoor
Outdoor Unit Indoor Unit *MBh kW CFM CMH
Ducted Air Handlers
TTB524CA00A TWE030CA40B 25.8 6.9 900 1520
TTB530CA00A TWE030CA40C 30.8 8.4 1000 1689
TTB530CA00A TWE040CA40C 32.4 9.5 1200 2038
TTB536CA00A TWE040CA40C 39.0 10.1 1200 2038
TTA030CD00A† TWE030CA40B 30.5 8.9 1000 1689
TTA030CD00A† TWE040CA40C 32.5 9.4 1125 1900
TTA040CD00A† TWE040CA40C 41.0 12.0 1325 2238
TTA040CD00A† TWE050CA50D 43.9 12.8 1600 2703
TTA050CD00A† TWE050CA50D 52.7 15.4 1800 3040
TTA060CD00A† TWE050CA50D 62.8 18.4 1800 3040
†Outdoor: 380-415/50/3, Indoor: 220-240/50/1
*Cooling capacity is based on 94ºF outside ambient, 80ºF DB/67ºF WB air on coil.
5TWE5-PRC000-EN
Model
Nomenclature
TW E 0 30 C A 4 0 A 0
1,2 3 4 5,6 7 8 9 10 11 12
Digit 1,2 - Product Type
TW = Split System Component
Heat Pump Compatible
Digit 3 - Airflow Configuration
E = Convertible
Digit 4 - Refrigerant Connections
0 = Brazed
5 = Flare
Digits 5,6 - Nominal Capacity
30 = 30 MBh
40 = 40 MBh
50 = 50 MBh
Digit 7
C = Development Sequence
Digit 8 - Voltage
A = 220/1/50
Digit 9 - Refrigerant Flow Control
4 = Accutron Flow Control/
Check Valve
5 = Bleed TXV
Digit 10 - Not Used
Digit 11 - Minor Design Change
Digit 12 - Service Digit
6TWE5-PRC000-EN
Product
Data
Table 1 — TWE Product Specifications
Model TWE030CA40B TWE040CA40C TWE050CA50D
Power Conn.— Volts/Ph/Hz 220/1/50 220/1/50 220/1/50
Indoor Coil - Type Plate Fin Plate Fin Plate Fin
Rows 3 3 3
Fins per inch (Fins per 25.4mm) 14 14 14
Face Area ft2-(m2) 3.21 (.30) 5.04 (.47) 6.19 (.58)
Tube Size in. (mm) 3/8 (9.52) 3/8 (9.52) 3/8 (9.52)
Refrigerant Control FCCV FCCV FCCV
Drain Conn. Size in. (mm) 3/4 NPT 3/4 NPT 3/4 NPT
Duct Connections —————————— SEE OUTLINE DRAWING ———————————
Indoor Fan - Type Centrifugal Centrifugal Centrifugal
No. Used 1 1 1
Diameter in. (mm) 10.0 (254.0) 10.0 (254.0) 11.0 (279.4)
Width in. (mm) 8.0 (203.2) 10.0 (254.0) 10.0 (254.0)
Type Drive - No. Speeds Direct - 3 Direct - 3 Direct - 3
Airflow (High)
CFM @ 0.0 in. w.g. —————————— SEE FAN PERFORMANCE TABLE ——————————
CMH @ 0.0 mm w.g. —————————— SEE FAN PERFORMANCE TABLE ——————————
No. Motors - HP 1 - 1/31 - 1/31 - 3/4
Motor RPM 1000 900 900
Volts/Ph/Hz 220/1/50 220/1/50 220/1/50
F.L. Amps 2.6 2.1 4.5
L.R. Amps 3.3 4.2 10.1
Filters
Vertical Applications
Filter Furnished Yes Yes Yes
Type Furnished Throwaway Throwaway High Velocity
No.-Size-Thickness 1 - 20 x 20 - 1 1 - 20 x 20 - 1 1 - 2 2 x 20 - 1
Horizontal Applications
Filter Furnished No No No
Type Recommended —————————— SEE NOTE BELOW ——————————
No.-Size-Thickness —————————— SEE NOTE BELOW ——————————
Refrigerant Line Size
Line Size ID Gas in. (mm) 7/8 (22.23) 11/8 (28.56) 11/8 (28.56)
Line Size ID Liquid in. (mm) 3/8 (9.52) 3/8 (9.52) 3/8 (9.52)
Dimensions (H x W x D)
Crated - in. 44.5 x 24.0 x 23.5 53.25 x 26.0 x 23.5 59.5 x 26.0 x 23.5
- (mm) (1130 x 610 x 597) (1353 x 660 x 597) (1511 x 660 x 597)
Uncrated - in. 43.0 x 21.5 x 21.0 52.0 x 23.5 x 21.0 58.0 x 23.5 x 21.0
- (mm) (1092 x 546 x 533) (1321 x 597x 533) (1473 x 597 x 533)
Weight Ibs. (kg)
Shipping 125 (56.7) 165 (74.8) 198 (898)
Net 115 (52.2) 150 (68.0) 183 (83.0)
Minimum filter size for horizontal applications based on airflow selection and calculated as follows:
Low Velocity Filter: Face Area (ft2) = CFM/300
High Velocity Filter: Face Area (ft2) = CFM/500
7TWE5-PRC000-EN
Product
Data
Table 2 — TTB5 Product Specifications1,2
Model TTB524CA00A TTB530CA00A
Power Conn. — Volts/Ph/Hz 200-230/1/50 200-230/1/50
Min. Brch. Cir. Ampacity319 20
Br. Cir. Max. (Amps) 30 30
Prot. Rtg. Recmd. (Amps) 30 30
Compressor Type Climatuff® Reciprocating Climatuff® Reciprocating
No. Used - No. Speeds 1 — 1 1 — 1
Volts/Ph/Hz 200-230/1/50 200-230/1/50
R.L. Amps - L.R. Amps 13.9 — 60 13.9 — 79
Voltage Utilization Range 180-253 180-253
Brch. Cir. Selec. Cur. Amps 13.9 14.9
Outdoor Fan - Type Propeller Propeller
Dia. - in. (mm) - No. Used 18 (457) — 1 18 (457) — 1
Type Drive - No. Speeds Direct — 1 Direct — 1
CFM @ 0.0 in. w.g.41925 2225
CMH @ 0.0 mm w.g. 908 1050
No. Motors 1 1
Motor HP (W) 1/6 (124) 1/6 (124)
Motor Speed RPM 1100 1100
Volts/Ph/Hz 200-230/1/50 200-230/1/50
F.L. Amps 1.30 1.30
Outdoor Coil - Type Spine Fin™Spine Fin™
Rows - Fins/in. (Fins/mm) 1 — 24 (1) 1 — 24 (1)
Face Area - ft2 (m2) 10.96 (1.02) 14.93 (1.39)
Tube Size - in. (mm) 3/8 (10) 3/8 (10)
Refrigerant
R-225 - lbs. (kg) 4 lbs, 15 oz. (2.24) 6 lbs, 11 oz. (3.03)
Factory Supplied Yes Yes
Line Size - O.D. Gas6 - in. (mm) 3/4 (20) 3/4 (20)
Line Size - O.D. Liq.6 - in. (mm) 5/16 (8) 5/16 (8)
Dimensions (H x W x D)
Crated - in. 263/8 x 267/8 x 267/8333/8 x 267/8 x 267/8
- (mm) (670 x 683 x 683) (848 x 683 x 683)
Uncrated See Outline Dwg. See Outline Dwg.
Weight lbs. (kg)
Shipping 176 (79.8) 184 (83.5)
Net 166 (75.3) 174 (78.9)
Notes:
1Rated in accordance with ARI Standard 210/240.
2Rated in accordance with ARI Standard 270.
3Calculated in accordance with National Electric Code. Suitable for use with HACR circuit breakers or fuses.
4Standard air — dry coil — outdoor.
5This value approximate. For more precise value see unit nameplate and service instructions.
6Max. linear length 80 ft.; max. lift — suction 60 ft.; max. lift — liquid 60 ft. Max. length of precharged tubing 50 ft. For greater length refer to
Refrigerant Piping Manual Pub. No. 32-3009.
8TWE5-PRC000-EN
Product
Data
Table 3 — TTB5 Product Specifications1,2
Model TTB536CA00A
Power Conn. - Volts/Ph/Hz 200-230/1/50
Min. Brch. Cir. Ampacity324
Br. Cir. Max. (Amps) 40
Prot. Rtg. Recmd. (Amps) 40
Compressor Type Climatuff® Reciprocating
No. Used - No. Speeds 1 — 1
Volts/Ph/Hz 200-230/1/50
R.L. Amps - L.R. Amps 17.6 — 95
Voltage Utilization Range 180-253
Brch. Cir. Selec. Cur. Amps 17.6
Outdoor Fan - Type Propeller
Dia. in. (mm) - No. Used 18 (457) — 1
Type Drive - No. Speeds Direct — 1
CFM @ 0.0 in. w.g.42225
CMH @ 0.0 mm w.g. 1050
No. Motors 1
Motors HP (W) 1/6 (124)
Motor Speed RPM 1100
Volts/Ph/Hz 200-230/1/50
F.L. Amps 1.30
Outdoor Coil - Type Spine Fin™
Rows - Fins/in. (Fins/mm) 1 — 24 (1)
Face Area - ft2 (m2) 14.93 (1.39)
Tube Size - in. (mm) 3/8 (10)
Refrigerant
R-225 - lbs. (kg) 6 lbs, 11 oz. (3.03)
Factory Supplied Yes
Line Size - O.D. Gas6 - in. (mm) 3/4 (20)
Line Size - O.D. Liq.6 - in. (mm) 5/16 (8)
Dimensions (H x W x D)
Crated - in. 333/8 x 267/8 x 267/8
- (mm) (848 x 683 x 683)
Uncrated See Outline Dwg.
Weight lbs. (kg)
Shipping 203 (92.1)
Net 193 (87.5)
Notes:
1Rated in accordance with ARI Standard 210/240.
2Rated in accordance with ARI Standard 270.
3Calculated in accordance with National Electric Code. Suitable for use with HACR circuit breakers or fuses.
4Standard air — dry coil — outdoor.
5This value approximate. For more precise value see unit nameplate and service instructions.
6Max. linear length 80 ft.; max. lift — suction 60 ft.; max. lift — liquid 60 ft. Max. length of precharged tubing 50 ft. For greater
length refer to Refrigerant Piping Manual Pub. No. 32-3009.
9TWE5-PRC000-EN
Product
Data
Table 4 — TTA Product Specifications
Model TTA030CD00A TTA040CD00A TTA050CD00A TTA060CD00A
Power Conn. - Volts/Ph/Hz 380-415/3/50 380-415/3/50 380-415/3/50 380-415/3/50
Fuse Size - max. amps Per Local Codes Per Local Codes Per Local Codes Per Local Codes
Compressor - Type —————————— Climatuff® Reciprocating ——————————
No. Used - No. Speeds 1 - 1 1 - 1 1 - 1 1 - 1
Volts/Ph/Hz 380-415/3/50 380-415/3/50 380-415/3/50 380-415/3/50
F.L. Amps15.0 7.0 9.0 10.6
L.R. Amps 51.0 51.0 71.0 64.0
Outdoor Fan - Type Propeller Propeller Propeller Propeller
No. Used 1111
Diameter in. (mm) 18 (457) 18 (457) 22 (559) 26 (660)
Type Drive - No. Speeds Direct-1 Direct-1 Direct-1 Direct-1
CFM @ 0.0 in. w.g. 1815 1845 2225 4250
CMH @ 0.0 mm w.g. 3083 3134 3780 7220
No. Motors - HP 1 - 1/41 - 1/41 - 1/31 - 1/3
Motor Speed (RPM) 1 (900) 1 (900) 1 (690) 1 (690)
Volts/Ph/Hz 400/1/50 400/1/50 400/1/50 400/1/50
F.L. Amps 0.80 0.80 1.00 1.70
Outdoor Coil - Type Spine Fin™Spine Fin™Spine Fin™Spine Fin™
No. Rows - Fins/in. 1 - 24 1 - 24 1 - 24 1 - 24
Face Area ft2 (m2) 12.22 (1.14) 16.84 (1.57) 25.50 (2.37) 35.39 (3.29)
Tube Size in. (mm) 3/8 (9.52) 3/8 (9.52) 3/8 (9.52) 3/8 (9.52)
Refrigerant
R-222 - lbs. (kg) 5 Ibs, 12 oz. (2.61) 7 Ibs, 2 oz. (3.23) 9 Ibs, 2 oz. (4.14) 13 Ibs, 0 oz. (5.90)
Line Size - OD Gas in. (mm) 7/8 (22.3) 11/8 (28.6) 11/8 (28.6) 11/8 (28.6)
Line Size - OD Liq. in. (mm) 3/8 (9.52) 3/8 (9.52) 3/8 (9.52) 3/8 (9.52)
Dimensions (H x W x D)
Crated - in. 25.0 x 30.0 x 26.5 33.3 x 30.0 x 26.5 41.3 x 34.8 x 31.3 45.5 x 41.0 x 37.0
- (mm) (635 x 762 x 673) (846 x 762 x 673) (1049 x 884 x 795) (1156 x 1041 x 940)
Uncrated - in. 24.3 x 28.3 x 24.6 32.8 x 28.3 x 24.6 40.6 x 32.9 x 28.8 44.8 x 38.9 x 34.8
- (mm) (617 x 719 x 625) (833 x 719 x 625) (1031 x 836 x 732) (1138 x 988 x 884)
Weight- lbs. (kg)
Shipping 190.0 (86.2) 211.0 (95.7) 254.0 (115.2) 333.0 (151.0)
Net 181.0 (82.1) 200.0 (90.7) 239.0 (108.4) 314.0 (142.0)
1At ARI system rating conditions of 80° F-DB/67° F-WB indoor & 95° F-DB outdoor.
2Rated for 25 feet (7.5 meters) of evacuated refrigerant piping.
10 TWE5-PRC000-EN
Performance Data
Cooling English Units
TTB524CA00A WITH TWE030CA40B
AT 900 CFM
GROSS CAPACITY IN BTU/H x 1000
O.D. I.D. TOTAL SENS. CAP. AT ENTERING D.B. TEMP. COMPR.
D.B. W.B. CAP. 72 74 76 78 80 KW
59 22.9 20.9 22.6 23.4* 24.0* 24.6* 1.90
85 63 24.7 17.6 19.3 21.0 22.7 24.4 1.97
67 26.6 13.9 15.6 17.3 19.0 20.7 2.04
71 28.6 10.2 11.9 13.6 15.3 17.0 2.11
59 22.6 20.7 22.4 23.1* 23.8* 24.3* 2.01
90 63 24.4 17.4 19.1 20.8 22.5 24.2 2.07
67 26.2 13.8 15.5 17.2 18.9 20.6 2.14
71 28.1 10.0 11.7 13.4 15.1 16.8 2.21
59 22.3 20.6 22.3* 22.9* 23.5* 24.0* 2.11
95 63 24.0 17.3 19.0 20.7 22.4 24.0* 2.18
67 25.8 13.6 15.3 17.0 18.7 20.4 2.25
71 27.7 9.9 11.6 13.3 15.0 16.7 2.32
59 21.5 20.2 21.7* 22.3* 22.8* 23.4* 2.20
100 63 23.2 16.9 18.6 20.3 22.0 23.4* 2.26
67 24.9 13.2 14.9 16.6 18.4 20.1 2.33
71 26.7 9.5 11.2 12.9 14.6 16.3 2.40
59 20.8 19.9 21.1* 21.6* 22.2* 22.7* 2.29
105 63 22.4 16.6 18.3 20.0 21.7 22.7* 2.35
67 24.0 12.9 14.6 16.3 18.0 19.7 2.41
71 25.7 9.1 10.8 12.5 14.2 15.9 2.48
59 19.3 19.2 19.8* 20.3* 20.8* 21.3* 2.47
115 63 20.7 15.9 17.6 19.3 20.8* 21.3* 2.53
67 22.2 12.2 13.9 15.6 17.3 19.0 2.58
71 23.8 8.4 10.1 11.8 13.5 15.2 2.64
CORRECTION FACTORS - OTHER AIRFLOWS (MULTIPLY OR ADD AS INDICATED)
AIRFLOW 775 1025 AIRFLOW 775 1025
TOTAL CAP. X0.98 X1.01 SENS. CAP. X0.94 X1.06
COMPR. KW X0.99 X1.01
VALUES AT 95/80/67 RATING CONDITIONS
GROSS CAPACITY = 25800 BTUH
AIRFLOW = 900 CFM
COMPRESSOR POWER = 2245 WATTS
I.D. FAN POWER = 425 WATTS
O.D. FAN POWER = 165 WATTS
S.E.E.R. = 8.71 BTUH/WATT
E.E.R. = 9.10 BTUH/WATT
NOTE: RATED WITH 25 FEET OF 3/4 SUCTION AND 5/16 LIQUID LINE
TTB530CA00A WITH TWE030CA40B
AT 1000 CFM
GROSS CAPACITY IN BTU/H x 1000
O.D. I.D. TOTAL SENS. CAP. AT ENTERING D.B. TEMP. COMPR.
D.B. W.B. CAP. 72 74 76 78 80 KW
59 27.4 24.2 26.1 27.6* 28.3* 29.0* 2.05
85 63 29.5 20.5 22.4 24.3 26.2 28.1 2.12
67 31.6 16.5 18.4 20.2 22.1 24.0 2.20
71 33.9 12.3 14.2 16.1 18.0 19.8 2.28
59 27.1 24.1 25.9 27.3* 28.0* 28.7* 2.15
90 63 29.1 20.4 22.3 24.1 26.0 27.9 2.23
67 31.2 16.3 18.2 20.1 21.9 23.8 2.31
71 33.4 12.1 14.0 15.9 17.8 19.7 2.39
59 26.7 23.9 25.8 27.0* 27.7* 28.4* 2.25
95 63 28.7 20.2 22.1 24.0 25.9 27.7 2.33
67 30.8 16.1 18.0 19.9 21.8 23.7 2.41
71 33.0 11.9 13.8 15.7 17.6 19.5 2.49
59 25.8 23.5 25.4 26.3* 27.0* 27.6* 2.34
100 63 27.8 19.8 21.7 23.6 25.4 27.3 2.42
67 29.8 15.7 17.6 19.5 21.4 23.2 2.50
71 31.9 11.5 13.4 15.3 17.2 19.1 2.58
59 25.0 23.1 25.0 25.6* 26.3* 26.6* 2.43
105 63 26.8 19.4 21.3 23.1 25.0 26.9* 2.51
67 28.8 15.3 17.2 19.1 20.9 22.8 2.59
71 30.8 11.1 13.0 14.9 16.8 18.6 2.67
59 23.2 22.3 23.5* 24.2* 24.7* 25.3* 2.62
115 63 25.0 18.6 20.4 22.3 24.2 25.3* 2.69
67 26.7 14.5 16.3 18.2 20.1 22.0 2.77
71 28.6 10.3 12.2 14.0 15.9 17.8 2.84
C
ORRECTION FACTORS - OTHER AIRFLOWS (MULTIPLY OR ADD AS INDICATED)
AIRFLOW 1000 1000 AIRFLOW 1000 1000
TOTAL CAP. X1.00 X1.00 SENS. CAP. X1.00 X1.00
COMPR. KW X1.00 X1.00
VALUES AT 95/80/67 RATING CONDITIONS
GROSS CAPACITY = 30800 BTUH
AIRFLOW = 1000 CFM
COMPRESSOR POWER = 2410 WATTS
I.D. FAN POWER = 440 WATTS
O.D. FAN POWER = 170 WATTS
S.E.E.R. = 9.80 BTUH/WATT
E.E.R. = 10.20 BTUH/WATT
NOTE: RATED WITH 25 FEET OF 3/4 SUCTION AND 5/16 LIQUID LINE
11TWE5-PRC000-EN
TTB524CA00A WITH TWE030CA40B
AT 1528 CMH
GROSS CAPACITY IN KILOWATTS
O.D. I.D. TOTAL SENS. CAP. AT ENTERING D.B. TEMP. COMPR.
D.B. W.B. CAP. 22.2 23.3 24.4 25.6 26.7 KW
15.0 6.7 6.1 6.6 6.9* 7.0* 7.2* 1.90
29.4 17.2 7.2 5.2 5.7 6.2 6.7 7.1 1.97
19.4 7.8 4.1 4.6 5.1 5.6 6.1 2.04
21.7 8.4 3.0 3.5 4.0 4.5 5.0 2.11
15.0 6.6 6.1 6.6 6.8* 7.0* 7.1* 2.01
32.2 17.2 7.1 5.1 5.6 6.1 6.6 7.1 2.07
19.4 7.7 4.0 4.5 5.0 5.5 6.0 2.14
21.7 8.2 2.9 3.4 3.9 4.4 4.9 2.21
15.0 6.5 6.0 6.5* 6.7* 6.9* 7.0* 2.11
35.0 17.2 7.0 5.1 5.6 6.1 6.6 7.0 2.18
19.4 7.6 4.0 4.5 5.0 5.5 6.0 2.25
21.7 8.1 2.9 3.4 3.9 4.4 4.9 2.32
15.0 6.3 5.9 6.4* 6.5* 6.7* 6.9* 2.20
37.8 17.2 6.8 5.0 5.4 5.9 6.4 6.9 2.26
19.4 7.3 3.9 4.4 4.9 5.4 5.9 2.33
21.7 7.8 2.8 3.3 3.8 4.3 4.8 2.40
15.0 6.1 5.8 6.2* 6.3* 6.5* 6.7* 2.29
40.6 17.2 6.6 4.9 5.4 5.9 6.4 6.7 2.35
19.4 7.0 3.8 4.3 4.8 5.3 5.8 2.41
21.7 7.5 2.7 3.2 3.7 4.2 4.7 2.48
15.0 5.7 5.6 5.8* 5.9* 6.1* 6.2* 2.47
46.1 17.2 6.1 4.7 5.2 5.7 6.1 6.2 2.53
19.4 6.5 3.6 4.1 4.6 5.1 5.6 2.58
21.7 7.0 2.5 3.0 3.5 4.0 4.5 2.64
C
ORRECTION FACTORS - OTHER AIRFLOWS (MULTIPLY OR ADD AS INDICATED)
AIRFLOW 0.368 0.486 AIRFLOW 0.368 0.486
TOTAL CAP. X0.98 X1.01 SENS. CAP. X0.94 X1.06
COMPR. KW X0.99 X1.01
VALUES AT ARI RATING CONDITIONS
GROSS CAPACITY = 7.54 KW
AIRFLOW = 0.42 CMS
AIRFLOW = 900. CFM
COMPRESSOR POWER = 2245 WATTS
I.D. FAN POWER = 425 WATTS
O.D. FAN POWER = 165 WATTS
COP = 2.67
EER = 9.10 BTU/WATT
NOTE: RATED WITH 7.62 METERS OF 3/4 IN. SUCTION AND 5/16 IN. LIQUID LINES
Performance Data
Cooling Metric Units
TTB530CA00A WITH TWE030CA40B
AT 1700 CMH
GROSS CAPACITY IN KILOWATTS
O.D. I.D. TOTAL SENS. CAP. AT ENTERING D.B. TEMP. COMPR.
D.B. W.B. CAP. 22.2 23.3 24.4 25.6 26.7 KW
15.0 8.0 7.1 7.6 8.1* 8.3* 8.5* 2.05
29.4 17.2 8.6 6.0 6.6 7.1 7.7 8.2 2.12
19.4 9.3 4.8 5.4 5.9 6.5 7.0 2.20
21.7 9.9 3.6 4.2 4.7 5.3 5.8 2.28
15.0 7.9 7.1 7.6 8.0* 8.2* 8.4* 2.15
32.2 17.2 8.5 6.0 6.5 7.1 7.6 8.2 2.23
19.4 9.1 4.8 5.3 5.9 6.4 7.0 2.31
21.7 9.8 3.5 4.1 4.7 5.2 5.8 2.39
15.0 7.8 7.0 7.6 7.9* 8.1* 8.3* 2.25
35.0 17.2 8.4 5.9 6.5 7.0 7.6 8.1 2.33
19.4 9.0 4.7 5.3 5.8 6.4 6.9 2.41
21.7 9.7 3.5 4.0 4.6 5.2 5.7 2.49
15.0 7.6 6.9 7.4 7.7* 7.9* 8.1* 2.34
37.8 17.2 8.1 5.8 6.4 6.9 7.4 8.0 2.42
19.4 8.7 4.6 5.2 5.7 6.3 6.8 2.50
21.7 9.3 3.4 3.9 4.5 5.0 5.6 2.58
15.0 7.3 6.8 7.3* 7.5* 7.7* 2.0* 2.43
40.6 17.2 7.9 5.7 6.2 6.8 7.3 7.9 2.51
19.4 8.4 4.5 5.0 5.6 6.1 6.7 2.59
21.7 9.0 3.3 3.8 4.4 4.9 5.4 2.67
15.0 6.8 6.5 6.9* 7.1* 7.2* 7.4* 2.62
46.1 17.2 7.3 5.4 6.0 6.5 7.1 7.4 2.69
19.4 7.8 4.2 4.8 5.3 5.9 6.4 2.77
21.7 8.4 3.0 3.6 4.1 4.7 5.2 2.84
C
ORRECTION FACTORS - OTHER AIRFLOWS (MULTIPLY OR ADD AS INDICATED)
AIRFLOW 0.472 0.472 AIRFLOW 0.472 0.472
TOTAL CAP. X1.00 X1.00 SENS. CAP. X1.00 X1.00
COMPR. KW X1.00 X1.00
VALUES AT ARI RATING CONDITIONS
GROSS CAPACITY = 9.02 KW
AIRFLOW = 0.47 CMS
AIRFLOW = 1000. CFM
COMPRESSOR POWER = 2410 WATTS
I.D. FAN POWER = 440 WATTS
O.D. FAN POWER = 170 WATTS
COP = 2.99
EER = 10.20 BTU/WATT
NOTE: RATED WITH 7.62 METERS OF 3/4 IN. SUCTION AND 5/16 IN. LIQUID LINES
12 TWE5-PRC000-EN
Performance Data
Cooling English Units
TTB530CA00A WITH TWE040CA40C
AT 1200 CFM
GROSS CAPACITY IN BTU/H x 1000
O.D. I.D. TOTAL SENS. CAP. AT ENTERING D.B. TEMP. COMPR.
D.B. W.B. CAP. 72 74 76 78 80 KW
59 29.1 27.5 29.3* 30.1* 30.8* 31.5* 2.18
85 63 31.2 22.9 25.2 27.5 29.9 31.5* 2.26
67 33.4 17.8 20.2 22.5 24.8 27.1 2.34
71 35.7 12.7 15.0 17.4 19.7 22.0 2.42
59 28.7 27.3 29.0* 29.7* 30.4* 31.1* 2.29
90 63 30.8 22.7 25.0 27.3 29.7 31.1* 2.37
67 32.9 17.6 20.0 22.3 24.6 26.9 2.45
71 35.1 12.5 14.8 17.2 19.5 21.8 2.54
59 28.3 27.1 28.6* 29.4* 30.1* 30.7* 2.40
95 63 30.3 22.5 24.8 27.1 29.5 30.7* 2.48
67 32.4 17.4 19.8 22.1 24.4 26.7 2.56
71 34.6 12.3 14.6 16.9 19.3 21.6 2.65
59 27.4 26.7 27.9* 28.6* 29.2* 29.9* 2.49
100 63 29.3 22.1 24.4 26.7 29.0 29.9* 2.57
67 31.3 17.0 19.3 21.7 24.0 26.3 2.65
71 33.4 11.9 14.2 16.5 18.8 21.2 2.74
59 26.5 26.3 27.1* 27.8* 28.4* 29.0* 2.58
105 63 28.3 21.7 24.0 26.3 28.4* 29.0* 2.66
67 30.2 16.6 18.9 21.2 23.6 25.9 2.74
71 32.2 11.4 13.8 16.1 18.4 20.7 2.83
59 24.6 24.8* 25.5* 26.1* 26.7* 27.3* 2.76
115 63 26.3 20.8 23.1 25.5 26.7* 27.3* 2.84
67 28.1 15.7 18.1 20.4 22.7 25.0 2.92
71 29.9 10.6 12.9 15.2 17.6 19.9 3.01
CORRECTION FACTORS - OTHER AIRFLOWS (MULTIPLY OR ADD AS INDICATED)
AIRFLOW 1200 1200 AIRFLOW 1200 1200
TOTAL CAP. X1.00 X1.00 SENS. CAP. X1.00 X1.00
COMPR. KW X1.00 X1.00
VALUES AT 95/80/67 RATING CONDITIONS
GROSS CAPACITY = 32400 BTUH
AIRFLOW = 1200 CFM
COMPRESSOR POWER = 2562 WATTS
I.D. FAN POWER = 325 WATTS
O.D. FAN POWER = 170 WATTS
S.E.E.R. = 10.82 BTUH/WATT
E.E.R. = 10.60 BTUH/WATT
NOTE: RATED WITH 25 FEET OF 3/4 SUCTION AND 5/16 LIQUID LINE
TTB536CA00A WITH TWE040CA40C
AT 1200 CFM
GROSS CAPACITY IN BTU/H x 1000
O.D. I.D. TOTAL SENS. CAP. AT ENTERING D.B. TEMP. COMPR.
D.B. W.B. CAP. 72 74 76 78 80 KW
59 35.2 30.5 32.8 35.2 36.0* 36.9* 2.61
85 63 37.8 25.9 28.3 30.6 32.9 35.3 2.72
67 40.5 20.9 23.2 25.5 27.9 30.2 2.83
71 43.3 15.7 18.0 20.4 22.7 25.0 2.94
59 34.6 30.2 32.5 34.7* 35.5* 36.4* 2.75
90 63 37.1 25.6 27.9 30.3 32.6 35.0 2.85
67 39.8 20.5 22.9 25.2 27.6 29.9 2.96
71 42.5 15.4 17.7 20.0 22.4 24.7 3.08
59 33.9 29.9 32.2 34.1* 35.0* 35.8* 2.88
95 63 36.4 25.3 27.6 30.0 32.3 34.6 2.99
67 39.0 20.2 22.6 24.9 27.2 29.6 3.10
71 41.7 15.0 17.4 19.7 22.1 24.4 3.21
59 32.7 29.3 31.7 33.2* 34.0* 34.8* 2.98
100 63 35.1 24.7 27.1 29.4 31.7 34.1 3.09
67 37.6 19.7 22.0 24.3 26.7 29.0 3.20
71 40.2 14.5 16.8 19.2 21.5 23.8 3.31
59 31.5 28.8 31.1 32.2* 33.0* 33.7* 3.08
105 63 33.8 24.2 26.5 28.8 31.2 33.5 3.18
67 36.2 19.1 21.4 23.8 26.1 28.4 3.29
71 38.7 13.9 16.2 18.6 20.9 23.3 3.40
59 29.1 27.6 29.4* 30.2* 30.9* 31.6* 3.29
115 63 31.2 23.0 25.4 27.7 30.0 31.6* 3.38
67 33.4 18.0 20.3 22.6 25.0 27.3 3.48
71 35.7 12.8 15.1 17.5 19.8 22.1 3.59
CORRECTION FACTORS - OTHER AIRFLOWS (MULTIPLY OR ADD AS INDICATED)
AIRFLOW 1200 1200 AIRFLOW 1200 1200
TOTAL CAP. X1.00 X1.00 SENS. CAP. X1.00 X1.00
COMPR. KW X1.00 X1.00
VALUES AT 95/80/67 RATING CONDITIONS
GROSS CAPACITY = 39000 BTUH
AIRFLOW = 1200 CFM
COMPRESSOR POWER = 3099 WATTS
I.D. FAN POWER = 325 WATTS
O.D. FAN POWER = 170 WATTS
S.E.E.R. = 10.95 BTUH/WATT
E.E.R. = 10.85 BTUH/WATT
NOTE: RATED WITH 25 FEET OF 3/4 SUCTION AND 5/16 LIQUID LINE
13TWE5-PRC000-EN
Metric Units
Performance Data
Cooling
TTB530CA00A WITH TWE040CA40C
AT 2039 CMH
GROSS CAPACITY IN KILOWATTS
O.D. I.D. TOTAL SENS. CAP. AT ENTERING D.B. TEMP. COMPR.
D.B. W.B. CAP. 22.2 23.3 24.4 25.6 26.7 KW
15.0 8.5 8.1 8.6* 8.8* 9.0* 9.2* 2.18
29.4 17.2 9.1 6.7 7.4 8.1 8.8 9.2* 2.26
19.4 9.8 5.2 5.9 6.6 7.3 7.9 2.34
21.7 10.5 3.7 4.4 5.1 5.8 6.4 2.42
15.0 8.4 8.0 8.5* 8.7* 8.9* 9.1* 2.29
32.2 17.2 9.0 6.7 7.3 8.0 8.7 9.1* 2.37
19.4 9.6 5.2 5.9 6.5 7.2 7.9 2.45
21.7 10.3 3.7 4.3 5.0 5.7 6.4 2.54
15.0 8.3 7.9 8.4* 8.6* 8.8* 9.0* 2.40
35.0 17.2 8.9 6.6 7.3 7.9 8.6 9.0* 2.48
19.4 9.5 5.1 5.8 6.5 7.1 7.8 2.56
21.7 10.1 3.6 4.3 5.0 5.7 6.3 2.65
15.0 8.0 7.8 8.2* 8.4* 8.6* 8.8* 2.49
37.8 17.2 8.6 6.5 7.1 7.8 8.5 8.8* 2.57
19.4 9.2 5.0 5.7 6.4 7.0 7.7 2.65
21.7 9.8 3.5 4.2 4.8 5.5 6.2 2.74
15.0 7.8 7.7 7.9* 8.1* 8.3* 8.5* 2.58
40.6 17.2 8.3 6.4 7.0 7.7 8.3* 8.5* 2.66
19.4 8.8 4.9 5.5 6.2 6.9 7.6 2.74
21.7 9.4 3.3 4.0 4.7 5.4 6.1 2.83
15.0 7.2 7.3* 7.5* 7.6* 7.8* 8.0* 2.76
46.1 17.2 7.7 6.1 6.8 7.5 7.8 8.0 2.84
19.4 8.2 4.6 5.3 6.0 6.7 7.3 2.92
21.7 8.8 3.1 3.8 4.5 5.2 5.8 3.01
CORRECTION FACTORS - OTHER AIRFLOWS (MULTIPLY OR ADD AS INDICATED)
AIRFLOW 566 566 AIRFLOW 566 566
TOTAL CAP. X1.00 X1.00 SENS. CAP. X1.00 X1.00
COMPR. KW X1.00 X1.00
VALUES AT ARI RATING CONDITIONS
GROSS CAPACITY = 9.48 KW
AIRFLOW = 0.57 CMS
COMPRESSOR POWER = 2562WATTS
I.D. FAN POWER = 325 WATTS
O.D. FAN POWER = 170 WATTS
COP = 3.11
EER = 10.60 BTU/WATT
NOTE: RATED WITH 7.62 METERS OF 3/4 IN. SUCTION AND 5/16 IN. LIQUID LINES
TTB536CA00A WITH TWE040CA40C
AT 2039 CMH
GROSS CAPACITY IN KILOWATTS
O.D. I.D. TOTAL SENS. CAP. AT ENTERING D.B. TEMP. COMPR.
D.B. W.B. CAP. 22.2 23.3 24.4 25.6 26.7 KW
15.0 10.3 8.9 9.6 10.3 10.5* 10.8* 2.61
29.4 17.2 11.1 7.6 8.3 9.0 9.6 10.3 2.72
19.4 11.9 6.1 6.8 7.5 8.2 8.8 2.83
21.7 12.7 4.6 5.3 6.0 6.7 7.3 2.94
15.0 10.1 8.8 9.5 10.2* 10.4* 10.7* 2.75
32.2 17.2 10.9 7.5 8.2 8.9 9.6 10.3 2.85
19.4 11.7 6.0 6.7 7.4 8.1 8.8 2.96
21.7 12.5 4.5 5.2 5.9 6.6 7.2 3.08
15.0 9.9 8.8 9.4 10.0* 10.3* 10.5* 2.88
35.0 17.2 10.7 7.4 8.1 8.8 9.5 10.1 2.99
19.4 11.4 5.9 6.6 7.3 8.0 8.7 3.10
21.7 12.2 4.4 5.1 5.8 6.5 7.1 3.21
15.0 9.6 8.6 9.3 9.7* 10.0* 10.2* 2.98
37.8 17.2 10.3 7.2 7.9 8.6 9.3 10.0 3.09
19.4 11.0 5.8 6.4 7.1 7.8 8.5 3.20
21.7 11.8 4.2 4.9 5.6 6.3 7.0 3.31
15.0 9.2 8.4 9.1 9.4* 9.7* 9.9* 3.08
40.6 17.2 9.9 7.1 7.8 8.4 9.1 9.8 3.18
19.4 10.6 5.6 6.3 7.0 7.6 8.3 3.29
21.7 11.3 4.1 4.7 5.4 6.1 6.8 3.40
15.0 8.5 8.1 8.6* 8.8* 9.1* 9.3* 3.29
46.1 17.2 9.1 6.7 7.4 8.1 8.8 9.3* 3.38
19.4 9.8 5.3 5.9 6.6 7.3 8.0 3.48
21.7 10.5 3.8 4.4 5.1 5.8 6.5 3.59
CORRECTION FACTORS - OTHER AIRFLOWS (MULTIPLY OR ADD AS INDICATED)
AIRFLOW 566 566 AIRFLOW 566 566
TOTAL CAP. X1.00 X1.00 SENS. CAP. X1.00 X1.00
COMPR. KW X1.00 X1.00
VALUES AT ARI RATING CONDITIONS
GROSS CAPACITY = 11.41 KW
AIRFLOW = 0.57 CMS
COMPRESSOR POWER = 3099 WATTS
I.D. FAN POWER = 325 WATTS
O.D. FAN POWER = 170 WATTS
COP = 3.18
EER = 10.85 BTU/WATT
NOTE: RATED WITH 7.62 METERS OF 3/4 IN. SUCTION AND 5/16 IN. LIQUID LINES
14 TWE5-PRC000-EN
Performance Data
Cooling English Units
TTA030CD WITH TWE040CA4-B
AT 1125 CFM
GROSS CAPACITY IN BTU/H x 1000
O.D. I.D. TOTAL SENS. CAP. AT ENTERING D.B. TEMP. COMPR.
D.B. W.B. CAP. 72 74 76 78 80 KW
59 29.4 24.8 26.8 28.9 30.0* 30.7* 2.34
85 63 31.7 20.9 22.9 24.9 27.0 29.0 2.42
67 34.0 16.5 18.5 20.6 22.6 24.6 2.50
71 36.5 12.1 14.1 16.1 18.1 20.2 2.59
59 28.8 24.6 26.6 28.6 29.5* 30.2* 2.45
90 63 31.0 20.6 22.6 24.6 26.7 28.7 2.53
67 33.3 16.2 18.2 20.3 22.3 24.3 2.62
71 35.6 11.8 13.8 15.8 17.8 19.9 2.71
59 28.2 24.3 26.3 28.3* 29.0* 29.7* 2.57
95 63 30.3 20.3 22.3 24.4 26.4 28.4 2.65
67 32.5 15.9 18.0 20.0 22.0 24.0 2.73
71 34.8 11.5 13.5 15.5 17.6 19.6 2.82
59 27.4 23.9 26.0 27.7* 28.3* 29.0* 2.69
100 63 29.4 20.0 22.0 24.0 26.0 28.1 2.77
67 31.5 15.6 17.6 19.6 21.7 23.7 2.85
71 33.8 11.1 13.1 15.2 17.2 19.2 2.94
59 26.6 23.6 25.6 27.0* 27.6* 28.3* 2.81
105 63 28.5 19.6 21.6 23.7 25.7 27.7 2.89
67 30.6 15.2 17.3 19.3 21.3 23.3 2.97
71 32.7 10.8 12.8 14.8 16.8 18.9 3.05
59 25.0 22.9 25.0 25.7* 26.3* 26.9* 3.06
115 63 26.8 18.9 21.0 23.0 25.0 26.9* 3.13
67 28.7 14.5 16.6 18.6 20.6 22.6 3.20
71 30.6 10.0 12.1 14.1 16.1 18.2 3.28
CORRECTION FACTORS - OTHER AIRFLOWS (MULTIPLY OR ADD AS INDICATED)
AIRFLOW 975 1275 AIRFLOW 975 1275
TOTAL CAP. X0.98 X1.01 SENS. CAP. X0.94 X1.06
COMPR. KW X0.99 X1.01
VALUES AT 95/80/67 RATING CONDITIONS
GROSS CAPACITY = 32500 BTUH
AIRFLOW = 1125 CFM
COMPRESSOR POWER = 2733 WATTS
I.D. FAN POWER = 290 WATTS
O.D. FAN POWER = 227 WATTS
E.E.R. = 9.60 BTUH/WATT
NOTE: RATED WITH 25 FEET OF 7/8 SUCTION AND 3/8 LIQUID LINE
* DRY COIL CONDITION (TOTAL CAPACITY = SENSIBLE CAPACITY)
TOTAL CAPACITY AND COMP. KW ARE VALID ONLY FOR WET COIL
ALL TEMPERATURES IN DEGREES F
TTA030CD WITH TWE030CA4
AT 1000 CFM
GROSS CAPACITY IN BTU/H x 1000
O.D. I.D. TOTAL SENS. CAP. AT ENTERING D.B. TEMP. COMPR.
D.B. W.B. CAP. 72 74 76 78 80 KW
59 27.3 21.8 23.5 25.2 26.9 27.9* 2.27
85 63 29.5 18.5 20.2 21.9 23.6 25.3 2.35
67 31.7 14.9 16.6 18.3 20.0 21.7 2.43
71 34.1 11.2 12.9 14.6 16.3 18.0 2.51
59 26.8 21.6 23.3 25.0 26.7 27.5* 2.38
90 63 28.9 18.3 20.0 21.7 23.4 25.1 2.46
67 31.1 14.7 16.4 18.1 19.8 21.5 2.54
71 33.4 10.9 12.6 14.3 16.0 17.7 2.63
59 26.3 21.4 23.1 24.8 26.4* 27.1* 2.49
95 63 28.3 18.1 19.8 21.5 23.2 24.9 2.57
67 30.5 14.4 16.1 17.8 19.5 21.2 2.65
71 32.7 10.7 12.4 14.1 15.8 17.5 2.74
59 25.6 21.1 22.8 24.5 25.9* 26.5* 2.61
100 63 27.6 17.8 19.5 21.2 22.9 24.6 2.69
67 29.7 14.1 15.8 17.5 19.2 20.9 2.77
71 31.8 10.4 12.1 13.8 15.5 17.2 2.85
59 24.9 20.8 22.5 24.2 25.3* 26.0* 2.73
105 63 26.9 17.5 19.2 20.9 22.6 24.3 2.80
67 28.9 13.8 15.5 17.2 18.9 20.6 2.88
71 31.0 10.1 11.8 13.5 15.2 16.9 2.96
59 23.6 20.2 21.9 23.7* 24.2* 24.8* 2.97
115 63 25.4 16.9 18.6 20.3 22.0 23.7 3.04
67 27.3 13.2 14.9 16.6 18.3 20.0 3.11
71 29.2 9.5 11.2 12.9 14.6 16.3 3.19
CORRECTION FACTORS - OTHER AIRFLOWS (MULTIPLY OR ADD AS INDICATED)
AIRFLOW 975 1275 AIRFLOW 975 1275
TOTAL CAP. X0.98 X1.01 SENS. CAP. X0.94 X1.06
COMPR. KW X0.99 X1.01
VALUES AT 95/80/67 RATING CONDITIONS
GROSS CAPACITY = 32500 BTUH
AIRFLOW = 1125 CFM
COMPRESSOR POWER = 2733 WATTS
I.D. FAN POWER = 290 WATTS
O.D. FAN POWER = 227 WATTS
E.E.R. = 9.60 BTUH/WATT
NOTE: RATED WITH 25 FEET OF 7/8 SUCTION AND 3/8 LIQUID LINE
* DRY COIL CONDITION (TOTAL CAPACITY = SENSIBLE CAPACITY)
TOTAL CAPACITY AND COMP. KW ARE VALID ONLY FOR WET COIL
ALL TEMPERATURES IN DEGREES F
15TWE5-PRC000-EN
Performance Data
Cooling Metric Units
TTA030CD00A WITH TWE030CA40B
AT 1700 CMH
GROSS CAPACITY IN KILOWATTS
O.D. I.D. TOTAL SENS. CAP. AT ENTERING D.B. TEMP. COMPR.
D.B. W.B. CAP. 22.2 23.3 24.4 25.6 26.7 KW
15.0 8.0 6.4 6.9 7.4 7.9 8.2* 2.27
29.4 17.2 8.6 5.4 5.9 6.4 6.9 7.4 2.35
19.4 9.3 4.4 4.9 5.4 5.9 6.4 2.43
21.7 10.0 3.3 3.8 4.3 4.8 5.3 2.51
15.0 7.9 6.3 6.8 7.3 7.8 8.1* 2.38
32.2 17.2 8.5 5.4 5.9 6.4 6.9 7.4 2.46
19.4 9.1 4.3 4.8 5.3 5.8 6.3 2.54
21.7 9.8 3.2 3.7 4.2 4.7 5.2 2.63
15.0 7.7 6.3 6.8 7.3 7.7* 7.9* 2.49
35.0 17.2 8.3 5.3 5.8 6.3 6.8 7.3 2.57
19.4 8.9 4.2 4.7 5.2 5.7 6.2 2.65
21.7 9.6 3.1 3.6 4.1 4.6 5.1 2.74
15.0 7.5 6.2 6.7 7.2 7.6* 7.8* 2.61
37.8 17.2 8.1 5.2 5.7 6.2 6.7 7.2 2.69
19.4 8.7 4.1 4.6 5.1 5.6 6.1 2.77
21.7 9.3 3.0 3.5 4.0 4.5 5.0 2.85
15.0 7.3 6.1 6.6 7.1 7.4* 7.6* 2.73
40.6 17.2 7.9 5.1 5.6 6.1 6.6 7.1 2.80
19.4 8.5 4.0 4.5 5.0 5.5 6.0 2.88
21.7 9.1 3.0 3.5 4.0 4.5 5.0 2.96
15.0 6.9 5.9 6.4 6.9* 7.1* 7.3* 2.97
46.1 17.2 7.4 5.0 5.4 5.9 6.4 6.9 3.04
19.4 8.0 3.9 4.4 4.9 5.4 5.9 3.11
21.7 8.6 2.8 3.3 3.8 4.3 4.8 3.19
CORRECTION FACTORS - OTHER AIRFLOWS (MULTIPLY OR ADD AS INDICATED)
AIRFLOW 975 1275 AIRFLOW 975 1275
TOTAL CAP. X0.98 X1.01 SENS. CAP. X0.94 X1.06
COMPR. KW X0.99 X1.01
VALUES AT 95/80/67 RATING CONDITIONS
GROSS CAPACITY = 8.94 KW
AIRFLOW = 0.57 CMS
COMPRESSOR POWER = 2653 WATTS
I.D. FAN POWER = 430 WATTS
O.D. FAN POWER = 227 WATTS
EER = 8.75 BTU/WATT
NOTE: RATED WITH 7.62 METERS OF 7/8 IN. SUCTION AND 7/8 IN. LIQUID LINES
* DRY COIL CONDITION (TOTAL CAPACITY = SENSIBLE CAPACITY)
TOTAL CAPACITY AND COMP. KW ARE VALID ONLY FOR WET COIL
ALL TEMPERATURES IN DEGREES F
TTA030CD00A WITH TWE040CA40C
AT 1911 CMH
GROSS CAPACITY IN KILOWATTS
O.D. I.D. TOTAL SENS. CAP. AT ENTERING D.B. TEMP. COMPR.
D.B. W.B. CAP. 22.2 23.3 24.4 25.6 26.7 KW
15.0 8.6 7.3 7.9 8.5 8.8* 9.0* 2.34
29.4 17.2 9.3 6.1 6.7 7.3 7.9 8.5 2.42
19.4 10.0 4.8 5.4 6.0 6.6 7.2 2.50
21.7 10.7 3.5 4.1 4.7 5.3 5.9 2.59
15.0 8.4 7.2 7.8 8.4 8.6* 8.8* 2.45
32.2 17.2 9.1 6.0 6.6 7.2 7.8 8.4 2.53
19.4 9.8 4.7 5.3 5.9 6.5 7.1 2.62
21.7 10.4 3.5 4.0 4.6 5.2 5.8 2.71
15.0 8.3 7.1 7.7 8.3* 8.5* 8.7* 2.57
35.0 17.2 8.9 5.9 6.5 7.1 7.7 8.3 2.65
19.4 9.5 4.7 5.3 5.9 6.4 7.0 2.73
21.7 10.2 3.4 4.0 4.5 5.2 5.7 2.82
15.0 8.0 7.0 7.6 8.1* 8.3* 8.5* 2.69
37.8 17.2 8.6 5.9 6.4 7.0 7.6 8.2 2.77
19.4 9.2 4.6 5.2 5.7 6.4 6.9 2.85
21.7 9.9 3.3 3.8 4.5 5.0 5.6 2.94
15.0 7.8 6.9 7.5 7.9* 8.1* 8.3* 2.81
40.6 17.2 8.4 5.7 6.3 6.9 7.5 8.1 2.89
19.4 9.0 4.5 5.1 5.7 6.2 6.8 2.97
21.7 9.6 3.2 3.8 4.3 4.9 5.5 3.05
15.0 7.3 6.7 7.3 7.5* 7.7* 7.9* 3.06
46.1 17.2 7.9 5.5 6.2 6.7 7.3 7.9* 3.13
19.4 8.4 4.2 4.9 5.4 6.0 6.6 3.20
21.7 9.0 2.9 3.5 4.1 4.7 5.3 3.28
CORRECTION FACTORS - OTHER AIRFLOWS (MULTIPLY OR ADD AS INDICATED)
AIRFLOW 975 1275 AIRFLOW 975 1275
TOTAL CAP. X0.98 X1.01 SENS. CAP. X0.94 X1.06
COMPR. KW X0.99 X1.01
VALUES AT 95/80/67 RATING CONDITIONS
GROSS CAPACITY = 9.5 KW
AIRFLOW = 1913 CMH
COMPRESSOR POWER = 2653 WATTS
I.D. FAN POWER = 430 WATTS
O.D. FAN POWER = 227 WATTS
EER = 8.75 BTU/WATT
NOTE: RATED WITH 7.62 METERS OF 7/8 IN. SUCTION AND 7/8 IN. LIQUID LINES
* DRY COIL CONDITION (TOTAL CAPACITY = SENSIBLE CAPACITY)
TOTAL CAPACITY AND COMP. KW ARE VALID ONLY FOR WET COIL
ALL TEMPERATURES IN DEGREES F
16 TWE5-PRC000-EN
Performance Data
Cooling English Units
TTA040CD WITH TWE040CA4B
AT 1325 CFM
GROSS CAPACITY IN BTU/H x 1000
O.D. I.D. GROSS SENS. CAP. AT ENTERING D.B. TEMP. COMPR.
D.B. W.B. CAP. 72 74 76 78 80 KW
59 36.9 29.5 31.8 34.1 36.4 37.7* 3.24
85 63 39.7 25.0 27.3 29.6 31.9 34.2 3.37
67 42.6 20.0 22.3 24.6 26.9 29.3 3.51
71 45.6 14.9 17.2 19.6 21.9 24.2 3.64
59 36.2 29.2 31.5 33.8 36.1 37.1* 3.39
90 63 38.9 24.7 27.0 29.3 31.6 33.9 3.53
67 41.7 19.7 22.0 24.3 26.6 28.9 3.66
71 44.6 14.6 16.9 19.2 21.5 23.8 3.81
59 35.4 28.9 31.2 33.5 35.6* 36.5* 3.54
95 63 38.0 24.3 26.6 29.0 31.3 33.6 3.68
67 40.8 19.3 21.7 24.0 26.3 28.6 3.82
71 43.6 14.2 16.6 18.9 21.2 23.5 3.97
59 34.5 28.5 30.8 33.1 34.9* 35.7* 3.70
100 63 37.0 23.9 26.2 28.5 30.9 33.2 3.84
67 39.7 18.9 21.2 23.5 25.9 28.2 3.99
71 42.4 13.8 16.1 18.4 20.7 23.1 4.14
59 33.5 28.1 30.4 32.7 34.1* 34.9* 3.85
105 63 36.0 23.5 25.8 28.1 30.4 32.8 4.00
67 38.6 18.5 20.8 23.1 25.4 27.7 4.15
71 41.2 13.4 15.7 18.0 20.3 22.6 4.31
59 31.6 27.3 29.6 31.8* 32.5* 33.3* 4.17
115 63 33.9 22.7 25.0 27.3 29.6 31.9 4.32
67 36.3 17.7 20.0 22.3 24.6 26.9 4.48
71 38.8 12.6 14.9 17.2 19.5 21.8 4.65
CORRECTION FACTORS - OTHER AIRFLOWS (MULTIPLY OR ADD AS INDICATED)
AIRFLOW 1150 1500 AIRFLOW 1150 1500
TOTAL CAP. X0.98 X1.02 SENS. CAP. X0.94 X1.06
COMPR. KW X0.99 X1.01
VALUES AT 95/80/67 RATING CONDITIONS
GROSS CAPACITY = 40800 BTUH
AIRFLOW = 1325 CFM
COMPRESSOR POWER = 3820 WATTS
I.D. FAN POWER = 380 WATTS
O.D. FAN POWER = 197 WATTS
E.E.R. = 9.00 BTUH/WATT
NOTE: RATED WITH 25 FEET OF 1-1/8 SUCTION AND 3/8 LIQUID LINE
* DRY COIL CONDITION (TOTAL CAPACITY = SENSIBLE CAPACITY)
TOTAL CAPACITY AND COMP. KW ARE VALID ONLY FOR WET COIL
ALL TEMPERATURES IN DEGREES F
TTA040CD WITH TWE050CA5C
AT 1600 CFM
GROSS CAPACITY IN BTU/H x 1000
O.D. I.D. GROSS SENS. CAP. AT ENTERING D.B. TEMP. COMPR.
D.B. W.B. CAP. 72 74 76 78 80 KW
59 40.5 34.2 37.0 39.9 41.3* 42.2* 3.16
85 63 43.4 28.6 31.5 34.3 37.1 39.9 3.29
67 46.4 22.5 25.3 28.1 31.0 33.8 3.43
71 49.5 16.2 19.1 21.9 24.7 27.5 3.57
59 39.4 33.8 36.6 39.4 40.4* 41.3* 3.29
90 63 42.2 28.2 31.0 33.8 36.7 39.5 3.42
67 45.1 22.0 24.9 27.7 30.5 33.3 3.57
71 48.2 15.8 18.6 21.4 24.2 27.1 3.71
59 38.4 33.3 36.2 38.7* 39.6* 40.4* 3.42
95 63 41.1 27.7 30.6 33.4 36.2 39.0 3.56
67 43.9 21.6 24.4 27.2 30.0 32.9 3.70
71 46.8 15.3 18.1 21.0 23.8 26.6 3.85
59 37.3 32.9 35.7 37.7* 38.6* 39.5* 3.55
100 63 39.9 27.3 30.1 32.9 35.7 38.5 3.69
67 42.6 21.1 23.9 26.7 29.6 32.4 3.84
71 45.4 14.8 17.7 20.5 23.3 26.1 4.00
59 36.1 32.4 35.2 36.8* 37.7* 38.5* 3.69
105 63 38.7 26.8 29.6 32.4 35.2 38.1 3.83
67 41.3 20.6 23.5 26.3 29.1 31.9 3.98
71 44.0 14.4 17.2 20.0 22.8 25.6 4.14
59 33.9 31.5 34.1* 34.9* 35.7* 36.5* 3.96
115 63 36.2 25.8 28.7 31.5 34.3 36.5* 4.11
67 38.7 19.7 22.5 25.3 28.1 31.0 4.26
71 41.2 13.4 16.2 19.1 21.9 24.7 4.42
CORRECTION FACTORS - OTHER AIRFLOWS (MULTIPLY OR ADD AS INDICATED)
AIRFLOW 1375 1775 AIRFLOW 1375 1775
TOTAL CAP. X0.98 X1.01 SENS. CAP. X0.93 X1.05
COMPR. KW X0.99 X1.01
VALUES AT 95/80/67 RATING CONDITIONS
GROSS CAPACITY = 43900 BTUH
AIRFLOW = 1570 CFM
COMPRESSOR POWER = 3720 WATTS
I.D. FAN POWER = 530 WATTS
O.D. FAN POWER = 197 WATTS
E.E.R. = 9.45 BTUH/WATT
NOTE: RATED WITH 25 FEET OF 1-1/8 SUCTION AND 3/8 LIQUID LINE
* DRY COIL CONDITION (TOTAL CAPACITY = SENSIBLE CAPACITY)
TOTAL CAPACITY AND COMP. KW ARE VALID ONLY FOR WET COIL
ALL TEMPERATURES IN DEGREES F
17TWE5-PRC000-EN
Performance Data
Cooling Metric Units
TTA040CD00A WITH TWE040CA40C
AT 2250 CMH
GROSS CAPACITY IN KILOWATTS
O.D. I.D. TOTAL SENS. CAP. AT ENTERING D.B. TEMP. COMPR.
D.B. W.B. CAP. 22.2 23.3 24.4 25.6 26.7 KW
15.0 10.8 8.6 9.3 10.0 10.7 11.0* 3.24
29.4 17.2 11.6 7.3 8.0 8.7 9.3 10.0 3.37
19.4 12.5 5.9 6.5 7.2 7.9 8.6 3.51
21.7 13.4 4.4 5.0 5.7 6.4 7.1 3.64
15.0 10.6 8.6 9.2 9.9 10.6 10.9* 3.39
32.2 17.2 11.4 7.2 7.9 8.6 9.3 9.9 3.53
19.4 12.2 5.8 6.4 7.1 7.8 8.5 3.66
21.7 13.1 4.3 5.0 5.6 6.3 7.0 3.81
15.0 10.4 8.5 9.1 9.8 10.4* 10.7* 3.54
35.0 17.2 11.1 7.1 7.8 8.5 9.2 9.8 3.68
19.4 12.0 5.7 6.4 7.0 7.7 8.4 3.82
21.7 12.8 4.2 4.9 5.5 6.2 6.9 3.97
15.0 10.1 8.4 9.0 9.7 10.2* 10.5* 3.70
37.8 17.2 10.8 7.0 7.7 8.4 9.1 9.7 3.84
19.4 11.6 5.5 6.2 6.9 7.6 8.3 3.99
21.7 12.4 4.0 4.7 5.4 6.1 6.8 4.14
15.0 9.8 8.2 8.9 9.6* 10.0* 10.2* 3.85
40.6 17.2 10.5 6.9 7.6 8.2 8.9 9.6 4.00
19.4 11.3 5.4 6.1 6.8 7.4 8.1 4.15
21.7 12.1 3.9 4.6 5.3 5.9 6.6 4.31
15.0 9.3 8.0 8.7 9.3* 9.5* 9.8* 4.17
46.1 17.2 9.9 6.7 7.3 8.0 8.7 9.3 4.32
19.4 10.6 5.2 5.9 6.5 7.2 7.9 4.48
21.7 11.4 3.7 4.4 5.0 5.7 6.4 4.65
CORRECTION FACTORS - OTHER AIRFLOWS (MULTIPLY OR ADD AS INDICATED)
AIRFLOW 1150 1500 AIRFLOW 1150 1500
TOTAL CAP. X0.98 X1.02 SENS. CAP. X0.94 X1.06
COMPR. KW X0.99 X1.01
VALUES AT 95/80/67 RATING CONDITIONS
GROSS CAPACITY = 12.0 KW
AIRFLOW = 2253 CMS
COMPRESSOR POWER = 3820 WATTS
I.D. FAN POWER = 380 WATTS
O.D. FAN POWER = 197 WATTS
EER = 9.00 BTU/WATT
NOTE: RATED WITH 7.62 METERS OF 1-1/8 IN. SUCTION AND 3/8 IN. LIQUID LINES
* DRY COIL CONDITION (TOTAL CAPACITY = SENSIBLE CAPACITY)
TOTAL CAPACITY AND COMP. KW ARE VALID ONLY FOR WET COIL
ALL TEMPERATURES IN DEGREES F
TTA040CD00A WITH TWE050CA50D
AT 2717 CMH
GROSS CAPACITY IN KILOWATTS
O.D. I.D. TOTAL SENS. CAP. AT ENTERING D.B. TEMP. COMPR.
D.B. W.B. CAP. 22.2 23.3 24.4 25.6 26.7 KW
15.0 11.9 10.0 10.8 11.7 12.1* 12.4* 3.16
29.4 17.2 12.7 8.4 9.2 10.0 10.9 11.7 3.29
19.4 13.6 6.6 7.4 8.2 9.1 9.9 3.43
21.7 14.5 4.7 5.6 6.4 7.2 8.1 3.57
15.0 11.5 9.9 10.7 11.5 11.8* 12.1* 3.29
32.2 17.2 12.4 8.3 9.1 9.9 10.8 11.6 3.42
19.4 13.2 6.4 7.3 8.1 8.9 9.8 3.57
21.7 14.1 4.6 5.4 6.3 7.1 7.9 3.71
15.0 11.3 9.8 10.6 11.3* 11.6* 11.8* 3.42
35.0 17.2 12.0 8.1 9.0 9.8 10.6 11.4 3.56
19.4 12.9 6.3 7.1 8.0 8.8 9.6 3.70
21.7 13.7 4.5 5.3 6.2 7.0 7.8 3.85
15.0 10.9 9.6 10.5 11.0* 11.3* 11.6* 3.55
37.8 17.2 11.7 8.0 8.8 9.6 10.5 11.3 3.69
19.4 12.5 6.2 7.0 7.8 8.7 9.5 3.84
21.7 13.3 4.3 5.2 6.0 6.8 7.6 4.00
15.0 10.6 9.5 10.3 10.8* 11.0* 11.3* 3.69
40.6 17.2 11.3 7.9 8.7 9.5 10.3 11.2 3.83
19.4 12.1 6.0 6.9 7.7 8.5 9.3 3.98
21.7 12.9 4.2 5.0 5.9 6.7 7.5 4.14
15.0 9.9 9.2 10.0* 10.2* 10.5* 10.7* 3.96
46.1 17.2 10.6 7.6 8.4 9.2 10.0 10.7 4.11
19.4 11.3 5.8 6.6 7.4 8.2 9.1 4.26
21.7 12.1 3.9 4.7 5.6 6.4 7.2 4.42
CORRECTION FACTORS - OTHER AIRFLOWS (MULTIPLY OR ADD AS INDICATED)
AIRFLOW 1375 1775 AIRFLOW 1375 1775
TOTAL CAP. X0.98 X1.01 SENS. CAP. X0.93 X1.05
COMPR. KW X0.99 X1.01
VALUES AT 95/80/67 RATING CONDITIONS
GROSS CAPACITY = 12.0 KW
AIRFLOW = 2253 CMS
COMPRESSOR POWER = 3720 WATTS
I.D. FAN POWER = 380 WATTS
O.D. FAN POWER = 197 WATTS
EER = 9.00 BTU/WATT
NOTE: RATED WITH 7.62 METERS OF 1-1/8 IN. SUCTION AND 3/8 IN. LIQUID LINES
* DRY COIL CONDITION (TOTAL CAPACITY = SENSIBLE CAPACITY)
TOTAL CAPACITY AND COMP. KW ARE VALID ONLY FOR WET COIL
ALL TEMPERATURES IN DEGREES F
18 TWE5-PRC000-EN
Performance Data
Cooling English Units
TTA060CD WITH TWE050CA5C
AT 1800 CFM
GROSS CAPACITY IN BTU/H x 1000
O.D. I.D. GROSS SENS. CAP. AT ENTERING D.B. TEMP. COMPR.
D.B. W.B. CAP. 72 74 76 78 80 KW
59 57.5 43.6 46.8 49.9 53.0 56.2 4.71
85 63 61.6 37.4 40.6 43.7 46.8 50.0 4.87
67 65.8 30.6 33.7 36.8 40.0 43.1 5.04
71 70.2 23.5 26.7 29.8 32.9 36.1 5.22
59 56.2 43.0 46.2 49.3 52.5 55.6 4.90
90 63 60.2 36.9 40.0 43.1 46.3 49.4 5.06
67 64.3 30.0 33.1 36.2 39.4 42.5 5.23
71 68.6 22.9 26.1 29.2 32.3 35.5 5.40
59 54.9 42.5 45.6 48.7 51.9 55.0* 5.09
95 63 58.8 36.3 39.4 42.5 45.7 48.8 5.25
67 62.8 29.4 32.5 35.7 38.8 41.9 5.42
71 66.9 22.3 25.5 28.6 31.7 34.9 5.59
59 53.5 41.9 45.0 48.1 51.3 54.0* 5.31
100 63 57.3 35.7 38.8 41.9 45.1 48.2 5.47
67 61.2 28.8 31.9 35.0 38.2 41.3 5.63
71 65.2 21.7 24.9 28.0 31.1 34.3 5.79
59 52.2 41.3 44.4 47.5 50.7 52.9* 5.53
105 63 55.8 35.0 38.2 41.3 44.5 47.6 5.68
67 59.6 28.2 31.3 34.4 37.6 40.7 5.84
71 63.5 21.1 24.2 27.4 30.5 33.7 6.00
59 49.4 40.1 43.2 46.3 49.4* 50.6* 5.98
115 63 52.8 33.8 37.0 40.1 43.2 46.4 6.12
67 56.4 26.9 30.1 33.2 36.3 39.5 6.26
71 60.0 19.9 23.0 26.2 29.3 32.4 6.41
CORRECTION FACTORS - OTHER AIRFLOWS (MULTIPLY OR ADD AS INDICATED)
AIRFLOW 1525 1975 AIRFLOW 1525 1975
TOTAL CAP. X0.98 X1.01 SENS. CAP. X0.94 X1.04
COMPR. KW X0.98 X1.01
VALUES AT 95/80/67 RATING CONDITIONS
GROSS CAPACITY = 62500 BTUH
AIRFLOW = 1750 CFM
COMPRESSOR POWER = 5402 WATTS
I.D. FAN POWER = 730 WATTS
O.D. FAN POWER = 386 WATTS
E.E.R. = 9.15 BTUH/WATT
NOTE: RATED WITH 25 FEET OF 1-1/8 SUCTION AND 3/8 LIQUID LINE
* DRY COIL CONDITION (TOTAL CAPACITY = SENSIBLE CAPACITY)
TOTAL CAPACITY AND COMP. KW ARE VALID ONLY FOR WET COIL
ALL TEMPERATURES IN DEGREES F
TTA050CD WITH TWE050CA5C
AT 1800 CFM
GROSS CAPACITY IN BTU/H x 1000
O.D. I.D. GROSS SENS. CAP. AT ENTERING D.B. TEMP. COMPR.
D.B. W.B. CAP. 72 74 76 78 80 KW
59 48.8 39.4 42.5 45.6 48.7 49.9* 3.62
85 63 52.1 33.2 36.3 39.4 42.5 45.6 3.75
67 55.5 26.3 29.4 32.5 35.6 38.7 3.89
71 59.0 19.3 22.4 25.5 28.6 31.7 4.03
59 47.6 38.9 42.0 45.1 47.9* 48.9* 3.77
90 63 50.8 32.7 35.8 38.9 42.0 45.1 3.91
67 54.1 25.8 28.9 32.0 35.1 38.2 4.05
71 57.5 18.8 21.9 25.0 28.1 31.2 4.19
59 46.4 38.4 41.5 44.6 47.0* 47.9* 3.93
95 63 49.5 32.1 35.3 38.4 41.5 44.6 4.07
67 52.7 25.3 28.4 31.5 34.6 37.7 4.21
71 56.0 18.3 21.4 24.5 27.6 30.7 4.35
59 45.1 37.8 40.9 44.0 45.9* 46.8* 4.09
100 63 48.1 31.6 34.7 37.8 40.9 44.0 4.23
67 51.2 24.7 27.8 30.9 34.0 37.1 4.37
71 54.4 17.7 20.8 23.9 27.0 30.1 4.51
59 43.8 37.3 40.4 43.5 44.8* 45.7* 4.25
105 63 46.7 31.0 34.1 37.2 40.3 43.4 4.38
67 49.6 24.2 27.3 30.4 33.5 36.6 4.52
71 52.7 17.2 20.3 23.4 26.5 29.6 4.67
59 41.2 36.2 39.3 41.6* 42.5* 43.4* 4.57
115 63 43.8 29.9 33.0 36.1 39.2 42.3 4.71
67 46.6 23.0 26.1 29.2 32.3 35.4 4.84
71 49.4 16.1 19.2 22.3 25.4 28.5 4.98
CORRECTION FACTORS - OTHER AIRFLOWS (MULTIPLY OR ADD AS INDICATED)
AIRFLOW 1525 1975 AIRFLOW 1525 1975
TOTAL CAP. X0.98 X1.01 SENS. CAP. X0.93 X1.04
COMPR. KW X0.99 X1.01
VALUES AT 95/80/67 RATING CONDITIONS
GROSS CAPACITY = 52500 BTUH
AIRFLOW = 1750 CFM
COMPRESSOR POWER = 4202 WATTS
I.D. FAN POWER = 730 WATTS
O.D. FAN POWER = 202 WATTS
E.E.R. = 9.75 BTUH/WATT
NOTE: RATED WITH 25 FEET OF 1-1/8 SUCTION AND 3/8 LIQUID LINE
* DRY COIL CONDITION (TOTAL CAPACITY = SENSIBLE CAPACITY)
TOTAL CAPACITY AND COMP. KW ARE VALID ONLY FOR WET COIL
ALL TEMPERATURES IN DEGREES F
19TWE5-PRC000-EN
Performance Data
Cooling Metric Units
TTA060CD WITH TWE050CA5C
AT 3056 CMH
GROSS CAPACITY IN KILOWATTS
O.D. I.D. TOTAL SENS. CAP. AT ENTERING D.B. TEMP. COMPR.
D.B. W.B. CAP. 22.2 23.3 24.4 25.6 26.7 KW
15.0 16.8 12.8 13.7 14.6 15.5 16.5 4.71
29.4 17.2 18.0 11.0 11.9 12.8 13.7 14.7 4.87
19.4 19.3 9.0 9.9 10.8 11.7 12.6 5.04
21.7 20.6 6.9 7.8 8.7 9.6 10.6 5.22
15.0 16.5 12.6 13.5 14.4 15.4 16.3 4.90
32.2 17.2 17.6 10.8 11.7 12.6 13.6 14.5 5.06
19.4 18.8 8.8 9.7 10.6 11.5 12.5 5.23
21.7 20.1 6.7 7.6 8.6 9.5 10.4 5.40
15.0 16.1 12.5 13.4 14.3 15.2 16.1* 5.09
35.0 17.2 17.2 10.6 11.5 12.5 13.4 14.3 5.25
19.4 18.4 8.6 9.5 10.5 11.4 12.3 5.42
21.7 19.6 6.5 7.5 8.4 9.3 10.2 5.59
15.0 15.7 12.3 13.2 14.1 15.0 15.8* 5.31
37.8 17.2 16.8 10.5 11.4 12.3 13.2 14.1 5.47
19.4 17.9 8.4 9.3 10.3 11.2 12.1 5.63
21.7 19.1 6.4 7.3 8.2 9.1 10.0 5.79
15.0 15.3 12.1 13.0 13.9 14.9 15.5* 5.53
40.6 17.2 16.3 10.3 11.2 12.1 13.0 13.9 5.68
19.4 17.5 8.3 9.2 10.1 11.0 11.9 5.84
21.7 18.6 6.2 7.1 8.0 8.9 9.9 6.00
15.0 14.5 11.7 12.7 13.6 14.5* 14.8* 5.98
46.1 17.2 15.5 9.9 10.8 11.7 12.7 13.6 6.12
19.4 16.5 7.9 8.8 9.7 10.6 11.6 6.26
21.7 17.6 5.8 6.7 7.7 8.6 9.5 6.41
CORRECTION FACTORS - OTHER AIRFLOWS (MULTIPLY OR ADD AS INDICATED)
AIRFLOW 1525 1975 AIRFLOW 1525 1975
TOTAL CAP. X0.98 X1.01 SENS. CAP. X0.94 X1.04
COMPR. KW X0.98 X1.01
VALUES AT 95/80/67 RATING CONDITIONS
GROSS CAPACITY = 14.6 KW
AIRFLOW = 3056 CMH
COMPRESSOR POWER = 4202 WATTS
I.D. FAN POWER = 730 WATTS
O.D. FAN POWER = 202 WATTS
EER = 9.75 BTU/WATT
NOTE: RATED WITH 7.62 METERS OF 1-1/8 IN. SUCTION AND 3/8 IN. LIQUID LINES
* DRY COIL CONDITION (TOTAL CAPACITY = SENSIBLE CAPACITY)
TOTAL CAPACITY AND COMP. KW ARE VALID ONLY FOR WET COIL
ALL TEMPERATURES IN DEGREES F
TTA050CD WITH TWE050CA5C
AT 3056 CMH
GROSS CAPACITY IN KILOWATTS
O.D. I.D. TOTAL SENS. CAP. AT ENTERING D.B. TEMP. COMPR.
D.B. W.B. CAP. 22.2 23.3 24.4 25.6 26.7 KW
15.0 14.3 11.5 12.5 13.4 14.3 14.6* 3.62
29.4 17.2 15.3 9.7 10.6 11.5 12.5 13.4 3.75
19.4 16.3 7.7 8.6 9.5 10.4 11.3 3.89
21.7 17.3 5.7 6.6 7.5 8.4 9.3 4.03
15.0 13.9 11.4 12.3 13.2 14.0* 14.3* 3.77
32.2 17.2 14.9 9.6 10.5 11.4 12.3 13.2 3.91
19.4 15.9 7.6 8.5 9.4 10.3 11.2 4.05
21.7 16.8 5.5 6.4 7.3 8.2 9.1 4.19
15.0 13.6 11.3 12.2 13.1 13.8* 14.0* 3.93
35.0 17.2 14.5 9.4 10.3 11.3 12.2 13.1 4.07
19.4 15.4 7.4 8.3 9.2 10.1 11.0 4.21
21.7 16.4 5.4 6.3 7.2 8.1 9.0 4.35
15.0 13.2 11.1 12.0 12.9 13.4* 13.7* 4.09
37.8 17.2 14.1 9.3 10.2 11.1 12.0 12.9 4.23
19.4 15.0 7.2 8.1 9.1 10.0 10.9 4.37
21.7 15.9 5.2 6.1 7.0 7.9 8.8 4.51
15.0 12.8 10.9 11.8 12.7 13.1* 13.4* 4.25
40.6 17.2 13.7 9.1 10.0 10.9 11.8 12.7 4.38
19.4 14.5 7.1 8.0 8.9 9.8 10.7 4.52
21.7 15.4 5.0 5.9 6.9 7.8 8.7 4.67
15.0 12.1 10.6 11.5 12.2* 12.5* 12.7* 4.57
46.1 17.2 12.8 8.8 9.7 10.6 11.5 12.4 4.71
19.4 13.7 6.7 7.6 8.6 9.5 10.4 4.84
21.7 14.5 4.7 5.6 6.5 7.4 8.4 4.98
CORRECTION FACTORS - OTHER AIRFLOWS (MULTIPLY OR ADD AS INDICATED)
AIRFLOW 1525 1975 AIRFLOW 1525 1975
TOTAL CAP. X0.98 X1.01 SENS. CAP. X0.93 X1.04
COMPR. KW X0.99 X1.01
VALUES AT 95/80/67 RATING CONDITIONS
GROSS CAPACITY = 14.6 KW
AIRFLOW = 3056 CMH
COMPRESSOR POWER = 4202 WATTS
I.D. FAN POWER = 730 WATTS
O.D. FAN POWER = 202 WATTS
EER = 9.75 BTU/WATT
NOTE: RATED WITH 7.62 METERS OF 1-1/8 IN. SUCTION AND 3/8 IN. LIQUID LINES
* DRY COIL CONDITION (TOTAL CAPACITY = SENSIBLE CAPACITY)
TOTAL CAPACITY AND COMP. KW ARE VALID ONLY FOR WET COIL
ALL TEMPERATURES IN DEGREES F
20 TWE5-PRC000-EN
Performance
Data
Evaporator Fan Performance
BLOWER PERFORMANCE — TWE030CA40B — WET COIL
EXTERNAL STATIC PRESSURE INCHES OF WATER (PASCALS)
UPFLOW & DOWNFLOW (See Notes) HORIZONTAL; NO FILTER (See Notes)
220 VOLTS 220 VOLTS
CFM CMH Hl MED LO Hl MED LO
600 1018.8 0.72 (179.4) 0.71 (176.9)
650 1103.7 0.62 (154.4) 0.61 (152.0)
700 1188.6 0.86 (214.2) 0.51 (127.0) 0.84 (209.2) 0.50 (124.6)
750 1273.5 0.75 (186.8) 0.40 (99.6) 0.72 (179.4) 0.39 (97.1)
800 1358.4 0.89 (221.7) 0.65 (161.9) 0.29 (72.2) 0.87 (216.7) 0.62 (154.4) 0.28 (69.7)
850 1443.3 0.81 (201.8) 0.54 (134.5) 0.18 (44.8) 0.79 (196.8) 0.51 (127.0) 0.17 (42.3)
900 1528.2 0.72 (179.4) 0.43 (107.1) 0.06 (14.9) 0.69 (171.9) 0.40 (99.6) 0.08 (19.9)
950 1613.1 0.63 (156.9) 0.32 (79.7) 0.61 (152.0) 0.30 (74.7)
1000 1698.0 0.53 (132.0) 0.21 (52.3) 0.51 (127.0) 0.17 (42.3)
1050 1782.9 0.42 (104.6) 0.10 (24.9) 0.40 (99.6) 0.02 (5.0)
1100 1867.8 0.31 (77.2) 0.31 (77.2)
1150 1952.7 0.20 (49.8) 0.22 (54.8)
1200 2037.6 0.08 (19.9) 0.10 (24.9)
NOTES:
Vertical: With filter, no horizontal drip tray. Subtract 0.06" W.G. for downflow.
Horizontal: As shipped, but without filter. Subtract 0.05" W.G. for horizontal left.
BLOWER PERFORMANCE — TWE040CA40C — WET COIL
EXTERNAL STATIC PRESSURE INCHES OF WATER (PASCALS)
UPFLOW & DOWNFLOW (See Notes) HORIZONTAL; NO FILTER (See Notes)
220 VOLTS 220 VOLTS
CFM CMH Hl MED LO Hl MED LO
700 1188.6 0.58 (144.5)
750 1273.5 0.61 (152.0) 0.55 (137.0)
800 1358.4 0.61 (152.0) 0.58 (144.5) 0.52 (129.5) 0.58 (144.5)
850 1443.3 0.57 (142.0) 0.54 (134.5) 0.48 (119.6) 0.52 (129.5)
900 1528.2 0.53 (132.0) 0.51 (127.0) 0.44 (109.6) 0.49 (122.1)
950 1613.1 0.49 (122.1) 0.47 (117.1) 0.40 (99.6) 0.57 (142.0) 0.45 (112.1)
1000 1698.0 0.45 (112.1) 0.43 (107.1) 0.34 (84.7) 0.53 (132.0) 0.50 (124.6) 0.40 (99.6)
1050 1782.9 0.40 (99.6) 0.38 (94.7) 0.28 (69.7) 0.48 (119.6) 0.45 (112.1) 0.35 (87.2)
1100 1867.8 0.36 (89.7) 0.34 (84.7) 0.22 (54.8) 0.43 (107.1) 0.40 (99.6) 0.30 (74.7)
1150 1952.7 0.31 (77.2) 0.29 (72.2) 0.15 (37.4) 0.39 (97.1) 0.37 (92.2) 0.22 (54.8)
1200 2037.6 0.26 (64.8) 0.24 (59.8) 0.08 (19.9) 0.35 (87.2) 0.32 (79.7) 0.17 (42.3)
1250 2122.5 0.21 (52.3) 0.18 (44.8) 0.00 (0.0) 0.31 (77.2) 0.28 (69.7) 0.10 (24.9)
1300 2207.4 0.17 (42.3) 0.13 (32.4) 0.26 (64.8) 0.22 (54.8) 0.01 (2.5)
1350 2292.3 0.11 (27.4) 0.07 (17.4) 0.21 (52.3) 0.18 (44.8)
1400 2377.2 0.06 (14.9) 0.01 (2.5) 0.15 (37.4) 0.12 (29.9)
1450 2462.1 0.01 (2.5) 0.11 (27.4) 0.08 (19.9)
1500 2547.0 0.00 0.05 (12.5) 0.02 (5.0)
NOTES:
Vertical: With filter, no horizontal drip tray. Small apex baffle. Subtract 0.06" W.G. for downflow.
Horizontal: As shipped, but without filter. Subtract 0.05" W.G. for horizontal left.
21TWE5-PRC000-EN
BLOWER PERFORMANCE — TWE050CA50D — WET COIL
EXTERNAL STATIC PRESSURE INCHES OF WATER (PASCALS)
UPFLOW & DOWNFLOW (See Notes) HORIZONTAL; NO FILTER (See Notes)
220 VOLTS 220 VOLTS
CFM CMH Hl MED LO Hl MED LO
900 1528.2
950 1613.1 0.63 (156.9)
1000 1698.0 0.61 (152.0) 0.62 (154.4)
1050 1782.9 0.58 (144.5) 0.60 (149.5)
1100 1867.8 0.54 (134.5) 0.57 (142.0)
1150 1952.7 0.50 (124.6) 0.53 (132.0)
1200 2037.6 0.45 (112.1) 0.49 (122.1)
1250 2122.5 0.61 (152.0) 0.39 (97.1) 0.64 (159.4) 0.44 (109.6)
1300 2207.4 0.59 (147.0) 0.57 (142.0) 0.33 (82.2) 0.62 (154.4) 0.61 (152.0) 0.38 (94.7)
1350 2292.3 0.56 (139.5) 0.53 (132.0) 0.26 (64.8) 0.59 (147.0) 0.58 (144.5) 0.32 (79.7)
1400 2377.2 0.52 (129.5) 0.49 (122.1) 0.18 (44.8) 0.56 (139.5) 0.55 (137.0) 0.25 (62.3)
1450 2462.1 0.48 (119.6) 0.45 (112.1) 0.10 (24.9) 0.52 (129.5) 0.52 (129.5) 0.18 (44.8)
1500 2547.0 0.44 (109.6) 0.40 (99.6) 0.01 (2.5) 0.49 (122.1) 0.48 (119.6) 0.11 (27.4)
1550 2631.9 0.40 (99.6) 0.35 (87.2) 0.47 (117.1) 0.44 (109.6) 0.00 (0.0)
1600 2716.8 0.35 (87.2) 0.30 (74.7) 0.45 (112.1) 0.40 (99.6)
1650 2801.7 0.31 (77.2) 0.25 (62.3) 0.41 (102.1) 0.35 (87.2)
1700 2886.6 0.26 (64.8) 0.20 (49.8) 0.36 (89.7) 0.28 (69.7)
1750 2971.5 0.21 (52.3) 0.14 (34.9) 0.30 (74.7) 0.20 (49.8)
1800 3056.4 0.16 (39.9) 0.08 (19.9) 0.24 (59.8) 0.13 (32.4)
1850 3141.3 0.11 (27.4) 0.02 (5.0) 0.17 (42.3) 0.07 (17.4)
1900 3226.2 0.05 (12.5) 0.10 (24.9) 0.01 (2.5)
1950 3311.1 0.02 (5.0)
NOTES:
Vertical: With filter, no horizontal drip tray. Small apex baffle
Subtract 0.06" W.G. for downflow.
Horizontal: As shipped, but without filter. Subtract 0.05" W.G for horizontal left.
Performance
Data
22 TWE5-PRC000-EN
Performance
Data
Air Pressure Drop (Inches) - Electric Heaters
PRESSURE DROP FOR ELECTRIC HEATERS
IN AIR HANDLER MODELS
NUMBER OF RACKS
12 34 5
AIRFLOW AIRFLOW AIR PRESSURE DROP
CFM CMH IN. W.G. (PASCALS)
600 1018.8 0.01 (2.5) 0.02 (5.0) 0.02 (5.0)
700 1188.6 0.01 (2.5) 0.02 (5.0) 0.02 (5.0)
800 1358.4 0.02 (5.0) 0.03 (7.5) 0.03 (7.5) 0.04 (10.0)
900 1528.2 0.03 (7.5) 0.03 (7.5) 0.04 (10.0) 0.05 (12.5)
1000 1698.0 0.04 (10.0) 0.04 (10.0) 0.05 (12.5) 0.06 (14.9)
1100 1867.8 0.04 (10.0) 0.05 (12.5) 0.06 (14.9) 0.07 (17.4) 0.08 (19.9)
1200 2037.6 0.05 (12.5) 0.06 (14.9) 0.07 (17.4) 0.08 (19.9) 0.09 (22.4)
1300 2207.4 0.06 (14.9) 0.07 (17.4) 0.08 (19.9) 0.09 (22.4) 0.11 (27.4)
1400 2377.2 0.07 (17.4) 0.08 (19.9) 0.10 (24.9) 0.11 (27.4) 0.13 (32.4)
1500 2547.0 0.08 (19.9) 0.09 (22.4) 0.11 (27.4) 0.13 (32.4) 0.15 (37.4)
1600 2716.8 0.09 (22.4) 0.10 (24.9) 0.12 (29.9) 0.15 (37.4) 0.17 (42.3)
1700 2886.6 0.10 (24.9) 0.11 (27.4) 0.14 (34.9) 0.17 (42.3) 0.19 (47.3)
1800 3056.4 0.11 (27.4) 0.13 (32.4) 0.16 (39.9) 0.19 (47.3) 0.21 (52.3)
1900 3226.2 0.13 (32.4) 0.15 (37.4) 0.18 (44.8) 0.21 (52.3) 0.23 (57.3)
2000 3396.0 0.14 (34.9) 0.17 (42.3) 0.20 (49.8) 0.23 (57.3) 0.26 (64.8)
NOTES:
1. See Product Data or Air Handler nameplate for approved combinations of Air Handlers and Heaters.
2. Heater model numbers may have additional suffix digits.
HEATER RACKS
HEATER NO. OF
MODEL NO. RACKS
BAY96X1405 1
BAY96X1406 2
BAY96X1408 2
BAY96X1410 2
BAY96X1411 3
BAY96X1415 3
BAY96X1419 4
BAY96X1421 4
BAY96X1426 5
BAY96X3411 3
BAY96X3415 3
23TWE5-PRC000-EN
Supplementary
Heaters
THESE AIR HANDLERS ARE CONVERTIBLE AND MOTOR SPEED TAPS VARY BY THE UNIT ORIENTATION.
TWE030C-HEATER MODEL NUMBER BAY96X
Unit 1405 1406 1408,F 1410,F 1410A 1411 1411A 1415 1419 1421 3411 3415
Position Application 4.0 KW 4.8 KW 6.4 KW 8.0 KW 8.8 KW 8.8 KW 8.8 KW 12.8 KW 16.0 KW 17.6 KW 8.8 KW 12.8 KW
Vertical A/C or Elec. Furnace LLLLLLLLLLLL
Upflow Heat Pump LLLLLLLLMMLL
Vertical A/C or Elec. Furnace LLLLLLLLLLLL
Downflow Heat Pump LLLLLLLLHHLH
Horizontal A/C or Elec. Furnace LLLLLLLLLLLL
Left Heat Pump LLLLLLLLMMLL
Horizontal A/C or Elec. Furnace LLLLLLLLLLLL
Right Heat Pump LLLLLLLLHHLL
(L) Low, (M) Medium, (H) High indicate minimum heating speed setting for blower/motor operation. 1414 and 1426 not approved for this model.
TWE040C-HEATER MODEL NUMBER BAY96X
Unit 1405 1406 1408,F 1410,F 1410A 1411 1411A 1415 1419 1421 3411 3415
Position Application 4.0 KW 4.8 KW 6.4 KW 8.0 KW 8.8 KW 8.8 KW 8.8 KW 12.8 KW 16.0 KW 17.6 KW 8.8 KW 12.8 KW
Vertical A/C or Elec. Furnace LLLLLLLLLLLL
Upflow Heat Pump LLLLLMMHHHMM
Vertical A/C or Elec. Furnace LLLLLLLLLLLL
Downflow Heat Pump LLLLLLLHHHLL
Horizontal A/C or Elec. Furnace LLLLLLLLLLLL
Left Heat Pump LLLLLLLHHHLL
Horizontal A/C or Elec. Furnace LLLLLLLLLLLL
Right Heat Pump LLLLLLLHHHLL
(L) Low, (M) Medium, (H) High indicate minimum heating speed setting for blower/motor operation. 1414 not approved for this model.
TWE050C-HEATER MODEL NUMBER BAY96X
Unit 1405 1406 1408,F 1410,F 1410A 1415 1419 1421 1426 3415
Position Application 4.0 KW 4.8 KW 6.4 KW 8.0 KW 8.8 KW 12.8 KW 16.0 KW 17.6 KW 21.6 KW 12.8 KW
Vertical A/C or Elec. Furnace — — LLLL L LLL
Upflow Heat Pump L L LLLL MMHL
Vertical A/C or Elec. Furnace — — LLLL L LLL
Downflow Heat Pump L L LLLL H HHL
Horizontal A/C or Elec. Furnace — — LLLL L LLL
Left Heat Pump L L LLLL H HHL
Horizontal A/C or Elec. Furnace — — LLLL L LLL
Right Heat Pump L L LLLL MMHL
(L) Low, (M) Medium, (H) High indicate minimum heating speed setting for blower/motor operation. 14141,A & 1414 not approved for this model.
24 TWE5-PRC000-EN
System
Wiring
Diagram
NOTES:
1. DO NOT USE REQ TRANSFORMER LEAD IN THIS APPLICATION
2. ACCESSORY KIT BAY24X038 MAY BE USED WHEN AUTOMATIC
SPEED CHANGE FOR HEATING/COOLING OPERATION IS DESIRED.
3. A 220V HIGH VOLTAGE CONTROL IN TTB5-C NEEDS TO BE
CHANGED WITH 24V LOW VOLTAGE CONTROL KIT (ACYLVCR006A)
WHEN MATCHED WITH TWE-C AIR HANDLING UNITS.
25TWE5-PRC000-EN
Dimensional
Data
TWE030-050C Outline Drawing
All dimensions are in inches (mm)
MINIMUM UNIT CLEARANCE SALE
TO COMBUSTIBLE SERVICE CLEARANCE
MATERIAL (REQUIRED) (RECOMMENDED)
SIDES 0 (0) 2 (50.8)
FRONT 0 (0) 21 (533.4)
BACK 0 (0) 0 (0)
INLET DUCT 0 (0) 1 (25.4)
OUTLET DUCT 1 (25.4)
MODEL NO. A B C D E F
TWE030CA4 43.00 15.57 21.50 19.50 20.28 21.63 FCCV
(1092.2) (395.5) (761.1) (495.3) (515.1) (549.4)
TWE040CA4 51.75 24.32 23.50 21.50 22.28 23.63 FCCV
(1134.5) (617.7) (596.9) (761.1) (565.9) (600.2)
TWE050CA5 57.90 30.47 23.50 21.50 22.28 23.63 TXV
(1470.7) (773.9) (596.9) (761.1) (565.9) (600.2)
FLOW
CONTROL
26 TWE5-PRC000-EN
Dimensional
Data

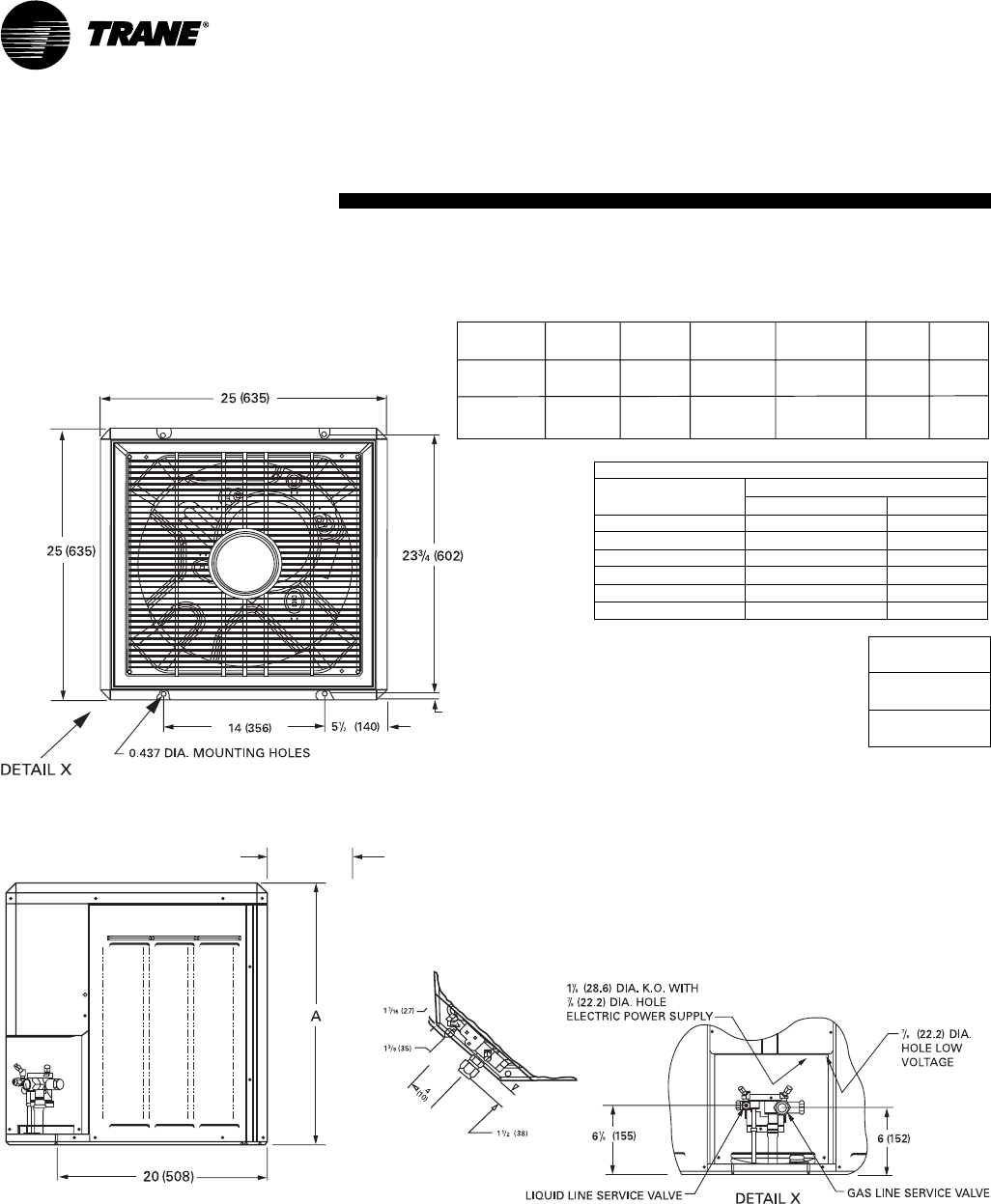

TTB524-536CA Outline Drawing
All dimensions are in inches (mm)
“C” SAE MALE FLARE FOR “E” O.D. TUBE SIZE
CONNECTION WITH 1/4” SAE FLARE
PRESSURE TAP FITTING.
“B” SAE MALE FLARE FOR “D” O.D. TUBE SIZE
CONNECTION WITH 1/4” SAE FLARE
PRESSURE TAP FITTING.
SERVICE PANEL
ELECTRICAL AND REFRIGERANT
COMPONENTS CLEARANCES
PER PREVAILING CODES
TOP DISCHARGE AREA SHOULD BE
UNRESTRICTED FOR AT LEAST 1524
(5 FEET) ABOVE UNIT. UNIT SHOULD BE
PLACED SO ROOF RUN-OFF WATER
DOES NOT POUR DIRECTLY ON UNIT
AND SHOULD BE AT LEAST 305 (12”)
FROM WALL AND ALL SURROUNDING
SHRUBBERY ON TWO SIDES. OTHER
TWO SIDES UNRESTRICTED.
FLARE NUT TORQUE
TORQUE FT-LBS (NEWTON METERS)
APPLIED TUBE SIZE MINIMUM MAXIMUM
1
/
4
(6.35) 8 (11.0) 10 (14.0)
5
/
16
(7.94) 10 (14.0) 15 (20.0)
3
/
8
(9.52) 15 (20.0) 25 (34.0)
1
/
2
(12.70) 25 (34.0) 35 (47.0)
5
/
8
(15.88) 40 (54.0) 55 (75.0)
3
/
4
(19.05) 50 (68.0) 60 (81.0)
BACK-UP
HEX SIZE
1 1/16-14 = 1 1/16
(27)
1/2-20 = 1/2
(13)
CABINET
PT. NO. SIZE A B C D E
TTB524CA 25A 251/211/16 1/23/45/16
(648) 14 UNS-2A 20UNF-2A (19 (8)
TTB530CA/ 25C 321/211/16 1/23/45/16
TTB536CA (826) 14 UNS-2A 20UNF-2A (19) (8)
1 INCH = (25.40 MILLIMETERS)
27TWE5-PRC000-EN
Dimensional
Data
TOP DISCHARGE AREA SHOULD BE
UNRESTRICTED FOR AT LEAST FIVE (5)
FEET ABOVE UNIT. UNIT SHOULD BE
PLACED SO ROOF RUN-OFF WATER
DOES NOT POUR DIRECTLY ON UNIT,
AND SHOULD BE AT LEAST 12” (305)
FROM WALL AND ALL SURROUNDING
SHRUBBERY ON TWO SIDES. OTHER
TWO SIDES UNRESTRICTED.
MODEL Figure A B C D E
TTA030C 1 24 3/828 1/424 5/87/83/8
(619.1) (714.4) (625.5) (22.2) (9.53)
TTA040C 1 32 3/428 1/424 5/81 1/83/8
(831.9) (714.4) (625.5) (28.6) (9.53)
TTA050C 2 40 5/832 7/828 3/41 1/83/8
(1031.9) (835.0) (730.3) (28.6) (9.53)
TTA060C 2 44 3/438 7/834 3/41 1/83/8
(1136.7) (987.4) (882.7) (28.6) (9.53)
FIG. 1
FIG. 2
TTA030-060C Outline Drawing
All dimensions are in inches (mm)
28 TWE5-PRC000-EN
Dimensional
Data
TWE030 Through 050 Convertibility
Six (6) Way Convertibility
One Unit - 4 Applications Easy Conversion to Opposite Side Access
29TWE5-PRC000-EN
Mechanical
Specifications
General
Blower coil units shall be completely
factory assembled including coil,
condensate drain pan, fan, motor, filters
and controls in an insulated casing that
can be applied in horizontal or vertical
configuration.
This new line of TWE-C air handlers
provides exclusive compact size
combined with simple four-way
convertibility in three sizes. The unit
ships in the right hand horizontal
configuration and converts to vertical
upflow just by standing the unit on end.
No tools required. Simple coil rotation
provides downflow and horizontal left
applications.
The four-way convertibility provides you
inventory benefits and service/
installation flexibility. The simple
conversion provides opposite side
access for installation and service.
Casing
Units shall have rugged sheet metal and
steel frame construction and shall be
painted with an enamel finish. Casing
shall be insulated and knockouts shall be
provided for electrical power and control
wiring.
Refrigerant Circuits
The TWE units shall have a single
refrigerant circuit. TWE03-040C
refrigerant circuit shall be controlled by a
flow control check valve (FCCV). The
TWE050C refrigerant circuit shall be
controlled by a factory-installed thermal
expansion valve.
Coil
Aluminum fin surface shall be
mechanically bonded to 3/8-inch OD
copper tubing. Coils shall be factory
pressure and leak tested.
Fan
Forward curved, dynamically and
statically balanced with three-speed
direct drive shall be standard, fan motor
bearing shall be permanently lubricated.
Controls
Fan contactor, and plug-in module for
accessory electric heat control shall be
included. TWE models shall also include
check valves.
Filters
Filters shall be included as standard.
Accessories
Electric Heaters — Shall be available in a
wide range of capacities and voltages
with various staging options and plug in
control wiring. Heaters shall fit inside
internal compartment.
The Trane Company
International Unitary Products Group
3600 Pammel Creek Road
La Crosse, WI 54601-7599
www.trane.com
Since The Trane Company has a policy of continuous product improvement, it reserves the right to change design
and specification without notice.
An American Standard Company
File No. TWE5-PRC000-EN 4/99
Supersedes TWE5-PRC000-EN 2/98
Stocking Location La Crosse

Navigation menu
