WSHP-SVN08B-ENFebruary 2006
Models
“A” and later Design Sequence
Installation
Owner
Diagnostics
Vertical Stack
Water-Source Heat Pump
Model GETB
GETB
009-036 – 60 HZ
009-036 – 50 HZ
© 2006 American Standard Inc All rights reserved WSHP-SVN08B-EN
Notice
NOTICE:
Warnings and Cautions appear at appropriate sections throughout this manual.
Read these carefully.
WARNING – Indicates a potentially hazardous situation
which, if not avoided, could result in death or serious
injury.
CAUTION – Indicates a potentially hazardous situation
which, if not avoided, may result in minor or moderate
injury. It may also be used to alert against unsafe practices.
CAUTION – Indicates a situation that may result in
equipment or property-damage-only accidents.
NOTICE:
Unit contains HCFC (R-22) Refrigerant
Instructions!
Section 608, Paragraph C of the 1990 Clean Air Act states:
Effective July 1, 1992, it shall be unlawful for any person, in course of
maintaining, servicing, repairing, or disposing of an air conditioning system, to
knowingly vent or release any CFC or HCFC refrigerant. Minimal releases (air
purges or refrigerant hoses) associated with good faith attempts to recapture or
recycle are exempt from the ban on venting.
Responsible Refrigerant Practices!
Trane believes that responsible refrigerant practices are important to the
environment, our customers, and the air conditioning industry. All technicians
who handle refrigerants must be certified. The Federal Clean Air Act (Section 608)
sets forth the requirements for handling, reclaiming, recovering and recycling of
certain refrigerants and the equipment that is used in these service procedures.
In addition, some states or municipalities may have additional requirements that
must also be adhered to for responsible management of refrigerants. Know the
applicable laws and follow them.
Important!
Equipment is shipped FOB (Free on Board) at the
manufacturer. Therefore, freight claims for damages
against the carrier must be initiated by the receiver.
!
!
WSHP-SVN08B-EN 3
Contents
Installation/Startup/Commissioning
4
Pre-installation Checklist 4
General Information 5
Dimensions/Weights 6
Installation Instructions 9
Electrical Requirements 18
Pre-Startup Checklist 19
Startup/Commissioning
20
Sequence of Operation 20
Operating Pressures 21
Startup Checklist & Log 24
Maintenance
25
Warranty Information
26
Troubleshooting Checklist
27

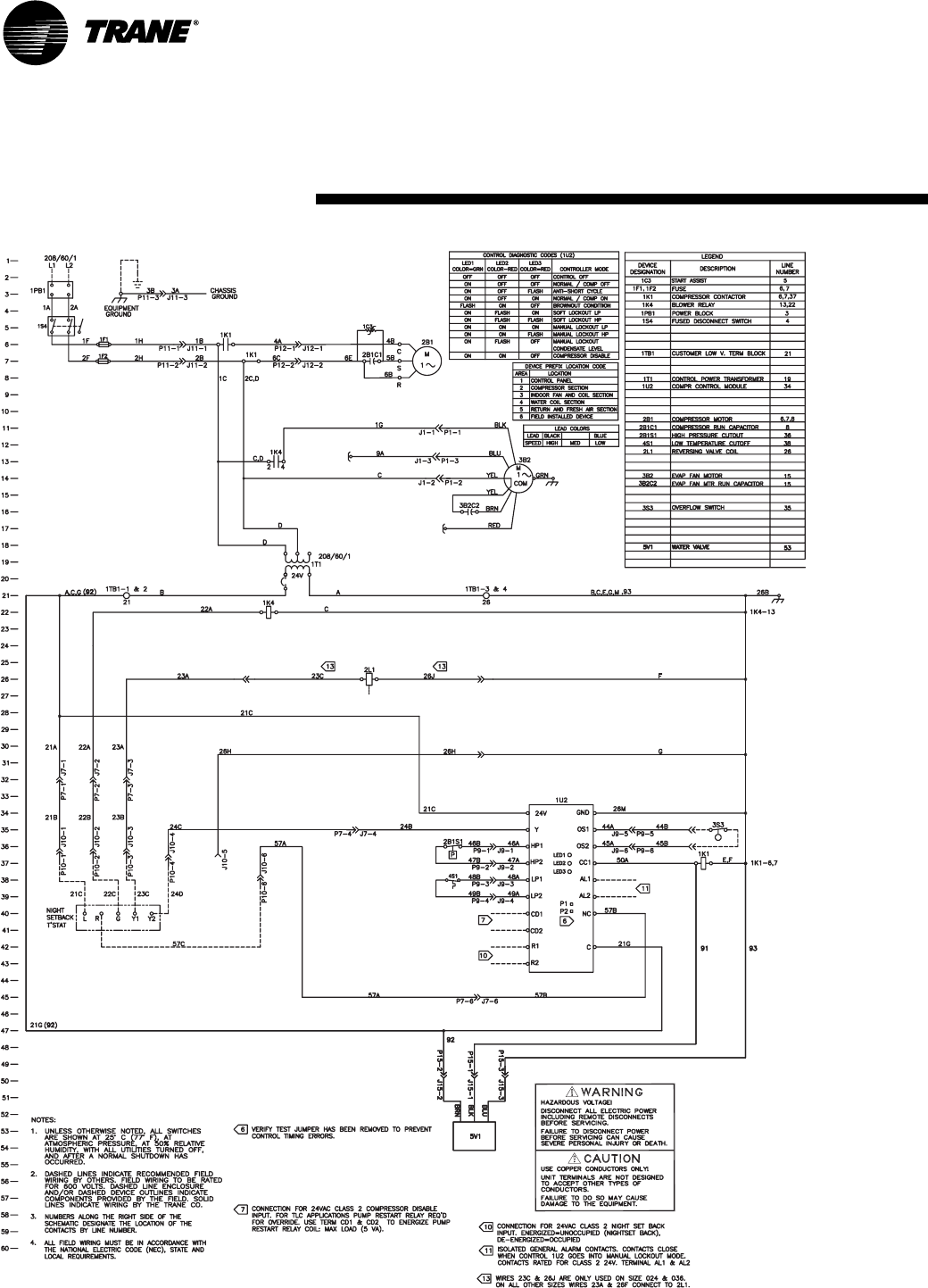

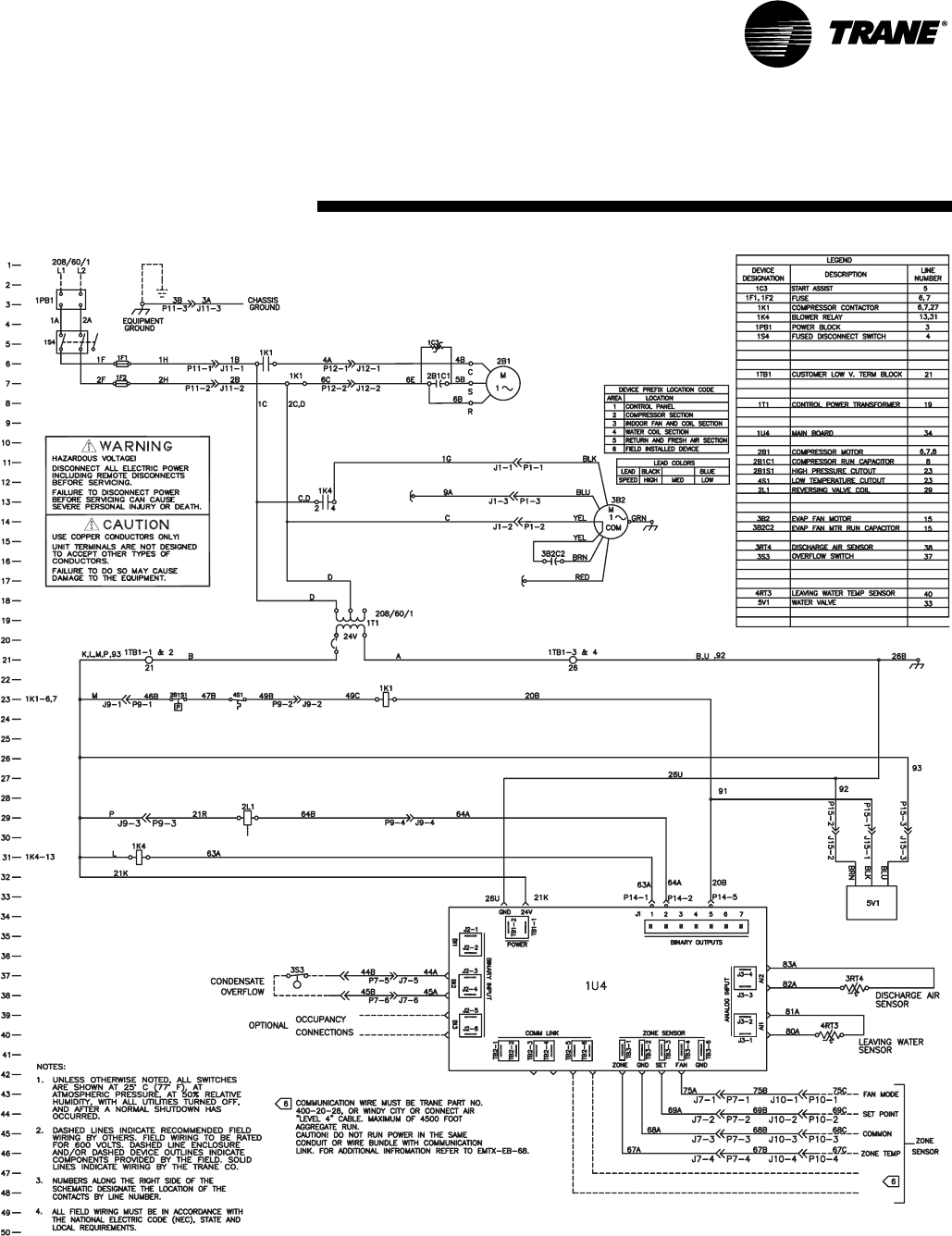

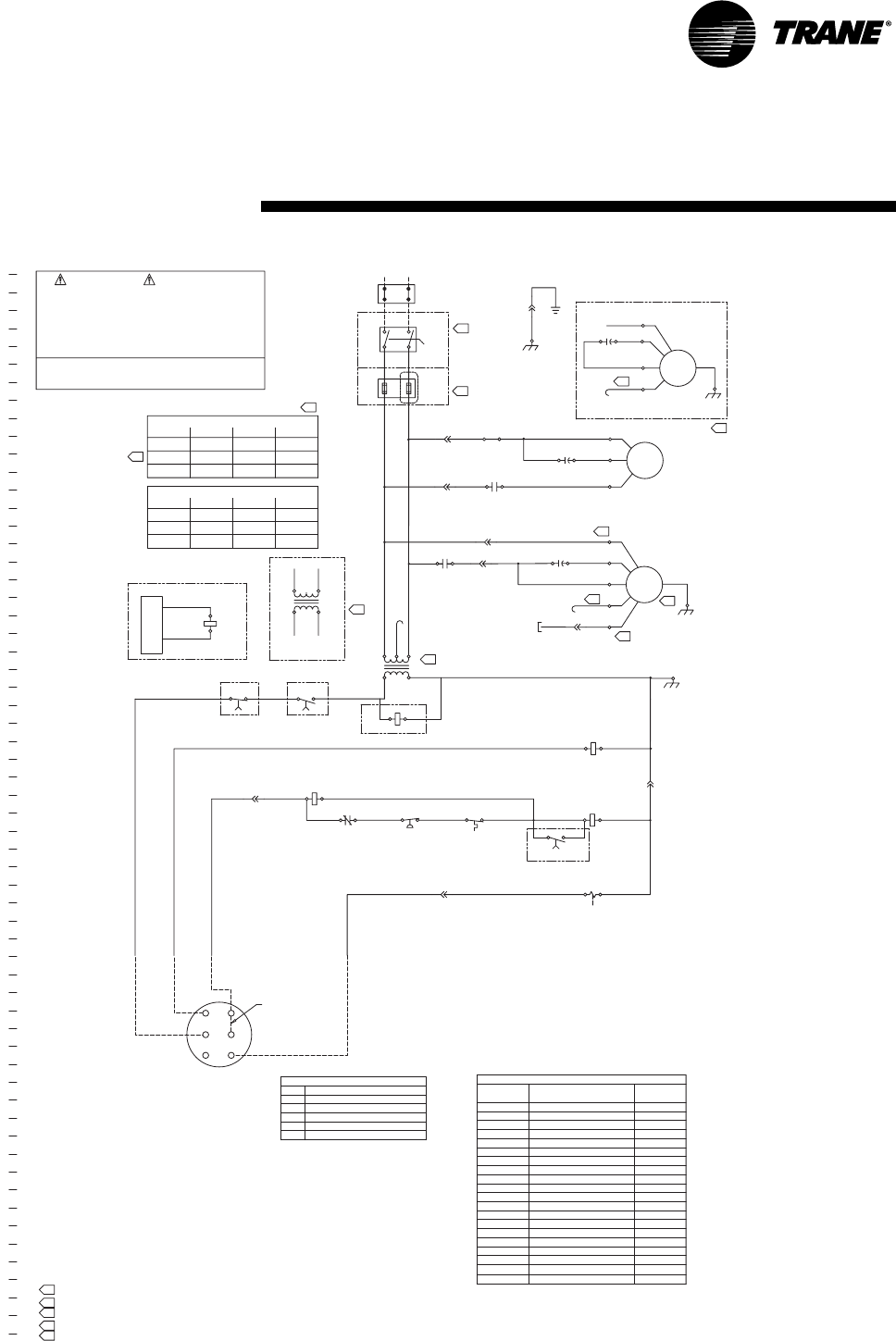

Unit Wiring
29
4WSHP-SVN08B-EN
WARNING
Fiberglass Wool!
Product contains fiberglass wool. Disturbing the insulation in this
product during installation, maintenance or repair will expose you to
airborne particles of glass wool fibers and ceramic fibers known to the
state of California to cause cancer through inhalation. Glass wool fibers
may also cause respiratory, skin or eye irritation.
Jobsite Inspection
Always perform the following checks before accepting a unit:
1. Verify that the nameplate data matches the data on the sales order and bill of
lading (including electrical data).
2. Verify that the power supply complies with the unit nameplate specifications.
3. Visually inspect the exterior of the unit, for signs of shipping damage. Do not
sign the bill of lading accepting the unit(s) until inspection has been com-
pleted. Check for damage promptly after the unit(s) are unloaded. Once the
bill of lading is signed at the jobsite, the unit(s) are now the property of the
SOLD TO party and future freight claims MAY NOT be accepted by the freight
company.
4. Verify that the refrigerant charge has been retained during shipment by use
of gauges. Schrader taps are located external to the cabinet on the 2-ton
through 6-ton equipment.
5. After assuring that charge has been retained, reinstall the schrader caps to
assure that refrigerant leakage does not occur.
CAUTION
Microbial Growth!
Wet interior unit insulation can become an amplification site for
microbial growth (mold), which may cause odors and damage to the
equipment and building materials. If there is evidence of microbial
growth (mold) on the interior insulation, the insulation should be
removed and replaced prior to operating the system.
Jobsite Storage
This unit is intended for indoor use only. To protect the unit from damage due to
the elements, and to prevent possible IAQ contaminant sources from growing,
the unit should be stored indoors. If indoor storage is not possible, the following
provisions for outdoor storage must be met:
1. Place the unit(s) on a dry surface or raise above the ground to assure ade-
quate air circulation beneath the unit.
2. Cover the unit(s) with a water proof tarp to protect them from the elements.
3. Make provisions for continuous venting of the covered units to prevent
moisture from standing on the unit(s) surfaces. Wet interior unit insulation
can become an amplification site for microbial growth (mold) which has
been determined to be a cause of odors and serious health related indoor air
quality problems.
4. Store refrigeration units (chassis) units in the normal UP orientation to main-
tain oil in the compressor. Cabinet configurations may be stored as crated.
5. Do not stack units.
Pre-installation
Checklist
!
WSHP-SVN08B-EN 5
Unit Nameplate
The unit nameplate is located at the
front of the unit. It includes the unit
model number, serial number, electri-
cal characteristics, refrigerant charge,
and other pertinent unit data.
Compressor Nameplate
The nameplate for the compressors
are located on the compressor shell.
Unit Description
Before shipment, each unit is leak test-
ed, dehydrated, charged with refriger-
ant and run tested for proper control
operation.
Water-to-Refrigerant Coils
The co-axial water-to-refrigerant heat
exchanger for the 3/4-ton through 3-
ton equipment is constructed of cop-
per or cupro-nickel (option) for the wa-
ter section and stainless steel for the
refrigeration section.
The heat exchanger is leak tested to
assure there is no cross leakage be-
tween the water and refrigerant gas.
Water Connections
1/2" or 3/4" water connections are lo-
cated on the chassis’s upper section
and clearly labeled for water-in/out
hose to riser hook-up.
Blower/Motor
The blower and motor is located inside
the unit cabinet. The blower and motor
may be removed from the cabinet
through the chassis opening. After re-
moving the chassis, the blower as-
sembly is strapped into the unit
cabinet through a single metal, flexi-
ble bracket. We refer to this bracket as
a housing belly bracket. After detach-
ing one screw at the bottom/front edge
of the bracket, the housing and motor
are free to be lifted from the fan deck.
Sound Attenuation
Sound attenuation is applied as a stan-
dard feature in the product design. The
enhanced reduction package includes
a heavy gage base plate, and gasket/
insulation around the compressor en-
closure.
An optional deluxe sound reduction
package is also available. It includes a
heavy gage base plate, gasket and in-
sulation around the compressor enclo-
sure, and vibration isolation between
the chassis and cabinet. An additional
dampening treatment is applied
around the compressor enclosure to
achieve greater acoustical reductions.
Controls
The control system offered to control
the unit is a Basic 24 volt control for
the 3/4-ton through 2-ton retrofit
(WPRD) equipment. A 50 VA trans-
former is factory supplied on this unit
configuration. See wiring diagram on
chassis access panel for field wiring
connection to the 24 volt mechanical
thermostat.
Deluxe 24V Controls
(GET model)
Units containing the Deluxe 24V con-
trol design will incorporate a micro-
processor-based control board. The
Trane microprocessor board is factory
wired to a terminal strip to provide all
necessary terminals for field connec-
tion. The deluxe board is equipped
with a random start relay, anti-short
cycle timer, brown out protection,
compressor disable, unit safety con-
trol, diagnostics and a generic relay
(which may be available for field use).
See page 16 for diagnostic informa-
tion.
Power wiring is made at the contactor.
The wiring is fed through the left or
right conduit tube, and into the cabi-
net’s control box (contactor).
ZN510 Controls
(GET option)
Units incorporating the ZN510 control
option design will include a digital
LonTalkTM certified control board. The
control board will support such op-
tions as: random start delay, heating/
cooling status, occupied/unoccupied
mode and fan/filter status.
Power wiring is made at the contactor.
The wiring is fed through the left or
right conduit tube, and into the cabi-
net’s control box (contactor). See
manual WSHP-IOP-2 for diagnostic in-
formation.
Schrader Connections
Connections for the low and high side
of the refrigeration system are located
conveniently on the chassis’ top be-
neath a sheet metal plate.
General
Information
6WSHP-SVN08B-EN
ALLOW 36" (914 mm)
AT UNIT FRONT FOR
CHASSIS REMOVAL
RSD
Table 1: Unit weights
Size
Shipping
Weight
with pallet (lb)
Shipping
Weight
w/o pallet (lb)
Cabinet
009 135 115
012 135 115
015 175 150
018 175 150
024 225 195
036 225 195
Chassis
009 90 80
012 95 85
015 110 100
018 115 105
024 190 180
036 200 190
WARNING
Improper Unit Lift!
Test lift unit approximately 24 inches to verify proper
center of gravity lift point. To avoid dropping of unit,
reposition lifting point if unit is not level. Failure to
properly lift unit could result in death or serious injury
or possible equipment or property-only damage.
Dimensions/Weights/
Clearance

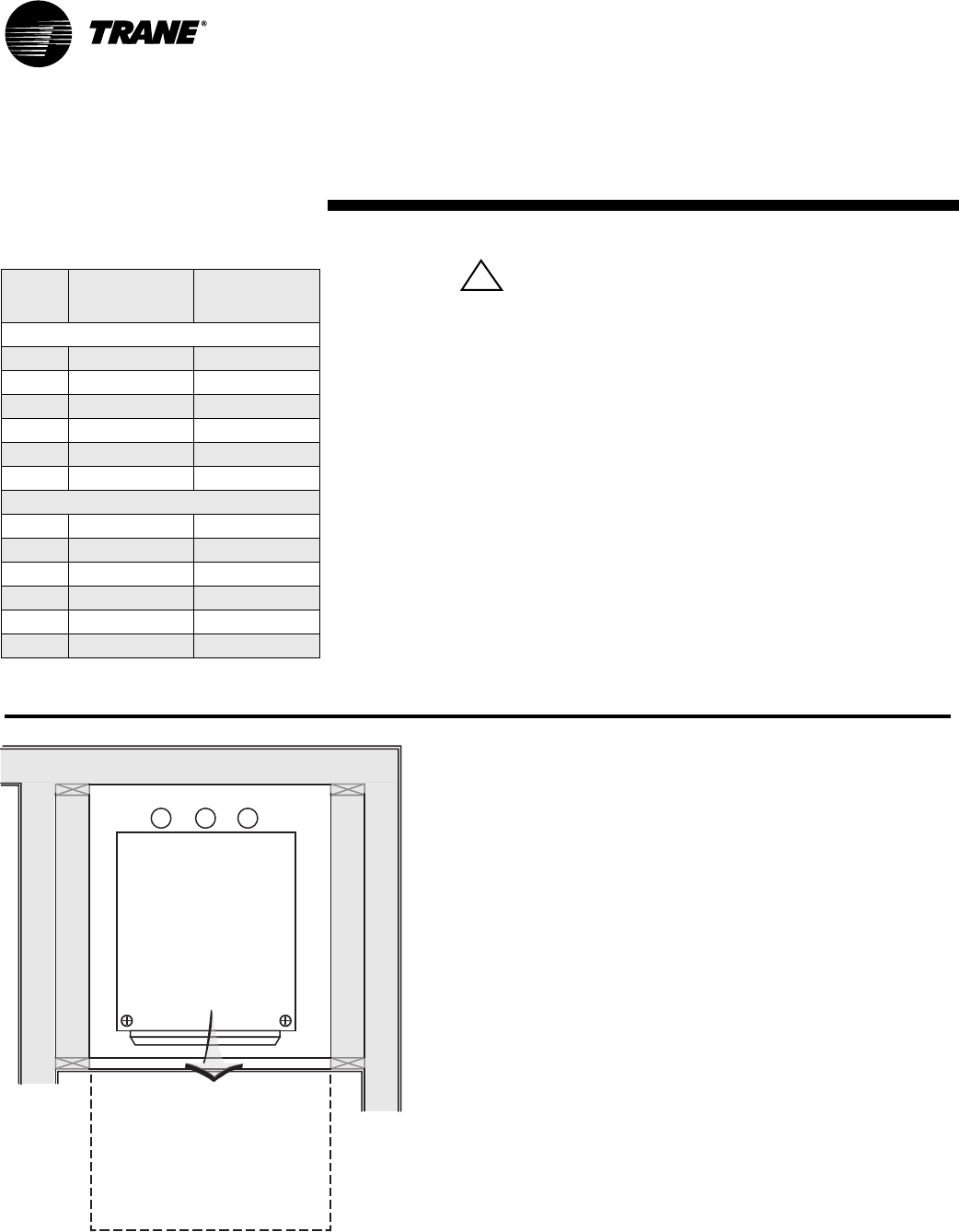

Figure 1: Mechanical clearances
Unit Location and Clearances
Locate the unit in an indoor area. The
ambient temperature surrounding the
unit must not be less than 45°F. Do not
locate the unit in areas subject to
freezing.
Attention should be given to service
clearance and technician safety. The
unit chassis should be easily removed
from the cabinet in all applications.
There must be enough space for ser-
vice personnel to perform mainte-
nance or repair. Provide sufficient
room to make water, and electrical
connection(s). Local and national
codes should be followed in providing
electrical power connections. See Fig-
ure 1 for mechanical clearances.
!
WSHP-SVN08B-EN 7

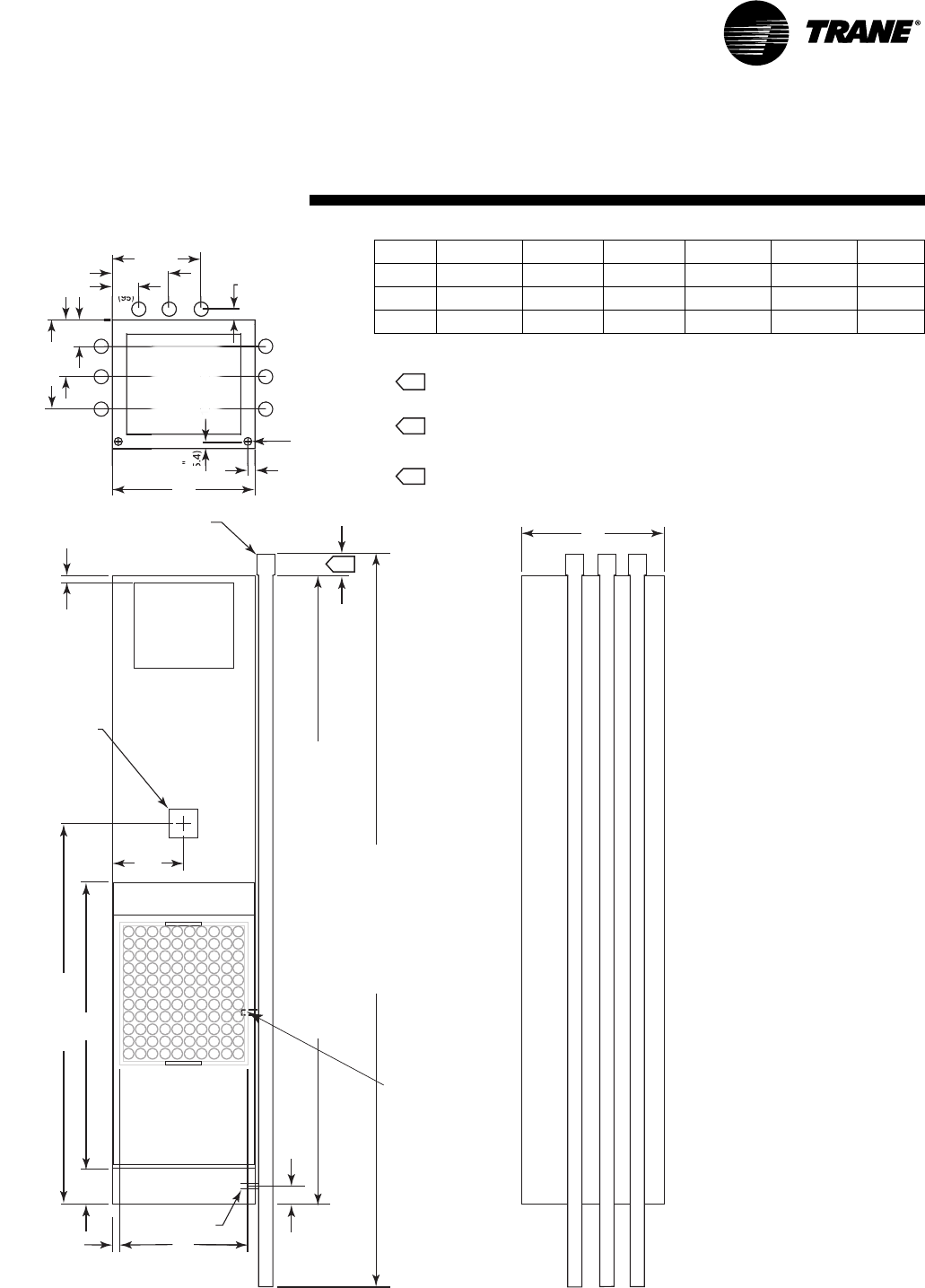

SWAGE 3" (76)
G
G
H
J
UNITS WITH TOP DISCHARGE ARE 80" (2032) IN HEIGHT
ALL OTHER UNITS ARE 88" (2235) IN HEIGHT
FROM 96" (2438)
TO 120" (3048)
2 1/2" (63.5)
E
F
DRAIN
CONNECTION
D
4 3/4"
(121)
60" (1524)
3/4" (19) O.D.
CHASSIS
ACCESS
PANEL
THROWAWAY
FILTER
CONTROL BOX
C
LOW VOLTAGE
CONNECTION BOX
FOR THERMOSTAT
SUPPLY-AIR
OPENING
1 1/4" (32)
1/2" (12.7) O.D.
ELECTRIC CONDUIT
1" (25.4)
1"
(25.4)
B
A
1" (25.4)
3 3/4"
(95)
8" (203)
12 1/2"
(318)
3 3/4"
(95)
8" (203)
12 1/2"
(318)
RETURN
SUPPLY
DRAIN
OPTIONAL
DUCT OPENING
1" (12.7) DUCT
COLLAR
RSD
VARIES DEPENDENT
ON RISER O.D.
TOP
FRONT RIGHT SIDE
11" (279) FOR 80" (2032) CABINET HEIGHT
3" (76) FOR 88" (2235) CABINET HEIGHT
SUPPLY-AIR OPENINGS AND RISER LOCATIONS CANNOT
BE ON THE SAME SIDE OF THE UNIT.
RISER LOCATION CAN BE ON ANY SIDE EXCEPT FRONT,
AND MAY BE SUPPLIED BY TRANE OR BY OTHERS.
NOTE:
RIGHT RISER
LOCATION SHOWN
IN FRONT AND RIGHT
VIEWS.
RISER CONNECTION
1/2” (13) NPTE = 009-018
3/4” (19) NPTE = 024,036
Dimensions
GET 009-036
GET A B C D E F
009, 012 16 1/4" (413) 16 1/4" (413) 8 1/8" (206) 39 1/8" (994) 14 3/4" (375) 3/4" (19)
015-018 18" (457) 20" (508) 10" (254) 40 5/8" (1032) 18 3/4" (476) 3/4" (19)
024-036 24" (610) 24" (610) 12" (305) 49 5/8" (1260) 22 5/8" (575) 3/4" (19
8WSHP-SVN08B-EN
RETURN-AIR OPENING
FLANGE ON CABINET
RETURN-AIR OPENING
FLANGE ON CABINET
2 X 4 STUD
A
B
Unit Size
09
012
015
018
024
036
A
19 1/4”
(489)
23 1/4”
(591)
27 1/8”
(689)
B
44 1/8”
(1121)
45 1/4”
(1149)
54 5/8”
(1387)
SHEET ROCK
OPENING
TOP VIEW
SIDE VIEW
CABINET
5“
B
4 5/8“
2 1/4“
3 1/2” ±3/8”
3 1/2” ±3/8”
1 1/2” X 2 3/8”
FLOOR
SHEETROCK
SHEETROCK
RETURN AIR
DOOR FRAME
RETURN AIR
DOOR FRAME
1“ X 1” CLOSED
CELL INSULATION
1“ X 1” CLOSED
CELL INSULATION
3 1/2” ±3/8”
1 1/4”
+1/2”/-0”
1 1/4”
+1/2”/-0”
A
1“ X 1” CLOSED
CELL INSULATION
1“ X 1” CLOSED
CELL INSULATION
2“ X 4”
STUD
2“ X 4” STUD
RETURN AIR OPENING
FLANGE ON CABINET
RETURN AIR OPENING
FLANGE ON CABINET
SHEETROCK
SHEETROCK
RETURN AIR
DOOR FLANGE
CABINET
CABINET
Note:
Finished wall and framing should not
touch the unit cabinetry.

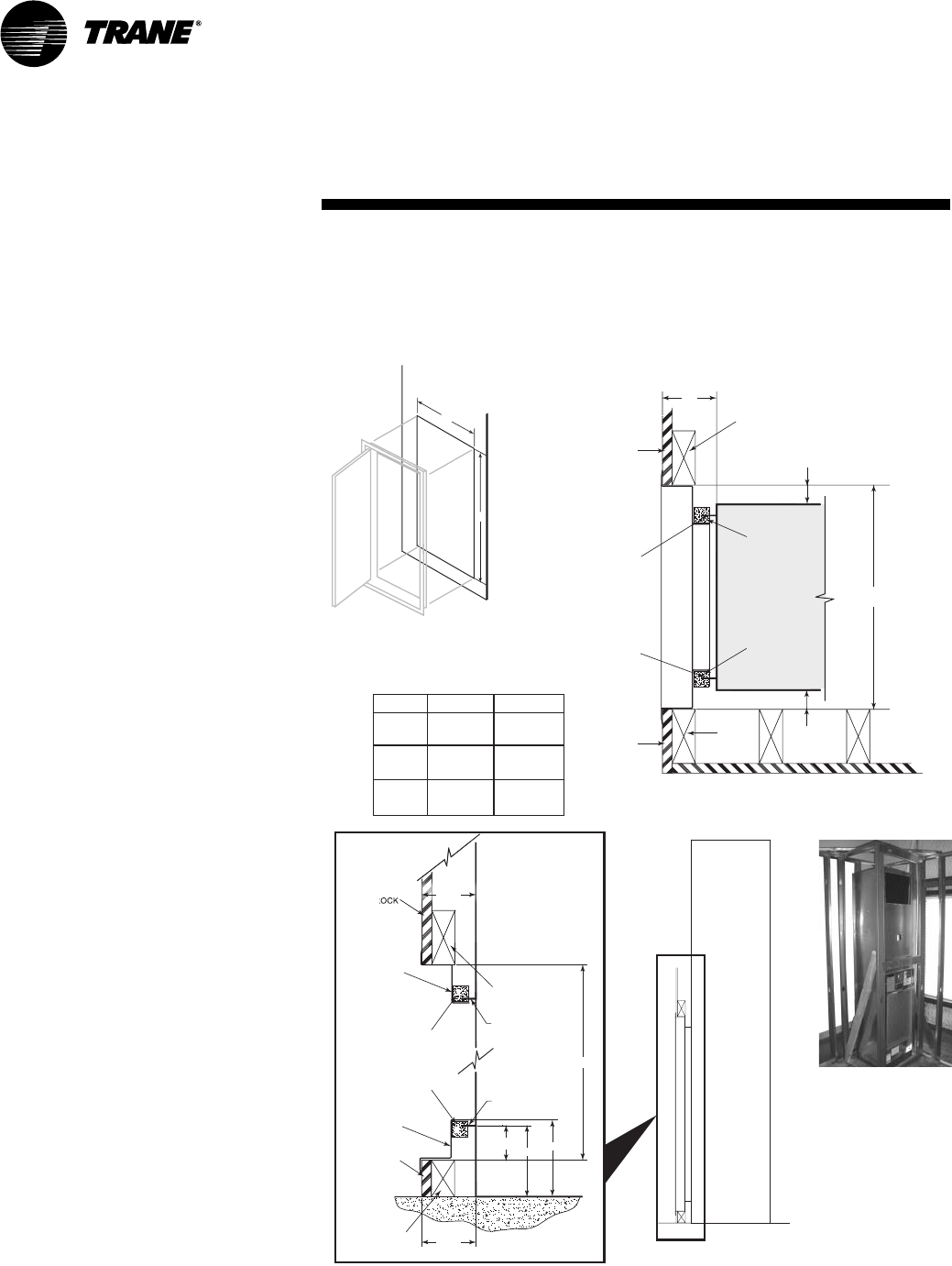

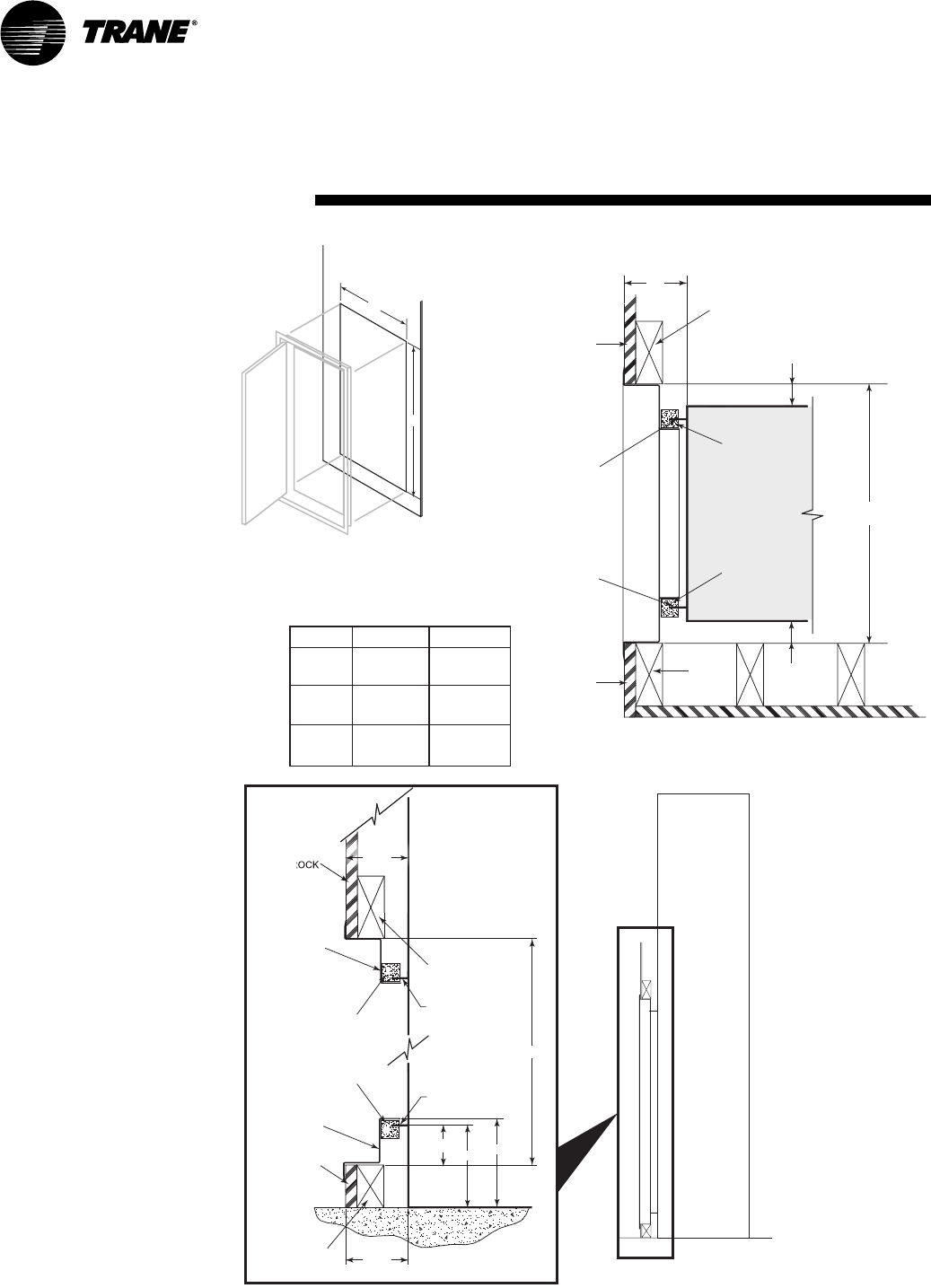

Return Air (hinged)
Acoustical Door
The hinged acoustical door is recessed
into the wall so that the door is flush
with the surface of the wall.
The opening through the wall
for the door assembly must be
centered with the return-air
opening of the unit cabinet.
For full installing instructions
of the return-air acoustical
door, see page 12.
Dimensions
Hinged Acoustical Door
WSHP-SVN08B-EN 9
General Installation Checks
The checklist below is a summary of
the steps required to successfully in-
stall a unit. This checklist is intended to
acquaint the installing personnel with
procedures required in the installation
process. It does not replace the de-
tailed instructions called out in the ap-
plicable sections of this manual.
1 Remove packaging and inspect the
unit. Check the unit for shipping
damage and material shortage; file
a freight claim and notify appropri-
ate sales representation.
Note: The unit cabinet is packaged
in a wooden crate. A pry bar and/
or hammer will be needed for
packaging removal.
The chassis sits inside a cardboard
tray with an upper box for protec-
tion. Typically four chassis will be
shrink-wrapped to a single pallet.
2 Verify the correct model, options
and voltage from the unit name-
plate.
3 Verify the installation location of
the unit will provide the required
clearance for proper operation.
4 Remove refrigeration access panel
and inspect the unit. Be certain the
refrigerant tubing has clearance
from adjacent parts.
WARNING
Hazardous
Voltage!
Disconnect all electric power,
including remote disconnects and
discharge all motor start/run
capacitors before servicing.
Follow proper lockout/tagout
procedures to ensure the power
can not be inadvertently
energized. Failure to disconnect
power before servicing could
result in death or serious injury.
Main Electrical
5 Verify the power supply complies
with the unit nameplate specifica-
tions.
6 Inspect all control panel compo-
nents; tighten any loose connec-
tions.
7 Connect properly sized and pro-
tected power supply wiring to a
field-supplied/installed disconnect
switch and to the unit power block
(1TB1) in the unit’s cabinet control
box for equipment.
8 Install proper grounding wires to
an earth ground.
Note: All field-installed wiring must
comply with NEC and applicable local
codes.
Low Voltage Wiring (AC & DC)
Requirements
9 Connect properly sized control wir-
ing to the proper termination
points between the field supplied
thermostat and the terminal plug
in the equipment’s junction box.
Installation
!
10 WSHP-SVN08B-EN
FLOOR
FLOOR
3" SWAGE
WARNING
Improper Unit Lift!
Test lift unit approximately 24
inches to verify proper center of
gravity lift point. To avoid
dropping of unit, reposition lifting
point if unit is not level. Failure to
properly lift unit could result in
death or serious injury or possible
equipment or property-only
damage.
Unit Placement
If unit cabinet assembly includes fac-
tory provided risers, and "no" field
provided between-the-floor riser ex-
tensions, please move to Step 1.
Note: Risers are designed to accom-
modate a maximum of 1 1/2" to 3" ex-
pansion and contraction. If the total
calculated riser expansion exceeds 3",
expansion devices must be field pro-
vided.
If unit cabinet assembly includes fac-
tory provided risers and field provided
between-the-floor riser extensions are
required, install the extensions before
installing the cabinet.
1 Install drain valve, shut-off/balanc-
ing valves, flow indicators and
drain at the base of each supply and
return riser to enable system flush-
ing at start-up, balancing and ser-
vice/maintenance.
2 Lift cabinet into space while align-
ing it into the 3"swage of the riser
below.
Note: Take extra care as not to scrape
or dent risers during positioning. The
riser should fall approximately 2" into
the 3" swage. This will allow for the
variation in floor-to-floor dimensions,
and keep the riser joints from bottom-
ing out.
3 Level the cabinet.
4 Plumb risers in two planes to as-
sure proper unit operation and con-
densate drainage.
5 Anchor all units into place.
6 For field provided risers, center the
supply/return stubouts into the unit
expansion slots. The stubouts
should be perpendicular to the cab-
inet panel.
7 Verify all risers are vertical and that
they penetrate the swaged joint at
least 1". Riser should not be al-
lowed to bottom out.
8 Braze riser joints. Soft solder or
low-temperature alloys should not
be used in this application.
9 If risers are field provided, it is rec-
ommended that the risers be an-
chored to the building structure
with a minimum of one contact
point. For expansion and contrac-
tion reasons, do not fasten risers
rigidly to the building.
10 Seal access holes made through the
cabinet for piping with suitable ma-
terial to help eliminate air leakage.
11 See page 14 for system flushing.
Water Connection
For vibration isolation, it is recom-
mended that flexible steel braided
hoses be installed instead of hard pip-
ing between the vertical risers and the
unit chassis.
Trane offers 4-types of hose kit varia-
tions:
• Stainless steel braided flexible
hose with manual shut-off (ball)
valves
• Stainless steel braided flexible
hose with manual deluxe shut-off
(ball) valves
• Stainless steel braided flexible
hose with manual circuit-setter
valve
• Stainless steel braided flexible
hose with automatic balancing
valve
Additional accessories, such as a
strainer are recommended for use to
eliminate contaminants from entering
the co-axial water-to-refrigerant heat
exchangers.
Installation

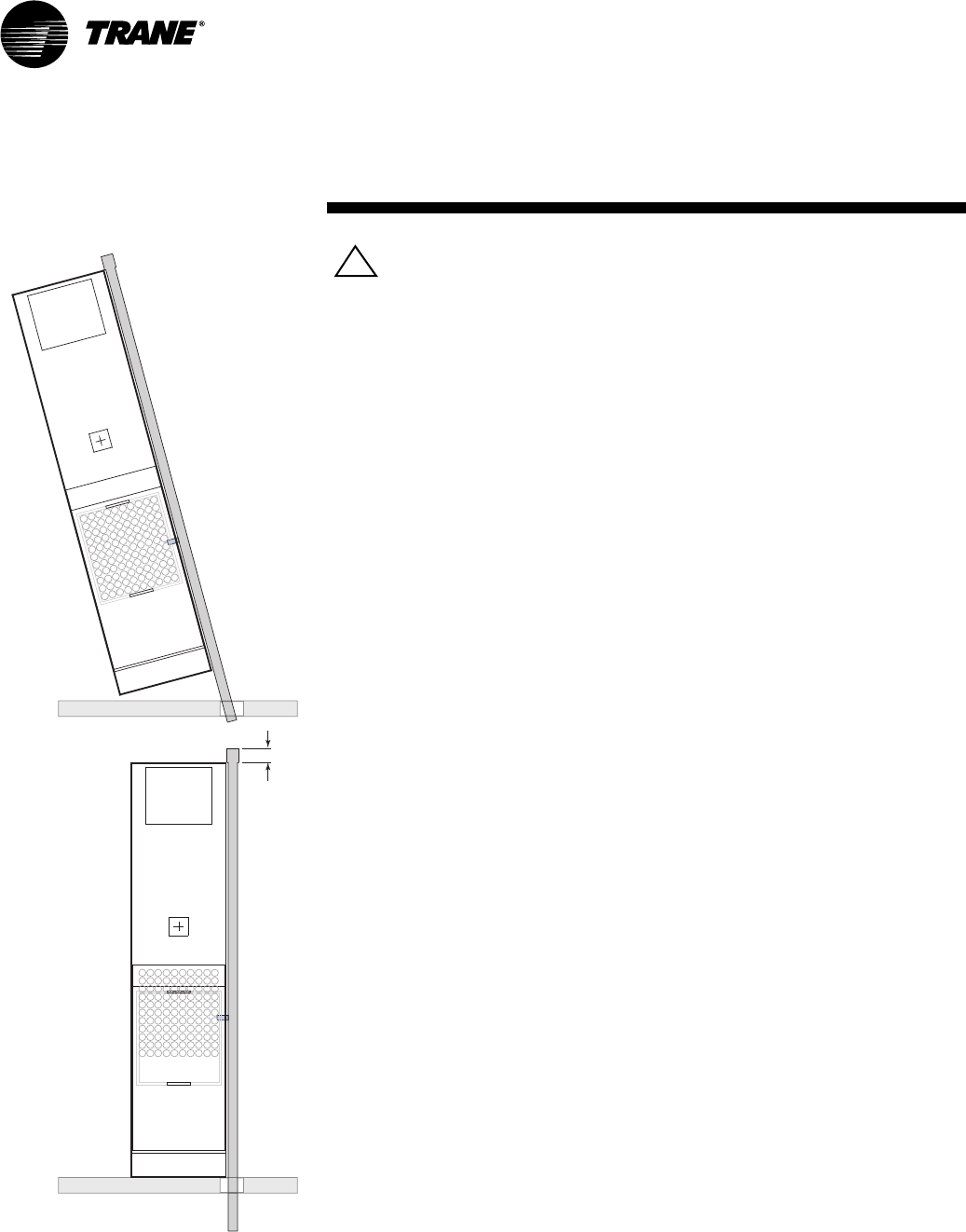

Figure 2: Stacking illustration
!
WSHP-SVN08B-EN 11
Field Installed Power Wiring
Power wiring to the equipment must
conform to National and Local Electric
Codes (NEC) by a professional electri-
cian.
WARNING
Live Electrical
Components!
During installation, testing, ser-
vicing and troubleshooting of this
product, it may be necessary to
work with live electrical compo-
nents. Have a qualified licensed
electrician or other individual
who has been properly trained in
handling live electrical compo-
nents perform these tasks. Failure
to follow all electrical safety pre-
cautions when exposed to live
electrical components could re-
sult in death or serious injury.
Verify that the power supply available
is compatible with the unit’s name-
plate. Use only copper conductors to
connect the power supply to the unit.
CAUTION
Use Copper
Conductors Only!
Unit terminals are not designed
to accept other types of conduc-
tors. Failure to use copper con-
ductors may result in equipment
damage.
Main Unit Power Wiring
A field supplied disconnect switch
must be installed at or near the unit in
accordance with the National Electric
Code (NEC latest edition).
Location of the applicable electric ser-
vice entrance for HIGH (line voltage)
may be found in Figure 3.
1 Route power wire to the cabinet
control box through the factory in-
stalled conduit at the top of the unit
cabinetry.
The high voltage connection is made
at the 1PB1 power block in the cabinet
control box. Refer to the customer
connection diagram that is shipped
with the unit for specific termination
points.
Provide proper grounding for the unit
in accordance with the local and na-
tional codes.
Control Power Transformer
The 24-volt control power transform-
ers are to be used only with the acces-
sories called out in this manual.
Transformers rated greater than 50 VA
are equipped with internal circuit
breakers. If a circuit breaker trips, turn
OFF all power to the unit before at-
tempting to reset it.
WARNING
Hazardous Voltage!
Disconnect all electric power, in-
cluding remote disconnects and
discharge motor start/run capaci-
tors before servicing. Follow prop-
er lockout/tagout procedures to
ensure the power can not be inad-
vertently energized. Failure to dis-
connect power before servicing
could result in death or serious in-
jury.
The transformer is located in the
chassis control box.
Installation

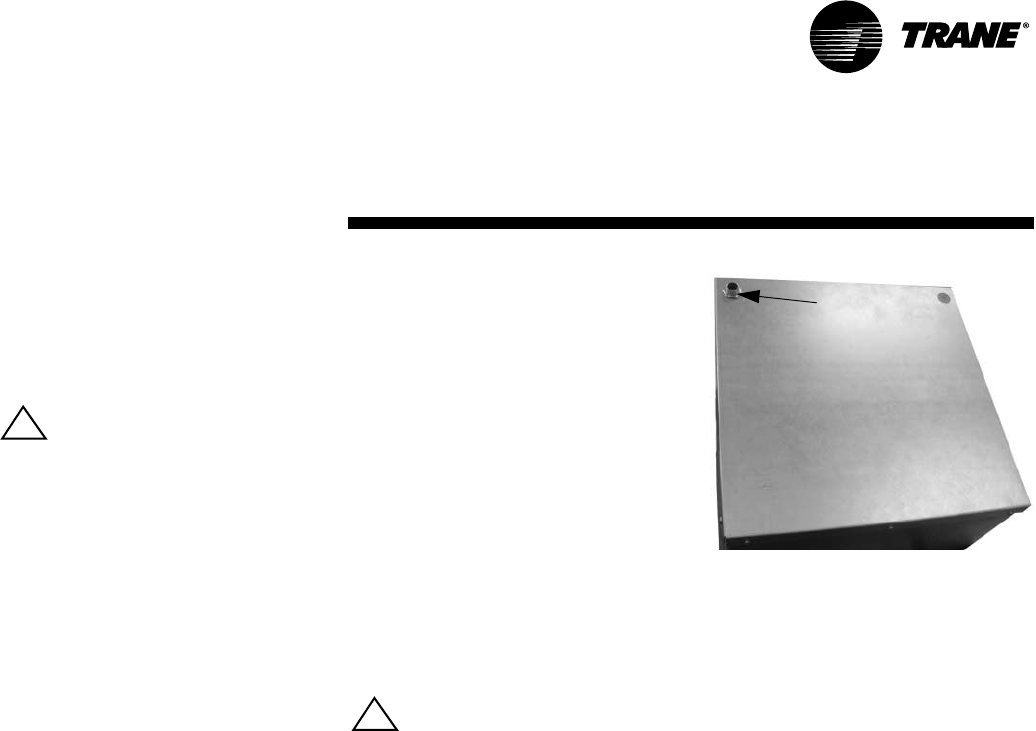

FACTORY CONDUIT
Figure 3: Power wire entrance
!
!
12 WSHP-SVN08B-EN
RETURN-AIR OPENING
FLANGE ON CABINET
RETURN-AIR OPENING
FLANGE ON CABINET
2 X 4 STUD
A
B
Unit Size
09
012
015
018
024
036
A
19 1/4”
(489)
23 1/4”
(591)
27 1/8”
(689)
B
44 1/8”
(1121)
45 1/4”
(1149)
54 5/8”
(1387)
SHEET ROCK
OPENING
TOP VIEW
SIDE VIEW
CABINET
5“
B
4 5/8“
2 1/4“
3 1/2” ±3/8”
3 1/2” ±3/8”
1 1/2” X 2 3/8”
FLOOR
SHEETROCK
SHEETROCK
RETURN AIR
DOOR FRAME
RETURN AIR
DOOR FRAME
1“ X 1” CLOSED
CELL INSULATION
1“ X 1” CLOSED
CELL INSULATION
3 1/2” ±3/8”
1 1/4”
+1/2”/-0”
1 1/4”
+1/2”/-0”
A
1“ X 1” CLOSED
CELL INSULATION
1“ X 1” CLOSED
CELL INSULATION
2“ X 4”
STUD
2“ X 4” STUD
RETURN AIR OPENING
FLANGE ON CABINET
RETURN AIR OPENING
FLANGE ON CABINET
SHEETROCK
SHEETROCK
RETURN AIR
DOOR FLANGE
CABINET
CABINET
Note:
Finished wall and framing should not
touch the unit cabinetry.
Drywall Installation
Before installing drywall around cabi-
net. Cover the cabinet supply and re-
turn openings with plastic or
cardboard to help prevent dust or con-
struction debris from reaching unit
components. Warranties will be void-
ed if paint or foreign debris is allowed
to contaminate internal unit compo-
nents.
The location of the drywall may be de-
pendent upon the type of return air ac-
cess design.
1 Units that contain a field provided
return air access assembly, contrac-
tor must calculate location of dry-
wall to allow for frame mounting.
Units utilizing Hinged Acoustic
Door Assembly.
1 Locate the side studs a minimum of
1 1/4-inches and a maximum of 1 3/
8-inches from the cabinet to the side
of the stud. This critical dimension,
combined with "distance between
studs" is used to determine the side-
to-side opening for the door, dimen-
sion A. The distances provided in
the table are a "minimum" dimen-
sion. Allow 3 1/2-inches from the
front of the cabinet to the sheet rock
surface, Figure 4 - Top View. Figure
5, mock-up of stud placement.
2 The height of the door assembly
must be positioned to recess the
door 2 1/4-inches from the cabinet’s
return-air opening, Figure 4 - Side
View blow-up.
3 Locate dimensions A and B for sheet
rock opening size. The position of
the sheet rock opening must be cen-
tered side-to-side with the return-air
opening in the cabinet. Ensure the
bottom of the sheet rock opening is
2 1/4-inches below the return-air
opening in the cabinet. This allows
the door recess to rest on the bot-
tom of the sheet rock opening for
proper vertical placement of the
door.
Installation
Figure 4: Drywall installation for hinged acoustic door
4 Place the door frame into the sheet rock opening. A positive seal is critical be-
tween the back of the door frame and the front of the cabinet. Ensure that the
gasket material seals properly. Note: When placing the sheet rock panel, make
certain the opening for the door is centered with the return-air opening in the
cabinet (±1/8").
Figure 5:
WSHP-SVN08B-EN 13
1 Secure the door frame to the side
studs using the holes located in the
door frame and field provided
screws, Figure 6.
Note: If the gap between the door
frame, and the side stud is over 1/16-
inch, place a shim in between the door
frame and the stud to prevent the door
frame from bending/denting.
2 Place the air panel into the door
opening. The gasket on the back
side of the air panel should seal
around the coil perimeter, Figure 7.
3 After verifying that the air panel gas-
ket is sealed to the coil, secure the
air panel to the door frame using the
slots located on the sides of the air
panel, Figure 8.
4 Install Filter.
5 Vacuum all dust and construction
debris from unit after cutting out
supply/return openings.
Supply Air Ductwork
1 A 2" (50.8 mm) duct flange (field
provided) may be required to help
eliminate supply air from recirculat-
ing back into the return air, air-to-re-
frigerant coil prior to discharging
into the space.
2 Equipment containing a top dis-
charge, ducted design: install field
ductwork to the unit providing a wa-
ter tight flexible connector at the
unit. This helps prevent operating
sounds from transmitting through
the ductwork. Elbows with turning
vanes or splitters are recommended
to minimize air noise due to turbu-
lence and to help reduce static pres-
sure.
Chassis Installation
1 Remove three 16-inch bolts on the
chassis and discard, Figure 9.
Figure 9: Shipping bolts
2 Rotate the triangular metal plate to
cover the bolt holes in the chassis.
Secure with two sheet metal screws.
3 Remove two shipping brackets (one
on each side) attached to the chassis
slide rails and discard, Figure 10.
Note: Remove this bracket only if
the enhanced sound package design
is preferred.
Figure 10: Bracket removal for
enhanced sound package
4 Connect water coil pipe to the sys-
tem riser with a flexible steel hose
assembly.
5 Verify that the shut-off/balancing
valve in the return line/supply line
are closed.
6 Place shut-off valves in appropriate
location (see sticker on the equip-
ment for best placement recom-
mendation) to allow chassis to slide
easily in/out of unit cabinetry.
Installation

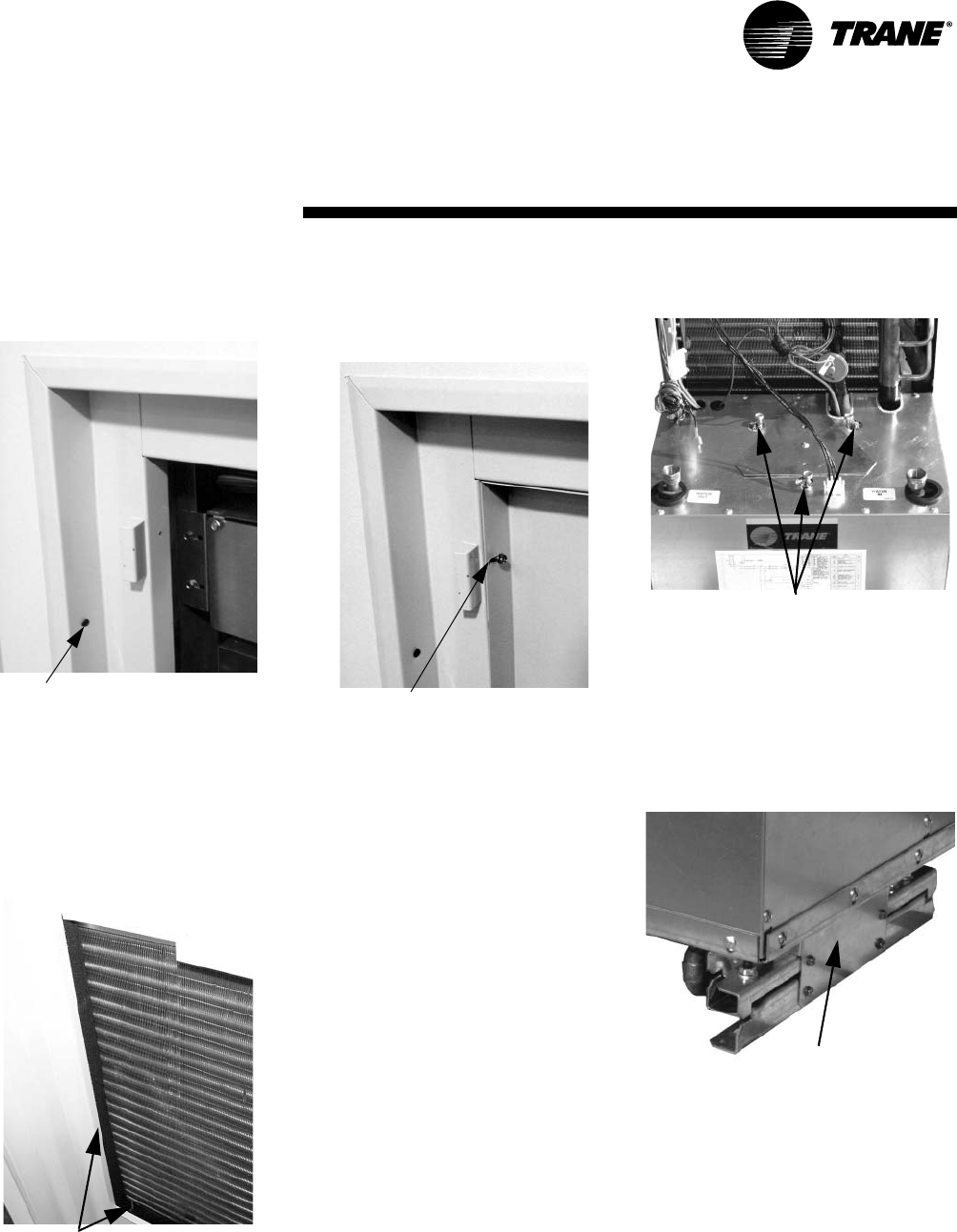

Figure 6: Door opening
Figure 7: Air panel gasket
Figure 8: Secure to door frame
14 WSHP-SVN08B-EN
WARNING
Live Electrical
Components!
During installation, testing, ser-
vicing and troubleshooting of this
product, it may be necessary to
work with live electrical compo-
nents. Have a qualified licensed
electrician or other individual
who has been properly trained in
handling live electrical compo-
nents perform these tasks. Failure
to follow all electrical safety pre-
cautions when exposed to live
electrical components could re-
sult in death or serious injury.
7 Flush system. See Cleaning and
Flushing the Water Loop for flushing
instructions.
8 Open the unit water valves and
check piping for leaks.
9 Connect electrical to unit chassis via
the quick connect mating plugs.
Note: Four plugs are included (motor,
optional condensate overflow, power
and thermostat).
10Slide chassis into the cabinet. Cen-
ter the chassis left to right to mini-
mize sound transmission. See
Figure 11.
Figure 11: Install chassis centered
11 Verify unit’s air filter is properly
place in the chassis filter rack.
12 Install cabinet’s front cover to the
hinged door.
IMPORTANT
Ensure the gasket material creates a
positive seal around the entire coil to
avoid coil bypass.
If a field supplied door is used, ensure
the front cover is attached to the build-
ing structure and not the unit cabinet.
Supply Grille installation
See Table 2 for supply air dimensions.
1 Install the supply grille(s) into the
cabinet discharge opening. Insure
there are no air gaps between the
cabinet supply air and the grille.
This helps prevent recirculation of
supply air into the return air open-
ing behind the drywall.
2 Secure grille(s) into the drywall via
two screws.
Cleaning and Flushing
the Water Loop
After the piping system is complete,
the flexible hose connectors should be
doubled back to complete the water
circuit external to the unit (avoiding
trash settle-out in the condenser). An
extra pipe may be necessary to con-
nect the hose kits. See Page 15 for an-
tifreeze/water mixture by volume.
3 Water circulation system should be
filled with clean water using the wa-
ter make up connections. Note: Air
vents should be opened during fill-
ing.
4 With the air vents closed, start the
circulating pump and then crack the
air vents to bleed off the trapped
air, assuring circulation through all
components of the system.
Note: Make up water must be available
to the system to replace the volume
formerly occupied by the air that is
bled off.
5 With the air vented and the water
circulating, the entire system
should be checked for leaks with re-
pairs made as required.
6 Operate the supplementary heat
system making checks per manu-
facturer’s instructions. During this
operation, visual checks should be
made for leaks that may have oc-
curred due to increased heat. Re-
pair as required.
7 Open the system at the lowest point
for the initial blow down (making
sure the make up water is equal to
the water being dumped). Continue
blow down until the water leaving
the drain runs clear, but not less
than 2 hours.
8 Shut down pumps and supplemen-
tary heat system. Reconnect the
hoses placing the water-to-refriger-
ant heat exchanger in the water cir-
culating system.
Note: Vents should be open when the
pumps and supplementary heat sys-
tem are shut down.

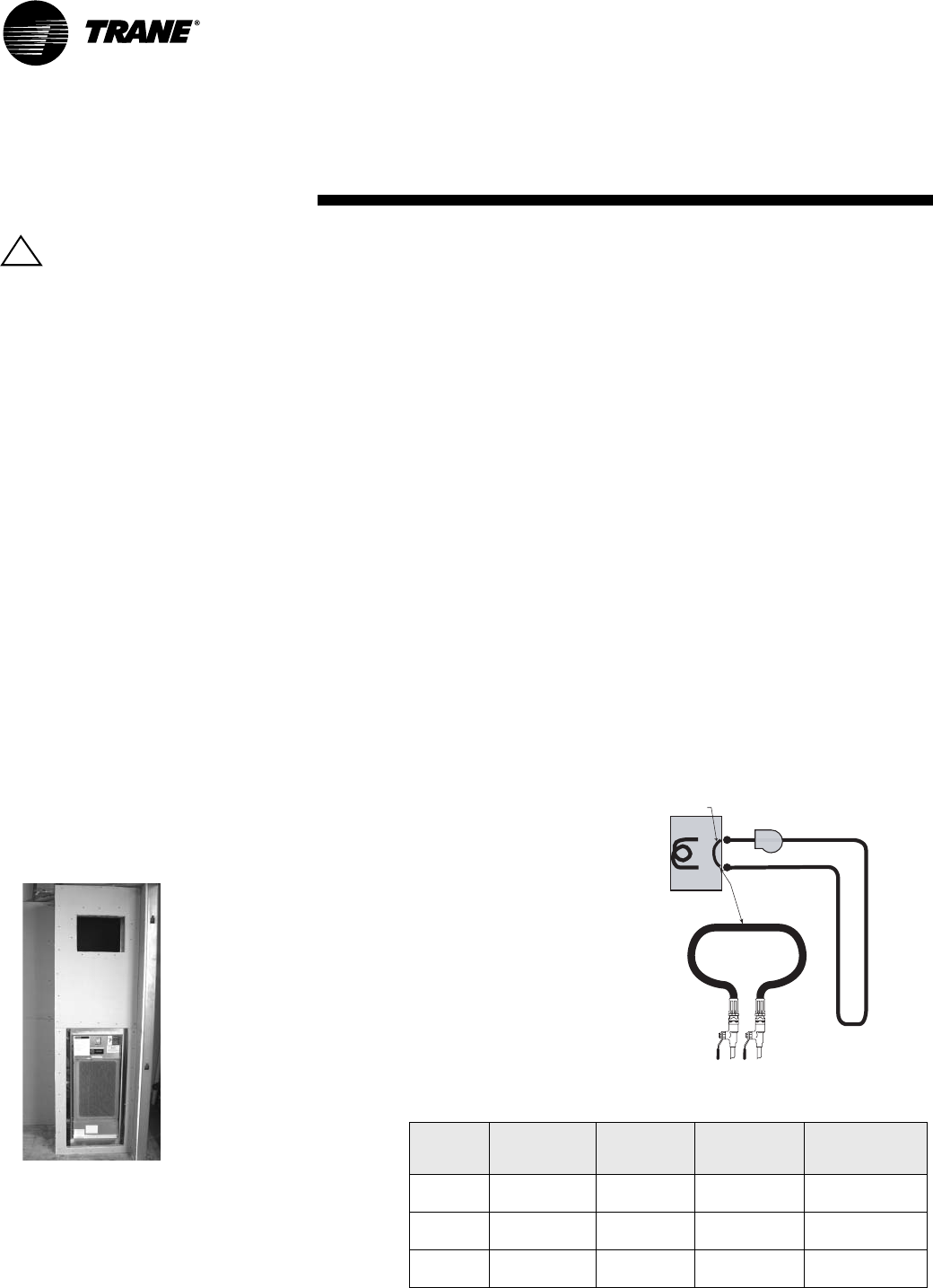

Figure 12: Flushing the water loop
Table 2: Supply air opening size
GET
Model
Single Grille
100% CFM
Two Grille
50% CFM
Three Grille
33% CFM
Top Discharge
Up to 100%
CFM
009, 012 12W x 10H
(305 x 254)
10W x 6H
(254 x 152)
Not
Recommended
14 x 10
(356 x 254)
015, 018,
024
14W x 12H
(356 x 305)
14W x 12H
(356 x 305)
12W x 8H
(305 x 203)
16 x 14
(406 x 356)
036 Not
Recommended
16W x 14H
(406 x 356)
14W x 12H
(356 x 305)
17 x 17
(432 x 432)
CIRCULATING
PUMP
WATER-SOURCE
HEAT PUMP
CONNECTION
HOSE
GROUND-LOOP
OR
COOLING TOWER/BOILER
TEMPORARY
CONNECTION
FOR SYSTEM
FLUSHING
Installation
!
WSHP-SVN08B-EN 15
Using Antifreeze
In areas of the country where entering
water temperatures drop below 45°F
or where piping is being run through
areas subject to freezing, the loop
must be freeze protected by using an
approved antifreeze solution to pre-
vent the earth loop water from freez-
ing inside the heat exchanger.
Methanol and glycols are the most
commonly used antifreeze solutions.
Consult your geothermal unit supplier
for locally approved solutions in your
area.
Propylene glycol is not recommended
in installations where the water tem-
perature are expected to fall below
30°F. At extreme temperatures, the vis-
cosity increases to the point where
normal loop circulating pumps may
not maintain proper flow.
If propylene glycol is the only locally
approved solution for anti-freeze,
good engineering practices should be
used to achieve the desired flow.
Calculate the approximate volume of
water in the system by using the re-
quirements detailed in Table 8, Water
Volume. Add three gallons to this total
to allow for the water contained in the
hose kit and geothermal unit.
Table 3: Antifreeze requirements based on volume
Type of Antifreeze Minimum Temperature for Freeze Protection
10°F 15°F 20°F 25°F 30°F
Methanol 25% 21% 16% 10% 3%
Propylene Glycol ----6%
Installation
16 WSHP-SVN08B-EN
Low Voltage Wiring
Factory ordered thermostats and zone
sensors are pre-wired with a quick
connecting plug.
1 After installing the cabinet assem-
bly, simply plug the male portion of
thermostat/zone sensor plug into
the female portion of the plug locat-
ed inside the unit’s junction box.
2 Mount the thermostat or zone sen-
sor on the finished drywall.

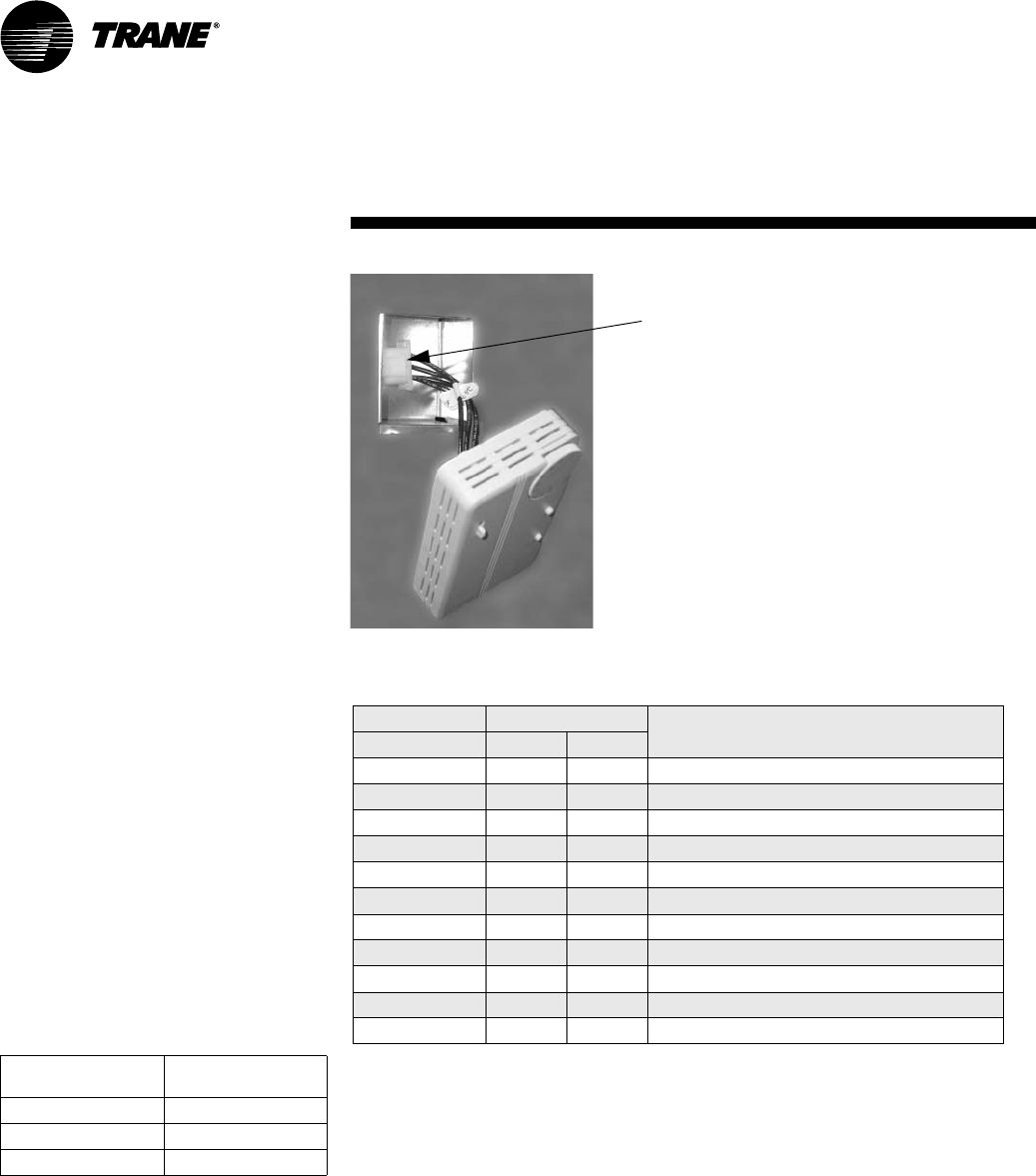

Thermostat/zone sensor connection is
shown in Figure 13.
Low Voltage Wiring for Field
Provided Thermostats/Zone
Sensors
Ensure that the AC control wiring be-
tween the controls and the unit’s ter-
mination point does not exceed three
(3) ohms/conductor for the length of
the run.
Note: Resistance in excess of 3-ohms
per conductor may cause component
failure due to insufficient AC voltage
supply.
Check all loads and conductors for
grounds, shorts, and mis-wiring.
Use copper conductors unless other-
wise specified.
Do not run the AC low voltage wiring
in the same conduit with the high volt-
age power wiring.
Table 4: 24V AC conductors
Distance from unit
to Control
Recommended
Wire Size
000-460 feet 18 gauge
461-732 feet 16 gauge
733-1000 feet 14 gauge
Installation
Low Voltage Wiring
Table 5: Deluxe controller diagnostic LEDs
Color: Green Color: Red Controller Mode
LED1 LED2 LED3
OFF OFF OFF Control OFF
ON OFF OFF Normal/Compressor OFF
ON OFF FLASH Anti-short Cycle
ON OFF ON Normal/Compressor ON
FLASH ON OFF Brownout Condition
ON FLASH ON Soft Lockout (low pressure)
ON FLASH FLASH Soft Lockout (high pressure)
ON ON ON Manual Lockout (low pressure)
ON ON FLASH Manual Lockout (high pressure)
ON FLASH OFF Manual Lockout (condensate overflow)
ON ON OFF Compressor Disable
Factory provided plug
Six (6) Pin Connector/Harness
Red = 24V
Black = Fan
Orange = RV
Yellow = Compressor
Blue = Common
Figure 13: Zone sensor connection
WSHP-SVN08B-EN 17
Blower Motor Speed Retrofit
Motors installed in the unit have mul-
tiple speed configurations. To modify
the rpm of the motor, the following
steps may be followed.
WARNING
Hazardous Voltage!
Disconnect all electric power, in-
cluding remote disconnects and
discharge motor start/run capaci-
tors before servicing. Follow prop-
er lockout/tagout procedures to
ensure the power can not be inad-
vertently energized. Failure to dis-
connect power before servicing
could result in death or serious in-
jury.
1 Locate the blower motor relay in-
side the chassis control box.
2 Remove the undesired speed tap.
3 Select desired speed tap wire by
using information from Table 7.
4 Connect desired tap wire to the
1K4 relay at spade 4.
5 Reconnect power to the unit.
Table 6: Lead change
Lead Colors
Lead Speed High Low
Blower 1G 9A
Installation
Air Flow Adjustment
!
Table F1: Blower External Static Pressure without Return Air Door (RAD), with filter
1 The NO "Ducted" option is for non-ducted (free return) units.
2 Units specified as "non-ducted" (free return) are factory wired to low-speed.
3 Units specified as "ducted" are factory wired to high-speed.
Model
No.
Speed
Tap Ducted Min
CFM
Max
CFM
External Static Pressure (in. of wg)
00.05 0.1 0.15 0.2 0.25 0.3 0.35 0.4 0.45 0.5 0.55 0.6 0.65 0.7
GET009HighYes280482-456422383347308---------
GET009LowYes---341329309283----------
GET009HighNo--350--------------
GET009LowNo--285--------------
GET012 High Yes 380 481 ---481 458 435 411 385 - - - - - - -
GET012 Low Yes - - - 442 422 404 384 ----------
GET012 High No - - 492 --------------
GET012 Low No - - 402 --------------
GET015HighYes475652-----652631611584561535503467429689
GET015LowYes---582566551535519505486-------
GET015HighNo--585--------------
GET015LowNo--485--------------
GET018 High Yes 570 800 -------799 772 747 723 693 664 632 603
GET018 Low Yes - - - 648 642 628 613 596 580 - - - - - - - -
GET018 High No - - 713 --------------
GET018 Low No - - 552 --------------
GET024HighYes760974----974954927905877846824790---
GET024LowYes---878853836814793773--------
GET024HighNo--987--------------
GET024LowNo--807--------------
GET036 High Yes 1135 1344 ----------1344 1313 1282 1255 1219
GET036 Low Yes - - - 1271 1263 1253 1238 1230 1213 1196 1178 1155 - - - - -
GET036 High No - - 1324 --------------
GET036 Low No - - 1229 --------------
18 WSHP-SVN08B-EN
Electrical
Requirements
Table F2: Blower External Static Pressure with Return Air Door (RAD), with filter
1 The NO "Ducted" option is for non-ducted (free return) units.
2 Units specified as "non-ducted" (free return) are factory wired to low-speed.
3 Units specified as "ducted" are factory wired to high-speed.
Table E1: Electrical Performance
Model No. Speed
Tap Ducted Min
CFM
Max
CFM
External Static Pressure (in. of wg)
00.05 0.1 0.15 0.2 0.25 0.3 0.35 0.4 0.45 0.5 0.55 0.6 0.65 0.7
GET009HighYes280482-451417378342303---------
GET009LowYes- - -336324304278----------
GET009HighNo- -345--------------
GET009LowNo- -280--------------
GET012 High Yes 380 481 ---459 436 413 389 363 -------
GET012 Low Yes - - - 420 400 382 362 ----------
GET012 High No - - 470 --------------
GET012 Low No - - 380 ------- ------
GET015HighYes475652-----642621601574551525493457419679
GET015LowYes- - -572556541525509495476-------
GET015HighNo- -575--------------
GET015LowNo- -475--------------
GET018 High Yes 570 800 -------774 747 722 698 668 639 607 578
GET018 Low Yes - - - 623 617 603 588 571 555 --------
GET018 High No - - 690 --------------
GET018 Low No - - 524 --------------
GET024HighYes760974----927907880858830799777743---
GET024LowYes- - -831806789767746726--------
GET024HighNo- -940--------------
GET024LowNo- -760--------------
GET036 High Yes 1135 1344 ----------1250 1219 1188 1161 1125
GET036 Low Yes - - - 1177 1169 1159 1144 1136 1119 1102 1084 1061 -----
GET036 High No - - 1280 --------------
GET036 Low No - - 1140 --------------
Model No. Oversized Blower Volts Tot a l
FLA
Comp.
RLA
Comp.
LRA
Blower
Motor
FLA
Blower
Motor
HP
Minimum
Circuit
Ampacity
Overcurrent
Protective
Device
GET009 No 208/60/1 4.0 3.4 22.2 0.6 1/10 4.9 15
GET009 No 220-240/50/1 3.6 3.1 18.8 0.5 1/10 4.4 15
GET009 No 230/60/1 4.0 3.4 22.2 0.6 1/10 4.9 15
GET009 No 265/60/1 3.6 3.1 18.8 0.5 1/10 4.4 15
GET012 No 208/60/1 5.7 5.0 27.9 0.7 1/8 6.9 15
GET012 No 220-240/50/1 4.9 4.3 22.2 0.6 1/8 6.0 15
GET012 No 230/60/1 5.7 5.0 27.9 0.7 1/8 6.9 15
GET012 No 265/60/1 4.9 4.3 22.2 0.6 1/8 6.0 15
GET015 No 208/60/1 6.1 5.4 29.0 0.7 1/8 7.5 15
GET015 No 220-240/50/1 5.4 4.8 27.0 0.6 1/8 6.6 15
GET015 No 230/60/1 6.1 5.4 29.0 0.7 1/8 7.5 15
GET015 No 265/60/1 5.4 4.8 27.0 0.6 1/8 6.6 15
GET018 No 208/60/1 9.3 7.6 45.0 1.7 1/5 11.2 15
GET018 No 220-240/50/1 7.4 6.3 32.0 1.1 1/5 9.0 15
GET018 No 230/60/1 9.3 7.6 45.0 1.7 1/5 11.2 15
GET018 No 265/60/1 7.4 6.3 32.0 1.1 1/5 9.0 15
GET024 No 208/60/1 13.1 10.9 56.0 2.2 1/5 15.8 25
GET024 No 220-240/50/1 11.7 9.9 55.0 1.8 1/5 14.2 20
GET024 No 230/60/1 13.1 10.9 56.0 2.2 1/5 15.8 25
GET024 No 265/60/1 11.7 9.9 55.0 1.8 1/5 14.2 20
GET036 No 208/60/1 19.3 16.0 82.0 3.3 1/2 23.3 35
GET036 No 220-240/50/1 16.4 13.6 64.0 2.8 1/2 19.8 30
GET036 No 230/60/1 19.3 16.0 82.0 3.3 1/2 23.3 35
GET036 No 265/60/1 16.4 13.6 64.0 2.8 1/2 19.8 30
WSHP-SVN08B-EN 19
Pre-Start
Checklist
Pre-Start-up Checklist
Before energizing the unit, the following system devices must be checked:
____ Is the high voltage power supply correct and in accordance with the nameplate ratings?
____ Is the field wiring and circuit protection the correct size?
____ Is the low voltage control circuit wiring correct per the unit wiring diagram?
____ Is the piping system clean/complete and correct? (A recommendation of all system flushing of debris from
the water-to-refrigerant heat exchanger, along with air purging from the water-to-refrigerant heat exchanger
be done in accordance with the Closed-Loop/Ground Source Heat Pump Systems Installation Guide).
____ Is vibration isolation provided? (i.e. unit isolation pad, hose kits)
____ Is unit serviceable? (See clearance specifications on page 6).
____ Are the low/high-side pressure temperature caps secure and in place?
____ Are all the unit access panels secure and in place?
____ Is the thermostat in the OFF position?
____ Is the water flow established and circulating through all the units?
____ Is the duct work (if required) correctly sized, run, taped, insulated and weather proofed with proper unit
arrangement?
____ Is the condensate line properly sized, run, trapped and pitched?
____ Does the indoor blower turn freely without rubbing?
____ Has all work been done in accordance with applicable local and national codes?
____ Has heat transfer fluid been added in the proper mix to prevent freezing in closed system application?
____ Are the compressor bolts removed from the chassis?
____ Have the chassis isolation rails been released?
____ Is there a good seal between the front air panel and the coil?
20 WSHP-SVN08B-EN
Initial Unit Start-up
Start-up with deluxe controls is included below:
Note: Start-up for the TracerTM ZN510 controller may be found in WSHP-IOP-2.
WARNING
Live Electrical Components!
During installation, testing, servicing and troubleshooting of this product, it may be necessary to work with
live electrical components. Have a qualified licensed electrician or other individual who has been properly
trained in handling live electrical components perform these tasks. Failure to follow all electrical safety pre-
cautions when exposed to live electrical components could result in death or serious injury.
1. Set the thermostat to the highest position.
2. Set the thermostat system switch to COOL with the fan control to AUTO. The compressor should NOT run.
3. Reduce the temperature control setting until the compressor, reversing valve, solenoid valve, and loop
pump are energized. Adjust water flow utilizing pressure/temperature plugs and comparing to tables con-
tained in specification sheet data. Water leaving the heat exchanger should be warmer than the entering
water temperature (approximately 9°F-12°F); blower operation should be smooth; compressor and blower
amps should be within data plate ratings; the suction line should be cool with no frost observed in the
refrigerant circuit.
4. Check the cooling refrigerant pressures against values in Table OP1. (Page 21).
5. Turn the thermostat switch to the OFF position. Unit should stop running and the reversing valve should
de-energize.
6. Leave unit off for approximately FIVE minutes to allow for pressure equalization.
7. Turn the thermostat to the lowest setting.
8. Set the thermostat system switch to the HEAT position.
9. Adjust the temperature setting upward until the unit is energized. Warm air should blow from the register.
A water temperature decrease of approximately 5°F-9°F leaving the heat exchanger should be noted. The
blower and compressor operation should be smooth with no frost observed in the refrigeration circuit.
10. Check the heating refrigerant pressures against values in Table OP1. (Page 21)
11. Set the thermostat to maintain the desired space temperature.
12. Instruct the owner on system operation.
Sequence
of Operation
!
WSHP-SVN08B-EN 21
Table OP-1: Operating Pressures
GENERAL: There are many variables (airflow, air temperatures) in an air conditioning system that will affect operating re-
frigerant pressures and temperatures. The chart below shows approximate conditions and is based on air flow at the rated
SCFM, entering air at 80.6 °FDB, 66.2 °FWB in cooling, 68 °FDB in heating. (+)Heating data with 35 °F EWT is based on the
use of an anti-freeze solution having a freezing point 20 °F lower than the minimum expected entering temperature.
Operating Data
Model
Entering
Water
Temp, °F
Water
Flow
GPM
Cooling Heating
Suction
Pressure,
PSIG
Discharge
Pressure,
PSIG
Water
Temp
Rise, °F
Air Temp
Drop,
°FDB
Suction
Pressure,
PSIG
Discharge
Pressure,
PSIG
Water
Temp
Drop, °F
Air Temp
Rise,
°FDB
GET 009 35 1.8 46 - 52 158 - 201 5 - 6 11 - 15
GET 009 35 2.25 46 - 53 159 - 203 4 - 5 12 - 15
GET 009 45 1.8 68 - 78 100 - 127 11 - 14 11 - 15 55 - 63 171 - 218 6 - 7 13 - 17
GET 009 45 2.25 68 - 78 97 - 123 9 - 11 12 - 15 56 - 65 172 - 219 5 - 6 14 - 18
GET 009 55 1.8 70 - 80 117 - 148 11 - 14 11 - 14 65 - 75 182 - 231 7 - 9 15 - 19
GET 009 55 2.25 70 - 80 113 - 144 9 - 11 12 - 15 66 - 76 183 - 233 6 - 7 16 - 20
GET 009 68 1.8 73 - 84 142 - 180 10 - 13 11 - 14 78 - 90 193 - 246 8 - 10 18 - 22
GET 009 68 2.25 73 - 84 138 - 176 9 - 11 12 - 15 79 - 91 195 - 248 7 - 9 18 - 23
GET 009 75 1.8 75 - 86 157 - 199 10 - 13 11 - 14 85 - 98 201 - 256 9 - 11 19 - 24
GET 009 75 2.25 74 - 86 153 - 195 8 - 11 11 - 15 87 - 100 202 - 257 7 - 9 19 - 25
GET 009 86 1.8 77 - 88 183 - 233 10 - 13 11 - 14 96 - 110 208 - 265 10 - 13 21 - 26
GET 009 86 2.25 76 - 88 179 - 227 8 - 11 11 - 15 98 - 113 209 - 266 8 - 10 21 - 27
GET 009 95 1.8 78 - 90 206 - 262 10 - 13 11 - 14
GET 009 95 2.25 78 - 90 202 - 257 8 - 10 11 - 14
GET 012 35 2.5 44 - 50 160 - 204 5 - 6 19 - 24
GET 012 35 3.1 45 - 51 162 - 206 4 - 5 19 - 24
GET 012 45 2.5 68 - 78 106 - 135 10 - 13 18 - 23 54 - 62 170 - 217 5 - 7 21 - 27
GET 012 45 3.1 67 - 77 102 - 130 9 - 11 19 - 24 55 - 63 172 - 219 4 - 6 22 - 27
GET 012 55 2.5 72 - 83 124 - 158 10 - 13 18 - 23 64 - 74 181 - 230 6 - 8 24 - 31
GET 012 55 3.1 71 - 82 120 - 153 9 - 11 18 - 23 65 - 75 182 - 232 5 - 7 25 - 31
GET 012 68 2.5 74 - 86 152 - 193 10 - 13 17 - 22 75 - 86 192 - 245 7 - 9 27 - 35
GET 012 68 3.1 74 - 85 147 - 187 8 - 11 18 - 23 76 - 87 194 - 247 6 - 8 28 - 36
GET 012 75 2.5 76 - 87 168 - 213 10 - 13 17 - 21 79 - 90 196 - 250 8 - 10 29 - 37
GET 012 75 3.1 75 - 86 163 - 207 8 - 10 17 - 22 79 - 91 198 - 252 6 - 8 29 - 37
GET 012 86 2.5 77 - 89 195 - 248 10 - 12 16 - 20 84 - 96 203 - 258 8 - 11 30 - 39
GET 012 86 3.1 77 - 88 190 - 242 8 - 10 16 - 21 85 - 97 204 - 260 7 - 9 31 - 39
GET 012 95 2.5 79 - 91 219 - 279 9 - 12 15 - 19
GET 012 95 3.1 78 - 90 214 - 273 8 - 10 15 - 19
GET 015 35 2.8 42 - 49 161 - 204 5 - 7 16 - 20
GET 015 35 3.5 44 - 51 163 - 208 4 - 6 16 - 20
GET 015 45 2.8 71 - 81 100 - 127 12 - 15 16 - 20 51 - 59 171 - 217 6 - 8 18 - 23
GET 015 45 3.5 71 - 81 97 - 124 10 - 12 16 - 21 53 - 61 174 - 221 5 - 7 19 - 24
GET 015 55 2.8 73 - 84 116 - 147 12 - 15 16 - 20 61 - 70 181 - 231 8 - 10 21 - 26
GET 015 55 3.5 73 - 84 112 - 143 10 - 12 16 - 20 63 - 72 184 - 234 6 - 8 21 - 27
GET 015 68 2.8 75 - 86 141 - 179 12 - 15 15 - 20 75 - 87 195 - 249 9 - 12 24 - 31
GET 015 68 3.5 74 - 86 137 - 174 10 - 12 16 - 20 77 - 89 198 - 252 7 - 9 25 - 31
GET 015 75 2.8 75 - 86 156 - 199 12 - 15 15 - 19 83 - 95 203 - 258 10 - 13 26 - 33
GET 015 75 3.5 75 - 86 152 - 194 10 - 12 15 - 19 84 - 97 205 - 261 8 - 10 26 - 34
GET 015 86 2.8 76 - 87 184 - 234 12 - 15 14 - 18 92 - 106 211 - 269 11 - 14 28 - 36
GET 015 86 3.5 76 - 87 179 - 228 9 - 12 15 - 19 94 - 108 214 - 272 9 - 12 29 - 37
GET 015 95 2.8 77 - 88 208 - 265 11 - 14 14 - 18
GET 015 95 3.5 77 - 88 203 - 258 9 - 12 14 - 18
Operating Pressures
22 WSHP-SVN08B-EN
Operating Pressure
Table OP-1: Operating Pressures
Operating Data
Model
Entering
Water
Temp, °F
Water
Flow
GPM
Cooling Heating
Suction
Pressure,
PSIG
Discharge
Pressure,
PSIG
Water
Temp
Rise, °F
Air Temp
Drop,
°FDB
Suction
Pressure,
PSIG
Discharge
Pressure,
PSIG
Water
Temp
Drop, °F
Air Temp
Rise,
°FDB
GET 018 35 3.6 41 - 47 164 - 209 5 - 6 16 - 20
GET 018 35 4.5 42 - 49 166 - 211 4 - 5 16 - 21
GET 018 45 3.6 69 - 79 110 - 139 12 - 15 17 - 21 50 - 58 174 - 222 6 - 7 18 - 23
GET 018 45 4.5 68 - 78 106 - 134 9 - 12 17 - 22 52 - 60 176 - 224 5 - 6 18 - 23
GET 018 55 3.6 71 - 82 128 - 163 12 - 15 16 - 21 60 - 69 184 - 235 7 - 8 20 - 26
GET 018 55 4.5 71 - 81 123 - 157 9 - 12 17 - 21 62 - 71 186 - 237 5 - 7 21 - 26
GET 018 68 3.6 73 - 84 155 - 198 11 - 15 16 - 20 73 - 84 198 - 252 8 - 10 23 - 30
GET 018 68 4.5 73 - 84 151 - 192 9 - 12 16 - 21 75 - 86 200 - 254 6 - 8 24 - 30
GET 018 75 3.6 74 - 86 172 - 219 11 - 14 16 - 20 80 - 92 205 - 260 8 - 11 25 - 32
GET 018 75 4.5 74 - 85 167 - 212 9 - 12 16 - 20 82 - 94 207 - 263 7 - 9 25 - 32
GET 018 86 3.6 76 - 87 201 - 256 11 - 14 15 - 19 90 - 103 215 - 274 9 - 12 27 - 34
GET 018 86 4.5 76 - 87 195 - 249 9 - 12 15 - 19 92 - 106 217 - 277 8 - 10 28 - 35
GET 018 95 3.6 77 - 89 227 - 289 11 - 14 14 - 18
GET 018 95 4.5 77 - 88 221 - 281 9 - 11 15 - 19
GET 024 35 4.8 41 - 48 163 - 207 5 - 7 18 - 22
GET 024 35 6.0 42 - 49 164 - 209 4 - 6 18 - 23
GET 024 45 4.8 64 - 74 108 - 138 12 - 16 17 - 22 51 - 58 175 - 223 6 - 8 21 - 26
GET 024 45 6.0 63 - 73 104 - 133 10 - 13 17 - 22 52 - 59 177 - 225 5 - 7 21 - 27
GET 024 55 4.8 67 - 78 125 - 159 12 - 16 17 - 22 59 - 68 187 - 238 7 - 10 24 - 30
GET 024 55 6.0 67 - 77 121 - 154 10 - 13 17 - 22 61 - 70 189 - 240 6 - 8 24 - 31
GET 024 68 4.8 71 - 82 151 - 193 12 - 16 16 - 21 70 - 81 202 - 257 9 - 11 27 - 34
GET 024 68 6.0 70 - 81 147 - 187 10 - 13 17 - 21 72 - 82 204 - 259 7 - 9 28 - 35
GET 024 75 4.8 72 - 83 167 - 213 12 - 15 16 - 20 75 - 87 209 - 266 9 - 12 29 - 37
GET 024 75 6.0 72 - 83 162 - 207 10 - 12 16 - 21 77 - 89 211 - 269 8 - 10 29 - 37
GET 024 86 4.8 75 - 86 195 - 249 12 - 15 15 - 20 83 - 96 220 - 280 10 - 13 31 - 39
GET 024 86 6.0 74 - 85 190 - 241 10 - 12 16 - 20 85 - 98 222 - 283 8 - 11 32 - 40
GET 024 95 4.8 76 - 88 221 - 281 11 - 15 15 - 19
GET 024 95 676 - 88 215 - 273 9 - 12 15 - 19
GET 036 35 7.2 40 - 46 155 - 198 4 - 6 17 - 22
GET 036 35 9.0 41 - 48 157 - 200 4 - 5 17 - 22
GET 036 45 7.2 63 - 72 113 - 144 12 - 15 20 - 26 49 - 57 167 - 212 6 - 7 20 - 26
GET 036 45 9.0 61 - 71 109 - 139 9 - 12 20 - 26 51 - 58 168 - 214 5 - 6 21 - 26
GET 036 55 7.2 67 - 77 129 - 164 12 - 15 20 - 26 58 - 67 177 - 226 7 - 9 23 - 30
GET 036 55 9.0 66 - 76 124 - 158 10 - 12 20 - 26 59 - 68 179 - 228 5 - 7 24 - 30
GET 036 68 7.2 71 - 82 155 - 197 12 - 15 20 - 25 71 - 82 192 - 244 8 - 10 27 - 35
GET 036 68 9.0 71 - 82 149 - 189 9 - 12 20 - 25 72 - 83 194 - 246 7 - 8 28 - 35
GET 036 75 7.2 73 - 84 170 - 217 11 - 15 19 - 24 78 - 89 200 - 254 9 - 11 29 - 37
GET 036 75 9.0 73 - 84 164 - 209 9 - 12 19 - 25 79 - 91 202 - 257 7 - 9 29 - 37
GET 036 86 7.2 75 - 86 198 - 252 11 - 14 18 - 23 82 - 94 206 - 263 9 - 12 30 - 39
GET 036 86 9.0 75 - 86 191 - 243 9 - 11 19 - 24 83 - 95 208 - 265 7 - 9 31 - 39
GET 036 95 7.2 76 - 88 224 - 285 11 - 14 18 - 23
GET 036 95 9 76 - 87 216 - 275 9 - 11 18 - 23
WSHP-SVN08B-EN 23
Operating Pressures
Water Pressure Drop
Table 7 should be used to define feet of head/pressure drop. Note: To calculate feet of head, when using gauges that read
in PSIG, multiply PSI by 2.31.
Water Volume
Table 8 is provided for use in calculating glycol requirements for the unit.
Flow Checks
For the operating temperature drop (heating) and rise (cooling), refer to Table OP1 and OP2 for the proper water tempera-
ture change. Depending on the unit size, entering water temperature and water flow rate, the cooling temperature rise is
from 8°F-16°F. Based on the same criteria for heating, the temperature drop is from 2°F-13°F.
Pressure
Using the P/T ports and one 0-60 psi pressure gauge with the P/T port adapter, measure the pressure difference between
the water-in and water-out connections. Compare the pressure differential to Table 6 to determine flow.
Start-up Checklist and Log
Use the form on page 24 to log system and unit temperatures during start-up.
WARNING
Live Electrical Components!
During installation, testing, servicing and troubleshooting of this product, it may be necessary to work with
live electrical components. Have a qualified licensed electrician or other individual who has been properly
trained in handling live electrical components perform these tasks. Failure to follow all electrical safety pre-
cautions when exposed to live electrical components could result in death or serious injury.
Table 7: Water pressure drops (WPD) in feet of head
Unit Size GPM
Cooling Heating
EWT
F
Ft. Head
Pressure
EWT
F
Ft. Head
Pressure
009
1.5
77
5.1
55
5.8
2.3 9.3 10.6
2.7 12.4 14.0
012
2.5
77
10.2
55
8.5
3.1 14.6 16.6
3.7 19.6 22.0
015
2.3
77
6.2
55
7.4
3.5 12.3 14.1
4.2 16.8 18.8
018
2.9
77
2.4
55
3.1
4.5 4.9 5.9
5.4 6.6 7.7
024
3.9
77
5.0
55
6.2
6.0 9.9 11.8
7.2 13.2 14.5
036
5.9
77
4.9
55
5.5
9.0 9.8 11.0
10.8 13.3 14.7
Table 8: Water volume
Unit
Model
GET
Water Side
Volume
Cubic In.
Water Side
Volume
Cubic Ft.
Water Side
Volume
Gallons
009 17.0 0.010 0.074
012 17.0 0.010 0.074
015 36.0 0.021 0.156
018 48.0 0.028 0.208
024 55.0 0.032 0.238
036 71.0 0.041 0.307
!
24 WSHP-SVN08B-EN
Start-up Checklist
and Log
Installing Contractor: Use this form to thoroughly check-out the system and units before and during start-
up. (This form need not be returned to the factory unless requested during technical service support).
Job Name:
Model Number:
Date:
Serial Number:
In order to minimize troubleshooting and costly system failures, complete the following checks and data
entries before the system is put into full operation.
MODE
Entering fluid temperature
Leaving fluid temperature
Temperature differential
Return-air temperature DB/WB
Supply-air temperature DB/WB
Temperature differential
Water coil heat exchanger
(Water Pressure IN)
Water coil heat exchanger
(Water Pressure OUT)
Pressure Differential
HEAT
F
COOL
F
F F
F F
PSIG PSIG
PSIG PSIG
PSIG PSIG
COMPRESSOR
Amps
Volts
Discharge line temperature
(after 10 minutes) F F
F
F
F
F
F
F
WSHP-SVN08B-EN 25
Preventive Maintenance
Maintenance on the unit is simplified
with the following preventive sugges-
tions:
Filter maintenance must be performed
to assure proper operation of the
equipment. Filters should be inspect-
ed at least every three months, and re-
placed when it is evident they are
dirty. Filter sizing includes:
WARNING
Hazardous
Voltage!
Disconnect all electric power, in-
cluding remote disconnects and
discharge motor start/run capaci-
tors before servicing. Follow prop-
er lockout/tagout procedures to
ensure the power can not be inad-
vertently energized. Failure to dis-
connect power before servicing
could result in death or serious in-
jury.
Check the contactors and relays within
the control panel at least once a year.
It is good practice to check the tight-
ness of the various wiring connections
within the control panel.
A strainer (60 mesh or greater) must
be used on an open loop system to
keep debris from entering the unit heat
exchanger and to ensure a clean sys-
tem.
For units on well water, it is important
to check the cleanliness of the water-
to-refrigerant heat exchanger. Should
it become contaminated with dirt and
scaling as a result of bad water, the
heat exchanger will have to be back
flushed and cleaned with a chemical
that will remove the scale. This service
Model GET Filter Size (nominal)
009, 012 14 x 20 (356 x 508)
015 18 x 20 (457 x 508)
018 18 x 25 (457 x 635)
024, 036 20 x 30 (508 x 762)
Maintenance
should be performed by an experi-
enced service person.
WARNING
Hazardous
Chemicals!
Coil cleaning agents can be either
acidic or highly alkaline. Handle
chemical carefully. Proper han-
dling should include goggles or
face shield, chemical resistant
gloves, boots, apron or suit as re-
quired. For personal safety, refer
to the cleaning agent manufactur-
ers Materials Safety Data Sheet
and follow all recommended safe
handling practices. Failure to fol-
low all safety instructions could
result in death or serious injury.
It should be noted that the water qual-
ity should be checked periodically. See
Table 9.
Table 9: Water Quality Table
Scaling
Calcium and magne-
sium (total hardness)
Less than 350
ppm
Corrosion
pH 7-9.5
Hydrogen Sulfide Less than 1 ppm
Sulfates Less than 25 ppm
Chlorides Less than 125
ppm
Carbon Dioxide Less than 75 ppm
Total dissolved solids
(TDS)
Less than 1000
ppm
Biological Growth
Iron Bacteria Low
Erosion
Suspended Solids Low
!
!
26 WSHP-SVN08B-EN
Warranty Information
Standard Warranty
The standard water-source heat pump warranty is Trane’s parts-only warranty, running 12-months from star-
tup, not to exceed 18-months from shipment.
Extended Warranty
The optional extended warranty is a second through fifth year warranty. The time starts at the end of standard
1-year coverage through the fifth year.
These extended warranties apply only to new equipment installed in domestic Trane Commercial Systems
Group sales territories and must be ordered prior to start-up.
Warranty
Information
WSHP-SVN08B-EN 27
WARNING
Hazardous Service
Procedures!
The maintenance and trouble
shooting procedures recommend-
ed in this section of the manual
could result in exposure to electri-
cal, mechanical or other potential
safety hazards. Always refer to
the safety warnings provided
throughout this manual concern-
ing these procedures. When possi-
ble, disconnect all electrical
power including remote discon-
nects before servicing. Follow
proper lockout/tagout procedures
to ensure the power can not be in-
advertently energized. When nec-
essary to work with live electrical
components, have a qualified li-
censed electrician or other indi-
vidual who has been trained in
handling live electrical compo-
nents per these tasks. Failure to
follow all of the recommended
safety warnings provided, could
result in death or serious injury.
Preliminary Trouble Inspection
If operational difficulties are encoun-
tered, be sure to perform the prelimi-
nary checks before referring to the
troubleshooting chart on page 28.
• Verify that the unit is receiving elec-
tric supply power.
• Ensure that the fuses in the fused
disconnect are intact.
After completing the preliminary
checks, inspect the unit for other obvi-
ous problems such as leaking connec-
tion, broken or disconnected wires,
etc. If everything appears to be in or-
der, but the unit still fails to operate
properly, refer to the troubleshooting
chart on page 28.
General Operation
The standard model is designed for in-
door installation. When the unit is in-
stalled in an unconditioned space, the
unit may not start in cool weather (ap-
proximately 45°F). It may then be nec-
essary to start the unit in the cooling
mode for three to five minutes. The
unit may then be shut-off (there will be
a two minute time-out of the unit), and
restarted in the heating mode. The
freeze protection thermostat should
also be checked as it may be adversely
affected by ambient temperature.
Like any other type of mechanical
equipment, the unit performs best
when it is well maintained.
Operation with a Conventional
Thermostat
The unit is equipped with safety con-
trols, including high pressure control,
low pressure control and a freeze pro-
tection thermostat, set to shut off the
compressor under abnormal tempera-
ture or pressure conditions. If the safe-
ties shut off the compressor, a lockout
relay prevents short cycling from the
abnormal condition. When conditions
are corrected, the lockout control can
be reset by setting the thermostat sys-
tem switch to OFF wait a few minutes
for the system pressure to equalize,
and then return to HEAT or COOL. If
the condition continues, an authorized
service person should check out the
unit.
Troubleshooting
!
28 WSHP-SVN08B-EN
Troubleshooting
Checklist
Problem Heating Cooling Cause Correction
No response to any
thermostat setting
X X Main power off Check fuses
X X Defective control transformer Replace
X X Broken or loose connection Repair
X X Defective thermostat Replace
X X Transformer Reset Transformer
Unit short cycles X X Thermostat or sensor improperly located Relocate
Blower runs, but compressor does not
X X Defective compressor overload Replace (if external)
X X Defective compressor contactor Replace
X X Supply Voltage too low Correct
X X Defective compressor capacitor Replace
X X Defective windings Replace
X X Limit switches open Check cause/Replace or repair
Insufficient capacity
X X Dirty filter Replace/clean
X X Blower RPM too low Correct
XX
Loss of conditioned air due to leaks in
ductwork Repair leaks
X Introduction of excessively hot return-air Correct
X Introduction of excessively cold return-air Correct
X X Low on refrigerant charge Locate leak, repair and recharge by
weight (not by superheat)
X X Restricted thermal expansion valve Replace
X X Defective reversing valve See WSHP-IOM-# for touch test chart
X X Thermostat improperly located Relocate
X X Unit undersized Recalculate heat gains/losses
X X Inadequate water flow Increase GPM
X X Scaling in heat exchanger Clean or replace
X Water too hot Decrease temperature
X Water too cold Increase temperature
High pressure switch open
X Inadequate GPM Increase water flow to unit
X Water too hot Decrease temperature
X Inadequate air flow Check, clean blower and coil
X Dirty filter Clean/replace
X X Overcharged with refrigerant Decrease charge
X X Defective pressure switch Check or replace
High head pressure
X Trash in heat exchanger Backflush
X Low water flow Increase GPM
X X Overcharge of refrigerant Decrease charge
X X Non-condensable in system Evacuate and recharge by weight
X X Water too hot Decrease temperature
X Dirty filter Clean / replace
X Inadequate air flow Check, clean blower and coil
Low suction pressure
X X Undercharged Locate leak, repair and recharge
X X Restricted thermal expansion valve Repair / replace
X Inadequate air flow Check, clean blower and coil
X Dirty filter Clean/replace
X Inadequate GPM Increase GPM
WSHP-SVN08B-EN 29
60
59
58
57
56
55
54
53
52
51
50
49
46
48
47
45
44
41
43
42
40
39
38
37
36
35
34
33
32
31
30
29
19
24
28
27
26
25
23
22
21
20
18
17
16
15
14
13
12
11
10
8
9
7
6
5
2
4
3
1
WARNING AVERTISSEMENT
IMPORTANT
3B1
R/T3
S/T2
2B1
C/T1
L1 L2
Y
W
O
G
R
B
6A,B 6A
B5A
4A
1D
8A
9B(Y)
9A A,B(Y)
2C
(G)
1F
1C
(O) 2E
1E
(R)
1K3
E
F,G
D,E
16A(BL)
15A
19A
19A 20A
20B
27A 28A 29A
B
29B
29A,B
B
AREA LOCATION
DEVICE PREFIX LOCATION CODE
1 CONTROL PANEL
2 COMPRESSOR
3 BLOWER MOTOR
4 UNIT MTD
CUSTOMER PROVIDED5
1T1
1K1
1K4
1K3
1T1 TRANSFORMER 24V
LOCKOUT RELAY
BLOWER MOTOR RELAY
COMPRESSOR CONTACTOR
2B1 COMPRESSOR MOTOR
4S3
4S1
4L1
3B1C2
3B1 BLOWER MOTOR
BLOWER MOTOR CAPACITOR
REVERSING VALVE
FREEZE PROTECTION SWITCH
HIGH PRESSURE SWITCH
15C
SINGLE
STAGE
ROOM
T'STAT
ADD JUMPER
BETWEEN
Y & W.
5
C1
C2
1K3
2D
CONTACT. AN
CONTACTS
SOLID LINES
SHOWN AT 25° C (77° F), AT ATMOSPHERIC
WIRING BY OTHERS. DASHED LINE ENCLOSURES
COMPONENTS PROVIDED BY THE FIELD. PHANTOM
PRESSURE, AT 50% RELATIVE HUMIDITY, WITH
NORMAL SHUTDOWN HAS OCCURRED.
UNLESS OTHERWISE NOTED, ALL SWITCHES ARE
DASHED LINES INDICATE RECOMMENDED FIELD
AND/OR DASHED DEVICE OUTLINES INDICATE
LINE ENCLOSURES INDICATE ALTERNATE
INDICATE WIRING BY TRANE CO.
NUMBERS ALONG THE RIGHT SIDE OF THE
BY LINE NUMBER. AN UNDERLINED
AN OPEN ARROWHEAD BELOW THE
CONTACT WHICH BEGINS TIMING WHEN
3
2
1
SCHEMATIC DESIGNATE THE LOCATION OF
NUMBER INDICATES A NORMALLY CLOSED
LINE NUMBER POINTING UPWARD INDICATES A
ENERGIZED.
TIMED
ALL UTILITIES TURNED OFF, AND AFTER A
CIRCUITRY OR AVAILABLE SALES OPTIONS.
NOTES:
DEATH.
SEVERE PERSONAL INJURY OR
BEFORE SERVICING CAN CAUSE
FAILURE TO DISCONNECT POWER
BEFORE SERVICING.
INCLUDING REMOTE DISCONNECTS
DISCONNECT ALL ELECTRIC POWER
OU LA MORT.
BLESSURES CORPORELLES SEVERES
L'ENTRETIEN PEUT ENTRAINER DES
ELECTRIQUE AVANT D'EFFECTUER
FAUTE DE DECONNECTER LA SOURCE
AVANT D'EFFECTUER L'ENTRETIEN.
DISJONCTEURS SITUES A DISTANCE
ELECTRIQUES INCLUANT LES
DECONNECTEZ TOUTES LES SOURCES
VOLTAGE HASARDEUX!
HAZARDOUS VOLTAGE!
UNIT TERMINALS ARE NOT DESIGNED TO ACCEPT ANY OTHER WIRING.
USE COPPER CONDUCTORS ONLY TO PREVENT EQUIPMENT DAMAGE.
22A
1PB1
COMPRESSOR CAPACITOR2B1C1
LEGEND
DESCRIPTION
DESIGNATION
DEVICE
D
2 C,D1C,D
2B1C1
2A
10A10B
1K10 RELAY, RANDOM START (OPT)
1K11 RELAY, NIGHT SETBACK (OPT)
1S1 RELAY, TIME DELAY (OPTIONAL)
31
1K4
1K4
24
1K1
1K1
L1 T1
C1 C2
EE
15B
1S2 DISCONNECT SWITCH
1FU1 FUSE BLOCK
1TB2 TERMINAL BOARD
2F
C
6
LINE
NUMBER
6,7,8
11,13,32
30,31
17,27
25,26
25
32
3,4,5
2,19
23
11
11
18
17
36
31
31
2X
1X
20C
1PB1
1PB1
POWER BLOCK
POWER BLOCK
(BK)
INSET "B"
TRANSFORMER SHOWN IS WIRED FOR 230V, RED LEAD IS FOR 208V.
OPTIONAL DISCONNECT SWITCH.
OPTIONAL DISCONNECT SWITCH AND FUSE BLOCK.
1T1
265V
RED (LO)
RED (LO)
RED (LO)
HORIZONTAL DISCHARGE
009-013
SIZE
019
026
1S2
1FU1
**
2B
2A1A
1B
1F 10A CAP
BK (HI)
BK (HI)
BK (HI)
BL (MED)
BL (MED)
NONE
TOP DISCHARGE
RED (LO)
RED (LO)
RED (LO)
019
026
SIZE
009-013
1F
BL (MED)
BL (MED)
BL (MED)
BK (HI)
BK
BK (HI)
10A CAP
3F
(W)
(BR)
3B1
(G)
INSET "C"
FAN SPEED WIRING
208/230 WPRD SIZE 009
1S1
1K11 1K10
1TB2
N
N
77A
78A
1K11
15D 16G
C2C1
1K10
SEE INSET "B" FOR 265V TRANSFORMER.
13
3B1C2
1K1
4L1
4S3 4S1
4
4
7
8
4
8
7
5
6
6
65
3B1C2
5
6
5
6
6
J1-1 P1-1
J1-5 P1-5
J2-3 P2-3
J2-2 P2-2
J2-1 P2-1
J1-4 P1-4
J1-2 P1-2
J1-6 P1-6
J1-3 P1-3
Unit Wiring
Retrofit Diagram
208/230V-50/60 Hz-1PH
30 WSHP-SVN08B-EN
Unit Wiring
Deluxe Diagram
208V-50/60 Hz-1PH
WSHP-SVN08B-EN 31
Unit Wiring
ZN510 Diagram
230V-50/60 Hz-1PH
Trane has a policy of continuous product and data improvement and reserves the right to change
design and specifications without notice.
Literature Order Number WSHP-SVN08B-EN
File Number SV-UN-WSHP-SVN08B-EN-0206
Supersedes SV-UN-WSHP-SVN08A-EN-1105
Stocking Location Inland
Trane
A business of American Standard Companies
www.trane.com
For more information, contact your local district
office or e-mail us at comfort@trane.com

Navigation menu
