Packaged Rooftop Air Conditioners

Voyager™ – Heat Pump

12½ – 20 Tons – 60 Hz

June 2014 PKGP-PRC012M-EN

Product Catalog

© 2014 Trane All rights reserved PKGP-PRC012M-EN

Introduction

Packaged Rooftop Air Conditioners

Through the years, Trane has designed and developed the most complete line of Packaged Rooftop

products available in the market today. Trane was the first to introduce the Micro—microelectronic

unit controls—and has continued to improve and revolutionize this design concept.

The ReliaTel control platform offers the same great features and functionality as the original Micro,

with additional benefits for greater application flexibility.

Voyager continues to provide the highest standards in quality and reliability, comfort, ease of

service, and the performance of Trane light commercial products.

Trane customers demand products that provide exceptional reliability, meet stringent performance

requirements, and are competitively priced. Trane delivers all of this with Voyager.

Voyager features cutting edge technologies: reliable compressors, Trane engineered ReliaTel

controls, computer-aided run testing, and Integrated Comfort™ Systems.

So whether you’re the contractor, the engineer or the owner, you can be certain Voyager Products

are built to meet your needs.

It’s Hard To Stop A Trane®.

Copyright

This document and the information in it are the property of Trane, and may not be used or

reproduced in whole or in part without written permission. Trane reserves the right to revise this

publication at any time, and to make changes to its content without obligation to notify any person

of such revision or change.

Trademarks

Trane and the Trane logo, Frostat, Integrated Comfort, ReliaTel, Tracer, are trademarks of Trane in

the United States and other countries. All trademarks referenced in this document are the

trademarks of their respective owners.

Revision Summary

PKGP-PRC012M-EN (12 Jun 2014)

• Updated Low Leak Economizer Factory and Field Installed Option

• Updated Features & Benefits, Model Number Description, Performance Data, Weights, and

Mechanical Specifications

Table of Contents

PKGP-PRC012M-EN 3

Features and Benefits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Standard and Optional Features at a Glance . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Standard Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Factory Installed Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Factory or Field Installed Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Field Installed Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Other Benefits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Outstanding Standard Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Variety of Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Factory Installed Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Factory or Field Installed Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Field Installed Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Other Benefits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Application Considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Selection Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Cooling Capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Heating Capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Model Number Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Model Number Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

General Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Performance Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Field Installed Control Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Zone Sensors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Electrical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Dimensional Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Weights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Typical Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Jobsite Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

Mechanical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Factory Installed Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Factory or Field Installed Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Field Installed Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

4 PKGP-PRC012M-EN

Features and Benefits

Voyager has the features and benefits that make it first class in the light commercial rooftop market.

Designed with input from field contractors and engineers, its U-shaped airflow performance is

outstanding.

Standard and Optional Features at a Glance

Standard Features

• 2” throwaway filters

• 5 year Limited Compressor Warranty

• 1 year Limited Parts Warranty

• Anti-Short Cycle Timer

• Belt Drive Motors

• Colored and Numbered Wiring

• Crankcase Heaters

• Dedicated Airflow

• Easy Access Low Voltage Terminal Board (LTB)

• Foil-Faced and Edge Captured Insulation

• High Pressure Cutout

• IAQ Sloped Condensate Drain Pan

• Liquid Line Refrigerant Drier

• Low Ambient Cooling to 0°F

• Operating Charge of R-410A

• Patented Hybrid Condenser Coil for Easy Cleaning

•Phase Monitor

• Quick Access Panels

• Quick Adjust Idler Arm Pulley

• ReliaTel™ Microprocessor Controls

• Single Point Power

• Single Side Service

• Standardized Components

Figure 1. Voyager features

A

B

C

D

E

F

H

I

J

G

Foil-Faced Insulation

Quick Adjust Idler Pulley

ReliaTel™ Microprocessor Controls

Colored and Numbered Wiring

Low Ambient Cooling to Zero° F

High and Low Pressure Switches

Scroll Compressors (R-410A)

Available in R-410A refrigerant

Hinged Access Doors

Single Side Service

Smoke Detector

Fan Failure Switch

Clogged Filter Switch

Through-the-Base Electrical

Disconnect Switch or Circuit Breaker

Convenience Outlet

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

L

M

N

K

O

P

Q

Variable Frequency DriveQ

PKGP-PRC012M-EN 5

Features and Benefits

• U-shaped Airflow Pattern

• Variable Frequency Drive (Multispeed Indoor Fan and Single Zone VAV)

Factory Installed Options

• 2” MERV 8 or MERV 13 Filters5 with Filter Removal Tool

• Black Epoxy Pre-Coated Coils

•CO

2 Sensor Wiring (Wiring Only)15

• Condensate Overflow Switch

• Fault Detection & Diagnostics (FDD)

• High Efficiency Motors5

• High Short Circuit Current Rated (SCCR) Electrical Subsystem16

• Hinged Access Doors

• Human Interface - 5 inch Color Touchscreen

• Multi-Speed Fan

• Powered or Unpowered Convenience Outlet4

• Single Zone Variable Air Volume (SZVAV)

• Stainless Steel Drain Pan

• Supply and/or Return Air Smoke Detector2, 9

• Through the Base Electrical with Circuit Breaker10, 11

• Through the Base Electrical With Disconnect Switch6, 10, 11

• Through the Base Utilities Access

Factory or Field Installed Options

• BACnet™ Communication Interface1

• Barometric Relief1

• Clogged Filter/Fan Failure Switch2, 5

• Discharge Air Sensing Kit2, 5

• Economizer - Standard, Downflow1

• Electric Heaters5, 7, 11

• Frostat™2, 5

• Indoor Fan Motor Shaft Grounding Ring14

• LonTalk® Communications Interface5

• Low Leak Economizer - Downflow

• Oversized Motors5

• Reference or Comparative Enthalpy3, 5

• ReliaTel Options Module8

• Tool-less Hail Guards5

• Trane Communications Interface (TCI)5, 13

Field Installed Options

•CO

2 Sensor

• Digital Display Zone Sensor

• Dual Thermistor Remote Zone Sensor

• Economizer - Standard, Horizontal

• High Static Drive

• Low Leak Economizer - Downflow

• Manual Outside Air Damper

• Motorized Outside Air Dampers

• Powered Exhaust

• Roof Curb (Downflow only)

• Remote Potentiometer

6 PKGP-PRC012M-EN

Features and Benefits

• Ventilation Override Accessory2

• Zone Sensors and Remote Zone Sensors

Note: Explanation of Note1 - Note16 located in “Model Number Description,” p. 19.

Other Benefits

• Cabinet Design Ensures Water Integrity

• Ease of Service, Installation and Maintenance

• Mixed Model Build Enables “Fastest in the Industry” Ship Cycle Times

• Outstanding Airflow Distribution

• ReliaTel Controls Benefits

• Rigorous Testing

• Unmatched Product Support

•Varitrac

Outstanding Standard Features

Anti-Short Cycle Timer

Provides a 3 minute minimum “ON” time and 3 minute “OFF” time for compressors to enhance

compressor reliability by assuring proper oil return.

Colored and Numbered Wiring

Save time and money tracing wires and diagnosing the unit.

Compressors

Voyager contains the best compressor technology available to achieve the highest possible

performance. Dual compressors are outstanding for humidity control, light load cooling conditions

and system back-up applications. Dual compressors are available on all models.

Controls—ReliaTel

ReliaTel microprocessor controls provide unit control for heating, cooling and ventilating utilizing

input from sensors that measure indoor and outdoor temperature and other zone sensors. ReliaTel

also provides outputs for building automation systems and expanded diagnostics. For a complete

list of ReliaTel offerings, refer to “Other Benefits,” p. 13.

Conversion-less Units

The dedicated design units (either downflow or horizontal) require no panel removal or alteration

time to convert in the field — a major cost savings during installation. Horizontal units come

complete with duct flanges so the contractor doesn’t have to field fabricate them. These duct

flanges are a time and cost saver.

Crankcase Heaters

These band or insertion heaters provide improved compressor reliability by warming the oil to

prevent migration during off-cycles or low ambient conditions. These are standard on all Voyager

models.

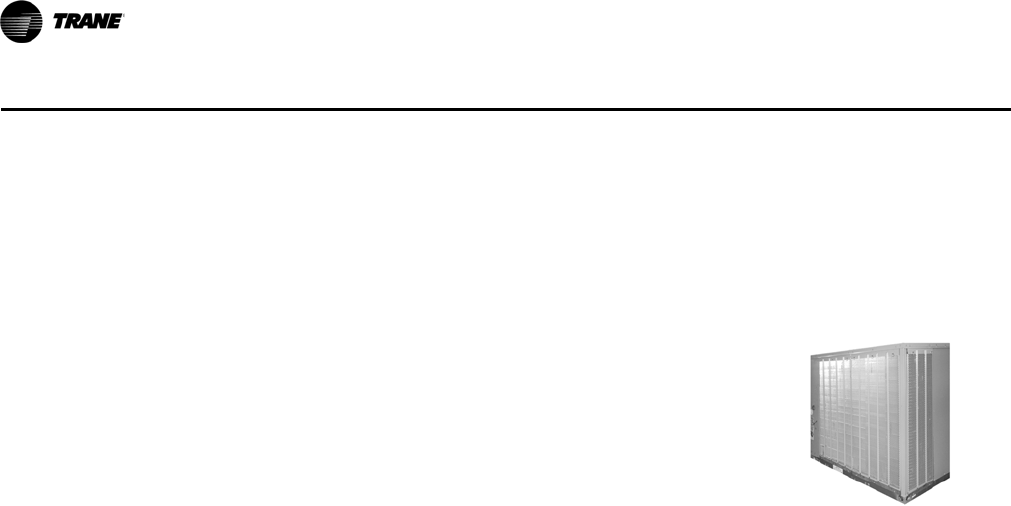

Condenser Coil

Voyager boasts a patent-pending 1+1+1 condenser

coil (pictured right), permanently gapped for easy

cleaning.

PKGP-PRC012M-EN 7

Features and Benefits

Discharge Line Thermostat

A bi-metal element discharge line thermostats installed as a standard feature on the discharge line

of each system. This standard feature provides extra protection to the compressors against high

discharge temperatures in case of loss of charge, extremely high ambient and other conditions

which could drive the discharge temperature higher.

Low Ambient Cooling

All Voyager microprocessor units have cooling capabilities down to 0°F as standard.

Pressure Cutouts

Low and high pressure cutouts are standard on all Voyager models.

Phase Monitor

The phase monitor provides 100% protection for motors and compressors against problems

caused by phase loss, phase imbalance, and phase reversal. It is also equipped with an LED that

provides an ON or FAULT indicator.

Quick-Access Panels

Remove three or fewer screws for access to the standardized internal components and wiring.

Easy Access Low Voltage Terminal Board Foil Faced Insulation

Voyager’s Low Voltage Terminal Board is

external to the electrical control cabinet. It is

extremely easy to locate and attach the

thermostat wire and test operation of all unit

functions. This is another cost and time saving

installation feature.

All panels in the evaporator section of the unit

have cleanable foil-faced insulation. All edges

are either captured or sealed to ensure no

insulation fibers get into the airstream.

Low Voltage Connections

The wiring of the low voltage connections to the unit and

the zone sensors is as simple as 1-1, 2-2, and 3-3. This

simplified system makes it easy for the installer to wire.

Motors

All indoor fan motors are belt drive as standard.

8 PKGP-PRC012M-EN

Features and Benefits

Single Side Service

Single side service is standard on all units.

Sloped Drain Pans

Standard on every unit.

Standardized Components

Components are placed in the same location on all Voyager units. Familiarize yourself with one

Voyager and you are familiar with every Voyager. Due to standardized components throughout the

Voyager line, contractors/owners can stock fewer parts.

U-Shaped Airflow Pattern

The U-shaped airflow allows for improved static capabilities.

Variable Frequency Drives - VFD (Multispeed Indoor Fan and SZ VAV Only)

Variable Frequency Drives are factory installed and tested to provide supply fan motor speed

modulation, as well as modulating gas heat. VFDs on the supply fan, as compared to inlet guide

vanes or discharge dampers, are quieter, more efficient, and are eligible for utility rebates. All VFDs

are designed to allow bypass if required. Bypass control will simply provide full nominal airflow

in the event of drive failure. Modulating gas heat models with VFDs allow tighter space temperature

control with less temperature swing.

Variety of Options

Factory Installed Options

Black Epoxy Pre-Coated Coils

The pre-coated coils are an economical option for protection in mildly corrosive environments.

CO2 Sensor Wiring

This unit wiring for field installed C02 sensors. Factory-installed C02 sensor wiring saves time and

ensures proper unit connections for the field installed C02 sensor kits.

Condensate Overflow Switch

A condensate overflow switch is available to shut the unit down in the event that the condensate

drain line becomes clogged. This option protects the unit from water overflowing from the drain

pan and entering the base of the units.

Fault Detection & Diagnostics (FDD)

This offering meets the mandatory requirement of CA Title 24 of fully configurable diagnostics

allowing fault history and reading fault codes at the unit.This option provides detection of the

Quick-Adjust Idler Arm

With the Quick-Adjust Idler Arm (pictured right), the

belt and sheaves can be quickly adjusted without

moving the mounted fan motor. The result is a major

savings in time and money.

Single Point Power

A single electrical connection powers the unit.

PKGP-PRC012M-EN 9

Features and Benefits

following faults: Air temperature sensor failure/fault and notification of acceptable economizer

mode.The FDD system shall be certified by the Energy Commission as meeting the requirements.

High Efficiency Filtration

Voyager units offer a variety of high efficiency filtration options. MERV 8 and MERV 13 filters

provide additional filtration beyond the capabilities of typical 2” throwaway filters. Also, when

MERV 8 or MERV 13 filters are ordered, units come equipped with a filter removal tool.

High Efficiency Motors

This option is available with efficiency ratings from 86.5 up to 91.0. It is not available for all models.

High Short Circuit Current Rating (SCCR)

Voyager rooftop units now have an optional high short circuit current rated electrical subsystem

for units with an MOP above 60A. This option is a perfect fit for applications that need protection

against high potential fault currents. This option also includes individual over current protection

for each compressor and the indoor fan, as well as a dedicated over current protection to the

condenser fan motor(s). When the high SCCR is ordered, the control box will have components

separated into two sections - high and low voltage components.

Hinged Access Doors

These doors permit easy access to the filter, fan/heat, and compressor/control sections. They

reduce the potential roof damage from screws or sharp access door corners.

Multi-Speed Indoor Fan System

Multi-speed indoor fan system is designed for use in applications for meeting the minimum

requirement of CA Title 24. This system incorporates a multi-speed fan control to change the speed

of the fan to 67% of full airflow based off compressor stages.

Powered or Unpowered Convenience Outlet

This option is a GFCI, 120V/15amp, 2-plug, convenience outlet, either powered or unpowered. This

option can only be ordered when Through the Base Electrical with either the Disconnect Switch or

Circuit Breaker option is ordered. This option is available on all models.

Human Interface

The 5 inch Color Touchscreen Human Interface provides

an intuitive user interface to the rooftop unit that speeds

up unit commissioning, shortens unit troubleshooting

times, and enhances preventative maintenance

measures. The human interface includes several

features such as:

• Data trending capabilities by means of time series

graphs

• Historical alarm messages

• Real-time sensor measurements

• On board system setpoints

• USB port that enables the downloading of

component runtime information as well as trended

historical sensor data

• Customizable reports

10 PKGP-PRC012M-EN

Features and Benefits

Single Zone VAV - One Zone Variable Air Volume Mode

Note: Single Zone VAV is designed to be used with a zone sensor. If a unit is configured for Single

Zone VAV operation but is connected to a thermostat, the control will revert to multi-speed

(2-Speed) indoor fan control. (See "Multi-Speed Indoor Fan System" above.)

Single Zone VAV is designed for use in single zone applications like gymnasiums, auditoriums,

manufacturing facilities, retail box stores, and any large open spaces, where there is a lot of

diversity in the load profile. Single Zone VAV (SZ VAV) is an ideal replacement to "yesterday's"

constant volume (CV) systems, by reducing operating costs while improving occupant comfort. SZ

VAV systems combine Trane application, control and system integration knowledge to exactly

match fan speed with cooling and heating loads, regardless of the operating condition. Trane

algorithms meet/exceed ASHRAE 90.1- 2010, SZ VAV energy-saving recommendations, and those

of CA Title 24. The result is an optimized balance between zone temperature control and system

energy savings. Depending on your specific application, energy savings can be as much as 20%.

Note: Building system modeling in energy simulation software like TRACE is recommended to

evaluate performance improvements for your application.

SZ VAV is fully integrated into the ReliaTel Control system and is available today. It provides the

simplest and fastest commissioning in the industry through proven factory-installed, wired, and

tested system controllers. All control modules, logic and sensors are factory installed, and tested

to assure the highest quality and most reliable system available. This means no special

programming of algorithms, or hunting at the jobsite for sensors, boards, etc. that need to be

installed in the field. Single Zone VAV is a quick and simple solution for many applications and is

available from your most trusted rooftop VAV system solution provider- Trane.

Stainless Steel Drain Pan

For excellent corrosion and oxidation resistance, the optional stainless steel drain pan provides a

cleanable surface that complement other IAQ solutions such as high efficiency filtration (MERV 8

or 13), and demand control ventilation (CO2).

Through the Base Electrical/Horizontal Side Access with Circuit Breaker

This option is a factory installed thermal-magnetic, molded case, HACR Circuit Breaker with

provisions for through the base electrical connections.

Through the Base Electrical/Horizontal Side Access with Disconnect Switch

Factory installed 3-pole, molded case, disconnect switch with provisions for through the base

electrical connections are available.

Through the Base Utilities Access

An electrical service entrance shall be provided allowing electrical access for both control and main

power connections inside the curb and through the base of the unit. This option will allow for field

installation of liquid-tight conduit and an external, field-installed disconnect switch.

Supply, Return, and Plenum Air Smoke Detector

With this option (pictured right) installed, if smoke is detected,

all unit operation will be shut down. Reset will be manual at the

unit. Return Air Smoke Detectors require minimum allowable

airflow when used with certain models.

Supply and/or Return Smoke Detectors may not be used with

the Plenum Smoke Detector.

PKGP-PRC012M-EN 11

Features and Benefits

Factory or Field Installed Options

BACnet™ Communications Interface

The BACnet communications interface allows the unit to communicate directly with a generic open

protocol BACnet MS/TP Network Building Automation System Controls.

Barometric Relief

Designed to be used on downflow units, barometric relief is an unpowered means of relieving

excess building pressure.

Clogged Filter/Fan Failure Switch

A dedicated differential pressure switch is available to achieve active fan failure indication and/or

clogged filter indication.

Discharge Air Sensing Kit

Provides true discharge air sensing in heating models. The kit is functional only with the ReliaTel™

Options Module.

Economizer - Standard, Downflow

Economizers are equipped with either dry bulb, reference, or comparative enthalpy sensing. These

economizers provide free cooling as the outdoor temperature and/or humidity decreases. Correctly

installed, they offer a valuable energy savings. Factory-installed economizers save time and ensure

proper installation.

Note: Factory-installed economizers require some field set-up.

Economizer - Low Leak, Downflow

This accessory meets low leak requirements for ASHRAE 90.1, IECC, and CA Title 24 standards (3

cfm/ft^2@1" wg exterior air, 4 cfm/ft^2@1" wg return air). This option allows 100% outdoor air

supply from 0-100% modulating dampers and is standard with barometric relief. It can be paired

with powered exhaust for additional building pressure relief. This option can be paired with or

without Fault Detection & Diagnostics (FDD) to meet current mandatory CA Title 24 requirements.

Available on downflow units only. The economizers come with three control options, dry bulb and

reference or comparative enthalpy (optional).

Electric Heaters

Electric heat modules are available within the basic unit. If ordering the Through the Base Electrical

option with an Electrical Heater, the heater must be factory installed.

Frostat™

This capillary bulb embedded in the face of the evaporator coil monitors coil temperature to

prevent evaporator icing and protect the compressor. Recommended for applications with low

leaving air temperatures, low airflow and/or high latent load applications.

Indoor Fan Motor Shaft Grounding Ring

Shaft grounding rings are used on all VFD driven motors to provide a conductive discharge path

away from the motor bearings to ground. Bearing Protection Rings shall be maintenance free

circumferential rings of conductive micro fibers that discharge voltages to ground.

LonTalk® Communications Interface

The LonTalk communications interface allows the unit to communicate as a Tracer™ LCI-V device

or directly with generic LonTalk Network Building Automation System Controls.

Oversized Motors

Factory or field installed oversized motors are available for high static applications.

12 PKGP-PRC012M-EN

Features and Benefits

Reference or Comparative Enthalpy

Measures and communicates humidity while maximizing comfort control.

ReliaTel Options Module (RTOM)

The RTOM monitors the supply fan proving, clogged filter, supply air temperature, exhaust fan

setpoint, dehumidification setpoint, supply air tempering, Frostat™ and smoke detector.

Field Installed Options

CO2 Sensor - Demand Control Ventilation (DCV)

Demand-controlled ventilation (DCV) is a control strategy that responds to the actual demand

(need) for ventilation by regulating the rate at which the HVAC system brings outdoor air into the

building. A CO2 sensor measures the concentration (parts per million, ppm) of CO2 (Carbon

Dioxide) in the air. As the CO2 concentration changes, the outside air damper modulates to meet

the current ventilation needs of the zone. The CO2 sensor kit is available as a field installed

accessory. Two field installed kits are offered; C02 sensor and wiring or C02 sensor only. The C02

Sensor only kit should be ordered with factory installed C02 sensor wiring. Factory installed C02

sensor wiring saves set-up time and ensures proper unit connections for the C02 sensor.

Dampers

0–25 percent manual or 0–50 percent motorized outside air dampers are available.

Digital Display Zone Sensor

The Digital LCD (Liquid Crystal Display) zone sensor has the look and functionality of standard zone

sensors.

Economizer - Standard, Horizontal

Economizers are equipped with either dry bulb or reference or comparative enthalpy sensing.

These economizers provide free cooling as the outdoor temperature and/or humidity decreases.

Correctly installed, they offer a valuable energy savings.

Economizer - Low Leak, Downflow

This accessory meets low leak requirements for ASHRAE 90.1, IECC, and CA Title 24 standards (3

cfm/ft^2@1" wg exterior air, 4 cfm/ft^2@1" wg return air). This option allows 100% outdoor air

supply from 0-100% modulating dampers and is standard with barometric relief. It can be paired

with powered exhaust for additional building pressure relief. Available on downflow units only.

High Static Drive Accessory

Available on many models, this high static drive accessory extends the capability of the standard

motor. Avoid expensive motors and operating costs by installing this optimized sheave accessory.

Powered Exhaust

This option is available on downflow units and provides exhaust of the return air, when using a

downflow economizer, to maintain proper building pressurization. Great for relieving most

building overpressurization problems.

Tool-less Hail Guards

Tool-less, hail protection quality coil guards (pictured right) shall be

either factory or field-installed for condenser coil protection. This

option protects the condenser coil from vandalism and/or hail

damage.

Trane Communication Interface (TCI)

Available factory or field installed. This module when applied with the

ReliaTel™ easily interfaces with Trane’s Integrated Comfort™ System.

PKGP-PRC012M-EN 13

Features and Benefits

Remote Potentiometer

When properly installed in the economizer control circuitry, this accessory provides a remote

variable resistance to enable the operator to adjust the minimum damper position.

Roof Curbs

Available for downflow units. Only two roof curbs for the entire Voyager line simplifies curb

selection.

Ventilation Override Accessory

With the Ventilation Override Accessory installed, the unit can be set to transition to up to 3 different

pre-programmed sequences for Smoke Purge, Pressurization and Exhaust. The transition occurs

when a binary input on the RTOM is closed (shorted). This would typically be a hard wired relay

output from a smoke detector or fire control panel. The ventilation override kit is available as a field

installed accessory.

Zone Sensors/Thermostats

Available in programmable, automatic and manual styles.

Note: Zone sensors required for units configured for Single Zone VAV indoor fan system control

to enable Single Zone VAV functionality.

Other Benefits

Cabinet Integrity

For added water integrity, Voyager has a raised 1-1/8” lip around the supply and return of the

downflow units to prevent water from blowing into the ductwork.

Easy to Install, Service and Maintain

Because today’s owners are very cost-conscious when it comes to service and maintenance,

Voyager was designed with direct input from service contractors. This valuable information helped

to design a product that would get the serviceman off the job quicker and save the owner money.

Voyager does this by offering outstanding standard features enhanced by a variety of factory and

field installed options, multiple control options, rigorously tested proven designs and superior

product and technical support.

Outstanding Airflow Distribution

Airflow is outstanding. The Voyager can replace an older machine with old ductwork and, in many

cases, improve the comfort through better air distribution.

ReliaTel™ Controls Benefits

ReliaTel controls provide unit control for heating, cooling

and ventilating by utilizing input from sensors that

measure outdoor and indoor temperature.

Quality and Reliability are enhanced through ReliaTel

control and logic:

– Prevents the unit from short cycling, considerably

improving compressor life.

– Ensures the compressor will run for a specific

amount of time which allows oil to return for better

lubrication, enhancing the reliability of the

compressor.

14 PKGP-PRC012M-EN

Features and Benefits

Voyager with ReliaTel reduces the number of components required to operate the unit, thereby

reducing possibilities for component failure.

ReliaTel Makes Installing and Servicing Easy

ReliaTel eliminates the need for field installed anti-shortcycle timer and time delay relays.

ReliaTel controls provide these functions as an integral part of the unit. The contractor no longer

has to purchase these controls as options and pay to install them. The wiring of the low voltage

connections to the unit and the zone sensors is as easy as 1-1, 2-2, and 3-3. This simplified system

makes wiring easier for the installer.

ReliaTel Makes Testing Easy

ReliaTel requires no special tools to run Voyager unit through its paces. Simply place a jumper

between Test 1 and Test 2 terminals on the Low Voltage Terminal Board and the unit will walk

through its operational steps automatically.

The unit automatically returns control to the zone sensor after stepping through the test mode a

single time, even if the jumper is left on the unit.

As long as the unit has power and the “system on” LED is lit, ReliaTel is operational. The light

indicates that the controls are functioning properly.

ReliaTel features expanded diagnostic capabilities when utilized with Trane Integrated Comfort™

Systems.

Some zone sensor options have central control panel lights which indicate the mode the unit is in

and possible diagnostic information (dirty filters for example).

Other ReliaTel Benefits

The ReliaTel built-in anti-shortcycle timer, time delay relay and minimum “on” time control

functions are factory tested to assure proper operation. ReliaTel softens electrical “spikes” by

staging on fans, compressors and heaters. Intelligent Fallback is a benefit to the building occupant.

If a component goes astray, the unit will continue to operate at predetermined temperature

setpoint.

Intelligent Anticipation is a standard ReliaTel feature. It functions continuously as ReliaTel and zone

sensor(s) work together in harmony to provide much tighter comfort control than conventional

electro-mechanical thermostats.

The same ReliaTel Board fits all Packaged Gas/Electric, Cooling, and Heat Pump models. This

provides standardization of parts for contractors. Less money is tied up in inventory with ReliaTel.

Rigorous Testing

All of Voyager’s designs were rigorously rain tested at the factory to ensure water integrity. Voyager

units incorporate either a one piece top or the Trane-Tite-Top (T3). Each part of the top (either two

or three pieces) overlaps in such a way that water cannot leak into the unit. These overlapped edges

are gasketed and sealed to ensure superior water integrity.

Actual shipping tests were performed to determine packaging requirements. Units were test

shipped around the country to determine the best packaging. Factory shake and drop tests were

used as part of the package design process to help assure that the unit arrives at the job site in top

condition.

Rigging tests include lifting a unit into the air and letting it drop one foot, assuring that the lifting

lugs and rails hold up under stress.

We perform a 100% coil leak test at the factory. All coils are pressure and leak tested at a minimum

of 450 psig. The completely assembled refrigerant system is leak tested at a minimum of 240 psig

with a refrigerant and nitrogen mixture.

All parts are inspected at the point of final assembly. Sub-standard parts are identified and rejected

immediately. Every unit receives a 100 percent unit run test before leaving the production line to

make sure it lives up to rigorous Trane requirements.

PKGP-PRC012M-EN 15

Features and Benefits

Unmatched Support

Trane Sales Representatives are a Support Group that can assist you with:

VariTrac

When Trane’s changeover VAV System for light commercial applications is coupled with Voyager,

it provides the latest in technological advances for comfort management systems and can allow

thermostat control in every zone served by VariTrac.

Note: Varitrac is not recommended for SZ VAV and Multi-speed indoor fan applications.

• Product • Special Applications

• Application • Specifications

• Service • Computer Programs and much more

•Training

VariTr ac

TM

16 PKGP-PRC012M-EN

Application Considerations

Application of this product should be within the catalogued airflow and cooling considerations.

Low Ambient Cooling

This Voyager line features, as a standard, low ambient cooling down to 0°F. Contact your local Trane

Representative for more assistance with low ambient cooling applications.

Barometric Relief

This product line offers an optional barometric relief damper included in the downflow economizer

accessory. This accessory consists of gravity dampers which open with increased pressure. As the

building air pressure increases, the pressure in the unit return air section also increases, opening

the dampers and relieving the conditioned space.

Important: THE EFFECTIVENESS OF BAROMETRIC RELIEF DAMPER DURING ECONOMIZING

OPERATION IS SYSTEM RELATED. PRESSURE DROP OF THE RETURN AIR SYSTEM

SHOULD BE CONSIDERED TO CONTROL BUILDING PRESSURIZATION.

Power Exhaust Accessory

The power exhaust accessory is available on all downflow units. This accessory can be field

installed and will assist in relieving a building’s pressurization.

Condensate Trap

The evaporator is a draw-thru configuration. A trap must be field provided prior to start-up on the

cooling cycle.

Clearance Requirements

The recommended clearances identified with unit dimensions should be maintained to assure

adequate serviceability, maximum capacity and peak operating efficiency. Actual clearances which

appear inadequate should be reviewed with the local Trane sales personnel.

Unit Pitch

These units have sloped condensate drain pans. Units must be installed level, any unit slope must

be toward access side of unit.

VariTrac

Varitrac is not recommended for SZ VAV and Multi-speed indoor fan applications.

PKGP-PRC012M-EN 17

Selection Procedure

Cooling Capacity

Step 1

Calculate the building’s total and sensible cooling loads at design conditions. Use the Trane

calculation form or any other standard accepted method.

Step 2

Given the following building requirements:

A. Electrical Characteristics: 460/60/3

B. Summer Design Conditions: Entering Evaporator Coil: 80 DB/ 67 WB

Outdoor Ambient: 95 DB

C. Total Cooling Load: 172 MBh

D. Sensible Cooling Load: 122 MBh

E. Airflow: 6000 cfm

F. External Static Pressure: 0.50 in. w.g.

G. Rooftop - downflow configuration.

H. Accessories, Economizer, Supplementary Electric Heat

I. Heating Capacity 100 MBh

460 volt/3 phase Electric Supplemental Heat - at 6000 cfm

Size the equipment using Table 3, p. 24. As a starting point, a rough determination of the size of the

unit must be made. This selection will then be confirmed after examining the performance at the

given conditions. Divide the total cooling load by nominal BTUH per ton (12 MBh per ton); then

round up to the nearest unit size. 172 MBh/12 MBh = 14.33 (approx. 15 tons.)

Step 3

Table 3, p. 24 shows that a WSD180E4 has a gross cooling capacity of 186.2 MBh and 138.9 MBh

sensible capacity at 95°F ambient and 6000 cfm with 80 DB/67 WB air entering the evaporator.

To Find Capacity at Intermediate Conditions

When the design conditions are between two numbers that are in the capacity table, interpolation

is required to approximate the capacity.

Note: Extrapolation outside of the table conditions is not recommended.

Step 4

Verify that there will be enough capacity by determining net capacity. In order to select the correct

unit which meets the building’s requirements, the fan motor heat must be deducted from the gross

cooling capacity. The amount of heat that the fan motor generates is dependent on the effort by

the motor CFM and static pressure. To determine the total unit static pressure, add the following:

External Static: 0.50 in.

Standard Filter 1 in: 0.05 in. (from Table 12, p. 29)

Economizer Return Air: 0.04 in. (from Ta b l e 12 , p . 2 9 )

Electric Heater Size 18 kW: 0.06 in.

Total Static Pressure: 0.65 in.

Note: The Evaporator Fan Performance Table 6, p. 27 has already accounted for the pressure drop

for standard filters and wet coils.

18 PKGP-PRC012M-EN

Selection Procedure

Therefore, the actual Total Static Pressure is 0.65 - 0.05 = 0.6. With 6000 CFM and 0.60 inches,

Table 6, p. 27 shows 2.17 Bhp.

The note below Table 6, p. 27 gives a formula to calculate Fan Motor Heat:

3.15 x bhp = MBh

3.15 x 2.17 = 6.835 MBh

Now subtracting the fan motor heat from the gross cooling capacity of the unit:

Net Total Cooling Capacity =

186.2 - 6.835 = 179.36 MBh

Net Sensible Cooling Capacity =

138.9 - 6.385 = 132.065 MBh

Step 5

If the performance will not meet the required load of the building, try a selection at the next higher

size unit.

Heating Capacity

Step 1

Calculate the building heating load using the Trane calculation form or other standard accepted

method.

Step 2

Size the equipment using Tab l e 14 , p . 3 1 to match the heating loads at design conditions.

A. Total Heating Load: 100 MBh

B. Outdoor Ambient (Winter) 17 DB

C. Indoor Return Temperature: 70 DB

D . Airflow: 6000 CFM

Use the integrated portion of Table 14, p. 31 for the WSD180E4 to determine capacity at winter

design conditions. The mechanical heating portion of the heat pump will provide 85.4 MBh.

Step 3

Because 45 MBh is less than the building’s required heating capacity at winter design conditions,

a supplementary heater must be selected.

100.0 - 85.54 = 14.46 MBh

From Table 17, p. 32, at 480 volts, the 18 kW Heater will be adequate to do the job.

18 kW 61 MBh

From Table 17, p. 32 select heater AYDHTRK418A (18 kW 460/60/3).

PKGP-PRC012M-EN 19

Model Number Description

Digit 1 — Unit Type

W = Packaged Cooling, Electric Heat

Digit 2 — Efficiency

S = Standard Efficiency

Digit 3 — Airflow Configuration

D= Downflow

H= Horizontal

Digit 4, 5, 6 — Nominal Gross

Cooling Capacity (MBh)

150 = 12½ Tons

180 = 15 Tons

240 = 20 Tons

Digit 7 — Major Design

Sequence

E = R-410A Refrigerant

Digit 8 — Voltage Selection

3 = 208-230/60/3

4 = 460/60/3

W = 575/60/3

Digit 9 — Unit Controls

R = Reliatel

Digit 10 — Heating Capacity

0 = No Heat

G = 18 kW Electric Heat

N = 36 kW Electric Heat

P = 54 kW Electric Heat

R = 72 kW Electric Heat

Digit 11 — Minor Design

Sequence

Digit 12, 13 — Service Sequence

Digit 14 — Fresh Air Selection

0=No Fresh Air

A = Manual Damper

B = Motorized Damper

D = Econ Dry Bulb w/ Barometric

Relief1

F = Econ Reference Enthaply w/

Barometric Relief1

H = Econ Comparative Enthaply w/

Barometric Relief1

K = Low Leak Econ w/ Barometric

Relief1

M = Low Leak Econ Reference

Enthalpy w/ Barometric Relief1

P = Low Leak Econ Comparative

Enthalpy w/ Barometric Relief1

Digit 15 — Supply Fan/Drive

Type/Motor

0=Standard Motor

1=Oversized Motor

5

3 = High Efficiency Motor5

6 = Single Zone Variable Air Volume

Standard Motor

WSD 150 E 3 R G B **

123 456 7 8 9 10 11 1213

7 = Multi-Speed Standard Motor

8 = Single Zone Variable Air Volume

Oversized Motor

9 = Multi-Speed Oversized Motor

A = Single Zone Variable Air Volume

Standard Motor w/ Shaft Ground

Ring

B = Multi-Speed Standard Motor w/

Shaft Ground Ring

C = Single Zone Variable Air Volume

Oversized Motor w/ Shaft Ground

Ring

D = Multi-Speed Oversized Motor w/

Shaft Ground Ring

Digit 16 — Hinged Service

Access / Filters5

0 = Standard Panels/Standard

Filters17

A = Hinged Access/Standard Filters17

B = Standard Panels/2" MERV 8 Filters

C = Hinged Access/2" MERV 8 Filters

D = Standard Panels/MERV 13 Filters

E = Hinged Access/MERV 13 Filters

Digit 17 — Condenser Coil

Protection

0 = Standard Coil

1 = Standard Coil With Hail Guard

2 = Black Epoxy Pre-Coated Coil

3 = Black Epoxy Pre-Coated Coil with

Hail Guard

Digit 18 — Through The Base

Provisions

0 = No Through The Base Provisions

A = Through The Base Electric11

D = Through The Base Utilities Access

Digit 19 — Disconnect Switch/

Circuit Breaker10

0 = No Disconnect/circuit break

1 = Unit Mounted Non-Fused

Disconnect Switch

2 = Unit Mounted Circuit Breaker

Digit 20 — Convenience Outlet

Option

0 = Without Convenience Outlet

A = Unpowered Convenience Outlet4

B = Powered Convenience Outlet4

Digit 21 — Communications

Options

0 = Without Communications

Options

1 = Trane Communications

Interface5, 13

2 = Lontalk Communications

Interface5

6 = Building Automation Control

Network Communications

Interface

Digit 22 — Refrigeration System

Option

0 = Standard refrigeration system

Digit 23 — Refrigeration

Controls

0 = Without Refrigeration Controls

1 = Frostat™

Digit 24 — Smoke Detector2,9

0 = Without Smoke Detector

A = Return Air Smoke Detector

B = Supply Air Smoke Detector

C = Return/Supply Air Smoke

Detector

D = Plenum Smoke Detector

Digit 25 — System Monitoring

Controls2

0 = No Monitoring Controls

1 = Clogged Filter Switch

2 = Fan Failure Switch

3 = Discharge Air Sensing

4 = Clogged Filter Switch and Fan

Failure

5 = Clogged Switch and Discharge Air

Sensing

6 = Fan Failure Switch and Discharge

Air Sensing

7 = Clogged Filter Switch, Fan Failure

Switch and Discharge Air Sensing

A = Condensate Drain Pan Overflow

Switch

B = Clogged Filter Switch and

Condensate Drain Pan Overflow

Switch

C = Fan Failure Switch and

Condensate Drain Pan Overflow

Switch

D = Discharge Air Sensing and

Condensate Drain Pan Overflow

Switch

E = Clogged Filter Switch, Fan Failure

Switch and Condensate Drain Pan

Overflow Switch

F = Clogged Filter Switch, Discharge

Air Sensing Tube and Condensate

Drain Pan Overflow Switch

G = Fan Failure Switch, Discharge Air

Sensing Tube and Condensate

Drain Pan Overflow Switch

H = Clogged Filter Switch, Fan Failure

Switch, Discharge Air Sensing

and Condensate Drain Pan

Overflow Switch

Digit 26 - System Monitoring

Controls

0 = No Monitoring Controls

A = Demand Control Ventilation

(CO2)15

B = FDD (Fault Detection and

Diagnostics)

Model Number Description

20 PKGP-PRC012M-EN

Model Number Description

C = FDD (Fault Detection Diagnostics)

& Demand Control Ventilation

(CO2)15

Digit 27 - Unit Hardware

Enhancements

0 = No Enhancements

1 = Stainless Steel Drain Pan

Digit 28 - Short Circuit Current

Rating

0 = Standard SCCR

A = 65kA SCCR Option16

Digit 31 - Advanced Unit

Controls

0 = Standard Unit Controls

1=Human Interface

18

Note: Most Factory Installed Options

available for Downflow Air

Discharge units only. Please verify

with ordering system for

availability.

Model Number Notes

1. Some field set up required.

2. Requires ReliaTel Options Module.

3. Requires Economizer.

4. Must be ordered with Through-

the-Base Electrical option or

Horizontal-Side Access and either

Unit Mounted Disconnect or

Circuit Breaker.

5. Available factory installed on

downflow AND horizontal units.

Verify with ordering system.

6. Cannot be fused.

7. Must be factory installed when

using Through-the-Base Options.

8. ReliaTel Options Module is

required when ordering the

following accessories: Clogged

Filter Switch, Fan Fail Switch,

Condensate Overflow Switch,

Discharge Air Sensing Kit, Frostat,

Ventilation Override, and Smoke

Detector.

9. Option cannot be ordered in

conjunction with field installed

economizer on downflow units.

Must be factory installed. The

return air smoke detector may not

fit up or work properly on the

Voyager units when used in

conjunction with 3rd party

accessories (such as bolt on heat

wheels, economizers, and power

exhaust). Do not order the return

air smoke detectors when using

this type of accessory.

10. Unit mounted disconnect and

circuit breakers are mutually

exclusive of each other.

11. Through-the-base electrical

option or Horizontal-Side Access

must be ordered with either unit

mounted disconnect or circuit

breaker. When adding heat, you

must order Trane Electric Heat.

12. All Factory Installed Options are

Built-to-Order. Check order

services for estimated production

cycle.

13. TCI is for use with non-VariTrac

systems and VariTrac systems.

14. For use with multi-speed and

SZVAV units only.

15. Demand Control Ventilation

Option includes wiring only. The

C02 sensor is a field-installed only

option.

16. 575 VAC option is 25kA.

17. Standard filters are not available

with Low Leak Economizers.

18. Human Interface is standard with

FDD (Fault Detection Diagnostics).

Model Number Description

PKGP-PRC012M-EN 21

General Data

Table 1. General data — 12½ - 20 tons

12½ Tons

Downflow &

Horizontal Units

15 Tons

Downflow &

Horizontal Units

20 Tons

Downflow &

Horizontal Units

WS*150E3,4,W WS*180E3,4,W WS*240E3,4,W

Cooling Performance(a)

Gross Cooling Capacity 148,000 177,000 249,000

EER(b) 10.6 10.6 9.7

Nominal Airflow/ARI Rated Airflow (CFM) 5000 6000 / 5300 8000 / 6400

ARI Net Cooling Capacity 146,000 170,000 240,000

IEER(c) (One Speed Fan / Two or Variable

Speed Fan) 12/13.5 12/13.5 11.5/12.0

System Power (kW) 13.77 16.04 25.47

Heating Performance(a)

High Temp. Btuh Rating 136,000 170,000 210,000

COP 3.2 3.2 3.2

System Power (kW) 12.46 15.57 19.23

Low Temp. Btuh Rating 75,000 90,000 120,000

COP 2.1 2.1 2.1

System Power (kW) 10.47 12.56 16.75

Compressor

Number/Type 2 / Scrolls 2 / Scrolls 2 / Scrolls

ARI Sound Rating (BELS)(d) 9.2 9.2 9.4

Outdoor Coil — Type Hi-Performance Hi-Performance Hi-Performance

Refrigerant Control Expansion Valve Expansion Valve Expansion Valve

Tube Size (in.) OD 0.3125 0.3125 0.3125

Face Area (sq. ft.) 35.20 35.20 42.53

Rows/FPI 3 / 16 3 / 16 3 / 16

Indoor Coil — Type Hi-Performance Hi-Performance Hi-Performance

Tube Size (in.) ID 0.3125 0.3125 0.3125

Face Area (sq. ft.) 26.00 26.00 31.42

Rows/FPI 3 / 15 4 / 15 4 / 15

Refrigerant Control Short Orifice Short Orifice Short Orifice

Drain Connection Number/Size (in.) 1/1.00 NPT 1/1.00 NPT 1/1.00 NPT

Outdoor Fan — Type Propeller Propeller Propeller

Number Used/Diameter (in.) 2 / 26 2 / 26 2 / 28

Drive Type/No. Speeds Direct / 1 Direct / 1 Direct / 1

CFM 11,100 10,800 14,800

Number Motors/HP 2 / 0.5 2 / 0.5 2 / 1.0

Motor RPM 1,100 1,100 1,125

22 PKGP-PRC012M-EN

General Data

Indoor Fan - Type FC Centrifugal FC Centrifugal FC Centrifugal

Number Used/Diameter (in.) 1 / 18x18 1 / 18x18 1 / 18x18

Drive Type/No. Speeds Belt / 1 Belt / 1 Belt / 1

Number Motors 111

Motor HP (Standard/Oversized) 3.0 / 5.0 3.0 / 5.0 5.0 / 7.5

Motor RPM (Standard/Oversized) 1740 / 3,450 1740 / 3,450 3450 / 3,470

Motor Frame Size (Standard/Oversized) 145T / 145T 145T / 145T 145T / 184T

Filters - Type Furnished Throwaway Throwaway Throwaway

Number Size Recommended

Downflow (4)20x20x2

(4)20x25x2 (4)20x20x2

(4)20x25x2 (8)20x20x2

(4)20x16x2

Horizontal (8)20x25x2 (8)20x25x2 (12)20x20x2

Refrigerant Charge Pounds of

R-410A(e)

Downflow 14 / 14.5 16.5 / 15.9 20.0 / 20.7

Horizontal 13.2 / 13.3 17 / 15.9

(a) Cooling Performance is rated at 35°C (95°F) ambient, 26.7°C (80°F) entering dry bulb, 19.4°C (67°F) entering wet bulb.

Heating Performance is rated at 20°C (68°F) ambient, 8.3°C (47°F) entering dry bulb, 6.1°C (43°F) entering wet bulb.

Gross capacity does not include the effect of fan motor heat. ARI capacity is net and includes the effect of fan motor heat.

Units are suitable for operation to ±20% of nominal airflow. Rated in accordance with ARI Standard 210/240 or 340/360.

(b)EER is rated at ARI conditions and in accordance with DOE test procedures.

(c) Integrated Energy Efficiency Ratio (IEER) is rated in accordance with AHRI standard 210/240 or 360.

(d)Sound Rating shown is tested in accordance with ARI Standard 270 or 370.

(e)Refrigerant charge is an approximate value. For a more precise value, see unit nameplate and service instructions.

Table 1. General data — 12½ - 20 tons (continued)

12½ Tons

Downflow &

Horizontal Units

15 Tons

Downflow &

Horizontal Units

20 Tons

Downflow &

Horizontal Units

WS*150E3,4,W WS*180E3,4,W WS*240E3,4,W

PKGP-PRC012M-EN 23

Performance Data

Table 2. Gross cooling capacities (MBh) 12½ tons three phase WS*150E

Air

Flow

CFM

Ent

DB

°F

Ambient Temperature (°F)

85 95 105

Entering Wet Bulb (F)

61 67 73 61 67 73 61 67 73

MBH SHC MBH SHC MBH SHC MBH SHC MBH SHC MBH SHC MBH SHC MBH SHC MBH SHC

4000

75 140.4 110.8 152.3 74.7 156.2 39.1 131.7 108.1 146.6 75.2 153.1 35.5 118.1 103.1 138.7 73.6 148.3 33.9

80 146.6 139.5 156.7 99.7 160.5 60.9 135.0 131.4 148.6 98.4 155.7 59.5 123.4 123.4 140.6 97.0 150.9 58.0

85 148.1 148.1 156.5 121.3 161.4 85.3 141.9 141.9 150.7 121.6 158.5 83.4 135.0 135.0 142.6 120.3 153.1 81.9

90 155.8 155.8 159.4 144.5 163.7 106.3 150.5 150.5 153.8 145.1 160.6 107.3 144.0 144.0 146.2 143.6 156.0 105.8

4500

75 144.5 117.5 156.4 77.9 157.1 37.5 136.4 115.5 149.0 77.1 154.1 36.7 125.1 111.9 141.7 76.3 149.6 33.1

80 147.8 143.2 158.8 103.5 159.8 61.1 139.9 139.6 151.2 102.9 157.1 63.3 131.5 131.5 143.7 102.3 152.3 60.1

85 153.8 153.8 158.8 127.9 162.4 85.0 148.2 148.2 153.8 128.8 159.9 89.0 141.3 141.3 146.4 129.1 155.0 86.6

90 160.1 160.1 161.6 152.9 165.3 108.6 156.0 156.0 157.4 153.7 162.5 113.9 150.0 150.0 150.9 150.8 157.6 113.0

5000

75 147.7 123.7 154.9 78.7 157.8 33.9 139.8 122.3 150.7 78.4 154.7 36.9 129.6 119.6 143.9 79.1 150.9 33.7

80 151.6 150.4 160.1 107.3 160.2 60.0 144.2 144.2 153.1 107.3 158.0 64.7 136.9 136.9 146.1 107.3 153.1 63.5

85 157.3 157.3 160.3 135.3 162.7 86.8 152.6 152.6 156.4 136.0 160.8 91.1 146.2 146.2 149.3 136.4 156.5 92.2

90 162.3 162.3 163.0 158.0 165.4 112.7 159.4 159.4 159.9 159.1 163.6 116.5 154.2 154.2 154.2 154.2 159.3 120.2

5500

75 149.9 129.7 155.6 82.5 158.0 31.8 142.5 128.7 151.9 80.6 155.5 34.1 133.3 126.6 145.6 81.1 153.0 36.3

80 154.1 154.0 158.4 112.6 160.5 62.6 148.3 148.3 154.5 111.6 158.7 63.3 141.2 141.2 148.2 112.6 154.5 66.6

85 159.4 159.4 161.0 140.5 163.3 91.2 155.8 155.8 157.9 142.7 160.9 90.9 150.0 150.0 151.8 143.2 157.3 96.9

90 163.8 163.8 164.2 160.8 165.7 118.4 161.1 161.1 161.4 161.2 164.1 119.0 157.1 157.1 157.2 157.2 160.3 125.5

6000

75 153.7 136.6 156.6 85.7 159.3 32.9 145.0 134.8 152.1 83.2 155.8 31.7 136.2 132.9 147.0 83.8 151.9 35.3

80 156.4 156.4 159.2 116.6 161.8 65.1 151.2 151.2 155.4 116.6 159.2 63.2 144.6 144.6 149.8 117.7 155.3 68.4

85 160.3 160.3 161.9 143.5 163.7 95.1 157.8 157.8 159.0 148.8 164.6 97.9 152.7 152.7 156.1 154.1 158.2 99.2

90 164.7 164.7 164.9 162.7 166.3 122.2 162.7 162.7 164.7 164.7 164.5 123.4 158.7 158.7 158.6 158.6 161.3 128.5

Air

Flow

CFM

Ent

DB

°F

Ambient Temperature (°F)

115

Entering Wet Bulb (F)

61 67 73

MBH SHC MBH SHC MBH SHC

4000

75 104.6 98.2 129.1 71.4 141.4 33.8

80 114.1 114.1 130.8 94.5 143.9 58.3

85 127.1 127.1 132.8 118.1 145.8 82.1

90 136.7 136.7 136.9 136.9 148.1 105.6

4500

75 111.4 107.2 132.2 74.6 143.0 32.2

80 122.5 122.5 134.1 100.7 145.4 59.5

85 133.6 133.6 137.3 127.3 147.8 85.6

90 142.8 142.8 142.9 142.9 150.6 112.4

5000

75 116.2 114.7 134.8 77.8 144.4 31.3

80 128.8 128.8 136.9 106.9 146.7 60.7

85 138.6 138.6 140.6 135.6 149.5 90.1

90 147.3 147.3 147.5 147.5 152.6 119.3

5500

75 121.4 121.1 136.7 80.5 144.9 32.0

80 133.0 133.0 139.2 112.5 148.0 63.8 Notes:

1. Dry Coil Condition. Total Gross Cooling Capacity (MBh) shown to the left is not

applicable. In this case the Sensible Heat Capacity (SHC) is the total capacity.

2. All capacities shown are gross and have not considered indoor fan heat. To obtain net

cooling subtract indoor fan heat.

3. MBH = Total Gross Capacity

4. SHC = Sensible Heat Capacity

* stands for both downflow and horizontal unit.

85 142.5 142.5 143.5 142.0 150.9 95.4

90 150.4 150.4 150.5 150.5 153.8 126.7

6000

75 125.5 125.5 138.4 83.4 145.6 32.6

80 136.5 136.5 141.1 117.9 148.8 66.6

85 145.6 145.6 146.1 145.9 151.8 100.4

90 152.7 152.7 152.6 152.6 155.0 132.6

24 PKGP-PRC012M-EN

Performance Data

Table 3. Gross cooling capacities (MBh) 15 tons three phase WS*180E

Air

Flow

CFM

Ent

DB

°F

Ambient Temperature (°F)

85 95 105

Entering Wet Bulb (F)

61 67 73 61 67 73 61 67 73

MBH SHC MBH SHC MBH SHC MBH SHC MBH SHC MBH SHC MBH SHC MBH SHC MBH SHC

4800

75 172.4 137.8 185.0 97.2 190.7 51.2 157.4 132.2 181.5 98.1 189.5 52.1 141.1 123.6 169.8 95.1 185.3 54.1

80 175.2 164.2 185.9 124.4 191.5 73.3 165.6 159.0 182.5 125.2 190.5 80.5 151.3 150.2 179.0 126.0 186.2 82.1

85 182.7 182.4 204.9 161.7 192.5 98.7 176.3 176.3 183.4 152.4 190.9 107.9 167.0 167.0 161.9 143.1 187.8 110.5

90 186.4 187.2 188.2 173.6 192.9 123.3 185.2 185.2 186.8 175.9 191.9 134.5 178.6 178.6 180.1 173.1 188.8 137.3

5400

75 176.7 146.7 186.4 97.4 192.2 43.3 163.9 141.3 183.8 102.8 190.8 53.1 148.9 134.8 174.0 99.6 187.4 51.8

80 185.0 177.6 187.1 128.6 192.7 68.8 173.2 169.4 185.4 133.4 191.9 82.7 161.4 161.2 175.2 130.2 188.4 82.7

85 185.9 186.3 188.2 157.9 193.7 99.4 183.4 183.4 186.4 163.3 192.8 110.9 171.2 171.2 178.2 160.1 188.9 112.5

90 189.2 190.2 189.9 181.4 193.9 129.3 188.2 188.7 188.9 182.3 193.7 138.7 183.8 183.8 185.0 181.5 190.0 143.1

6000

75 180.7 154.7 186.9 103.2 193.2 37.0 169.6 151.6 186.2 105.9 192.0 51.1 154.9 143.9 177.5 103.9 189.4 51.7

80 184.3 179.0 193.7 140.1 193.9 70.8 179.0 177.4 186.2 138.9 193.4 81.3 163.3 163.3 178.8 137.7 190.0 85.0

85 187.7 188.5 189.9 165.8 194.6 104.4 186.5 186.5 188.1 168.9 194.3 111.2 171.3 172.9 182.7 169.1 190.4 119.4

90 191.3 192.2 191.6 184.4 194.5 135.3 190.5 191.3 190.7 187.4 195.1 140.8 187.5 187.7 187.4 186.9 191.8 152.7

6600

75 189.8 168.9 188.4 106.3 193.8 36.5 175.1 160.4 186.7 106.8 193.3 46.9 160.4 151.9 180.2 109.6 189.7 51.0

80 185.9 182.8 189.6 140.4 194.2 73.1 182.9 182.6 195.4 150.8 194.5 77.7 152.3 152.3 181.8 146.4 190.7 88.8

85 188.8 189.7 190.9 168.8 195.1 108.9 188.3 188.7 189.2 174.2 195.3 110.6 181.0 181.0 185.1 175.2 191.4 125.5

90 192.3 193.5 192.7 186.1 195.8 141.0 191.3 192.3 192.4 191.2 196.0 145.8 189.6 190.1 189.5 190.0 192.9 158.2

7200

75 184.1 166.8 189.6 107.7 193.7 36.2 177.0 165.0 187.4 110.1 194.3 40.6 165.9 159.8 185.2 112.5 191.1 51.1

80 187.8 187.0 190.5 141.8 194.6 73.2 185.5 185.5 188.5 148.8 195.4 76.1 156.3 157.7 183.6 152.6 191.9 91.6

85 190.2 191.0 191.1 170.0 195.6 113.4 189.8 190.4 190.4 180.2 196.5 115.6 186.6 186.6 187.3 180.0 192.9 129.7

90 193.5 194.7 193.5 190.5 196.5 145.2 193.2 194.0 194.0 193.4 196.2 152.3 191.5 192.2 191.4 192.1 194.0 161.4

Air

Flow

CFM

Ent

DB

°F

Ambient Temperature (°F)

115

Entering Wet Bulb (F)

61 67 73

MBH SHC MBH SHC MBH SHC

4000

75 125.9 115.6 153.3 88.3 177.8 55.8

80 137.6 137.6 154.4 115.9 179.0 83.1

85 154.5 154.5 158.9 143.5 179.8 110.1

90 168.6 168.6 169.3 167.4 180.8 137.7

4500

75 132.7 125.6 158.2 94.1 180.4 54.5

80 147.7 147.7 159.7 125.2 181.4 84.8

85 164.1 164.1 166.5 155.1 182.2 116.3

90 176.1 176.1 176.4 176.3 183.2 146.8

5000

75 139.5 135.4 162.3 99.8 182.0 52.6

80 155.6 155.6 164.6 134.3 182.9 87.6

85 170.4 170.4 171.8 163.3 183.6 121.0

90 180.9 180.9 180.9 180.9 184.7 153.1

5500

75 145.6 143.4 165.6 104.6 183.0 51.6

80 162.2 162.2 168.3 142.1 183.9 89.0 Notes:

1. Dry Coil Condition. Total Gross Cooling Capacity (MBh) shown to the left is not

applicable. In this case the Sensible Heat Capacity (SHC) is the total capacity.

2. All capacities shown are gross and have not considered indoor fan heat. To obtain net

cooling subtract indoor fan heat.

3. MBH = Total Gross Capacity

4. SHC = Sensible Heat Capacity

* stands for both downflow and horizontal unit.

85 175.2 175.2 176.2 170.7 184.8 126.0

90 184.1 184.1 184.2 184.2 186.5 161.7

6000

75 150.4 149.6 168.3 108.5 184.1 51.5

80 167.2 167.2 171.0 148.6 184.8 93.7

85 179.5 179.5 179.9 177.1 186.0 132.8

90 185.5 185.7 186.3 186.4 187.8 168.8

PKGP-PRC012M-EN 25

Performance Data

Table 4. Gross cooling capacities (MBh) 20 tons three phase WS*240E

Air

Flow

CFM

Ent

DB

°F

Ambient Temperature (°F)

85 95 105

Entering Wet Bulb (F)

61 67 73 61 67 73 61 67 73

MBH SHC MBH SHC MBH SHC MBH SHC MBH SHC MBH SHC MBH SHC MBH SHC MBH SHC

6400 75 231.1 183.1 268.4 137.9 289.8 77.1 208.1 173.6 253.0 133.2 279.2 76.0 183.1 163.6 232.4 126.5 264.7 75.0

80 235.6 220.5 270.5 174.4 293.4 114.9 213.9 209.8 254.8 169.7 282.0 114.4 194.5 194.4 233.8 162.8 266.8 111.7

85 247.9 247.9 273.1 211.7 297.1 153.0 233.1 233.1 256.8 206.6 284.9 152.1 217.4 217.4 236.3 199.8 269.0 149.2

90 266.0 266.0 276.3 249.1 300.8 190.8 253.6 253.6 260.8 244.3 288.0 189.7 238.1 238.1 241.6 236.3 271.5 186.7

7200 75 242.5 197.1 274.8 142.3 292.9 73.3 219.0 187.9 259.9 138.5 283.2 74.2 194.4 178.4 239.9 132.8 269.1 72.5

80 247.6 238.6 277.5 183.8 297.1 115.8 227.3 226.2 261.8 179.8 286.4 115.6 209.7 209.7 241.8 174.2 271.7 114.5

85 262.8 262.8 280.9 225.7 301.5 158.1 248.8 248.8 265.0 221.7 290.1 158.4 233.0 233.0 245.7 216.1 274.7 156.5

90 279.8 279.8 286.0 268.1 305.8 200.4 267.3 267.3 270.9 263.1 294.0 200.7 253.1 253.1 254.3 253.2 278.1 199.5

8000 75 251.1 209.8 279.7 146.5 295.4 70.6 229.7 202.0 265.1 143.6 285.9 70.7 204.3 192.2 247.0 139.0 272.5 70.2

80 258.3 254.4 283.0 192.7 299.9 117.4 240.8 240.6 267.8 189.7 289.8 117.8 222.4 222.4 249.6 185.1 275.6 117.0

85 274.0 274.0 287.2 239.1 304.5 164.0 260.7 260.7 271.9 236.4 294.0 164.5 245.2 245.2 253.4 231.5 279.0 163.6

90 290.9 290.9 293.8 284.4 309.4 210.2 278.4 278.4 279.8 277.3 298.5 210.9 263.8 263.8 264.2 264.2 283.2 210.9

8800 75 258.4 222.0 283.4 150.7 297.2 69.0 237.8 214.9 269.4 148.5 288.1 69.4 212.9 204.9 251.4 144.7 275.1 69.2

80 266.2 265.3 287.2 201.2 302.1 120.4 251.2 251.2 272.7 199.1 292.5 120.1 233.8 233.8 254.5 195.4 278.7 120.1

85 283.3 283.3 292.2 251.8 307.1 170.5 270.0 270.0 277.7 250.1 296.9 170.3 254.9 254.9 260.0 246.0 282.6 171.1

90 298.9 298.9 300.3 296.3 312.4 219.9 287.3 287.3 288.0 287.6 302.1 221.9 273.0 273.0 273.3 273.3 287.4 222.7

9600 75 263.4 233.2 286.3 154.9 298.8 68.8 243.6 226.7 272.9 153.4 289.9 67.5 220.3 216.0 255.4 150.4 277.1 68.5

80 273.7 273.6 290.6 209.2 303.9 123.4 259.6 259.6 276.6 208.6 294.5 123.2 242.4 242.4 258.5 205.2 281.0 123.0

85 290.4 290.4 296.3 263.8 309.1 176.8 277.9 277.9 282.6 263.4 299.2 177.8 262.7 262.7 265.5 258.0 285.3 178.3

90 304.8 304.8 305.5 304.1 314.5 229.2 294.2 294.2 294.4 294.4 304.9 232.6 280.3 280.3 280.6 280.6 290.7 234.1

Air

Flow

CFM

Ent

DB

°F

Ambient Temperature (°F)

115

Entering Wet Bulb (F)

61 67 73

MBH SHC MBH SHC MBH SHC

6400 75 158.5 152.9 206.9 118.1 246.1 71.0

80 177.1 177.1 208.6 154.5 247.1 108.6

85 201.1 201.1 212.3 192.1 249.1 144.9

90 222.0 222.0 223.1 223.0 251.3 182.3

7200 75 168.6 165.4 216.4 125.7 251.0 70.1

80 191.7 191.7 218.4 166.8 252.7 111.5

85 214.8 214.8 223.1 209.0 255.1 153.3

90 236.2 236.2 236.5 236.5 257.9 195.5

8000 75 179.2 177.5 223.0 132.4 254.7 68.8

80 204.0 204.0 225.4 178.2 257.0 115.2

85 227.3 227.3 230.9 223.5 259.6 161.8

90 247.3 247.3 247.7 247.7 263.3 208.7

8800 75 188.7 188.1 227.6 138.7 257.4 67.5

80 214.2 214.2 230.3 189.1 260.3 118.2

Notes:

1. Dry Coil Condition. Total Gross Cooling Capacity (MBh) shown to the left is not

applicable. In this case the Sensible Heat Capacity (SHC) is the total capacity.

2. All capacities shown are gross and have not considered indoor fan heat. To obtain net

cooling subtract indoor fan heat.

3. MBH = Total Gross Capacity

4. SHC = Sensible Heat Capacity

* stands for both downflow and horizontal unit.

85 237.3 237.3 239.4 236.4 263.6 170.1

90 256.1 256.1 256.3 256.3 267.8 221.7

9600 75 197.1 197.0 231.8 145.0 259.8 67.1

80 223.4 223.4 235.9 200.1 262.9 122.0

85 245.1 245.1 246.0 245.3 266.7 178.3

90 263.4 263.4 263.6 263.6 271.7 234.3

26 PKGP-PRC012M-EN

Performance Data

Table 5. Evaporator fan performance 12½ tons WS*150E downflow or horizontal

External Static Pressure (Inches of Water)

CFM 0.10 0.20 0.30 0.40 0.50 0.60 0.70 0.80 0.90 1.00

RPMBHPRPMBHPRPMBHPRPMBHPRPMBHPRPMBHPRPMBHPRPMBHPRPMBHPRPMBHP

3HP Standard Motor & Low Static Drive Accessory 3HP Standard Motor & Drive

4000 — — 382 0.56 420 0.66 459 0.79 496 0.91 531 1.05 564 1.19 595 1.34 625 1.50 654 1.67

4500 — — 410 0.73 446 0.85 479 0.97 514 1.11 548 1.26 578 1.40 610 1.56 639 1.72 666 1.89

5000 400 0.80 440 0.95 473 1.07 504 1.20 534 1.34 566 1.50 597 1.66 625 1.81 653 1.98 681 2.16

5500 431 1.03 470 1.19 502 1.34 531 1.48 559 1.62 586 1.77 615 1.95 643 2.12 670 2.30 695 2.47

6000 463 1.30 500 1.48 531 1.65 559 1.80 585 1.95 611 2.11 636 2.28 662 2.46 689 2.66 714 2.85

3HP Standard Motor & High Static Drive Accessory

Continued External Static Pressure (Inches of Water)

1.10 1.20 1.30 1.40 1.50 1.60 1.70 1.80 1.90 2.00

CFM RPMBHPRPMBHPRPMBHPRPMBHPRPMBHPRPMBHPRPMBHPRPMBHPRPMBHPRPMBHP

3HP Standard Motor & Low Static Drive Accessory 3HP Standard Motor & High Static Drive Accessory

4000 682 1.83 708 1.99 734 2.16 758 2.32 782 2.49 804 2.66 826 2.83 847 3.01 867 3.19 886 3.38

4500 693 2.07 719 2.25 745 2.44 769 2.62 793 2.80 815 2.99 838 3.17 859 3.36 880 3.55 900 3.74

5000 707 2.34 732 2.53 757 2.72 780 2.92 804 3.13 826 3.33 848 3.54 870 3.74 891 3.95 911 4.15

5500 721 2.66 747 2.86 771 3.05 794 3.26 816 3.46 838 3.68 860 3.90 881 4.13 902 4.36 922 4.58

6000 738 3.04 760 3.22 784 3.43 808 3.65 831 3.86 852 4.08 873 4.30 893 4.53 913 4.77 933 5.01

5HP Oversized Motor & Drive

Notes:

1. Fan motor heat (MBH) = 3.15 x Fan BHP.

2. Data includes pressure drop due to wet coils and filters.

3. No accessories or options are included in pressure drop data.

4. Refer to Table 12, p. 29 to determine add’l static pressure drop due to other options/accessories.

5. Factory supplied motors, in commercial equipment, are definite purpose motors, specifically designed and tested to operate reliably and continuously

at all cataloged conditions. Using the full horsepower range of our fan motors as shown in our tabulated data will not result in nuisance tripping or

premature motor failure. Our product's warranty will not be affected.

PKGP-PRC012M-EN 27

Performance Data

Table 6. Evaporator fan performance 15 tons WS*180E downflow or horizontal

External Static Pressure (Inches of Water)

CFM 0.10 0.20 0.30 0.40 0.50 0.60 0.70 0.80 0.90 1.00

RPMBHPRPMBHPRPMBHPRPMBHPRPMBHPRPM BHP RPMBHPRPMBHPRPMBHPRPM BHP

3HP Standard Motor & Low Static Drive Accessory 3HP Standard Motor Drive

4800 397 0.75 435 0.88 469 1.00 501 1.13 533 1.28 566 1.43 596 1.59 625 1.74 655 1.92 682 2.09

5400 435 1.02 473 1.18 504 1.32 533 1.46 562 1.60 590 1.76 620 1.94 648 2.11 674 2.28 700 2.46

6000 475 1.36 510 1.53 541 1.70 568 1.85 594 2.01 620 2.17 645 2.34 672 2.53 698 2.73 723 2.92(a)

6600 514 1.76 549 1.96 578 2.15 604 2.33 629 2.49 653 2.66 676 2.84 699 3.02 722 3.23 747 3.44

7200 555 2.25 588 2.46 616 2.68 641 2.89 665 3.06 687 3.24(b) 709 3.43 730 3.62 751 3.82 772 4.02

5HP Oversized Motor & Drive

Continued External Static Pressure (Inches of Water)

1.10 1.20 1.30 1.40 1.50 1.60 1.70 1.80 1.90 2.00

CFM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

3HP Standard Motor & High Static Drive Accessory 5HP Oversized Motor & Drive

4800 708 2.27 734 2.46 758 2.66 782 2.86 806 3.06 829 3.25 850 3.45 872 3.65 893 3.85 913 4.04

5400 727 2.65 752 2.85 776 3.05 799 3.25 821 3.47 843 3.69 865 3.91 886 4.13 907 4.36 927 4.58

6000 747 3.11 770 3.30 794 3.51 817 3.73 839 3.95 861 4.17 881 4.40 902 4.63 922 4.87 942 5.12

6600 770 3.66 793 3.87 815 4.08 835 4.28 857 4.51 879 4.74 900 4.98 — — — — — —

7200 794 4.25 817 4.49 839 4.73 860 4.96 — — — — — — — — — — — —

Notes:

1. Fan motor heat (MBH) = 3.15 x Fan BHP.

2. Data includes pressure drop due to wet coils and filters.

3. No accessories or options are included in pressure drop data.

4. Refer to Table 12, p. 29 to determine add’l static pressure drop due to other options/accessories.

5. Factory supplied motors, in commercial equipment, are definite purpose motors, specifically designed and tested to operate reliably and continuously at

all cataloged conditions. Using the full horsepower range of our fan motors as shown in our tabulated data will not result in nuisance tripping or

premature motor failure. Our product's warranty will not be affected.

(a) 3HP Standard Motor & High Static Drive Accessory

(b)5-hp Oversized Motor & Field Supplied Fan Sheave BK160 x 1 3/16 with BX75 (DF) or BX90 (HZ) Belt Required.

28 PKGP-PRC012M-EN

Performance Data

Table 7. Evaporator fan performance 20 tons WS*240E downflow or horizontal

External Static Pressure (Inches of Water)

CFM 0.10 0.20 0.30 0.40 0.50 0.60 0.70 0.80 0.90 1.00

RPMBHPRPMBHPRPMBHPRPMBHPRPMBHPRPMBHPRPMBHPRPMBHPRPMBHPRPM BHP

5HP Standard Motor Drive & low Static Drive Accessory 5HP Standard Motor Drive

6400 — — — — 507 1.72 535 1.88 560 2.07 584 2.27 607 2.46 631 2.66 654 2.86 677 3.07

7200 — — 519 2.10 549 2.30 576 2.48 600 2.67 623 2.88 644 3.10 665 3.32 686 3.54 707 3.76

8000 531 2.50 563 2.77 592 3.00 617 3.21 641 3.41 663 3.62 684 3.86 704 4.10 723 4.34 742 4.58

8800 578 3.26 607 3.56 634 3.83 659 4.08 683 4.31 704 4.54 724 4.77 744 5.01 762 5.27 779 5.54

9600 626 4.19 653 4.51 679 4.81 703 5.10 725 5.36 746 5.62 765 5.85 784 6.11 802 6.36 819 6.64

7.5HP Oversized Motor & Drive

Continued External Static Pressure (Inches of Water)

1.10 1.20 1.30 1.40 1.50 1.60 1.70 1.80 1.90 2.00

CFM RPMBHPRPMBHPRPMBHPRPMBHPRPMBHPRPMBHPRPMBHPRPMBHPRPMBHPRPM BHP

5HP Standard Motor Drive

6400 699 3.30 721 3.52 742 3.75 762 3.98 780 4.20 798 4.42 815 4.66 832 4.89 849 5.12 866 5.36

7200 727 3.98 748 4.22 768 4.46 789 4.71 808 4.97 827 5.22 845 5.48 861 5.73 878 5.98 893 6.24

8000 760 4.82 779 5.07 798 5.32 816 5.57 834 5.83 853 6.11 871 6.38 889 6.67 906 6.95 923 7.23(a)

8800 797 5.81 814 6.07 831 6.34 848 6.60 865 6.88 882 7.15 898 7.42 — — — — — —

9600 836 6.93 852 7.22 868 7.51 — — — — — — — — — — — — — —

7.5HP Oversized Motor & Drive

Notes:

1. Fan motor heat (MBH) = 3.15 x Fan BHP.

2. Data includes pressure drop due to wet coils and filters.

3. No accessories or options are included in pressure drop data.

4. Refer to Table 12, p. 29 to determine add’l static pressure drop due to other options/accessories.

5. Factory supplied motors, in commercial equipment, are definite purpose motors, specifically designed and tested to operate reliably and continuously at

all cataloged conditions. Using the full horsepower range of our fan motors as shown in our tabulated data will not result in nuisance tripping or

premature motor failure. Our product's warranty will not be affected.

6. For multi-speed or single zone VAV applications, minimum "full" speed airflow must be set to 6800 cfm or higher to prevent VFD overheating during

heating operation.

(a)7.5-hp Oversized Motor & Field Supplied Motor Sheave 1VP50 x 1 1/8 Required.

Table 8. Standard motor & drive/fan speed (Rpm)

Tons Unit Model No. 6 Turns

Open 5 Turns

Open 4 Turns

Open 3 Turns

Open 2 Turns

Open 1Turn

Open Closed

12½ WS*150E3,4,W 500 537 574 611 648 685 N/A

15 WS*180E3,4,W 500 537 574 611 648 685 N/A

20 WS*240E3,4,W 605 650 695 739 784 829 N/A

Note: Factory set at 3 turns open.

Table 9. Standard motor & low static fan drive

Tons Unit Model No. 6 Turns

Open 5 Turns

Open 4 Turns

Open 3 Turns

Open 2 Turns

Open 1Turn

Open Closed

12½ WS*150E3,4,W 379 407 435 463 491 519 N/A

15 WS*180E3,4,W 379 407 435 463 491 519 N/A

20 WS*240E3,4,W 506 544 581 619 656 694 N/A

PKGP-PRC012M-EN 29

Performance Data

Table 10. Standard motor & high static drive accessory/fan speed (rpm)

Tons Unit Model No. 6 Turns

Open 5 Turns

Open 4 Turns

Open 3 Turns

Open 2 Turns

Open 1Turn

Open Closed

12½ WS*150E3,4,W 685 722 759 796 833 870 N/A

15 WS*180E3,4,W 685 722 759 796 833 870 N/A

Table 11. Oversized motor & drive/fan speed (rpm)

Tons Unit Model No. 6 Turns

Open 5 Turns

Open 4 Turns

Open 3 Turns

Open 2 Turns

Open 1Turn

Open Closed

12½ WS*150E3,4,W 695 747 798 850 901 953 N/A

15 WS*180E3,4,W 695 747 798 850 901 953 N/A

20 WS*240E3,4,W 694 739 784 829 874 919 N/A

Table 12. Static pressure drops through accessories (inches water column)

Tons Unit Model

No. CFM Standard

Filters(a)

2”

MERV 8

Filters(b)

2”

MERV 13

Filters(b)

Standard

Economizer

with OA/RA

Dampers(c)

Low Leak

Economizer

with OA/RA

Dampers(d) Electric Heater

Accessory (KW)(e)

100%

OA 100%

RA 100%

OA 100%

RA 5-12 14-

23 36 54 72

12½ WS*150E

4000 0.02 0.04 0.08 0.20 0.02 0.16 0.10 — 0.03 0.03 0.04 —

5000 0.03 0.05 0.11 0.26 0.03 0.24 0.16 — 0.04 0.05 0.06 —

6000 0.05 0.07 0.14 0.35 0.04 0.33 0.24 — 0.06 0.07 0.09 —

15 WS*180E

4800 0.03 0.05 0.10 0.24 0.03 0.22 0.15 — 0.04 0.04 0.05 —

6000 0.05 0.07 0.14 0.35 0.04 0.33 0.24 — 0.06 0.07 0.08 —

7200 0.07 0.09 0.17 0.42 0.05 0.45 0.35 — 0.09 0.10 0.12 —

20

WSH240E

6400 0.04 0.01 0.11 0.22 0.04 — — — — 0.06 0.08 0.09

8000 0.06 0.09 0.14 0.31 0.05 — — — — 0.10 0.12 0.14

9600 0.09 0.12 0.18 0.44 0.07 — — — — 0.14 0.17 0.20

WSD240E

6400 0.05 0.08 0.12 0.22 0.04 0.37 0.27 — — 0.06 0.08 0.09

8000 0.08 0.10 0.15 0.31 0.05 0.54 0.43 — — 0.10 0.12 0.14

9600 0.11 0.14 0.19 0.44 0.07 0.75 0.62 — — 0.14 0.17 0.20

(a) Tested with: 2” filters 12 - 20 tons.

(b)Difference in pressure drop should be considered when utilizing optional 2” pleated filters.

(c) OA = Outside Air and RA = Return Air.

(d)OA = Outside Air and RA = Return Air.

(e) Nominal KW ratings at 240, 480, 600 volts.

30 PKGP-PRC012M-EN

Performance Data

Table 13. 12½ tons three phase heating capacities (net) WS*150E3, E4, EW at 5000 CFM

Outdoor

Temp (°F)

70% RH

Integrated Heating Capacity (MBh/1000)

at Indicated Dry Bulb Temp (°F) Total Power in Kilowatts at Indicated

Dry Bulb Temp (°F)

60 70 75 80 60 70 75 80

-8 50.9 48.5 47.2 45.9 9.6 10.3 10.8 11.3

-3 56.9 54.5 53.4 52.1 9.7 10.4 10.9 11.4

2 63.3 60.6 59.3 58.0 9.7 10.5 10.9 11.4

7 69.7 66.6 65.5 64.0 9.8 10.6 11.0 11.5

12 76.1 72.5 71.7 70.2 9.9 10.7 11.1 11.6

17 82.0 79.0 77.3 76.9 10.0 10.8 11.3 11.8

22 89.7 86.5 84.8 83.5 10.1 10.9 11.3 11.9

27 96.8 93.5 91.8 90.2 10.1 11.0 11.5 12.0

32 104.6 100.8 99.1 97.2 10.2 11.1 11.6 12.1

37 112.0 108.1 106.1 104.3 10.3 11.2 11.7 12.2

42 129.1 124.4 122.2 120.0 10.5 11.4 11.9 12.5

47 148.4 142.8 140.1 137.4 10.7 11.6 12.1 12.7

52 156.7 151.0 148.0 145.2 10.8 11.7 12.2 12.8

57 166.0 159.8 156.8 153.6 10.9 11.9 12.4 12.9

62 175.5 168.6 165.3 162.0 11.0 12.0 12.5 13.1

67 185.2 177.6 174.5 170.0 11.2 12.1 12.7 13.2

72 193.6 185.7 181.6 177.6 11.3 12.3 12.8 13.4

Notes:

1. For other airflow conditions, see heating capacity correction factor Net Heating Capacity and Power Input include indoor fan heat at

nominal CFM and 0.35 inch ESP. To obtain net heating at other conditions, subtract fan heat at this condition and add fan heat at new

condition.

2. Heating capacities and powers are integrated to include the effects of defrost in the frost region.

3. All heating capacities and power (kW) are at 70% OD relative humidity.

PKGP-PRC012M-EN 31

Performance Data

Table 14. 15 tons three phase heating capacities (net) WS*180E3, E4, EW at 6000 CFM

Outdoor

Temp (°F)

70% RH

Integrated Heating Capacity (MBh/1000)

at Indicated Dry Bulb Temp (°F) Total Power in Kilowatts at Indicated

Dry Bulb Temp (°F)

60 70 75 80 60 70 75 80

-8 56.3 54.8 54.0 53.2 10.5 11.5 12.0 12.5

-3 62.8 61.1 60.2 59.4 10.7 11.7 12.1 12.7

2 69.5 67.6 66.7 65.7 10.9 11.8 12.4 12.9

7 76.2 71.1 69.9 70.8 11.1 12.0 12.5 14.0

12 82.9 73.0 76.9 77.0 12.0 12.1 12.7 13.7

17 88.2 85.4 84.0 82.7 11.4 12.4 12.9 13.5

22 95.9 92.8 91.4 89.9 11.6 12.5 13.1 13.7

27 103.8 100.6 98.9 97.3 11.8 12.7 13.3 13.9

32 112.3 109.0 107.1 105.5 11.9 13.0 13.5 14.1

37 120.8 117.1 115.4 113.7 12.1 13.2 13.8 14.4

42 148.0 143.6 141.4 139.1 12.2 13.3 13.9 14.5

47 179.2 173.8 170.8 168.0 12.6 13.6 14.2 14.8

52 190.8 185.3 182.3 179.0 12.8 13.9 14.4 15.0

57 204.1 197.7 194.2 191.5 13.1 14.1 14.7 15.3

62 217.8 210.6 207.5 203.7 13.4 14.4 15.0 15.6

67 233.5 225.5 221.1 217.0 13.7 14.8 15.4 16.0

72 247.8 239.7 235.5 231.2 14.1 15.2 15.8 16.4

Notes:

1. For other airflow conditions, see heating capacity correction factor Net Heating Capacity and Power Input include indoor fan heat at

nominal CFM and 0.35 inch ESP. To obtain net heating at other conditions, subtract fan heat at this condition and add fan heat at new

condition.

2. Heating capacities and powers are integrated to include the effects of defrost in the frost region.

3. All heating capacities and power (kW) are at 70% OD relative humidity.

32 PKGP-PRC012M-EN

Performance Data

Table 15. 20 tons three phase heating capacities (Net) WS*240E3, E4, EW at 8000 CFM

Outdoor

Temp (°F)

70% RH

Integrated Heating Capacity (MBh/1000)

at Indicated Dry Bulb Temp (°F) Total Power in Kilowatts at Indicated

Dry Bulb Temp (°F)

60 70 75 80 60 70 75 80

-8 80.6 78.4 77.6 76.8 15.1 15.9 16.4 16.9

-3 87.5 85.3 84.5 83.4 15.3 16.0 16.5 17.0

2 96.3 93.9 92.8 91.7 15.4 16.2 16.7 17.2

7 106.0 103.2 102.3 101.0 15.5 16.3 16.8 17.3

12 118.3 116.2 115.5 114.7 15.7 16.5 17.0 17.5

17 131.1 128.2 127.4 126.3 15.9 16.7 17.2 17.7

22 142.9 140.3 138.8 137.2 16.1 16.9 17.4 17.9

27 154.1 151.3 150.0 148.6 16.4 17.3 17.8 18.3

32 165.5 162.4 161.2 159.6 16.5 17.4 17.9 18.4

37 180.9 177.6 175.7 174.5 16.8 17.7 18.2 18.7

42 196.5 191.9 189.8 188.2 17.0 17.9 18.4 18.9

47 213.3 209.1 207.0 205.4 17.1 18.0 18.5 19.0

52 228.9 224.2 221.4 219.8 17.4 18.3 18.8 19.3

57 243.4 237.7 235.6 233.0 17.8 18.8 19.3 19.8

62 261.9 255.7 252.6 250.0 20.0 21.1 21.6 22.1

67 279.6 272.0 268.9 265.3 20.1 21.2 21.7 22.2

72 298.5 291.1 287.9 283.8 20.4 21.5 22.0 22.6

Notes:

1. For other airflow conditions, see heating capacity correction factor Net Heating Capacity and Power Input include indoor fan heat at

nominal CFM and 0.35 inch ESP. To obtain net heating at other conditions, subtract fan heat at this condition and add fan heat at new

condition.

2. Heating capacities and powers are integrated to include the effects of defrost in the frost region.

3. All heating capacities and power (kW) are at 70% OD relative humidity.

Table 16. Heating capacity correction factors

% Variation of Nominal CFM - 20 - 10 0 + 10 + 20

Total Gross Capacity Multiplier 0.96 0.98 1.0 1.01 1.02

Table 17. Auxiliary electric heat capacity

Total(a) Stage 1 Stage 2

Unit KW MBh No. of KW MBh KW MBh

Tons Model No. Input(b) Output Stages Input(b) Output Input(b) Output

18.00 61.00 1 18.00 61.00 - -

12½, 15 WS*150E3, E4, EW 36.00 123.00 2 18.00 61.00 18.00 61.00

WS*180E3, E4, EW 54.00 184.00 2 36.00 123.00 18.00 61.00

36.00 123.00 2 18.00 61.00 18.00 61.00

20 WS* 240E3, E4, EW 54.00 184.00 2 36.00 123.00 18.00 61.00

72.00 246.00 2 36.00 123.00 36.00 123.00

(a)Heaters are rated at 240v,380v,480v and 600v. For other than rated voltage, CAP= (voltage/rated voltage)2 x rated cap.

(b)For all input/output categories, does not include fan power or heat.

PKGP-PRC012M-EN 33

Performance Data

Table 18. Electric heater voltage correction factors (applicable to auxiliary heat capacity)

Nominal Distribution Capacity

Voltage Voltage Multiplier

208 0.75

240 230 0.92

240 1.00

440 0.84

480 460 0.94

480 1.00

540 0.81

600 575 0.92

600 1.00

Table 19. Air temperature rise across electric heaters (°F)

KW Stages

12½ Ton

5000 CFM 15 Ton

6000 CFM 20 Ton

8000 CFM

Three Phase

WS*150E Three Phase

WS*180E Three Phase

WS*240E

9.00 1 - - -

17.30 1 - - -

18.00 1 11.4 9.5 -

27.00 2 - - -

36.00 2 23.0 19.0 14.2

54.00 2 34.1 28.4 21.3

72.00 2 - - 28.5

Table 20. Electric heater temperature rise correction factors

% Variation From Nominal CFM - 20 - 15 - 10 - 5 0 +5 +10 +15 +20

Temperature Rise Multiplier 1.25 1.17 1.11 1.05 1.00 0.95 0.91 0.87 0.83

34 PKGP-PRC012M-EN

Controls

Field Installed Control Options

Zone Sensors

Note: Zone sensor required for units configured for Single Zone VAV indoor fan system control

to enable Single Zone VAV functionality.

Zone Sensors are the building occupant’s comfort control devices forVoyager™ units with

ReliaTel:

RA Remote Sensor

Return Air Remote Sensor which can be mounted in the return air duct to report return air

temperature.

Manual Changeover Manual/Automatic

Changeover

Manual/Automatic

Changeover

Heat, Cool or Off System

Switch. Fan Auto or Off

Switch. One temperature

setpoint lever

Auto, Heat, Cool or Off System

Switch. Fan Auto or Off Switch.

Two temperature setpoint

levers

Auto, Heat, Cool or Off System

Switch. Fan Auto or Off

Switch. Two temperature

setpoint levers. Status

Indication LED lights, System

On, Heat, Cool, or Service.

Manual/Automatic

Changeover

Remote Sensor Integrated Comfort™

System

Auto, Heat, Cool or Off System

Switch. Fan Auto or Off

Switch. Two temperature

setpoint levers

Sensor(s) available for all zone

sensors to provide remote

sensing capabilities

Sensor(s) available with

optional temperature

adjustment and override

buttons to provide central

control through a Trane

Integrated Comfort™system.

PKGP-PRC012M-EN 35

Controls

Dual Thermistor Remote Zone Sensor

This sensor will allow the customer to reduce the total number of remote sensors to obtain space

temperature averaging. This sensor should be utilized with ReliaTel controls.

Room Remote Sensor

Space Remote Sensor which can be mounted on the wall to report/control from a remote location

in the space.

Programmable Night

Setback

Touchscreen

Programmable

Thermostat (2H/2C)

CO2 Sensor

Auto or manual changeover

with seven-day

programming. Keyboard

selection of Heat, Cool, Fan,

Auto, or On. All

programmable sensors have

System On, Heat, Cool,

Service LED/indicators as

standard. Night Setback

Sensors have one (1)

Occupied, one (1) Un-

occupied, and one (1)

Override program per day.

Two Heat/Two Cool

programmable thermostat

with touch screen digital

display. Menu-driven

programming. Effortless set-

up. Program each day

separately with no need to

copy multiple days. All

programming can be done on

one screen. Easy to read and

use. Large, clear backlit digital

display.

The CO2 sensor shall have

the ability to monitor the

concentration (parts per

million, ppm) of CO2 (Carbon

Dioxide) in the air. As the CO2

concentration changes, the

outside air damper

modulates to meet the

current ventilation needs of

the zone.

Digital Display Programmable

Thermostat (3H/2C)

Digital Display Thermostat

(3H/2C)

Two Heat/Two Cool auto changeover digital

display thermostat. 7-day programmable

stat with night setback shall be available

Three Heat, Two Cool auto changeover digital

display thermostat.

DONE WAKE LEAVE RETURN SLEEPEDIT CANCEL

MON TUE WED THU FRI SAT SUN

PM

FAN

ON

AUTO

CIRC

SYSTEM

EM HEAT

HEAT

OFF

COOL

AUTO

RESET

HEAT

COOL

DEHUMIDIFIER

CANCEL

PERIOD

36 PKGP-PRC012M-EN

Electrical Data

Table 21. Unit wiring

Standard Indoor Motor Oversize Indoor Fan Motor

Tons Unit Model # Unit Operating

Voltage Range Minimum Circuit

Ampacity

Max Fuse Size or

Max Circuit

Breaker(a) Minimum Circuit

Ampacity

Max Fuse Size or

Max Circuit

Breaker(a)

WS*150E3 187-253 68 80 74 90

12½ WS*150E4 414-506 32 40 35 45

WS*150EW 517-633 25 30 27 30

WS*180E3 187-253 74 90 80 100

15 WS*180E4 414-506 36 45 39 50

WS*180EW 517-633 30 35 32 40

WS*240E3 187-253 116 150 124 150

20 WS*240E4 414-506 56 70 59 70

WS*240EW 517-633 45 60 48 60

(a) HACR type circuit breaker per NEC.

Table 22. Unit wiring with electric heat (single point connection) — standard refrigeration system (downflow and

horizontal)

Standard Indoor Motor Oversize Indoor Motor

Tons Unit Model

Number Heater Model

Number(a) Heater kW

Rating Control

Stages MCA

Max Fuse Size

or Max Circuit

Breaker MCA

Max Fuse Size

or Max Circuit

Breaker(b)

208/230 Volts Three Phase

12½ WS*150E3

AYDHTRK318/AYHHTRM318 13.5/18.0 1 115/123 125/125 121/129 125/150

AYDHTRK336/AYHHTRM336 27.0/36.0 2 168/183 175/200 174/189 175/200

AYDHTRK354/AYHHTRM354 40.5/54.0 2 209/198 225/200 215/204 225/225

15 WS*180E3

AYDHTRK318/AYHHTRM318 13.5/18.0 1 121/129 125/150 127/135 150/150

AYDHTRK336/AYHHTRM336 27.0/36.0 2 168/183 175/200 174/189 175/200

AYDHTRK354/AYHHTRM354 40.5/54.0 2 215/204 225/225 221/210 225/225

20 WS*240E3

AYDHTRL336/AYHHTRN336 27.0/36.0 2 210/225 225/225 218/233 225/250

AYDHTRL354/AYHHTRN354 40.5/54.0 2 257/246 300/250 265/254 300/300

AYDHTRK372/AYHHTRN372 54.0/72.0 2 267/290 300/300 275/298 300/300

460 Volts Three Phase

12½ WS*150E4

AYDHTRK418/AYHHTRM418 18 1 60 60 63 70

AYDHTRK436/AYHHTRP436 36 2 87 90 90 90

AYDHTRK454/AYHHTRM454 54 2 97 100 100 100

15 WS*180E4

AYDHTRK418/AYHHTRM418 18 1 64 70 67 70

AYDHTRK436/AYHHTRM436 36 2 91 100 94 100

AYDHTRK454/AYHHTRM454 54 2 101 110 104 110

20 WS*240E4

AYDHTRL436/AYHHTRN436 36 2 111 125 114 125

AYDHTRL454/AYHHTRN454 54 2 121 125 125 125

AYDHTRK472/AYHHTRN472 72 2 143 150 146 150

PKGP-PRC012M-EN 37

Electrical Data

575 Volts Three Phase

12½ WS*150EW

AYDHTRKW18 (AYDHTRLW18)(a)

/AYHHTRMW18 (AYHHTRPW18) 18 1 47 50 49 50

AYDHTRKW36/AYHHTRMW36

(AYHHTRRW36)(a) 36 2 69 70 71 80

AYDHTRKW54/AYHHTRMW54 54 2 77 80 79 80

15 WS*180EW

AYDHTRKW18 (AYDHTRMW18)(a)

/AYHHTRMW18 (AYHHTRQW18) 18 1 52 60 54 60

AYDHTRKW36/AYHHTRMW36

(AYHHTRSW36)(a) 36 2 74 80 76 80

AYDHTRKW54/AYHHTRMW54 54 2 82 90 84 90

20 WS*240EW

AYDHTRLW36/AYHHTRNW36 36 2 89 90 92 100

AYDHTRLW54/AYHHTRNW54 54 2 97 110 100 110

AYDHTRKW72/AYHHTRNW72 72 2 115 125 118 125

(a) Heater model numbers in parenthesis apply to units with an optional high SCCR rating.

(b)Values do not include power exhaust accessory.

* Indicates both downflow and horizontal units.

Table 22. Unit wiring with electric heat (single point connection) — standard refrigeration system (downflow and

horizontal) (continued)

Standard Indoor Motor Oversize Indoor Motor

Tons Unit Model

Number Heater Model

Number(a) Heater kW

Rating Control

Stages MCA

Max Fuse Size

or Max Circuit

Breaker MCA

Max Fuse Size

or Max Circuit

Breaker(b)

Table 23. Electrical characteristics - power exhaust accessory

Tons Accessory Operating

Voltage Phase HP RPM Amps FLA LRA

208-230 1 3/4 1040 6.6 13.5

12½, 15, 20 460 1 3/4 1040 3.2 8.4

575 1 3/4 1040 2.1 5.2

Table 24. Electrical characteristics - evaporator fan motors - 60 cycle

Standard Evaporator Fan Motor Oversized Evaporator Fan Motor

Amps Amps

Tons Unit Model

No. No. Volts Phase HP FLA LRA No. Volts Phase HP FLA LRA

WS*150E3 1 208-230 3 3.00 10.6 81.0 1 208-230 3 5.00 16.7 109.8

12½ WS*150E4 1 460 3 3.00 4.8 40.5 1 460 3 5.00 7.6 54.9

WS*150EW 1 575 3 3.00 3.9 31.0 1 575 3 5.00 6.1 41.6

WS*180E3 1 208-230 3 3.00 10.6 81.0 1 208-230 3 5.00 16.7 109.8

15 WS*180E4 1 460 3 3.00 4.8 40.5 1 460 3 5.00 7.6 54.9

WS*180EW 1 575 3 3.00 3.9 31.0 1 575 3 5.00 6.1 41.6

WS*240E3 1 208-230 3 5.00 16.7 109.8 1 208-230 3 7.50 24.2 120.4

20 WS*240E4 1 460 3 5.00 7.6 54.9 1 460 3 7.50 11.0 74.0

WS*240EW 1 575 3 5.00 6.1 41.6 1 575 3 7.50 9.0 60.0

38 PKGP-PRC012M-EN

Electrical Data

Table 25. Electrical characteristics — compressor motor and condenser motor — 60 cycle

Compressor Motors Condenser Fan Motors

Amps(a) Amps

Tons Unit Model

Number No. Volts Phase HP(b) RPM RLA LRA No. Phase HP FLA LRA

12½

WS*150E3 2 208-230 3 5.6 3450 22.4 149 2 1 0.5 3.2 8.8

WS*150E4 2 460 3 5.6 3450 10.6 75 2 1 0.5 1.6 3.8

WS*150EW 2 575 3 5.6 3450 7.9/7.7 54 2 1 0.5 1.3 3.2

15

WS*180E3 2 208-230 3 6.9 3450 25 164 2 1 0.5 3.2 8.8

WS*180E4 2 460 3 6.9 3450 12.5/12.2 100 2 1 0.5 1.6 3.8

WS*180EW 2 575 3 6.9 3450 10.3/10.1 78 2 1 0.5 1.3 3.2

20

WS*240E3 2 208-230 3 10.4 3450 39.1 267 2 1 1 5.0 14.4

WS*240E4 2 460 3 10.4 3450 17.3 142 2 1 1 2.5 5.8

WS*240EW 2 575 3 10.4 3450 15.4 103 2 1 1 2 5.1

(a)For Compressor Motors and Condenser Fan Motors: Amp draw for each motor; multiply value by number of motors to determine total amps.

(b)HP for each compressor.

*Indicates both downflow and horizontal units.

PKGP-PRC012M-EN 39

Dimensional Data

Figure 2. Heat pump models - 12½ - 20 tons

* All dimensions are in inches/millimeters.

DOWNFLOW CONDENSATE

DRAIN CONN 1" (25.4MM) NPT

121 11/16"

6 7/16"

84 3/16"

33 3/16"

8 15/16"

1"

2 11/16"

56"

48 1/2"

6 13/16"

122 5/16"

85 5/16"

54"

13/16"

SINGLE POINT

POWER ENTRY

3" (76MM) DIA HOLE

(UNIT POWER WIRE)

7/8" (22.23MM) DIA. HOLE

(UNIT CONTROL

WIRE)

FILTER

ACCESS DOOR

HORIZONTAL

SERVICE GAUGE

PORT ACCESS

2167MM

3107MM

20MM

(1372MM) - 12.5-15T UNITS

2154MM

25.4MM

1231.90MM

173MM

3091MM

1422MM

163.51MM

843MM

227MM

68.26MM

64 1/8

" (1629MM) - 20T UNITS

40 PKGP-PRC012M-EN

Dimensional Data

Figure 3. Heat pump models - 12½ - 20 tons

* All dimensions are in inches/millimeters.

Figure 4. Heat pump models - 12½ - 20 tons

* All dimensions are in inches/millimeters.

PKGP-PRC012M-EN 41

Dimensional Data

Figure 5. Heat pump models - 12½ - 20 tons

* Duct flanges mount 7-7/16" down inside the curb on the 1-1½ curb flanges.

Roofcurb is intended for downflow use only.

* All dimensions are in inches/millimeters.

Figure 6. Heat pump models - 12½ - 20 tons

* All dimensions are in inches/millimeters.

9

1”

25.4 MM

CURB FLANGE

LONG SIDES

SHORT SIDES

42 PKGP-PRC012M-EN

Dimensional Data

Figure 7. Downflow & horizontal condensate locations

Table 26. Heat pump units

Tons Condensate

Drain Size

Condensate Drain Location

Downflow Only Downflow Horizontal

ABCDFGH J K

12½, 15, 20 26 7/16 28 3/4 19 15/16 4 1/4 4 1/4 76 5/16 68 11/16 1 NPT 26 3/4 5 3/8

Table 27. Swing clearances

Unit Model # A B C D E

WSD 150-240 29 1/2 56 38 1/2 18 1/2 N/A

WSH 150-240 29 1/2 N/A 38 1/2 18 1/2 14

Note: All dimensions are in inches.

SWING RADIUS (C)

OD SECTION

ACCESS PANEL

THROUGH THE

BASE ELECTRICAL

SWING RADIUS (A)

ID SECTION

ACCESS PANEL

TOP VIEW SHOWING THROUGH THE BASE

ELECTRICAL UTILITY LOCATIONS AND ACCESS PANEL SWING CLEARANCES.

SWING RADIUS (E)

HORIZONTAL FILTER

ACCESS PANEL

SWING RADIUS (D)

ID FAN SECTION

ACCESS PANEL

B

6 7/8"

PKGP-PRC012M-EN 43

Dimensional Data

Figure 8. Fresh air hood (horizontal units) Figure 9. Fresh air hood (downflow units)

Figure 10. Power exhaust - downflow economizers Figure 11. Power exhaust - downflow economizers - side view

C

POWER EXHAUST with DOWNFLOW

ECONOMIZERS only, SIDE VIEW

Figure 12. Economizer - horizontal units Figure 13. Economizer - downflow units

Note: When applying economizer to horizontal units, connected

ductwork must be run full size to allow proper operation of

economizer damper.

Table 28. Power exhaust dimensions

Unit Model # A B(a)

(a)Horizontal dimension only. Downflow economizer is width of

end panel.

C(b)

(b)Power exhaust is applied on downflow economizer only.

WS* 150-240 19½ 64¾ 39

44 PKGP-PRC012M-EN

Weights

Table 29. Accessory net weights (lbs)

Tons Unit Model

No.

Std

Economizer

(a)

(a) Net weight should be added to unit weight when ordering factory installed economizer or oversize motor.

Low Leak

Economizer Outside Air

Damper Power

Exhaust

(b)

(b)Downflow only.

Roof

Curb

Oversized

Motor

Adder

High

Static

DriveNet Ship Net Manual Moto-

rized

12½, 15,

20 WSD150-240E 80 265 250 32 75 95 235 5 10

12½, 15,

20 WSH150-240E 65 210 - 32 75 - - 5 15

Table 30. Electric heaters weights

Tons Unit Model No. All Zone

Sensors

Electric Heaters(a)(b)

(a) For 600V heaters net weights are same as 480V heaters.

(b)To estimate shipping weight add 5 lbs to net weight.

5-18 kW

240/480V 23-36 kW

240/480V 54 kW

240/480V 72 kW

240/480V

12½-20 WS*150E, 180E, 240E 1 28/22 33/27 40/32 43/34

Table 31. Variable frequency drive weights

Motor Size WSD150-240E WSH150-240E

3(a) & 5 HP

(a)3 HP motors not applicable to WS*240E units.

32 34

7.5 HP(b)

(b)WS*240E units only.

63 65

Figure 14. Center of gravity

PKGP-PRC012M-EN 45

Weights

Table 32. Maximum unit & corner weights (lbs) and center of gravity dimensions (In.)

Maximum Weights

(Lbs) Corner Weights (Lbs) Center of Gravity (In.)

Tons Unit Model No. Shipping Net A B C D Length Width

12½ WS*150E 2430 1978 633 514 376 455 56 36

15 WS*180E 2435 1982 634 515 377 456 56 36

20 WS*240E 2566 2107 674 485 400 590 57 35

Table 33. Factory installed options (FIOPS) net weights (lbs)(a)(b)(c)

(a)Weights for FIOP accessories not listed are < 5 lbs.

(b)Net weight should be added to unit weight when ordering factory installed accessories.

(c) See Table 29, p. 44 for standard factory installed economizer and oversized motors.

Accessory Weight Unit Model No.

High Efficiency Motors(d)

(d)Standard factory installed motors are already included in unit net and shipping weights. Values shown for high

efficiency motors are in addition to the standard motor weight.

* Indicates both downflow and horizontal units.

49 WS*150-180 standard size motor

36 WS*240 standard size motor

WS*150-180 oversized motor

0 WS*240 oversized size motor

Hinged Doors 27 All WS* units

Powered Convenience Outlet 38 All WS* units

Through the Base Electrical 23 All WS* units

Unit Mounted Circuit Breaker 5 All WS* units except those with 54&72 kW heaters & 208/230V

10 All WS* units with 54&72 kW heaters & 208/230V

Unit Mounted Disconnect 5 All WS* units except those with 54&72 kW heaters & 208/230V

10 All WS* units with 54&72 kW heaters & 208/230V

Smoke Detectors (Supply/Return) 5 All WS* units

Tool-less Hail Guard 43 WS*150,180

51 WS*240

Stainless Steel Drain Pan 8.1 All WS* units

46 PKGP-PRC012M-EN

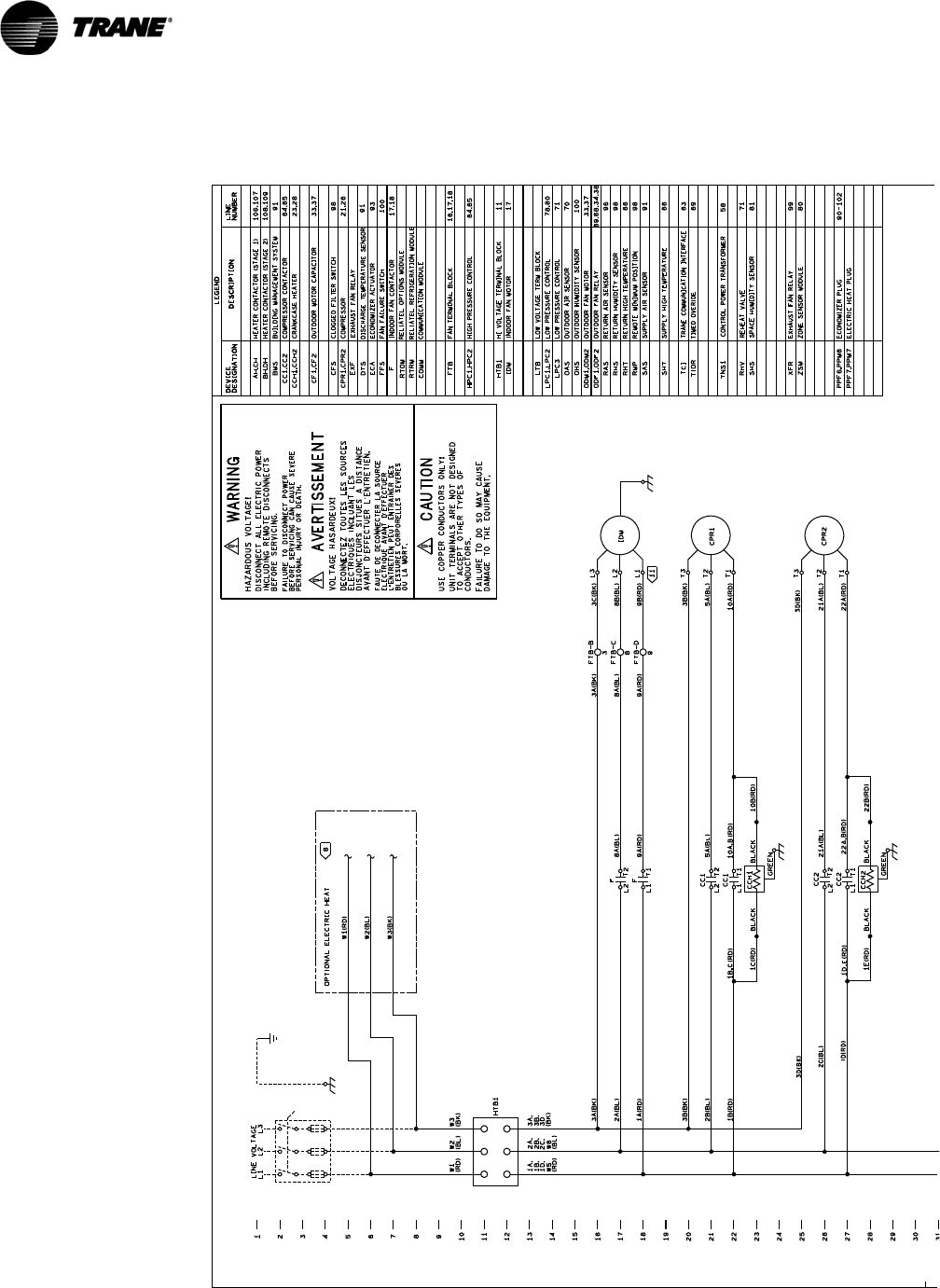

Typical Wiring

PKGP-PRC012M-EN 47

Ty p i c a l W i ri n g

48 PKGP-PRC012M-EN

Typical Wiring

PKGP-PRC012M-EN 49

Ty p i c a l W i ri n g

50 PKGP-PRC012M-EN

Jobsite Connections

Notes:

•For specific wiring information, see the installation instructions.

•All wiring except power wires is low voltage.

•All customer-supplied wiring should be copper and must conform to NEC or CEC and local

electrical codes.

•Wiring shown dotted is to be furnished and installed by the customer.

•Zone sensors are required for units configured for Single Zone VAV indoor fan system control

in order to enable Single Zone VAV functionality.

Table 34. Zone sensors - typical number of wires

Zone

Sensors

AManual Changeover.....................................................................4

Manual/Auto Changeover.............................................................5

Manual/Auto Changeover with Status Indication LED’s....................10

Programmable Night Setback with Status Indication LED’s...............7

Thermostats

B3 Power Wires + 1 Ground Wire (three phase)

2 Power Wires + 1 Ground Wire (single phase)

DISCONNECT

SWITCH

(BY OTHERS)

ZONE SENSOR OR

THERMOSTAT ROOFTOP

UNIT

A

B

PKGP-PRC012M-EN 51

Mechanical Specifications

General

The units shall be dedicated downflow or horizontal airflow. The operating range shall be between

115°F and 0°F in cooling as standard from the factory for all units. Cooling performance shall be

rated in accordance with ARI testing procedures. All units shall be factory assembled, internally

wired, fully charged with R-410A, and 100% run tested to check cooling operation, fan and blower

rotation and control sequence, before leaving the factory. Wiring internal to the unit shall be

colored and numbered for simplified identification. Units shall be UL listed and labeled, classified

in accordance to UL 1995/C 22.2, 236-05 3rd Edition.

Casing

Unit casing shall be constructed of zinc coated, heavy gauge, galvanized steel. Exterior surfaces

shall be cleaned, phosphatized, and finished with a weather-resistant baked enamel finish. Unit’s

surface shall be tested 500 hours in a salt spray test in compliance with ASTM B117. Cabinet

construction shall allow for all maintenance on one side of the unit. In order to ensure a water and

air tight seal, service panels shall have lifting handles and no more than three screws to remove.

All exposed vertical panels and top covers in the indoor air section shall be insulated with a 1/2 inch,

1 pound density foil-faced, fire-resistant, permanent, odorless, glass fiber material. The base of the

downflow unit shall be insulated with 1/2 inch, 1 pound density foil-faced, closed-cell material. The

downflow unit’s base pan shall have no penetrations within the perimeter of the curb other than

the raised 11/8 inch high supply/return openings to provide an added water integrity precaution,

if the condensate drain backs up. The base of the unit shall have provisions for forklift and crane

lifting.

Unit Top

The top cover shall be one piece, or where seams exist, double hemmed and gasket sealed to

prevent water leakage.

Filters

Two inch standard filters shall be factory supplied on all units. Optional two inch pleated MERV 8

and MERV 13 filters with filter removal tool shall be available.

Compressors

External high pressure cutout shall be provided on all 15 and 20 models. Low pressure switches

shall be standard. All units shall have direct-drive, hermetic, scroll type compressors with

centrifugal type oil pumps. Motor shall be suction gas-cooled and shall have a voltage utilization

range of plus or minus 10% of nameplate voltage. Internal overloads shall be provided with the

scroll compressors. Crankcase heaters shall be utilized with all scroll compressors.

Refrigerant Circuits

Each refrigerant circuit shall have independent fixed orifice or thermostatic expansion devices,

service pressure ports, and refrigerant line filter driers factory installed as standard. An area shall

be provided for replacement suction line driers.

Evaporator and Condenser Coils

Internally finned, 5/16” copper tubes mechanically bonded to a configured aluminum plate fin shall

be standard. Coils shall be leak tested at the factory to ensure the pressure integrity. All coils are

pressure and leak tested at minimum of 450 psig. The completely assembled refrigerant system

is leak tested at a minimum of 240 psig with a refrigerant and nitrogen mixture. All dual compressor

units shall have intermingled evaporator coils. Sloped condensate drain pans are standard. Patent-

pending 1+1+1 condenser coil, permanently gapped for easy cleaning is available.

52 PKGP-PRC012M-EN

Mechanical Specifications

Outdoor Fans

The outdoor fan shall be direct-drive, statically and dynamically balanced, draw-through in the

vertical discharge position. The fan motor(s) shall be permanently lubricated and shall have built-

in thermal overload protection.

Indoor Fan

Units above shall have belt driven, FC centrifugal fans with adjustable motor sheaves. Units with

standard motors shall have an adjustable idler-arm assembly for quick-adjustment of fan belts and

motor sheaves. All motors shall be thermally protected. Oversized motors shall be available for

high static application. All indoor fan motors meet the U.S. Energy Policy Act of 1992 (EPACT).

Controls

Unit shall be completely factory- wired with necessary controls and contactor pressure lugs or

terminal block for power wiring. Unit shall provide an external location for mounting a fused

disconnect device. ReliaTel controls shall be provided for all 24-volt control functions. The resident

control algorithms shall make all heating, cooling, and/or ventilating decisions in response to

electronic signals from sensors measuring indoor and outdoor temperatures. The control

algorithm maintains accurate temperature control, minimizes drift from set point, and provides

better building comfort. A centralized control shall provide anti-short cycle timing and time delay

between compressors to provide a higher level of machine protection.

Defrost Controls

Adaptive demand defrost shall be provided to permit defrost wherever coil icing conditions begin

to significantly reduce unit capacity.

Discharge Line Thermostat

A bi-metal element discharge line thermostat is installed as a standard option on the discharge line

of each system. This standard option provides extra protection to the compressors against high

discharge temperatures in case of loss of charge, extremely high ambient and other conditions

which could drive the discharge temperature higher. Discharge line thermostat is wired in series

with high pressure control. When the discharge temperature rises above the protection limit, the

bi-metal disc in the thermostat switches to the off position, opening the 24 VAC circuit. When the

temperature on the discharge line cools down, the bi-metal disc closes the contactor circuit,

providing power to the compressor. When the thermostat opens the fourth time, the ReliaTel

control must be manually reset to resume operation on that stage.

Phase Monitor

The Phase Monitor is a 3 phase line monitor module that protects against phase loss, phase

reversal and phase unbalance. It is intended to protect compressors from reverse rotation. It has

an operating input voltage range of 190-600 VAC, and LED indicators for ON and FAULT. There are

no field adjustments and the module will automatically reset from a fault condition.

Variable Frequency Drive

Variable Frequency Drives are factory installed and tested to provide supply fan motor speed

modulation. VFDs on the supply fan, as compared to inlet guide vanes or discharge dampers, are

quieter, more efficient, and are eligible for utility rebates. All VFDs are designed to allow bypass

if required. Bypass control will simply provide full nominal airflow in the event of drive failure.

PKGP-PRC012M-EN 53

Mechanical Specifications

Factory Installed Options

Black Epoxy Pre-Coated Coils

The black epoxy coils have a thermoset vinyl coating that is bonded to the aluminum fin stock prior

to the fin-stamping process. The pre-coated coils are an economical option for protection in mildly

corrosive environments.

Condensate Overflow Switch

This option shall shut the unit down in the event that a clogged condensate drain line prevents

proper condensate removal from the unit.

Fault Detection & Diagnostics (FDD)

This offering meets the mandatory requirement of Title 24. This option provides detection of the

following faults: Air temperature sensor failure/fault, not economizing when it should,

economizing when it should not, damper not modulating, and excessive outdoor air. The FDD

system shall be certified by the Energy Commission as meeting the requirements.

High Efficiency Motors

This option is available with efficiency ratings from 86.5 up to 91.0. It is not available for all models.

High Short Circuit Current Rating

Unit shall be provided with electrical subsystem that will withstand fault currents up to 65kA (208/

230, 460 VAC) or 25kA (575 VAC) compliant with UL 1995 and NEC 440.4 (B). Each compressor circuit

and the indoor fan shall have dedicated overcurrent protection. Three phase motors shall be

protected by Class J time delay fuses. Single phase motors shall be protected by Class CC time

delay fuses. All transformers shall also be protected with Class CC time delay fuses. Contactors

shall be din rail mounted.

Hinged Access Doors

Sheet metal hinges are available on the Filter, Evaporator, ID Fan and Compressor/Control Access

Doors. This option is available on all models.

Horizontal Side Access with Circuit Breaker

This option is a thermal magnetic, molded case, HACR Circuit Breaker with provisions for through

the base electrical connections. The circuit breaker will be installed in a water tight enclosure in the

unit with access through a swinging door. Factory wiring will be provided from the switch to the

unit high voltage terminal block. The circuit breaker will provide overcurrent protection, be sized

per NEC and UL guidelines, and be agency recognized by UL/CSA.

Horizontal Side Access with Disconnect Switch

Three-pole, molded case, disconnect switch with provisions for through the base electrical

connections are available. The disconnect switch will be installed in the unit in a water-tight

enclosure with access through a swinging door. Factory wiring will be provided from the switch to

the unit high voltage terminal block. The switch will be UL/CSA agency recognized.

Note: The disconnect switch will be sized per NEC and UL guidelines but will not be used in place

of unit overcurrent protection. This option is available on all models.

Human Interface

The Human Interface shall have a 5 inch color touchscreen display that conforms to FCC Part 15

Class B with an Ingress Protection Rating of IP24. The display text shall be readable by a person

with 20/20 vision at a distance of 3 feet and 60° angle at lighting levels ranging from 100 lux - 25,000

lux. Also, the display shall operate at temperatures of -40° C to 70° C. Firmware and unit

configurations shall be able to be restored via a USB storage device.

54 PKGP-PRC012M-EN

Mechanical Specifications

Multi-Speed Indoor Fan System

Multi-speed indoor fan system is designed for use in applications for meeting the minimum

requirement of CA Title 24. This system incorporates a multi-speed fan control to change the speed

of the fan to 67% of full airflow based off of compressor stages.

Powered or Unpowered Convenience Outlet

This option is a GFCI, 120v/15amp, 2 plug, convenience outlet, either powered or unpowered. When

the convenience outlet is powered, a service receptacle disconnect will be available. The

convenience outlet is powered from the line side of the disconnect or circuit breaker, and therefore

will not be affected by the position of the disconnect or circuit breaker. This option can only be

ordered when the Through the Base Electrical with either the Disconnect Switch, or Circuit Breaker,

option is ordered. This option is available on all models.

Single Zone VAV

SZVAV systems combine Trane application, control and system integration knowledge to exactly

match fan speed with cooling and heating loads, regardless of the operating condition.

Stainless Steel Drain Pan

This option provides excellent corrosion and oxidation resistance. Drain pan shall be constructed

of 304 stainless steel.

Supply, Return and Plenum Air Smoke Detector

With this option installed, if smoke is detected, all unit operation will be shut down. Reset will be

manual at the unit. Return Air Smoke Detectors require minimum allowable airflow when used with

certain models. See the Installation, Operation, and Maintenance (IOM) manual for the models

affected and the minimum allowable airflow required. This option is available on all downflow

models. Supply and/or Return Detectors may not be used with the Plenum Smoke Detector.

Through the Base Electrical with Circuit Breaker

This option is a thermal magnetic, molded case, HACR Circuit Breaker with provisions for through

the base electrical connections. The circuit breaker will be installed in a water tight enclosure in the

unit with access through a swinging door. Factory wiring will be provided from the switch to the

unit high voltage terminal block. The circuit breaker will provide overcurrent protection, be sized

per NEC and UL guidelines, and be agency recognized by UL/CSA.

Through the Base Electrical with Disconnect Switch

Three-pole, molded case, disconnect switch with provisions for through the base electrical

connections are available. The disconnect switch will be installed in the unit in a water-tight

enclosure with access through a swinging door. Factory wiring will be provided from the switch to

the unit high voltage terminal block. The switch will be UL/CSA agency recognized.

Note: The disconnect switch will be sized per NEC and UL guidelines but will not be used in place

of unit overcurrent protection. This option is available on all models.

Through the Base Utilities Access

An electrical service entrance shall be provided allowing electrical access for both control and main

power connections inside the curb and through the base of downflow units, and through the front

of the horizontal units. Option will allow for field installation of liquid-tight conduit and an external

field-installed disconnect switch.

Two-Inch Pleated Filters

Two inch pleated MERV 8 or MERV 13 filters with filter removal tool shall be available on all models.

PKGP-PRC012M-EN 55

Mechanical Specifications

Factory or Field Installed Options

BACnet™ Communications Interface

This option shall be provided to allow the unit to communicate directly with a generic open protocol

BACnet MS/TP Network Building Automation System Controls.

Barometric Relief

This option shall provide a pressure operated damper for the purpose of space pressure

equalization and be gravity closing to prohibit entrance of outside air during the equipment “off”

cycle.

Clogged Filter/Fan Failure Switch

A dedicated differential pressure switch is available to achieve active fan failure indication and/or

clogged filter indication. These indications will be registered with either a zone sensor with status

indication lights or an Integrated Comfort™ System.

Differential Pressure Switches

These options allow for individual fan failure and dirty filter indication. The fan failure switch will

disable all unit functions and “flash” the Service LED on the zone sensor. The dirty filter switch will

light the Service LED on the zone sensor and will allow continued unit operation.

Discharge Air Sensing Kit

This kit provides true discharge air sensing in heating models. This sensor is a status indicator

readable through Tracer™or Tracker™. The kit is functional only with the ReliaTel Options Module.

Economizer - Standard, Downflow

The assembly includes fully modulating 0-100% motor and dampers, barometric relief, minimum

position setting, preset linkage, wiring harness with plug, fixed dry bulb and spring return actuator.

The barometric relief damper shall be standard with the downflow economizer and shall provide

a pressure operated damper that shall be gravity closing and shall prohibit entrance of outside air

during the equipment “off” cycle. Solid state enthalpy and differential enthalpy control shall be

field-installed.

Economizer - Low Leak, Downflow

This accessory meets low leak requirements for ASHRAE 90.1, IECC, and CA Title 24 standards (3

cfm/ft^2@1" wg exterior air, 4 cfm/ft^2@1" wg return air). This option allows 100% outdoor air

supply from 0-100% modulating dampers and is standard with barometric relief. It can be paired

with powered exhaust for additional building pressure relief.This option can be paired with or

without Fault Detection & Diagnostics (FDD) to meet current mandatory CA Title 24 requirements.

Available on downflow units only. The economizers come with three control options, dry bulb and

reference or comparative enthalpy (optional).

Electric Heaters

Electric heat modules shall be available for installation within the basic unit. Electric heater

elements shall be constructed of heavy-duty nickel chromium elements internally delta connected

for 240 volt, wye connected for 480 and 600 volt. Staging shall be achieved through ReliaTel. Each

heater package shall have automatically reset high limit control operating through heating element

contactors. All heaters shall be individually fused from the factory, where required, and shall meet

all NEC and CEC requirements when properly installed. Power assemblies shall provide single-

point connection. Electric heat modules shall be UL listed or CSA certified. If ordering the Through

the Base Electrical option with an Electric Heater, the heater must be factory installed.

56 PKGP-PRC012M-EN

Mechanical Specifications

Frostat™

This option is to be utilized as a safety device. The Frostat opens when temperatures on the

evaporator coil fall below 10°F. The temperature will need to rise to 50°F before closing. This option

should be utilized in low airflow or high outside air applications.

Indoor Fan Motor Shaft Grounding Ring

Shaft grounding rings are used on all VFD driven motors to provide a conductive discharge path

away from the motor bearings to ground. Bearing Protection Ring shall be maintenance free

circumferential ring of conductive micro fibers that discharges voltages to ground.

LonTalk® Communications Interface

The LonTalk communications interface, when installed in a Voyager unit, allows the unit to

communicate as a Tracer™LCI-V device or directly with generic LonTalk Network Building

Automation System Controls.

Oversized Motors

Oversized motors shall be available for high static applications.

Reference or Comparative Enthalpy

Reference Enthalpy is used to measure and communicate outdoor humidity. The unit receives and

uses this information to provide improved comfort cooling while using the economizer.

Comparative Enthalpy measures and communicates humidity for both outdoor and return air

conditions and return air temperature. The unit receives and uses this information to maximize use

of economizer cooling, and to provide maximum occupant comfort control. Reference or

Comparative Enthalpy option shall be available when a factory or field installed Downflow

Economizer is ordered. This option is available on all downflow models.

Tool-less Hail Guards

Tool-less, hail protection quality coil guards are available for condenser coil protection.

Trane Communication Interface

This factory or field-installed option shall be provided to interface ReliaTel™ controlled units with

the Trane Integrated Comfort™ systems.

Field Installed Options

CO2 Sensor

The CO2 sensor shall have the ability to monitor the concentration (parts per million, ppm) of CO2

(Carbon Dioxide) in the air. As the CO2 concentration changes, the outside air damper modulates

to meet the current ventilation needs of the zone.

Note: Choose factory-installed CO2 sensor wiring option to save time and ensure proper unit

connections for the field installed CO2 sensor kits.

Digital Display Zone Sensor

The Digital LCD (Liquid Crystal Display) zone sensor has the look and functionality of standard zone

sensors. This sensor includes a digital display of set point adjustment and space temperature in

°F (Fahrenheit) or °C (Celsius). Includes FAN and SYSTEM buttons (supports the service functions

of the standard sensor). E-squared memory stores last programmed set points. Requires 24 VAC

(Volts AC). This sensor should be utilized with ReliaTel™ controls.

Economizer - Standard, Horizontal

The horizontal economizer shall contain the same features as the downflow economizer with the

exception of barometric relief.

PKGP-PRC012M-EN 57

Mechanical Specifications

Economizer - Low Leak, Downflow

This accessory meets low leak requirements for ASHRAE 90.1, IECC, and CA Title 24 standards (3

cfm/ft^2@1" wg exterior air, 4 cfm/ft^2@1" wg return air).This option allows 100% outdoor air

supply from 0-100% modulating dampers and is standard with barometric relief. It can be paired

with powered exhaust for additional building pressure relief. Available on downflow units only.

High Static Drive

The high static drive option shall allow the standard motor on the 12½ and 15 ton units to operate

with improved external static capabilities.

Manual Outside Air Damper

The rain hood and screen shall provide up to 25% outside air.

Motorized Outside Air Dampers

Manually set outdoor air dampers shall provide up to 50% outside air. Once set, outdoor air

dampers shall open to set position when indoor fan starts. The damper shall close to the full closed

position when indoor fan shuts down.

Powered Exhaust

The powered exhaust shall provide exhaust of return air, when using an economizer, to maintain

better building pressurization.

Roof Curb - Downflow

The roof curb shall be designed to mate with the downflow unit and provide support and a water

tight installation when installed properly. The roof curb design shall allow field-fabricated

rectangular supply/return ductwork to be connected directly to the curb. Curb design shall comply

with NRCA requirements. Curb shall be shipped knocked down for field assembly and shall include

wood nailer strips.

Remote Potentiometer

The minimum position setting of the economizer shall be adjusted with this accessory.

Ventilation Override Accessory

With the Ventilation Override Accessory installed, the unit can be set to transition up to three

different pre-programmed sequences for Smoke Purge, Pressurization, and Exhaust. The transition

occurs when a binary input on the RTOM is closed (shorted). This would typically be a hard wired

relay output from a smoke detector or fire control panel.

Zone Sensors

This option shall be provided to interface with Voyager units and shall be available in either manual,

automatic, programmable with night setback, with system malfunction lights or remote sensor

options.

Note: Zone sensors are required for units configured for Single Zone VAV indoor fan system

control to enable Single Zone VAV functionality.

Trane optimizes the performance of homes and buildings around the world. A business of Ingersoll Rand, the leader in

creating and sustaining safe, comfortable and energy efficient environments, Trane offers a broad portfolio of advanced

controls and HVAC systems, comprehensive building services, and parts. For more information, visit www.Trane.com.

Trane has a policy of continuous product and product data improvement and reserves the right to change design and specifications without notice.

We are committed to using environmentally

conscious print practices that reduce waste.

© 2014 Trane All rights reserved

PKGP-PRC012M-EN 12 Jun 2014

Supersedes PKGP-PRC012L-EN (10 Jan 2014)
