Packaged Gas/Electric

Rooftop Units

Precedent™

YSC060-120

50 Hz

RT-PRC017-ENFebruary 2004

© 2004 American Standard Inc. All rights reserved RT-PRC017-EN

Introduction

Precedent™ . . . The same Trane

quality... with added flexibility.

Precedent is a flexible line of packaged

units that covers a wide variety of

applications.

Reliatel™ microprocessor controls

provide superior flexibility for the

simplest to the most sophisticated

applications. In addition to controls,

Precedent offers many other outstanding

features and option choices.

With its sleek compact cabinet, rounded

corners and beveled top, it may just be

the most aesthetically pleasing

packaged unit on the planet. And, of

course, Precedent carries the Trane

reputation for excellence, quality, and

reliability.

It’s hard to stop a Trane

.

From simple applications, to the most

complex, Precedent has the solution.

Introduction

Features and Benefits

Application Considerations

Selection Procedure

Model Number Description

General Data

Performance Data

Zone Controls

Electrical Data

Jobsite Connection

Dimensional Data

Weights

Mechanical Specifications

3

Contents

RT-PRC017-EN

2

4

9

10

12

13

14

42

43

44

45

53

54

RT-PRC017-EN4

Features and

Benefits

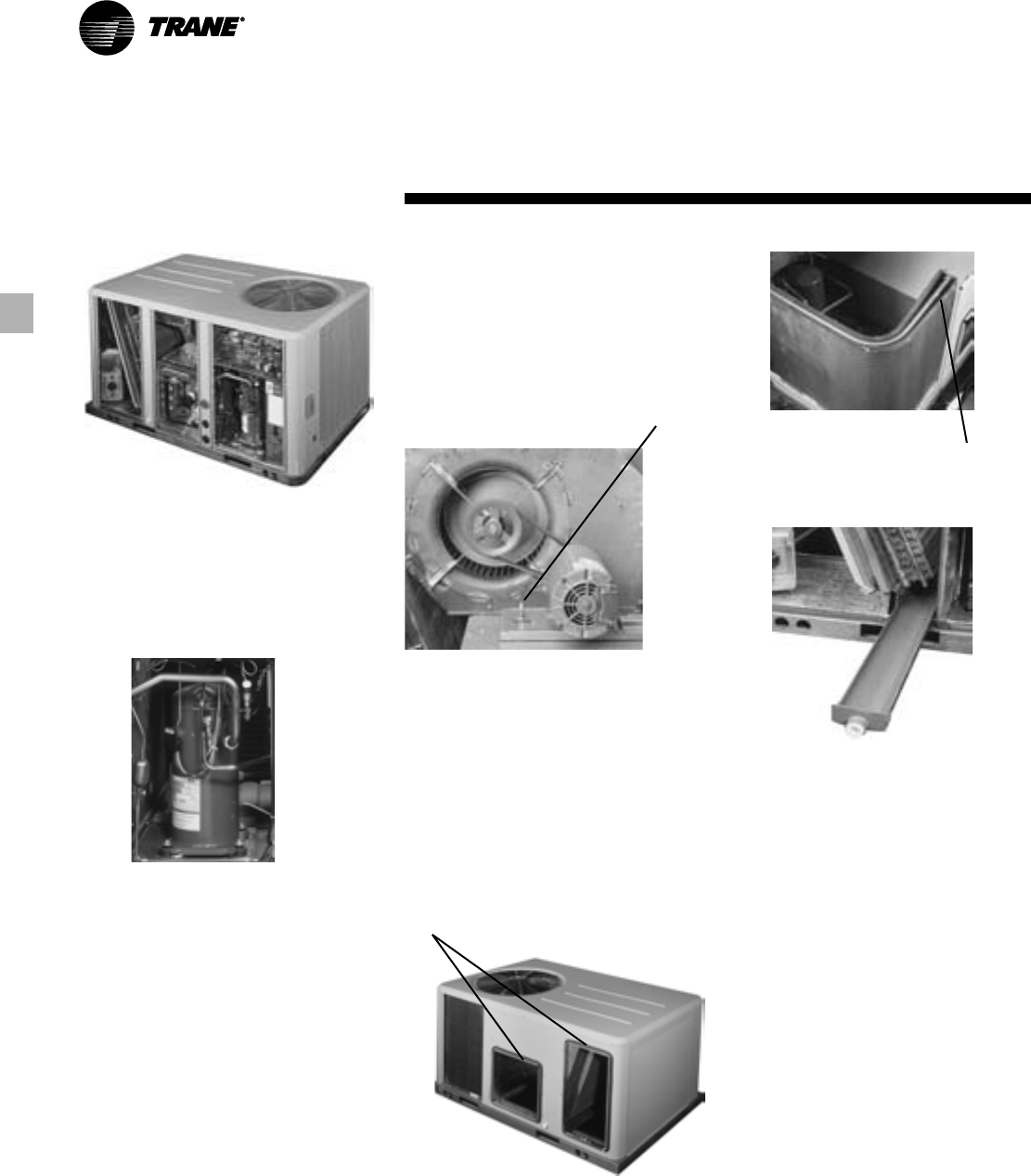

Unit Cabinet

The compact cabinet with rounded

corners takes up less room and is less

costly to ship. The beveled and ribbed

top is not only aesthetically pleasing, it is

designed to prevent water from pooling.

Single Point Power

A single electrical connection powers the

unit.

Compressors

Precedent™ contains the best

compressor technology available to

achieve the highest possible

performance. Our compressor line

includes Trane built Climatuff™

reciprocating and scrolls.

Easy Access Panels

Easy access panels reduce the number of

possible water entry points.

Low Ambient Cooling

All Precedent units have cooling

capabilities down to -18°C (0°F) as

standard.

Unit Base

For added water integrity, Precedent has

a raised 29 mm (11/8") lip around the

unit’s downflow supply and return to

prevent water from blowing into the

ductwork.

Sloped Drain Pans

Every Precedent unit has a non-

corrosive, removable, double-sloped

drain pan that’s easy to clean and

reversible to allow installation of drain

trap on either side of the unit.

Through the Base Condensate

Every unit includes provisions for

through the base condensate drain

connections. This allows the drain to be

connected through the roof curb instead

of a roof penetration.

Foil-Faced Insulation

All panels in the Evaporator section of

the unit have cleanable foil-faced

insulation. All edges are either captured

or sealed to ensure no fibers get into the

airstream.

Convertible Units

• The units ship in a downflow

configuration. They can be easily

converted to horizontal by simply

moving two panels.

• Units come complete with horizontal

duct flanges so the contractor doesn’t

have to field fabricate them. These

duct flanges are a time and cost saver.

Easy Access Panels

Remove two screws for access to the

standardized internal components and

wiring.

Easy-Adjust Idler Arm

With the Easy-Adjust Idler Arm, the belt

and sheaves can be quickly adjusted

without moving the mounted fan motor.

The result is a major savings in time and

money. Patented Condenser Coil

Precedent boasts a patented 1+1+1

Hybrid coil, permanently gapped for

easy cleaning.

Colored And Numbered Wiring

You save time and money tracing wires

and diagnosing the unit.

5RT-PRC017-EN

Features and

Benefits

Standardized Components

•Components are placed in the same

location on all Precedent™ units.

Familiarize yourself with one Precedent

and you are familiar with every

Precedent.

Easy Access Low Voltage Terminal

Board

Precedent’s Low Voltage Terminal Board

is external to the electrical control

cabinet. It is extremely easy to test

operation of all unit functions. This is

another cost and time saving installation

feature.

Low Voltage Connections

The wiring of the low voltage

connections to the unit and the zone

sensors is as simple as 1-1, 2-2, and 3-3.

This simplified system makes it easy for

the installer to wire.

Single-Side Service

Single-side service is standard on all

Precedent units.

Progressive Tubular Heat Exchanger

The compact cabinet features a tubular

heat exchanger in low, medium and high

heat capacities.

The heat exchanger is fabricated using

stainless steel burners and corrosion-

resistant aluminized steel tubes as

standard on all models. It has an induced

draft blower to pull the gas mixture

through the burner tubes. The heater

has a direct spark ignition system which

doubles as a safety device to prove the

flame.

Flexible Applications

• Only two roof curbs for the 5-10 ton

Precedent line. . .simplifies curb

selection.

•ReliaTel microprocessor controls to

meet either the simple or the more

complex application.

•Low or high gas heat capacities.

• Airflow is outstanding. The Precedent

can replace an older machine with old

ductwork and, in many cases, improve

comfort through better air distribution.

• Belt drive —standard or oversized

supply fan motors meet a wide airflow

range.

• Precedent offers ultimate flexibility.

Options and components are not pre-

packaged at the factory. Units are built

to order in our standard “shortest in

the industry”ship cycle time.

RT-PRC017-EN6

Features and

Benefits

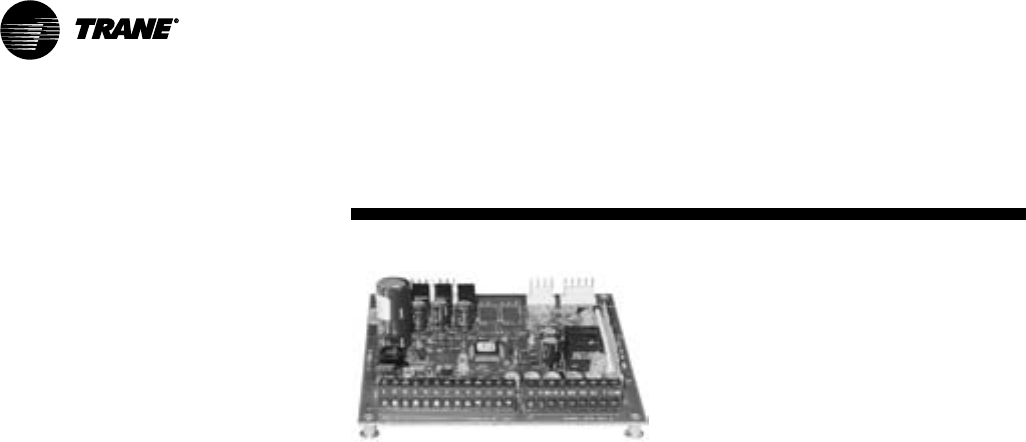

Micro Controls

Several years ago, Trane was the first to

introduce microprocessor controls into

the Light Commercial Market. That

design, along with immeasurable

experience, has provided the technology

for Trane’s second-generation ReliaTel™

microprocessor controls.

ReliaTel Micro:

• Provides unit control for heating,

cooling, and ventilating by utilizing

input from sensors that measure

outdoor and indoor temperature.

• Improves quality and reliability

through the use of time-tested

microprocessor controls and logic.

• Prevents the unit from short cycling,

considerably improving compressor

life.

• Ensures that the compressor will run

for a specific amount of time, which

allows oil to return for better

lubrication, enhancing the reliability of

the compressor.

• Reduces the number of components

required to operate the unit, thereby

reducing possibilities for component

failure.

• Eliminates the need for field-installed

components with its built-in anti-short-

cycle timer, time delay relay and

minimum ‘’on’’ time controls. These

controls are factory tested to assure

proper operation.

• Requires no special tools to run the

Precedent unit through its paces

during testing. Simply place a jumper

between Test 1 and Test 2 terminals on

the Low Voltage Terminal Board and

the unit will walk through its

operational steps. The unit

automatically returns control to the

zone sensor after stepping through the

test mode a single time, even if the

jumper is left on the unit.

• As long as the unit has power and the

LED is lit, the Micro is operational. The

light indicates that the Micro is

functioning properly.

• Features expanded diagnostic

capabilities when used with Trane’s

Integrated Comfort™ Systems.

• As an energy benefit, softens electrical

‘’spikes’’ by staging on fans,

compressors and heaters.

• The Intelligent Fallback or Adaptive

Control is a benefit to the building

occupant. If a component goes astray,

the unit will continue to operate at

predetermined temperature set points.

• Intelligent Anticipation is a standard

feature of the Micro. Functioning

constantly, the Micro and zone sensors

work together in harmony, to provide

tight comfort control.

7RT-PRC017-EN

Features and

Benefits

Factory-installed Options

Hinged Access Doors

These doors permit easy access to the

filter, fan/heat, and compressor/control

sections. They reduce the potential roof

damage from screws or sharp access

door corners.

Economizer

Equipped with either dry bulb, reference

or comparative enthalpy sensing, this

feature provides free cooling as the

outdoor temperature and/or humidity

decreases. Economizers, correctly

installed, offer valuable energy savings.

Factory-installed economizers save time

and ensure proper installation.

Phase Monitor

Phase monitor shall provide 100%

protection for motors and compressors

against problems caused by phase loss,

phase imbalance, and phase reversal.

Phase monitor is equipped with an LED

that provides an ON or FAULT indicator.

Clogged Filter/Fan Fail Switches

These sensors allow a zone sensor

service light or Integrated Comfort

System to indicate a dirty filter or a fan

that’s not working. The field installation

charges for these valuable feedback

devices often eliminate them from

consideration. Factory installation can

make such features a good investment.

COMM3/4 Communication Interface

Available factory or field-installed. This

module, when applied with ReliaTel™,

easily interfaces with Trane’s Integrated

Comfort™ System.

The following options round-out the

complete line of Precedent™ options:

— 0 - 50% Manual or Motorized

Outside Air

— Discharge Air Sensor

— Hail Protection Quality Coil Guards

— Wide array of Zone Sensors and

Thermostats

— Liquid Propane Conversion Kits

— Factory built Roof Curb

One of Our Finest Assets:

Trane Sales Representatives are a

Support group that can assist you with:

— Product

— Application

— Service

— Training

— Special Applications

— Specifications

— Computer Programs and much more

Precedent has the features and benefits

that make it first class in the light

commercial rooftop market. Designed

with input from field contractors and

engineers, its airflow performance is

outstanding.

Precedent…The same Trane

quality…with added flexibility.

RT-PRC017-EN8

Features and

Benefits

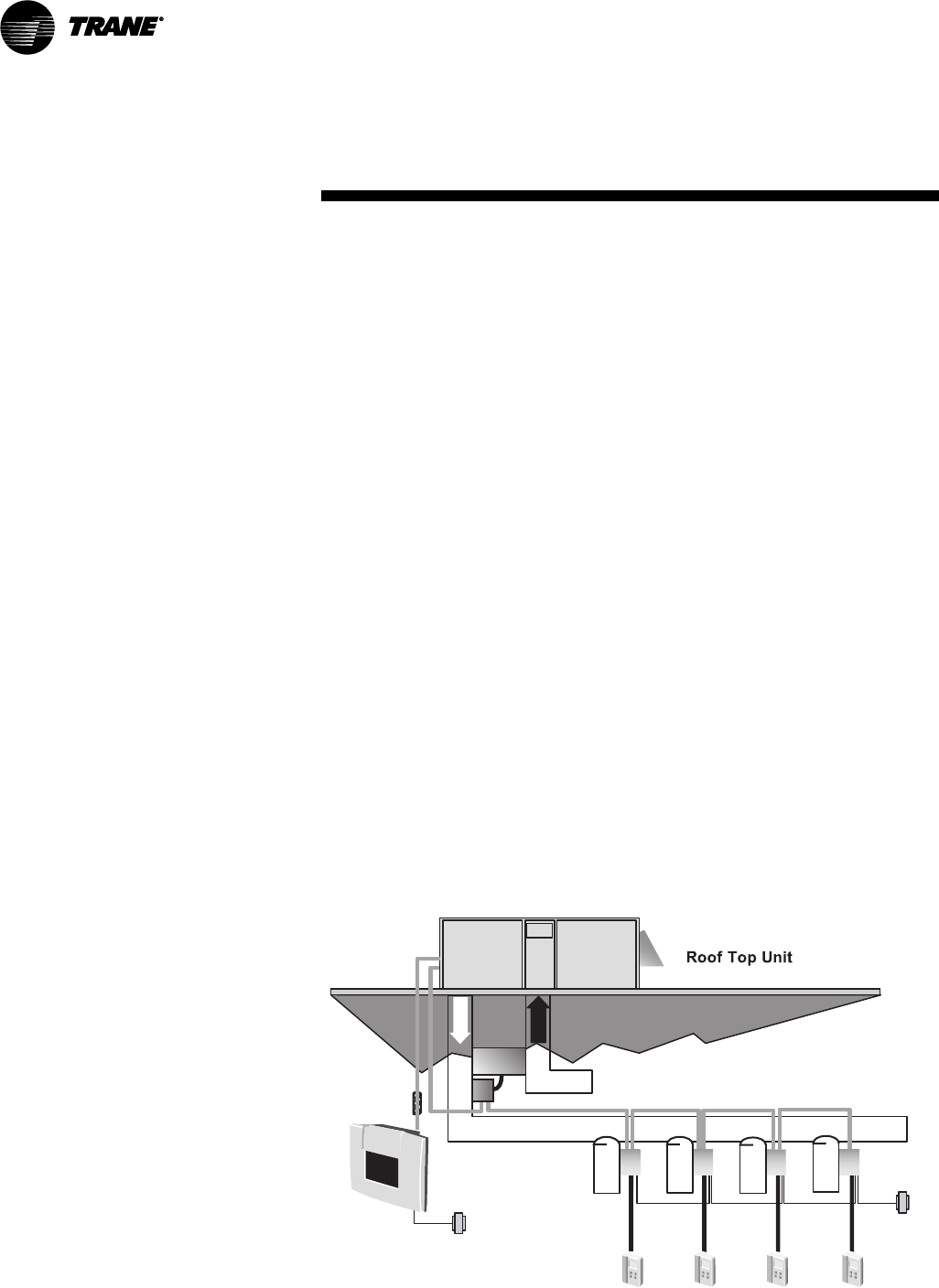

VariTrac

When Trane’s changeover VAV System

for light commercial applications is

coupled with Precedent, it provides the

latest in technological advances for

comfort management systems and can

allow thermostat control in every zone

served by VariTrac.

• We perform a 100% coil leak test at the

factory. The evaporator and condenser

coils are leak tested at 1375 kPa (200

psig) and pressure tested to 3100 kPa

(450 psig).

• All parts are inspected at the point of

final assembly. Sub-standard parts are

identified and rejected immediately.

• The requirement for cycle testing of

heat exchangers is 10,000 cycles by

ANSI Z21.47. This is the standard

required by both UL and AGA for cycle

test requirments. Trane requires the

design to be tested to 2½ times this

current standard.

• Every unit receives a 100% unit run test

before leaving the production line to

make sure it lives up to rigorous Trane

requirements.

We test designs at our factory not on

our customers!

Quality And Reliability Testing

• All Precedent™ designs were rigorously

rain tested at the factory to ensure

water integrity.

• Actual shipping tests were performed

to determine packaging requirements.

Units were test shipped around the

country to determine the best

packaging.

• Factory shake and drop tests were

used as part of the package design

process to help assure that the unit

arrives at the job site in top condition.

• Rigging tests include lifting a unit into

the air and letting it drop one foot,

assuring that the lifting lugs and rails

hold up under stress.

VariTrac ™

9RT-PRC017-EN

Application

Considerations

Heating Operation

The heat exchanger is manufactured

with aluminized steel. To prevent

condensation within the heat exchanger,

do not exceed 50% outside air.

Condensate Trap

The evaporator is a draw-thru

configuration. A trap must be field

provided prior to start-up on the cooling

cycle.

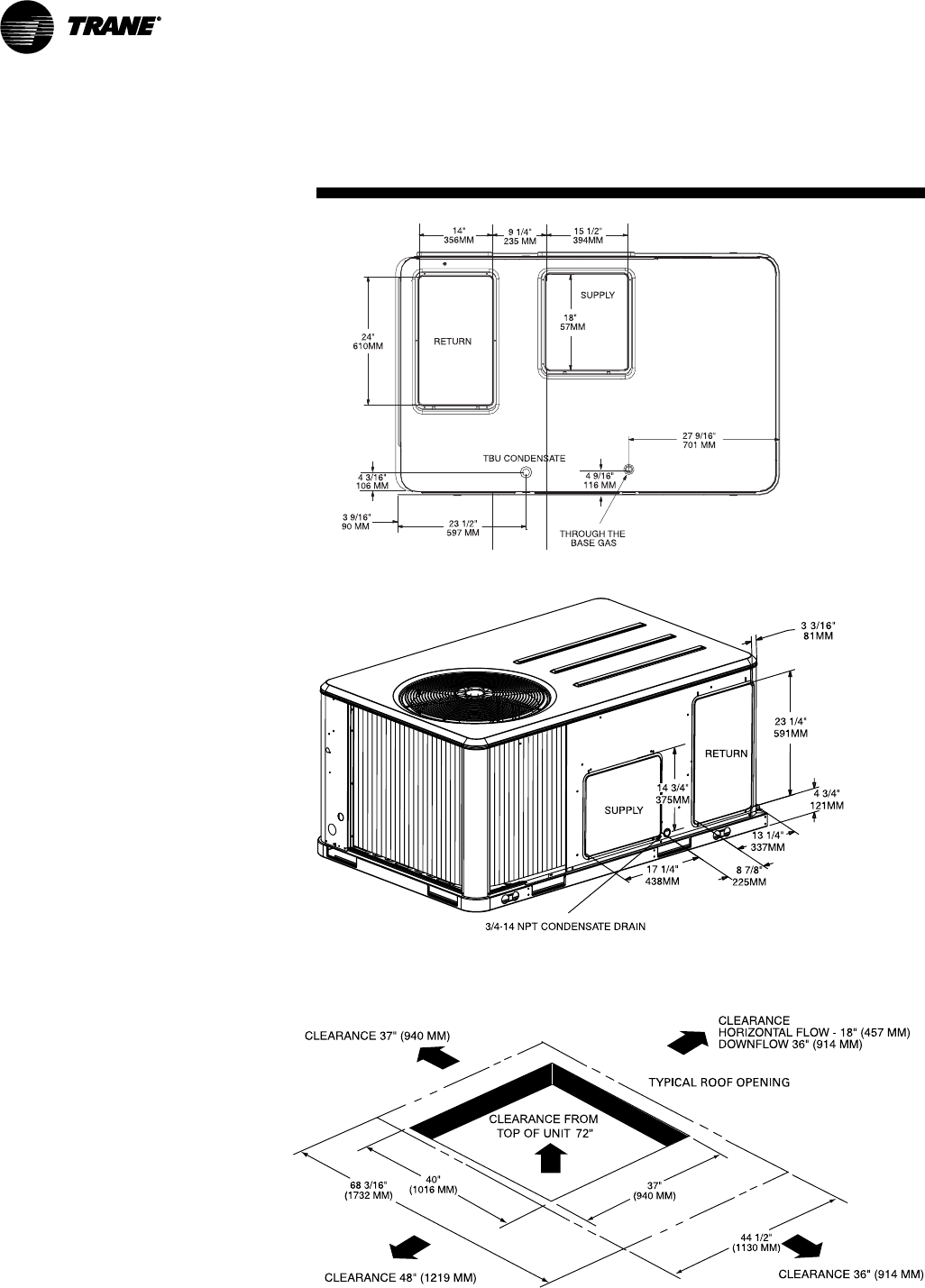

Clearance Requirements

The recommended clearances identified

with unit dimensions should be

maintained to assure adequate service,

maximum capacity and peak operating

efficiency. Actual clearances which

appear inadequate should be reviewed

with the local Trane sales personnel.

Unit Pitch

These units have reversible sloped

condensate drain pans. Units must be

installed level; any unit slope must be

toward side of unit where condensate

drain is connected.

Application of this product should be

within the cataloged airflow and cooling

considerations.

Low Ambient Cooling

The Precedent™ line features, as

standard, low ambient cooling down to

-18°C (0°F). Contact your local Trane

Representative for more assistance with

low ambient cooling applications.

Barometric Relief

This product offers an optional

barometric relief damper for use in

conjunction with economizer option.

This option consists of gravity dampers

which open with increased pressure. As

the building air pressure increases, the

pressure in the unit return air section

also increases, opening the dampers and

relieving the conditioned space.

NOTE: THE EFFECTIVENESS OF

BAROMETRIC RELIEF DAMPER DURING

ECONOMIZING OPERATION IS SYSTEM

RELATED. PRESSURE DROP OF THE

RETURN AIR SYSTEM SHOULD BE

CONSIDERED TO CONTROL BUILDING

PRESSURIZATION.

RT-PRC017-EN10

Selection

Procedures - SI Units

Cooling Capacity

Step 1 — Calculate the building’s total

and sensible cooling loads at design

conditions. Use the Trane calculation

form or any other standard accepted

method.

Example: The following are the building

cooling requirements:

a. Electrical Characteristics: 380-415/50/3

b. Summer Design Conditions: Entering

Evaporator Coil: 27° DB/ 19° WB

Outdoor Ambient: 35°

c. Total Cooling Load: 16.5 kW

d. Sensible Cooling Load: 11.8 kW

e. Airflow: 3400 m3/h External Static

Pressure: 125 Pa

f. Downflow Configuration

Step 2 — Size the equipment using Table

PD-1 to match the cooling loads at

design conditions.

Table PD-1 shows that a YSC060AD has

a gross cooling capacity of 17.8 kW and

14.4 kW sensible capacity at 35 DB

ambient and 3400 m3/h with 27 DB/ 19

WB air entering the evaporator.

Use the following formula to calculate

fan motor heat, which can be found in

the notes in Table PD-8:

Fan motor heat (kW)

= 1.144 x (Fan kW) + 0.132

For example: With 3400 m3/h and 125 Pa,

specified by the engineer, Table PD-8

shows 0.73 kW for a high heat model.

Fan motor heat =

1.144 x 0.73 + 0.132 = 0.97kW

Net Total Cooling =

17.8 kW - 0.97 = 16.8 kW

Net Sensible Cooling Capacity

14.4 kW - 0.97 = 13.4 kW.

Heating Capacity

Step 1 — Calculate the building heating

load using the Trane calculation form or

other standard accepted method.

Step 2 — Size the system heating

capacity to match the calculated

building heating load. The following

are building heating requirements:

a. Total heating load of 17.6 kW

b. 3400 m3/h

c. Fuel - Natural gas

For the YSC060AD there are two

heating capacities available, 19.6 kW

and 29.3 kW input models shown in

Table PD-32. The output capacities of

these furnaces are 15.7 kW and 23.4 kW

respectively. The high heat model with

23.4 kW best matches the building

requirements, indicating a YHC060AD*

should be selected.

Air Delivery Selection

External static pressure drop through

the air distribution system has been

calculated to be 150 Pa. Enter Table PD-

8 for a YSC060AD*H at 3400 m3/h and

150 Pa static pressure. The standard

motor will give the desired airflow.

Accessory Selection

Select accessories needed to

accommodate the application.

11RT-PRC017-EN

Selection

Procedures - IP Units

Cooling Capacity

Step 1 — Calculate the building’s total

and sensible cooling loads at design

conditions. Use the Trane calculation

form or any other standard accepted

method.

Example: The following are the building

cooling requirements:

a. Electrical Characteristics: 380-415/50/3

b. Summer Design Conditions: Entering

Evaporator Coil: 80° DB/ 67° WB

Outdoor Ambient: 95°

c. Total Cooling Load: 58 MBh

d. Sensible Cooling Load: 42 MBh

e. Airflow: 2000 cfm External Static

Pressure: .6 in wg

f. Downflow Configuration

Step 2 — Size the equipment using Table

PD-1a to match the cooling loads at

design conditions.

Table PD-1a shows that a YSC060AD has

a gross cooling capacity of 62.0 MBh and

46.4 MBh sensible capacity at 95 DB

ambient and 2000 cfm with 80 DB/ 67

WB air entering the evaporator.

Use the following formula to calculate

fan motor heat, which can be found in

the notes in Table PD-8a:

Fan motor heat (MBh) =

2.915 x (Fan bhp) + 0.451

For example: With 2000 cfm and 0.60

inches, specified by the engineer, Table

PD-8a shows 1.06 bhp for a high heat

model.

Fan motor heat =

2.915 x 1.06 + 0.451 = 3.5 MBh

Net Total Cooling =

62.0 MBh - 3.5 = 58.5 MBh

Net Sensible Cooling Capacity

46.4 MBh - 3.5 = 42.9 MBh.

Heating Capacity

Step 1 — Calculate the building heating

load using the Trane calculation form or

other standard accepted method.

Step 2 — Size the system heating

capacity to match the calculated building

heating load. The following are building

heating requirements:

a. Total heating load of 70.0 MBh

b. 2000 cfm

c. Fuel - Natural gas

For the YSC060AD there are two heating

capacities available, 67 MBh and 100

MBh input models shown in Table PD-

32. The output capacities of these

furnaces are 54 MBh and 80 MBh

respectively. The high heat model with

80 MBh best matches the building

requirements, indicating a YSC060AD*H

should be selected.

Air Delivery Selection

External static pressure drop through the

air distribution system has been

calculated to be 0.6 inches of water. Enter

Table PD-8a for a YSC060AD*H at 2000

cfm and 0.60 static pressure. The

standard motor will give the desired

airflow.

Accessory Selection

Select accessories needed to

accommodate the application.

RT-PRC017-EN12

Model

Number

Description

Digit 1 - Unit Function

Y = DX Cooling, Gas Heat

Digit 2 - Efficiency

S = Standard Efficiency

Digit 3 - Airflow

C = Convertible

Digits 4,5,6 - Nominal Gross Cooling

Capacity (MBh)

kW Tons

060 = 17.6 5

072 = 21.1 6

090 = 26.4 7.5

102 = 29.9 8.5

120 = 35.1 10

Digit 7 - Major Design Sequence

A = First

Digit 8 - Unit Voltage

D = 380-415/50/3

Digit 9 - Unit Controls

R = ReliaTel™ Microprocessor

Digit 10 - Heating Capacity

L = Low

H = High

Digit 11 - Minor Design Sequence

A = First Sequence

Y S C 060 A D R L A ** C 0 0 0 0 0 0 0 0 0 0 1

1 2 3 4,5,6 7 8 9 10 11 12,13 14 15 16 17 18 19 20 21 22 23 24 25

Digits 12, 13 - Service Sequence

** = Factory Assigned

Digit 14 - Fresh Air Selection

0 = No Fresh Air

A = Manual Outside Air Damper 0-50%

B = Motorized Outside Air Damper 0-50%

C = Economizer, Dry Bulb 0-100%

without Barometric Relief

D = Economizer, Dry Bulb 0-100%

with Barometric Relief

E = Economizer, Reference Enthalpy

0-100% without Barometric Relief

F = Economizer, Reference Enthalpy

0-100% with Barometric Relief

G = Economizer, Comparative Enthalpy

0-100% without Barometric Relief

H = Economizer, Comparative Enthalpy

0-100% with Barometric Relief

Digit 15 - Supply Fan/Drive Type/Motor

0 = Standard Drive

1 = Oversized Motor

Digit 16 - Hinged Service AccessFilters

0 = Standard Panels/Standard Filters

A = Hinged Access Panels/Standard Filters

B = Standard Panels/50 mm (2”)

Pleated Filters

C = Hinged Access Panels/50 mm 2”

Pleated Filters

Digit 17 - Condenser Coil Protection

0 = Standard Coil

1 = Standard Coil with Hail Guard

2 = Epoxy Coated Condenser Coil

3 = Epoxy Coated Condenser Coil with

Hail Guard

Digit 18 - Through the Base Provisions

0 = No Through the Base Provisions

Digit 19 - Disconnect/Circuit Breaker/Phase

Monitor (3 phase only)

0 = No Disconnect or Circuit Breaker

3 = Phase Monitor Only (No Disconnect,

No Circuit Breaker)

Digit 20 - Convenience Outlet

0 = No Convenience Outlet

Digit 21 - Communications Options

0 = No Communications Interface

1 = Comm-3/4 Communications Interface

2 = Comm-5 Communications Interface

Digit 22 - Refrigeration System Option

0 = Standard Refrigeration System

Digit 23 - Refrigeration Controls

0 = No Refrigeration Control

Digit 24 - Smoke Detector

0 = No Smoke Detector

Digit 25 - Monitoring Controls

0 = No Monitoring Control

1 = Clogged Filter Switch

2 = Fan Failure Switch

3 = DischargeAir Sensing Tube

4 = Clogged Filter Switch and Fan Fail

Switch

5 = Clogged Filter Switch and Discharge

Air Sensing Tube

6 = Fan Fail Switch and Discharge Air

Sensing Tube

7 = Clogged Filter and Fan Fail Switches

and Discharge Air Sensing Tube

13RT-PRC017-EN

General Data

T

able GD-1 — General Data

Convertible Units Convertible Units Convertible Units Convertible Units Convertible Units

YSC060AD YSC072AD YSC090AD YSC102AD YSC120AD

Cooling Performance

1

Gross Capacity - kW (MBh) 18.2 (62.0) 23.2 (79.0) 26.7 (91.0) 31.1 (106.0) 34.9 (119.0)

COP (EER)

2

2.99 (10.2) 3.08 (10.5) 3.02 (10.3) 3.02 (10.3) 2.99 (10.2)

Nominal Airflow - m

3

/h (cfm) 3400 (2000) 4080 (2400) 5100 (3000) 5780 (3400) 6800 (4000)

Rated Airflow - m

3

/h (cfm) 3400 (2000) 3570 (2100) 4460 (2625) 5100 (3000) 5950 (3500)

Net Capacity - kW (MBh) 17.3 (59.0) 22.0 (75.0) 25.2 (86.0) 29.9 (102.0) 33.1 (113.0)

System Power - kW 5.78 7.14 8.35 9.9 11.08

Heating Performance

3

Heating Models Low - G80 High - G120 Low - G120 High G-200 Low - G120 High G-200 Low - G150 High G-250 Low - G150 High G-250

Heating Input - kW (MBH) 19.6 (67) 29.3 (100) 29.3 (100) 48.9 (167) 29.3 (100) 48.9 (167) 36.7 (125) 60.9 (208) 36.7 (125) 60.9 (208)

Heating Output - kW (MBH) 15.7 (54) 23.4 (80) 23.4 (80) 39.1 (134) 23.4 (80) 39.1 (134) 29.3 (100) 48.7 (166) 29.3 (100) 48.7 (166)

Steady State Efficiency % 90 90 90 90 90 90 90 90 90 90

No. Burners 2 3 3 4 3 4 3 5 3 5

No. Stages 1 1 1 2 1 2 2 2 2 2

Gas Connection Pipe Size - in. 3/4 NPT 3/4 NPT 3/4 NPT 3/4 NPT 3/4 NPT 3/4 NPT 3/4 NPT 3/4 NPT 3/4 NPT 3/4 NPT

Compressor

Number - Type 1-Climatuff Scroll 1-Trane 3-D Scroll 1-Trane 3-D Scroll 2-Climatuff Scroll 2-Climatuff Scroll

Outdoor Sound Rating dB

4

80 85 85 83 79

Outdoor Coil - Type Lanced Lanced Lanced Lanced Lanced

Tube Size in. OD 0.3125 0.3125 0.3125 0.3125 0.3125

Face Area - m

2

(sq ft) 1.02 (10.96) 1.29 (13.88) 1.29 (13.88) 1.75 (18.89) 2.41 (25.92)

Rows / FPI 3 / 17 2 / 17 2 / 17 2 / 17 2 / 17

Indoor Coil - Type Lanced Lanced Lanced Lanced Lanced

Tube Size OD - in. 0.3125 0.3125 0.3125 0.3125 0.3125

Face Area - m

2

(sq ft) 0.62 (6.68) 0.92 (9.89) 0.92 (9.89) 1.15 (12.36) 1.15 (12.36)

Rows / FPI 3 / 16 2 / 16 3 / 16 3 / 16 4 / 16

Refrigerant Control Short Orifice Short Orifice Short Orifice Short Orifice Short Orifice

Drain Connection No. / Size - in. 1 / 0.75 NPT 1 / 0.75 NPT 1 / 0.75 NPT 1 / 0.75 NPT 1 / 0.75 NPT

Outdoor Fan - Type Propeller Propeller Propeller Propeller Propeller

No. Used / Diameter - in. 1 / 22 1 / 26 1 / 26 1 / 26 1 / 26

Drive Type / No. Speeds Direct / 1 Direct / 1 Direct / 1 Direct / 1 Direct / 1

CFM 2900 5100 5200 5500 5800

No. Motors / kW (HP) 1 / 0.30 (0.40) 1 / .56 (0.75) 1 / .56 (0.75) 1 / .56 (0.75) 1 / .56 (0.75)

Motor RPM 950 950 950 950 950

Belt Drive Indoor Fan - Type FC Centrifugal FC Centrifugal FC Centrifugal FC Centrifugal FC Centrifugal

No. Used 1 1 1 1 1

Fan Diameter x Width - mm (in.) 280 X 280 (11 x 11) 305 X 305 (12 x 12) 305 X 305 (12 x 12) 381 X 381 (15 x 15) 381 X 381 (15 x 15)

Drvie Type / No. Speeds Belt / Variable Speed Belt / Variable Speed Belt / Variable Speed Belt / Variable Speed Belt / Variable Speed

No. Motors 1 1 1 1 1

Standard Motor Power - kW (HP) 1.1 (1.5) 1.1 (1.5) 1.5 (2.0) 1.5 (2.0) 2.2 (3.0)

Oversized Motor Power - kW (HP) - 1.5 (2.0) 2.2 (3.0) 2.2 (3.0) -

Motor RPM - Standard / Oversized 1450 / - 1450 / 1450 1450 / 2850 1450 / 2850 2850 / -

Motor Frame Size 56 56 56 56 56

Filters - Type Furnished Throwaway Throwaway Throwaway Throwaway Throwaway

(No.) Size Reccommended - mm (2) 508 X 762 X 25 (4) 406 X 635 X 50 (4) 406 X 635 X 50 (4) 508 X 635 X 50 (4) 508 X 635 X 50

(No.) Size Reccommended - in. (2) 20 X 30 X 1 (4) 16 X 25 X 2 (4) 16 X 25 X 2 (4) 20 X 25 X 2 (4) 20 X 25 X 2

Refrigerant Charge - kg (lbs) of R-22

5

3.7 (8.2) 3.7 (8.2) 4.5 (10.0) Circuit 1 - 3.8 (8.3) Circuit 1 - 3.4 (7.5)

Circuit 2 - 2.0 (4.4) Circuit 2 - 3.3 (7.3)

Notes:

1. Cooling Performance is rated at 35.0 C (95 F) ambient, 26.7 C (80 F) entering dry bulb, 19.4 C (67 F) entering wet bulb. Gross capacity does not include the effect of fan motor

heat. Net capacity includes the effect of fan motor heat. Units are suitable for operation to ± 20 % of nominal airflow.

2. EER are rated at ARI conditions.

3. Heating Performance limit settings and rating data were established and approved under laboratory test conditions using American National Standards Institute standards.

Ratings shown are for elevations up to 2000 feet. For elevations above 2000 feet, ratings should be reduced at the rate of 4% for each 1000 feet above sea level.

4. Outdoor Sound rating shown is tested in accordance with ARI Standard 270. For more information refer to Performance Data Table "Sound Power Level".

5. Refrigerant charge is an approcimate value. For a more precise value, see unit nameplate and service literature.

RT-PRC017-EN14

Performance

Data

Table PD-1 — Gross Cooling Capacities (kW) - YSC060AD - (SI)

Ambient Temperature (C)

Enter. 30 35 40 45

Dry

Bulb Entering Wet Bulb Temperature (C)

m3/h Temp 16 19 22 16 19 22 16 19 22 16 19 22

Airflow (C) TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC

24 16.2 13.9 18.5 11.3 19.9 8.3 15.0 13.3 17.4 11.3 19.3 8.0 13.9 12.7 16.1 10.7 18.4 7.5 12.7 12.1 14.7 9.5 17.3 7.0

3060 27 16.7 16.7 18.6 14.1 20.0 11.1 15.8 15.8 17.4 13.6 19.4 10.8 14.8 14.8 16.1 13.0 18.5 10.3 13.8 13.8 14.7 12.3 17.3 9.8

30 18.1 18.1 18.7 16.9 20.2 13.6 17.2 17.2 17.7 16.5 19.5 13.5 16.2 16.2 16.5 15.9 18.5 13.1 15.1 15.1 15.1 15.1 17.3 12.6

33 19.3 19.3 19.2 19.2 20.3 16.2 18.5 18.5 18.5 18.5 19.6 16.1 17.6 17.6 17.6 17.6 18.7 15.9 16.6 16.6 16.6 16.6 17.5 15.4

24 16.7 14.8 18.8 11.8 20.1 8.6 15.5 14.2 17.8 11.3 19.5 8.3 14.2 13.5 16.5 11.4 18.7 7.7 13.1 12.9 15.0 10.8 17.6 7.2

3400 27 17.5 17.5 18.9 14.9 20.2 11.4 16.5 16.5 17.8 14.4 19.6 11.2 15.4 15.4 16.5 13.8 18.8 10.8 14.4 14.4 15.1 13.1 17.6 10.3

30 18.8 18.8 19.1 17.9 20.4 14.1 17.9 17.9 18.2 17.6 19.7 14.1 16.9 16.9 17.0 17.0 18.8 13.8 15.8 15.8 15.8 15.8 17.7 13.4

33 19.8 19.8 19.8 19.8 20.6 16.8 19.2 19.2 19.2 19.2 19.9 16.9 18.3 18.3 18.3 18.3 19.0 16.8 17.4 17.4 17.4 17.4 17.9 16.4

24 17.1 15.6 19.1 12.3 20.2 8.8 15.9 15.0 18.1 11.8 19.7 8.5 14.6 14.3 16.8 11.2 18.9 7.9 13.4 13.4 15.3 11.4 17.8 7.5

3740 27 18.1 18.1 19.2 15.5 20.4 11.6 17.1 17.1 18.2 15.1 19.8 11.5 16.0 16.0 16.9 14.6 19.0 11.3 14.9 14.9 15.4 13.9 17.9 10.8

30 19.3 19.3 19.5 18.7 20.6 14.5 18.5 18.5 18.6 18.6 20.0 14.6 17.6 17.6 17.6 17.6 19.1 14.4 16.5 16.5 16.5 16.5 17.9 14.1

33 20.2 20.2 20.2 20.2 20.8 17.4 19.6 19.6 19.6 19.6 20.2 17.6 18.9 18.9 18.9 18.9 19.3 17.6 18.0 18.0 18.0 18.0 18.3 17.4

24 17.4 16.4 19.3 12.6 20.3 9.1 16.2 15.8 18.4 12.2 19.8 8.8 14.9 14.9 17.1 11.7 19.0 8.1 13.9 13.9 15.5 12.1 18.0 7.7

4080 27 18.6 18.6 19.4 16.1 20.5 12.3 17.7 17.7 18.4 15.8 19.9 11.8 16.6 16.6 17.2 15.3 19.1 11.6 15.4 15.4 15.8 14.6 18.1 11.2

30 19.7 19.7 19.7 19.4 20.7 14.9 19.0 19.0 19.0 19.0 20.1 15.0 18.1 18.1 18.1 18.1 19.3 15.0 17.1 17.1 17.1 17.1 18.2 14.7

33 20.5 20.5 20.5 20.5 20.9 17.9 20.0 20.0 20.0 20.0 20.4 18.2 19.3 19.3 19.3 19.3 19.5 18.3 18.4 18.4 18.4 18.4 18.6 18.2

Notes:

1. All capacities shown are gross and have not considered indoor fan heat. To obtain net cooling, subtract indoor fan heat.

2. TGC = Total Gross Capacity

3. SHC = Sensible Heat Capacity

Table PD-1a

_

Gross Cooling Capacities (MBH)

_

YSC060AD

_

(IP)

Ambient Temperature (F)

Enter. 85 95 105 115

Dry

Bulb Entering Wet Bulb Temperature (F)

CFM Temp 61 67 73 61 67 73 61 67 73 61 67 73

Airflow (F) TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC

75 56.1 47.1 64.4 37.0 68.8 25.1 51.6 44.7 60.6 36.7 66.9 23.9 47.0 42.4 55.6 34.5 64.0 22.6 42.4 40.1 50.2 30.3 60.0 20.8

1800 80 57.3 56.5 64.6 45.8 69.3 34.2 53.3 53.3 60.7 43.9 67.3 32.9 49.5 49.5 55.7 41.6 64.2 31.4 45.7 45.7 50.4 39.2 60.1 29.6

85 61.3 61.3 64.9 54.5 69.7 42.0 57.7 57.7 61.0 52.9 67.6 41.4 53.9 53.9 56.3 50.7 64.4 40.3 50.0 50.0 51.2 48.3 60.2 38.4

90 65.0 65.0 65.8 63.3 70.4 49.7 62.1 62.1 62.4 62.2 68.0 49.7 58.5 58.5 58.5 58.5 64.6 48.8 54.4 54.4 54.4 54.4 60.3 47.2

75 57.5 49.8 65.4 38.5 69.3 25.5 53.0 47.5 61.8 38.7 67.5 24.4 48.3 45.1 56.9 36.6 64.7 23.0 43.7 42.8 51.3 34.2 60.9 21.4

2000 80 59.3 59.3 65.6 47.9 69.8 35.4 55.7 55.7 62.0 46.4 68.0 34.2 51.6 51.6 57.1 44.1 65.0 32.7 47.7 47.7 51.5 41.6 61.0 30.9

85 63.6 63.6 66.0 57.3 70.5 43.1 60.3 60.3 62.5 56.2 68.3 43.0 56.4 56.4 58.0 54.1 65.2 42.1 52.2 52.2 52.8 51.7 61.2 40.6

90 66.9 66.9 67.2 66.5 71.1 51.4 64.4 64.4 64.4 64.4 68.9 51.8 61.0 61.0 61.0 61.0 65.6 51.3 57.1 57.1 57.1 57.1 61.5 50.1

75 58.8 52.5 66.1 39.8 69.6 25.9 54.3 50.2 62.8 38.1 67.9 24.9 49.4 47.8 58.0 38.6 65.3 23.4 44.8 44.8 52.2 36.2 61.6 21.7

2200 80 61.5 61.5 66.4 49.8 70.3 36.8 57.8 57.8 63.0 48.6 68.3 35.0 53.6 53.6 58.2 46.5 65.6 33.9 49.4 49.4 52.6 44.0 61.8 32.2

85 65.4 65.4 67.0 59.8 71.0 44.6 62.4 62.4 63.7 59.2 69.0 44.3 58.7 58.7 59.4 57.4 66.0 43.8 54.3 54.3 54.3 54.3 62.0 42.5

90 68.4 68.4 68.4 68.4 71.7 52.8 66.1 66.1 66.1 66.1 69.6 53.6 63.1 63.1 63.0 63.0 66.4 53.6 59.3 59.3 59.3 59.3 62.4 52.7

75 60.0 55.1 66.6 40.8 70.0 26.4 55.5 52.8 63.6 39.6 68.3 25.3 50.6 50.4 59.0 37.4 65.7 24.0 46.2 46.2 53.1 38.2 62.2 22.1

2400 80 63.2 63.2 67.1 51.4 70.7 37.7 59.6 59.6 63.8 50.7 68.8 35.8 55.4 55.4 59.2 48.8 66.2 35.0 51.1 51.1 53.5 46.3 62.4 33.4

85 66.7 66.7 67.8 62.0 71.5 45.3 64.1 64.1 64.8 61.9 69.5 45.5 60.5 60.5 60.8 60.6 66.6 45.2 56.3 56.3 56.2 56.2 62.7 44.3

90 69.5 69.5 69.5 69.5 72.1 54.1 67.4 67.4 67.4 67.4 70.2 55.3 64.6 64.6 64.5 64.5 67.1 55.7 61.1 61.1 61.0 61.0 63.2 55.1

Notes:

1. All capacities shown are gross and have not considered indoor fan heat. To obtain net cooling, subtract indoor fan heat.

2. TGC = Total Gross Capacity

3. SHC = Sensible Heat Capacity

15RT-PRC017-EN

Table PD-2 - Gross Cooling Capacities (kW) - YSC072AD - (SI)

Ambient Temperature (C)

Enter. 30 35 40 45

Dry

Bulb Entering Wet Bulb Temperature (C)

m3/h Temp 16 19 22 16 19 22 16 19 22 16 19 22

Airflow (C) TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC

24 20.9 17.5 23.3 14.6 24.6 10.3 19.7 16.8 22.4 13.6 24.0 9.9 18.4 16.1 21.2 12.9 23.2 9.4 17.1 15.4 19.7 12.9 22.0 9.0

3670 27 21.6 21.2 23.4 17.4 24.8 13.5 20.4 20.4 22.5 17.0 24.1 13.3 19.4 19.4 21.2 16.4 23.3 12.8 18.2 18.2 19.8 15.7 22.1 12.3

30 22.9 22.9 23.6 20.6 25.0 16.5 22.1 22.1 22.7 20.4 24.3 16.3 21.0 21.0 21.5 19.9 23.5 16.1 19.9 19.9 20.2 19.2 22.2 15.6

33 24.0 24.0 24.1 23.8 25.2 19.4 23.4 23.4 23.3 23.3 24.5 19.3 22.5 22.5 22.4 22.4 23.6 19.3 21.4 21.4 21.4 21.4 22.3 18.8

24 21.5 18.5 23.6 15.2 24.8 10.6 20.3 17.9 22.8 14.2 24.2 10.1 19.0 17.2 21.6 13.6 23.4 9.8 17.6 16.4 20.1 12.9 22.3 9.3

4080 27 22.3 22.3 23.8 18.1 25.1 14.5 21.3 21.3 22.9 17.9 24.3 13.6 20.2 20.2 21.6 17.3 23.6 13.4 19.0 19.0 20.2 16.6 22.4 12.8

30 23.6 23.6 24.0 21.6 25.3 17.6 22.9 22.9 23.2 21.5 24.6 16.8 21.8 21.8 22.0 21.1 23.7 16.7 20.7 20.7 20.8 20.5 22.5 16.3

33 24.6 24.6 24.6 24.6 25.5 20.0 23.9 23.9 23.9 23.9 24.8 20.1 23.1 23.1 23.1 23.1 23.9 20.1 22.1 22.1 22.1 22.1 22.7 19.8

24 22.0 19.5 23.9 15.8 25.0 10.7 20.8 18.9 23.1 14.7 24.4 10.4 19.5 18.2 21.9 14.2 23.5 10.1 18.1 17.4 20.5 13.5 22.5 9.6

4490 27 22.9 22.9 24.0 18.7 25.3 13.9 22.1 22.1 23.2 18.6 24.5 13.9 20.9 20.9 22.0 18.2 23.7 13.6 19.7 19.7 20.6 17.6 22.6 13.3

30 24.1 24.1 24.3 22.4 25.5 17.4 23.4 23.4 23.5 22.4 24.8 17.3 22.5 22.5 22.5 22.2 23.9 17.2 21.3 21.3 21.3 21.3 22.8 17.0

33 25.0 25.0 25.0 25.0 25.7 20.7 24.4 24.4 24.4 24.4 25.1 20.8 23.7 23.7 23.7 23.7 24.2 20.8 22.6 22.6 22.6 22.6 23.1 20.7

24 22.4 20.3 24.1 16.3 25.2 10.9 21.2 19.8 23.2 15.1 24.5 10.7 19.9 19.1 22.2 14.7 23.6 10.3 18.5 18.4 20.8 14.0 22.7 9.9

4900 27 23.4 23.4 24.3 19.3 25.5 14.5 22.6 22.6 23.4 19.2 24.7 14.7 21.5 21.5 22.3 19.0 23.8 14.0 20.3 20.3 20.9 18.4 22.8 13.7

30 24.5 24.5 24.6 23.2 25.6 17.8 23.8 23.8 23.9 23.2 25.0 17.8 23.0 23.0 23.0 23.0 24.1 17.7 21.8 21.8 21.8 21.8 23.0 17.7

33 25.4 25.4 25.4 25.4 25.9 21.2 24.8 24.8 24.8 24.8 25.3 21.4 24.1 24.1 24.1 24.1 24.4 21.4 23.1 23.1 23.1 23.1 23.4 21.6

Notes:

1. All capacities shown are gross and have not considered indoor fan heat. To obtain net cooling, subtract indoor fan heat.

2. TGC = Total Gross Capacity

3. SHC = Sensible Heat Capacity

Performance

Data

Table PD-2a _ Gross Cooling Capacities (MBH) - YSC072AD - (IP)

Ambient Temperature (F)

Enter. 85 95 105 115

Dry

Bulb Entering Wet Bulb Temperature (F)

CFM Temp 61 67 73 61 67 73 61 67 73 61 67 73

Airflow (F) TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC

75 72.2 59.1 80.6 47.1 85.1 31.0 67.5 56.5 77.7 44.1 82.7 29.6 62.6 53.9 73.0 41.8 79.9 28.0 57.4 51.2 67.5 39.2 75.5 26.0

2160 80 73.8 70.7 81.0 56.1 85.8 42.2 69.4 68.2 77.9 55.0 83.4 40.7 65.0 65.0 73.1 52.6 80.4 39.0 60.6 60.6 67.6 50.0 75.8 36.8

85 77.7 77.7 81.4 66.3 86.3 51.7 74.3 74.3 78.2 65.6 83.8 50.1 70.3 70.3 73.6 63.5 80.7 49.2 66.0 66.0 68.3 61.0 76.1 47.4

90 81.3 81.3 82.4 76.3 87.1 59.8 78.8 78.8 79.4 76.0 84.6 59.4 75.1 75.1 75.3 74.6 81.3 59.0 70.8 70.8 70.7 70.7 76.6 57.4

75 74.2 62.5 81.6 49.2 85.7 31.5 69.3 59.9 78.7 46.0 83.4 30.1 64.4 57.3 74.2 43.7 80.2 28.5 59.1 54.6 68.9 41.1 76.3 26.6

2400 80 76.1 75.0 82.1 58.2 86.5 43.7 72.1 72.1 79.0 57.4 84.2 42.1 67.9 67.9 74.4 55.4 80.9 40.4 63.3 63.3 69.0 53.0 76.8 38.4

85 80.0 80.0 82.6 69.1 86.8 52.8 77.1 77.1 79.5 68.7 84.7 51.6 73.1 73.1 75.3 67.3 81.4 50.7 68.7 68.7 70.1 65.0 77.2 49.4

90 83.3 83.3 83.8 79.7 87.1 61.5 80.7 80.7 80.9 79.4 85.5 61.5 77.5 77.5 77.5 77.5 82.1 61.1 73.3 73.3 73.3 73.3 77.8 60.2

75 75.8 65.6 82.3 50.7 86.2 32.0 71.0 63.2 79.4 49.8 84.0 30.7 66.0 60.6 75.4 45.6 80.7 29.0 60.6 57.8 70.0 42.9 77.0 27.2

2640 80 78.1 78.1 82.9 60.1 87.2 44.1 74.6 74.6 79.8 59.4 84.7 44.3 70.3 70.3 75.6 58.1 81.2 41.3 65.7 65.7 70.1 55.7 77.6 39.8

85 81.7 81.7 83.6 71.6 88.2 54.0 79.1 79.1 80.5 71.3 85.4 53.6 75.4 75.4 76.6 70.7 82.0 52.1 70.9 70.9 71.6 68.7 78.1 51.3

90 84.8 84.8 85.0 82.5 89.1 62.3 82.3 82.3 82.3 82.3 86.1 61.2 79.4 79.4 79.4 79.4 82.8 63.0 75.2 75.2 75.2 75.2 78.7 62.8

75 77.0 68.3 82.9 52.2 86.6 32.5 72.5 66.4 80.0 51.4 84.5 31.2 67.5 63.7 76.2 47.1 81.2 29.5 62.1 61.0 70.8 44.7 77.6 27.8

2880 80 79.6 79.6 83.7 61.8 87.6 44.7 76.6 76.6 80.6 61.3 85.4 44.0 72.4 72.4 76.5 60.5 81.8 42.1 67.7 67.7 71.1 58.2 78.1 40.9

85 83.0 83.0 84.4 73.9 88.7 54.9 80.4 80.4 81.5 73.9 86.2 54.1 77.1 77.1 77.8 73.8 82.7 53.5 72.7 72.7 72.9 71.9 78.8 53.0

90 85.9 85.9 86.0 85.0 89.6 65.2 83.6 83.6 83.6 83.6 87.0 63.2 81.0 81.0 81.0 81.0 83.5 65.0 76.8 76.8 76.8 76.8 79.5 65.3

Notes:

1. All capacities shown are gross and have not considered indoor fan heat. To obtain net cooling, subtract indoor fan heat.

2. TGC = Total Gross Capacity

3. SHC = Sensible Heat Capacity

RT-PRC017-EN16

Performance

Data

Table PD-3 - Gross Cooling Capacities (kW) - YSC090AD - (SI)

Ambient Temperature (C)

Enter. 30 35 40 45

Dry

Bulb Entering Wet Bulb Temperature (C)

m3/h Temp 16 19 22 16 19 22 16 19 22 16 19 22

Airflow (C) TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC

24 24.5 21.6 26.9 17.1 28.1 12.0 22.7 20.6 25.8 16.3 27.7 11.5 20.8 19.6 24.1 15.4 26.8 11.0 19.0 18.7 22.0 14.8 25.6 10.3

4590 27 25.4 25.4 27.1 21.1 28.5 15.9 24.1 24.1 25.9 20.8 27.8 15.9 22.5 22.5 24.3 20.0 27.0 15.5 20.9 20.9 22.2 19.0 25.7 14.8

30 27.0 27.0 27.4 25.3 28.7 19.5 26.0 26.0 26.4 25.3 28.1 19.7 24.8 24.8 25.0 24.8 27.1 19.6 23.2 23.2 23.1 23.1 25.8 19.2

33 28.1 28.1 28.1 28.1 29.0 23.3 27.5 27.5 27.5 27.5 28.4 23.6 26.5 26.5 26.5 26.5 27.4 23.9 25.3 25.3 25.3 25.3 26.1 23.6

24 25.1 23.0 27.2 18.1 28.4 12.4 23.4 22.1 26.2 17.1 27.8 11.9 21.4 21.1 24.6 16.8 27.1 11.3 19.7 19.7 22.5 15.3 25.9 10.7

5100 27 26.3 26.3 27.4 22.0 28.6 16.3 25.1 25.1 26.4 22.0 28.0 16.2 23.6 23.6 24.9 21.4 27.2 16.0 21.9 21.9 22.8 20.4 26.0 15.6

30 27.6 27.6 27.8 26.4 29.0 20.2 26.8 26.8 27.0 26.8 28.3 20.4 25.7 25.7 25.7 25.7 27.4 20.6 24.3 24.3 24.3 24.3 26.2 20.4

33 28.6 28.6 28.6 28.6 29.3 24.1 28.1 28.1 28.1 28.1 28.7 24.6 27.3 27.3 27.3 27.3 27.8 25.0 26.2 26.2 26.2 26.2 26.6 25.1

24 25.6 24.2 27.4 18.4 28.4 12.5 24.0 23.5 26.5 18.3 28.0 12.2 22.0 22.0 25.1 17.1 27.3 11.7 20.4 20.4 22.9 16.2 26.2 11.1

5610 27 26.9 26.9 27.7 22.8 28.8 16.5 25.9 25.9 26.8 23.0 28.3 16.7 24.5 24.5 25.4 22.7 27.4 16.5 22.8 22.8 23.5 21.8 26.3 16.3

30 28.0 28.0 28.1 27.3 29.1 20.6 27.4 27.4 27.4 27.4 28.7 21.2 26.5 26.5 26.4 26.4 27.7 21.4 25.2 25.2 25.2 25.2 26.5 21.4

33 28.9 28.9 28.9 28.9 29.5 24.7 28.5 28.5 28.5 28.5 29.1 25.6 27.8 27.8 27.8 27.8 28.1 26.0 26.8 26.8 26.8 26.8 27.0 26.3

24 26.1 25.4 27.6 18.5 28.5 12.7 24.5 24.5 26.7 19.1 28.1 12.5 22.8 22.8 25.4 18.0 27.4 12.0 21.1 21.1 23.4 17.0 26.3 11.4

6120 27 27.3 27.3 27.9 23.4 28.9 16.8 26.5 26.5 27.1 23.9 28.5 17.1 25.3 25.3 25.8 23.8 27.7 17.0 23.6 23.6 24.1 23.1 26.5 16.9

30 28.3 28.3 28.4 28.1 29.2 21.0 27.8 27.8 27.8 27.8 28.8 21.8 27.0 27.0 27.0 27.0 27.9 22.1 25.8 25.8 25.8 25.8 26.8 22.3

33 29.1 29.1 29.1 29.1 29.6 25.2 28.8 28.8 28.8 28.8 29.3 26.4 28.2 28.2 28.2 28.2 28.4 26.9 27.3 27.3 27.3 27.3 27.4 27.4

Notes:

1. All capacities shown are gross and have not considered indoor fan heat. To obtain net cooling, subtract indoor fan heat.

2. TGC = Total Gross Capacity

3. SHC = Sensible Heat Capacity

Table PD-3a - Gross Cooling Capacities (MBH) - YSC090AD - (IP)

Ambient Temperature (F)

Enter. 85 95 105 115

Dry

Bulb Entering Wet Bulb Temperature (F)

CFM Temp 61 67 73 61 67 73 61 67 73 61 67 73

Airflow (F) TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC

75 84.4 72.7 92.7 55.2 96.6 35.6 77.7 69.1 89.4 52.6 95.2 34.0 70.4 65.4 83.4 50.6 92.5 32.0 63.7 61.9 75.3 46.9 88.2 29.8

2700 80 86.5 86.5 93.3 67.5 97.8 48.9 81.2 81.2 89.6 66.8 96.2 48.4 75.1 75.1 83.8 64.0 93.1 46.6 69.4 69.4 75.8 60.3 88.5 44.1

85 91.5 91.5 94.2 80.6 98.9 59.9 87.7 87.7 90.6 80.8 97.2 60.5 82.5 82.5 85.1 78.8 93.5 59.5 76.4 76.4 77.7 75.2 88.8 58.1

90 95.1 95.1 95.7 93.2 100.0 71.0 92.6 92.6 92.5 92.5 97.5 71.8 88.7 88.7 88.7 88.7 94.3 72.6 83.7 83.7 83.6 83.6 89.5 71.8

75 86.5 77.3 93.5 56.9 97.1 36.1 80.0 73.9 90.6 56.4 95.8 34.6 72.6 70.1 85.2 52.3 93.2 32.7 65.6 65.6 76.9 49.9 89.1 30.5

3000 80 89.4 89.4 94.3 70.0 98.3 52.8 84.9 84.9 91.0 70.2 96.9 49.4 78.8 78.8 85.6 68.2 93.9 48.9 72.7 72.7 77.8 64.5 89.6 46.3

85 93.6 93.6 95.4 83.8 99.4 61.1 90.6 90.6 92.2 85.2 98.0 62.3 86.1 86.1 87.3 84.2 94.5 61.9 80.1 80.1 80.1 80.1 90.0 61.2

90 96.8 96.8 97.0 96.7 100.5 72.8 94.8 94.8 94.8 94.8 99.0 75.4 91.5 91.5 91.4 91.4 95.4 75.8 87.0 87.0 87.0 87.0 90.9 75.9

75 88.1 81.3 94.3 59.1 97.5 36.7 82.1 78.5 91.4 58.6 96.2 35.2 74.1 74.1 86.4 54.8 93.7 33.4 68.1 68.1 78.5 51.2 89.8 31.2

3300 80 91.4 91.4 95.1 72.1 98.7 50.2 87.6 87.6 92.1 73.3 97.4 50.3 82.2 82.2 87.1 72.0 94.5 49.7 75.6 75.6 79.7 68.7 90.4 48.3

85 95.1 95.1 96.2 86.6 99.8 62.1 92.7 92.7 93.6 89.0 98.5 63.8 88.8 88.8 89.2 89.1 95.2 64.0 83.5 83.5 83.5 83.5 90.9 63.9

90 97.9 97.9 97.9 97.9 101.0 74.3 96.4 96.4 96.3 96.3 99.7 77.5 93.5 93.5 93.5 93.5 96.3 78.6 89.4 89.4 89.4 89.4 92.1 79.5

75 89.5 85.0 95.1 60.6 97.8 37.2 84.0 83.1 92.2 60.7 96.6 35.7 76.7 76.7 87.5 57.3 94.1 34.0 70.4 70.4 80.0 53.8 90.4 31.9

3600 80 92.9 92.9 95.6 74.0 99.0 50.8 89.7 89.7 93.0 76.0 97.8 51.0 84.8 84.8 88.3 75.6 95.2 50.9 78.1 78.1 81.6 72.8 90.9 49.5

85 96.2 96.2 96.9 88.9 100.2 63.1 94.2 94.2 94.7 92.3 99.0 65.1 90.7 90.7 90.7 90.7 95.8 65.8 86.0 86.0 86.0 86.0 91.7 66.3

90 98.7 98.7 98.7 98.7 101.3 75.7 97.5 97.5 97.5 97.5 100.1 79.4 94.9 94.9 94.9 94.9 97.0 81.1 91.2 91.2 91.2 91.2 93.0 82.7

NOTES:

1. All capacities shown are gross and have not considered indoor fan heat. To obtain net cooling, subtract indoor fan heat.

2. TGC = Total Gross Capacity

3. SHC = Sensible Heat Capacity

17RT-PRC017-EN

Performance

Data

Table PD-4a - Gross Cooling Capacities (MBH) - YSC102AD - (IP)

Ambient Temperature (F)

Enter. 85 95 105 115

Dry

Bulb Entering Wet Bulb Temperature (F)

CFM Temp 61 67 73 61 67 73 61 67 73 61 67 73

Airflow (F) TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC

75 96.7 81.9 109.1 63.4 115.0 42.2 89.1 78.1 104.0 60.7 112.1 40.4 81.2 74.1 96.3 59.2 107.9 38.3 73.7 70.3 87.0 55.2 102.4 35.8

3060 80 98.2 98.2 109.4 78.3 116.1 58.1 92.7 90.8 104.2 76.3 113.0 56.2 85.7 85.2 96.6 72.9 108.5 53.9 79.3 79.3 87.4 68.8 102.7 51.3

85 105.0 105.0 110.2 93.1 117.3 70.8 100.0 100.0 105.0 91.8 113.6 70.4 93.6 93.6 98.0 88.8 108.9 68.7 86.8 86.8 89.2 84.7 103.1 66.7

90 110.4 110.4 111.6 107.4 118.0 84.0 106.5 106.5 106.4 106.4 114.4 83.5 101.4 101.4 101.7 99.6 109.6 83.1 94.8 94.8 94.9 94.6 103.5 81.6

75 99.3 87.0 110.2 65.9 115.6 42.9 91.8 83.2 105.8 63.7 112.9 41.1 83.6 79.1 98.7 60.6 108.8 39.0 75.2 75.2 89.0 58.6 103.4 36.5

3400 80 102.5 100.4 110.9 81.6 116.9 59.2 96.7 95.9 106.0 80.4 113.8 58.8 89.7 89.7 99.0 77.4 109.6 56.1 82.9 82.9 89.7 73.3 103.9 53.5

85 108.4 108.4 111.9 97.4 118.2 72.7 104.1 104.1 107.2 97.0 114.6 72.7 98.2 98.2 100.8 94.9 110.1 71.5 91.0 91.0 91.0 91.0 104.2 70.0

90 113.2 113.2 113.1 113.1 119.5 86.5 109.7 109.7 109.9 107.6 115.6 86.6 105.1 105.1 105.1 104.4 111.0 86.9 99.4 99.4 99.2 99.2 105.1 86.0

75 101.6 91.8 111.3 67.8 116.2 43.6 94.3 88.2 107.1 66.5 113.5 41.8 84.7 84.7 100.4 63.0 109.5 39.6 78.4 76.4 90.9 59.0 104.2 37.1

3740 80 105.4 104.4 112.1 84.5 117.6 60.0 100.3 100.3 107.4 84.0 114.7 59.4 93.4 93.4 100.9 81.6 110.0 57.9 86.1 86.1 91.7 77.7 104.8 55.6

85 111.0 111.0 113.3 101.2 118.9 74.2 107.0 107.0 108.9 101.7 116.0 74.8 101.8 101.8 101.8 101.8 111.2 73.8 94.9 94.9 94.9 94.9 105.3 72.9

90 115.2 115.2 115.2 115.2 120.3 88.6 112.1 112.1 112.1 111.1 116.5 89.3 107.8 107.8 107.7 107.7 112.1 90.2 102.6 102.6 102.6 102.6 106.4 90.0

75 103.5 96.3 112.1 69.5 116.6 43.8 94.9 94.9 107.9 68.7 114.0 42.5 87.5 87.5 101.8 65.6 110.0 40.3 80.7 79.5 92.4 61.7 104.8 37.8

4080 80 107.9 107.9 113.0 87.1 118.1 60.8 103.1 103.1 108.6 87.3 115.3 60.3 96.8 96.8 102.5 85.6 110.7 59.5 89.1 89.1 93.7 82.0 105.4 57.5

85 112.9 112.9 114.4 104.5 119.5 75.5 109.3 109.3 110.4 105.7 116.7 76.5 104.5 104.5 104.5 104.5 111.9 76.7 98.2 98.2 98.6 96.7 106.2 75.5

90 116.7 116.7 116.7 116.7 120.9 90.6 113.9 113.9 113.8 113.8 117.9 92.9 109.9 109.9 109.8 109.8 113.0 93.2 104.9 104.9 104.9 104.9 107.5 93.5

Notes:

1. All capacities shown are gross and have not considered indoor fan heat. To obtain net cooling, subtract indoor fan heat.

2. TGC = Total Gross Capacity

3. SHC = Sensible Heat Capacity

Table PD-4 - Gross Cooling Capacities (kW) - YSC102AD - (SI)

Ambient Temperature (C)

Enter. 30 35 40 45

Dry

Bulb Entering Wet Bulb Temperature (C)

m3/h Temp 16 19 22 16 19 22 16 19 22 16 19 22

Airflow (C) TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC

24 28.0 24.3 31.5 19.5 33.4 14.1 26.0 23.3 30.0 18.7 32.5 13.5 23.9 22.2 27.8 17.7 31.3 12.9 21.6 21.6 25.4 17.3 29.7 12.2

5200 27 29.0 28.4 31.6 24.3 33.6 18.7 27.4 27.1 30.1 23.6 32.7 18.5 25.6 25.6 28.0 22.7 31.4 17.8 23.9 23.9 25.6 21.6 29.8 17.1

30 31.0 31.0 31.9 29.0 33.9 23.0 29.7 29.7 30.5 28.6 32.9 22.8 28.1 28.1 28.1 28.1 31.5 22.5 26.3 26.3 26.5 25.7 29.9 22.0

33 32.6 32.6 32.7 32.1 34.1 27.3 31.6 31.6 31.6 31.4 33.2 27.3 30.4 30.4 30.3 30.3 31.8 27.2 28.9 28.9 28.8 28.8 30.2 26.8

24 28.8 25.8 31.9 20.4 33.6 14.4 26.8 24.8 30.5 19.6 32.8 13.9 24.2 24.2 28.5 18.7 31.6 13.4 22.5 22.5 26.0 17.6 30.1 12.6

5780 27 30.1 29.8 32.1 25.4 34.0 19.2 28.6 28.6 30.7 25.0 32.9 19.1 26.8 26.8 28.8 24.2 31.7 18.6 25.0 25.0 26.3 23.1 30.2 17.9

30 32.0 32.0 32.5 30.5 34.2 23.7 30.9 30.9 30.9 30.9 33.2 23.7 29.4 29.4 29.4 29.4 31.9 23.6 27.6 27.6 27.7 27.2 30.3 23.2

33 33.4 33.4 33.4 33.2 34.5 28.1 32.6 32.6 32.5 32.5 33.6 28.5 31.4 31.4 31.4 31.4 32.3 28.5 30.0 30.0 30.0 30.0 30.8 28.3

24 29.5 27.3 32.2 21.1 33.8 14.7 27.6 26.3 31.0 20.5 33.0 14.4 25.1 25.1 29.1 19.6 31.8 13.8 23.5 22.9 26.5 18.5 30.4 12.9

6360 27 31.0 31.0 32.5 26.5 34.2 19.7 29.7 29.7 31.2 26.3 33.3 19.5 27.9 27.9 29.4 25.6 32.0 19.2 26.0 26.0 27.0 24.5 30.5 18.7

30 32.7 32.7 33.0 31.7 34.6 24.5 31.7 31.7 31.7 31.7 33.6 24.6 30.4 30.4 30.5 29.9 32.3 24.5 28.8 28.8 28.8 28.6 30.7 24.3

33 34.0 34.0 34.0 34.0 34.8 28.9 33.2 33.2 33.2 33.2 33.9 29.5 32.1 32.1 32.1 32.1 32.7 29.7 30.9 30.9 30.9 30.9 31.3 29.7

24 30.1 28.7 32.5 21.7 33.9 15.1 27.9 27.9 31.3 21.4 33.1 14.7 26.0 26.0 29.3 20.4 32.2 14.2 24.2 23.9 27.0 19.4 30.6 13.3

6940 27 31.7 31.7 32.8 27.4 34.4 20.0 30.5 30.5 31.6 27.4 33.4 20.0 28.8 28.8 29.8 26.9 32.3 19.7 26.9 26.9 27.6 25.9 30.7 19.4

30 33.2 33.2 33.2 33.2 34.8 25.0 32.3 32.3 32.4 31.7 33.7 25.2 31.2 31.2 31.2 30.9 32.6 25.4 29.7 29.7 29.7 29.7 31.0 25.3

33 34.4 34.4 34.4 34.4 35.2 30.0 33.7 33.7 33.7 33.7 34.2 30.4 32.9 32.9 32.9 32.9 33.1 30.8 31.5 31.5 31.5 31.5 31.4 31.4

Notes:

1. All capacities shown are gross and have not considered indoor fan heat. To obtain net cooling, subtract indoor fan heat.

2. TGC = Total Gross Capacity

3. SHC = Sensible Heat Capacity

RT-PRC017-EN18

Performance

Data

Table PD-5 - Gross Cooling Capacities (kW) - YSC120AD - (SI)

Ambient Temperature (C)

Enter. 30 35 40 45

Dry

Bulb Entering Wet Bulb Temperature (C)

m3/h Temp 16 19 22 16 19 22 16 19 22 16 19 22

Airflow (C) TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC

24 31.9 28.6 35.3 22.8 37.2 15.9 29.6 27.4 33.6 21.7 36.5 15.4 27.1 26.2 31.0 20.5 35.2 14.8 24.6 24.6 28.4 19.9 33.2 14.0

6120 27 33.4 33.4 35.5 28.2 37.7 21.4 31.6 31.6 33.9 27.8 36.7 21.4 29.5 29.5 31.3 26.6 35.3 20.7 27.5 27.5 28.9 25.5 33.3 19.9

30 35.5 35.5 36.0 33.8 38.1 26.5 34.2 34.2 34.5 33.8 37.0 26.7 32.3 32.3 32.2 32.2 35.5 26.6 30.4 30.4 30.4 30.4 33.4 25.9

33 37.1 37.1 37.1 37.1 38.5 31.6 36.2 36.2 36.2 36.2 37.3 31.9 34.8 34.8 34.8 34.8 35.9 32.3 33.2 33.2 33.2 33.2 34.0 31.8

24 32.7 30.4 35.7 23.8 37.5 16.3 30.5 29.3 34.2 22.8 36.8 15.9 27.8 27.8 31.9 21.8 35.5 15.3 25.7 25.7 29.0 21.2 33.7 14.5

6800 27 34.5 34.5 36.0 29.5 38.0 21.9 32.9 32.9 34.5 29.4 37.0 22.0 30.9 30.9 32.3 28.5 35.7 21.7 28.7 28.7 29.7 27.4 33.8 21.0

30 36.3 36.3 36.6 35.4 38.4 27.4 35.3 35.3 35.3 35.3 37.3 27.6 33.7 33.7 33.7 33.7 35.9 27.8 31.8 31.8 31.7 31.7 34.0 27.5

33 37.9 37.9 37.8 37.8 38.9 32.8 37.0 37.0 37.0 37.0 37.8 33.3 35.9 35.9 35.9 35.9 36.5 33.9 34.4 34.4 34.4 34.4 34.7 33.8

24 33.5 32.2 36.0 24.7 37.8 16.9 31.1 31.1 34.7 23.9 37.0 16.3 28.9 28.9 32.4 22.9 35.8 15.7 26.6 26.6 29.6 22.5 34.1 14.9

7480 27 35.3 35.3 36.4 30.6 38.2 22.4 34.0 34.0 35.0 30.8 37.4 22.7 32.0 32.0 33.0 30.2 36.0 22.5 29.9 29.9 30.5 29.1 34.2 22.0

30 37.0 37.0 37.0 37.0 38.7 28.1 36.1 36.1 36.1 36.1 37.9 28.9 34.7 34.7 34.7 34.7 36.4 29.1 32.9 32.9 32.9 32.9 34.5 29.0

33 38.4 38.4 38.3 38.3 39.2 33.7 37.7 37.7 37.7 37.7 38.4 34.9 36.7 36.7 36.7 36.7 37.0 35.4 35.3 35.3 35.3 35.3 35.3 35.3

24 33.9 33.9 36.3 24.9 37.9 17.3 32.0 32.0 35.0 25.6 37.5 16.1 29.8 29.8 32.8 23.9 36.1 16.2 27.5 27.5 29.8 23.6 34.4 15.3

8160 27 35.9 35.9 36.7 31.7 38.5 22.8 34.8 34.8 35.5 32.2 37.7 23.2 32.9 32.9 33.6 31.9 36.3 23.2 30.6 30.6 30.6 30.6 34.5 23.0

30 37.5 37.5 37.5 37.5 38.9 28.8 36.7 36.7 36.7 36.7 38.1 29.8 35.5 35.5 35.5 35.5 36.7 30.2 33.7 33.7 33.7 33.7 34.9 30.5

33 38.8 38.8 38.7 38.7 39.5 34.6 38.4 38.4 38.2 38.2 38.7 36.1 37.3 37.3 37.3 37.3 37.4 36.7 36.0 36.0 36.0 36.0 36.0 36.0

Notes:

1. All capacities shown are gross and have not considered indoor fan heat. To obtain net cooling, subtract indoor fan heat.

2. TGC = Total Gross Capacity

3. SHC = Sensible Heat Capacity

Table PD-5a - Gross Cooling Capacities (MBH) - YSC120AD - (IP)

Ambient Temperature (F)

Enter. 85 95 105 115

Dry

Bulb Entering Wet Bulb Temperature (F)

CFM Temp 61 67 73 61 67 73 61 67 73 61 67 73

Airflow (F) TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC

75 109.9 96.4 122.1 73.8 128.5 47.6 101.2 92.1 116.7 70.3 125.9 45.7 91.8 87.5 107.7 67.7 121.6 43.4 82.1 82.1 97.2 63.2 115.0 40.9

3600 80 113.5 113.5 122.6 90.4 129.9 65.7 106.6 106.6 117.1 89.2 127.2 65.0 99.0 99.0 108.4 85.4 122.2 62.4 91.0 91.0 98.2 81.0 115.2 59.7

85 120.2 120.2 123.8 108.0 131.3 80.9 115.2 115.2 118.5 107.9 127.8 81.5 108.1 108.1 110.5 104.9 122.6 80.6 100.3 100.3 100.3 100.3 115.4 78.4

90 125.4 125.4 125.4 125.4 132.7 96.3 121.8 121.8 121.8 121.8 128.7 97.3 116.4 116.4 116.4 116.4 123.6 98.2 109.2 109.2 109.2 109.2 116.4 97.0

75 112.7 102.4 123.1 75.6 129.3 48.4 104.2 98.3 118.5 73.6 126.9 46.6 93.7 93.7 109.9 70.9 122.7 44.3 85.6 85.6 99.3 67.2 116.5 41.9

4000 80 117.3 117.3 124.1 94.1 130.8 66.9 111.1 111.1 119.0 94.0 128.2 66.8 103.5 103.5 110.8 90.8 123.5 65.3 95.2 95.2 100.8 86.6 116.8 62.5

85 123.2 123.2 125.6 112.8 132.3 82.9 119.0 119.0 120.8 114.1 129.5 84.5 112.5 112.5 112.5 112.5 124.1 84.2 104.9 104.9 104.8 104.8 117.1 83.0

90 127.9 127.9 127.9 127.9 133.8 99.2 124.9 124.9 124.9 124.9 130.8 102.4 120.2 120.2 120.2 120.2 125.3 103.1 113.9 113.9 113.8 113.8 118.4 102.9

75 115.1 108.2 124.5 77.5 130.0 49.2 107.0 104.4 119.8 77.6 127.6 47.4 97.3 97.3 111.7 73.2 123.6 45.2 88.7 88.7 101.1 71.1 117.6 42.7

4400 80 120.1 120.1 125.3 97.3 131.6 67.9 114.9 114.9 120.6 98.4 129.0 68.2 107.3 107.3 112.9 96.1 124.5 68.1 98.9 98.9 103.1 92.0 118.0 65.1

85 125.5 125.5 127.0 116.9 133.1 84.7 121.9 121.9 122.8 119.6 130.5 87.0 116.4 116.4 116.3 116.3 125.3 88.0 108.7 108.7 108.7 108.7 118.4 87.0

90 130.0 130.0 129.7 129.7 134.7 101.8 127.3 127.3 127.2 127.2 131.9 105.9 123.0 123.0 123.0 123.0 126.7 107.5 117.2 117.2 117.2 117.2 120.2 108.4

75 117.1 113.2 125.5 81.7 130.6 50.0 108.8 108.8 120.8 80.6 128.3 48.2 100.5 100.5 113.2 76.3 124.3 46.1 91.6 91.6 102.7 72.1 118.5 43.6

4800 80 122.3 122.3 126.5 100.7 132.2 68.9 117.8 117.8 122.0 102.4 129.8 69.5 110.5 110.5 114.9 101.3 125.7 69.3 102.2 102.2 105.2 97.3 119.0 67.7

85 127.2 127.2 128.4 121.1 133.8 86.3 124.1 124.1 124.1 124.1 131.2 89.2 119.0 119.0 119.0 119.0 126.5 90.9 112.0 112.0 112.0 112.0 119.7 90.9

90 131.3 131.3 131.5 131.5 135.4 104.2 129.3 129.3 129.0 129.0 132.8 108.9 125.2 125.2 125.2 125.2 127.8 111.4 119.8 119.8 119.8 119.8 121.7 113.3

Notes:

1. All capacities shown are gross and have not considered indoor fan heat. To obtain net cooling, subtract indoor fan heat.

2. TGC = Total Gross Capacity

3. SHC = Sensible Heat Capacity

19RT-PRC017-EN

Performance

Data

Table PD-6 - Belt Drive Evaporator Fan Performance - YSC060AD*L - Low Heat - Downflow Configuration - (SI)

External Static Pressure (Pascals)

25 50 75 100 125 150 175 200 225 250

m3/h RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW

1.12 Nom kW Standard Motor & Low Static Drive 1.12 Nom kW Std Mtr & Drive

2720 716 0.28 768 0.32 816 0.36 863 0.39 909 0.44 953 0.50 993 0.55 1031 0.60 1067 0.65 1101 0.70

3060 791 0.38 840 0.43 884 0.47 927 0.51 969 0.56 1010 0.61 1049 0.67 1087 0.73 1122 0.79 1156 0.85

3400 867 0.51 914 0.56 955 0.61 994 0.66 1033 0.71 1070 0.76 1107 0.82 1143 0.88 1178 0.95 1212 1.02

3740 944 0.66 989 0.73 1027 0.78 1063 0.84 1099 0.89 1134 0.94 1168 0.99 1202 1.05 1235 1.12 1267 1.19

4080 1022 0.85 1064 0.92 1101 0.98 1135 1.04 1168 1.10 1200 1.16 1233 1.22 - - - - - -

Table PD-6a - Belt Drive Evaporator Fan Performance - YSC060AD*L - Low Heat - Downflow Configuration - (IP)

External Static Pressure (Inches of Water)

0.10 0.20 0.30 0.40 0.50 0.60 0.70 0.80 0.90 1.00

CFM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

1-1/2 HP Standard Motor & Low Static Drive 1-1/2 HP Std Motor & Drive

1600 716 0.37 768 0.43 816 0.48 863 0.53 909 0.60 953 0.67 993 0.74 1031 0.81 1067 0.87 1101 0.94

1800 791 0.51 840 0.57 884 0.63 927 0.69 969 0.75 1010 0.82 1049 0.90 1087 0.99 1122 1.06 1156 1.14

2000 867 0.68 914 0.76 955 0.82 994 0.89 1033 0.95 1070 1.02 1107 1.10 1143 1.18 1178 1.27 1212 1.36

2200 944 0.89 989 0.97 1027 1.05 1063 1.12 1099 1.19 1134 1.26 1168 1.33 1202 1.41 1235 1.51 1267 1.60

2400 1022 1.14 1064 1.23 1101 1.32 1135 1.40 1168 1.48 1200 1.55 1233 1.63 - - - - - -

Factory Supplied Motors, In Commercial Equipment, Are

Definite Purpose Motors, Specifically Designed And

Tested To Operate Reliably And Continuously At All

Cataloged Conditions. Using The Full Horsepower Range

Of Our Fan Motors As Shown In Our Tabular Data Will

Not Result In Nuisance Tripping Or Premature Motor

Failure. Our Product’s Warranty Will Not Be Affected.

External Static Pressure (Pascals)

275 300 325 350 375

m3/h RPM kW RPM kW RPM kW RPM kW RPM kW

1.12 Nom kW Standard Motor & Drive

2720 1135 0.75 1166 0.80 1198 0.85 1228 0.91 1258 0.96

3060 1188 0.90 1218 0.96 1249 1.01 1279 1.07 1307 1.13

3400 1244 1.08 1273 1.14 1303 1.20 1332 1.27 - -

3740 1300 1.27 - - - - - - - -

4080 - - - - - - - - - -

Notes:

Data Includes Pressure Drop Due To Wet Coils And Filters.

1.12 kW - Fan Motor Heat (kW) = 1.144 x Fan kW + 0.132

Factory Supplied Motors, In Commercial Equipment, Are

Definite Purpose Motors, Specifically Designed And

Tested To Operate Reliably And Continuously At All

Cataloged Conditions. Using The Full Horsepower Range

Of Our Fan Motors As Shown In Our Tabular Data Will

Not Result In Nuisance Tripping Or Premature Motor

Failure. Our Product’s Warranty Will Not Be Affected.

External Static Pressure (Inches of Water)

1.10 1.20 1.30 1.40 1.50

CFM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

1-1/2 HP Standard Motor & Drive

1600 1135 1.01 1166 1.07 1198 1.14 1228 1.22 1258 1.29

1800 1188 1.21 1218 1.28 1249 1.36 1279 1.44 1307 1.51

2000 1244 1.45 1273 1.53 1303 1.61 1332 1.70 - -

2200 1300 1.70 - - - - - - - -

2400 - - - - - - - - - -

Notes:

Data Includes Pressure Drop Due To Wet Coils And Filters.

1 1/2 HP - Fan Motor Heat (MBH) = 2.915 x Fan BHP + 0.451

RT-PRC017-EN20

Performance

Data

Table PD-7 - Belt Drive Evaporator Fan Performance - YSC060AD*L - Horizontal Configuration (SI)

External Static Pressure (Pascals)

25 50 75 100 125 150 175 200 225 250

m3/h RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW

1.12 Nom kW Std Motor & Low Static Drive 1.12 Nom kW Standard Motor & Drive

2720 788 0.33 850 0.38 911 0.44 964 0.49 1011 0.55 1055 0.61 1097 0.66 1137 0.72 1176 0.78 1213 0.84

3060 871 0.45 927 0.51 983 0.57 1035 0.64 1082 0.70 1124 0.76 1164 0.83 1201 0.89 1239 0.95 1275 1.02

3400 956 0.60 1006 0.67 1057 0.74 1106 0.81 1153 0.88 1195 0.95 1233 1.02 1270 1.09 1305 1.16 1339 1.23

3740 1042 0.78 1088 0.85 1133 0.93 1179 1.01 1224 1.09 1266 1.16 1305 1.24 1340 1.32 - - - -

4080 1129 1.00 1171 1.08 1213 1.16 1255 1.25 1296 1.33 - - --------

External Static Pressure (Pascals)

275 300 325 350 375

m3/h RPM kW RPM kW RPM kW RPM kW RPM kW

1.12 Nom kW Standard Motor & Drive

2720 1248 0.91 1282 0.97 1314 1.04 1344 1.11 1374 1.18

3060 1310 1.09 1344 1.16 - - - - - -

3400 1373 1.30 - - - - - - - -

3740 - - - - - - - - - -

4080 - - - - - - - - - -

Notes:

Data Includes Pressure Drop Due To Wet Coils And Filters.

1.12 kW - Fan Motor Heat (kW) = 1.144 x Fan kW + 0.132

Factory Supplied Motors, In Commercial Equipment, Are

Definite Purpose Motors, Specifically Designed And

Tested To Operate Reliably And Continuously At All

Cataloged Conditions. Using The Full Horsepower Range

Of Our Fan Motors As Shown In Our Tabular Data Will

Not Result In Nuisance Tripping Or Premature Motor

Failure. Our Product’s Warranty Will Not Be Affected.

Table PD-7a - Belt Drive Evaporator Fan Performance - YSC060AD*L - Horizontal Configuration - (IP)

External Static Pressure (Inches of Water)

0.10 0.20 0.30 0.40 0.50 0.60 0.70 0.80 0.90 1.00

CFM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

1-1/2 HP Standard Motor & Low Static Drive 1-1/2 HP Standard Motor & Drive

1600 788 0.44 850 0.51 911 0.59 964 0.66 1011 0.74 1055 0.81 1097 0.89 1137 0.97 1176 1.05 1213 1.13

1800 871 0.60 927 0.68 983 0.77 1035 0.85 1082 0.94 1124 1.02 1164 1.11 1201 1.19 1239 1.28 1275 1.37

2000 956 0.80 1006 0.89 1057 0.99 1106 1.08 1153 1.18 1195 1.27 1233 1.36 1270 1.46 1305 1.55 1339 1.65

2200 1042 1.05 1088 1.15 1133 1.25 1179 1.35 1224 1.46 1266 1.56 1305 1.66 1340 1.77 1375 - - -

2400 1129 1.34 1171 1.45 1213 1.56 1255 1.67 1296 1.78 - - --------

External Static Pressure (Inches of Water)

1.10 1.20 1.30 1.40 1.50

CFM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

1-1/2 HP Standard Motor & Drive

1600 1248 1.21 1282 1.30 1314 1.39 1344 1.48 1374 1.58

1800 1310 1.46 1344 1.55 - - - - - -

2000 1373 1.75 - - - - - - - -

2200 - - - - - - - - - -

2400 - - - - - - - - - -

Notes:

Data Includes Pressure Drop Due To Wet Coils And Filters.

1 1/2 HP - Fan Motor Heat (MBH) = 2.915 x Fan BHP + 0.451

Factory Supplied Motors, In Commercial Equipment, Are

Definite Purpose Motors, Specifically Designed And

Tested To Operate Reliably And Continuously At All

Cataloged Conditions. Using The Full Horsepower Range

Of Our Fan Motors As Shown In Our Tabular Data Will

Not Result In Nuisance Tripping Or Premature Motor

Failure. Our Product’s Warranty Will Not Be Affected.

21RT-PRC017-EN

Performance

Data

Table PD-8 - Belt Drive Evaporator Fan Performance - YSC060AD*H - High Heat - Downflow Configuration - (SI)

External Static Pressure (Pascals)

25 50 75 100 125 150 175 200 225 250

m3/h RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW

1.12 Nom kW Standard Motor & Low Static Drive 1.12 Nom kW Std Mtr & Drive

2720 734 0.29 784 0.33 833 0.37 879 0.41 924 0.46 967 0.52 1007 0.57 1043 0.62 1078 0.67 1113 0.72

3060 813 0.40 859 0.45 903 0.49 945 0.53 987 0.58 1027 0.64 1066 0.70 1103 0.76 1137 0.82 1169 0.87

3400 894 0.54 936 0.59 976 0.64 1014 0.69 1052 0.73 1089 0.79 1126 0.85 1162 0.92 1196 0.98 1229 1.05

3740 974 0.70 1014 0.76 1051 0.82 1087 0.87 1122 0.92 1156 0.98 1190 1.03 1224 1.10 1257 1.17 1288 1.24

4080 1055 0.90 1093 0.97 1127 1.03 1160 1.09 1193 1.15 1225 1.20 1256 1.26 1288 1.32 - - - -

External Static Pressure (Pascals)

275 300 325 350 375

m3/h RPM kW RPM kW RPM kW RPM kW RPM kW

1.12 Nom kW Standard Motor & Drive

2720 1145 0.77 1177 0.82 1208 0.87 1238 0.93 1268 0.98

3060 1202 0.93 1232 0.98 1262 1.04 1290 1.09 1319 1.15

3400 1260 1.11 1289 1.17 1319 1.24 1347 1.30 - -

3740 1320 1.32 - - - - - - - -

4080 - - - - - - - - - -

Notes:

Data Includes Pressure Drop Due To Wet Coils And Filters.

1.12 kW - Fan Motor Heat (kW) = 1.144 x Fan kW + 0.132

Factory Supplied Motors, In Commercial Equipment, Are

Definite Purpose Motors, Specifically Designed And

Tested To Operate Reliably And Continuously At All

Cataloged Conditions. Using The Full Horsepower Range

Of Our Fan Motors As Shown In Our Tabular Data Will

Not Result In Nuisance Tripping Or Premature Motor

Failure. Our Product’s Warranty Will Not Be Affected.

Table PD-8a - Belt Drive Evaporator Fan Performance - YSC060AD*H - High Heat - Downflow Configuration - (IP)

External Static Pressure (Inches of Water)

0.10 0.20 0.30 0.40 0.50 0.60 0.70 0.80 0.90 1.00

CFM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

1-1/2 HP Standard Motor & Low Static Drive 1-1/2 HP Std Motor & Drive

1600 734 0.39 784 0.44 833 0.49 879 0.55 924 0.62 967 0.69 1007 0.76 1043 0.83 1078 0.89 1113 0.96

1800 813 0.54 859 0.60 903 0.66 945 0.72 987 0.78 1027 0.86 1066 0.94 1103 1.02 1137 1.09 1169 1.17

2000 894 0.72 936 0.79 976 0.86 1014 0.92 1052 0.98 1089 1.06 1126 1.14 1162 1.23 1196 1.32 1229 1.41

2200 974 0.94 1014 1.02 1051 1.10 1087 1.17 1122 1.24 1156 1.31 1190 1.38 1224 1.47 1257 1.57 1288 1.67

2400 1055 1.21 1093 1.30 1127 1.38 1160 1.46 1193 1.54 1225 1.61 1256 1.69 1288 1.77 - - - -

External Static Pressure (Inches of Water)

1.10 1.20 1.30 1.40 1.50

CFM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

1-1/2 HP Standard Motor & Drive

1600 1145 1.03 1177 1.10 1208 1.17 1238 1.24 1268 1.31

1800 1202 1.24 1232 1.32 1262 1.39 1290 1.47 1319 1.55

2000 1260 1.49 1289 1.57 1319 1.66 1347 1.74 - -

2200 1320 1.77 - - - - - - - -

2400 - - - - - - - - - -

Notes:

Data Includes Pressure Drop Due To Wet Coils And Filters.

1 1/2 HP - Fan Motor Heat (MBH) = 2.915 x Fan BHP + 0.451

Factory Supplied Motors, In Commercial Equipment, Are

Definite Purpose Motors, Specifically Designed And

Tested To Operate Reliably And Continuously At All

Cataloged Conditions. Using The Full Horsepower Range

Of Our Fan Motors As Shown In Our Tabular Data Will

Not Result In Nuisance Tripping Or Premature Motor

Failure. Our Product’s Warranty Will Not Be Affected.

RT-PRC017-EN22

Performance

Data

Table PD-9 - Belt Drive Evaporator Fan Performance - YSC060AD*H - High Heat - Horizontal Configuration (SI)

External Static Pressure (Pascals)

25 50 75 100 125 150 175 200 225 250

m3/h RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW

1.12 Nom kW Std Motor & Low Static Drive 1.12 Nom kW Standard Motor & Drive

2720 809 0.34 871 0.40 930 0.46 980 0.51 1026 0.57 1069 0.63 1111 0.68 1151 0.74 1189 0.80 1225 0.87

3060 895 0.47 951 0.54 1006 0.60 1056 0.66 1100 0.73 1141 0.79 1180 0.85 1218 0.92 1255 0.98 1290 1.05

3400 983 0.63 1033 0.70 1083 0.77 1131 0.84 1176 0.91 1216 0.98 1253 1.05 1289 1.13 1323 1.20 1357 1.27

3740 1072 0.83 1117 0.90 1163 0.98 1209 1.06 1251 1.14 1292 1.21 1329 1.29 - - - - - -

4080 1161 1.06 1203 1.14 1245 1.23 1287 1.31 - - - - --------

External Static Pressure (Pascals)

275 300 325 350 375

m3/h RPM kW RPM kW RPM kW RPM kW RPM kW

1.12 Nom kW Standard Motor & Drive

2720 1260 0.93 1293 0.99 1324 1.06 1355 1.13 1383 1.20

3060 1324 1.12 1357 1.19 1390 1.26 - - - -

3400 - - - - - - - - - -

3740 - - - - - - - - - -

4080 - - - - - - - - - -

Notes:

Data Includes Pressure Drop Due To Wet Coils And Filters.

1.12 kW - Fan Motor Heat (kW) = 1.144 x Fan kW + 0.132

Factory Supplied Motors, In Commercial Equipment, Are

Definite Purpose Motors, Specifically Designed And

Tested To Operate Reliably And Continuously At All

Cataloged Conditions. Using The Full Horsepower Range

Of Our Fan Motors As Shown In Our Tabular Data Will

Not Result In Nuisance Tripping Or Premature Motor

Failure. Our Product’s Warranty Will Not Be Affected.

Table PD-9a - Belt Drive Evaporator Fan Performance - YSC060AD*H - High Heat - Horizontal Configuration - (IP)

External Static Pressure (Inches of Water)

0.10 0.20 0.30 0.40 0.50 0.60 0.70 0.80 0.90 1.00

CFM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

1-1/2 HP Standard Motor & Low Static Drive 1-1/2 HP Standard Motor & Drive

1600 809 0.46 871 0.54 930 0.61 980 0.69 1026 0.76 1069 0.84 1111 0.92 1151 1.00 1189 1.08 1225 1.16

1800 895 0.64 951 0.72 1006 0.81 1056 0.89 1100 0.97 1141 1.06 1180 1.14 1218 1.23 1255 1.32 1290 1.41

2000 983 0.85 1033 0.94 1083 1.04 1131 1.13 1176 1.23 1216 1.32 1253 1.41 1289 1.51 1323 1.60 1357 1.70

2200 1072 1.11 1117 1.21 1163 1.32 1209 1.42 1251 1.52 1292 1.63 1329 1.73 - - - - - -

2400 1161 1.42 1203 1.53 1245 1.64 1287 1.76 - - - - --------

External Static Pressure (Inches of Water)

1.10 1.20 1.30 1.40 1.50

CFM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

1-1/2 HP Standard Motor & Drive

1600 1260 1.24 1293 1.33 1324 1.42 1355 1.52 1383 1.60

1800 1324 1.50 1357 1.59 1390 1.69 - - - -

2000 - - - - - - - - - -

2200 - - - - - - - - - -

2400 - - - - - - - - - -

Notes:

Data Includes Pressure Drop Due To Wet Coils And Filters.

1 1/2 HP - Fan Motor Heat (MBH) = 2.915 x Fan BHP + 0.451 Factory Supplied Motors, In Commercial Equipment, Are

Definite Purpose Motors, Specifically Designed And

Tested To Operate Reliably And Continuously At All

Cataloged Conditions. Using The Full Horsepower Range

Of Our Fan Motors As Shown In Our Tabular Data Will

Not Result In Nuisance Tripping Or Premature Motor

Failure. Our Product’s Warranty Will Not Be Affected.

23RT-PRC017-EN

Performance

Data

Table PD-10 - Belt Drive Evaporator Fan Performance - YSC072AD*L - Low Heat - Downflow Configuration - (SI)

External Static Pressure (Pascals)

25 50 75 100 125 150 175 200 225 250

m3/h RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW

1.12 Nom kW Standard Motor & Low Static Drive 1.12 Nom kW Standard Motor & Drive

3260 - - 532 0.22 592 0.27 646 0.32 695 0.37 740 0.43 783 0.48 824 0.54 864 0.61 901 0.67

3670 - - 570 0.28 624 0.33 677 0.39 725 0.45 768 0.51 809 0.57 848 0.63 886 0.70 923 0.77

4080 556 0.30 610 0.36 659 0.41 707 0.48 755 0.55 798 0.61 838 0.67 876 0.74 912 0.81 947 0.88

4490 601 0.39 652 0.45 698 0.51 741 0.58 786 0.65 828 0.72 868 0.79 905 0.86 939 0.93 973 1.01

4890 646 0.49 694 0.57 737 0.62 778 0.69 818 0.77 859 0.85 898 0.93 936 1.00 970 1.08 1003 1.16

External Static Pressure (Pascals)

275 300 325 350 375

CFM RPM kW RPM kW RPM kW RPM kW RPM kW

1.12 Nom kW Std Motor 1.12 Nom kW Standard Motor

& Drive & Hi Static Drive

3260 937 0.73 970 0.79 1004 0.85 1036 0.91 1067 0.97

3670 957 0.83 992 0.90 1024 0.97 1057 1.04 1086 1.11

4080 981 0.95 1014 1.02 1046 1.10 1077 1.18 1108 1.25

4490 1007 1.08 1038 1.16 1070 1.24 1100 1.32 1130 1.40

4890 1034 1.24 1066 1.32 1095 1.40 1124 1.48 1154 1.57

1.50 Nom kW Over-Sized Motor

& High Static Drive

Notes:

Data Includes Pressure Drop Due To Wet Coils And Filters.

1.12 kW - Fan Motor Heat (kW) = 1.144 x Fan kW + 0.132

1.50 kW - Fan Motor Heat (kW) = 1.178 x Fan kW + 0.464

Factory Supplied Motors, In Commercial Equipment, Are

Definite Purpose Motors, Specifically Designed And

Tested To Operate Reliably And Continuously At All

Cataloged Conditions. Using The Full Horsepower Range

Of Our Fan Motors As Shown In Our Tabular Data Will

Not Result In Nuisance Tripping Or Premature Motor

Failure. Our Product’s Warranty Will Not Be Affected.

1.12 Nom kW Standard Motor

& Hi Static Drive

←←

←←

←

Table PD-10a - Belt Drive Evaporator Fan Performance - YSC072AD*L - Low Heat - Downflow Configuration - (IP)

External Static Pressure (Inches of Water)

.10 .20 .30 .40 .50 .60 .70 .80 .90 1.00

CFM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

1-1/2 HP Standard Motor & Low Static Drive 1-1/2 HP Standard Motor & Drive

1920 - - 532 0.29 592 0.36 646 0.43 695 0.50 740 0.57 783 0.65 824 0.73 864 0.81 901 0.89

2160 - - 570 0.37 624 0.45 677 0.53 725 0.61 768 0.68 809 0.76 848 0.85 886 0.94 923 1.03

2400 556 0.41 610 0.48 659 0.56 707 0.64 755 0.73 798 0.82 838 0.90 876 0.99 912 1.08 947 1.18

2640 601 0.52 652 0.61 698 0.69 741 0.77 786 0.87 828 0.97 868 1.06 905 1.16 939 1.25 973 1.35

2880 646 0.66 694 0.76 737 0.84 778 0.93 818 1.03 859 1.13 898 1.24 936 1.35 970 1.45 1003 1.55

External Static Pressure (Inches of Water)

1.10 1.20 1.30 1.40 1.50

CFM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

1-1/2 HP Std Mtr 1-1/2 HP Standard Motor &

& Drive Hi Static Drive

1920 937 0.98 970 1.05 1004 1.13 1036 1.22 1067 1.30

2160 957 1.12 992 1.21 1024 1.30 1057 1.40 1086 1.48

2400 981 1.27 1014 1.37 1046 1.48 1077 1.58 1108 1.68

2640 1007 1.45 1038 1.56 1070 1.66 1100 1.77 1130 1.88

2880 1034 1.66 1066 1.77 1095 1.87 1124 1.99 1154 2.11

2 HP Over-Sized Motor & Hi Static Drive

Notes:

Data Includes Pressure Drop Due To Wet Coils And Filters.

1 1/2 HP - Fan Motor Heat (MBH) = 2.915 x Fan BHP + 0.451

2 HP - Fan Motor Heat (MBH) = 3.000 x Fan BHP + 0.500

Factory Supplied Motors, In Commercial Equipment, Are

Definite Purpose Motors, Specifically Designed And

Tested To Operate Reliably And Continuously At All

Cataloged Conditions. Using The Full Horsepower Range

Of Our Fan Motors As Shown In Our Tabular Data Will

Not Result In Nuisance Tripping Or Premature Motor

Failure. Our Product’s Warranty Will Not Be Affected.

1-1/2 HP Standard Motor

& Hi Static Drive

←←

←←

←

RT-PRC017-EN24

Performance

Data

Table PD-11 - Belt Drive Evaporator Fan Performance - YSC072AD*L - Horizontal Configuration (SI)

External Static Pressure (Pascals)

25 50 75 100 125 150 175 200 225 250

m3/h RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW

1.12 Nom kW Std Mtr & 1.12 Nom kW Standard Motor & Drive

Low Static Drive

3260 - - 586 0.25 645 0.31 695 0.35 741 0.41 785 0.47 828 0.53 870 0.59 913 0.66 952 0.72

3670 584 0.28 629 0.33 685 0.38 735 0.45 779 0.50 820 0.56 860 0.63 898 0.70 937 0.77 976 0.84

4080 640 0.38 679 0.43 726 0.48 775 0.55 819 0.62 858 0.68 896 0.74 932 0.81 967 0.89 1002 0.97

4490 696 0.49 732 0.54 770 0.60 816 0.66 860 0.74 899 0.82 935 0.88 970 0.95 1004 1.03 1036 1.11

4890 752 0.62 786 0.68 818 0.74 858 0.81 900 0.88 940 0.97 977 1.05 1010 1.13 1042 1.20 1072 1.27

1.12 Nom kW Standard Motor & Drive 1.12 Nom kW Standard Motor & Hi Static Drive

External Static Pressure (Pascals)

275 300 325 350 375

CFM RPM kW RPM kW RPM kW RPM kW RPM kW

1.12 Nom kW Standard Motor & Hi Static Drive

3260 990 0.78 1027 0.85 1063 0.92 1096 0.99 1129 1.06

3670 1012 0.90 1048 0.98 1082 1.05 1117 1.12 1149 1.20

4080 1038 1.04 1072 1.12 1106 1.20 1139 1.27 1169 1.35

4490 1067 1.19 1100 1.28 1132 1.36 1164 1.45 1194 1.53

4890 1103 1.36 1134 1.45 1163 1.54 1191 1.63 1221 1.72

1.50 Nom kW Over-Sized Motor & Hi Static Drive

Notes:

Data Includes Pressure Drop Due To Wet Coils And Filters.

1.12 kW - Fan Motor Heat (kW) = 1.144 x Fan kW + 0.132

1.50 kW - Fan Motor Heat (kW) = 1.178 x Fan kW + 0.464

Factory Supplied Motors, In Commercial Equipment, Are

Definite Purpose Motors, Specifically Designed And

Tested To Operate Reliably And Continuously At All

Cataloged Conditions. Using The Full Horsepower Range

Of Our Fan Motors As Shown In Our Tabular Data Will

Not Result In Nuisance Tripping Or Premature Motor

Failure. Our Product’s Warranty Will Not Be Affected.

Table PD-11a - Belt Drive Evaporator Fan Performance - YSC072AD*L - Horizontal Configuration - (IP)

External Static Pressure (Inches of Water)

.10 .20 .30 .40 .50 .60 .70 .80 .90 1.00

CFM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

1-1/2 HP Standard Motor & Low Static Drive 1-1/2 HP Standard Motor & Drive

1920 - - 586 0.33 645 0.41 695 0.48 741 0.55 785 0.63 828 0.71 870 0.79 913 0.88 952 0.96

2160 584 0.38 629 0.44 685 0.52 735 0.60 779 0.67 820 0.75 860 0.84 898 0.94 937 1.03 976 1.12

2400 640 0.50 679 0.57 726 0.64 775 0.74 819 0.83 858 0.91 896 0.99 932 1.09 967 1.19 1002 1.29

2640 696 0.65 732 0.73 770 0.80 816 0.89 860 1.00 899 1.10 935 1.19 970 1.28 1004 1.38 1036 1.49

2880 752 0.83 786 0.92 818 0.99 858 1.08 900 1.18 940 1.30 977 1.41 1010 1.51 1042 1.60 1072 1.70

1-1/2 HP Standard Motor & Drive 1-1/2 HP Std Motor & Hi Static Drive

External Static Pressure (Inches of Water)

1.10 1.20 1.30 1.40 1.50

CFM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

1-1/2 HP Standard Motor & Hi Static Drive

1920 990 1.05 1027 1.14 1063 1.24 1096 1.33 1129 1.42

2160 1012 1.21 1048 1.31 1082 1.40 1117 1.50 1149 1.61

2400 1038 1.40 1072 1.50 1106 1.60 1139 1.71 1169 1.81

2640 1067 1.60 1100 1.71 1132 1.83 1164 1.94 1194 2.05

2880 1103 1.82 1134 1.94 1163 2.07 1191 2.19 1221 2.31

2 HP Over-Sized Motor & Hi Static Drive

Notes:

Data Includes Pressure Drop Due To Wet Coils And Filters.

1 1/2 HP - Fan Motor Heat (MBH) = 2.915 x Fan BHP + 0.451

2 HP - Fan Motor Heat (MBH) = 3.000 x Fan BHP + 0.500

Factory Supplied Motors, In Commercial Equipment, Are

Definite Purpose Motors, Specifically Designed And

Tested To Operate Reliably And Continuously At All

Cataloged Conditions. Using The Full Horsepower Range

Of Our Fan Motors As Shown In Our Tabular Data Will

Not Result In Nuisance Tripping Or Premature Motor

Failure. Our Product’s Warranty Will Not Be Affected.

25RT-PRC017-EN

Performance

Data

Table PD-12 - Belt Drive Evaporator Fan Performance - YSC072AD*H - High Heat - Downflow Configuration - (SI)

External Static Pressure (Pascals)

25 50 75 100 125 150 175 200 225 250

m3/h RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW

1.12 Nom kW Standard Motor & Low Static Drive 1.12Nom kW Standard Motor & Drive

3260 - - 586 0.26 641 0.31 690 0.37 735 0.42 779 0.48 820 0.54 859 0.60 896 0.66 932 0.72

3670 577 0.29 631 0.34 684 0.40 731 0.46 773 0.52 814 0.58 854 0.64 891 0.71 928 0.78 963 0.84

4080 630 0.38 678 0.44 727 0.50 773 0.57 814 0.64 853 0.70 890 0.77 926 0.84 961 0.91 994 0.98

4490 684 0.49 728 0.56 772 0.63 815 0.70 857 0.77 894 0.84 929 0.91 963 0.98 996 1.06 1028 1.14

4890 738 0.63 779 0.69 818 0.77 860 0.85 899 0.93 936 1.01 970 1.08 1003 1.16 1035 1.24 1066 1.32

External Static Pressure (Pascals)

275 300 325 350 375

CFM RPM kW RPM kW RPM kW RPM kW RPM kW

1.12 Nom kW Std Motor 1.12 Nom kW Std Mtr

& Drive & Hi Static Drive

3260 968 0.78 1000 0.84 1033 0.90 1063 0.96 1094 1.03

3670 996 0.91 1028 0.98 1061 1.05 1091 1.12 1121 1.18

4080 1027 1.05 1058 1.13 1090 1.21 1118 1.28 1149 1.36

4490 1060 1.22 1090 1.29 1120 1.38 1150 1.46 1178 1.54

4890 1096 1.40 1125 1.48 1155 1.57 1181 1.66 1210 1.75

1.50 Nom kW Over-Sized Motor & High Static Drive

Notes:

Data Includes Pressure Drop Due To Wet Coils And Filters.

1.12 kW - Fan Motor Heat (kW) = 1.144 x Fan kW + 0.132

1.50 kW - Fan Motor Heat (kW) = 1.178 x Fan kW + 0.464

Factory Supplied Motors, In Commercial Equipment, Are

Definite Purpose Motors, Specifically Designed And

Tested To Operate Reliably And Continuously At All

Cataloged Conditions. Using The Full Horsepower Range

Of Our Fan Motors As Shown In Our Tabular Data Will

Not Result In Nuisance Tripping Or Premature Motor

Failure. Our Product’s Warranty Will Not Be Affected.

1.50 Nom kW Over-Sized Motor

& High Static Drive

←←

←←

←

Table PD-12a - Belt Drive Evaporator Fan Performance - YSC072AD*H - High Heat - Downflow Configuration - (IP)

External Static Pressure (Inches of Water)

.10 .20 .30 .40 .50 .60 .70 .80 .90 1.00

CFM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

1-1/2 HP Standard Motor & Low Static Drive 1-1/2 HP Standard Motor & Drive

1920 - - 586 0.35 641 0.42 690 0.49 735 0.56 779 0.64 820 0.72 859 0.80 896 0.88 932 0.96

2160 577 0.38 631 0.46 684 0.54 731 0.62 773 0.69 814 0.78 854 0.86 891 0.95 928 1.04 963 1.13

2400 630 0.51 678 0.59 727 0.68 773 0.77 814 0.85 853 0.94 890 1.03 926 1.12 961 1.22 994 1.31

2640 684 0.66 728 0.75 772 0.84 815 0.94 857 1.04 894 1.13 929 1.22 963 1.32 996 1.42 1028 1.52

2880 738 0.84 779 0.93 818 1.03 860 1.14 899 1.24 936 1.35 970 1.45 1003 1.56 1035 1.66 1066 1.77

External Static Pressure (Inches of Water)

1.10 1.20 1.30 1.40 1.50

CFM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

1-1/2 HP Std Mtr 1-1/2 HP Std Motor &

& Drive Hi Static Drive

1920 968 1.05 1000 1.13 1033 1.21 1063 1.29 1094 1.38

2160 996 1.22 1028 1.31 1061 1.41 1091 1.50 1121 1.59

2400 1027 1.41 1058 1.51 1090 1.62 1118 1.72 1149 1.82

2640 1060 1.63 1090 1.74 1120 1.85 1150 1.96 1178 2.07

2880 1096 1.88 1125 1.99 1155 2.11 1181 2.22 1210 2.34

2 HP Over-Sized Motor & Hi Static Drive

Notes:

Data Includes Pressure Drop Due To Wet Coils And Filters.

1 1/2 HP - Fan Motor Heat (MBH) = 2.915 x Fan BHP + 0.451

2 HP - Fan Motor Heat (MBH) = 3.000 x Fan BHP + 0.500

Factory Supplied Motors, In Commercial Equipment, Are

Definite Purpose Motors, Specifically Designed And

Tested To Operate Reliably And Continuously At All

Cataloged Conditions. Using The Full Horsepower Range

Of Our Fan Motors As Shown In Our Tabular Data Will

Not Result In Nuisance Tripping Or Premature Motor

Failure. Our Product’s Warranty Will Not Be Affected.

2 HP Over-Sized Motor

& Hi Static Drive

←←

←←

←

RT-PRC017-EN26

Performance

Data

Table PD-13 - Belt Drive Evaporator Fan Performance - YSC072AD*H - High Heat - Horizontal Configuration (SI)

External Static Pressure (Pascals)

25 50 75 100 125 150 175 200 225 250

m3/h RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW

1.12 Nom kW Standard Motor & Low Static Drive 1.12 Nom kW Standard Motor & Drive

3260 579 0.24 639 0.30 690 0.35 736 0.40 780 0.46 824 0.52 866 0.59 907 0.65 947 0.71 986 0.78

3670 636 0.33 692 0.39 741 0.46 784 0.51 826 0.57 865 0.64 903 0.71 943 0.78 979 0.84 1017 0.91

4080 696 0.45 746 0.51 794 0.58 836 0.64 874 0.70 911 0.77 947 0.84 982 0.92 1017 1.00 1051 1.07

4490 757 0.58 802 0.64 847 0.72 888 0.80 924 0.86 959 0.93 993 1.00 1026 1.08 1058 1.17 1089 1.25

4890 818 0.74 858 0.81 900 0.88 940 0.97 977 1.05 1010 1.13 1042 1.20 1073 1.27 1104 1.36 1133 1.45

1.12 Nom kW Standard Motor & Drive

1.50 Nom kW Over-Sized Motor

& High Static Drive

External Static Pressure (Pascals)

275 300 325 350 375

CFM RPM kW RPM kW RPM kW RPM kW RPM kW

1.12 Nom kW Standard Motor

& Hi Static Drive

3260 1023 0.84 1059 0.92 1093 0.98 1126 1.06 1156 1.12

3670 1053 0.98 1087 1.06 1121 1.13 1153 1.21 1185 1.29

4080 1085 1.15 1119 1.23 1151 1.30 1182 1.38 1214 1.47

4490 1122 1.34 1153 1.42 1184 1.50 1215 1.59 - -

4890 1163 1.54 1192 1.64 1221 1.72 - - - -

1.50 Nom kW Over-Sized Motor & Hi Static Drive

Notes:

Data Includes Pressure Drop Due To Wet Coils And Filters.

1.12 kW - Fan Motor Heat (kW) = 1.144 x Fan kW + 0.132

1.50 kW - Fan Motor Heat (kW) = 1.178 x Fan kW + 0.464

Factory Supplied Motors, In Commercial Equipment, Are

Definite Purpose Motors, Specifically Designed And

Tested To Operate Reliably And Continuously At All

Cataloged Conditions. Using The Full Horsepower Range

Of Our Fan Motors As Shown In Our Tabular Data Will

Not Result In Nuisance Tripping Or Premature Motor

Failure. Our Product’s Warranty Will Not Be Affected.

1.12 Nom kW Std Mtr

& Hi Static Drive

←←

←←

←

Table PD-13a - Belt Drive Evaporator Fan Performance - YSC072AD*H - High Heat - Horizontal Configuration - (IP)

External Static Pressure (Inches of Water)

.10 .20 .30 .40 .50 .60 .70 .80 .90 1.00

CFM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

1-1/2 HP Standard Motor & Low Static Drive 1-1/2 HP Standard Motor & Drive

1920 579 0.33 639 0.40 690 0.47 736 0.54 780 0.62 824 0.70 866 0.79 907 0.87 947 0.95 986 1.04

2160 636 0.45 692 0.53 741 0.61 784 0.68 826 0.76 865 0.85 903 0.95 943 1.04 979 1.13 1017 1.23

2400 696 0.60 746 0.68 794 0.78 836 0.86 874 0.94 911 1.03 947 1.13 982 1.23 1017 1.34 1051 1.44

2640 757 0.78 802 0.86 847 0.96 888 1.07 924 1.16 959 1.25 993 1.35 1026 1.45 1058 1.56 1089 1.68

2880 818 1.00 858 1.08 900 1.18 940 1.30 977 1.41 1010 1.51 1042 1.61 1073 1.71 1104 1.82 1133 1.94

1-1/2 HP Standard Motor & Drive 2 HP Over-Sized Motor

& Hi Static Drive

External Static Pressure (Inches of Water)

1.10 1.20 1.30 1.40 1.50

CFM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

1-1/2 HP Standard Motor & Hi Static Drive

1920 1023 1.13 1059 1.23 1093 1.32 1126 1.42 1156 1.51

2160 1053 1.32 1087 1.42 1121 1.52 1153 1.62 1185 1.72

2400 1085 1.54 1119 1.65 1151 1.75 1182 1.85 1214 1.96

2640 1122 1.79 1153 1.90 1184 2.01 1215 2.13 - -

2880 1163 2.07 1192 2.19 1221 2.31 - - - -

2 HP Over-Sized Motor & Hi Static Drive

Notes:

Data Includes Pressure Drop Due To Wet Coils And Filters.

1 1/2 HP - Fan Motor Heat (MBH) = 2.915 x Fan BHP + 0.451

2 HP - Fan Motor Heat (MBH) = 3.000 x Fan BHP + 0.500

Factory Supplied Motors, In Commercial Equipment, Are

Definite Purpose Motors, Specifically Designed And

Tested To Operate Reliably And Continuously At All

Cataloged Conditions. Using The Full Horsepower Range

Of Our Fan Motors As Shown In Our Tabular Data Will

Not Result In Nuisance Tripping Or Premature Motor

Failure. Our Product’s Warranty Will Not Be Affected.

1-1/2 HP Std Motor

& Hi Static Drive

←←

←←

←

27RT-PRC017-EN

Performance

Data

Table PD-14 - Belt Drive Evaporator Fan Performance - YSC090AD*L - Low Heat - Downflow Configuration - (SI)

External Static Pressure (Pascals)

25 50 75 100 125 150 175 200 225 250

m3/h RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW

1.50 Nom kW Standard Motor & Low Static Drive 1.50 Nom kW Standard Motor & Drive

4080 - - - - 676 0.44 726 0.50 773 0.57 815 0.64 854 0.70 891 0.77 928 0.84 963 0.91

4590 - - 682 0.50 727 0.57 770 0.64 814 0.71 856 0.79 895 0.86 931 0.94 965 1.01 998 1.08

5100 693 0.59 738 0.66 780 0.73 819 0.80 858 0.88 898 0.96 936 1.05 972 1.13 1006 1.21 1038 1.29

5610 753 0.77 795 0.85 834 0.92 871 1.00 906 1.08 942 1.17 978 1.26 1014 1.35 1048 1.44 1080 1.53

6120 814 0.97 853 1.07 890 1.15 925 1.23 958 1.31 991 1.40 1023 1.50 1057 1.60 1088 1.70 1121 1.80

External Static Pressure (Pascals)

275 300 325 350 375

CFM RPM kW RPM kW RPM kW RPM kW RPM kW

1.50 Nom kW Standard Motor & Drive

4080 996 0.98 1028 1.06 1061 1.14 1092 1.21 1122 1.29

4590 1031 1.16 1062 1.24 1093 1.32 1123 1.41 1153 1.49

5100 1070 1.38 1099 1.46 1128 1.54 1158 1.63 1185 1.72

5610 1110 1.62 1139 1.71 1167 1.80 1195 1.89 1222 1.98

6120 1151 1.90 1181 2.00 1208 2.10 1236 2.20 1261 2.29

2.24 Nom kW Over-Sized Motor & Hi Static Drive

Notes:

Data Includes Pressure Drop Due To Wet Coils And Filters.

1.50 kW - Fan Motor Heat (kW) = 1.178 x Fan kW + 0.464

2.24 kW - Fan Motor Heat (kW) = 1.138 x Fan kW + 0.139

Factory Supplied Motors, In Commercial Equipment, Are

Definite Purpose Motors, Specifically Designed And

Tested To Operate Reliably And Continuously At All

Cataloged Conditions. Using The Full Horsepower Range

Of Our Fan Motors As Shown In Our Tabular Data Will

Not Result In Nuisance Tripping Or Premature Motor

Failure. Our Product’s Warranty Will Not Be Affected.

2.24 Nom kW Over-Sized

Motor & Hi Static Drive

←←

←←

←

1.50 Nom kW Standard Motor

& Hi Static Drive

←←

←←

←

←←

←←

←

1.50 Nom kW Standard Motor & Hi Static Drive

Table PD-14a - Belt Drive Evaporator Fan Performance - YSC090AD*L - Low Heat - Downflow Configuration - (IP)

External Static Pressure (Inches of Water)

.10 .20 .30 .40 .50 .60 .70 .80 .90 1.00

CFM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

2 HP Standard Motor & Low Static Drive 2 HP Standard Motor & Drive

2400 - - - - 676 0.59 726 0.67 773 0.77 815 0.85 854 0.94 891 1.03 928 1.12 963 1.22

2700 - - 682 0.68 727 0.76 770 0.85 814 0.95 856 1.06 895 1.16 931 1.25 965 1.35 998 1.45

3000 693 0.79 738 0.89 780 0.97 819 1.07 858 1.18 898 1.29 936 1.40 972 1.52 1006 1.63 1038 1.73

3300 753 1.03 795 1.14 834 1.23 871 1.33 906 1.45 942 1.56 978 1.69 1014 1.81 1048 1.94 1080 2.06

3600 814 1.31 853 1.44 890 1.55 925 1.65 958 1.76 991 1.88 1023 2.01 1057 2.14 1088 2.28 1121 2.41

External Static Pressure (Inches of Water)

1.10 1.20 1.30 1.40 1.50

CFM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

2 HP Standard Motor & Drive

2400 996 1.32 1028 1.42 1061 1.52 1092 1.63 1122 1.73

2700 1031 1.56 1062 1.66 1093 1.78 1123 1.89 1153 2.00

3000 1070 1.85 1099 1.95 1128 2.07 1158 2.19 1185 2.31

3300 1110 2.18 1139 2.29 1167 2.42 1195 2.54 1222 2.66

3600 1151 2.55 1181 2.68 1208 2.81 1236 2.95 1261 3.07

3 HP Over-Sized Mtr & Hi Static Drive

Notes:

Data Includes Pressure Drop Due To Wet Coils And Filters.

2 HP - Fan Motor Heat (MBH) = 3.000 x Fan BHP + 0.500

3 HP - Fan Motor Heat (MBH) = 2.900 x Fan BHP + 0.475

Factory Supplied Motors, In Commercial Equipment, Are

Definite Purpose Motors, Specifically Designed And

Tested To Operate Reliably And Continuously At All

Cataloged Conditions. Using The Full Horsepower Range

Of Our Fan Motors As Shown In Our Tabular Data Will

Not Result In Nuisance Tripping Or Premature Motor

Failure. Our Product’s Warranty Will Not Be Affected.

3 HP Over-Sized

Motor & Drive

←←

←←

←

←←

←←

←2 HP Standard Motor &

Hi Static Drive

2 HP Standard Motor & Hi Static Drive

←←

←←

←

RT-PRC017-EN28

Performance

Data

Table PD-15 - Belt Drive Evaporator Fan Performance - YSC090AD*L - Horizontal Configuration (SI)

External Static Pressure (Pascals)

25 50 75 100 125 150 175 200 225 250

m3/h RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW

1.50 Nom kW Standard Motor & Low Static Drive 1.50 Nom kW Standard Motor & Drive

4080 - - 694 0.44 745 0.50 793 0.58 835 0.64 874 0.70 911 0.77 948 0.85 982 0.92 1017 1.00

4590 725 0.54 760 0.60 801 0.66 847 0.73 889 0.82 927 0.89 963 0.96 997 1.03 1030 1.11 1061 1.19

5100 798 0.73 830 0.79 862 0.86 902 0.93 943 1.01 981 1.10 1017 1.19 1050 1.27 1081 1.34 1111 1.42

5610 872 0.96 901 1.03 929 1.10 961 1.17 998 1.25 1036 1.34 1071 1.44 1104 1.54 1135 1.63 1164 1.71

6120 946 1.23 973 1.31 1000 1.38 1025 1.45 1057 1.54 1091 1.62 1125 1.72 1158 1.83 1189 1.95 1219 2.05

2.24 Nom kW Over-Sized

Motor & Hi Static Drive

External Static Pressure (Pascals)

275 300 325 350 375

CFM RPM kW RPM kW RPM kW RPM kW RPM kW

1.50 Nom kW Std Mtr & Drive 1.50 Nom kW Std Mtr

& Hi Static Drive

4080 1053 1.08 1087 1.15 1121 1.23 1153 1.31 1185 1.39

4590 1093 1.28 1124 1.37 1156 1.45 1187 1.54 1218 1.63

5100 1141 1.51 1170 1.60 1198 1.70 1227 1.80 1255 1.89

5610 1192 1.79 1220 1.88 1247 1.98 1272 2.07 1299 2.18

6120 1246 2.14 1272 2.23 1298 2.32 1323 2.41 1348 2.52

2.24 Nom kW Over-Sized Motor & Hi Static Drive

Notes:

Data Includes Pressure Drop Due To Wet Coils And Filters.

1.50 kW - Fan Motor Heat (kW) = 1.178 x Fan kW + 0.464

2.24 kW - Fan Motor Heat (kW) = 1.138 x Fan kW + 0.139

Factory Supplied Motors, In Commercial Equipment, Are

Definite Purpose Motors, Specifically Designed And

Tested To Operate Reliably And Continuously At All

Cataloged Conditions. Using The Full Horsepower Range

Of Our Fan Motors As Shown In Our Tabular Data Will

Not Result In Nuisance Tripping Or Premature Motor

Failure. Our Product’s Warranty Will Not Be Affected.

1.50 Nom kW Std Mtr

& Hi Static Drive

←←

←←

←

Table PD-15a - Belt Drive Evaporator Fan Performance - YSC090AD*L - Horizontal Configuration - (IP)

External Static Pressure (Inches of Water)

.10 .20 .30 .40 .50 .60 .70 .80 .90 1.00

CFM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

2 HP Std Motor & Low Static Drive 2 HP Standard Motor & Drive

2400 - - 694 0.59 745 0.67 793 0.77 835 0.86 874 0.94 911 1.03 948 1.13 982 1.23 1017 1.34

2700 725 0.73 760 0.80 801 0.88 847 0.98 889 1.09 927 1.19 963 1.28 997 1.38 1030 1.48 1061 1.60

3000 798 0.98 830 1.06 862 1.15 902 1.24 943 1.35 981 1.48 1017 1.60 1050 1.70 1081 1.80 1111 1.90

3300 872 1.28 901 1.38 929 1.47 961 1.56 998 1.67 1036 1.80 1071 1.93 1104 2.07 1135 2.19 1164 2.30

3600 946 1.65 973 1.75 1000 1.85 1025 1.95 1057 2.06 1091 2.17 1125 2.31 1158 2.46 1189 2.61 1219 2.75

3 HP Over-Sized Motor

& Hi Static Drive

External Static Pressure (Inches of Water)

1.10 1.20 1.30 1.40 1.50

CFM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

2 HP Standard Motor & Drive 2 HP Standard Motor

& Hi Static Drive

2400 1053 1.44 1087 1.55 1121 1.65 1153 1.76 1185 1.86

2700 1093 1.71 1124 1.83 1156 1.95 1187 2.06 1218 2.18

3000 1141 2.02 1170 2.15 1198 2.28 1227 2.41 1255 2.54

3300 1192 2.41 1220 2.52 1247 2.65 1272 2.78 1299 2.92

3600 1246 2.87 1272 2.99 1298 3.11 1323 3.24 1348 3.37

3 HP Over-Sized Motor & High Static Drive

Notes:

Data Includes Pressure Drop Due To Wet Coils And Filters.

2 HP - Fan Motor Heat (MBH) = 3.000 x Fan BHP + 0.500

3 HP - Fan Motor Heat (MBH) = 2.900 x Fan BHP + 0.475

Factory Supplied Motors, In Commercial Equipment, Are

Definite Purpose Motors, Specifically Designed And

Tested To Operate Reliably And Continuously At All

Cataloged Conditions. Using The Full Horsepower Range

Of Our Fan Motors As Shown In Our Tabular Data Will

Not Result In Nuisance Tripping Or Premature Motor

Failure. Our Product’s Warranty Will Not Be Affected.

2 HP Std Mtr & Hi Static Drive

←←

←←

←

29RT-PRC017-EN

Performance

Data

Table PD-16 - Belt Drive Evaporator Fan Performance - YSC090AD*H - High Heat - Downflow Configuration - (SI)

External Static Pressure (Pascals)

25 50 75 100 125 150 175 200 225 250

m3/h RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW

1.50 Nom kW Standard Motor & Low Static Drive 1.50 Nom kW Standard Motor & Drive

4080 - - 697 0.46 745 0.53 790 0.60 830 0.66 869 0.73 906 0.80 941 0.87 976 0.94 1009 1.01

4590 717 0.55 760 0.62 804 0.69 847 0.77 887 0.85 922 0.92 958 0.99 991 1.07 1024 1.14 1055 1.22

5100 787 0.74 826 0.81 865 0.89 905 0.98 943 1.06 979 1.15 1012 1.23 1044 1.31 1075 1.39 1105 1.47

5610 858 0.97 894 1.05 929 1.13 965 1.22 1001 1.32 1036 1.41 1068 1.50 1099 1.59 1129 1.68 1157 1.77

6120 930 1.24 963 1.33 995 1.42 1028 1.51 1061 1.61 1093 1.71 1126 1.82 1157 1.92 1185 2.02 1212 2.11

External Static Pressure (Pascals)

275 300 325 350 375

CFM RPM kW RPM kW RPM kW RPM kW RPM kW

1.50 Nom kW Std Mtr & Drive 1.50 Nom kW Std Motor

& Hi Static Drive

4080 1042 1.09 1073 1.17 1104 1.24 1134 1.32 1163 1.40

4590 1086 1.30 1117 1.39 1146 1.47 1174 1.56 1203 1.65

5100 1134 1.56 1163 1.65 1191 1.74 1218 1.83 1245 1.92

5610 1185 1.86 1212 1.95 1238 2.04 1265 2.14 1292 2.24

6120 1239 2.21 1265 2.31 1290 2.40 1316 2.51 1340 2.61

2.24 Nom kW Over-Sized Motor & Hi Static Drive

Notes:

Data Includes Pressure Drop Due To Wet Coils And Filters.

1.50 kW - Fan Motor Heat (kW) = 1.178 x Fan kW + 0.464

2.24 kW - Fan Motor Heat (kW) = 1.138 x Fan kW + 0.139

Factory Supplied Motors, In Commercial Equipment, Are

Definite Purpose Motors, Specifically Designed And

Tested To Operate Reliably And Continuously At All

Cataloged Conditions. Using The Full Horsepower Range

Of Our Fan Motors As Shown In Our Tabular Data Will

Not Result In Nuisance Tripping Or Premature Motor

Failure. Our Product’s Warranty Will Not Be Affected.

2.24 Nom kW Over-Sized

Motor & Hi Static Drive

← ←

← ←

←

Table PD-16a - Belt Drive Evaporator Fan Performance - YSC090AD*H - High Heat - Downflow Configuration - (IP)

External Static Pressure (Inches of Water)

.10 .20 .30 .40 .50 .60 .70 .80 .90 1.00

CFM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

2 HP Standard Motor & Low Static Drive 2 HP Standard Motor & Drive

2400 - - 697 0.62 745 0.71 790 0.80 830 0.89 869 0.98 906 1.07 941 1.16 976 1.26 1009 1.36

2700 717 0.74 760 0.83 804 0.93 847 1.03 887 1.13 922 1.23 958 1.33 991 1.43 1024 1.53 1055 1.64

3000 787 0.99 826 1.09 865 1.20 905 1.31 943 1.42 979 1.54 1012 1.64 1044 1.76 1075 1.87 1105 1.98

3300 858 1.30 894 1.41 929 1.52 965 1.64 1001 1.77 1036 1.89 1068 2.01 1099 2.13 1129 2.25 1157 2.37

3600 930 1.66 963 1.78 995 1.90 1028 2.03 1061 2.16 1093 2.30 1126 2.43 1157 2.57 1185 2.70 1212 2.83

3 HP Over-Sized Motor & Drive

External Static Pressure (Inches of Water)

1.10 1.20 1.30 1.40 1.50

CFM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

2 HP Standard Motor &

2 HP Standard Motor & Drive Hi Static Drive

2400 1042 1.46 1073 1.56 1104 1.67 1134 1.77 1163 1.87

2700 1086 1.75 1117 1.86 1146 1.97 1174 2.09 1203 2.21

3000 1134 2.09 1163 2.21 1191 2.33 1218 2.45 1245 2.58

3300 1185 2.49 1212 2.61 1238 2.74 1265 2.87 1292 3.01

3600 1239 2.96 1265 3.09 1290 3.22 1316 3.36 1340 3.49

3 HP Over-Sized Mtr & Hi Static Drive

Notes:

Data Includes Pressure Drop Due To Wet Coils And Filters.

2 HP - Fan Motor Heat (MBH) = 3.000 x Fan BHP + 0.500

3 HP - Fan Motor Heat (MBH) = 2.900 x Fan BHP + 0.475

Factory Supplied Motors, In Commercial Equipment, Are

Definite Purpose Motors, Specifically Designed And

Tested To Operate Reliably And Continuously At All

Cataloged Conditions. Using The Full Horsepower Range

Of Our Fan Motors As Shown In Our Tabular Data Will

Not Result In Nuisance Tripping Or Premature Motor

Failure. Our Product’s Warranty Will Not Be Affected.

RT-PRC017-EN30

Performance

Data

Table PD-17a - Belt Drive Evaporator Fan Performance - YSC090AD*H - High Heat - Horizontal Configuration - (IP)

External Static Pressure (Inches of Water)

.10 .20 .30 .40 .50 .60 .70 .80 .90 1.00

CFM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

2 HP Std Motor & Low Static Drive 2 HP Standard Motor & Drive

2400 713 0.62 764 0.71 811 0.81 851 0.89 889 0.97 926 1.07 962 1.17 997 1.28 1031 1.38 1067 1.48

2700 790 0.86 837 0.96 880 1.07 919 1.17 955 1.26 989 1.36 1022 1.46 1054 1.57 1086 1.69 1117 1.80

3000 869 1.16 910 1.26 950 1.38 989 1.50 1023 1.62 1056 1.72 1086 1.82 1116 1.92 1146 2.04 1175 2.17

3300 949 1.53 985 1.63 1023 1.75 1058 1.88 1092 2.02 1124 2.15 1154 2.26 1182 2.37 1210 2.48 1237 2.60

3600 1029 1.97 1061 2.07 1096 2.19 1130 2.33 1162 2.48 1193 2.63 1222 2.77 1250 2.89 1276 3.01 1302 3.13

3 HP Over-Sized Motor & Hi Static Drive

External Static Pressure (Inches of Water)

1.10 1.20 1.30 1.40 1.50

CFM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

2 HP Std Mtr & Drive 2 HP Standard Motor

& Hi Static Drive

2400 1101 1.59 1134 1.69 1166 1.80 1197 1.90 1229 2.02

2700 1148 1.92 1180 2.04 1210 2.15 1241 2.27 1269 2.39

3000 1204 2.30 1232 2.43 1260 2.56 1287 2.69 1316 2.82

3300 1264 2.74 1290 2.87 1316 3.02 1342 3.16 1367 3.30

3600 1327 3.26 1352 3.39 1376 3.54 1401 3.69 1425 3.85

3 HP Over-Sized Motor & High Static Drive

Notes:

Data Includes Pressure Drop Due To Wet Coils And Filters.

2 HP - Fan Motor Heat (MBH) = 3.000 x Fan BHP + 0.500

3 HP - Fan Motor Heat (MBH) = 2.900 x Fan BHP + 0.475

Factory Supplied Motors, In Commercial Equipment, Are

Definite Purpose Motors, Specifically Designed And

Tested To Operate Reliably And Continuously At All

Cataloged Conditions. Using The Full Horsepower Range

Of Our Fan Motors As Shown In Our Tabular Data Will

Not Result In Nuisance Tripping Or Premature Motor

Failure. Our Product’s Warranty Will Not Be Affected.

2 HP Std Mtr & Hi Static Drive

← ←

← ←

←

← ←

← ←

←

Table PD-17 - Belt Drive Evaporator Fan Performance - YSC090AD*H - High Heat - Horizontal Configuration (SI)

External Static Pressure (Pascals)

25 50 75 100 125 150 175 200 225 250

m3/h RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW

1.50 Nom kW Standard Motor 1.50 Nom kW Standard Motor & Drive

& Low Static Drive

4080 713 0.46 764 0.53 811 0.61 851 0.67 889 0.73 926 0.80 962 0.88 997 0.95 1031 1.03 1067 1.11

4590 790 0.64 837 0.71 880 0.80 919 0.88 955 0.94 989 1.01 1022 1.09 1054 1.17 1086 1.26 1117 1.35

5100 869 0.87 910 0.94 950 1.03 989 1.12 1023 1.21 1056 1.28 1086 1.36 1116 1.43 1146 1.52 1175 1.62

5610 949 1.14 985 1.22 1023 1.30 1058 1.40 1092 1.51 1124 1.60 1154 1.68 1182 1.77 1210 1.85 1237 1.94

6120 1029 1.47 1061 1.55 1096 1.64 1130 1.74 1162 1.85 1193 1.96 1222 2.06 1250 2.16 1276 2.25 1302 2.34

2.24 Nom kW Over-Sized

Motor & Hi Static Drive

Factory Supplied Motors, In Commercial Equipment, Are

Definite Purpose Motors, Specifically Designed And

Tested To Operate Reliably And Continuously At All

Cataloged Conditions. Using The Full Horsepower Range

Of Our Fan Motors As Shown In Our Tabular Data Will

Not Result In Nuisance Tripping Or Premature Motor

Failure. Our Product’s Warranty Will Not Be Affected.

1.50 Nom kW Std Mtr

& Hi Static Drive

← ←

← ←

←

← ←

← ←

←

External Static Pressure (Pascals)

275 300 325 350 375

CFM RPM kW RPM kW RPM kW RPM kW RPM kW

1.50 Nom kW Std Mtr 1.50 Nom kW Standard Motor

& Drive & Hi Static Drive

4080 1101 1.19 1134 1.26 1166 1.34 1197 1.42 1229 1.50

4590 1148 1.43 1180 1.52 1210 1.60 1241 1.69 1269 1.78

5100 1204 1.72 1232 1.81 1260 1.91 1287 2.00 1316 2.10

5610 1264 2.04 1290 2.14 1316 2.25 1342 2.36 1367 2.46

6120 1327 2.43 1352 2.53 1376 2.64 1401 2.75 1425 2.87

2.24 Nom kW Over-Sized Motor & Hi Static Drive

Notes:

Data Includes Pressure Drop Due To Wet Coils And Filters.

1.50 kW - Fan Motor Heat (kW) = 1.178 x Fan kW + 0.464

2.24 kW - Fan Motor Heat (kW) = 1.138 x Fan kW + 0.139

31RT-PRC017-EN

Performance

Data

Table PD-18a - Belt Drive Evaporator Fan Performance - YSC102AD*L - Low Heat - Downflow Configuration - (IP)

External Static Pressure (Inches of Water)

.10 .20 .30 .40 .50 .60 .70 .80 .90 1.00

CFM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

2 HP Standard Motor & Low Static Drive 2 HP Standard Motor & Drive

2720 - - - - 610 0.59 651 0.71 691 0.83 729 0.94 766 1.07 799 1.19 831 1.33 861 1.47

3060 - - 617 0.65 656 0.76 693 0.87 731 1.00 766 1.13 800 1.26 834 1.40 865 1.54 895 1.68

3400 628 0.72 667 0.84 704 0.96 739 1.07 772 1.20 806 1.35 838 1.49 870 1.64 900 1.79 931 1.94

3740 684 0.94 719 1.06 754 1.19 787 1.32 817 1.45 848 1.59 879 1.75 908 1.91 937 2.07 966 2.23

4080 740 1.20 772 1.32 805 1.47 836 1.61 865 1.74 893 1.89 921 2.05 949 2.21 977 2.39 1004 2.57

External Static Pressure (Inches of Water)

1.10 1.20 1.30 1.40 1.50 1.60 1.70 1.80 1.90 2.00

CFM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

2 HP Standard Motor & Drive

2720 890 1.62 917 1.76 944 1.91 970 2.07 996 2.22 1022 2.38 1048 2.54 1071 2.69 1096 2.86 1118 3.02

3060 924 1.84 951 1.99 978 2.15 1003 2.32 1027 2.48 1051 2.65 1075 2.82 1098 2.99 1122 3.17 1144 3.34

3400 959 2.09 986 2.25 1012 2.42 1037 2.59 1061 2.77 1084 2.94 1108 3.13 1130 3.31 1153 3.50 1174 3.68

3740 993 2.39 1020 2.56 1046 2.73 1071 2.90 1096 3.08 1119 3.27 1141 3.45 1163 3.64 1185 3.84 1207 4.04

4080 1030 2.74 1056 2.92 1082 3.10 1106 3.28 1131 3.46 1154 3.65 1176 3.83 1199 4.03 1220 4.23 1241 4.44

3 HP Over-Sized Motor & Drive

Notes:

Data Includes Pressure Drop Due To Wet Coils And Filters.

2 HP - Fan Motor Heat (MBH) = 3.000 x Fan BHP + 0.500

3 HP - Fan Motor Heat (MBH) = 2.900 x Fan BHP + 0.475

Factory Supplied Motors, In Commercial Equipment, Are Definite Purpose Motors, Specifically Designed And Tested To

Operate Reliably And Continuously At All Cataloged Conditions. Using The Full Horsepower Range Of Our Fan Motors

As Shown In Our Tabular Data Will Not Result In Nuisance Tripping Or Premature Motor Failure. Our Product’s Warranty

Will Not Be Affected.

3 HP Over-Sized Motor & Drive

← ←

← ←

←

Table PD-18 - Belt Drive Evaporator Fan Performance - YSC102AD*L - Low Heat - Downflow Configuration - (SI)

External Static Pressure (Pascals)

25 50 75 100 125 150 175 200 225 250

m3/h RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW

1.50 Nom kW Standard Motor & Low Static Drive 1.50 Nom kW Std Mtr & Drive

4620 - - - - 610 0.44 651 0.53 691 0.62 729 0.70 766 0.80 799 0.89 831 0.99 861 1.10

5200 - - 617 0.49 656 0.56 693 0.65 731 0.75 766 0.84 800 0.94 834 1.04 865 1.15 895 1.25

5780 628 0.54 667 0.63 704 0.71 739 0.80 772 0.90 806 1.00 838 1.11 870 1.22 900 1.33 931 1.45

6350 684 0.70 719 0.79 754 0.89 787 0.98 817 1.08 848 1.19 879 1.31 908 1.43 937 1.54 966 1.66

6930 740 0.89 772 0.99 805 1.09 836 1.20 865 1.30 893 1.41 921 1.53 949 1.65 977 1.78 1004 1.92

2.24 Nom kW Over-Sized

Motor & High Static Drive

← ←

← ←

←

External Static Pressure (Pascals)

275 300 325 350 375 400 425 450 475 500

m3/h RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW

1.50 Nom kW Standard Motor & Drive

4620 890 1.21 917 1.31 944 1.43 970 1.54 996 1.66 1022 1.77 1048 1.89 1071 2.01 1096 2.13 1118 2.25

5200 924 1.37 951 1.48 978 1.61 1003 1.73 1027 1.85 1051 1.98 1075 2.11 1098 2.23 1122 2.36 1144 2.49

5780 959 1.56 986 1.68 1012 1.80 1037 1.93 1061 2.06 1084 2.19 1108 2.33 1130 2.46 1153 2.61 1174 2.75

6350 993 1.79 1020 1.91 1046 2.04 1071 2.17 1096 2.30 1119 2.44 1141 2.58 1163 2.72 1185 2.87 1207 3.02

6930 1030 2.04 1056 2.18 1082 2.31 1106 2.44 1131 2.58 1154 2.72 1176 2.86 1199 3.01 1220 3.16 1241 3.31

2.24 Nom kW Over-Sized Motor & High Static Drive

Notes:

Data Includes Pressure Drop Due To Wet Coils And Filters.

1.50 kW - Fan Motor Heat (kW) = 1.178 x Fan kW + 0.464

2.24 kW - Fan Motor Heat (kW) = 1.138 x Fan kW + 0.139

Factory Supplied Motors, In Commercial Equipment, Are Definite Purpose Motors, Specifically Designed And Tested To

Operate Reliably And Continuously At All Cataloged Conditions. Using The Full Horsepower Range Of Our Fan Motors

As Shown In Our Tabular Data Will Not Result In Nuisance Tripping Or Premature Motor Failure. Our Product’s Warranty

Will Not Be Affected.

RT-PRC017-EN32

Performance

Data

Table PD-19 - Belt Drive Evaporator Fan Performance - YSC102AD*L - Horizontal Configuration (SI)

External Static Pressure (Pascals)

25 50 75 100 125 150 175 200 225 250

m3/h RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW

1.50 Nom kW Standard Motor & Low Static Drive 1.50 Nom kW Standard Motor & Drive

4620 610 0.44 657 0.52 700 0.60 747 0.70 793 0.80 837 0.91 873 1.00 905 1.09 935 1.18 963 1.27

5200 675 0.61 718 0.70 757 0.78 794 0.87 837 0.98 879 1.10 919 1.22 955 1.34 987 1.44 1014 1.54

5780 742 0.82 779 0.91 817 1.01 851 1.10 885 1.21 923 1.33 962 1.46 999 1.59 1033 1.72 1066 1.85

6350 810 1.07 842 1.16 878 1.27 911 1.38 941 1.49 972 1.60 1006 1.73 1041 1.87 1076 2.02 1109 2.17

6930 878 1.37 907 1.47 939 1.58 971 1.70 1000 1.82 1029 1.94 1056 2.06 1087 2.20 1120 2.35 1151 2.50

2.24 Nom kW Over-Sized Motor & High Static Drive

External Static Pressure (Pascals)

275 300 325 350 375 400 425 450 475 500

m3/h RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW

1.50 Nom kW Std Mtr & Drive

4620 989 1.36 1015 1.45 1038 1.53 1062 1.62 1085 1.71 1108 1.80 1129 1.88 1152 1.98 1172 2.06 1194 2.16

5200 1042 1.64 1067 1.74 1092 1.84 1115 1.94 1138 2.04 1159 2.14 1180 2.23 1200 2.33 1221 2.43 1241 2.53

5780 1093 1.97 1118 2.08 1144 2.19 1167 2.30 1190 2.41 1212 2.52 1233 2.63 1253 2.74 1273 2.85 1292 2.96

6350 1140 2.31 1169 2.45 1195 2.58 1219 2.70 1242 2.83 1264 2.95 1286 3.07 1307 3.19 1326 3.31 - -

6930 1182 2.66 1213 2.83 1241 2.98 1268 3.14 1292 3.28 - - --------

2.24 Nom kW Over-Sized Motor & High Static Drive

Notes:

Data Includes Pressure Drop Due To Wet Coils And Filters.

1.50 kW - Fan Motor Heat (kW) = 1.178 x Fan kW + 0.464

2.24 kW - Fan Motor Heat (kW) = 1.138 x Fan kW + 0.139

Factory Supplied Motors, In Commercial Equipment, Are Definite Purpose Motors, Specifically Designed And Tested To

Operate Reliably And Continuously At All Cataloged Conditions. Using The Full Horsepower Range Of Our Fan Motors

As Shown In Our Tabular Data Will Not Result In Nuisance Tripping Or Premature Motor Failure. Our Product’s Warranty

Will Not Be Affected.

Table PD-19a - Belt Drive Evaporator Fan Performance - YSC102AD*L - Horizontal Configuration - (IP)

External Static Pressure (Inches of Water)

1.10 1.20 1.30 1.40 1.50 1.60 1.70 1.80 1.90 2.00

CFM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

2 HP Standard Motor & Low Static Drive 2 HP Standard Motor & Drive

2720 610 0.59 657 0.70 700 0.81 747 0.93 793 1.08 837 1.22 873 1.35 905 1.47 935 1.58 963 1.70

3060 675 0.82 718 0.93 757 1.05 794 1.17 837 1.32 879 1.48 919 1.64 955 1.79 987 1.94 1014 2.07

3400 742 1.09 779 1.21 817 1.35 851 1.48 885 1.62 923 1.78 962 1.96 999 2.13 1033 2.31 1066 2.48

3740 810 1.44 842 1.56 878 1.70 911 1.85 941 1.99 972 2.14 1006 2.32 1041 2.51 1076 2.71 1109 2.90

4080 878 1.84 907 1.97 939 2.12 971 2.28 1000 2.44 1029 2.60 1056 2.76 1087 2.95 1120 3.16 1151 3.36

3 HP Over-Sized Motor & Drive

External Static Pressure (Inches of Water)

1.10 1.20 1.30 1.40 1.50 1.60 1.70 1.80 1.90 2.00

CFM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

2 HP Standard Motor & Drive 3 HP Over-Sized Motor & Drive

2720 989 1.82 1015 1.94 1038 2.05 1062 2.17 1085 2.29 1108 2.41 1129 2.53 1152 2.65 1172 2.77 1194 2.89

3060 1042 2.20 1067 2.34 1092 2.47 1115 2.60 1138 2.74 1159 2.87 1180 3.00 1200 3.13 1221 3.26 1241 3.40

3400 1093 2.64 1118 2.78 1144 2.94 1167 3.08 1190 3.23 1212 3.38 1233 3.53 1253 3.67 1273 3.82 1292 3.97

3740 1140 3.10 1169 3.28 1195 3.46 1219 3.63 1242 3.79 1264 3.96 1286 4.12 1307 4.28 1326 4.44 - -

4080 1182 3.57 1213 3.79 1241 4.00 1268 4.21 1292 4.40 - - --------

3 HP Over-Sized Motor & Drive

Notes:

Data Includes Pressure Drop Due To Wet Coils And Filters.

2 HP - Fan Motor Heat (MBH) = 3.000 x Fan BHP + 0.500

3 HP - Fan Motor Heat (MBH) = 2.900 x Fan BHP + 0.475

Factory Supplied Motors, In Commercial Equipment, Are Definite Purpose Motors, Specifically Designed And Tested To

Operate Reliably And Continuously At All Cataloged Conditions. Using The Full Horsepower Range Of Our Fan Motors

As Shown In Our Tabular Data Will Not Result In Nuisance Tripping Or Premature Motor Failure. Our Product’s Warranty

Will Not Be Affected.

33RT-PRC017-EN

Performance

Data

Table PD-20 - Belt Drive Evaporator Fan Performance - YSC102AD*H - High Heat - Downflow Configuration - (SI)

External Static Pressure (Pascals)

25 50 75 100 125 150 175 200 225 250

m3/h RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW

1.50 Nom kW Standard Motor & Low Static Drive 1.50 Nom kW Standard Motor & Drive

4620 - - - - 636 0.50 676 0.58 716 0.67 752 0.76 787 0.85 819 0.96 850 1.06 879 1.17

5200 - - 648 0.55 686 0.63 723 0.73 759 0.82 794 0.92 827 1.02 859 1.13 890 1.23 918 1.34

5780 667 0.62 704 0.71 738 0.80 772 0.90 805 1.00 837 1.11 869 1.22 900 1.33 929 1.44 959 1.56

6350 726 0.81 761 0.91 792 1.00 823 1.10 854 1.21 884 1.33 914 1.45 943 1.57 971 1.69 999 1.81

6930 786 1.03 818 1.14 848 1.24 877 1.34 905 1.46 933 1.58 961 1.71 988 1.84 1015 1.97 1041 2.10

External Static Pressure (Pascals)

275 300 325 350 375 400 425 450 475 500

m3/h RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW

1.50 Nom kW Standard Motor & Drive

4620 907 1.27 934 1.39 960 1.50 987 1.62 1013 1.73 1038 1.85 1064 1.97 1087 2.09 1111 2.21 1134 2.34

5200 946 1.46 971 1.58 997 1.70 1023 1.83 1047 1.95 1070 2.08 1094 2.21 1117 2.34 1140 2.47 1163 2.60

5780 986 1.68 1011 1.80 1037 1.93 1061 2.06 1085 2.19 1107 2.33 1130 2.46 1151 2.60 1174 2.75 1194 2.88

6350 1025 1.94 1051 2.06 1077 2.19 1100 2.32 1123 2.46 1147 2.61 1168 2.75 1189 2.89 1211 3.04 1231 3.19

6930 1067 2.23 1092 2.36 1117 2.50 1140 2.64 1164 2.78 1187 2.92 1208 3.07 1229 3.22 - - - -

2.24 Nom kW Over-Sized Motor & High Static Drive

Notes:

Data Includes Pressure Drop Due To Wet Coils And Filters.

1.50 kW - Fan Motor Heat (kW) = 1.178 x Fan kW + 0.464

2.24 kW - Fan Motor Heat (kW) = 1.138 x Fan kW + 0.139

Factory Supplied Motors, In Commercial Equipment, Are Definite Purpose Motors, Specifically Designed And Tested To

Operate Reliably And Continuously At All Cataloged Conditions. Using The Full Horsepower Range Of Our Fan Motors

As Shown In Our Tabular Data Will Not Result In Nuisance Tripping Or Premature Motor Failure. Our Product’s Warranty

Will Not Be Affected.

2.24 Nom kW Over-Sized

Motor & High Static Drive

← ←

← ←

←

Table PD-20a - Belt Drive Evaporator Fan Performance - YSC102AD*H - High Heat - Downflow Configuration - (IP)

External Static Pressure (Inches of Water)

1.10 1.20 1.30 1.40 1.50 1.60 1.70 1.80 1.90 2.00

CFM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

2 HP Standard Motor & Low Static Drive 2 HP Standard Motor & Drive

2720 - - - - 636 0.66 676 0.78 716 0.90 752 1.02 787 1.15 819 1.28 850 1.42 879 1.56

3060 - - 648 0.73 686 0.85 723 0.97 759 1.10 794 1.24 827 1.37 859 1.51 890 1.65 918 1.80

3400 667 0.84 704 0.95 738 1.07 772 1.20 805 1.34 837 1.49 869 1.64 900 1.79 929 1.94 959 2.09

3740 726 1.09 761 1.22 792 1.34 823 1.47 854 1.62 884 1.78 914 1.94 943 2.11 971 2.26 999 2.43

4080 786 1.38 818 1.53 848 1.66 877 1.80 905 1.95 933 2.12 961 2.29 988 2.46 1015 2.64 1041 2.82

External Static Pressure (Inches of Water)

1.10 1.20 1.30 1.40 1.50 1.60 1.70 1.80 1.90 2.00

CFM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

2 HP Standard Motor & Drive

2720 907 1.71 934 1.86 960 2.01 987 2.17 1013 2.32 1038 2.48 1064 2.64 1087 2.80 1111 2.97 1134 3.14

3060 946 1.96 971 2.11 997 2.28 1023 2.45 1047 2.62 1070 2.79 1094 2.96 1117 3.13 1140 3.31 1163 3.49

3400 986 2.25 1011 2.41 1037 2.59 1061 2.76 1085 2.94 1107 3.12 1130 3.30 1151 3.48 1174 3.69 1194 3.87

3740 1025 2.60 1051 2.77 1077 2.94 1100 3.12 1123 3.30 1147 3.50 1168 3.68 1189 3.88 1211 4.08 1231 4.28

4080 1067 2.99 1092 3.17 1117 3.36 1140 3.54 1164 3.73 1187 3.92 1208 4.12 1229 4.32 - - - -

3 HP Over-Sized Motor & Drive

Notes:

Data Includes Pressure Drop Due To Wet Coils And Filters.

2 HP - Fan Motor Heat (MBH) = 3.000 x Fan BHP + 0.500

3 HP - Fan Motor Heat (MBH) = 2.900 x Fan BHP + 0.475

Factory Supplied Motors, In Commercial Equipment, Are Definite Purpose Motors, Specifically Designed And Tested To

Operate Reliably And Continuously At All Cataloged Conditions. Using The Full Horsepower Range Of Our Fan Motors

As Shown In Our Tabular Data Will Not Result In Nuisance Tripping Or Premature Motor Failure. Our Product’s Warranty

Will Not Be Affected.

3 HP Over-Sized Motor & Drive

← ←

← ←

←

RT-PRC017-EN34

Performance

Data

Table PD-21 - Belt Drive Evaporator Fan Performance - YSC102AD*H - High Heat - Horizontal Configuration (SI)

External Static Pressure (Pascals)

25 50 75 100 125 150 175 200 225 250

m3/h RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW

1.50 Nom kW Std Mtr & Low Static Drive 1.50 Nom kW Standard Motor & Drive

4620 651 0.51 694 0.59 740 0.68 787 0.79 831 0.89 869 0.99 901 1.08 931 1.17 959 1.26 986 1.35

5200 722 0.70 761 0.79 798 0.88 841 1.00 883 1.11 923 1.23 958 1.35 989 1.45 1017 1.55 1045 1.65

5780 793 0.94 830 1.04 863 1.14 898 1.25 937 1.37 975 1.51 1011 1.64 1045 1.77 1075 1.89 1103 2.01

6350 865 1.23 899 1.34 930 1.45 961 1.56 994 1.68 1028 1.82 1063 1.96 1097 2.11 1129 2.26 1159 2.40

6930 937 1.57 970 1.70 999 1.81 1027 1.93 1055 2.05 1085 2.19 1118 2.34 1150 2.50 1181 2.66 1211 2.82

2.24 Nom kW Over-Sized Motor & High Static Drive

External Static Pressure (Pascals)

275 300 325 350 375 400 425 450 475 500

m3/h RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW

1.50 Nom kW Std Mtr & Drive

4620 1011 1.43 1036 1.52 1059 1.61 1082 1.69 1104 1.78 1127 1.87 1149 1.96 1170 2.05 1191 2.14 1212 2.24

5200 1070 1.75 1094 1.85 1117 1.95 1139 2.05 1161 2.15 1182 2.24 1203 2.35 1222 2.44 1243 2.54 1262 2.64

5780 1128 2.12 1152 2.23 1176 2.34 1198 2.45 1219 2.56 1241 2.67 1261 2.78 1280 2.88 1299 2.99 1319 3.11

6350 1186 2.53 1210 2.65 1233 2.78 1256 2.90 1278 3.03 1298 3.15 1319 3.27 - - - - - -

6930 1239 2.97 1267 3.13 1291 3.27 - - - - - - --------

2.24 Nom kW Over-Sized Motor & High Static Drive

Notes:

Data Includes Pressure Drop Due To Wet Coils And Filters.

1.50 kW - Fan Motor Heat (kW) = 1.178 x Fan kW + 0.464

2.24 kW - Fan Motor Heat (kW) = 1.138 x Fan kW + 0.139

Factory Supplied Motors, In Commercial Equipment, Are Definite Purpose Motors, Specifically Designed And Tested To

Operate Reliably And Continuously At All Cataloged Conditions. Using The Full Horsepower Range Of Our Fan Motors

As Shown In Our Tabular Data Will Not Result In Nuisance Tripping Or Premature Motor Failure. Our Product’s Warranty

Will Not Be Affected.

Table PD-21a - Belt Drive Evaporator Fan Performance - YSC102AD*H - High Heat - Horizontal Configuration - (IP)

External Static Pressure (Inches of Water)

1.10 1.20 1.30 1.40 1.50 1.60 1.70 1.80 1.90 2.00

CFM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

2 HP Std Motor & Low Static Drive 2 HP Standard Motor & Drive

2720 651 0.69 694 0.79 740 0.92 787 1.06 831 1.20 869 1.33 901 1.45 931 1.57 959 1.69 986 1.81

3060 722 0.94 761 1.06 798 1.18 841 1.34 883 1.49 923 1.65 958 1.81 989 1.95 1017 2.08 1045 2.22

3400 793 1.26 830 1.40 863 1.53 898 1.67 937 1.84 975 2.02 1011 2.20 1045 2.37 1075 2.54 1103 2.69

3740 865 1.65 899 1.80 930 1.94 961 2.09 994 2.26 1028 2.44 1063 2.63 1097 2.83 1129 3.03 1159 3.22

4080 937 2.11 970 2.27 999 2.43 1027 2.59 1055 2.75 1085 2.94 1118 3.14 1150 3.35 1181 3.57 1211 3.78

3 HP Over-Sized Motor & Drive

External Static Pressure (Inches of Water)

1.10 1.20 1.30 1.40 1.50 1.60 1.70 1.80 1.90 2.00

CFM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

2 HP Std Motor & Drive 3 HP Over-Sized Motor & Drive

2720 1011 1.92 1036 2.04 1059 2.15 1082 2.27 1104 2.39 1127 2.51 1149 2.64 1170 2.75 1191 2.88 1212 3.00

3060 1070 2.35 1094 2.48 1117 2.61 1139 2.75 1161 2.88 1182 3.01 1203 3.15 1222 3.27 1243 3.41 1262 3.54

3400 1128 2.84 1152 2.99 1176 3.14 1198 3.29 1219 3.43 1241 3.58 1261 3.73 1280 3.87 1299 4.02 1319 4.17

3740 1186 3.40 1210 3.56 1233 3.73 1256 3.90 1278 4.06 1298 4.22 1319 4.39 - - - - - -

4080 1239 3.99 1267 4.20 1291 4.39 - - - - - - --------

3 HP Over-Sized Motor & Drive

Notes:

Data Includes Pressure Drop Due To Wet Coils And Filters.

2 HP - Fan Motor Heat (MBH) = 3.000 x Fan BHP + 0.500

3 HP - Fan Motor Heat (MBH) = 2.900 x Fan BHP + 0.475

Factory Supplied Motors, In Commercial Equipment, Are Definite Purpose Motors, Specifically Designed And Tested To

Operate Reliably And Continuously At All Cataloged Conditions. Using The Full Horsepower Range Of Our Fan Motors

As Shown In Our Tabular Data Will Not Result In Nuisance Tripping Or Premature Motor Failure. Our Product’s Warranty

Will Not Be Affected.

35RT-PRC017-EN

Performance

Data

Table PD-22 - Belt Drive Evaporator Fan Performance - YSC120AD*L - Low Heat - Downflow Configuration - (SI)

External Static Pressure (Pascals)

25 50 75 100 125 150 175 200 225 250

m3/h RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW

2.24 Nom kW Standard Motor & Low Static Drive 2.24 Nom kW Standard

Motor & Drive

5440 - - - - 691 0.66 727 0.75 763 0.85 798 0.95 832 1.06 863 1.16 895 1.27 924 1.39

6120 - - 717 0.77 751 0.86 784 0.95 816 1.06 848 1.17 879 1.29 910 1.41 940 1.53 968 1.64

6800 746 0.90 780 1.00 813 1.11 843 1.21 873 1.31 902 1.43 931 1.56 959 1.69 986 1.82 1014 1.94

7480 814 1.17 845 1.29 876 1.41 905 1.52 932 1.63 959 1.74 985 1.87 1012 2.01 1037 2.14 1063 2.29

8160 883 1.50 911 1.62 940 1.75 967 1.88 993 2.00 1018 2.12 1042 2.24 1067 2.38 1091 2.53 1115 2.68

External Static Pressure (Pascals)

275 300 325 350 375 400 425 450 475 500

m3/h RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW

2.24 Nom kW Standard Motor & Drive

5440 952 1.50 979 1.63 1004 1.75 1029 1.87 1053 2.00 1078 2.13 1101 2.27 1124 2.41 1146 2.54 1169 3.59

6120 996 1.77 1023 1.89 1049 2.02 1073 2.15 1097 2.29 1120 2.43 1142 2.56 1164 2.71 1186 2.85 1207 4.02

6800 1041 2.08 1067 2.21 1092 2.34 1117 2.48 1141 2.62 1164 2.76 1186 2.91 1208 3.06 1228 3.20 - -

7480 1088 2.43 1113 2.57 1137 2.72 1162 2.87 1185 3.01 1207 3.16 1229 3.30 - - - - - -

8160 1139 2.83 1161 2.99 1185 3.15 1208 3.30 - - - - --------

2.24 Nom kW Standard Motor & High Static Drive

Notes:

Data Includes Pressure Drop Due To Wet Coils And Filters.

2.24 kW - Fan Motor Heat (kW) = 1.138 x Fan kW + 0.139

Factory Supplied Motors, In Commercial Equipment, Are Definite Purpose Motors, Specifically Designed And Tested To

Operate Reliably And Continuously At All Cataloged Conditions. Using The Full Horsepower Range Of Our Fan Motors

As Shown In Our Tabular Data Will Not Result In Nuisance Tripping Or Premature Motor Failure. Our Product’s Warranty

Will Not Be Affected.

Table PD-22a - Belt Drive Evaporator Fan Performance - YSC120AD*L - Low Heat - Downflow Configuration - (IP)

External Static Pressure (Inches of Water)

1.10 1.20 1.30 1.40 1.50 1.60 1.70 1.80 1.90 2.00

CFM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

3 HP Standard Motor & Low Static Drive 3 HP Std Motor & Drive

3200 - - - - 691 0.88 727 1.00 763 1.14 798 1.28 832 1.42 863 1.56 895 1.71 924 1.86

3600 - - 717 1.03 751 1.15 784 1.28 816 1.42 848 1.57 879 1.73 910 1.89 940 2.05 968 2.20

4000 746 1.21 780 1.35 813 1.49 843 1.62 873 1.76 902 1.92 931 2.09 959 2.26 986 2.43 1014 2.61

4400 814 1.57 845 1.73 876 1.88 905 2.03 932 2.18 959 2.34 985 2.51 1012 2.69 1037 2.88 1063 3.07

4800 883 2.02 911 2.18 940 2.35 967 2.52 993 2.68 1018 2.84 1042 3.01 1067 3.20 1091 3.39 1115 3.59

External Static Pressure (Inches of Water)

1.10 1.20 1.30 1.40 1.50 1.60 1.70 1.80 1.90 2.00

CFM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

3 HP Standard Motor & Drive

3200 952 2.01 979 2.18 1004 2.34 1029 2.51 1053 2.68 1078 2.86 1101 3.04 1124 3.23 1146 3.41 1169 3.59

3600 996 2.37 1023 2.53 1049 2.71 1073 2.88 1097 3.07 1120 3.25 1142 3.43 1164 3.63 1186 3.83 1207 4.02

4000 1041 2.79 1067 2.96 1092 3.14 1117 3.33 1141 3.51 1164 3.7 1186 3.90 1208 4.10 1228 4.30 - -

4400 1088 3.26 1113 3.45 1137 3.64 1162 3.84 1185 4.04 1207 4.23 1229 4.43 - - - - - -

4800 1139 3.80 1161 4.00 1185 4.22 1208 4.43 - - - - --------

3 HP Standard Motor & High Static Drive

Notes:

Data Includes Pressure Drop Due To Wet Coils And Filters.

3 HP - Fan Motor Heat (MBH) = 2.900 x Fan BHP + 0.475

Factory Supplied Motors, In Commercial Equipment, Are Definite Purpose Motors, Specifically Designed And Tested To

Operate Reliably And Continuously At All Cataloged Conditions. Using The Full Horsepower Range Of Our Fan Motors

As Shown In Our Tabular Data Will Not Result In Nuisance Tripping Or Premature Motor Failure. Our Product’s Warranty

Will Not Be Affected.

RT-PRC017-EN36

Performance

Data

Table PD-23 - Belt Drive Evaporator Fan Performance - YSC120AD*L - Horizontal Configuration (SI)

External Static Pressure (Pascals)

25 50 75 100 125 150 175 200 225 250

m3/h RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW

2.24 Nom kW Standard Motor & Low Static Drive 2.24 Nom kW Standard Motor & Drive

5440 719 0.72 761 0.82 798 0.91 834 1.01 875 1.13 916 1.25 955 1.38 991 1.50 1022 1.61 1050 1.72

6120 799 1.00 836 1.11 872 1.21 904 1.32 936 1.43 972 1.56 1009 1.70 1045 1.84 1079 1.98 1111 2.12

6800 881 1.35 913 1.46 947 1.58 977 1.70 1006 1.82 1035 1.94 1066 2.08 1100 2.23 1133 2.38 1165 2.54

7480 963 1.78 992 1.89 1023 2.02 1052 2.16 1079 2.28 1106 2.41 1132 2.54 1160 2.69 1189 2.85 1219 3.02

8160 1045 2.29 1072 2.41 1099 2.54 1127 2.69 1154 2.83 1179 2.97 1203 3.11 1227 3.25

2.24 Nom kW Standard Motor & High Static Drive

External Static Pressure (Pascals)

275 300 325 350 375 400 425 450 475 500

m3/h RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW

2.24 Nom kW Standard Motor & Drive

5440 1077 1.83 1103 1.94 1126 2.04 1150 2.14 1171 2.24 1193 2.35 1214 2.45 1233 2.55 1253 2.65 1274 3.46

6120 1140 2.25 1165 2.37 1190 2.49 1214 2.61 1235 2.73 1257 2.85 1279 2.97 1298 3.08 1317 3.19 1338 4.10

6800 1196 2.70 1225 2.86 1252 3.00 1276 3.15 1299 3.28 - - --------

7480 1250 3.19 - - - - - - - - - - --------

8160 - - - - - - - - - - - - --------

2.24 Nom kW Standard Motor & High Static Drive

Notes:

Data Includes Pressure Drop Due To Wet Coils And Filters.

2.24 kW - Fan Motor Heat (kW) = 1.138 x Fan kW + 0.139

Factory Supplied Motors, In Commercial Equipment, Are Definite Purpose Motors, Specifically Designed And Tested To

Operate Reliably And Continuously At All Cataloged Conditions. Using The Full Horsepower Range Of Our Fan Motors

As Shown In Our Tabular Data Will Not Result In Nuisance Tripping Or Premature Motor Failure. Our Product’s Warranty

Will Not Be Affected.

Table PD-23a - Belt Drive Evaporator Fan Performance - YSC120AD*L - Horizontal Configuration - (IP)

External Static Pressure (Inches of Water)

1.10 1.20 1.30 1.40 1.50 1.60 1.70 1.80 1.90 2.00

CFM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

3 HP Standard Motor & Low Static Drive 3 HP Standard Motor & Drive

3200 719 0.97 761 1.10 798 1.22 834 1.35 875 1.51 916 1.68 955 1.85 991 2.01 1022 2.16 1050 2.31

3600 799 1.35 836 1.48 872 1.63 904 1.77 936 1.91 972 2.09 1009 2.28 1045 2.47 1079 2.66 1111 2.84

4000 881 1.81 913 1.96 947 2.12 977 2.28 1006 2.44 1035 2.60 1066 2.78 1100 2.99 1133 3.20 1165 3.41

4400 963 2.39 992 2.54 1023 2.71 1052 2.89 1079 3.06 1106 3.23 1132 3.41 1160 3.61 1189 3.82 1219 4.05

4800 1045 3.07 1072 3.23 1099 3.41 1127 3.61 1154 3.80 1179 3.98 1203 4.17 1227 4.36

3 HP Standard Motor & High Static Drive

External Static Pressure (Inches of Water)

1.10 1.20 1.30 1.40 1.50 1.60 1.70 1.80 1.90 2.00

CFM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

3 HP Standard Motor & Drive

3200 1077 2.45 1103 2.60 1126 2.73 1150 2.87 1171 3.01 1193 3.15 1214 3.29 1233 3.42 1253 3.56 1274 3.71

3600 1140 3.02 1165 3.18 1190 3.34 1214 3.51 1235 3.66 1257 3.82 1279 3.98 1298 4.13 1317 4.28 1338 4.45

4000 1196 3.62 1225 3.83 1252 4.03 1276 4.22 1299 4.40 - - --------

4400 1250 4.28 - - - - - - - - - - --------

4800 - - - - - - - - - - - - --------

3 HP Standard Motor & High Static Drive

Notes:

Data Includes Pressure Drop Due To Wet Coils And Filters.

3 HP - Fan Motor Heat (MBH) = 2.900 x Fan BHP + 0.475

Factory Supplied Motors, In Commercial Equipment, Are Definite Purpose Motors, Specifically Designed And Tested To

Operate Reliably And Continuously At All Cataloged Conditions. Using The Full Horsepower Range Of Our Fan Motors

As Shown In Our Tabular Data Will Not Result In Nuisance Tripping Or Premature Motor Failure. Our Product’s Warranty

Will Not Be Affected.

37RT-PRC017-EN

Performance

Data

Table PD-24 - Belt Drive Evaporator Fan Performance - YSC120AD*H - High Heat - Downflow Configuration - (SI)

External Static Pressure (Pascals)

25 50 75 100 125 150 175 200 225 250

m3/h RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW

2.24 Nom kW Standard Motor & Low Static Drive 2.24 Nom kW Standard

Motor & Drive

5440 - - - - 723 0.74 759 0.84 793 0.94 827 1.05 860 1.15 891 1.26 921 1.37 949 1.49

6120 721 0.78 755 0.87 787 0.96 820 1.07 851 1.18 882 1.30 913 1.42 942 1.54 971 1.66 999 1.78

6800 793 1.04 824 1.15 854 1.25 883 1.36 913 1.48 941 1.60 969 1.73 997 1.86 1024 1.99 1050 2.12

7480 866 1.36 895 1.48 923 1.59 949 1.70 976 1.83 1003 1.96 1029 2.10 1054 2.24 1079 2.38 1104 2.53

8160 939 1.75 967 1.87 992 1.99 1017 2.12 1042 2.24 1066 2.38 1090 2.52 1114 2.67 1138 2.83 1161 2.98

External Static Pressure (Pascals)

275 300 325 350 375 400 425 450 475 500

m3/h RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW

2.24 Nom kW Standard Motor & Drive

5440 976 1.61 1001 1.73 1027 1.86 1051 1.99 1075 2.12 1098 2.25 1120 2.38 1143 2.52 1166 2.66 1189 3.59

6120 1025 1.90 1052 2.03 1076 2.17 1100 2.30 1122 2.44 1145 2.58 1167 2.73 1188 2.87 1210 3.02 1230 4.02

6800 1076 2.26 1101 2.39 1126 2.53 1149 2.67 1172 2.81 1194 2.96 1216 3.12 1236 3.26 - - - -

7480 1129 2.67 1153 2.81 1176 2.96 1200 3.11 1222 3.26 - - --------

8160 1184 3.14 1207 3.30 - - - - - - - - --------

2.24 Nom kW Standard Motor & High Static Drive

Notes:

Data Includes Pressure Drop Due To Wet Coils And Filters.

2.24 kW - Fan Motor Heat (kW) = 1.138 x Fan kW + 0.139

Factory Supplied Motors, In Commercial Equipment, Are Definite Purpose Motors, Specifically Designed And Tested To

Operate Reliably And Continuously At All Cataloged Conditions. Using The Full Horsepower Range Of Our Fan Motors

As Shown In Our Tabular Data Will Not Result In Nuisance Tripping Or Premature Motor Failure. Our Product’s Warranty

Will Not Be Affected.

Table PD-24a - Belt Drive Evaporator Fan Performance - YSC120AD*H - High Heat - Downflow Configuration - (IP)

External Static Pressure (Inches of Water)

1.10 1.20 1.30 1.40 1.50 1.60 1.70 1.80 1.90 2.00

CFM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

3 HP Standard Motor & Low Static Drive 3 HP Standard Motor & Drive

3200 - - - - 723 0.99 759 1.12 793 1.26 827 1.40 860 1.55 891 1.69 921 1.84 949 2.00

3600 721 1.04 755 1.17 787 1.29 820 1.44 851 1.59 882 1.75 913 1.90 942 2.06 971 2.22 999 2.39

4000 793 1.40 824 1.54 854 1.67 883 1.82 913 1.98 941 2.15 969 2.32 997 2.50 1024 2.67 1050 2.85

4400 866 1.83 895 1.98 923 2.13 949 2.28 976 2.45 1003 2.63 1029 2.81 1054 3.00 1079 3.20 1104 3.39

4800 939 2.34 967 2.51 992 2.67 1017 2.84 1042 3.01 1066 3.19 1090 3.38 1114 3.58 1138 3.79 1161 4.00

External Static Pressure (Inches of Water)

1.10 1.20 1.30 1.40 1.50 1.60 1.70 1.80 1.90 2.00

CFM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

3 HP Standard Motor & Drive

3200 976 2.16 1001 2.32 1027 2.49 1051 2.66 1075 2.84 1098 3.02 1120 3.19 1143 3.38 1166 3.57 1189 3.75

3600 1025 2.55 1052 2.73 1076 2.90 1100 3.09 1122 3.27 1145 3.46 1167 3.66 1188 3.85 1210 4.05 1230 4.25

4000 1076 3.03 1101 3.20 1126 3.40 1149 3.58 1172 3.77 1194 3.97 1216 4.18 1236 4.38 - - - -

4400 1129 3.58 1153 3.77 1176 3.97 1200 4.17 1222 4.37 - - --------

4800 1184 4.21 1207 4.42 - - - - - - - - --------

3 HP Standard Motor & High Static Drive

Notes:

Data Includes Pressure Drop Due To Wet Coils And Filters.

3 HP - Fan Motor Heat (MBH) = 2.900 x Fan BHP + 0.475

Factory Supplied Motors, In Commercial Equipment, Are Definite Purpose Motors, Specifically Designed And Tested To

Operate Reliably And Continuously At All Cataloged Conditions. Using The Full Horsepower Range Of Our Fan Motors

As Shown In Our Tabular Data Will Not Result In Nuisance Tripping Or Premature Motor Failure. Our Product’s Warranty

Will Not Be Affected.

RT-PRC017-EN38

Performance

Data

Table PD-25 - Belt Drive Evaporator Fan Performance - YSC120AD*H - High Heat - Horizontal Configuration (SI)

External Static Pressure (Pascals)

25 50 75 100 125 150 175 200 225 250

m3/h RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW

2.24 Nom kW Standard Motor & Low Static Drive 2.24 Nom kW Standard Motor & Drive

5440 768 0.84 805 0.93 842 1.03 884 1.15 924 1.28 962 1.40 998 1.52 1028 1.64 1055 1.74 1082 1.85

6120 856 1.16 888 1.27 921 1.37 955 1.49 992 1.63 1028 1.77 1063 1.91 1096 2.05 1126 2.19 1153 2.31

6800 943 1.57 973 1.68 1002 1.80 1031 1.92 1062 2.06 1096 2.21 1129 2.36 1161 2.52 1192 2.68 1222 2.84

7480 1031 2.06 1060 2.19 1086 2.32 1113 2.45 1139 2.57 1167 2.73 1198 2.90 1228 3.07 1257 3.24 - -

8160 1119 2.58 1146 2.79 1171 2.93 1195 3.07 1219 3.21 1243 3.36 --------

2.24 Nom kW Standard Motor & High Static Drive

External Static Pressure (Pascals)

275 300 325 350 375 400 425 450 475 500

m3/h RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW

2.24 Nom kW Standard Motor & Drive

5440 1107 1.95 1131 2.06 1154 2.16 1176 2.27 1197 2.37 1218 2.47 1238 2.58 1257 2.68 1276 2.78 1296 3.59

6120 1178 2.43 1202 2.55 1224 2.67 1247 2.79 1268 2.91 1288 3.02 1308 3.14 1328 3.26 - - - -

6800 1249 2.99 1273 3.13 1296 3.26 - - - - - - --------

7480 - - - - - - - - - - - - --------

8160 - - - - - - - - - - - - --------

2.24 Nom kW Standard Motor & High Static Drive

Notes:

Data Includes Pressure Drop Due To Wet Coils And Filters.

2.24 kW - Fan Motor Heat (kW) = 1.138 x Fan kW + 0.139

Factory Supplied Motors, In Commercial Equipment, Are Definite Purpose Motors, Specifically Designed And Tested To

Operate Reliably And Continuously At All Cataloged Conditions. Using The Full Horsepower Range Of Our Fan Motors

As Shown In Our Tabular Data Will Not Result In Nuisance Tripping Or Premature Motor Failure. Our Product’s

Warranty Will Not Be Affected.

Table PD-25a - Belt Drive Evaporator Fan Performance - YSC120AD*H - High Heat - Horizontal Configuration - (IP)

External Static Pressure (Inches of Water)

1.10 1.20 1.30 1.40 1.50 1.60 1.70 1.80 1.90 2.00

CFM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

3 HP Standard Motor & Low Static Drive 3 HP Standard Motor & Drive

3200 768 1.12 805 1.25 842 1.38 884 1.54 924 1.71 962 1.88 998 2.04 1028 2.19 1055 2.34 1082 2.48

3600 856 1.56 888 1.70 921 1.84 955 2.00 992 2.19 1028 2.37 1063 2.57 1096 2.75 1126 2.93 1153 3.10

4000 943 2.10 973 2.26 1002 2.41 1031 2.58 1062 2.76 1096 2.96 1129 3.17 1161 3.38 1192 3.59 1222 3.81

4400 1031 2.76 1060 2.94 1086 3.11 1113 3.28 1139 3.45 1167 3.66 1198 3.89 1228 4.11 1257 4.34 - -

4800 1119 3.45 1146 3.74 1171 3.93 1195 4.11 1219 4.30 1243 4.50 --------

3 HP Standard Motor & High Static Drive

External Static Pressure (Inches of Water)

1.10 1.20 1.30 1.40 1.50 1.60 1.70 1.80 1.90 2.00

CFM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

3 HP Standard Motor & Drive

3200 1107 2.62 1131 2.76 1154 2.90 1176 3.04 1197 3.17 1218 3.32 1238 3.46 1257 3.59 1276 3.73 1296 3.87

3600 1178 3.27 1202 3.42 1224 3.58 1247 3.74 1268 3.90 1288 4.05 1308 4.21 1328 4.37 - - - -

4000 1249 4.01 1273 4.19 1296 4.38 - - - - - - --------

4400 - - - - - - - - - - - - --------

4800 - - - - - - - - - - - - --------

3 HP Standard Motor & High Static Drive

Notes:

Data Includes Pressure Drop Due To Wet Coils And Filters.

3 HP - Fan Motor Heat (MBH) = 2.900 x Fan BHP + 0.475

Factory Supplied Motors, In Commercial Equipment, Are Definite Purpose Motors, Specifically Designed And Tested To

Operate Reliably And Continuously At All Cataloged Conditions. Using The Full Horsepower Range Of Our Fan Motors

As Shown In Our Tabular Data Will Not Result In Nuisance Tripping Or Premature Motor Failure. Our Product’s Warranty

Will Not Be Affected.

39RT-PRC017-EN

Table PD-26 - Standard Motor & Sheave/Fan Speed (RPM)

Unit 6 Turns 5 Turns 4 Turns 3 Turns 2 Turns 1 Turns

Model No. Open Open Open Open Open Open Closed

YSC060AD N/A 1036 1105 1174 1243 1312 1381

YSC072ADRL N/A 698 751 806 859 913 967

YSC072ADRH N/A 806 860 913 968 1022 1074

YSC090AD 859 913 967 1021 1075 1129 N/A

YSC102AD 786 836 885 934 982 1032 N/A

YSC120AD 894 950 1006 1062 1118 1174 N/A

Factory set at 3 turns open

Table PD-27 - Standard Motor & Low Static Drive Accessory Sheave/Fan Speed (RPM)

Unit 6 Turns 5 Turns 4 Turns 3 Turns 2 Turns 1 Turns

Model No. Open Open Open Open Open Open Closed

YSC060AD N/A 691 760 829 898 967 1036

YSC072ADRL N/A 537 590 644 698 752 806

YSC090AD N/A 671 714 757 800 843 886

YSC102AD N/A 629 664 701 737 773 811

YSC120AD N/A 717 754 799 844 885 922

Factory set at 3 turns open

Table PD-28 - Standard Motor & High Static Drive Accessory Sheave/Fan Speed (RPM)

Unit 6 Turns 5 Turns 4 Turns 3 Turns 2 Turns 1 Turns

Model No. Open Open Open Open Open Open Closed

YSC060AD N/A 1243 1311 1379 1450 1515 1588

YSC072AD N/A 967 1021 1075 1128 1183 1235

YSC090AD 1020 1073 1127 1181 1235 1289 N/A

YSC102AD 936 981 1032 1083 1134 1182 N/A

YSC120AD 1062 1118 1174 1229 1285 1341 N/A

Factory set at 3 turns open

Table PD-29 - Oversized Motor & Drive Sheave/Fan Speed (RPM)

Unit 6 Turns 5 Turns 4 Turns 3 Turns 2 Turns 1 Turns

Model No. Open Open Open Open Open Open Closed

YSC072AD N/A 967 1021 1075 1128 1183 1235

YSC090AD 1112 1182 1252 1322 1392 1460 N/A

YSC102AD N/A 971 1041 1111 1181 1251 1321

YSC120AD N/A N/A N/A N/A N/A N/A N/A

Factory set at 3 turns open

Performance

Data

Table PD-30 - Sound Power Level - dB (ref. 10

-12

Watts)

Unit Octave Overall

Model No. 63 125 250 500 1000 2000 4000 8000 dBA

YSC060AD 84 91 79 77 74 71 68 63 80

YSC072AD 83 90 86 82 79 75 70 63 85

YSC090AD 83 90 86 83 80 75 71 64 85

YSC102AD 83 89 84 81 77 72 69 62 83

YSC120AD 83 86 80 77 73 69 66 60 79

Note:

Tests follow ARI 270-95

RT-PRC017-EN40

Performance

Data

Table PD-31 - Static Pressure Drops Through Accessories - (Pascals)

Economizer with

OA/RA Dampers2

Unit Airflow Standard Pleated Filters 100% OA 100% RA 100% OA 100% RA

Model No. (m3/h) Filters1(50 mm) Downflow Horizontal

YSC060AD 2720 25 37 30 11 30 4

3400 37 55 46 17 46 6

4080 55 72 64 26 64 9

YSC072AD 3260 10 17 25 2 15 5

4080 15 22 27 5 20 5

4890 22 30 33 10 25 10

YSC090AD 4080 15 22 27 5 20 5

5100 25 32 35 12 30 12

6120 35 45 52 17 62 20

YSC102AD 4620 12 20 31 7 22 10

5780 20 27 47 15 45 15

6930 30 40 75 17 77 22

YSC120AD 5440 17 25 42 12 35 12

6800 27 37 65 17 75 20

8160 40 50 85 22 87 25

Notes:

1. Tested with standard filters. The YSC060AD has 25 mm (1 inch) standard fiters.

The YSC072AD - 120AD has 50 mm (2 inch) standard filters.

The difference in pressure drop should be considered when utilizing optional 50 mm (2 inch) pleated filters.

2. OA = Outside Air and RA = Return Air

3. Nominal kW ratings at 380 V

Table PD-31a - Static Pressure Drops Through Accessories - (Inches of Water Column)

Economizer with

OA/RA Dampers2

Unit Airflow Standard Pleated Filters 100% OA 100% RA 100% OA 100% RA

Model No. (CFM) Filters1(2 inch) Downflow Horizontal

YSC060AD 1600 0.10 0.15 0.12 0.04 0.12 0.01

2000 0.15 0.22 0.18 0.07 0.18 0.02

2400 0.22 0.29 0.26 0.10 0.26 0.04

YSC072AD 1920 0.04 0.07 0.10 0.01 0.06 0.02

2400 0.06 0.09 0.11 0.02 0.08 0.02

2880 0.09 0.12 0.13 0.04 0.10 0.04

YSC090AD 2400 0.06 0.09 0.11 0.02 0.08 0.02

3000 0.10 0.13 0.14 0.05 0.12 0.05

3600 0.14 0.18 0.21 0.07 0.25 0.08

YSC102AD 2720 0.05 0.08 0.12 0.03 0.09 0.04

3400 0.08 0.11 0.19 0.06 0.18 0.06

4080 0.12 0.16 0.30 0.07 0.31 0.09

YSC120AD 3200 0.07 0.10 0.17 0.05 0.14 0.05

4000 0.11 0.15 0.26 0.07 0.30 0.08

4800 0.16 0.20 0.34 0.09 0.35 0.10

Notes:

1. Tested with standard filters. The YSC060AD has 25 mm (1 inch) standard fiters.

The YSC072AD - 120AD has 50 mm (2 inch) standard filters.

The difference in pressure drop should be considered when utilizing optional 50 mm (2 inch) pleated filters.

2. OA = Outside Air and RA = Return Air

3. Nominal kW ratings at 380 V

41RT-PRC017-EN

Performance

Data

Table PD-32 — Gas-Fired Heating Capacities for G20,G25, and G31

Unit Furnace Heating Input Heating Output

Model No. Model Input kW Input MBH Output kW Output MBH

YSC060*DRL G80 19.6 67 15.7 54

YSC060*DRH G120 29.3 100 23.4 80

YSC072*DRL G120 29.3 100 23.4 80

YSC072*DRH G200 48.9 167 39.1 134

YSC090*DRL G120 29.3 100 23.4 80

YSC090*DRH G200 48.9 167 39.1 134

YSC102*DRL G150 36.7 125 29.3 100

YSC102*DRH G250 60.9 208 48.7 166

YSC120*DRL G150 36.7 125 29.3 100

YSC120*DRH G250 60.9 208 48.7 166

Ratings shown are for elevations up to 2,000 ft. For higher elevations, reduce ratings at a rate of 4% per 1,000

ft. elevation.

RT-PRC017-EN42

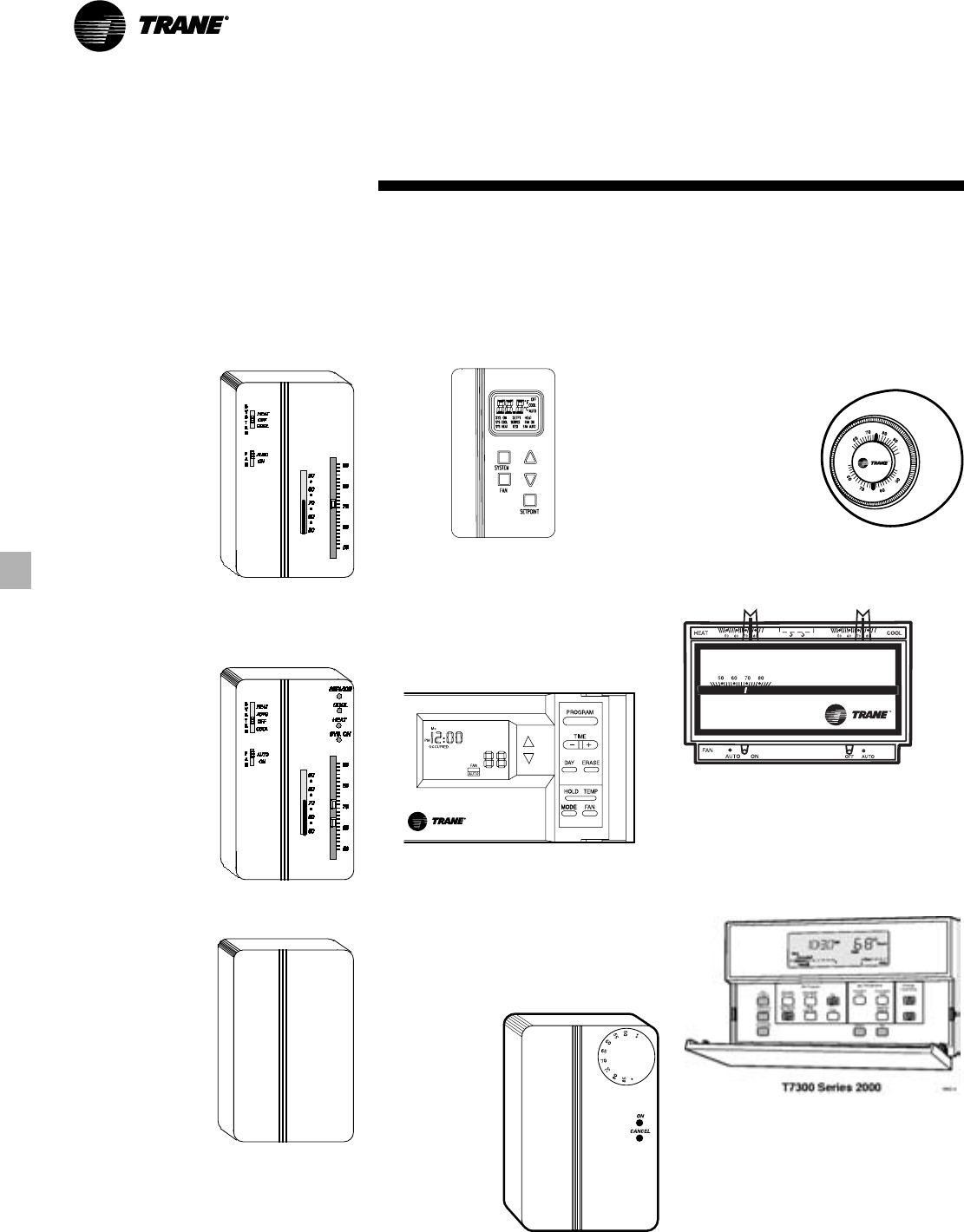

Conventional Thermostats are the

building occupant’s comfort control

devices when a generic thermostat is

desired.

Manual Changeover — One Heat, One

Cool Thermostat. Heat, Cool or Off

System Switch.

Fan Auto or On

Switch. Set Point

Dial. Adjustable

Heat Anticipator.

Automatic Changeover — One Heat,

Two Cool Thermostat. Off, Auto System

Switch. Auto/On Fan Switch.

Programmable Electronic Night Setback

Thermostat — Heating setback and

cooling setup with 7-day, programming

capability. Available in two-stage

heating/cooling or one-stage heating/

cooling versions with automatic

changeover.

Non-Programmable Manual Auto

Changeover with Digital LCD Display —

Auto, heat, cool or off mode selection

button. Auto or off fan button. Status

indication LCD indicators - System

on,heat, cool, or service.

Programmable Night Setback — Auto or

manual changeover with seven-day

programming. Keyboard selection of

Heat, Cool, Fan, Auto, or On. All

programmable sensors have System

On, Heat, Cool, Service LED/indicators as

standard. Night Setback Sensors have

one (1) Occupied, one (1) Un-occupied,

and two (2) Override programs per day.

Integrated Comfort™ System —

Sensor(s) available with optional

temperature

adjustment and

override

buttons to

provide central

control through

a Trane

Integrated

Comfort™

system.

Zone Sensors

Zone Sensors are the building

occupant’s comfort control devices for

Precedent™ units with ReliaTel™ control:

Manual Changeover — Heat, Cool or Off

System Switch. Fan Auto or Off Switch.

One temperature

setpoint lever.

Manual/Automatic Changeover — Auto,

Heat, Cool or Off System Switch. Fan

Auto or Off Switch. Two temperature

setpoint levers.

Optional Status

Indication LED

lights, System On,

Heat, Cool, or

Service.

Remote Sensor —

Sensor(s) available for all zone sensors

to provide remote

sensing

capabilities.

Conventional Thermostats

Zone Controls

43RT-PRC017-EN

Electrical

Data

Table ED-1 — Unit Wiring

Standard Indoor Fan Motor Oversized Indoor Fan Motor

Unit Minimum Maximum Fuse Minimum Maximum Fuse

Unit Operating Circuit Size Or Maximum Circuit Size Or Maximum

Model No. Voltage Range Ampacitiy Circuit Breaker1Ampacitiy Circuit Breaker1

YSC060ADR 342-456 17.7 25 17.7 25

YSC072ADR 342-456 23.2 35 24.2 35

YSC090ADR 342-456 24.8 35 26.5 35

YSC102ADR 342-456 26.8 35 28.5 35

YSC120ADR 342-456 31.2 40 31.2 40

Notes:

1. All units to be installed under local codes

Table ED-2 — Electrical Characteristics - Evaporator Fan Motor - 50 Hz

Standard Evaporator Fan Motor Oversized Evaporator Fan Motor

Unit Amps Amps

Model No. No. Volts Phase HP FLA LRA No. Volts Phase HP FLA LRA

YSC060AD 1 380-415 3 1.5 4.3 25.3 - - - - - -

YSC072AD 1 380-415 3 1.5 4.3 25.3 1 380-415 3 2.0 5.3 36.4

YSC090AD 1 380-415 3 2.0 5.3 36.4 1 380-415 3 3.0 7.0 57.0

YSC102AD 1 380-415 3 2.0 5.3 36.4 1 380-415 3 3.0 7.0 57.0

YSC120AD 1 380-415 3 3.0 7.0 57.0 - - - - - -

Table ED-3 — Electrical Characteristics - Compressor Motor and Condenser Motor - 50 Hz

Compressor Motor Condenser Fan Motor

Unit Amps Amps

Model No. No. Volts Phase HP1RPM RLA1LRA1No. Phase HP FLA LRA

YSC060AD 1 380-415 3 5.7 2875 9.5 74.00 1 1 0.40 1.9 2.8

YSC072AD 1 380-415 3 7.5 2875 12.7 95.00 1 1 0.75 2.8 7.1

YSC090AD 1 380-415 3 8.3 2875 13.2 100.00 1 1 0.75 2.8 7.1

YSC102AD 2 380-415 3 6.0 / 3.8 2875 9.3 / 6.9 74.0 / 48.0 1 1 0.75 2.8 7.1

YSC120AD 2 380-415 3 6.0 / 4.8 2875 9.9 / 8.5 74.0 / 61.8 1 1 0.75 2.8 7.1

Note:

1. Comp1/Comp2

Table ED-4 Electrical Characteristics - Inducer Motor

Model No. Heat Heating Stages Watts HP RPM Volts Phase LRA

YSC060-090*DRL Low

YSC060*DRH High 1 21 1/35 2525 208-230 1 0.6

YSC102-120*DRL Low

YSC072-120*DRH High 2 50 1/15 2800/2550 208-230 1 0.45

RT-PRC017-EN44

Jobsite

Connections

For specific wiring information, see the installation instructions.

All wiring except power wires is low voltage.

All customer supplied wiring to be copper and must conform to NEC or CEC and local electrical codes. Wiring shown dotted is to be furnished and installed by the customer.

DISCONNECT

SWITCH

(BY OTHERS)

ROOFTOP

UNIT

ZONE SENSOR

OR THERMOSTAT

Typical Number Of Wires

Zone Sensors

A — Manual Changeover 4

Manual/Auto Changeover 5

Manual/Auto Changeover with

Status Indication LED’s 10

Programmable Night Setback with

Status Indication LED’s 7

Thermostats

A — 4 wires, 24-volts

B — 3 Power Wires + 1 Ground Wire (three phase)

2 Power Wires + 1 Ground Wire (single phase)

45RT-PRC017-EN

Dimensional

Data YSC060

All dimensions are in inches/millimeters.

YSC060

RT-PRC017-EN46

Dimensional

Data YSC060

All dimensions are in inches/millimeters

YSC060 — Downflow Airflow Supply and

Return

YSC060 — Unit Clearance and Roof Opening

YSC060 — Horizontal Airflow Supply and

Return

47RT-PRC017-EN

Dimensional

Data YSC060

All dimensions are in inches/millimeters.

YSC060 — Downflow Duct Connections —

Field Fabricated

YSC060 — Roof Curb

RT-PRC017-EN48

Dimensional

Data YSC072-120

YSC072 and YSC090

All dimensions are in inches/millimeters.

YSC102 and YSC120

49RT-PRC017-EN

Dimensional

Data YSC072-120

All dimensions are in inches/millimeters.

YSC072-120 — Downflow Airflow Supply and Return

YSC072-120 — Horizontal Airflow Supply and

Return

YSC072-120 — Unit Clearance and Roof

Opening

RT-PRC017-EN50

Dimensional

Data YSC072-120

All dimensions are in inches/millimeters.

YSC072-120 — Roof Curb

YSC072-120 — Downflow Duct Connections —

Field Fabricated

ALL FLANGES 1 1/4” (31 MM)

51RT-PRC017-EN

Dimensional

Data

YSC060 Options/

Accessories

See Page 42 for Through the Base Utilities Information

YSC060 — Barometric Relief Damper Hood

YSC060 — Swing Diameter for Hinged

Door(s) Option

YSC060 — Economizer, Manual, or Motorized

Damper Hood

RT-PRC017-EN52

Dimensional

Data

YSC072-120

Options/Accessories

YSC072-120 — Swing Diameter for Hinged

Door(s) Option

YSC072-120 — Economizer and Barometric

Relief Damper Hoods

53RT-PRC017-EN

Weights

Table W-1 - Maximum Unit and Corner Weights and Center of Gravity Dimensions (SI)

Maximum Weights(2) (kg) Corner Weights(1) (kg) Center of Gravity (mm)

Unit

Model No. Shipping(2) Net(2) A B C D Length Width

YSC060AD 295 260 81 64 54 62 810 510

YSC072AD 398 350 113 90 64 83 990 560

YSC090AD 466 419 139 110 75 95 970 530

YSC102AD 482 434 141 114 79 100 1020 560

YSC120AD 528 481 155 126 89 111 1020 560

Notes:

(1) Corner weights are given for information only. All models must be supported continuously by a curb or equivalent frame support.

(2) Weights are approximate.

Table W-1a - Maximum Unit and Corner Weights and Center of Gravity Dimensions (IP)

Maximum Weights (lbs) Corner Weights(1) (lbs) Center of Gravity (in)

Unit

Model No. Shipping(2) Net A B C D Length Width

YSC060AD 651 574 179 140 119 136 32 20

YSC072AD 877 772 249 198 141 184 39 22

YSC090AD 1028 923 306 243 165 210 38 21

YSC102AD 1062 957 310 252 175 220 40 22

YSC120AD 1165 1060 342 277 197 245 40 22

Notes:

(1) Corner weights are given for information only. All models must be supported continuously by a curb or equivalent frame support.

(2) Weights are approximate.

Table W-2 - Accessory Net Weights

(1) (2)

(kg)

Net Weights(2)

Accessory(3) YSC060 YSC072-120

Economizer 12 16

Barometric Relief 3 5

Motorized Outside Air Damper 9 14

Manual Outside Air Damper 7 12

Roof Curb 32 52

Oversized Motor 2 4

Coil Guards 5 9

Hinged Doors 5 5

Electric Heaters 7 14

Notes:

(1) Weights for options not listed are < 3 kg.

(2) Net weight should be added to unit weight when ordering factory-installed

accessories.

(3) Some accessories not available on all units.

Table W-2a - Accessory Net Weights

(1) (2)

(lbs)

Net Weights(2)

Accessory(3) YSC060 YSC072-120

Economizer 26 36

Barometric Relief 7 10

Motorized Outside Air Damper 20 30

Manual Outside Air Damper 16 26

Roof Curb 70 115

Oversized Motor 5 8

Coil Guards 12 20

Hinged Doors 10 12

Electric Heaters 15 30

Notes:

(1) Weights for options not listed are < 5 lbs.

2) Net weight should be added to unit weight when ordering factory-installed

accessories.

(3) Some accessories not available on all units.

RT-PRC017-EN54

Mechanical

Specifications

General

Units shall be convertible airflow.

Operating range in cooling shall be

between 46°C and -18°C (115°F and 0°F)

cooling as standard from the factory for

all units. All units shall be factory

assembled, internally wired, fully

charged with R-22, and 100 percent run-

tested before leaving the factory. Wiring

internal to the unit shall be colored and

numbered for simplified identification.

Casing

Unit casing shall be constructed of zinc

coated, heavy gauge, galvanized steel.

Exterior surfaces shall be cleaned,

phosphatized, and finished with a

weather-resistant baked enamel finish.

Cabinet construction shall allow for all

maintenance on one side of the unit.

Service panels shall have lifting handles

and be removed and reinstalled by

removing only a single fastener while

providing a water and air tight seal. All

exposed vertical panels and top covers

in the indoor air section shall be

insulated with a cleanable foil faced, fire-

retardent permanent, odorless glass

fiber material. The base of the unit shall

be insulated with 13 mm, 16 kg (1/2 inch,

1 pound) density foil-faced, closed-cell

material. All insulation edges shall be

either captured or sealed. The unit’s base

pan shall have no penetrations within

the perimeter of the curb other than the

raised 29 mm (11/8 inch) high downflow

supply/return openings to provide an

added water integrity precaution, if the

condensate drain backs up. The base of

the unit shall have provisions for forklift

and crane lifting, with forklift capabilities

on three sides of the unit.

Evaporator And Condenser Coils

Internally finned, 8 mm (5/16”) copper

tubes mechanically bonded to a

configured aluminum plate fin shall be

standard. Coils shall be leak tested at the

factory to ensure pressure integrity. The

evaporator coil and condenser coil shall

be leak tested to 1375 kPa (200 psig) and

pressure tested to 3100 kPa (450 psig).

The condensate coil shall have a patent

pending 1 +1+1hybrid design with slight

gaps for ease of cleaning. A removeable,

reversible, double-sloped condensate

drain pan is standard. Provision for

through the base condensate drain is

standard.

Gas Heating Section

The heating section shall have a

progressive tubular heat exchanger

design using stainless steel burners and

corrosion resistant steel throughout. An

induced draft combustion blower shall be

used to pull the combustion products

through the firing tubes. The heater shall

use a direct spark ignition (DSI) system.

On initial call for heat, the combusiton

blower shall purge the heat exchanger

for 20 seconds before ignition After three

unsuccessful ignition attempts, the entire

heating system shall be locked out until

manually reset at the thermostat/zone

sensor. Units shall be suitable for use with

natural gas or propane (field-installed kit).

Outdoor Fans

The outdoor fans shall be direct-drive,

statically and dynamically balanced,

draw-through in the vertical discharge

position. The fan motor shall be

permanently lubricated and shall have

built-in thermal overload protection.

Unit Top

The top cover shall be one piece

construction or, where seams exist, it

shall be double-hemmed and gasket-

sealed. The ribbed top adds extra

strength and prevents water from

pooling on unit top.

Filters

25 mm (1 inch), throwaway filters shall

be standard on all 5 ton units.. The filter

rack can be converted to two inch

capability. 50 mm (2 inch) filters shall be

factory supplied on all 6-10 ton units.

Optional two inch pleated filters shall be

available.

Compressors

All units shall have direct-drive,

hermetic, scroll type compressors with

centrifugal type oil pumps. Motor shall

be suction gas-cooled and shall have a

voltage utilization range of plus or minus

10 percent of unit nameplate voltage.

Internal overloads shall be provided with

the scroll compressors. Low and high

pressure switches shall be standard.

Refrigerant Circuits

Service pressure ports, and refrigerant

line filter driers shall be factory-installed

as standard. An area shall be provided

for replacement suction line driers.

55RT-PRC017-EN

Mechanical

Specifications

Indoor Fan

All units shall have belt drive motors.

Units with belt drive motors shall have

an adjustable idler-arm assembly for

quick-adjustment to fan belts and motor

sheaves. All motors shall be thermally

protected. Oversized motors shall be

available for high static operations.

Controls

Unit shall be completely factory wired

with necessary controls and contactor

pressure lugs or terminal block for

power wiring. Unit shall have single

point power entry as standard. Units

shall provide an external location for

mounting a fused disconnect device.

Microprocessor controls provide for all

24 volt control functions. With the

microprocessor controls, the resident

control algorithms shall make all

heating, cooling, and/or ventilating

decisions in response to electronic

signals from sensors measuring indoor

and outdoor temperatures. The control

algorithm maintains accurate

temperature control, minimizes drift

from set point, and provides better

building comfort. A centralized Micro-

processor shall provide anti-short cycle

timing and time delay between

compressors to provide a higher level of

machine protection.

Accessories/Options

Roof Curb

The roof curb shall be designed to mate

with the unit’s downflow supply and

return openings and provide support and

a watertight installation when installed

properly. The roof curb design shall allow

field-fabricated rectangular supply/return

ductwork to be connected directly to the

curb. Curb shall be shipped knocked down

for field assembly and shall include wood

nailer strips.

Economizer

This accessory shall be either field or

factory-installed and is available with or

without barometric relief. The assembly

includes fully modulating 0-100 percent

motor and dampers, minimum position

setting, preset linkage, wiring harness

with plug, spring return actuators and

fixed dry bulb control. Optional solid state

enthalpy and differential enthalpy control

shall be either factory or field-installed.

The factory-installed economizer arrives

in the shipping position and shall be

moved to the operating position by the

installing contractor.

Phase Monitor

Phase monitor shall provide 100%

protection for motors and compressors

against problems caused by phase loss,

phase imbalance, and phase reversal.

Phase monitor is equipped with an LED

that provides an ON or FAULT indicator.

Remote Potentiometer

Field-installed, the minimum position

setting of economizer shall be adjusted

with this accessory.

Motorized Outside Air Dampers

Factory or field-installed manually set

outdoor air dampers shall provide up to

50 percent outside air. Once set, outdoor

air dampers shall open to set position

when indoor fan starts. The damper shall

close to the full closed position when

indoor fan shuts down.

Manual Outside Air Damper

Factory or field-installed rain hood and

screen shall provide up to 50 percent

outside air.

Oversized Motors

Factory or field-installed oversized

motors shall be available for high static

applications.

Discharge Air Sensing

This factory or field option provides true

discharge air sensing in heating models.

This sensor is a status indicator readable

through Tracer™ or Tracker™.

Coil Guards

Hail protection quality coil guards shall be

either factory or field-installed for

condenser coil protection.

Fan Failure/Clogged Filter Switches

These factory or field-installed options

allow for individual fan failure and dirty

filter indication. The fan failure switch will

disable all unit functions and “flash” the

Service LED on the zone sensor. The dirty

filter switch will light the Service LED on

the zone sensor and will allow continued

unit operation.

High Pressure Cutout

All units have High Pressure cutout as

standard.

Hinged Access Doors

Sheet metal hinges are available factory-

installed on the Filter/Evaporator Access

Door, Indoor Fan/Heat Exchanger Door,

and the Compressor/Control Access

Door.

Black Epoxy Coated Condenser Coil

The coil provides corrosion protection to

condenser coils for seacoast application.

The protection is a factory applied

thermoset vinyl coating, bonded to

normal aluminum fin stock. The uniform

thickness of the bonded vinyl layer

exhibits excellent corrosion protection in

salt spray tests.

RT-PRC017-EN56

Control Options

Comm-3/4 Trane Communication

Interface

This factory or field-installed option shall

be provided to interface microprocessor

controlled units with the Trane Integrated

Comfort™ systems.

Comm-5 LonTalk Communication

Interface

This factory or field-installed option shall

be provided to allow the unit to

communicate as a Trane Comm-5 device

or directly with generic LonTalk Network

Building Automation System Controls.

Zone Sensor

Field-installed, this accessory shall be

provided to interface with the Micro

equipped units and shall be available in

either manual, automatic programmable

with night setback, with system

malfunction lights or remote sensor

options.

Thermostats

Two stage heating and cooling operation

or one stage heating and cooling shall be

available, for field installation, in either

manual or automatic changeover.

Automatic programmable electronic with

night set back shall also be available.

Reference Enthalpy Control

Replaces the dry bulb control with a wet

bulb changeover controller which has a

fully adjustable setpoint. Enthalpy control

offers a higher level of comfort control,

along with energy savings potential, than

the standard dry bulb control. This is due

to the additional wet bulb sensing

capability. This option shall be available

for all units. It can be field-installed or

factory-installed with the factory-installed

economizer.

Differential Enthalpy Control

Replaces the standard dry bulb control

with two enthalpy sensors that compare

total heat content of the indoor air and

outdoor air to determine the most

efficient air source. This control option

offers the highest level of comfort control,

plus energy efficiency, available. This

option shall be available for all units. It can

be field-installed or factory-installed with

the factory-installed economizer.

Low Ambient Cooling

All microprocessor units shall have

cooling capabilities down to -18°C (0°F) as

standard.

Mechanical

Specifications

57RT-PRC017-EN

RT-PRC017-EN58

59RT-PRC017-EN

Literature Order Number

File Number

Supersedes

Stocking Location

Trane

A business of American Standard Companies

www.trane.com

For more information, contact your local district

office or e-mail us at comfort@trane.com

Trane has a policy of continuous product and product data improvement and reserves the right to change design

and specifications without notice.

RT-PRC017-EN

PL-UN-000-RT-PRC017-EN-02-04

PL-UN-000-RT-PRC017-EN-12-03

03-03 Webb/Mason 02-04 Electronic Only
