Trango Systems A600 Altum AC600 User Manual Altum AC EXT Installation Quick Start Guide

Trango Systems Inc Altum AC600 Altum AC EXT Installation Quick Start Guide

Contents

Installation Manual

LT-9065 Installation Quick Start Guide Revision A 1
Altum AC Installation Quick Start Guide
Overview
The Altum AC comes in three different configurations; A600-EXT, A600-19, and A600-25. This guide
will illustrate how to install the Altum AC unit after configuring the unit on the bench.

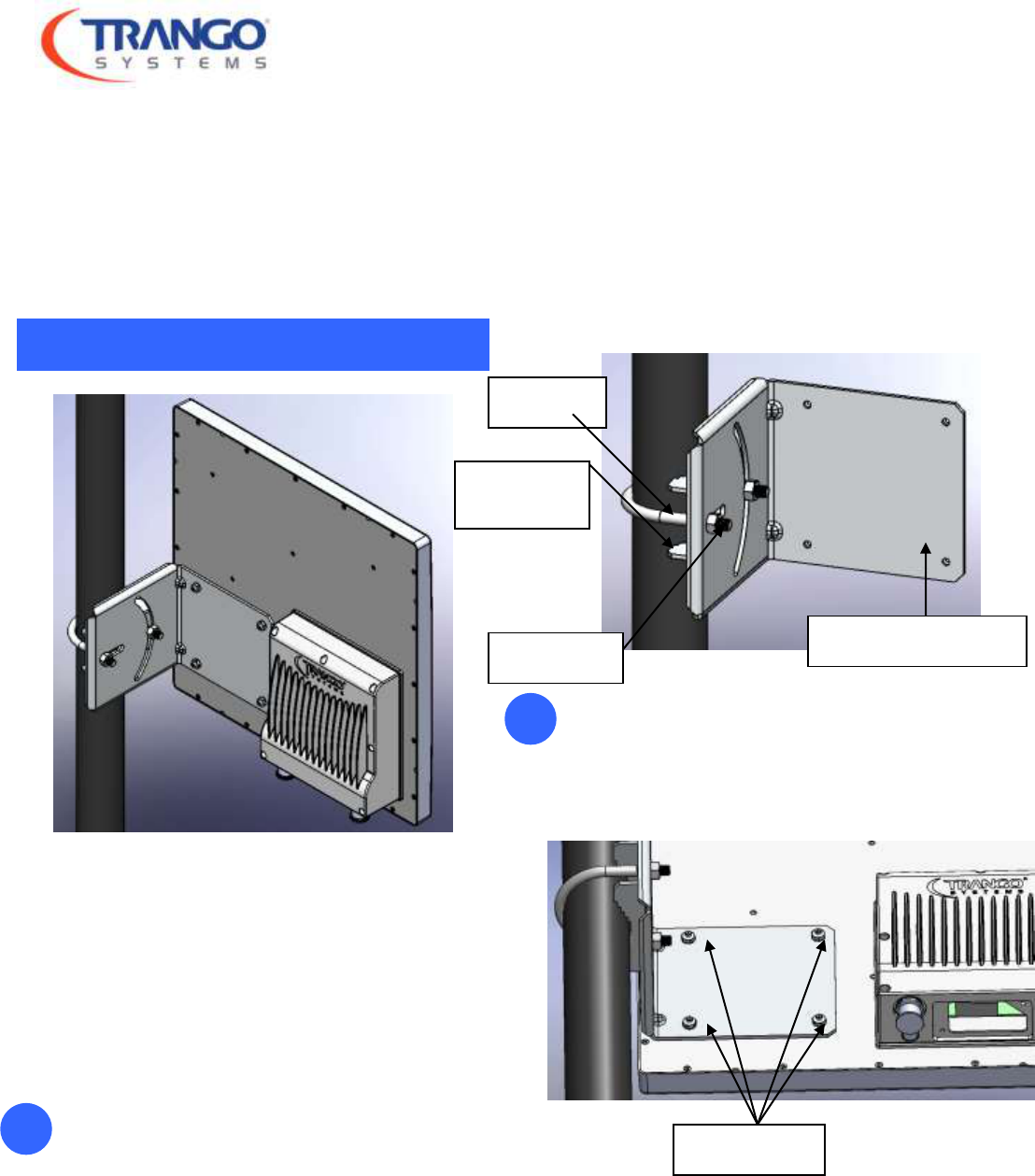

Installing A600-25
In the A600-25 box you will find the following parts:
(1) U-Bolt with hex nuts
(1) Mounting Bracket
(1) Port Plug
(1) U-Bolt bracket
(1) Port Plate with captive screws
(4) 10-32 kep nuts
(1) POE injector
1. For easiest installation install the mounting
bracket onto the 1.5-2.5 inch diameter pole
using the U-bolt and the U-bolt bracket. Tilt
the bracket to the approximate desired angle
before tightening the hex nuts onto the U-bolt.
2. Install the Altum AC radio unit by sliding the (4)
protruding threads on the back plate through the
mating holes on the mounting bracket. Secure the
unit with the (4) 10-32 kep nuts. Skip to step 3.
Mounting Bracket
U-Bolt
Hex Nut
Kep Nuts
U-Bolt
Bracket
LT-9065 Installation Quick Start Guide Revision A 2

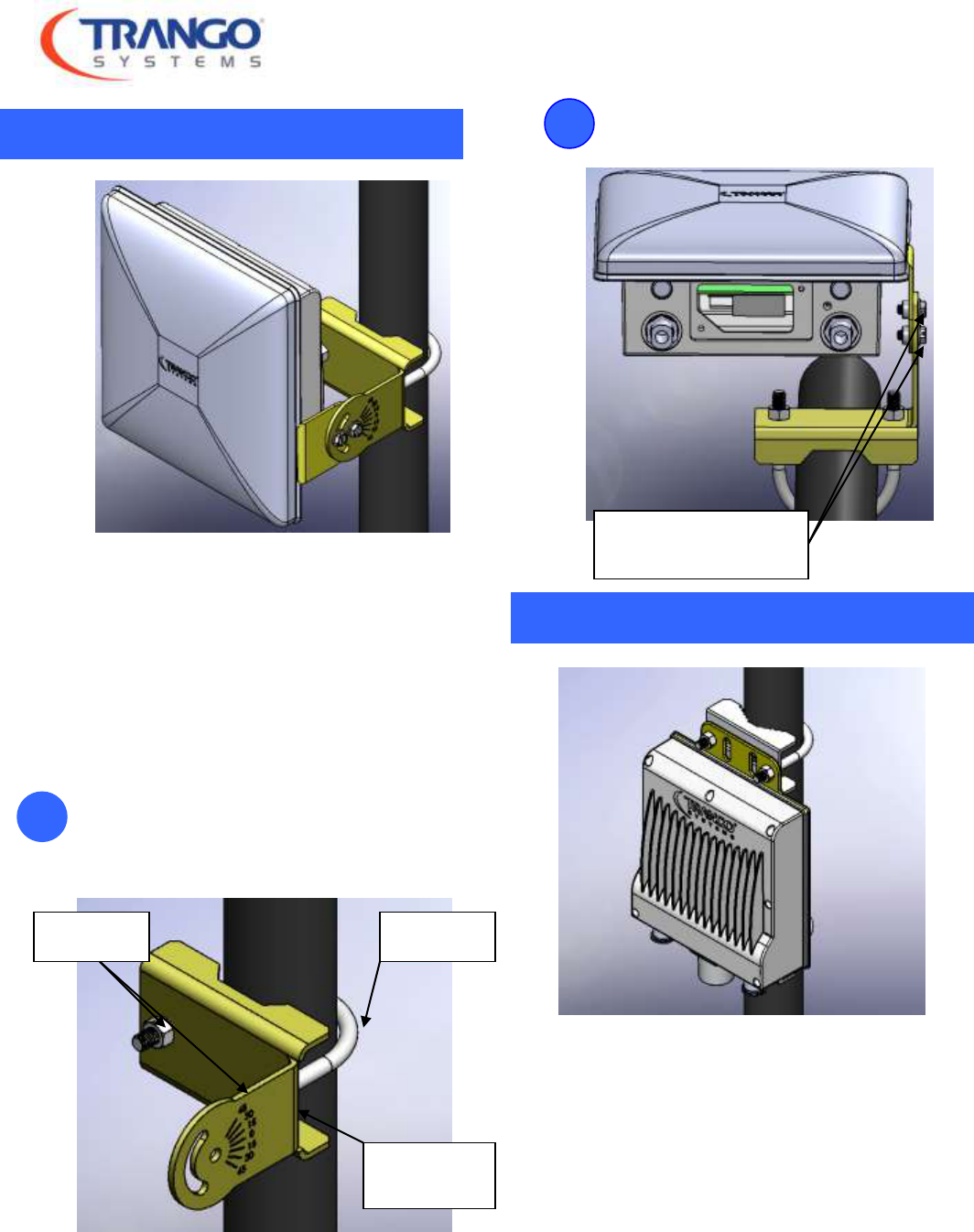

Installing A600-19
In the A600-19 box you will find the following parts:
(1) U-Bolt with hex nuts
(2) ¼-20 hex head screws
(1) Mounting Bracket
(1) Altum AC 19 dBi unit
(1) Port Plug
(1) Port Plate with (2) captive screws
(1) POE injector
1. Install the Mounting Bracket by feeding
the U-Bolt through the holes and
tightening using the included hex nuts.
2. Install the A600-19 radio using the ¼-20 hex
head screws. Skip to step 3.
Installing A600-EXT
In the A600-EXT box you will find the following parts:
(2) U-Bolt with hex nuts
(2) Mounting Brackets
(1) Port Plug
(1) Port Plate with (2) captive screws
(1) POE injector
(1) Connector Sealing Tape Packet
¼-20 hex head
Screw
U-Bolt
Mounting
Bracket
Hex Nuts
LT-9065 Installation Quick Start Guide Revision A 3

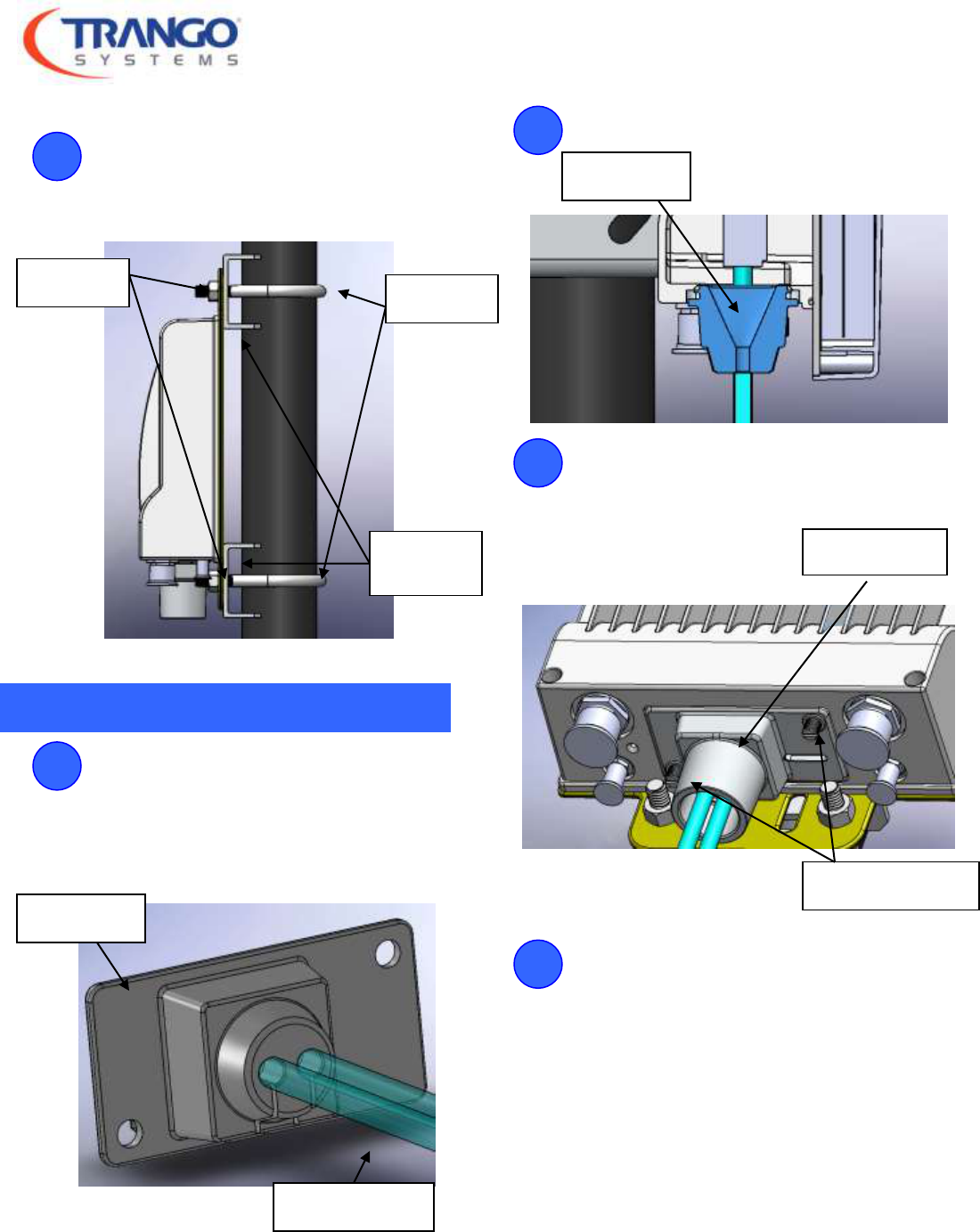

1. Feed the U-bolts through the mounting
brackets and then through the back plate
before securing using the hex nuts.
Getting Altum AC Ready for Power Up
3. Plug in The Ethernet cables and install them
into the port plug as shown.
Note: The LAN port is on the “right” side as
you look into the unit, while the WAN port is
on the “left”
4. Install the Port Plug as seen below.
5. Feed the Ethernet cable(s) through and
attach the Port Plate using the (2) captive
screws. Tighten until snug.
6.

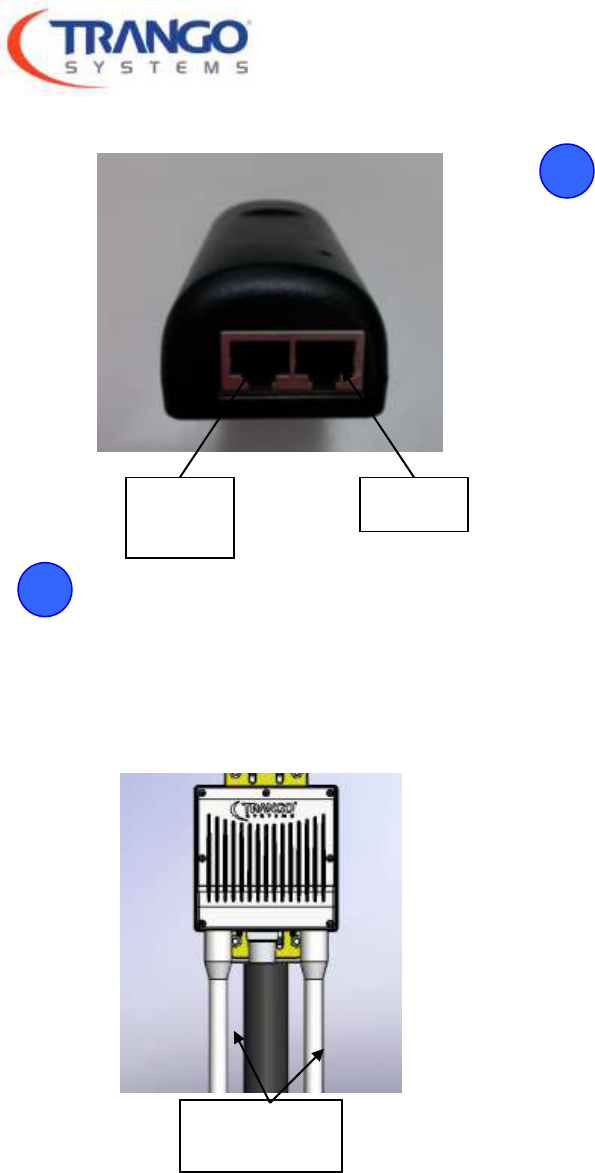

7. Plug the Ethernet cables into the POE
injector power supply as shown below.
Note: the POE and LAN ports are also
labeled on the power supply.
U-Bolt
U-Bolt
Bracket
Hex Nut
Port Plug
Ethernet Cable
Port Plug
Port Plate
Captive Screw
LT-9065 Installation Quick Start Guide Revision A 4
8. (Optional) Remove the caps from the N-
connectors and attach (2) 2.4 GHz wifi
antennas with N-Male connectors.
Note: Do not remove connector caps
unless you will be using the 2.4 GHz radio.
9. For EXT model only. Remove the
SMA-RP connector caps and attach
cables to the external antenna. Make
sure to use cables with SMA-RP or
damage/low signal levels may result.
Apply Connector Sealing Tape around
the connections to seal from weather.
NOTE: Altum AC must be installed by
trained personnel to ensure
compliance with local/regional
building codes and Wireless
regulations.
About Trango Systems, Inc.
Trango Systems, Inc., was founded in 1996 and
is headquartered in San Diego County,
California. The company designs and
manufactures innovative licensed and
LAN
POE to
Radio
2.4 GHz
Antenna
LT-9065 Installation Quick Start Guide Revision A 5
unlicensed microwave backhaul equipment for
customers in over 70 countries and is ISO
9001:2008 certified.
