ROVR SIDEKICK Installation and Operation v1.0 | Document Number 412158 Page 1 of 6
ROVR SIDEKICK™
Installation and Operation
This document describes how to correctly install a
ROVR SIDEKICK™
device. The
ROVR
SIDEKICK
is
used with the
ROVR™
vehicle tracking unit for convenience in viewing toll rates
and paying for HOT lane use.
These instructions cover what you need to know to get your ROVR Sidekick up and running:
• Battery Installation
• Sidekick Unit Installation
• Operation
Battery Installation
1
The Sidekick requires 2 AAA batteries for
operation. Non-rechargeable lithium batteries
are recommended for maximum life. Some
high capacity alkaline batteries will also be
sufficient but have shorter lifetimes.
The Sidekick has a battery compartment.
Batteries are inserted in-line to the
compartment through a small door on the
side of the unit.
Open the door by removing the attached
thumbscrew.
2
Insert both batteries negative (-) terminal first.
The top of the batteries will protrude from
the opening.
Thumbscrew
Door (removed)
Battery
compartment
ROVR SIDEKICK Installation and Operation v1.0 | Document Number 412158 Page 2 of 6
3
Manipulate the battery tab opposite the
thumbscrew into the opening and screw the
door back in. This requires a small amount of
force to overcome the internal battery spring.
4
When the door is fully in place, the display
should light with a message that reads ROVR
SIDEKICK, along with a version number.
Battery tab
Thumbscrew
ROVR SIDEKIC
K
VERSION X.X
ROVR SIDEKICK Installation and Operation v1.0 | Document Number 412158 Page 3 of 6
Sidekick Unit Installation

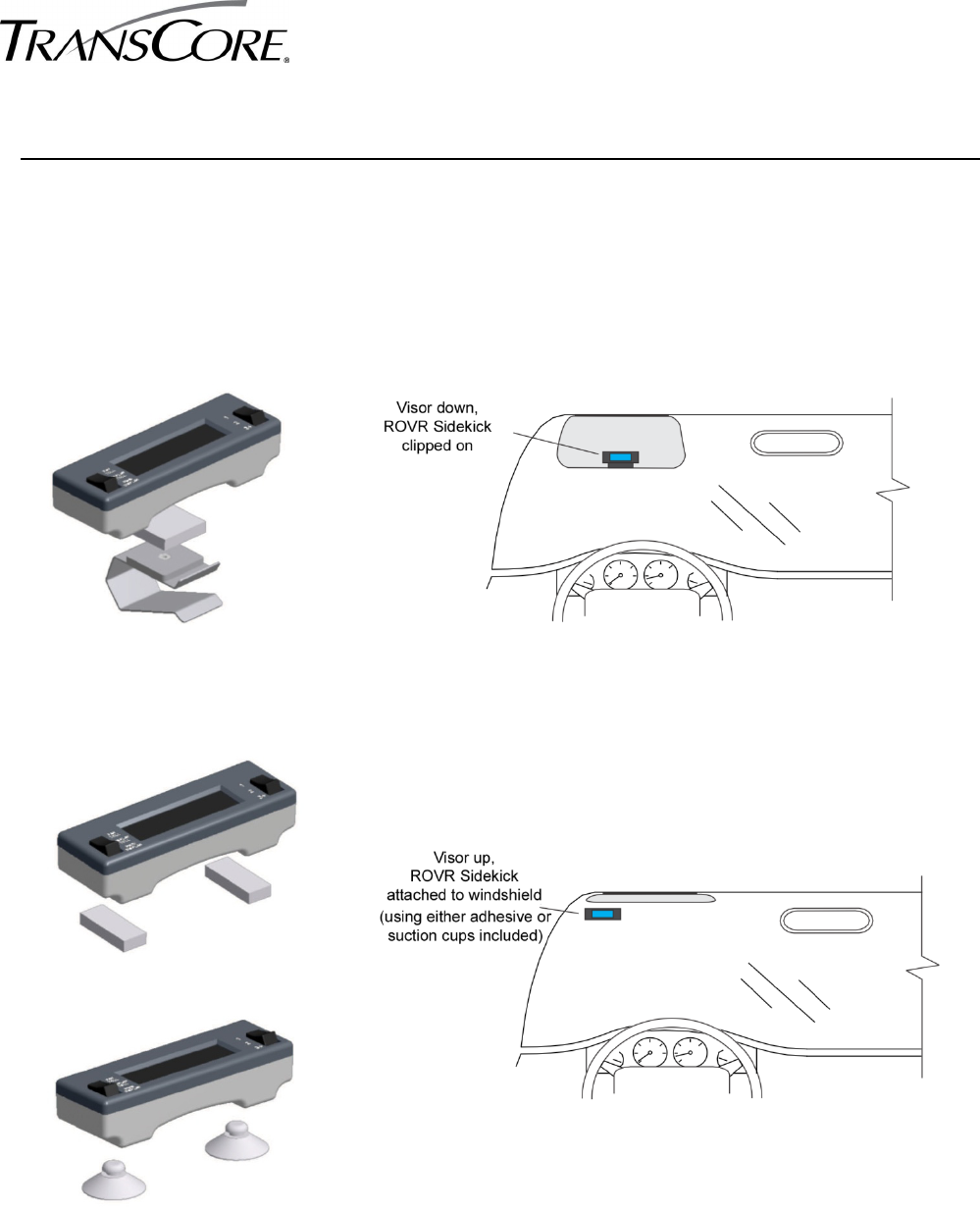

Your ROVR Sidekick kit includes the necessary parts to attach the unit to:
• the vehicle
visor
with a clip, or to
• the
windshield
with either double-sided adhesive or suction cups.
Visor Moun
t
Clip
Windshield Mount
Adhesive
Suction Cups
ROVR SIDEKICK Installation and Operation v1.0 | Document Number 412158 Page 4 of 6
Operation
The ROVR Sidekick has two “rocker” switches, one on each side, that allow you to power the unit on and off,
select the number of occupants in your vehicle, and choose to use a HOT lane payment. Each switch has 3
positions: Up, Center, and Down. When you press the switch, it rocks to the position you choose and then
returns to center. A display on the ROVR Sidekick shows messages.
Turn On the ROVR Sidekick

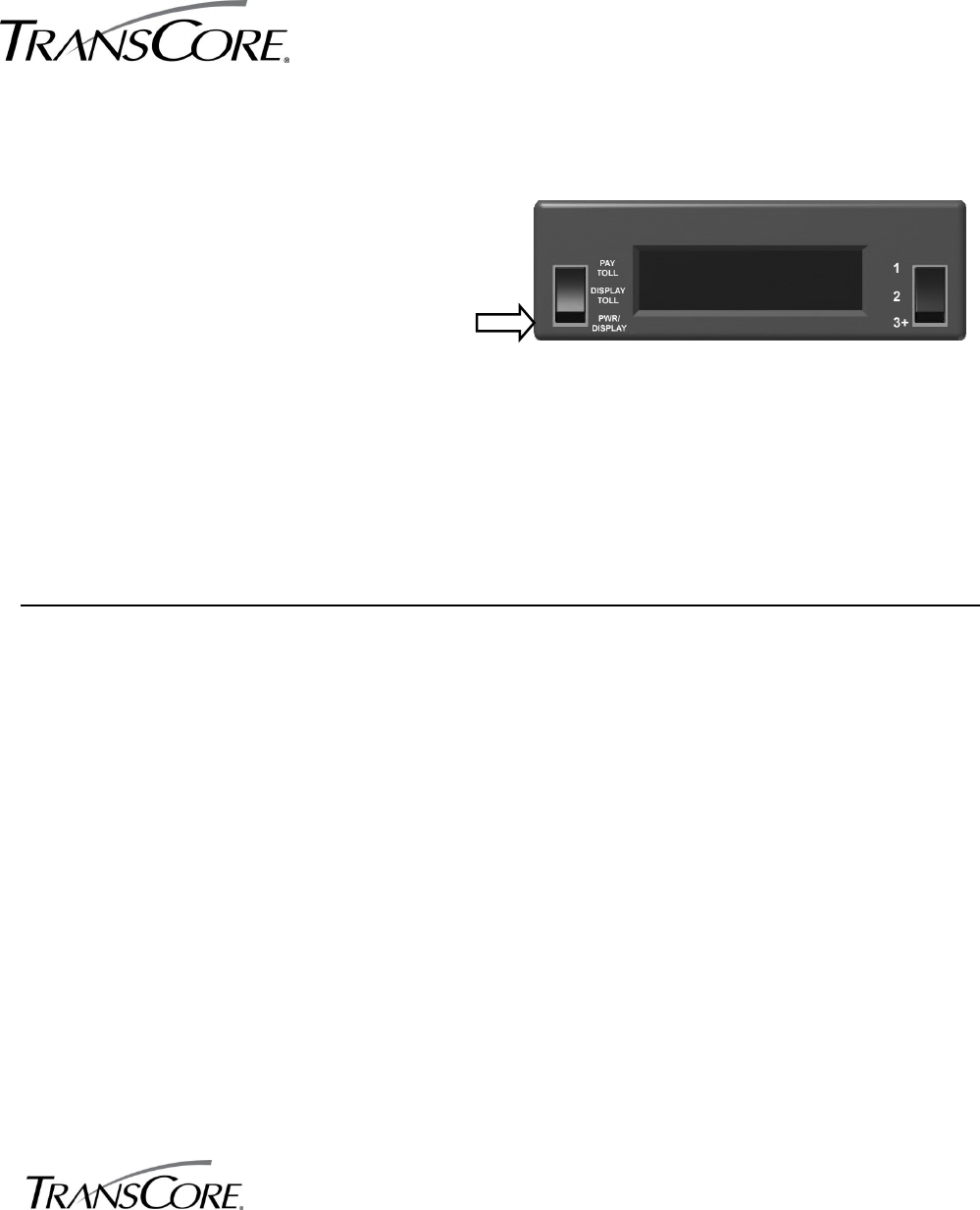

Press PWR/Display. The ROVR Sidekick display
shows this message on power-up:
Set Number of Occupants
1 If it will be just you in the vehicle, select 1 (Up)
with the Occupancy Switch.
2 For two passengers, select 2 (Center) with the
Occupancy Switch.
3 For three passengers, select 3 (Down) with the
Occupancy Switch.
Down: Turn ON or see last
message. Press and hold to
turn OFF.
Center: See toll only–don’t use
HOT
y
et
Up: Use HOT lane & pay toll
Down: 3+ people in vehicle
Center: 2 people in vehicle
Up: 1 person in vehicle
Choose HOT Lane use:
Toll Selection Switch
NO TOLL INFO
2 PEOPLE
1 PERSON
Screen displays
messages here
Occupancy Switch
Select the number of people in your vehicle:
3 PEOPLE
ROVR SIDEKICK Installation and Operation v1.0 | Document Number 412158 Page 5 of 6
Use the HOT Lane
1 Make sure you have selected the correct
number of occupants.
2
Enter Pre-Toll Geo-zone. Choose DISPLAY
TOLL (Center) –or- press PWR/DISPLAY
(Down). The ROVR Sidekick shows the toll
amount. Continue current route towards
the HOT Lane.
3 Press PAY TOLL (Up). The ROVR Sidekick
confirms your choice.
4
Enter Toll area. You are charged according to
your occupancy setting:
Check Toll but Skip the HOT Lane
1 Make sure you have selected the correct
number of occupants.
2
Enter Pre-Toll area. Choose DISPLAY TOLL –
or- press PWR/DISPLAY. The ROVR Sidekick
confirms the command.
3
The ROVR Sidekick shows the toll amount. If
you decide you don’t want to use the HOT
lane and pay the toll, do not enter the Toll
Geo-zone.
2 PEOPLE
A
LLOW CHARGES
2 PEOPLE
HOT LANE AHEAD
TOLL $2.34
HOT LANE ENTRY
PAID $2.34
2 PEOPLE
HOT LANE AHEAD
TOLL $2.34
DO NOT USE HOT
DISPLAY TOLL ONLY
ROVR SIDEKICK Installation and Operation v1.0 | Document Number 412158 Page 6 of 6
Turn Off the ROVR Sidekick
Press and hold PWR/DISPLAY for 2.5 seconds.
This message flashes before the ROVR Sidekick
powers off:
Regulatory and Compliance
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules, and Industry Canada license-exempt RSS standard(s). Operation is
subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this
device must accept any interference received, including interference that may cause undesired
operation.
The Sidekick™ may not be modified, altered, or changed in any way without permission from
TransCore, LP. Unauthorized modification may void the equipment authorization from the FCC and will
void the TransCore warranty.
www.transcore.com
©2012 TC License, Ltd. All rights reserved. TRANSCORE is a registered trademark and is used under license. ROVR is a trademark of
TransCore and Cartasite. ROVR SIDEKICK is a trademark of TransCore. All other trademarks listed are the property of their respective
owners. Contents subject to change. Printed in the U.S.A..
