TransCore MPI6000 LMS TRANSMITTER User Manual 411880
TransCore LMS TRANSMITTER 411880
USERS MANUAL
![](/img.php?id=603235&img=bg1.png)
MPI 6000 Multi-Protocol
Reader System Guide
TransCore, Inc.
19111 Dallas Parkway, Suite 300
Dallas, Texas 75287-3106
September 2005
P/N 411880
![](/img.php?id=603235&img=bg2.png)
![](/img.php?id=603235&img=bg3.png)
©2005 TC IP, Ltd. All rights reserved. TRANSCORE, AMTECH, and EGO are registered trademarks of
TC IP, Ltd, and are used under license. All other trademarks listed are the property of their respective
owners. Contents are subject to change. Printed in the U.S.A.
Products covered by this document are protected by one or more of the following U.S. patents 4,739,328;
4,864,158; 4,999,636; 5,030,807; 5,550,547; 5,606,322; 5,673,037; 5,912,632; 5,942,987; and foreign
equivalent patents. Other patents pending.
For further information, contact:
TransCore
19111 Dallas Parkway, Suite 300
Dallas, Texas 75287-3106 USA
Phone: (972) 733-6600
Fax: (972) 733-6699
TransCore Action Center (TrAC)
Phone: (800) 755-0378
For comments or questions about this document, e-mail tech.pubs@transcore.com.
![](/img.php?id=603235&img=bg4.png)
iv
WARNING TO USERS IN THE UNITED STATES
FEDERAL COMMUNICATIONS COMMISSION (FCC) RADIO FREQUENCY
INTERFERENCE STATEMENT
47 CFR §15.105(a)
NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device
pursuant to Part 15 of the Federal Communications Commission (FCC) rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can radiate radio frequency (RF) energy and
may cause harmful interference to radio communications if not installed and used in accordance with the
instruction manual. Operating this equipment in a residential area is likely to cause harmful interference, in
which case, depending on the laws in effect, the users may be required to correct the interference at their
own expense.
NO UNAUTHORIZED MODIFICATIONS
47 CFR §15.21
CAUTION: This equipment may not be modified, altered, or changed in any way without permission
from TransCore, Inc. Unauthorized modification may void the equipment authorization from the FCC and
will void the TransCore warranty.
USE OF SHIELDED CABLES IS REQUIRED
47 CFR §15.27(a)
Shielded cables must be used with this equipment to comply with FCC regulations.
A license issued by the FCC is required to operate this RF identification device in the United States.
Contact TransCore, Inc. for additional information concerning licensing requirements for specific devices.
TransCore, Inc.
USA
![](/img.php?id=603235&img=bg5.png)
Health Limits
Within the United States, environmental guidelines regulating safe exposure levels are issued by the Occu-
pational Safety and Health Administration (OSHA).
For equipment operating from 300 to 1500 MHz the FCC limits on radiation exposure are contained in
CFR title 47 part 1.1310.
Note: Frequency (f) is expressed in MHz.
At 902 MHz (worst case frequency for MPI 6000 operating band) these levels are
RF Levels From TransCore Equipment
Power density is given in milliwatts per centimeter (mW/cm) and is calculated as
where
P = antenna input power (mW)
G = antenna gain referenced to an isotropic radiator
D = distance from antenna (cm)
For TransCore’s IT2200 AVI system at maximum levels of
P = 1 W or 1000 mW, maximum
G = 14dBi or 25.1; AA3152 Universal Toll Antenna
S = 0.60 mW/cm2, General Public Exposure Limit
S = 3.0 mW/cm2, Occupational/Controlled Limit
Exposure Classification Power Density Averaging Time
Occupational/Controlled Exposure f/300 mW/cm26 minutes
General Public/Uncontrolled Exposure f/1500 mW/cm230 minutes
Exposure Classification Power Density Averaging Time
Occupational/Controlled Exposure 3.0 mW/cm26 minutes
General Public/Uncontrolled Exposure 0.6 mW/cm230 minutes
2
4D
PG
S
π
=
![](/img.php?id=603235&img=bg6.png)
MPI 6000 Multi-Protocol System Guide
For the maximum power level (2 watts) the minimum safe distance is
= 2.68 ft (81.5 cm) for General Public Exposure Limit, and 1.2 ft (36.46 cm) for
Occupational/Controlled Limit
For a typical operating power level of 0.5W (-6dB attenuation from maximum power) the minimum safe dis-
tance is
= 1.339 ft (40.8 cm) for General Public Exposure Limit, and 0.6 ft (18.3 cm) for
Occupational/Controlled Limit
Any distance beyond 2.68 ft (0.82 m) from the antenna is compliant. Because antennas typically are mounted
at heights of 18 ft (5.5 m), the minimum compliance distance should be met and maintained. Typical exposure
levels should be below FCC exposure limits.
For example, a 6 ft (1.8 m) tall person standing in the center of the main lobe of the antenna would experience
maximum RF levels of 0.03 mW/cm2, and typical levels of 0.0075mW/cm2. Even for the more stringent Gen-
eral Public Exposure Limit, the maximum exposure is 1/40th of the compliance level, and the typical exposure
level is 4 times lower than that. For locations not centered in the main lobe of the antenna, the drop off in
antenna gain reduces the radiation exposure for that area. A person standing 6 ft (1.8 m) to the side of an
antenna would experience an additional approximate 10dB drop in power density.
For these reasons, the MPI 6000 falls within FCC exposure limits.
S
PG
D
π
4
=
S
PG
D
π
4
=
![](/img.php?id=603235&img=bg7.png)
Contents
![](/img.php?id=603235&img=bg8.png)
![](/img.php?id=603235&img=bg9.png)
ix
Contents
Health Limits. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . v
RF Levels From TransCore Equipment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . v
1 Before You Begin
Purpose of the Guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
Intended Audience . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
Guide Topics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
Related Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4
Typographical Conventions Used in this Manual . . . . . . . . . . . . . . . . . . . . . . . 1-4
Licensing Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5
U.S. Licensing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5
2 Developing the Installation Site Plan
3 Installing and Configuring the MPI 6000
Overview of the MPI 6000 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3
Connecting the MPI 6000 for Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3
External Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3
Installing and Using the MPI 6000 Host Software . . . . . . . . . . . . . . . . . . . . . . . 3-6
Installing the Host Software. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-6
Connecting to the MPI 6000 Reader with the Host Software . . . . . . . . . . . . 3-7
Configuring the MPI 6000 Reader Operating Frequency . . . . . . . . . . . . . . . 3-7
Operating the MPI 6000 Reader. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-7
4 Lane Tuning Guidelines
Why You Need to Tune a Lane . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3
Required Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3
Lane Tuning Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3
![](/img.php?id=603235&img=bga.png)
MPI 6000 Multi-Protocol Reader System Guide
x
Traffic Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3
Tag Transaction or Handshake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4
Capture Zone or Lane Footprint . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4
RF Factors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-6
Downlink and Uplink Transmitted RF Power . . . . . . . . . . . . . . . . . . . . . . . . 4-7
Range Control Adjustments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-7
Frequency Considerations — Single Protocol . . . . . . . . . . . . . . . . . . . . . . . 4-7
Frequency Considerations — Multiple Protocols . . . . . . . . . . . . . . . . . . . . . 4-8

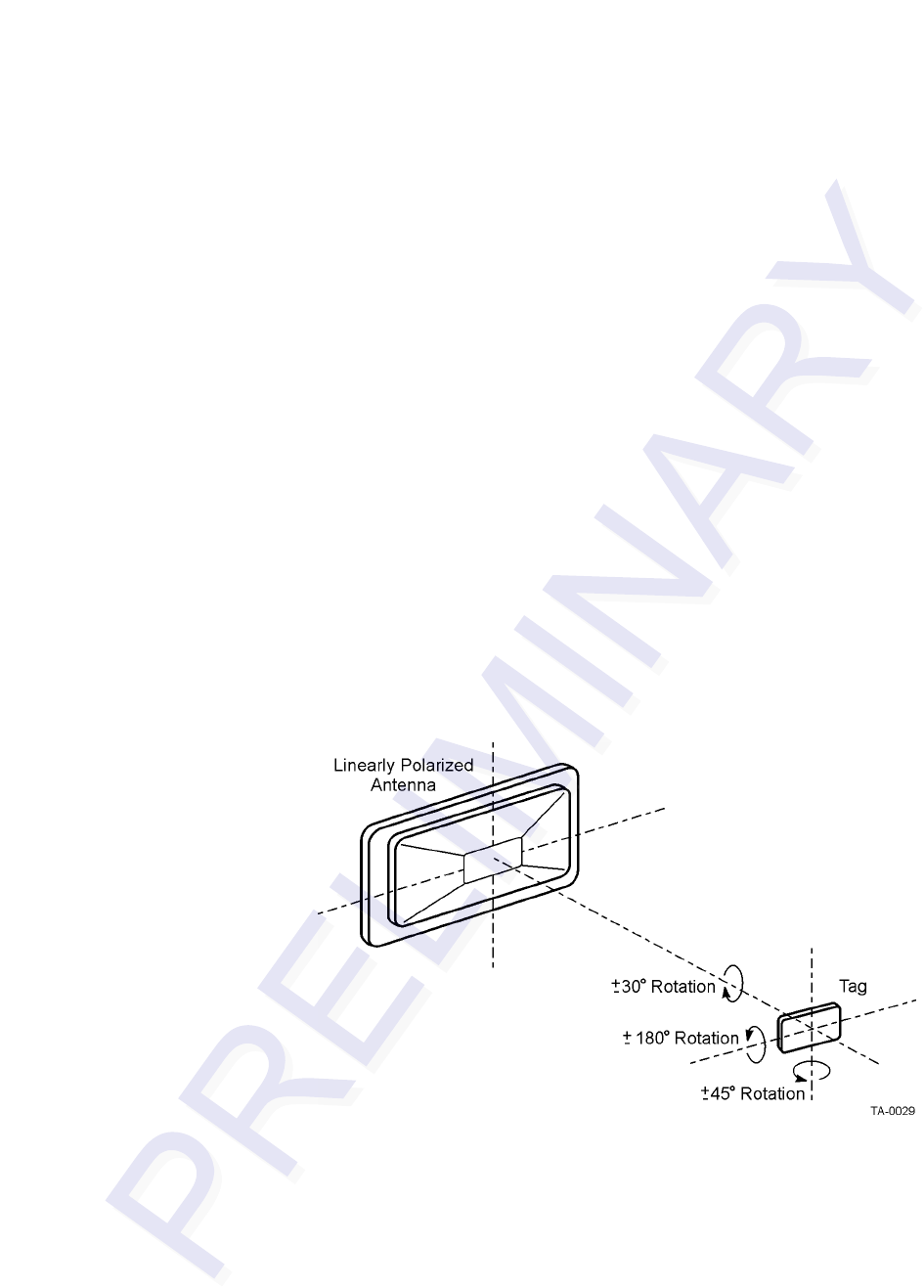

Antenna-Tag Orientation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-8

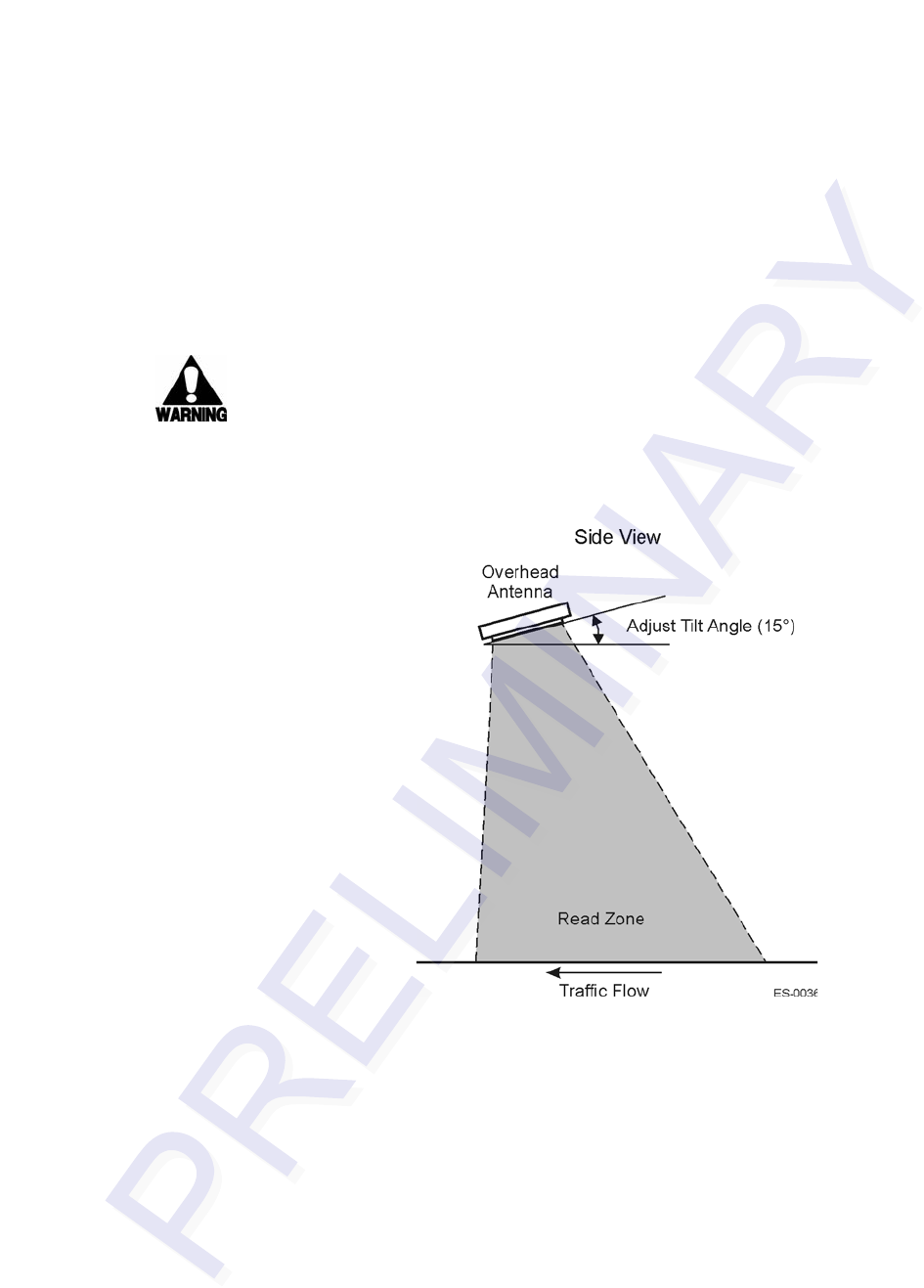

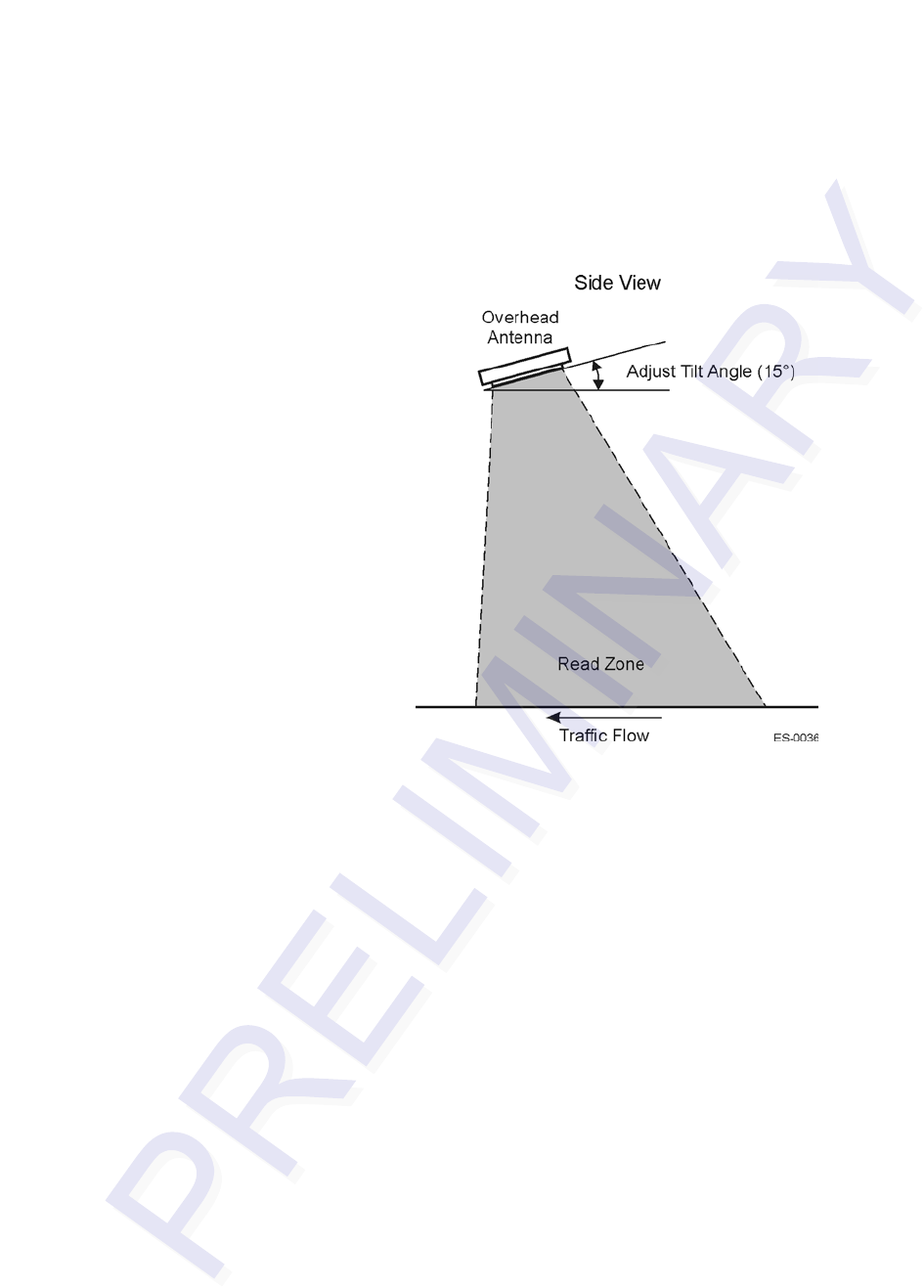

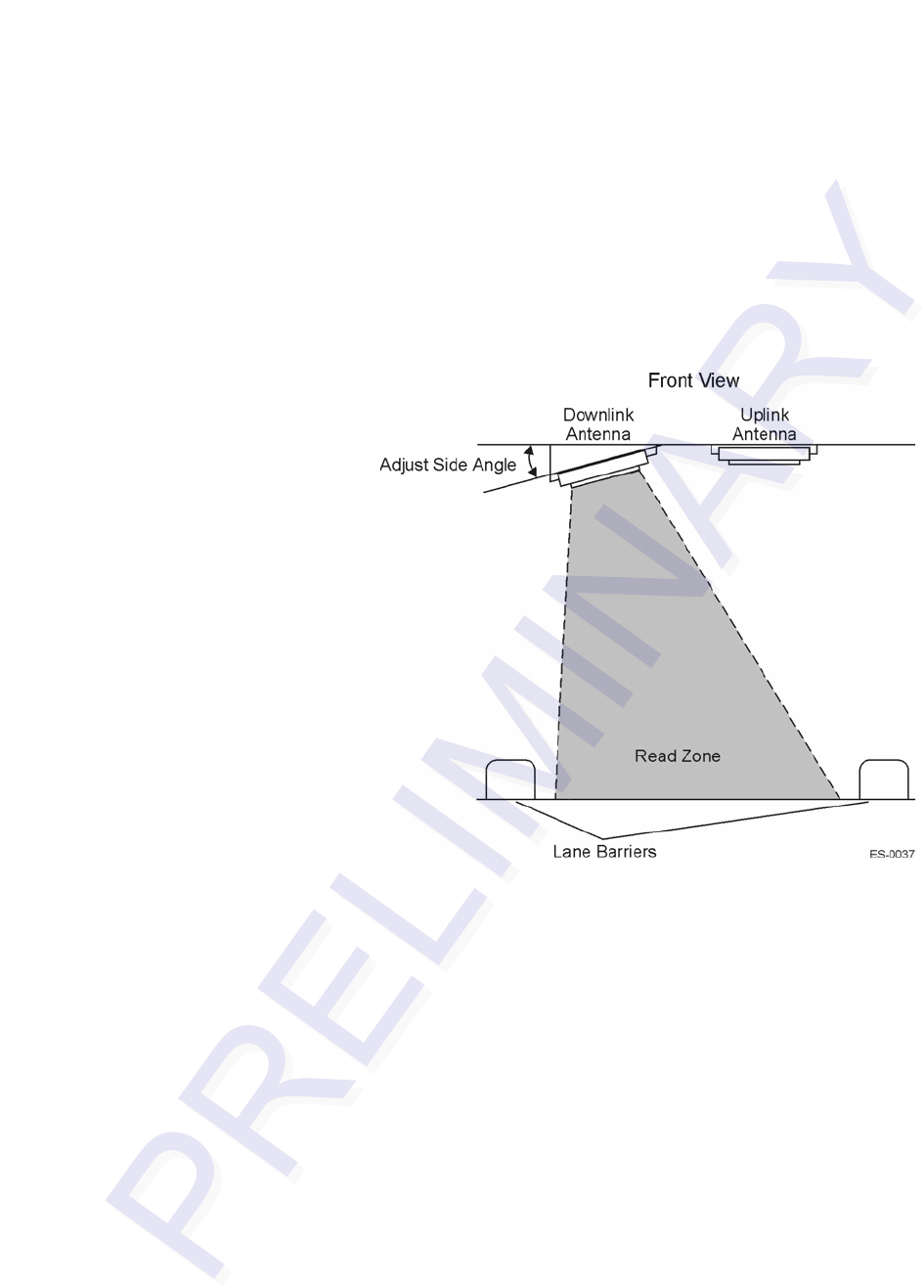

Antenna Uptilt Angle. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-9
Antenna Positioning Within the Lane . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-10
Signal Timing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-11
5 Optimizing MPI 6000 Reader System Performance

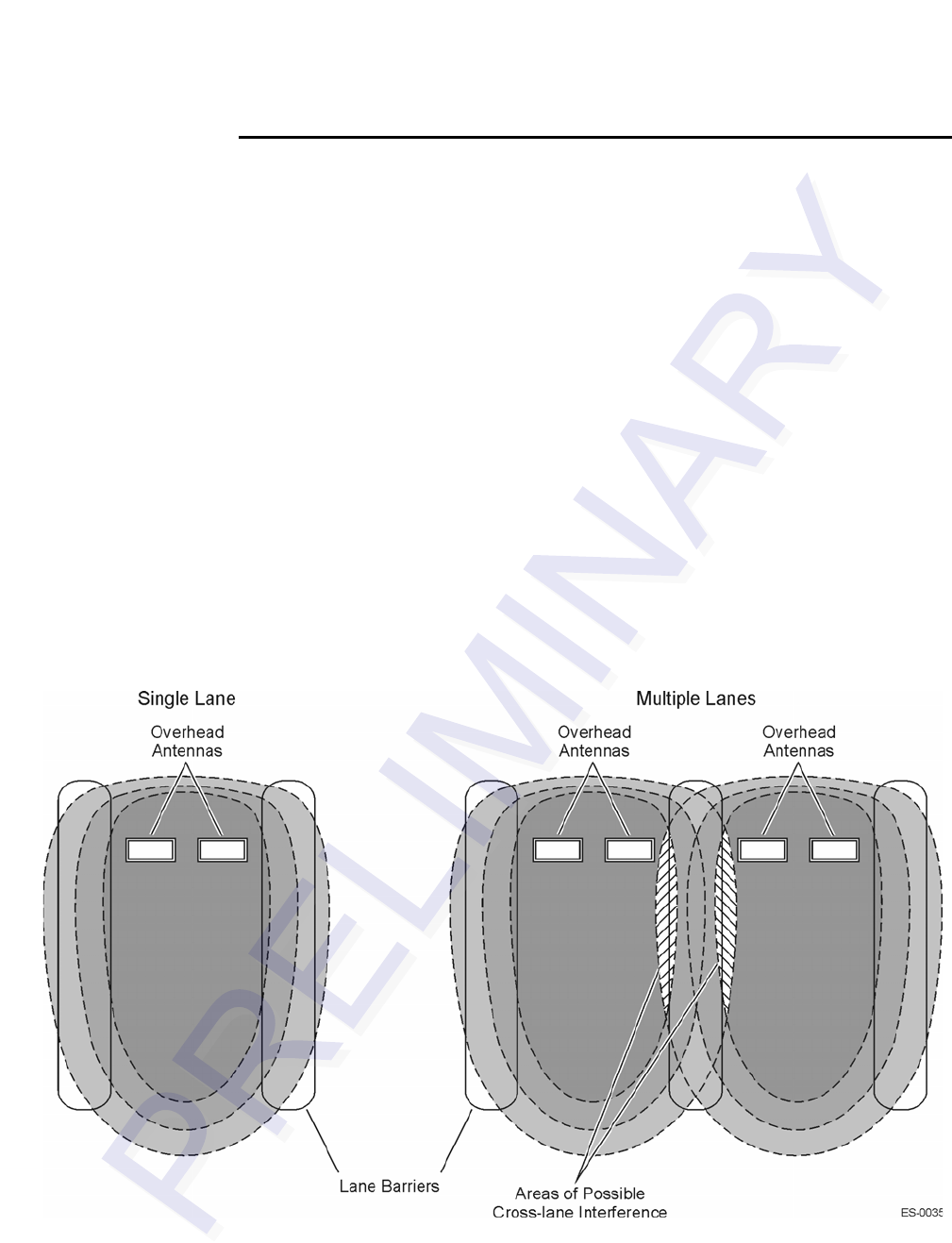

Cross-Lane Interference in RFID Systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-3
What Is Cross-Lane Interference? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-3
Determining Acceptable Lane Performance . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-3
Identifying Cross-Lane Interference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-4
Diagnosing Cross-Lane Interference. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-5
Remedying Cross-Lane Interference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-5
Frequency Separation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-5
RF Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-5

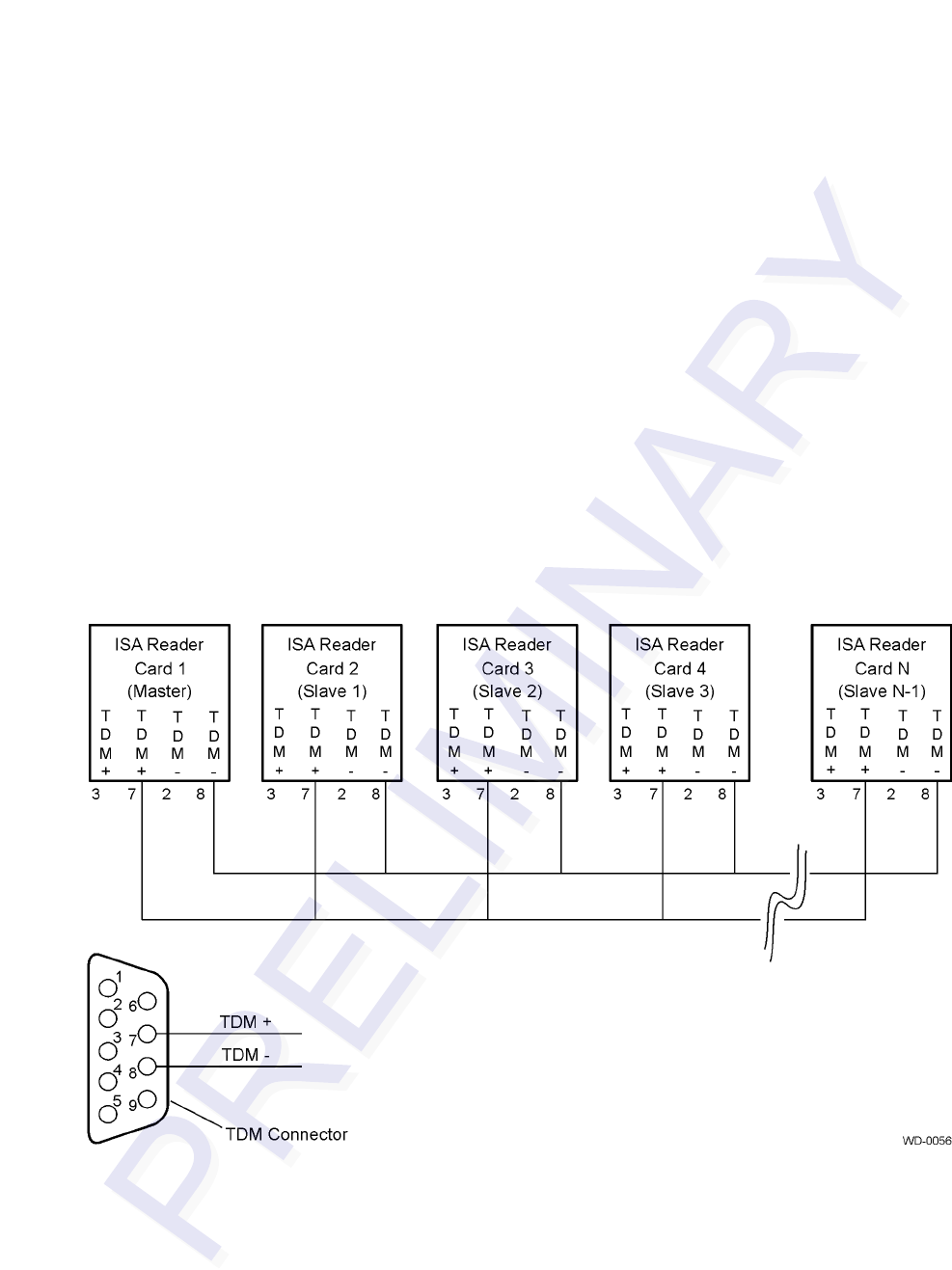

Time-Division Multiplexing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-6
Physical Remedies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-10
6 General Software Information
General Software Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-3
Plan and Organize. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-3
Communications Protocols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-3
Ethernet. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-3
Communications RS–232 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-4
Diagnostic RS–232 Serial Communications . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-5
Reader Command Protocol. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-6
UDP/IP Fast Ethernet Communications Protocol . . . . . . . . . . . . . . . . . . . . . . . 6-7
Command Request Message . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-7
Data Acknowledge Message . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-8
Command Response Message . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-8
Asynchronous Response Message . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-9
Software Flow Control Message . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-10
Unsolicited Status Message . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-10
Serial Communications Protocol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-11
Command Request Message . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-11
![](/img.php?id=603235&img=bgb.png)
Contents
xi
Data Acknowledge Message . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-11
Command Response Message . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-12
Asynchronous Response Message . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-13
Software Flow Control Message. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-14
Unsolicited Status Message . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-15
7 Configuration Commands and Responses
Configuring the MPI 6000 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-3
Required Commands to Set Up MPI 6000 Reader. . . . . . . . . . . . . . . . . . . . 7-3
System Interface Command Group Commands . . . . . . . . . . . . . . . . . . . . . . . . 7-5
System Identify . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-6
Set Communications Baud Rate. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-6
Get Communications Baud Rate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-7
Set Time and Date . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-8
Get Time and Date . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-9
Firmware Download . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-9
Reset Reader . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-10
Get Stored Tag Response Message . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-10
Get Number of Stored Tag Response Messages. . . . . . . . . . . . . . . . . . . . 7-11
Delete All Stored Tag Response Messages . . . . . . . . . . . . . . . . . . . . . . . . 7-11
Get System Startup Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-11
Get Lane Controller Interface Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-12
Get System Interface Status. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-13
Get DigBrd Hdwr Remote Inventory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-13
Get DigBrd CPU Boot Fmwr Remote Inventory . . . . . . . . . . . . . . . . . . . . . 7-14
Get DigBrd CPU Appl Fmwr Remote Inventory . . . . . . . . . . . . . . . . . . . . . 7-14
Get DigBrd FPGA UDP/IP Core Fmwr Remote Inventory . . . . . . . . . . . . . 7-15
Get UDP/IP Core Lane Controller Parameters . . . . . . . . . . . . . . . . . . . . . . 7-16
Set UDP/IP Core IP Address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-17
Get UDP/IP Core IP Address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-17
Get UDP/IP Core Port Number. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-18
8 Tag Command Processing
Reader Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-3
Write Commands. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-3
Read Commands. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-3
Host Commands Required for Tag Processing. . . . . . . . . . . . . . . . . . . . . . . . . 8-3
9 System Diagnostics and Preventive Maintenance
Troubleshooting Indications and Actions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-3
![](/img.php?id=603235&img=bgc.png)
MPI 6000 Multi-Protocol Reader System Guide
xii
A Acronyms and Glossary

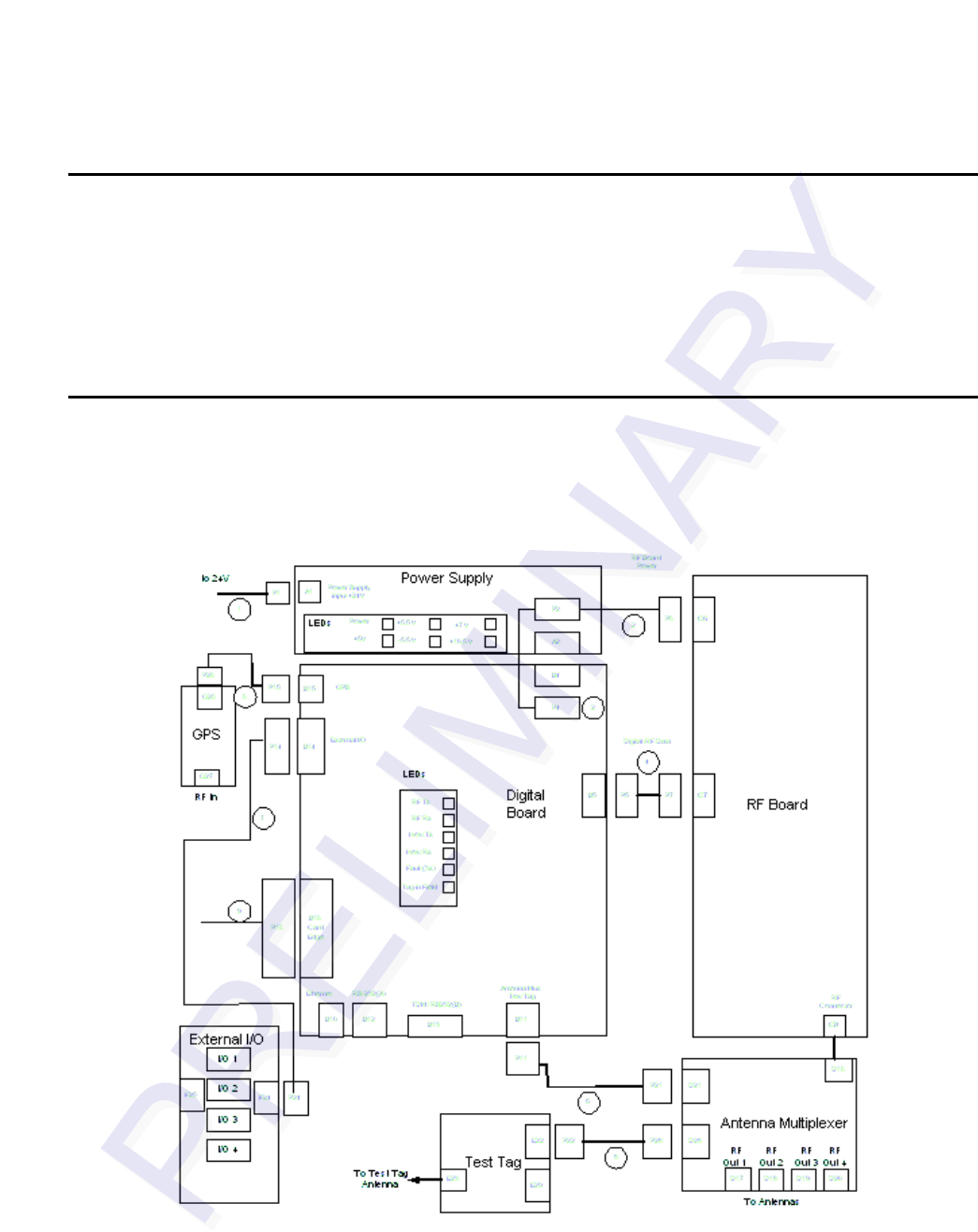

B Block Diagrams
MPI 6000 System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-3
C System Technical Specifications
Component Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-3
MPI 6000 Multi-Protocol Reader . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-3
Power Supply Fault Detection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-3
AA3152 Universal Toll Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-3
Environmental Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-3
D Hardware Interfaces
Hardware Interfaces. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . D-3
Communications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . D-4
Ethernet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . D-4
RS-232 Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . D-4
Hardware Diagnostic Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . D-6
Antenna Multiplexer Connectors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . D-7
RF System Test Connectors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . D-7
![](/img.php?id=603235&img=bgd.png)
1
Before You Begin
![](/img.php?id=603235&img=bge.png)
![](/img.php?id=603235&img=bgf.png)
1-3
Chapter 1
Before You Begin
This chapter provides an overview of the MPI 6000 Multi-Protocol Reader
System Guide.
Purpose of the Guide
This MPI 6000 Multi-Protocol System Guide provides an overview of the reader sys-
tems as well as a list of the reader software commands and diagnostic and hardware
interface information.
Intended Audience
The intended audience for this guide is those personnel responsible for operating the
MPI 6000 Multi-Protocol Reader.
Guide Topics
The MPI 6000 Multi-Protocol System Guide presents the following information.
Chapter 1 - Before You Begin In process
Chapter 2 - Theory of Operation In process
Chapter 3 - System Components In process
Chapter 4 - MPI 6000 System Operation In process
Chapter 5 - Diagnostics Information In process
Appendix A - Acronyms and Glossary In process
Appendix B - Block Diagrams In process
Appendix C - System Technical
Specifications
In process
Appendix D - Hardware Interfaces In process
Appendix E - Reader Defaults In process
Index In process
![](/img.php?id=603235&img=bg10.png)
MPI 6000 Multi-Protocol Reader System Guide
1-4
Related Documentation
See the following related document:
MPI 6000 Reader Quick Reference Guide (in process)
Typographical Conventions Used in this Manual
The following conventions are used in this manual. Not all of the conventions are used
in this version.
Table 1-1 Typographical Conventions
Convention Indication
This procedure might cause harm to the equipment and/or the user.
A caution sign indicates concerns about a procedure.
Code Code, including keywords and variables within text and as separate paragraphs,
and user-defined program elements within text appear in courier typeface.
Dialog Box Title Title of a dialog box as it appears on screen.
Screen Title Title of a screen as it appears on screen.
Menu Item Appears on a menu.
Note Additional information that further clarifies the current discussion. These
important points require the user’s attention. The paragraph is in italics and the
word Note is bold.
Cancel button Bold text identifies the labeling of items as they actually appear on the keyboard,
on a button, as a menu item, and so forth.
Ctrl-Esc A hyphen indicates actions you should perform simultaneously. For example, Ctrl-
Esc means to press the Ctrl and Esc keys at the same time.
5 Return A space indicates that you should press the specified keys in the sequence listed,
not at the same time.
before Text in italics indicates emphasis.
Customer > Find Bold text followed by a > and more bold text indicates the order of command
selections to reach a specific function.
click Click means that you should press and release the left mouse button.
cursor The cursor is the flashing vertical line that appears in a selected edit box.
![](/img.php?id=603235&img=bg11.png)
Before You Begin
1-5
Licensing Requirements
To operate a radio frequency (RF) system in a given country, the user must first obtain
permission from the regulatory agency that controls radio operations in that country.
Most countries require type and safety approval, as well as licensing for RF transmit-
ters.
TransCore data and literature are available to assist with approval and licensing activ-
ities.
U.S. Licensing
MPI 6000 systems users in the U.S. must obtain a license from the Federal Communi-
cations Commission (FCC). The authorized frequency bands in the U.S. are 902 to
904 MHz and 909.75 to 921.75 MHz.
The user is responsible for filing the FCC license according to FCC regulations, but
the TransCore dealer should provide assistance and support as necessary to complete
these forms.
An FCC license provides the user with the legal authorization to operate the MPI 6000
systems on the licensed frequencies at the site specified in the license. Only an autho-
rized installer or service technician can set the frequency for MPI 6000 to that speci-
fied in the FCC site license.
The FCC license also provides the user with protection and authorization to maintain
the system should any other RF identification product be used in the licensed area
after the MPI 6000 equipment is installed.
pointer The pointer is the arrow in the window that shows the movement of the mouse.
Table 1-1 Typographical Conventions (continued)
![](/img.php?id=603235&img=bg12.png)
MPI 6000 Multi-Protocol Reader System Guide
1-6
![](/img.php?id=603235&img=bg13.png)
2
Developing the Installation Site Plan
![](/img.php?id=603235&img=bg14.png)
![](/img.php?id=603235&img=bg15.png)
2-3
Chapter 2
Developing the Installation Site Plan
This chapter will provide guidelines for the following tasks:
Assessing the Site and Formulating a Frequency Plan
Site Layout and Traffic Flow
Electrical and Communications Requirements
MPI 6000 and Tag Model Interoperability
Reading of Mixed Population Tags
Antenna Selection
Antenna and Tag Alignment
Polarization
Site Preparation Checklist
Components Checklist
Task Checklist
![](/img.php?id=603235&img=bg16.png)
MPI 6000 Multi-Protocol Reader System Guide
2-4
![](/img.php?id=603235&img=bg17.png)
3
Installing and Configuring the MPI 6000
![](/img.php?id=603235&img=bg18.png)
![](/img.php?id=603235&img=bg19.png)
3-3
Chapter 3
Installing and Configuring the MPI 6000
This chapter provides instructions for installing and configuring the MPI
6000 system. It also describes the individual components of the MPI
6000 system.
Overview of the MPI 6000
TransCore’s MPI 6000 is an integrated high-speed, multi-protocol 915-MHz radio fre-
quency identification (RFID) reader system that includes an RF transceiver board and
processor in a single assembly.
The MPI 6000 can be integrated into an onsite lane controller or a NEMA enclosure.
The MPI 6000 transmits and receives signals through a single antenna.
The MPI 6000 is capable of supporting any of the following protocols in a given
installation:
•American Trucking Association (ATA), full-frame and half-frame (read-only)
•California Title 21 (read-only)
•eGo®1 (read-only)
•Inter-Agency Group (IAG) (read/write)
•Super eGo (SeGo)* (read/write)
•TransCore IT2200 (read/write)
Where multiple tag protocols are used in the same installation, the MPI 6000 is capa-
ble of supporting any two of the above protocols.
The MPI 6000 is also suitable for a wide variety of automatic vehicle identification
transportation applications, including electronic tolling, open road tolling, electronic
vehicle registration, parking, and rail applications.
The following sections describe the specifications for the external connections from
the MPI 6000 housing.
Connecting the MPI 6000 for Operation
External Connectors
This section lists the MPI 6000 external connections. Figure 3-1 shows the MPI 6000
connector locations.
1.*eGo tags are fully compliant with ANSI INCITS 256:2001 and ISO 18000-6 standards. SeGo is a superset of the eGo
protocol.
![](/img.php?id=603235&img=bg1a.png)
MPI 6000 Multi-Protocol Reader System Guide
3-4

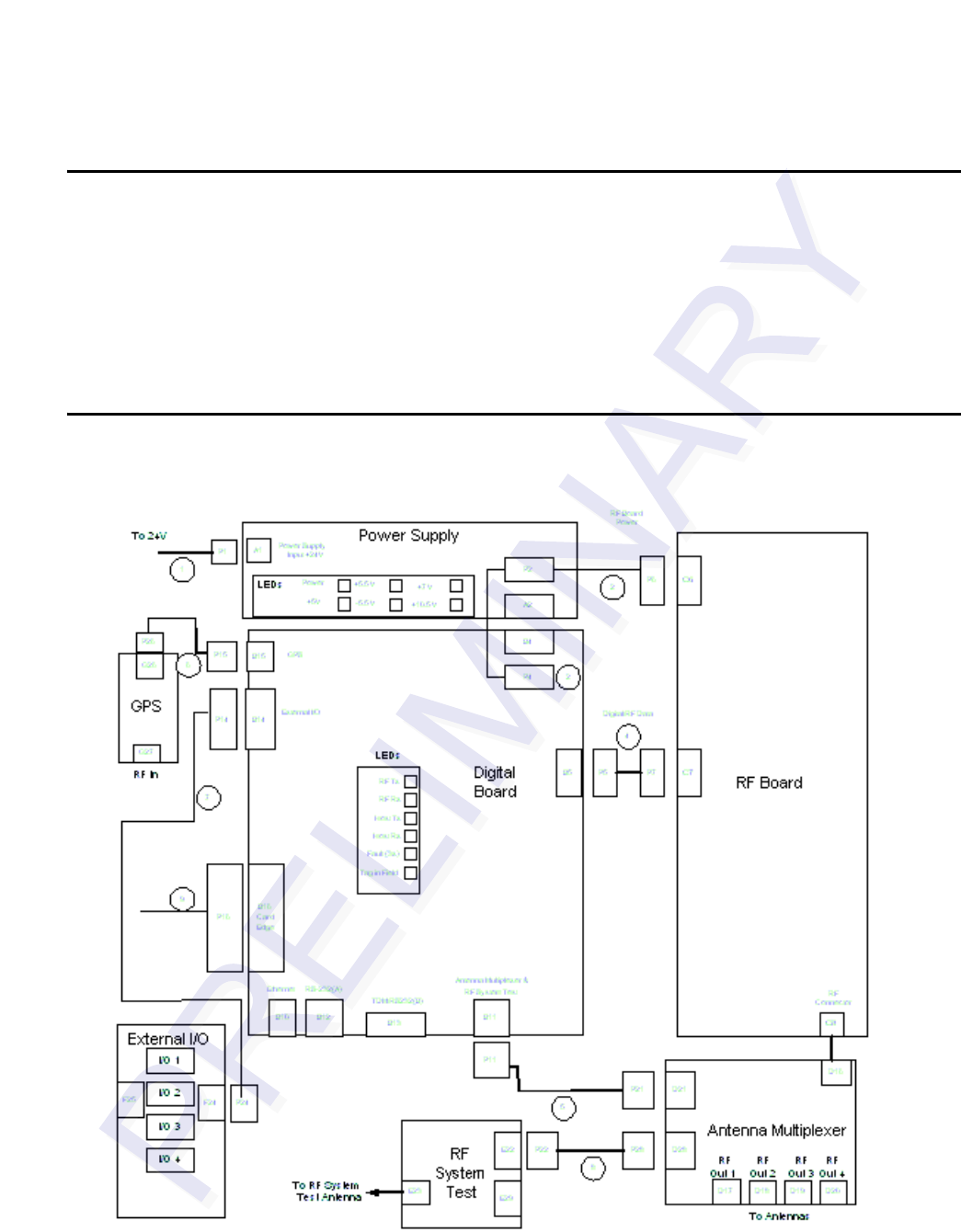

Figure 3-1 Connector Locations on MPI 6000 Enclosure
Power
The MPI 6000 requires 19V DC to 28V DC or 19V AC to 27V AC RMS voltage
source. Table 3-1 lists the MPI 6000 external power connector specifications.
RF Antenna Connector
The MPI 6000 Reader typically is connected to an AA3152 Universal Toll Antenna
by a single low-loss RF cable. The antenna configuration is designed for overhead
mounting on a gantry or sign structure. Figure 3-2 shows the antenna connector on the
MPI 6000 enclosure.
Table 3-1 MPI 6000 Power Connection Specifications
Connector Type Two-Pin Terminal Block
Wire Gauge 12 – 30 AWG
Voltage
19V to 28V DC or 19V to 27V AC RMS
Note If AC is used do not ground one end of the AC
input, the AC supply must float.
Polarity Either, power supply is polarity independent
Current 2 amps
![](/img.php?id=603235&img=bg1b.png)
Installing and Configuring the MPI 6000
3-5
Figure 3-2 Antenna Connector Location
Table 3-2 lists the RF antenna connector parameters.
RF Antenna Multiplexing/RF System Test Connector
This connector is used when a single MPI 6000 is used to operate multiple lanes.
Ethernet Connector
The MPI 6000 communicates with a host via an Ethernet communications protocol.
This connection requires an RJ–45 connector. If you use a switch between the MPI
6000 and a host PC, you do not need a crossover cable. If you connect the MPI 6000
directly to a host PC then you need a crossover cable. If you set the host PC to
Dynamic, TransCore recommends that you set the IP address to Static.
RS–232A Serial Communications Connector
The MPI 6000 communicates via a serial, RS–232, communications protocol (Table
3-3). The diagnostic RS–232 port can be used to display the operating system boot
sequence.
Antenna Connector
Table 3-2 RF Antenna Connector Specifications
Connector Type SMA Female
Output Power Up to 2 watts
Table 3-3 RS-232 Connector Specifications
Connector Type 9 pin D-sub male
Protocol RS-232
![](/img.php?id=603235&img=bg1c.png)
MPI 6000 Multi-Protocol Reader System Guide
3-6
Note: If you connect the MPI 6000 directly to a PC’s serial port, you must use a null-
modem.
By using the version command, you can display data about the configuration of the
MPI 6000 including its Internet Protocol (IP) address. (Mike, any more info here?)
RS-232B/TDM Connector
Information to be provided.
RS-232 Diagnostic Test Port Connector
Information to be provided.
External Digital Input/Output Connector
Information to be provided.
Global Positioning System Connector
Information to be provided.
Installing and Using the MPI 6000 Host Software
This section provides instructions for installing the MPI 6000 host software on your
host computer. You do not need the host to operate the MPI 6000, you can design an
application programming interface using the MPI 6000 commands. Those configura-
tion commands are explained in “Configuration Commands and Responses” on page
7-3 of this system guide.
If you choose to use TransCore’s host software program, follow the instructions in the
following sections.
Installing the Host Software
The MPI 6000 host program is used to communicate with the MPI 6000 and also dis-
play tag reads.
To install the MPI 6000 Host software
1. Load (what media is used? CD? FTP site?) the host software onto the host
computer.
Baud 9600
Bits 8
Parity None
Stop Bits 1
Flow Control None
Table 3-3 RS-232 Connector Specifications (continued)
![](/img.php?id=603235&img=bg1d.png)
Installing and Configuring the MPI 6000
3-7
2. Run setup.exe and follow the commands to install the Host. The setup procedure
installs an icon named MPI 6000 Host on your computer desktop.
The following sections tell you how to use the MPI 6000 Host software.
Connecting to the MPI 6000 Reader with the Host Software
1. Double-click on the MPI 6000 Host icon.
2. Select UDP on the main screen.
3. In the UDP Command Link Config field, enter the IP address of the reader.
Write the IP address near the Ethernet connector on the MPI 6000 enclosure for
future reference.
4. Select Establish Command Link.
5. Select E.xit.
Configuring the MPI 6000 Reader Operating Frequency
1. Select the Configuration tab.
2. Select the Transceiver Configuration sub-tab.
3. Set the frequencies to desire values. Nominal values are 918.75 for downlink and
903 for uplink. Values must be between 902.25 and 903.75 or between 910 and
918.75 for the downlink. Values must be between 912.75 and 918.75 for the
uplink.
Operating the MPI 6000 Reader
1. Select Tags > FDOT.
2. Enter hex data into the IT2200 Write Data and SeGo Page Data fields. Use 32
hex characters for IT2200 (Allegro) and 16 hex characters for SeGo. This is the
data that is going to be written to the tag.
3. Select Read or Write in the SeGo Sequence Field. This sets the Read or Write
parameters for both IT2200 and SeGo tags.
4. Press Start to begin tag processing.
5. Tag responses should appear in the IT2200 and SeGo fields.
6. To stop the display or the response count, select the check boxes.
7. Press Stop to end tag processing.
8. Press Exit to close the FDOT page.
MPI 6000 Readers have been preconfigured for most needed operations. Parameters
such as attenuation, step-lock settings, and tag command sequences are set when the
reader powers up.
![](/img.php?id=603235&img=bg1e.png)
MPI 6000 Multi-Protocol Reader System Guide
3-8
![](/img.php?id=603235&img=bg1f.png)
4
Lane Tuning Guidelines
![](/img.php?id=603235&img=bg20.png)
![](/img.php?id=603235&img=bg21.png)
4-3
Chapter 4
Lane Tuning Guidelines
This chapter explains the importance of lane tuning for optimum
automatic vehicle identification (AVI) system performance and describes
the MPI 6000 functions and features that can assist you in tuning an AVI
lane.
Why You Need to Tune a Lane
Lane tuning is the procedure by which an installer can optimize the radio frequency
(RF) characteristics and the signal timing of an AVI-equipped toll lane for the perfor-
mance dictated by the lane’s traffic requirements. Typically, consideration of these
factors is necessary for each individual lane, although in some installations it may be
possible to identify broader solutions, then apply these solutions to certain classes of
lanes having similar characteristics, followed by additional fine tuning on an individ-
ual lane-by-lane basis. This process is necessitated by the radio link, which is subject
to varying factors such as lane type, the geometry of fixed objects near the capture
zone, interference from external sources, adjacent lane interference, natural non-
homogeneity of RF field strength within the ideal capture zone, and varying tag envi-
ronments. These factors may vary widely within an installation and from lane to lane
within the same plaza. Furthermore, the type of technologies involved, either IT2200,
American Trucking Association (ATA), eGo, eGo Plus, Title 21 or Inter-Agency
Group (IAG), will play a significant role in tuning the lanes for operation. Knowing
the appropriate factors and available tools is necessary for the set-up and troubleshoot-
ing of AVI lanes.
Required Equipment
You will need the following equipment and tools when you tune a lane:
TBD
Lane Tuning Parameters
Lane tuning parameters can be altered to effect required outcomes. This section lists
the properties that can be used to tune a lane.
Traffic Requirements
The traffic requirements of lane tuning include the following characteristics:
•The duration of the tag transaction, also known as handshake
![](/img.php?id=603235&img=bg22.png)
MPI 6000 Multi-Protocol Reader System Guide
4-4
•Maximum traffic speed in the lane, which is used to determine the required length
of the capture zone; also known as the footprint
•The type of lane, that is, express or mixed-use lane
•The presence of vehicle framing devices such as light curtains, which may dictate
the desired location of the first read point
•The presence of alternate toll collection devices, such as coin machines in mixed-
use lanes, which may dictate the desired first read point
•The width of the lane
Traffic requirements are further defined by two terms, tag transaction or handshake
and capture zone or lane footprint.
Tag Transaction or Handshake
A handshake is defined as one complete transaction between a tag and the AVI equip-
ment. The handshake is defined as a complete transaction because in many cases the
transaction consists of more than a simple read. The transaction may be a read com-
mand followed by a general acknowledgment (GENACK), or a read command fol-
lowed by a write command followed by a GENACK, or some other complex sequence
of commands. Each part of the handshake requires time, and the transaction with the
tag cannot be considered complete unless all the components have been completed. To
this end, there will be a minimum time associated with the handshake. It may be as lit-
tle as a few milliseconds, or as high as 30 milliseconds or more.
Capture Zone or Lane Footprint
The footprint is the length of the capture zone measured on the pavement, starting at
the point of the first tag read and ending where tag reads stop, typically three or four
feet past the receive antenna (Figure 4-1). This value is based on the actual measure-
ments of the capture zones of at least five diversely different vehicles equipped with
properly mounted tags. Ideally, RF margin plots taken at the time the footprint are
measured on a foot-by-foot basis, but for the basic measurements discussed in this
guide, all that is needed is the total footprint length from first read to last read.
![](/img.php?id=603235&img=bg23.png)
Lane Tuning Guidelines
4-5
Figure 4-1 Field Size, Shape, and Antenna Polarization Define the Reading
Range
One concern for lane tuning is how large the footprint needs to be for acceptable sys-
tem reliability. A rule of thumb frequently applied to this problem is that there should
be time for a minimum of four complete transactions as the vehicle passes through the
capture zone. Thus, the system that has the more complex transaction requires the
larger footprint.
For example, if a toll agency requires an IT2200 tag read followed by a string of five
GENACKs, this constitutes a complete transaction, and the total time would be four
milliseconds for the IT2200 tag read plus four milliseconds for the five GENACKs for
a total of eight milliseconds for the entire handshake. Four complete handshakes
require 32 milliseconds. If the same agency has a maximum speed requirement of 60
mph through the lane, this translates to 88 feet per second, or 11.36 milliseconds/foot.
The agency could use the system with a footprint that is 32 milliseconds in duration,
which at 60 mph, translates to 11.36 milliseconds per foot or 2.82 feet. Any additional
footprint increases the reliability of the system because the system provides more
chances for the tag to interact with the reader.
1 read @ 4 milliseconds per read = 4 milliseconds
5 GENACK @ 0.8 milliseconds per GENACK= 4 milliseconds
= 8 milliseconds total, each full
handshake
For another example, if the toll agency requires three pages to be read from the tag,
followed by three pages of data to be written to the tag, followed by five GENACKS,
the total transaction time is
To Be Provided.
![](/img.php?id=603235&img=bg24.png)
MPI 6000 Multi-Protocol Reader System Guide
4-6
3 reads @ 4 milliseconds each = 12 milliseconds
3 writes @ 4 milliseconds each = 12 milliseconds
5 GENACKs @ 0.8 milliseconds each= 4 milliseconds
= 28 milliseconds total, each full hand-
shake
To complete 4 full handshakes (simply a rule of thumb), the vehicle would need to be
in the footprint for 112 milliseconds. If the agency requires 100 mph operation, the
vehicles travel one foot in 6.8 milliseconds. At this speed, the footprint would need to
be 16.47 feet long to satisfy this requirement.
This footprint value can change depending on the use of time division multiplexing
(TDM), which will increase the footprint requirements, or by using more sophisticated
polling methods, which may reduce the footprint requirements. Furthermore, the times
presented in this example for the individual components of the transaction can vary.
For example, a password-protected read or write operation can take longer to com-
plete than an ordinary read or write and can impact the overall statistical reliability of
the transaction.
Note: Please consult with TransCore to assess the impact of the more sophisticated
types of transactions.
Given the uncertainties of any RF link due to reasons already discussed in this section,
a short transaction of only a few milliseconds has a statistically better chance of suc-
ceeding than will a complex, longer 30-millisecond transaction. The tag is assumed to
remain in the footprint for a minimum period of time relative to the maximum vehicle
speed and the size of the footprint.
Once the length of the footprint has been determined, the presence of light curtains or
detection loops may dictate the point at which the first tag read should occur. Also,
manned lanes or mixed-use lanes typically require that the tag read occur at least a few
feet in front of the toll collection point. The speed requirements may be reduced for
these lanes and, hence, the footprint size. The point of the first read may be controlled
by antenna placement, uptilt angle, and RF power, which are discussed later in this
chapter. Likewise, if the lane is exceptionally wide or if there is a need for better cov-
erage toward the lane sides, the antenna may be mounted higher or in line with other
antennas. A lower gain antenna may be used to increase the side coverage.
RF Factors
The RF factors involved in tuning an AVI system may include the following parame-
ters:
•The downlink and uplink transmitted RF power
•Range control adjustments that can be made to the receiver
•Antenna type
•Antenna mounting, that is, lane position (relative to payment point, angle, and
height)
![](/img.php?id=603235&img=bg25.png)
Lane Tuning Guidelines
4-7
•The downlink and uplink source frequencies and interference from lanes sharing
same or close frequencies
•The antenna-tag orientation
RF power is the most important RF factor in lane tuning. Thirty dBm translates to one-
watt nominal power. Increasing the RF power will, in general, increase the footprint.
There are other factors involved such as antenna angle and placement that may affect
the footprint, but increasing RF power will generally increase the signal and increase
both the footprint and the RF margins in the lane.
Because the RF power can create interference in adjacent or nearby lanes and degrade
the performance of the adjacent lane, the RF power should be adjusted so that mini-
mum power is used to achieve the desired results.
Downlink and Uplink Transmitted RF Power
Downlink signal is the signal transmitted from the reader to the tag, and uplink signal
is the signal reflected back to the receiver from the tag. The impact of the downlink
and uplink power on footprint and lane performance is heavily dependent on the pro-
tocol type(s) in use in the lane. Table x-x (to be provided) is a general guide to the
influence of RF power on the footprint by protocol. Some of these factors are interre-
lated to such aspects as antenna angle, antenna placement, and tag placement, so use
this information as a starting point and consider other aspects of lane tuning when
operating on any given lane.
Both downlink and uplink power are adjustable by tag protocol. In other words, in
multiple protocol systems, the RF power can be adjusted for each tag protocol in use,
independent of the other tag protocol.
Range Control Adjustments
Adjusting the range control allows the user to adjust the footprint separate from any
setting of the RF power. It is an adjustment on the sensitivity of the receiver and is
done independently for each tag protocol. The units are in decibels and vary from 0 to
20dB, with the higher number giving the smaller footprint. Range control always
exerts an effect on the footprint and performance separate from the tag protocol, but
the degree of the effect may be dependent on RF power and antenna parameters as
well. The most common use of range control is in multiple protocol situations, where
the first read point of tags with two differing protocols must be made to coincide
within a lane. In this situation, the power and antenna parameters are adjusted so that
the weaker protocol tags are reading at the appointed position, then range control is
used to adjust the first read point of the stronger protocol tags down to the same posi-
tion as the other protocol. Range control can also be used in a single protocol situation
to fine tune the first read position.
Frequency Considerations — Single Protocol
TBD
IT2200 or Title 21 Tag Protocol
TBD
This uplink frequency separation should repeat for additional lanes.
eGo Tag Protocol
TBD
![](/img.php?id=603235&img=bg26.png)
MPI 6000 Multi-Protocol Reader System Guide
4-8
ATA Tag Protocol
TBD
IAG Tag Protocol
TBD
Frequency Considerations — Multiple Protocols
TBD
Antenna-Tag Orientation
Antennas need to be oriented to match the tag orientation (Figure 4-2). Antennas also
need to match the tag placement and vice versa. For example, if the tag is placed in the
center of the windshield, the antennas should be placed overhead, centered, or nearly
centered in the lane. If the tag is placed to the side of the windshield, the antennas
should be placed overhead to the side matching the tag placement, or a side-mounted
antenna should be used. There are some exceptions to this, and in the overall system
planning, any variation from this rule should be discussed with TransCore at the earli-
est possible time to minimize additional costs for altering the lane design, especially
after construction has started. Incorrect antenna placement may render the system’s
performance unacceptable and result in the eventual and expensive refitting of
antenna and communication hardware. Figure 4-3 shows interior tag mounting loca-
tions, and Figure 4-4 shows exterior tag mounting locations.
Figure 4-2 Tag Orientation with Linearly Polarized Antenna
![](/img.php?id=603235&img=bg27.png)
Lane Tuning Guidelines
4-9

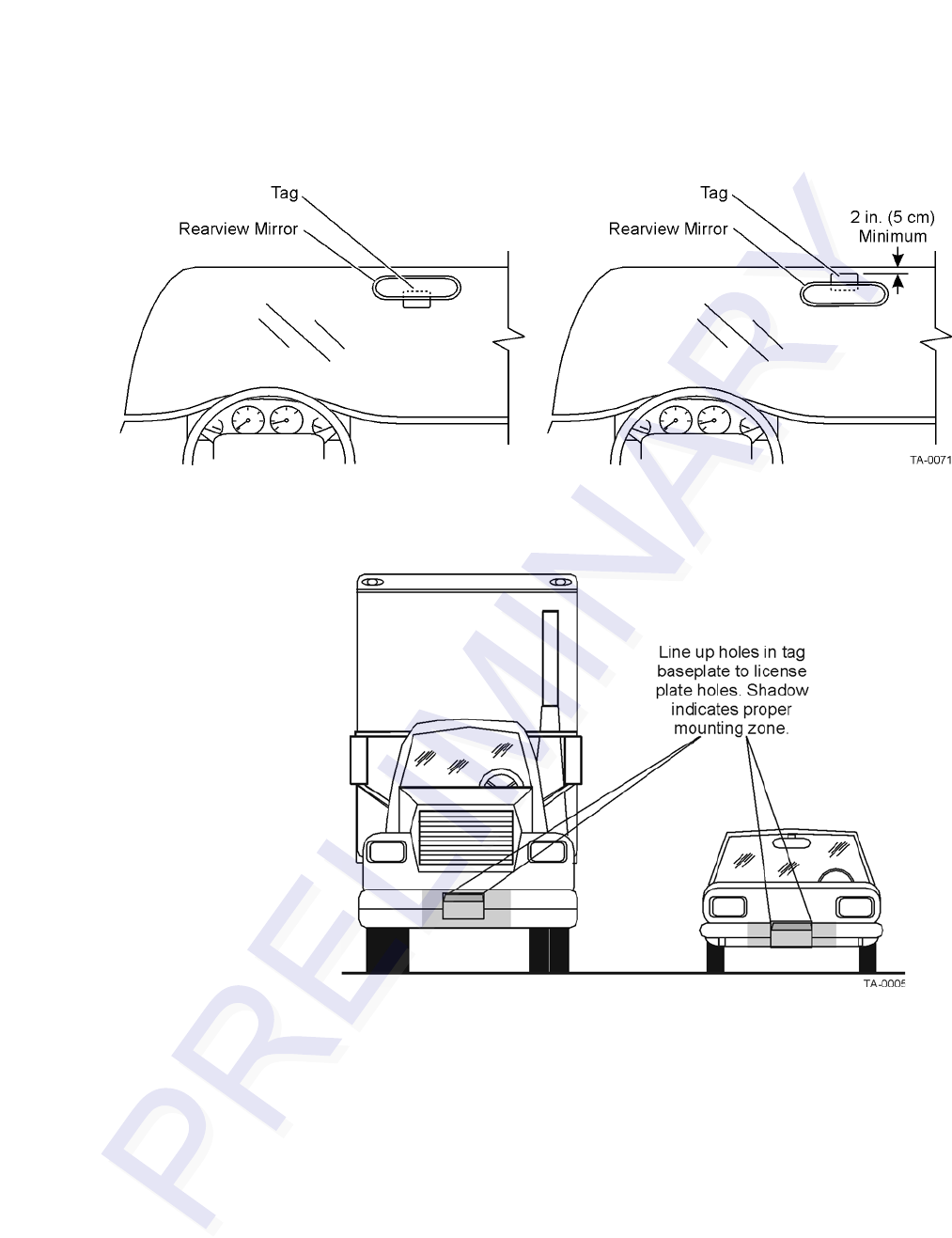

Figure 4-3 Upper Center Interior Windshield Tag Placement
Figure 4-4 Correct Exterior Tag Placement
Antenna Uptilt Angle
Adjusting the antenna uptilt angle directly affects the footprint and the point of first
tag read (Figure 4-5). As expected, a greater uptilt angle will move the point of first
tag read farther from the antenna. However, at some uptilt angle, a point of diminish-
ing return is reached where the RF power is too dispersed to activate the tag at the
start of the footprint. Increasing the antenna angle beyond this point will not move the
first read point farther out and may actually decrease the RF margin within the cap-
ture zone. Also, increasing the angle may produce an area near the start of the capture
zone with spotty reads. The most commonly used range for antenna uptilt angles is
from 10 to 25 degrees with the lower angles producing the sharpest, most clearly
defined read zones. Setting the antenna uptilt angle below 10 degrees may cause
problems in reading tags mounted on windshields that are nearly vertical and in read-
![](/img.php?id=603235&img=bg28.png)
MPI 6000 Multi-Protocol Reader System Guide
4-10
ing license plate tags.
Note: TransCore does not recommend placing the antenna uptilt angles at less than five degrees.
Figure 4-5 Overhead Antenna Tilt Angle
Antenna Positioning Within the Lane
In lanes where the antennas are mounted side by side, TransCore recommends that you install the
transmit antenna toward the driver side of the traffic lane and the receive antenna toward the pas-
senger side of the traffic lane. Antenna position in the lane also impacts lane performance.
Antenna mounting brackets should be designed so that you can adjust the antennas from front to
back and from side to side. In lanes that have no vehicle framing, such as some express lanes, the
front-to-back adjustment is not critical and can be minimized or eliminated. But, in these lanes it is
still valid to have at least ±2 feet (±0.61 m) of side adjustment. Side adjustment may be critical in
places where vehicles tend to travel to one side or another, such as in lanes that are wider than 12
feet (3.65 m). You can move the pair of antennas from side to side so that the centerline between
the antenna pair is located over the area of the lane where the majority of traffic travels. RF reflec-
tors, such as toll booths and Jersey barriers, may require you to make side adjustments to achieve
adequate coverage to one side or the other.
The portion of the footprint with the highest RF margin has the highest probability of a successful
tag transaction. This portion of the footprint is the area directly under the antenna and extending
forward (upstream) a number of feet. If the length of the footprint is not an issue, such as the situa-
tion in some lower speed mixed-use lanes, but the point of first read is critical, it may be advisable
to use a low antenna angle. Next, adjust the antenna position so that the first read occurs at the
desired point. Adjust the antenna position instead of fixing the antenna position and adjusting the
first read point by manipulating the antenna uptilt angle or the RF power. This adjustment may
![](/img.php?id=603235&img=bg29.png)
Lane Tuning Guidelines
4-11
enable you to operate the lane at a lower RF power, which is usually the preferred oper-
ational mode.
Signal Timing
TBD
![](/img.php?id=603235&img=bg2a.png)
MPI 6000 Multi-Protocol Reader System Guide
4-12
![](/img.php?id=603235&img=bg2b.png)
Lane Tuning Guidelines
4-13
![](/img.php?id=603235&img=bg2c.png)
MPI 6000 Multi-Protocol Reader System Guide
4-14
![](/img.php?id=603235&img=bg2d.png)
5
Optimizing MPI 6000 Reader System
Performance
![](/img.php?id=603235&img=bg2e.png)
![](/img.php?id=603235&img=bg2f.png)
5-3
Chapter 5
Optimizing MPI 6000 Reader System
Performance
This chapter provides information to optimize the MPI 6000 performance
and reduce cross-lane interference.
Cross-Lane Interference in RFID Systems
Radio frequency identification (RFID) systems are subject to various types of interfer-
ence that can affect the level of communications between a tag and a reader system. A
type of interference that can result from the operation of the reader system is called
cross-lane interference.
What Is Cross-Lane Interference?
Cross-lane interference occurs when the RF generated in one toll lane interrupts the
RFID operation in another lane that causes the affected lane to perform poorly. Before
diagnosing cross-lane interference, it is necessary to understand what constitutes a sat-
isfactorily performing lane.
Determining Acceptable Lane Performance
The criteria for optimal lane performance are usually set by the customer and can vary
according to the site requirements. In testing, acceptable lane operation criteria typi-
cally are determined by the length of the RF footprint and the speed of the test vehicle.
Usually, a test vehicle’s speed is limited by the amount of the toll lane that can be used
for starting and stopping distances. Usually, testing speed is limited to 20 miles per
hour (mph) or 32 kilometers per hour (kph) or less.
An ideally performing toll lane will produce one handshake for every 4 milliseconds
of transaction time. At 20 mph (32 kph), the vehicle uses 34 milliseconds to travel
through 1.0 foot (0.3 m) of the footprint. If the footprint is 8 feet (2.4 m), this means
that the vehicle will spend approximately 272 milliseconds in the footprint. Based on a
vehicle speed of 20 mph (32 kph) and an 8-foot (2.4m) footprint, this yields an ideal
maximum number of 68 handshakes. Nulls and voids within the RF footprint will
lower this number, as will any other local sources of RF noise and stray reflections. A
rule of thumb for lane performance is to have 40 to 60 handshakes within an 8-foot
(2.4m) footprint with a test vehicle traveling at 20 mph (32 kph). A system that oper-
ates with less than 40 handshakes should be tested for cross-lane interference.
![](/img.php?id=603235&img=bg30.png)
MPI 6000 Multi-Protocol Reader System Guide
5-4
Identifying Cross-Lane Interference
Cross-lane interference is identified by an area in the RF read zone, or footprint,
which has areas where a tag cannot be read. If a toll lane has been operating satisfacto-
rily and then begins to show a degradation in system performance, that is, an increas-
ing number of missed reads or a spotty read pattern, there is a probability that cross-
lane interference is occurring.
Cross-lane interference can be caused by the following:
•A downlink antenna transmitting strong RF beyond its lane boundaries
•Reflection of RF from fixed objects (e.g., toll plazas with low, metal roofs)
•Reflection of RF from moving objects (e.g., a passing tractor-trailer in an adjacent
lane)
A typical toll lane application encompasses more than a single lane. In some cases a
toll plaza can have more than eight lanes with each lane having separate RF transmit-
ting (downlink) and receiving (uplink) antennas. As shown in Figure 5-1, the RF
transmitted within a lane is not bound by physical dividers such as lane barriers. With
multiple-lane applications, transmissions out of a lane can create areas of possible
cross-lane interference.
Figure 5-1 RF Footprint Extends Beyond Lane Boundaries
![](/img.php?id=603235&img=bg31.png)
Optimizing MPI 6000 Reader System Performance
5-5
Diagnosing Cross-Lane Interference
To diagnose this type of interference, first set the RF power in all lanes to a moderate
setting of 6 to 9 decibels (dB) for both downlink and uplink antennas. Next, tune a sin-
gle lane. When tuning a lane be sure to use a tag and vehicle that have been used con-
sistently at your site.
Once the lane has been tuned and you determine that it is working satisfactorily, per-
form lane tuning procedures in the adjacent lane. Continue for each lane in the toll
plaza.
If each adjacent lane tuning causes the previously tuned lane to start performing
poorly (i.e., spotty read zone or areas of no reads), cross-lane interference is indicated.
Remedying Cross-Lane Interference
Several methods exist to remedy cross-lane interference. These remedies are accom-
plished by software or hardware changes, or a combination of both. A remedy at one
site may not be appropriate at another site, so iterative methods of correcting this
interference are necessary.
Frequency Separation
Review the toll plaza frequency plan that was developed during the eGo 4110A
Reader System installation phase. There are two frequencies for each reader: down-
link and uplink. For the eGo 4110A Reader System, all readers share the same down-
link frequency, which is generally set to 918.75 MHz. Uplink frequencies should
alternate between 903.00 MHz and 910.00 MHz in adjacent lanes. For example, a
four-lane plaza would have the frequencies shown in Table 5-1.
RF Power
A good rule of thumb when configuring a toll plaza is to set the RF attenuation at a
lower output and increase the RF power level as needed for optimal system operation.
This practice may provide you with RF attenuation settings at which your reader sys-
tem can operate with minimal adjustment for cross-lane interference.
Table 5-1 Frequency Plan for Four-Lane Toll Plaza Using IT2200-series or Title
21 Tag Protocol
Lane Downlink Frequency Uplink Frequency
1918.75 MHz 903.00 MHz
2918.75 MHz 910.00 MHz
3918.75 MHz 903.00 MHz
4918.75 MHz 910.00 MHz
![](/img.php?id=603235&img=bg32.png)
MPI 6000 Multi-Protocol Reader System Guide
5-6
Time-Division Multiplexing
In situations where cross-lane interference can occur in an installation, and frequency
management is not sufficient to solve the problem, you may need to use time-division
multiplexing (TDM). By using the TDM function in readers, individual readers oper-
ate only during interleaved time periods.
The TDM interconnect is provided via a differential RS–485 interface to a DB9 con-
nector that is located on the reader card’s expansion board connector in slot 2. This
connection provides a synchronization interface between readers where RF interfer-
ence between readers is reduced by multiplexing the RF reader transmission to inde-
pendent time slots. Allowing each reader or group of readers to operate at an allotted
time eliminates interference from readers in adjacent lanes.
Although you need to configure the readers to operate using TDM, the interface con-
nection for TDM can be provided to all the readers in a plaza before or during installa-
tion by connecting a pair of wires to the DB9 TDM connector of each reader as shown
in Figure 5-2. No other equipment is necessary for the interconnection circuit. You
need to follow the polarity conventions as shown because this interface is polarity
dependent.
Figure 5-2 TDM Configuration Example
TransCore recommends Belden 89182 or 8132 cable. Using these low-loss, low-
capacitance twisted-pair cable, the maximum distance is 1000 feet (305 m). Cables
with lower capacitance can be used to run the TDM cables for longer distances while
maintaining signal integrity. This maximum distance may be slightly longer or shorter
depending on the cable used.
![](/img.php?id=603235&img=bg33.png)
Optimizing MPI 6000 Reader System Performance
5-7
Because the TDM signals are based on RS–485 signals, you can extend the length of
the TDM bus by using RS–485 repeaters or by using fiber with converters. Either of
these two modifications should be used only when absolutely necessary in situations
where the TDM lengths need to exceed the 1000-foot (305-m) maximum distance.
Table 5-2 shows the pin designations and descriptions for the TDM connector.
To implement TDM, you must configure only one reader in the group as a master
reader for the TDM function. This reader will have a slightly shorter synchronization
period than the rest of the readers connected to it.
Note: The TDM synchronization period is set in 1.0-millisecond increments, whereas
the TDM delay and TDM duration are set in 0.5-millisecond increments.
Figure 5-3 illustrates a typical plaza configuration using TDM. There are three time
slots with three uplink frequencies. All the readers are configured with a downlink fre-
quency of 916 MHz.
Table 5-2 TDM Connector
Pin Name In/Out Description Recommended Connection
1 N/C N/A No connection N/C
2 N/C N/A No connection N/C
3 N/C N/A No connection N/C
4 N/C N/A No connection N/C
5 N/C N/A No connection N/C
6 N/C N/A No connection N/C
7TDM (+) In/Out TDM synchronization positive Connect all red pin 7 wires
together.
8TDM (-) In/Out TDM synchronization negative Connect all black pin 8 wires
together.
9 N/C N/A No connection N/C
![](/img.php?id=603235&img=bg34.png)
MPI 6000 Multi-Protocol Reader System Guide
5-8
Figure 5-3 Typical Plaza Configuration Using TDM
The frequency settings and the 9-millisecond TDM time slots were determined based
on a Title 21 tag transaction. For other installations, the frequencies and TDM dura-
tion need to be determined based on the type of transaction and expected vehicle
speeds for that installation. Figure 5-4 shows a timing diagram for the readers in each
of the time slots. Table 5-3 lists the settings for each reader in each time slot.
Figure 5-4 TDM Timing Diagram
![](/img.php?id=603235&img=bg35.png)
Optimizing MPI 6000 Reader System Performance
5-9
Note: The TDM synchronization period is set in 1.0-millisecond increments, and the
TDM delay and TDM duration are set in 0.5-millisecond increments.
The TDM example shown in Figure 5-4 and Table 5-3 was designed with three time
slots; however, two time slots can be used instead depending on the number of
frequency channels and the timing. Implementing TDM with three time slots reduces
the time avaliable for a transaction in a given lane by a factor of three. Similarly,
implementing TDM with two time slots reduces the time avaliable for a transaction in
a given lane by a factor of two. Although it is possible to implement four or more time
slots, it is unlikely that more than three time slots are necessary or beneficial.
TransCore recommends that a guard-band of 1 millisecond be used between each of
the time slots to ensure that the readers in the previous time slot have sufficient time to
settle before the readers in the next time slot become active. This procedure can be
done by setting the TDM delay on each reader to account for a duration that is 1 milli-
second longer than the actual duration and setting the TDM synchronization period to
a value that accounts for a duration 1 millisecond longer than the actual duration.
All the readers designated as slave readers in the plaza on the same TDM bus are
dependent on the synchronization signal from the master reader. In the event that the
synchronization pulse from the master reader stops functioning, or the TDM signal
from the master reader becomes disconnected from the rest of the readers in the plaza,
a provision in the readers allows a slave reader to serve as a backup master reader and
supply the synchronization pulse. Although this situation will cause the slave reader to
send an error message to the lane controller, the slave reader will continue to function
and provide the TDM synchronization pulse for the other operational readers on the
remaining TDM bus.
Because the location in the plaza where the signal break may occur is unknown,
TransCore recommends that provisions for a break anywhere in the line be consid-
ered. Although the TDM synchronization period settings for the slave readers could
all be set at the same single value of 1 millisecond longer than the value used for the
TDM synchronization period on the master reader, they should be set at unique values
increasing at 1 millisecond for each reader, starting at a value 1 millisecond higher
than that of the master reader. This setting ensures that only one reader will provide
the synchronization pulse to a given group of readers in the plaza remaining on the
Table 5-3 TDM Timing Settings
Time Slot TDM Delay TDM Duration TDM Synchronization
Perioda
T1 0 ms (setting = 0) 9 ms (setting = 18) 31 ms (setting = 31)
T2 10 ms (setting = 20) 9 ms (setting = 18) 32 ms (setting = 32)
T3 20 ms (setting = 40) 9 ms (setting = 18) 33 ms (setting = 33)
a. Master reader TDM synchronization period equals 30 milliseconds.
![](/img.php?id=603235&img=bg36.png)
MPI 6000 Multi-Protocol Reader System Guide
5-10
TDM bus in the event of either a TDM connection failure, or a failure of the TDM cir-
cuit in the master reader, which also reduces the number of readers that will generate
TDM failure messages in any one of these failure scenarios.
Physical Remedies
By adjusting the angle or position of the downlink and uplink antennas, you may be
able to minimize cross-lane interference.
Warning
Switch off RF power before working on antennas.
Adjusting the Antenna’s Uptilt Angle
Lowering an antenna’s uptilt angle between the antenna cover and the horizon gener-
ally reduces the interference (Figure 5-5).
Figure 5-5 Antenna Tilt Angle Adjustment
![](/img.php?id=603235&img=bg37.png)
Optimizing MPI 6000 Reader System Performance
5-11
Adjusting the Antenna Side Angle
In the eGo 4110A Reader System, you can adjust an antenna’s side angle so that the
RF transmits toward the center of the toll lane, placing the RF footprint into the lane.
If the side angle is too small, the footprint can project into the lane nearest to the tilted
antenna. If the side angle is too large and the RF footprint is projecting toward the
other antenna, you can reduce the side angle so that the antenna’s RF footprint is
evenly placed within the correct lane boundaries. Figure 5-6 shows the downlink
antenna being tilted toward the center of the lane.
Figure 5-6 Downlink Antenna Side Angle Adjustment
Adjusting the Antenna Placement
Besides adjusting the antenna angles, you can also move the antenna farther back into
its overhead location so that the read zone does not extend as far in front of the trans-
action area. By shortening the read zone, you may be able to reduce the required RF
output power, which will result in reduced probability of cross-lane interference.
You can also move the antenna pair from side to side within the lane. This adjustment
is used in lanes where the traffic travels closer to one side than another. For example,
in manned toll lanes, traffic tends to drive closer to the left side of the lane. The cen-
terline between the antennas can be shifted to the left to compensate for this tendency.
Other Site Modifications
In rare instances, applying radar-absorbing foam to fixed areas of the toll plaza (e.g.,
metal roof) may reduce the incidence of interference.
![](/img.php?id=603235&img=bg38.png)
MPI 6000 Multi-Protocol Reader System Guide
5-12
![](/img.php?id=603235&img=bg39.png)
6
General Software Information
![](/img.php?id=603235&img=bg3a.png)
![](/img.php?id=603235&img=bg3b.png)
6-3
Chapter 6
General Software Information
This chapter provides general software information about the design of
MPI 6000 system application software, as well as information required
for using reader system components in the design and integration of an
automated toll, traffic management, or automatic vehicle identification
(AVI) system.
General Software Information
All tag programmer commands are preceded by a start-of-message (<som>) amper-
sand character (&) followed by an end-of-message (<eom>) percent character (%). All
data after the <eom> character is ignored until the next <som> is detected.
Any & character that occurs in the message between the <som> and <eom> is con-
verted to the backslash and at character (\@) sequence. Any % character is converted
to the \? character sequence. All \ characters are converted to the \\ sequence. All
<som> and <eom> character conversions are performed after the cyclic redundancy
check (CRC) has been performed on the transmit data and before the CRC is per-
formed on the receive data.
Reader commands contain only the message information and are not preceded by the
& and are not followed by the %.
Plan and Organize
Tags compatible with the eGo 4110A Reader System have sophisticated memory
organization. TransCore encourages the user to become familiar with the use and
organization of tag memory. Before starting a programming session, TransCore rec-
ommends that you plan and organize the development steps.
Communications Protocols
The MPI 6000 communicates with a host by Ethernet or serial communications proto-
cols.
Ethernet
The MPI 6000 can communicate via an Ethernet communications protocol. This con-
nection requires an RJ–45 connector for the Ethernet receptacle. The Ethernet connec-
tor is an RJ-45 jack and uses a 10-base T interface. If you use a switch between the
MPI 6000 and the host personal computer (PC), no crossover cable is required. If the
MPI 6000 is connected directly to the host PC then a crossover cable is required. If the
![](/img.php?id=603235&img=bg3c.png)
MPI 6000 Multi-Protocol Reader System Guide
6-4
host PC is set to Dynamic TransCore recommends that you set the IP address to Static.
Table 6-1 lists the connector pin assignments.
Communications RS–232
The connector is an industry standard DB-9M plug. Table 6-2 lists this connector pin
assignments.
The RS-232B/Time-division multiplexing (TDM) connector is an 8-pin terminal
block header. The TDM signals must be isolated. Table 6-3 lists this connector pin
assignments.
Table 6-1 Ethernet Connector
Pin Signal Description
1TPTX+ Output Differential Transmit Data +
2TPTX- Output Differential Transmit Data -
3 TPRX+ Input Differential Receive Data +
4NOT CONNECTED N/A
5NOT CONNECTED N/A
6TPRX- Input Differential Receive Data -
7NOT CONNECTED N/A
8NOT CONNECTED N/A
Table 6-2 Communications RS-232 Connector Parameters
Pin Signal Description
1RSD Received line signal detect (not connected)
2RXD Receive Data
3TXD Transmit Data
4DTR Data Terminal Ready (not connected)
5GND Ground
6DSR Data Set Ready (not connected)
7RTS Request to Send
8CTS Clear to Send
9RI Ring indicator (not connected)
![](/img.php?id=603235&img=bg3d.png)
General Software Information
6-5
Diagnostic RS–232 Serial Communications
The MPI 6000 can communicate via a serial, RS–232, communications protocol
(Table 6-4). The diagnostic RS–232 port can be used to display the operating system
boot sequence.
If you connect the MPI 6000 directly to a host PC serial port, you must use a null-
modem connector.
Diagnostic Commands (Mike?)
By using the version command, you can display data about the configuration of the
MPI 6000 including its Internet protocol (IP) address.
The RS-232 diagnostic connector can be used to check the external input/output sta-
tus. Table 6-5 lists this connector pin assignments.
Table 6-3 RS-232B/TDM Connector Parameters
Pin Signal Description
1TXD Transmit Data
2RXD Receive Data
3DTR Data Terminal Ready (not connected)
4RTS Request to Send
5CTS Clear to Send
6GND Ground
7TDM + TDM positive signal
8TDM - TDM negative signal
Table 6-4 RS-232 Connector Specifications
Connector Type 9 pin D-sub male
Protocol RS-232
Baud 9600
Bits 8
Parity None
Stop Bits 1
Flow Control None
![](/img.php?id=603235&img=bg3e.png)
MPI 6000 Multi-Protocol Reader System Guide
6-6
Reader Command Protocol
The MPI 6000 implements command requests, data acknowledgements, command
responses, asynchronous responses, software flow control, and unsolicited status mes-
sages as required for AVI system configuration and operation. The messages are
defined in this section.
Command request messages are initiated and used by the host to request specific
actions to be performed by the MPI 6000.
Data acknowledge messages are initiated and used by the MPI 6000 to signal the
reception of command request messages received from the host. Additionally, data
acknowledge messages are initiated and used by the host to signal the reception of
command response, asynchronous response, software flow control and unsolicited sta-
tus messages received from the MPI 6000.
Command response messages are initiated by the MPI 6000 in response to specific
command request messages received from the host.
Asynchronous response messages are optionally initiated by the MPI 6000 in
response to specific command request messages received from the host.
Software flow control messages are initiated and used by the MPI 60000 System to
inform the host to start or stop sending command request messages. Additionally, soft-
ware flow control messages are initiated and used by the host to inform the MPI
60000 System to start or stop sending messages.
Unsolicited status messages are initiated and used by the MPI 60000 System to
inform the host about specific warning or error conditions in the MPI 60000 System.
The host sends command request messages to the MPI 6000. The MPI 6000 after
receiving command request messages from the host sends data acknowledge mes-
sages, command response messages, asynchronous response messages and if required
Table 6-5 Diagnostic RS-232 Connector Parameters
Pin Signal Description
15V PWR 5V power supply for I/O board
2GND GND
3I/O Signal 1 Input/output signal 1
4I/O Signal 2 Input/output signal 2
5I/O Signal 3 Input/output signal 3
6I/O Signal 4 Input/output signal 4
7Tag in Field 1 Contact Closure 1 for Tag in Field Signal
8Tag in Field 2 Contact Closure 2 for Tag in Field Signal
![](/img.php?id=603235&img=bg3f.png)
General Software Information
6-7
software flow control messages to the host. The host on receiving command response
messages, asynchronous response messages and software flow control messages from
the MPI 6000 sends data acknowledge messages to the MPI 6000.
Additionally, the MPI 6000 sends unsolicited status messages to the host. The host on
receiving unsolicited status messages from the MPI 6000 sends data acknowledge
messages to the MPI 6000.
The MPI 6000 implements message sequence numbers and command sequence num-
bers in all of the message types (e.g. command request, data acknowledge, command
response, asynchronous response, software flow control and unsolicited status). The
host and the MPI 6000 must implement independent transmit and receive counters for
both the message sequence numbers and the command sequence numbers. The trans-
mit counters are used in the generation of the transmitted messages and the receive
counters are used in the received message out-of-sequence error checking. An out-of-
sequence error indicates that a message has been missed.
The host’s message sequence numbers independently track the number of messages
sent to the MPI 6000. The MPI 6000’s message sequence numbers independently
track the number of messages sent to the host. These message sequence numbers are
used on the receiving end to determine if a message has been missed. See the software
communication sequence number controls section for more details.
The host’s command sequence numbers for each command group independently track
the number of command request messages sent to the MPI 6000. The MPI 6000’s
command sequence numbers for each command group independently track the num-
ber of software flow control and unsolicited status messages sent to the host. These
command sequence numbers are used on the receiving end to determine if the appro-
priate message as specified above has been missed. See the software communication
sequence number controls section for more details.
UDP/IP Fast Ethernet Communications Protocol
The UDP/IP fast Ethernet communications protocol implements the UDP/IP fast
Ethernet protocol as specified in the RealFast UDP/IP Core Design Specification
(RealFast Document Number RFHC04026-V042).
Command Request Message
The host sends command request messages to the MPI 6000 as required for system
operation. The host and the MPI 6000 uses the following UDP/IP fast Ethernet com-
munications command request message shown here:
<len> <msgSeqNum> <cmd> <cmdSeqNum> [<data>] <checksum>
where
<len> = length, a word that specifies the number of bytes in the entire message.
<msgSeqNum> = message sequence number, a byte that specifies the message
sequence number of the message. See the software communication sequence number
controls section for details.
![](/img.php?id=603235&img=bg40.png)
MPI 6000 Multi-Protocol Reader System Guide
6-8
<cmd> = command, a word that specifies the system command. See the command
sections for details.
<cmdSeqNum> = command sequence number, a byte that specifies the command
sequence number of the message. See the software communication sequence number
controls section for details.
[<data>] = optional data payload that varies in length from 0 to 65 bytes and is asso-
ciated with each specific command. See the command sections for details.
<checksum> = checksum, a byte that specifies the checksum of the message.
Data Acknowledge Message
The MPI 6000 sends data acknowledge messages to the host after receiving command
request messages from the host.
The host sends data acknowledge messages to the MPI 6000 after receiving command
response messages, asynchronous response messages, software flow control messages
and unsolicited status messages from the MPI 6000. The host and the MPI 6000 uses
the following UDP/IP fast Ethernet communications data acknowledge message as
shown here:
<len> <msgSeqNum> <cmd> <cmdSeqNum> <resp> <msgSeqNumAck> <checksum>
where
<len> - length, word that specifies the number of bytes in the entire message.
<msgSeqNum> - message sequence number, byte that specifies the message sequence
number of the message. See the software communication sequence number controls
section for details.
<cmd> - command, word that specifies the system command. See the command sec-
tions for details.
<cmdSeqNum> - command sequence number, byte that specifies the command
sequence number of the message. See the software communication sequence number
controls section for details.
<resp> - response, word that specifies the system response. See the response sections
for details.
<msgSeqNumAck> - message sequence number acknowledge, byte that specifies the
message sequence number of the message being acknowledged. See the software
communication sequence number controls section for details.
<checksum> - checksum, byte that specifies the checksum of the message.
Command Response Message
The MPI 6000 after receiving command request messages from the host sends com-
mand response messages to the host.
The host and the MPI 6000 uses the following UDP/IP fast Ethernet communications
command response message shown here:
![](/img.php?id=603235&img=bg41.png)
General Software Information
6-9
<len> <msgSeqNum> <cmd> <cmdSeqNum> <resp> [<data>] <checksum>
where
<len> = length, a word that specifies the number of bytes in the entire message.
<msgSeqNum> = message sequence number, a byte that specifies the message
sequence number of the message. See the software communication sequence number
controls section for details.
<cmd> = command, word that specifies the system command. See the command sec-
tions for details.
<cmdSeqNum> = command sequence number, a byte that specifies the command
sequence number of the message. See the software communication sequence number
controls section for details.
<resp> = response, a word that specifies the system response. See the response sec-
tions for details.
[<data>] = optional data payload that varies in length from 0 to 63 bytes and is asso-
ciated with each specific response. See the response sections for details.
<checksum> = checksum, a byte that specifies the checksum of the message.
Asynchronous Response Message
The MPI 6000 after receiving command request messages from the host optionally
sends asynchronous response messages to the host.
The host and the MPI 6000 uses the following UDP/IP fast Ethernet communications
asynchronous response message shown here:
<len> <msgSeqNum> <cmd> <cmdSeqNum> <resp> [<data>] <checksum>
where
<len> = length, a word that specifies the number of bytes in the entire message.
<msgSeqNum> = message sequence number, a byte that specifies the message
sequence number of the message. See the software communication sequence number
controls section for details.
<cmd> = command, word that specifies the system command. See the command sec-
tions for details.
<cmdSeqNum> = command sequence number, a byte that specifies the command
sequence number of the message. See the software communication sequence number
controls section for details.
<resp> = response, a word that specifies the system response. See the response sec-
tions for details.
[<data>] - optional data payload that varies in length from 0 to 63 bytes and is associ-
ated with each specific response. See the response sections for details.
<checksum> = checksum, a byte that specifies the checksum of the message.
![](/img.php?id=603235&img=bg42.png)
MPI 6000 Multi-Protocol Reader System Guide
6-10
Software Flow Control Message
The MPI 6000 after receiving command request messages from the host optionally
sends software flow control messages to the host as required for system operation.
The host optionally sends software flow control messages to the MPI 6000 as required
for host operation.
The host and the MPI 6000 uses the following UDP/IP fast Ethernet communications
software flow control message shown here:
<len> <msgSeqNum> <cmd> <cmdSeqNum> <resp> <checksum>
where
<len> = length, a word that specifies the number of bytes in the entire message.
<msgSeqNum> = message sequence number, a byte that specifies the message
sequence number of the message. See the software communication sequence number
controls section for details.
<cmd> = command, a word that specifies the system command. See the command
sections for details.
<cmdSeqNum> - command sequence number, a byte that specifies the command
sequence number of the message. See the software communication sequence number
controls section for details.
<resp> = response, a word that specifies the system response. See the response sec-
tions for details.
<checksum> = checksum, a byte that specifies the checksum of the message.
Unsolicited Status Message
The MPI 6000 sends unsolicited status messages to the host as required for system
operation.
The host and the MPI 6000 uses the following UDP/IP fast Ethernet communications
unsolicited status message shown here:
<len> <msgSeqNum> <cmd> <cmdSeqNum> <status> [<data>] <checksum>
where
<len> = length, a word that specifies the number of bytes in the entire message.
<msgSeqNum> = message sequence number, a byte that specifies the message
sequence number of the message. See the software communication sequence number
controls section for details.
<cmd> = command, a word that specifies the system command. See the command
sections for details.
<cmdSeqNum> = command sequence number, a byte that specifies the command
sequence number of the message. See the software communication sequence number
controls section for details.
![](/img.php?id=603235&img=bg43.png)
General Software Information
6-11
<status> = status, a word that specifies the system status. See the response sections
for details.
[<data>] = optional data payload that varies in length from 0 to 63 bytes and is asso-
ciated with each specific response. See the response sections for details.
<checksum> = checksum, a byte that specifies the checksum of the message.
Serial Communications Protocol
The serial communications protocol implements the TransCore error correction proto-
col (ECP) serial standard.
Command Request Message
The host sends command request messages to the MPI 6000 as required for system
operation.
The host and the MPI 6000 uses the following serial communications command
request message as shown here:
<som> <len> <msgSeqNum> <cmd> <cmdSeqNum> [<data>] <crc16> <eom>
where
<som> - start of message, byte that specifies the start of the message which is defined
as the ASCII character &.
<len> - length, word that specifies the number of bytes in the entire message.
<msgSeqNum> - message sequence number, byte that specifies the message sequence
number of the message. See the software communication sequence number controls
section for details.
<cmd> - command, word that specifies the system command. See the command sec-
tions for details.
<cmdSeqNum> - command sequence number, byte that specifies the command
sequence number of the message. See the software communication sequence number
controls section for details.
[<data>] - optional data payload that varies in length from 0 to 65 bytes and is associ-
ated with each specific command. See the command sections for details.
<crc16> - 16 bit cyclic redundancy check, word that specifies the 16 bit cyclic redun-
dancy check of the message exclusive of the <som> and <eom> bytes. The polyno-
mial for the CRC calculation is X16+X12+X5+1 with a divisor polynome of 1021H
and an initial value of FFFFH for a CCITT16 type CRC.
<eom> - end of message, byte that specifies the end of the message which is defined
as the ASCII character %.
![](/img.php?id=603235&img=bg44.png)
MPI 6000 Multi-Protocol Reader System Guide
6-12
Data Acknowledge Message
The MPI 6000 after receiving command request messages from the host sends data
acknowledge messages to the host.
The host after receiving command response messages, asynchronous response mes-
sages, software flow control messages and unsolicited status messages from the MPI
6000 sends data acknowledge messages to the MPI 6000.
The host and the MPI 6000 uses the following serial communications data acknowl-
edge message as shown here:
<som> <len> <msgSeqNum> <cmd> <cmdSeqNum> <resp> <msgSeqNumAck> <crc16> <eom>
where
<som> - start of message, byte that specifies the start of the message which is defined
as the ASCII character &.
<len> - length, word that specifies the number of bytes in the entire message.
<msgSeqNum> - message sequence number, byte that specifies the message sequence
number of the message. See the software communication sequence number controls
section for details.
<cmd> - command, word that specifies the system command. See the command sec-
tions for details.
<cmdSeqNum> - command sequence number, byte that specifies the command
sequence number of the message. See the software communication sequence number
controls section for details.
<resp> - response, word that specifies the system response. See the response sections
for details.
<msgSeqNumAck> - message sequence number acknowledge, byte that specifies the
message sequence number of the message being acknowledged. See the software
communication sequence number controls section for details.
<crc16> - 16 bit cyclic redundancy check, word that specifies the 16 bit cyclic redun-
dancy check of the message exclusive of the <som> and <eom> bytes. The polyno-
mial for the CRC calculation is X16+X12+X5+1 with a divisor polynome of 1021H
and an initial value of FFFFH for a CCITT16 type CRC.
<eom> - end of message, byte that specifies the end of the message which is defined
as the ASCII character %.
Command Response Message
The MPI 6000 after receiving command request messages from the host sends com-
mand response messages to the host.
The host and the MPI 6000 uses the following serial communications command
response message as shown here:
<som> <len> <msgSeqNum> <cmd> <cmdSeqNum> <resp> [<data>] <crc16> <eom>
![](/img.php?id=603235&img=bg45.png)
General Software Information
6-13
where
<som> - start of message, byte that specifies the start of the message which is defined
as the ASCII character &.
<len> - length, word that specifies the number of bytes in the entire message.
<msgSeqNum> - message sequence number, byte that specifies the message sequence
number of the message. See the software communication sequence number controls
section for details.
<cmd> - command, word that specifies the system command. See the command sec-
tions for details.
<cmdSeqNum> - command sequence number, byte that specifies the command
sequence number of the message. See the software communication sequence number
controls section for details.
<resp> - response, word that specifies the system response. See the response sections
for details.
[<data>] - optional data payload that varies in length from 0 to 63 bytes and is associ-
ated with each specific response. See the response sections for details.
<crc16> - 16 bit cyclic redundancy check, word that specifies the 16 bit cyclic redun-
dancy check of the message exclusive of the <som> and <eom> bytes. The polyno-
mial for the CRC calculation is X16+X12+X5+1 with a divisor polynome of 1021H
and an initial value of FFFFH for a CCITT16 type CRC.
<eom> - end of message, byte that specifies the end of the message which is defined
as the ASCII character %.
Asynchronous Response Message
The MPI 6000 after receiving command request messages from the host optionally
sends asynchronous response messages to the host.
The host and the MPI 6000 uses the following serial communications asynchronous
response message as shown here:
<som> <len> <msgSeqNum> <cmd> <cmdSeqNum> <resp> [<data>] <crc16> <eom>
where
<som> - start of message, byte that specifies the start of the message which is defined
as the ASCII character &.
<len> - length, word that specifies the number of bytes in the entire message.
<msgSeqNum> - message sequence number, byte that specifies the message sequence
number of the message. See the software communication sequence number controls
section for details.
<cmd> - command, word that specifies the system command. See the command sec-
tions for details.
![](/img.php?id=603235&img=bg46.png)
MPI 6000 Multi-Protocol Reader System Guide
6-14
<cmdSeqNum> - command sequence number, byte that specifies the command
sequence number of the message. See the software communication sequence number
controls section for details.
<resp> - response, word that specifies the system response. See the response sections
for details.
[<data>] - optional data payload that varies in length from 0 to 63 bytes and is associ-
ated with each specific response. See the response sections for details.
<crc16> - 16 bit cyclic redundancy check, word that specifies the 16 bit cyclic redun-
dancy check of the message exclusive of the <som> and <eom> bytes. The polyno-
mial for the CRC calculation is X16+X12+X5+1 with a divisor polynomial of 1021H
and an initial value of FFFFH for a CCITT16 type CRC.
<eom> - end of message, byte that specifies the end of the message which is defined
as the ASCII character %.
Software Flow Control Message
The MPI 6000 after receiving command request messages from the host optionally
sends software flow control messages to the host as required for system operation.
The host optionally sends software flow control messages to the MPI 6000 as required
for host operation.
The host and the MPI 6000 uses the following serial communications software flow
control message as shown here:
<som> <len> <msgSeqNum> <cmd> <cmdSeqNum> <resp> <crc16> <eom>
where
<som> - start of message, byte that specifies the start of the message which is defined
as the ASCII character &.
<len> - length, word that specifies the number of bytes in the entire message.
<msgSeqNum> - message sequence number, byte that specifies the message sequence
number of the message. See the software communication sequence number controls
section for details.
<cmd> - command, word that specifies the system command. See the command sec-
tions for details.
<cmdSeqNum> - command sequence number, byte that specifies the command
sequence number of the message. See the software communication sequence number
controls section for details.
<resp> - response, word that specifies the system response. See the response sections
for details.
<crc16> - 16 bit cyclic redundancy check, word that specifies the 16 bit cyclic redun-
dancy check of the message exclusive of the <som> and <eom> bytes. The polyno-
mial for the CRC calculation is X16+X12+X5+1 with a divisor polynome of 1021H
and an initial value of FFFFH for a CCITT16 type CRC.
![](/img.php?id=603235&img=bg47.png)
General Software Information
6-15
<eom> - end of message, byte that specifies the end of the message which is defined
as the ASCII character %.
Unsolicited Status Message
The MPI 6000 sends unsolicited status messages to the host as required for system
operation.
The host and the MPI 6000 uses the following serial communications unsolicited sta-
tus message as shown here:
<som> <len> <msgSeqNum> <cmd> <cmdSeqNum> <status> [<data>] <crc16> <eom>
where
<som> - start of message, byte that specifies the start of the message which is defined
as the ASCII character &.
<len> - length, word that specifies the number of bytes in the entire message.
<msgSeqNum> - message sequence number, byte that specifies the message sequence
number of the message. See the software communication sequence number controls
section for details.
<cmd> - command, word that specifies the system command. See the command sec-
tions for details.
<cmdSeqNum> - command sequence number, byte that specifies the command
sequence number of the message. See the software communication sequence number
controls section for details.
<status> - status, word that specifies the system status. See the response sections for
details.
[<data>] - optional data payload that varies in length from 0 to 63 bytes and is asso-
ciated with each specific response. See the response sections for details.
<crc16> - 16 bit cyclic redundancy check, word that specifies the 16 bit cyclic redun-
dancy check of the message exclusive of the <som> and <eom> bytes. The polyno-
mial for the CRC calculation is X16+X12+X5+1 with a divisor polynomial of 1021H
and an initial value of FFFFH for a CCITT16 type CRC.
<eom> - end of message, byte that specifies the end of the message which is defined
as the ASCII character %.
![](/img.php?id=603235&img=bg48.png)
MPI 6000 Multi-Protocol Reader System Guide
6-16
![](/img.php?id=603235&img=bg49.png)
7
Configuration Commands and
Responses
![](/img.php?id=603235&img=bg4a.png)
![](/img.php?id=603235&img=bg4b.png)
7-3
Chapter 7
Configuration Commands and Responses
This chapter describes the MPI 6000 interface commands that are used
to configure the reader.
Configuring the MPI 6000
MPI 6000 Readers have been preconfigured for most needed operations. Parameters
such as attenuation, step-lock settings, and tag command sequences are set when the
reader powers up. The Set Frequency command is the only required configuration
command. You must issue this command before the MPI 6000 Reader can read tags.
Required Commands to Set Up MPI 6000 Reader
This section describes the configuration commands that are used to set up the MPI
6000.
Set Frequency
This section describes the Set Frequency command that is used to set the MPI 6000
frequency. Figure 7-1 shows the command transaction process. Table 7-1 lists the Set
Frequency command data.

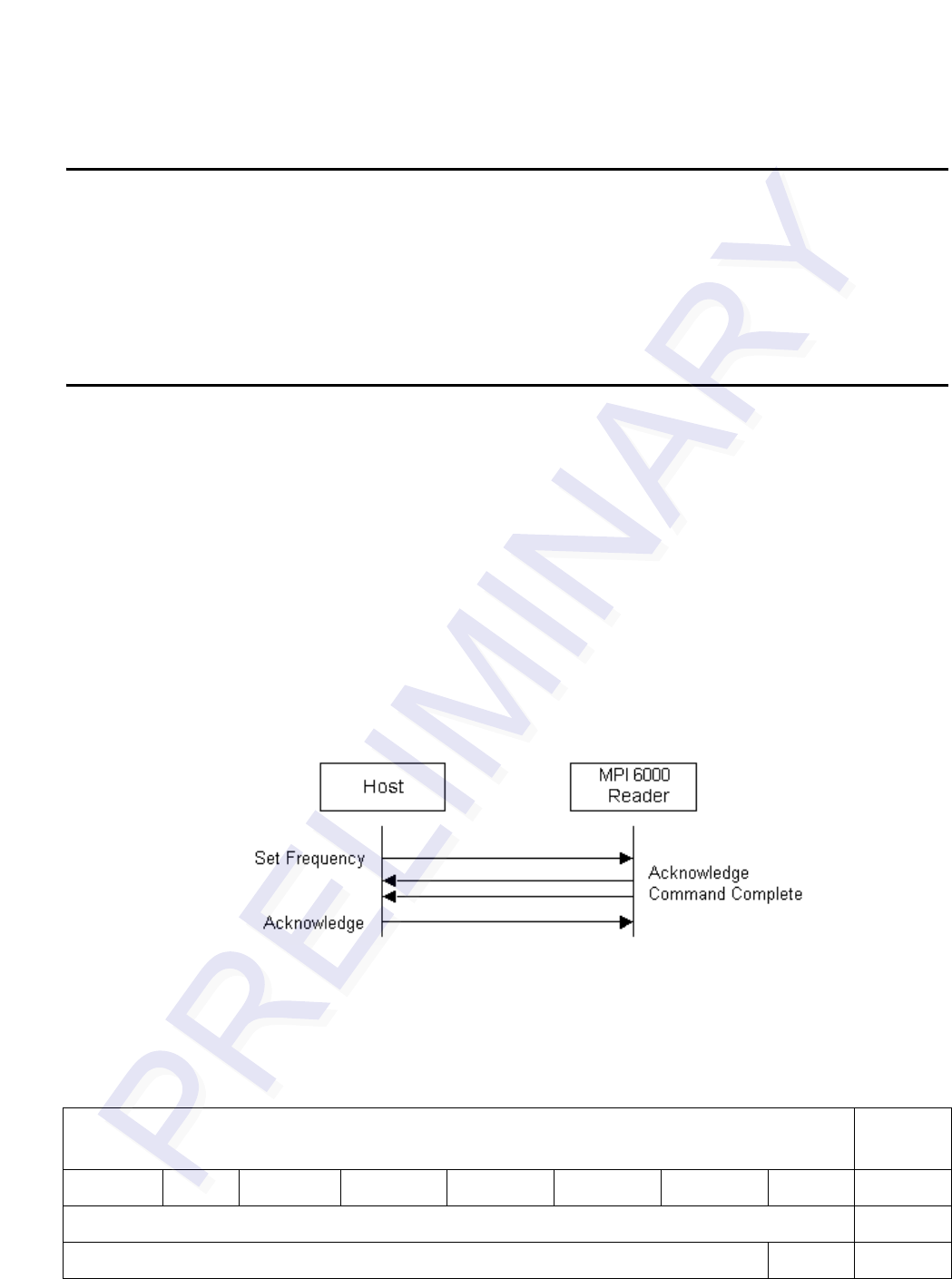

Figure 7-1 Set Frequency Command Process
This command sets the A Counter and B Counter least significant bits (LSB) for the
specified source.
Table 7-1 Set Frequency Command Parameters
Set Frequency Command Data Data
Payload
Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0
Set Frequency Command 08H
Unused Source 0XH
![](/img.php?id=603235&img=bg4c.png)
MPI 6000 Multi-Protocol Reader System Guide
7-4
Table 7-2 shows the Set Frequency Response parameters.
The Source field identifies the source for the associated N Counter information (Table
7-3).
A Counter – This field contains the data for the binary five-bit A Counter of the PLL.
The A and B counters combine to form the 18-bit N Counter. The valid range of the A
Counter data field is 00H to 1FH.
B Counter LSBs – This field contains the LSB for the binary 13-bit B Counter of the
PLL. The A and B counters combine to form the 18-bit N Counter. The valid range of
the data field is 0H to 3H. The B Counter value is 007XH, where X = B Counter
LSBs.
The PLL frequency spreadsheet contains the values used to set the A Counter and the
B Counter. This command will be modified to allow the system to send frequency val-
ues instead of A and B counters.
Unused A Counter XXH
Unused B Counter LSBs 0XH
Carriage Return 0DH
Table 7-1 Set Frequency Command Parameters
Table 7-2 Set Frequency Response Parameters
Set Frequency Response Data Data
Payload
Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0
Set Frequency Command 08H
Unused Source 0XH
Acknowledge 00H
Carriage Return 0DH
Table 7-3 Descriptions of Sources
Source Definition
0Source 1
1Source 2
![](/img.php?id=603235&img=bg4d.png)
Configuration Commands and Responses
7-5
System Interface Command Group Commands
This section describes the system commands used to configure the MPI 6000.
Each of the system command group commands is listed in this section.
Table 7-4 System Interface Command Group
System Interface Command Command Code
System Identify 0000H
Set Communications Baud Rate 0001H
Get Communications Baud Rate 0002H
Set Time and Date 0003H
Get Time and Date 0004H
Firmware Download 0005H
Reset Reader 0006H
Get Stored Tag Response Message 0007H
Get Number of Stored Tag Response Messages 0008H
Delete All Stored Tag Response Messages 0009H
Get System Startup Status 000AH
Get Lane Controller Interface Status 000BH
Get System Interface Status 000CH
Get DigBrd Hdwr Remote Inventory 000DH
Get DigBrd CPU Boot Fmwr Remote Inventory 000EH
Get DigBrd CPU Appl Fmwr Remote Inventory 000FH
Get DigBrd FPGA UDP/IP Core Fmwr Remote Inventory 0010H
Set UDP/IP Core Lane Controller IP Address and Port Number Parameters 0011H
Get UDP/IP Core Lane Controller IP Address and Port Number Parameters 0012H
Set UDP/IP Core IP Address 0013H
Get UDP/IP Core IP Address 0014H
Get UDP/IP Core UDP Port Number 0015H
![](/img.php?id=603235&img=bg4e.png)
MPI 6000 Multi-Protocol Reader System Guide
7-6
System Identify
System Identify Data Sizes
Set Communications Baud Rate
System Identify Command Data Data
Payload
System Identify Command 0000H
System Identify Response Data Data
Payload
System Identify Command 0000H
Vendor Name
Version ID
Part Number
Serial Number
System Identify Data Data
Size
Vendor Name 15 Bytes
Version ID 15 Bytes
Part Number 15 Bytes
Serial Number 15 Bytes
Set Communications Baud Rate Command Data Data
Payload
Set Communications Baud Rate Command 0001H
Baud Rate Data Code XXH
![](/img.php?id=603235&img=bg4f.png)
Configuration Commands and Responses
7-7
Baud Rate Data Codes
Get Communications Baud Rate
Set Communications Baud Rate Response Data Data
Payload
Set Communications Baud Rate Command 0001H
Baud Rate Data
Code
19,200 bps 0CH
38,400 bps (System Default) 0DH
57,600 bps 0EH
115,200 bps 0FH
Get Communications Baud Rate Command Data Data
Payload
Get Communications Baud Rate Command 0002H
Get Communications Baud Rate Response Data Data
Payload
Get Communications Baud Rate Command 0002H
Baud Rate Data Code XXH
![](/img.php?id=603235&img=bg50.png)
MPI 6000 Multi-Protocol Reader System Guide
7-8
Set Time and Date
Time and Date Data Ranges
Set Time and Data Command Data Data
Payload
Set Time and Date Command 0003H
Hours XXH
Minutes XXH
Seconds XXH
Hundredths of Seconds XXH
Month XXH
Day XXH
Ye a r XXH
Set Time and Data Response Data Data
Payload
Set Time and Date Command 0003H
Time and Date Data Data Range
Hours 0 to 23 (00H to 17H)
Minutes 0 to 59 (00H to 3BH)
Seconds 0 to 59 (00H to 3BH)
Hundredths of Seconds 0 to 99 (00H to 63H)
Month 1 to 12 (01H to 0CH)
Day 1 to 31 (01H to 1FH)
Ye a r 0 to 99 (00H to 63H)
![](/img.php?id=603235&img=bg51.png)
Configuration Commands and Responses
7-9
Get Time and Date
Firmware Download
Get Time and Data Command Data Data
Payload
Get Time and Date Command 0004H
Get Time and Data Response Data Data Payload
Set Time and Date Command 0004H
Hours XXH
Minutes XXH
Seconds XXH
Hundredths of Seconds XXH
Month XXH
Day XXH
Ye a r XXH
Firmware Download Command Data Data
Payload
Firmware Download Command 0005H
Firmware Download Response Data Data
Payload
Firmware Download Command 0005H
![](/img.php?id=603235&img=bg52.png)
MPI 6000 Multi-Protocol Reader System Guide
7-10
The Firmware Download command is implemented as defined for
both UDP/IP Fast Ethernet and serial communications.
Reset Reader
Get Stored Tag Response Message
Reset Reader Command Data Data
Payload
Reset Reader Command 0006H
Reset Reader Control Word A5A5H
Reset Reader Response Data Data
Payload
Reset Reader Command 0006H
Get Stored Tag Response Message Command Data Data
Payload
Get Stored Tag Response Message Command 0007H
Stored Tag Response Message Number XXXXH
Get Stored Tag Response Message Response Data Data
Payload
Get Stored Tag Response Message Command 0007H
Stored Tag Response Message Number XXXXH
Stored Tag Response Message Data
![](/img.php?id=603235&img=bg53.png)
Configuration Commands and Responses
7-11
Get Number of Stored Tag Response Messages
Delete All Stored Tag Response Messages
Get System Startup Status
Get Number of Stored Tag Response Messages Command Data Data
Payload
Get Number of Stored Tag Response Messages Command 0008H
Get Number of Stored Tag Response Messages Response Data Data
Payload
Get Number of Stored Tag Response Messages Command 0008H
Number of Stored Tag Response Messages XXXXH
Delete All Stored Tag Response Messages Command Data Data
Payload
Delete All Stored Tag Response Messages Command 0009H
Delete All Stored Tag Response Messages Control Word A5A5H
Delete All Stored Tag Response Messages Response Data Data
Payload
Delete All Stored Tag Response Messages Command 0009H
![](/img.php?id=603235&img=bg54.png)
MPI 6000 Multi-Protocol Reader System Guide
7-12
Get Lane Controller Interface Status
Get System Startup Status Command Data Data
Payload
Get System Startup Status Command 000AH
Get System Startup Status Response Data Data
Payload
Get System Startup Status Command 000AH
System Startup Module Number (System Initialization) XXXXH
System Timer Initialization Status Error Number XXXXH
System BMU Initialization Status Error Number XXXXH
System Queue Create Status Error Number XXXXH
System Task Create Status Error Number XXXXH
Get Lane Controller Interface Status Command Data Data
Payload
Get Lane Controller Interface Status Command 000BH
Get Lane Controller Interface Status Response Data Data
Payload
Get Lane Controller Interface Status Command 000BH
Module Number XXXXH
Error Number XXXXH
![](/img.php?id=603235&img=bg55.png)
Configuration Commands and Responses
7-13
Get System Interface Status
Get DigBrd Hdwr Remote Inventory
Get System Interface Status Command Data Data
Payload
Get System Interface Status Command 000CH
Get System Interface Status Response Data Data
Payload
Get System Interface Status Command 000CH
Module Number XXXXH
Error Number XXXXH
Get Digital Board Hardware Remote Inventory Command Data Data
Payload
Get Digital Board Hardware Remote Inventory Command 000DH
Get Digital Board Hardware Remote Inventory Response Data Data
Payload
Get Digital Board Hardware Remote Inventory Command 000DH
Vendor Name
Version ID
Part Number
Serial Number
![](/img.php?id=603235&img=bg56.png)
MPI 6000 Multi-Protocol Reader System Guide
7-14
Hardware Remote Inventory Data Sizes
Get DigBrd CPU Boot Fmwr Remote Inventory
Get DigBrd CPU Appl Fmwr Remote Inventory
Hardware Remote Inventory Data Data
Size
Vendor Name 15 Bytes
Version ID 15 Bytes
Part Number 15 Bytes
Serial Number 15 Bytes
Get Digital Board CPU Boot Firmware Remote Inventory
Command Data
Data
Payload
Get Digital Board CPU Boot Firmware Remote Inventory Command 000EH
Get Digital Board CPU Boot Firmware Remote Inventory
Response Data
Data
Payload
Get Digital Board CPU Boot Firmware Remote Inventory Command 000EH
Vendor Name
Version ID
Part Number
Get Digital Board CPU Application Firmware Remote Inventory
Command Data
Data
Payload
Get Digital Board CPU Application Firmware Remote Inventory
Command
000FH
![](/img.php?id=603235&img=bg57.png)
Configuration Commands and Responses
7-15
Get DigBrd FPGA UDP/IP Core Fmwr Remote Inventory
Firmware Remote Inventory Data Sizes
Get Digital Board CPU Application Firmware Remote Inventory
Response Data
Data
Payload
Get Digital Board CPU Application Firmware Remote Inventory
Command
000FH
Vendor Name
Version ID
Part Number
Get Digital Board FPGA UDP/IP Core Firmware Remote Inventory
Command Data
Data
Payload
Get Digital Board FPGA UPD/IP Core Firmware Remote Inventory
Command
0010H
Get Digital Board FPGA UDP/IP Core Firmware Remote Inventory
Response Data
Data
Payload
Get Digital Board FPGA UPD/IP Core Firmware Remote Inventory
Command
0010H
Vendor Name
Version ID
Part Number
![](/img.php?id=603235&img=bg58.png)
MPI 6000 Multi-Protocol Reader System Guide
7-16
Set UDP/IP Core Lane Controller Parameters
Get UDP/IP Core Lane Controller Parameters
Firmware Remote Inventory Data Data
Size
Vendor Name 15 Bytes
Version ID 15 Bytes
Part Number 15 Bytes
Set UDP/IP Core Lane Controller Parameters Command Data Data
Payload
Set UDP/IP Core Lane Controller Parameters Command 0011H
IP Address (MSW) XXXXH
IP Address (LSW) XXXXH
Port Number XXXXH
Set UDP/IP Core Lane Controller Parameters Response Data Data
Payload
Set UDP/IP Core Lane Controller Parameters Command 0011H
Get UDP/IP Core Lane Controller Parameters Command Data Data
Payload
Get UDP/IP Core Lane Controller Parameters Command 0012H
![](/img.php?id=603235&img=bg59.png)
Configuration Commands and Responses
7-17
Set UDP/IP Core IP Address
Get UDP/IP Core IP Address
Get UDP/IP Core Lane Controller Parameters Response Data Data
Payload
Get UDP/IP Core Lane Controller Parameters Command 0012H
IP Address (MSW) XXXXH
IP Address (LSW) XXXXH
Port Number XXXXH
Set UDP/IP Core IP Address Command Data Data
Payload
Set UDP/IP Core IP Address Command 0013H
IP Address (MSW) XXXXH
IP Address (LSW) XXXXH
Set UDP/IP Core IP Address Response Data Data
Payload
Set UDP/IP Core IP Address Command 0013H
Get UDP/IP Core IP Address Command Data Data
Payload
Get UDP/IP Core IP Address Command 0014H
![](/img.php?id=603235&img=bg5a.png)
MPI 6000 Multi-Protocol Reader System Guide
7-18
Get UDP/IP Core Port Number
Get UDP/IP Core Lane Controller Parameters Command Data Data
Payload
Get UDP/IP Core IP Address Command 0014H
IP Address (MSW) XXXXH
IP Address (LSW) XXXXH
Get UDP/IP Core Port Number Command Data Data
Payload
Get UDP/IP Core Port Number Command 0015H
Get UDP/IP Core Port Number Command Data Data
Payload
Get UDP/IP Core Port Number Command 0015H
Port Number XXXXH
![](/img.php?id=603235&img=bg5b.png)
8
Tag Command Processing
![](/img.php?id=603235&img=bg5c.png)
![](/img.php?id=603235&img=bg5d.png)
8-3
Chapter 8
Tag Command Processing
This chapter provides definitions of and instructions for reading from
and writing to a tag, as well as explanations of the tag command codes.
Reader Operation
The reader can operate in one of two command sequences, either read or write. The
tag command sequences for the Read and Write operations are detailed in the follow-
ing sections.
Write Commands
To be provided.
Read Commands
To be provided
Host Commands Required for Tag Processing
To be provided.
![](/img.php?id=603235&img=bg5e.png)
MPI 6000 Multi-Protocol Reader System Guide
8-4
![](/img.php?id=603235&img=bg5f.png)
9
System Diagnostics and
Preventive Maintenance
![](/img.php?id=603235&img=bg60.png)
![](/img.php?id=603235&img=bg61.png)
9-3
Chapter 9
System Diagnostics and
Preventive Maintenance
This chapter provides information on the following subjects:
Error Messages
Troubleshooting
Preventive Maintenance Schedule
Visual Inspection
MPI 6000 Repair
Removal and Replacement Procedures
Technical Support
Troubleshooting Indications and Actions
To be provided.
![](/img.php?id=603235&img=bg62.png)
MPI 6000 Multi-Protocol Reader System Guide
9-4
![](/img.php?id=603235&img=bg63.png)
A
Acronyms and Glossary
![](/img.php?id=603235&img=bg64.png)
![](/img.php?id=603235&img=bg65.png)
A-3
Appendix A
Acronyms and Glossary
A
AC alternating current
ACK acknowledge (data valid)
antenna passive device that converts RF energy into magnetic energy (RF signal)
ATA American Trucking Associations refers to a standard RF communications protocol
and data storage method. ATA-type tags are read only.
AVI automatic vehicle identification
B
backscatter portion of an RF signal that is modulated by a tag and radiated back to the reader
baud measure of number of bits per second of a digital signal; for example, 9600
baud = 9600 bits per second
bit The smallest unit of information, consisting of a 0 or 1, that is formed from a binary
digit
byte binary character; for example, one 8-bit ASCII character
C
cm centimeter(s)
command data set that is recognized by the receiving device as intending to elicit a specific
response
CRC cyclic redundancy check
CTRL control
CTS clear to send
D
data information that is processed by a computing device
![](/img.php?id=603235&img=bg66.png)
MPI 6000 Multi-Protocol Reader System Guide
A-4
DC direct current
dB decibel(s)
dBidecibel(s), referencing isotropic radiator
E
ECP error correcting protocol
eGo Proprietary name for ANS INCITS 256-2001 and ISO 18000-6 compliant TransCore
products. A registered trademark of TC IP, Ltd.
eom end of message
EEPROM electrically erasable programmable read-only memory
ESD electrostatic discharge
F
FCC Federal Communications Commission
field physical area/space in which a tag can be read by the reader; also, an element of a data
record/frame, for example, division within a tag's data frame
frame consecutive bits of data in memory that are read and written as a group
frequency bands range of RF frequencies assigned for transmission by an RF device
ft foot or feet
H
hex hexadecimal
hexadecimal base 16 numbering system that uses the characters 0 through 9 and A through F to rep-
resent the digits 0 through 15
host device, generally a computer, that is connected to reader system components through
the communications port
Hz hertz
![](/img.php?id=603235&img=bg67.png)
Acronyms and Glossary
A-5
I
I/O input/output
IAG Inter-Agency Group, distributor of IAG tags
ID identification; encoded information unique to a particular tag
in inch(es)
interface connection point for communications with another device
IRQ interrupt request
J
JP jumper pin
K
kkilo (103)
kg kilogram(s)
L
lane controller device that is used to integrate all activity that occurs in a toll lane.
lb pound(s)
LED light-emitting diode
M
message combination of fields, frames, and pages as required by the system to transmit or
receive associated command and response data to and from the reader and host com-
puter
mmeter(s)
mA milliamp(s)
Mega million (106)
MB megabyte(s)
MHz megahertz
![](/img.php?id=603235&img=bg68.png)
MPI 6000 Multi-Protocol Reader System Guide
A-6
milli one-thousandth (10-3)
mode method of operation
MPI TransCore’s Multi-Protocol Reader
ms milliseconds
mW milliwatt(s)
N
NEMA National Electrical Manufacturers Association
O
OSHA Occupational Safety and Health Administration
P
PC personal computer
PLL phase-lock loop
protocol specified convention for the format of data messages communicated between devices
PWA printed wiring assembly
R
RAM random access memory
read process of acquiring data from a device, for example, from a tag or from computer
memory
reader controlled interrogating device capable of acquiring data from a device, for example,
acquiring and interrupting data from a tag
read zone physical area in which a tag can be read by the reader system
RF radio frequency
RFID radio frequency identification
RTS request to send
![](/img.php?id=603235&img=bg69.png)
Acronyms and Glossary
A-7
S
ssecond(s)
SeGo SeGo is a superset of the TransCore eGo protocol.
SRAM static random access memory
som start of message
system a reader, RF module, antenna, and tag, which are described by the general application
and interfaces with each other and any connected devices that are defined as being
outside the system.
T
tag small, self-contained device acting as an identifying transponder
TDM time-division multiplexing, used in this document to refer to the use of time-division
multiplexing of multiple readers in proximity of each other.
Title 21 state of California code of regulations, Chapter 16, Title 21, which is the standard used
for AVI/DSRC (digital short-range communications) protocol
toll any application of the system equipment wherein the equipment is used to assist in the
orderly collection of money in exchange for the passage of a vehicle through a partic-
ular installation point
TrAC TransCore Action Center
transponder a tag
U
UART universal asynchronous receiver-transmitter
UTA universal toll antenna
V
Vvolt(s)
VCC voltage controlled current
Ver version (software)
![](/img.php?id=603235&img=bg6a.png)
MPI 6000 Multi-Protocol Reader System Guide
A-8
W
Wwatt(s)
write process of recording data, for example, writing to computer memory or to a tag’s
memory. Writing erases previous data stored at the specified memory locations.
![](/img.php?id=603235&img=bg6b.png)
B
Block Diagrams
![](/img.php?id=603235&img=bg6c.png)
![](/img.php?id=603235&img=bg6d.png)
B-3
Appendix B
Block Diagrams
This appendix shows the block diagrams for the interface connections
between the components as well as the individual MPI 6000 System
components.
MPI 6000 System
Figure B-1 MPI 6000 Hardware Interconnection Block Diagram
![](/img.php?id=603235&img=bg6e.png)
MPI 6000 Multi-Protocol Reader System Guide
B-4
![](/img.php?id=603235&img=bg6f.png)
C
System Technical Specifications
![](/img.php?id=603235&img=bg70.png)
![](/img.php?id=603235&img=bg71.png)
C-3
Appendix C
System Technical Specifications
This appendix provides reference information for the MPI 6000 System
components.
Component Specifications
This appendix describes the engineering specifications for the MPI 6000 System com-
ponents.
MPI 6000 Multi-Protocol Reader
Power Supply Fault Detection
Each voltage supply has fault detection to determine if the voltage supply is function-
ing correctly. Output tolerance is tested to ±5 percent. If any of the voltage supplies
fail, the fault signal from the power supply to the digital board defaults to low.
AA3152 Universal Toll Antenna
The AA3152 antenna specifications are as follows:
•Operates in the location and monitoring service band (902 to 928 MHz).
•Optimum radiation pattern — Virtually no side or back lobes help to confine
antenna coverage to a single lane.
•Weatherproof — Each antenna is housed in a radome made of materials with
favorable electrical characteristics and resistance to ultraviolet radiation.
•Bandpass filtering helps to attenuate interference from other RF sources.
Environmental Specifications
The AA3152 UTAs can withstand the environmental tolerances shown in
Table C-1.
![](/img.php?id=603235&img=bg72.png)
MPI 6000 Multi-Protocol Reader System Guide
C-4
Table C-1 Antenna Environmental Tolerances
Environment Specification
Dust NEMA pub 250-1991, Sec. 6.5, page 18
Rain NEMA pub 250-1991, Sec. 6.4, page 17 and Sec. 6.7, page
19
Corrosion
resistance
NEMA pub 250-1991, Sec. 6.9, page 20
Shock 5 G ½-sine pulse, 10 ms duration, 3 axes
Vibration 0.5 Grms 10-500 Hz
Temperature range -40°F to +167°F (-40°C to +75°C)
Humidity 100% condensing
![](/img.php?id=603235&img=bg73.png)
D
Hardware Interfaces
![](/img.php?id=603235&img=bg74.png)
![](/img.php?id=603235&img=bg75.png)
D-3
Appendix D
Hardware Interfaces
This appendix describes the physical interconnections within an MPI
6000 System.
Hardware Interfaces
This appendix describes the hardware interfaces in the MPI 6000 and to external com-
ponents, such as antennas.
Figure D-1 shows the basic hardware interconnections for the MPI 6000.
Figure D-1 MPI 6000 Hardware Interconnection Block Diagram
![](/img.php?id=603235&img=bg76.png)
MPI 6000 Multi-Protocol Reader System Guide
D-4
Communications
The MPI 6000 communicates with a host via Ethernet or serial communicaitons.
Ethernet
The connector is an RJ-45 jack. This interface is 10-base T. Table D-1 lists the pin-
outs.
RS-232 Connectors
Table D-1 Ethernet Connector Pin-outs
Pin Signal Description
1TPTX+ Output Differential Transmit Data (+)
2TPTX- Output Differential Transmit Data (-)
3 TPRX+ Input Differential Receive Data (+)
4Not connected N/A
5Not connected N/A
6TPRX- Input Differential Receive Data (-)
7Not connected N/A
Not connected N/A
Table D-2 RS-232A Communications Connector Parameters
Pin Signal Description
1RSD Received line signal detect (not connected)
2RXD Receive Data
3 TXD Transmit Data
4DTR Data Terminal Ready (not connected)
5GND Ground
6DSR Data Set Ready (not connected)
7RTS Request to Send
8CTS Clear to Send
9RI Ring indicator (not connected)
![](/img.php?id=603235&img=bg77.png)
Hardware Interfaces
D-5
Table D-3 RS-232B/TDM Connector Parameters
Pin Signal Description
1TXD Transmit Data
2RXD Receive Data
3 DTR Data Terminal Ready (not connected)
4RTS Request to Send
5CTS Clear to Send
6GND Ground
7TDM + TDM positive signal
8TDM - TDM negative signal
Table D-4 RS-232 Diagnostics Connector Parameters
Pin Signal Description
15V PWR 5V power supply for I/O board
2GND GND
3 I/O Signal 1
4I/O Signal 2
5I/O Signal 3
6I/O Signal 4
7Tag in Field 1 Contact Closure 1 for Tag in Field Signal
8Tag in Field 2 Contact Closure 2 for Tag in Field Signal
![](/img.php?id=603235&img=bg78.png)
MPI 6000 Multi-Protocol Reader System Guide
D-6
Hardware Diagnostic Port
Table D-5 MPI 6000 Hardware Diagnostic Port Parameters
Pin Signal Source Description
1 I RF I Channel from RF receiver
2 Q RF Q Channel from RF receiver
3RSSI RF RSSI Detector Output, high for I low for Q.
4RANGE_ADJ_CNTL RF Range Adjust_Control Signal
5+3.3V Digital +3.3V
6Spare RF
7GND Ground
8Spare RF
9Spare RF
10 IAG_New_Sig_Det RF IAG New Signal Detection Line
11 IAG RF IAG Channel from RF receiver
12 GND Ground
13 Config Type 0 Digital Configuration Selection bit 1
14 Config Type 1 Digital Configuration Selection bit 2
15 Config Type 2 Digital Configuration Selection bit 3
16 Config Type 3 Digital Configuration Selection bit 4
17 Tag Ty p e A ck RF Acks the tag type inputs and indicates that the DL & DOM
DACS are settled.
18 Ready to Tx RF Ready to Transmit
19 Config Load Digital Signal to RF to load new config.
20 MOD Digital RF Modulation Signal
21 RF ON/OFF Digital RF On Off Control
22 UL/DL Cntrl Digital Controls whether active source is Uplink or Downlink
23 TDM Digital TDM Sync Pulse
24 GPS 1pps Digital 1 pulse per second signal for Frequency stabilization
25 Error (txcvr fault) RF RF Error Indicator active low
26 Power Supply Fault Digital Fault Signal from the Power Supply Board
![](/img.php?id=603235&img=bg79.png)
Hardware Interfaces
D-7
Antenna Multiplexer Connectors
The antenna multiplexer is used to drive multiple antennas in multiple AVI lanes.
Connector D21 is the same as connector B11 on the digital board. Connector D28 is
the same as connector B11 on the digital board. This connector is used to connect the
data cables from the MPI 6000 to the antenna multiplexer and the RF System Test
boards.
RF System Test Connectors
The RF system test checks the ...
27 GND Ground
28 Tx Serial Comm Digital Transmit Serial Signal
29 Rx Serial Comm RF Receive Serial Signal
30 GoodTagRead Digital Active High Pulse from FPGA1
31 CRC Failed Digital Active High Pulse from FPGA1
32 ActivatePort Digital Enable the Test Port Buffer when the Connector plugged
in
33 GND Ground
34 SW1 Digital GPIO from MPC852
35 SW2 Digital GPIO from MPC852
36 SW3 Digital GPIO from MPC852
37 SW4 Digital GPIO from MPC852
38 DecoderOutput Digital Decoder Bit Stream from FPGA1
39 PLL Clock (decoder) Digital PLL Clock from FPGA1
40 GND Digital Ground
Table D-5 MPI 6000 Hardware Diagnostic Port Parameters (continued)
Table D-6 Antenna Multiplexer Connector Pin-outs
Connector Designator Pin Signal Description
D16 RF input1 1RF Input/Output RF input/output signal
D17 RF output 1 1RF Input/Output RF input/output signal
D18 RF output 2 1RF Input/Output RF input/output signal
D19 RF output 3 1RF Input/Output RF input/output signal
D20 RF output 4 1RF Input/Output RF input/output signal
![](/img.php?id=603235&img=bg7a.png)
MPI 6000 Multi-Protocol Reader System Guide
D-8
•Connector E22, RF system test data is the same as connector B11 on the digital
board.
•Connector E29, RF system test data is the same as connector B11 on the digital
board. This connector is used to connect the data cables from the MPI 6000 to the
antenna multiplexer board and the RF system test boards.
•Connector E23 is the RF in signal.
Table D-7 RF System Test Connector Pin-out
Pin Signal Description
1RF Input/Output RF input output signal
