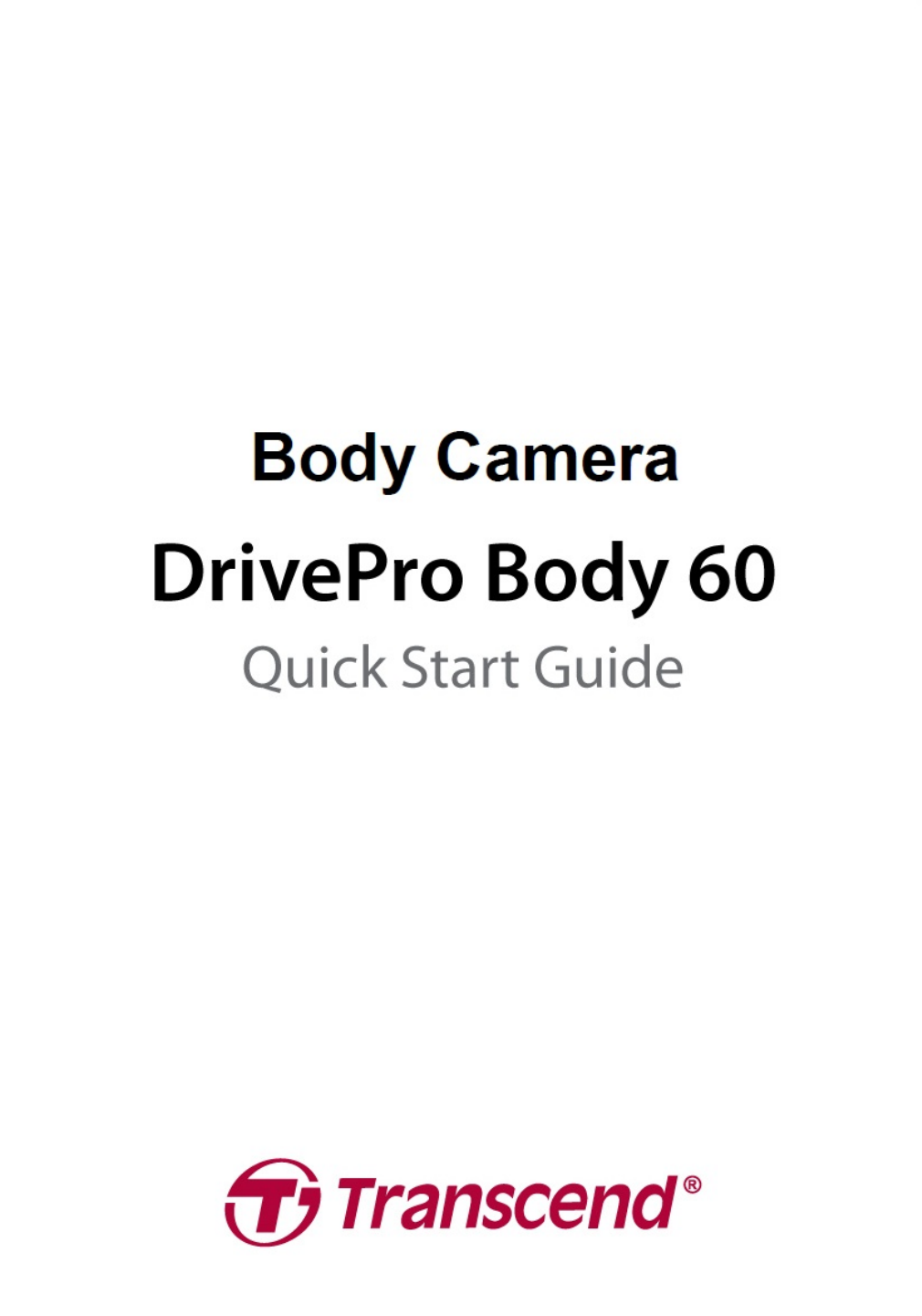

Transcend Information B003C Body Camera User Manual DrivePro Body 60 Manual EN 20180516
Transcend Information Inc. Body Camera DrivePro Body 60 Manual EN 20180516
DrivePro Body 60_Manual_EN_20180516
1
Specifications
Connect Interface USB 2.0
Storage Capacity Internal MLC-based storage
Dimensions 95.9 mm (L) × 52.2 mm (W)× 24.88 mm (H)
3.78” (L) x 2.06” (W) x 0.98” (H)
Weight 167g
5.89 oz
Battery Li-Polymer 3120mAh
Power Supply Input: AC100V-240V, 50-60Hz, 0.4A Max
Output: DC5V 2A
Recording Life Up to 10 hours*
Operating
Temperature
-20°C (-4°F) ~ 65°C (149°F)
5°C (11°F) ~ 45°C (113°F) when charging with the
adapter
Video Format H.264 (MP4: up to 1920x1080 30fps)
Ingress Protection IP67
Shock Resistance MIL-STD-810G 516.6-Transit Drop Test
Lens F/2.8, 130° wide angle
Resolution / Frame
Rate Full HD (1920 x 1080) / 30fps
Certification CE, FCC, BSMI, NCC, MIC
Warranty 2-Year Limited
* Environmental conditions may increase or decrease specifications
Federal Communications Commission (FCC) Statement
This device complies with Part 15 FCC Rules. Operation is subject to the following two conditions: (1)
This device may not cause harmful interference. (2) This device must accept any interference
received including interference that may cause undesired operation.
This Equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
- Consult the dealer or an experienced radio/TV technician for help.
RF Exposure Information (SAR)
This equipment complies with the FCC portable RF exposure limit set forth for an uncontrolled
environment. The exposure standard for wireless devices employing a unit of measurement is known
as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6W/kg.
This equipment could be installed and operated with minimum distance 0cm between the radiator &
your body.
* Any changes or modifications not expressly approved by the party responsible for compliance could
void the authority to operate equipment.
* This device and its antenna must not be co-located or operating in conjunction with any other
antenna or transmitter.
Transcend Information Inc (USA)
1645 North Brian Street, Orange, CA 92867, U.S.A
TEL: +1-714-921-2000
Recycling and Environmental Protection
Recycling the Product (WEEE): Your product is designed and manufactured with high quality
materials and components, which can be recycled and reused. When you see the crossed-out
wheel bin symbol attached to a product, it means that the product is covered by the European
Directive 2002/96/EC:
Never dispose of your product with other household waste. Please inform yourself about the local
rules on the separate collection of electrical and electronic products. The correct disposal of your
old product helps prevent potential negative consequences on the environment and human health.
Battery Disposal: Your product contains a built-in rechargeable battery covered by the European
Directive 2006/66/EC, which cannot be disposed of with normal household waste. Please inform
yourself about the local rules on separate collection of batteries. The correct disposal of batteries
helps prevent potentially negative consequences on the environment and human health.
For products with non-exchangeable built in batteries: The removal of (or the attempt to remove)
the battery invalidates the warranty. This procedure is only to be performed at the end of the
product’s life.
CAUTION
RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.
