User Manual
Bluetooth Body Scale LS108-B6
Please do read the user manual carefully and thoroughly so as to ensure
the safe usage of this product, and keep the manual well for further
reference in case you have problems.
Thank you very much for selecting the Transtek Bluetooth Body Scale
LS108-B6.
1
Table of Contents
Table of Contents
Overview
Device Components
LED Display
Initial Start-Up
General Instructions
Insert the Batteries
Install App and Pair-up
Start Measuring
Daily Measurement
Data Management
Data Transmission
Troubleshooting
Error Prompt
When Measuring
When Data Transmitting
Specifications
Maintenance
Warranty
4
5
4
6
7
8
9
10
11
12
13
14
14
.................................................................................................................
.................................................................................................................
...................................................................................................................
.............................................................................................................................
....................................................................................................................
..................................................................................................................
........................................................................................................
............................................................................................................................
...............................................................................................................................
......................................................................................................................................
2
.........................................................................................................................
............................................... ...........................................................
..............................................................................................................................
...................................................................................................................
.
Select Measurement Unit 8
Safety Information
Your Scale and Its Environment
2
.............................................................................................
Efficient Use of Your Scale
3
.............................................................................................
............................................... ............................................................
Symbol Meaning
Symbol Meaning
List 4
............................................................................................................................................
FCC Regulations .......................................................................................................................... 15
2 3
Symbol Meaning Safety Information
To ensure your safety as well as the service life of your scale, please avoid using
the scale under the following circumstances:
Slippery floor such as tile floor
Jumping onto the platform immediately after bath or with wet hands
Near a cell phone or microwave oven
Avoid storage in the following locations:
Where there is water
Where the device may be exposed to extreme temperatures, humidity, moisture, direct
sunlight, dust, or salt air
Where there is risk of shock or drop
Where you store chemicals or full of corrosive gases
Where in reach of the infants or children
Your Scale and Its Environment
Efficient Use of Your Scale
To ensure the accuracy of measurement, please follow below instructions when
you start measurement.
Place the scale on a flat, hard surface. Soft surface such as carpet will affect the
performance of the scale.
Start measurement at least two hours after Getting up or Dinning.
Avoid measurement immediately after strenuous exercise, sauna or bath, drinking, and
dinning.
Always start measurement in the same time slot and on the same scale located on the
same flat, hard surface.

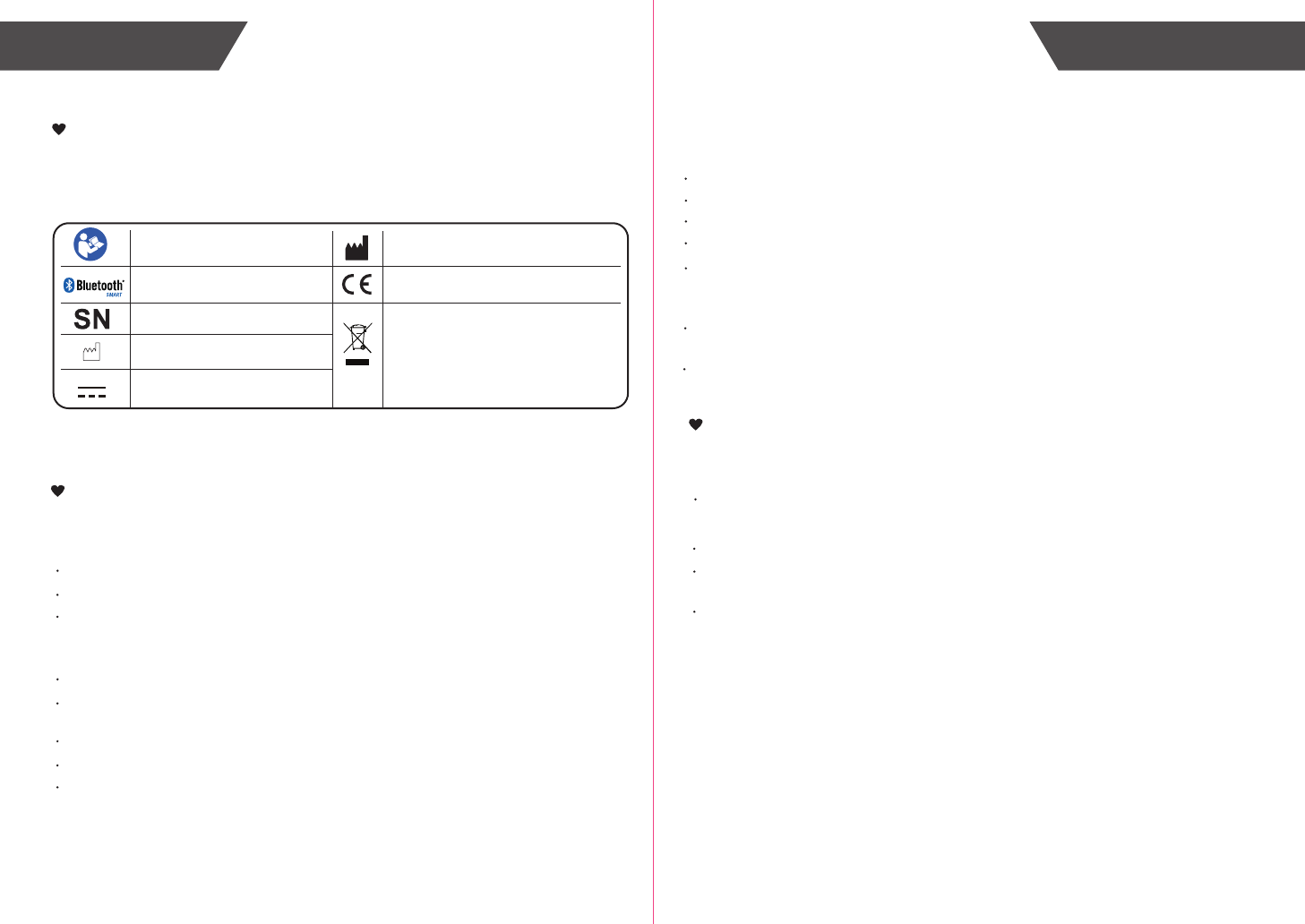

The warning signs and symbols are essential to ensure your correct and safe use of
this product and protect you and others from injury. Please kindly find the meanings of the
warning signs and symbols, which you may encounter in the label and user manual, as
follows:
Symbol Meaning
Symbol for “THE OPERATION
GUIDE MUST BE READ” Symbol for “MANUFACTURER”
Symbol for “ENVIRONMENT
PROTECTION – Waste electrical
products should not be disposed of with
household waste. Please recycle where
facilities exist. Check with your local
authority or retailer for recycling advice”
The Bluetooth Combination Mark
Symbol for “SERIAL NUMBER”
Symbol for “DIRECT CURRENT”
Symbol for “COMPLIES WITH EU
REQUIREMENTS”
Symbol for “MANUFACTURE
DATE”
To prevent you from injury, please pay attention to the following Notice.
A list of known devices or other sources that can potentially cause interference problems
(example 1 Heat from a fireplace or radiant heater. example 2 Moisture from a nebuliser
or steam kettle).
Small parts being inhaled or swallowed.
Potential allergic reactions to accessible materials used in the ME EQUIPMENT.
Contact injuries.
Use accessories, detachable parts and materials not described in the instructions for use.
The effects caused by pets, pests or children.
The effects of degraded sensors and electrodes, or loosened electrodes, that can degrade
performance or cause other problems.
5
4
List
1. Bluetooth Body Scale LS108-B6
2. Four AAA-size Batteries (1.5V each)
3. User Manual

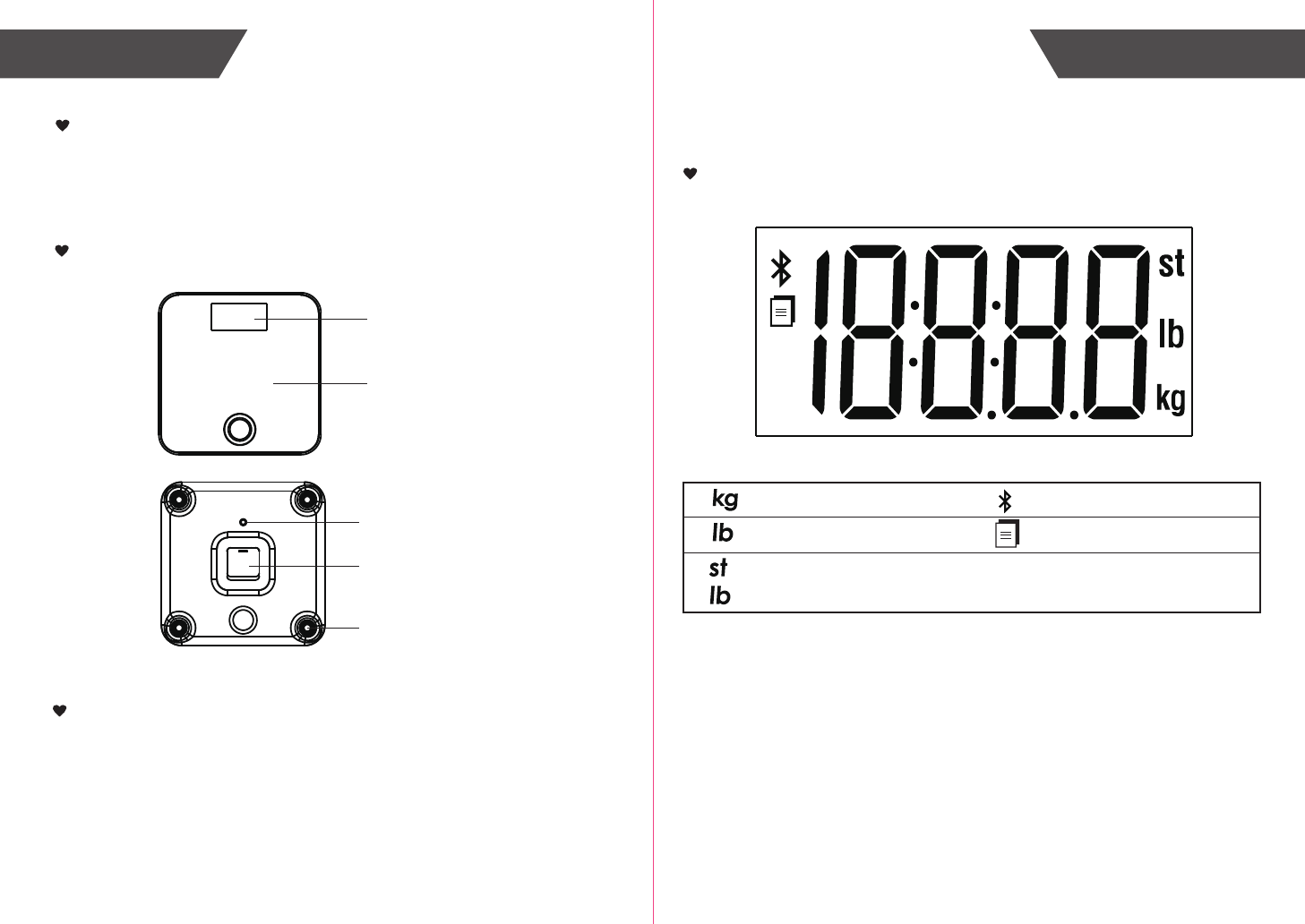

Device Components
UNIT and activation Button
Pound
Kilogram
Data pending to
transmit to wireless wellness system
LED Display
Overview
General Instructions
Stone
Overview
LED Display
Glass
Battery Compartment
Sensor
Successful Bluetooth Connection
Transtek Bluetooth Body Scale LS108-B6 applies SENSE ON technology. It’s not
necessary to turn on or turn off the scale, just stand on the scale for measurement.
It is delicate and trendy, convenience for using.
7
6

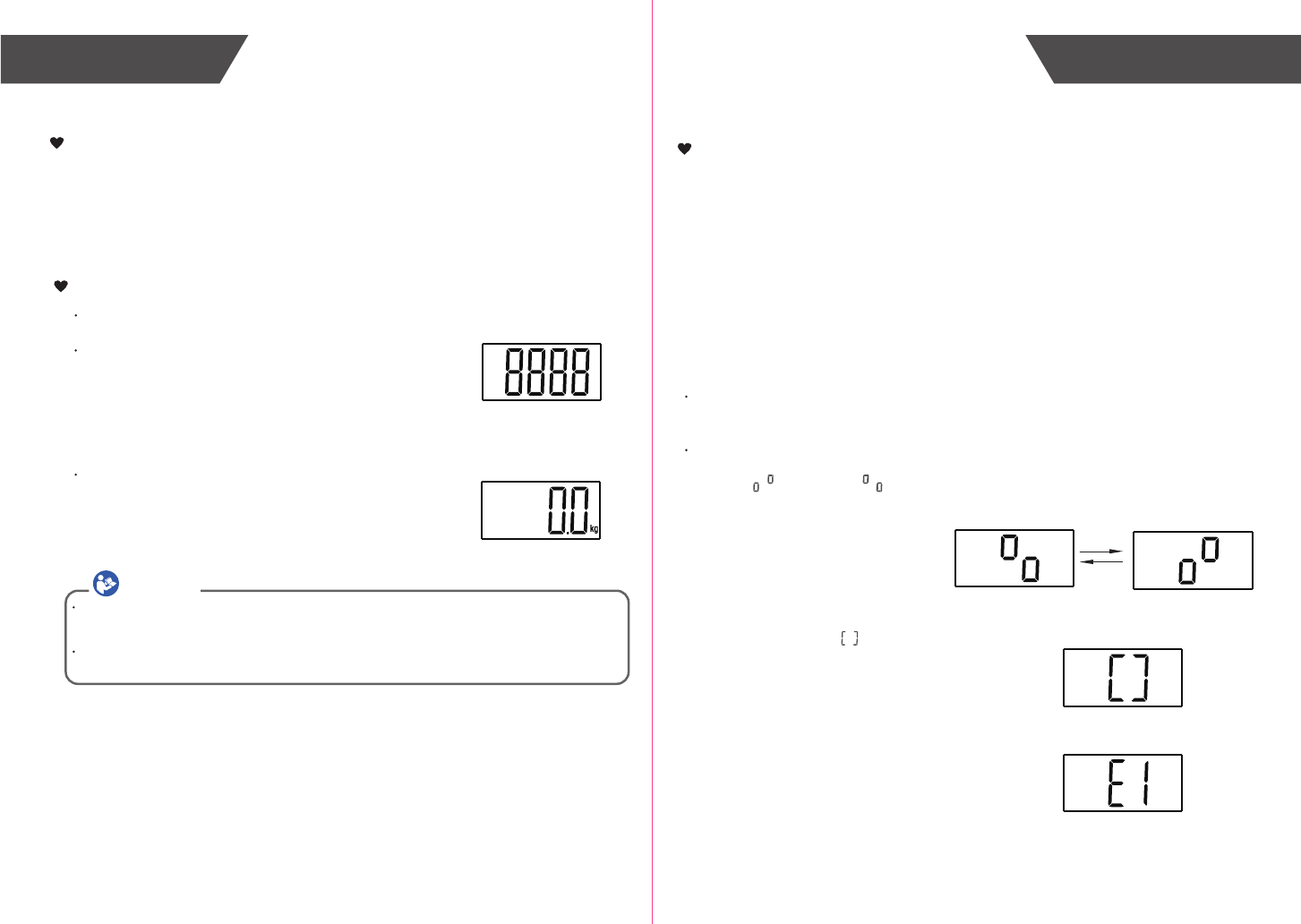

Insert the Batteries
Open the battery door in the back of the scale.
Insert the batteries (4 x 1.5V AAA) into the battery
compartment according to the polarity indications
marked inside the compartment.
* The digits “8888” will be shown on the LED.
Close the battery door and wait until the digits
“0.0kg” are shown on the LED.
CAUTION
When the symbol “Lo” appears, the device will power off in four seconds. Then you shall replace with a
new set of batteries. Please replace all four batteries at the same time. Do NOT mix the old batteries with
the new one.
Worn batteries are hazardous waste. Do NOT dispose of them together with the household garbage.
Please refer to the local ordinances and recycling instructions regarding disposal of the worn batteries.
If SUCCEED, symbol will be shown on the LED.
If FAIL, symbol “E1” will be shown on the LED.
Install App and Pair-Up
Turn on Bluetooth and App. Make sure both are ON when pair-up is
proceeding.
Press and hold “UNIT” button in the back of the scale to start pair-up.
Symbol and symbol will be shown on the
LED alternatively, indicating pair-up is proceeding.
Initial Start-Up Initial Start-Up
Power Supply
Battery Life: Approx. 200 days
(Battery capacity: 452 mAH. If measured three times per day, each measurement takes about 20s.
The current for measurement is about 45 mA , while the current when shutdown is about 20 uA.)
Battery Mode: 6V, 4 x AAA batteries
With the advanced Bluetooth 4.0 technology applied, the mobile or portable equipments,
which are equipped with Bluetooth function in line with BLE Technical Specifications as
well as BLP Protocol established by global organization Bluetooth SIG, are capable to
receive your personal health data.
Just simply install the specially-designed app and pair up your scale with
your mobile or portable equipments. Then you may enjoy the comprehensive health
solution provided by Transtek.
Note: It is only available for the device which supports Bluetooth 4.0 technology.
89

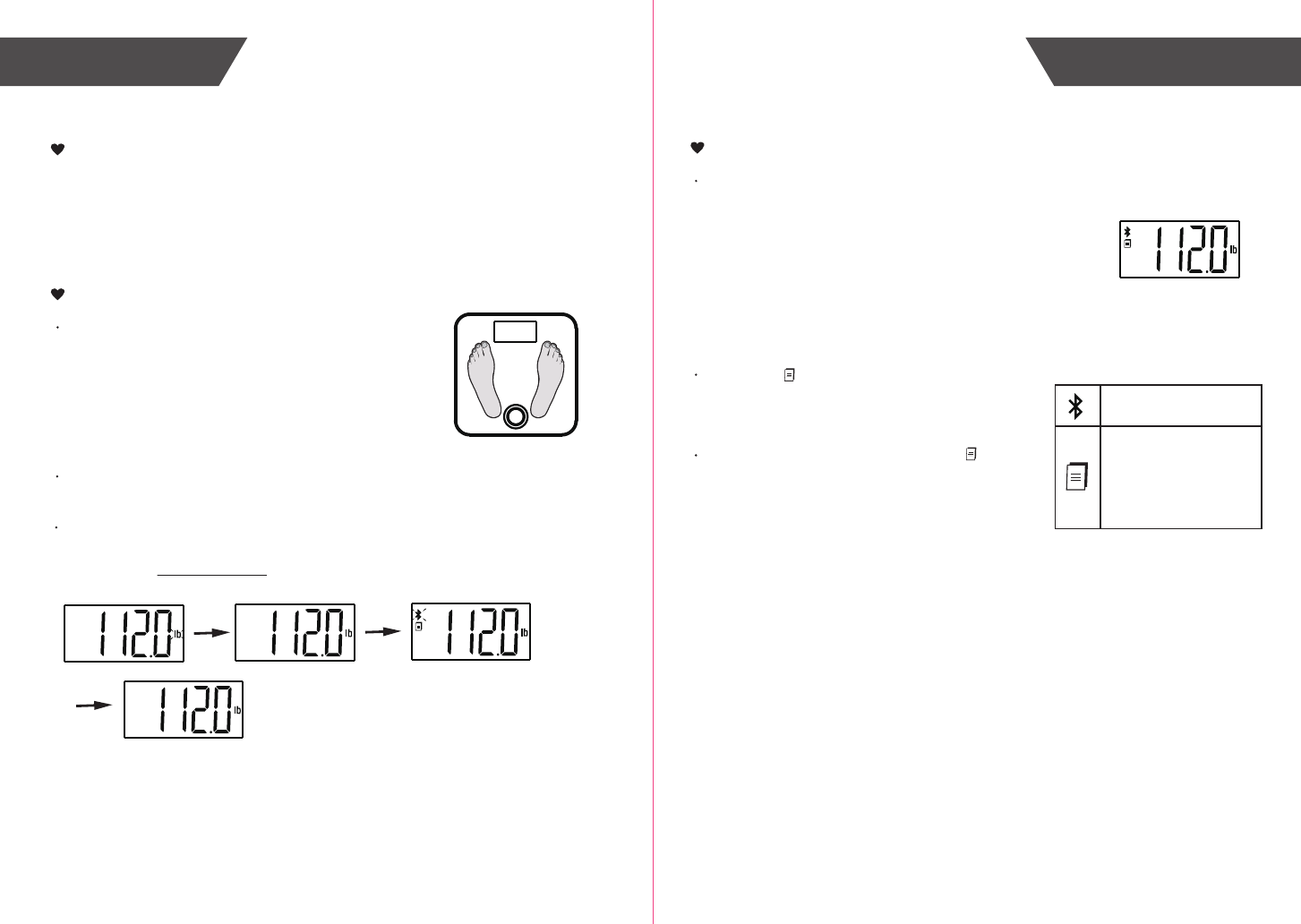

Select Measurement Unit
With original SENSE ON patent technology, the scale
will automatically switch on as you step on the platform
barefooted.
When your scale is successfully paired with your smartphone and the Bluetooth is ON,
it will process data transmission automatically.
(Please refer to Data Transmission for more details.)
Daily Measurement
The symbol will disappear after successful data
transmission, and you may check your personal
health data stored in your smartphone.
If the data transmission fails, the symbol will
remain. The pending measurement data will be
temporarily kept in the scale and transmitted to your
smartphone when next measurement is complete.
Data ready to transmit to
the App:
-If SUCCEED, the symbol
disappears;
-If FAIL, the symbol
remains.
Data Transmission
Stand still and keep full contact with the scale until the LED displays the weight and
stop blinking the unit.
Note: Whether the data transmission is successful ,
the device will shut down automatically 15 seconds later.
Data ManagementStart Measuring
Successful Bluetooth
Connection
Once the Bluetooth Body Scale LS108-B6 is successfully
paired-up with your smartphone, please open the App and
turn on your Bluetooth. Keep smartphone and scale in
transmission distance. Step on the scale and take a
measurement. Once the measurement is finished the data
is automatically transferred to the app.
With batteries correctly installed, press “UNIT” button in the back of the scale to select
measurement unit. The default measurement unit is “kg”. You may press “UNIT”
button to choose among kilogram, pound and stone.
10 11

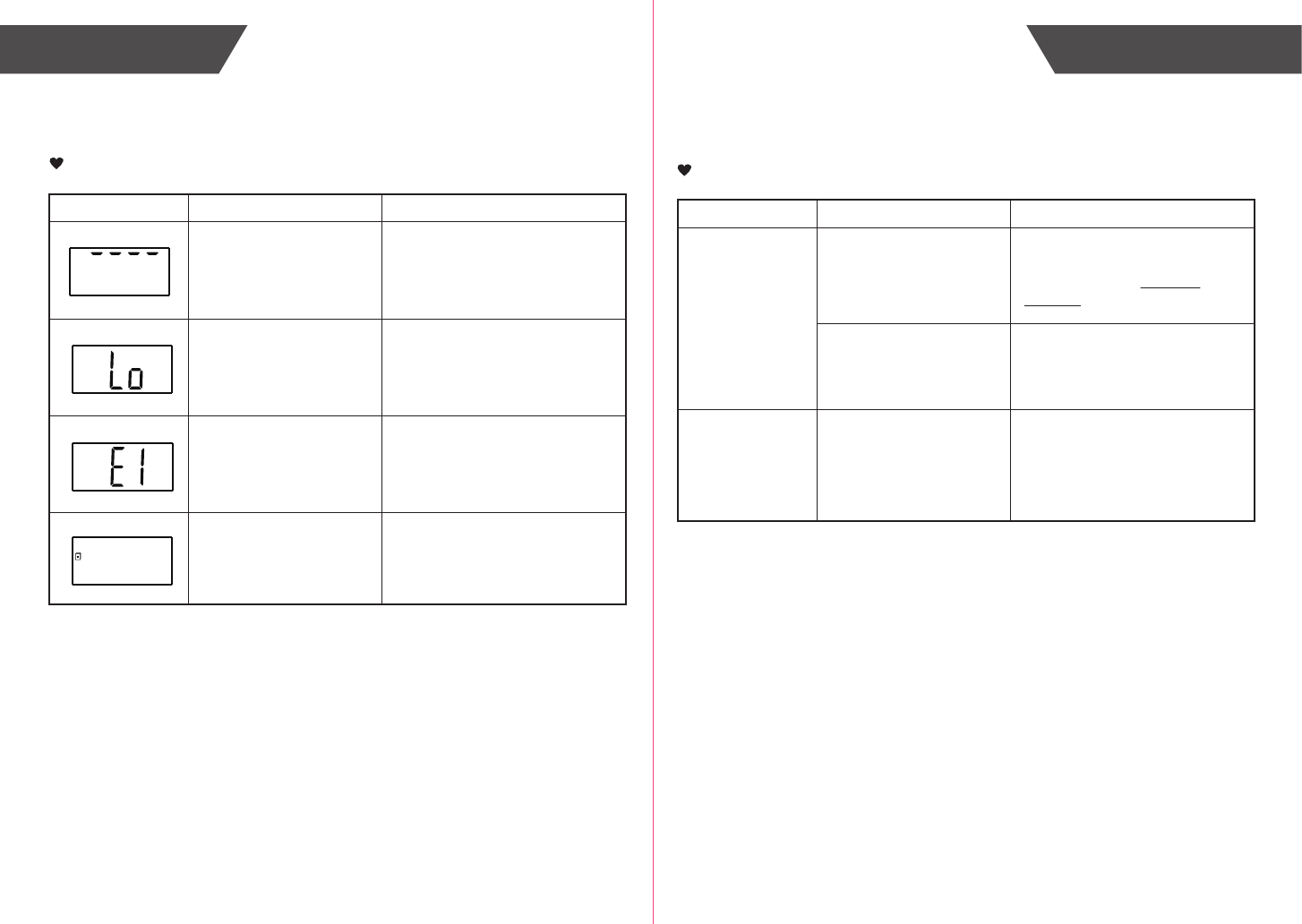

Error Prompt
Error Description Solution
Overload. The device will
power off.
Stop using this scale for
measurement.
Low Battery. The device
will power off in four
seconds.
Replace all four batteries at the
same time. Please purchase the
authorized batteries for
replacement.
Please check below items:
-Bluetooth is ON.
-App is ON.
-Both devices are within the
transmission distance of Bluetooth.
Failure of pairing up your
scale with your smartphone.
When Measuring ...
Troubleshooting
Problem Root Cause Solution
No display on
LED when the
device powers on.
The device
powers off
automatically.
Batteries not yet installed.
Worn batteries.
Low battery.
Install the batteries.
(Please refer to Insert the
Batteries)
Replace all four batteries at the
same time. Please purchase the
authorized batteries for
replacement.
Replace all four batteries at the
same time. Please purchase the
authorized batteries for
replacement.
Troubleshooting
Or failure of activation.
There has data doesn’t
upload. (The notebook
icon will be displayed.)
Upload the data.
12 13
Problem Root Cause Solution
Bluetooth is OFF.
Data transmission
failed.
Turn ON the Bluetooth via
“Setting >> General >> Bluetooth”.
App is OFF. Press the icon to turn ON your
app.
Place your smartphone closer
to the scale.
Out of range of Bluetooth
transmission.
When Data Transmitting ...
Specifications
Product Name
Dimension
Bluetooth Body Scale (LS108-B6)
Scale: 320x320x25mm (Approximately)
Net Weight Approximately 1.98kg ( Excluding the dry cells)
Display
Digital LED
V.A.: 75x41mm
Measurement Unit Kilogram / Stone/Pound
Measurement Range
Division
Accuracy
Working Environment
Storage Environment
Power Source 6V (Four AAA-size Batteries)
Auto-ON SENSE ON technology
Auto-OFF About 10 seconds while showing 0.0
About 15 seconds after the weight data is locked
Accessories 1. Four AAA-size Batteries
2. User Manual
Mode of Operation Continuous Operation
Specifications
About the Accuracy of This Product
This product passes strict inspection before delivery and therefore its accuracy is guaranteed by the manufacturer.
Please refer to the above table for the descriptions on accuracy.
WARNING: No modification of this equipment is allowed.
Troubleshooting
5-50kg: ±0.3kg;
100-150kg: ±0.5kg;
50-100kg: ±0.4kg;
150-180kg:±0.7kg
Temperature: 5℃ to 40℃
Temperature: -20℃ to 60℃Humidity: ≤93% RH
Humidity: 15% RH to 93%RH
Atmospheric pressure: 50kPa to 106kPa
Atmospheric pressure: 70kPa to 106kPa
5kg to 180kg / 0st: 11lb to 28st: 5lb / 11lb to 397lb
0.1kg; 0.2lb; 0.2 lb/1lb (≥20st)
14
When carrying out usual maintenance, please ensure practice of the following Do’s and
Don’ts:
Transtek warrants its products free of defects in materials and workmanship in normal
use for a period of TWO years from the date of retail purchase.
This warranty does NOT cover damages caused by misuse or abuse, including but not
limited to:
Failure caused by unauthorized repairs or modifications;
Damage caused by shock or drop during transportation;
Failure caused by improper operation inconsistent with the instructions stated in this user
manual;
Malfunction or damage from failure to provide the recommended maintenance;
Damage caused by improper use of power supply.
Should this device require maintenance (or replacement at our option) under warranty,
please deliver the original package to GUANGDONG TRANSTEK MEDICAL
ELECTRONICS CO., LTD prepaid. Please return the store receipt (with the retail
purchase date) and a note with reasons to return on it as well.
Maintenance
Warranty
GUANGDONG TRANSTEK MEDICAL ELECTRONICS CO., LTD
Zone A, 5/F., Investment Building, No. 12 Huizhan East Rd., Torch Development District,
Zhongshan, 528437, Guangdong, China
Tel: 86-760-88282982
Website: http://www.transtek.cn
DO use a dry soft cloth to wipe the dust.
DO use a wet soft cloth, dipped into water and wrung out, to wipe the dirt. Then use a
dry soft cloth to dry up the device.
DON’T wash the device with water or immerse it in water.
DON’T use propellant, abrasive or other chemicals to wipe the dirt in avoidance of
discolor or malfunction.
DON’T disassemble this device. If you have any problems, please contact Transtek.
(Please refer to Warranty for contact information)
Maintenance FCC Regulations
15
FCC User Guide Information
Radio Frequency Interface Requirements - FCC
Note: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna;
Increase the separation between the equipment and receiver;
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected;
Consult the dealer or an experienced radio / TV technician for help.
Radio Transmitters (Part 15)
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) this device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
FCC RF Exposure Guidelines
Safety Information
Reducing RF Exposure - Use Properly
Only operate the device in accordance with the instructions supplied.
This device complies with FCC radiation exposure limits set forth for an uncontrolled
environment.
FCC Regulations
Contains FCC ID: OU9LS108-B06
