Tranwo Technology MA8802A 2.4GHz Digital Audio Video Module User Manual MA8802A 2M RF module spec
Tranwo Technology Corp 2.4GHz Digital Audio Video Module MA8802A 2M RF module spec
User Manual
Date: 2013/3/20
Preliminarydatasubjectstochangewithoutnotice
1
MA-8802A
2.4GHz Digital Audio Video
Module

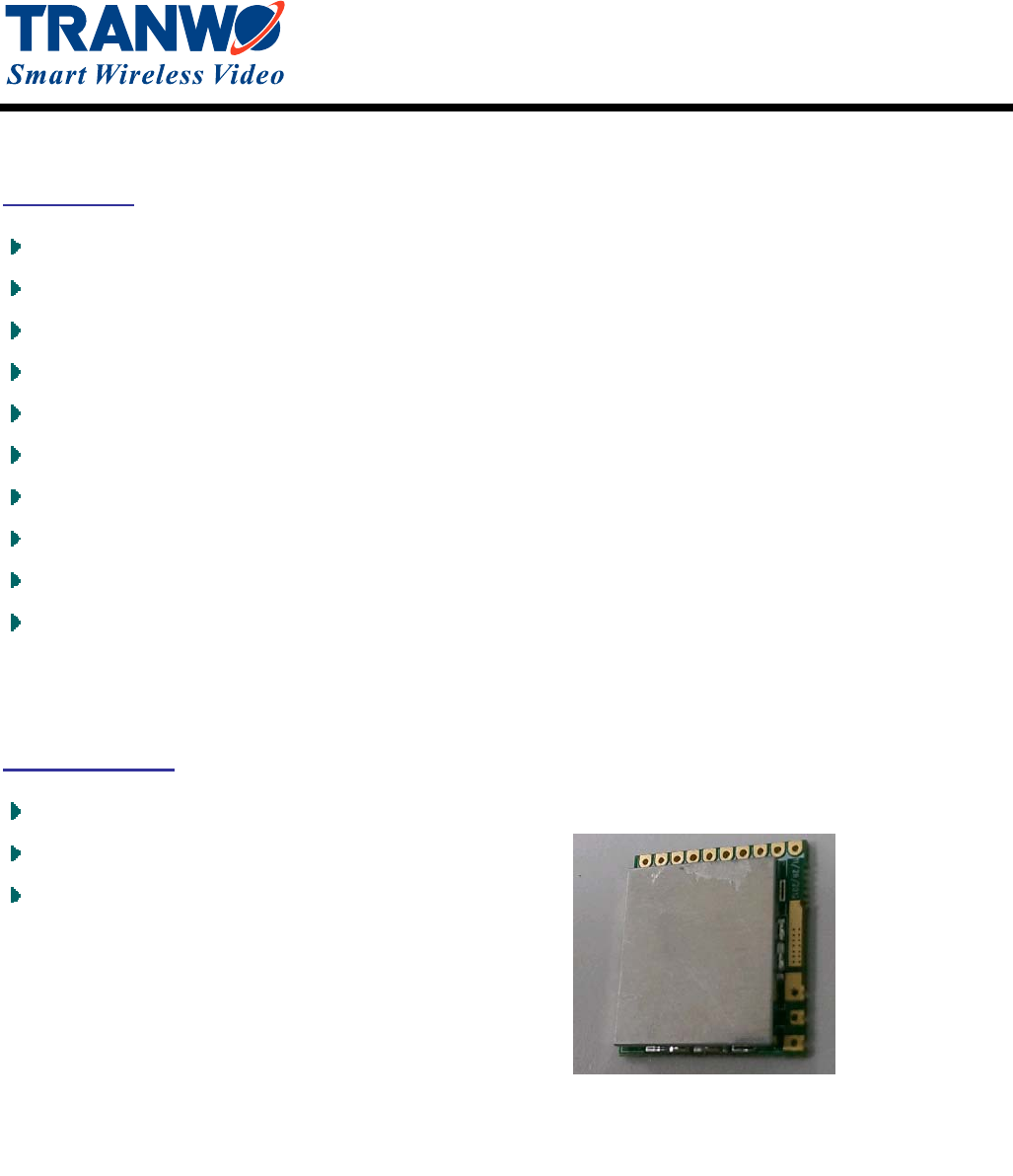

A. Features
Operating frequency range from 2408 to 2468 MHz
31 hopping channels
Maximum data rate 2 Mbps (GFSK)
4-wire SPI interface support , 16MHz clock rate
Modulation scheme : GFSK
The 16-bit CRC checking
Packet retransmission mechanism
Power supply range: 3.3V
Transmission range: 250 m (Line of sight)
Outline: 23.23x 21.22 x 3.75 mm
B. Applications
Digital Baby Monitor
Wireless Video Door phone
Security Camera
MA-8802A
Date: 2013/3/20
Preliminarydatasubjectstochangewithoutnotice
2
MA-8802A
2.4GHz Digital Audio Video
Module
C: Specification
Parameter Min. Typ. Max. Unit
Electrical Section
Supply Voltage 3 3.3 3.6 V
Supply current in TX mode 120 mA
Supply current in RX mode 40 mA
RF Section
Modulation Mode GFSK
Operating Frequency 2408 ~ 2468 MHz
Channel Bandwidth 2 MHz
Channel 31 channels
Data Rate 2M bps
Transmitter Section
Transmission Power +18 dBm
Power control range 0~18 dB
Power control resolution -- 6 -- dB
Receiver Section
Non-overlay channel spacing 2 MHz
Sensitivity -90(Typical) dBm
Operation
Operating Temperature -20 ~ +85 ℃
Storage Temperature -40 ~ +85 ℃
Date: 2013/3/20
Preliminarydatasubjectstochangewithoutnotice
3
MA-8802A
2.4GHz Digital Audio Video
Module

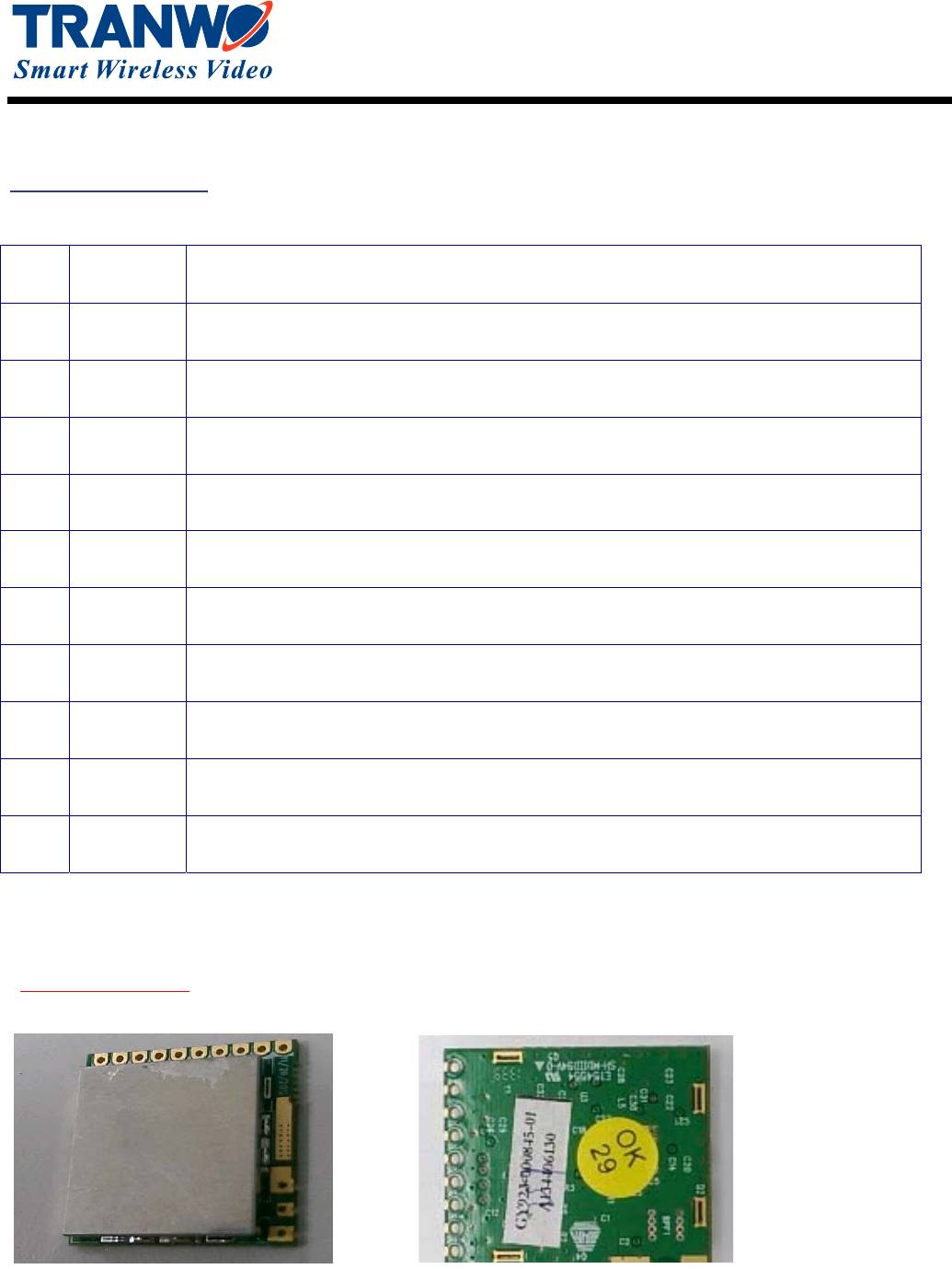

D: Pin Assignment
No. Marks Function
1 VCC Power Supply
2 GND Ground
3 IRQ Maskable interrupt pin. Active low
4 MISO SPI Slave Data Output , with tri-state option
5 MOSI SPI Slave Data Input
6 SCK SPI Clock
7 CNS SPI Ship select
8 CE Chip Enable Activates RX or TX mode
9 EN N/A
10 GND Ground
Model: MA-8802A
Date: 2013/3/20
Preliminarydatasubjectstochangewithoutnotice
4
MA-8802A
2.4GHz Digital Audio Video
Module

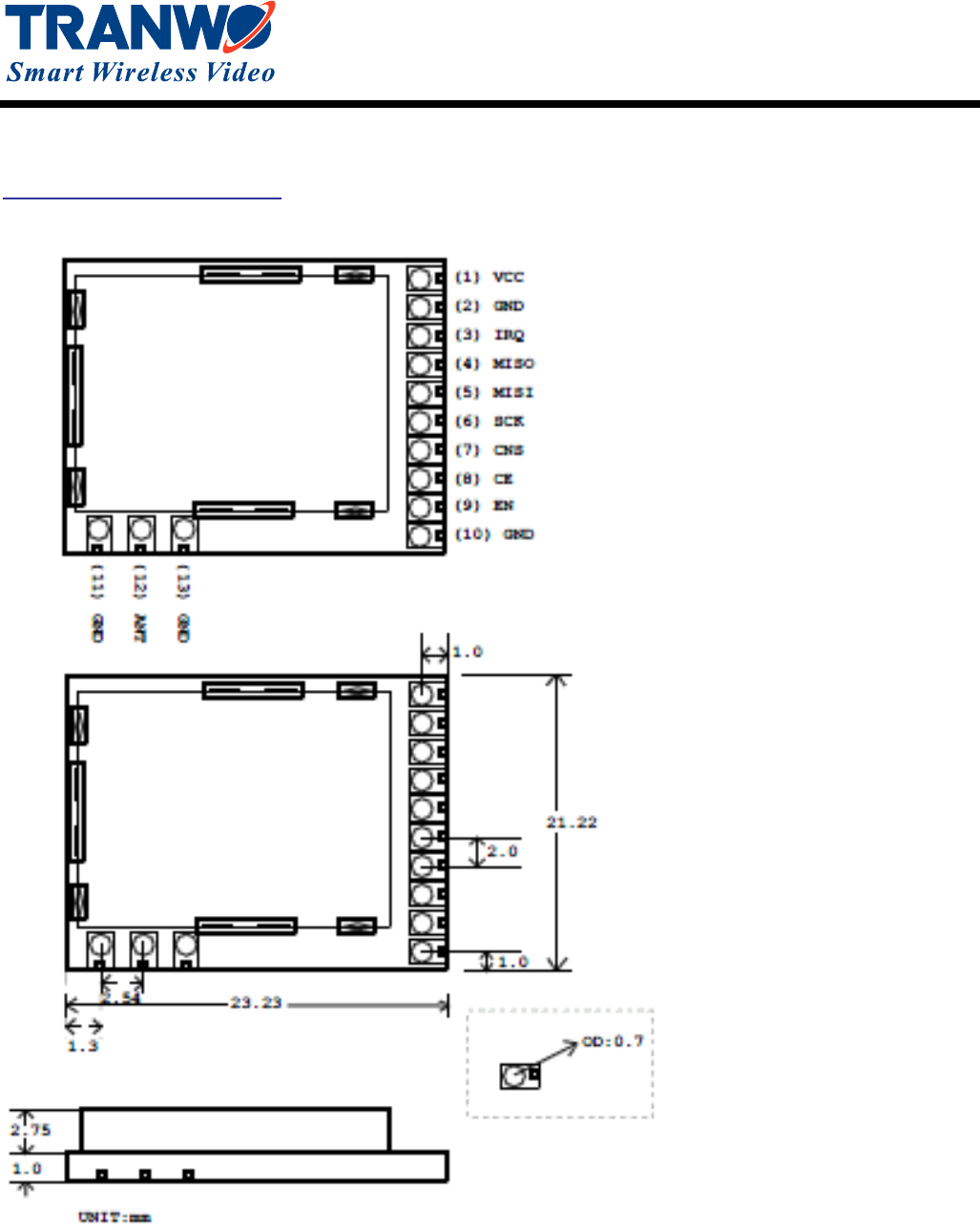

E: Mechanical Dimension
MA-8802A
2.4GHz Digital Audio Video Module
Federal Communication Commission Interference Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to correct the interference
by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate this equipment.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This
equipment should be installed and operated with minimum distance 20cm between the radiator & your body.
Preliminarydatasubjectstochangewithoutnotice
MA-8802A
2.4GHz Digital Audio Video Module
This device is intended only for OEM integrators under the following conditions:
1) The antenna must be installed such that 20 cm is maintained between the antenna and users, and
2) The transmitter module may not be co-located with any other transmitter or antenna.
3) Module approval valid only when the module is installed in the tested host or compatible series of
host
As long as 3 conditions above are met, further transmitter test will not be required. However, the OEM
integrator is still responsible for testing their end-product for any additional compliance requirements
required with this module installed
IMPORTANT NOTE: In the event that these conditions can not be met (for example certain laptop
configurations or co-location with another transmitter), then the FCC authorization is no longer
considered valid and the FCC ID can not be used on the final product. In these circumstances, the OEM
integrator will be responsible for re-evaluating the end product (including the transmitter) and
obtaining a separate FCC authorization.
End Product Labeling
This transmitter module is authorized only for use in device where the antenna may be installed such
that 20 cm may be maintained between the antenna and users. The final end product must be labeled in
a visible area with the following: “Contains FCC ID: O6L-MA8802A”.
Manual Information To the End User
The OEM integrator has to be aware not to provide information to the end user regarding how to install
or remove this RF module in the user’s manual of the end product which integrates this module.
The end user manual shall include all required regulatory information/warning as show in this manual.
Preliminarydatasubjectstochangewithoutnotice
MA-8802A
2.4GHz Digital Audio Video Module
Industry Canada statement:
This device complies with ISED’s licence-exempt RSSs. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Le présent appareil est conforme aux CNR d’ ISED applicables aux appareils radio exempts de licence.
L’exploitation est autorisée aux deux conditions suivantes : (1) le dispositif ne doit pas produire de brouillage
préjudiciable, et (2) ce dispositif doit accepter tout brouillage reçu, y compris un brouillage susceptible de
provoquer un fonctionnement indésirable.
Radiation Exposure Statement:
This equipment complies with ISED radiation exposure limits set forth for an uncontrolled environment.
This equipment should be installed and operated with minimum distance 20cm between the radiator & your
body.
Déclaration d'exposition aux radiations:
Cet équipement est conforme aux limites d'exposition aux rayonnements ISED établies pour un
environnement non contrôlé. Cet équipement doit être installé et utilisé avec un minimum de 20 cm de
distance entre la source de rayonnement et votre corps.
This device is intended only for OEM integrators under the following conditions: (For module device use)
1) The antenna must be installed such that 20 cm is maintained between the antenna and users, and
2) The transmitter module may not be co-located with any other transmitter or antenna.
As long as 2 conditions above are met, further transmitter test will not be required. However, the OEM
integrator is still responsible for testing their end-product for any additional compliance requirements
required with this module installed.
Cet appareil est conçu uniquement pour les intégrateurs OEM dans les conditions suivantes: (Pour utilisation
de dispositif module)
1) L'antenne doit être installée de telle sorte qu'une distance de 20 cm est respectée entre l'antenne et les
utilisateurs, et
2) Le module émetteur peut ne pas être coïmplanté avec un autre émetteur ou antenne.
Tant que les 2 conditions ci-dessus sont remplies, des essais supplémentaires sur l'émetteur ne seront pas
nécessaires. Toutefois, l'intégrateur OEM est toujours responsable des essais sur son produit final pour toutes
exigences de conformité supplémentaires requis pour ce module installé.
Preliminarydatasubjectstochangewithoutnotice
Preliminarydatasubjectstochangewithoutnotice
MA-8802A
2.4GHz Digital Audio Video Module
IMPORTANT NOTE:
In the event that these conditions can not be met (for example certain laptop configurations or co-location
with another transmitter), then the Canada authorization is no longer considered valid and the IC ID can not
be used on the final product. In these circumstances, the OEM integrator will be responsible for
re-evaluating the end product (including the transmitter) and obtaining a separate Canada authorization.
NOTE IMPORTANTE:
Dans le cas où ces conditions ne peuvent être satisfaites (par exemple pour certaines configurations
d'ordinateur portable ou de certaines co-localisation avec un autre émetteur), l'autorisation du Canada n'est
plus considéré comme valide et l'ID IC ne peut pas être utilisé sur le produit final. Dans ces circonstances,
l'intégrateur OEM sera chargé de réévaluer le produit final (y compris l'émetteur) et l'obtention d'une
autorisation distincte au Canada.
End Product Labeling
This transmitter module is authorized only for use in device where the antenna may be installed such that 20
cm may be maintained between the antenna and users. The final end product must be labeled in a visible area
with the following: “Contains IC: 8522A-MA8802A”.
Plaque signalétique du produit final
Ce module émetteur est autorisé uniquement pour une utilisation dans un dispositif où l'antenne peut être
installée de telle sorte qu'une distance de 20cm peut être maintenue entre l'antenne et les utilisateurs. Le
produit final doit être étiqueté dans un endroit visible avec l'inscription suivante: "Contient des IC:
8522A-MA8802A ".
Manual Information To the End User
The OEM integrator has to be aware not to provide information to the end user regarding how to install or
remove this RF module in the user’s manual of the end product which integrates this module.
The end user manual shall include all required regulatory information/warning as show in this manual.
Manuel d'information à l'utilisateur final
L'intégrateur OEM doit être conscient de ne pas fournir des informations à l'utilisateur final quant à la façon
d'installer ou de supprimer ce module RF dans le manuel de l'utilisateur du produit final qui intègre ce
module.
Le manuel de l'utilisateur final doit inclure toutes les informations réglementaires requises et avertissements
comme indiqué dans ce manuel.
Approved antenna(s) list
Type Gain(dBi) Brand Manufacturer
Dipole 2 TRANWO TRANWO
PCB 0.07 TRANWO TRANWO
Dipole -0.8343 TRANWO TRANWO
