Tranwo Technology VM2506 2.4GHz Digital RF Module User Manual
Tranwo Technology Corp 2.4GHz Digital RF Module
User Manual
Model : VM2506

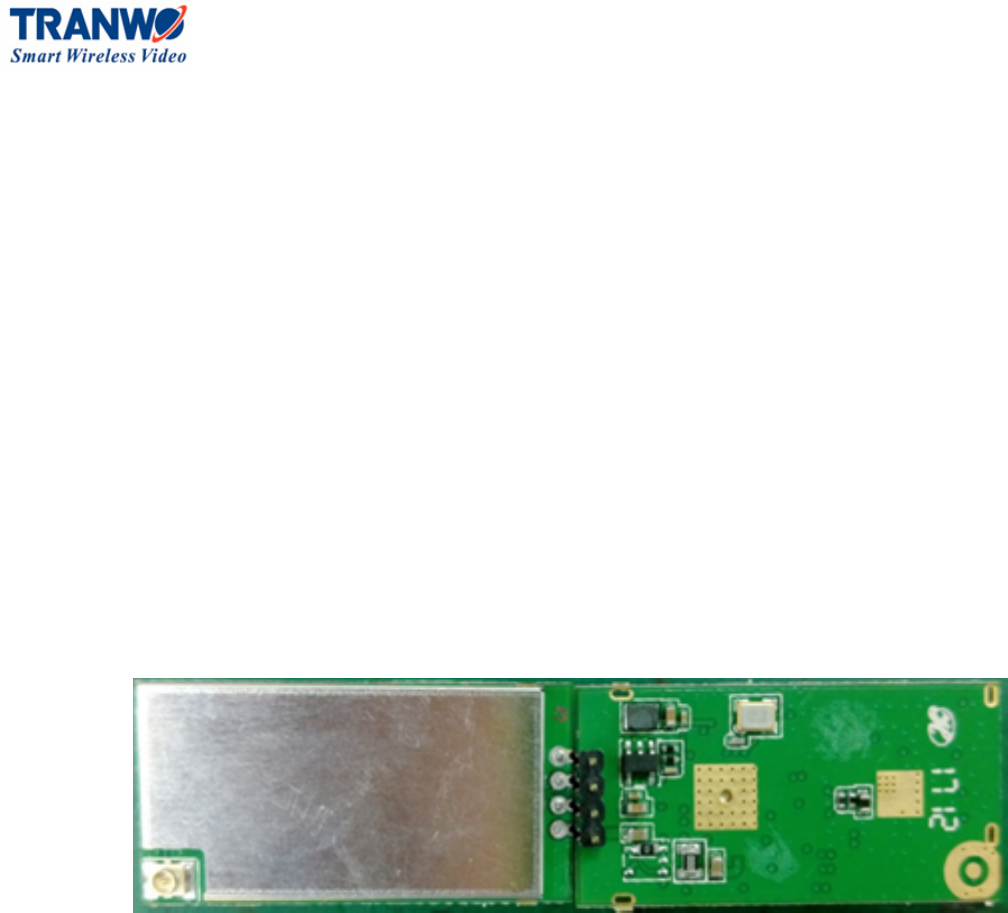

1.
PRODUCT DESCRIPTION
2. Features
• CMOS Technology with RF, Baseband, and MAC Integrated.
• 1T1R Mode with 150Mbps PHY Rate for Both Transmit and
Receiving.
• Legacy and High Throughput Modes
• 20MHz/40MHz Bandwidth
• Reverse Direction Grant Data Flow and Frame Aggregation
• WEP 64/128, WPA, WPA2, TKIP, AES
• QoS‐WMM, WMM‐PS
• WPS, PIN, PBC
• Multiple BSSID Support
• USB 2.0
• International Regulation ‐ 802.11d + h
• Cisco CCX Support
• Bluetooth Co‐existence
• Low Power with Advanced Power Management
• Operating Systems ‐ Windows XP 32/64, 2000,
Vista 32/64, Linux, Macintosh.
The VM2506 is a highly integrated MAC/BBP and 2.4 GHz RF single chip with
150Mbps PHY rate supporting. It fully complies with IEEE 802.11n draft 3.0 and
IEEE802.11 b/g /n feature rich wireless connectivity at high standards, delivers
reliable, cost effective, throughput from an extended distance. Optimized RF
architecture and baseband algorithms provide superb performance and low
power consumption. Intelligent MAC design, deploys a high efficient USB engine
and hardware data processing accelerators without overloading the host
processor. The VM2506 is designed to support standard based features in the
areas of security, quality of service and international regulation, giving end users
the greatest performance anytime in any circumstance.

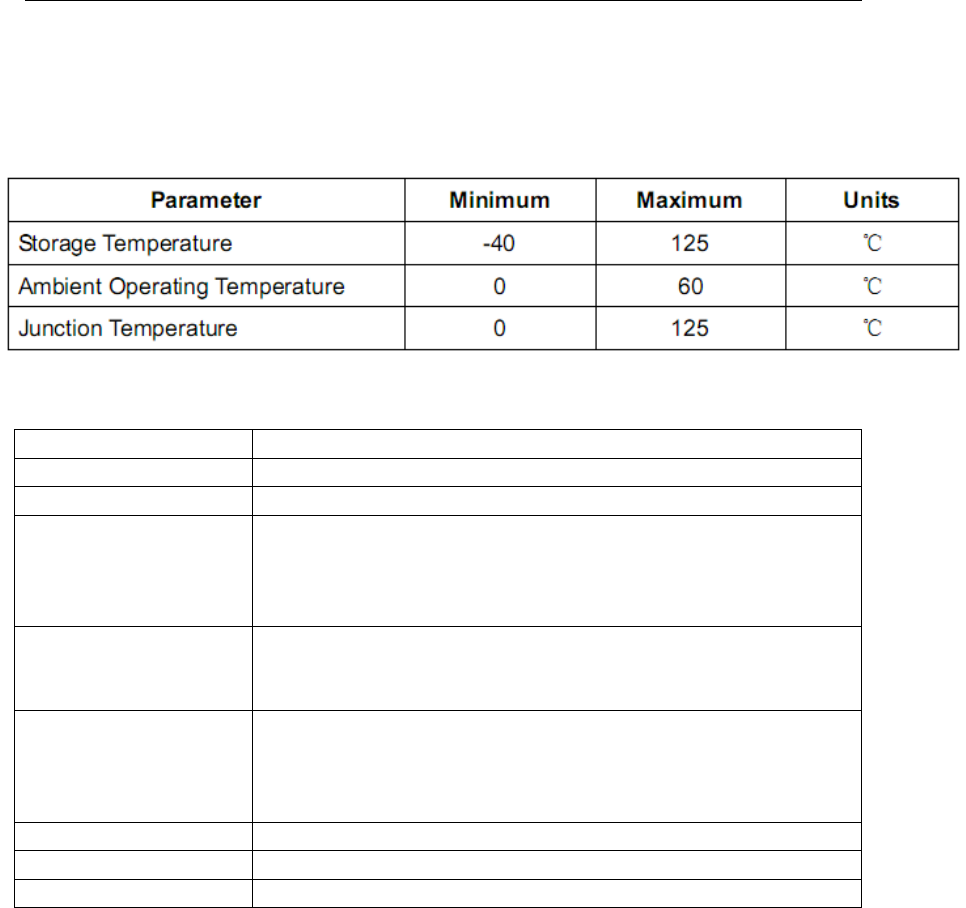

3. Temperature Limit Ratings
4. PRODUCT SPECIFICATIONS
Standards WiFi: EEE 802.11b, IEEE 802.11g, IEEE 802.11n
Bus Interface WiFi: USB2.0
Data Rate 802.11b: 11, 5.5, 2, 1 Mbps
802.11g: 54, 48, 36, 24, 18, 12, 9, 6 Mbps
802.11n: MCS 0 to 7 for HT20MHz ;MCS 0 to 7 for
HT40MHz
Modulation
Techniques
802.11b: CCK, DQPSK, DBPSK
802.11g: 64 QAM, 16 QAM, QPSK, BPSK
802.11n: 64 QAM, 16 QAM, QPSK, BPSK
Operating Channel WiFi 2.4GHz:
11: (Ch. 1-11) – United States
Frequency Range 2400MHz ~ 2483.5 MHz
Security WiFi : WPA, WPA2 , WPS2.0, WAPI
OS supported Linux/Android
5.Electrical Specifications
1.RF Characteristics for IEEE802.11b ( 11Mbps mode unless otherwise specified)
Items Contents
Contents IEEE802.11b
Mode CCK 11 Mbps
Channel frequency 2400 ~ 2483.5 MHz
RX (per≤85dBm@8%) -85 dBm
TX Power Level 506.991mW
EVM (≤-28) -28
2. RF Characteristics for IEEE802.11g ( 54Mbps mode unless otherwise specified)
Items Contents
Contents IEEE802.11g
Mode OFDM 54 Mbps
Channel frequency 2400 ~ 2483.5 MHz
RX (per≤70dBm@10%) -70 dBm
Power Level 506.991mW
EVM (≤-28) -28 dBm
3. RF Characteristics for IEEE802.11n (BW20_MCS7)
Items Contents
Contents IEEE802.11n (BW20_MCS7)
Mode OFDM 65 Mbps
Channel frequency 2400 ~ 2483.5 MHz
RX (per≤65 dBm@10%) -65 dBm
Power Level 506.991mW
EVM (≤-28) -28 dBm
4. RF Characteristics for IEEE802.11n (BW40_MCS7)
Items Contents
Contents IEEE802.11n (BW40_MCS7)
Mode OFDM 135 Mbps
Channel frequency 2400 ~ 2483.5 MHz
RX (per≤65 dBm@10%) -65 dBm
Power Level 506.991mW
EVM (≤-28) -28 dBm
3.3V

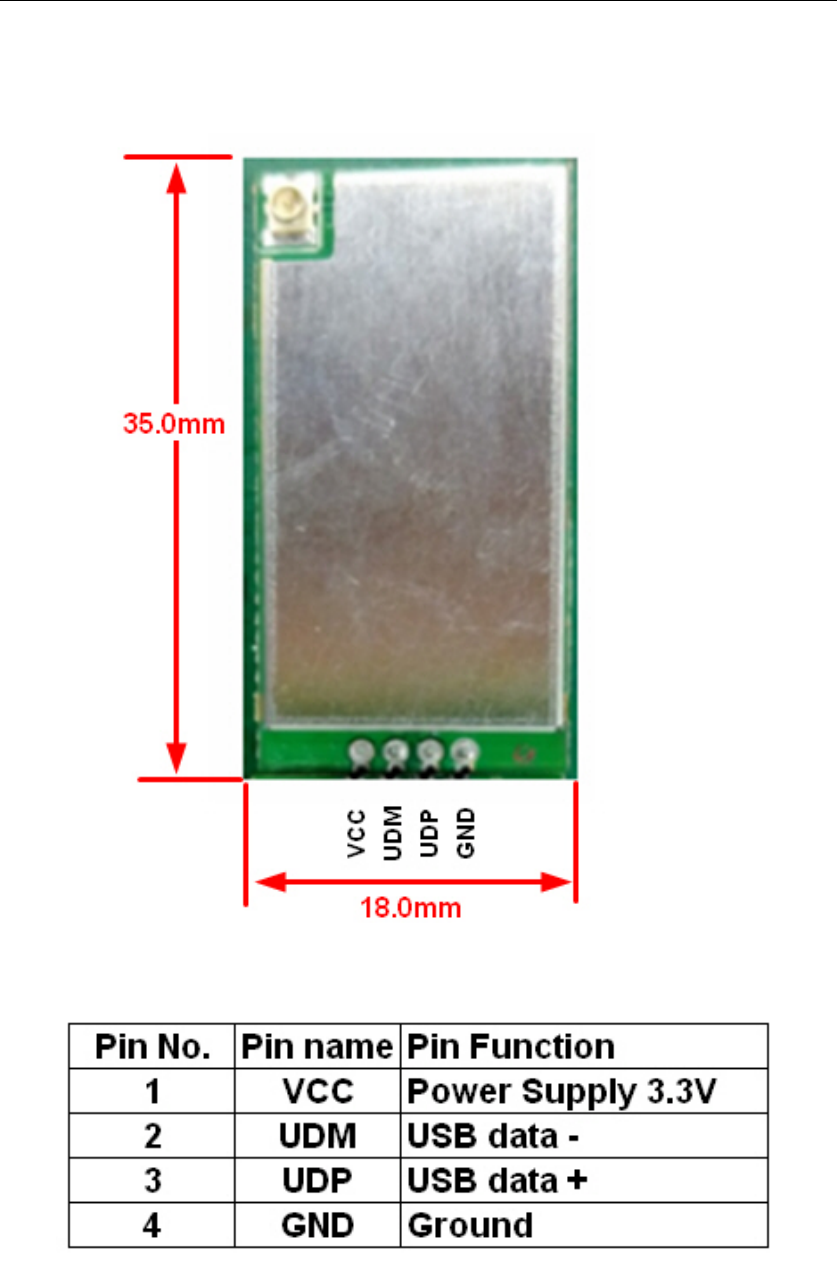

6.Pin Assignment
注意事项
材质厚度
高度精度要求
屏蔽盖厚度 包括材质厚度
吴林海
T=0.2 洋白铜
拓 联
X1
1-4 為重要尺寸
深 圳 市 佰 汶 科 技 有 限 公 司
硬度:
披鋒要求 料厚 披鋒 以下 料厚 披鋒 以下
備註
生產流程
工序名稱
負責部門:
製圖:
日期
批准:
審核:
日期
日期
客戶貨號
产品名称
模具編號 :
材質:
客戶名稱 :
電鍍 其它 不電鍍
工
程
圖
比例:
單位:版本:
佰汶編號
原材料檢查
生 產
生 產 抽 查生产冲压首檢
品管 品管 品管
包装
包装部
抽 查
品管
出货
包装部
出货前检查
品管
63-150
0.05
0.08
0.15
0.1
0.4
0.3
16-63
0.24-16
0.12<4
±A级 B级等级
一
般
公
差
0.6
0.4
0.3
0.2
1.2
0.7
0.4
0.3
C级 D级
版次 修改说明 绘图 审核 核准
17.10±0.1
31.74±0.1
2.00±0.1
1.25±0.1
1.25±0.1
1.25±0.1
0.15
2.00±0.1
5.57
4.34
3.49

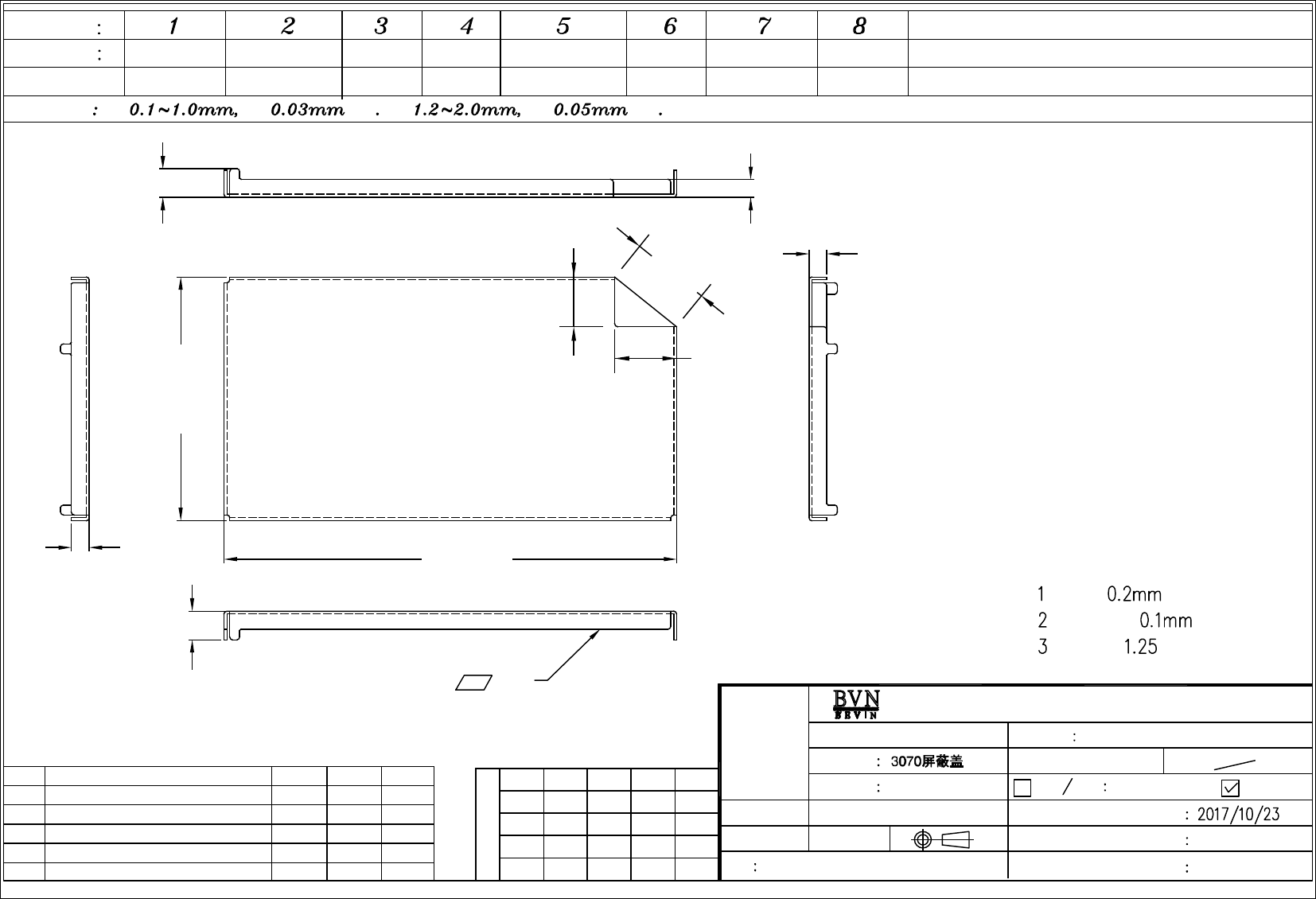

Shielding case drawing

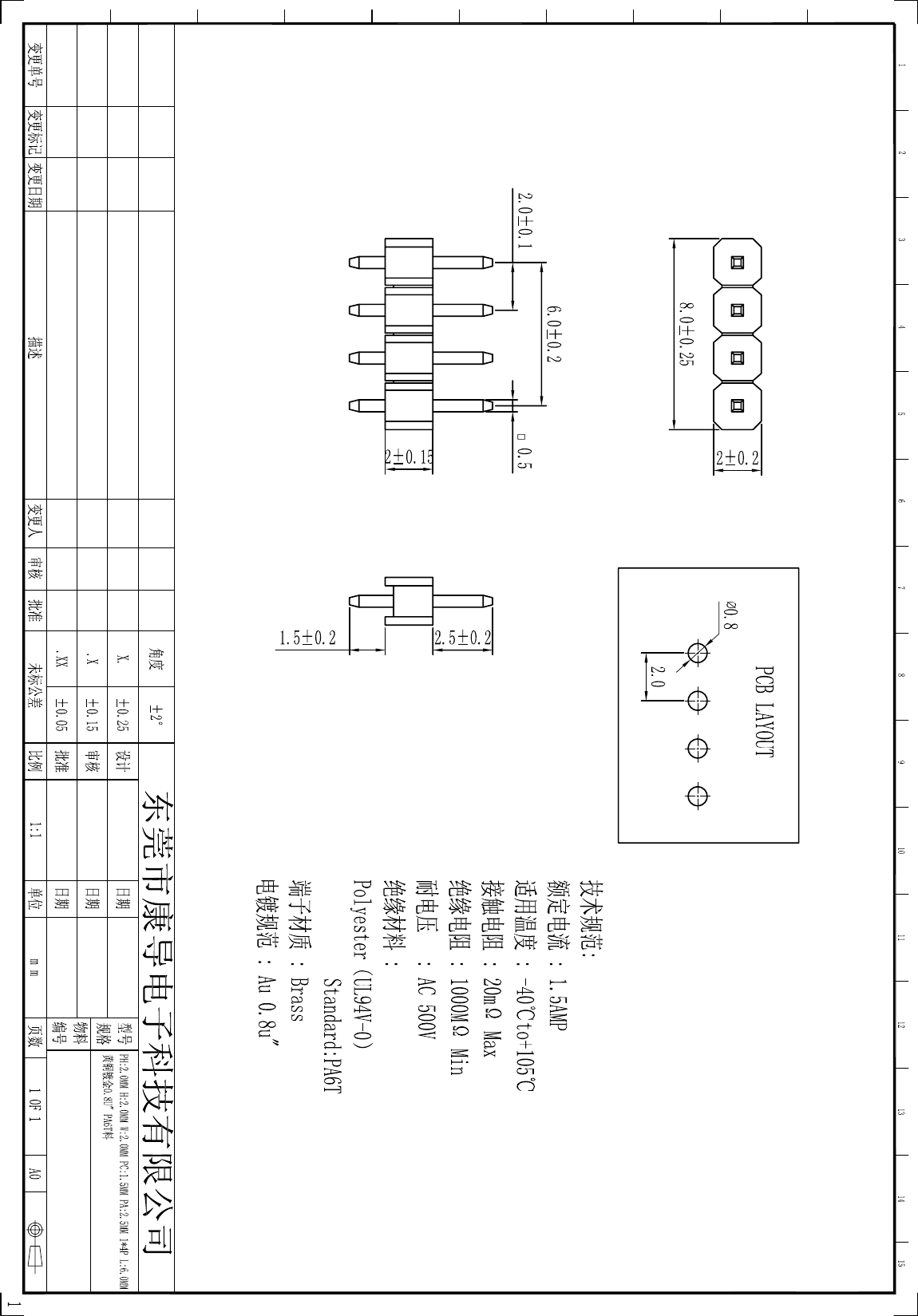

Connector Dim.
Federal Communication Commission Interference Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one of the
following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the
party responsible for compliance could void the user's authority to operate this
equipment.
This transmitter must not be co-located or operating in conjunction with any
other antenna or transmitter.
FOR MOBILE DEVICE USAGE (>20cm/low power)
Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated
with minimum distance 20cm between the radiator & your body.
This device is intended only for OEM integrators under the following conditions:
The transmitter module may not be co-located with any other transmitter or
antenna.
As long as this conditions above is met, further transmitter test will not be
required. However, the OEM integrator is still responsible for testing their
end-product for any additional compliance requirements required with this
module installed
IMPORTANT NOTE: In the event that these conditions can not be met (for
example certain laptop configurations or co-location with another transmitter),
then the FCC authorization is no longer considered valid and the FCC ID can
not be used on the final product. In these circumstances, the OEM integrator
will be responsible for re-evaluating the end product (including the transmitter)
and obtaining a separate FCC authorization.
End Product Labeling
FOR MOBILE DEVICE USAGE (>20cm/low power)
This transmitter module is authorized only for use in device where the antenna
may be installed such that 20 cm may be maintained between the antenna and
users. The final end product must be labeled in a visible area with the
following: “Contains FCC ID:O6L-VM2506”. The grantee's FCC ID can be
used only when all FCC compliance requirements are met.
Manual Information To the End User
The OEM integrator has to be aware not to provide information to the end user
regarding how to install or remove this RF module in the user’s manual of the
end product which integrates this module.
The end user manual shall include all required regulatory information/warning
as show in this manual.
Approved antenna(s) list
Model Type Gain(dBi) Frequency range(GHz) Connecter
VM2506RX Dipole 2 2.4~2.5 i-pex
VM2506TX Dipole 2 2.4~2.5 i-pex
