User manual
![](/img.php?id=1056764&img=bg1.png)
5.8GHz Wireless Outdoor
CMOS Camera
VSC-5882A
1107
![](/img.php?id=1056764&img=bg2.png)
To prevent fire or shock hazard, do not expose this product to rain and
moisture. For example: do not use near a bathtub, washbowl, kitchen
sink, or laundry tub, in a wet basement, or nearby a swimming pool. To
avoid electric shock, do not take apart this product, provided as an
accessory. This product should be operated only under power supply.
Do not overload wall outlets and extension outlets as this can result in
the risk of fire or electric shock.
Contents
1.Important Safety Information
1.Important Safety Information........................................1
2.Specification............................................................. .1
3.Package Content ........................................................2
4.Panel Control Function ...................................... .. 2
5.Setup Guide ...............................................................3
And
1
2.Specification
Input Voltage DC 8~28V
Current Consumption < 200mA
Operation temperature & humidity 0 40 less than 85%
Storage temperature & humidity -20 ~+70 less than 90%
Weatherproof IP65
Output power @EIRP 20 dBm
Channel selection Dip switch(8CH)
℃~+ ℃
℃℃
□NOTE:
This equipment has been tested and found to comply with the
limits regulated by FCC and CE. These limits are designed to
provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in
accordance with the instruction, may cause harmful interference
to radio communications. The change or modifications no
expressly approved by the party responsible for compliance could
void the user's authority to operate the equipment. To comply with
the FCC RF exposure compliance requirements, no change to the
antenna or the device is permitted. Any change to the antenna or
the device could result in the device exceeding the RF exposure
requirements and void user's authority to operate the device.
FCC 0dBm CE 14dBm
![](/img.php?id=1056764&img=bg3.png)

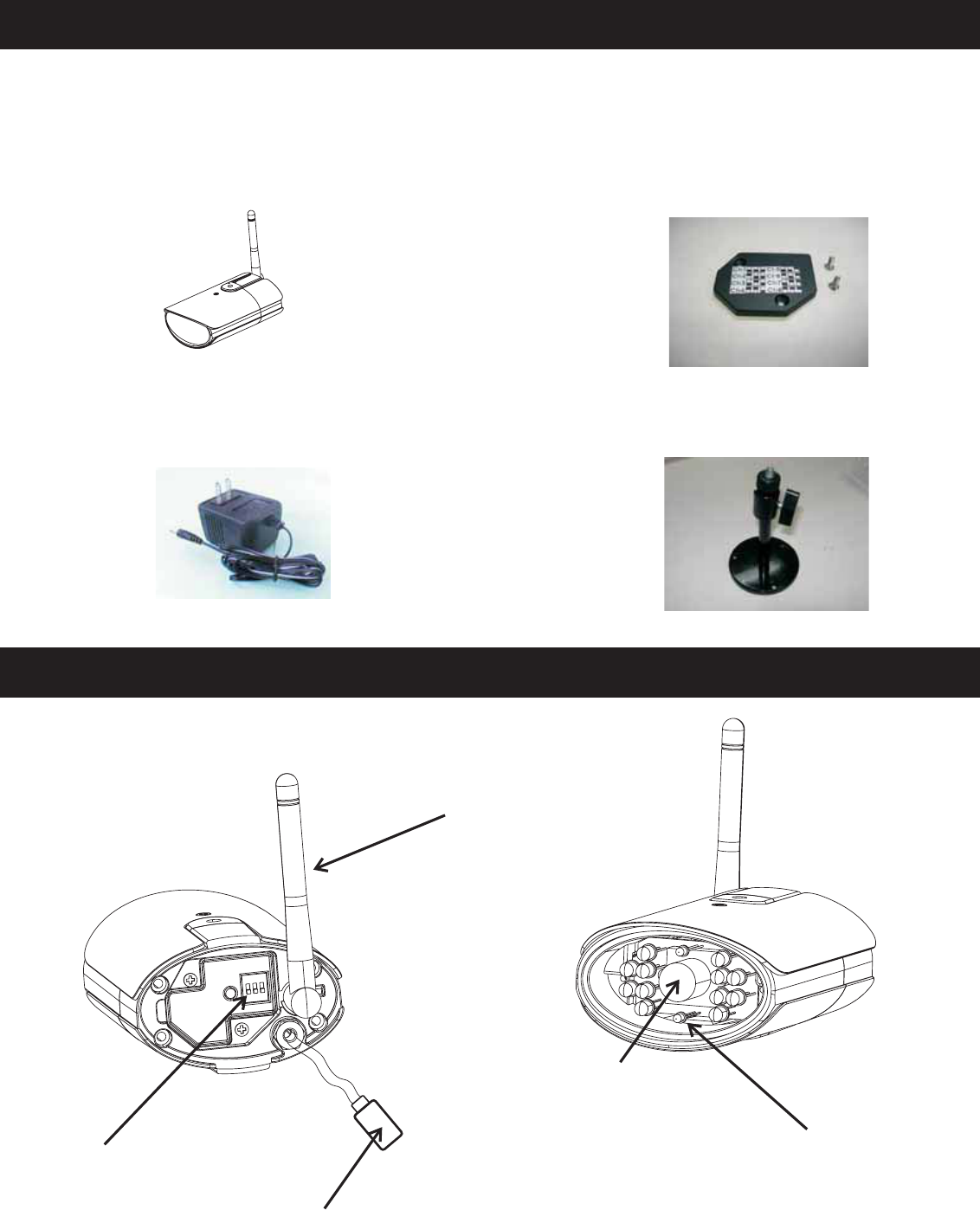

3.Package Contents
Check to make sure that all units shown as below are enclosed.
If something missing, please contact your dealer.
4. Bracket X1
1.5.8GHzCMOSCameraX1
2
3.Power Adapters (12V/300mA)
2. Cover X1,Screw X 2
2.Package Contents4.Panel Control and Function
1 DIP-Switch for channel selection.
DC power jack, connect to power supply. (8~28VDC).2
3 5.8GHz antenna.
4 Power indicator (red).
5 Lens.
5.8GHz COMS Camera
2
1
3
5
4
![](/img.php?id=1056764&img=bg4.png)
2.Package Contents

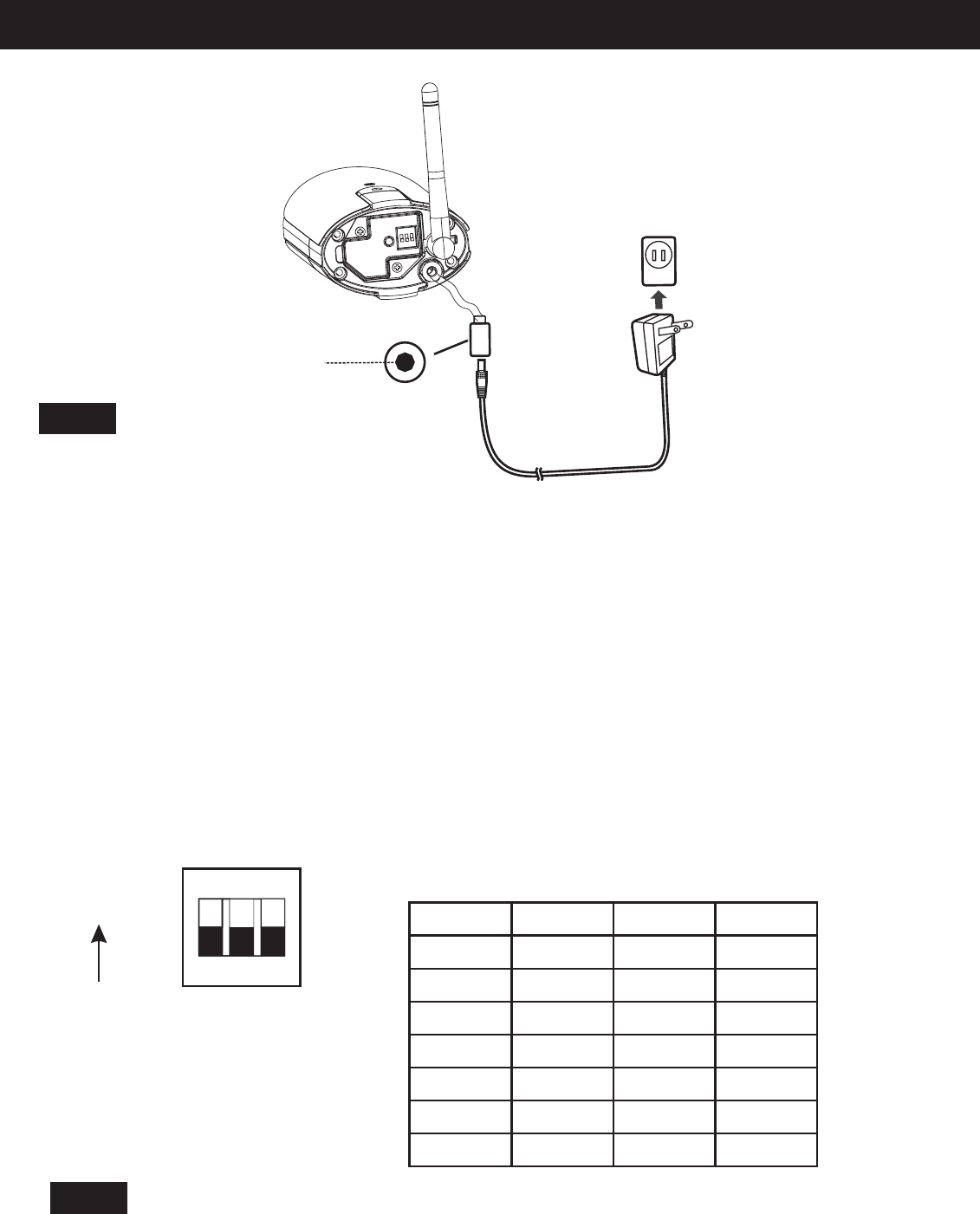

1 According to the diagram, Connect the DC plug of the power
adapter to the DC jack, and connect the power adapter to an
outlet(As shown in Fig.1).
2 DIP-Switch for Channel Selection, to find optimal reception,
the transmitter and receiver must to be configured as the
same channel(As shown in Fig.2).
3
5.Setup Guide
+
123
123
ON
UPPER Down
CH1 Down Down
CH2
CH3
CH4
CH5
CH6
CH7
CH8
Down Down
Upper
Down
Upper Down
Upper Upper Down
Upper
Upper
Upper
Upper
Down
Down
Upper Down
Down Upper
Upper Upper
Fig. 2
Fig. 1
![](/img.php?id=1056764&img=bg5.png)
Fig. 3
3 Switch to the optimal channel before put on waterproof cover
and fasten the screw. (As shown in Fig 3)
Waterproof cover
Screw
4
![](/img.php?id=1056764&img=bg6.png)
1
Preliminary Specification
For
VSC-5882
5.8GHz Wireless Outdoor CMOS Camera
Document Number:PSC08002 Page :1of4
Revision :1A
Date :2008-10-31
TRANWO Technology Corp.
www.chemlink.com.tw
2
1. Introduction
This document describes the specifications and features of the CHEMLINK 5.8GHz
Wireless outdoor CMOS Camera which use FM modulation technology for wireless A/V
transmission.
2. Features
Avoids interference from crowded 2.4GHz ISM applications such as video
senders, 802.11b WLAN equipment, Bluetooth-enable products, cordless
phones, microwave ovens, etc.
Operating frequency: 5733 ~ 5866MHz (8 channels)
Up to 300 feet range, clear line of sight
Supports NTSC / PAL composite Video format
Auto white balance control
50Hz / 60Hz flicker cancellation
IP65 weatherproof supported
3. Specifications
3.1 Wireless CMOS Camera
3.1.1 General specifications
Input voltage DC 8 ~ 28V
Current consumption:
IR LEDs OFF 120mA @12VDC
IR LEDs ON 200mA @12VDC
Operating temperature & humidity 0℃ ~ +40℃ less than 85%
Storage temperature & humidity -20℃ ~ +70℃ less than 90%
Weatherproof IP65
3.1.2 Electrical specifications
RF
Output power @ EIRP FCC 0 dBm CE 14 dBm
Modulation type FM
Channel Frequency CH1 5733 MHz
CH2 5752 MHz
CH3 5771 MHz
CH4 5790 MHz
CH5 5809 MHz
CH6 5828 MHz
CH7 5847 MHz
CH8 5866 MHz
Channel selection DIP switch
Frequency stability ±
250KHz
Output flatness 3 dB
![](/img.php?id=1056764&img=bg8.png)
3
Video
Input Level 1V p-p ±
0.15 V p-p Load
Impedance 75 ohms
Pre-Emphasis NTSC & PAL
Sensor 1/3” CMOS Sensor
Image area 5.961mm*4.276mm
Array size 510 X 496 (NTSC)
628 X 586 (PAL)
Illumination
Night Vision Range 10 m
LENS
LENS f6.0mm, F2.0 ,
(4 glasses with IR cut filter)
LENS focus Fixed
View angle 60°
Accessory
Adaptor DC 12V/300mA
Bracket Optional

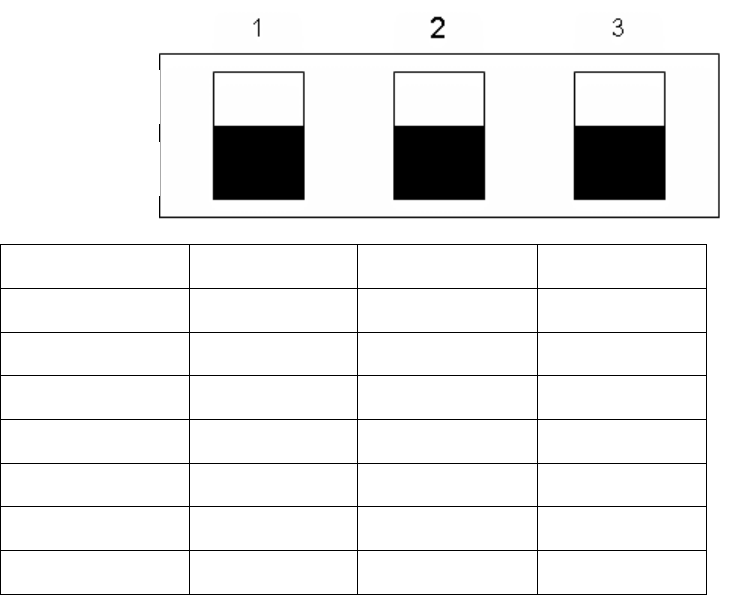

3.2 Dip Switch for Channel Selection
CH1 Down Down Down
CH2 Upper Down Down
CH3 Down Upper Down
CH4 Upper Upper Down
CH5 Down Down Upper
CH6 Upper Down Upper
CH7 Down Upper Upper
CH8 Upper Upper Upper
Upper
Down
![](/img.php?id=1056764&img=bg9.png)
4

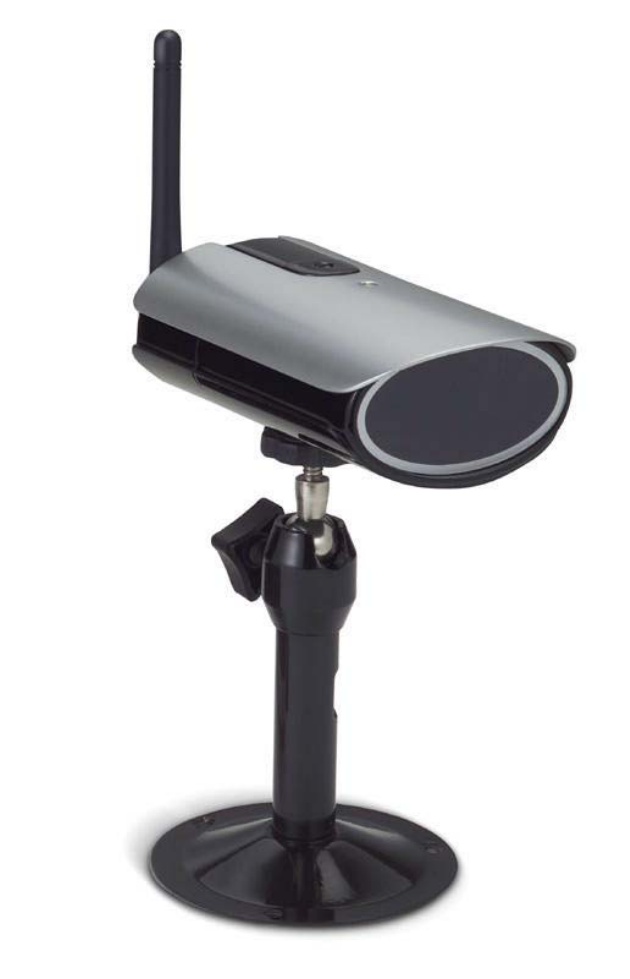

4. Photograph
4.1 Wireless CMOS Camera
